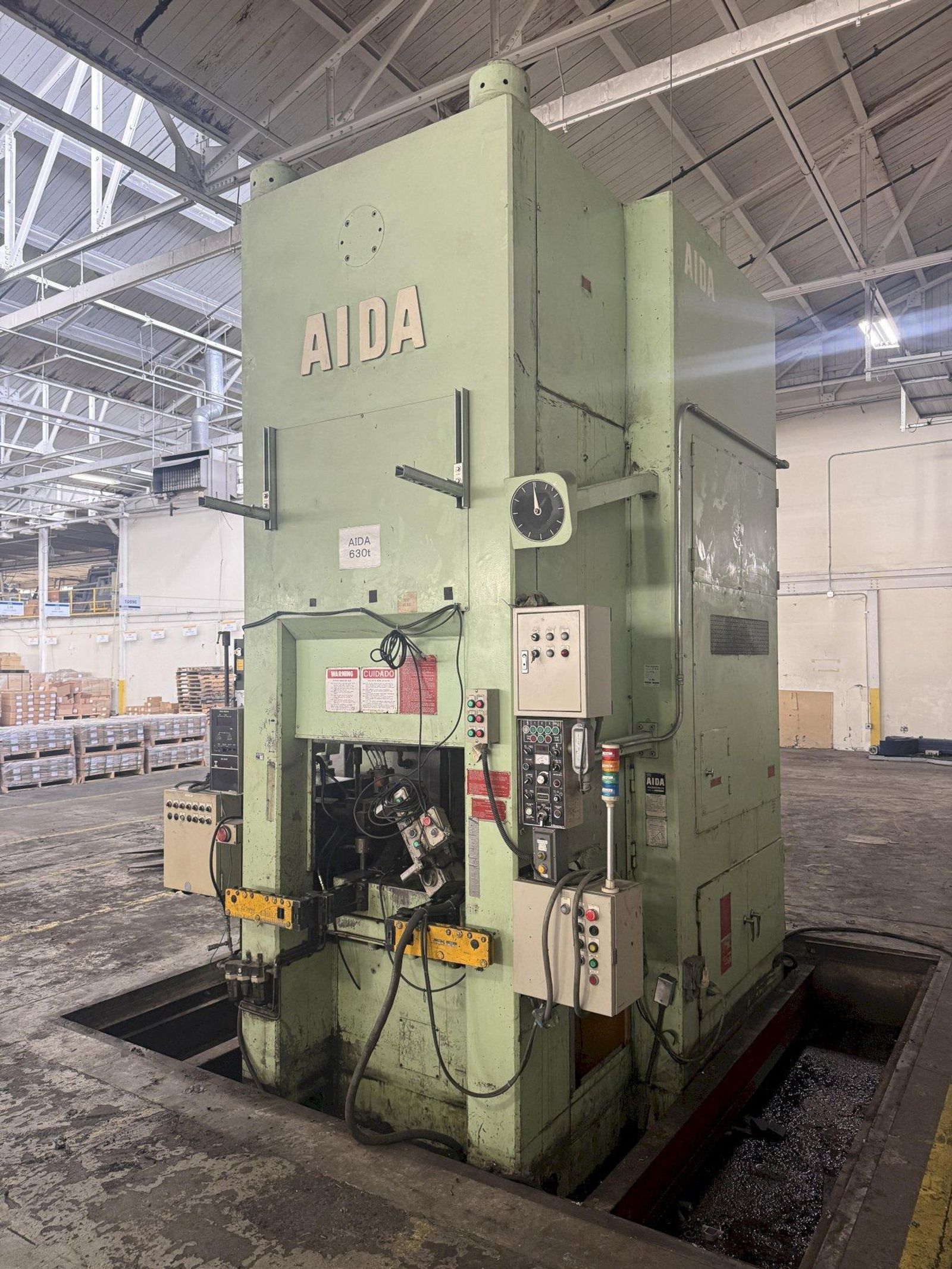

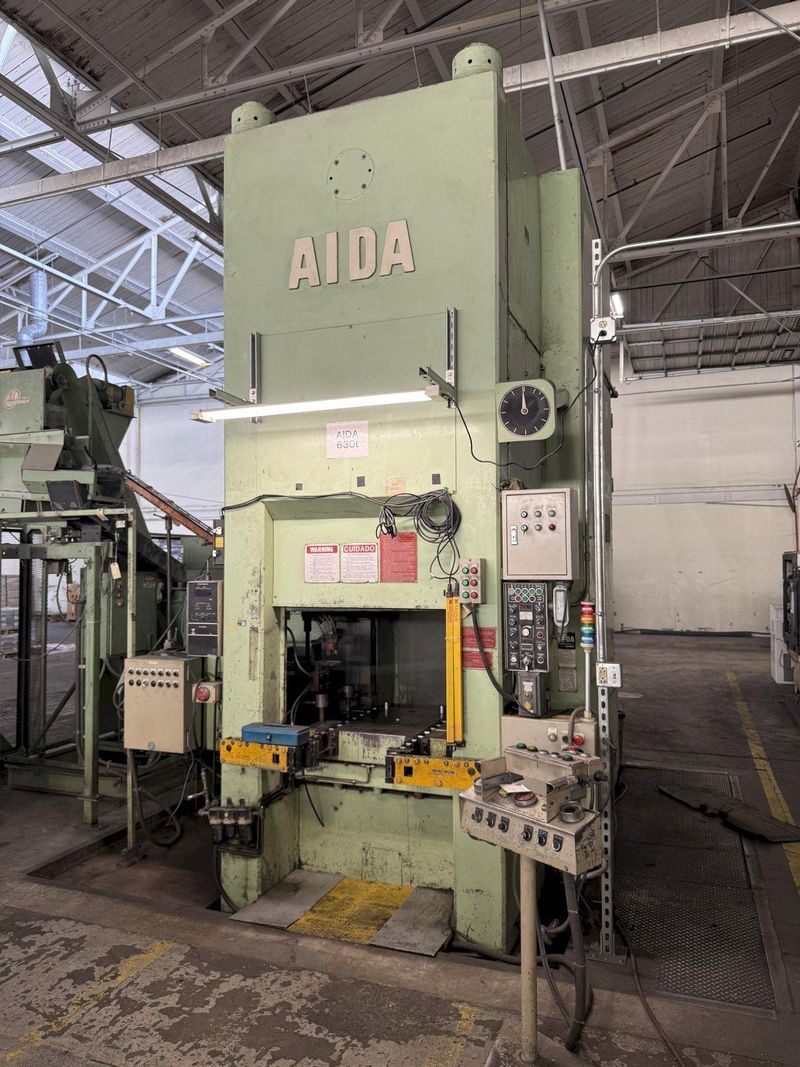

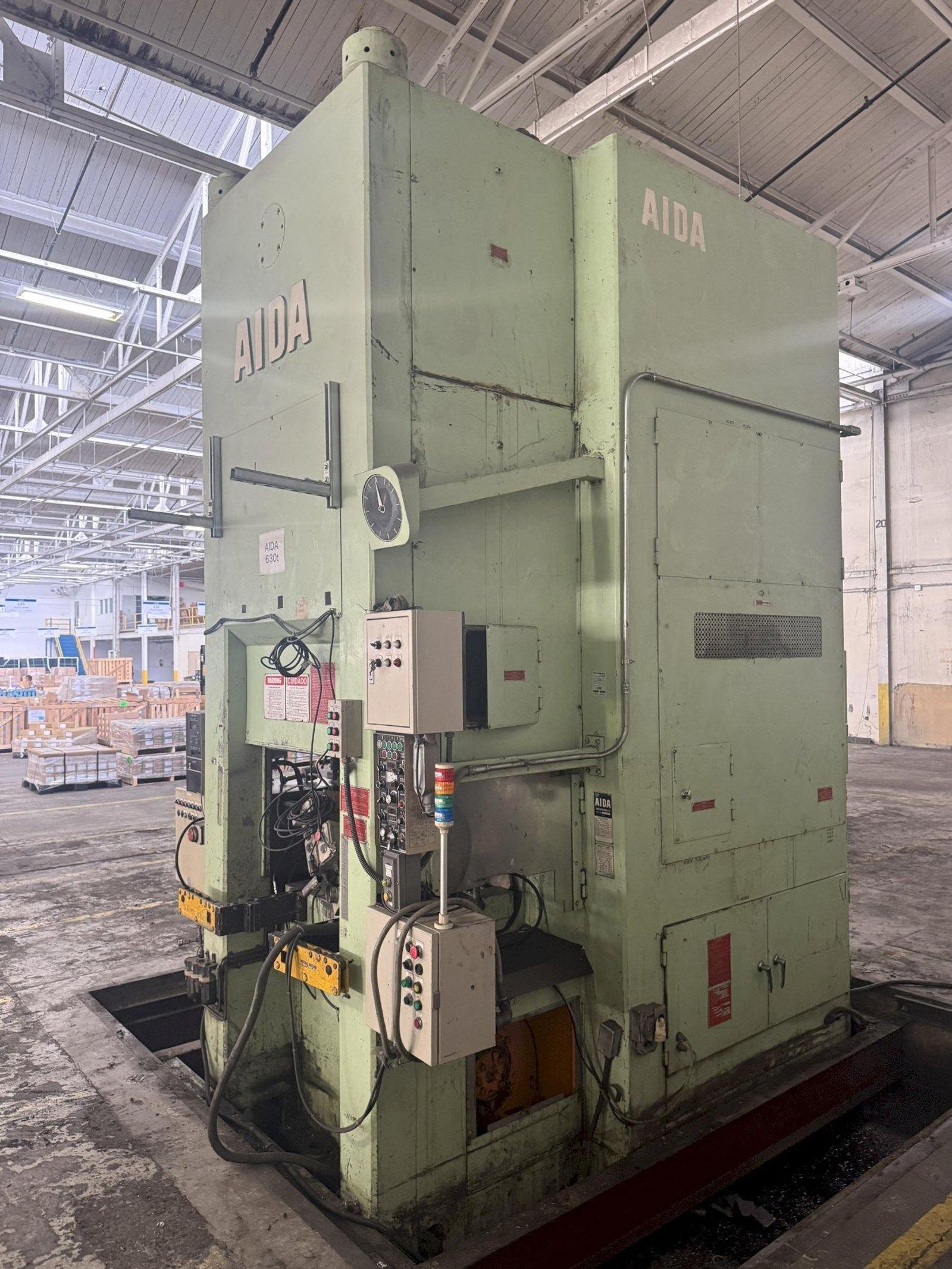

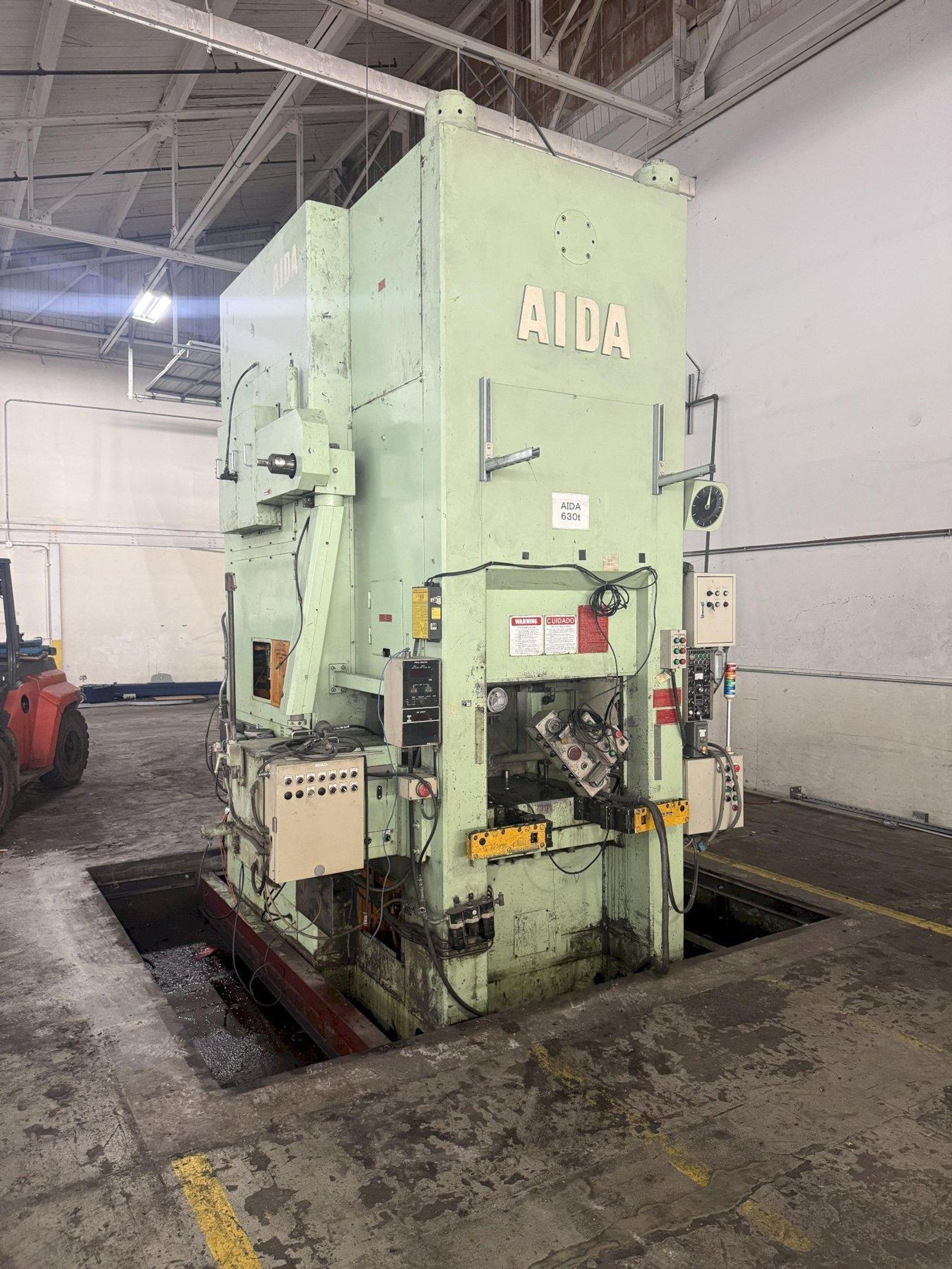

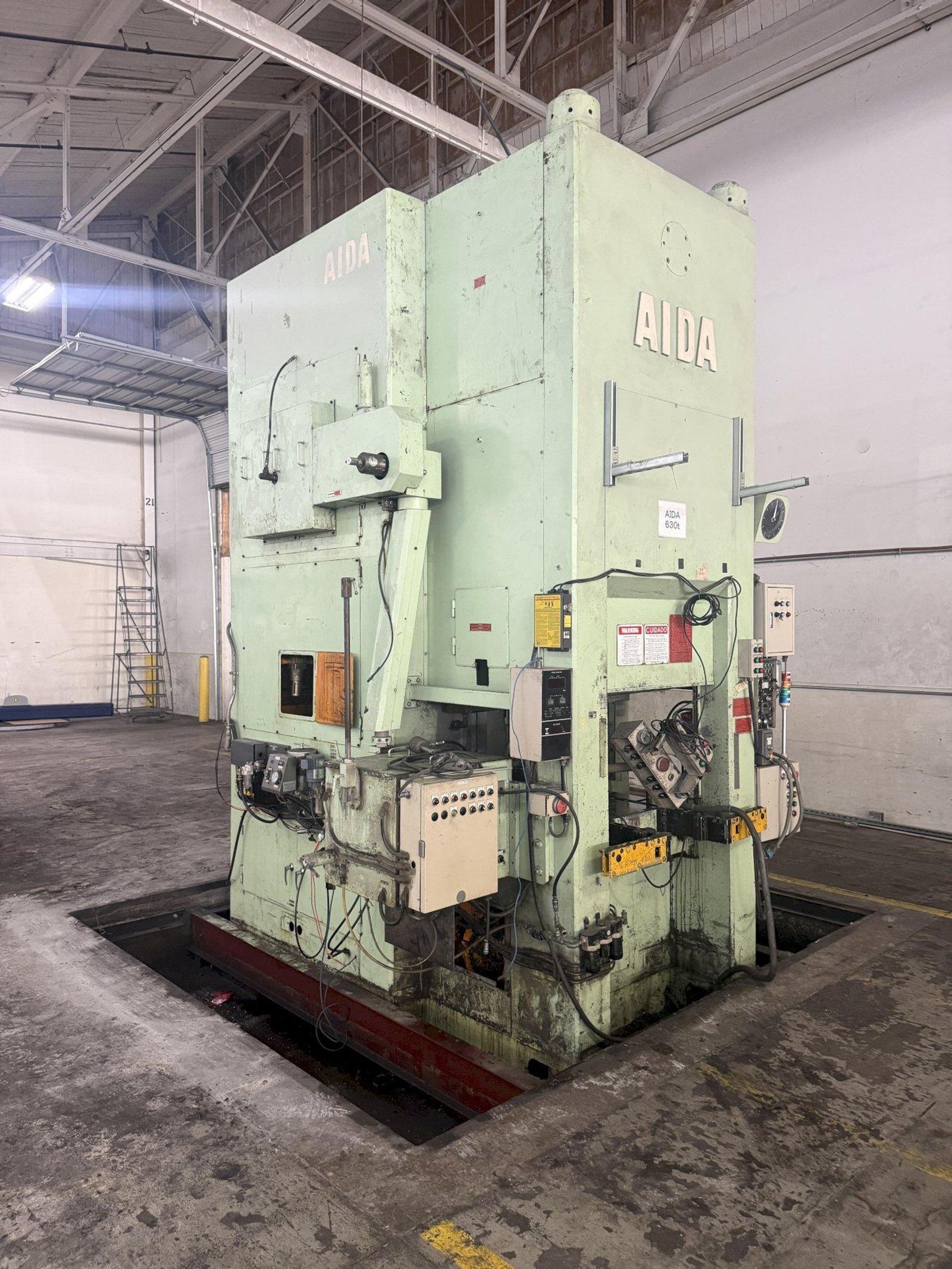

Brand
AIDA
Type
Presses, Knuckle Joint
Stock No.
25820
 |
419-269-2000 |
Stock #: 25820
SERIAL ....................... 10306-0220
YEAR NEW ..................... 1991
MODEL ........................ K-6300
STROKE ....................... 8.66” (220 mm)
SLIDE ADJUSTMENT ............. .59" (15 mm)
SLIDE / RAM AREA ............. 27.55" X 23.62" (700 x 600 mm)
BOLSTER / BED AREA ........... 31.49" X 27.55" (800 x 700 mm)
DIE HEIGHT ................... 21.65” (550 mm)
STROKES PER MINUTE ........... 25-40 SPM
FLOOR TO BOLSTER ............. 48"
RUN MODES .................... INCH, SINGLE, CONTINUOUS
BED KNOCKOUT TONNAGE ......... 30 TONS
BED KNOCKOUT STROKE .......... 4.33" (110 mm)
AIR CLUTCH ................... YES
AIR BRAKE .................... YES
AIR CONTERBALNACE ............ YES
DIE CLAMPING SYSTEM .......... YES
PALM BUTTON CONTROL STATION .. YES
LIGHT CURTAINS ............... YES
MOTOR ........................ 45 kW

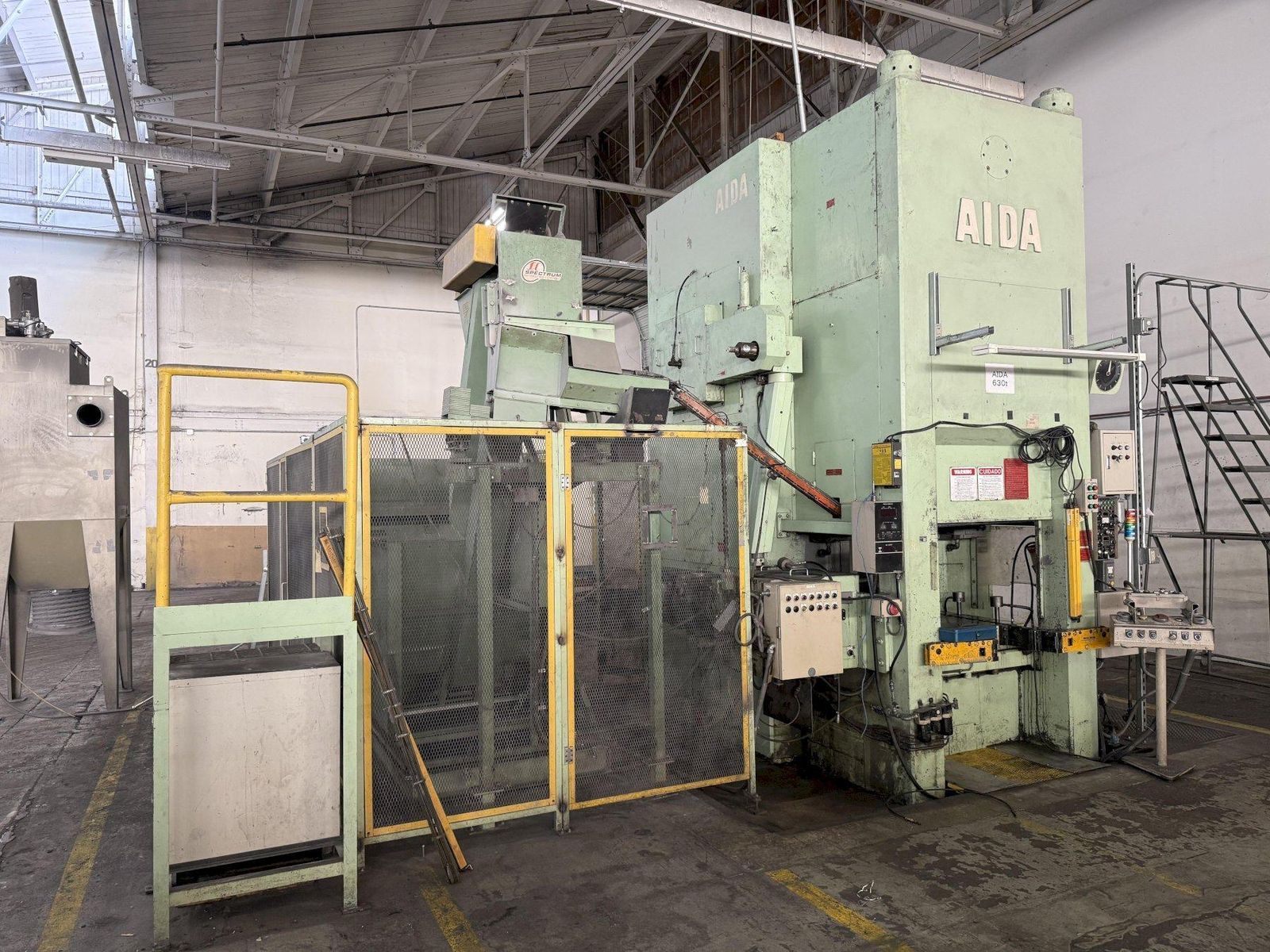

INFEED PARTS SYSTEM:
DUMP HOPPER
HERCULES INCLINED PARTS CONVEYOR
PICK-N-PLACE ARM
