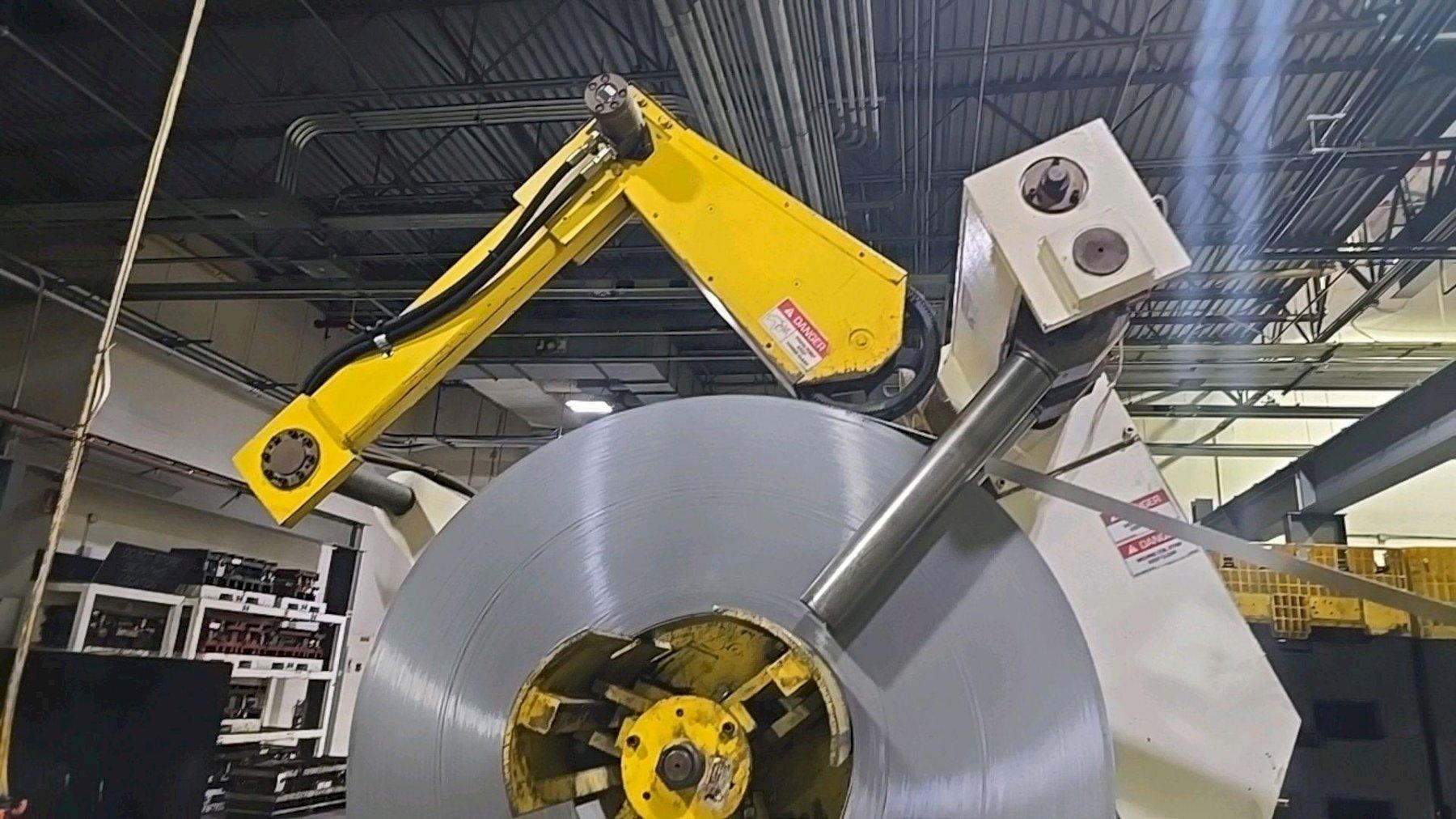

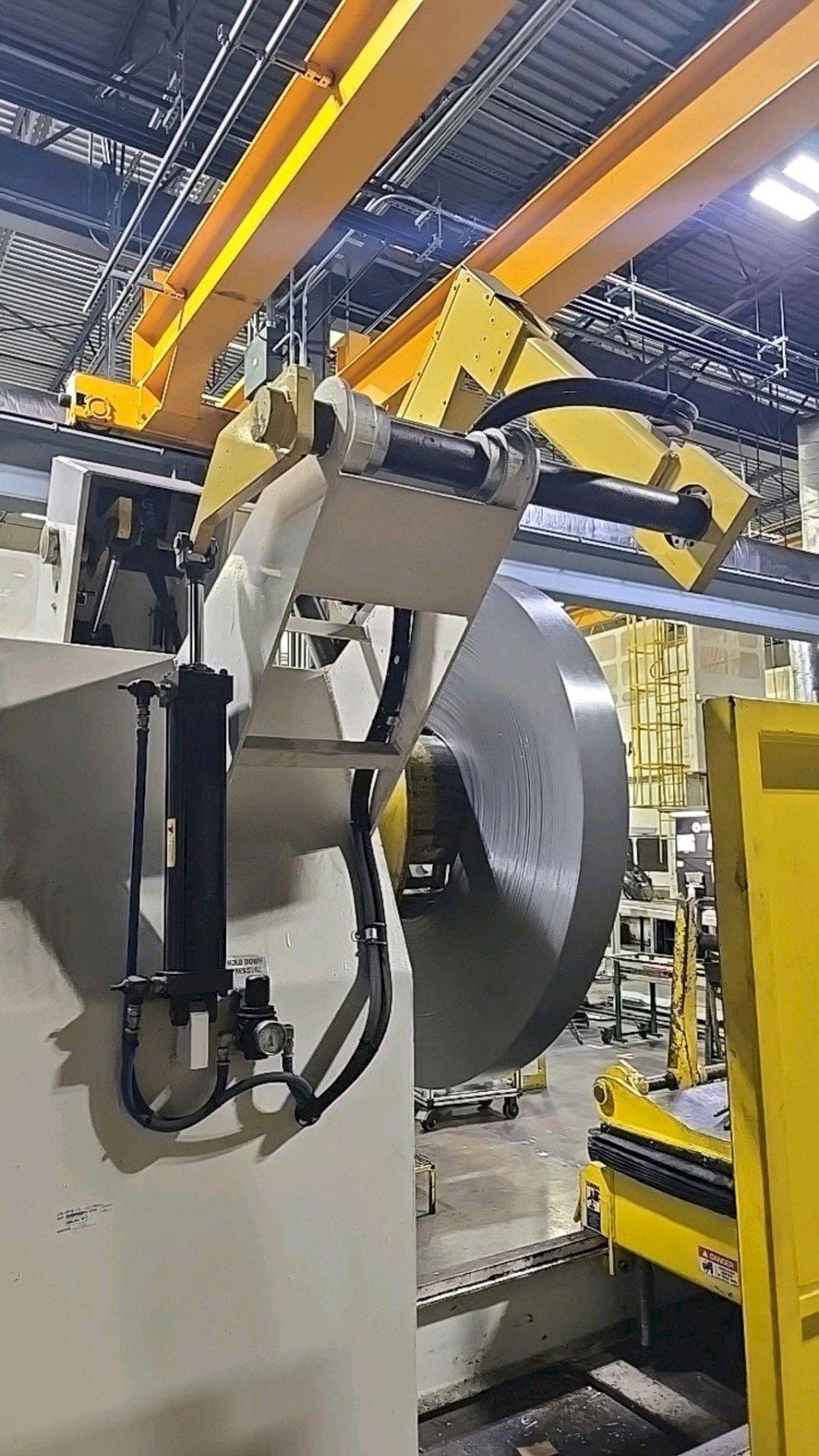

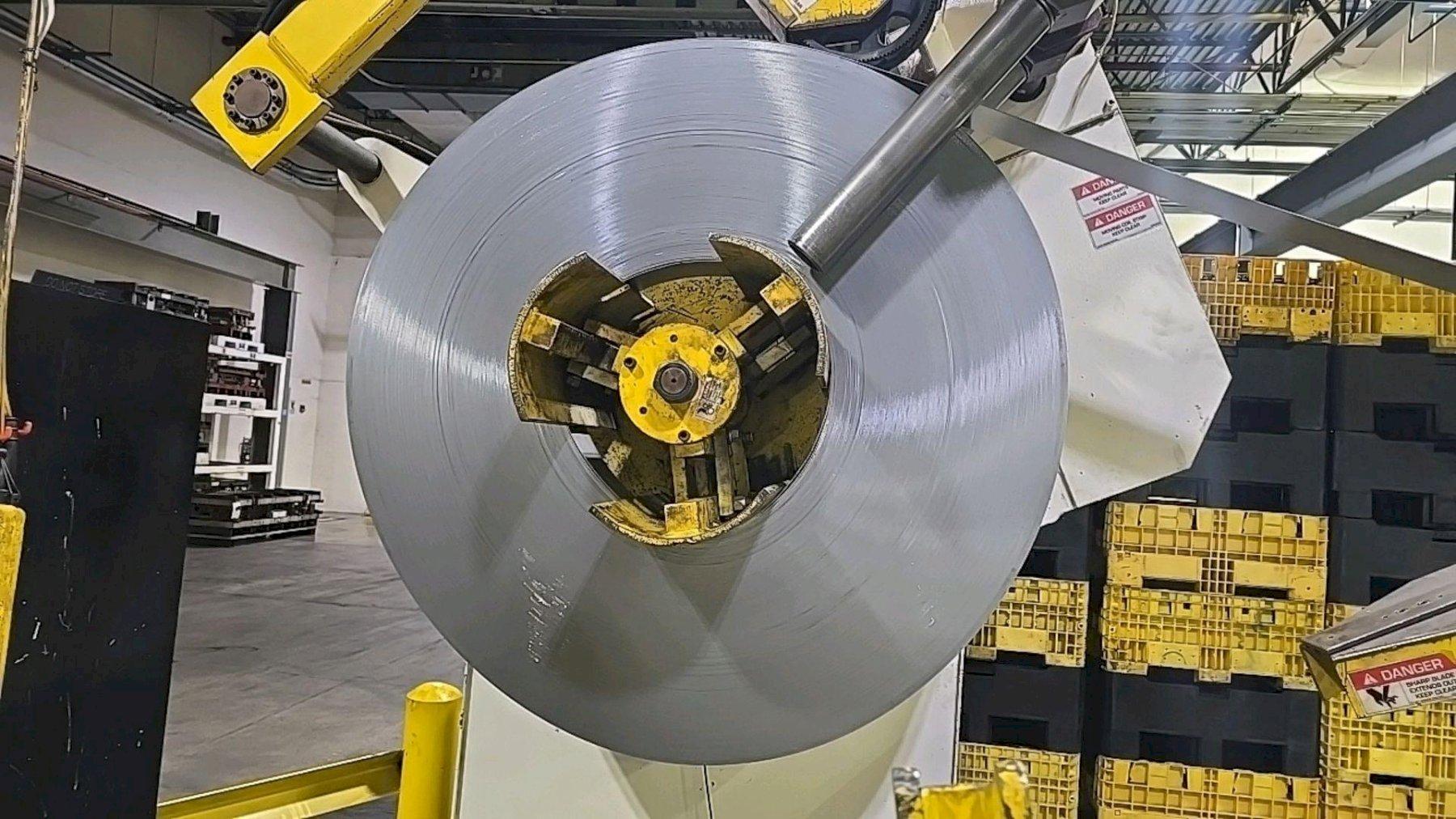

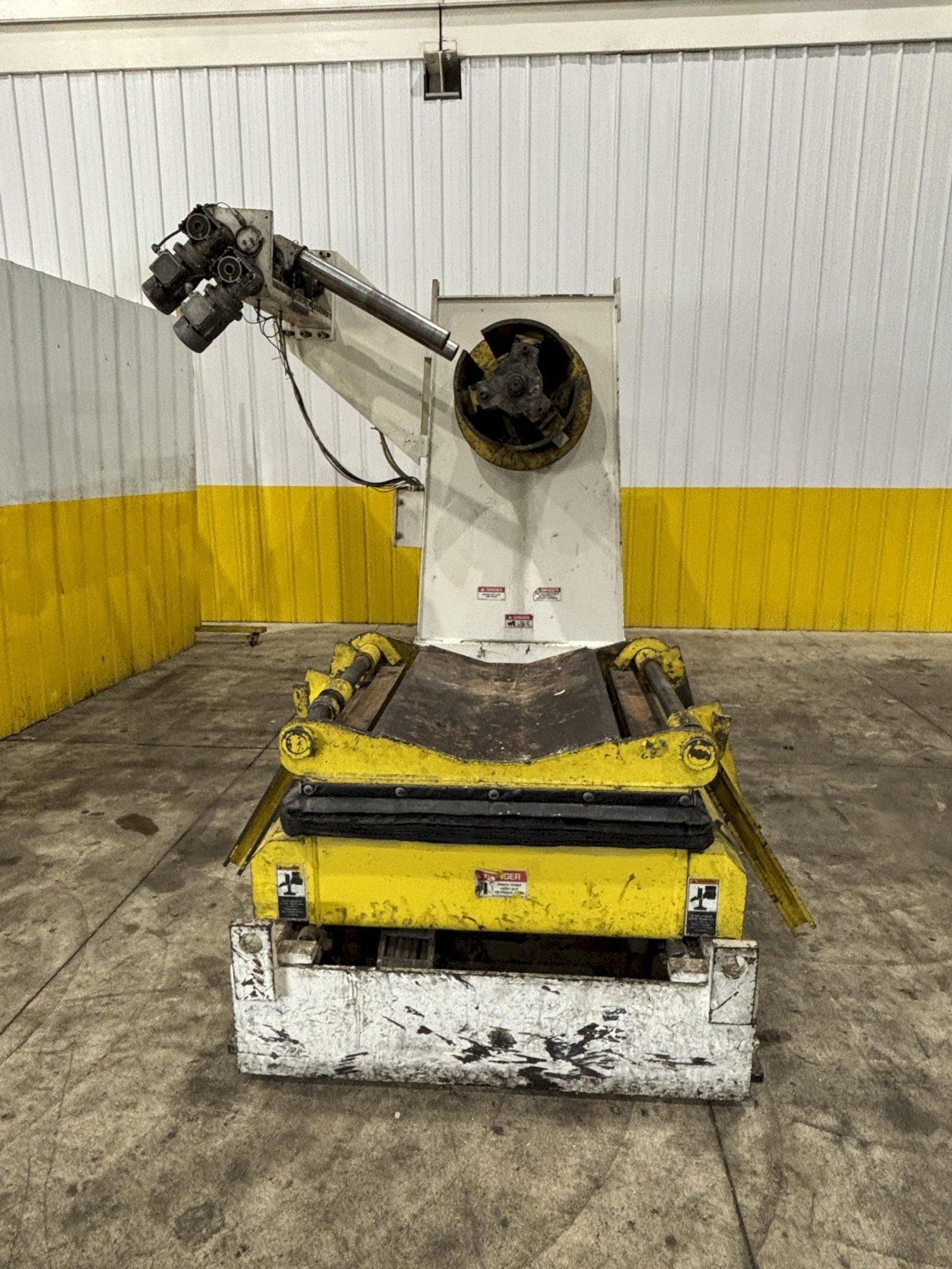

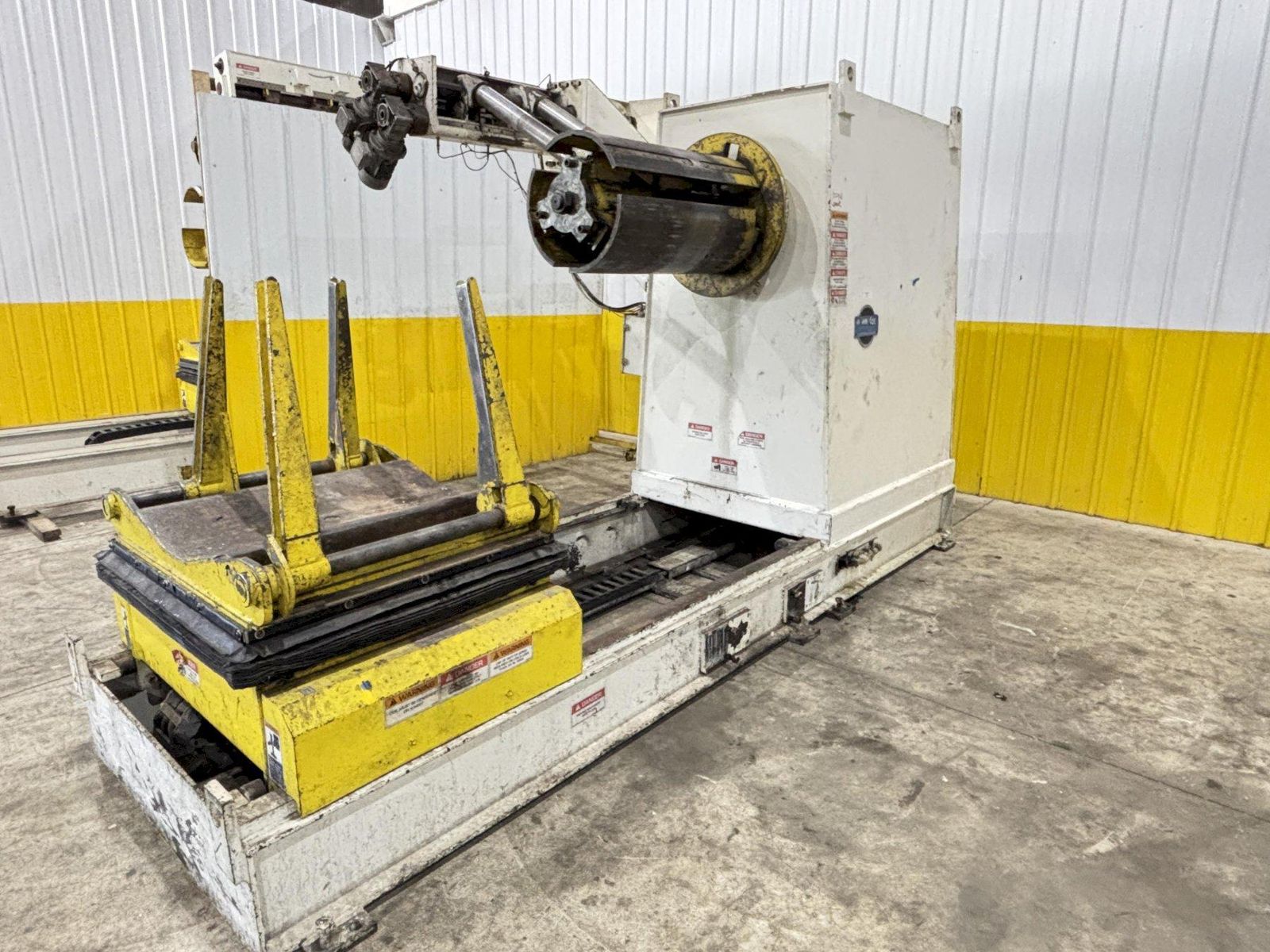

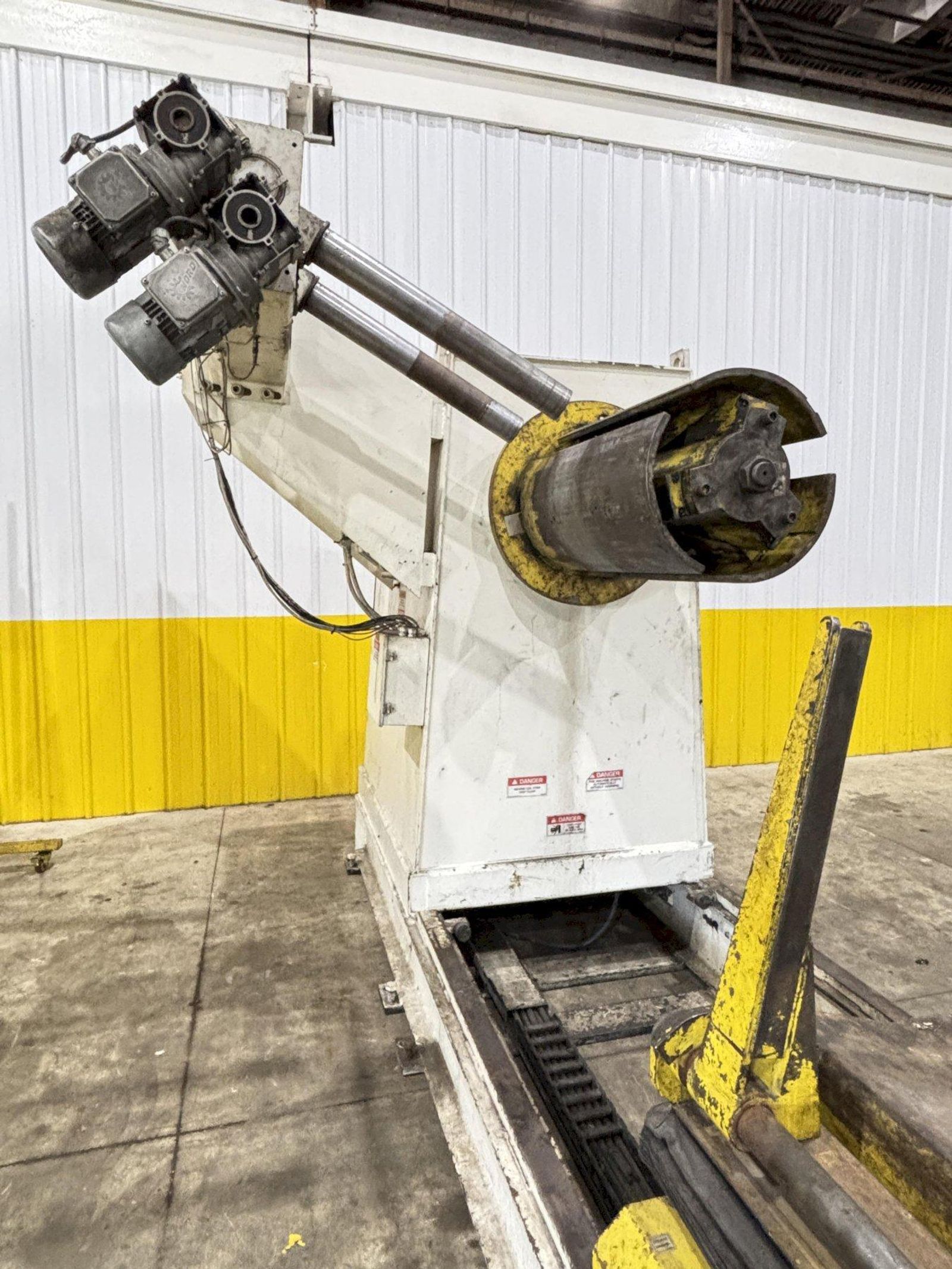

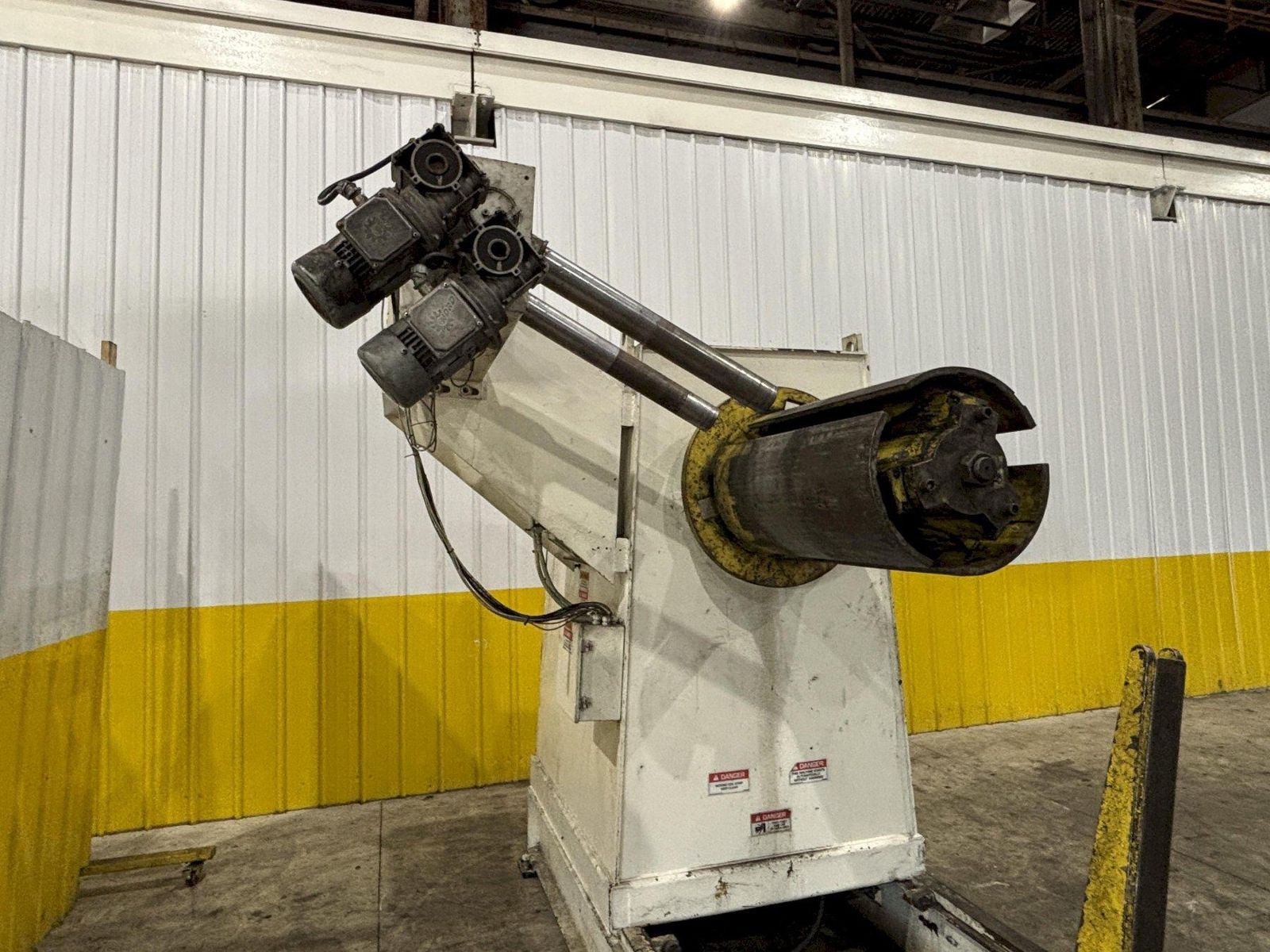

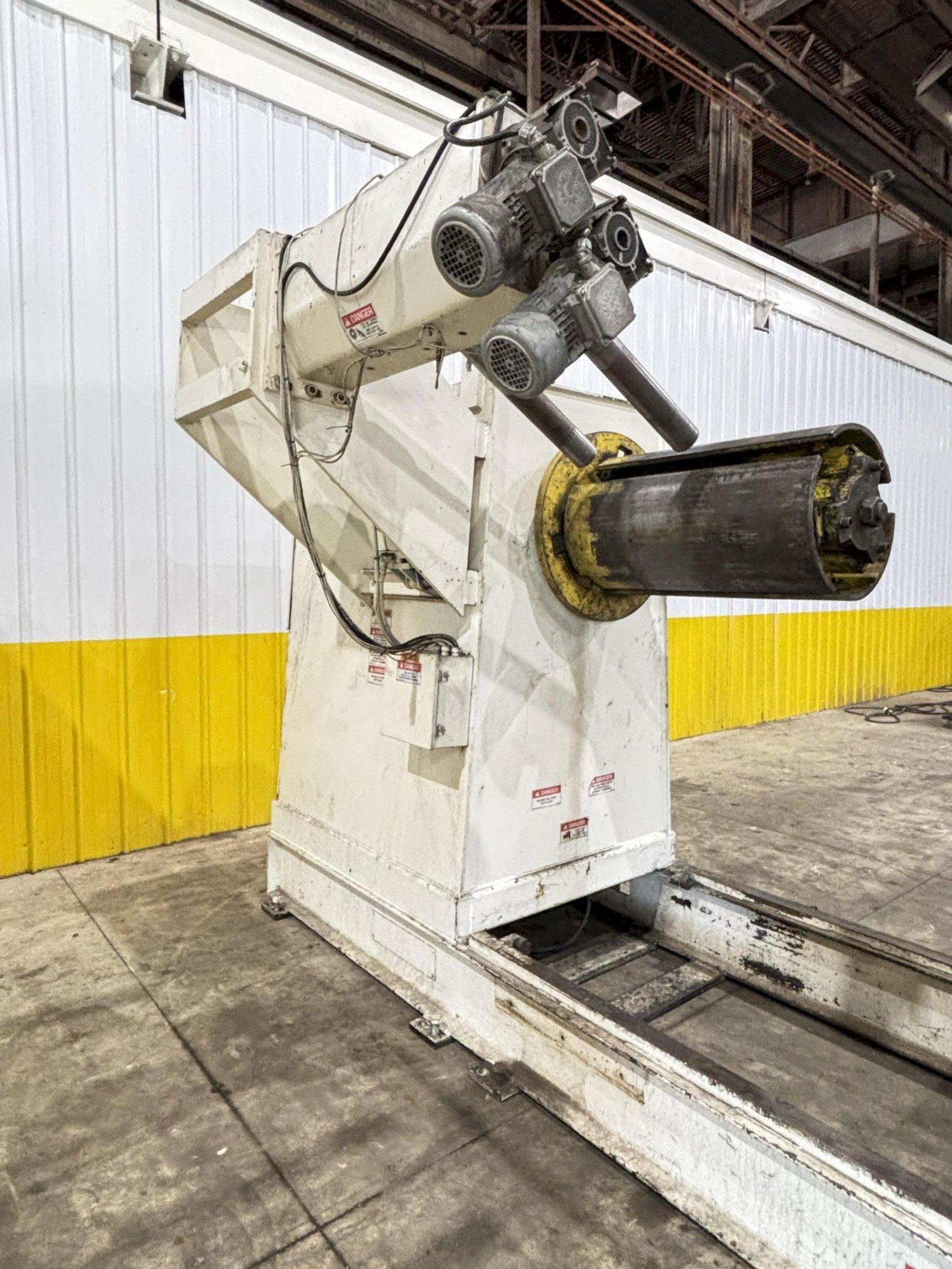

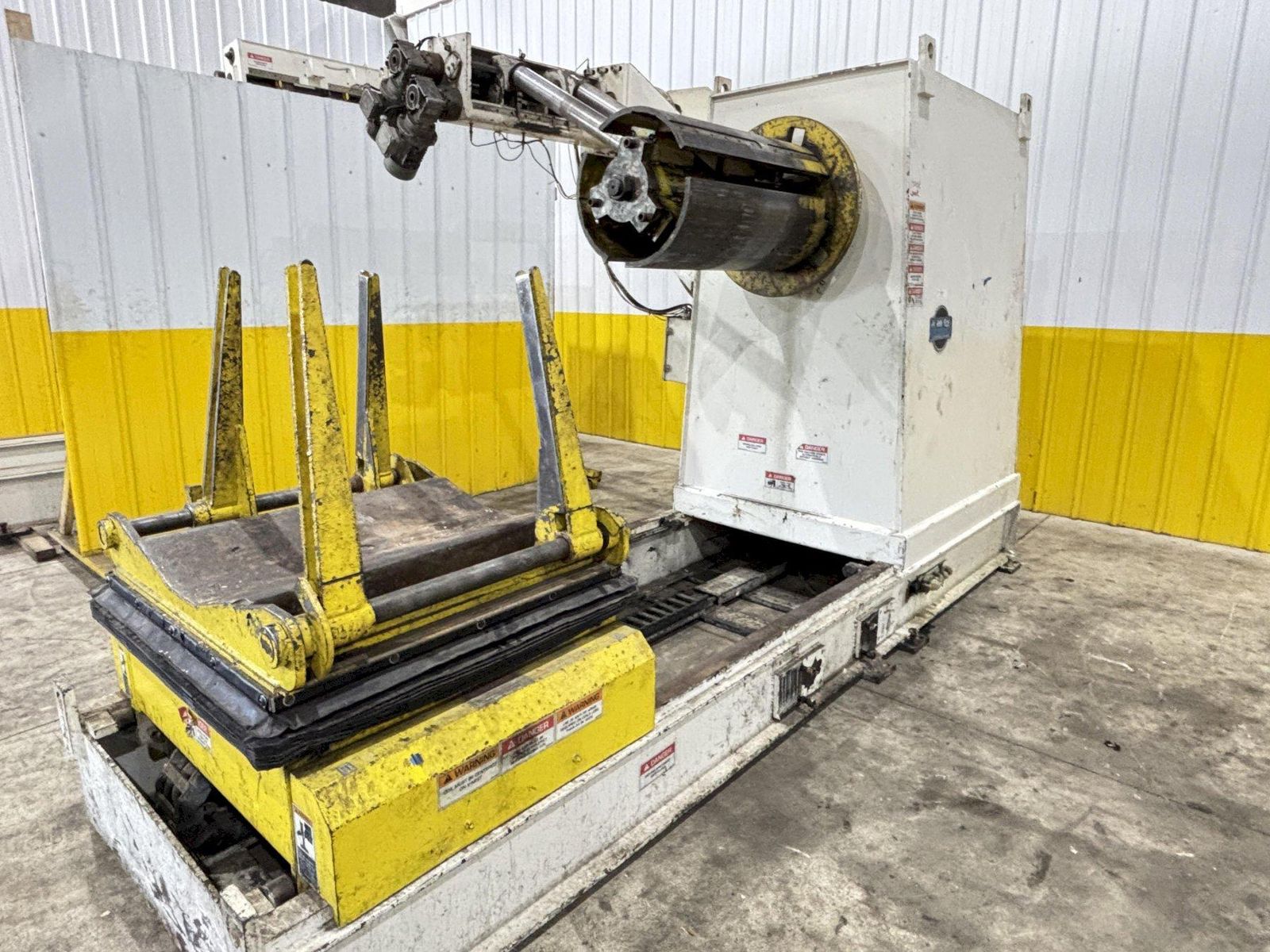

UNCOILER
6000#
Min. Width: 18”
Max. Width: 36”
Standard Coil Outside Diameter: 60”

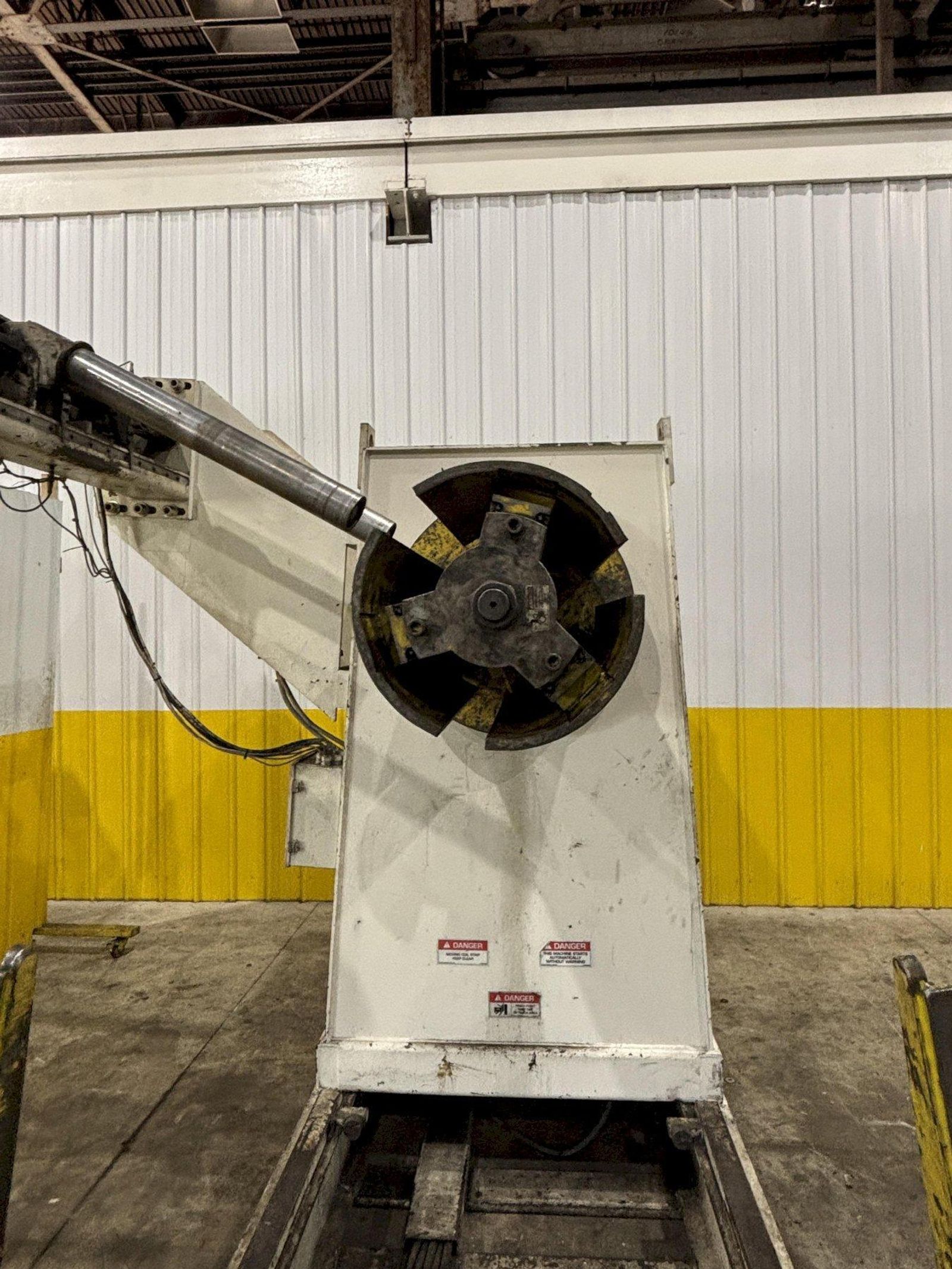

Mandrel Expansion Range: 16”-21”
Heavy Duty Backplate Diameter: 30”

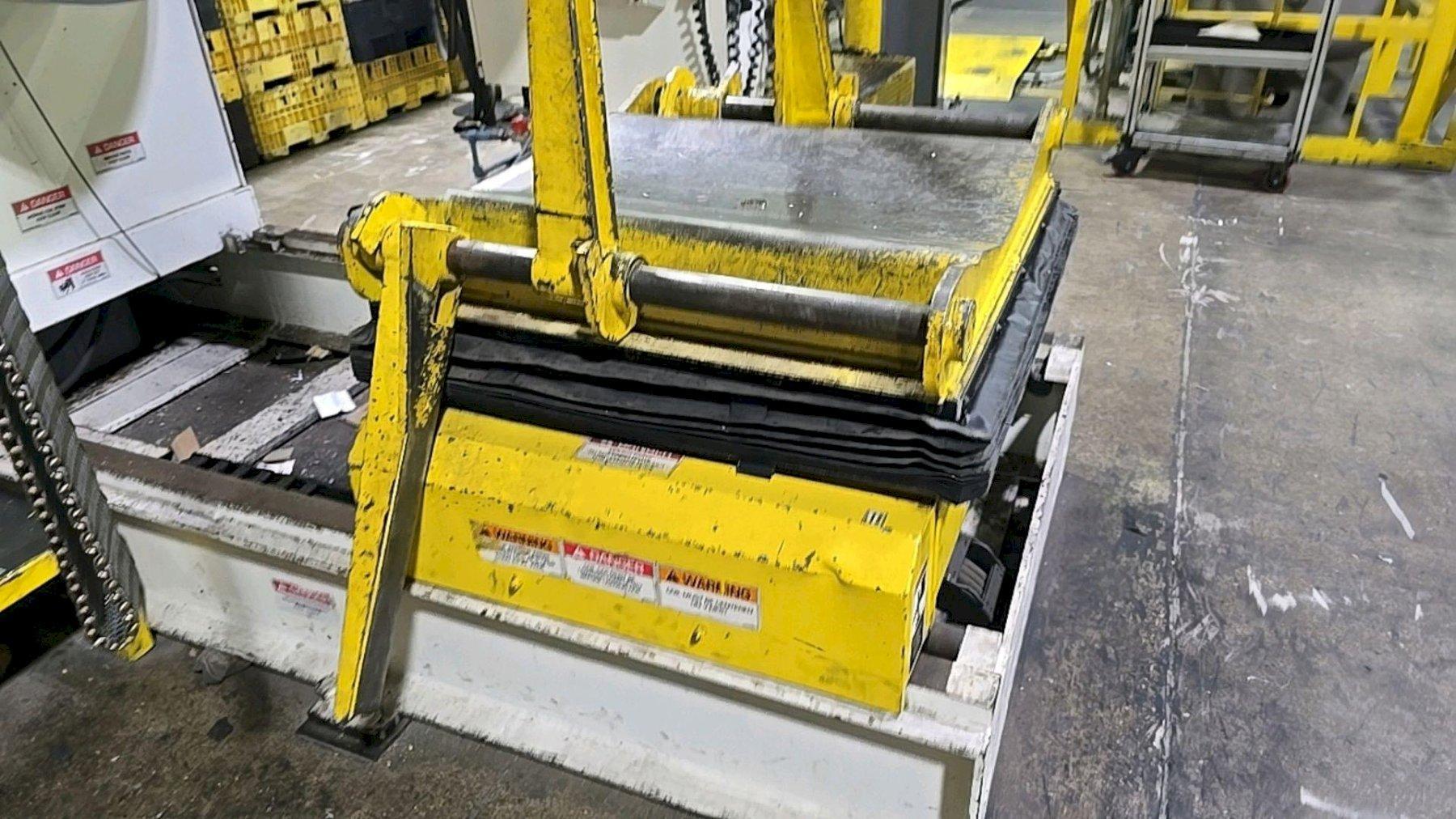

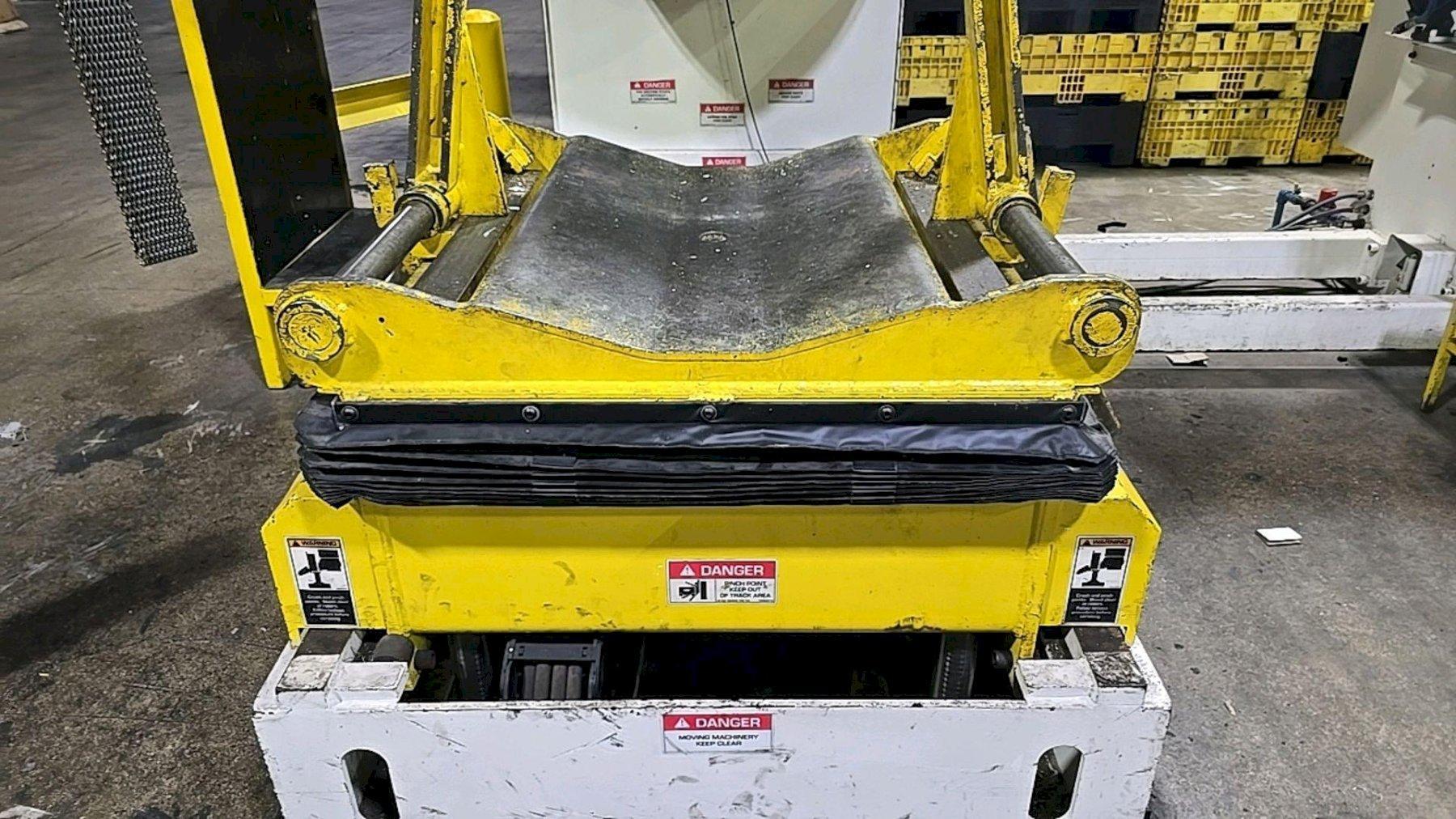

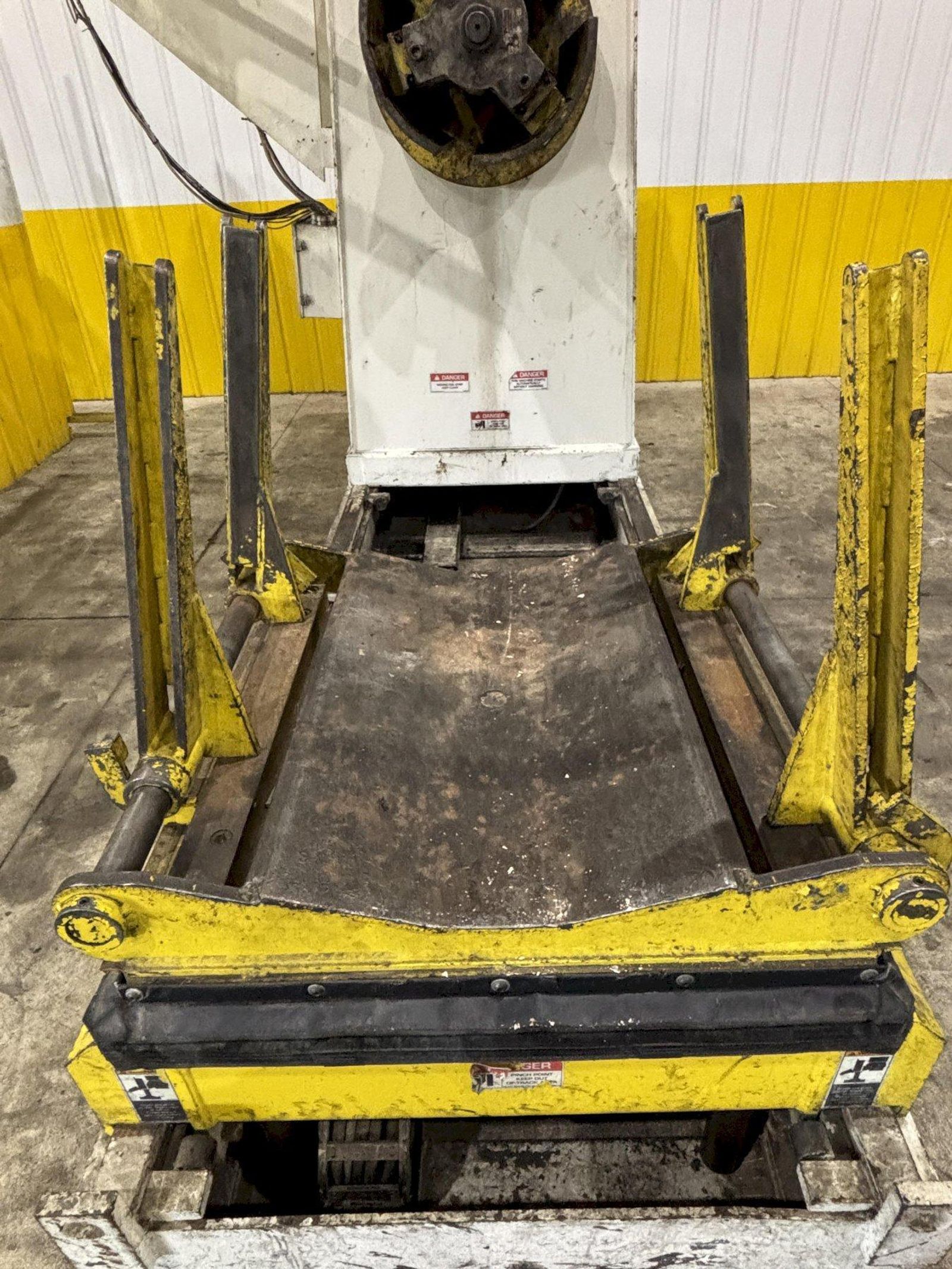

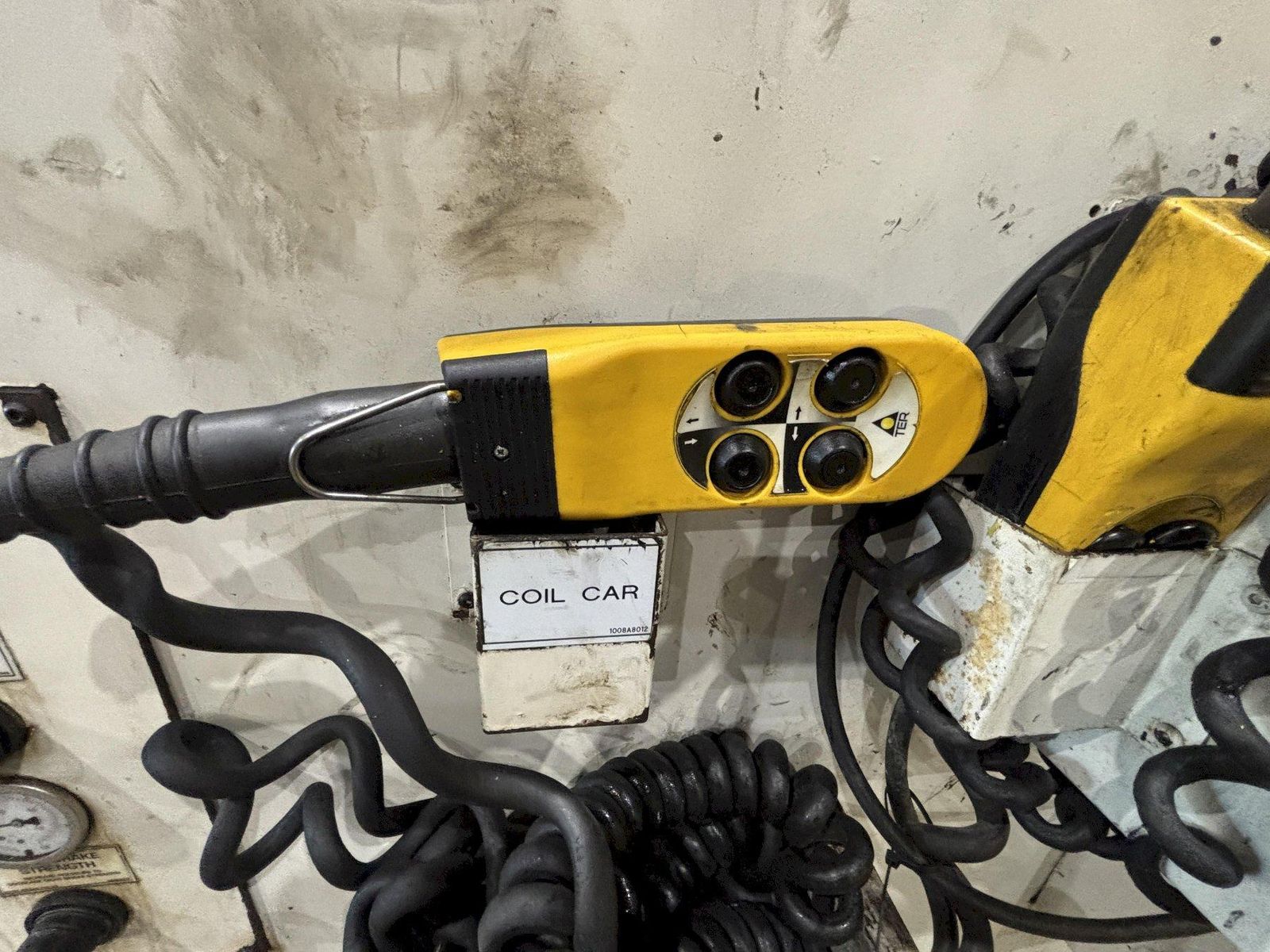

COIL CAR
Coil Car 40"x34"
Max. Capacity: 15,000 lbs
Car Travel: 56”

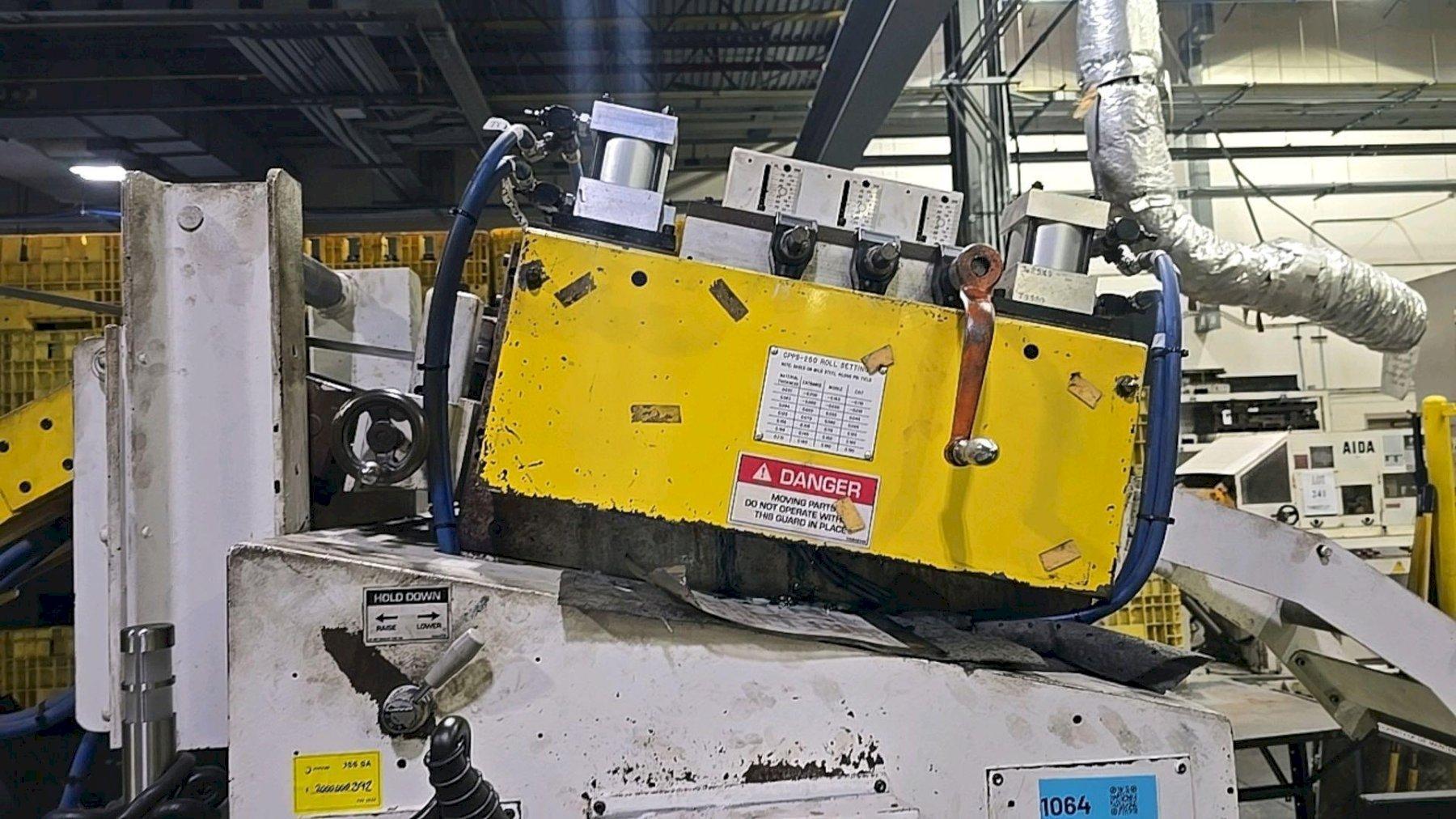

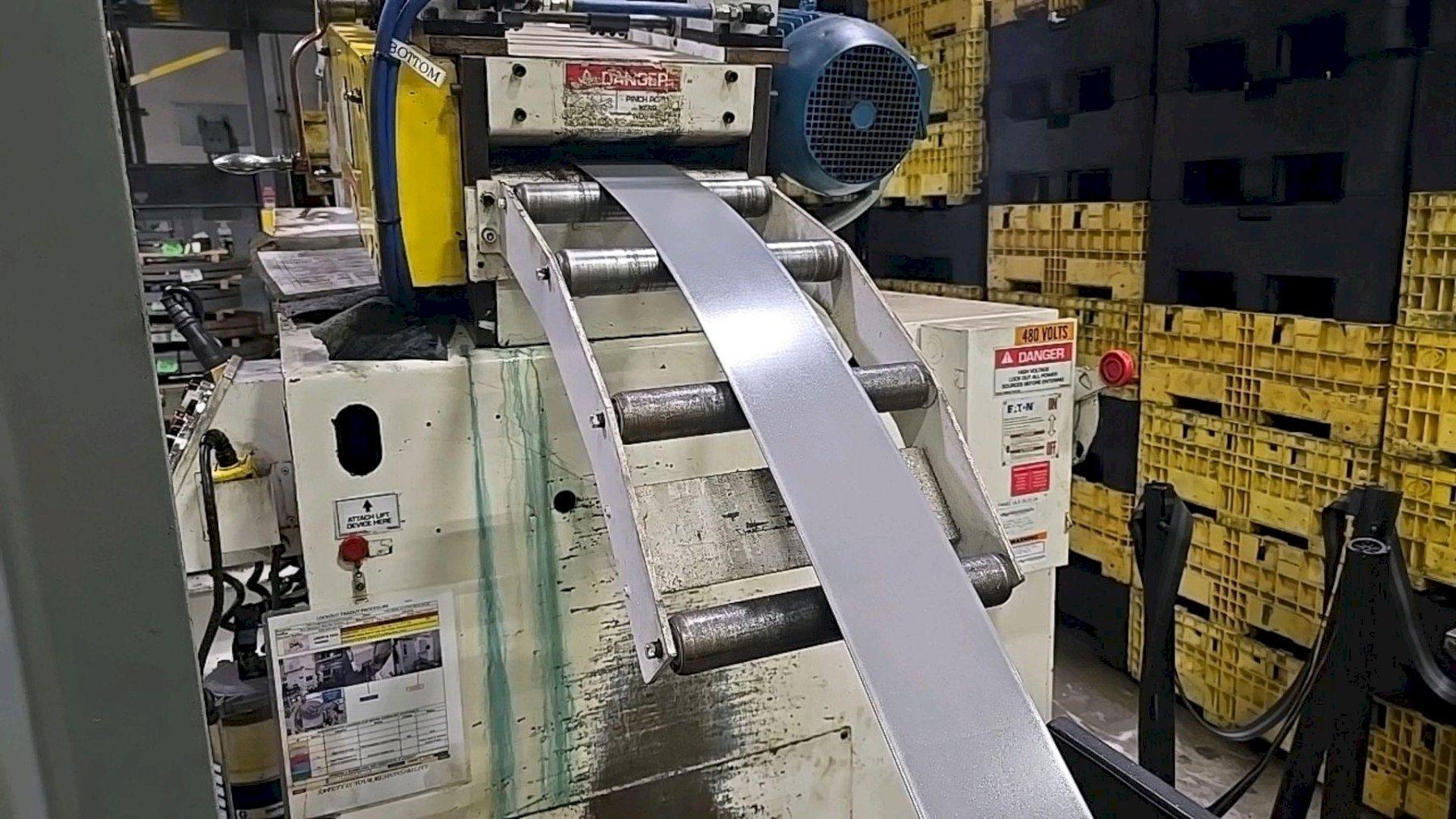

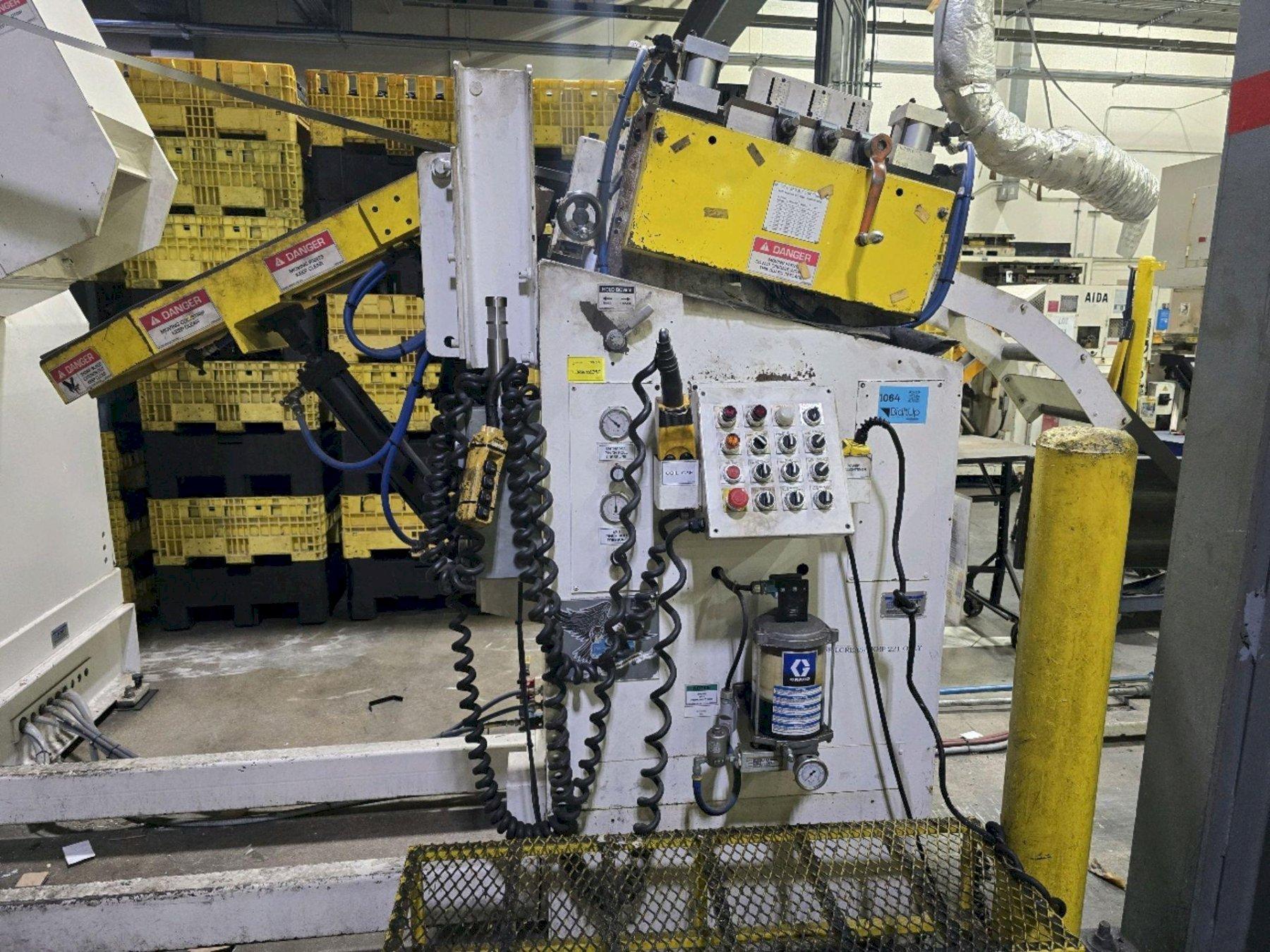

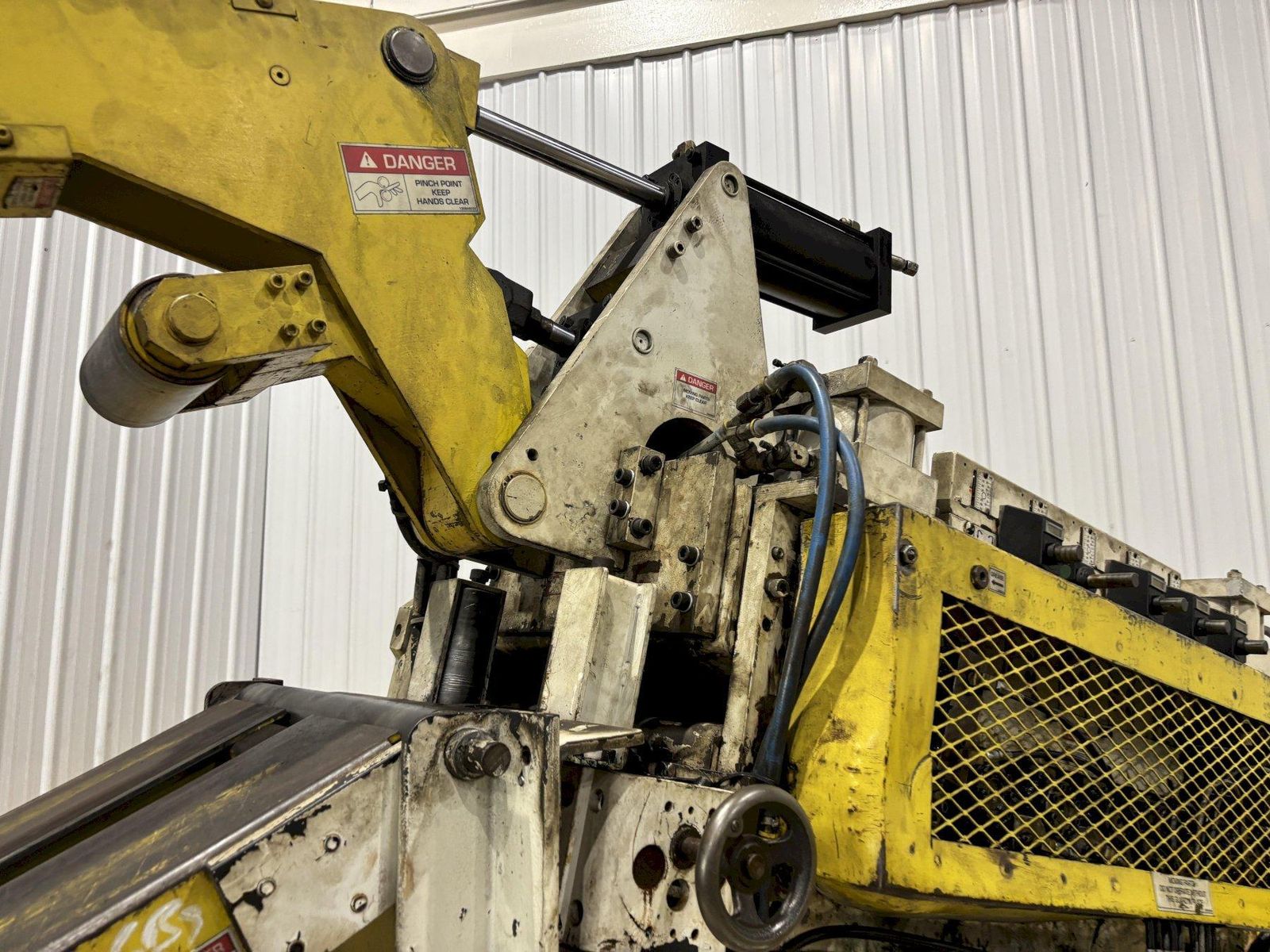

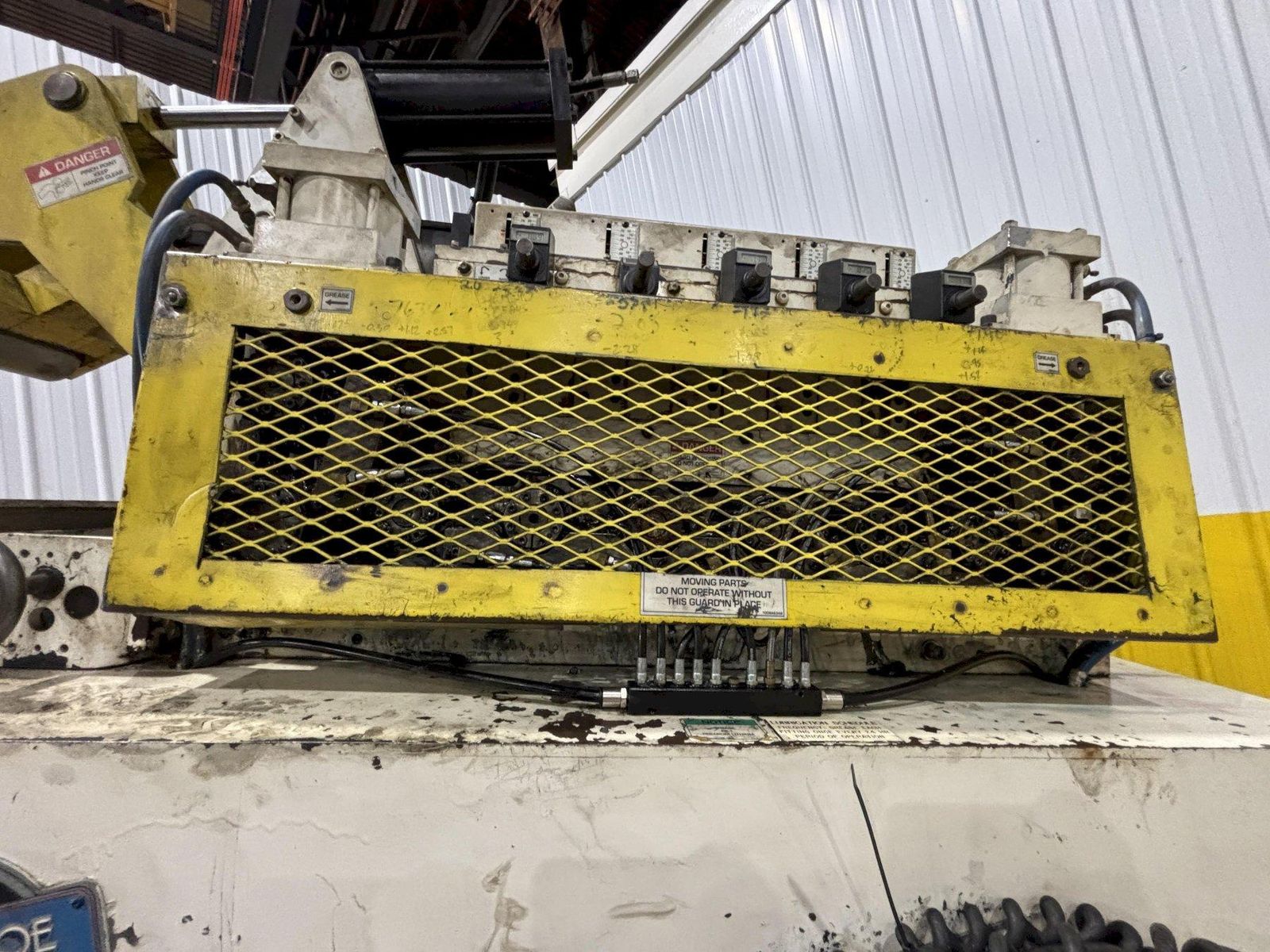

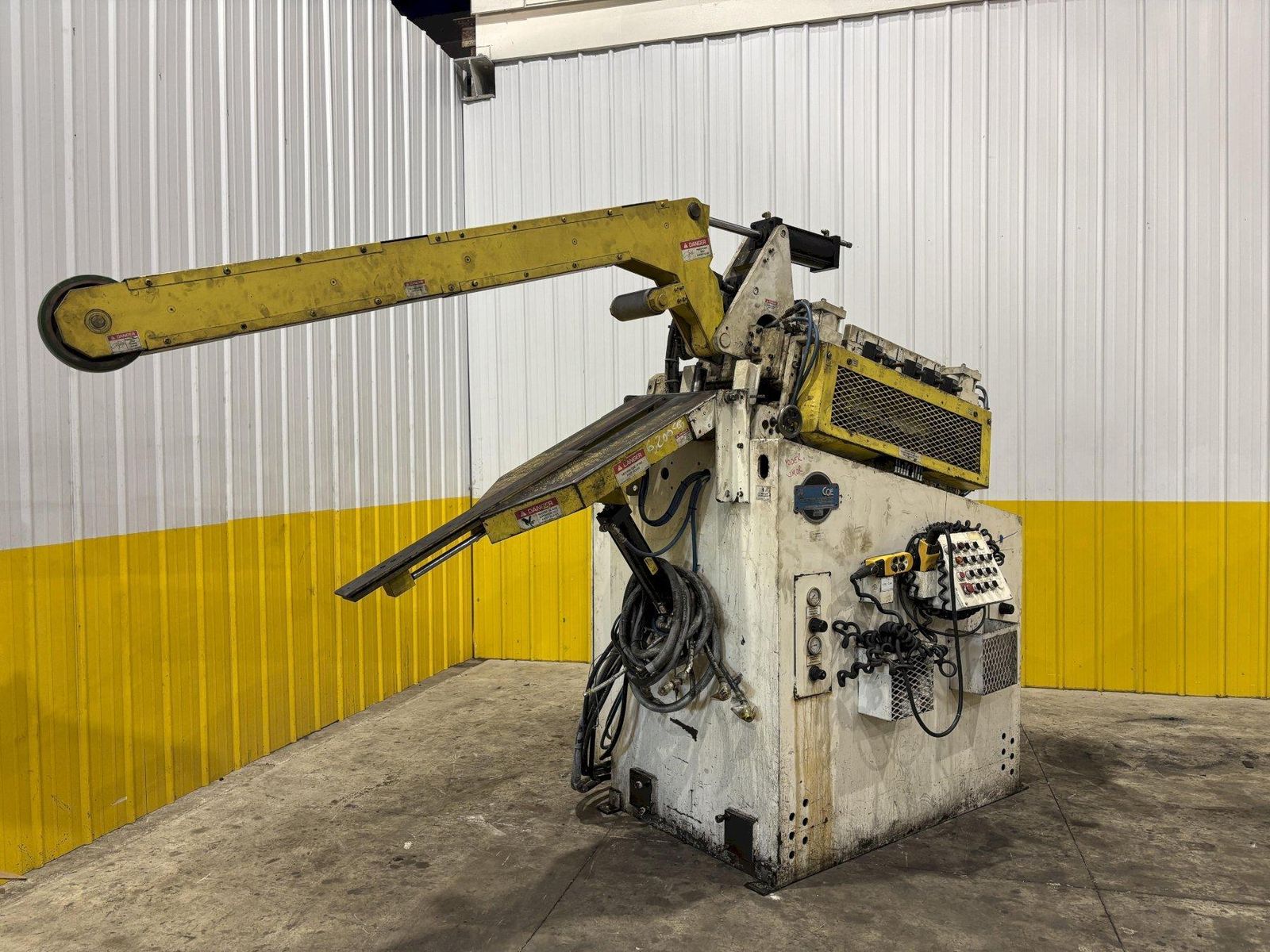

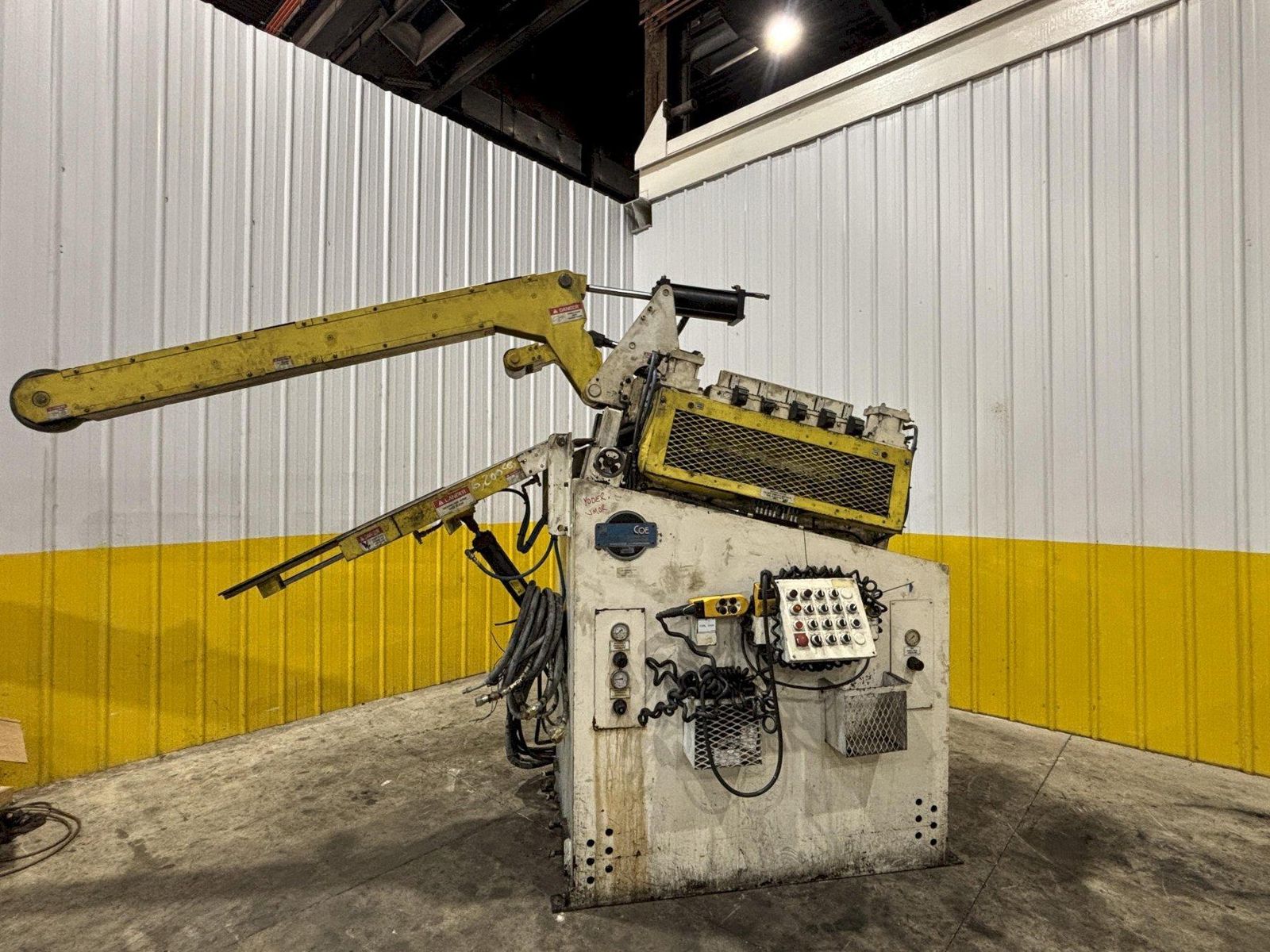

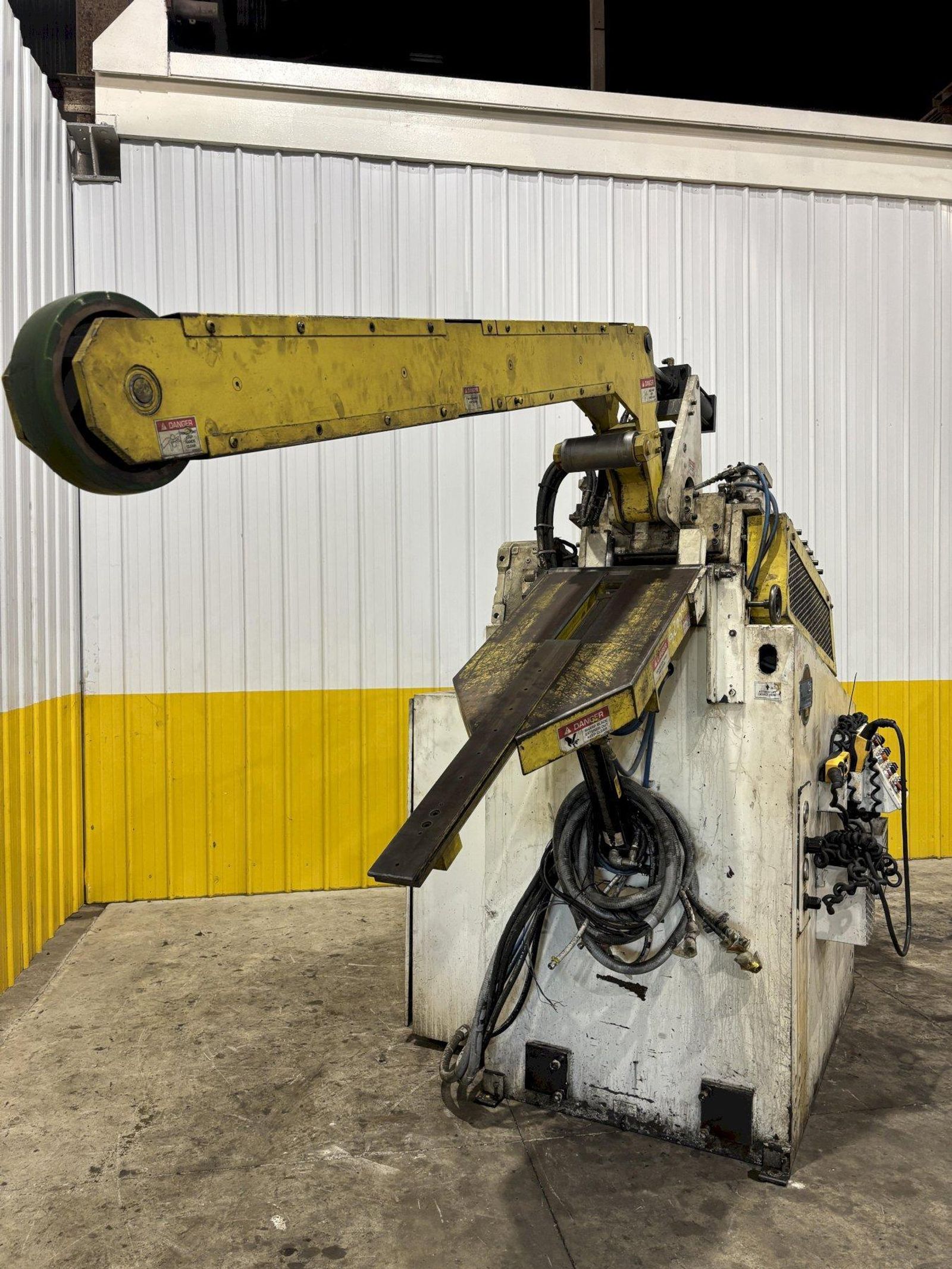

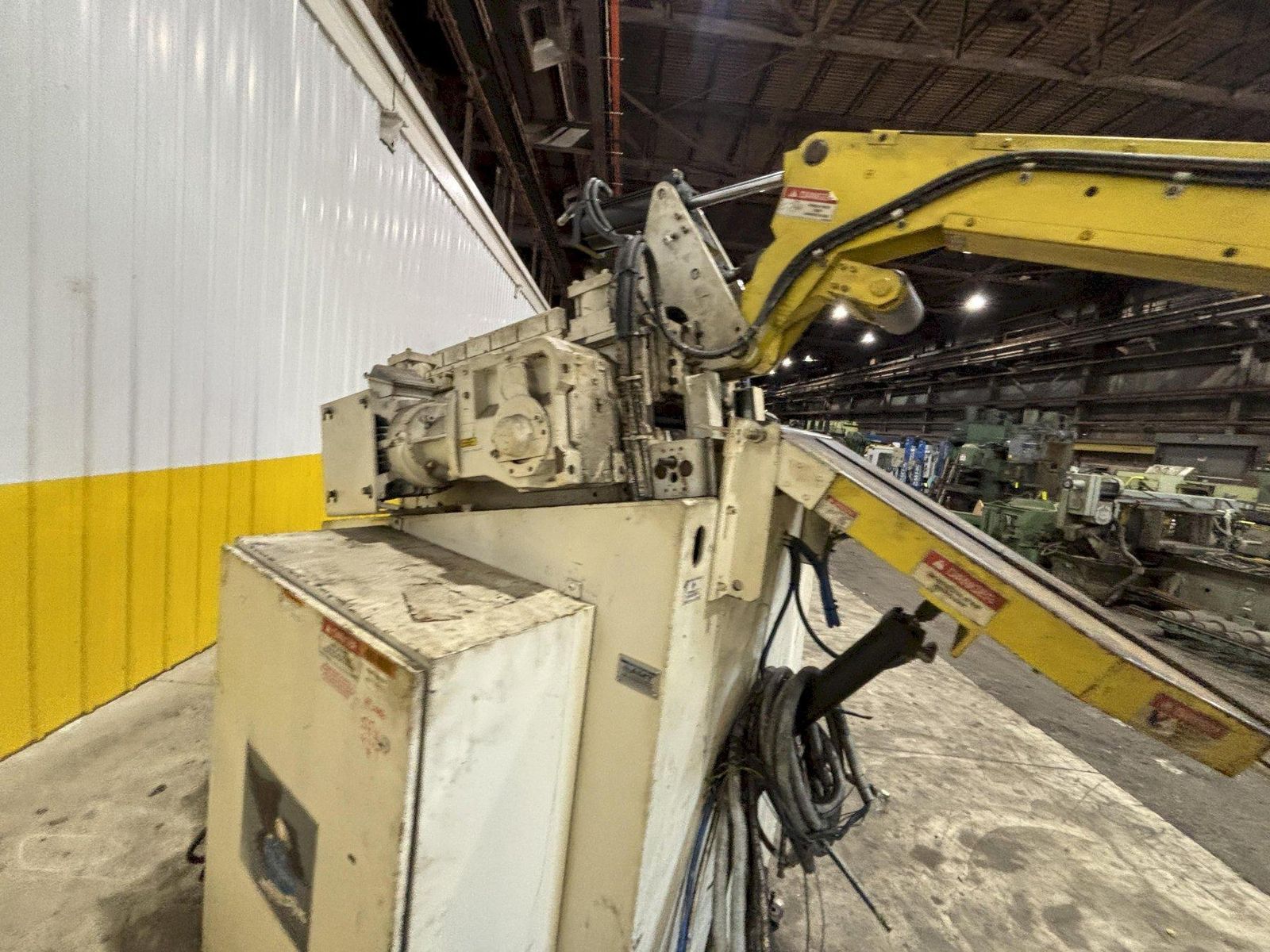

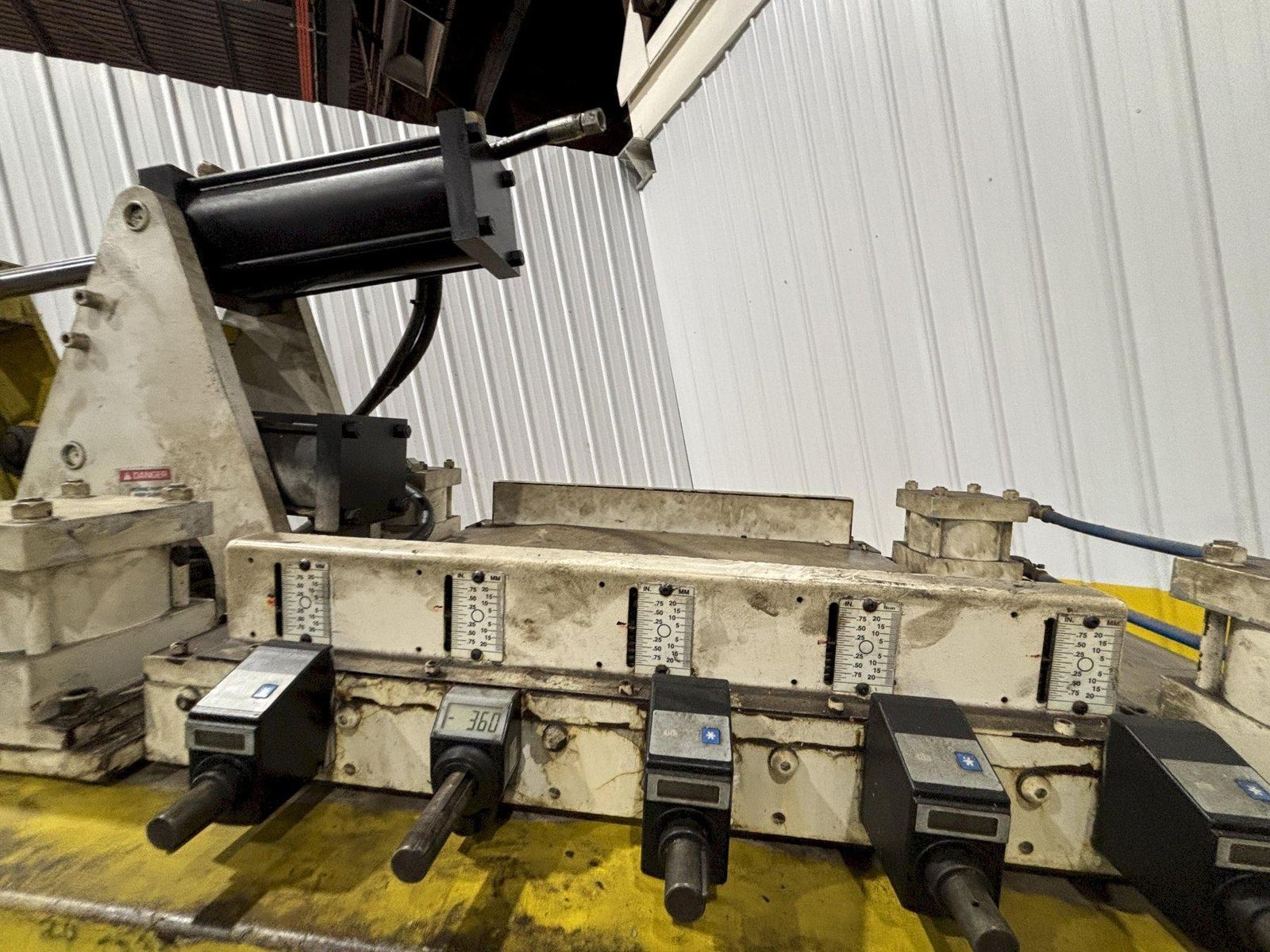

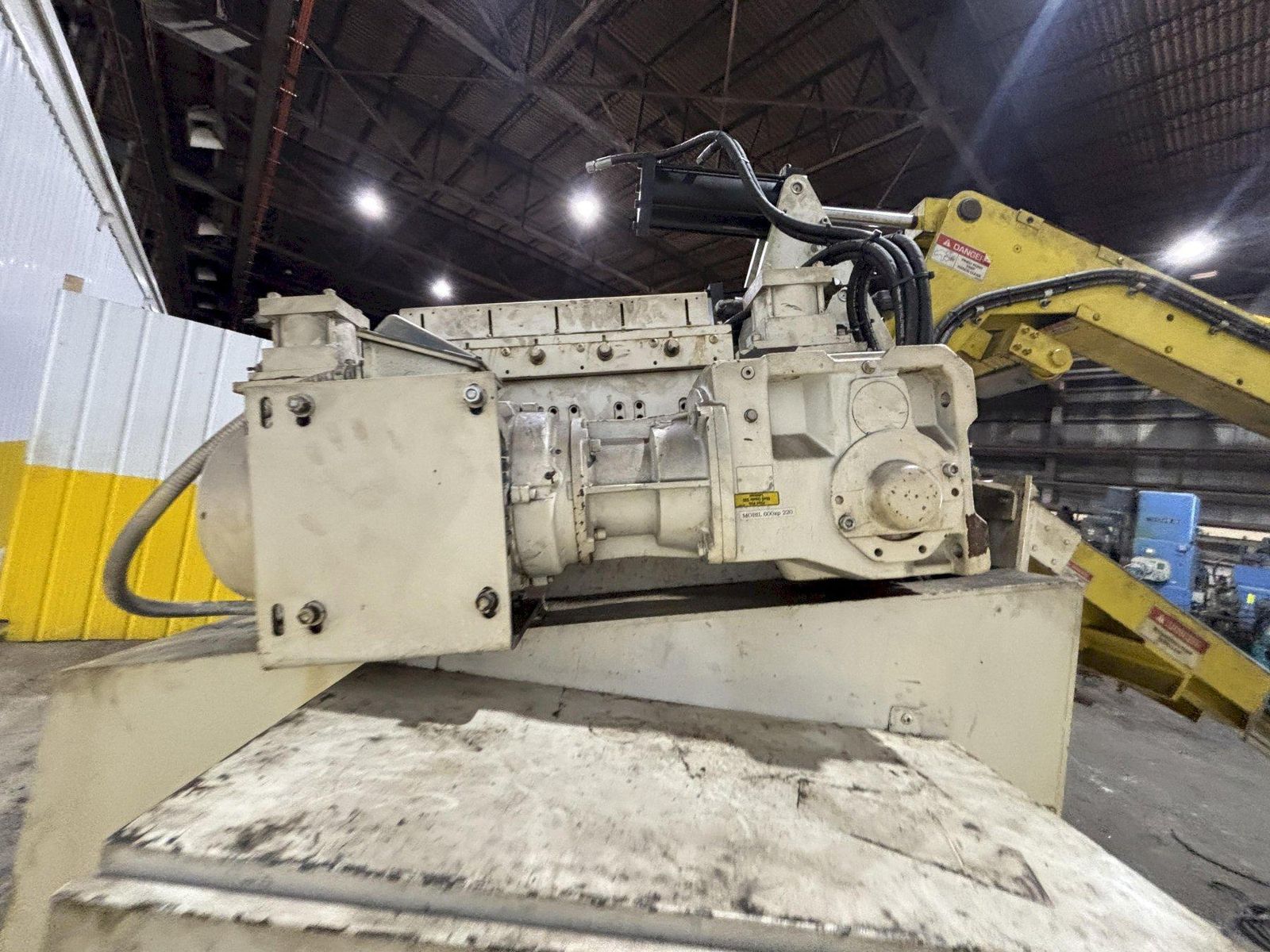

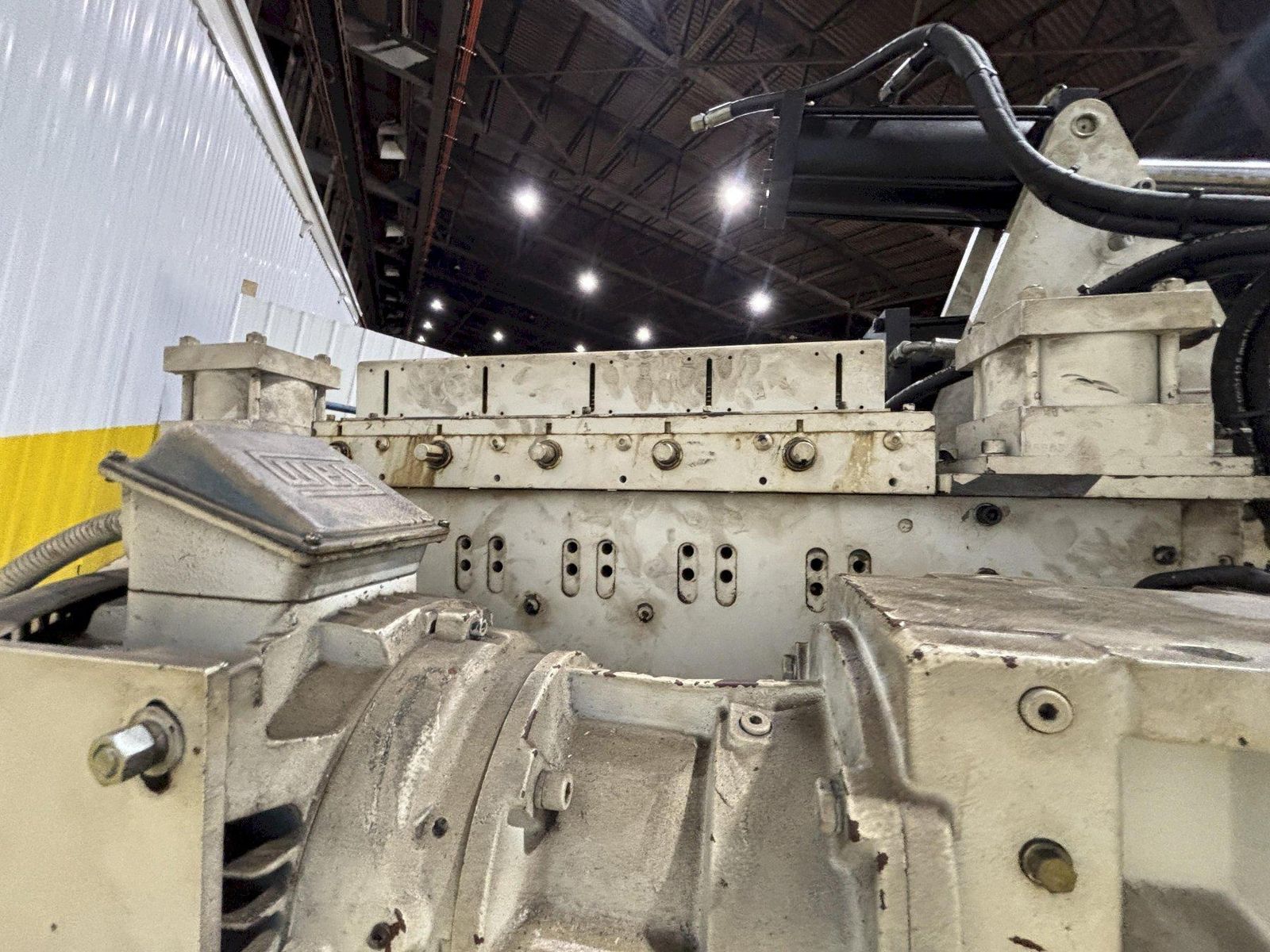

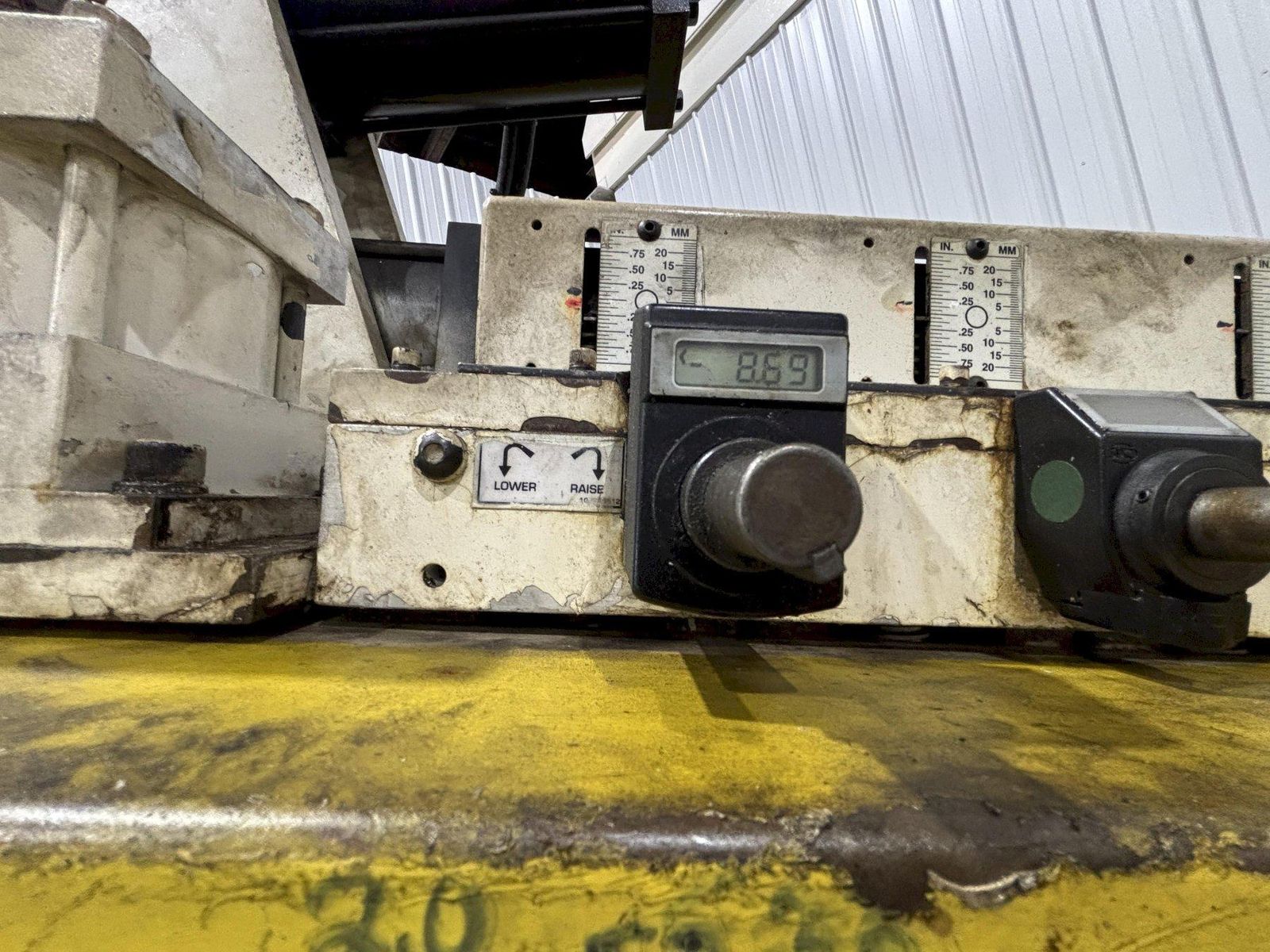

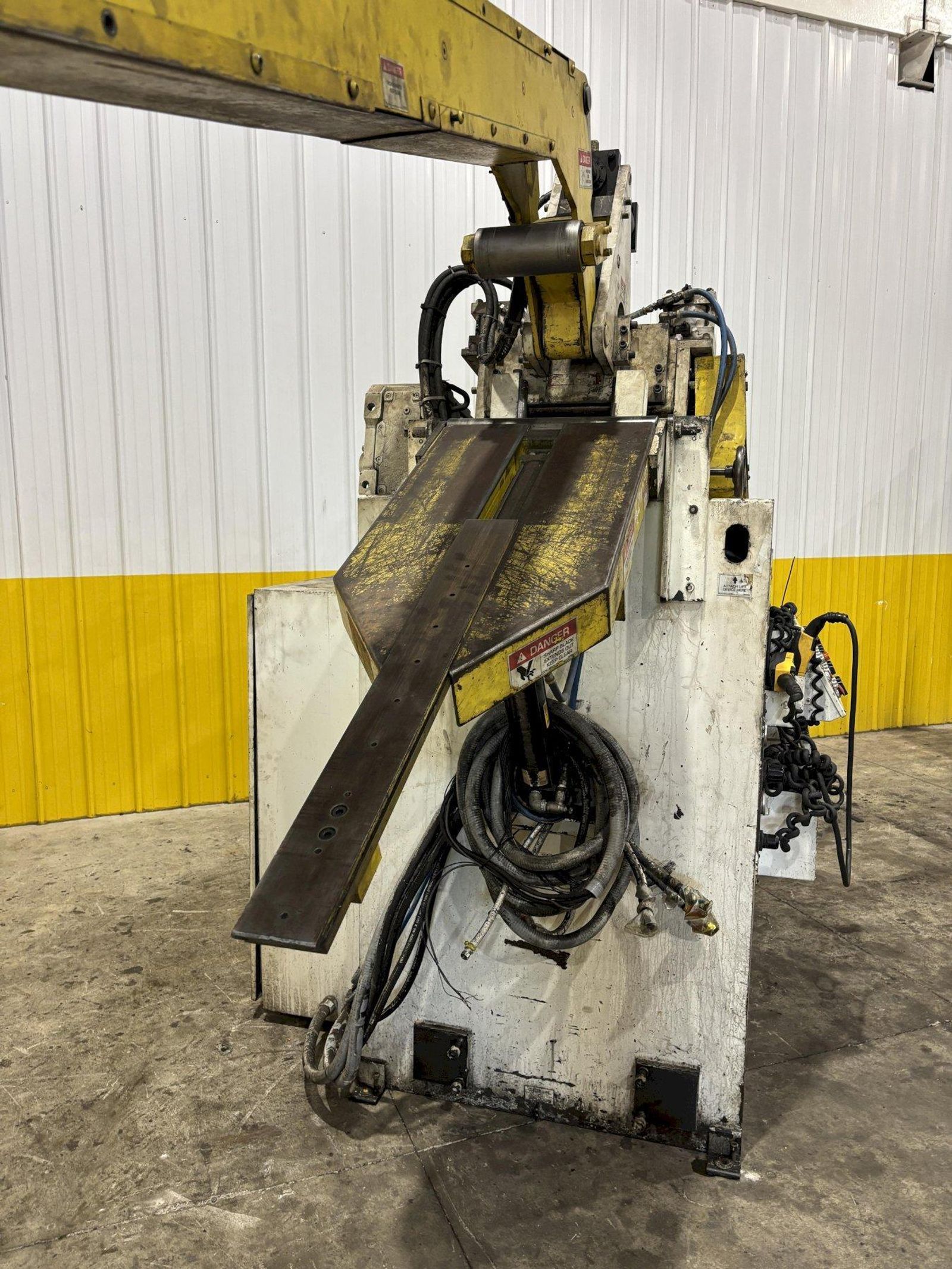

STRAIGHTENER
S/N 60516-3

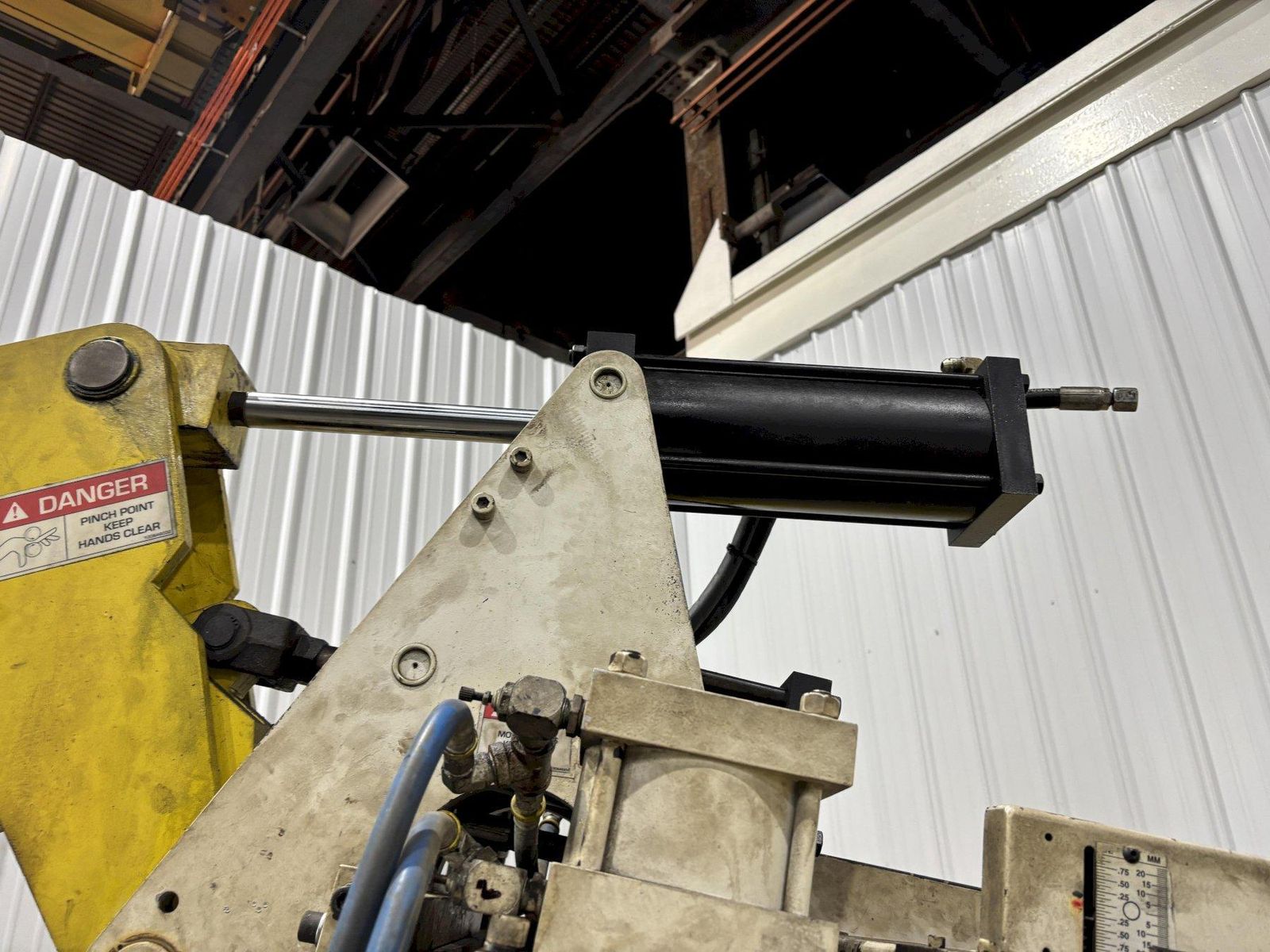

Threading Table Incl.Pinch Roll Diameter: 3.5”
Pinch Roll Cylinder Bore: 3.25”

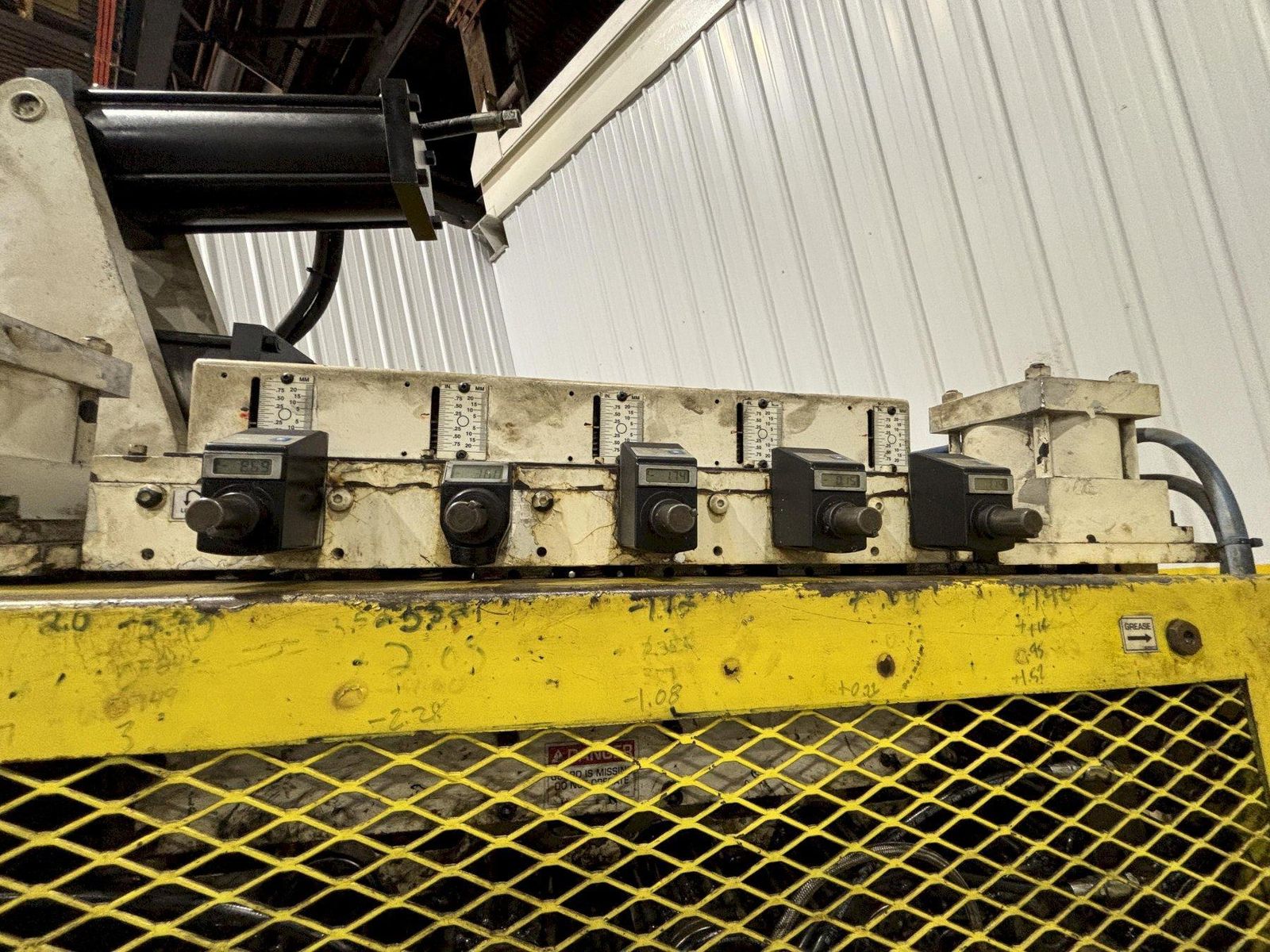

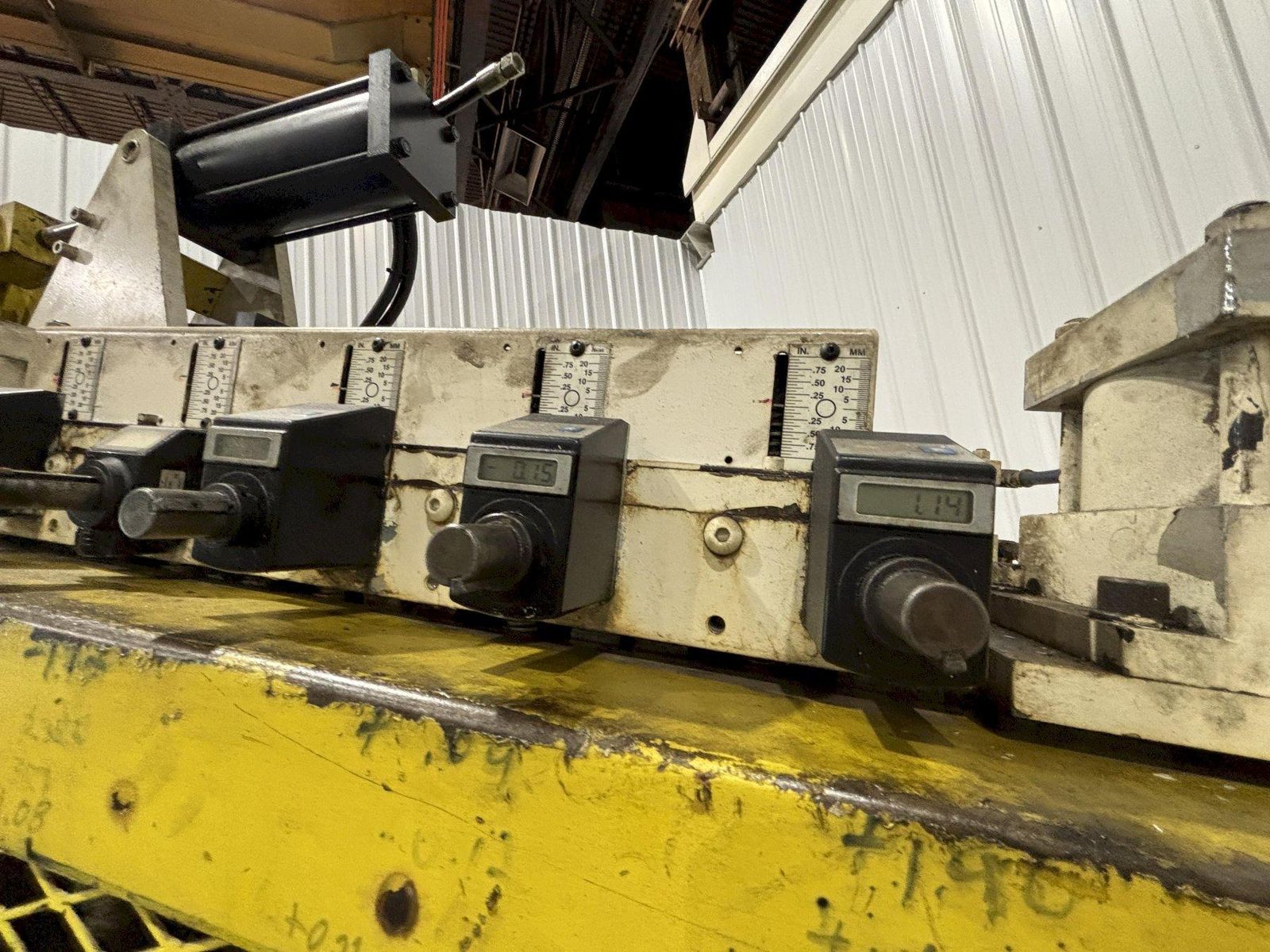

Number of Breaker Rolls: 7
Breaker Roll Diameter: 2.5”
Material Thickness Range: 0.010”-0.187”
Max Material Width: 6”
Speed: 0-80 FPM

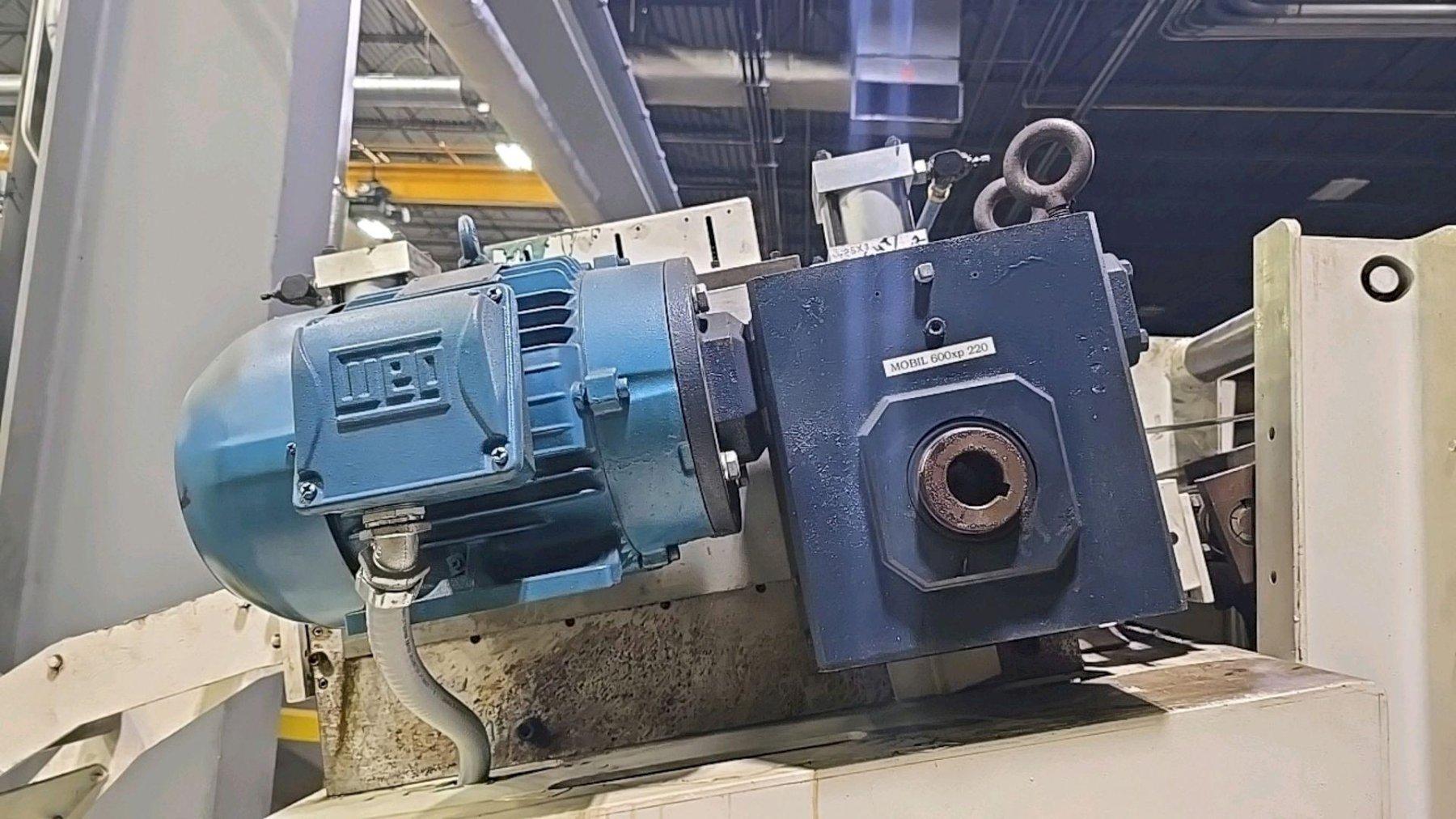

Standard Drive HP: 3
Brand

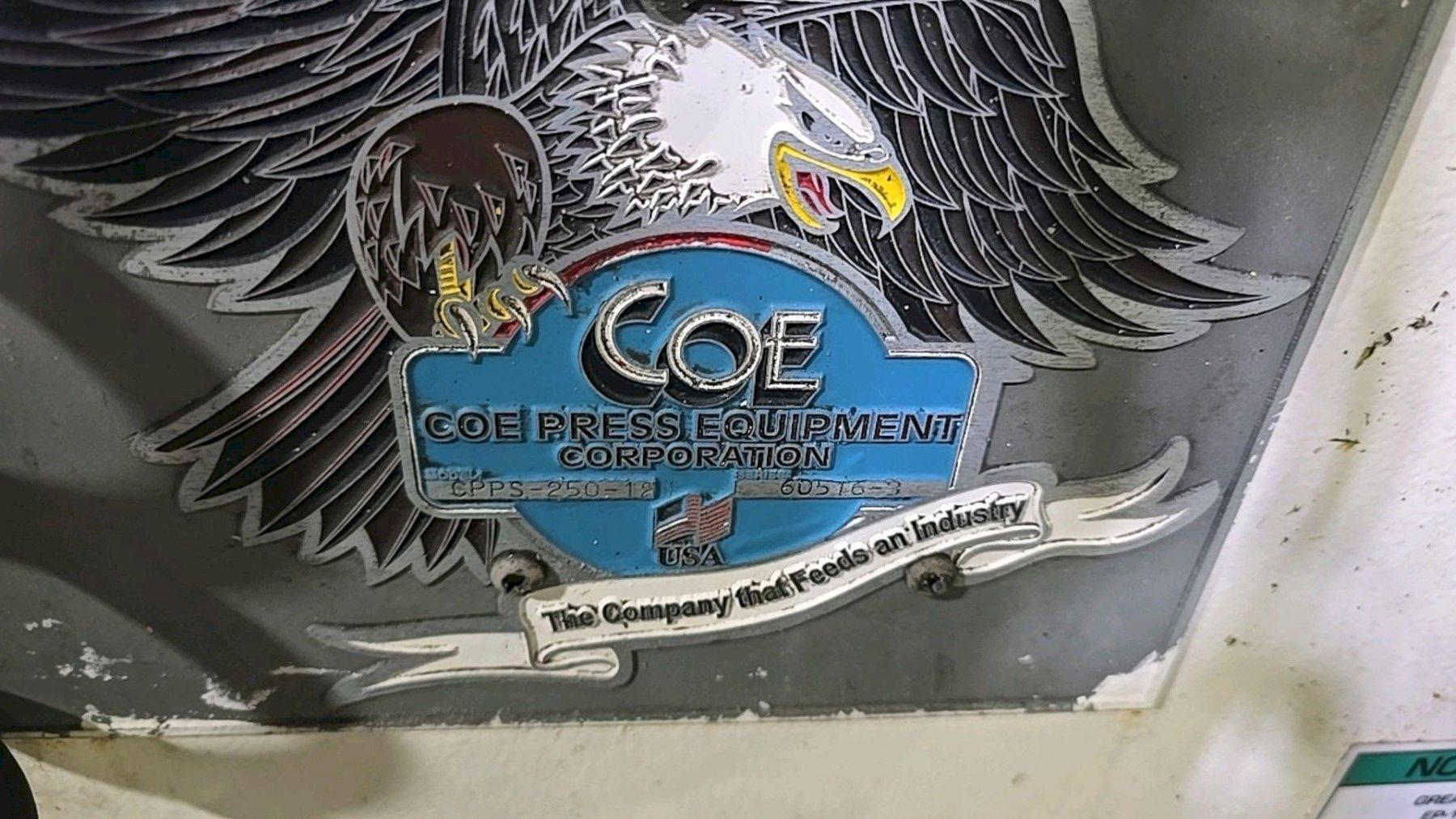

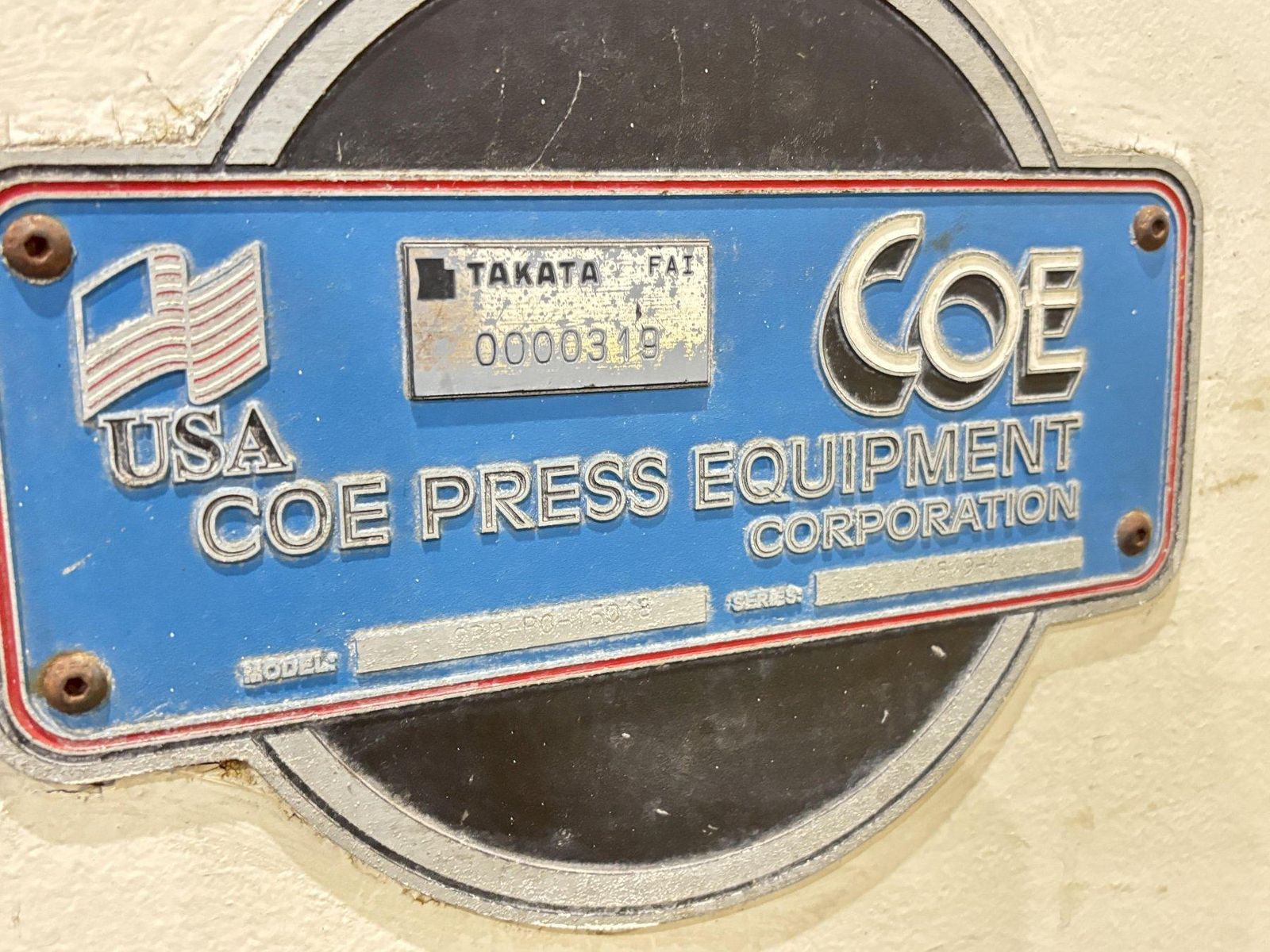

COE
Type
Coil Feed Lines
Stock No.
23438
 |
