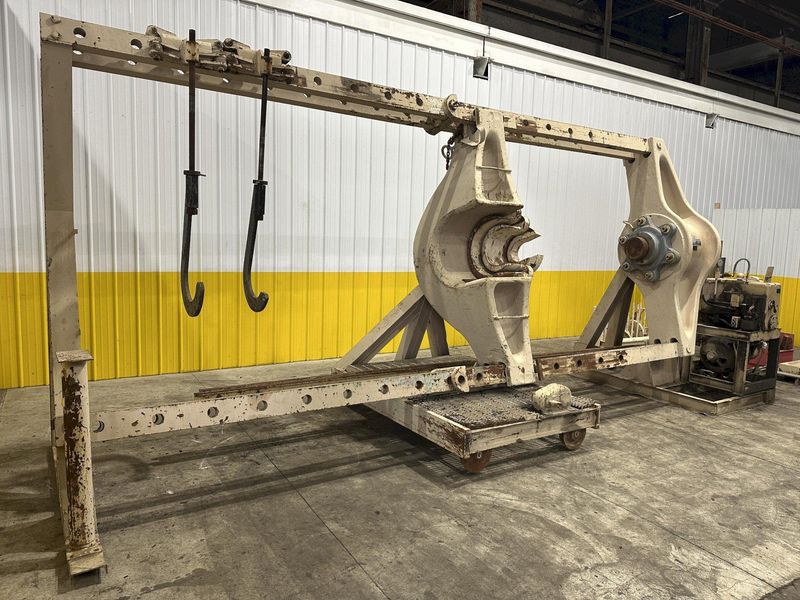

600 TON RODGERS MODEL #1F600-8424 HORIZONTAL HYDRAULIC WHEEL PRESS: STOCK #22674

Overview

SERIAL ......................... 1F600-1014
MODEL .......................... 1F600-8424
CAPACITY ....................... 600 TONS
RAM DIAMETER ................... 9-1/2"
STROKE OF RAM .................. 24"
DUAL ACTION RAM CYLINDER ....... YES
VERTICAL BETWEEN STRAIN BARS ... 84"
DISTANCE RAM TO PUSH BLOCK ..... 30" TO " 180" MAX
RESISTANCE BLOCK HOLE SIZE ..... 24" OD X 24" WIDE
STRAIN BARS .................... 2 TOP & 2 BOTTOM
STRAIN BARS DIMENSIONS ......... 3" THICK X 6" HIGH
STRAIN BAR ADJUSTMENT POINTS ... YES, 12" CENTERS
PUSH BLOCK PLATE ADAPTOR ....... YES
ASSORTED TOOLING & PUSH BLOCKS . YES
J-HOOK SUPPORTS ................ 2, ADJUSTABLE
MOUNTED ON COMMON BASE ......... YES

RODGERS HYDRAULIC UNIT:
SERIAL ......................... 730-1-1582
MODEL .......................... B/M40AMV2-4V6
MOTOR .......................... 15 HP

600 TON RODGERS MODEL #1F600-8424 HORIZONTAL HYDRAULIC WHEEL PRESS: STOCK #22674

Brand
Not Specified

Type
Presses, Wheel

Stock No.
22674
