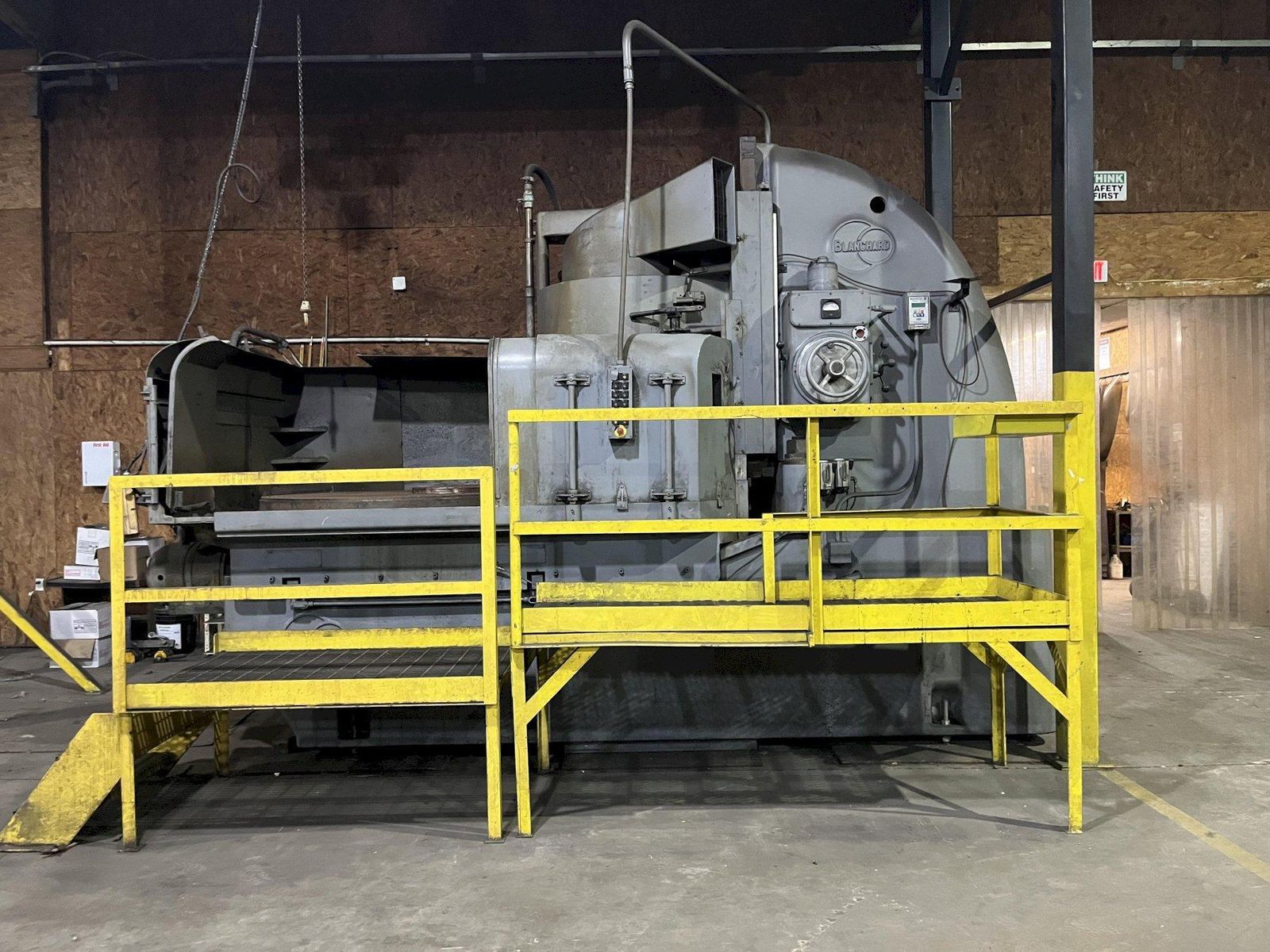

60" X 60 HP BLANCHARD MODEL #3660 ROTARY TABLE VERTICAL GRINDER: STOCK 22340

Overview

MODEL .................................. 36-60
DIAMETER OF MAGNETIC CHUCK ............. 60"
DIAMETER OF SEGMENTED WHEEL ............ 36"
TABLE SPEEDS ........................... (4) 3,5,8,& 13 RPM
MAXIMUM UNDER WHEEL .................... 24"
AUTOMATIC DOWN FEED .................... YES
POWER HEAD ELEVATION ................... YES
POWER TABLE TRAVEL ..................... YES
WHEEL DRESSER .......................... YES
CHUCK LIFE ............................. 3/8"
TRABON LUBE SYSTEM ..................... YES
NUTRIFIER & RECTIFIER CHUCK ............ VARIABLE HOLD
SPINDLE MOTOR .......................... 60 HORSEPOWER



60" X 60 HP BLANCHARD MODEL #3660 ROTARY TABLE VERTICAL GRINDER: STOCK 22340

Brand
BLANCHARD

Type
Grinders, Surface, Rotary

Stock No.
22340

Print Details

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

60" X 60 HP BLANCHARD MODEL #3660 ROTARY TABLE VERTICAL GRINDER: STOCK 22340

Stock #: 22340

Equipped With

MODEL .................................. 36-60
DIAMETER OF MAGNETIC CHUCK ............. 60"
DIAMETER OF SEGMENTED WHEEL ............ 36"
TABLE SPEEDS ........................... (4) 3,5,8,& 13 RPM
MAXIMUM UNDER WHEEL .................... 24"
AUTOMATIC DOWN FEED .................... YES
POWER HEAD ELEVATION ................... YES
POWER TABLE TRAVEL ..................... YES
WHEEL DRESSER .......................... YES
CHUCK LIFE ............................. 3/8"
TRABON LUBE SYSTEM ..................... YES
NUTRIFIER & RECTIFIER CHUCK ............ VARIABLE HOLD
SPINDLE MOTOR .......................... 60 HORSEPOWER
