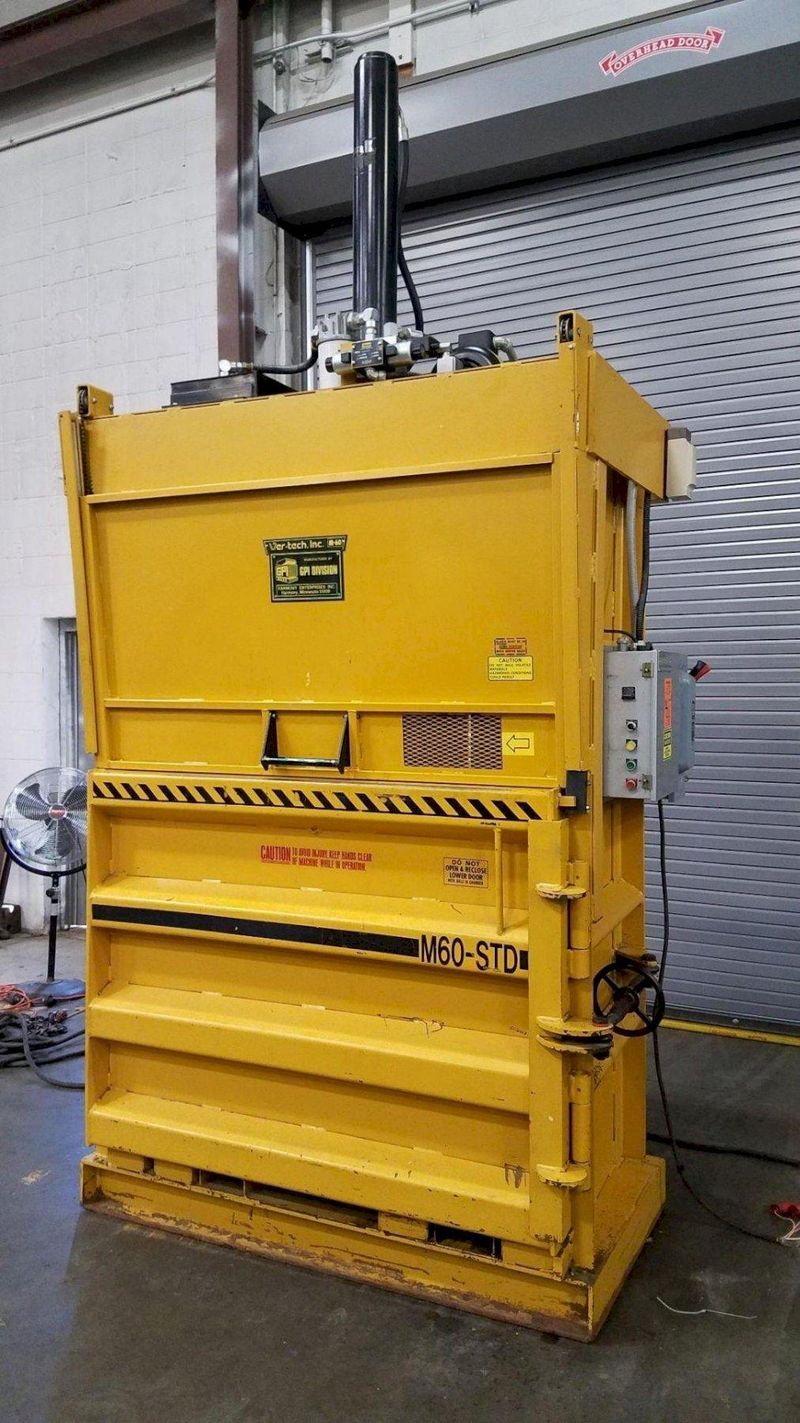

Standard Model #M-60
STD Features:
• Complete baler is ETL listed
• Powerful 6” cylinder with heavy-duty 4” rod for extra long life
• Full hinge construction on lower door and latch
• Enclosed counterbalance for upper door lifting ease
• Six slots for tying bales
• Heavy-duty motor and hydraulics for extra long life
• Meets or exceeds all ANSI and OSHA safety standards
Specifications Bale Size: 30” x 60” x up to 51” (762 mm x 1,524 mm x up to 1,295 mm)
Bale Weight (corrugated) up to 1,100 lbs. (499 kg)
Ram Pressure 56,550 lbs. (25,651 kg)
Cycle Time 52 seconds
Cylinder 6” bore (152 mm)
4” rod (102 mm)
48” stroke (1,219 mm)
Motor 10 horsepower
Pump 12 gallons per minute
Electrical Power 208/230/460 volt, 3 phase, 60 hz
Bale Eject Hydraulic
Bale Tying Wire or banding
Dimensions
Loading Door Opening 24” x 60” (610 mm x 1,524 mm)
Unloading Door Height 55” (1,397 mm)
Overall Height 148” (3,759 mm)
Overall Depth 37” (940 mm)
Overall Width 83” (2,108 mm)
Depth with Door Open 97” (2,464 mm)
Width with Door Open 88” (2,235 mm)
Shipping Height (on side with cylinder extended) 83” (2,108 mm)
Shipping Weight 4,500 lbs. (2,041 kg)
Installation and Operating Area 62.5 square feet (5.8 square meters)
Brand
VER-TECH
Type
Vertical Baler
Stock No.
14545
 |
