60" x 0.064" x 20,000 LB IOWA PRECISION SLEAR-1 SLITTING & CUT-TO-LENTH LINE: STOCK 17023

Overview

SERIAL # .................. L4529C
YEAR ...................... 2004

Model Number .............. Iowa Precision Slear 1

Materials ................. CRS, Alum, Galv, Pre-Paint

Min./Max. Coil Width ...... 6" - 60"

Thickness Range ........... 0.015" - 0.064"

Maximum Shear ............. 45,000 PSI

Maximum Yield ............. 45,000 PSI

Maximum Coil Weight ....... 20,000#

Coil I.D. ................. 20" - 24" (Nominal)

Maximum Coil O.D. ......... 64"

Slitting Capacity ......... Five (5) Cuts of 0.060"/Six (6) Cuts of 0.045"

Minimum Slit Width ........ 3"

Line Direction ............ Right to Left

Stacker Length ............ 1 - 12'

Maximum Bundle ............ 18" x 10,000# @ 12'

Mode of Operation ......... Front Loop

Line Speed ................ 20 - 200 FPM / 20-150 FPM (using Scrap Winders)

Required Area ............. 20' x 70'
Required Power ............ 160 Amps

Consisting of the following:

-Entry Turnstile:

Four (4) Arms x 20,000# per arm

Powered Rotation

Slotted for C-Hook

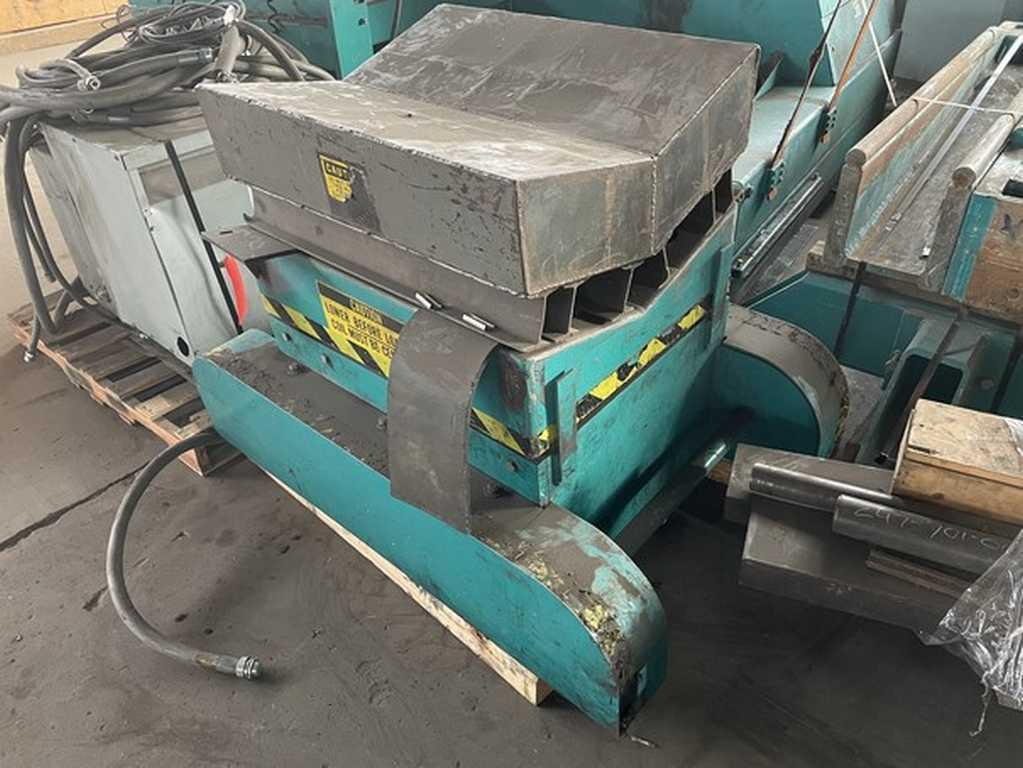

-Entry Coil Car:

Low Boy Type

Floor Mounted

Powered Lift and Traverse

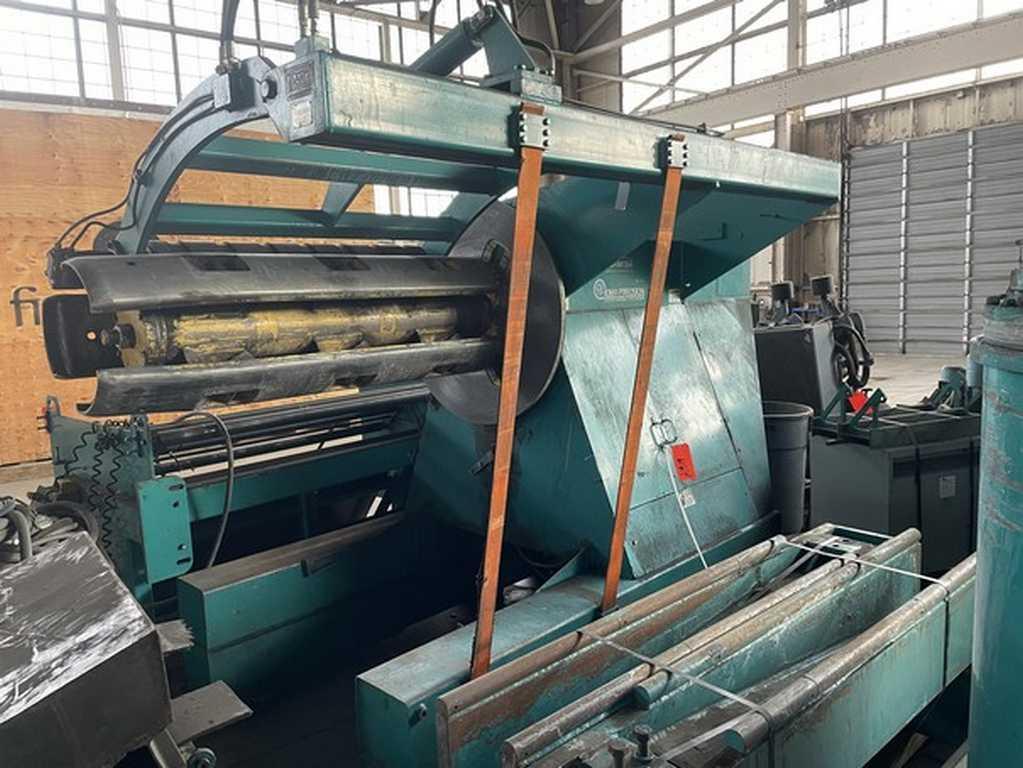

-Uncoiler:

Mandrel Type

Powered Expansion

Feedup Drive

Holddown with Powered Snubber

Loop Control with Dancer Arm

Self Contained Hydraulic Unit

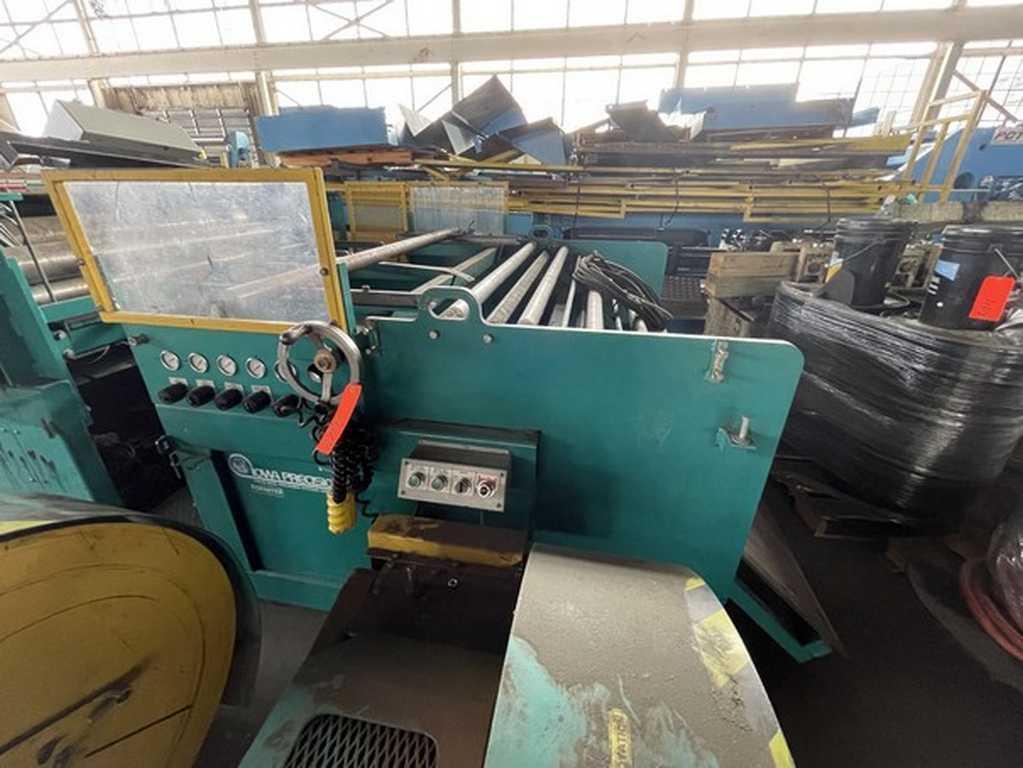

-Entry Unit:

Extending Blade Peeler

Powered Entry Pinch Roll

Manual Side Guides

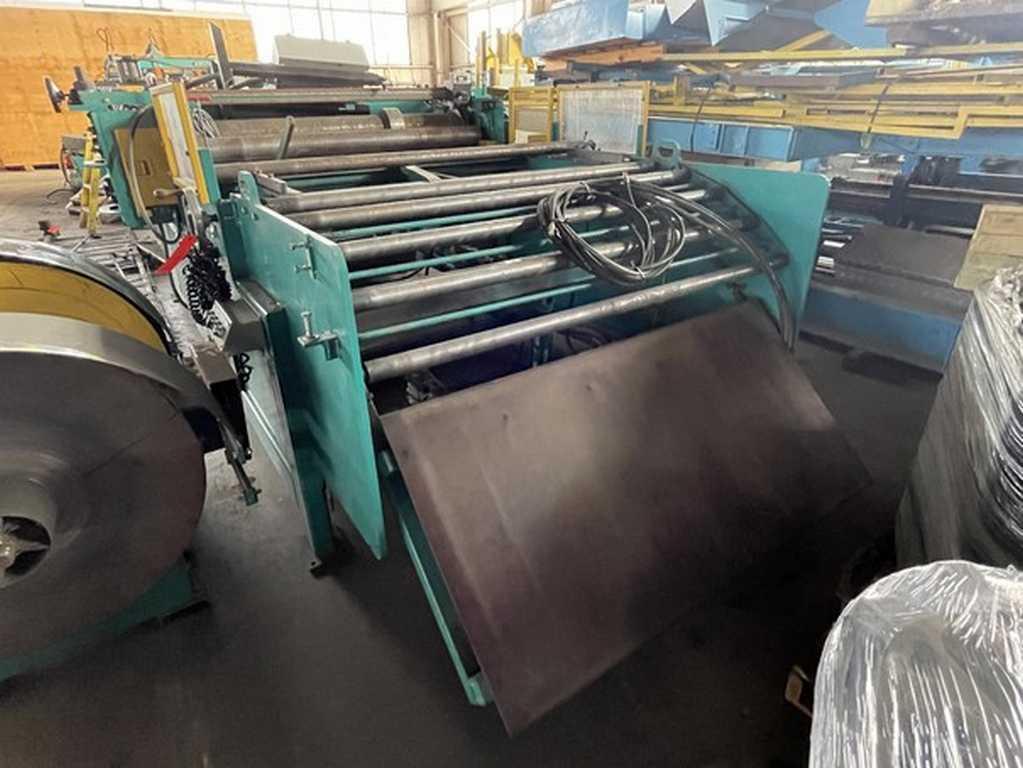

-Pit Section:

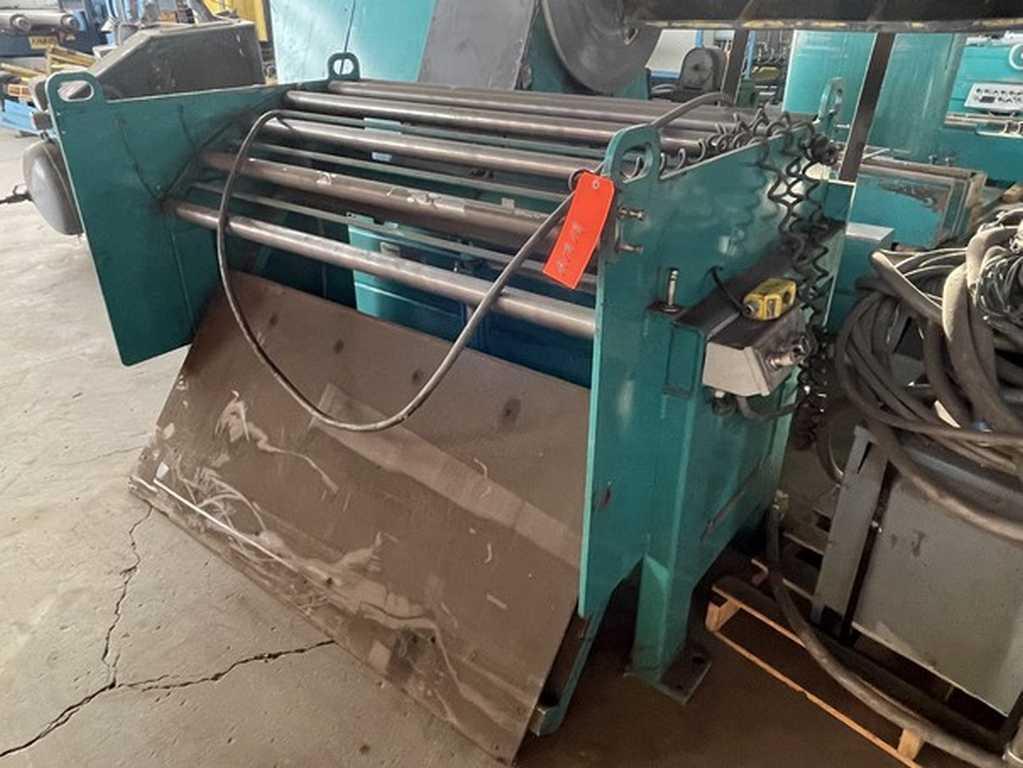

Entry/Exit Cascade Rolls with Cross Over Tables

Sonic Loop Control

Manual Side Guides

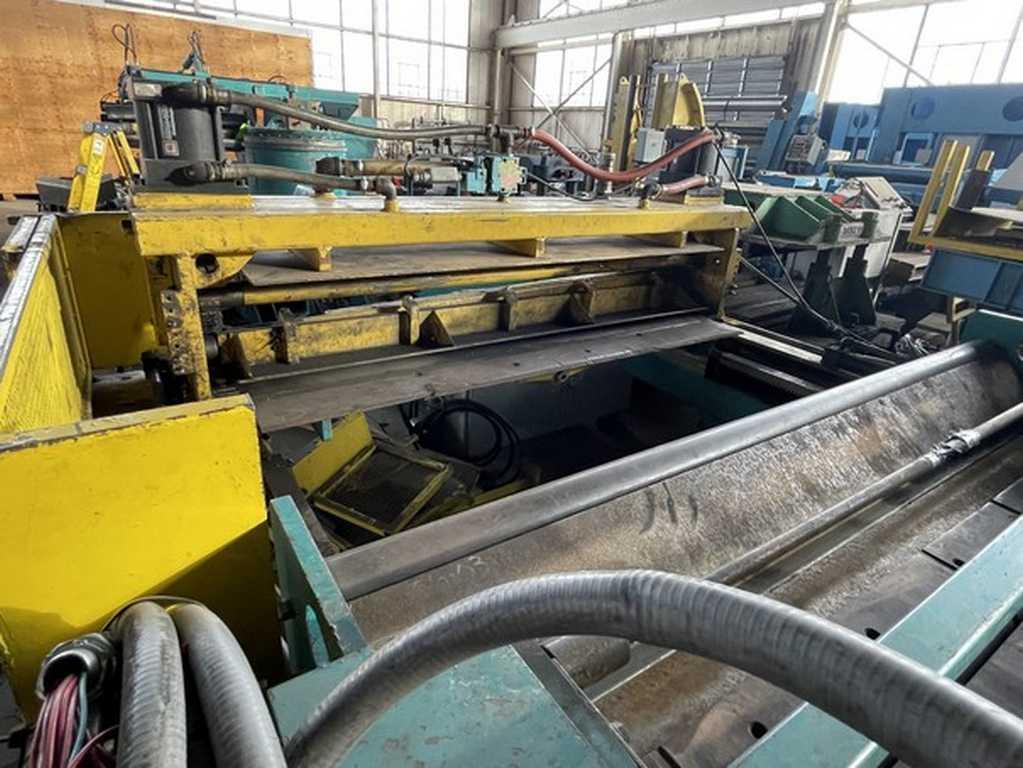

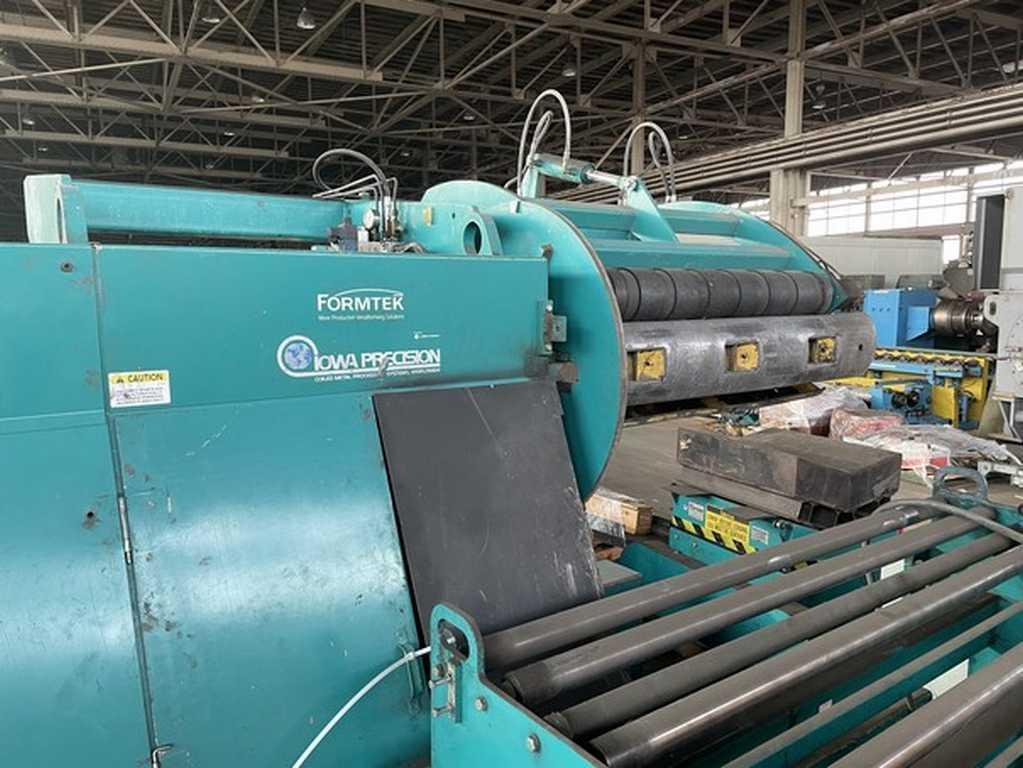

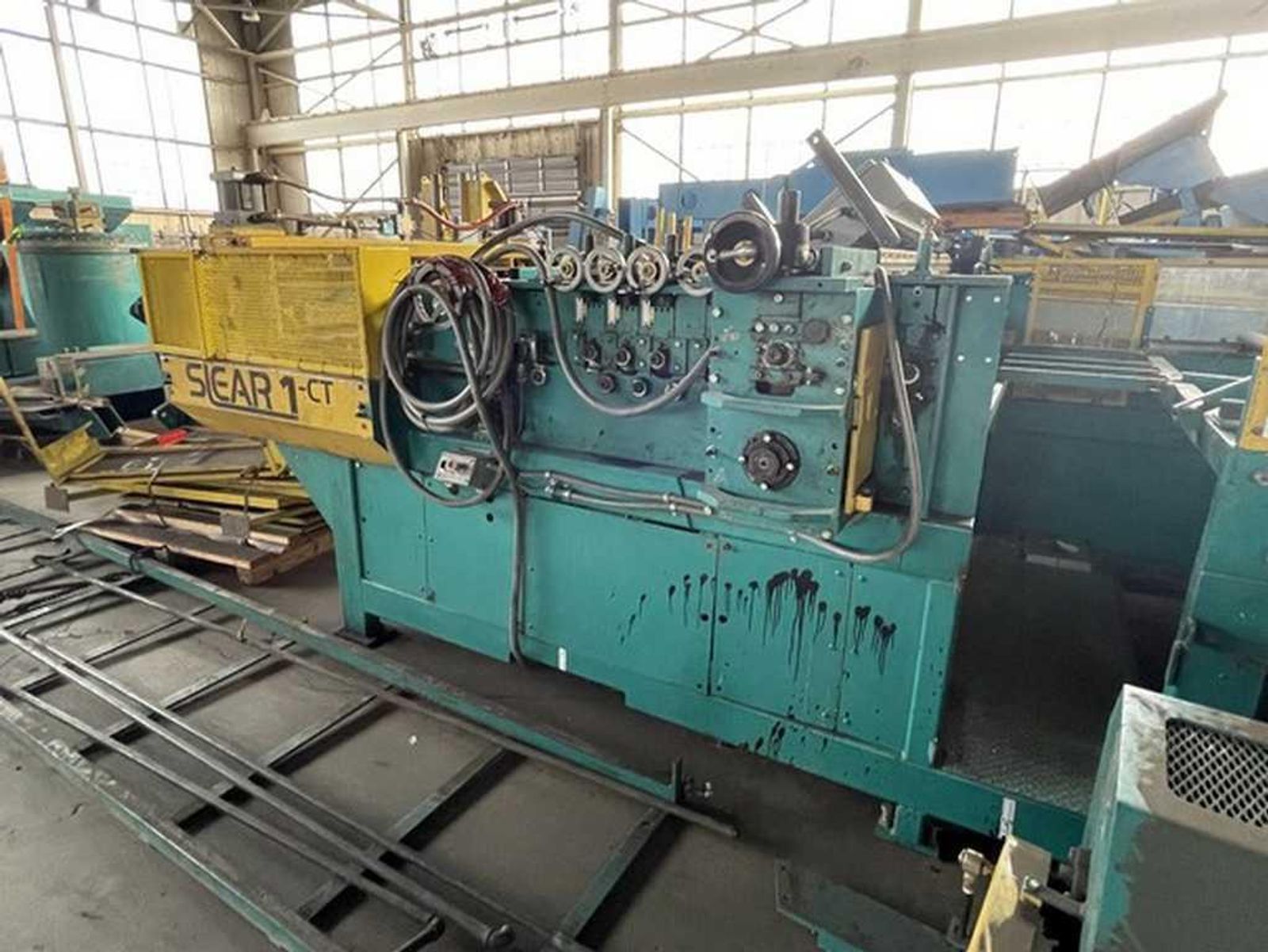

-Slear Unit:

Powered Entry Pinch Rolls

Slitter Head with Hub Type Tooling (5" Diameter Arbor)

Fifteen (15) Slitter Knives

Powered Pinch Rolls #2

Flattener with Six (6) Work Rolls in a 3/3 Configuration

Powered Exit Pinch Rolls

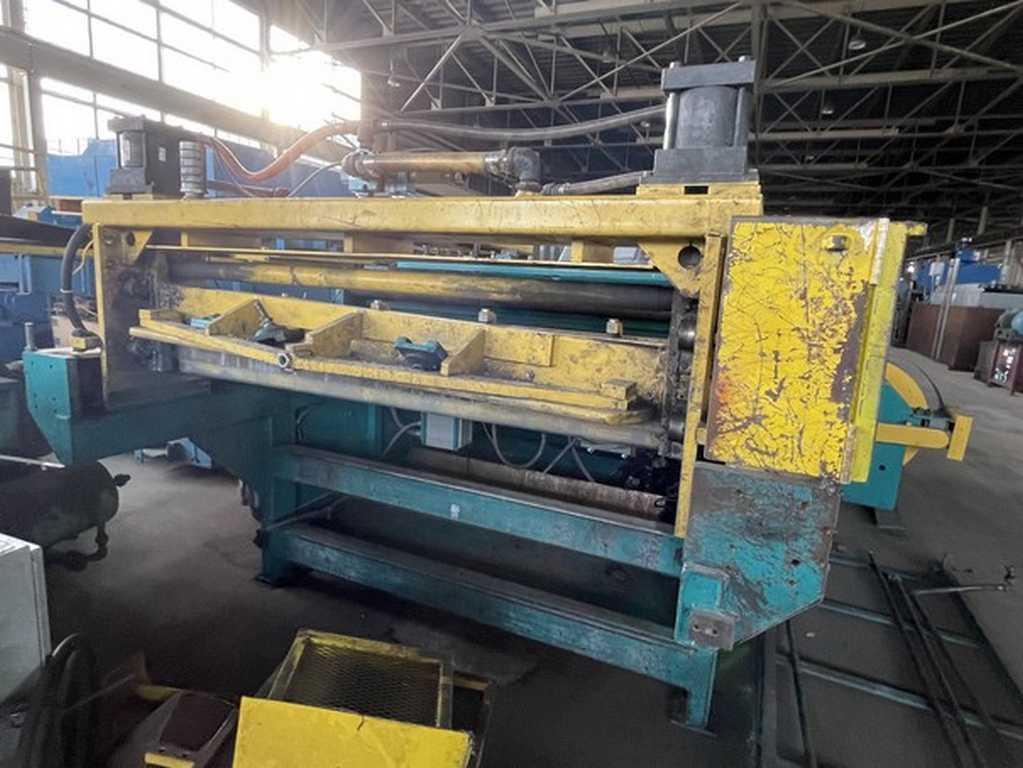

Down Cut Shear on Traversing Track (Single Rake Blade)

One (1) Spare Set of Shear Blades

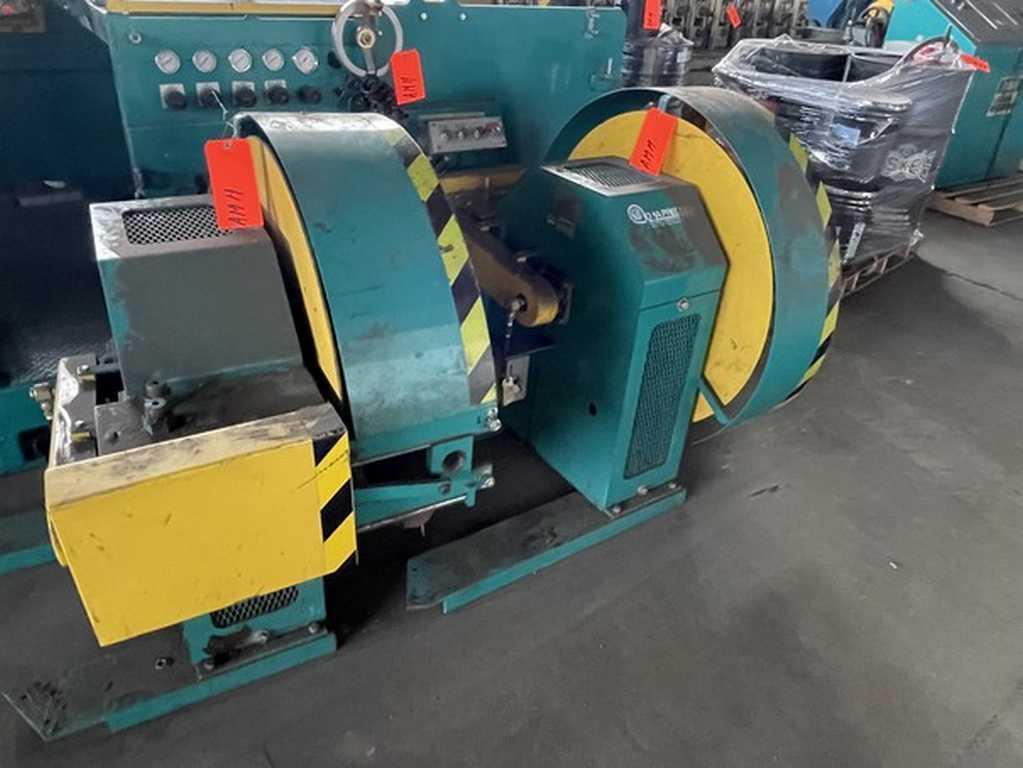

-Two (2) Scrap Winders:

Minimum/Maximum Scrap Width: 0.250" - 1"

Level Wind

Automatic Scrap Dump

-Stacker (New in 2013):

Manual Adjustable End Stop

Manual Adjustable Side Tampers

Avon Scissor Lift Table with Powered Roller Conveyor Top

Three (3) Sheet Tampers

Five (5) Blank Dividers

Lift Table with Powered Conveyor Top

-Powered Side Discharge Conveyor (New in 2013):

12' Length

20,000# Capacity

Twin Powered Rubber Belts

-Electronics:

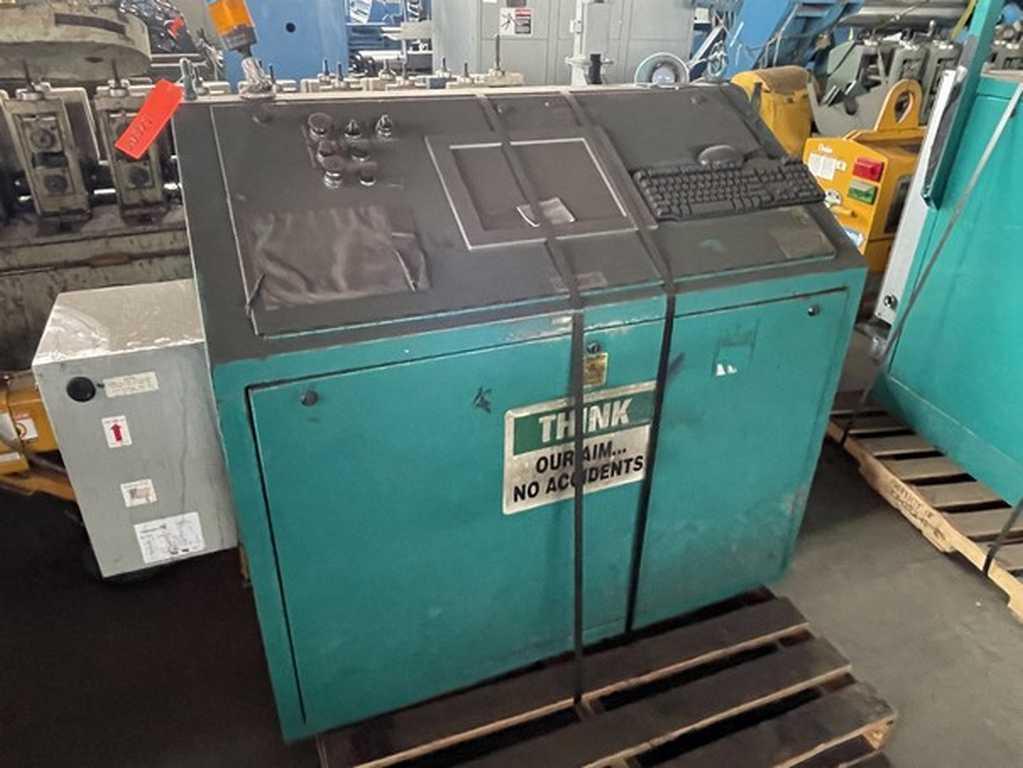

Main Operators Console with Allen Bradley Touch Screen and PLC

Aux. Control Consoles

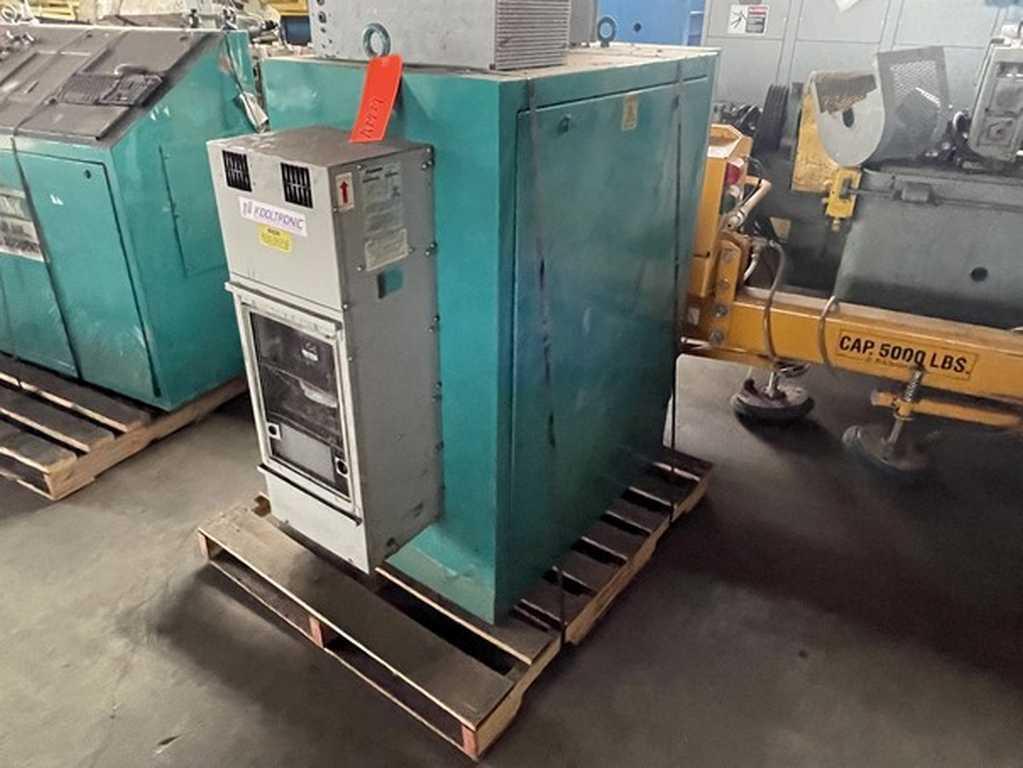

AC/DC Cabinet
