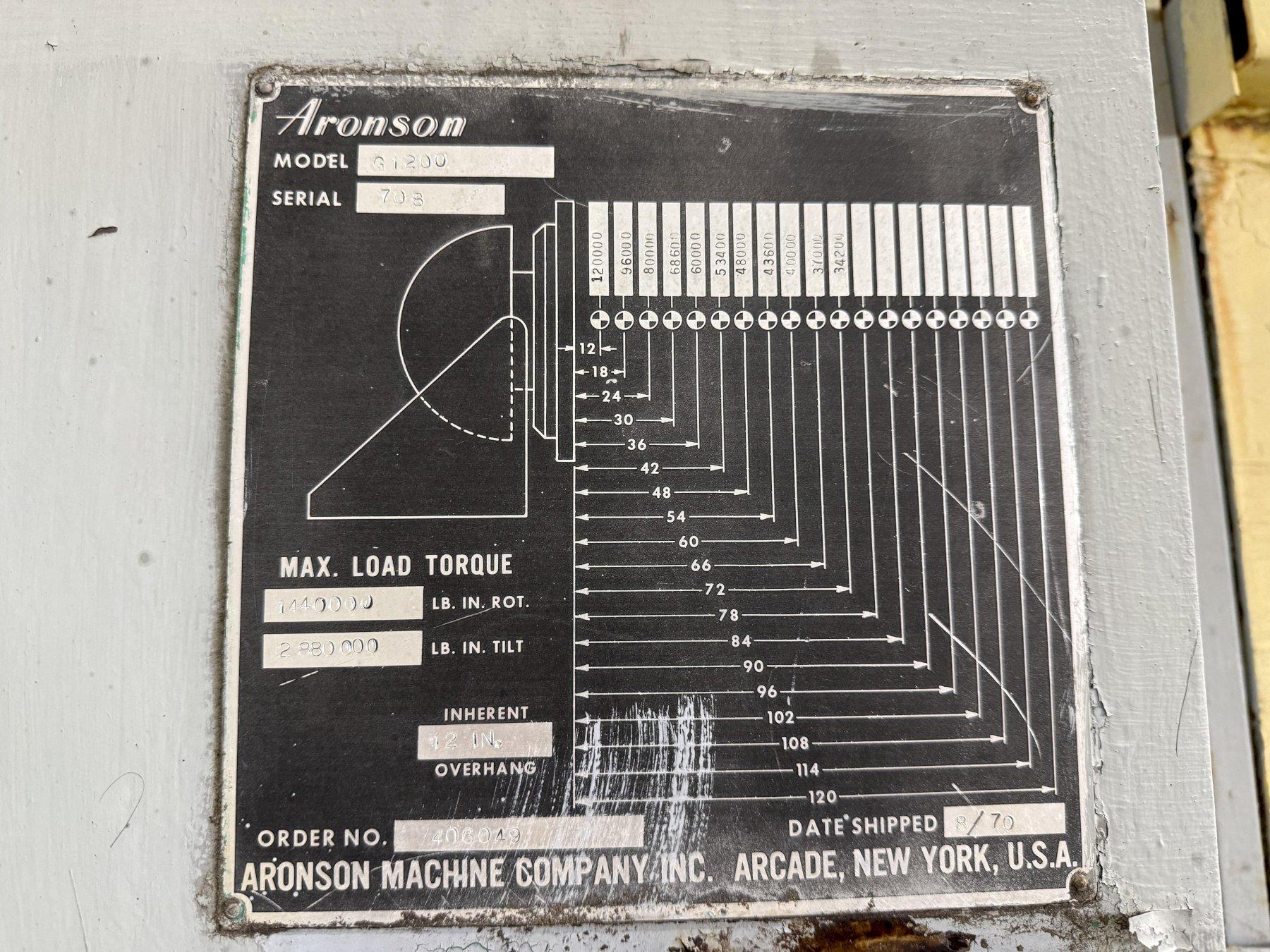

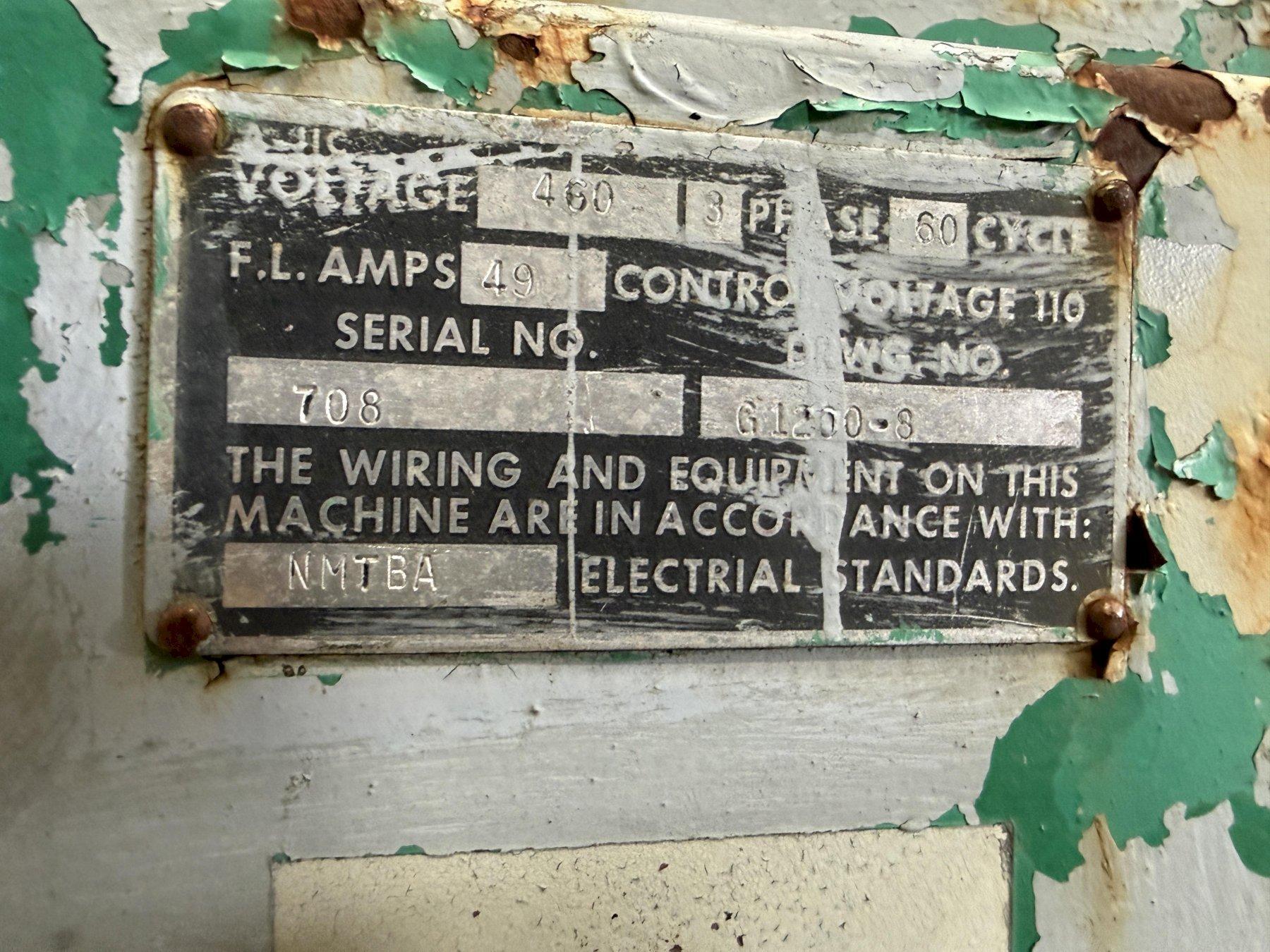

SERIAL ................. 708

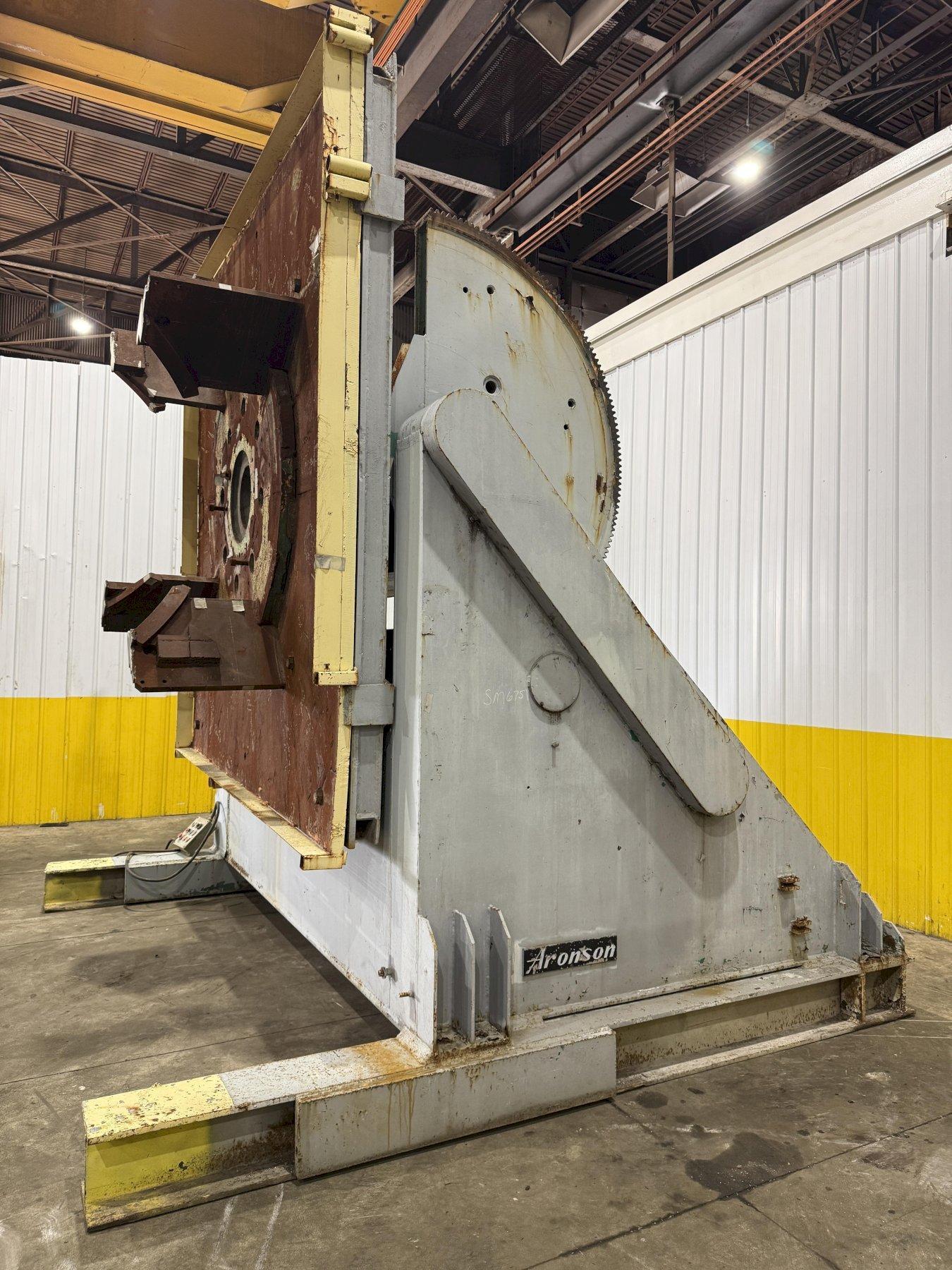

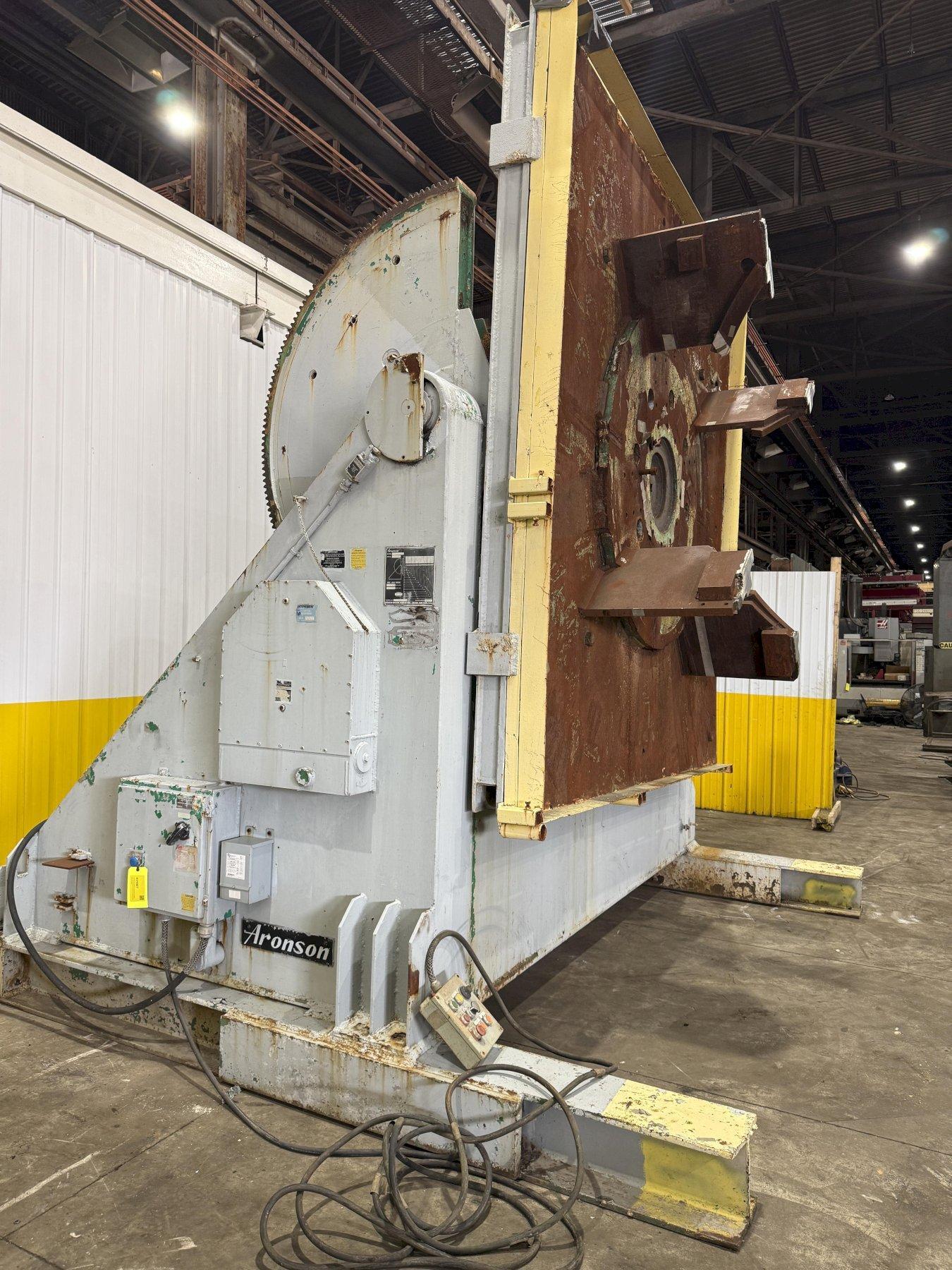

MODEL .................. G1200
DATE SHIPPED ........... 1970

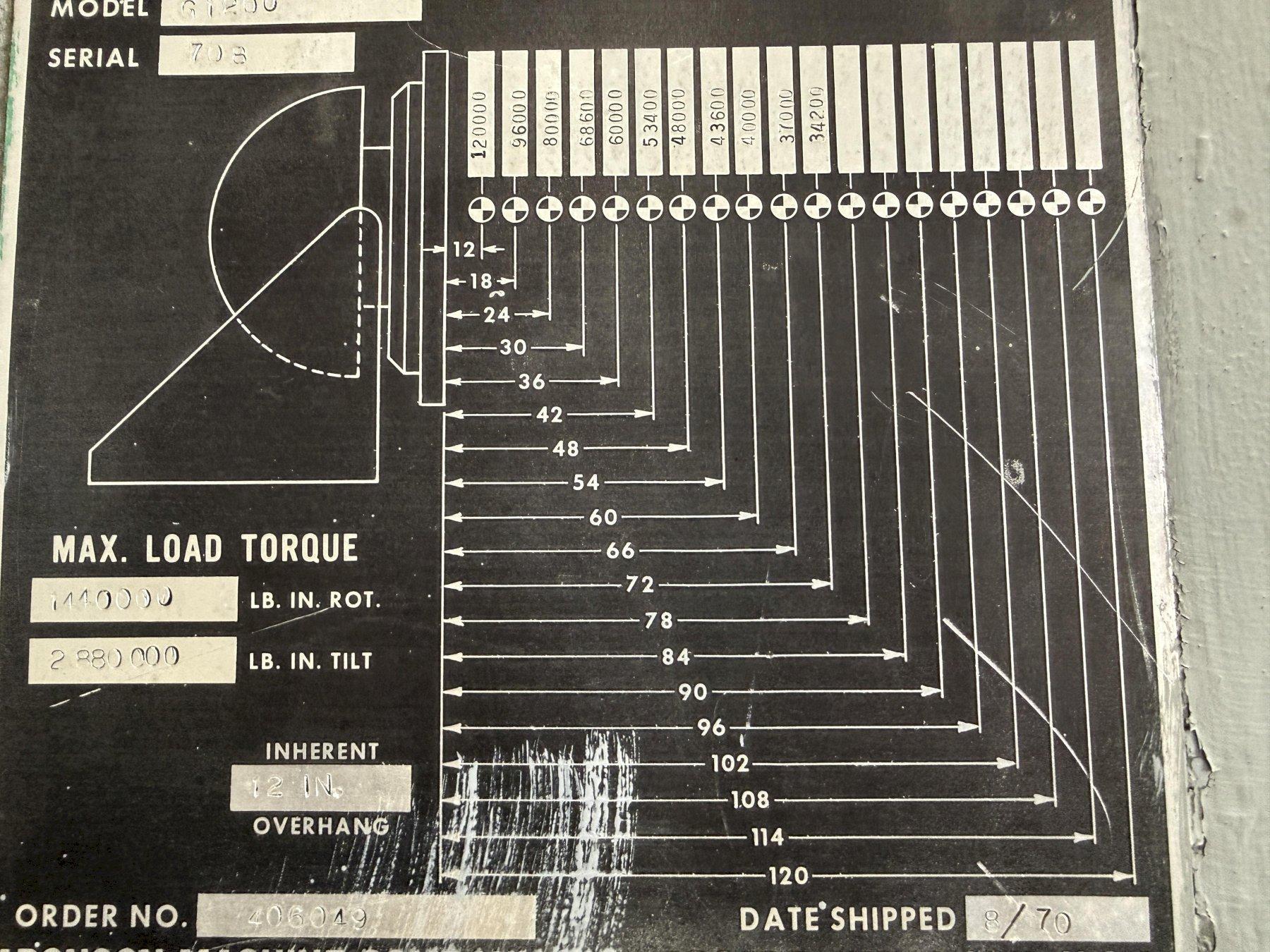

WEIGHT CAPACITY ........ 120,000 LBS @ 12"
........ 96,000 LBS @ 18"
........ 80,000 LBS @ 24"

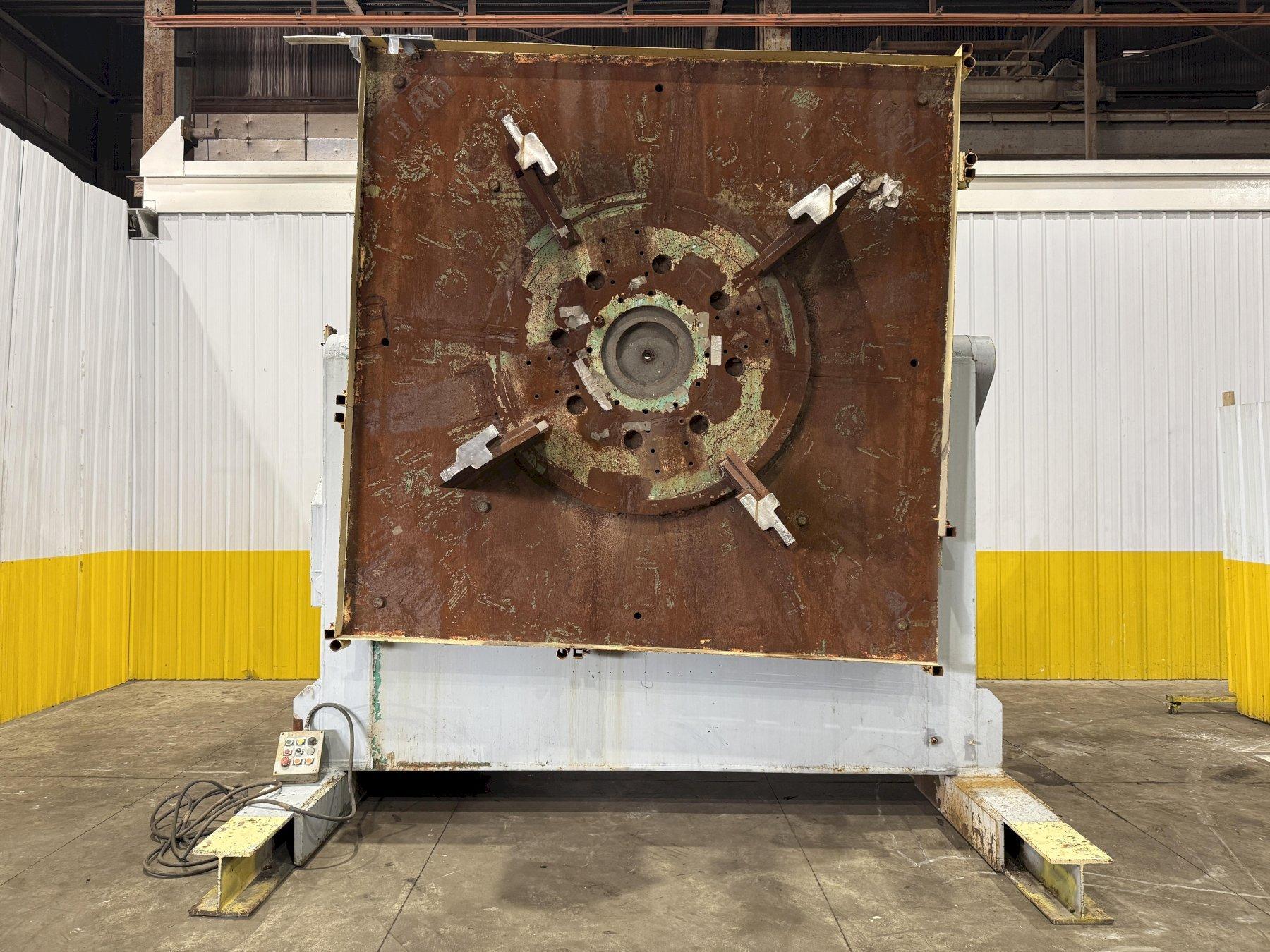

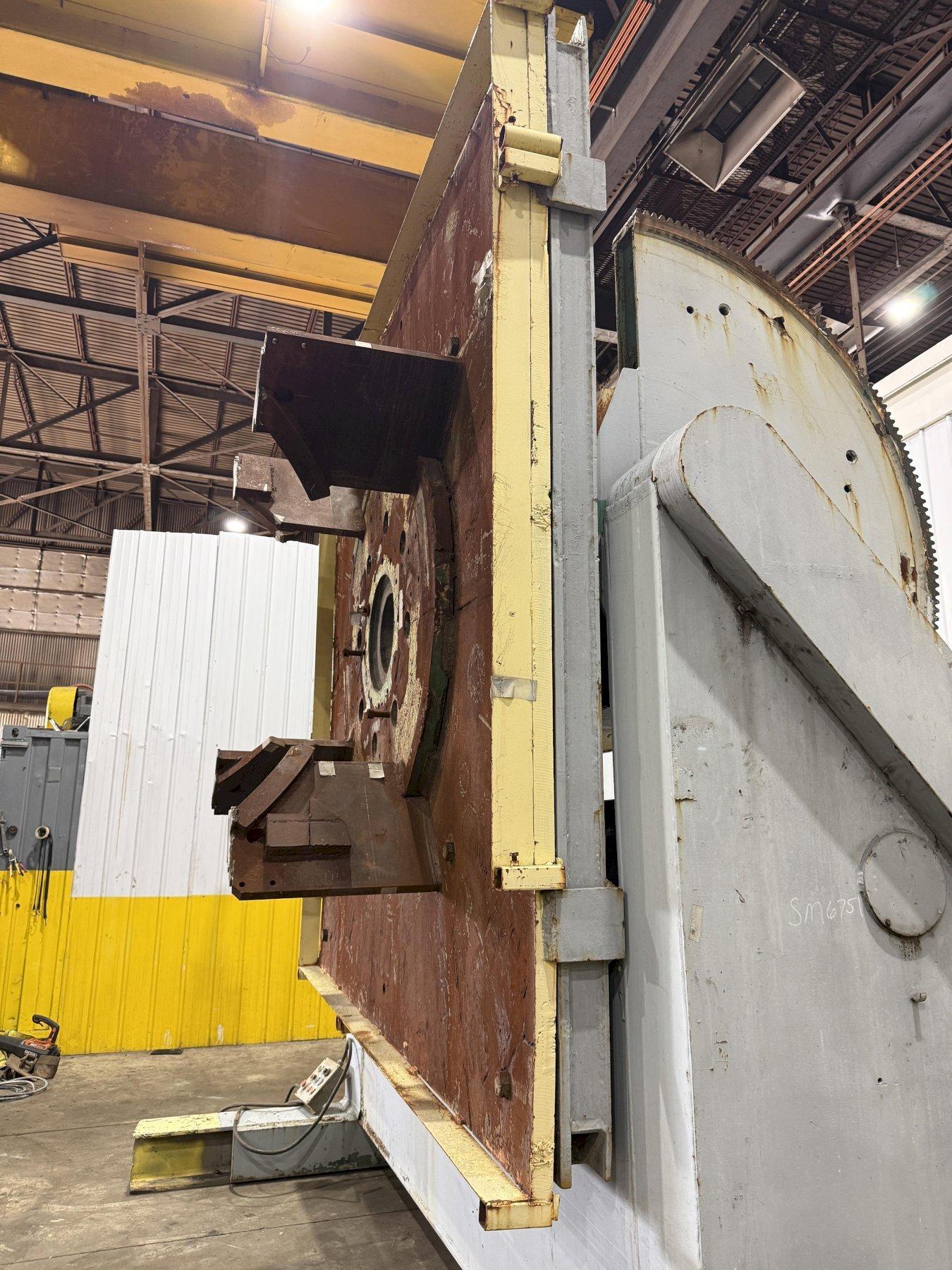

TABLE SIZE ............. 120" X 120" X 5" THICK
TABLE T-SLOTTED ........ YES
TABLE CENTER HEIGHT .... 98" FROM GROUND

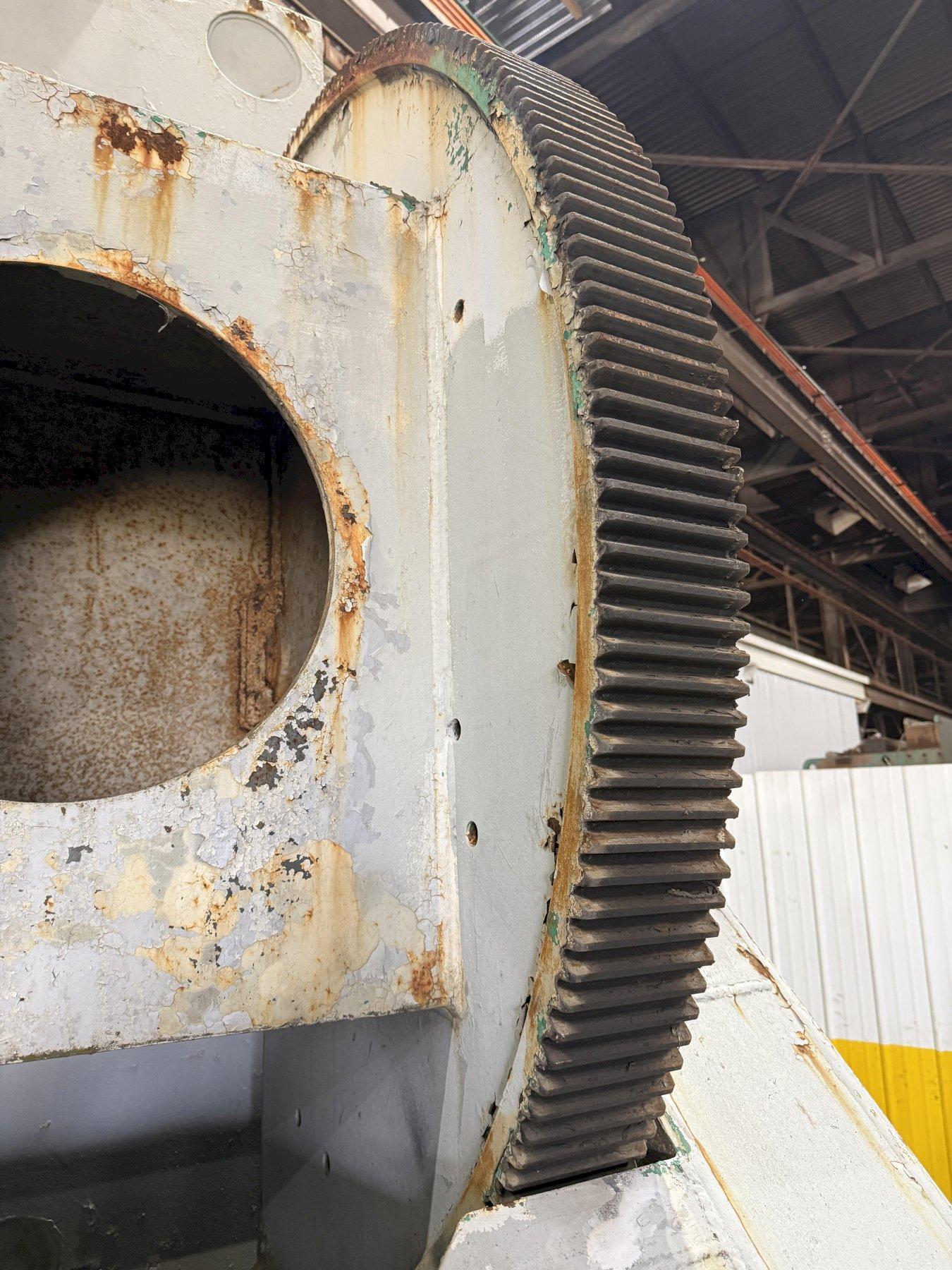

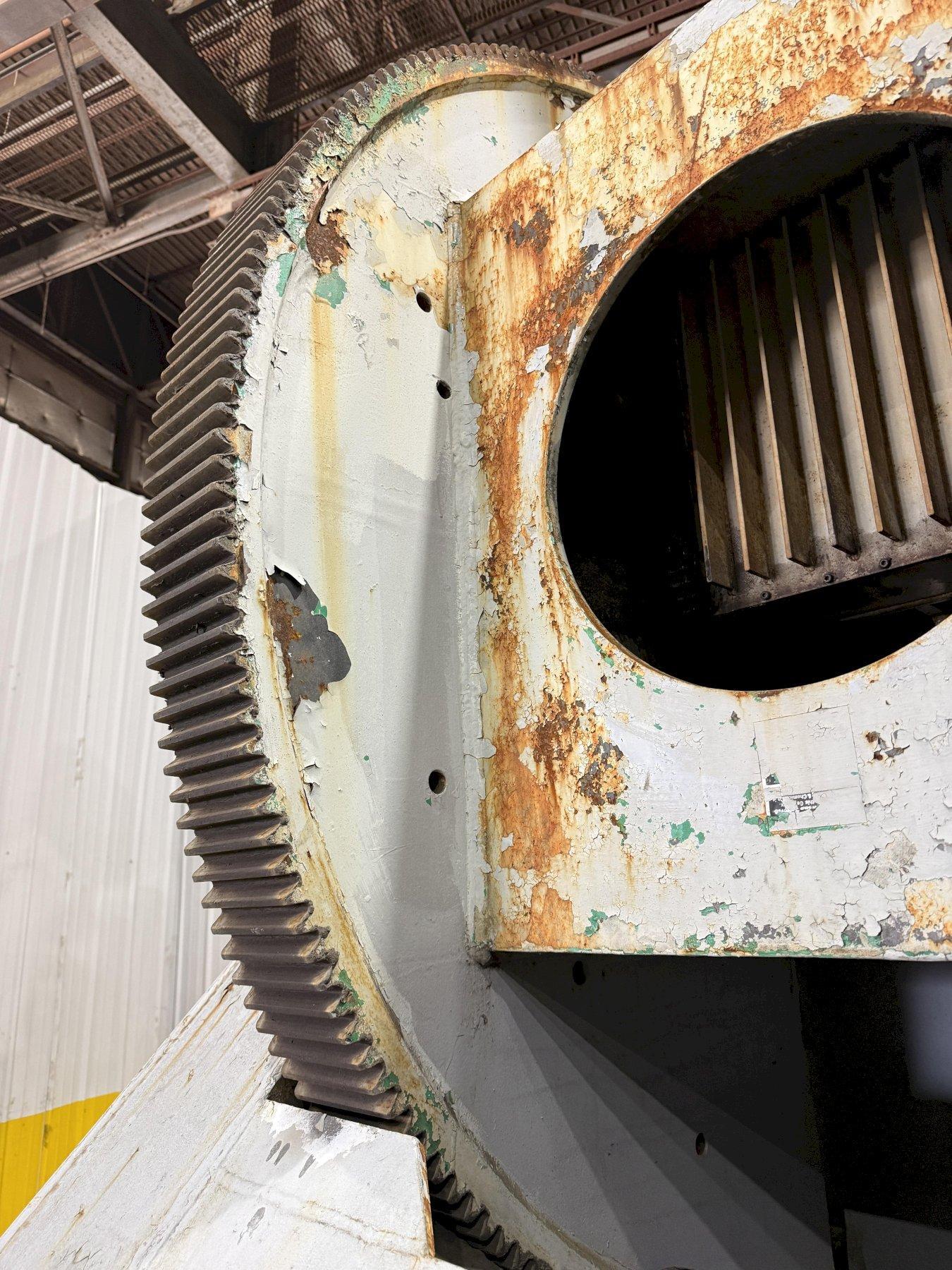

TILT CAPACITY .......... 135 DEGREES
POWER TILT ............. YES
ROTATION SPEED ......... VARIABLE

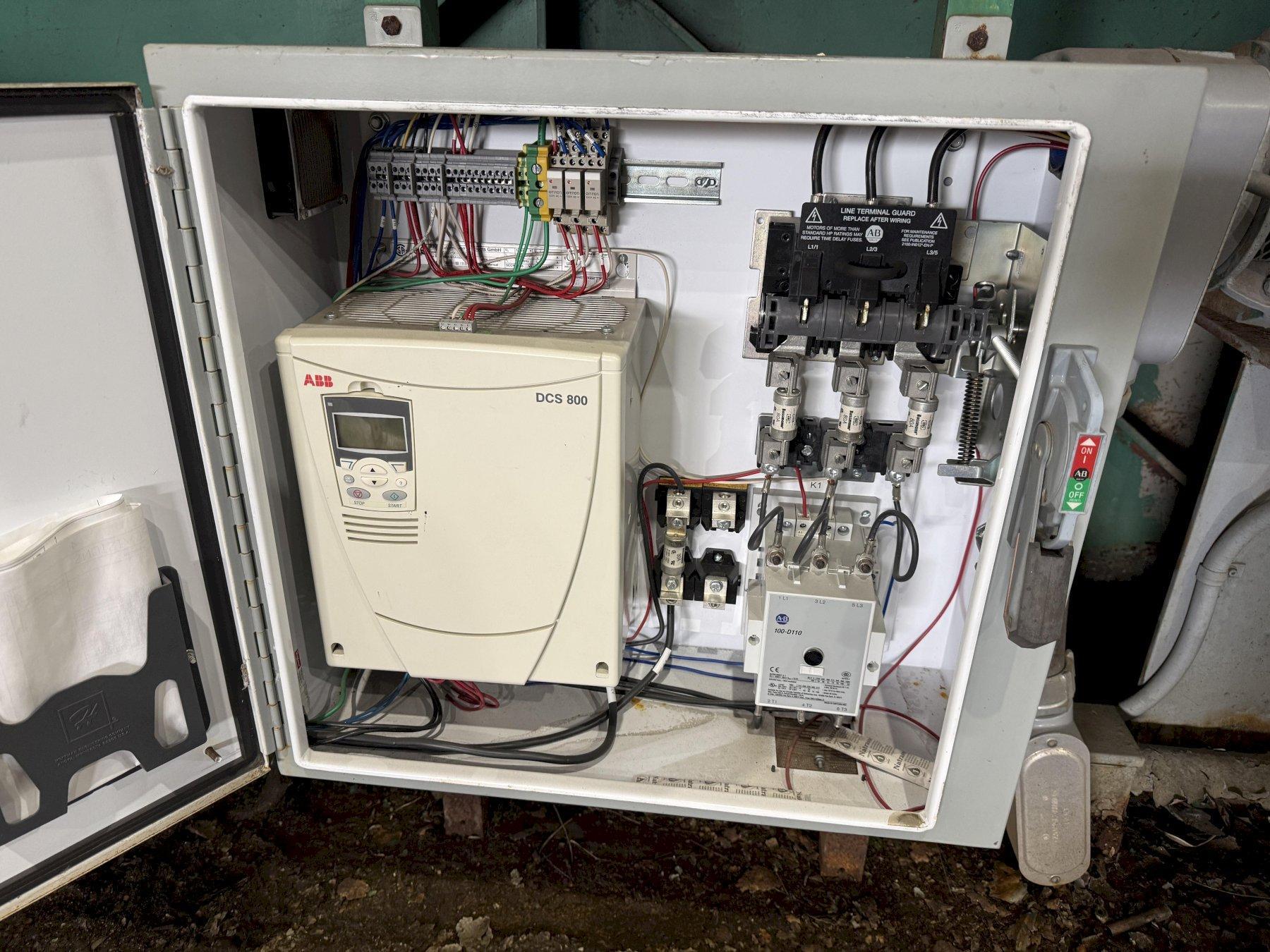

VARIABLE SPEED DRIVE ... ABB MODEL SCS800

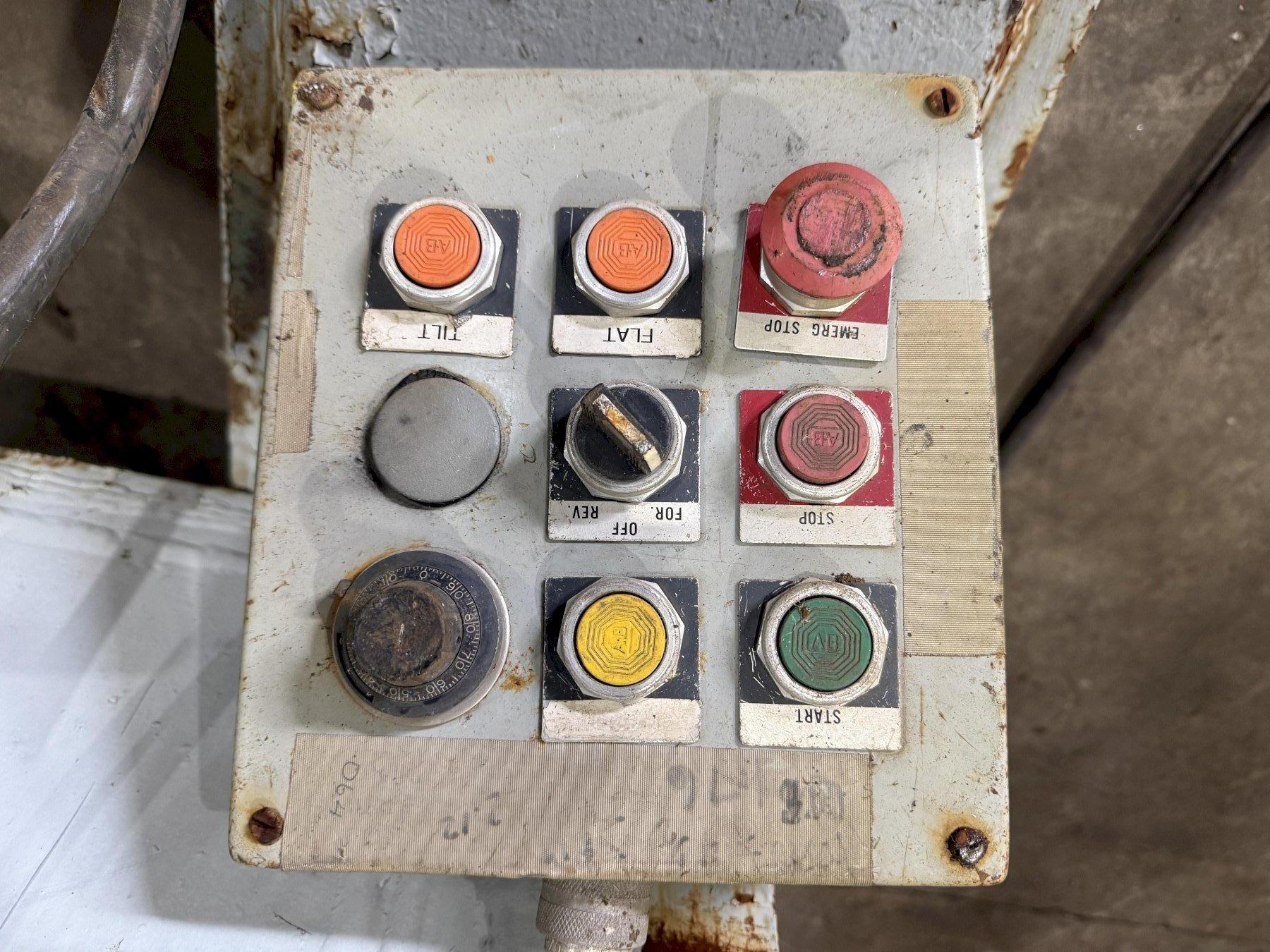

PENDANT CONTROLS ....... YES
FORWARD & REVERSE ...... YES
E-STOP BUTTON .......... YES

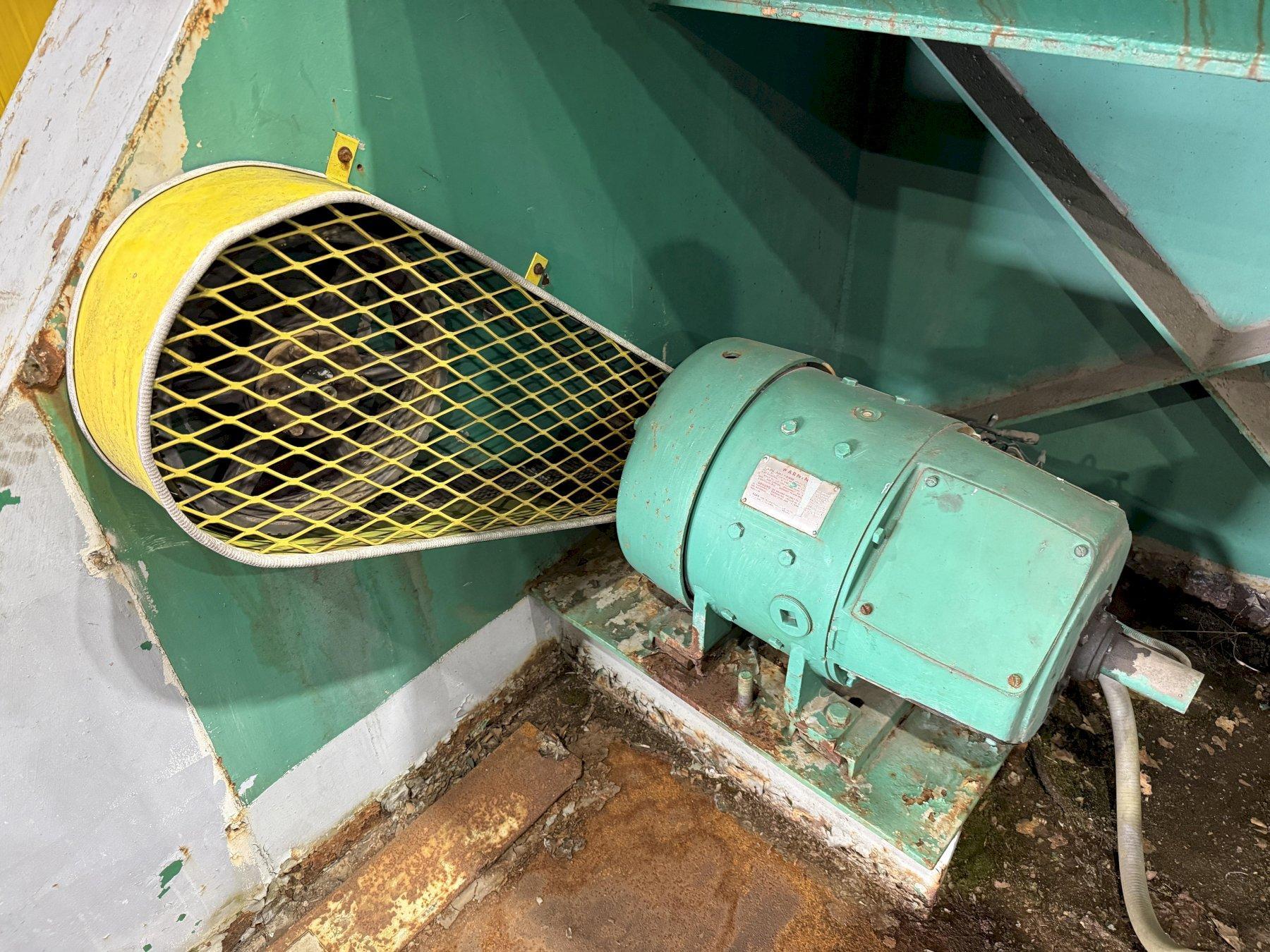

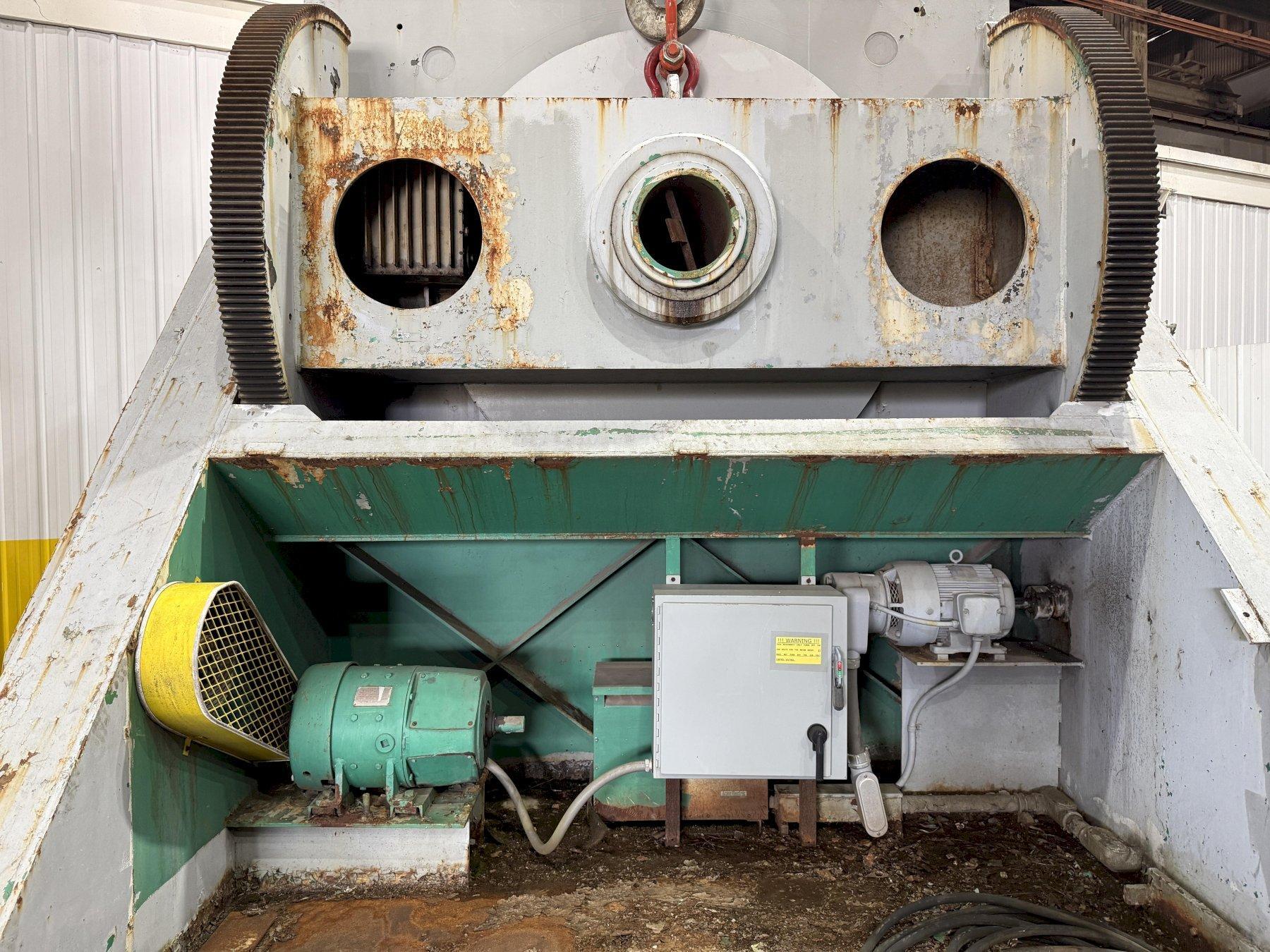

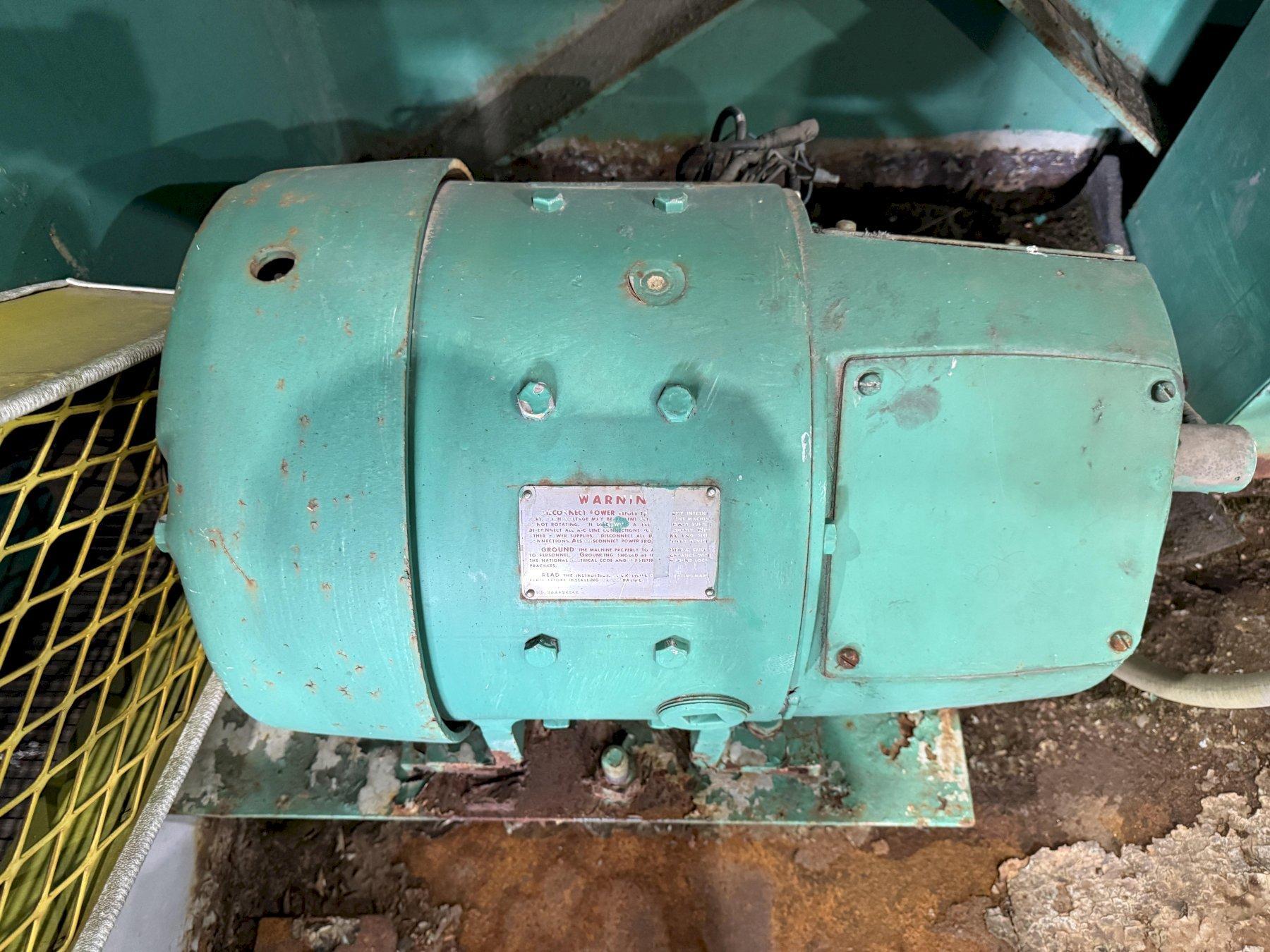

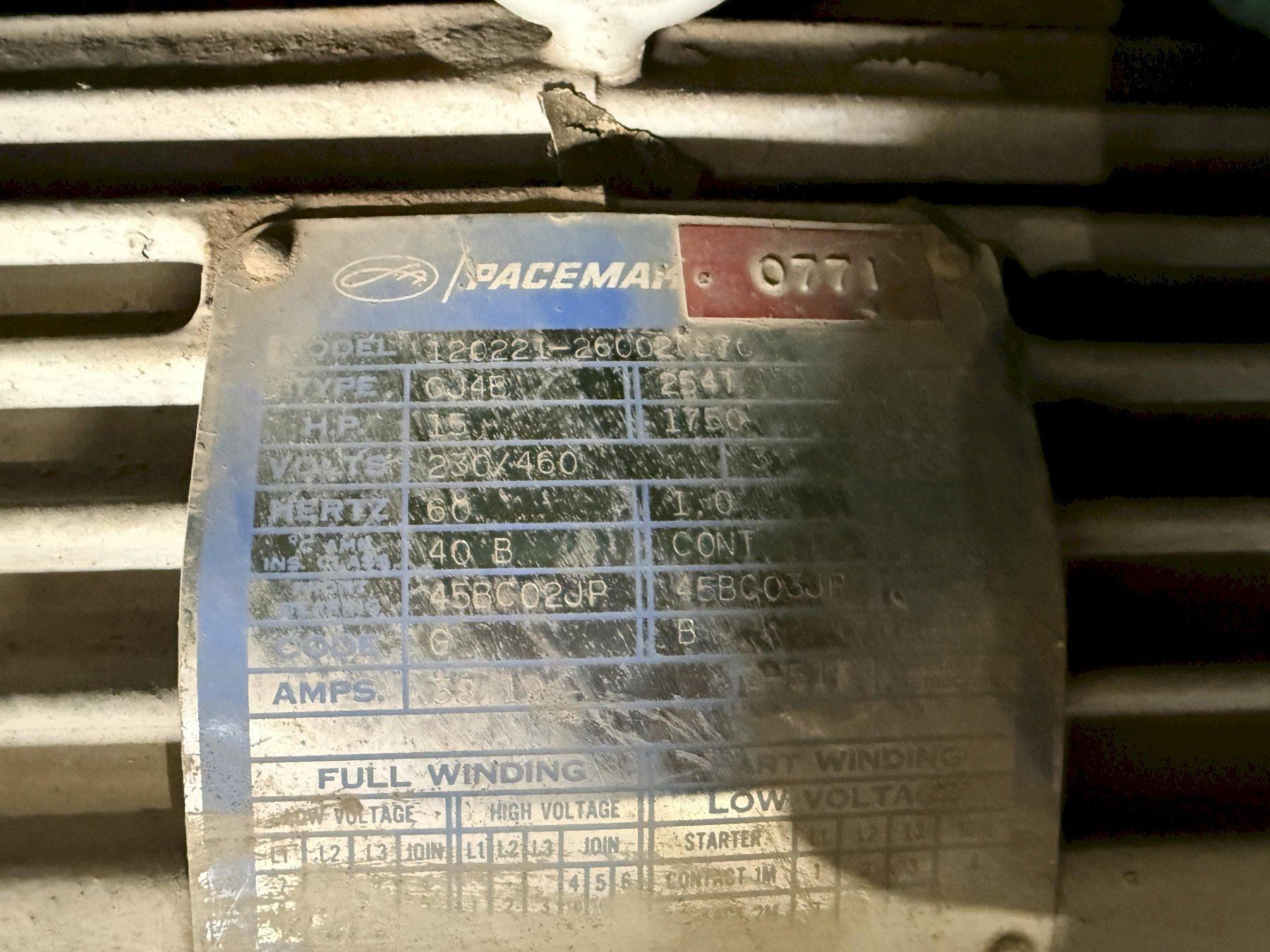

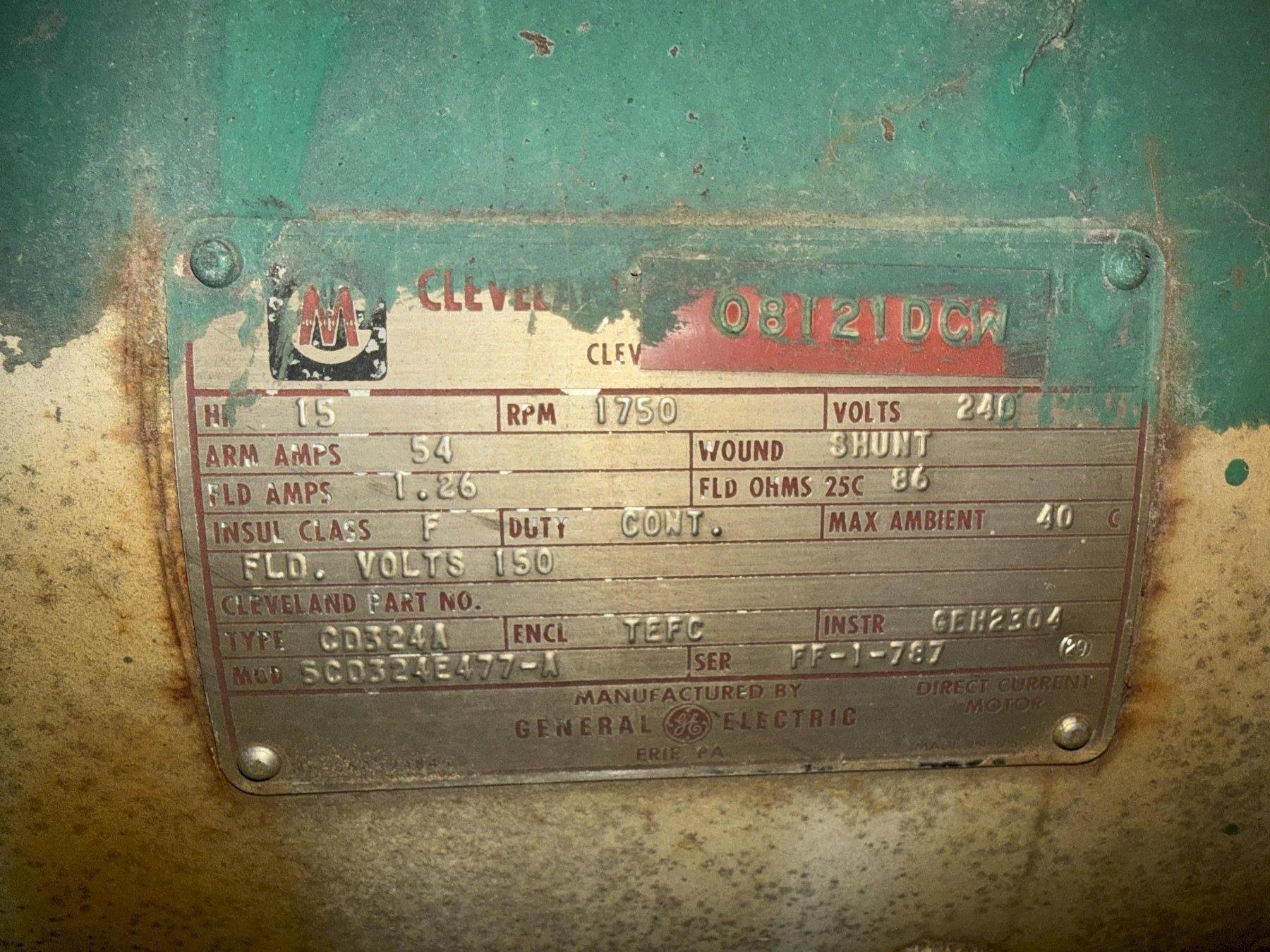

MAIN MOTOR ............. 15 HP

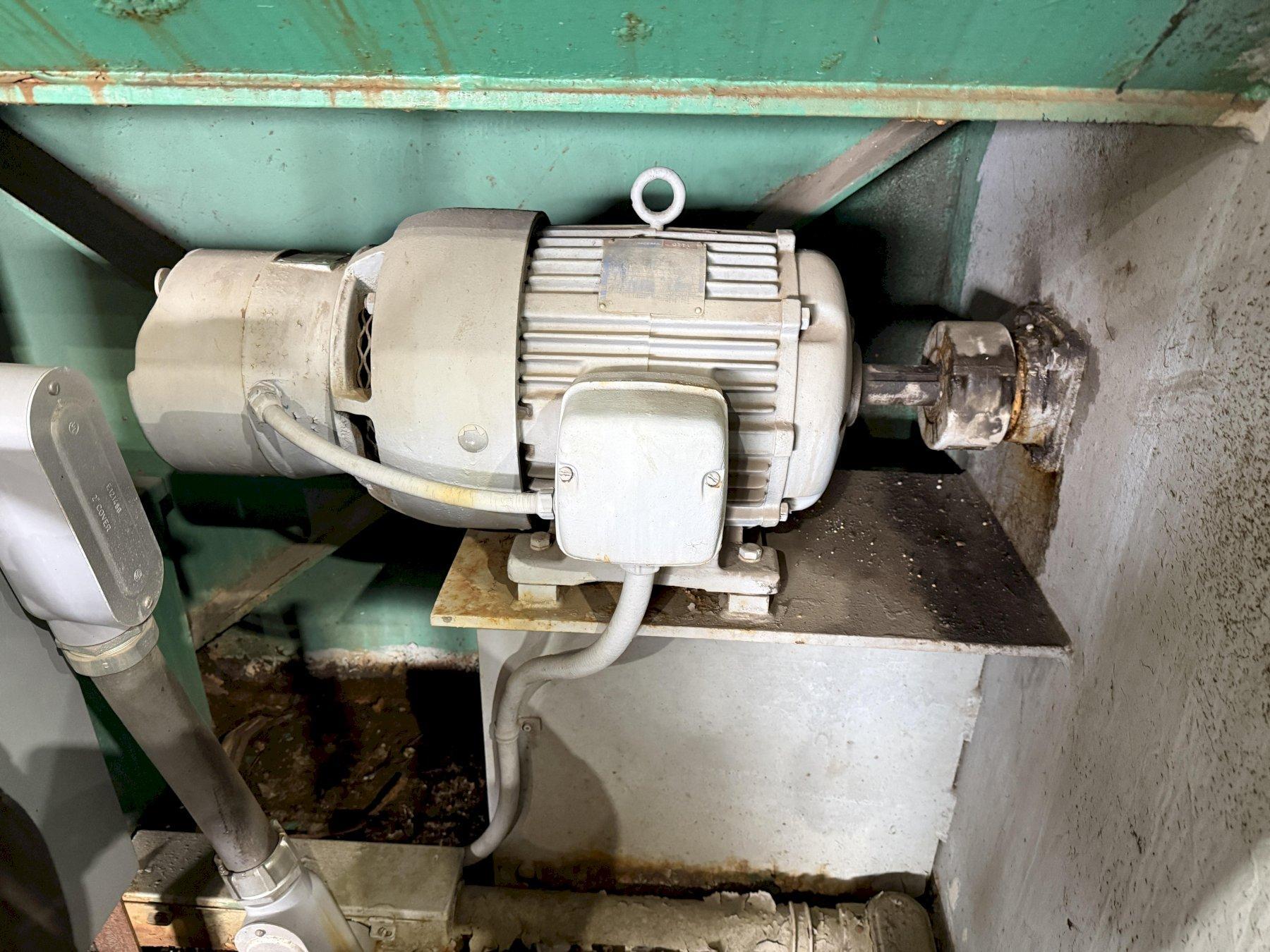

TILT MOTOR ............. 15 HP
*** 2" THICK MOUNTING PLATE BOLTED TO THE TABLE IS REMOVABLE ***
| Specifications | ||
|---|---|---|
| Weight | 45000 pounds | |
Brand
ARONSON
Type
Welding Positioners
Stock No.
15007
 |
419-269-2000 |
Stock #: 15007
SERIAL ................. 708
MODEL .................. G1200
DATE SHIPPED ........... 1970
WEIGHT CAPACITY ........ 120,000 LBS @ 12"
........ 96,000 LBS @ 18"
........ 80,000 LBS @ 24"
TABLE SIZE ............. 120" X 120" X 5" THICK
TABLE T-SLOTTED ........ YES
TABLE CENTER HEIGHT .... 98" FROM GROUND
TILT CAPACITY .......... 135 DEGREES
POWER TILT ............. YES
ROTATION SPEED ......... VARIABLE
VARIABLE SPEED DRIVE ... ABB MODEL SCS800
PENDANT CONTROLS ....... YES
FORWARD & REVERSE ...... YES
E-STOP BUTTON .......... YES
MAIN MOTOR ............. 15 HP
TILT MOTOR ............. 15 HP
*** 2" THICK MOUNTING PLATE BOLTED TO THE TABLE IS REMOVABLE ***
