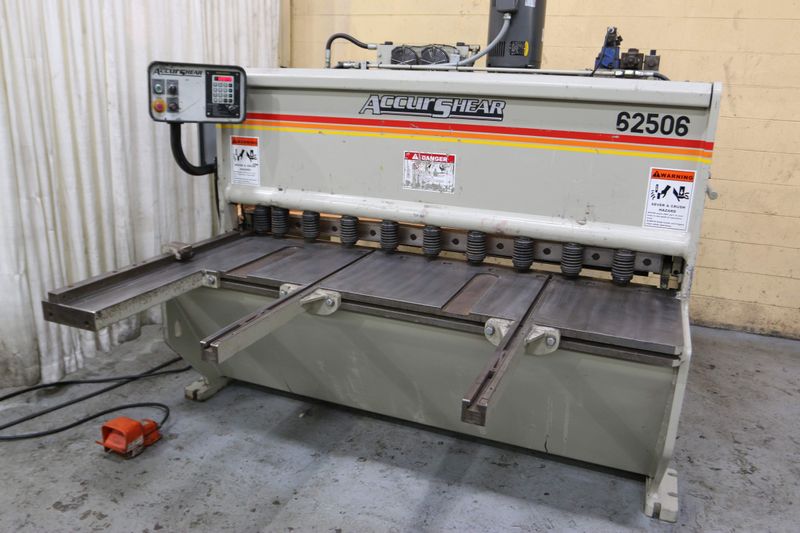

MODEL ......................... 62506
SERIAL ........................ 5535
YEAR .......................... 2007
CAPACITY (MILD STEEL) ......... 1/4"
CUTTING LENGTH ................ 72" MAX
RAKE ANGLE .................... 1/4" PER FOOT
STROKES PER MINUTE ............ 36 FULL / 65 SHORT
NUMBER OF HOLD DOWNS .......... 10
BACK GAUGE RANGE .............. 36"
BACK GAUGE CONTROL ............ FRONT OPERATED PROGRAMMABLE POWER
SQUARING ARM .................. YES
FRONT MATERIAL SUPPORT ARMS ... YES
LENGTH OF STROKE CONTROL ...... VARIABLE POWER
RAKE ANGLE CONTROL ............ MANUAL QUICK ADJUSTMENT
ELECTRIC FOOT PEDAL ........... YES
HORSEPOWER .................... 20 HP
| Specifications | ||
|---|---|---|
| Max Thickness | .250 inches | |
| Length of Blade | 72 inches | |
| Hyd/Mech | hydraulic | |
| Back Gauges | 36 inches | |
| Power | 20 horsepower | |
| SPM | 36 | |
Brand
ACCURSHEAR
Type
Shears, Power Squaring (In)
Stock No.
10054
 |
419-269-2000 |
Stock #: 10054
MODEL ......................... 62506
SERIAL ........................ 5535
YEAR .......................... 2007
CAPACITY (MILD STEEL) ......... 1/4"
CUTTING LENGTH ................ 72" MAX
RAKE ANGLE .................... 1/4" PER FOOT
STROKES PER MINUTE ............ 36 FULL / 65 SHORT
NUMBER OF HOLD DOWNS .......... 10
BACK GAUGE RANGE .............. 36"
BACK GAUGE CONTROL ............ FRONT OPERATED PROGRAMMABLE POWER
SQUARING ARM .................. YES
FRONT MATERIAL SUPPORT ARMS ... YES
LENGTH OF STROKE CONTROL ...... VARIABLE POWER
RAKE ANGLE CONTROL ............ MANUAL QUICK ADJUSTMENT
ELECTRIC FOOT PEDAL ........... YES
HORSEPOWER .................... 20 HP
