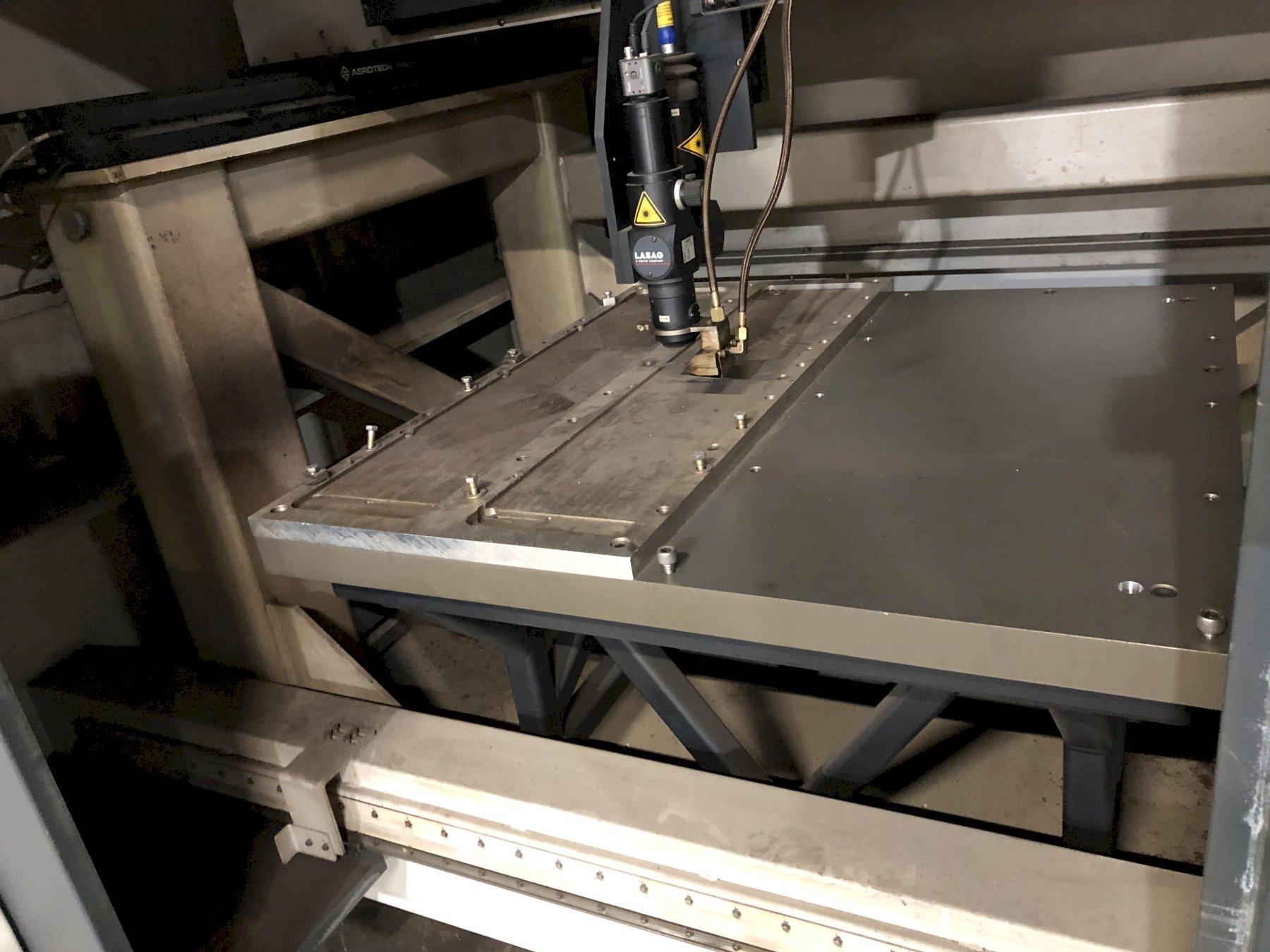

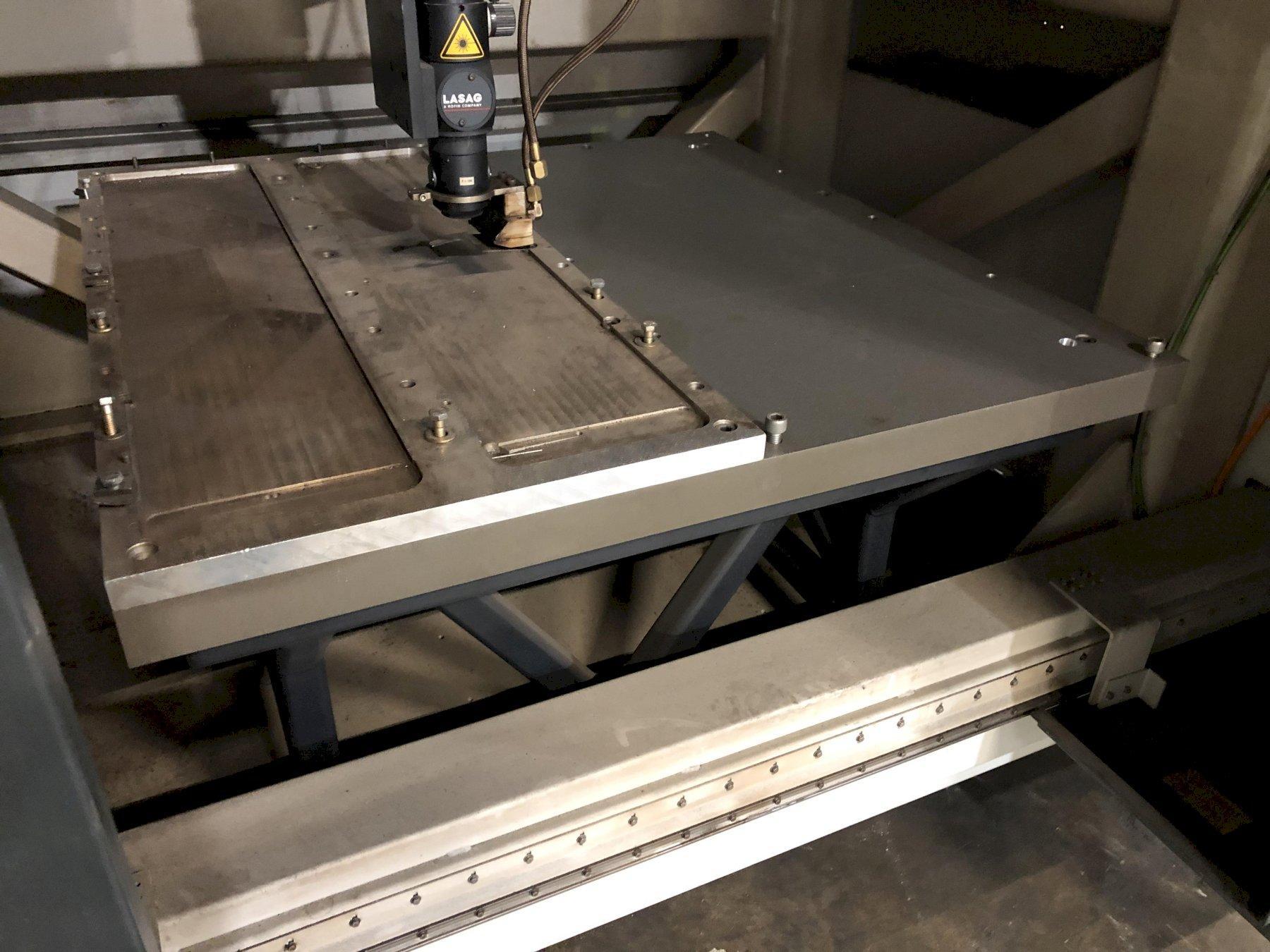

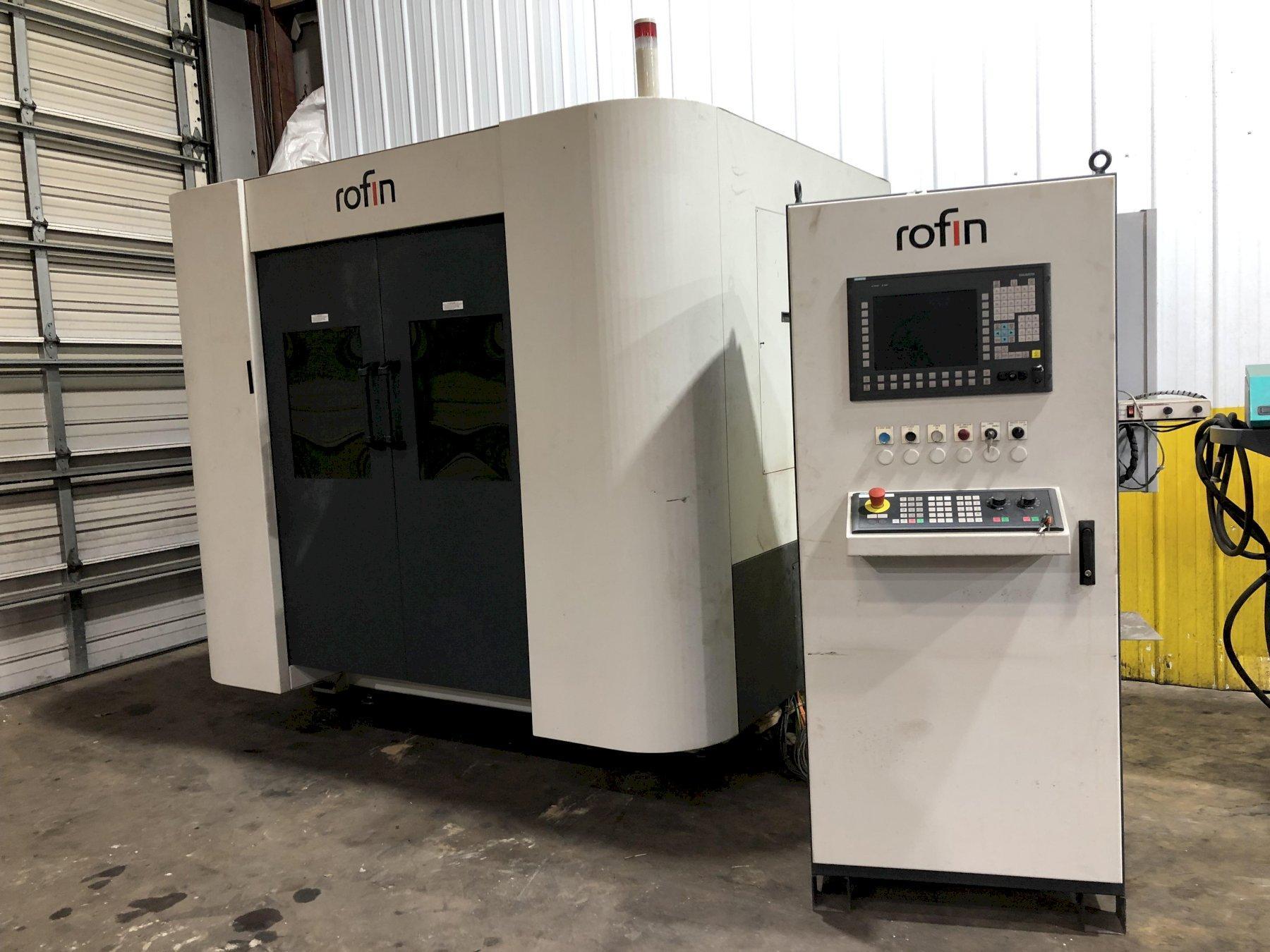

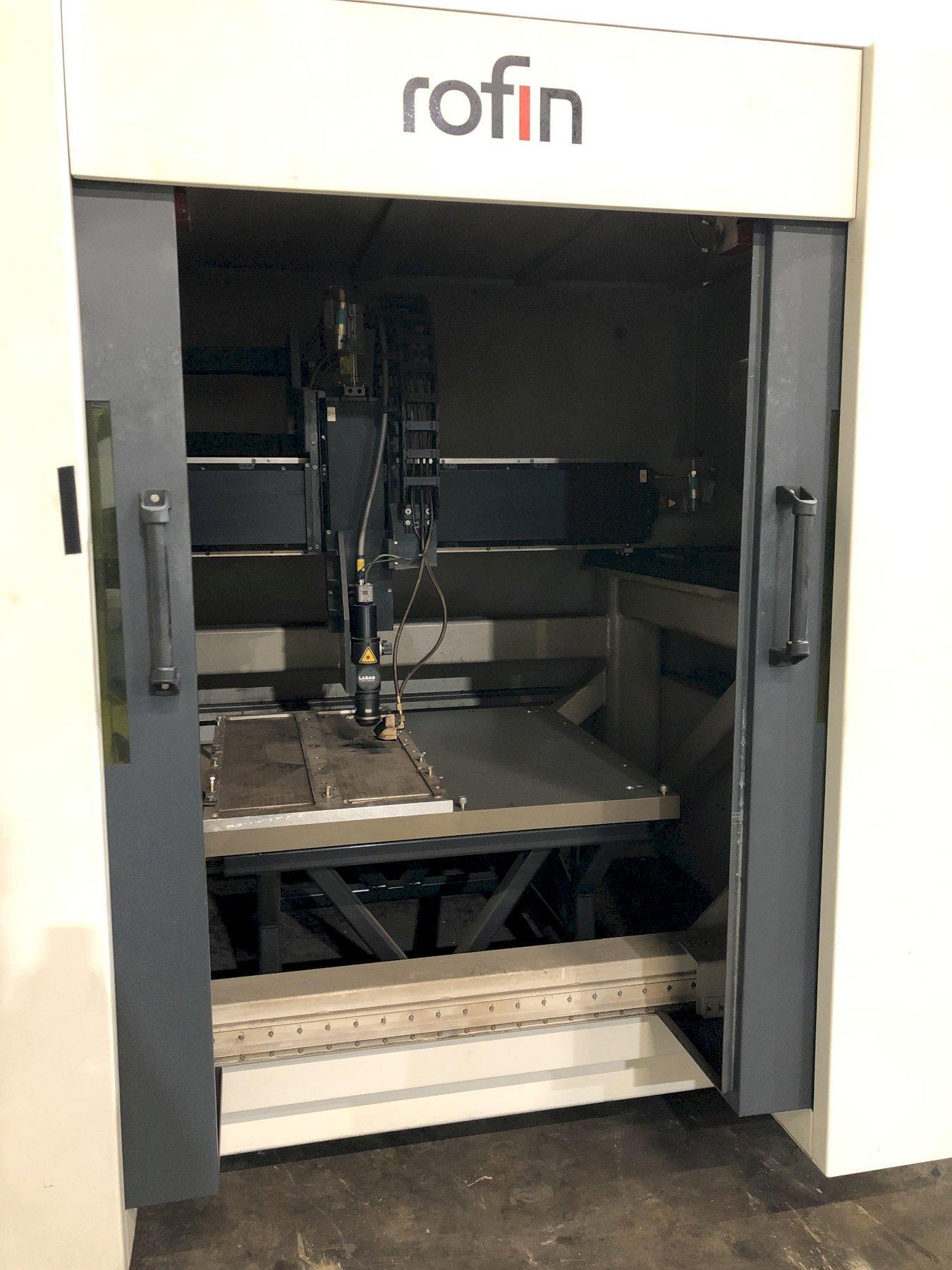

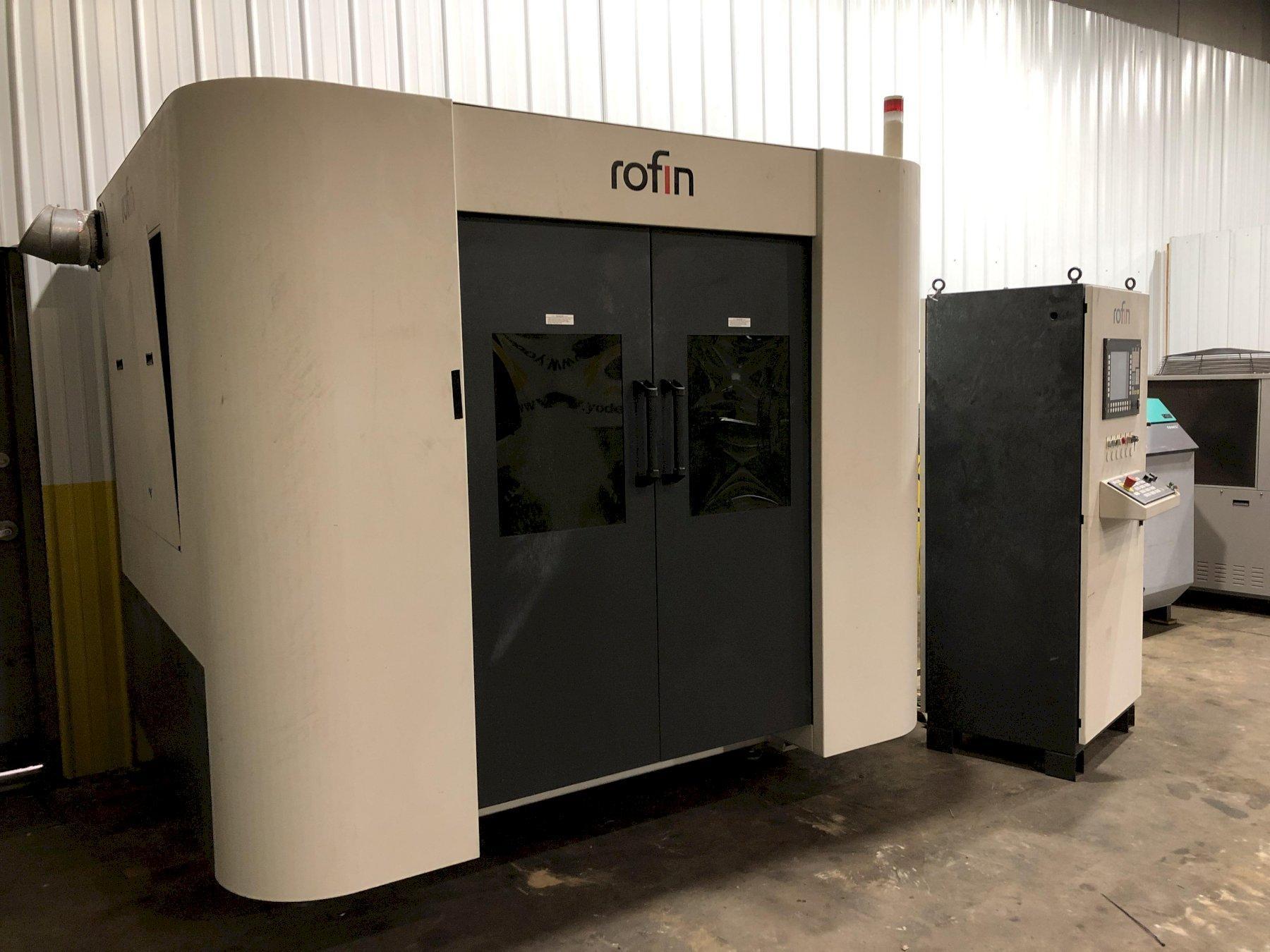

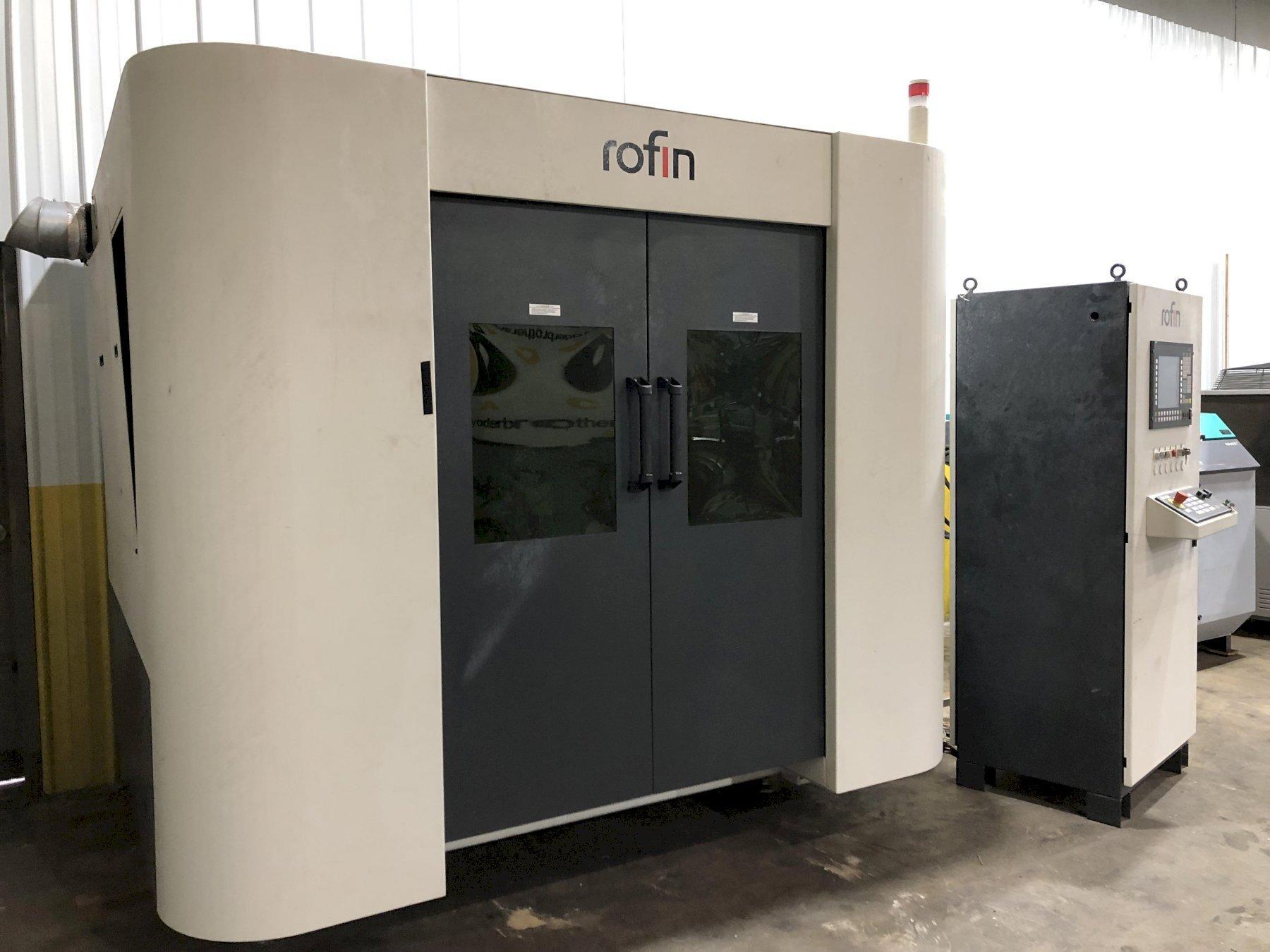

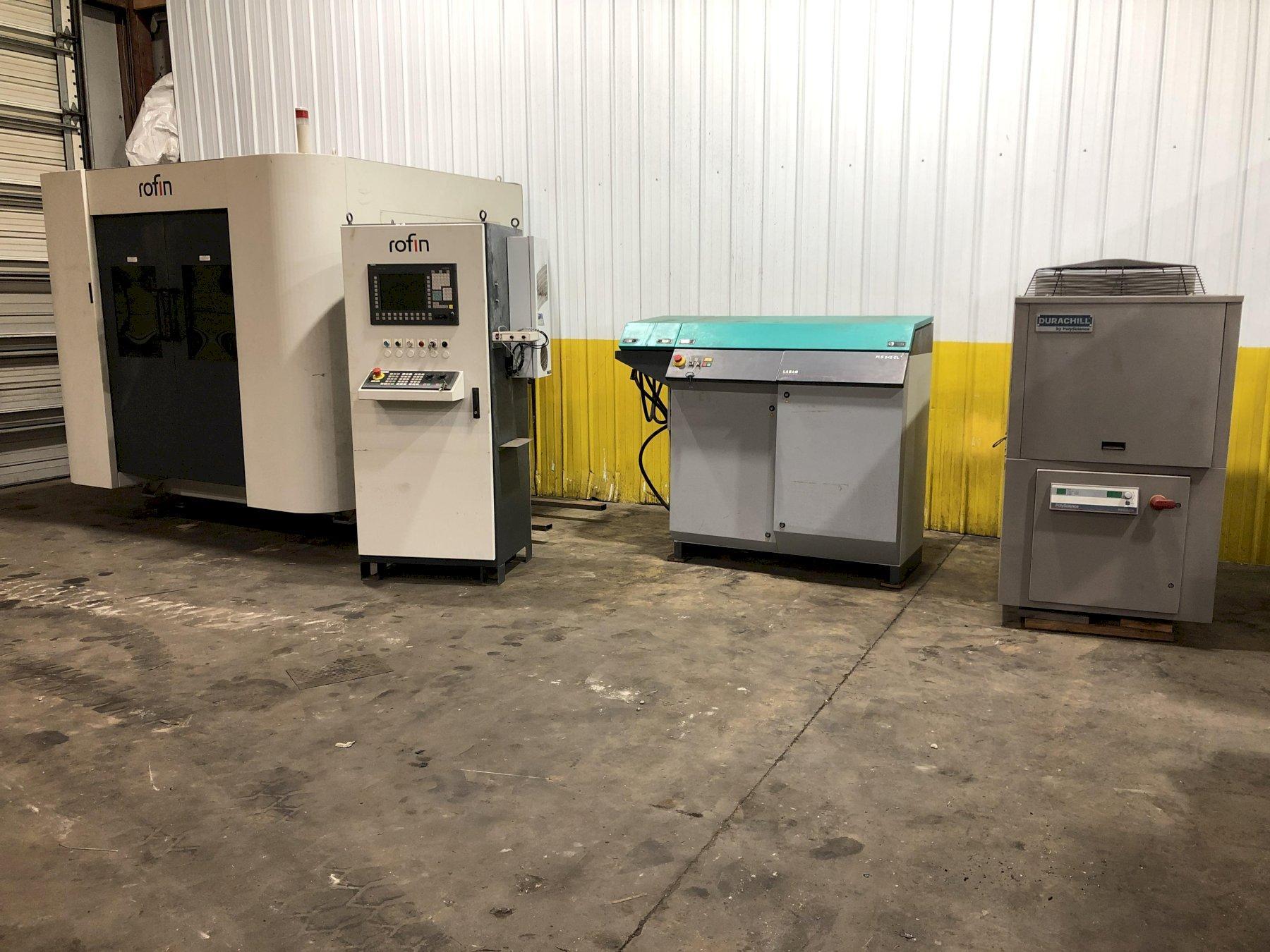

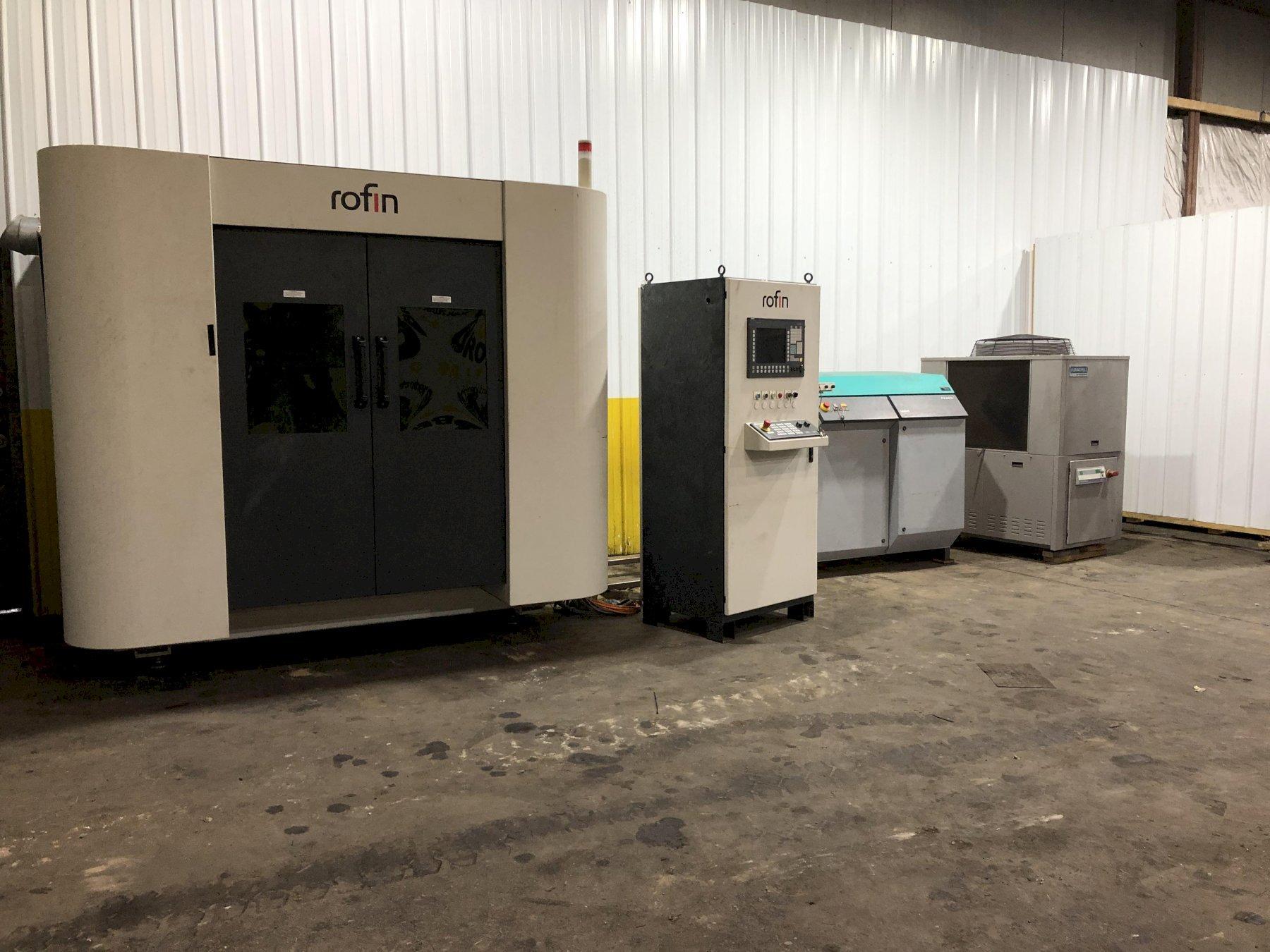

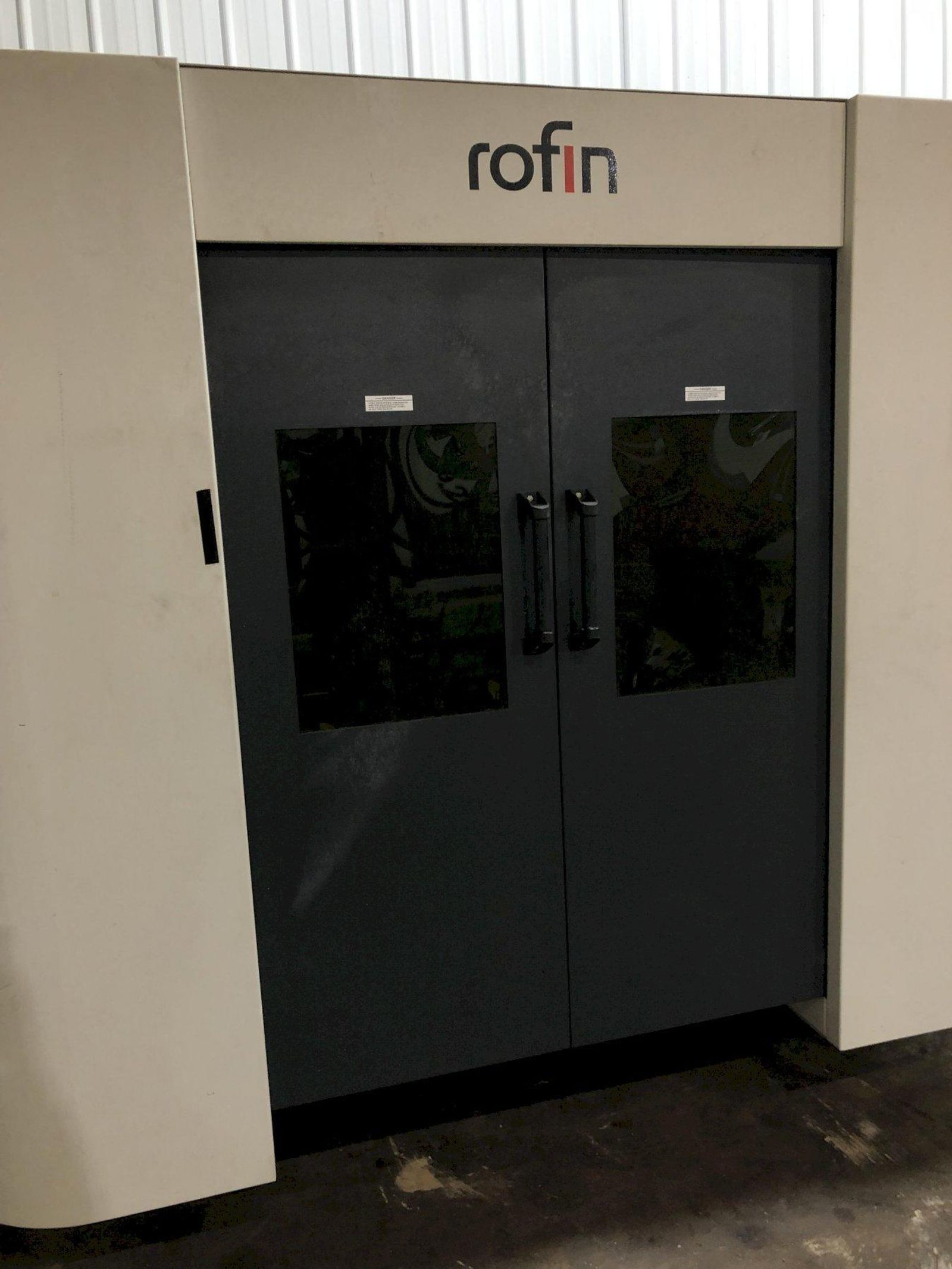

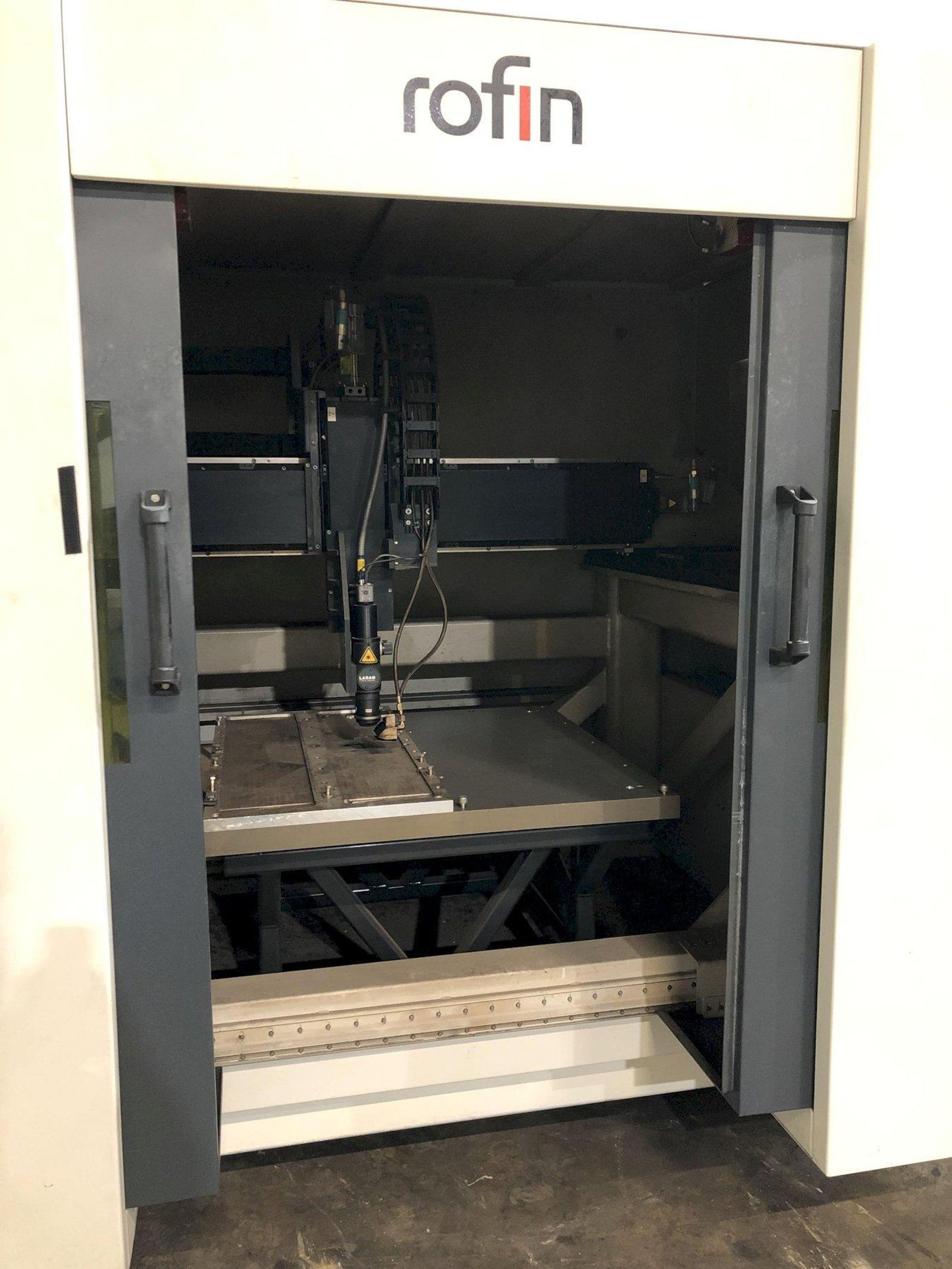

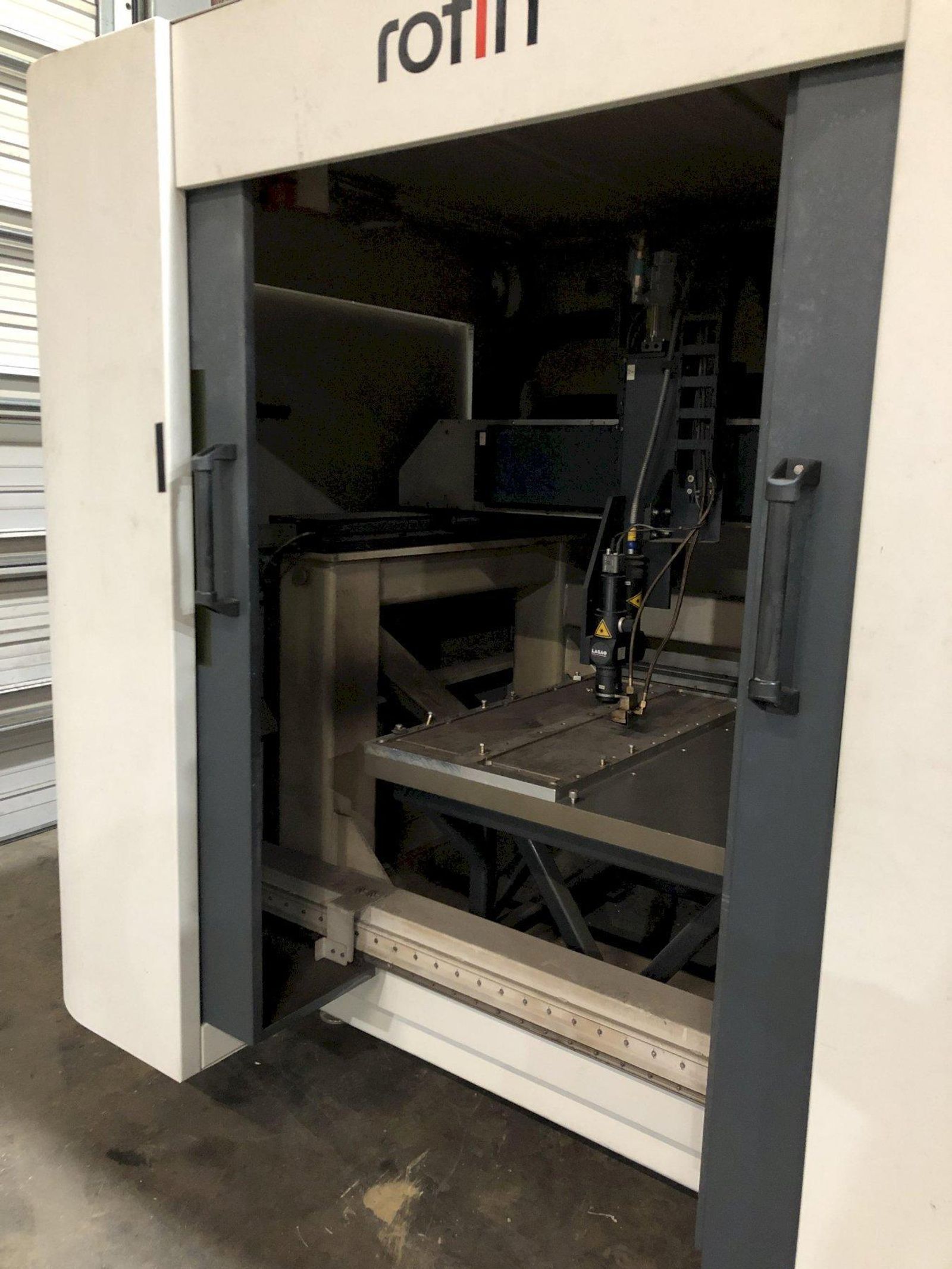

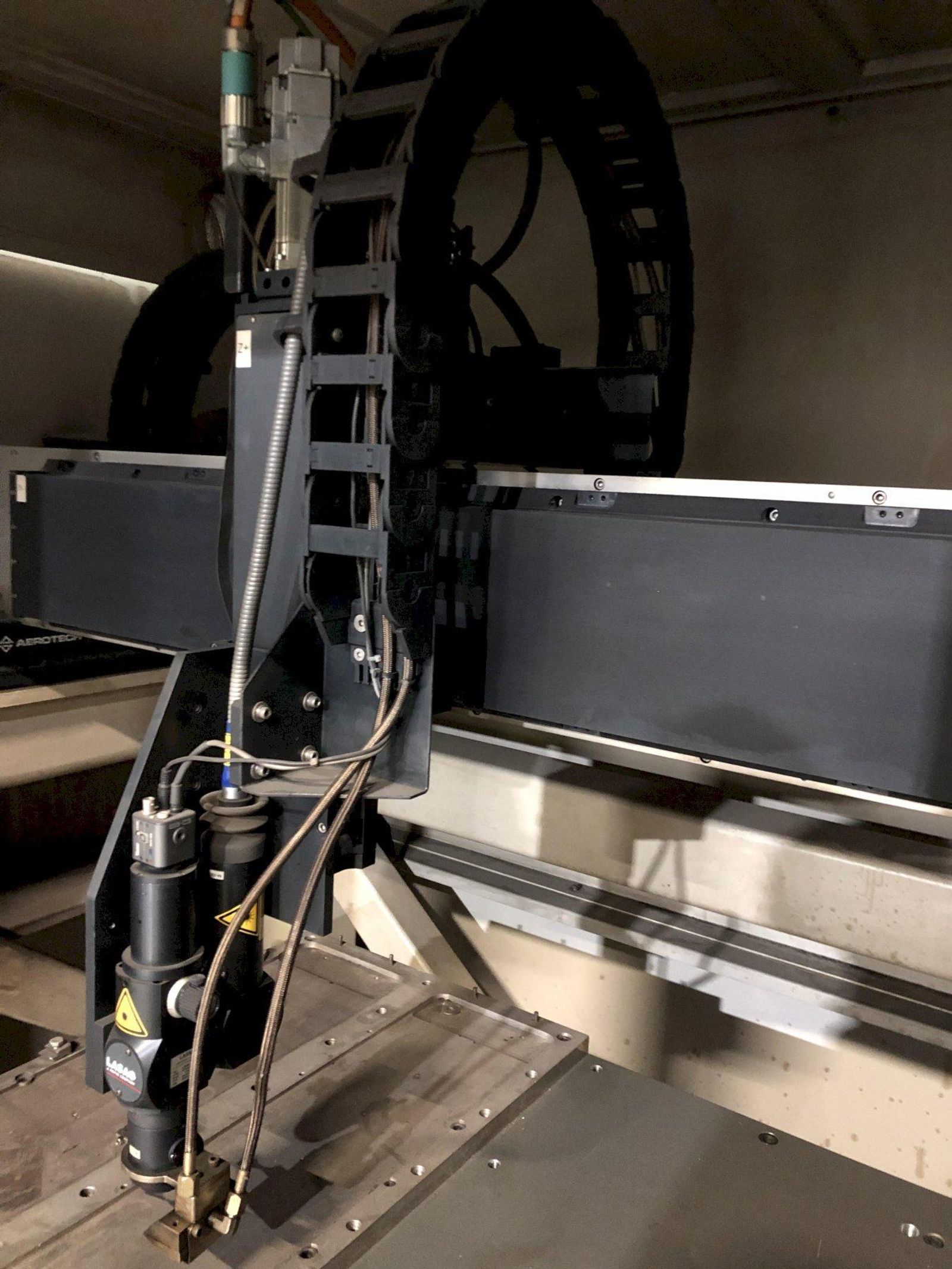

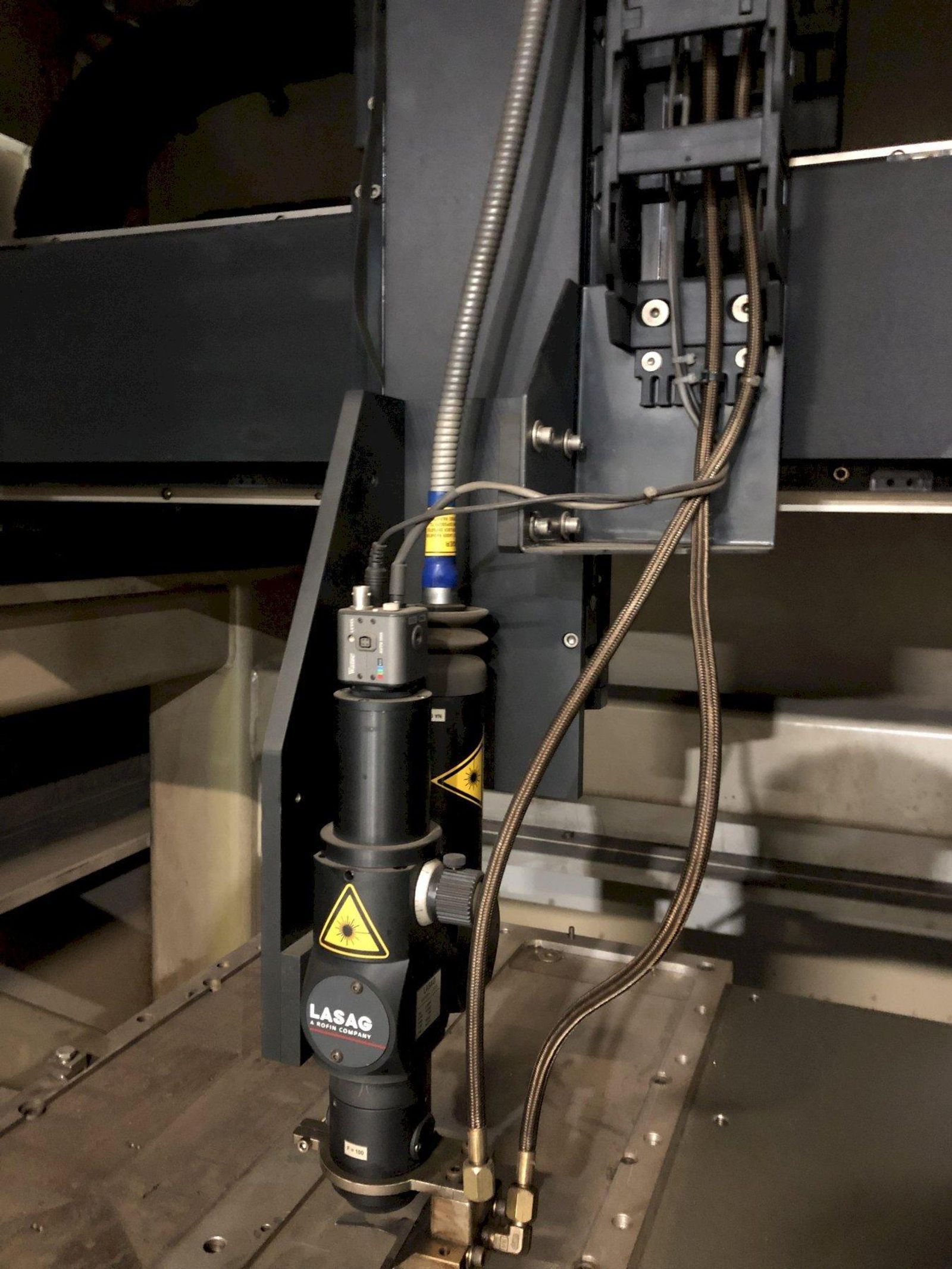

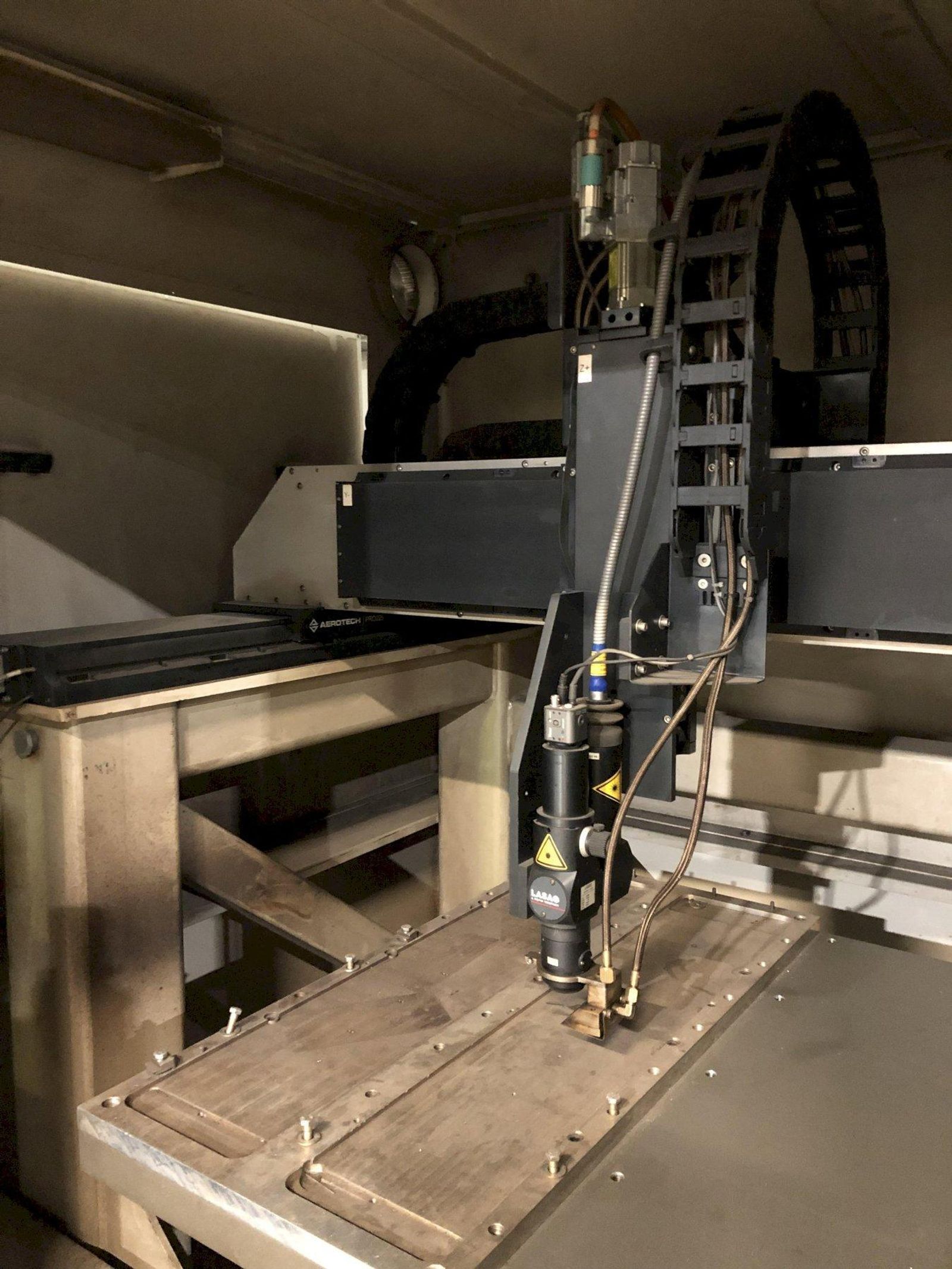

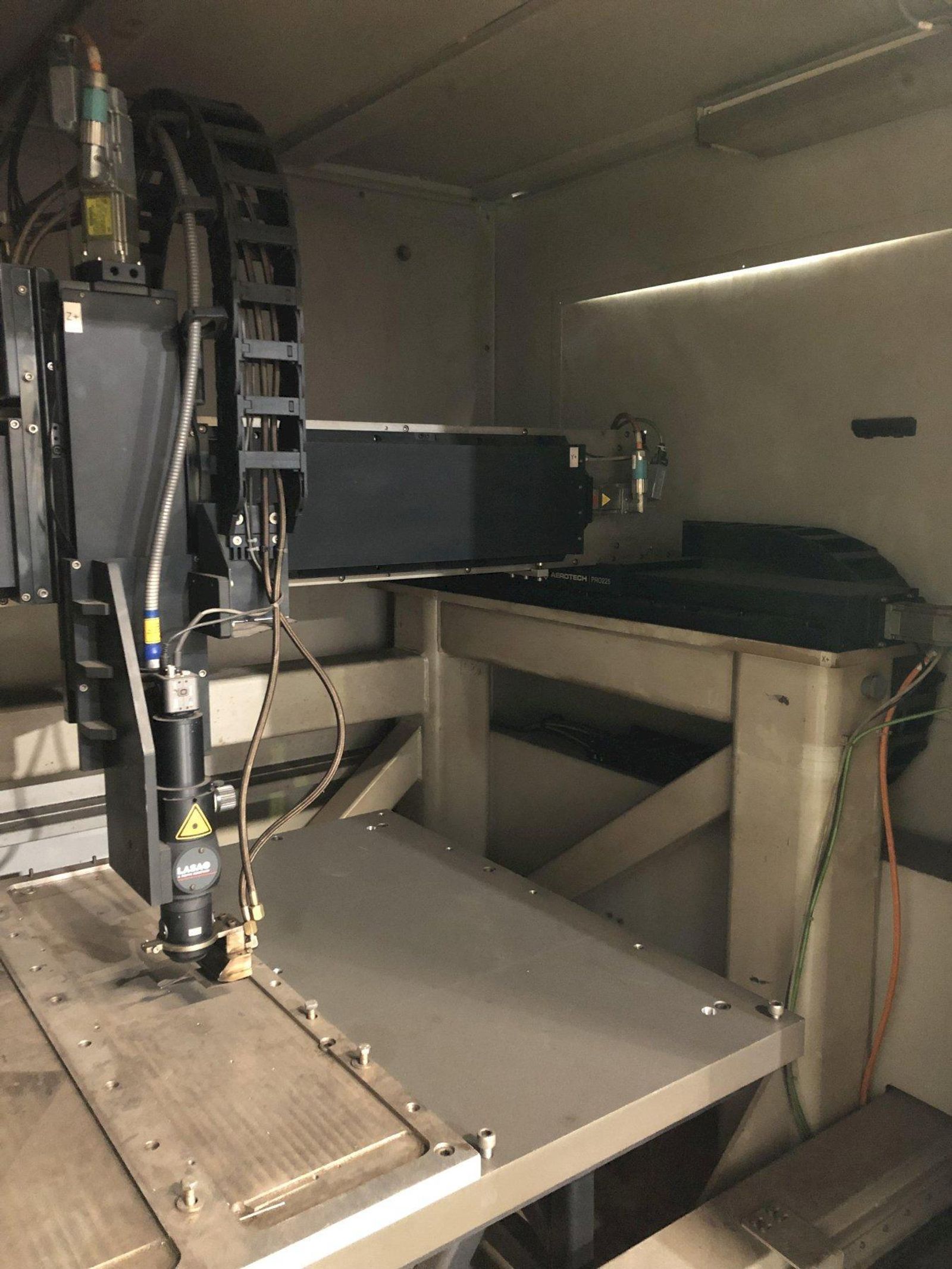

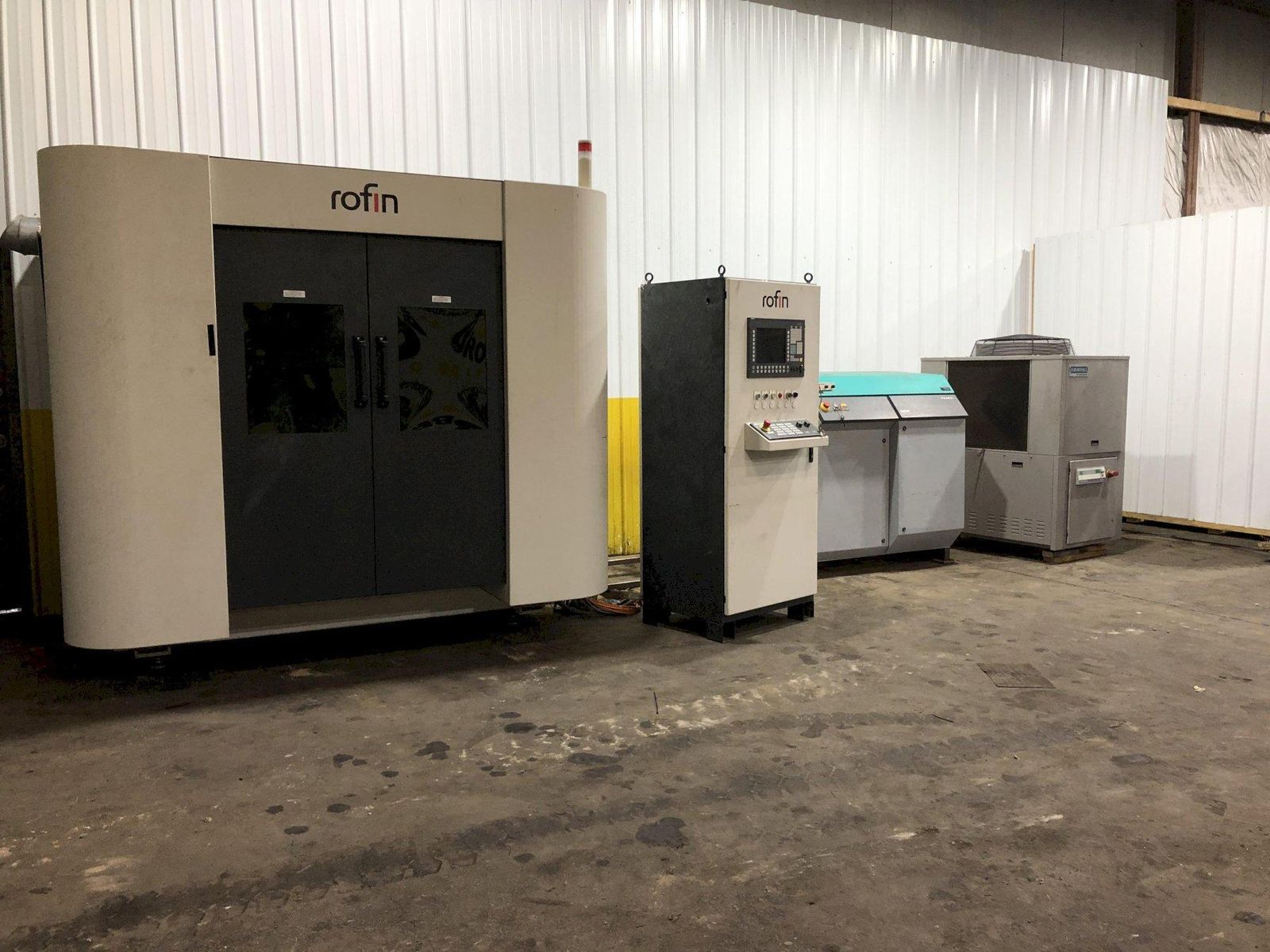

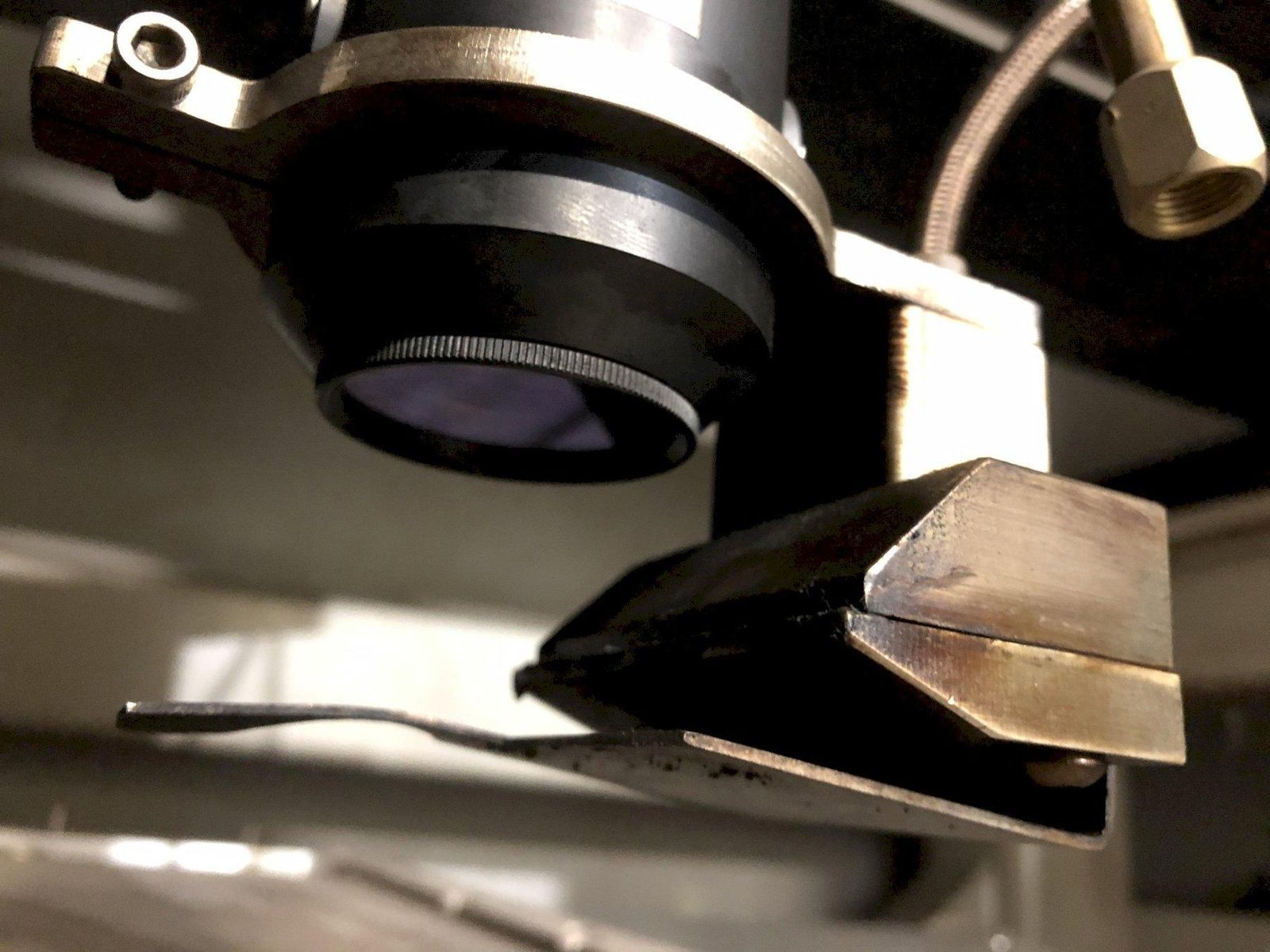

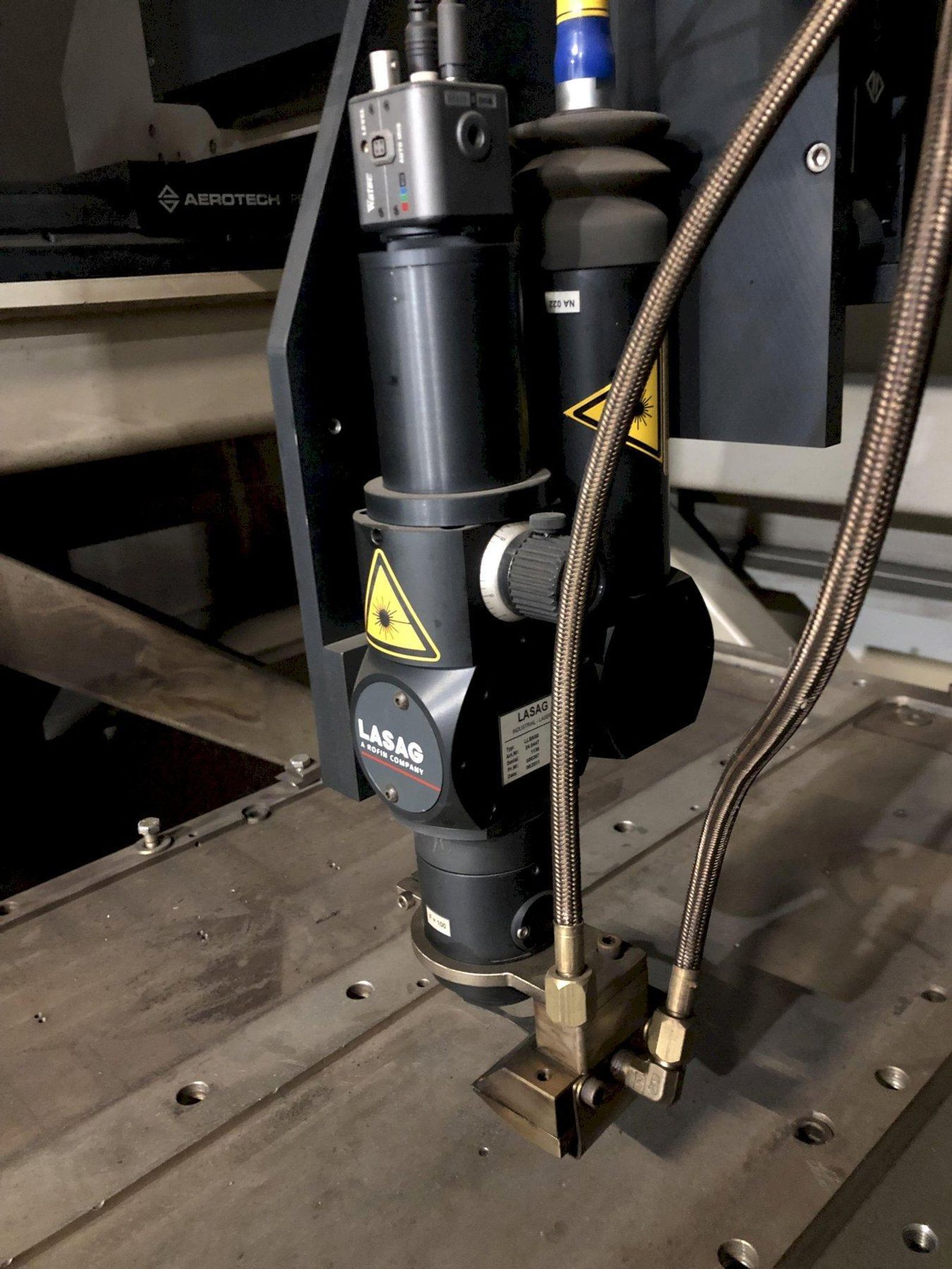

Rofin Housing & Table
- 40" x 40" XYZ Travels

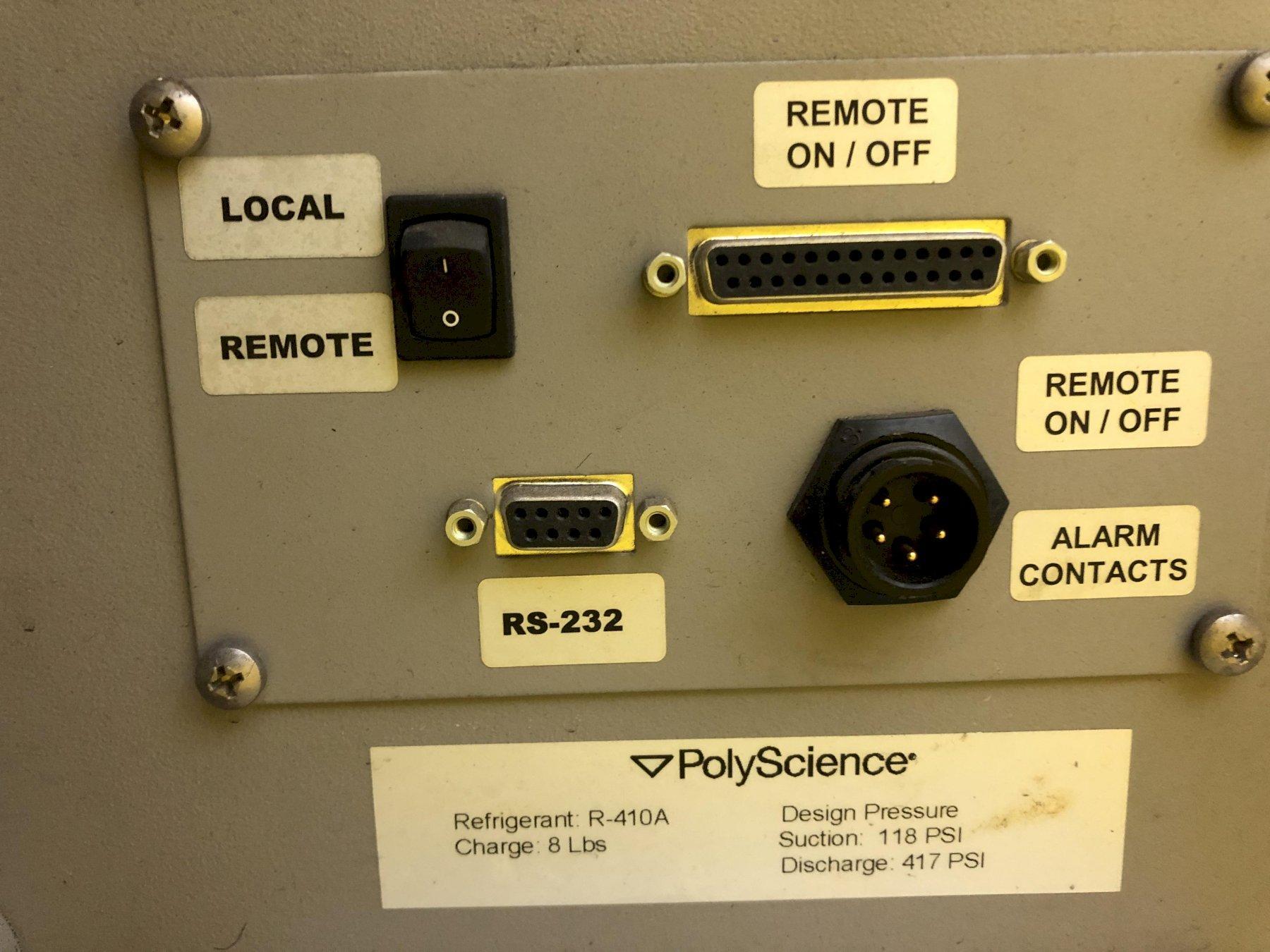

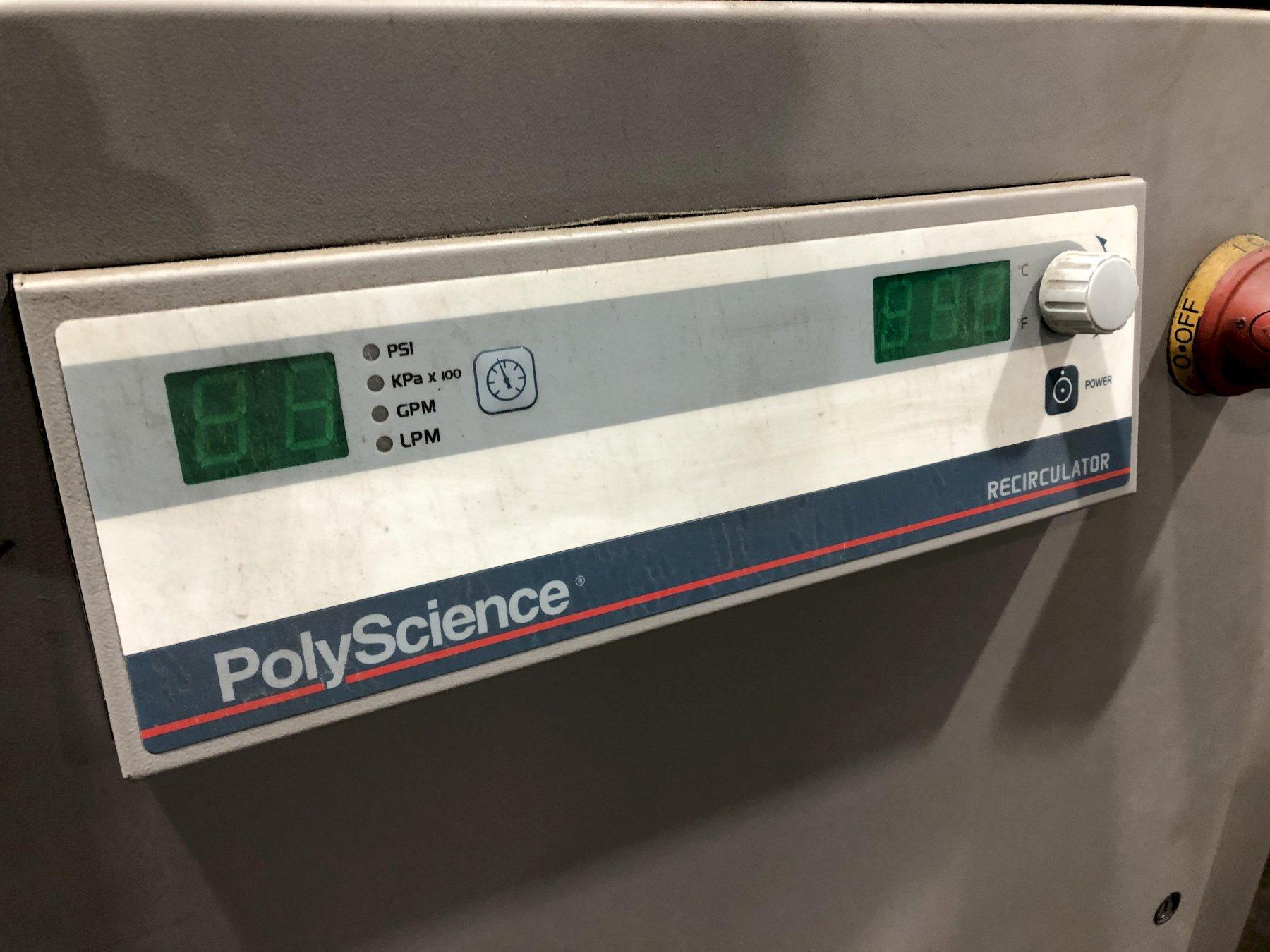

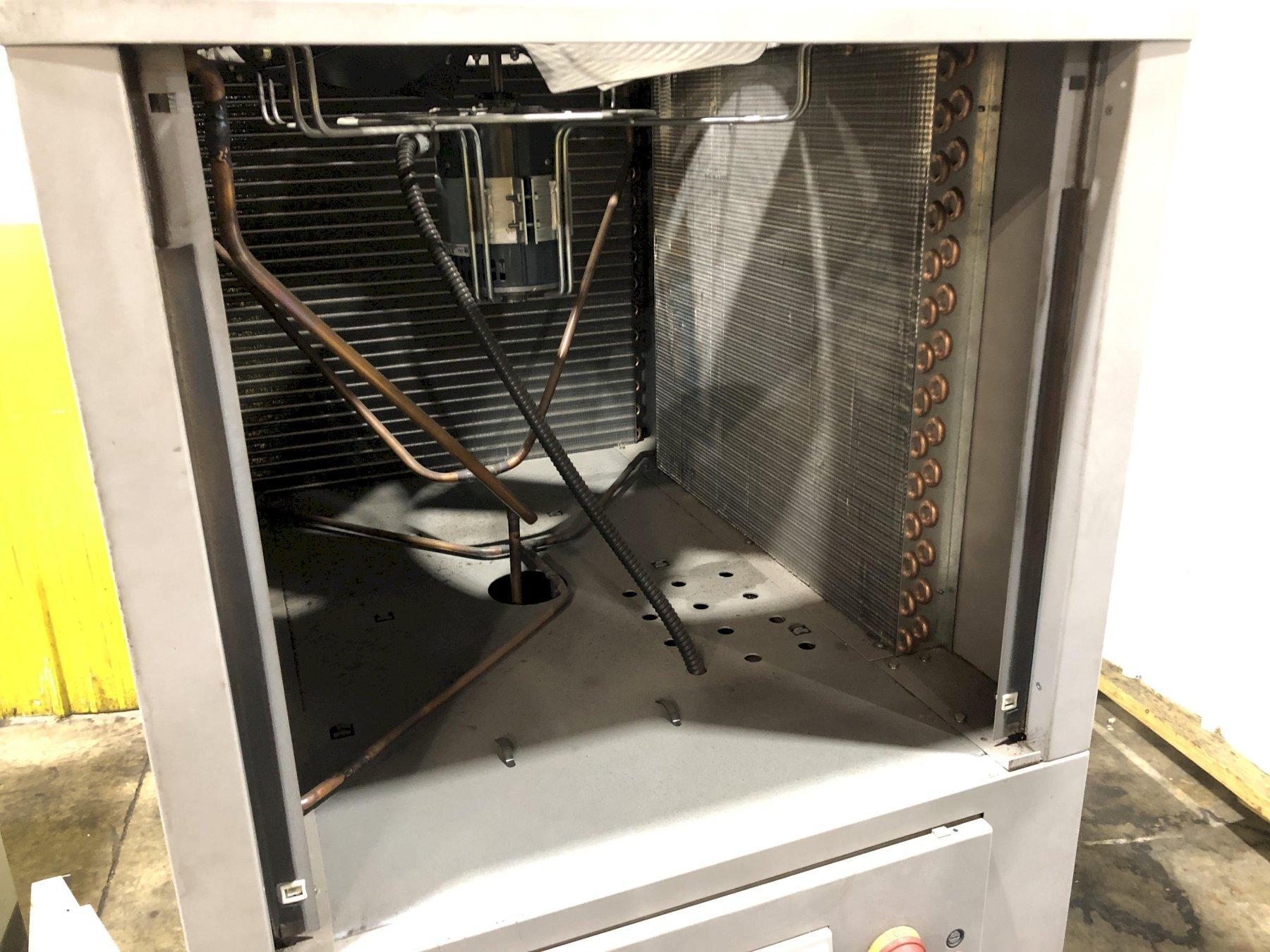

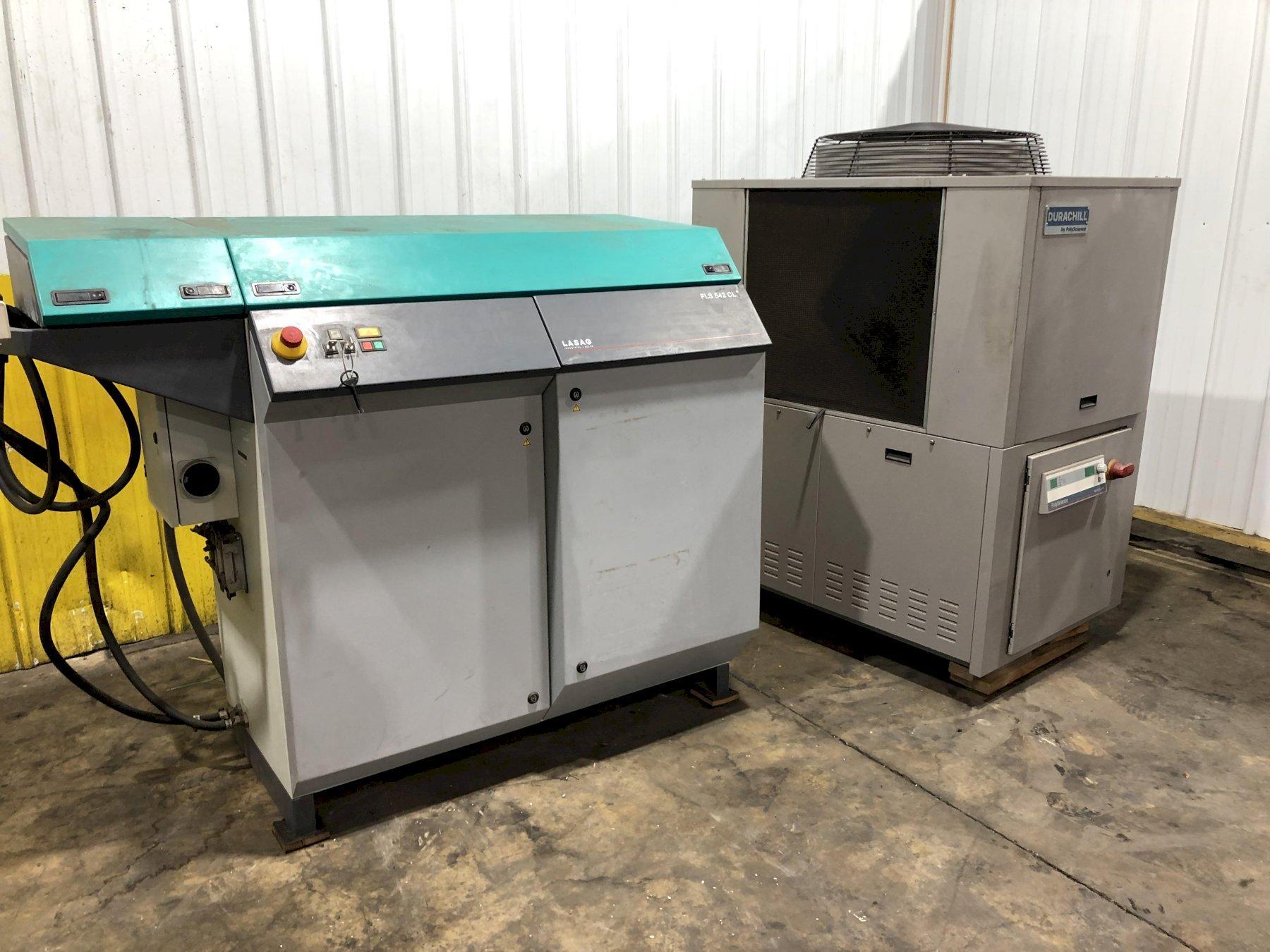

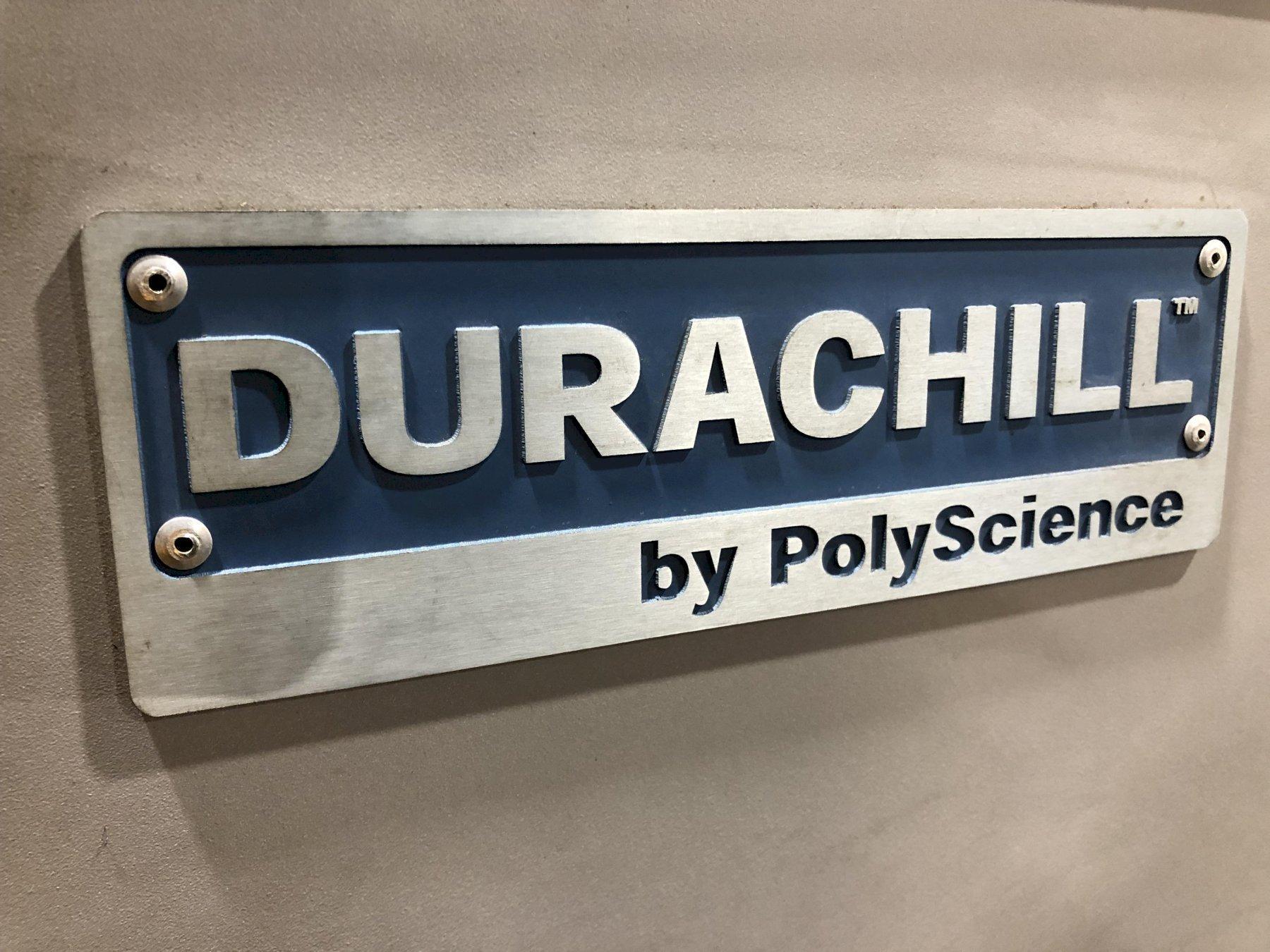

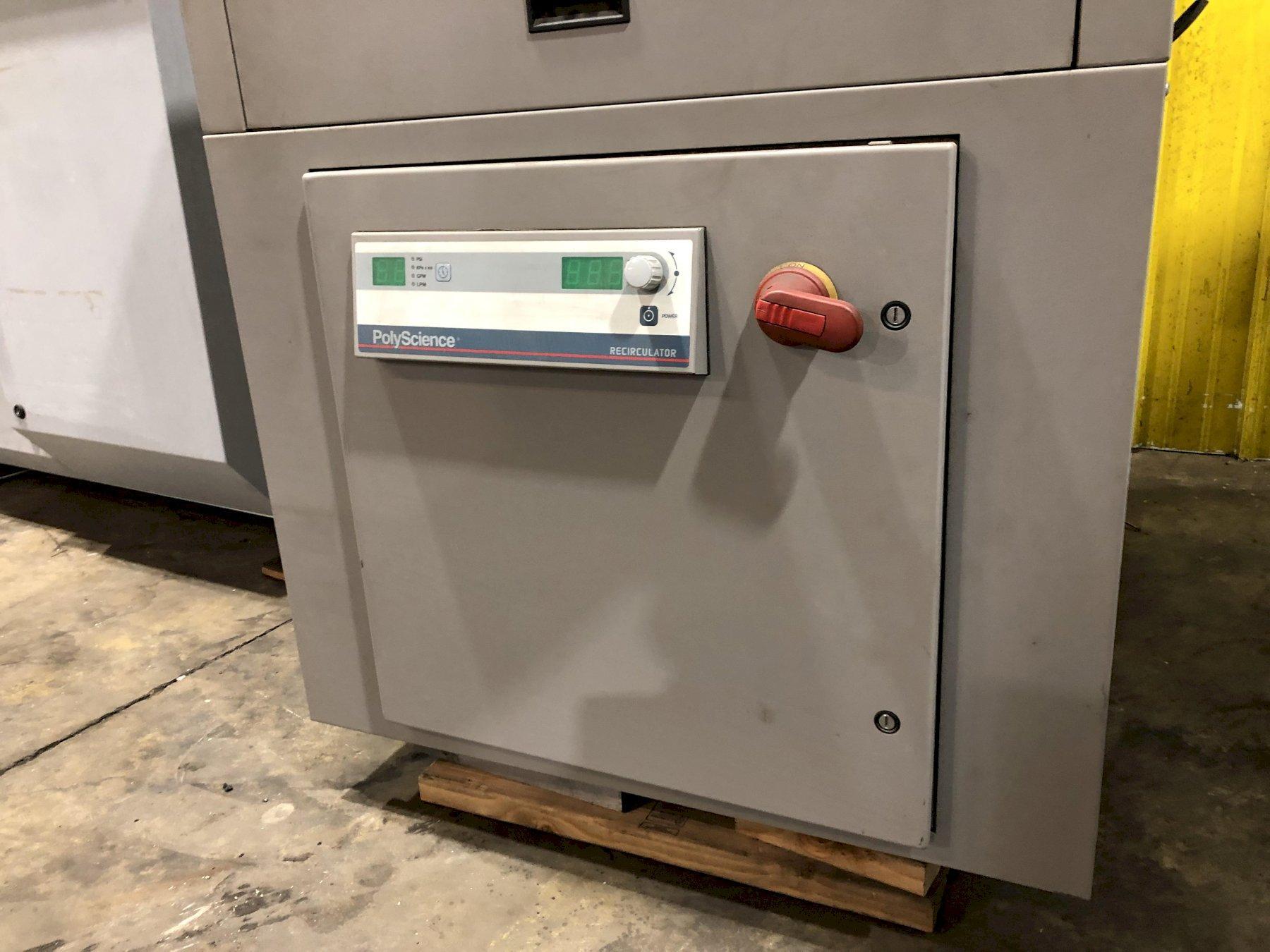

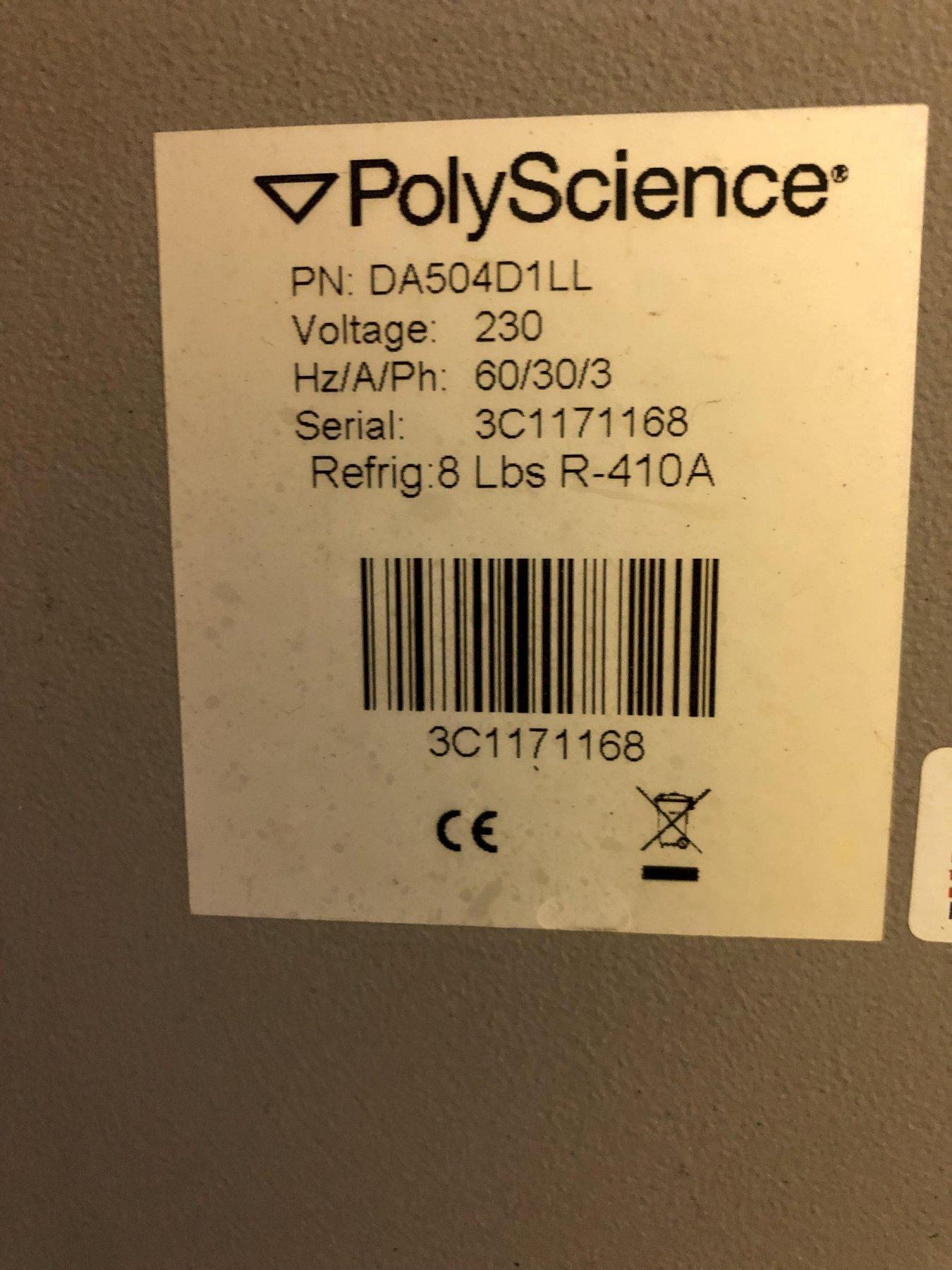

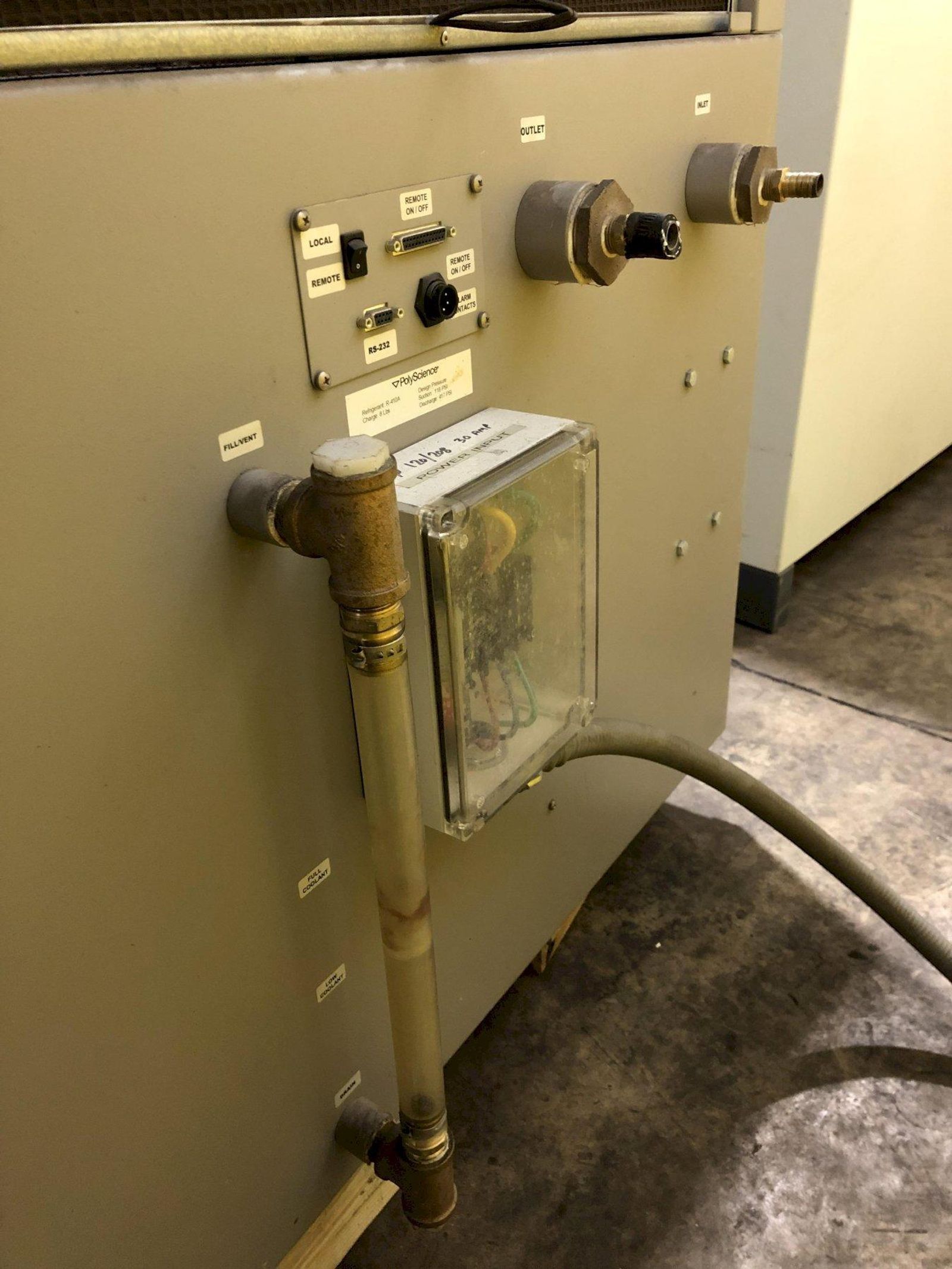

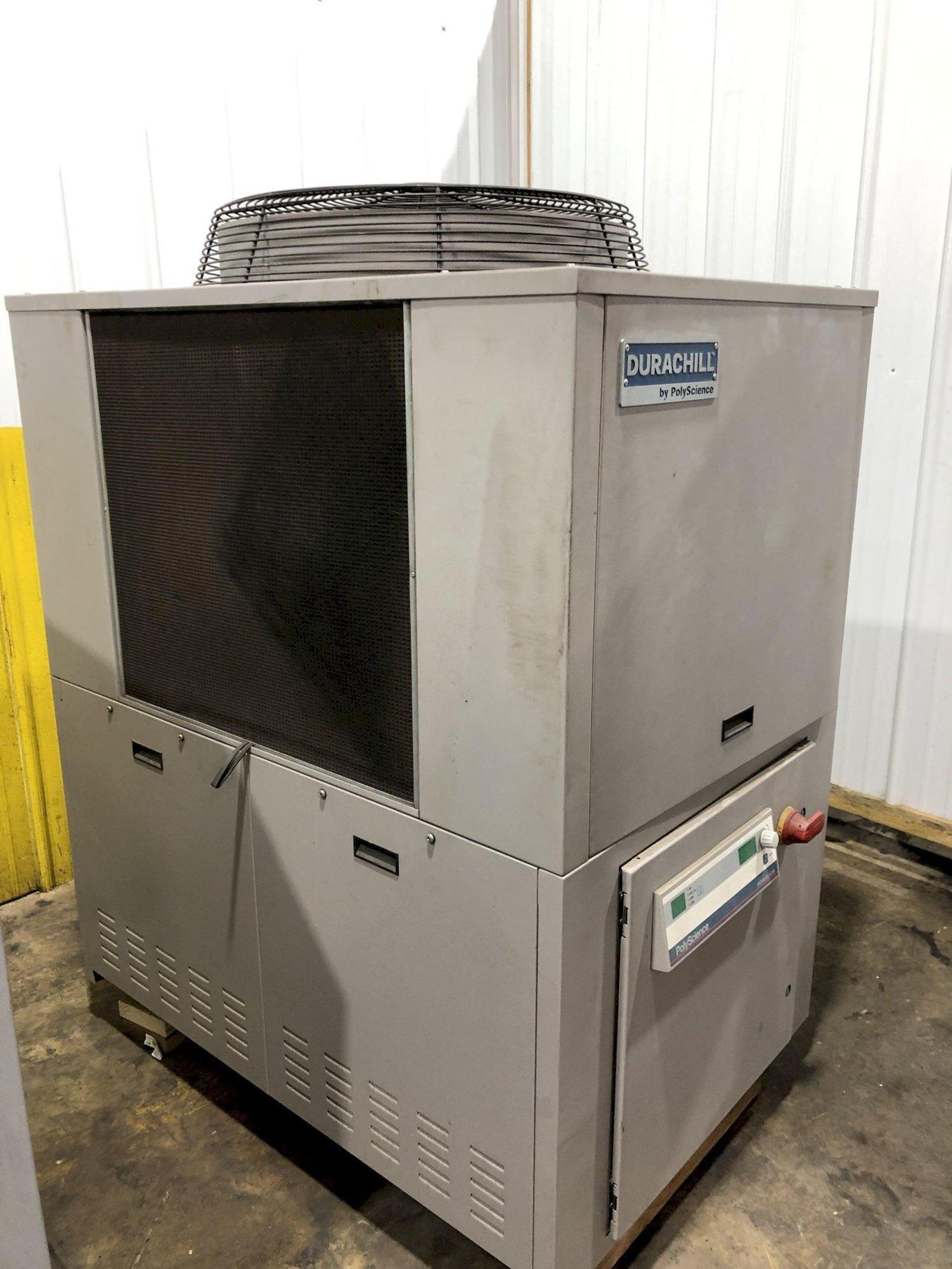

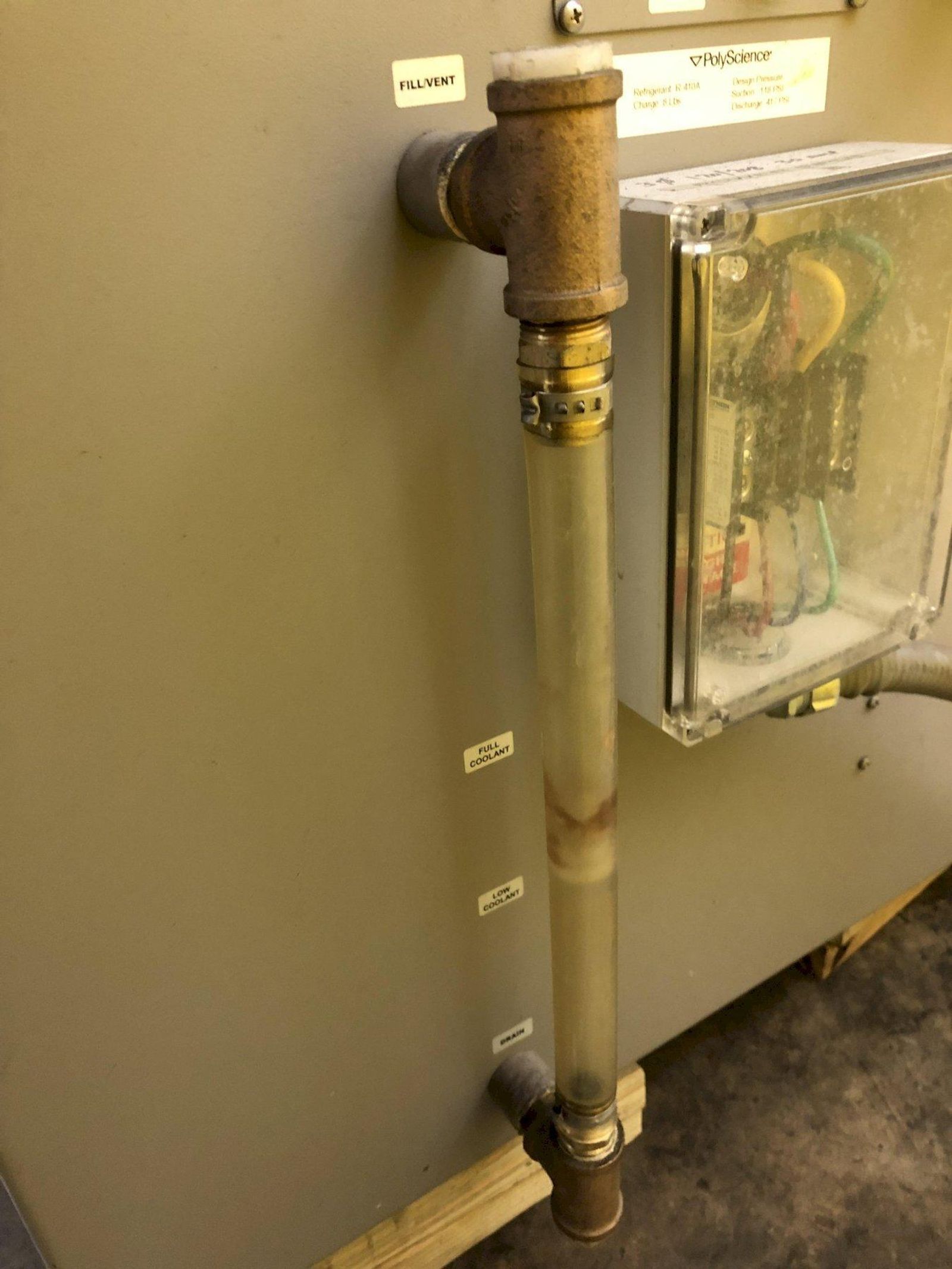

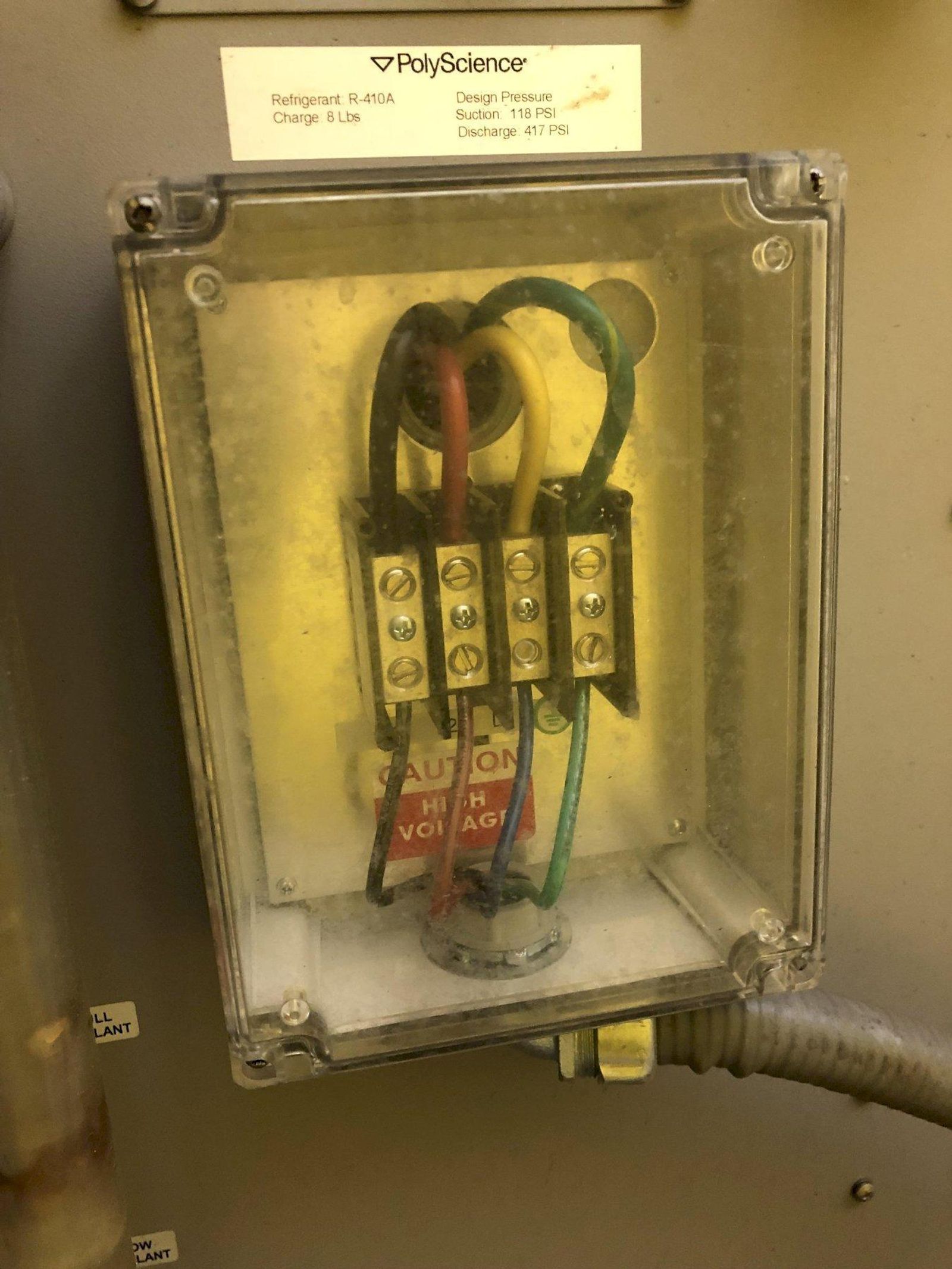

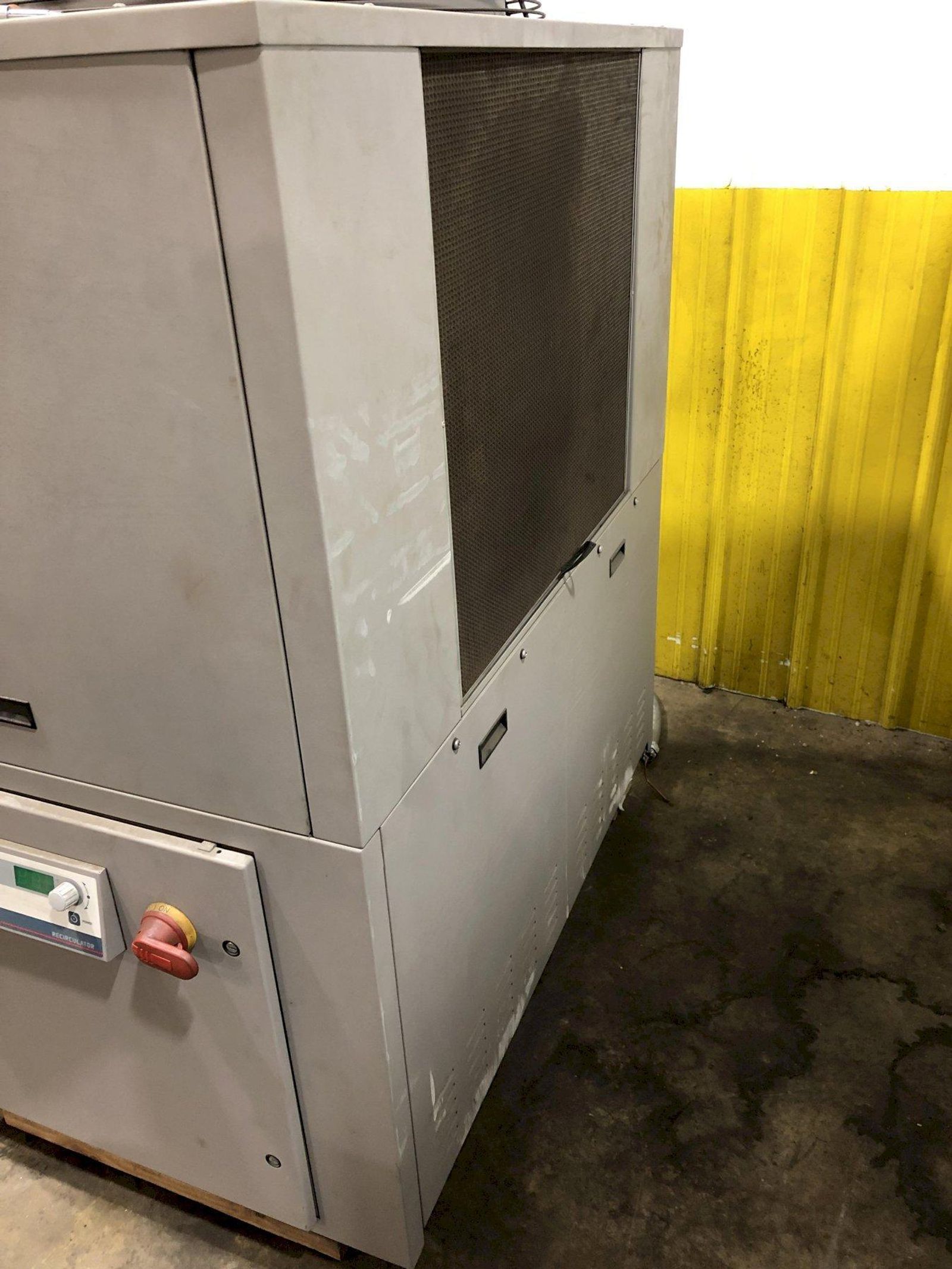

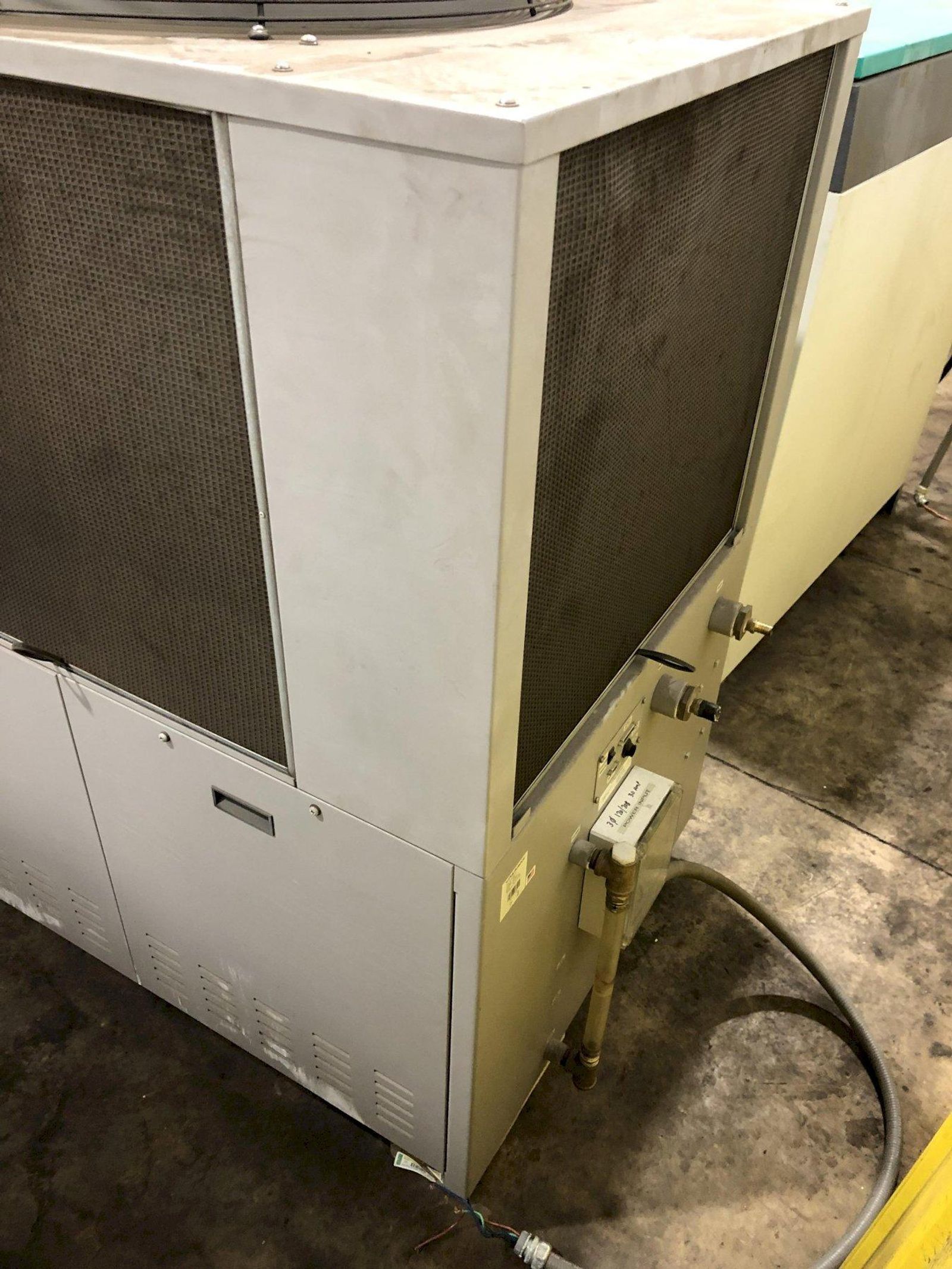

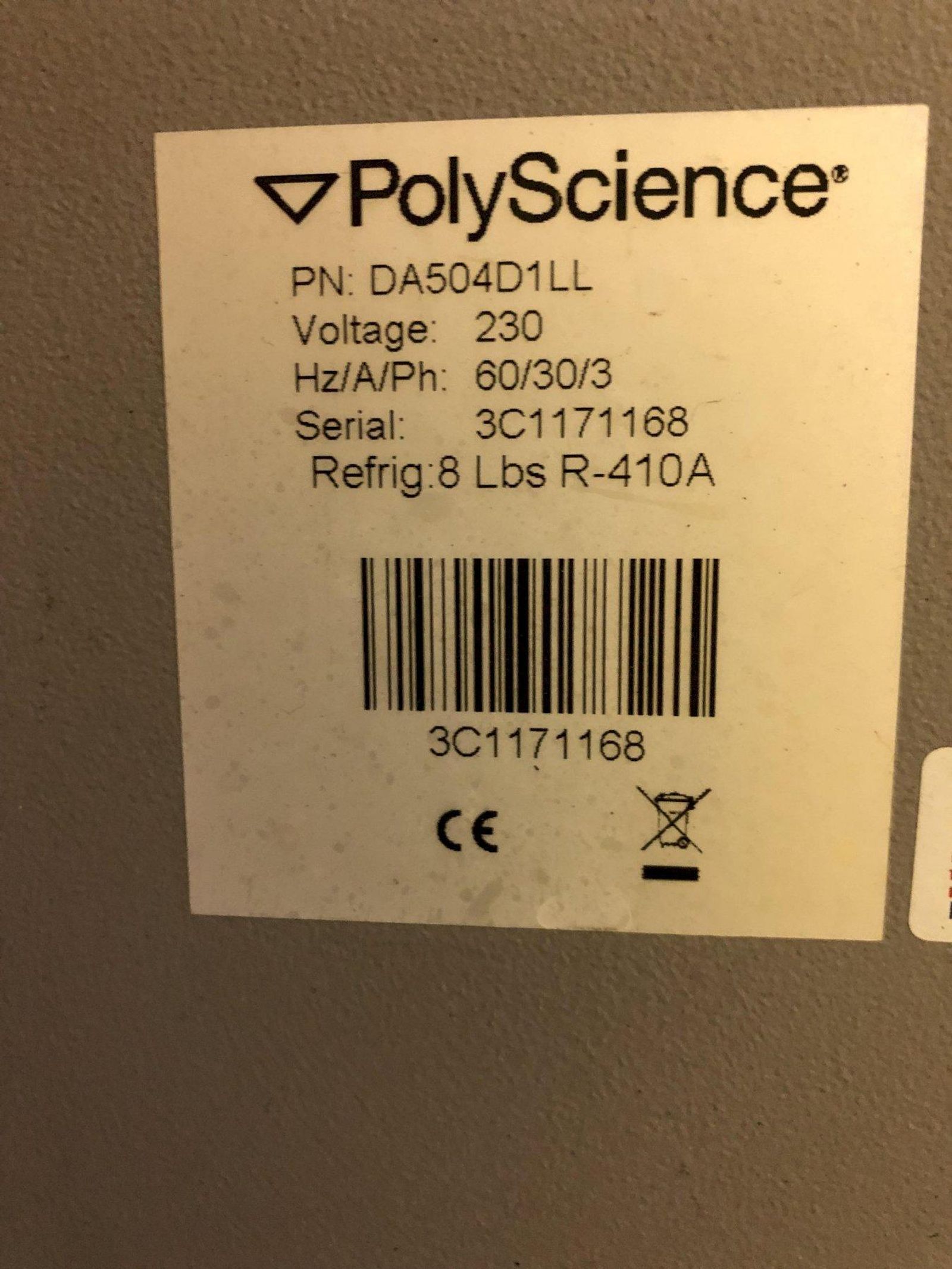

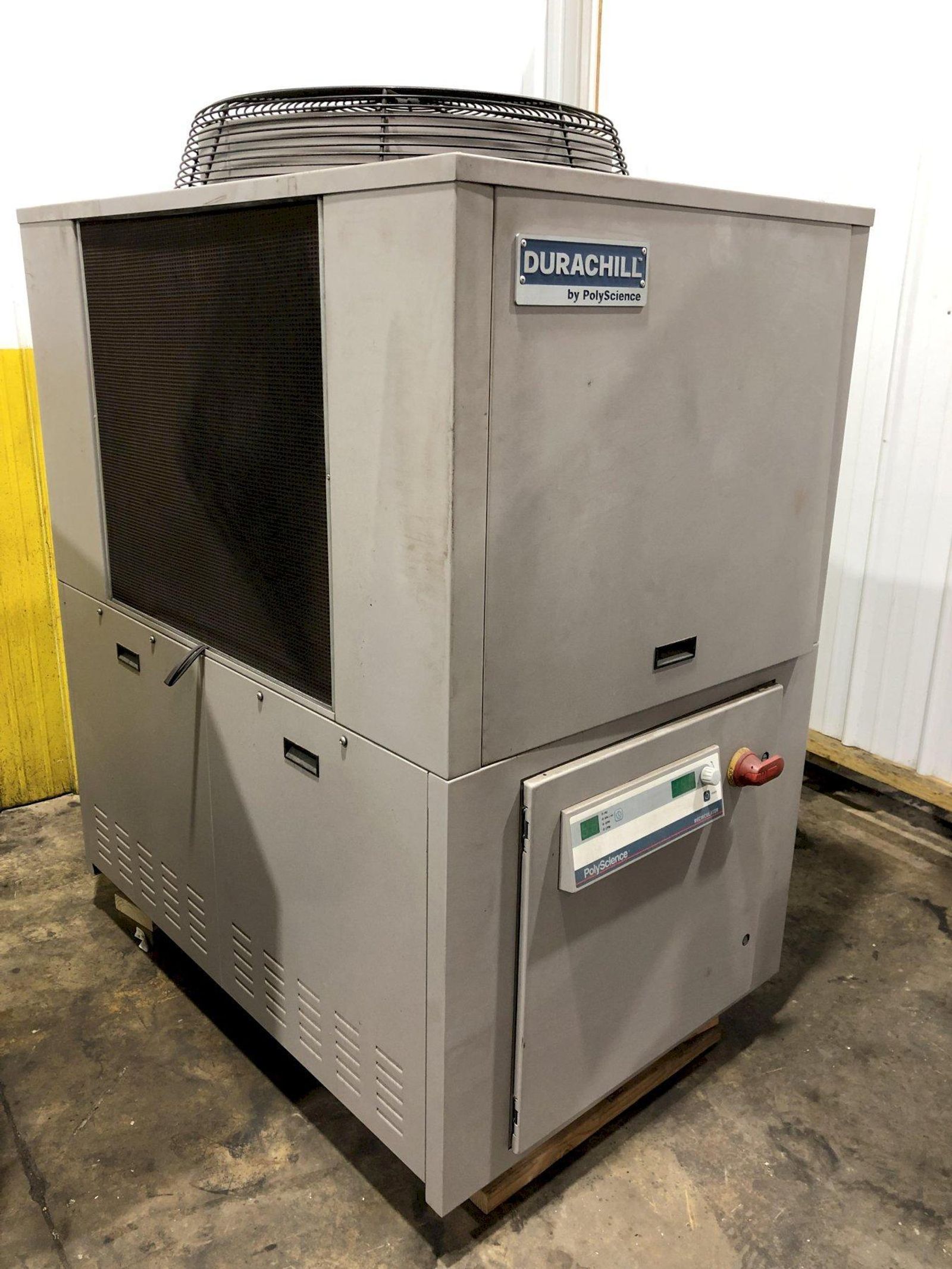

PolyScience Durachill Recirculator

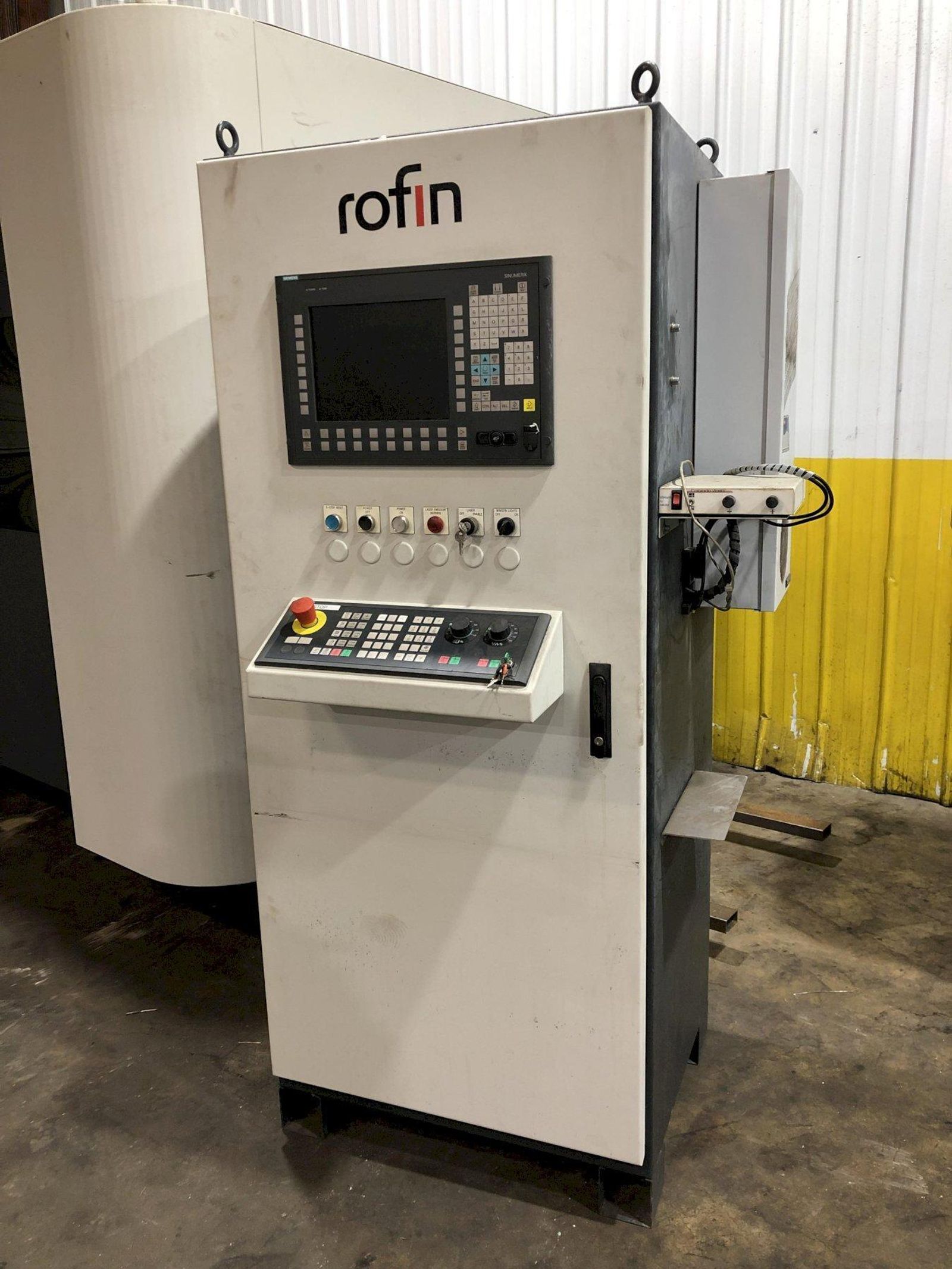

Siemens Sinumerik 840D sl Controller

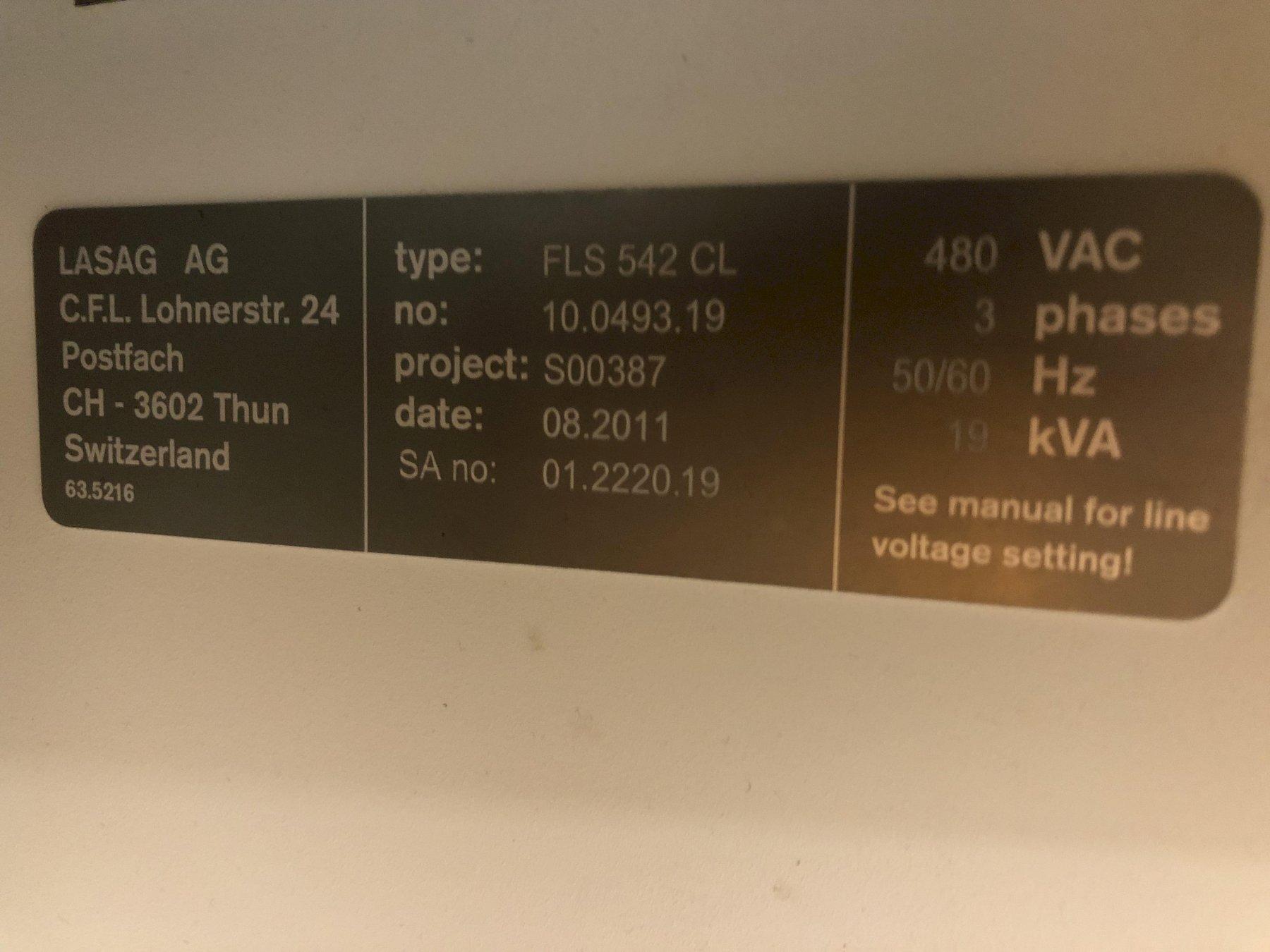

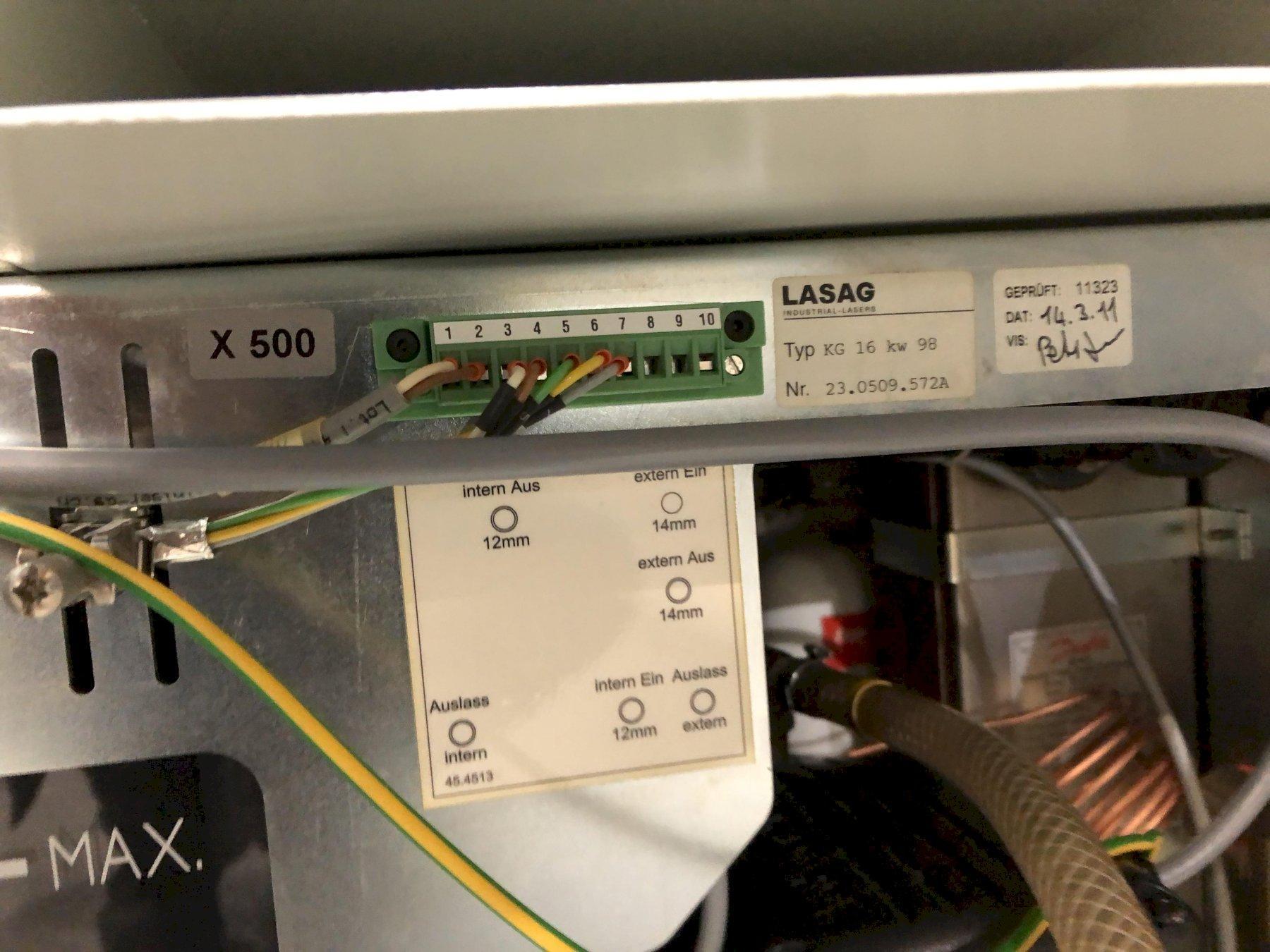

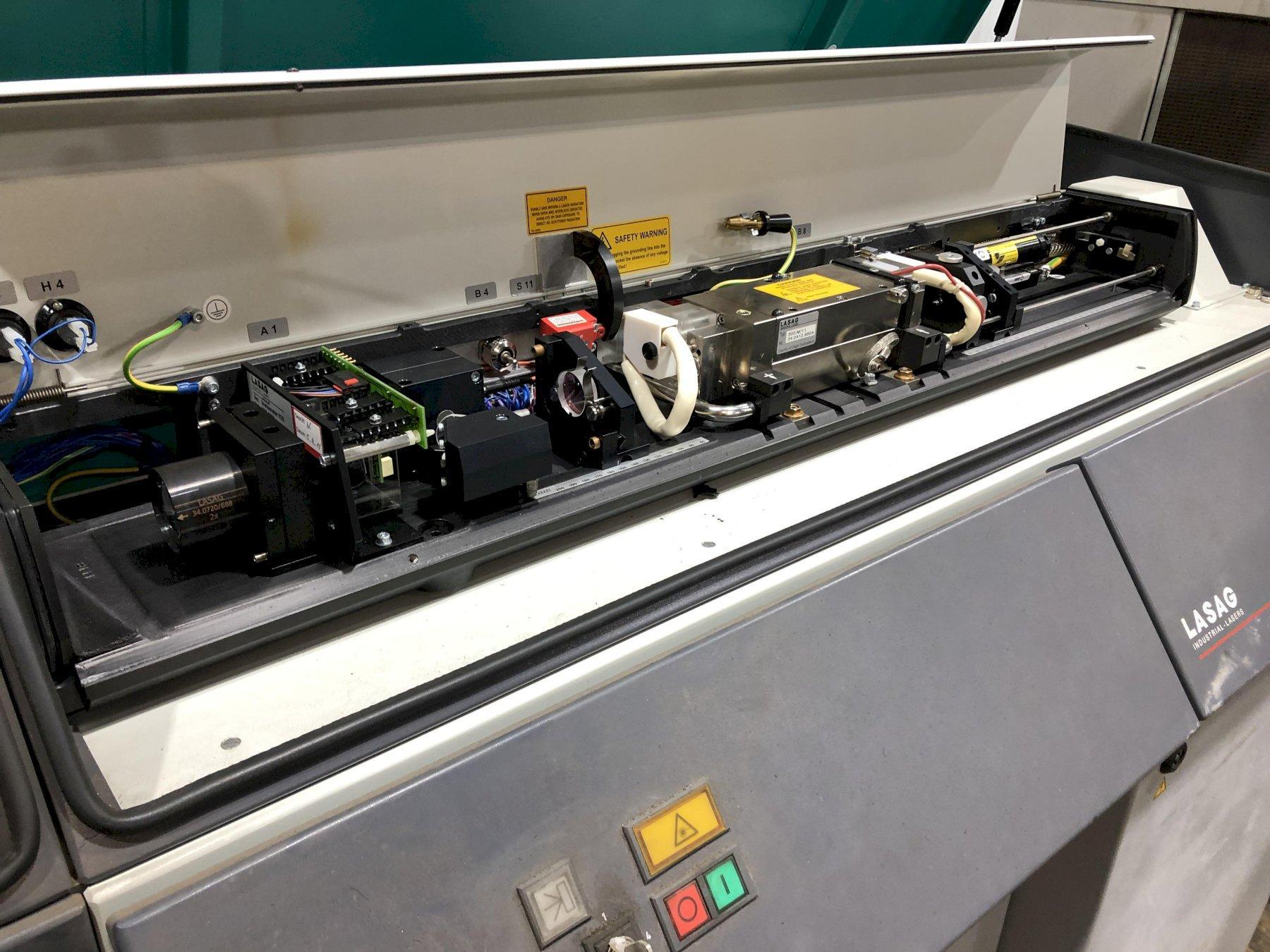

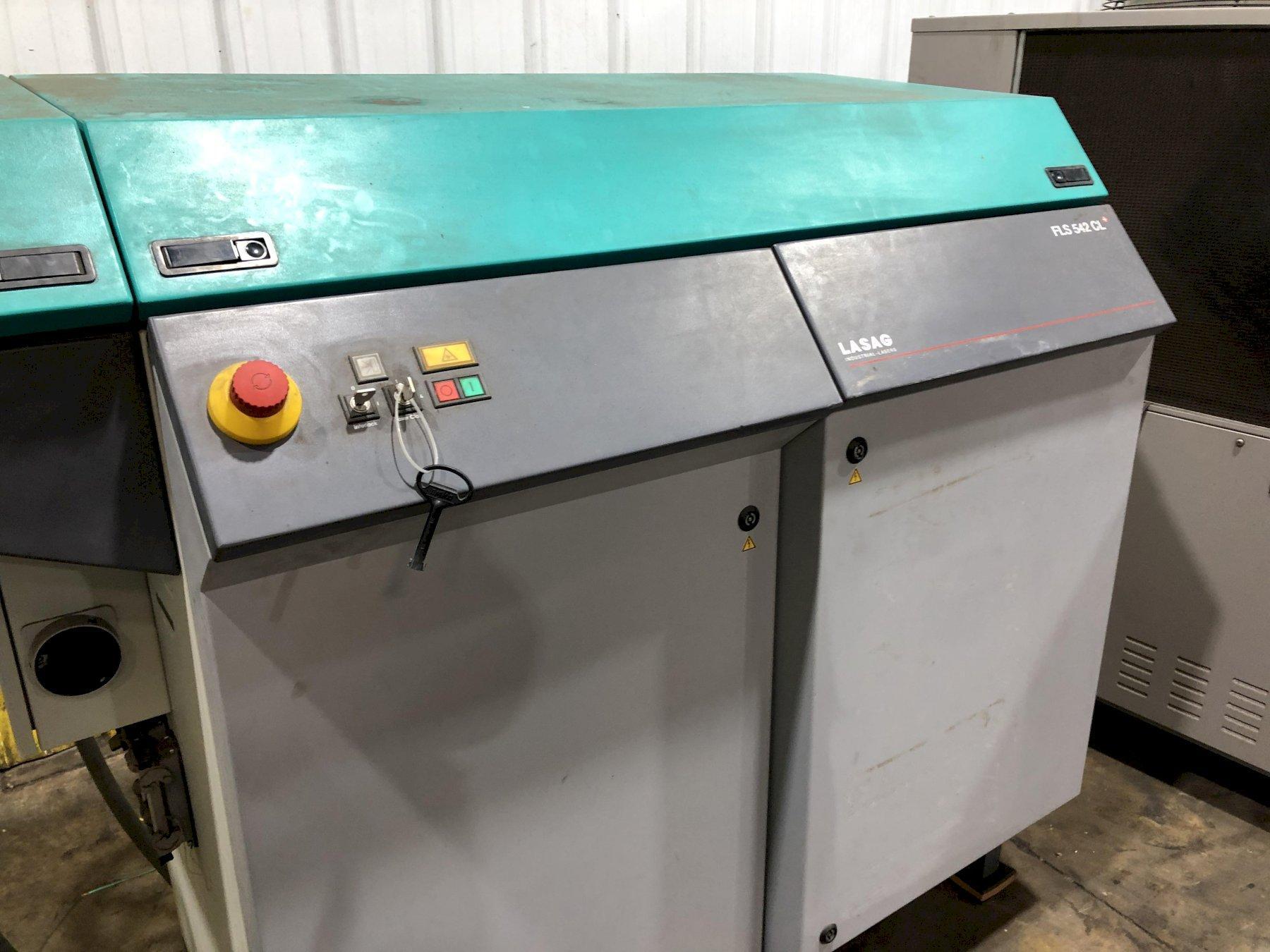

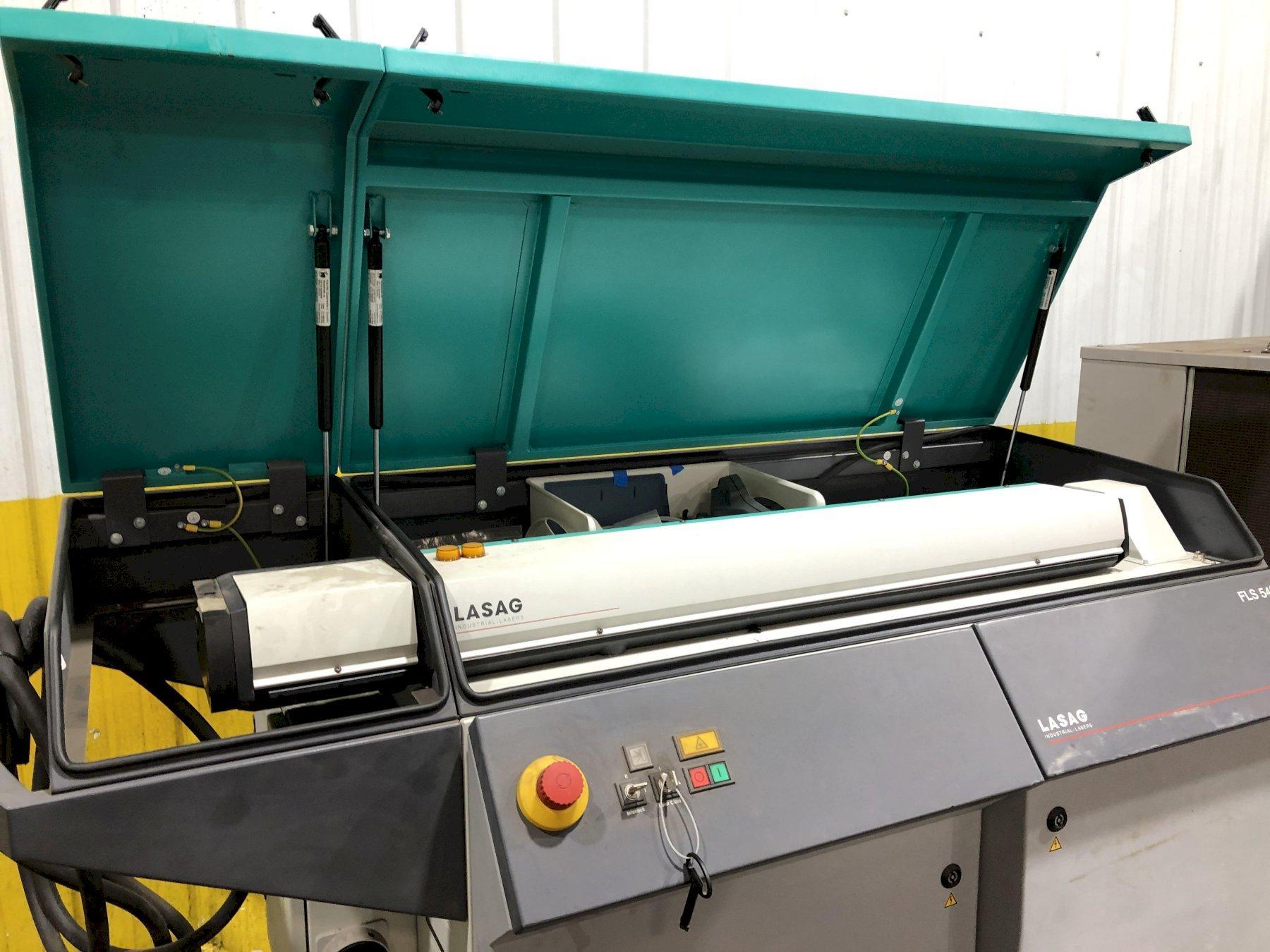

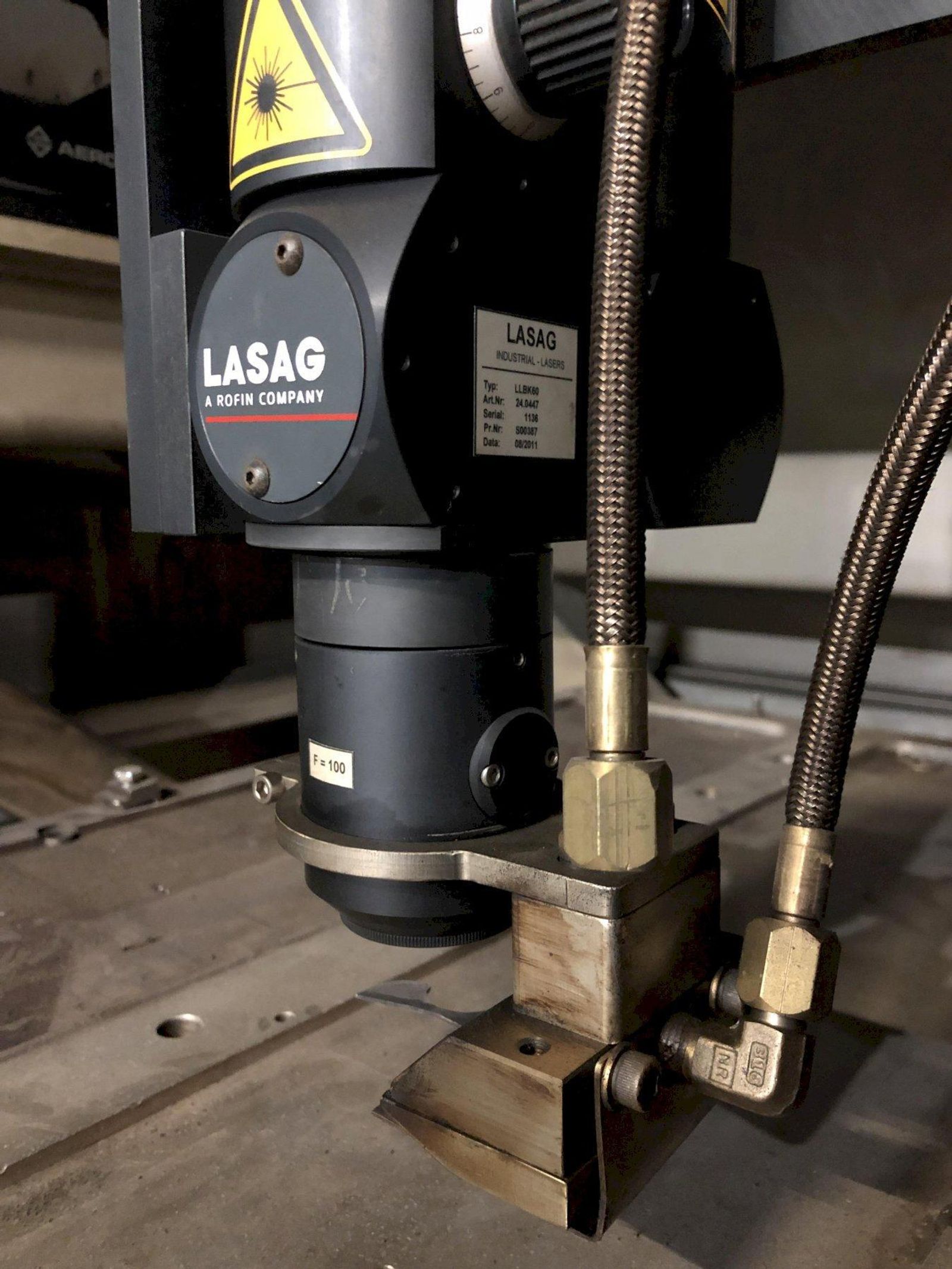

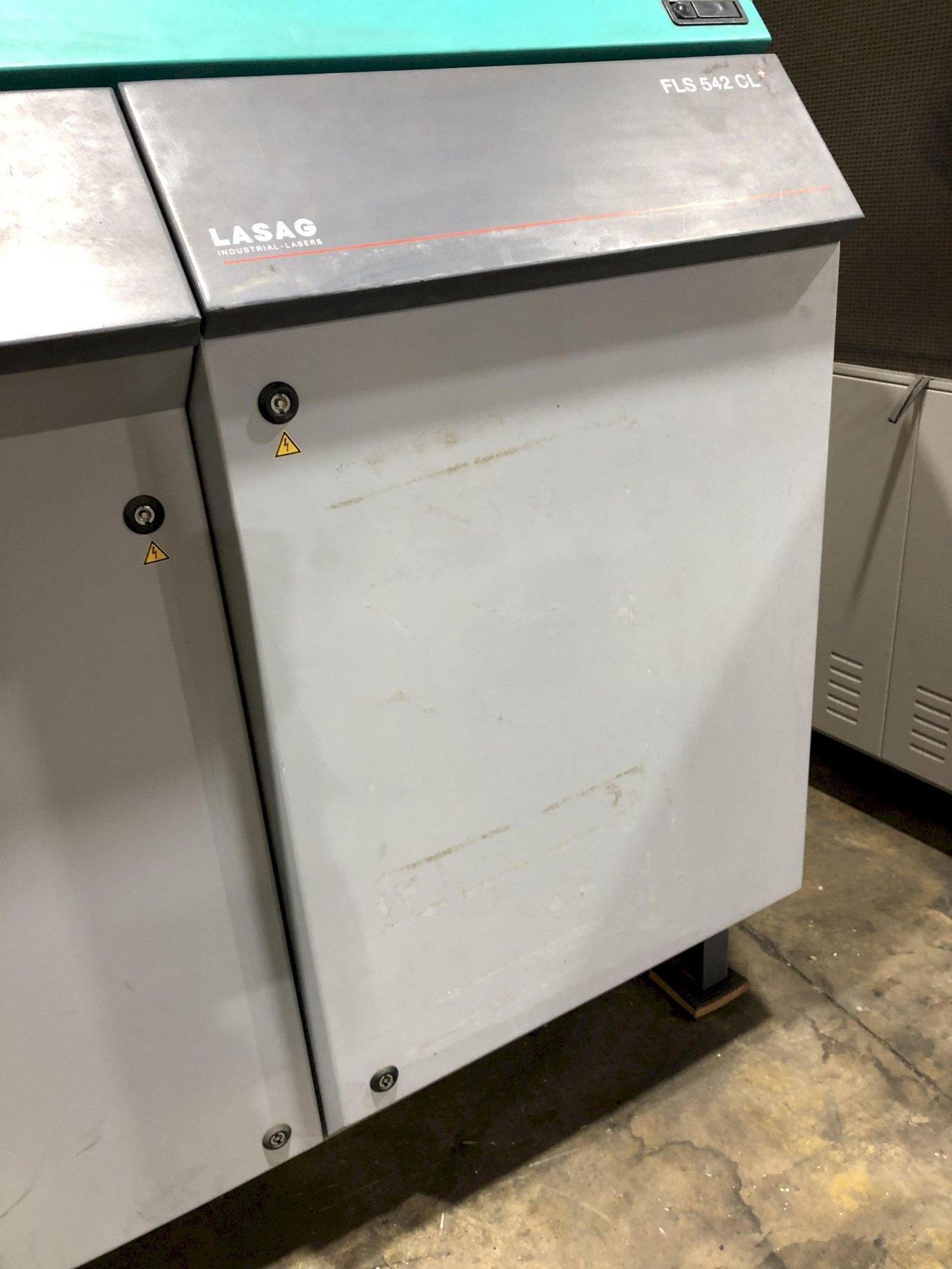

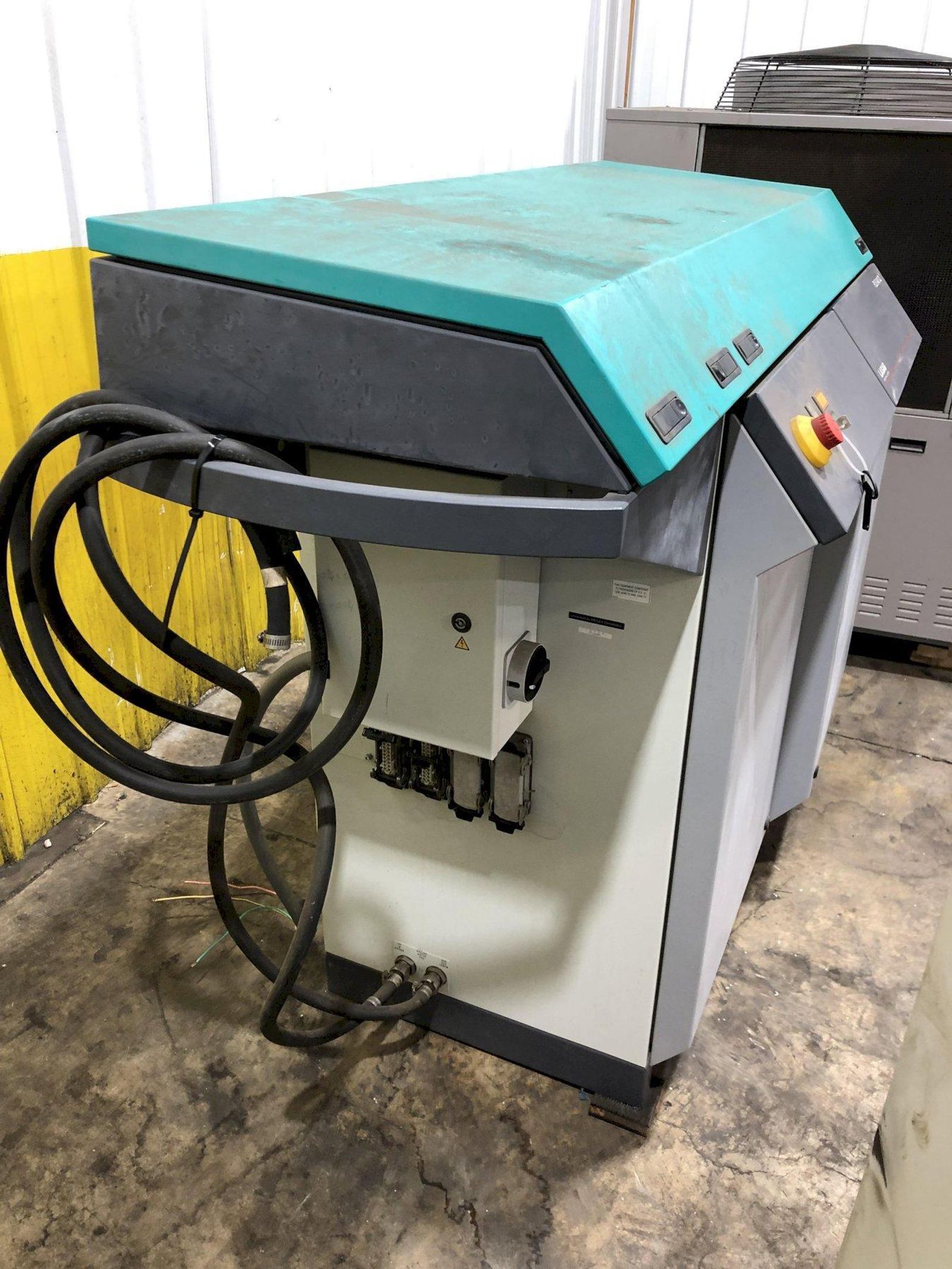

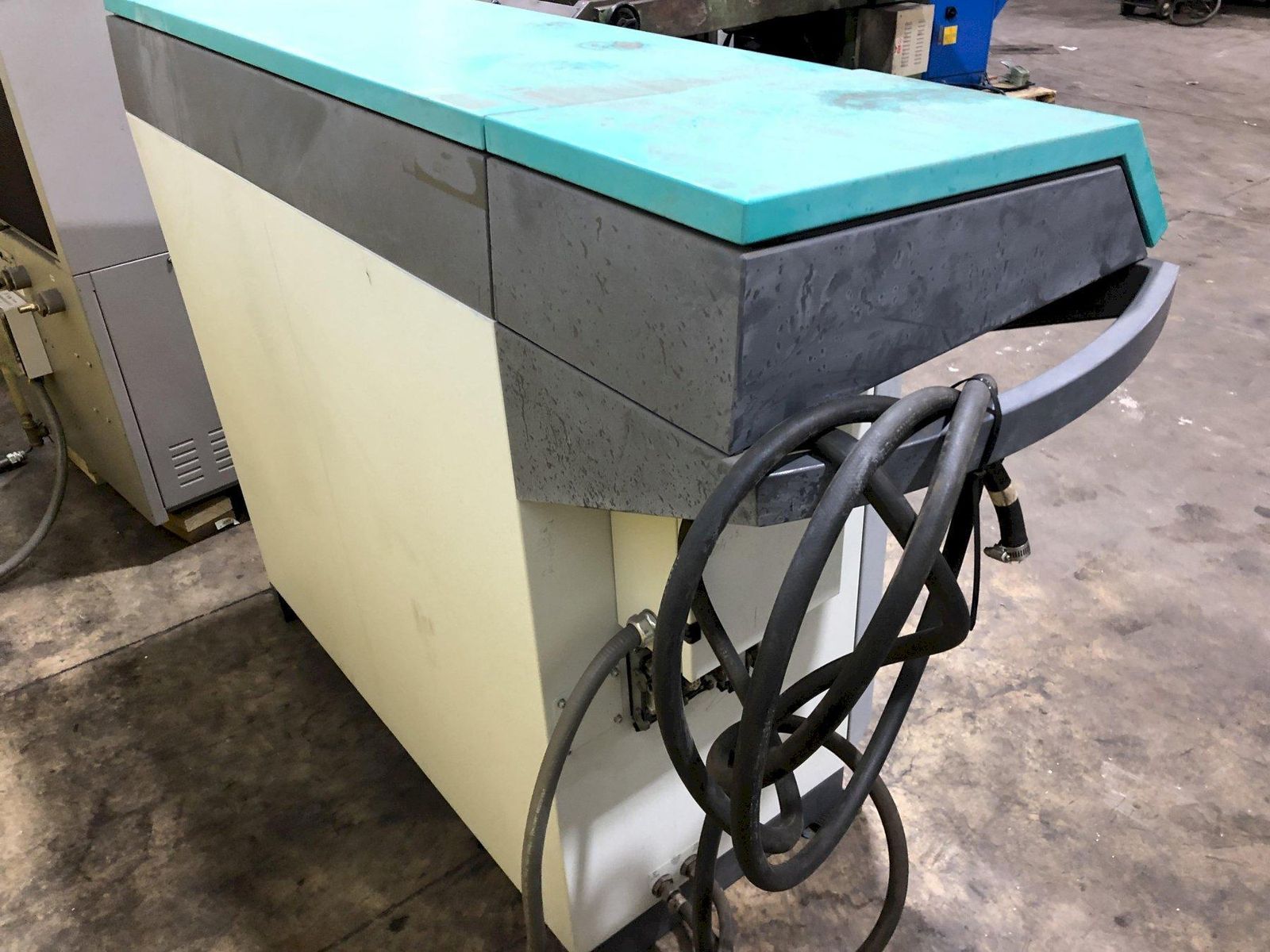

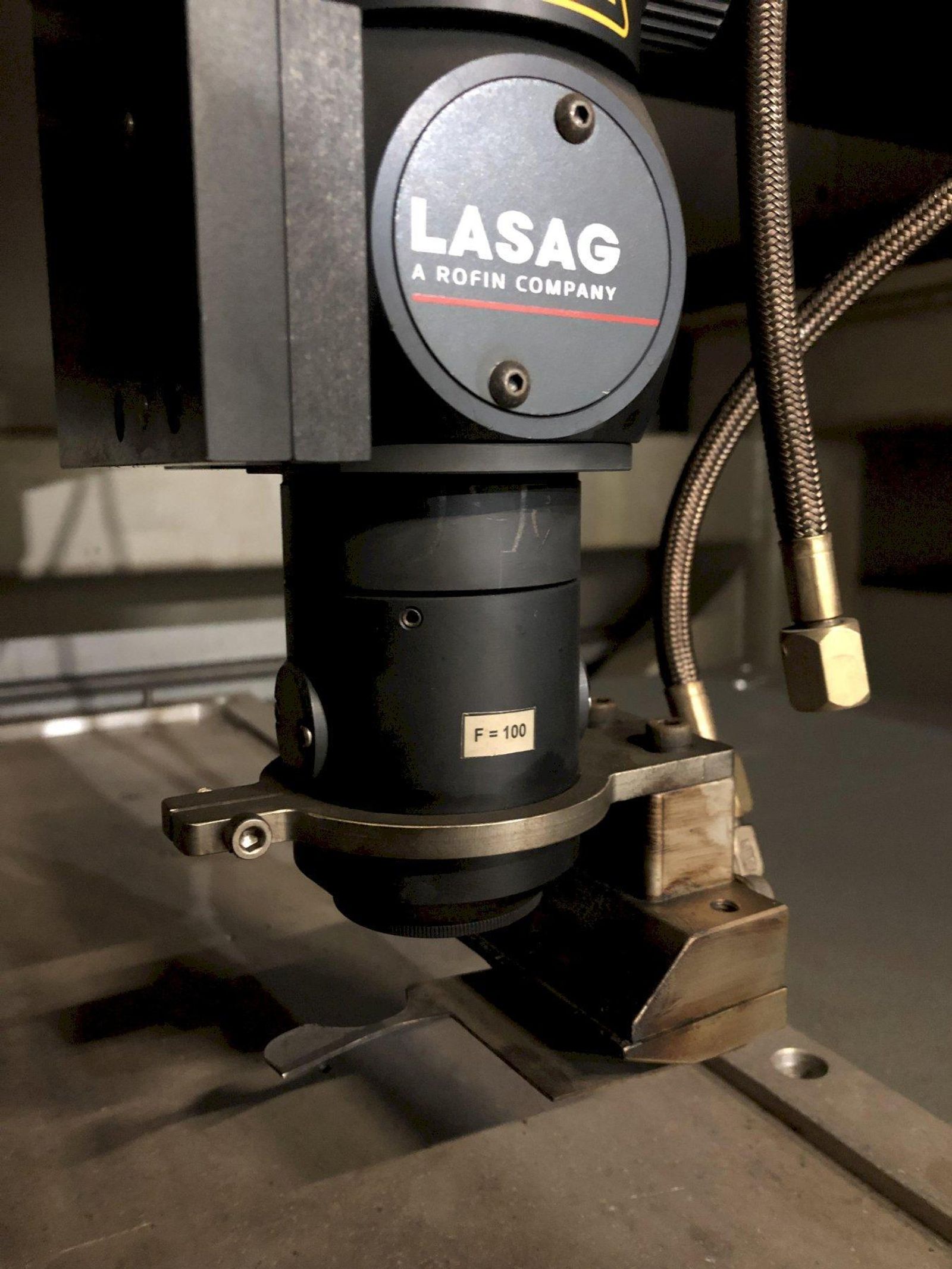

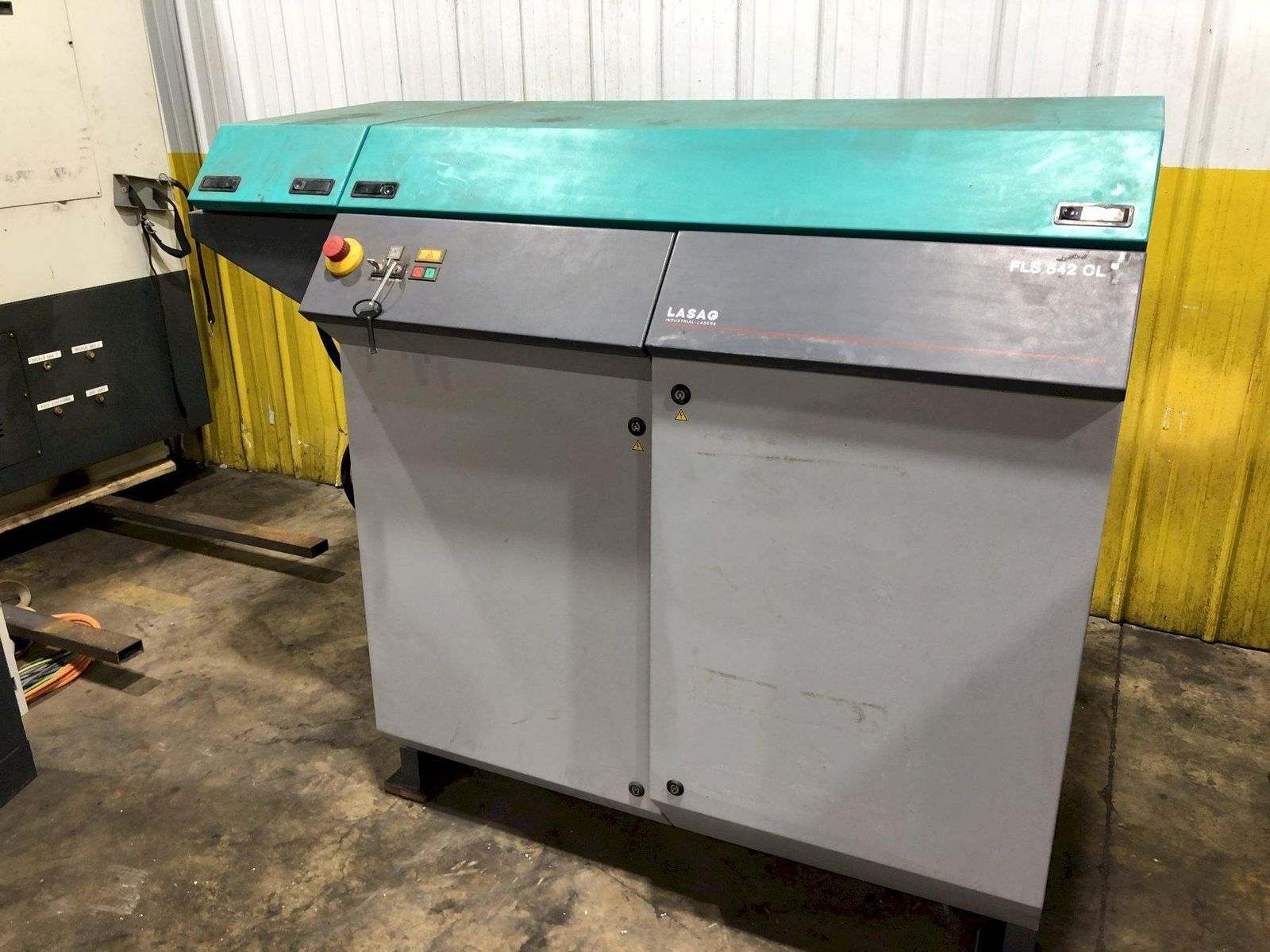

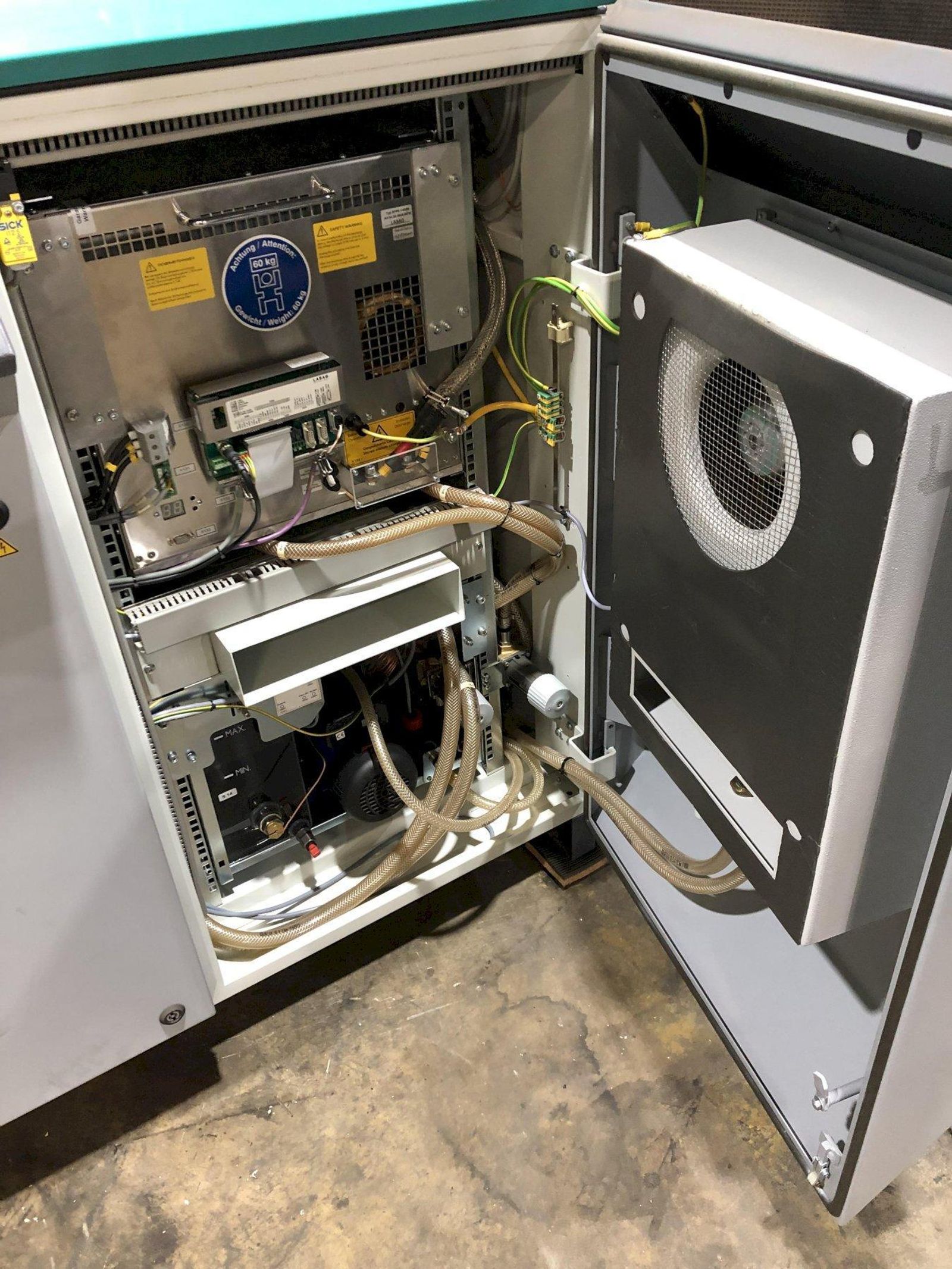

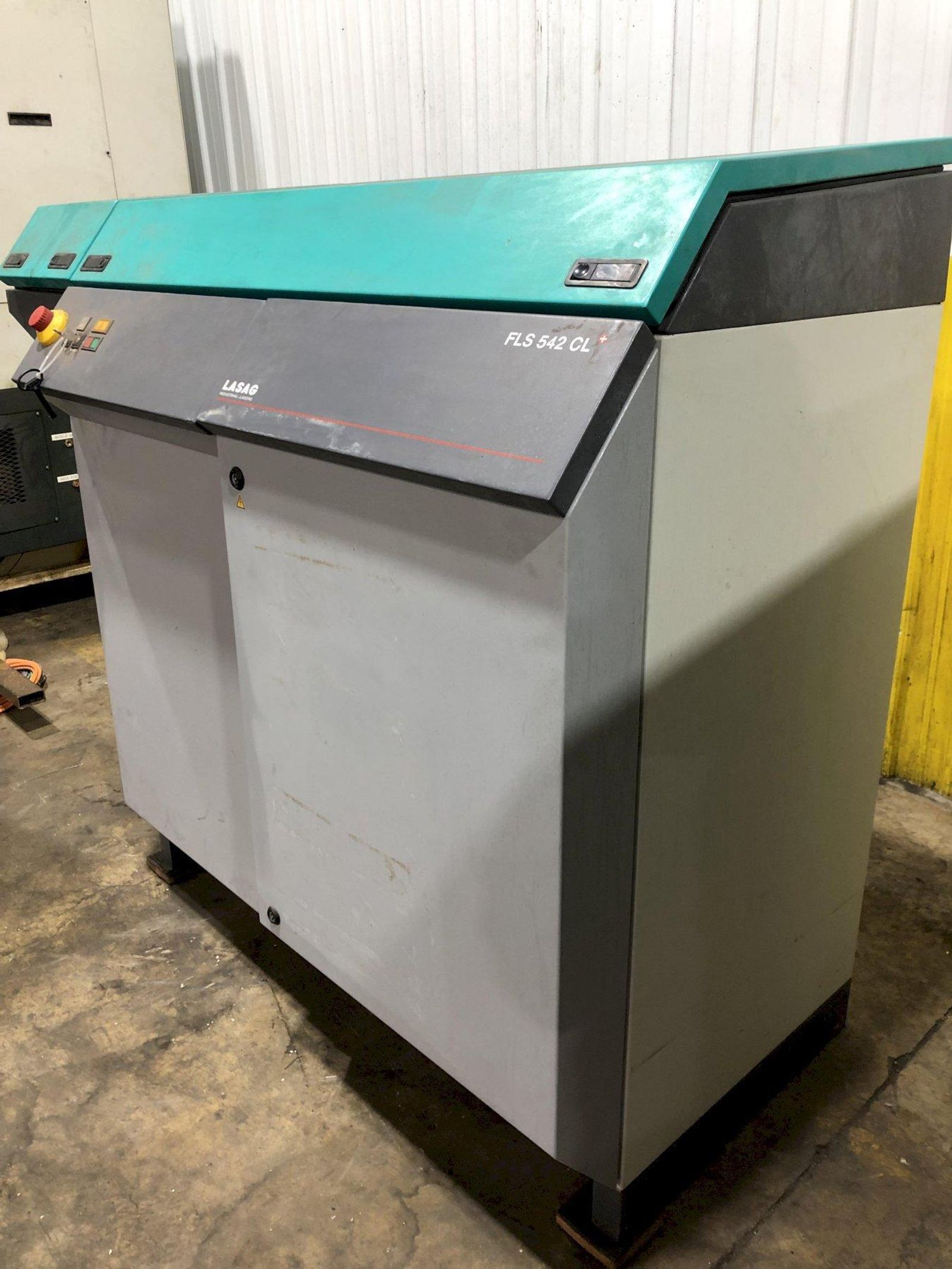

Lasag Laser Power Source

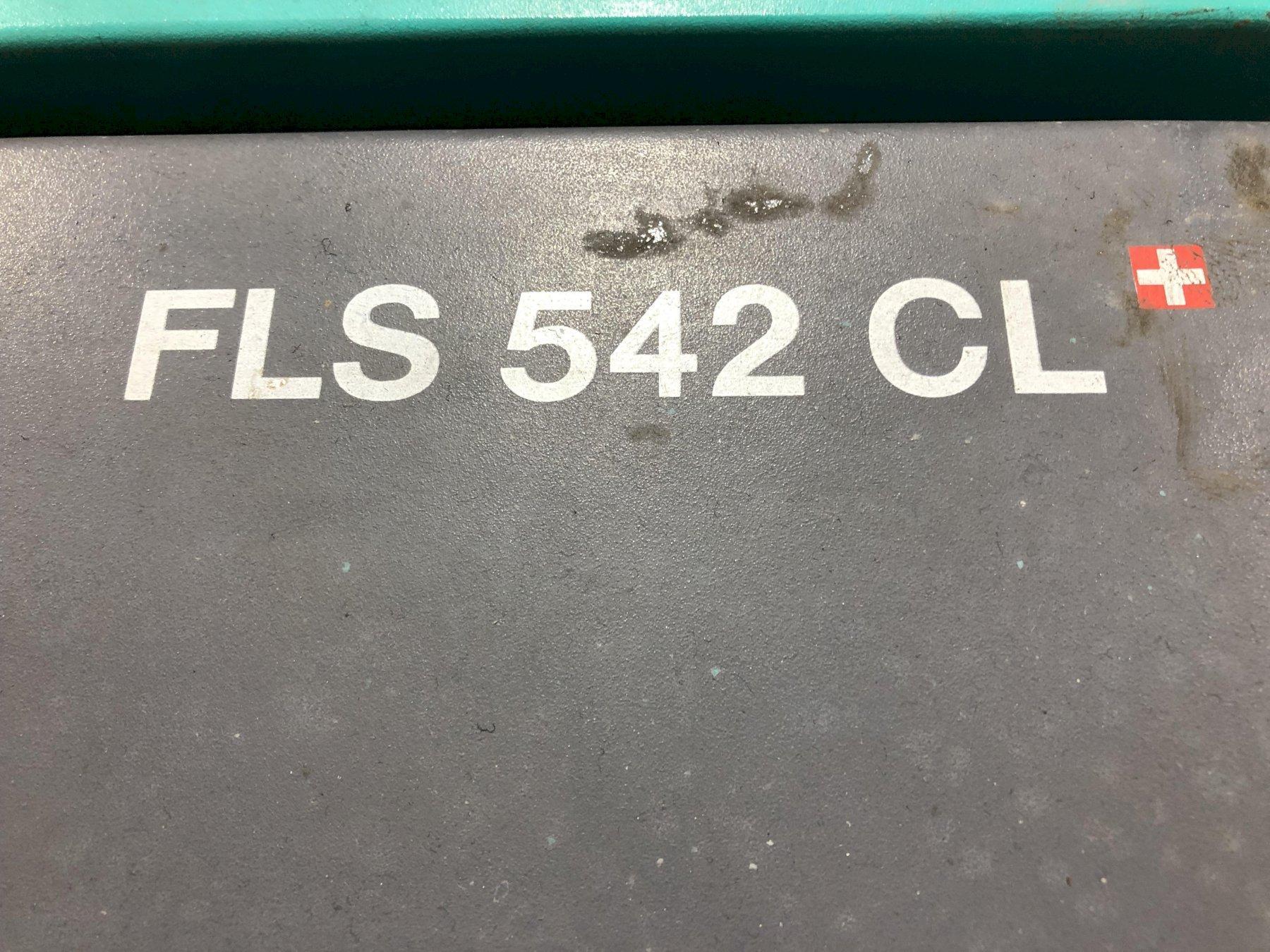

Model .................... FLS 542 CL
Type:
Pulsed ND ................ YAG-Solid State Laser
Wavelength ............... 1064nm
Beam Diameter ............ 9mm
Pulse Length ............. 0.3-100ms
Pulse Frequency .......... 0.1-500hz
Peak Power Min ........... 0.2 kW
Max. Power at 3 ms ....... 10 kW
Max. Pulse Energy ........ 70J
Max. Average Power ....... 500 W
Weight ................... 500kg
Rated Electrical Power ... 19 kVA
Rated Voltage ............ 3x480 V
Rated Fuse @ 400V ........ 32A
Water Consumption ........ 1-30 l/min
Max. Cooling Power ....... 15kW
Brand
ROFIN LASAG
Type
Laser Cutters
Stock No.
18393
 |
