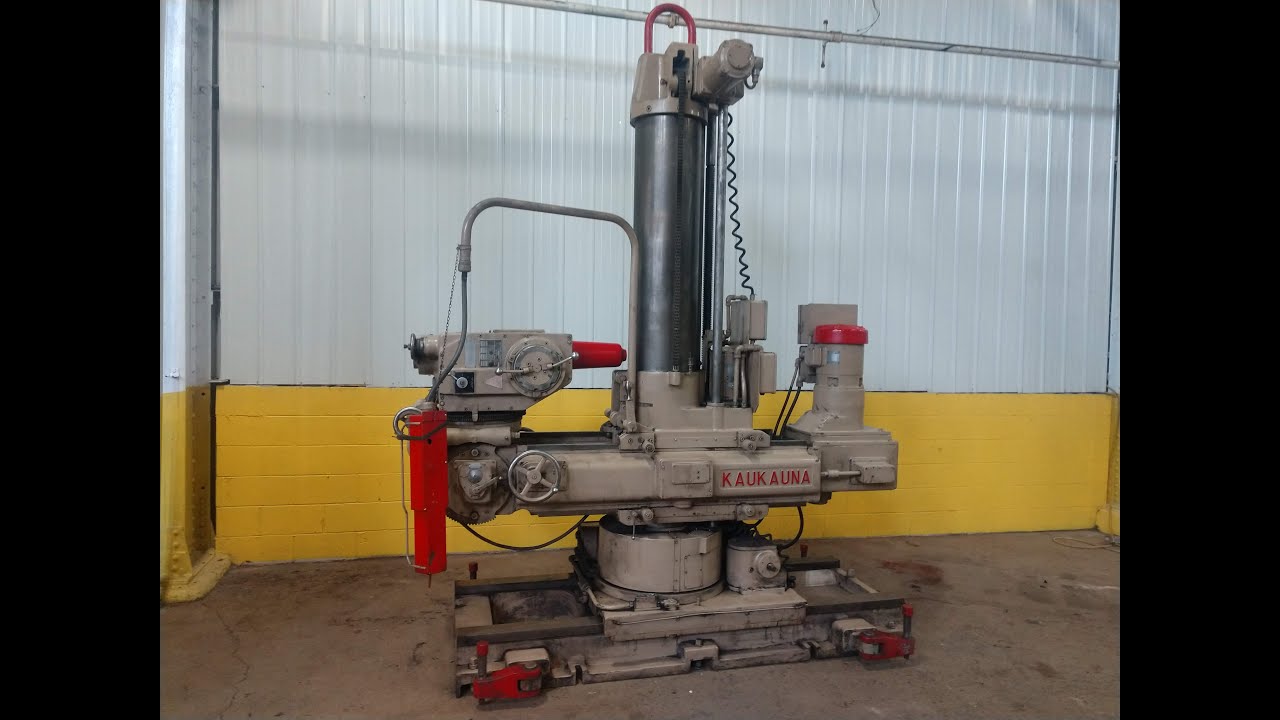

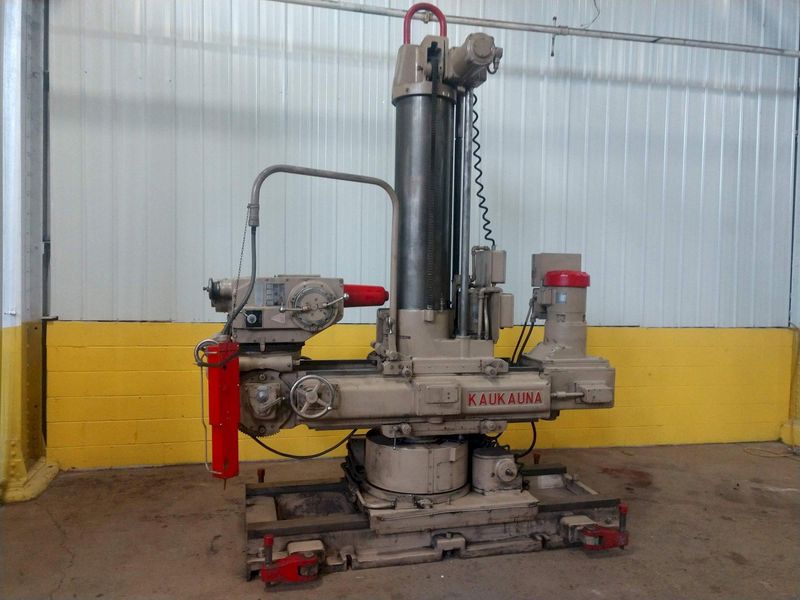

MODEL .............................. A125U
MAX DISTANCE COLUMN TO SPINDLE ..... 60"
MAX HEIGHT UNDER SPINDLE ........... 64"
COLUMN DIAMETER .................... 14"
SPINDLE DIAMETER ................... 12"
9 SPINDLE SPEEDS ................... 45 TO 800
SPINDLE FEEDS ...................... (3) - .003; .007; .012
SPINDLE TAPER ...................... #4 MT
MAIN MOTOR DRIVE ................... 7.5 HP
POWER ELEVATION
POWER CLAMP ON COLUMN
POWER RAPID TRAVERSE ON HEAD
UNIVERSAL HEAD (ANY ANGLE/ANY PLATE)
SWIVELS ............................ 360 DEGREES
TILTS .............................. 90 DEGREES
PENDANT CONTROL
LIFTING HOOK FOR PORTABILITY
TRAVEL COLUMNS RUNWAYS
| Specifications | ||
|---|---|---|
| Dimensions | 135"H X 130"L X 60"W | |
| Weight | 13000 pounds | |
Brand
KAUKAUNA
Type
Drilling & Tapping Machines
Stock No.
14666
 |
419-269-2000 |
Stock #: 14666
MODEL .............................. A125U
MAX DISTANCE COLUMN TO SPINDLE ..... 60"
MAX HEIGHT UNDER SPINDLE ........... 64"
COLUMN DIAMETER .................... 14"
SPINDLE DIAMETER ................... 12"
9 SPINDLE SPEEDS ................... 45 TO 800
SPINDLE FEEDS ...................... (3) - .003; .007; .012
SPINDLE TAPER ...................... #4 MT
MAIN MOTOR DRIVE ................... 7.5 HP
POWER ELEVATION
POWER CLAMP ON COLUMN
POWER RAPID TRAVERSE ON HEAD
UNIVERSAL HEAD (ANY ANGLE/ANY PLATE)
SWIVELS ............................ 360 DEGREES
TILTS .............................. 90 DEGREES
PENDANT CONTROL
LIFTING HOOK FOR PORTABILITY
TRAVEL COLUMNS RUNWAYS
