Serial ................... 320220

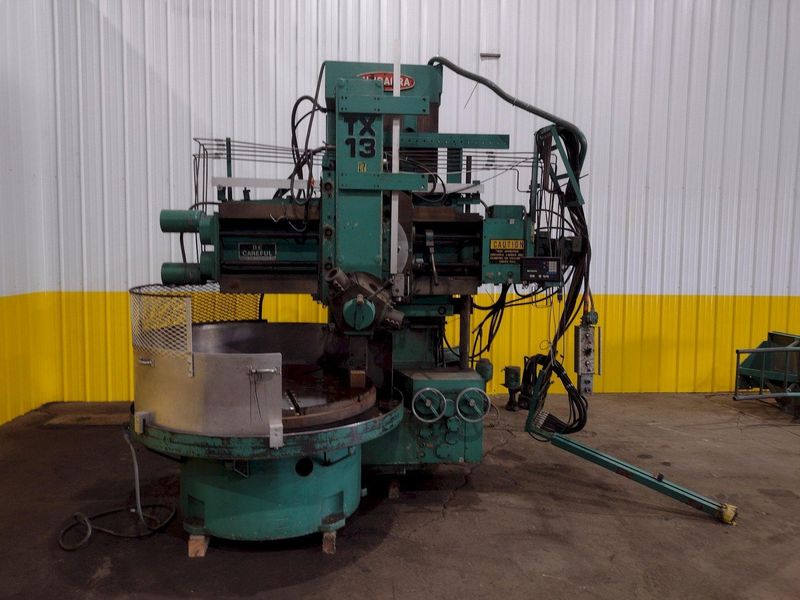

Model .................... TX-13
Table Diameter ........... 49.2"
Maximum Swing ............ 63"
Maximum Turning Height ... 41.3"
Travel of Head on Rail ... 3.9" to 31.5" Horizontal
Travel of Turret Ram ..... 29.5" Vertical
Swivel Angle Rail Head ... +/- 30 Degrees
Travel of Cross Rail ..... 23.6" Vertical
Table Load Capacity ...... 11,000 Lbs. Max
Table Torque ............. 11,600 Ft./Lbs. Max
Table Speeds ............. (12) 4.5 to 200 RPM
Feed Rates ............... (12) .003 to .140 Inch/Rev.
Rail Head Rapid .......... 125 IPM
Speed of Cross Rail ...... 16.1 IPM
Turret Positions ......... 5
Pendant Control .......... Yes
Digital Readouts ......... Yes
Main Motor ............... 30 HP
Brand
TOSHIBA SHIBAURA
Type
Lathes, VTL (Vertical Turret Lathe)
Stock No.
18769
 |
419-269-2000 |
Stock #: 18769
Serial ................... 320220
Model .................... TX-13
Table Diameter ........... 49.2"
Maximum Swing ............ 63"
Maximum Turning Height ... 41.3"
Travel of Head on Rail ... 3.9" to 31.5" Horizontal
Travel of Turret Ram ..... 29.5" Vertical
Swivel Angle Rail Head ... +/- 30 Degrees
Travel of Cross Rail ..... 23.6" Vertical
Table Load Capacity ...... 11,000 Lbs. Max
Table Torque ............. 11,600 Ft./Lbs. Max
Table Speeds ............. (12) 4.5 to 200 RPM
Feed Rates ............... (12) .003 to .140 Inch/Rev.
Rail Head Rapid .......... 125 IPM
Speed of Cross Rail ...... 16.1 IPM
Turret Positions ......... 5
Pendant Control .......... Yes
Digital Readouts ......... Yes
Main Motor ............... 30 HP
