SERIAL ............. 11710211
YEAR ............... 1973
MODEL .............. 16DKE140
TABLE DIAMETER ..... 49"
SWING .............. 63"
HEIGHT UNDER RAIL .. 45"
TABLE CAPACITY ..... 20,000 LBS
CHUCK .............. 4 JAW
TURRET HEAD ........ YES
SIDE HEAD ......... YES
TABLE SPEEDS ....... (18) 5 TO 250 RPM
FEEDS .............. (24) .0012 TO .2480
RAPID TRAVERSE ..... YES
MOTOR .............. 75 HP

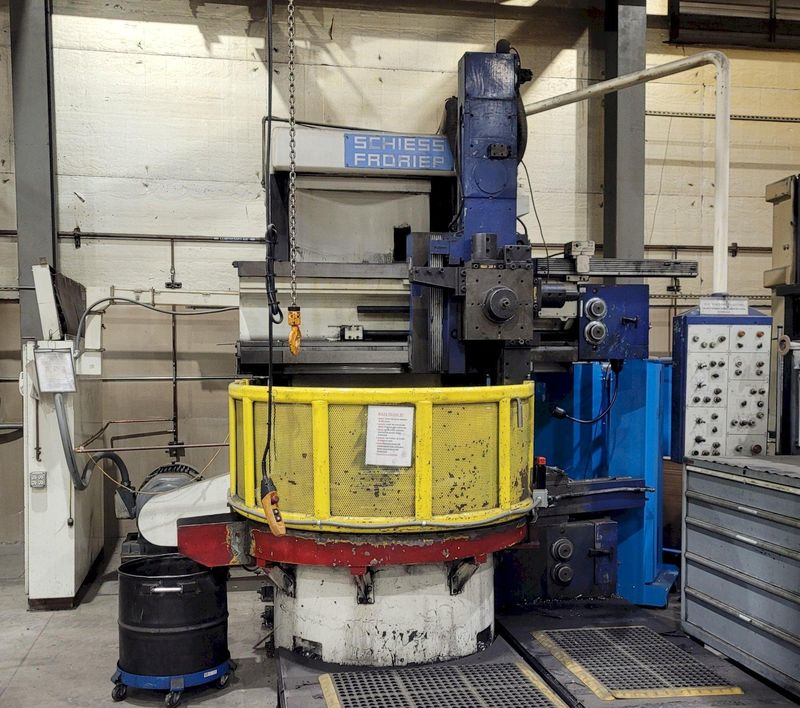

Brand
SCHIESS FRORIEP
Type
Lathes, VTL (Vertical Turret Lathe)
Stock No.
18177
 |
419-269-2000 |
Stock #: 18177
SERIAL ............. 11710211
YEAR ............... 1973
MODEL .............. 16DKE140
TABLE DIAMETER ..... 49"
SWING .............. 63"
HEIGHT UNDER RAIL .. 45"
TABLE CAPACITY ..... 20,000 LBS
CHUCK .............. 4 JAW
TURRET HEAD ........ YES
SIDE HEAD ......... YES
TABLE SPEEDS ....... (18) 5 TO 250 RPM
FEEDS .............. (24) .0012 TO .2480
RAPID TRAVERSE ..... YES
MOTOR .............. 75 HP
