NEW ................................. 2004

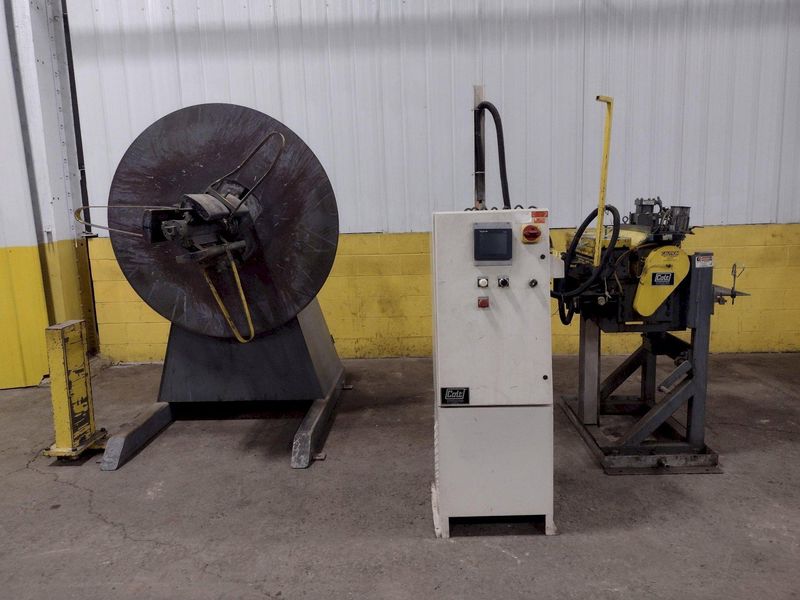

REEL:
MODEL ............................... CR-40-18
CAPACITY ............................ 4,000 LBS
WIDTH ............................... 118"
COIL OD ............................. 60"
COIL ID ............................. 16" TO 21"
MOTORIZED ........................... YES
SPEED ............................... 18 RPM
DANCER ARM .......................... YES
SERVO FEEDER STRAIGHTENER:
SERIAL .............................. 1141441
MODEL ............................... CERFPTS-25-24
WIDTH ............................... 18"
THICKNESS ........................... .020" TO .060"
FEED LENGTH ......................... 999.99"
FEED ROLLS .......................... 2
FEED ROLL DIAMETER .................. 2.5"
STRAIGHTENING ROLLS ................. 5
ROLL DIAMETER ....................... 1.5"
SPEED ............................... 120 FPM
ACCURACY ............................ +/-.002"
Brand
COLT
Type
Coil Reels and Straighteners
Stock No.
17552
 |
419-269-2000 |
Stock #: 17552
NEW ................................. 2004
REEL:
MODEL ............................... CR-40-18
CAPACITY ............................ 4,000 LBS
WIDTH ............................... 118"
COIL OD ............................. 60"
COIL ID ............................. 16" TO 21"
MOTORIZED ........................... YES
SPEED ............................... 18 RPM
DANCER ARM .......................... YES
SERVO FEEDER STRAIGHTENER:
SERIAL .............................. 1141441
MODEL ............................... CERFPTS-25-24
WIDTH ............................... 18"
THICKNESS ........................... .020" TO .060"
FEED LENGTH ......................... 999.99"
FEED ROLLS .......................... 2
FEED ROLL DIAMETER .................. 2.5"
STRAIGHTENING ROLLS ................. 5
ROLL DIAMETER ....................... 1.5"
SPEED ............................... 120 FPM
ACCURACY ............................ +/-.002"
