SERIAL ........ S1028442
MODEL ......... UNI-4848-4
NEW ........... 2013
CAPACITY ...... 4,000 LB
PLATTEN ....... 48" X 48"
LIP ON SIDE ... 12"
LEVEL HEIGHT .. 8"
MOTOR ......... 2 HP
Brand
ADVANCE LIFTS
Type
Lifters, Scissor
Stock No.
16061
 |
419-269-2000 |
Stock #: 16061
SERIAL ........ S1028442
MODEL ......... UNI-4848-4
NEW ........... 2013
CAPACITY ...... 4,000 LB
PLATTEN ....... 48" X 48"
LIP ON SIDE ... 12"
LEVEL HEIGHT .. 8"
MOTOR ......... 2 HP

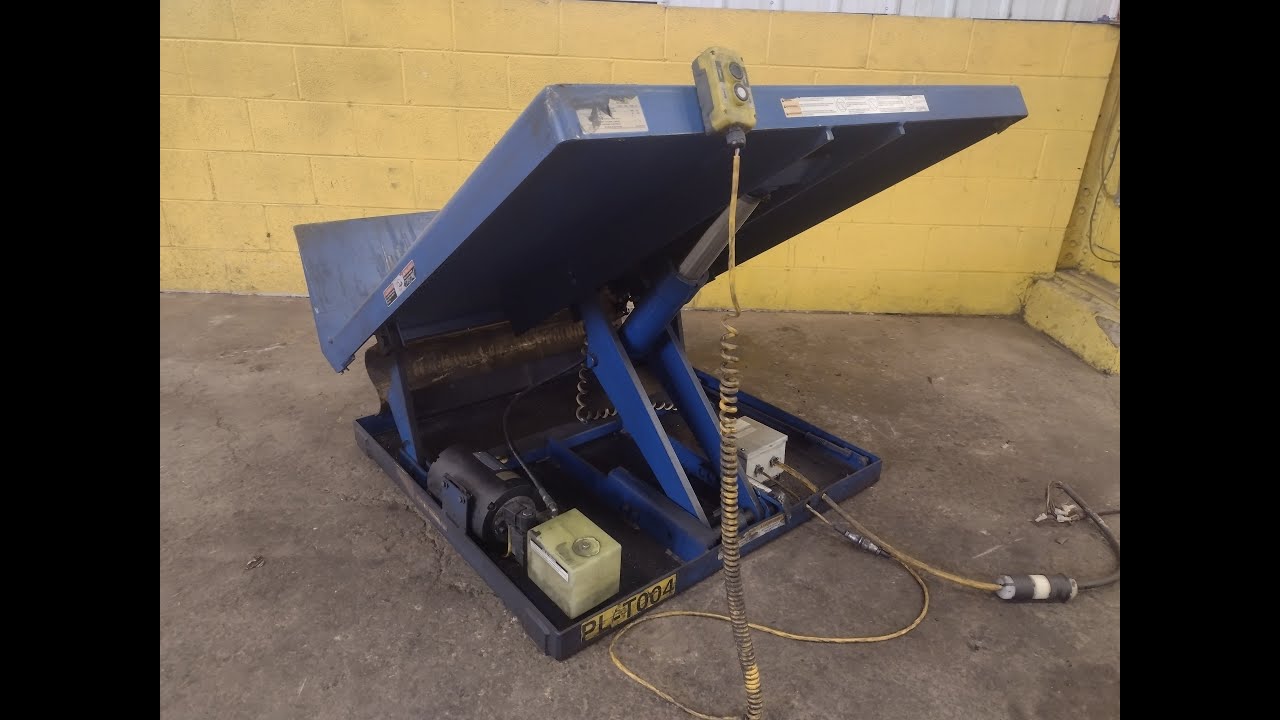

Designed to position containers within easy reach of assembly line workers and machine operators. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. Platform includes a 12" high lip on tilt side. A pedal allows the operator to lift while tilting. 2HP AC power unit with hand pendant control is standard 460V 3PH. Standard features include: integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return and an adjustable upward travel limit switch
