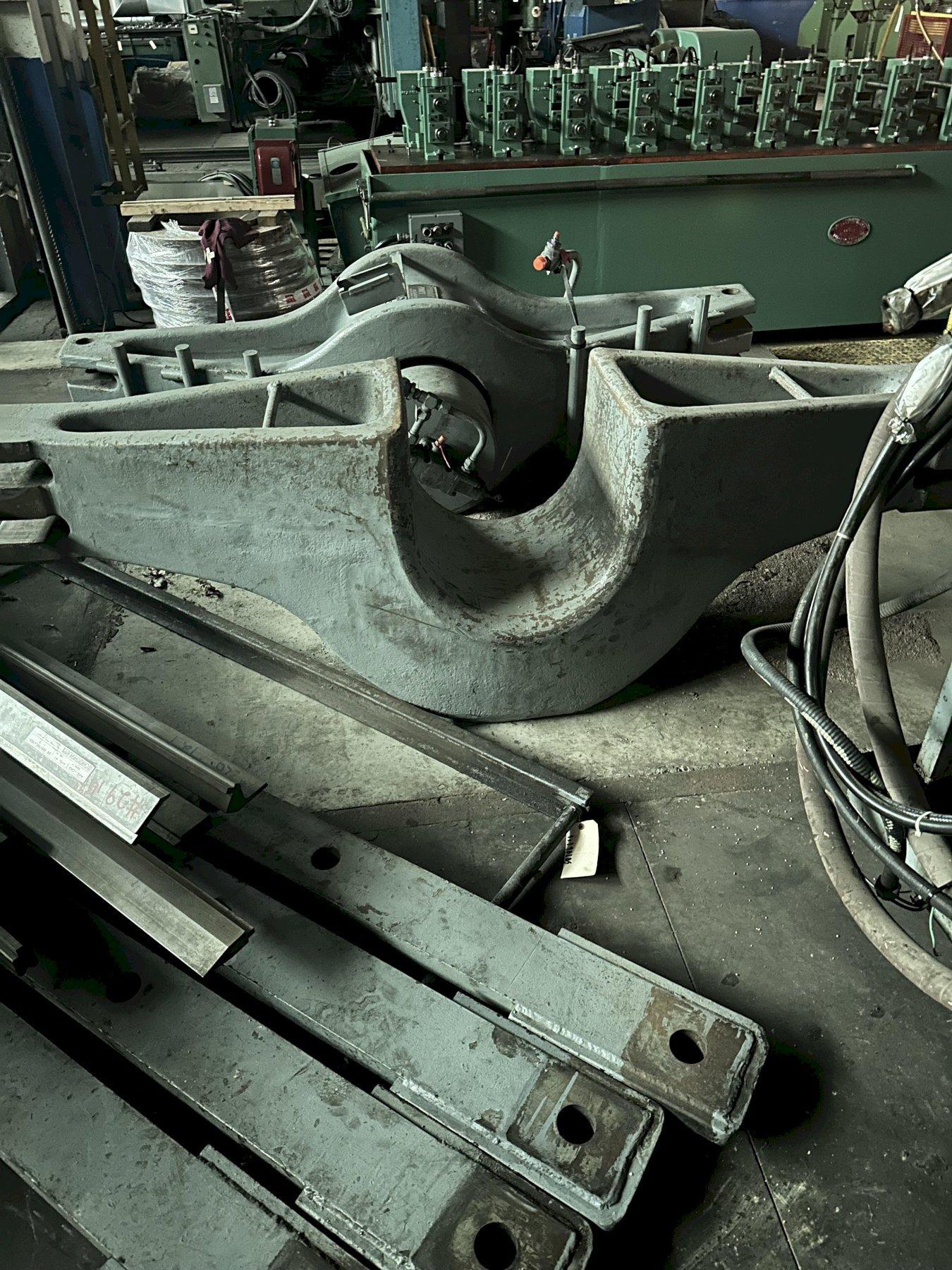

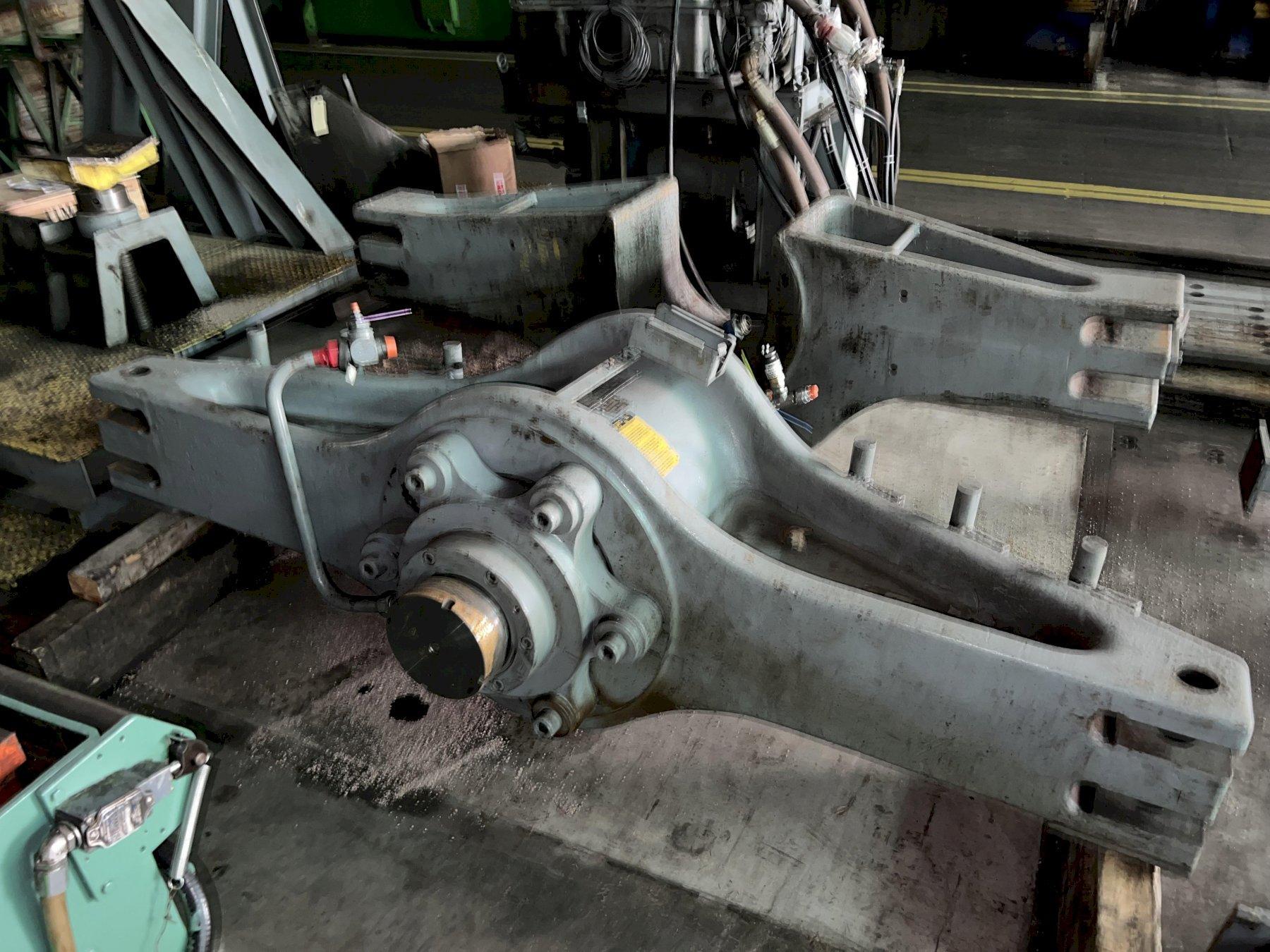

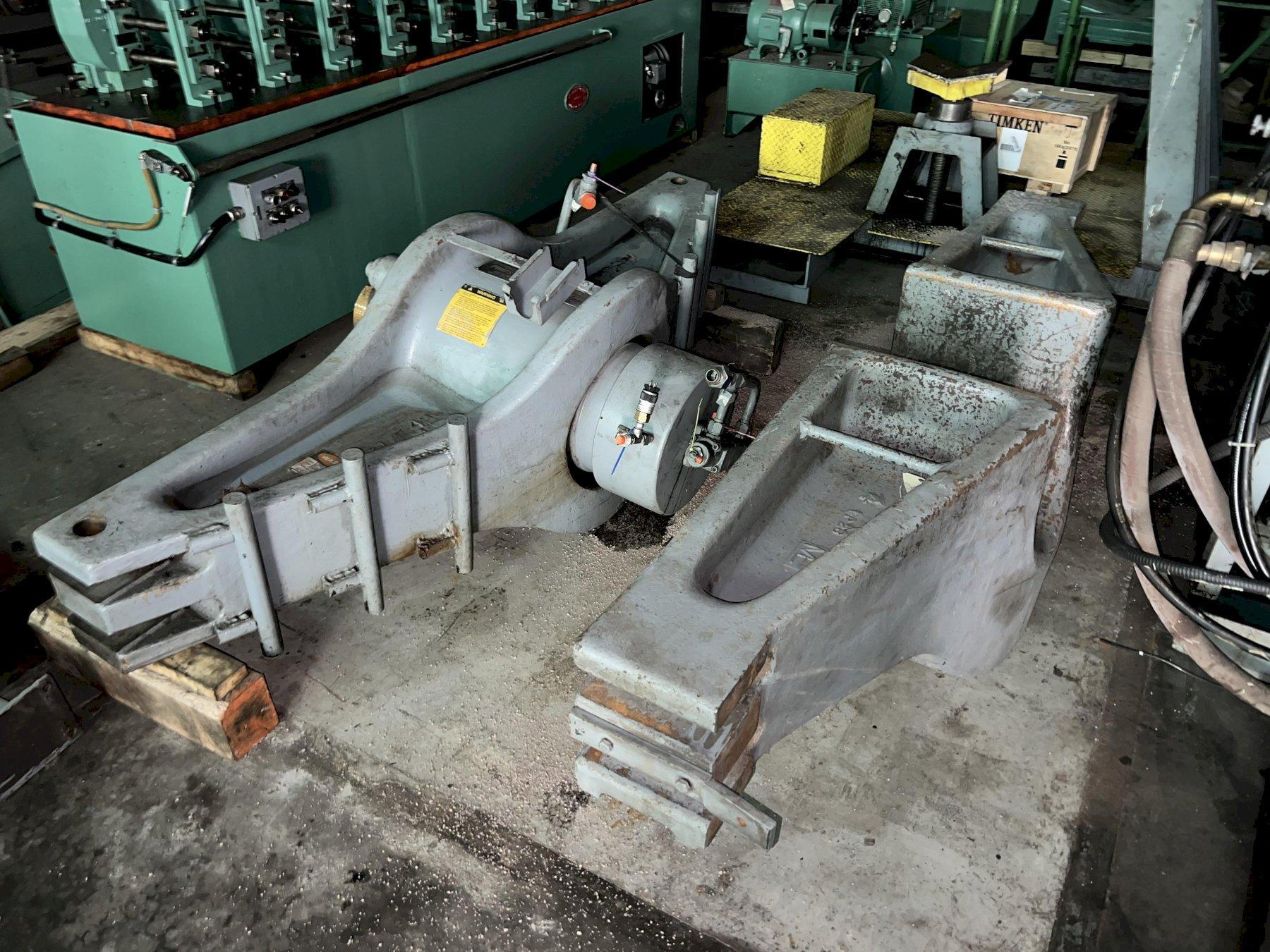

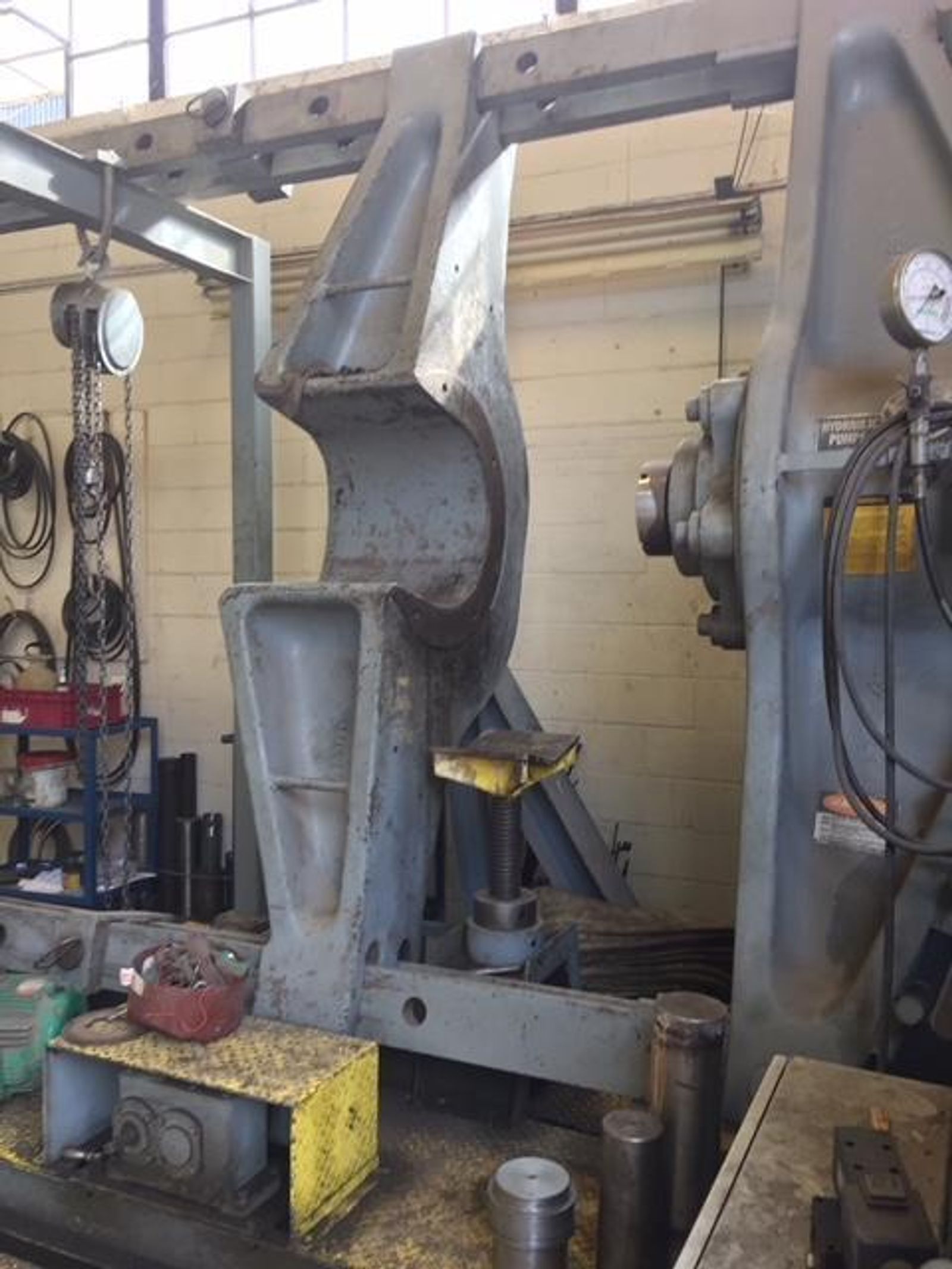

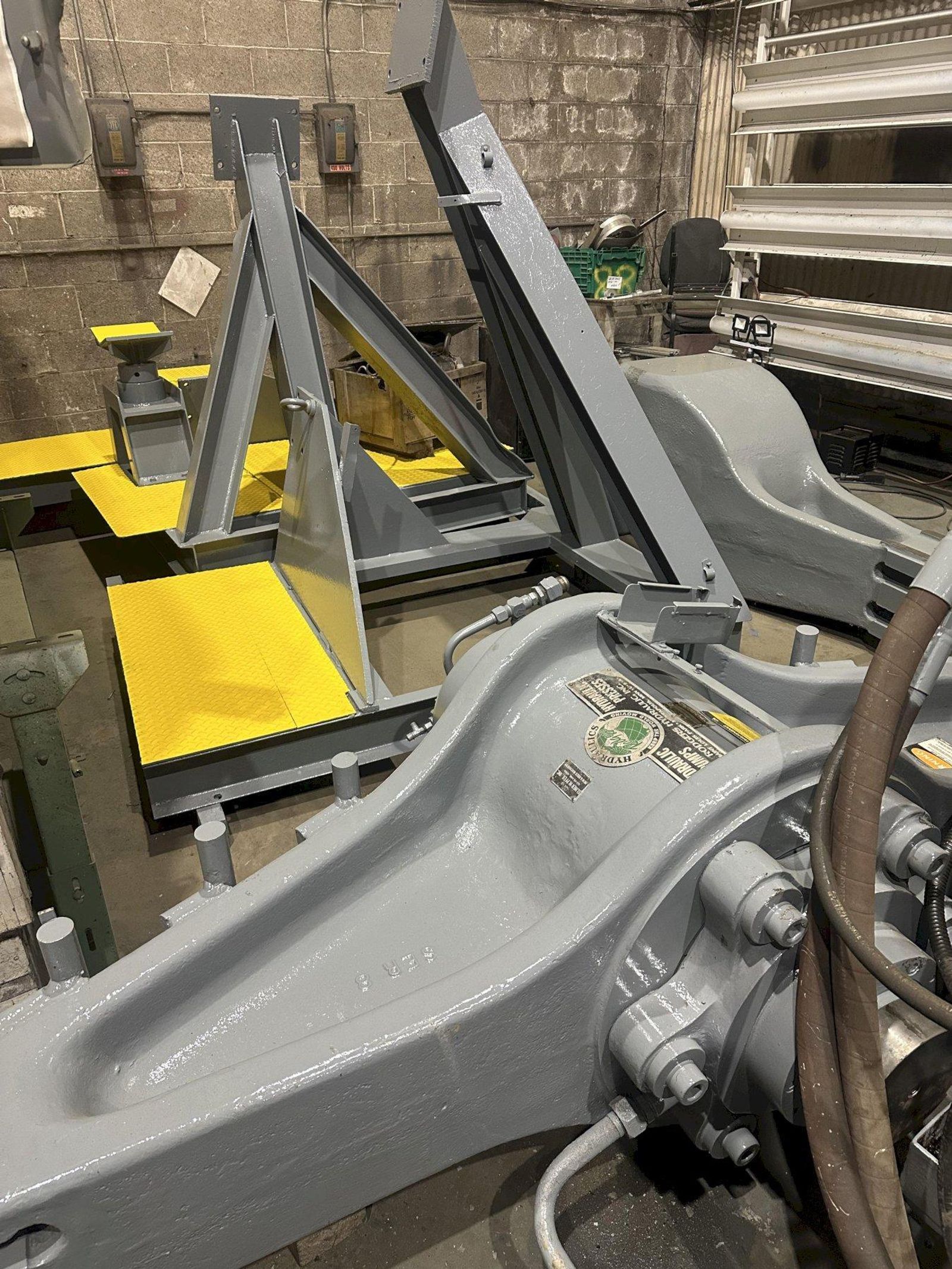

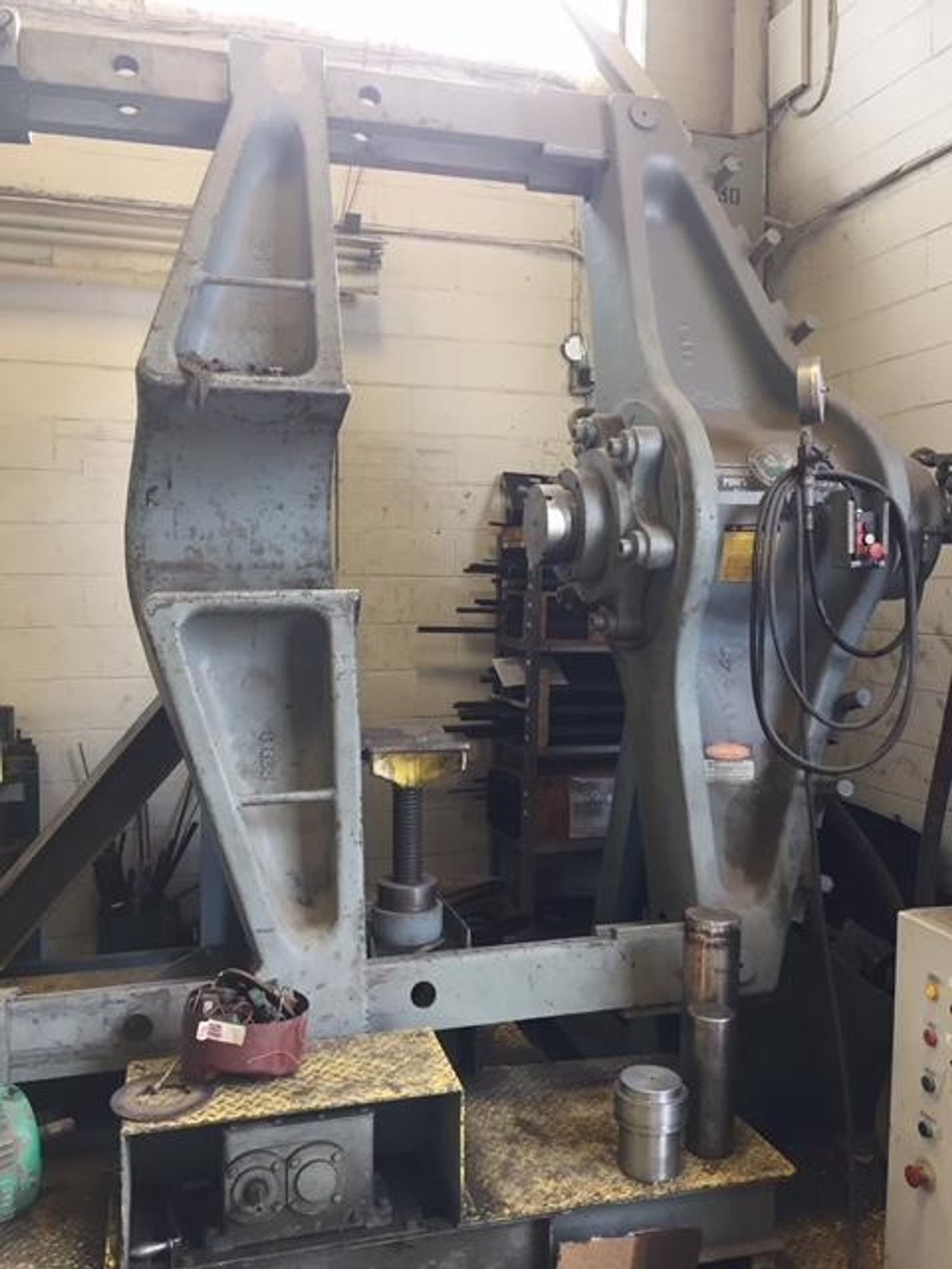

400 TON RODGERS MODEL #1F400 HYDRAULIC INCLINED FRAME HORIZONTAL WHEEL PRESS: STOCK #15558

Overview

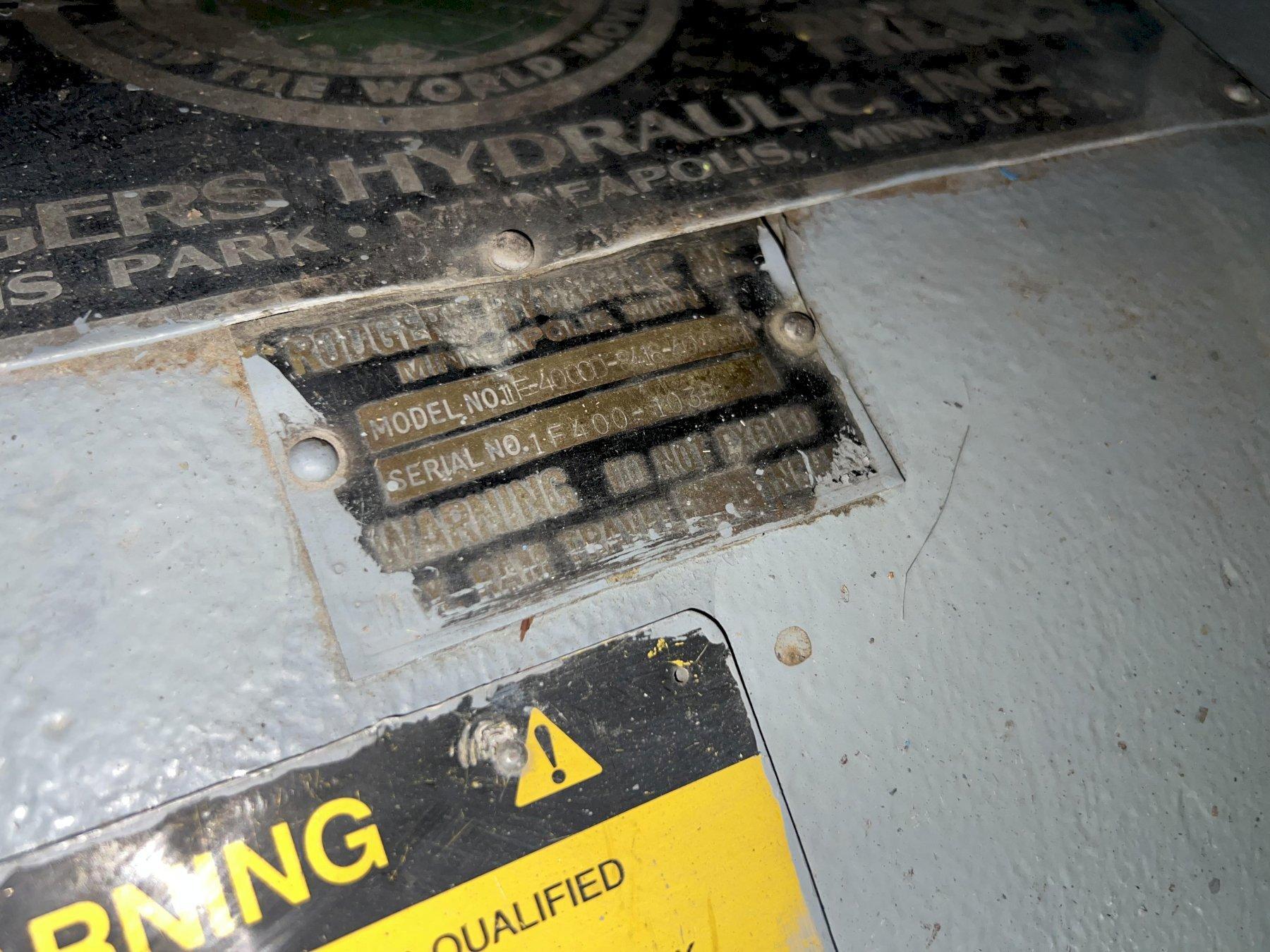

SERIAL ........................... 1F400-1038

MODLEL ........................... 1F40000-8416

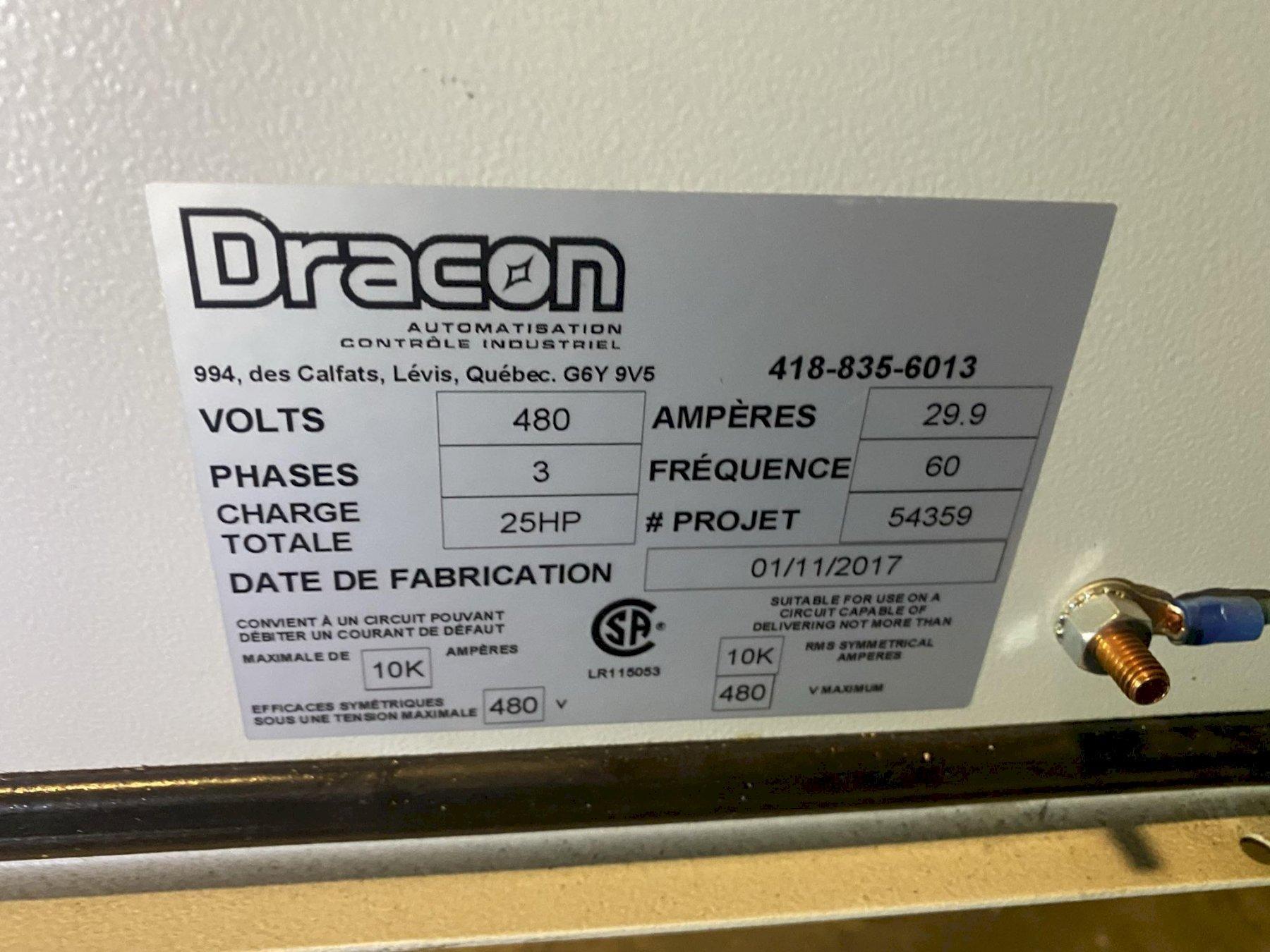

ELECTRICS UPDATED IN ............. 2017
CAPACITY ......................... 400 TON

STROKE ........................... 10"

DISTANCE BETWEEN STRAIN BARS ..... 84"

DISTANCE FROM RAM TO RESISTANCE .. 12" TO 192" (16')

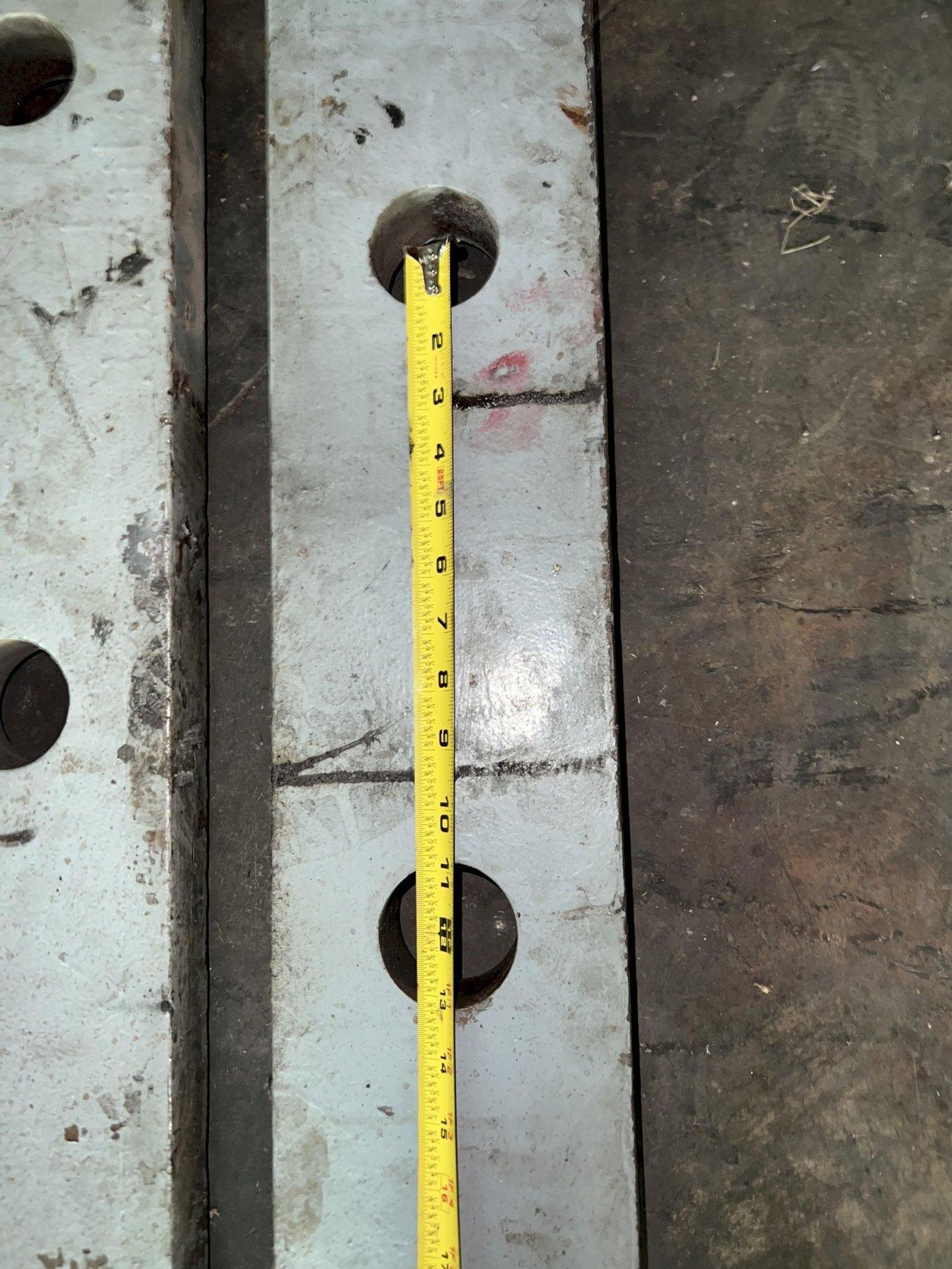

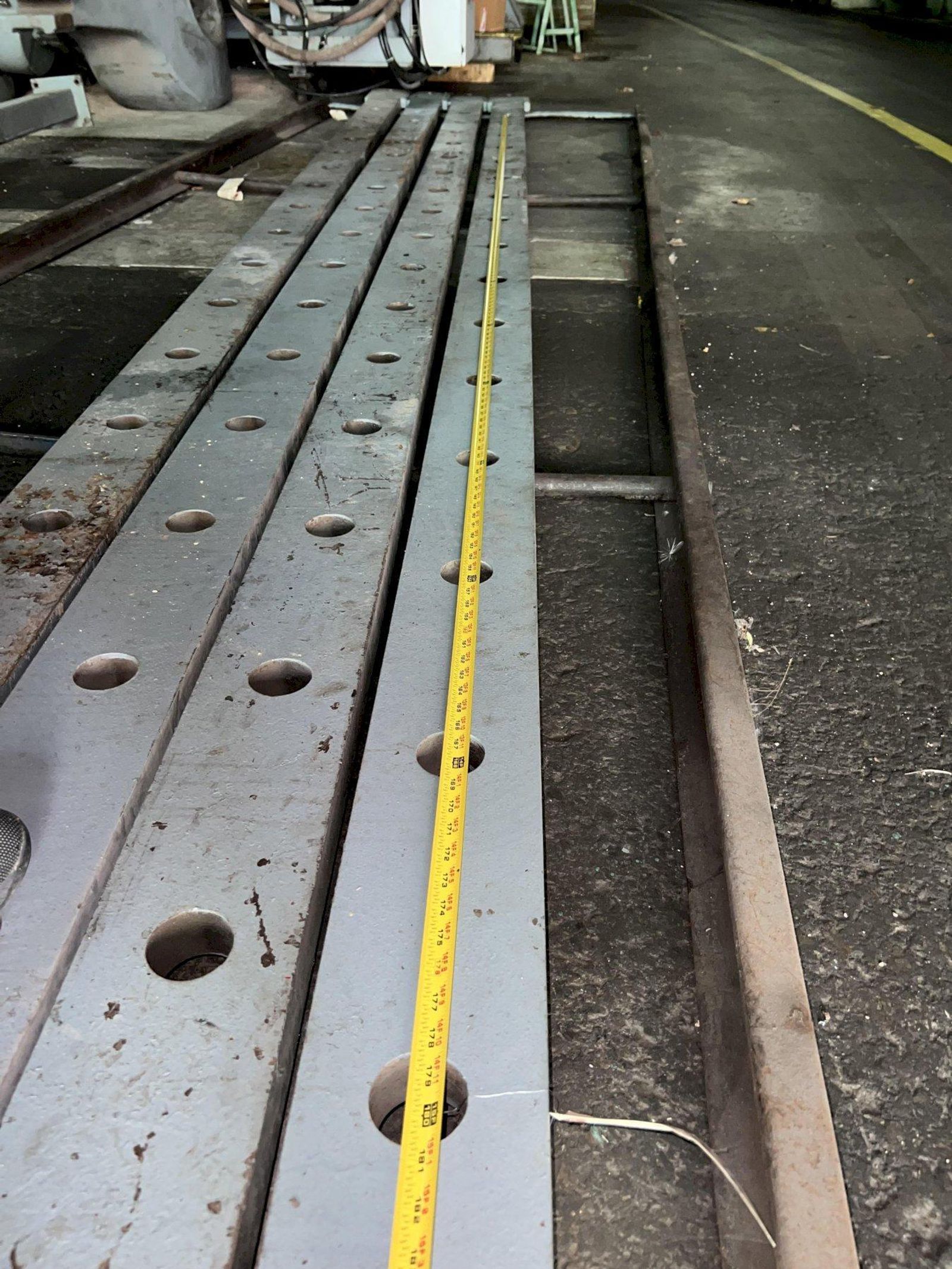

ADJUSTMENT HOLES ON BARS ......... 16

ADJUSTMENT HOLES ON CENTER ....... 12"

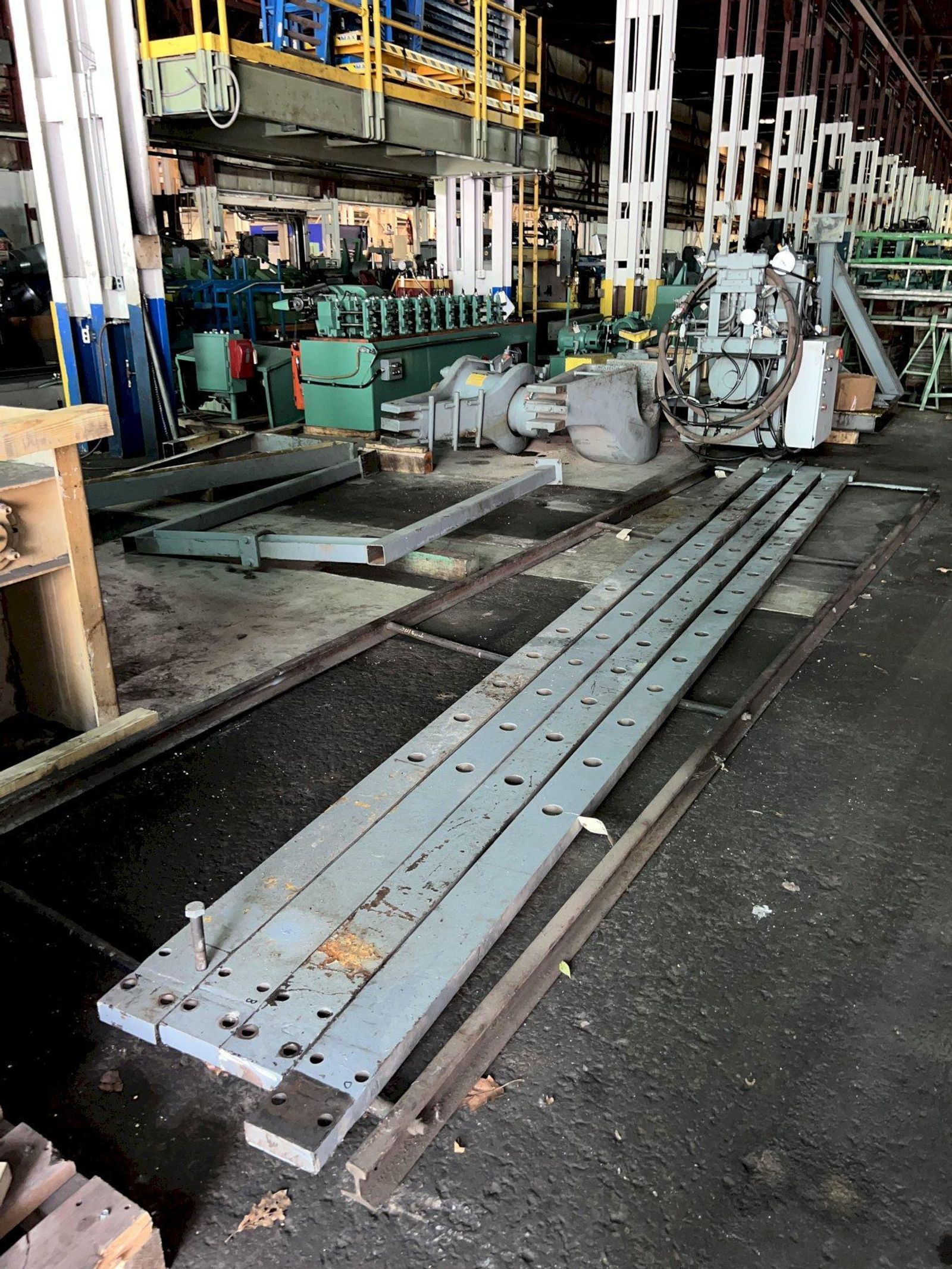

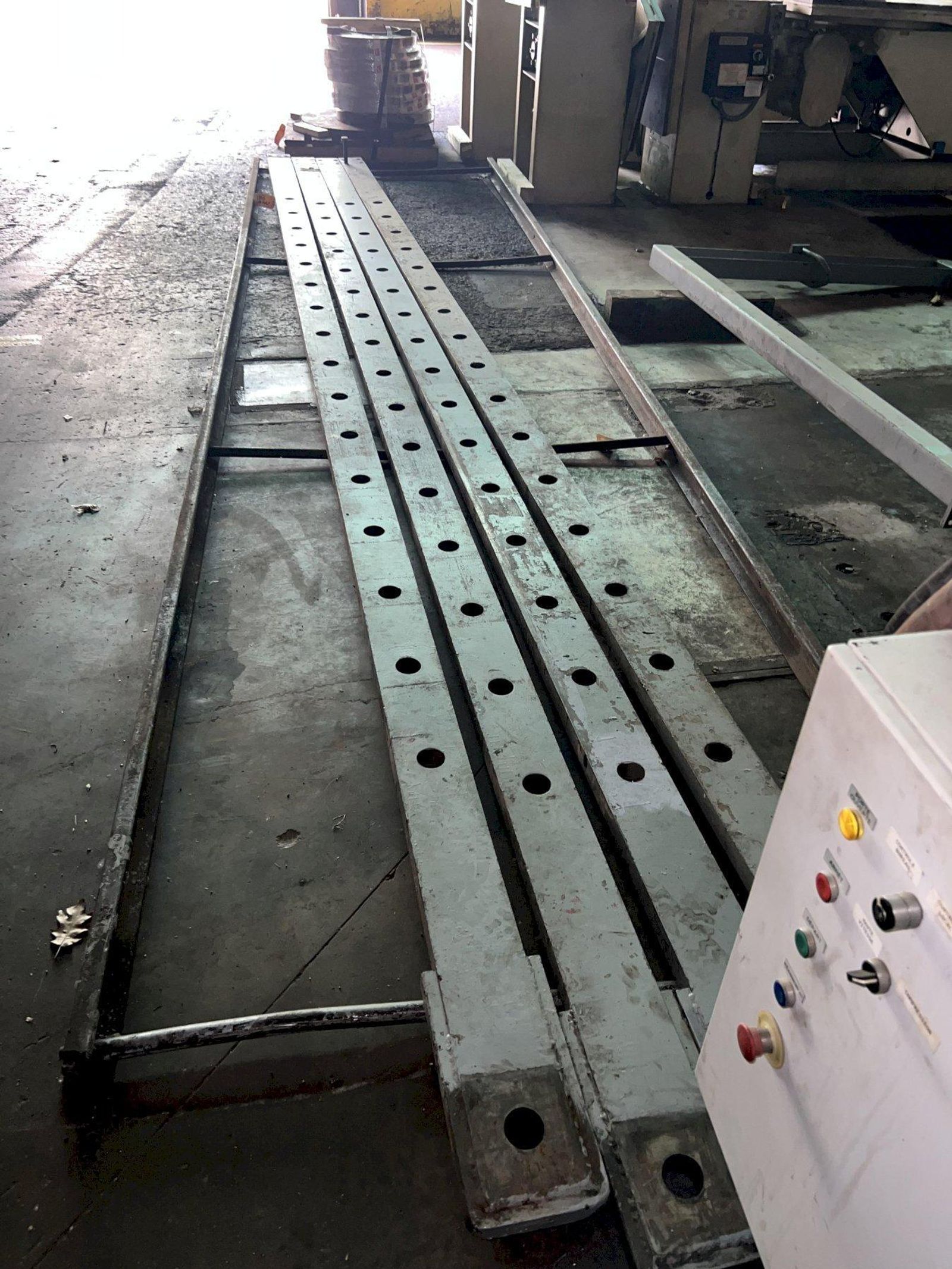

DIMENSION OF STRAIN BARS ......... 20' X 6"

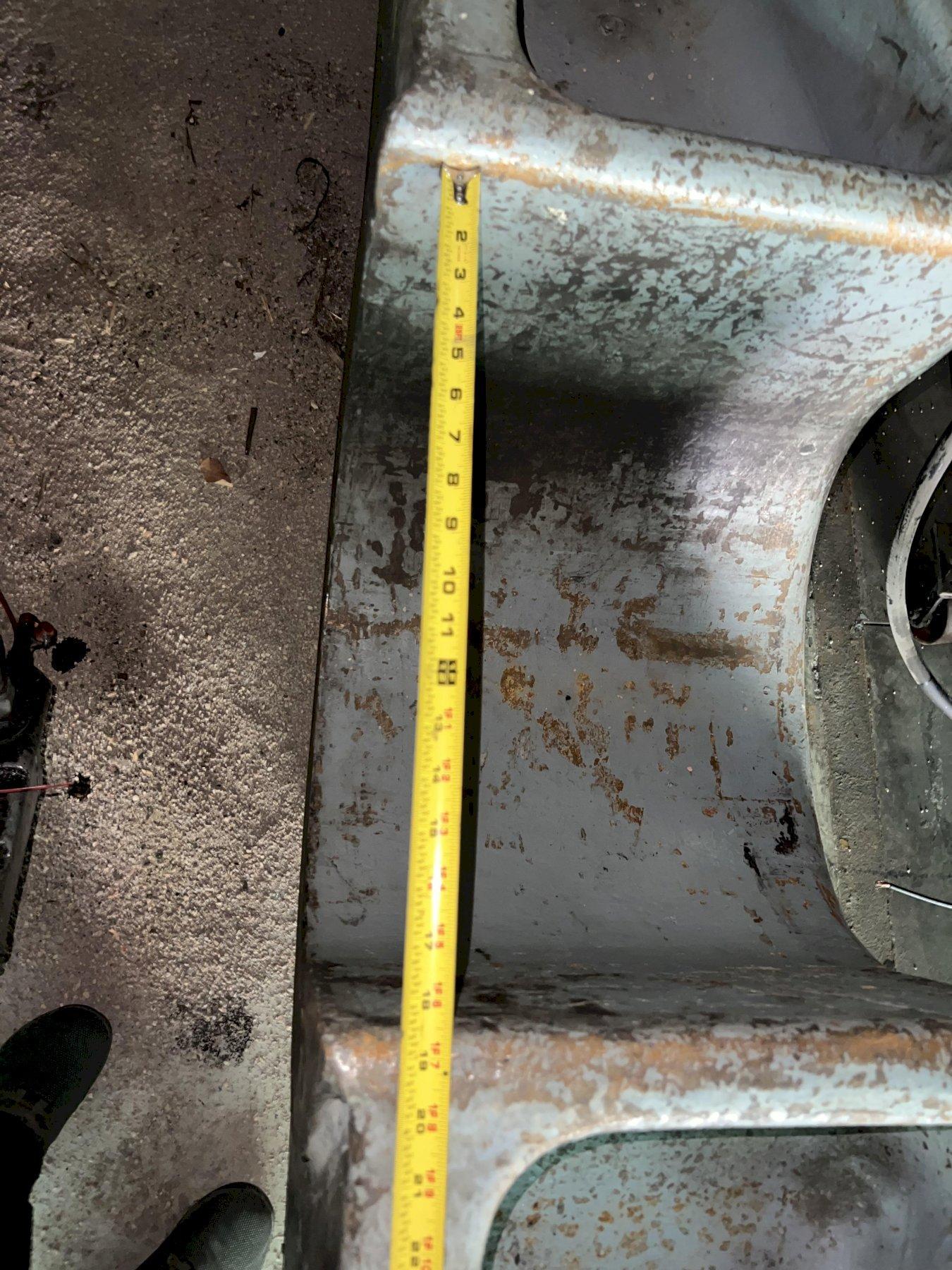

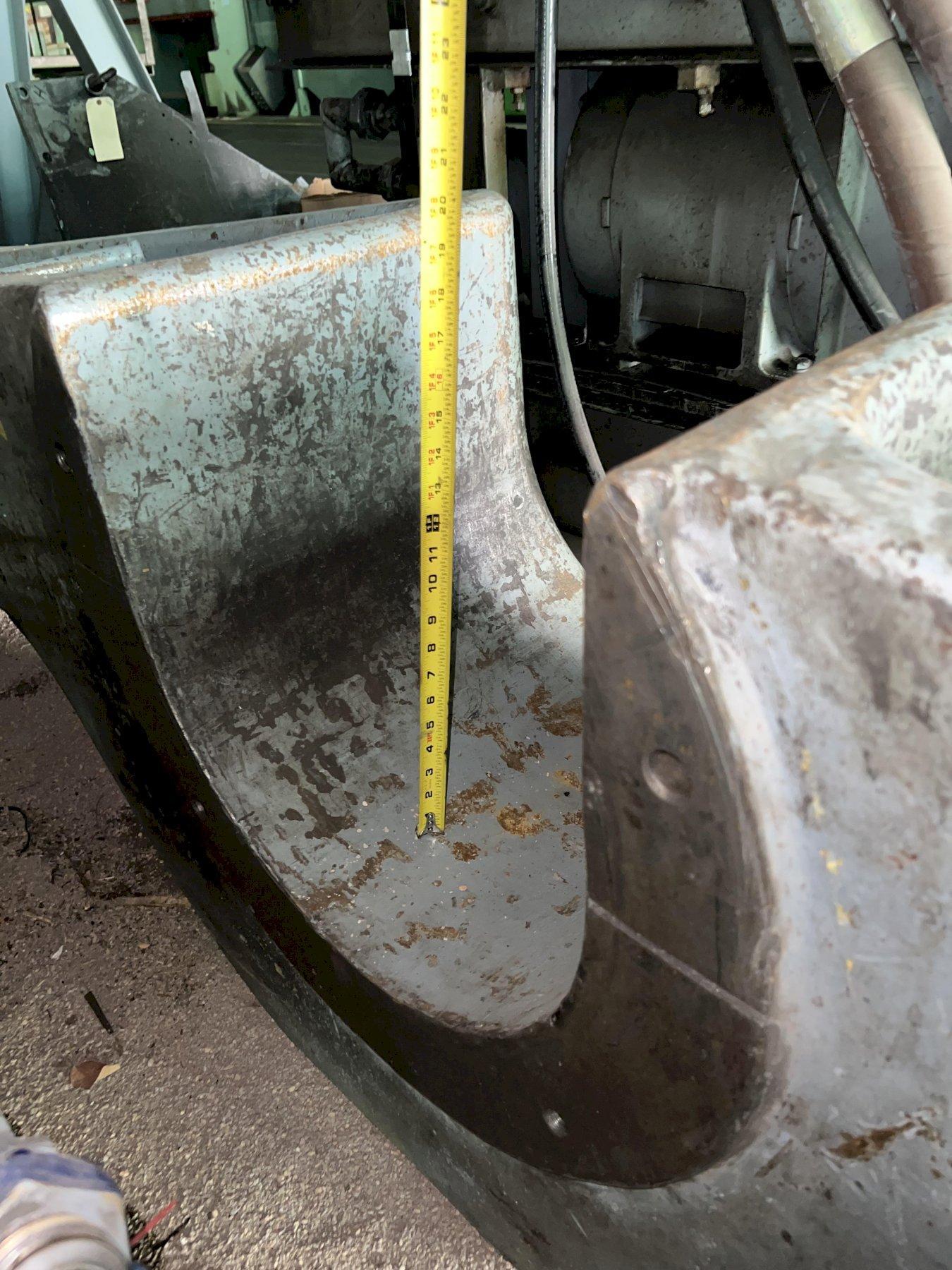

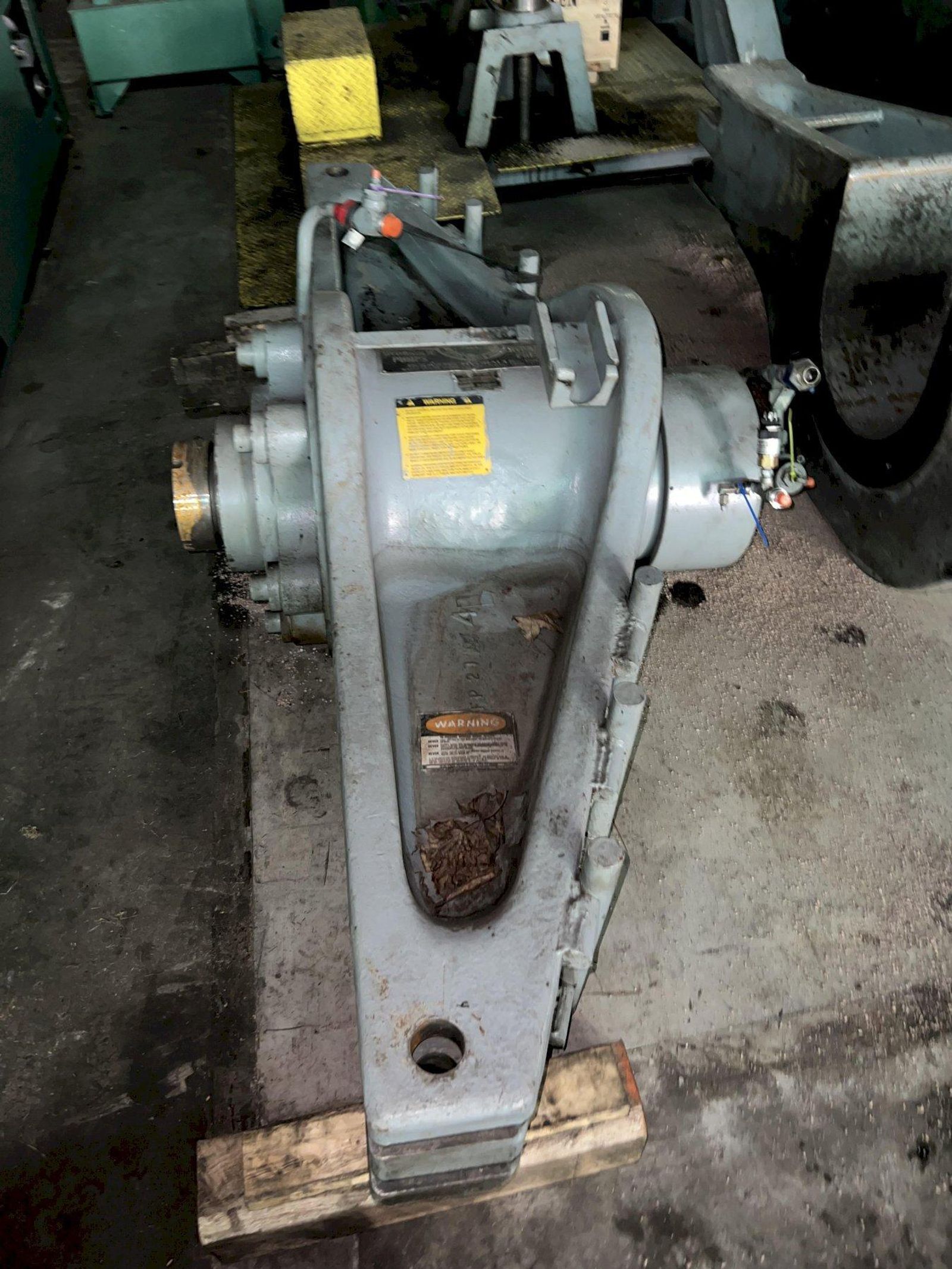

WIDTH OF RESISTANCE BLOCK ........ 21"

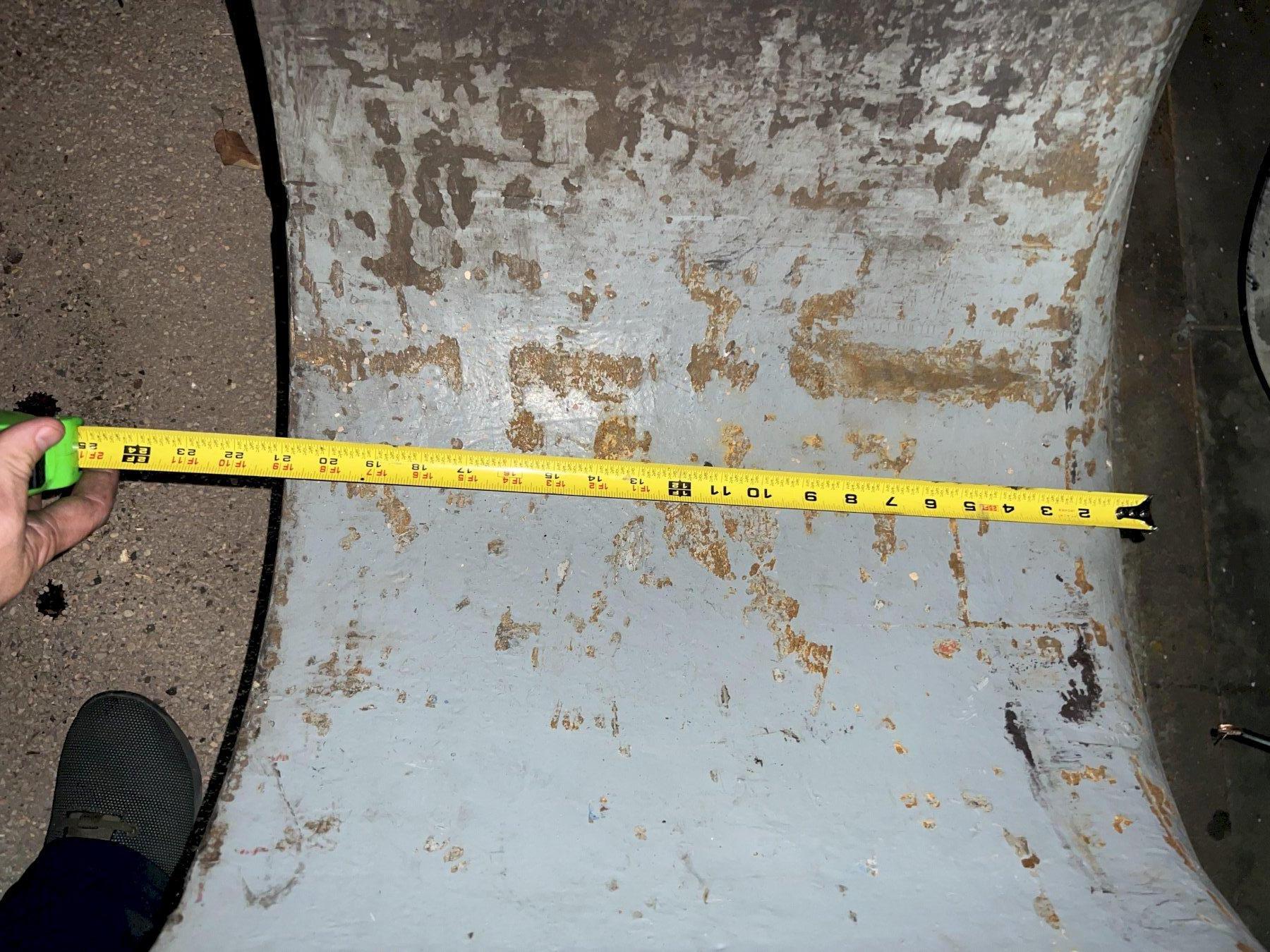

HOLE THROUGH RESISTANCE BLOCK .... 18-1/2"

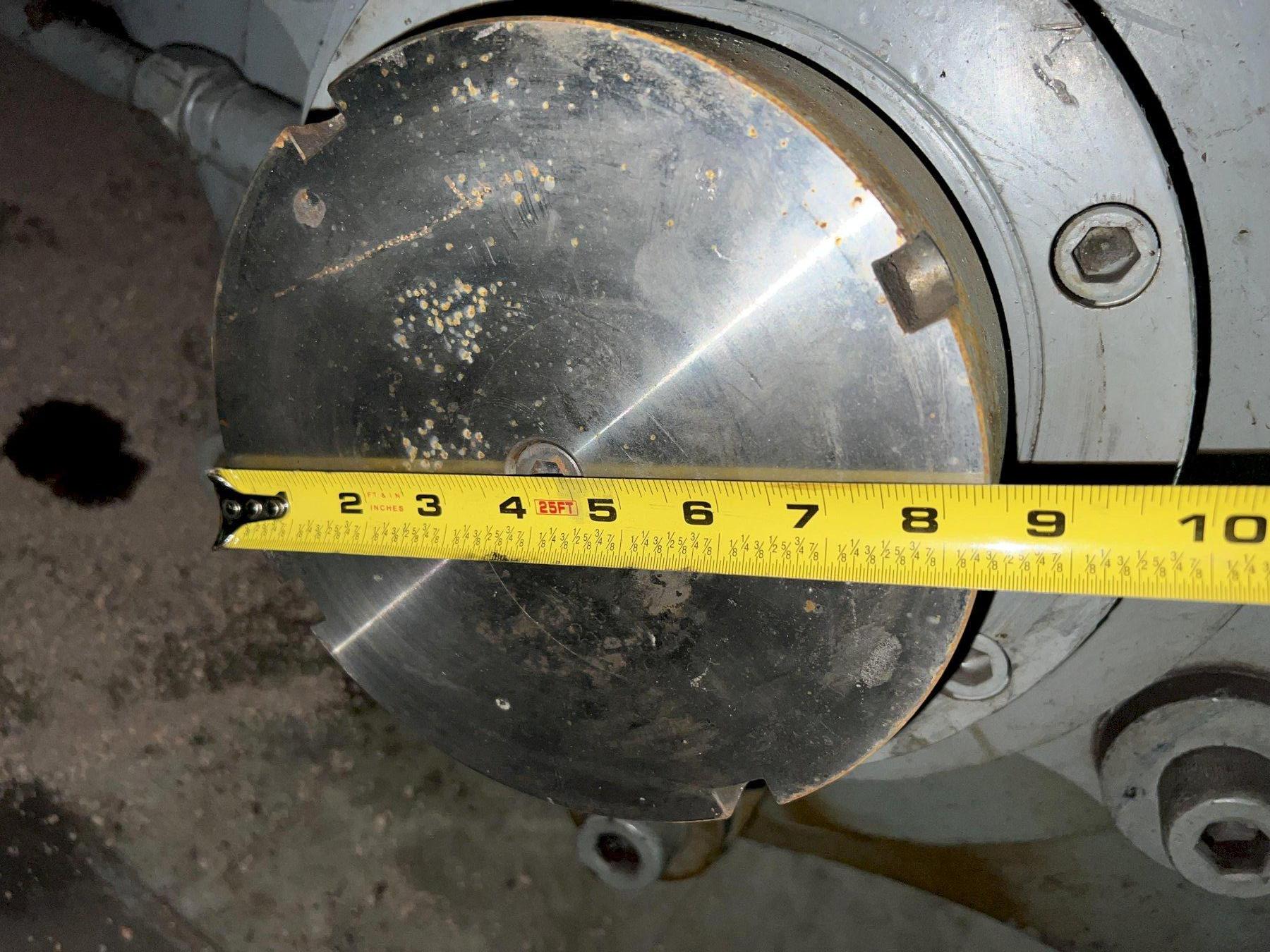

DIAMETER OF PUSHING HEAD ......... 10"

ADJUSTMENT HOLES ON BARS ......... 16

ADJUSTMENT HOLES ON CENTER ....... 12"
PRESSURE GUAGE INDICATOR ......... YES
FRAME CONSTRUCTION ............... BOLT TOGETHER

FRAME DESIGN ..................... INCLINED

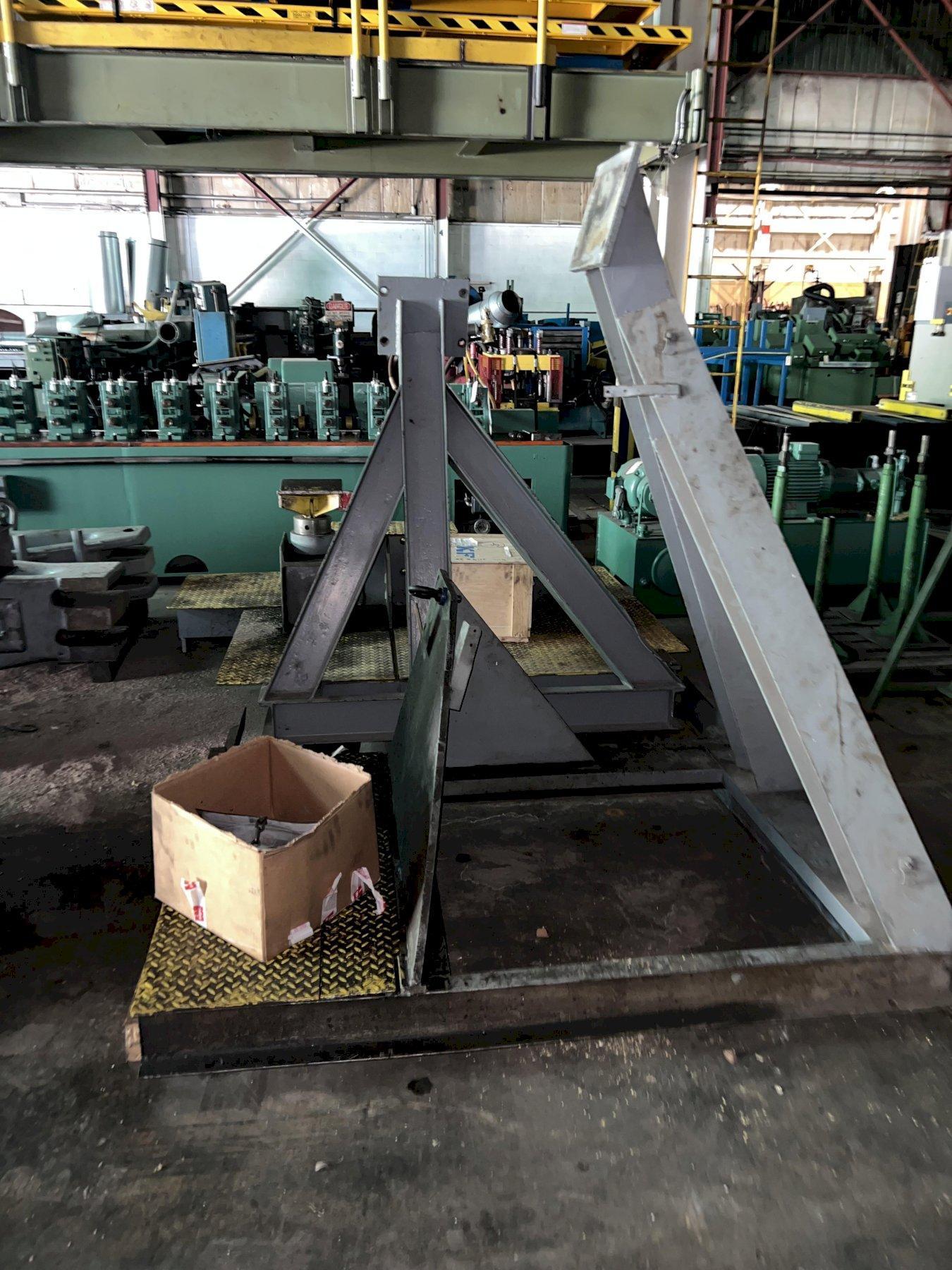

SUPPORT STAND .................... YES, ADJUSTABLE

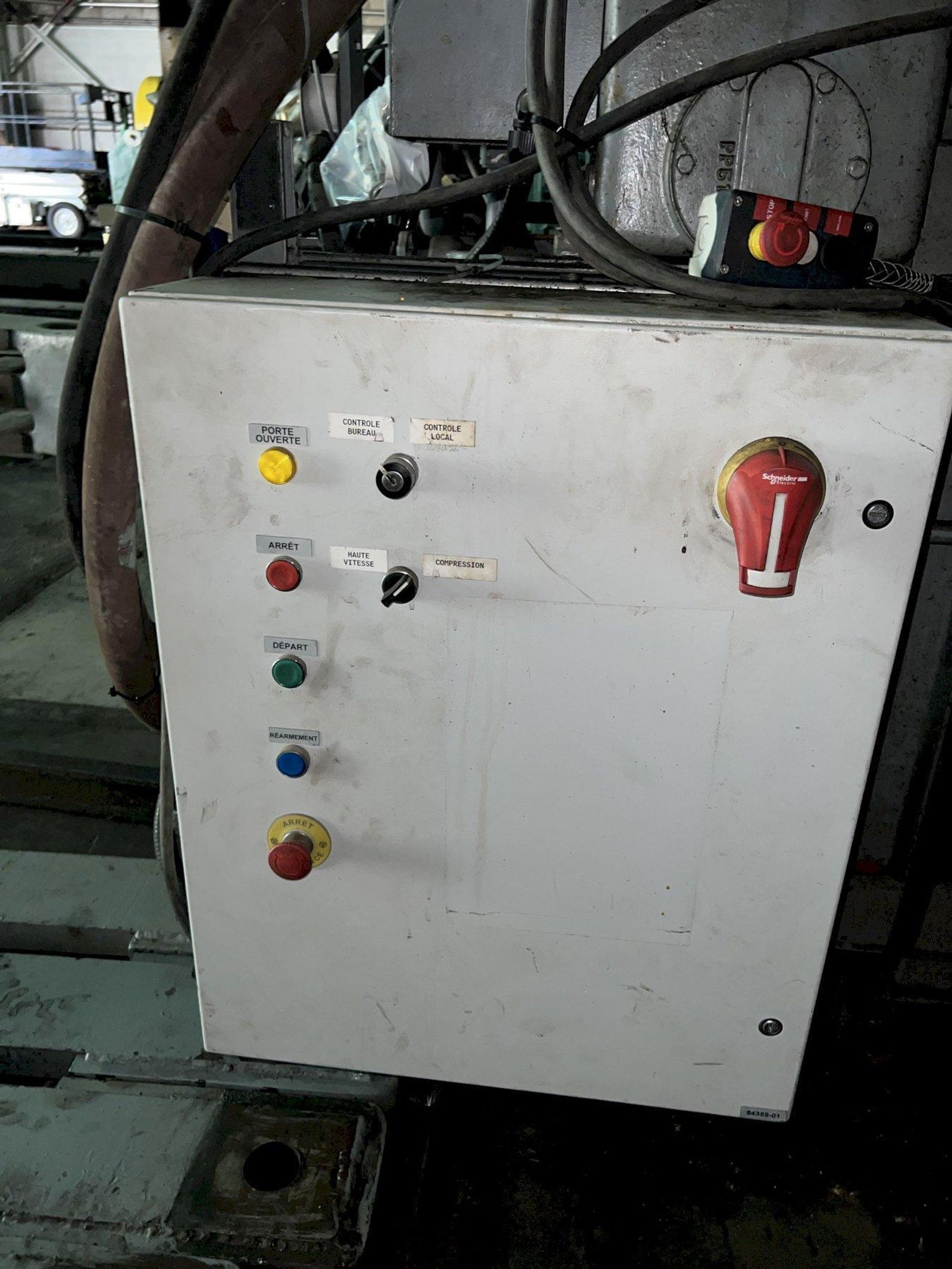

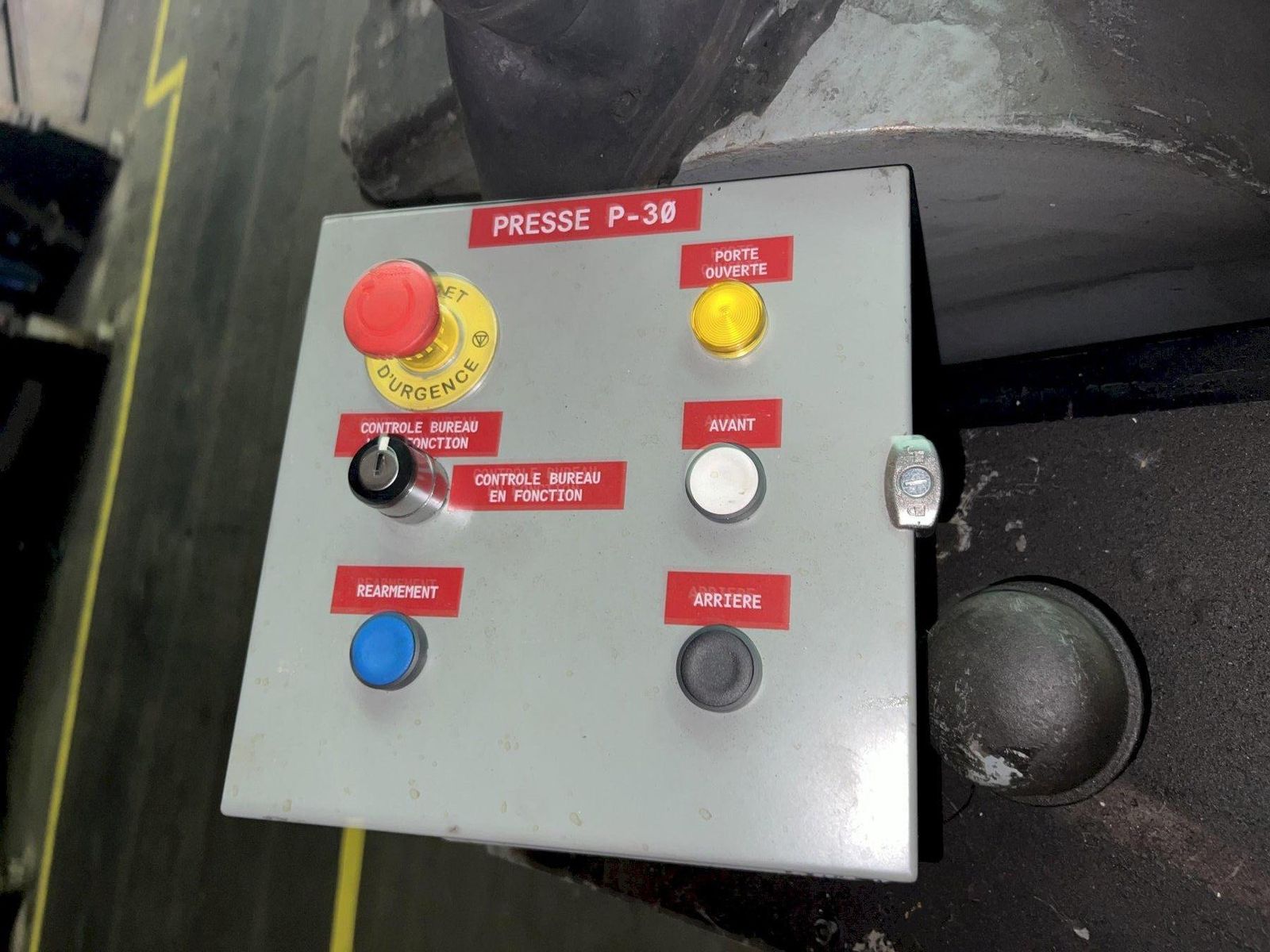

PENDANT CONTROLLER ............... YES

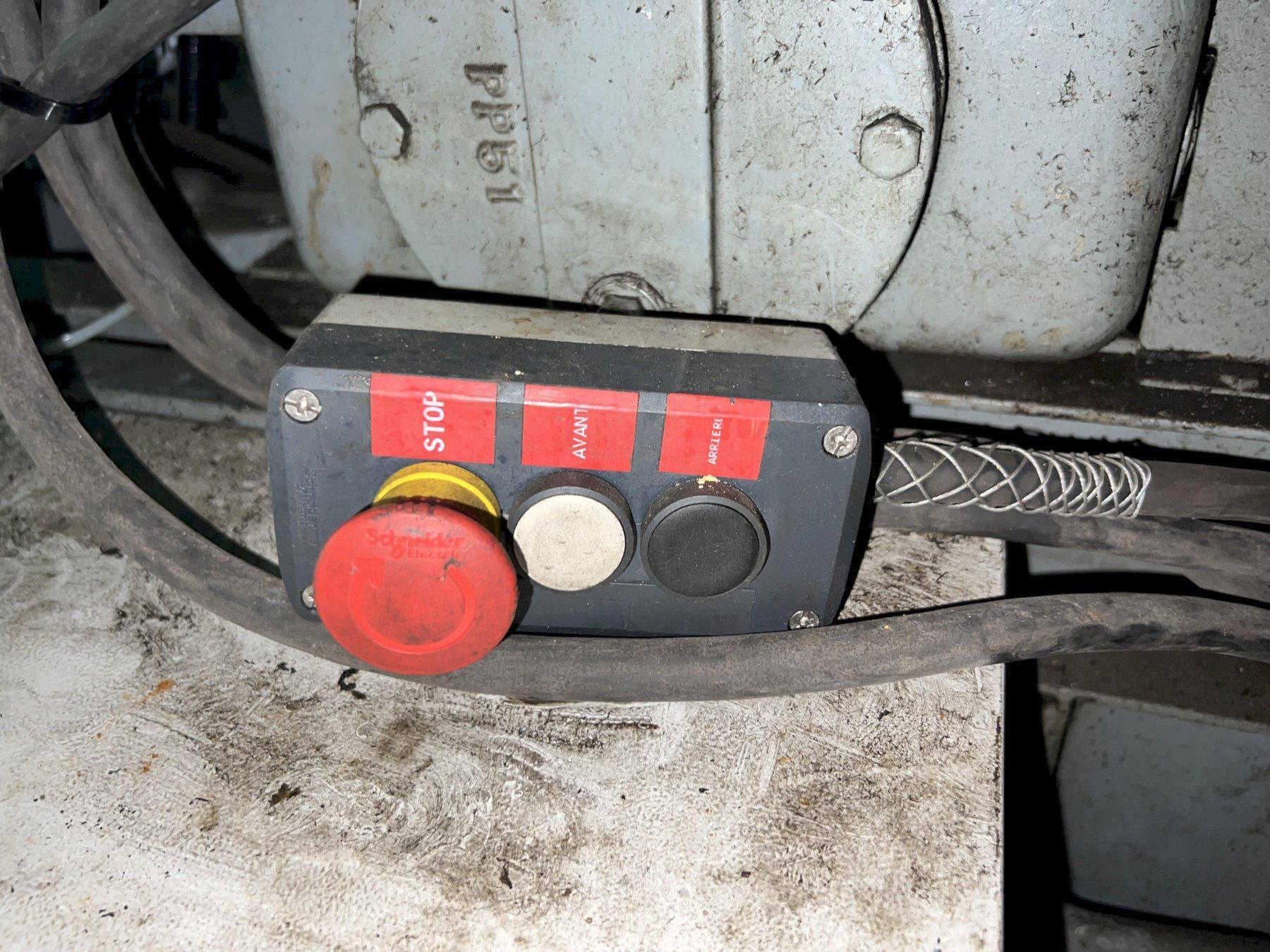

E-STOP BUTTON .................... YES

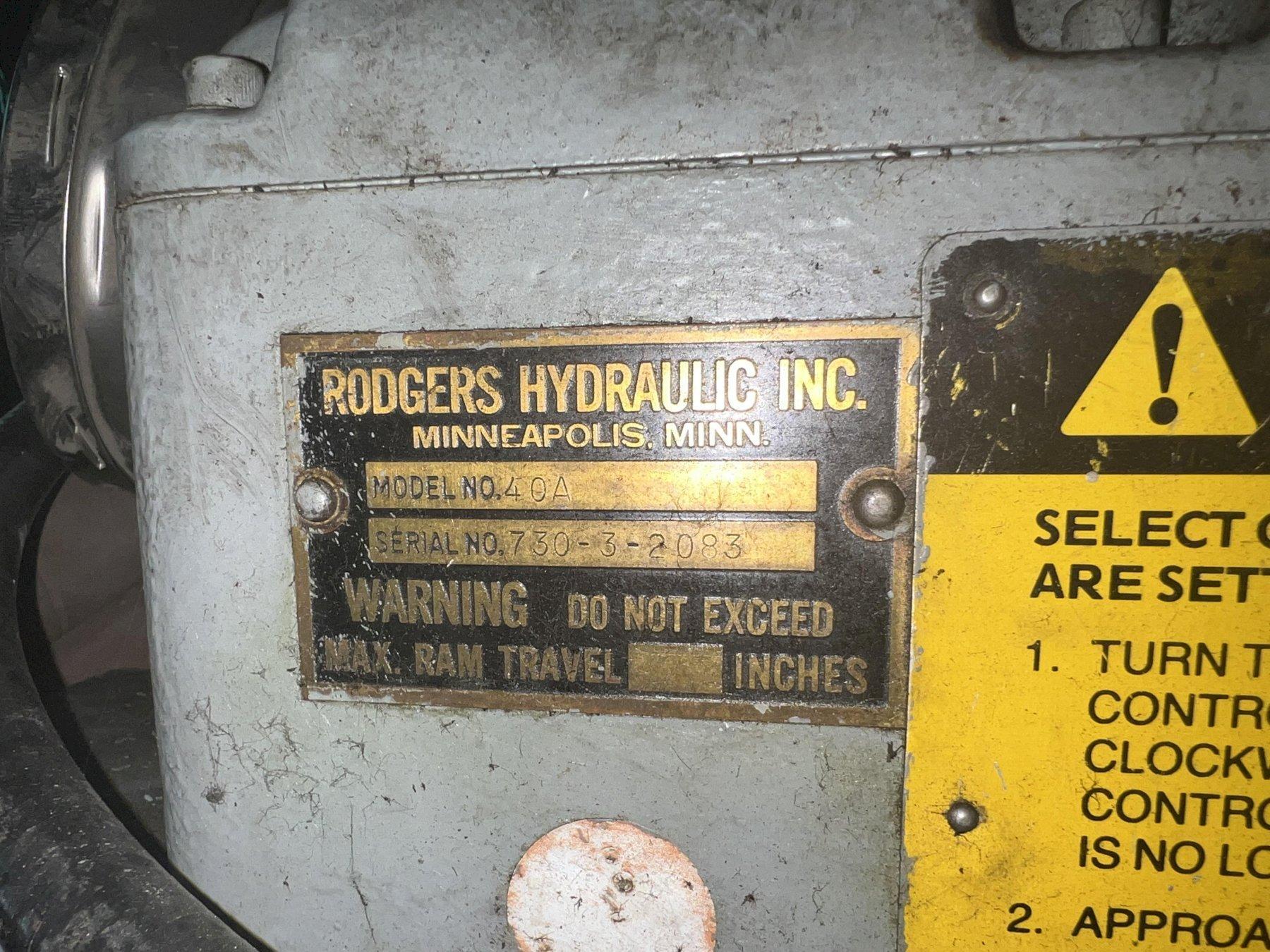

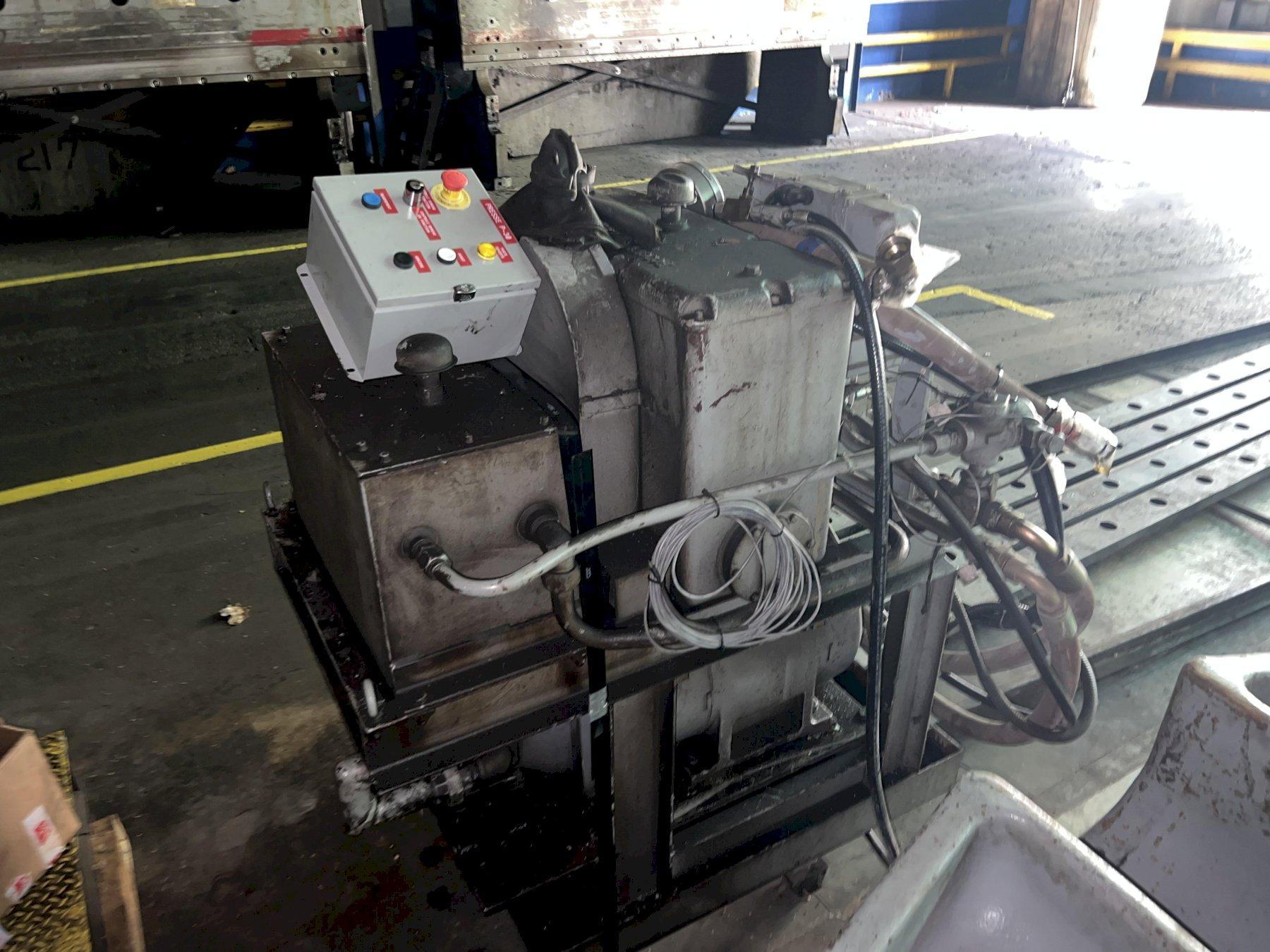

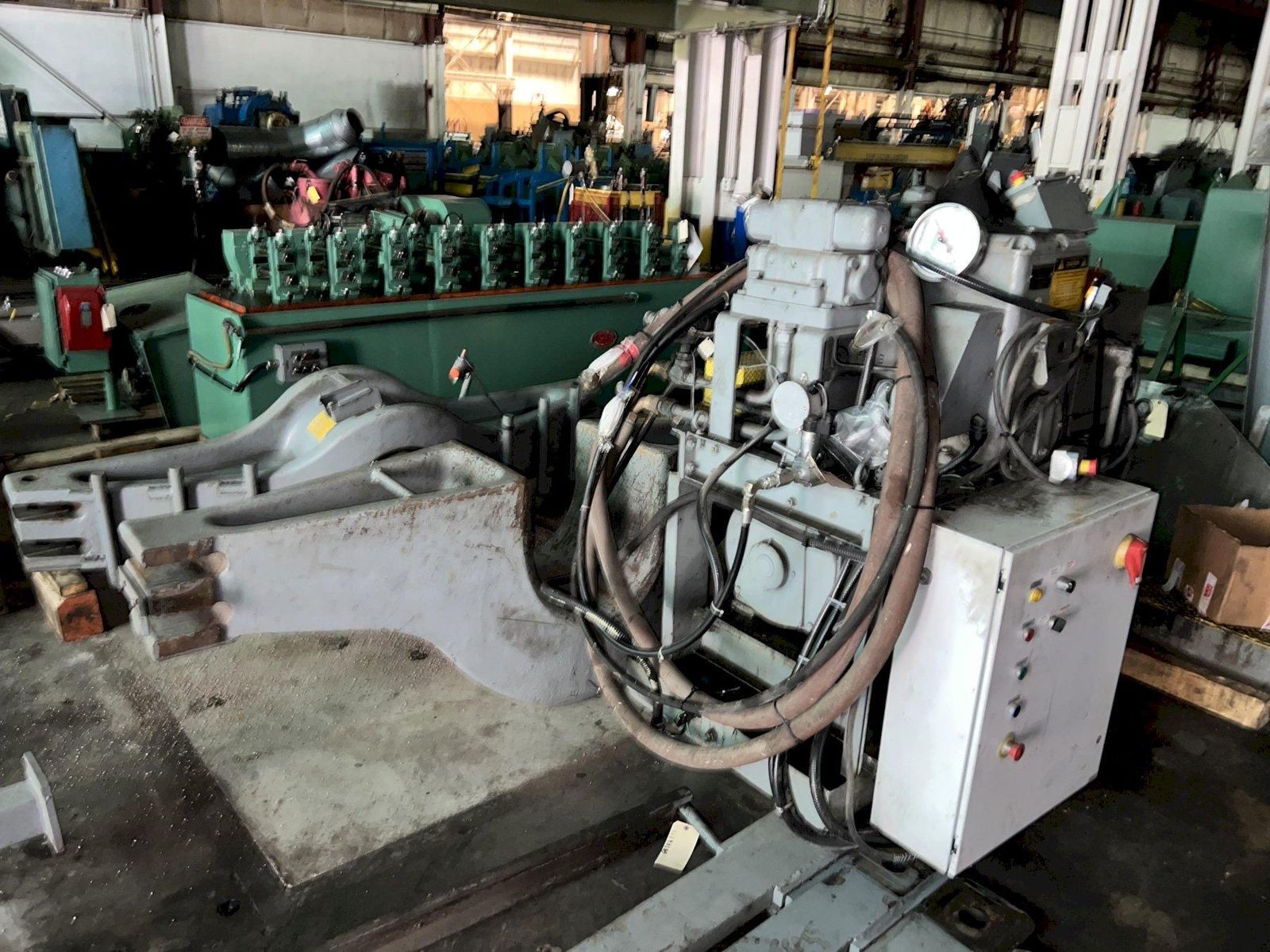

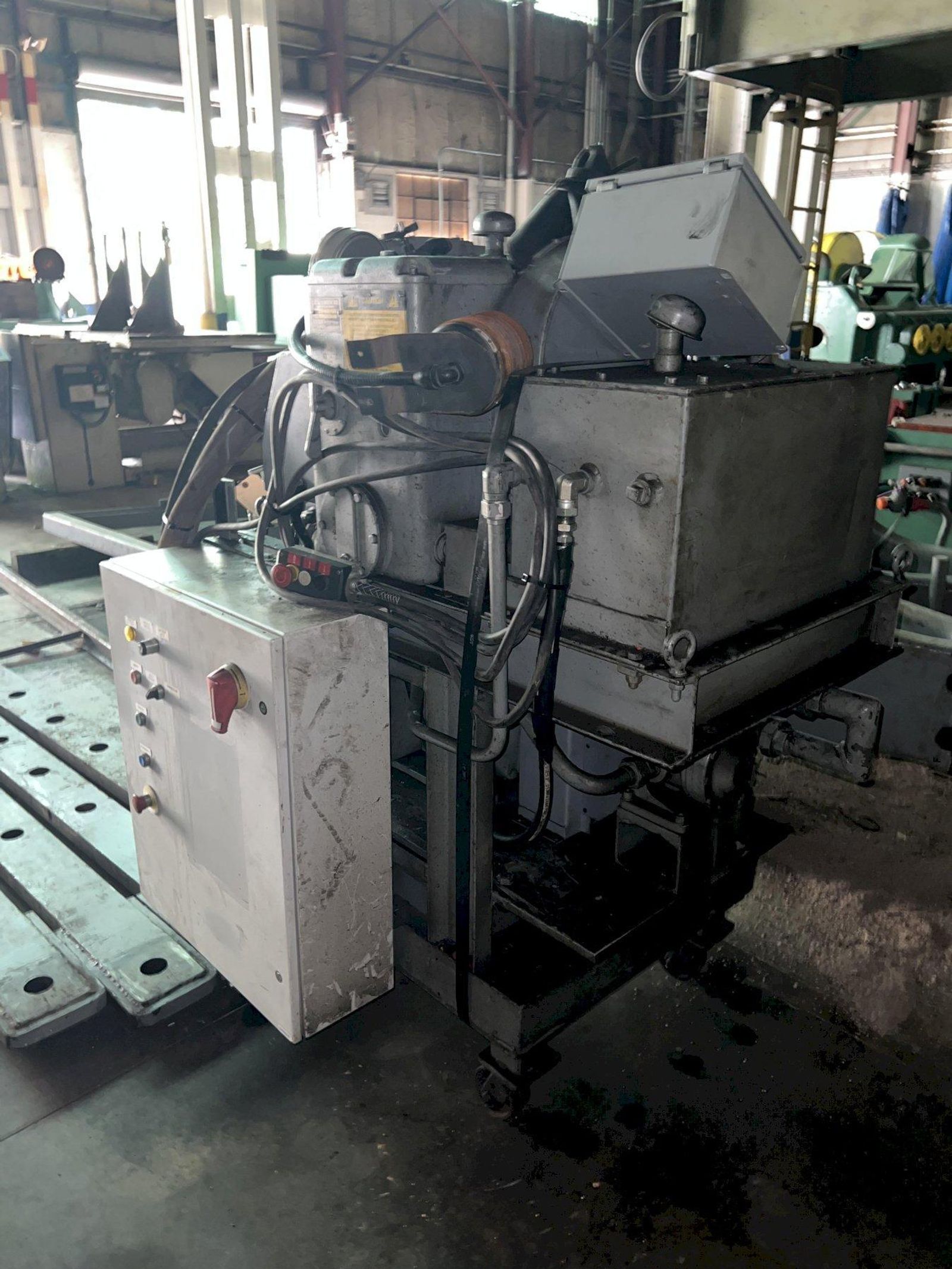

RODGERS HYDRAULIC UNIT:
SERIAL ........................... 730-3-2083
MODDEL ........................... 40A
MOTOR ............................ 25 HP

400 TON RODGERS MODEL #1F400 HYDRAULIC INCLINED FRAME HORIZONTAL WHEEL PRESS: STOCK #15558

Brand
RODGERS

Type
Presses, Wheel

Stock No.
15558
