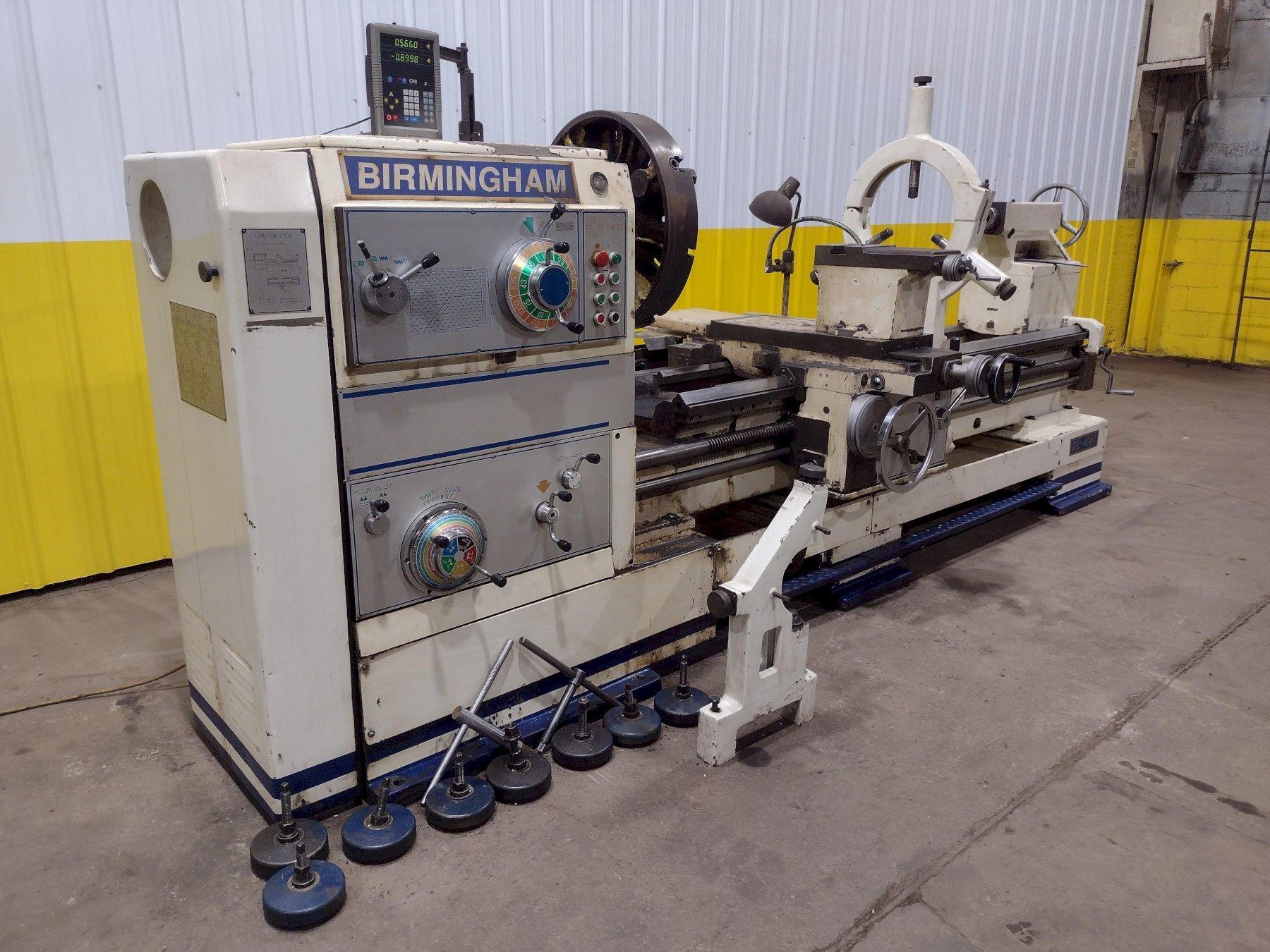

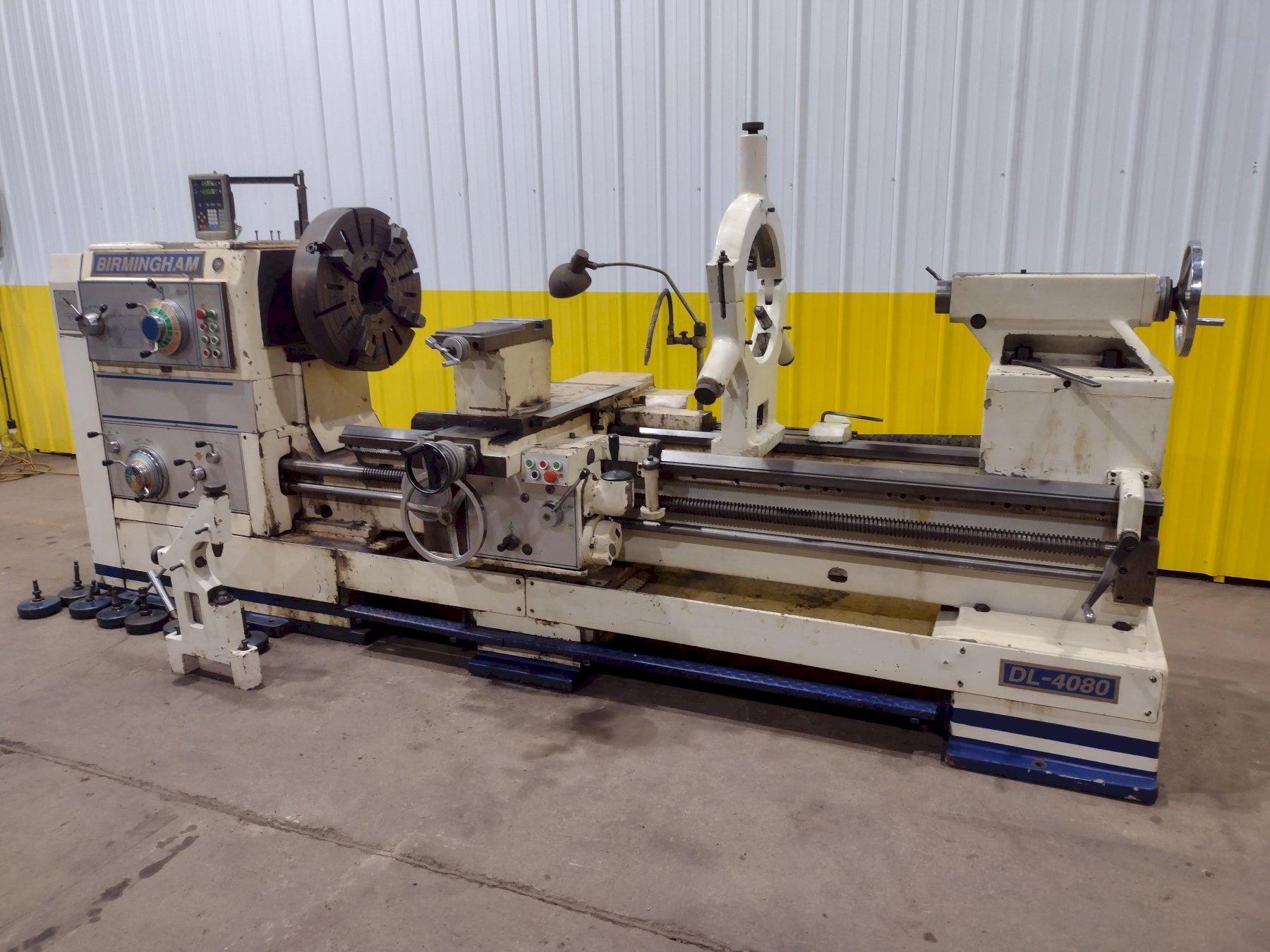

40" x 80" BIRMINGHAM MODEL #DL4080 ENGINE LATHE, 5-1/8" HOLLOW SPINDLE HOLE: STOCK #19321

Overview

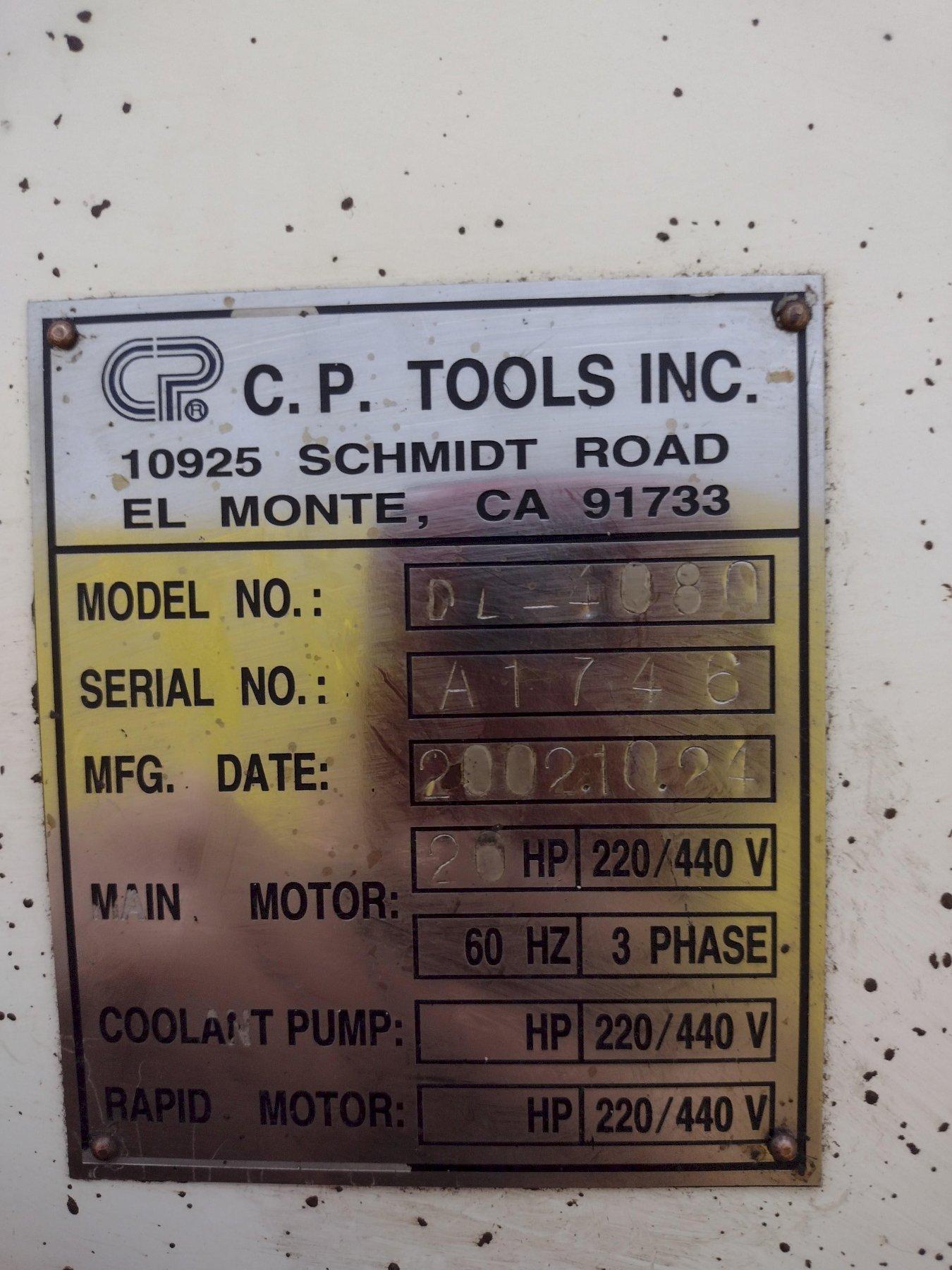

SERIAL .......................... A1746

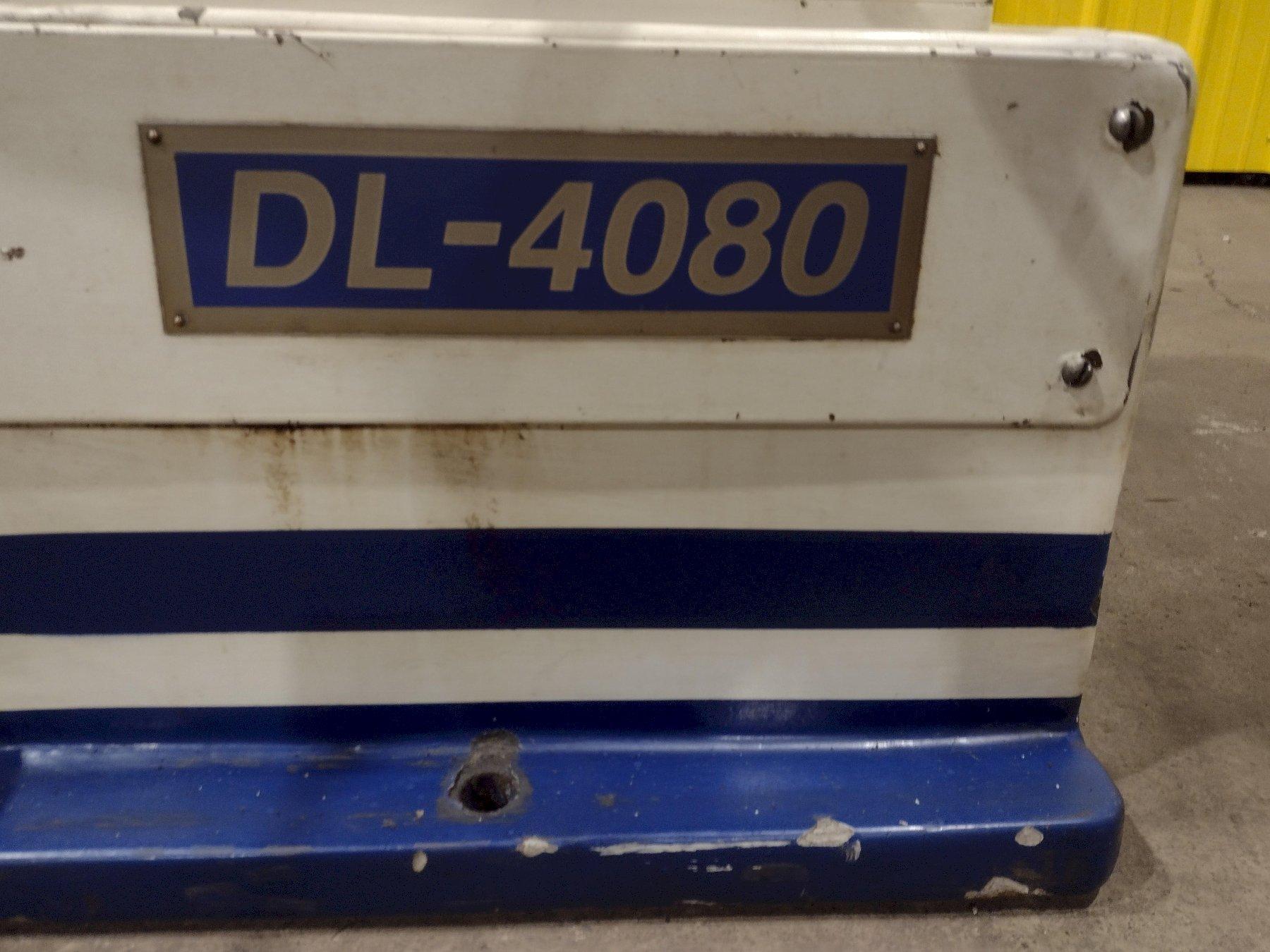

MODEL ........................... DL-4080

SWING ........................... 40"

SWING OVER CROSS ................ 28"

SWING IN GAP .................... 48"

LENGTH OF GAP ................... 16"

CENTERS ......................... 80"

SPINDLE HOLE .................... 5-1/8"

SPINDLE SPEEDS .................. (18) 7.5 TO 1,000 RPM

TAPER OF SPINDLE CENTER ......... MT NO 5

WIDTH OF BED .................... 21-21/32"

RAPID TRAVERSE .................. YES

SPINDLE NOSE .................... D-1-11 CAMLOCK

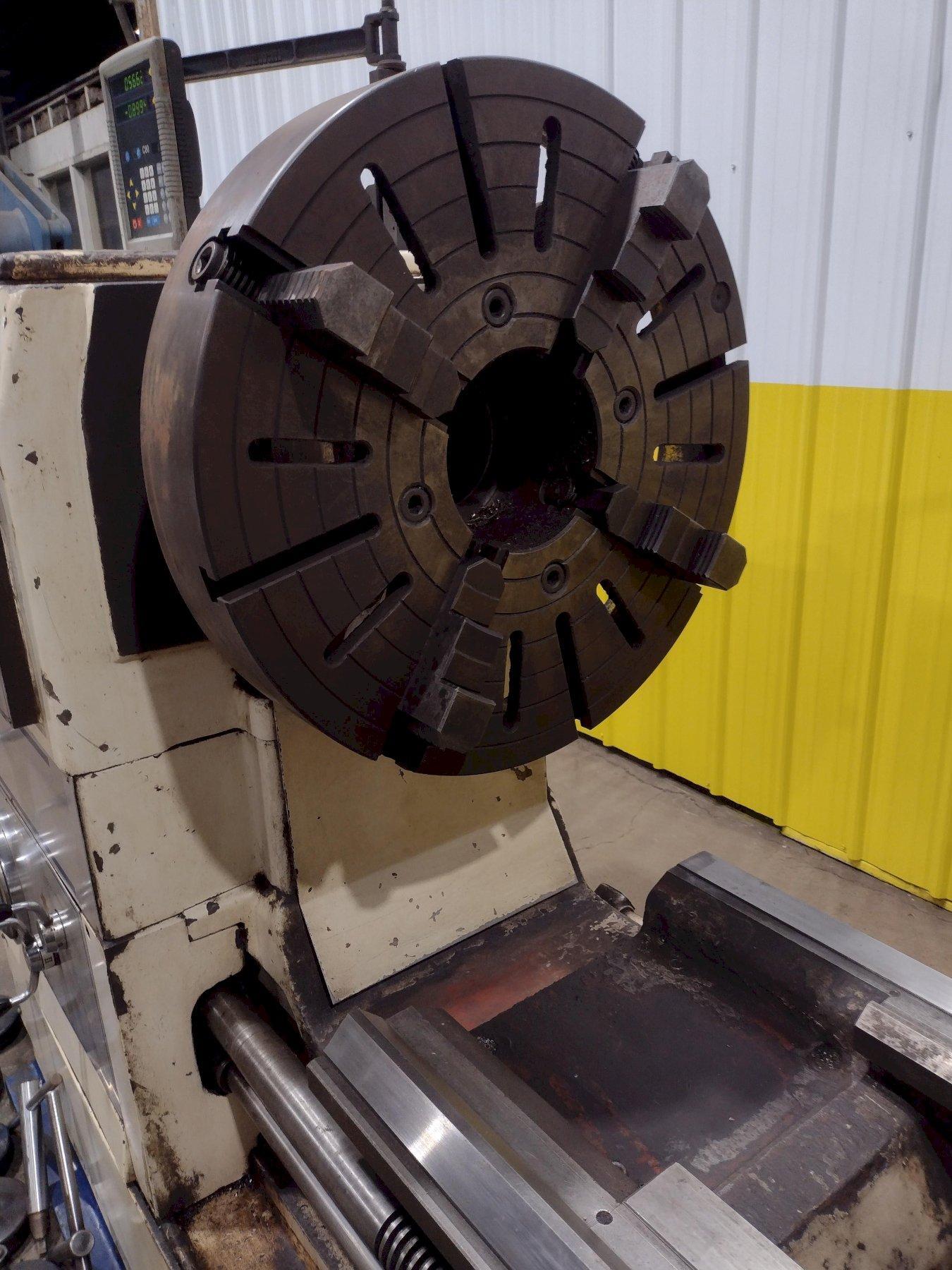

CHUCK ........................... 24.5"

FEEDS, LONGITUDINAL ............. (64) .002 TO .96 IPR

FEEDS, CROSS ................... (64) .001 TO .48 IRP

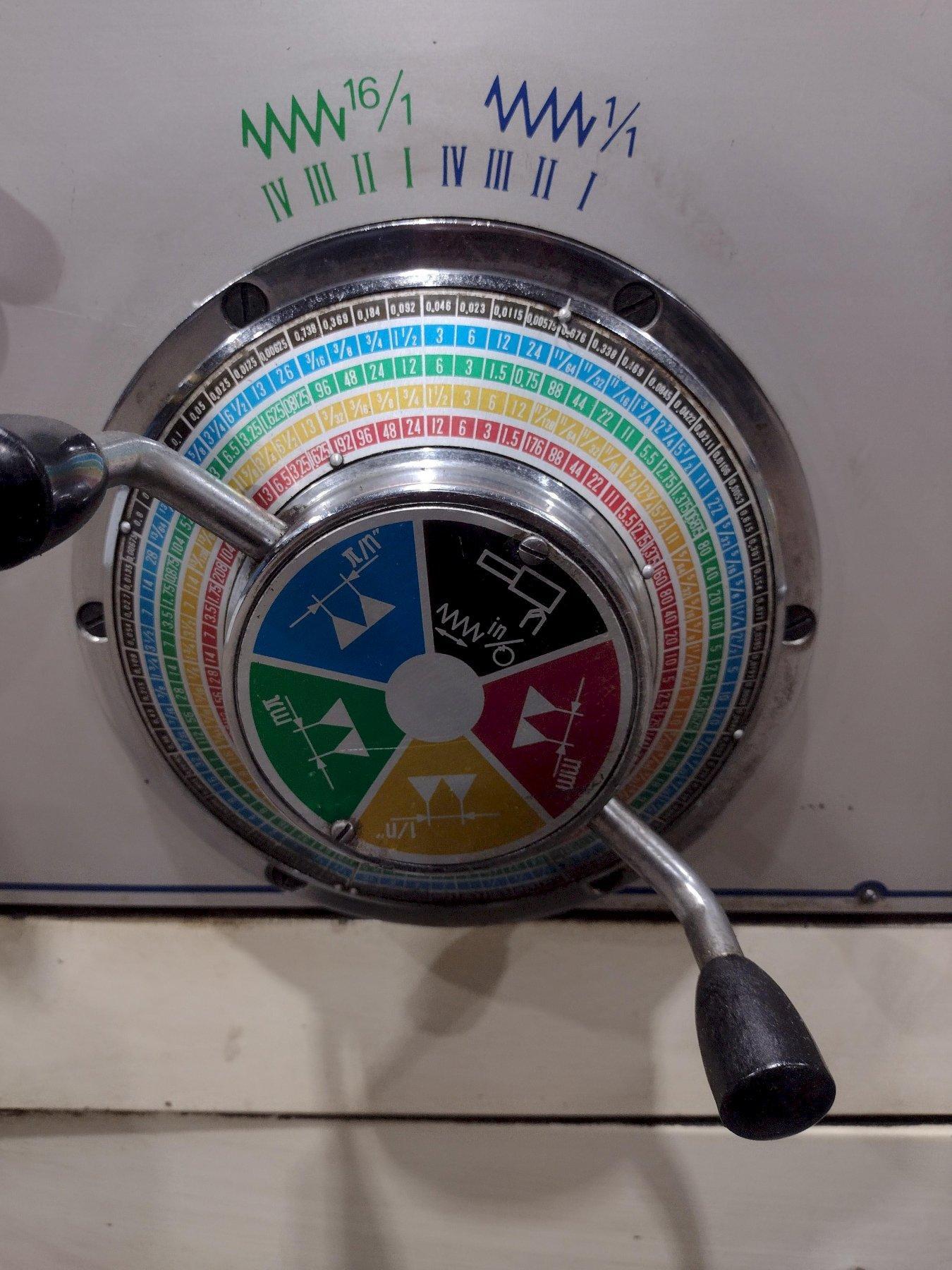

THREADS (INCH) .................. (73) 32 1/16 TPI

THREADS (METRIC) ................ (57) 1 TO 256 MM

THREADS (MODULE) ................ (57) .5 TO 128 MM

THRADS (DIAMETERAL) ............. (57) 32-1/8 DP

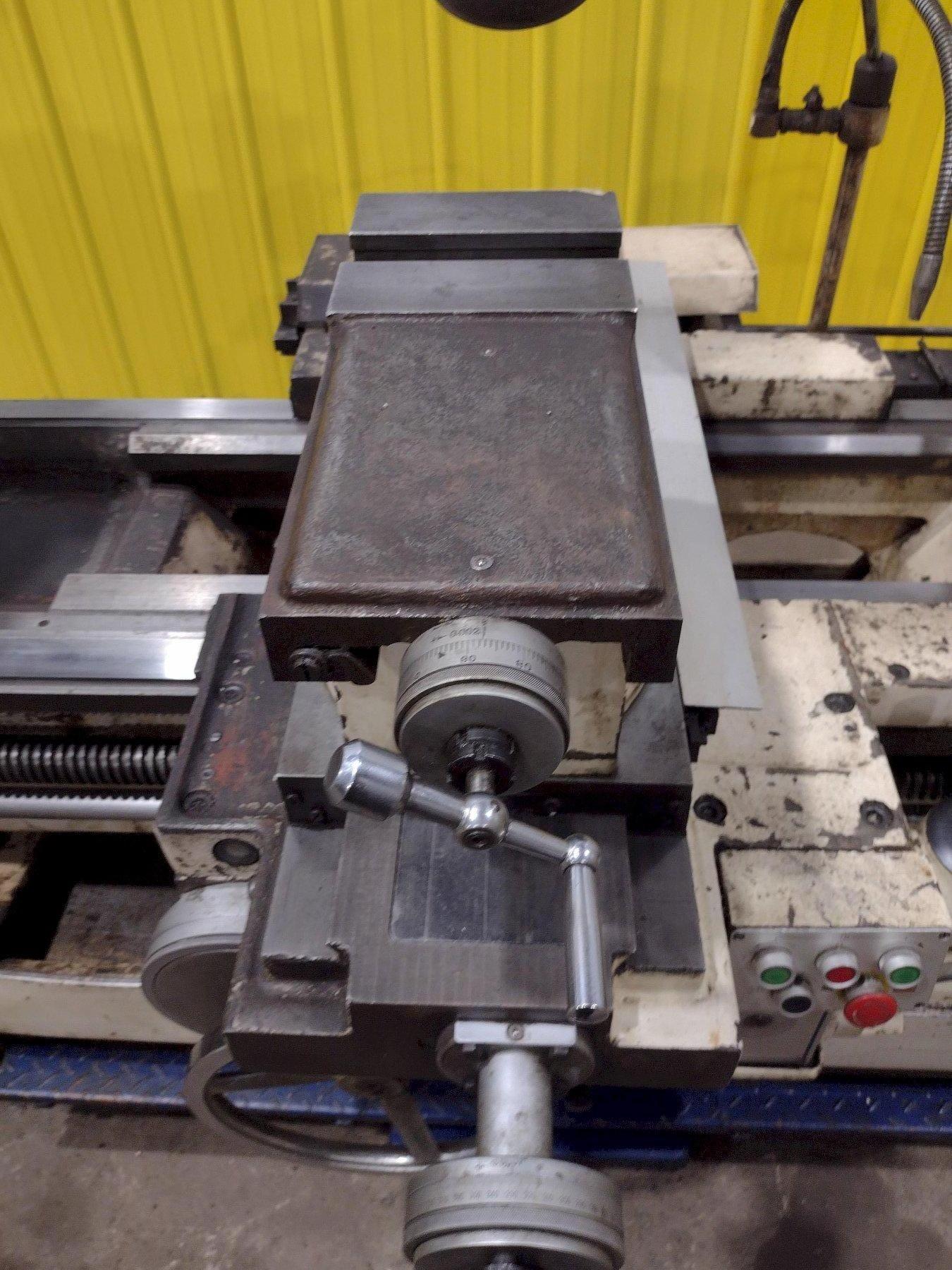

CROSS SLIDE TRAVEL .............. 20-7/8"

TAILSTOCK QUILL ................. #5 MT
TAPER ATTACHMENT ................ YES

COOLANT MOTOR ................... 1/8 HP

RAPID MOTOR ..................... 1.5 HP

MOTOR ........................... 20 HP

Specifications
Dimensions	180" X 62" X 78" HIGH
Weight	11000 pounds
