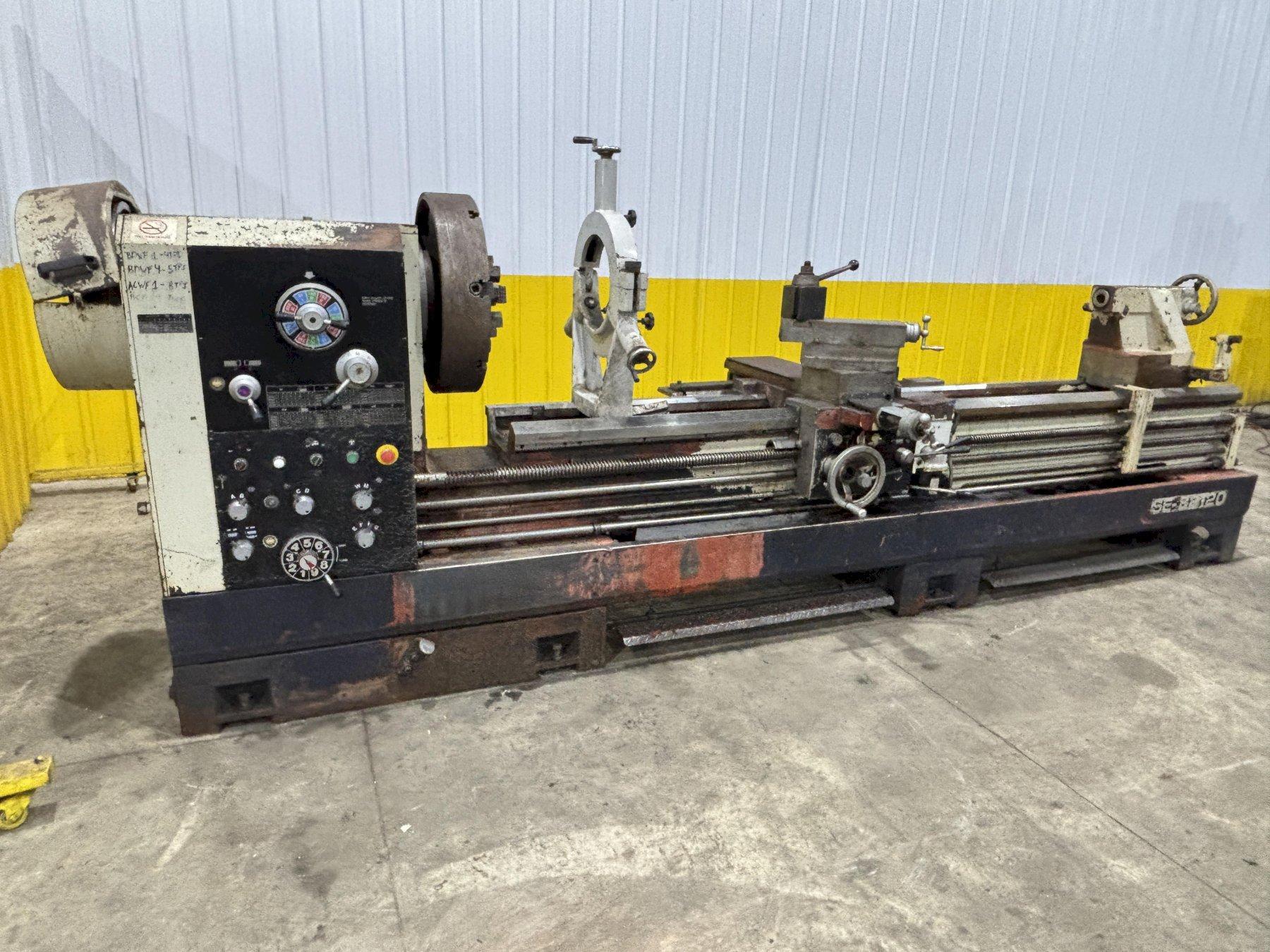

SERIAL .......................... 183701 / 24165
MODEL ............................ SE32120
SWING ............................ 32"
SWING OVER CROSS SLIDE ........... 23"
DISTANCE BETWEEN CENTERS ......... 120"
HOLLOW SPINDLE ................... 6.25"
GAP SWING ........................ 44"
DOUBLE CHUCK ..................... 4 JAWS FRONT & BACK
CHUCK MOUNT ...................... A-11
SPINDLE SPEEDS ................... (12) 15 TO 1,000 RPM
TAPER ATTACHMENT ................. YES
STEADY REST ...................... 3 POINT ROLLER
FEEDS & THREADS .................. IMPERIAL & METRIC
LONGITUDINAL FEEDS ............... .0002" TO .016" PER REV
CROSS FEEDS ...................... .0001" TO .008" PER REV
INCH THREADS ..................... (36) 2 TO 28 TPI
METRIC THREADS ................... 0.8 TO 14 MM PER THREAD
CROSS SLIDE TRAVEL ............... 16-1/2"
THREAD DIAL ...................... YES
TAISTOCK ......................... 2 SPEED
QUILL DIAMETER ................... 3-1/8"
QUILL TRAVEL ..................... 9"
QULL TAPER ....................... #5 MT
MOTOR ............................ 20 HP
| Specifications | ||
|---|---|---|
| Weight | 11500 pounds | |
Brand
WILLIS
Type
Lathes, Oil Field & Hollow Spindle
Stock No.
22268
 |
419-269-2000 |
Stock #: 22268
SERIAL .......................... 183701 / 24165
MODEL ............................ SE32120
SWING ............................ 32"
SWING OVER CROSS SLIDE ........... 23"
DISTANCE BETWEEN CENTERS ......... 120"
HOLLOW SPINDLE ................... 6.25"
GAP SWING ........................ 44"
DOUBLE CHUCK ..................... 4 JAWS FRONT & BACK
CHUCK MOUNT ...................... A-11
SPINDLE SPEEDS ................... (12) 15 TO 1,000 RPM
TAPER ATTACHMENT ................. YES
STEADY REST ...................... 3 POINT ROLLER
FEEDS & THREADS .................. IMPERIAL & METRIC
LONGITUDINAL FEEDS ............... .0002" TO .016" PER REV
CROSS FEEDS ...................... .0001" TO .008" PER REV
INCH THREADS ..................... (36) 2 TO 28 TPI
METRIC THREADS ................... 0.8 TO 14 MM PER THREAD
CROSS SLIDE TRAVEL ............... 16-1/2"
THREAD DIAL ...................... YES
TAISTOCK ......................... 2 SPEED
QUILL DIAMETER ................... 3-1/8"
QUILL TRAVEL ..................... 9"
QULL TAPER ....................... #5 MT
MOTOR ............................ 20 HP
