MODEL ............................ 3A
SPINDLE SPEEDS ................... (36) 15 TO 1500 RPM
FEEDS ............................ (18) .004" TO .125"
SPINDLE TRAVEL ................... 18"
DIAMETER OF SPINDLE .............. 3-3/16"
TAPER IN SPINDLE ................. #5MT
MIN CENTER OF SPINDLE TO COLUMN .. 15"
MAX CENTER OF SPINDLE TO COLUMN .. 4'
MIN DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN,
MAX MIN DISTANCE SPINDLE TO BASE . 5'
TRAVEL OF HEAD ON ARM ............ 32"
TRAVEL OF ARM ON COLUMN .......... 32"
POWER ELEVATION .................. YES
POWER COLUMN CLAMP ............... YES
COOLANT .......................... YES
DRILL TABLE INCLUDED ............. 32" X 28" X 24"
SPINDLE MOTOR .................... 10 HP
| Specifications | ||
|---|---|---|
| Dimensions | 125" X 56" X 123" HIGH | |
| Weight | 17500 pounds | |

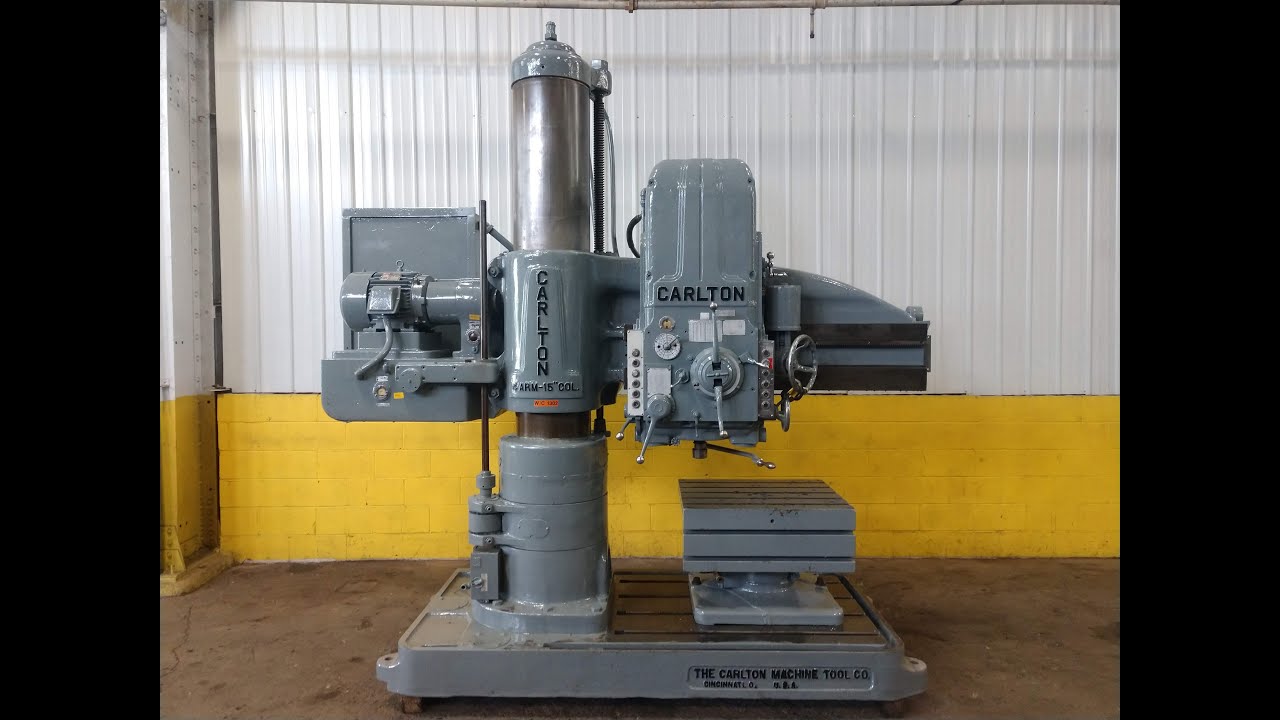

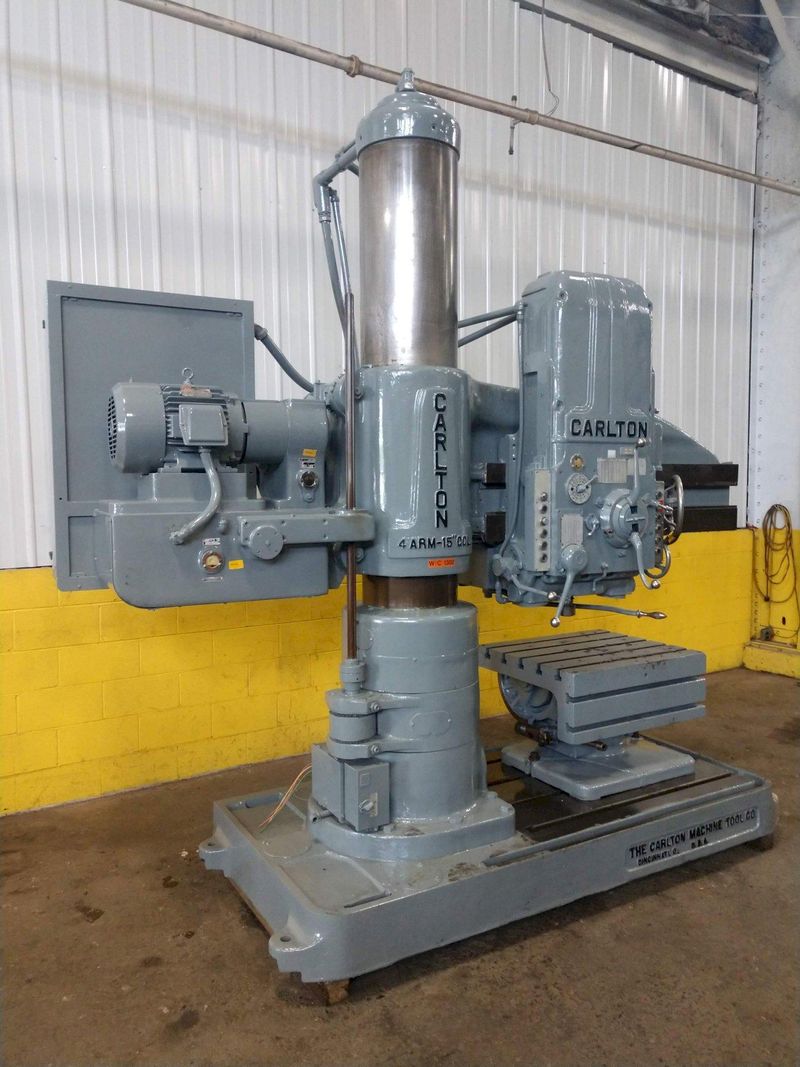

Brand
CARLTON
Type
Drills, Radial
Stock No.
14210
 |
419-269-2000 |
Stock #: 14210
MODEL ............................ 3A
SPINDLE SPEEDS ................... (36) 15 TO 1500 RPM
FEEDS ............................ (18) .004" TO .125"
SPINDLE TRAVEL ................... 18"
DIAMETER OF SPINDLE .............. 3-3/16"
TAPER IN SPINDLE ................. #5MT
MIN CENTER OF SPINDLE TO COLUMN .. 15"
MAX CENTER OF SPINDLE TO COLUMN .. 4'
MIN DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN,
MAX MIN DISTANCE SPINDLE TO BASE . 5'
TRAVEL OF HEAD ON ARM ............ 32"
TRAVEL OF ARM ON COLUMN .......... 32"
POWER ELEVATION .................. YES
POWER COLUMN CLAMP ............... YES
COOLANT .......................... YES
DRILL TABLE INCLUDED ............. 32" X 28" X 24"
SPINDLE MOTOR .................... 10 HP
