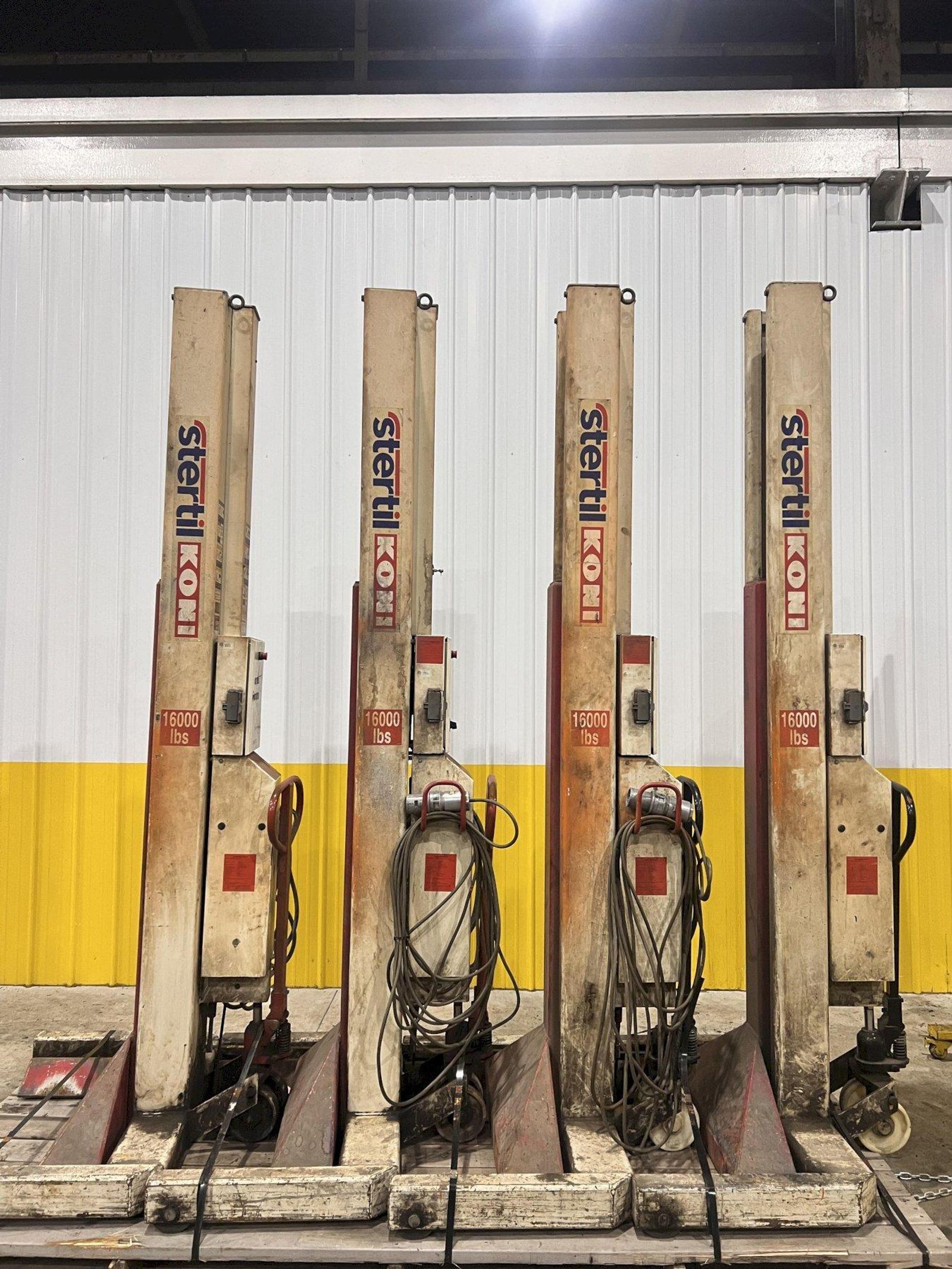

(4) 16,000 LBS STERTIL-KONI MODEL ST-1072 HEAVY DUTY MOBILE COLUMN LIFT JACKS: STOCK #22348 YODER BROTHERS MACHINERY STOCK #22348
MODEL ST-1072
TYLE 32560037
CAPACITY 16,000 LBS PER STAND, 64,000 LBS W/ 4 LIFTS
SERIAL NUMBERS TH52634, TH52635, TH25640, TH52641
MODEL .................. ST-1072
TOTAL NUMBER OF JACKS .. 4
JACK CONFIGERATION ..... 1 MASTER, 3 SLAVES
OPERATING MODES ........ SINGLE, PAIR, ALL
CAPACITY ............... 16,000 LBS EACH
TOTAL CAPACITY ......... 64,000 LBS
MAX LIFT HEIGHT ........ 68-7/8"
LIFTING SPEED .......... 50" PER MIN
LIFTING TIME ........... 83 SECONDS
LOWERING TIME .......... 60 SECONDS
LOWERED COLUMN HEIGHT .. 113"
RAISE HEIGHT ........... 143" MAX
WIDTH OF FRAME LEGS .... 44"
LIFTING FORKS .......... 12" WIDE X 22" CENTER TO CENTER
PORTABLE ............... WHEELED BASES
Brand
STERTIL KONI
Type
Lifters, Jack
Stock No.
22348
 |
419-269-2000 |
Stock #: 22348
