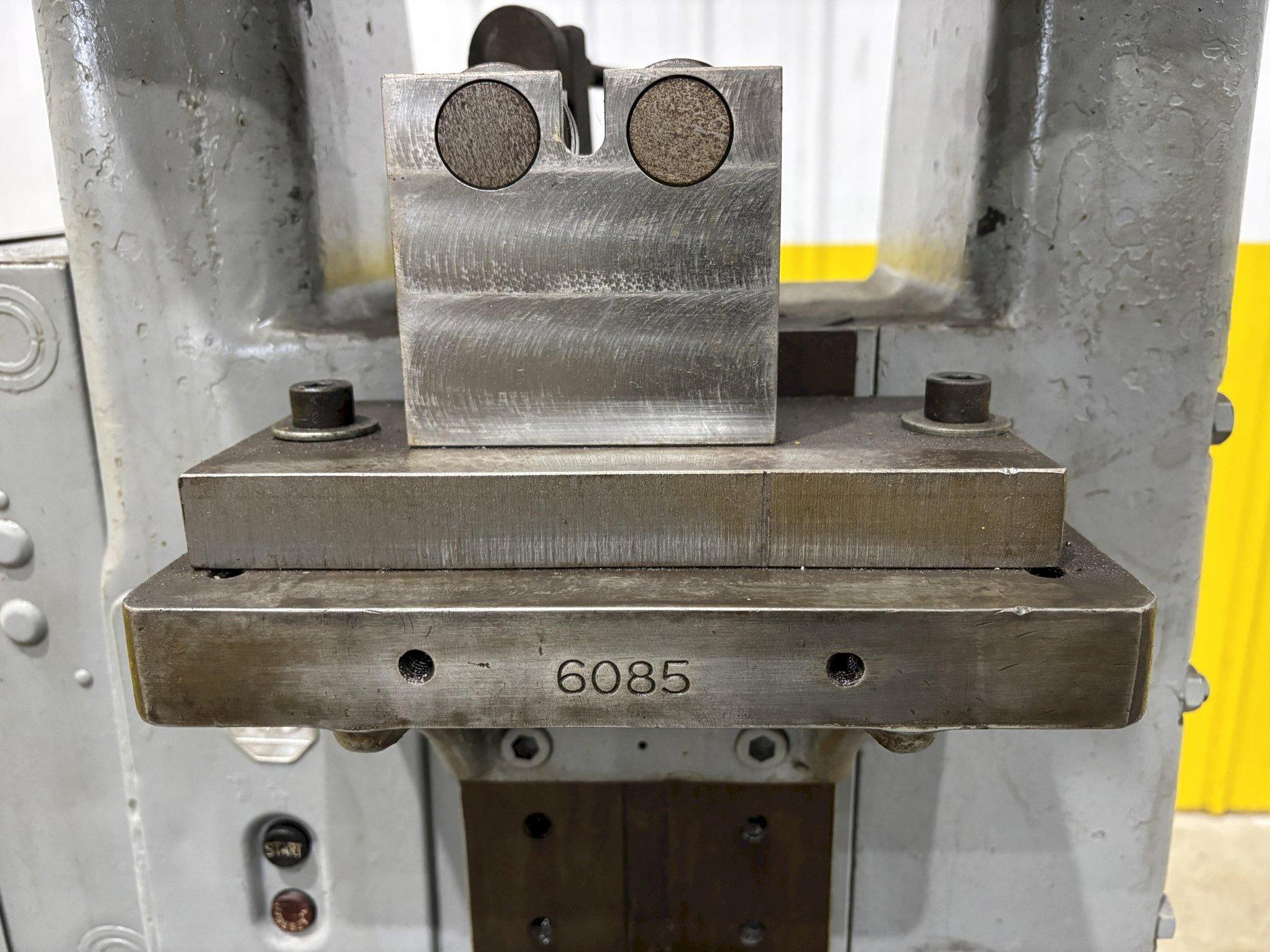

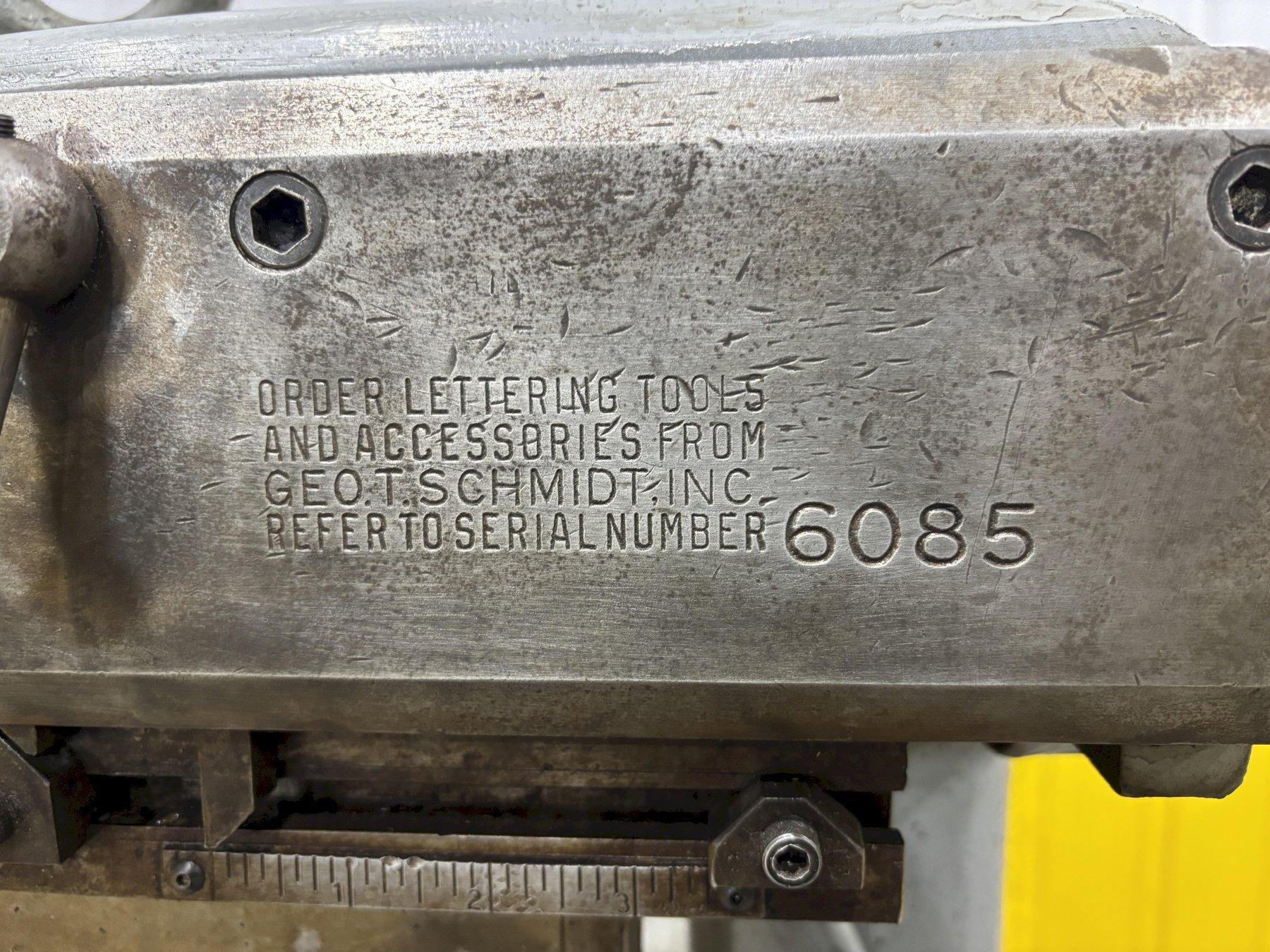

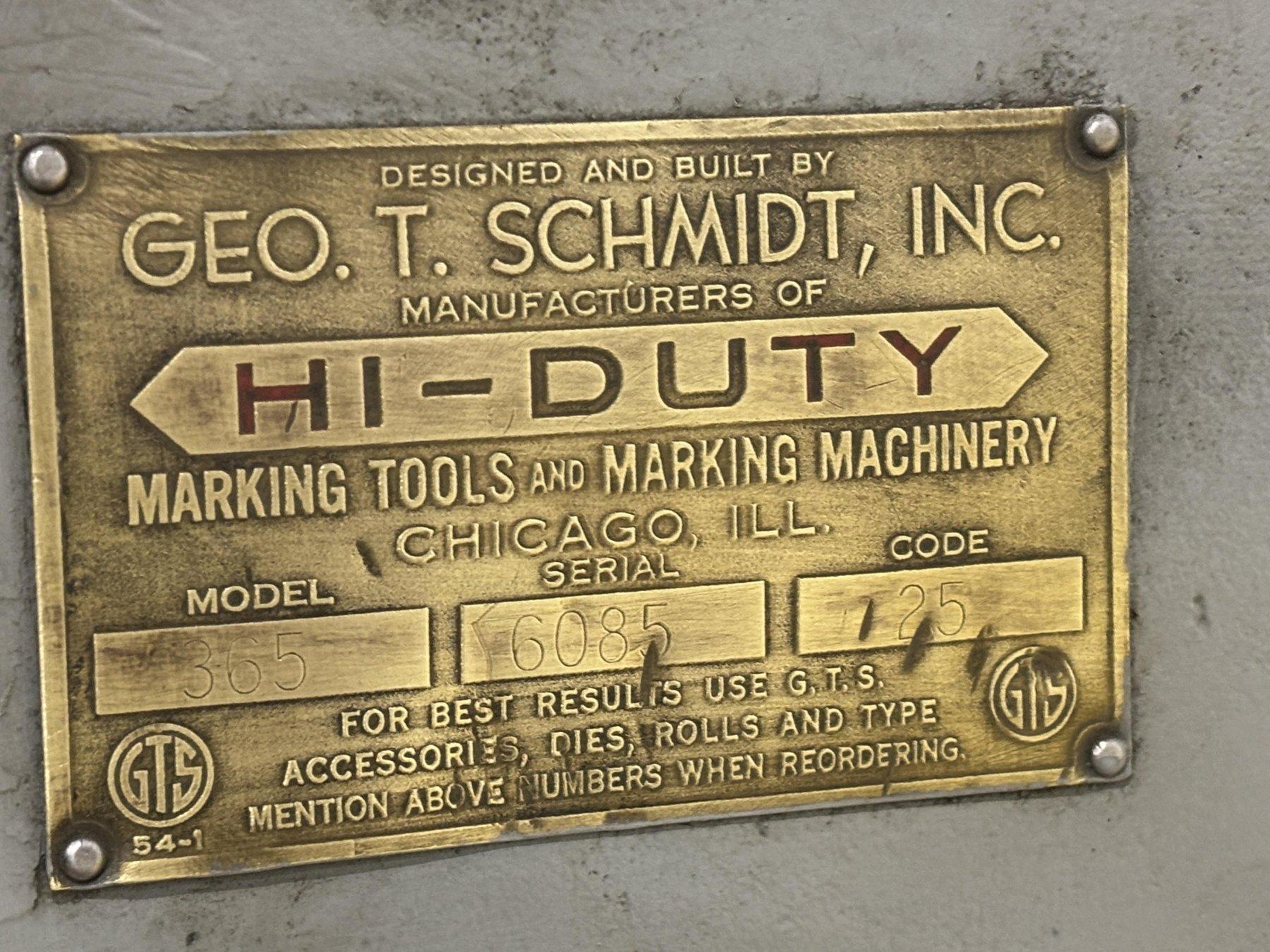

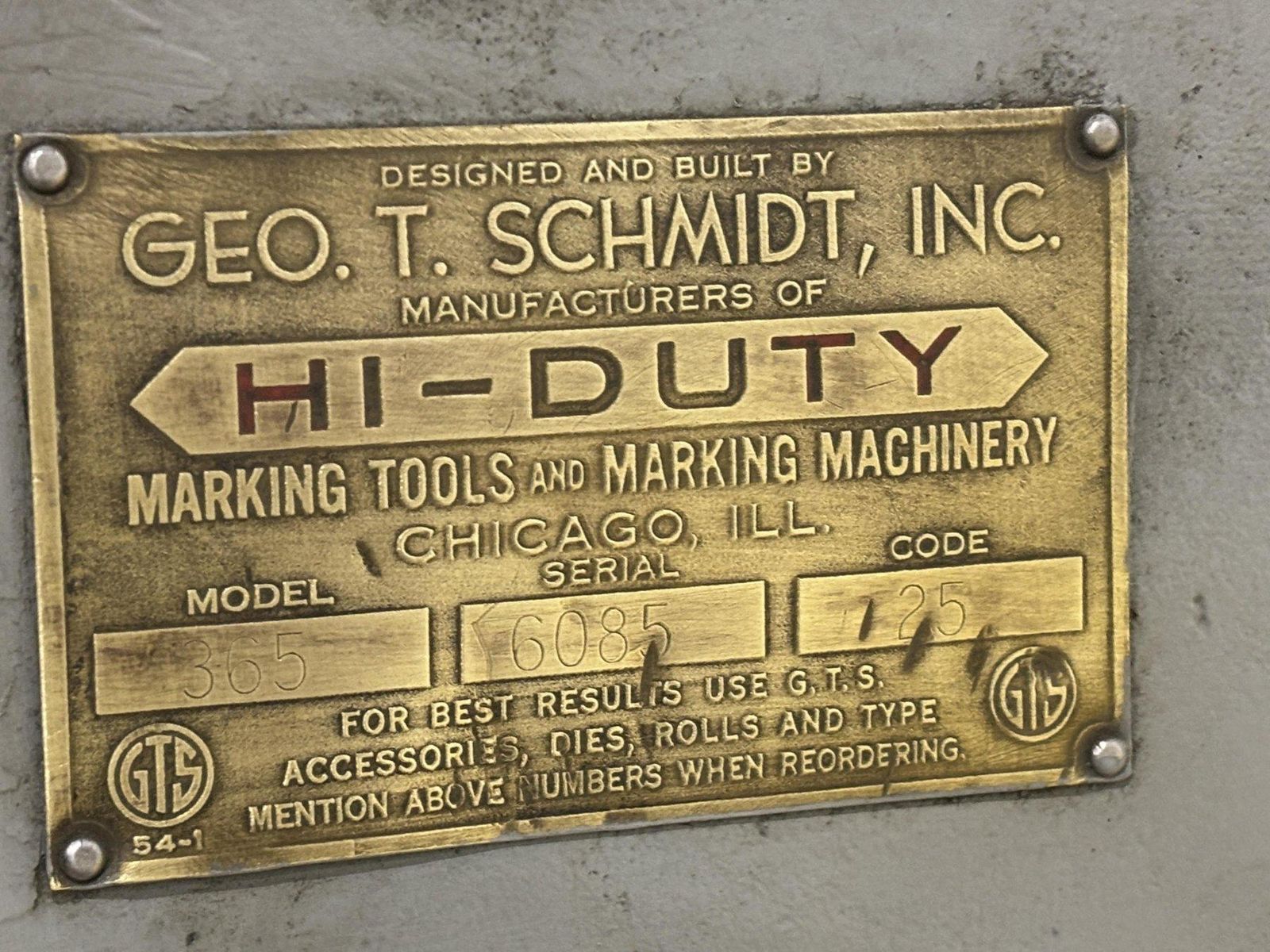

SERIAL ..................... 6085

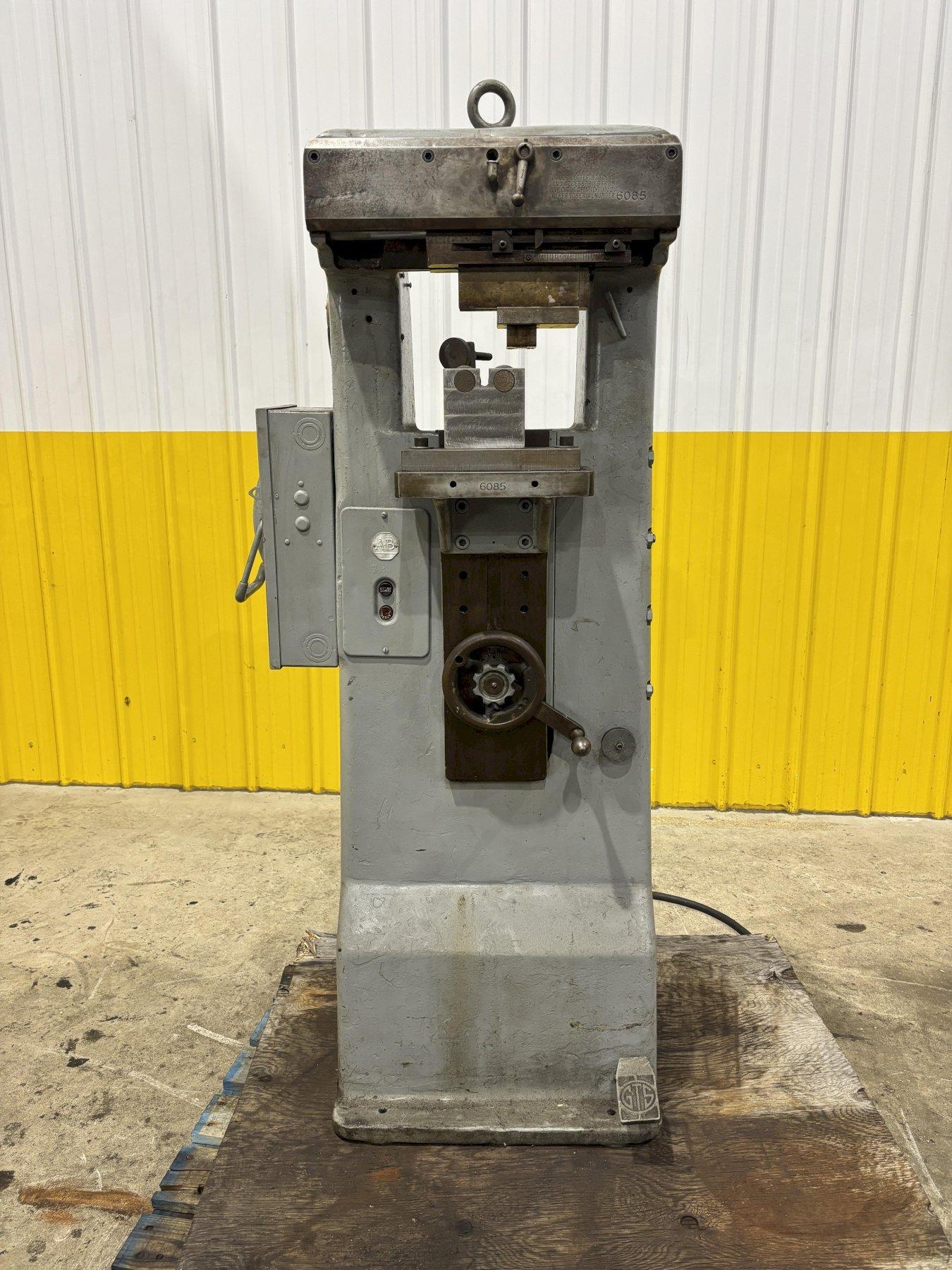

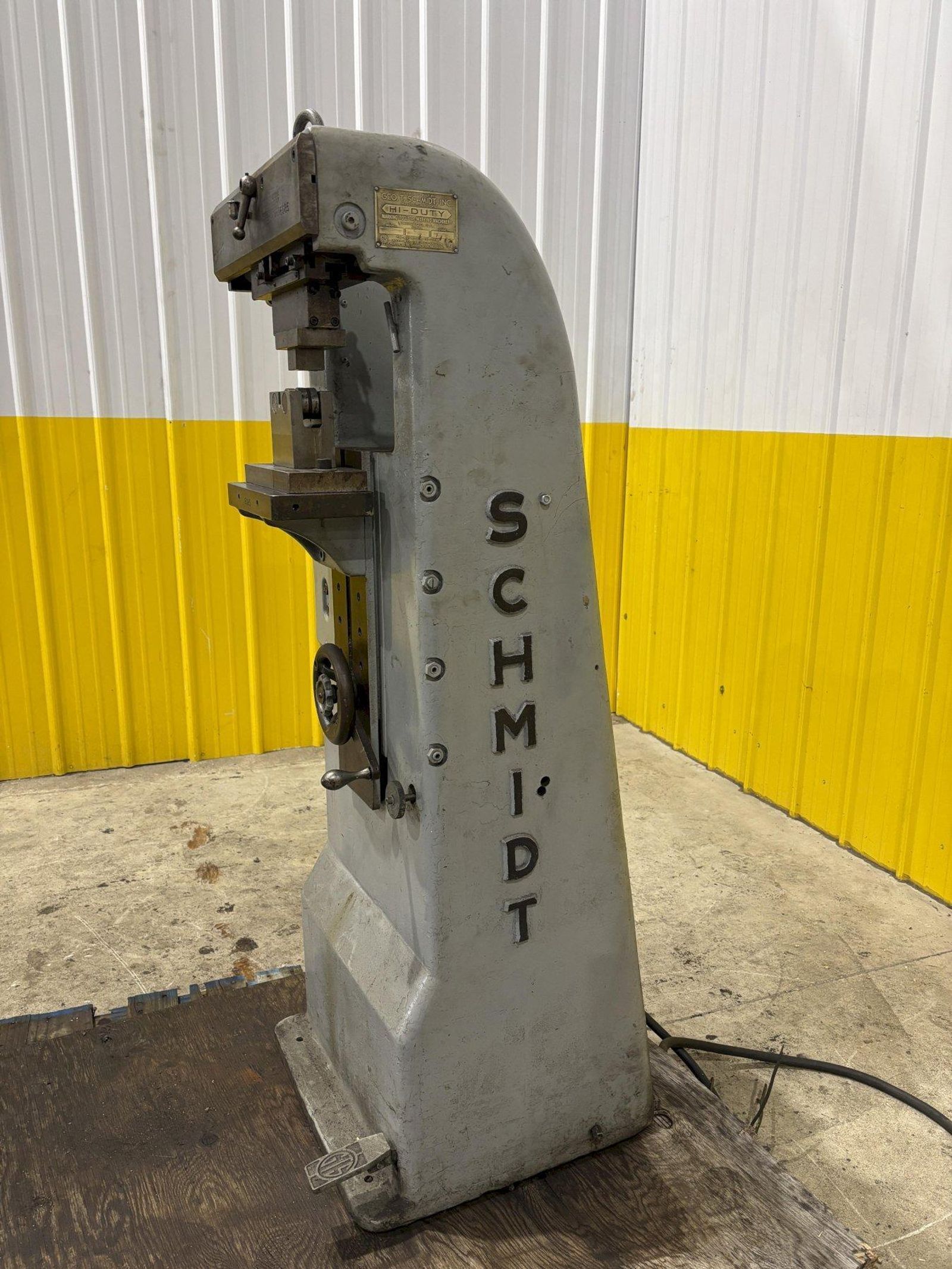

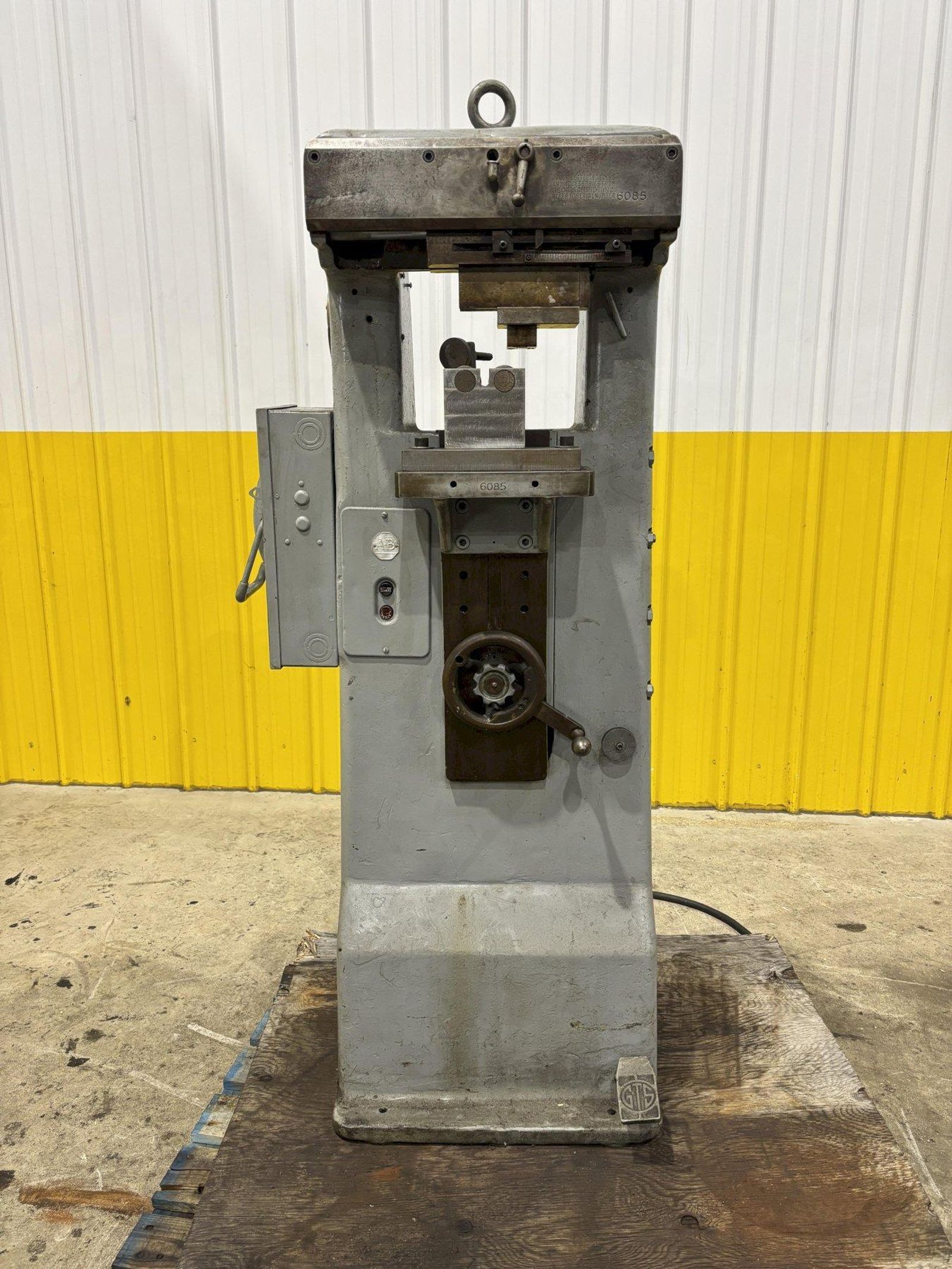

MODEL ...................... 365 HI DUTY
ADJ TABLE PRESSURE ......... UP TO 8,000 LBS
DISTANCE BETWEEN HOUSING ... 10"
TABLE SIZE ................. 10" X 5"
TABLE RISE HYDRAULICALLY ... 5/8"
TABLE RISE BY HAND ......... 4"
TABLE MANUAL ADJUSTMENT .... 10" MANUAL
DEPTH OF THROAT ............ 3"
CROSS SLIDE ................ 3.5"
DIE SPACE .................. 18"

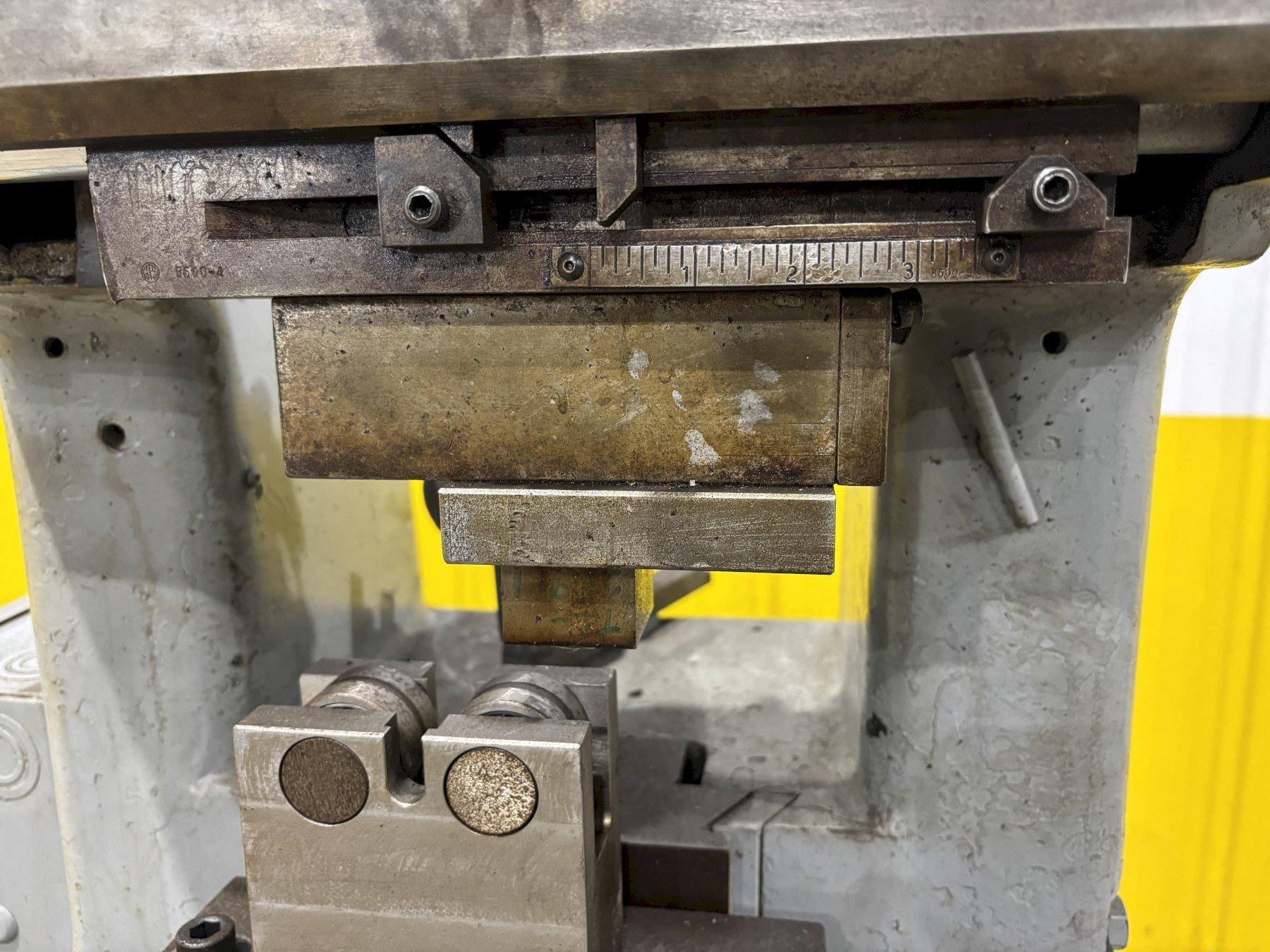

RAM PRESSURE ............... 4 TONS
RAM STROKE ................. 5/8"
SPM @ 2-1/4" LENGTH ........ 32
SPM @ 3-1/2" LENGTH ........ 25
MARKING CAPACITY 2 LINES ... 1/4" CHARACTERS
MARKING CAPACITY 4 LINES ... 1/8" CHARACTERS
MARKING CAPACITY 4 LINES ... 3/32" CHARACTERS
MARKING CAPACITY 7 LINES ... 1/16" CHARACTERS

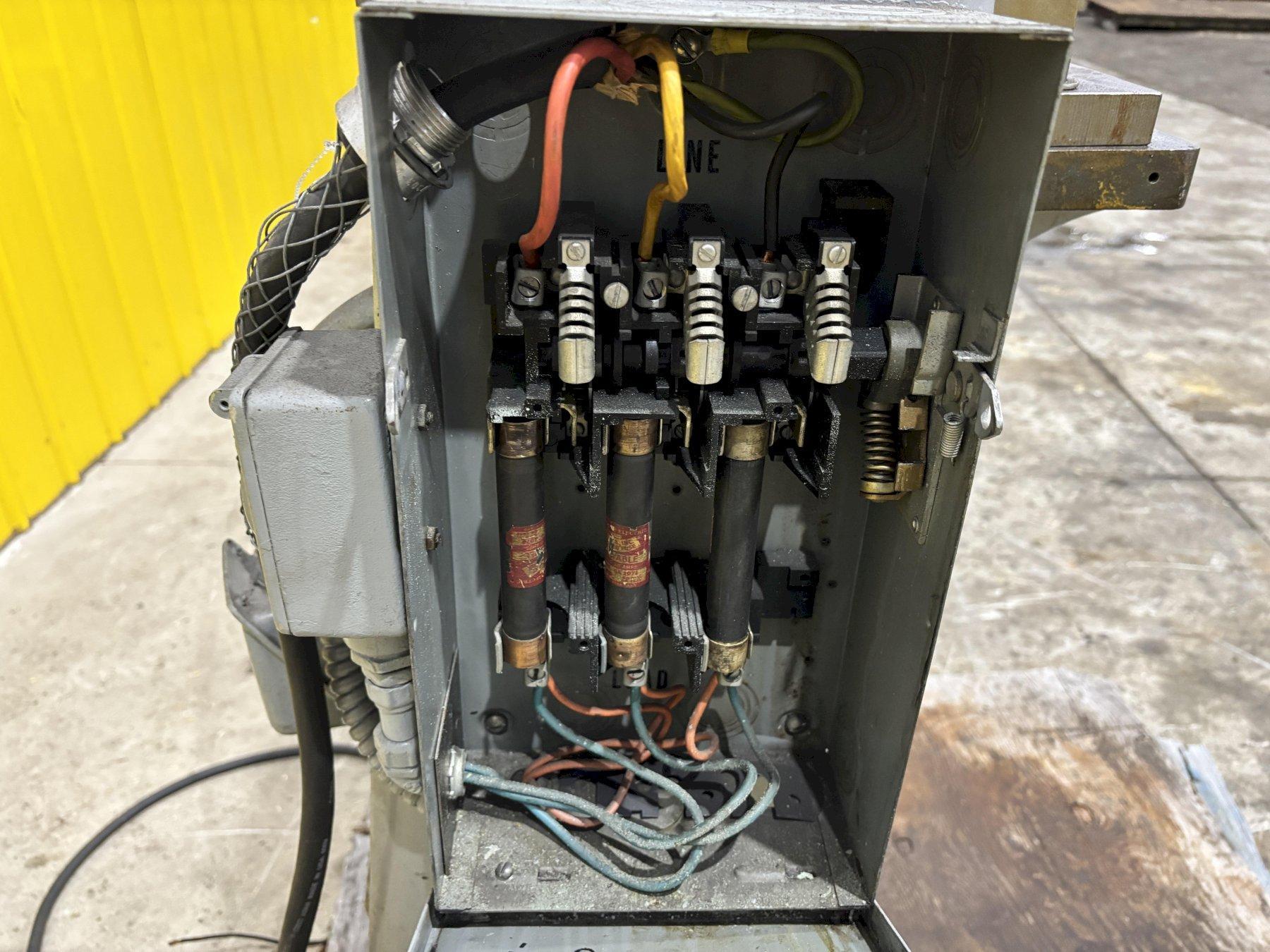

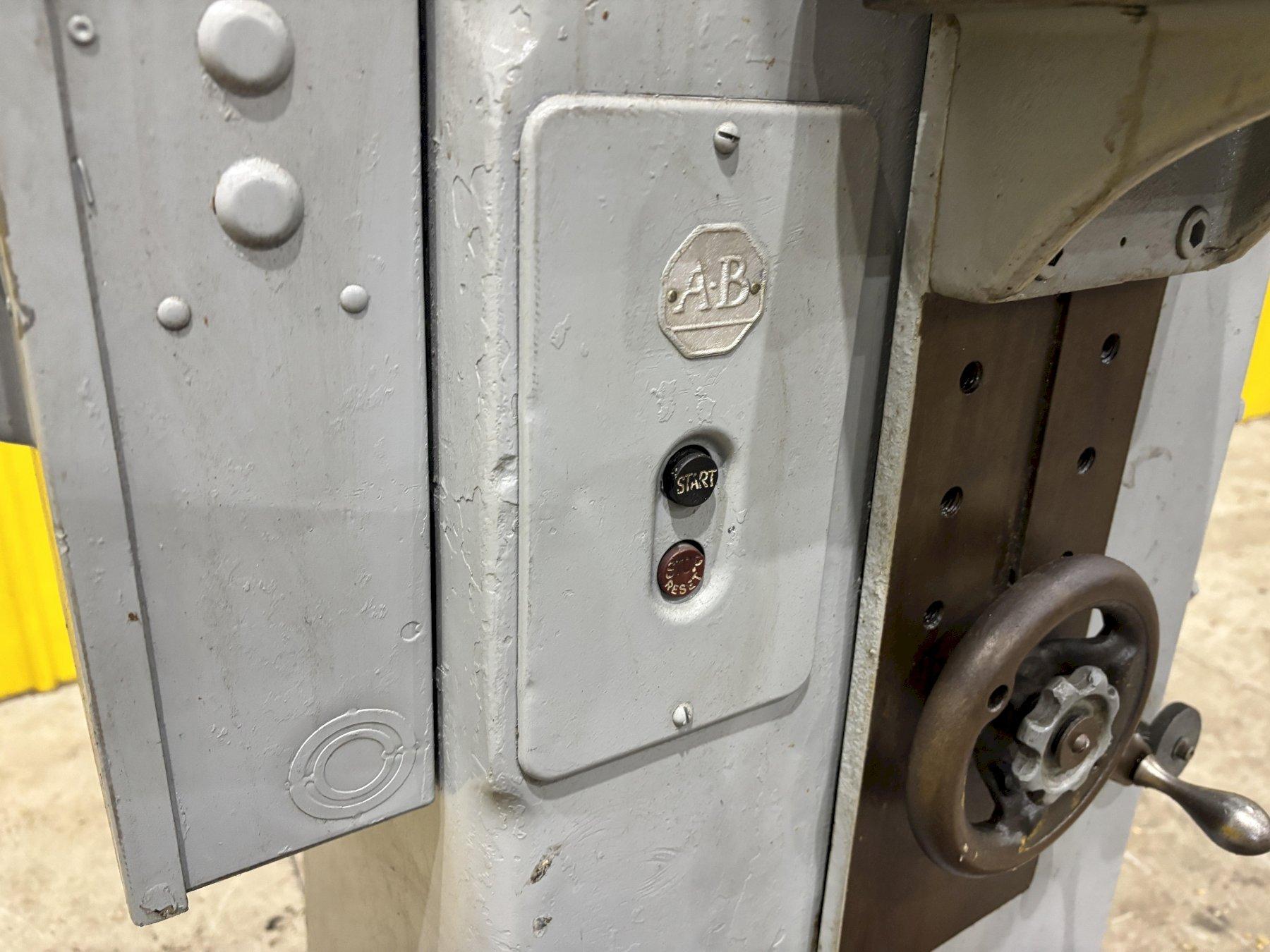

CONTROLS ................... YES
PRESSURE VALVE ............. ADJUSTABLE TONNAGE
MECHANICAL FOOT TRIP ....... YES

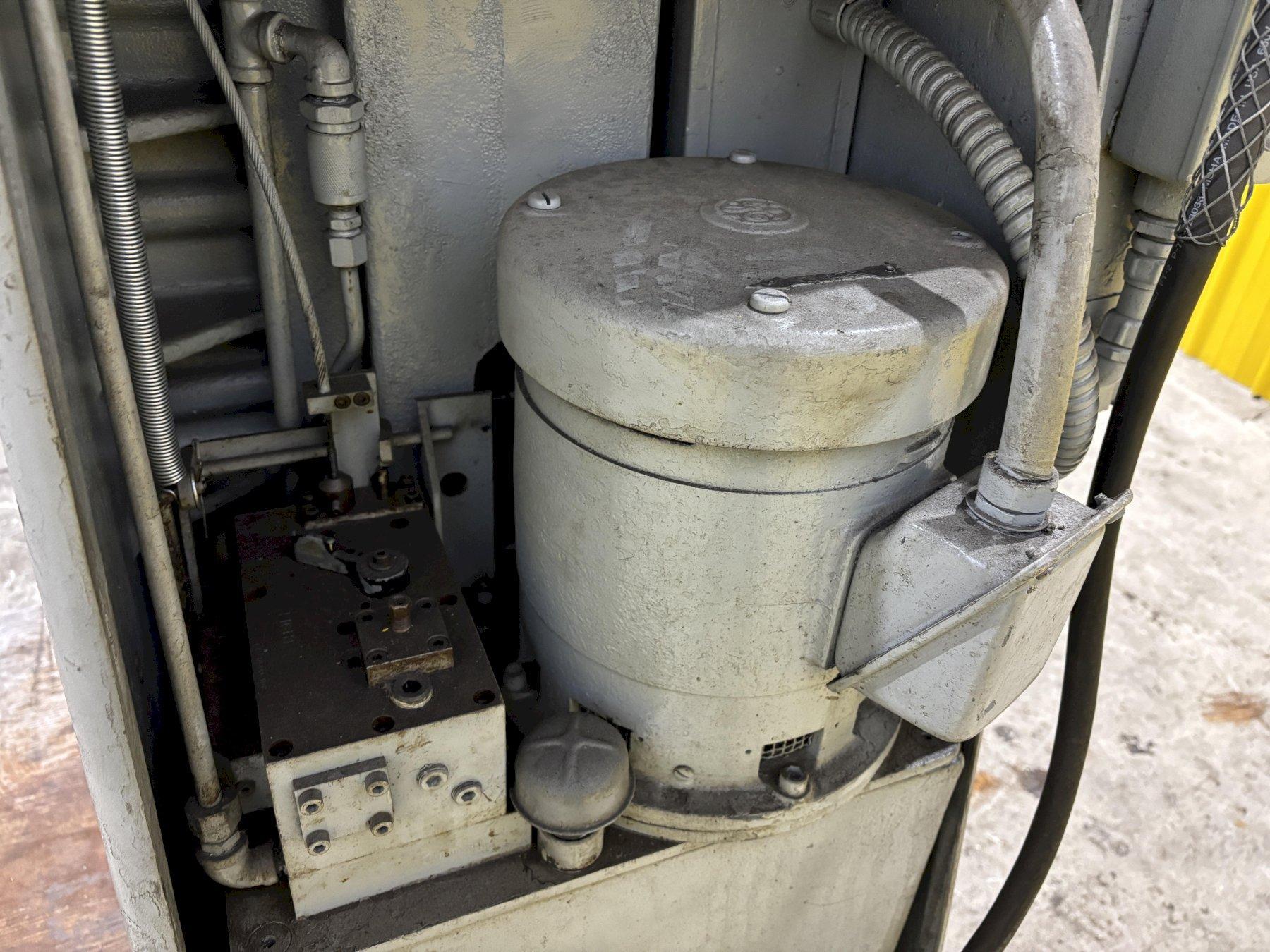

MOTOR ...................... 2 HP
| Specifications | ||
|---|---|---|
| Marking Area | 10 inches | |
| Marking Area | 5 inches | |
| Max Pressure | 4 tons | |
| Weight | 1200 pounds | |
Brand

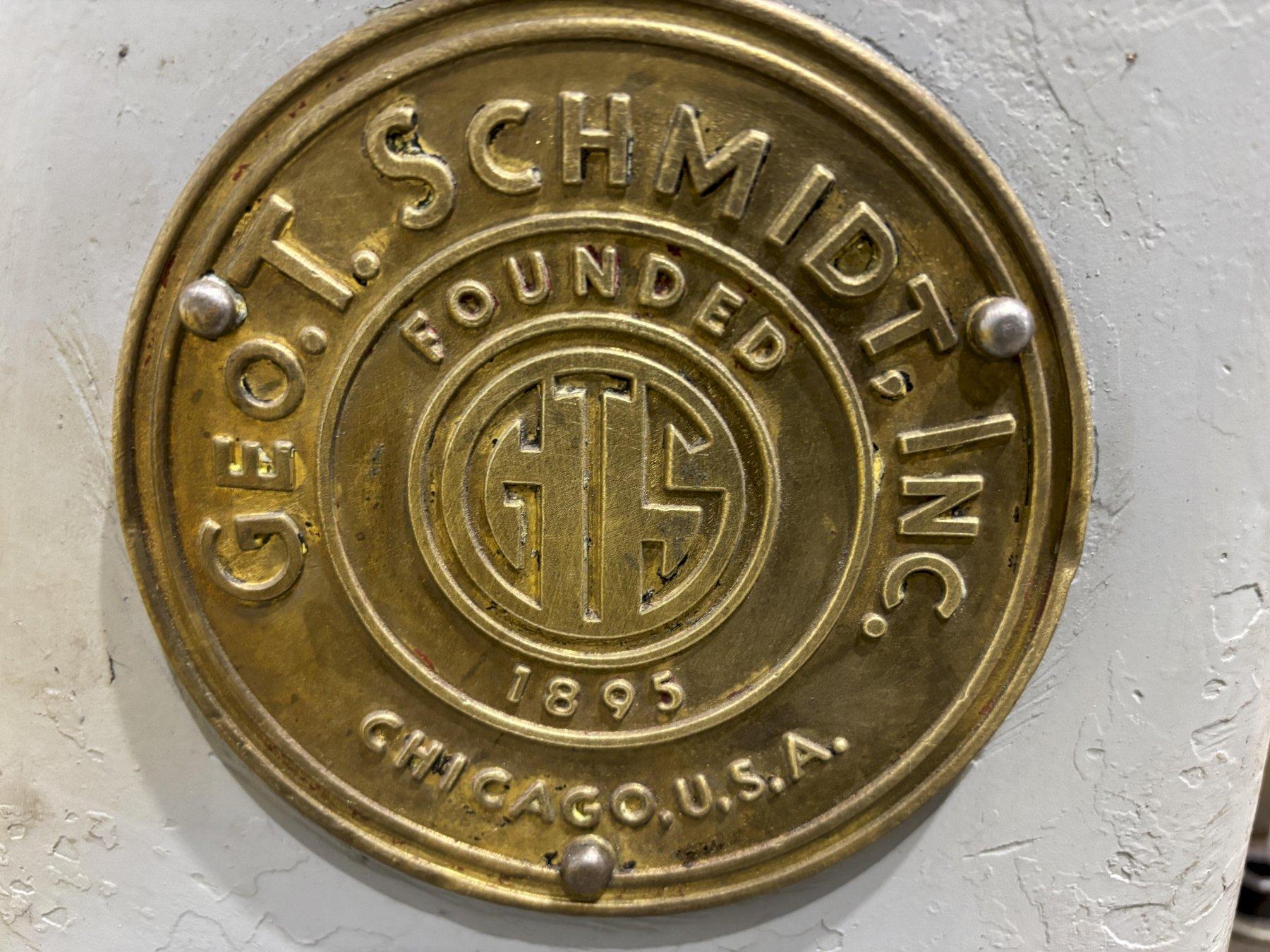

GE SCHMIDT
Type
Marking Machines
Stock No.
10981
 |
419-269-2000 |
Stock #: 10981
