36" HI-RIB (7.2 TYPE) PANEL RAFTED ROLLFORMER LINE; INCLUDES UNCOILER, ROLLFORMER & FLYING CUTOFF SHEAR: YOBRO #24156

Overview

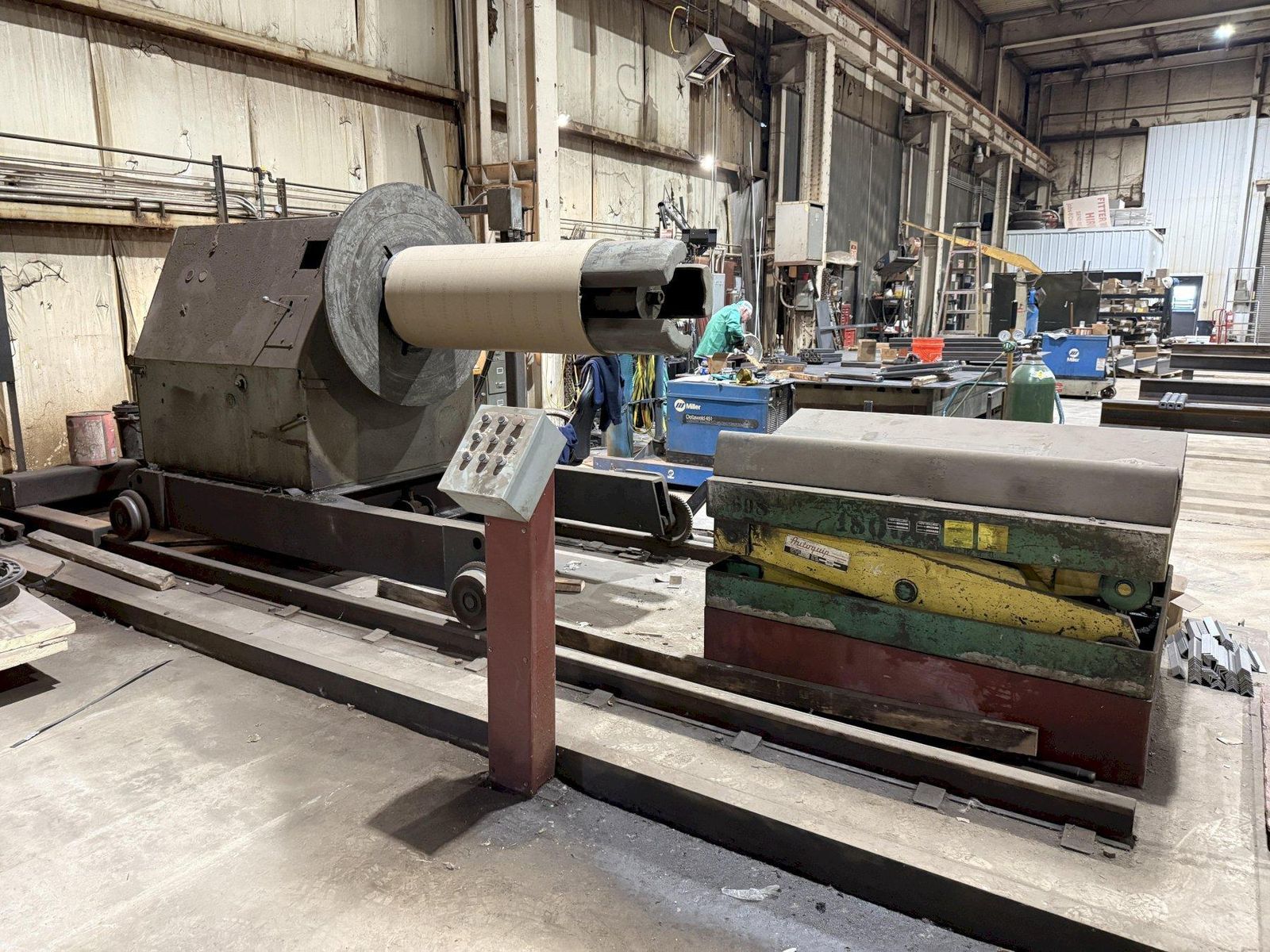

AMERICAN UNCOILER:
SERIAL .............................. 8611
MODEL ............................... 10
COIL CAPACITY ....................... 20,000 LBS
MAX COIL WIDTH ...................... 48"
MAX COIL O.D ........................ 60"
COIL I.D ............................ 14" - 20"
POWERED TRAVERSING .................. YES
OPERATOR CONTROL STATION ............ YES
DRIVE MOTOR HP ...................... 3 HP

AUTOQUIP COIL CAR
SERIAL .............................. 17518905
MODEL ............................... 24K18
COIL CAPACITY ....................... 18,000 LBS

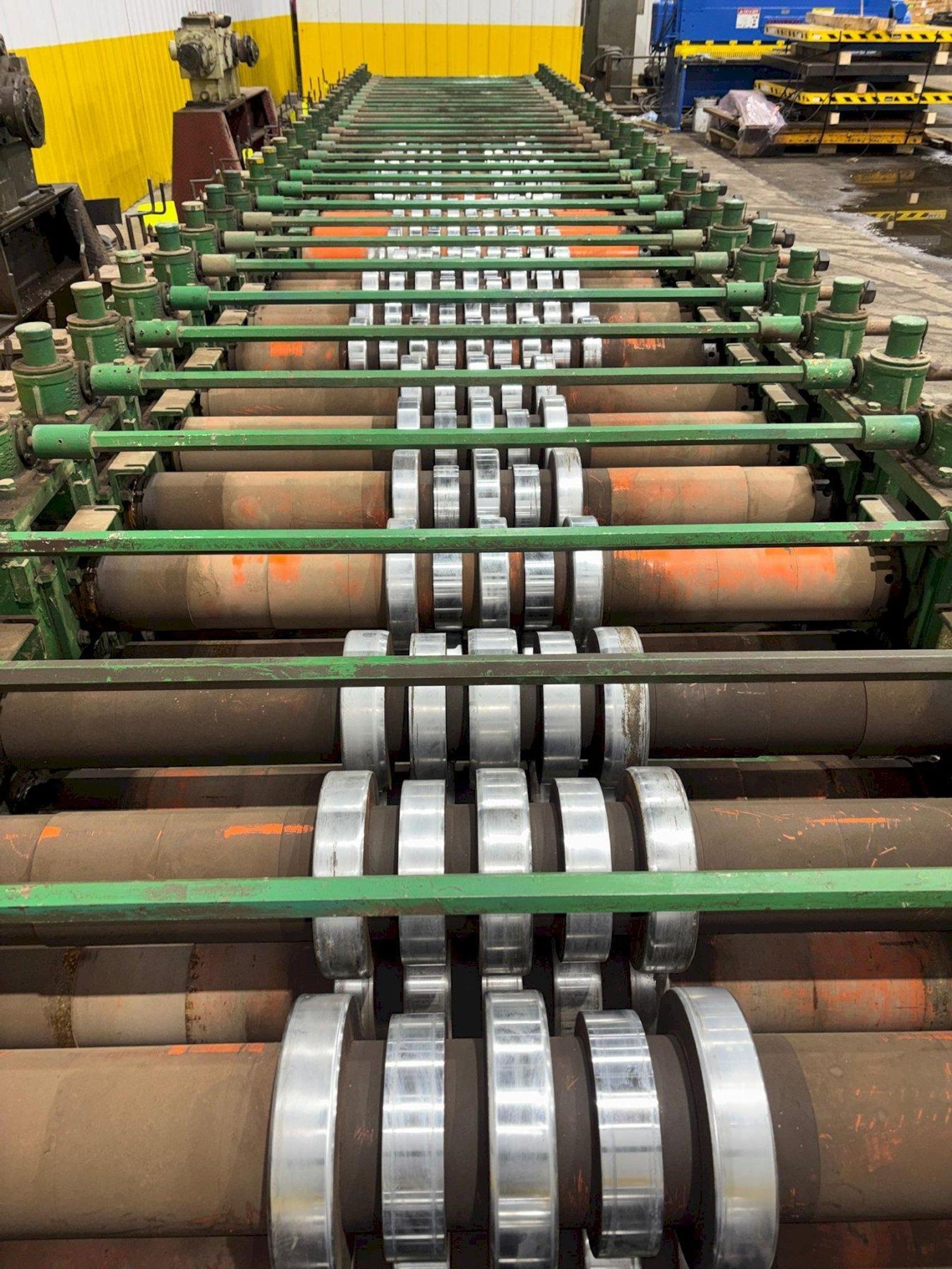

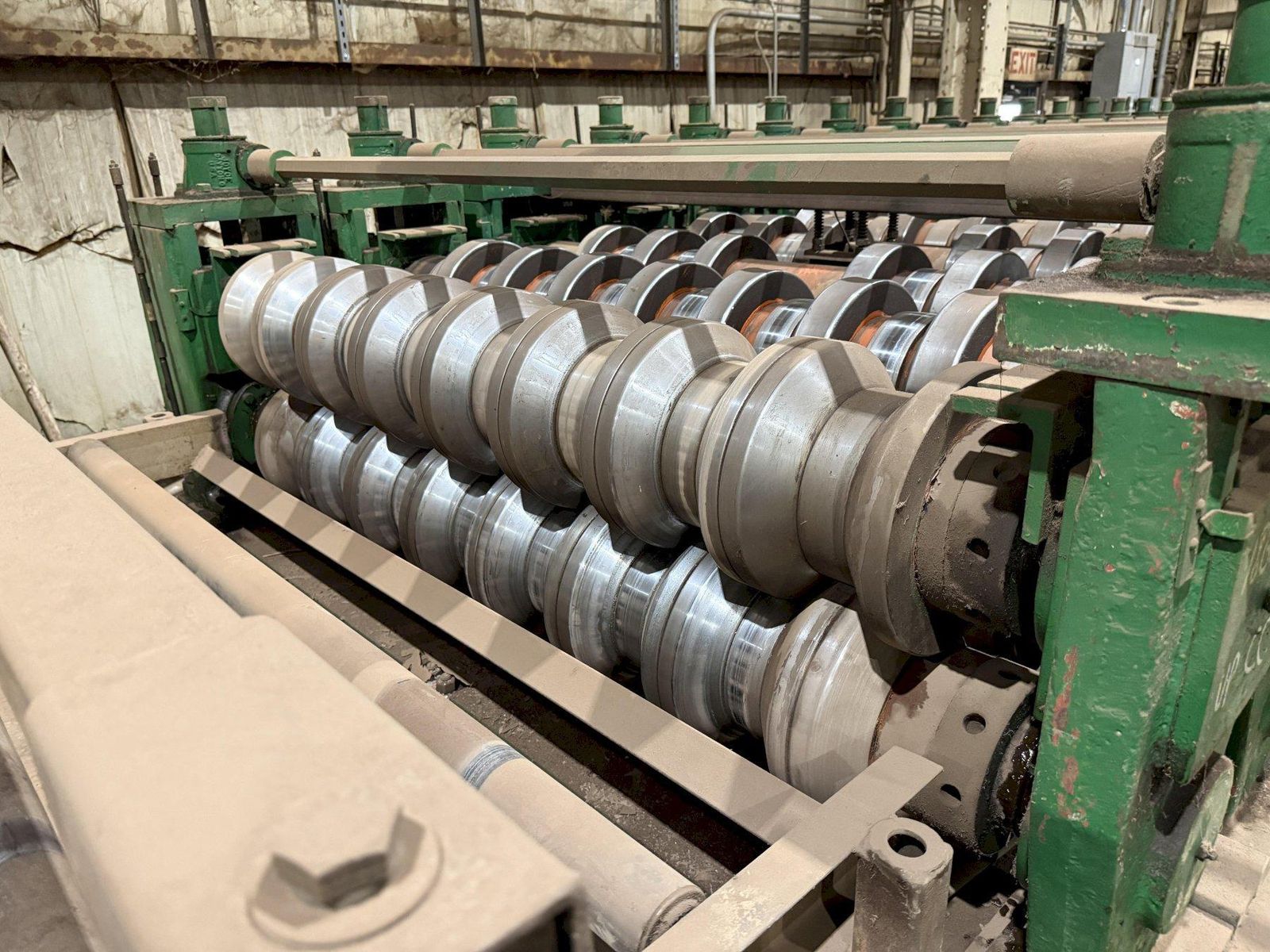

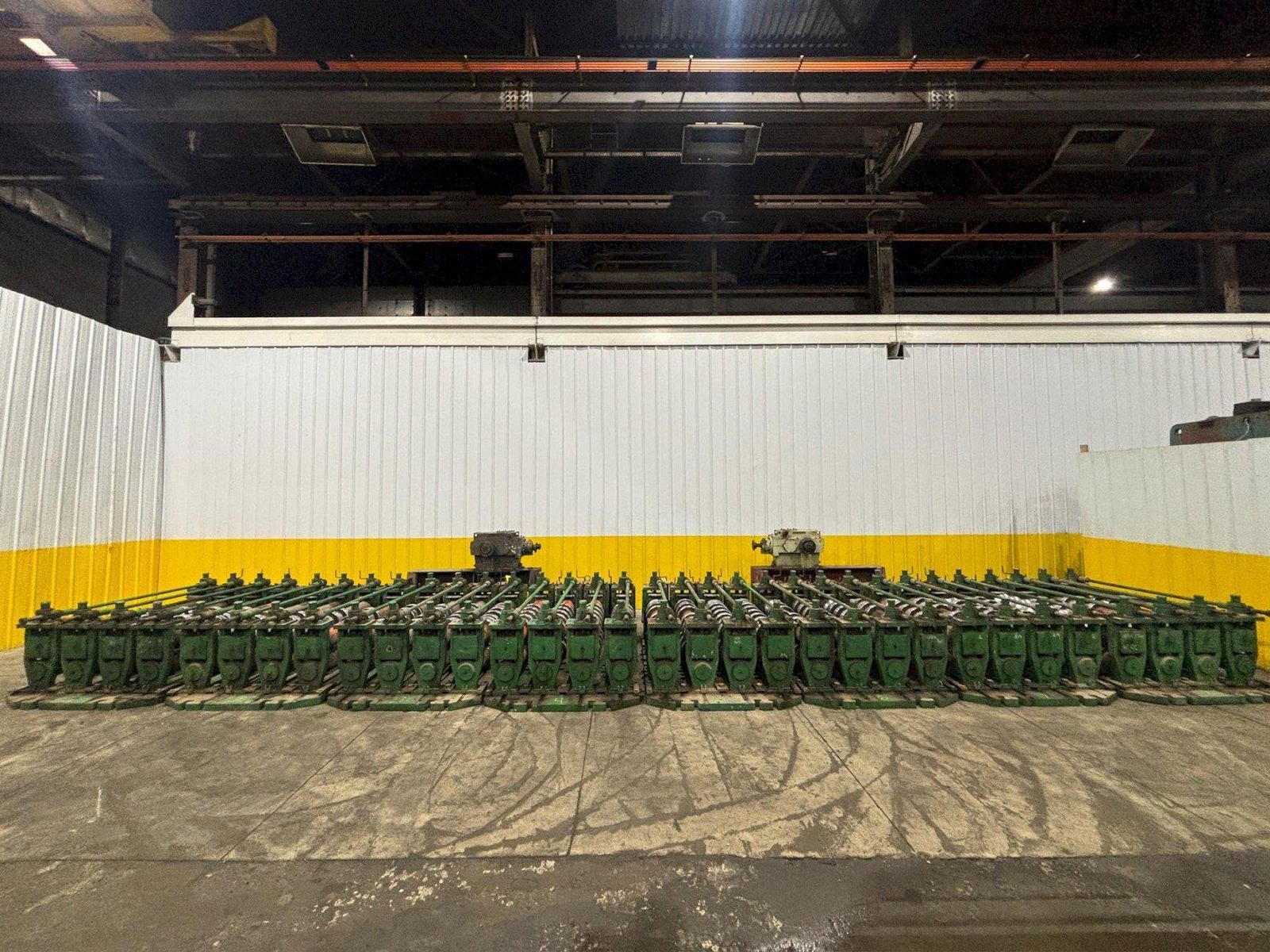

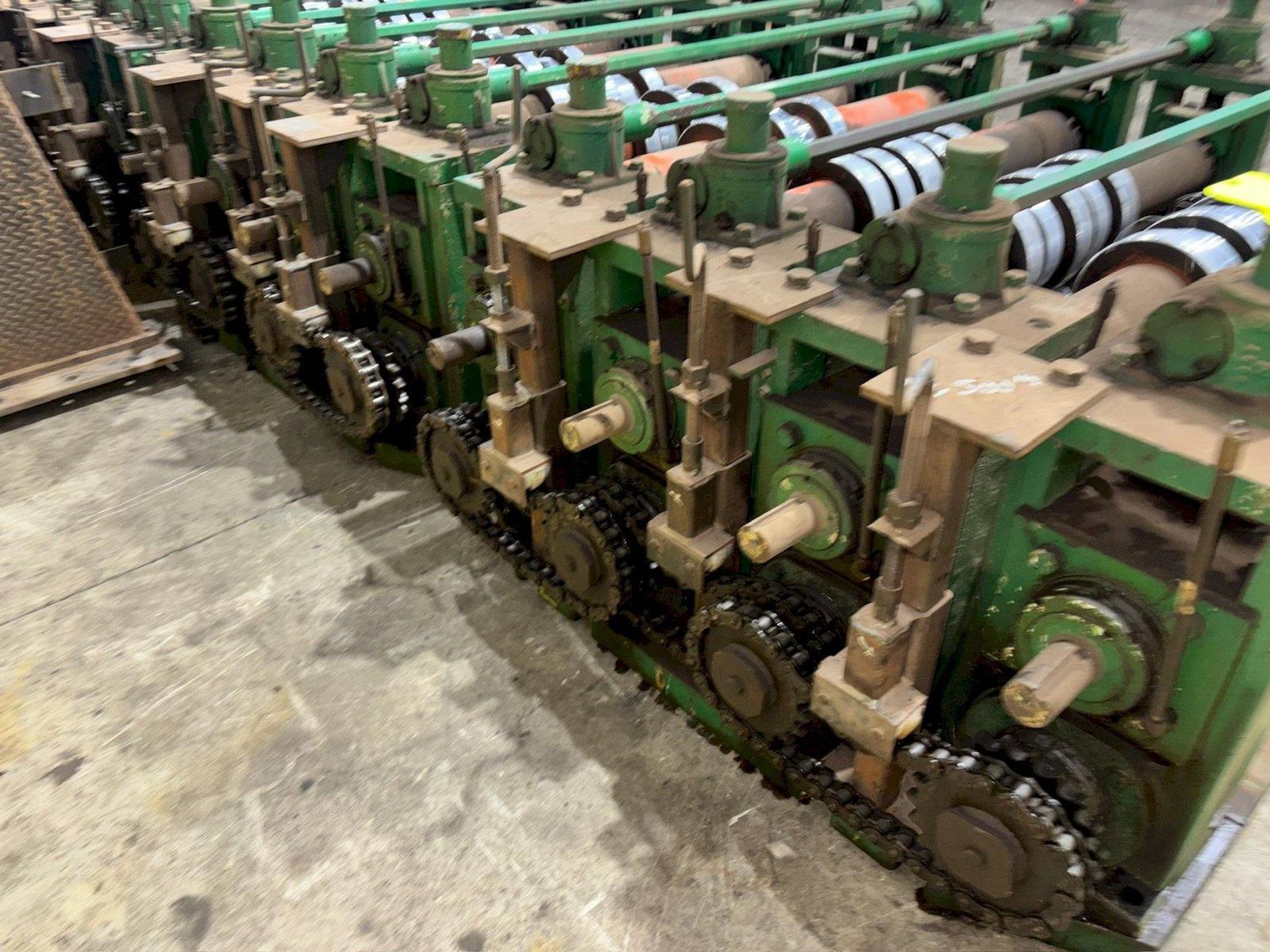

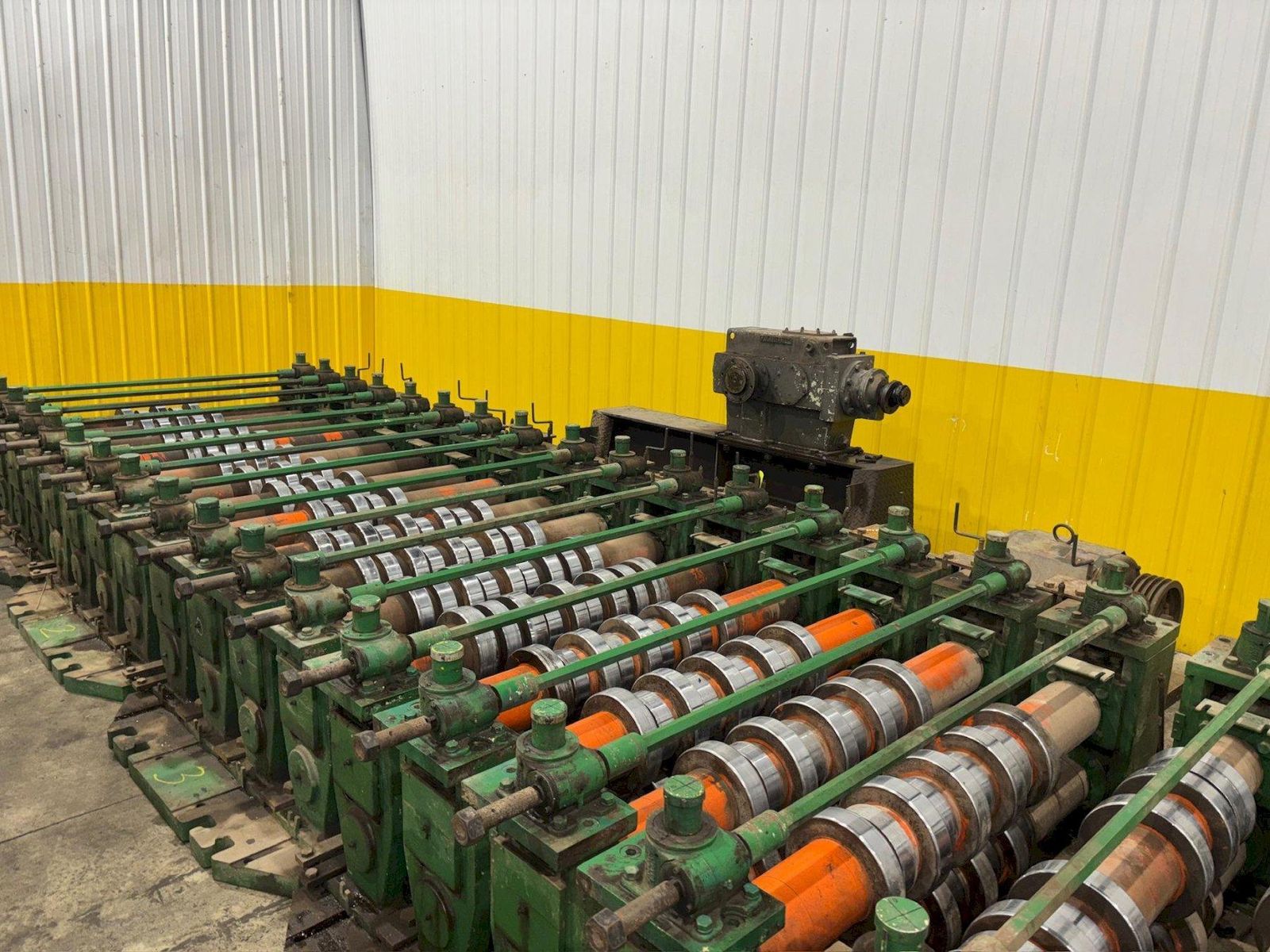

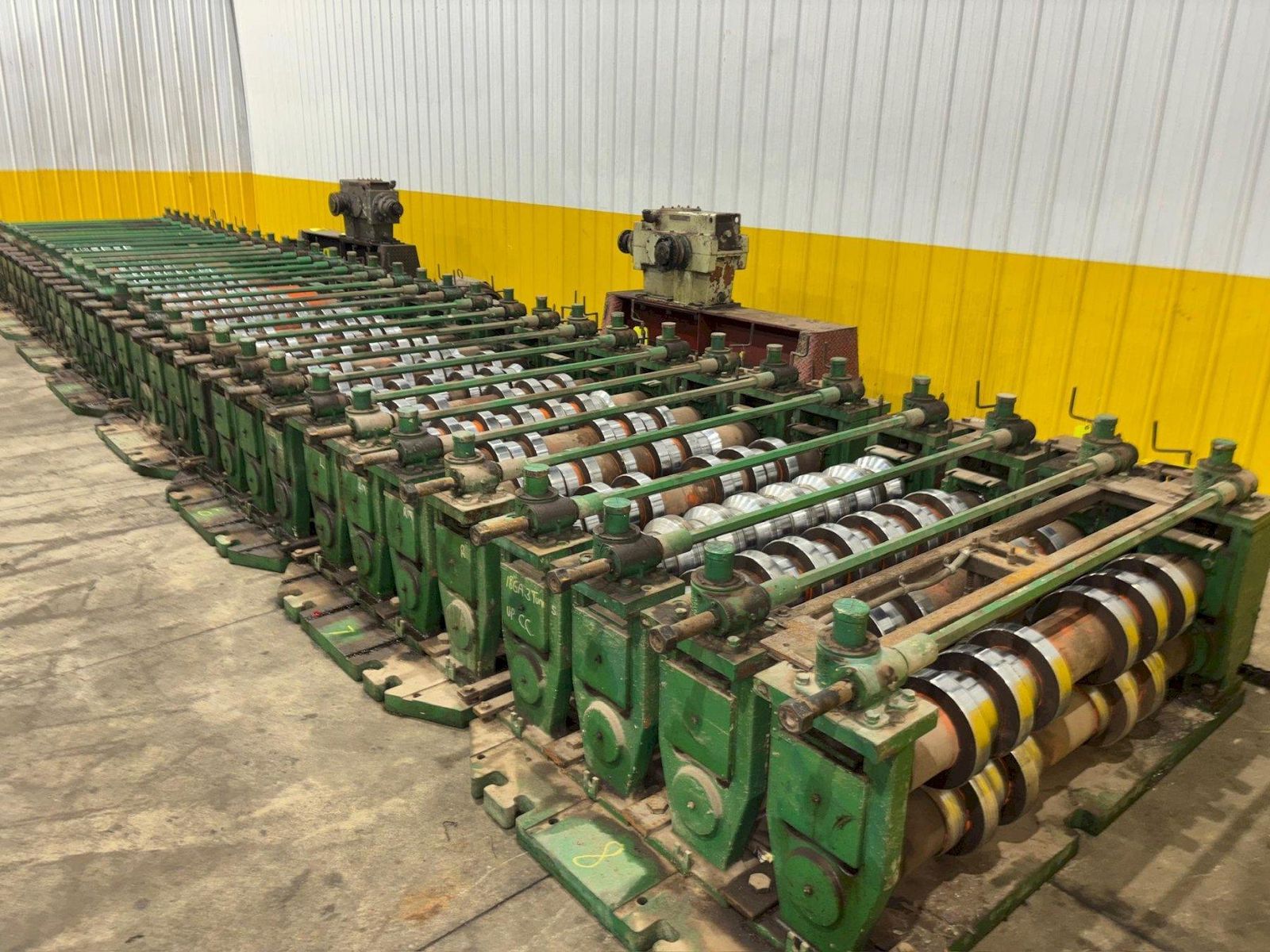

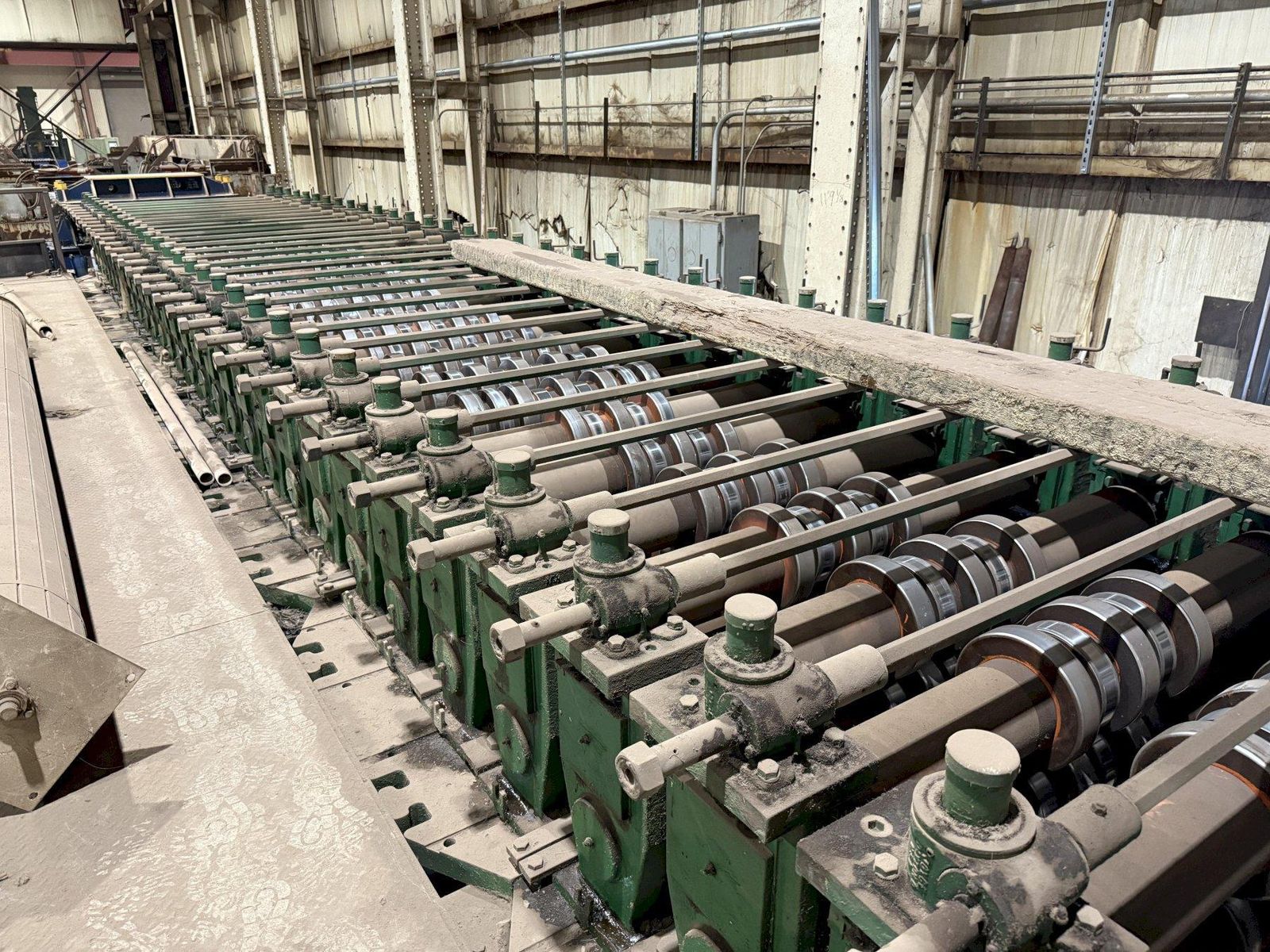

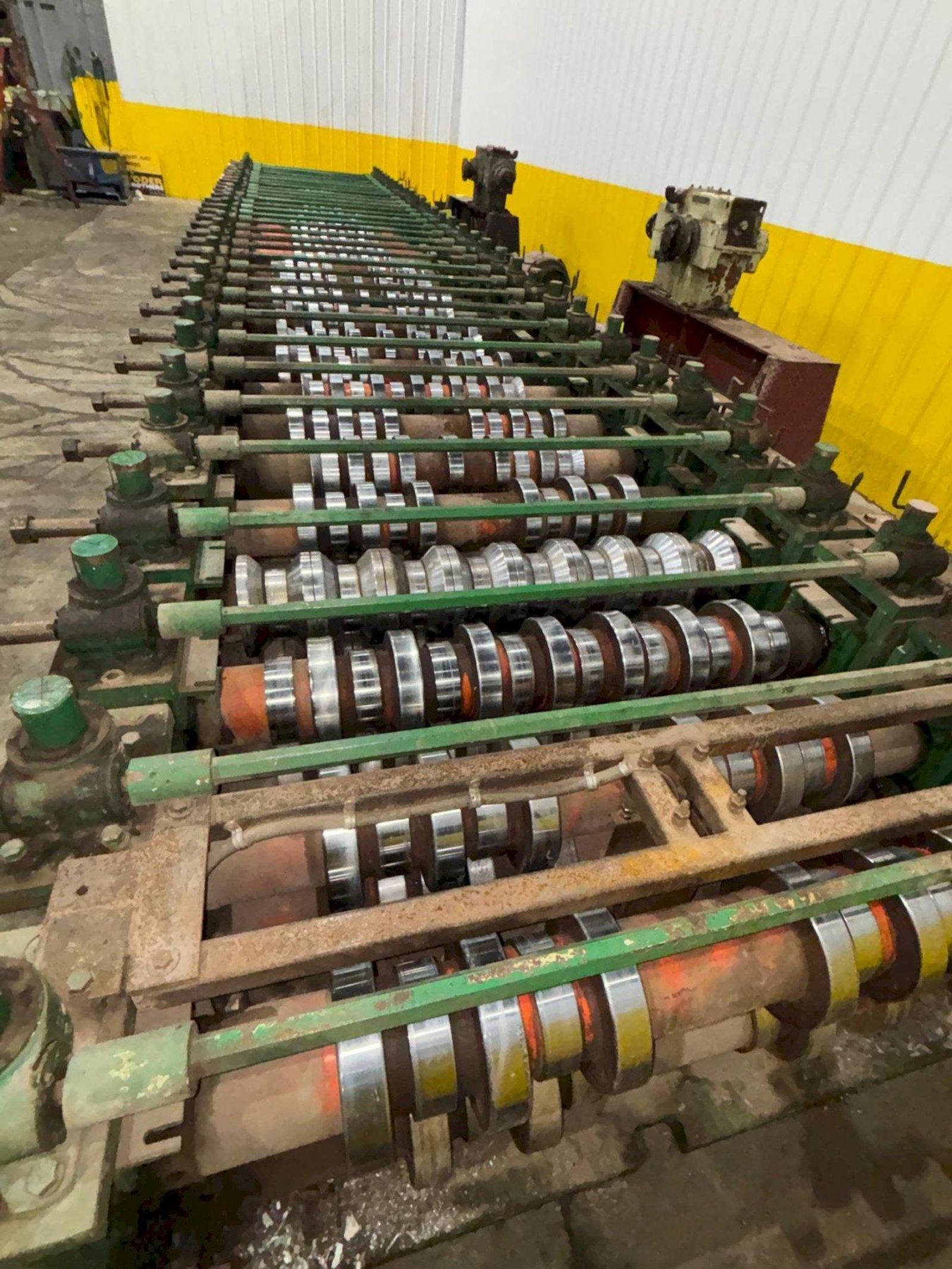

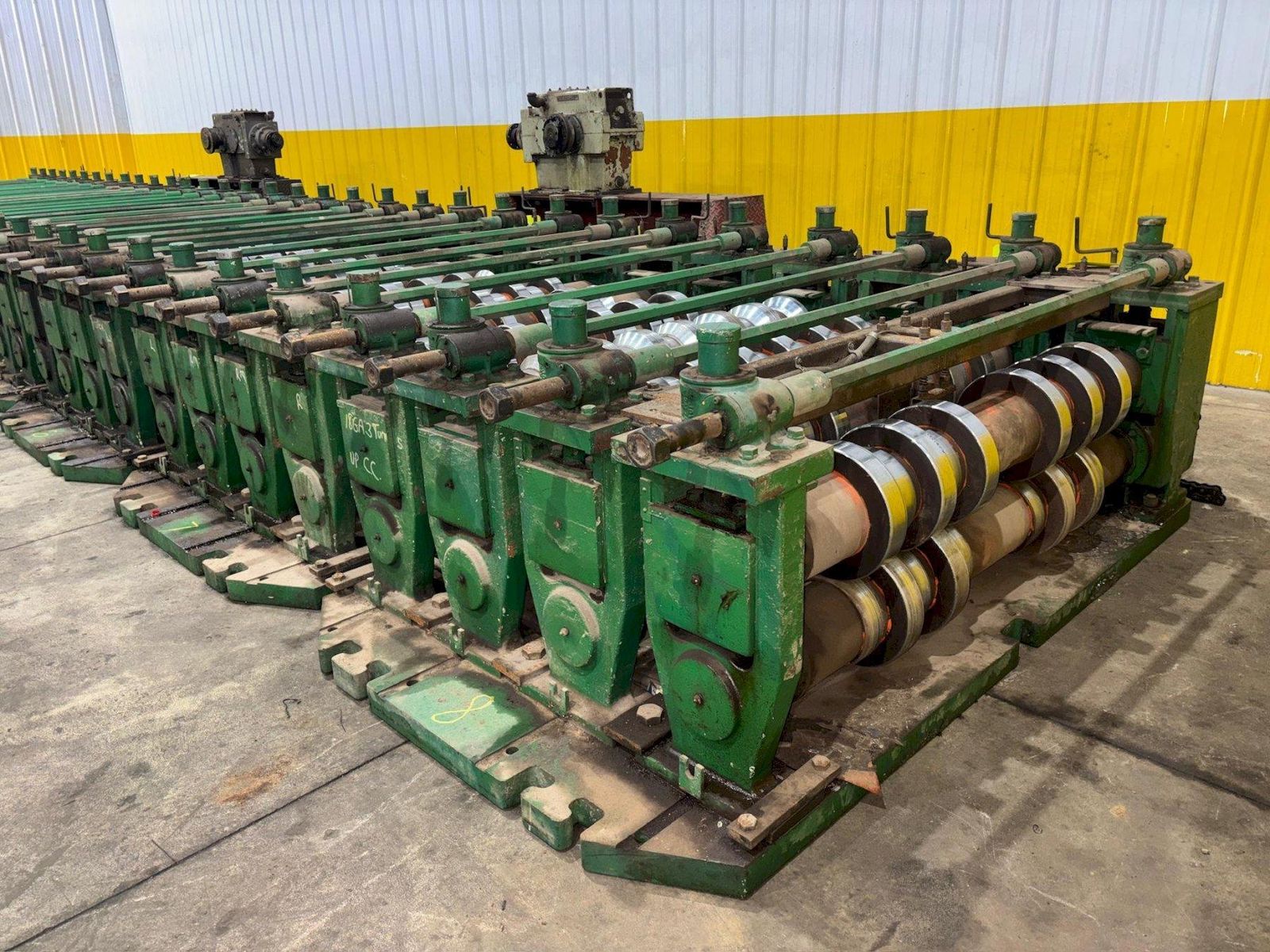

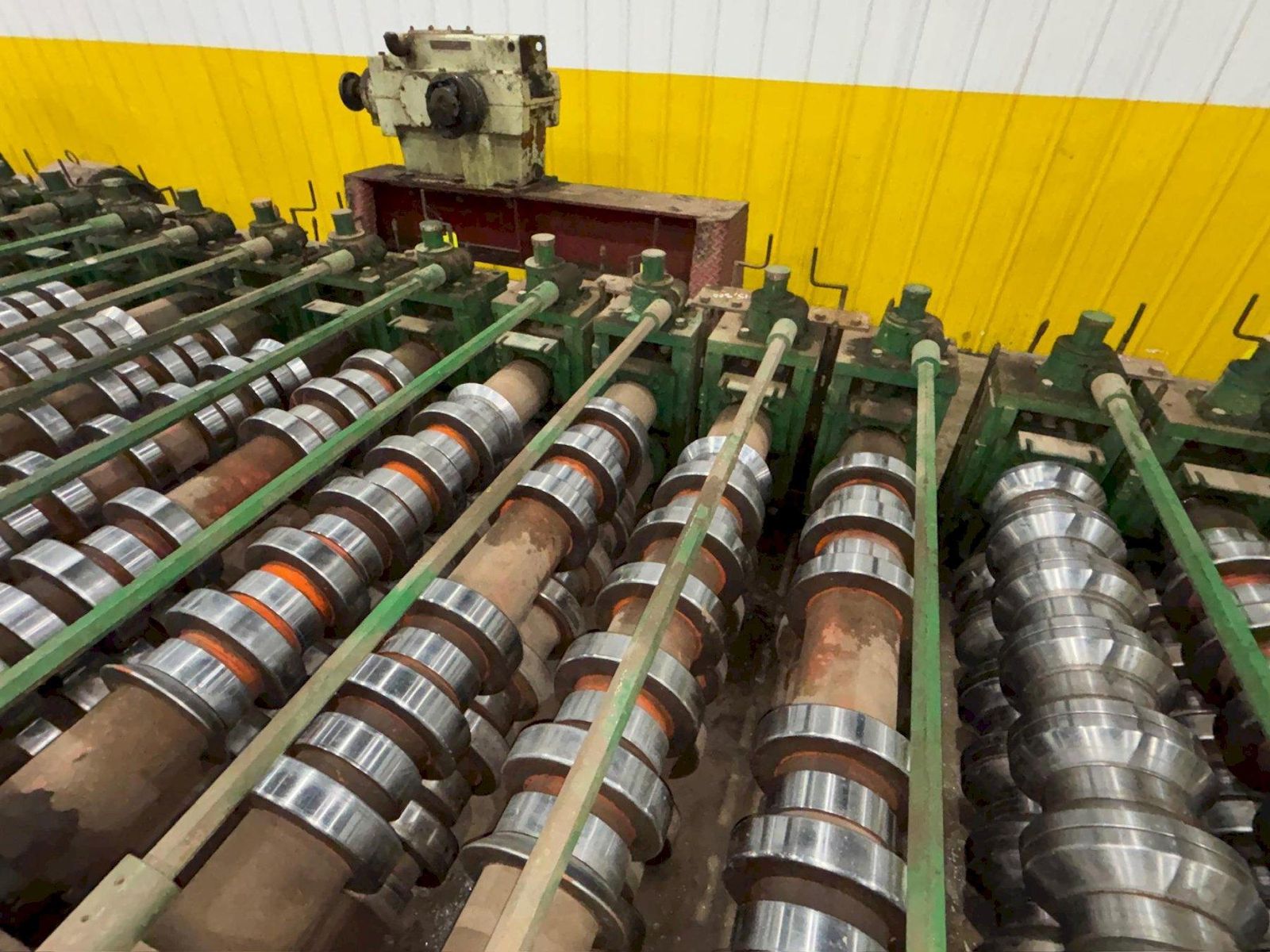

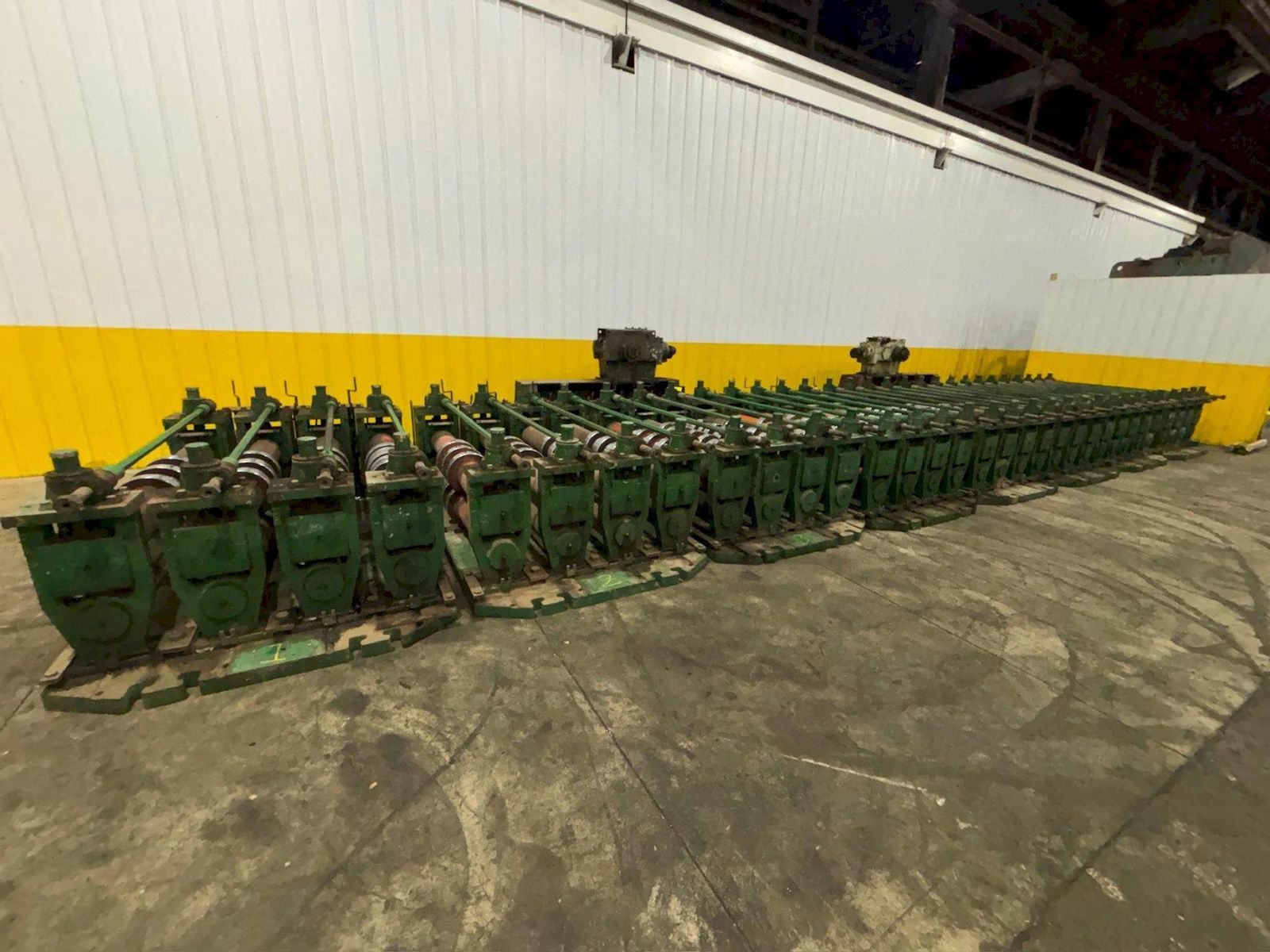

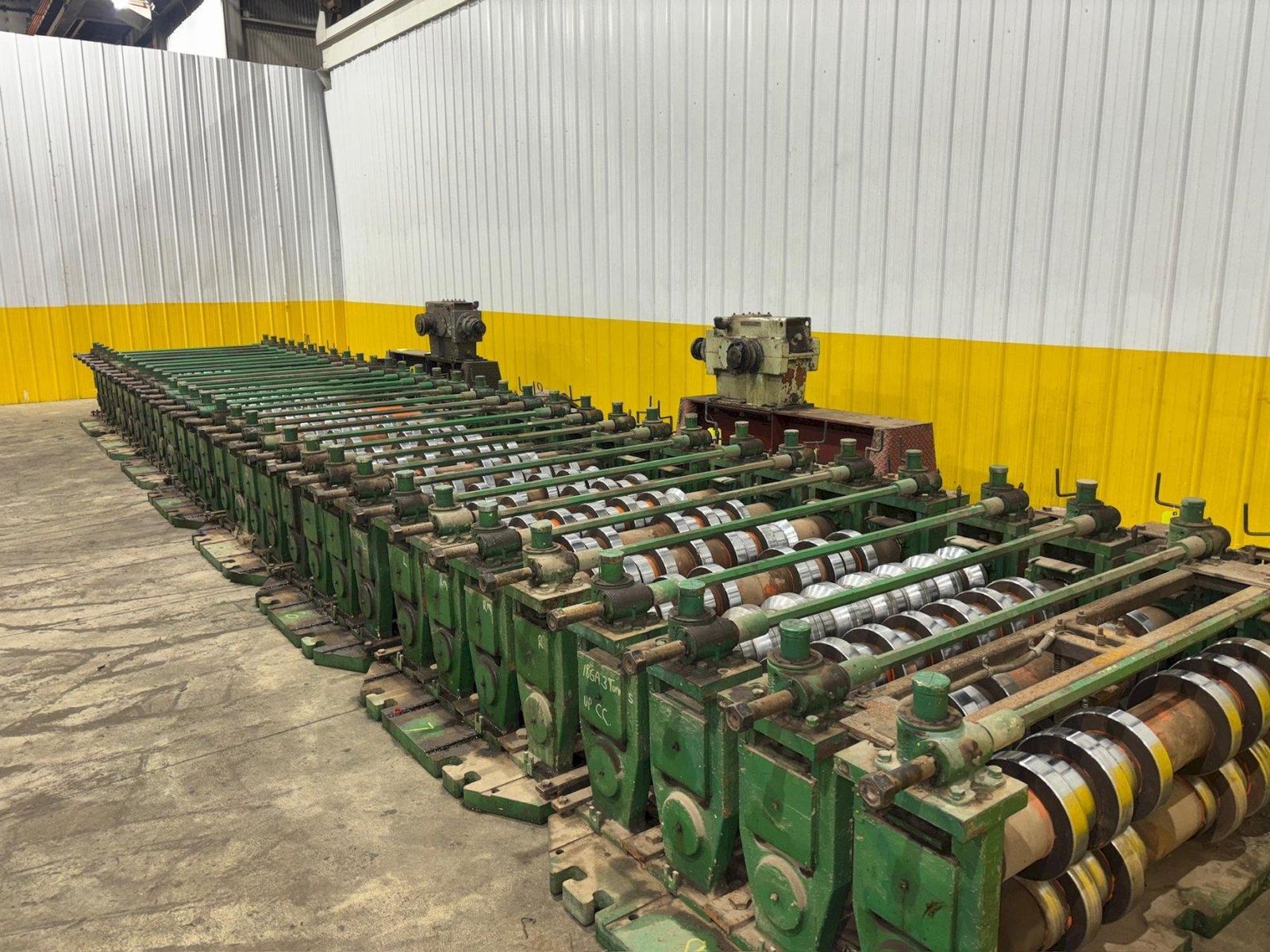

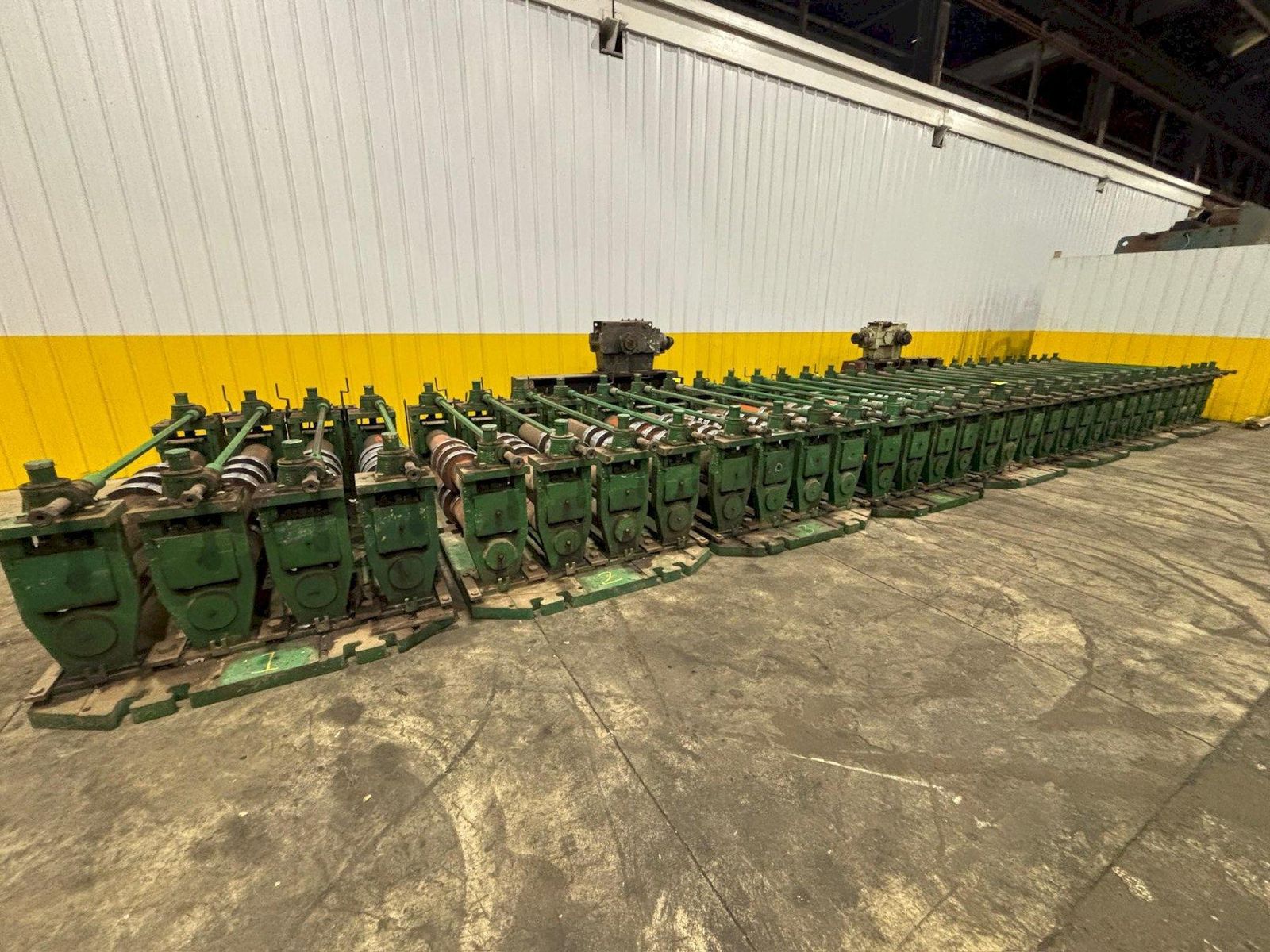

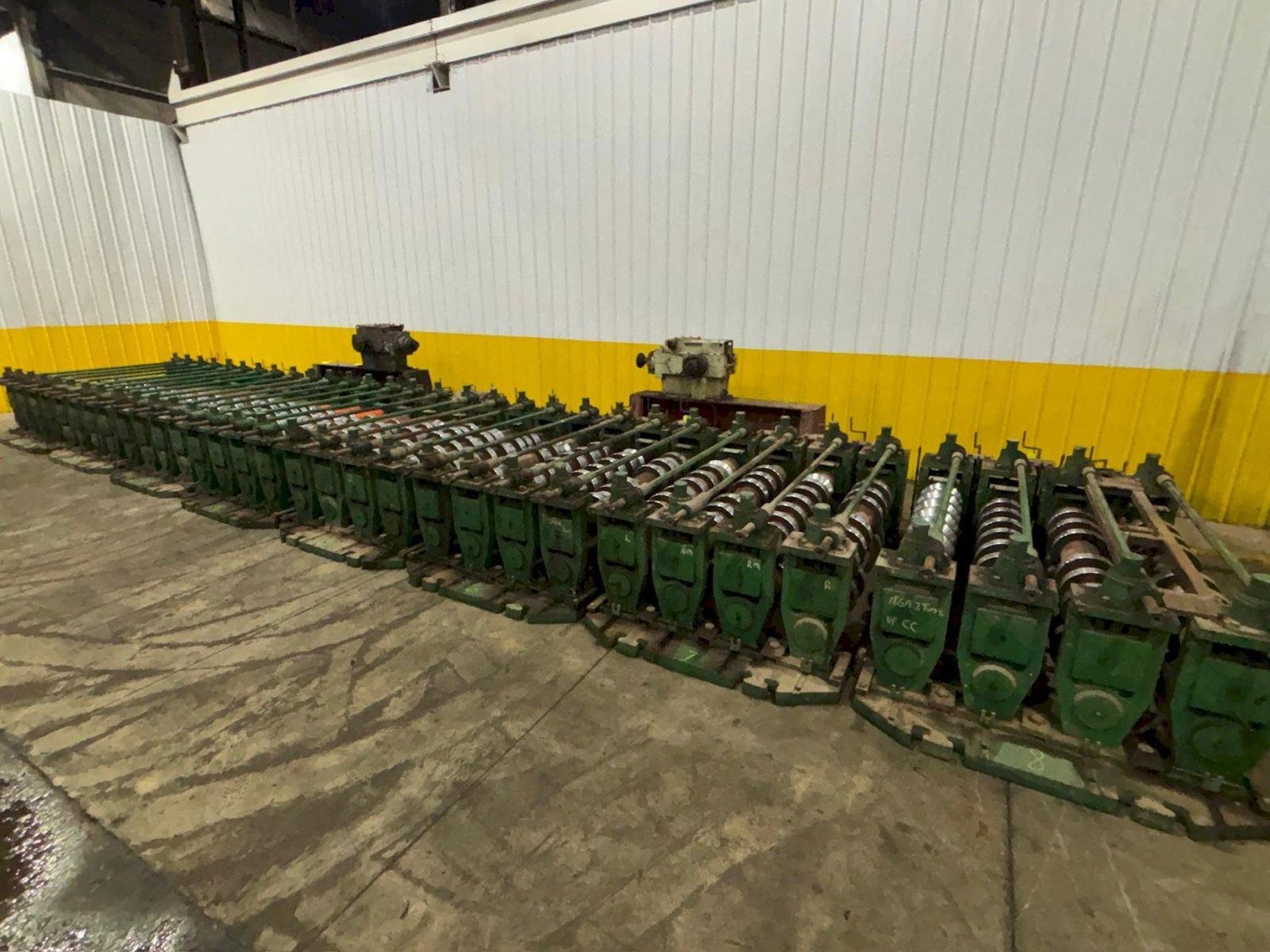

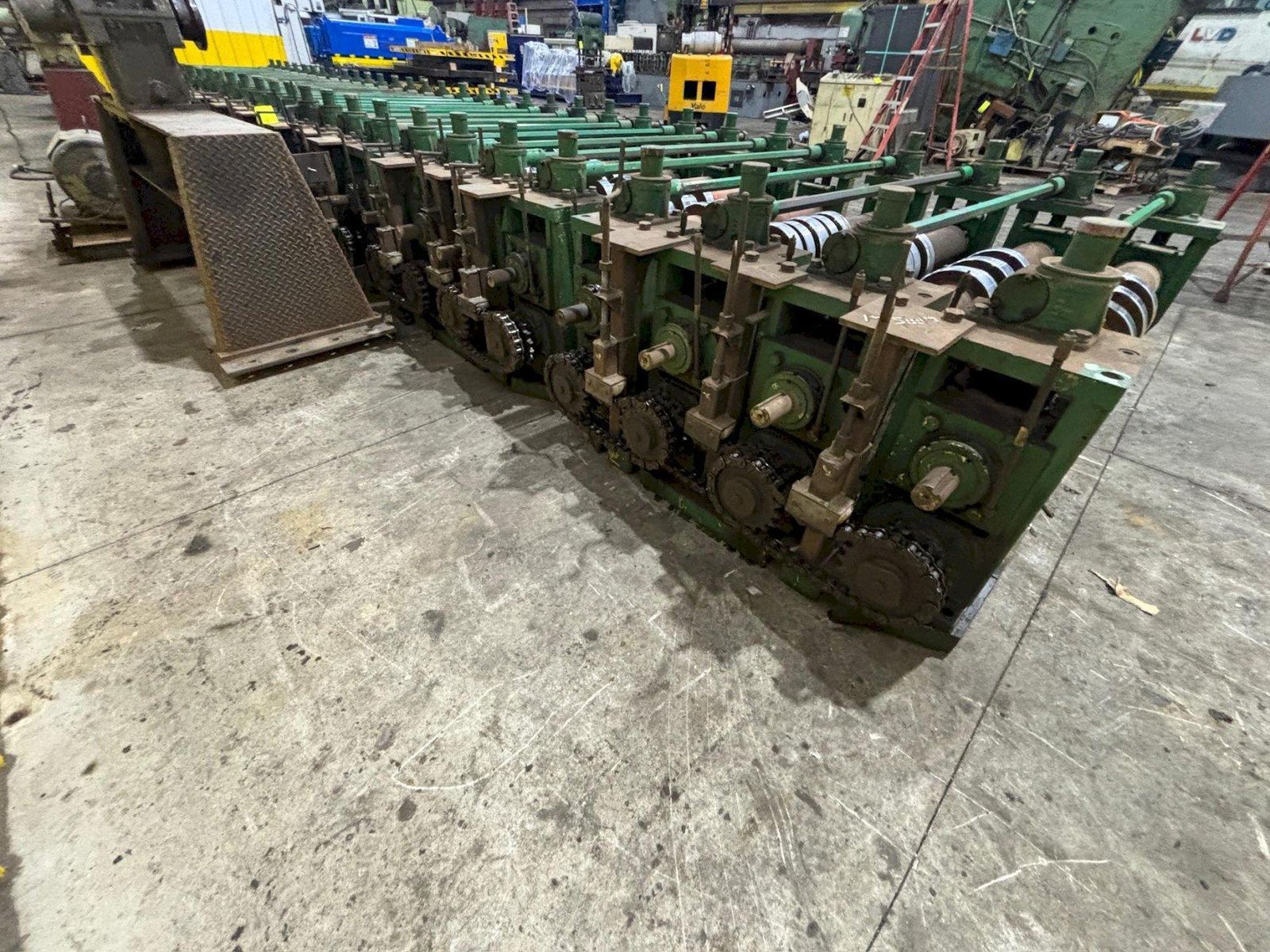

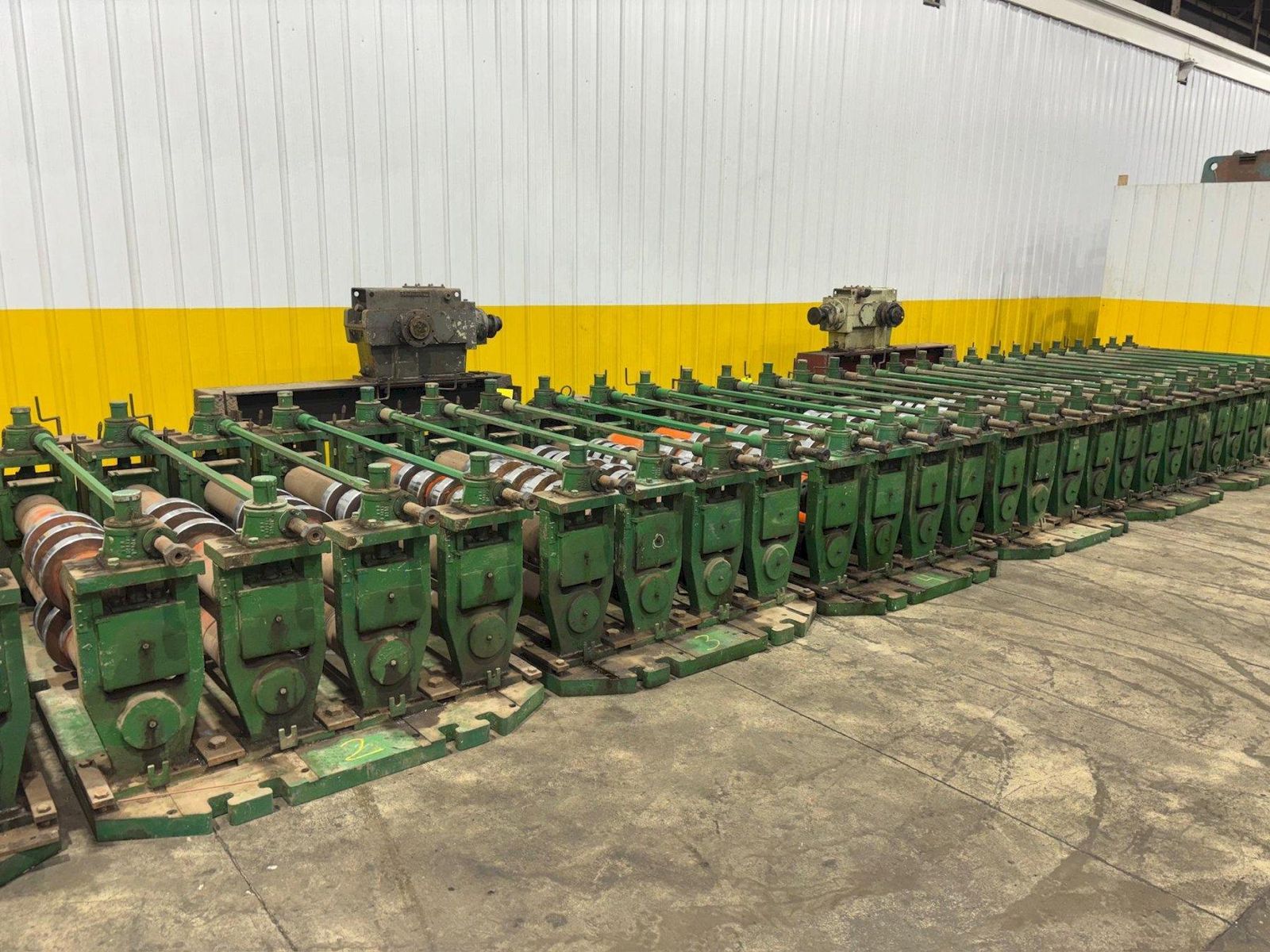

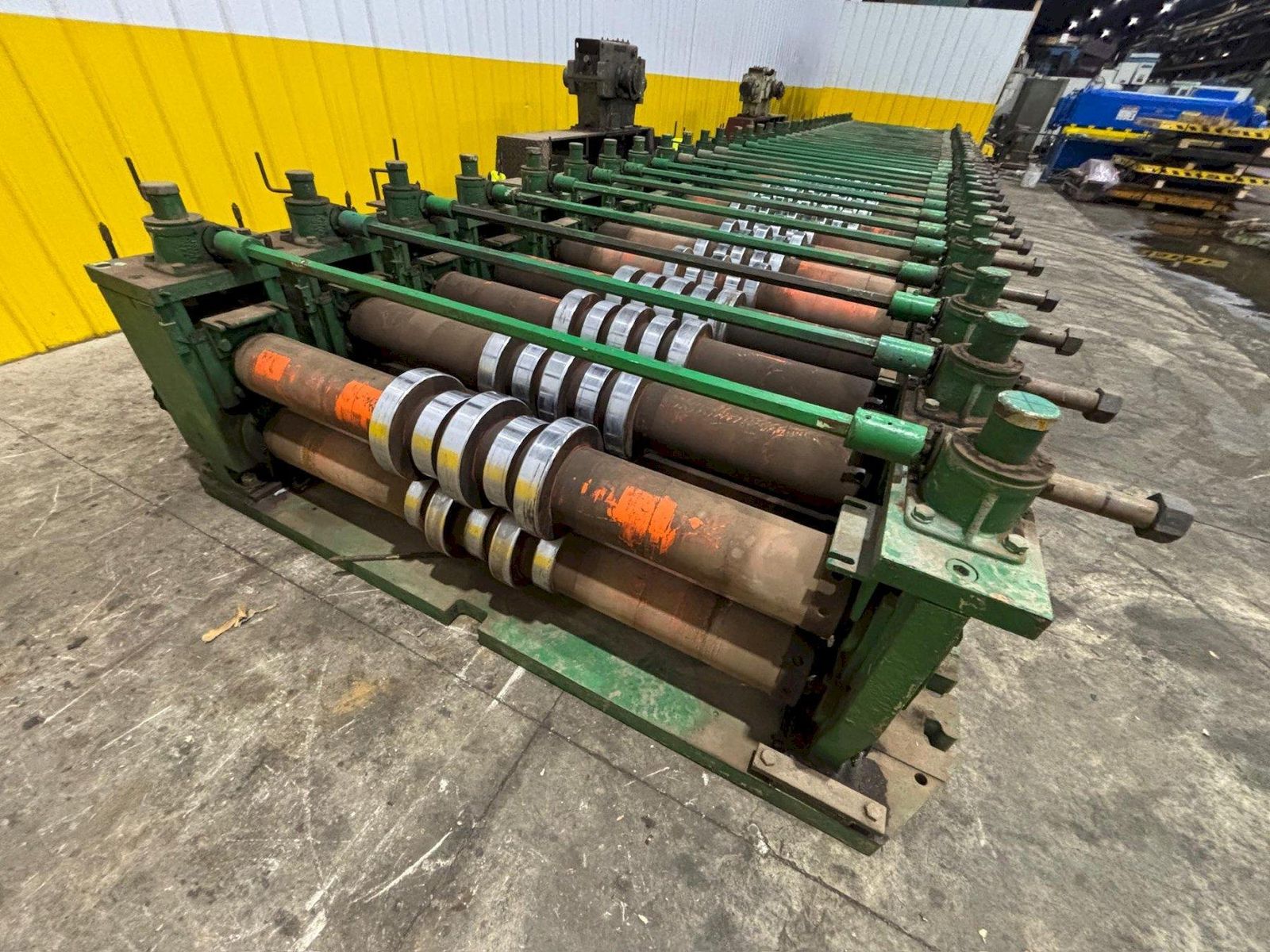

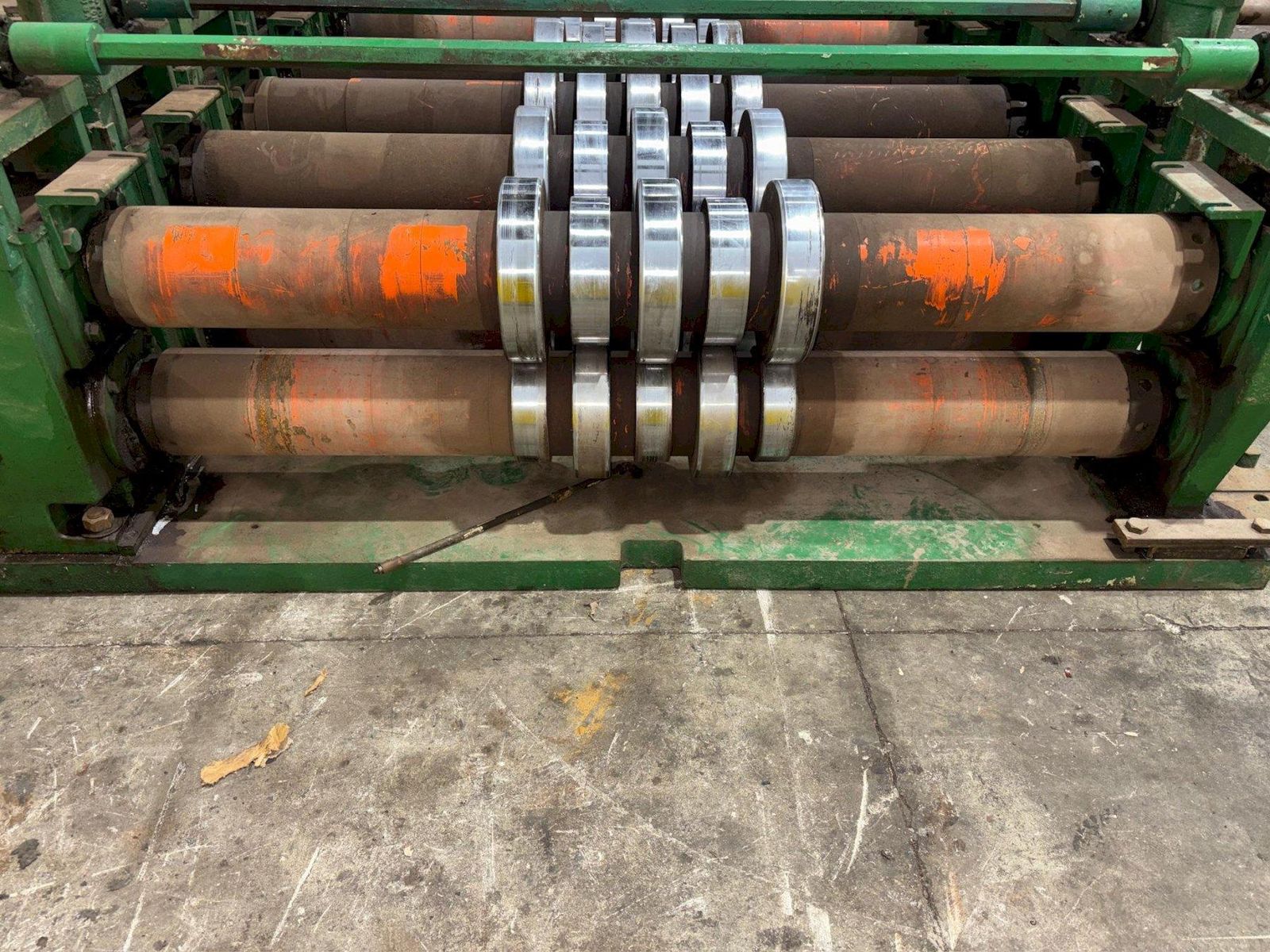

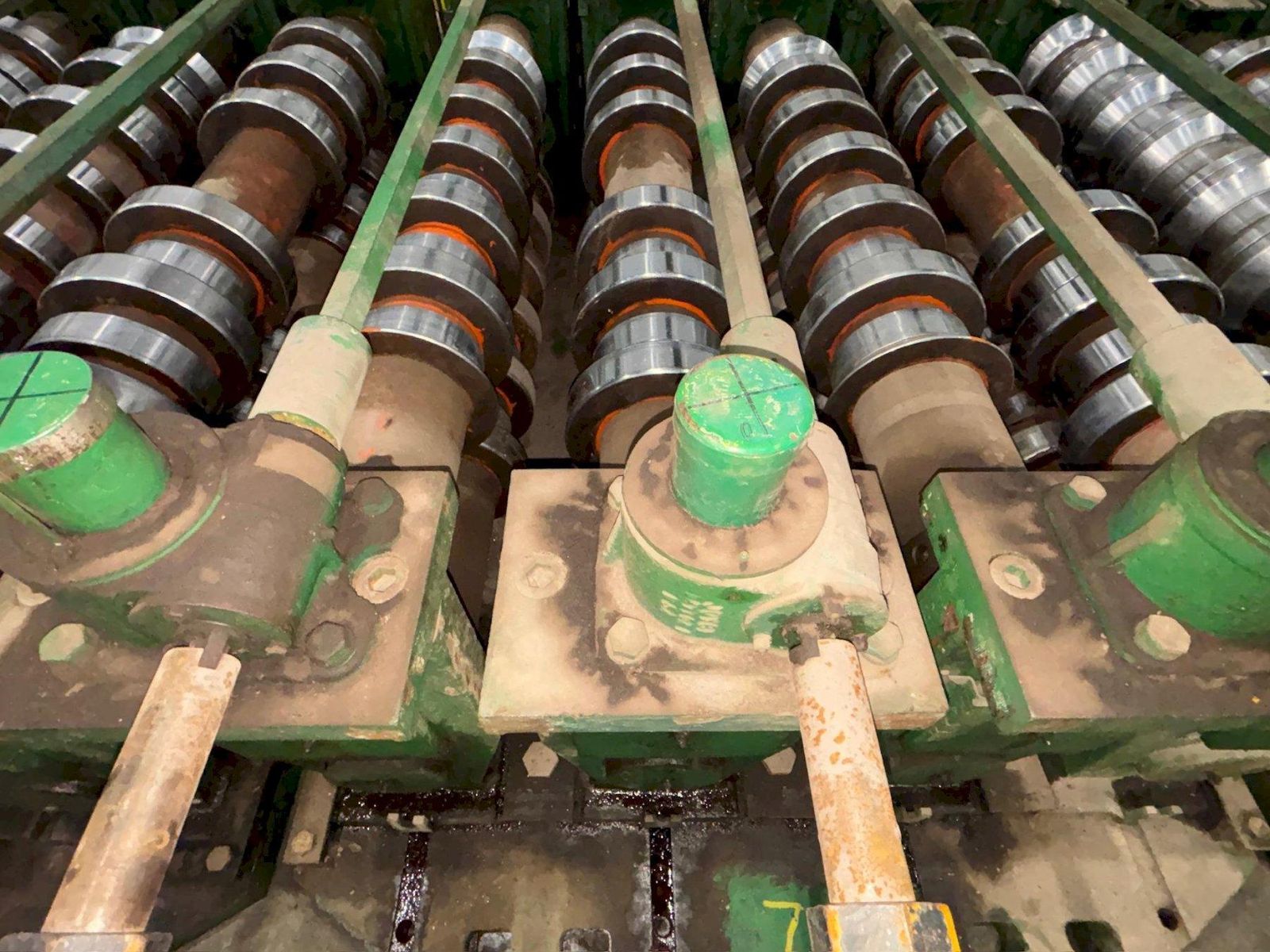

ROLLFORMER:

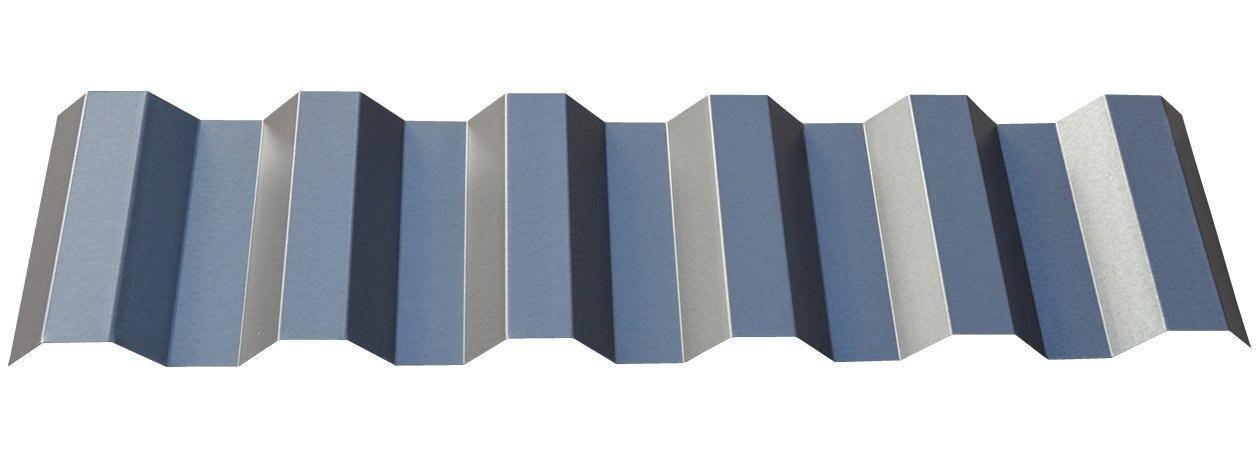

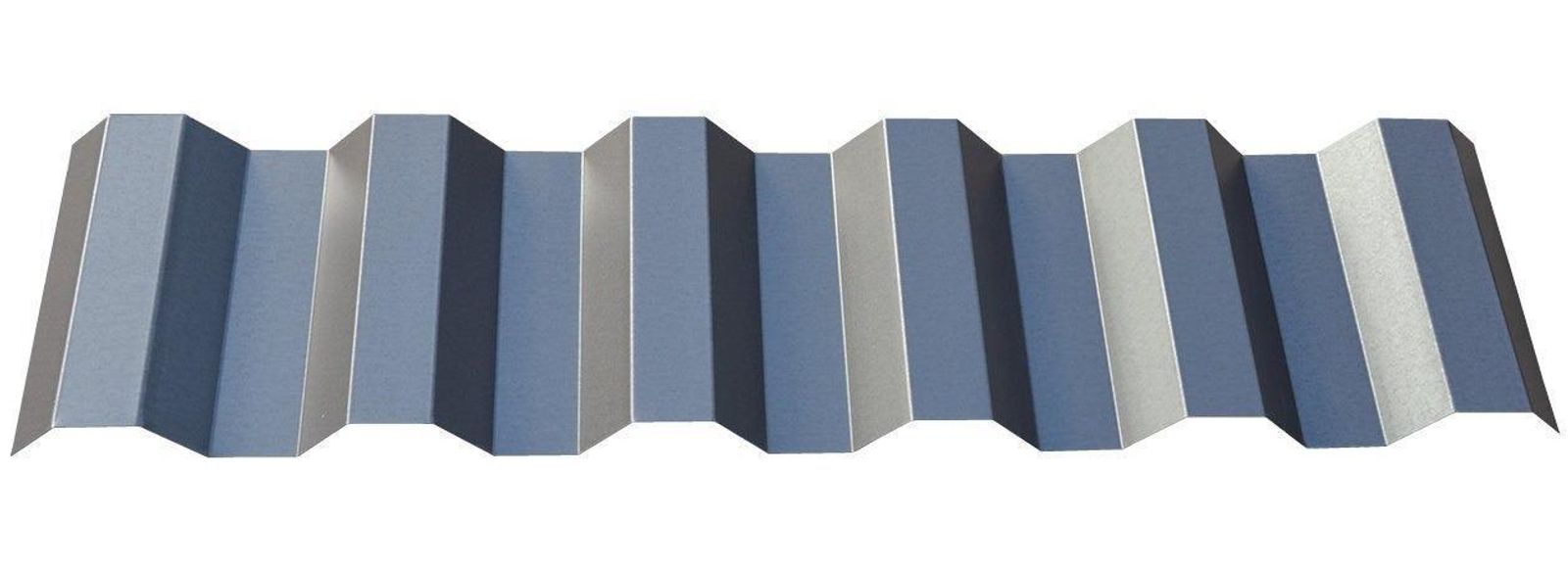

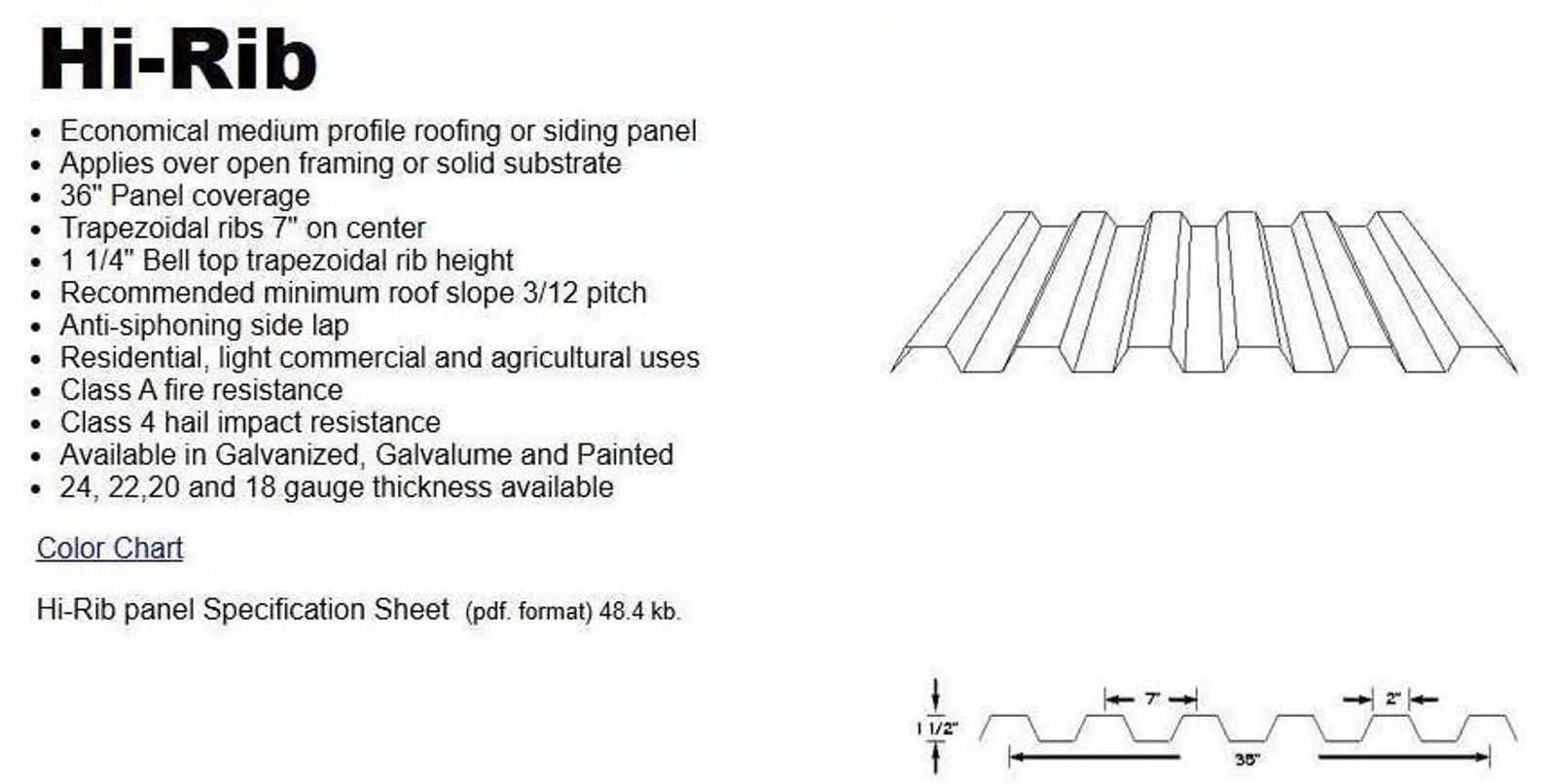

TOOLING MAKES ....................... HI-RIB PANEL
PANEL THICKENSS CAPACITY ............ 18 TO 24 GAUGE
NUMBER OF PASSES .................... 32
NUMBER OF RAFTS ..................... 8 (4 PASSES PER RAFT)
ROLL SPACING......................... 44"
HORIZONTAL CENTERS................... 15"

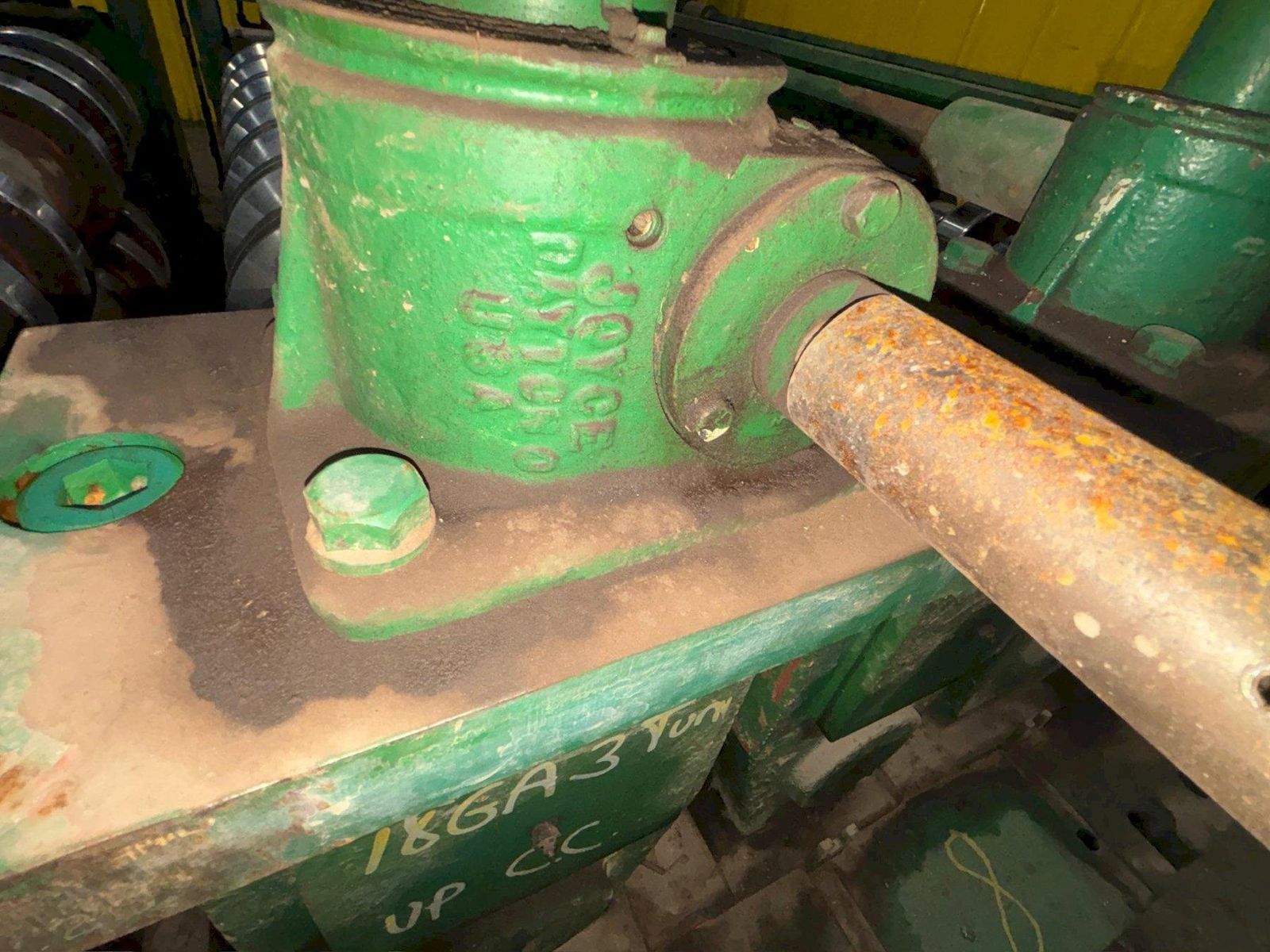

VERTICAL ADJUSTMENT.................. 7" - 10"
BASE TO BOTTOM OF SPINDLE............ 8"
DIRECTION ........................... RIGHT TO LEFT

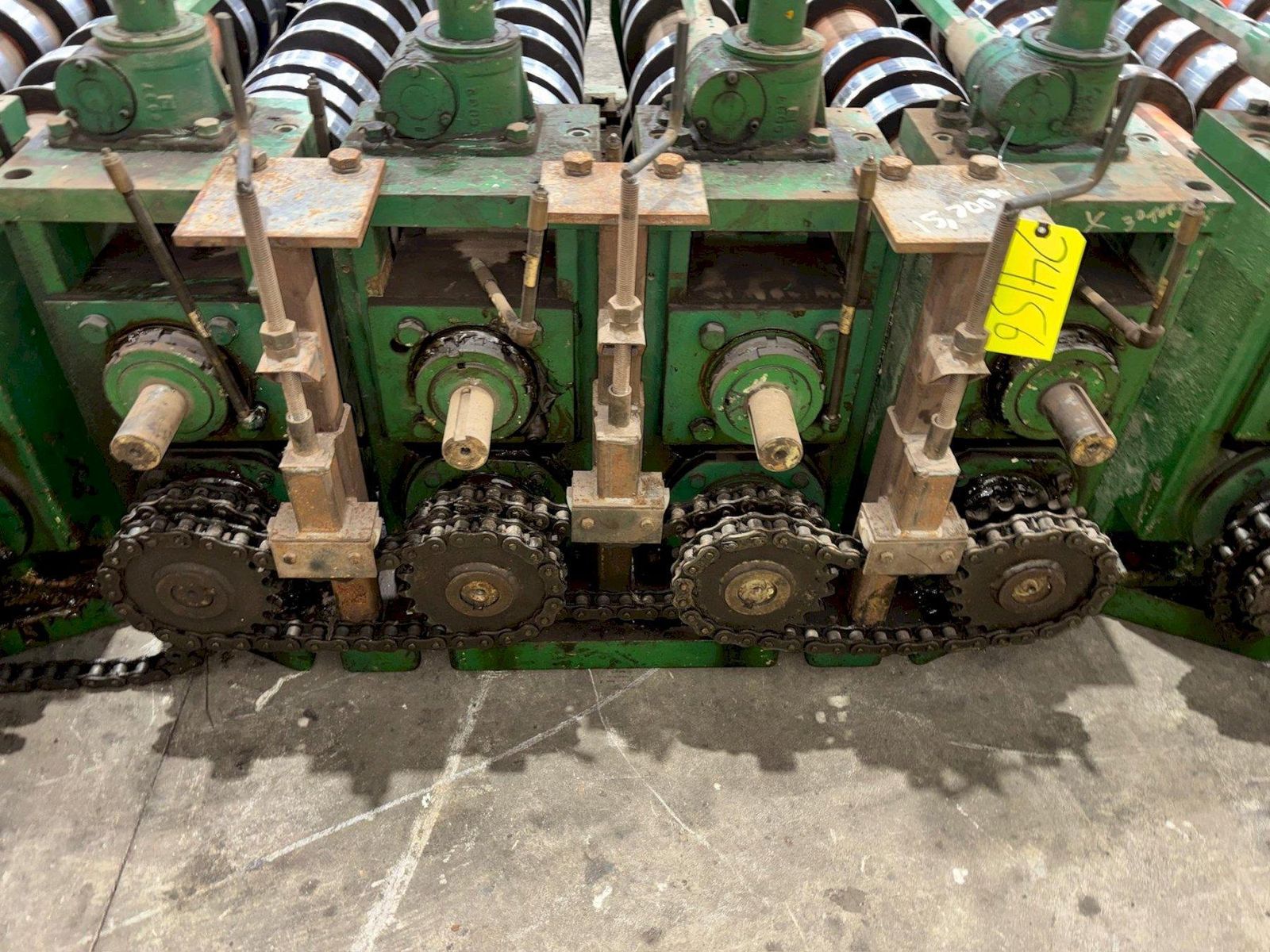

CHAIN DRIVEN ........................ YES

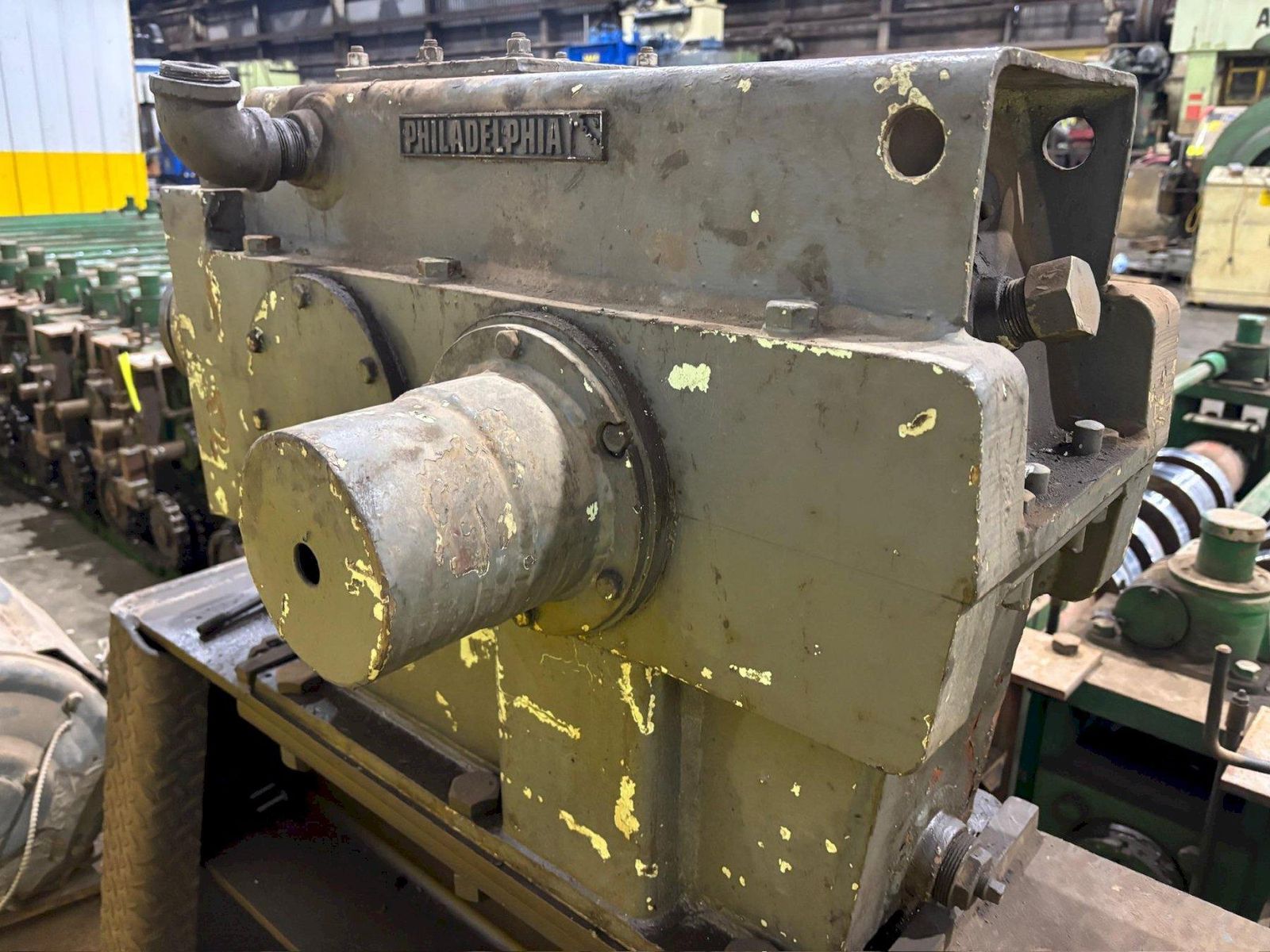

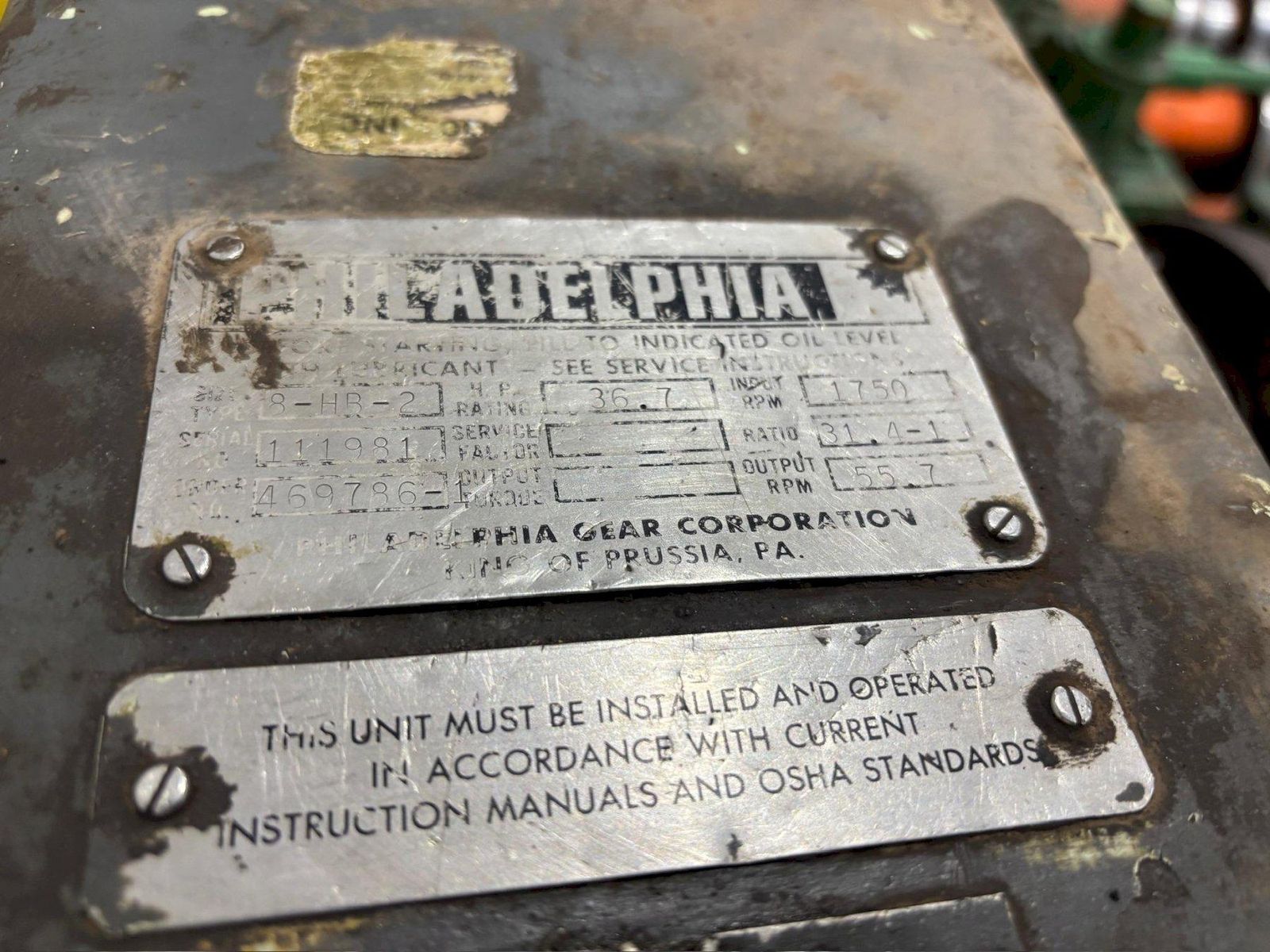

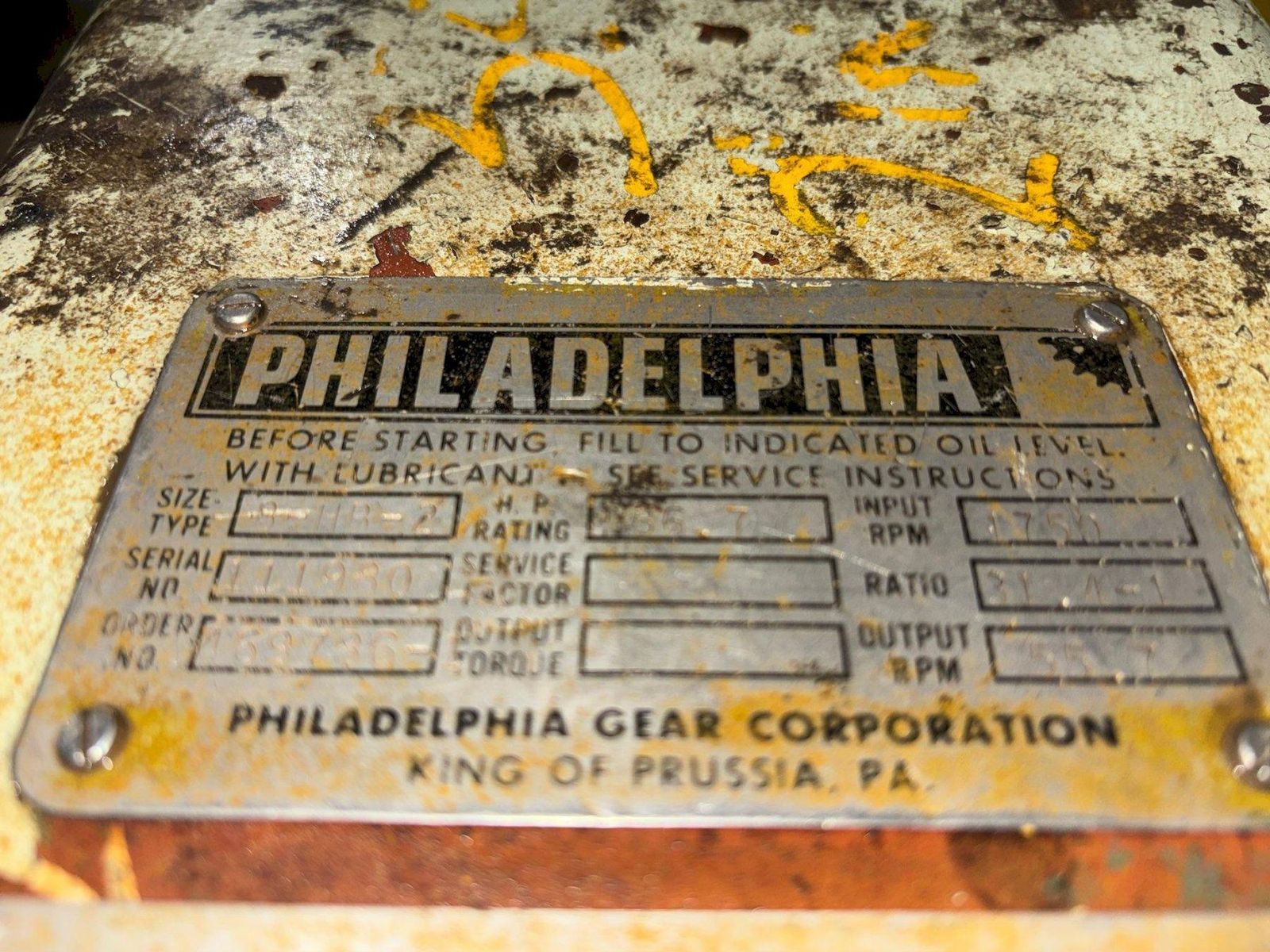

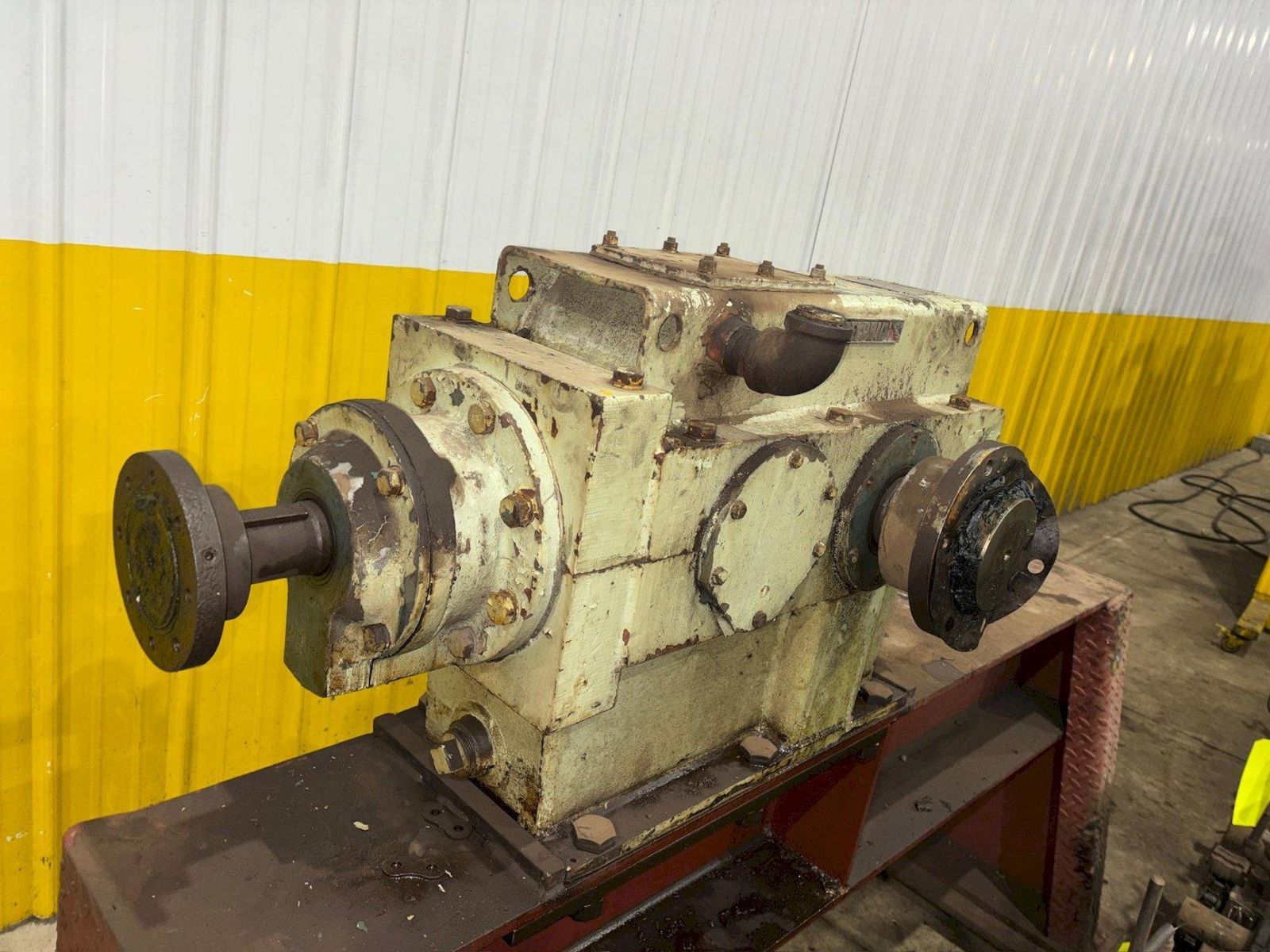

PHILADELPHIA GEAR REDUCERS .......... YES
FABRICATED STEEL BASE ............... YES

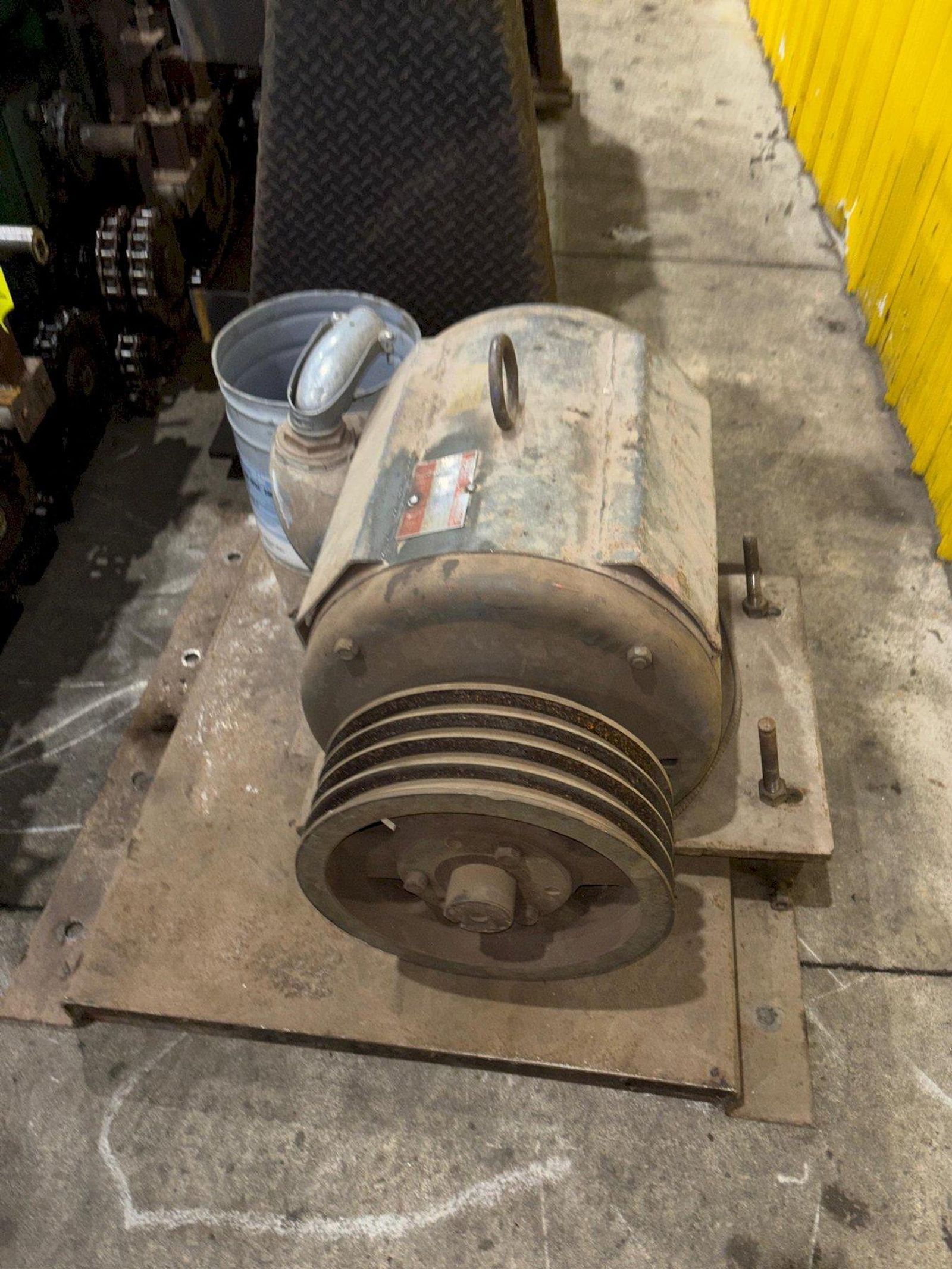

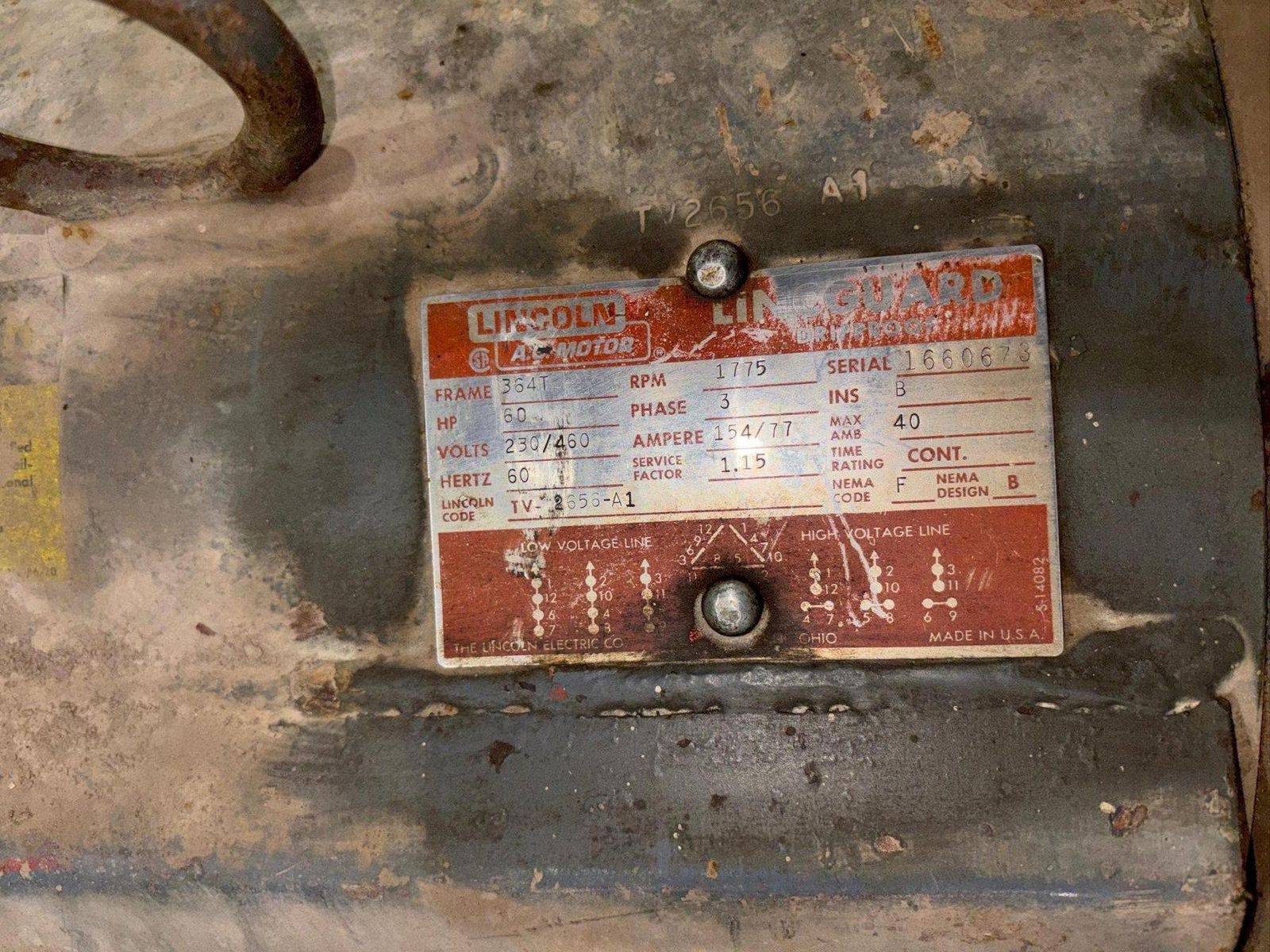

MAIN DRIVE MOTOR .................... 60 HP

CONTROLS:
OPERATORS STATION ................... YES
DURANT CONTROLLER ................... SERIES 5884
ROTARY DIAL COUNTER ................. YES

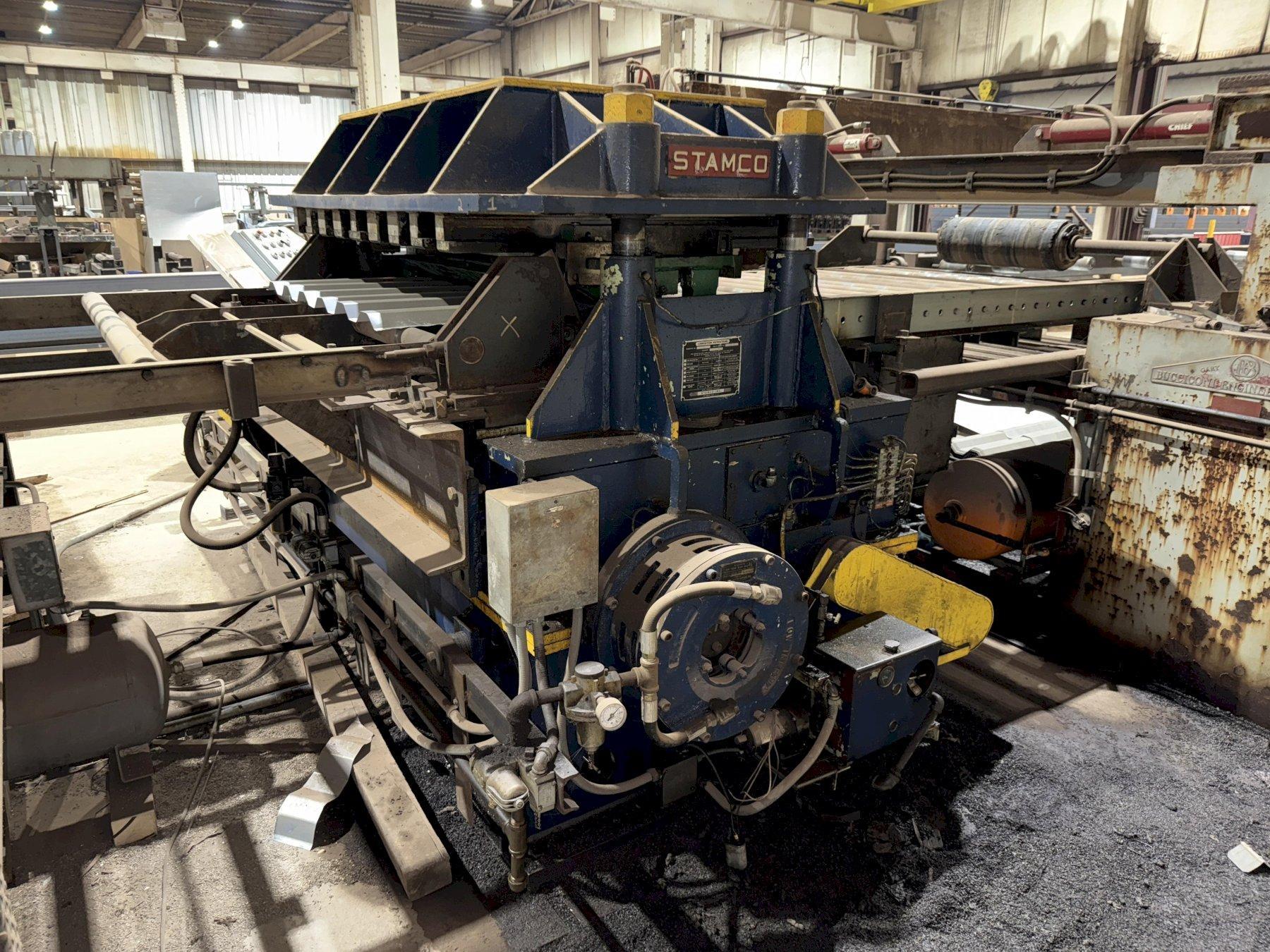

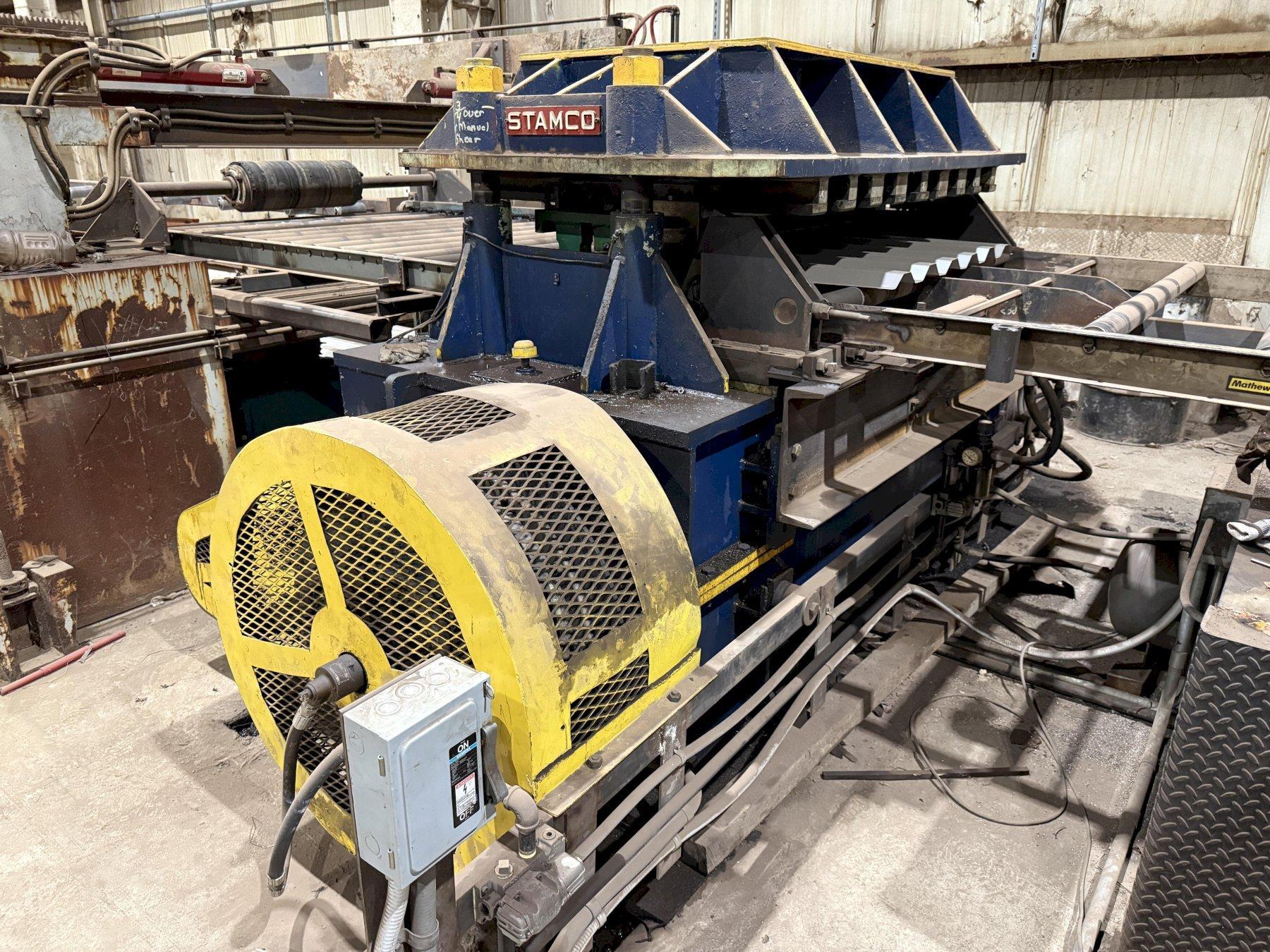

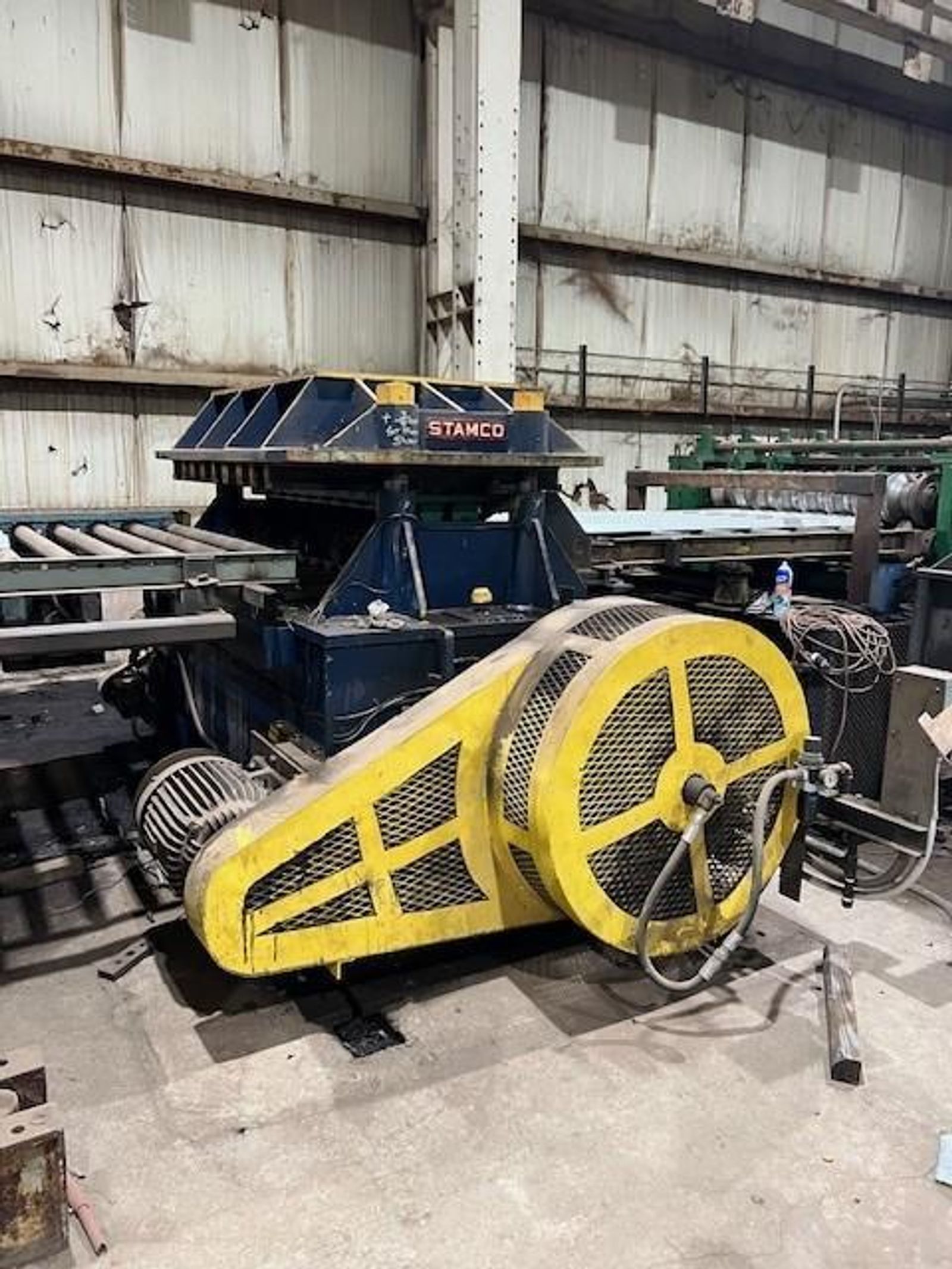

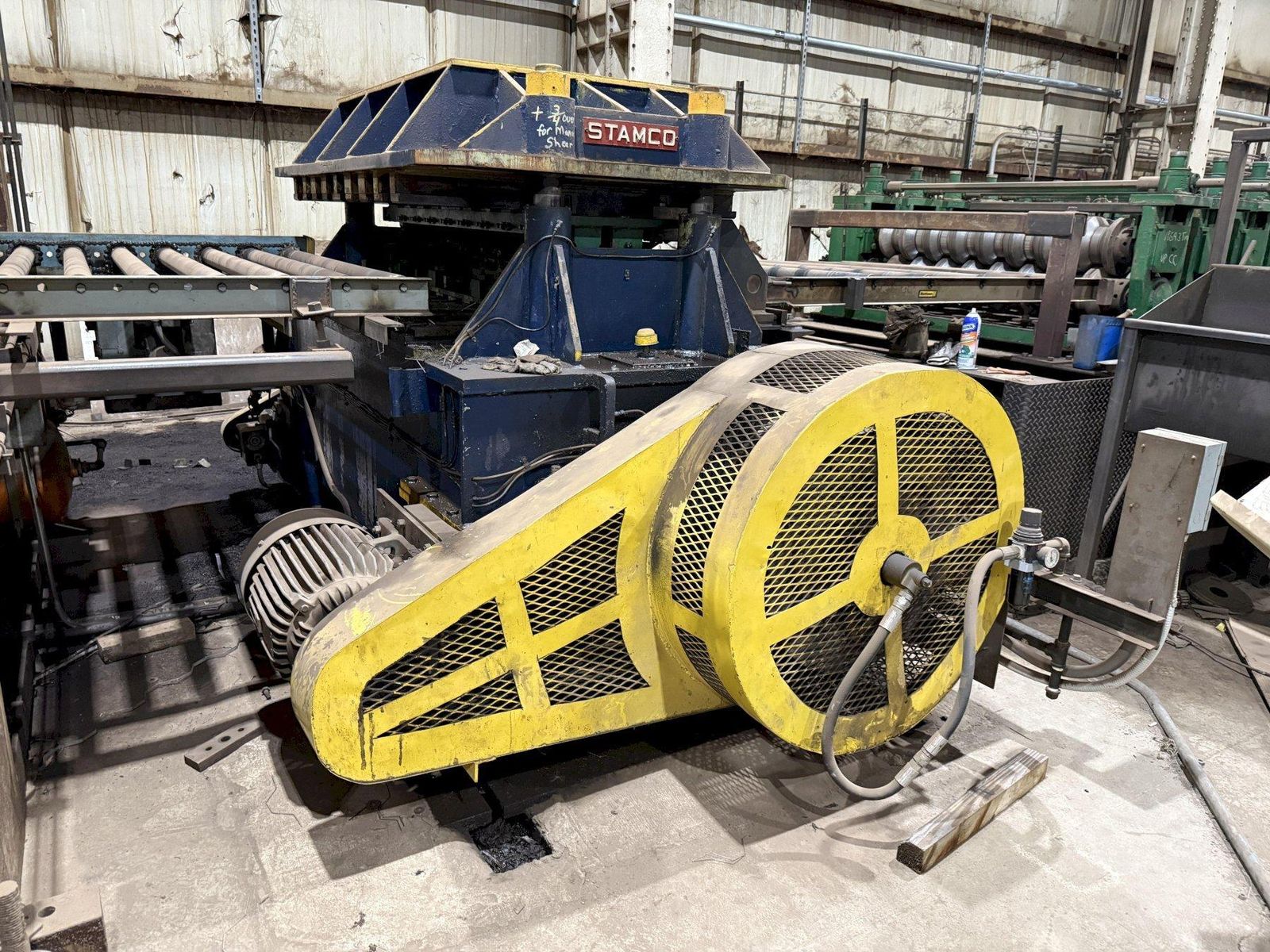

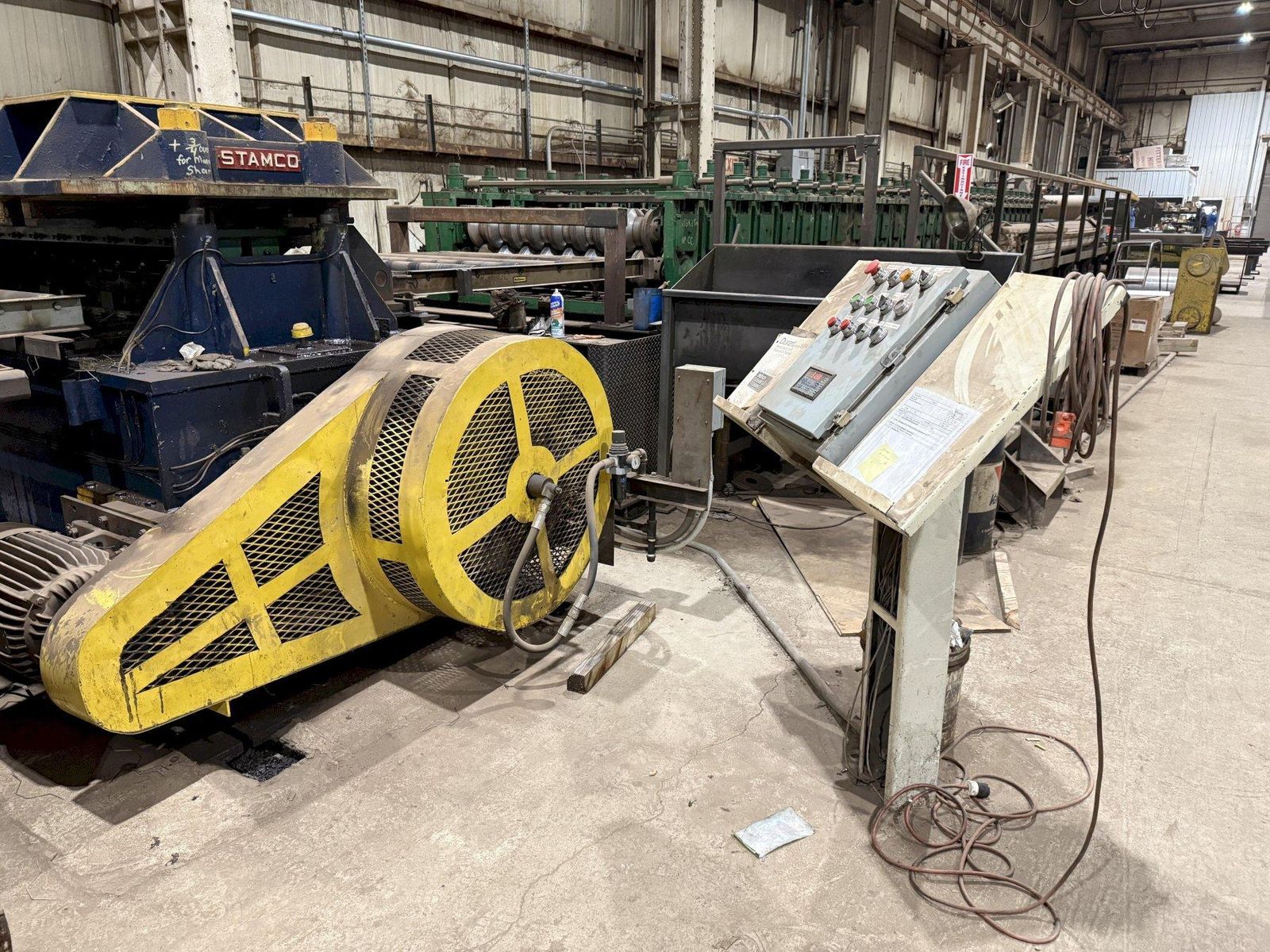

STAMCO CUT OFF PRESS:
SERIAL .............................. 810-64
MODEL ............................... 3607
COIL CAPACITY ....................... 30 THRU 12 GA

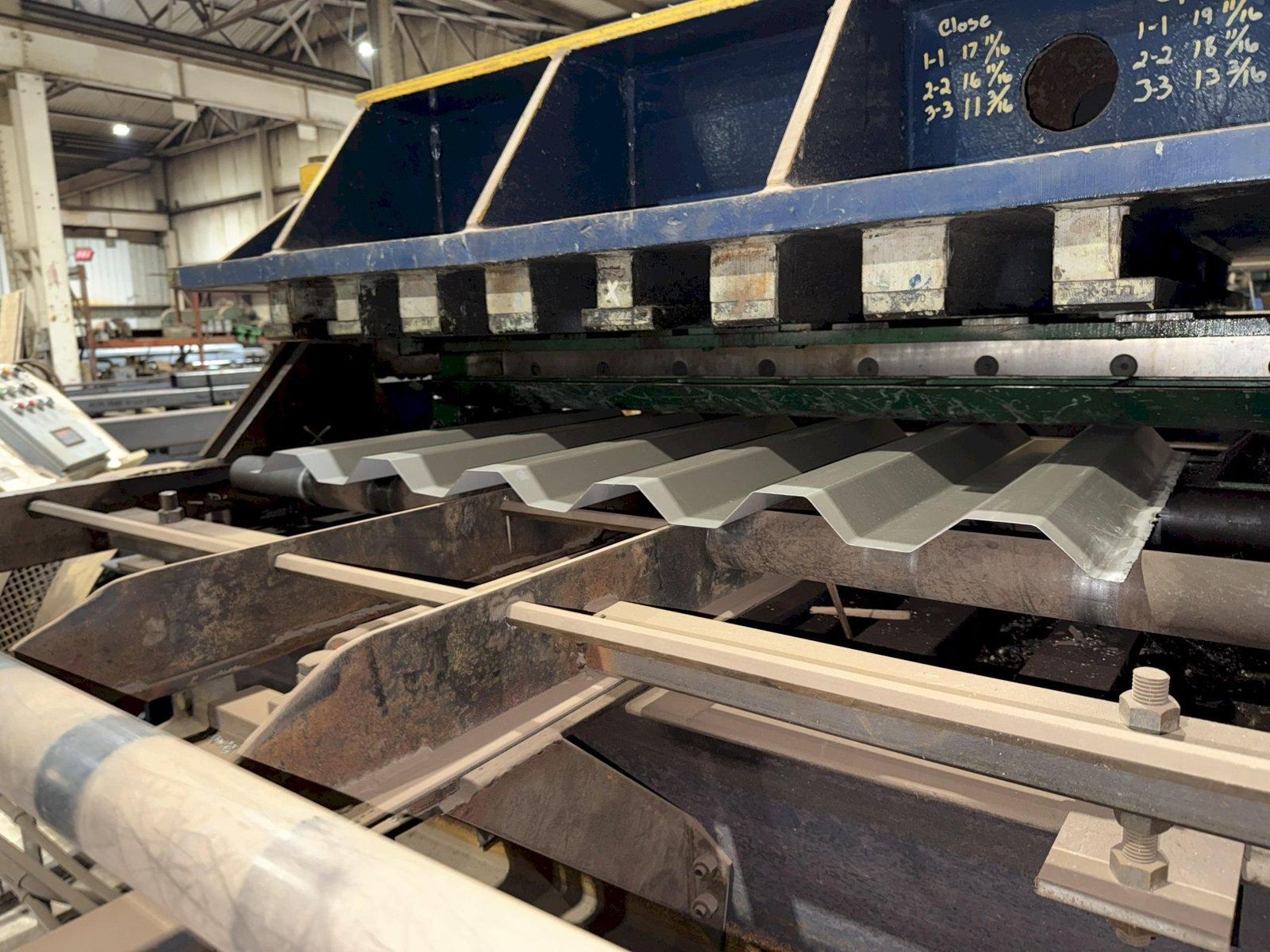

FLYING CUT OFF DIE .................. YES
AIR CLUTCH .......................... YES
MAIN DRIVE MOTOR .................... 15
