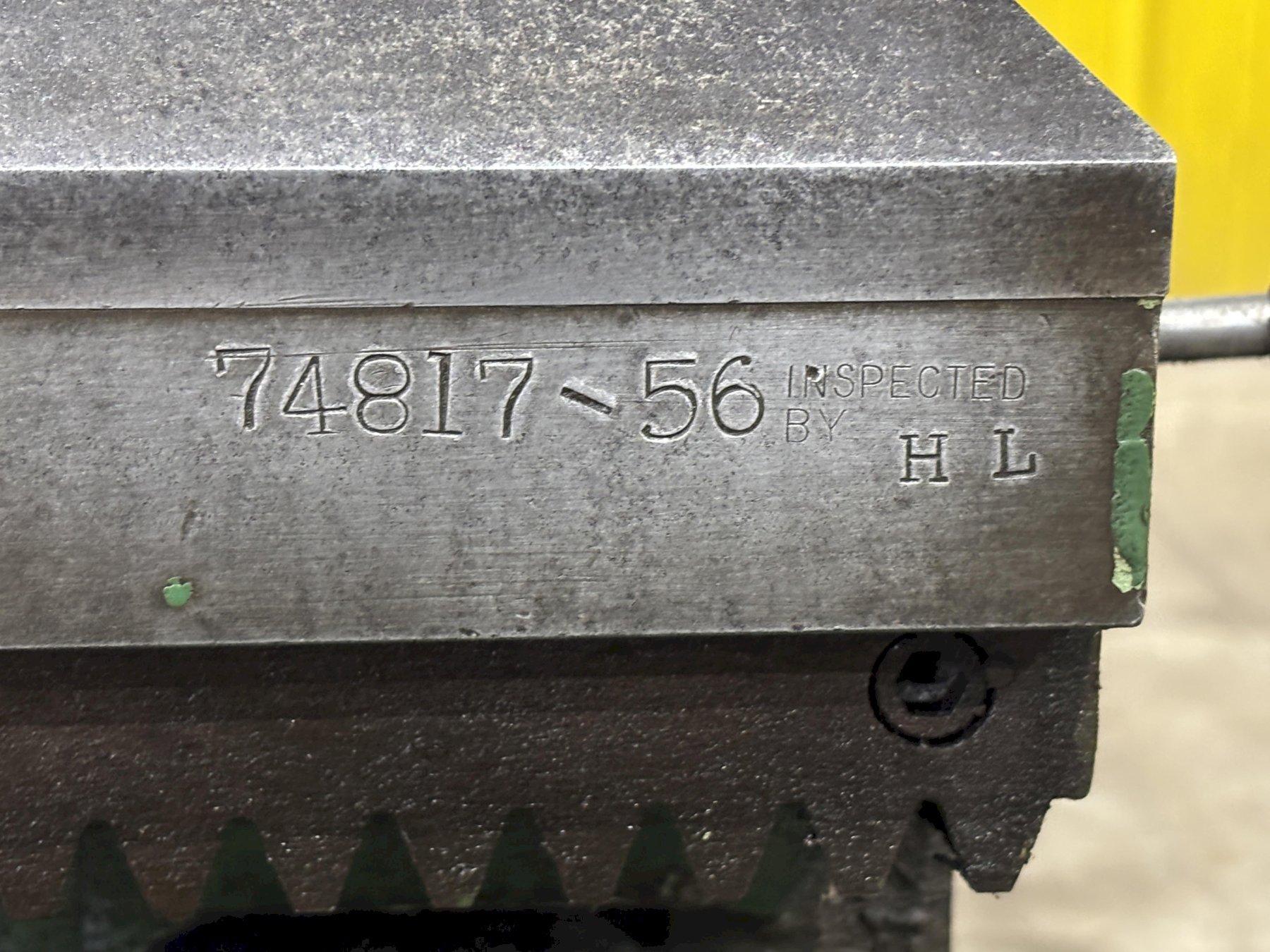

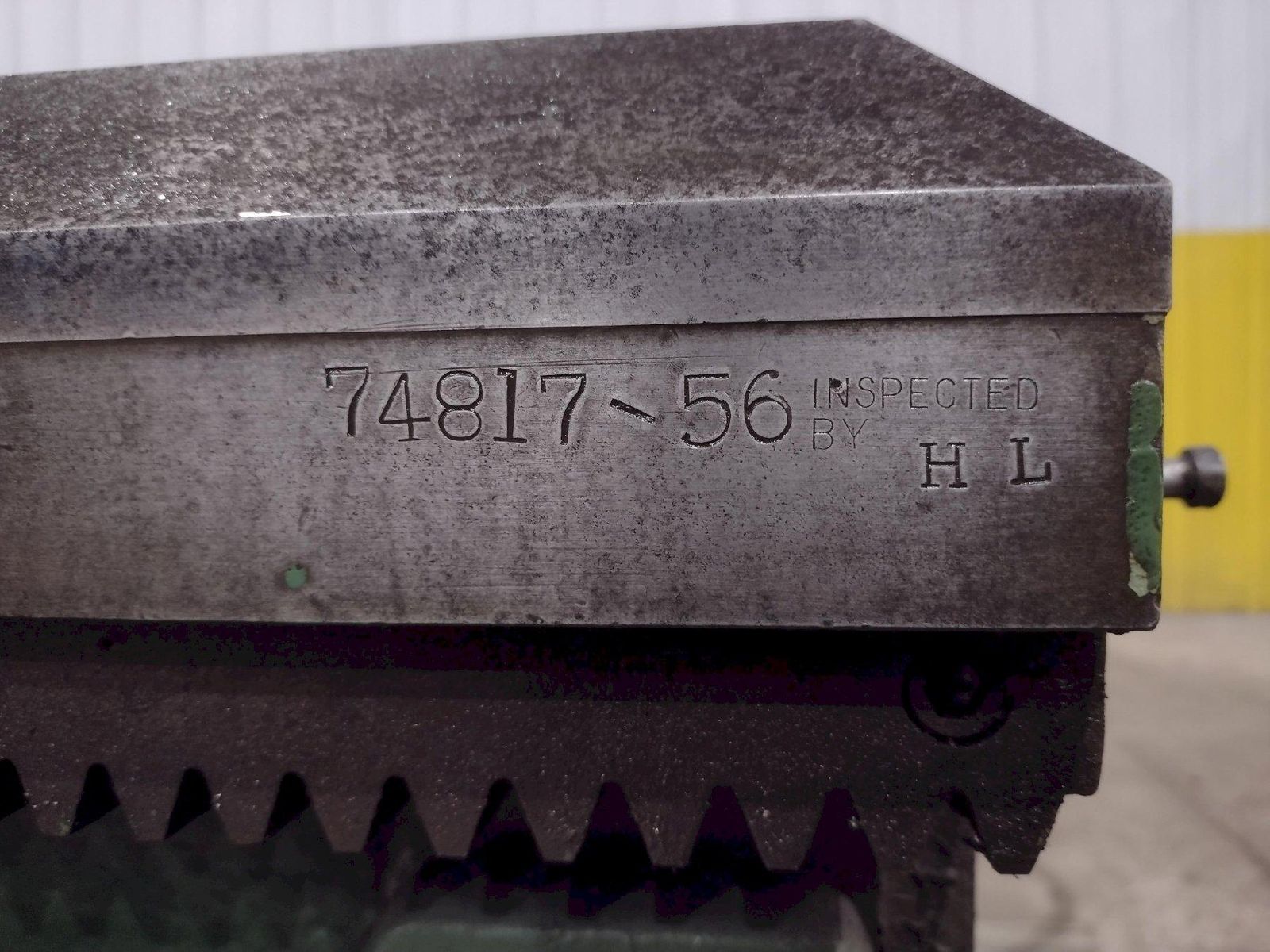

SERIAL .................... 7481756

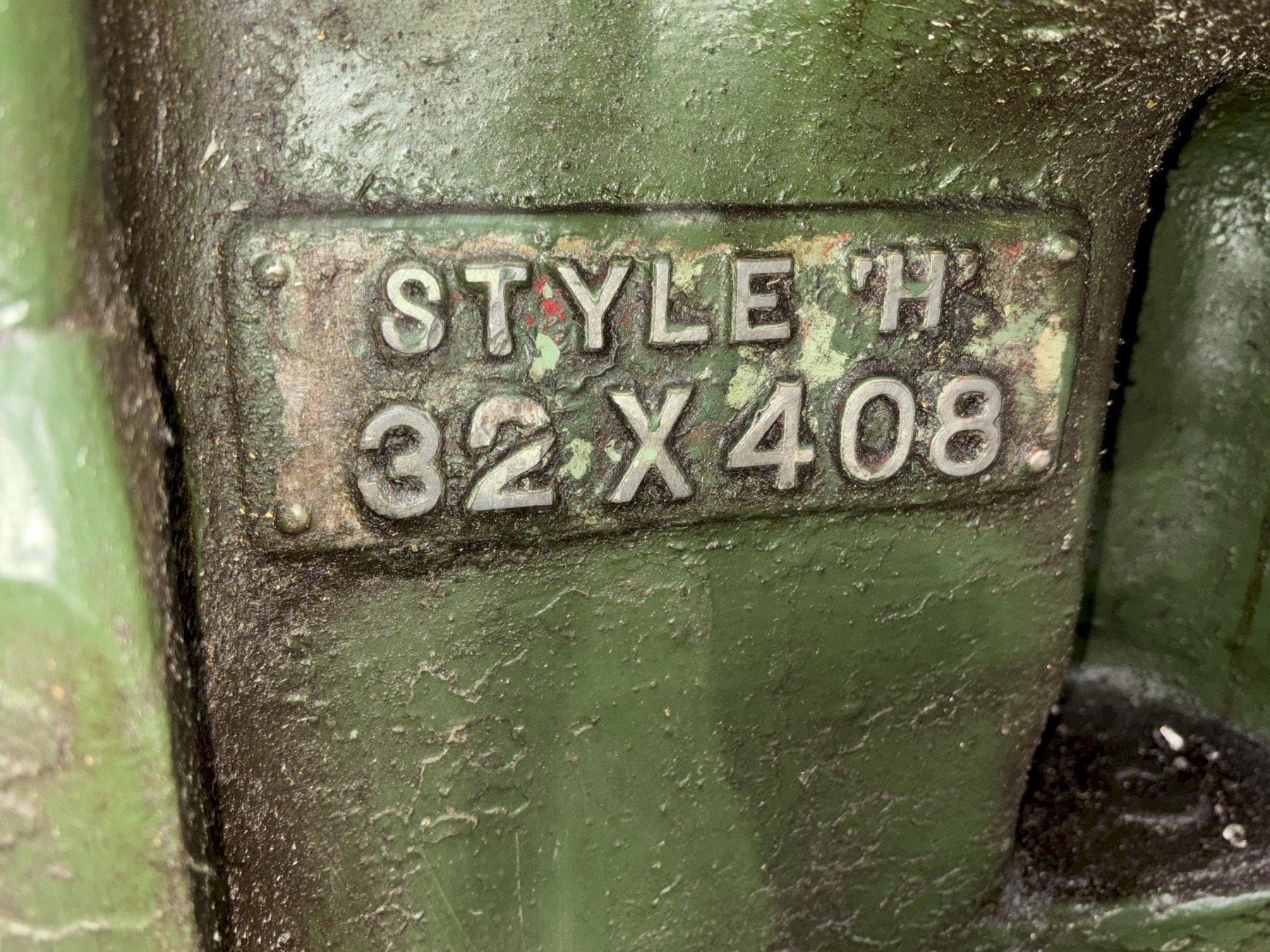

MODEL ..................... H32 X 408
SWING OVER BED ............ 40"
SWING OVER CROSSLIDE ...... 27"
DISTANCE BETWEEN CENTERS .. 420" (35')
SPINDLE HOLE .............. 2-7/8"

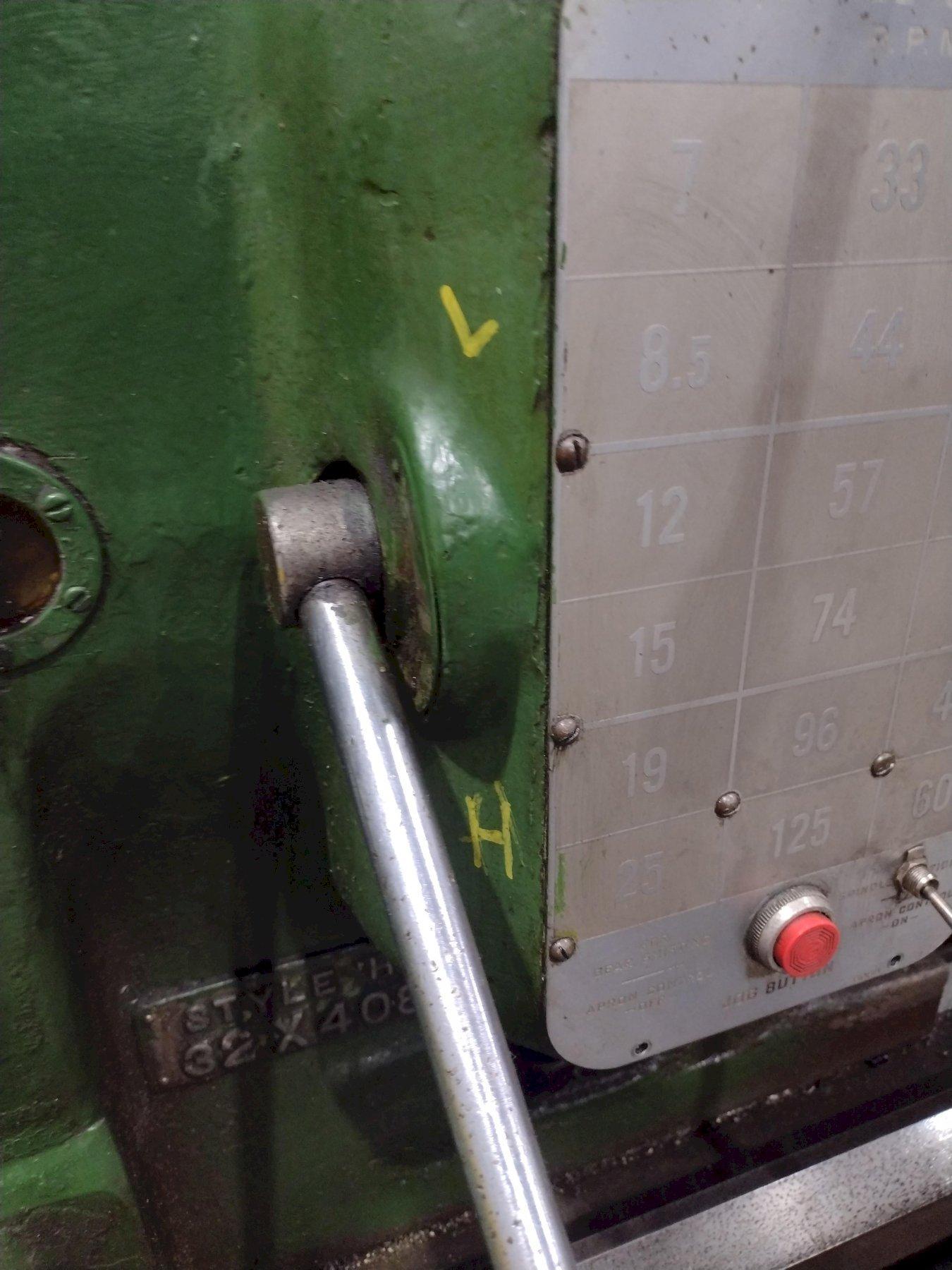

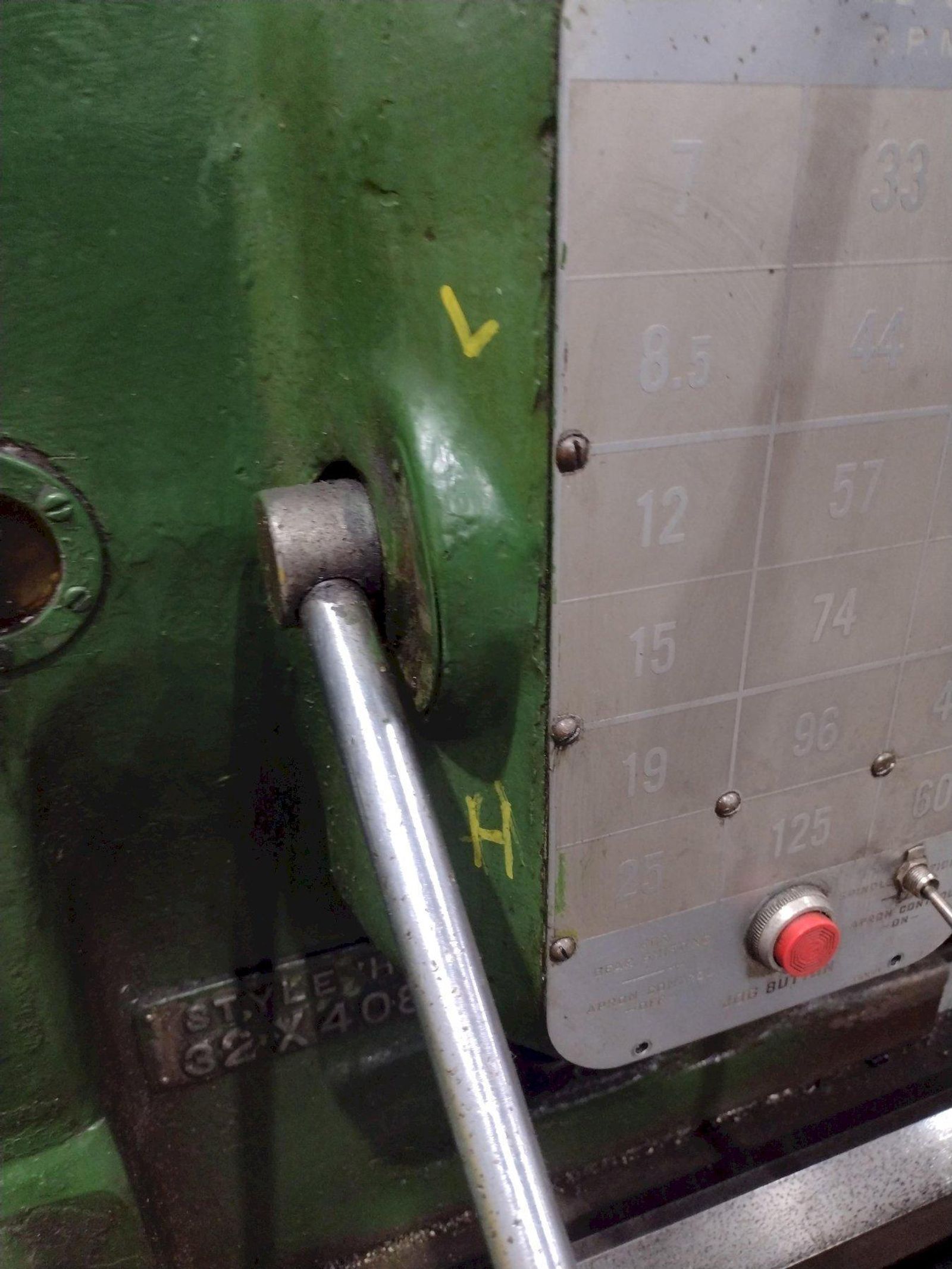

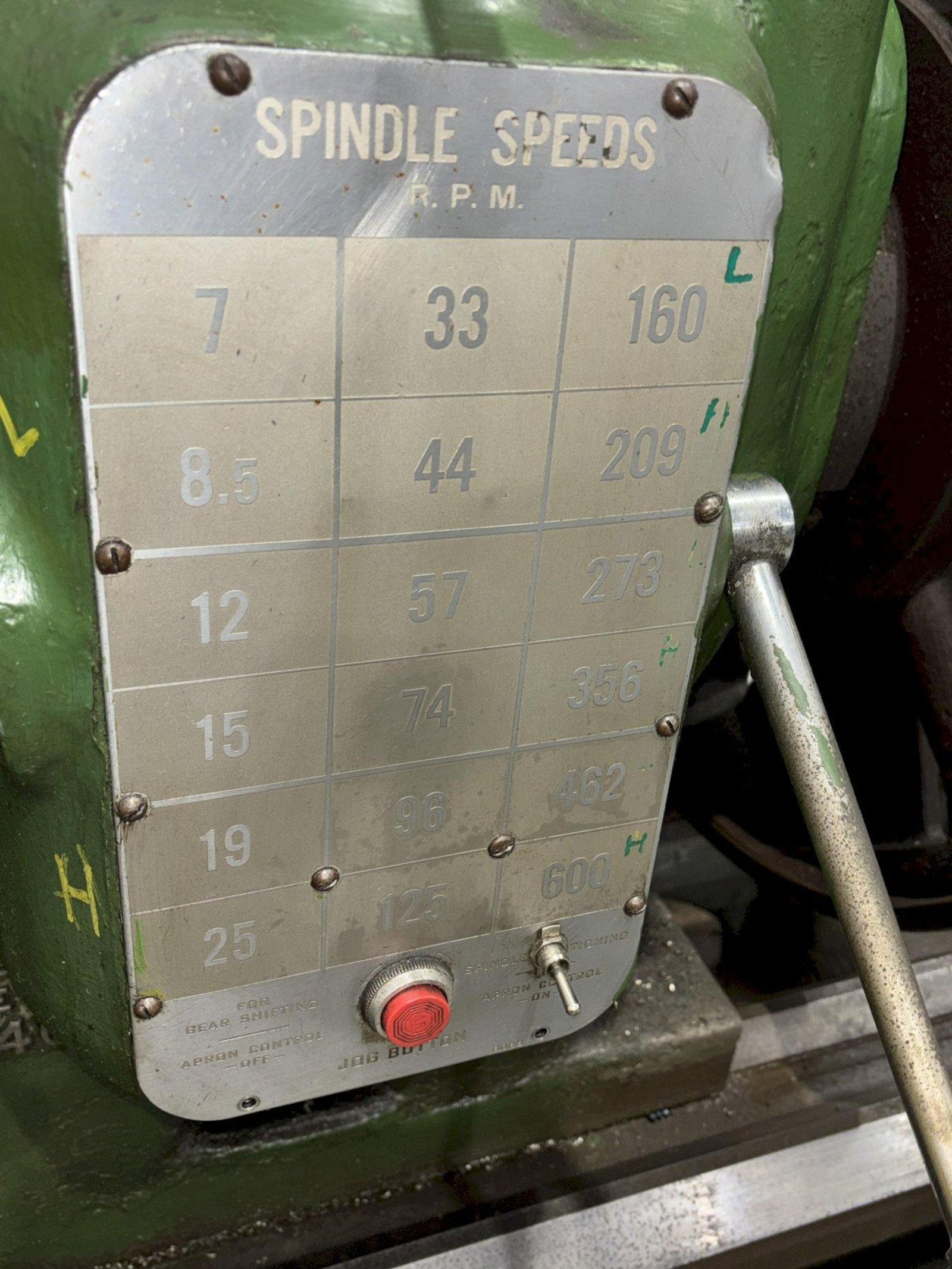

SPINDLE SPEEDS ............ (27) 6 TO 600 RPM

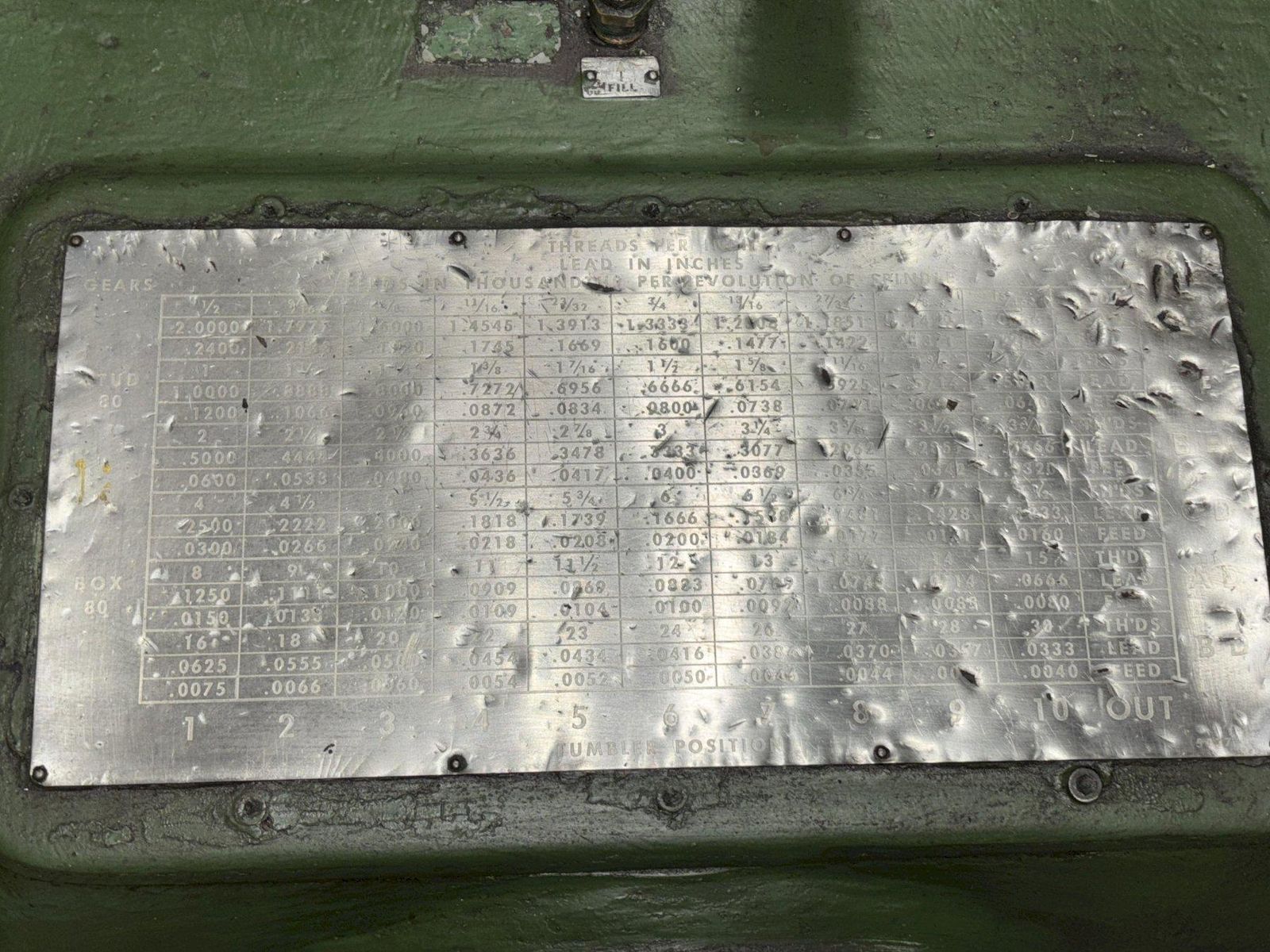

THREADS ................... (60) 1/2 TO 30 TPI
FEEDS ..................... (120) .0040 TO .24000 IRP
LEADS ..................... .0033 TO 2.000

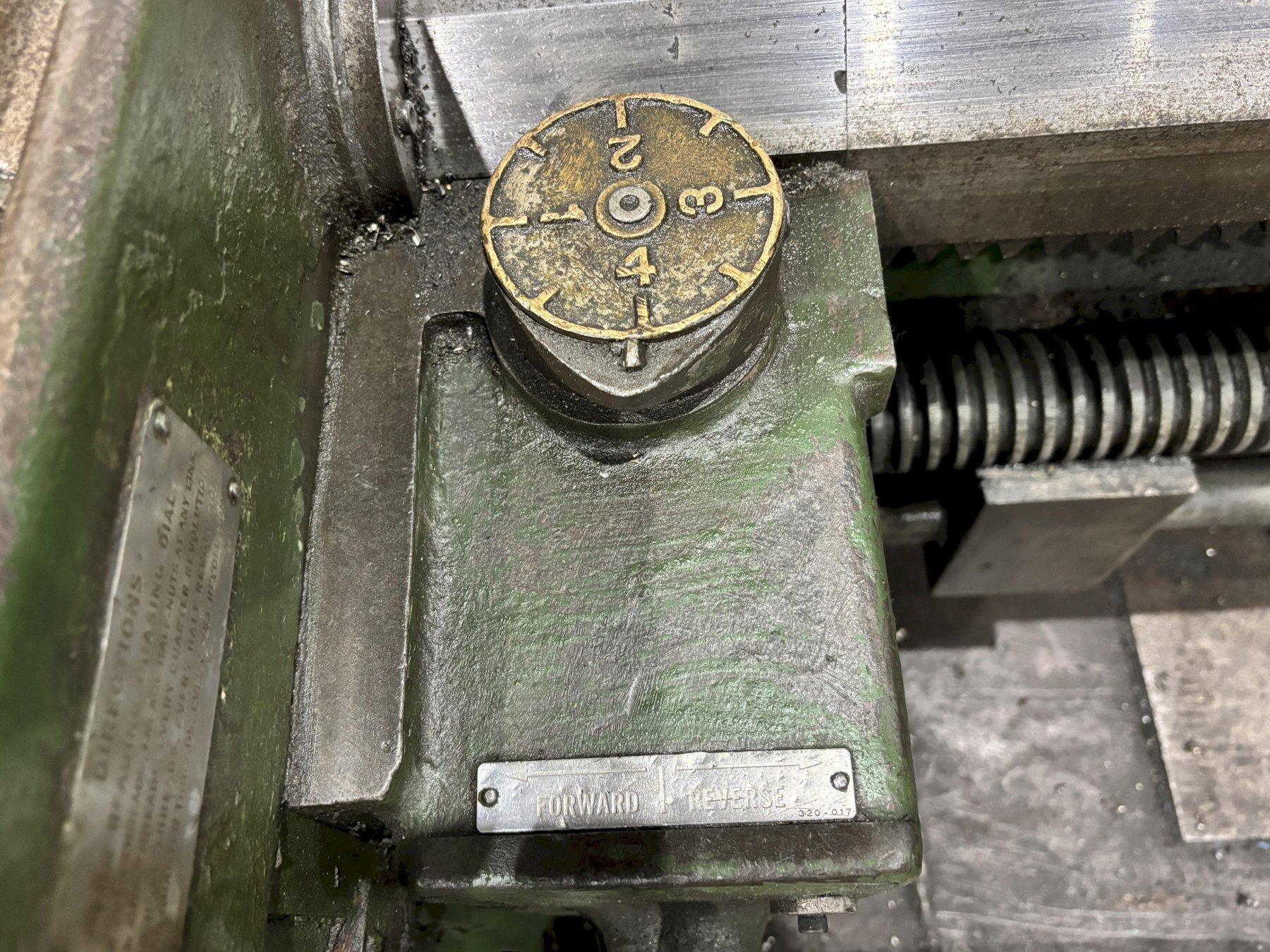

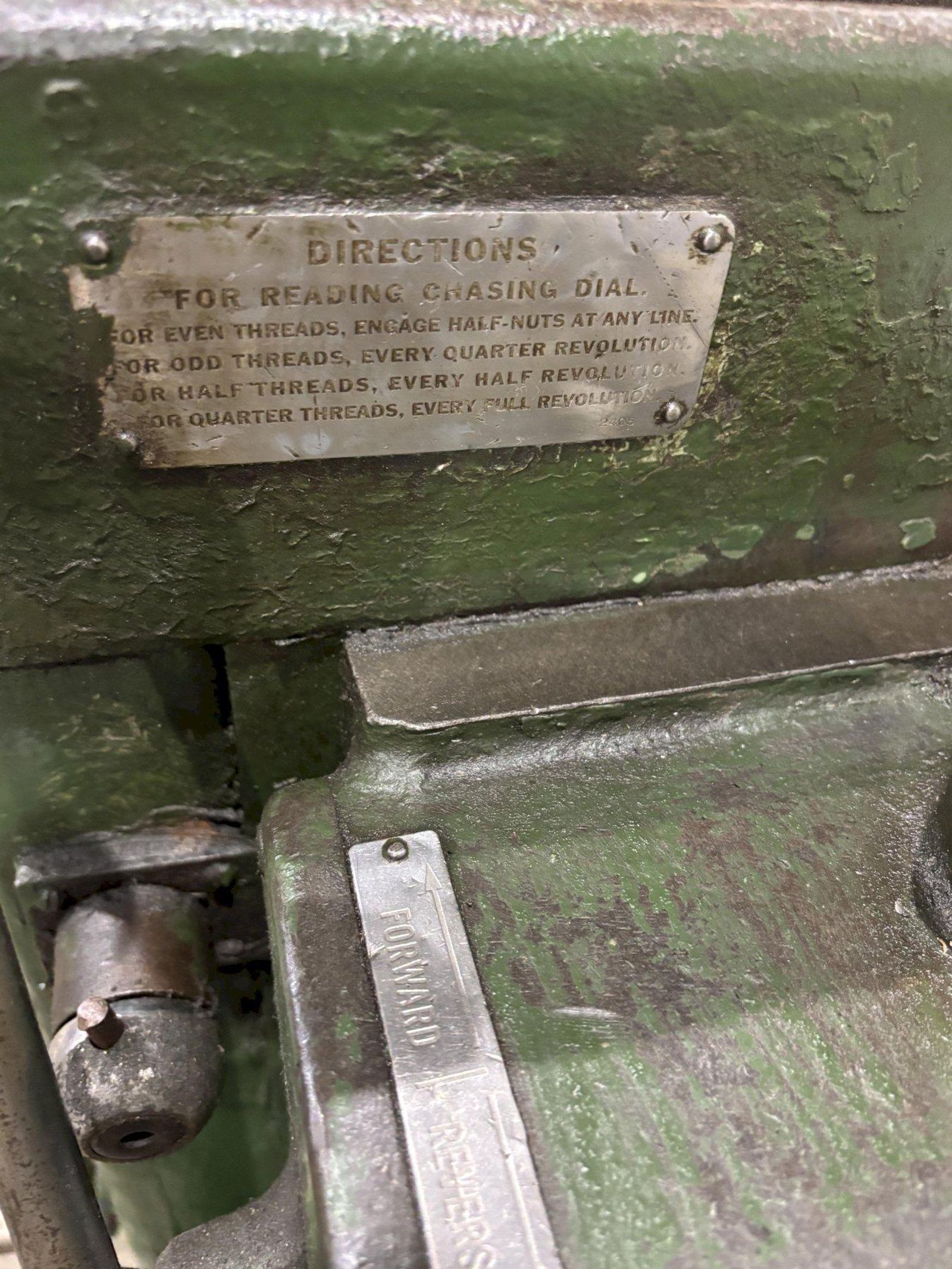

THREAD DIAL ............... YES

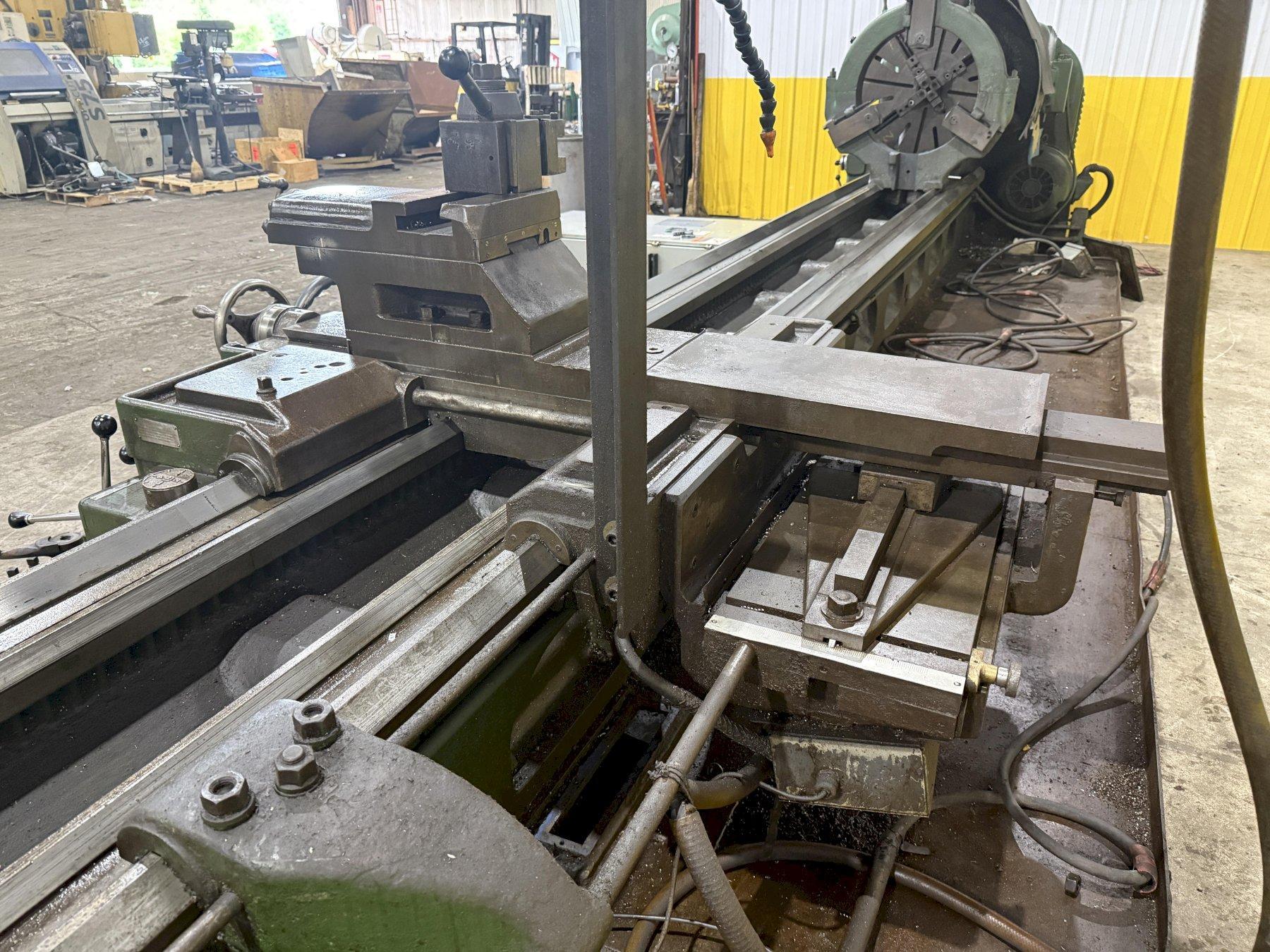

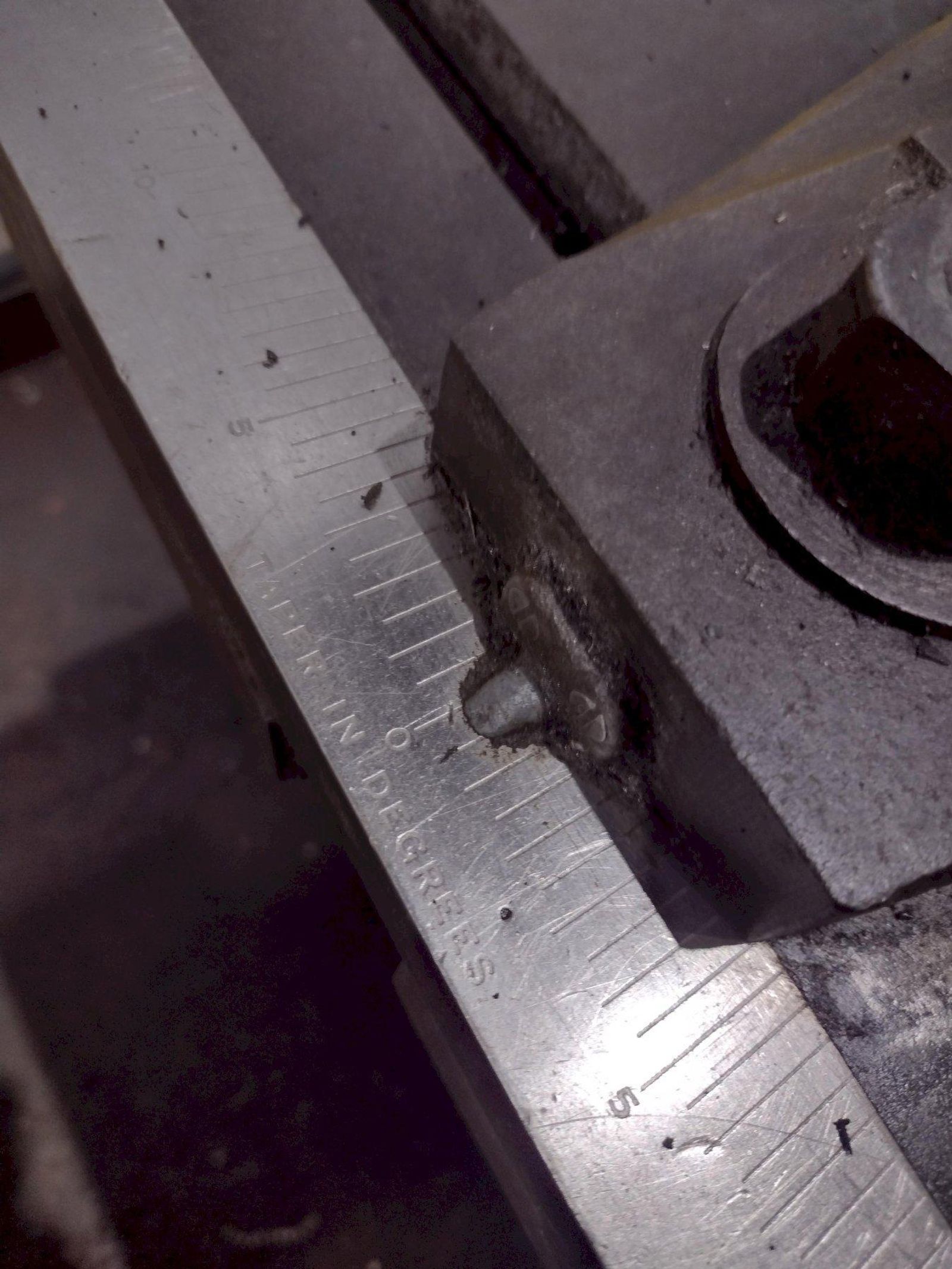

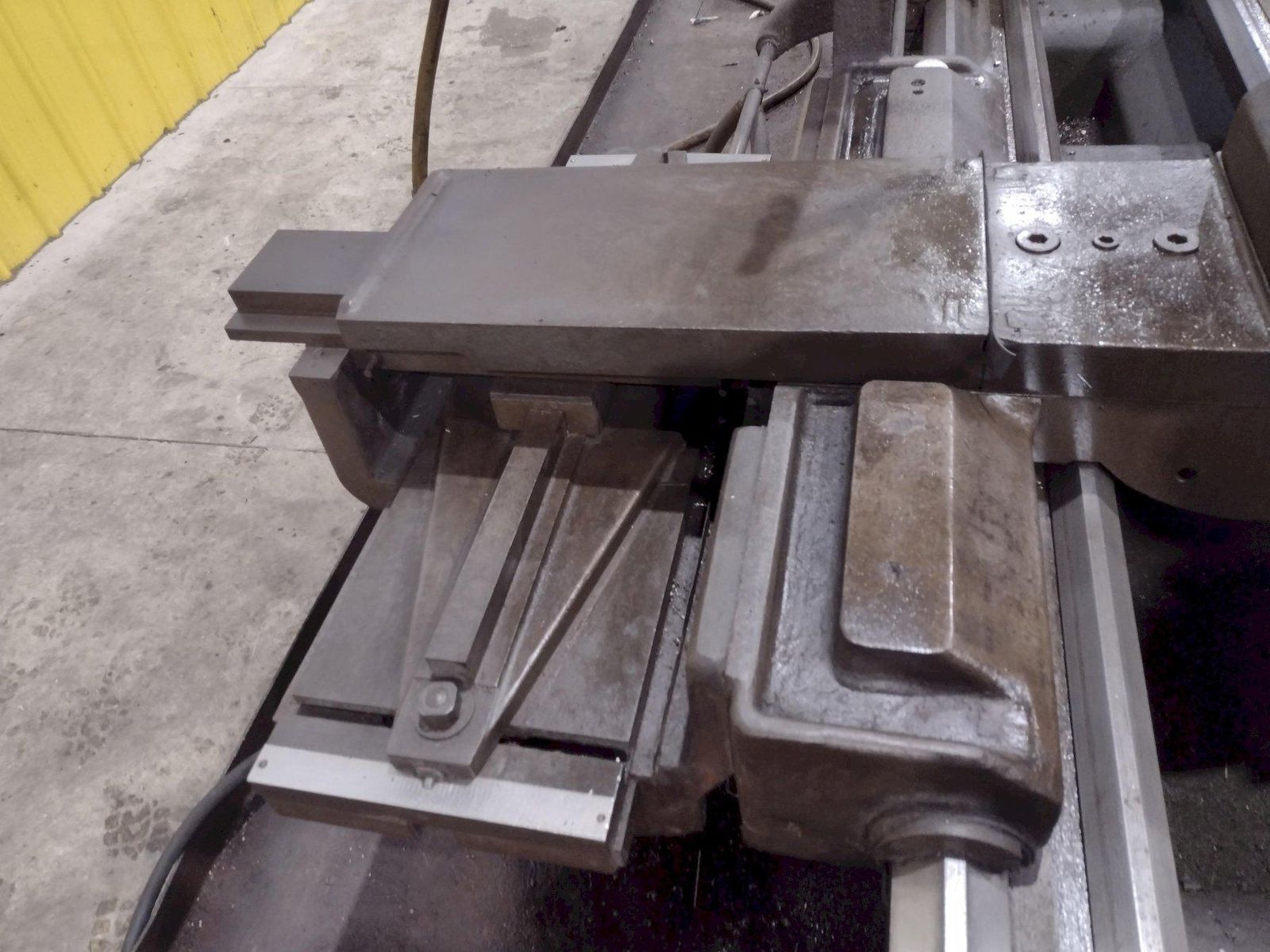

TAPER ATTACHEMENT ......... YES
RAPID TRAVERSE ............ 4 WAY

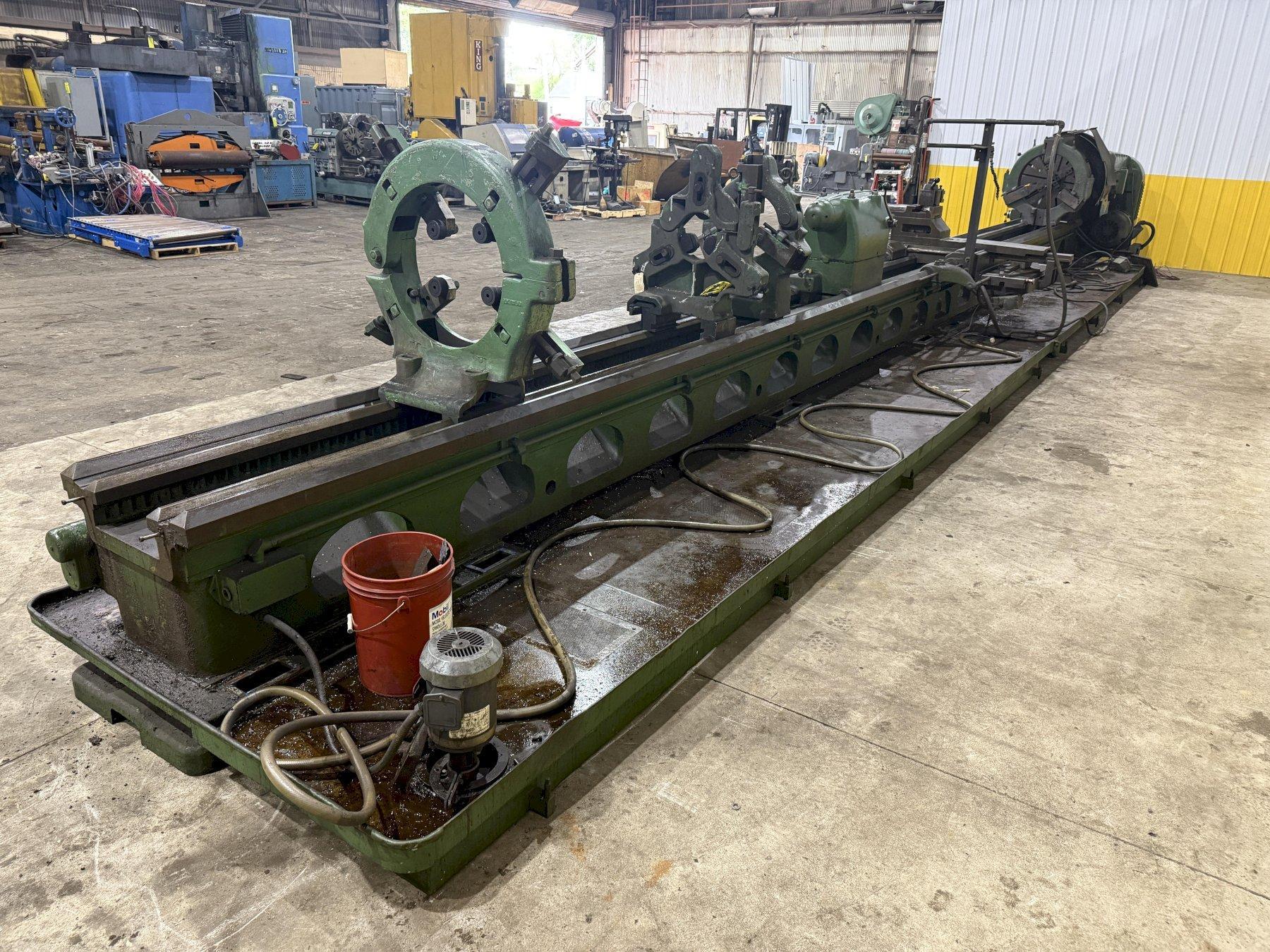

COOLANT PUMP WITH PANS .... YES

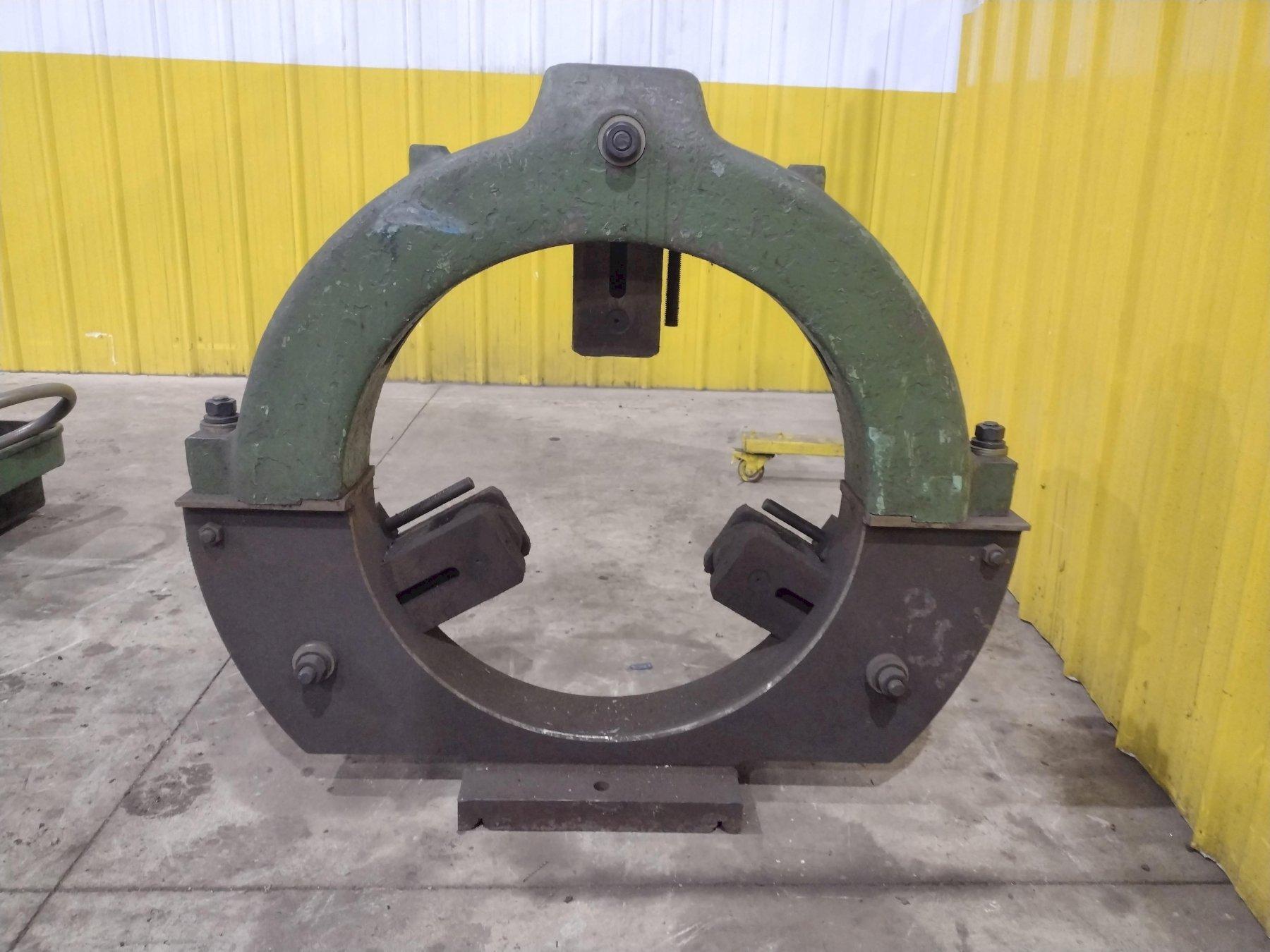

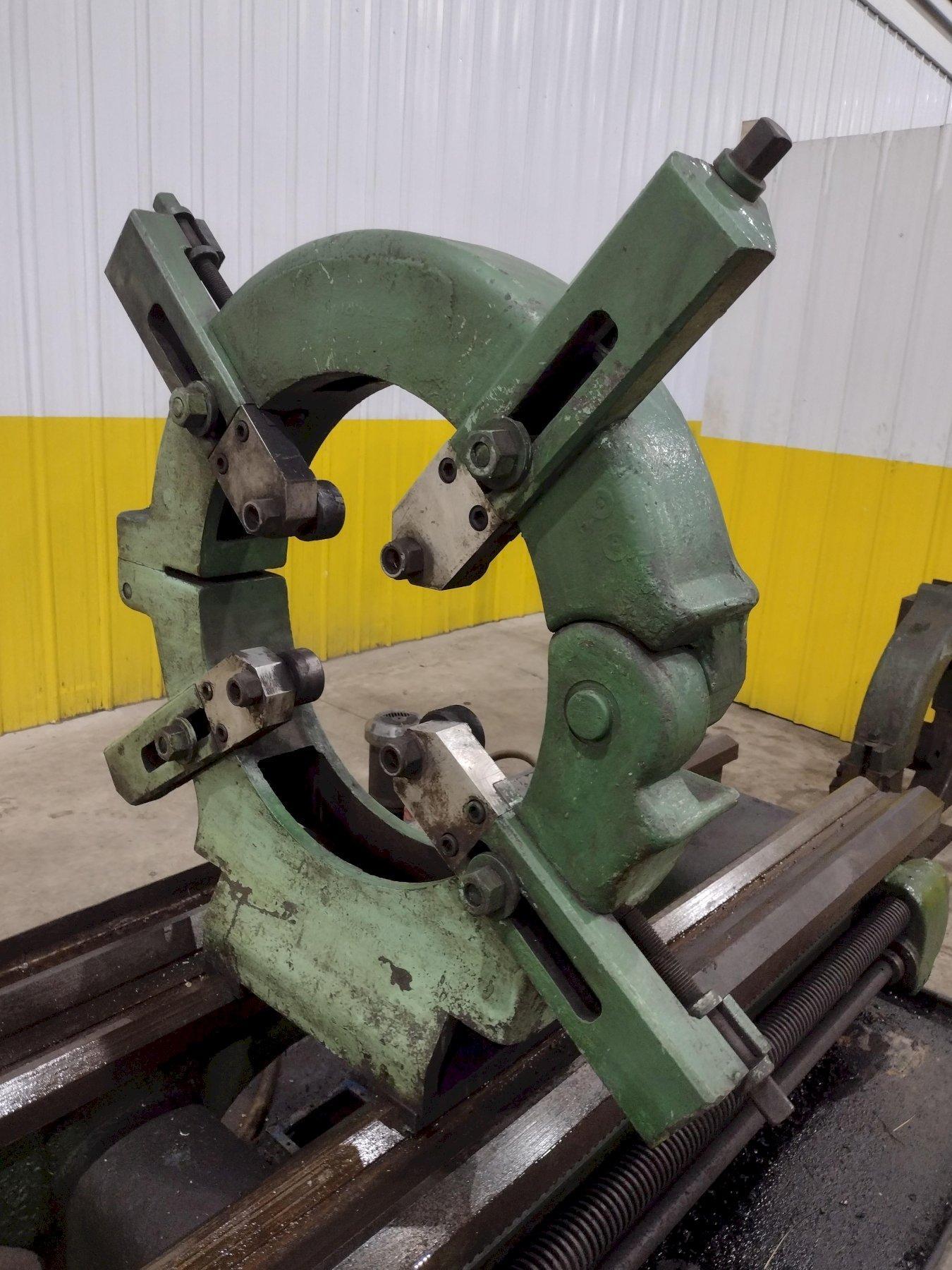

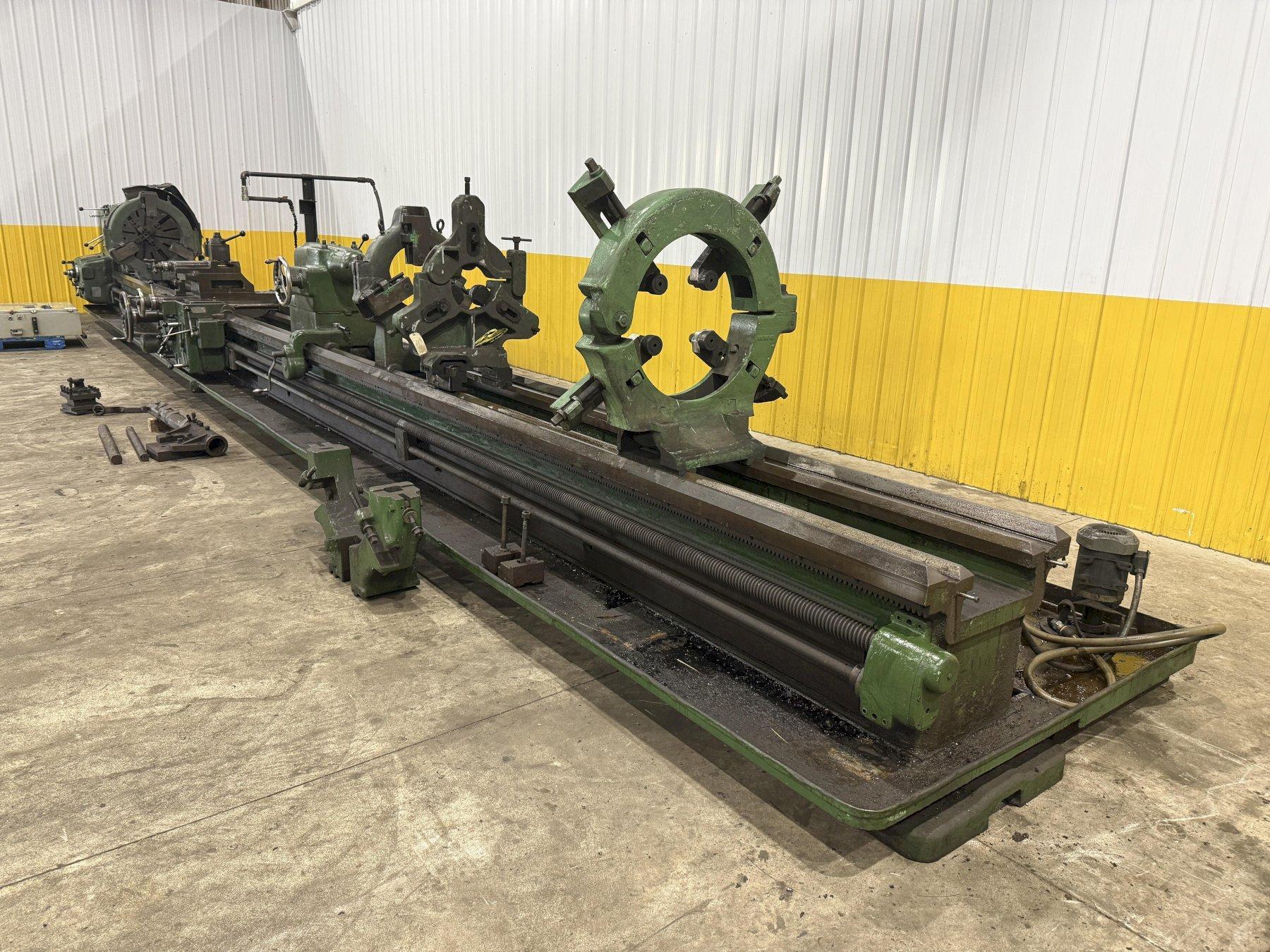

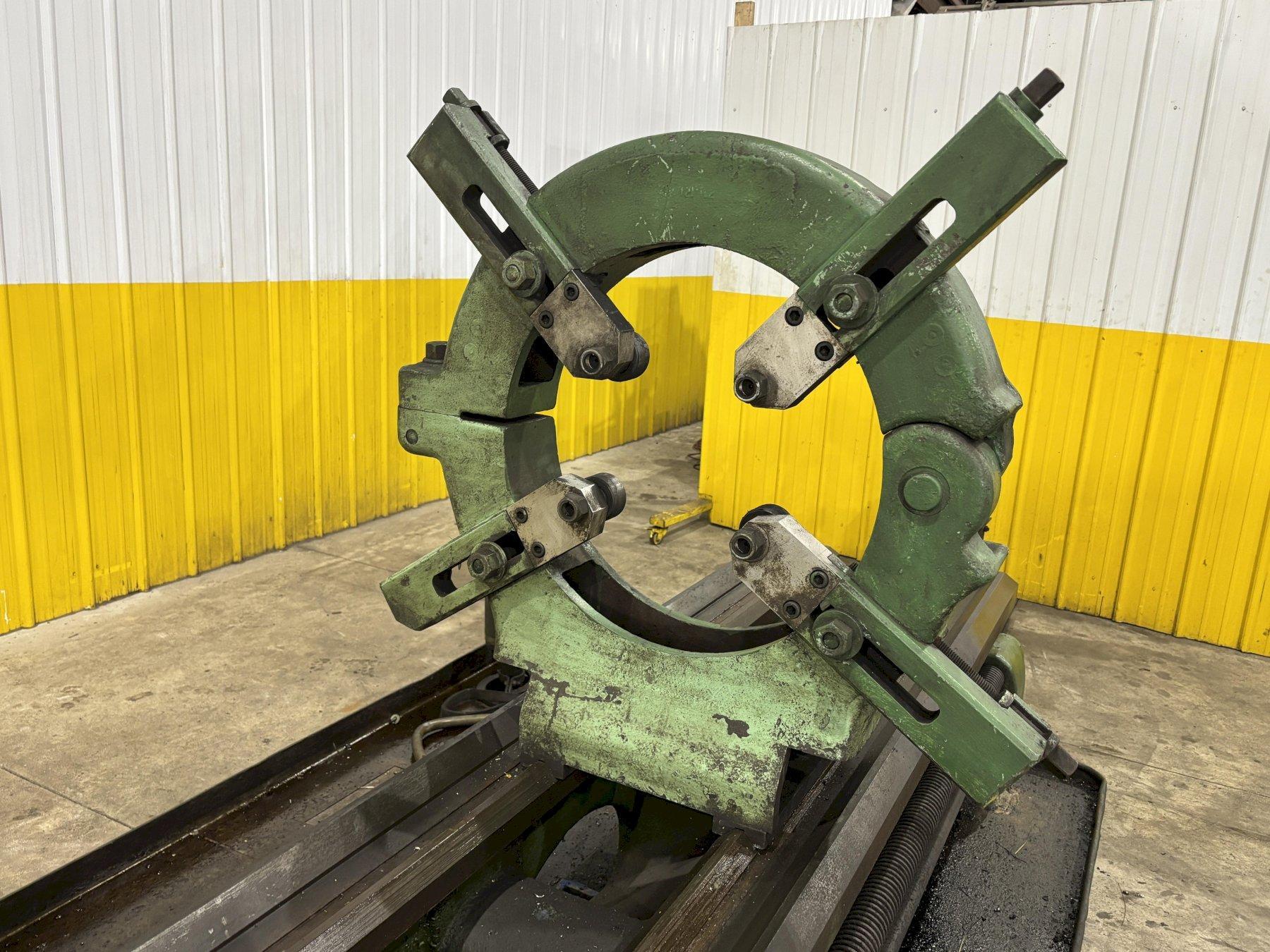

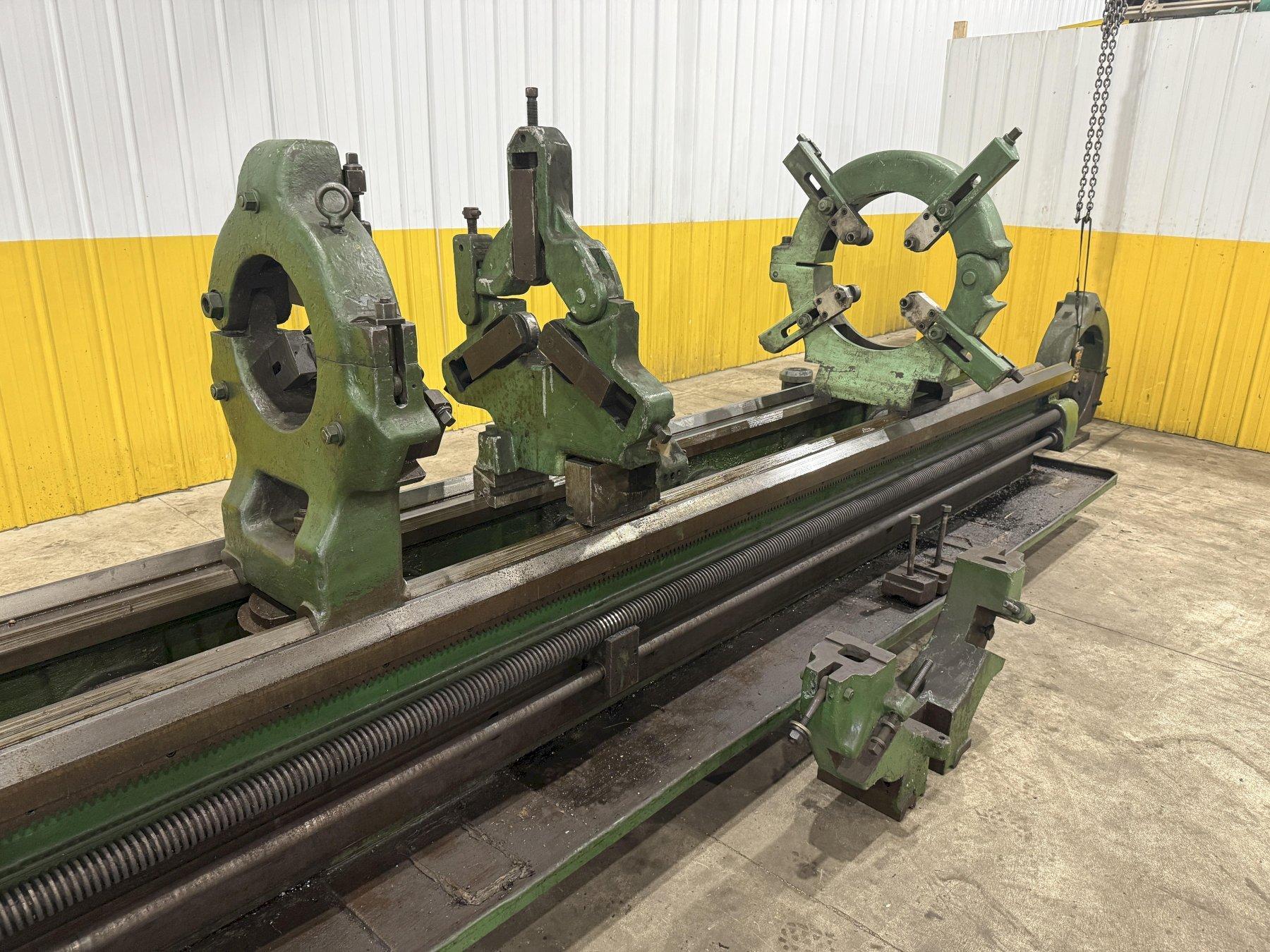

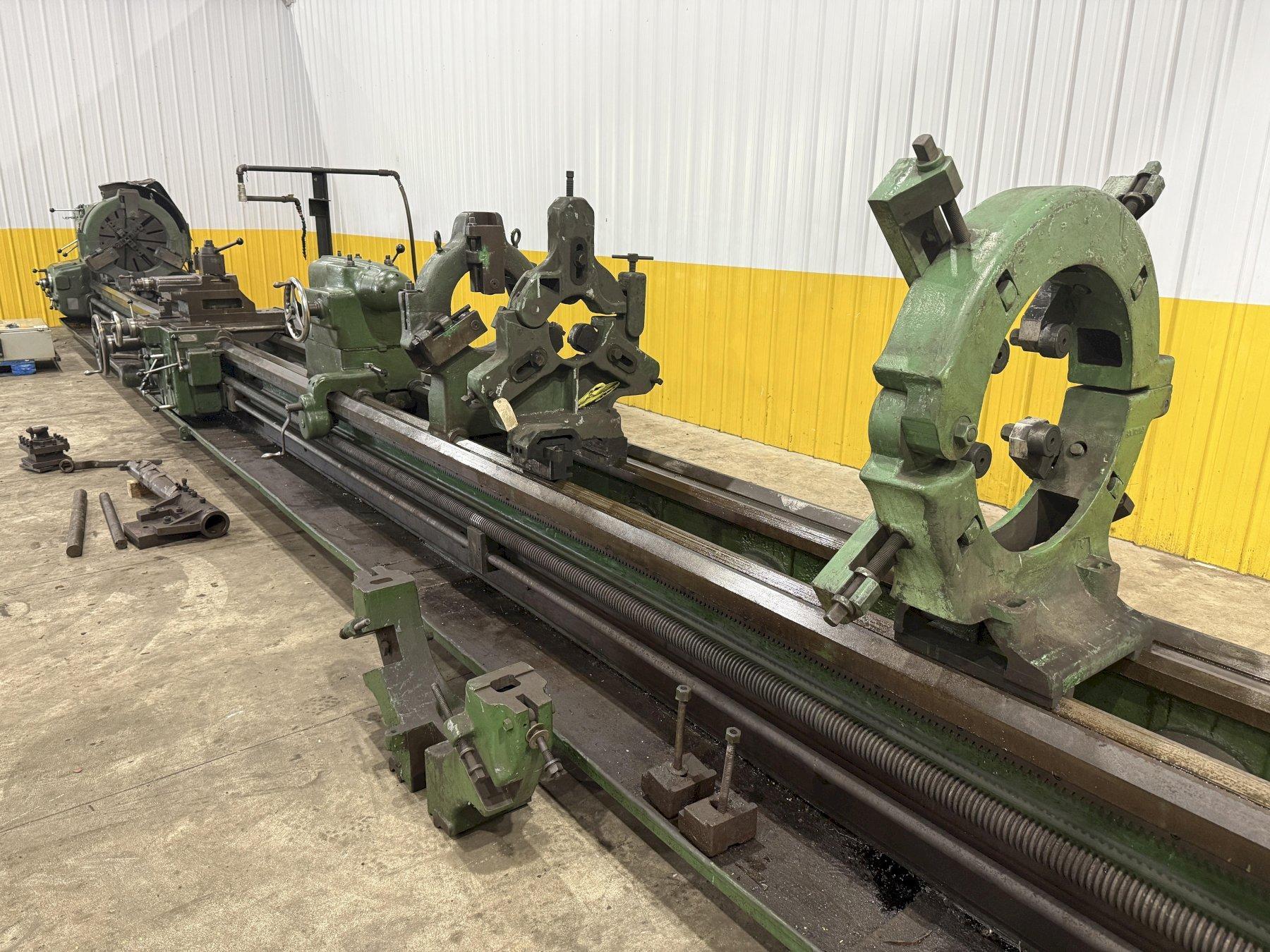

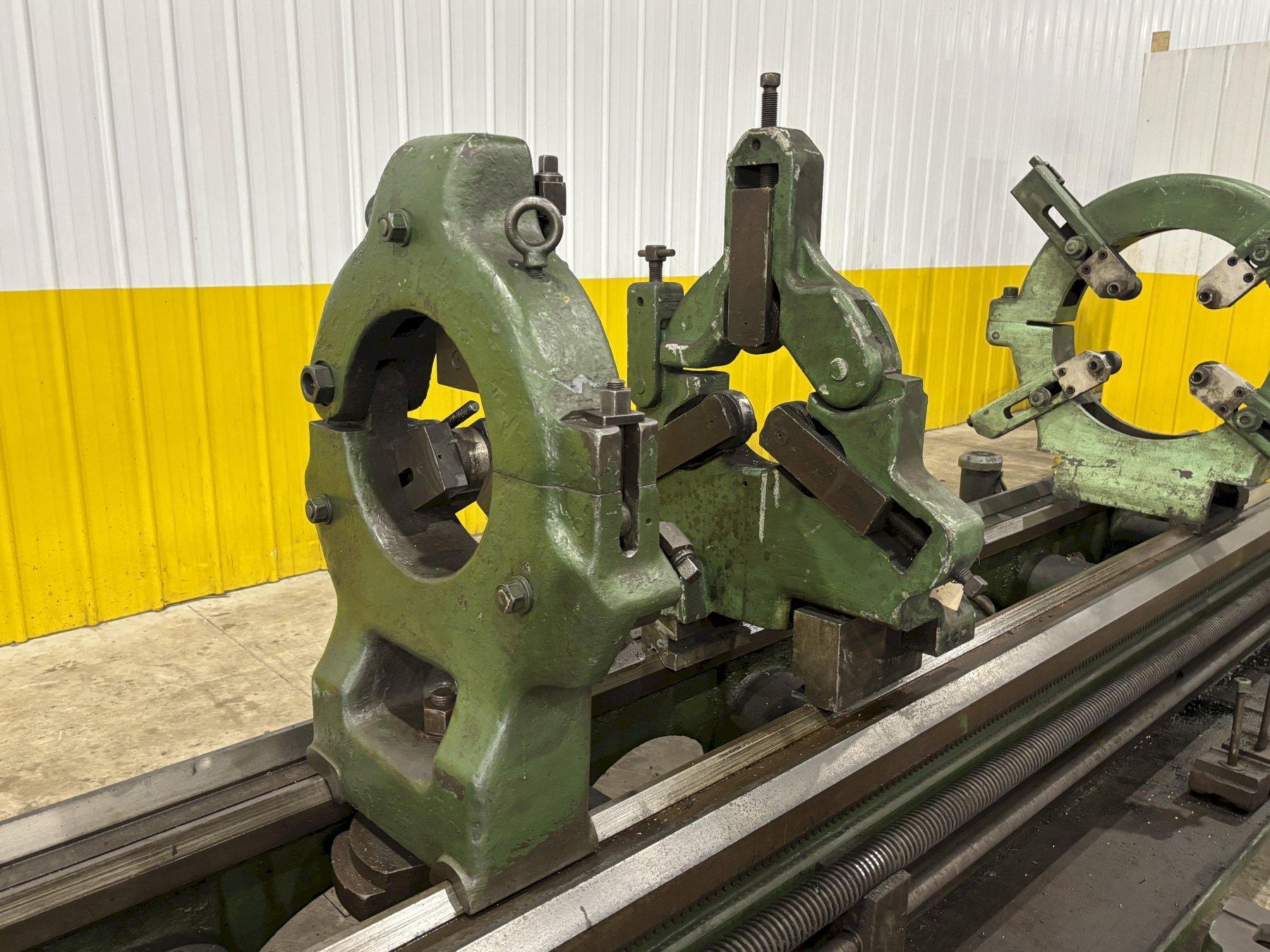

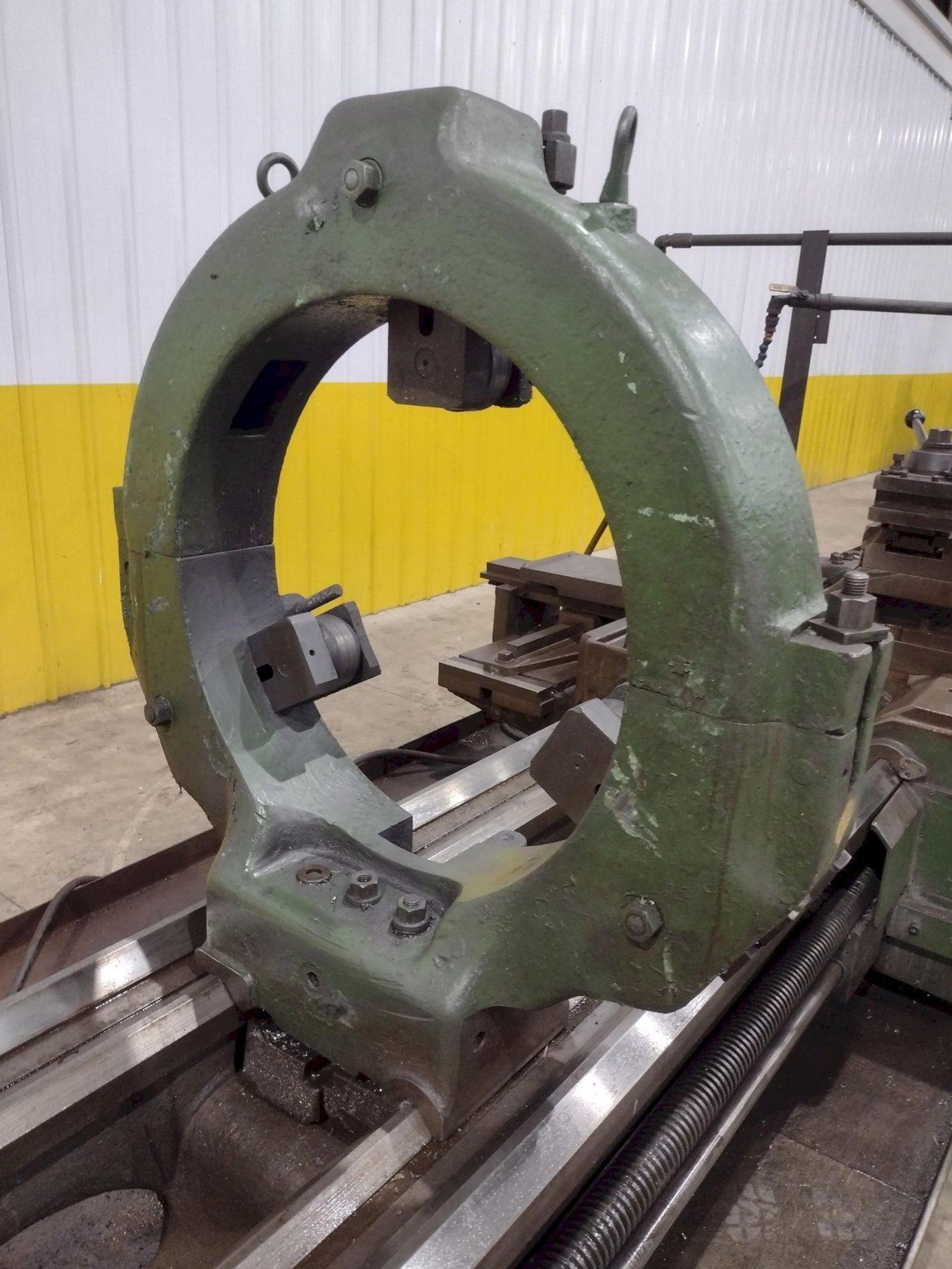

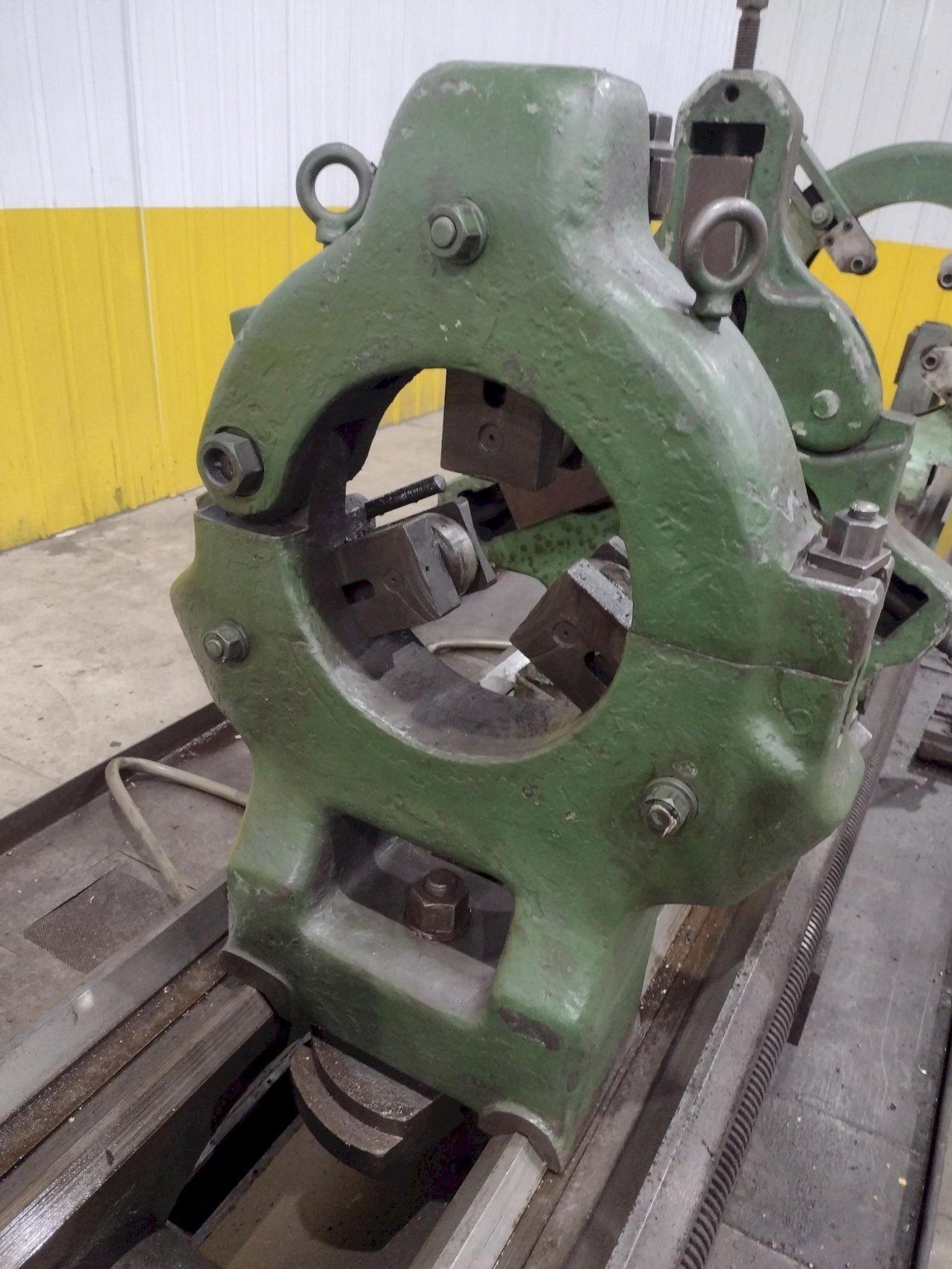

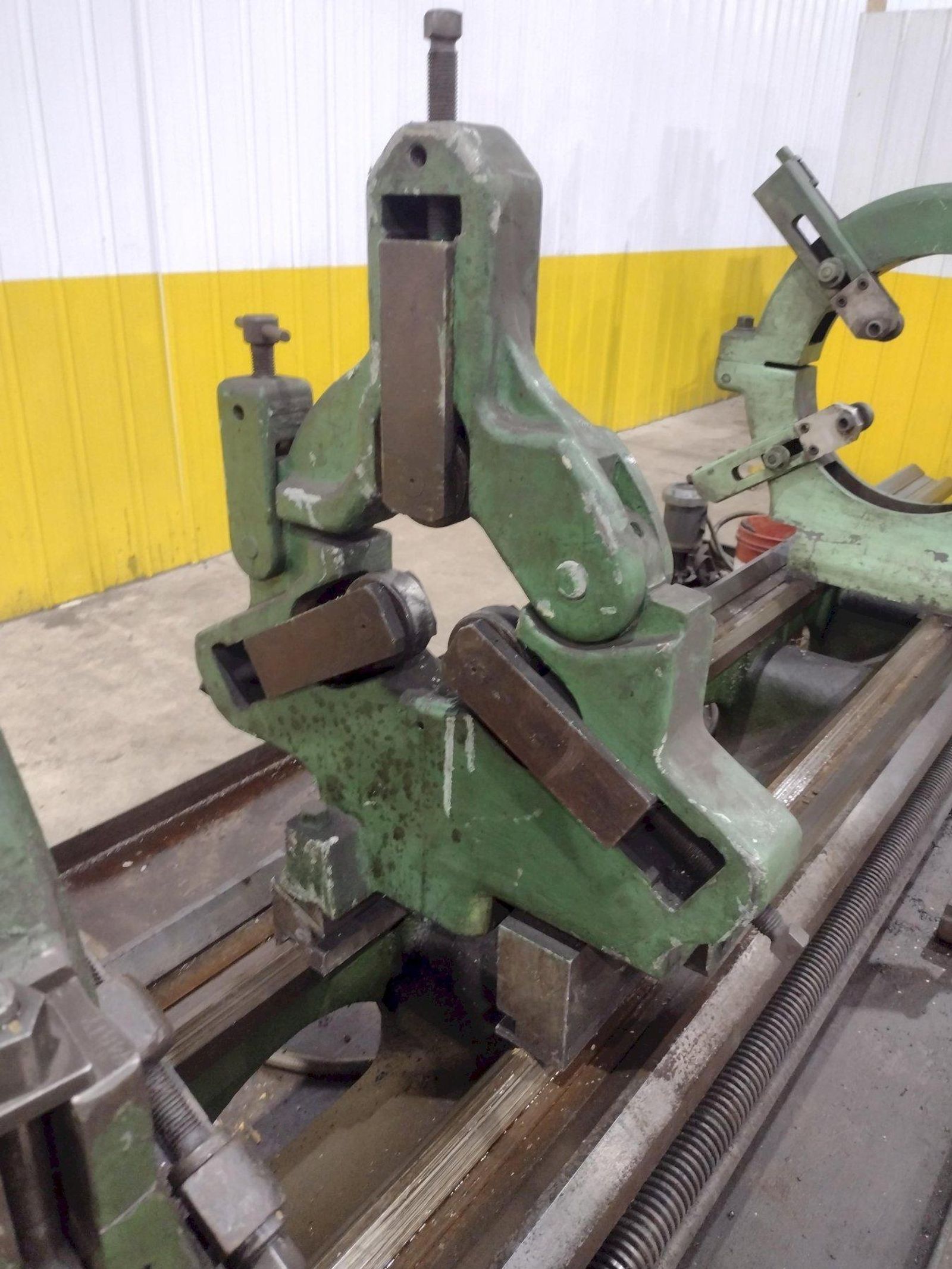

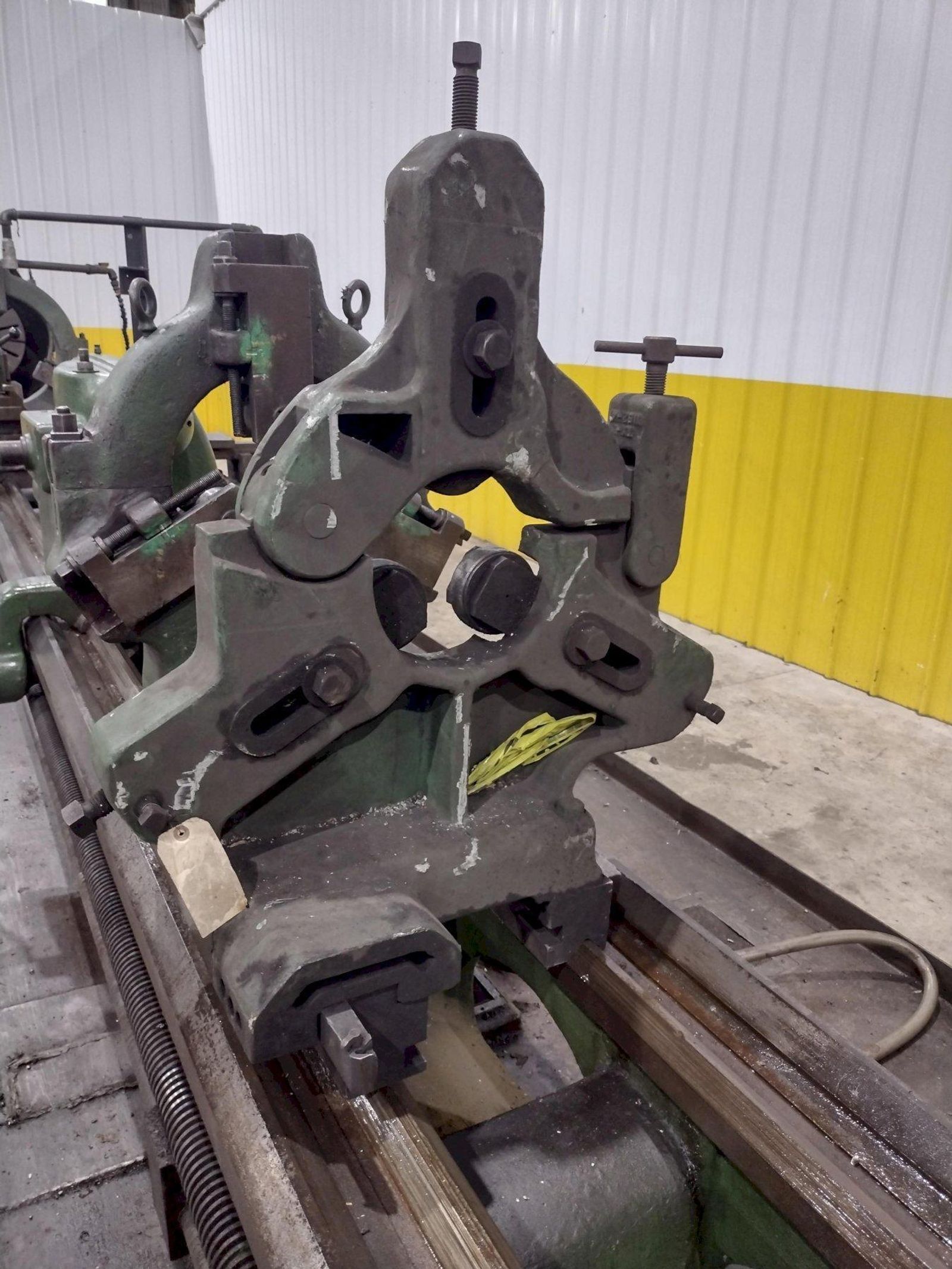

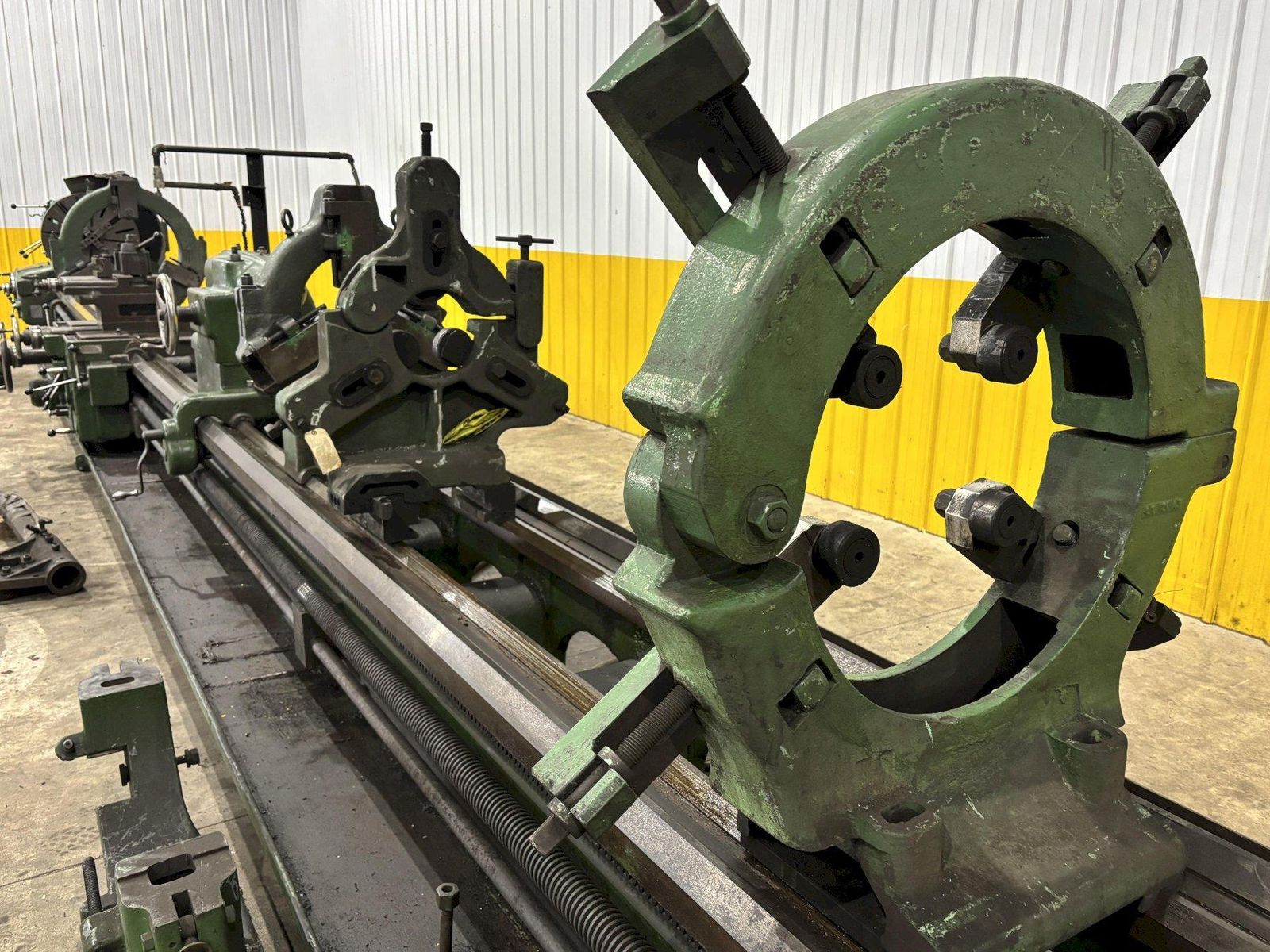

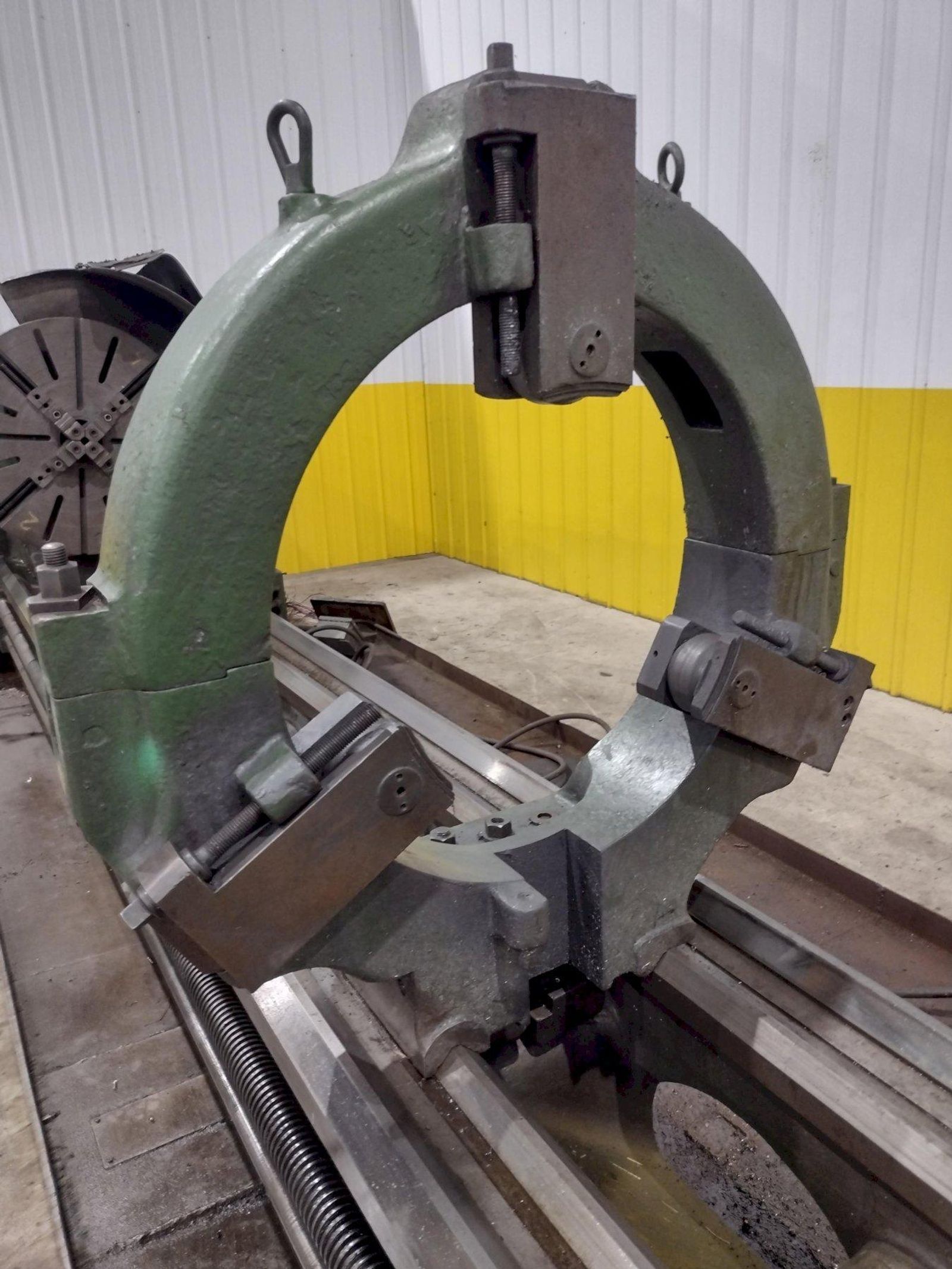

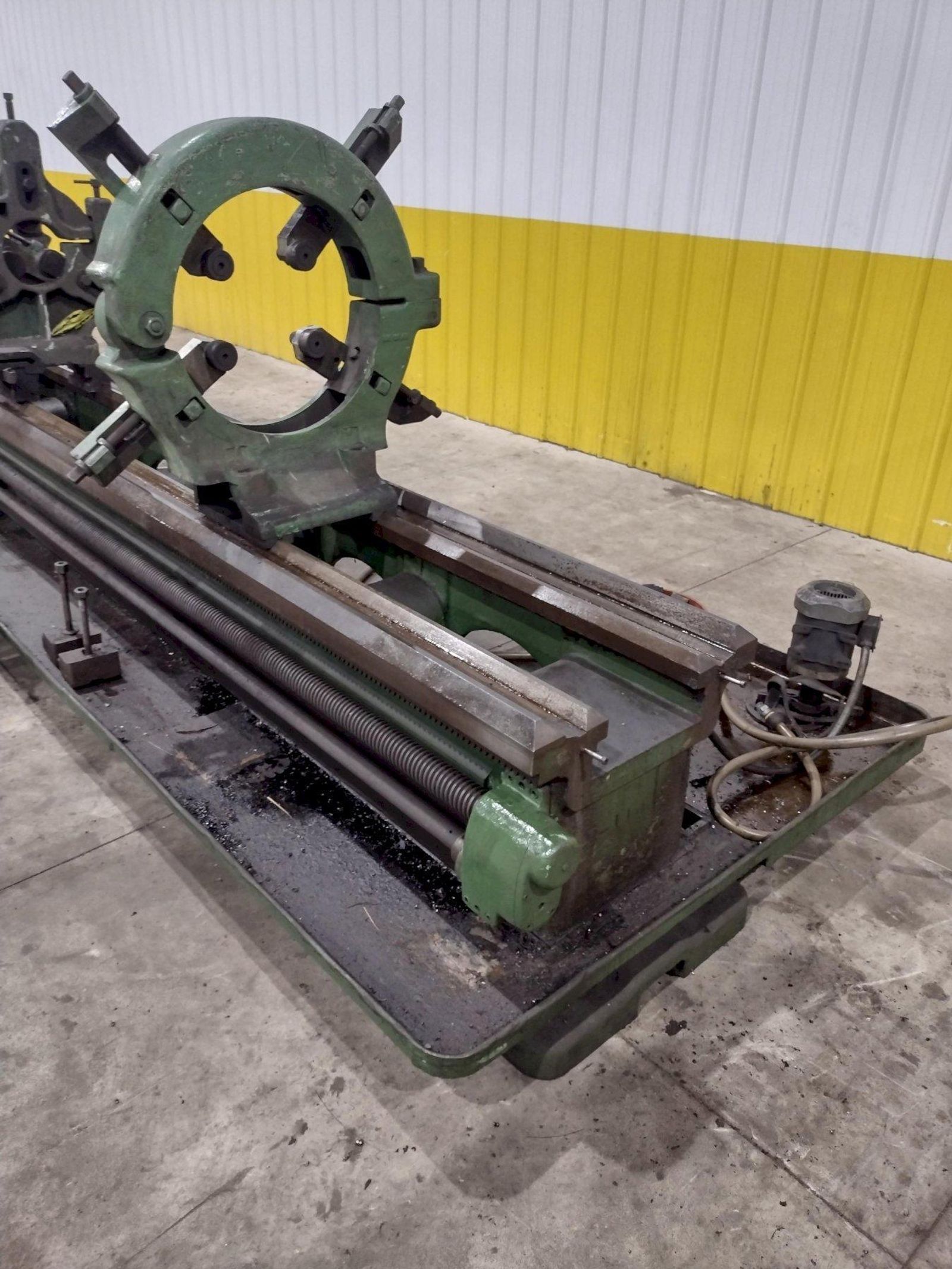

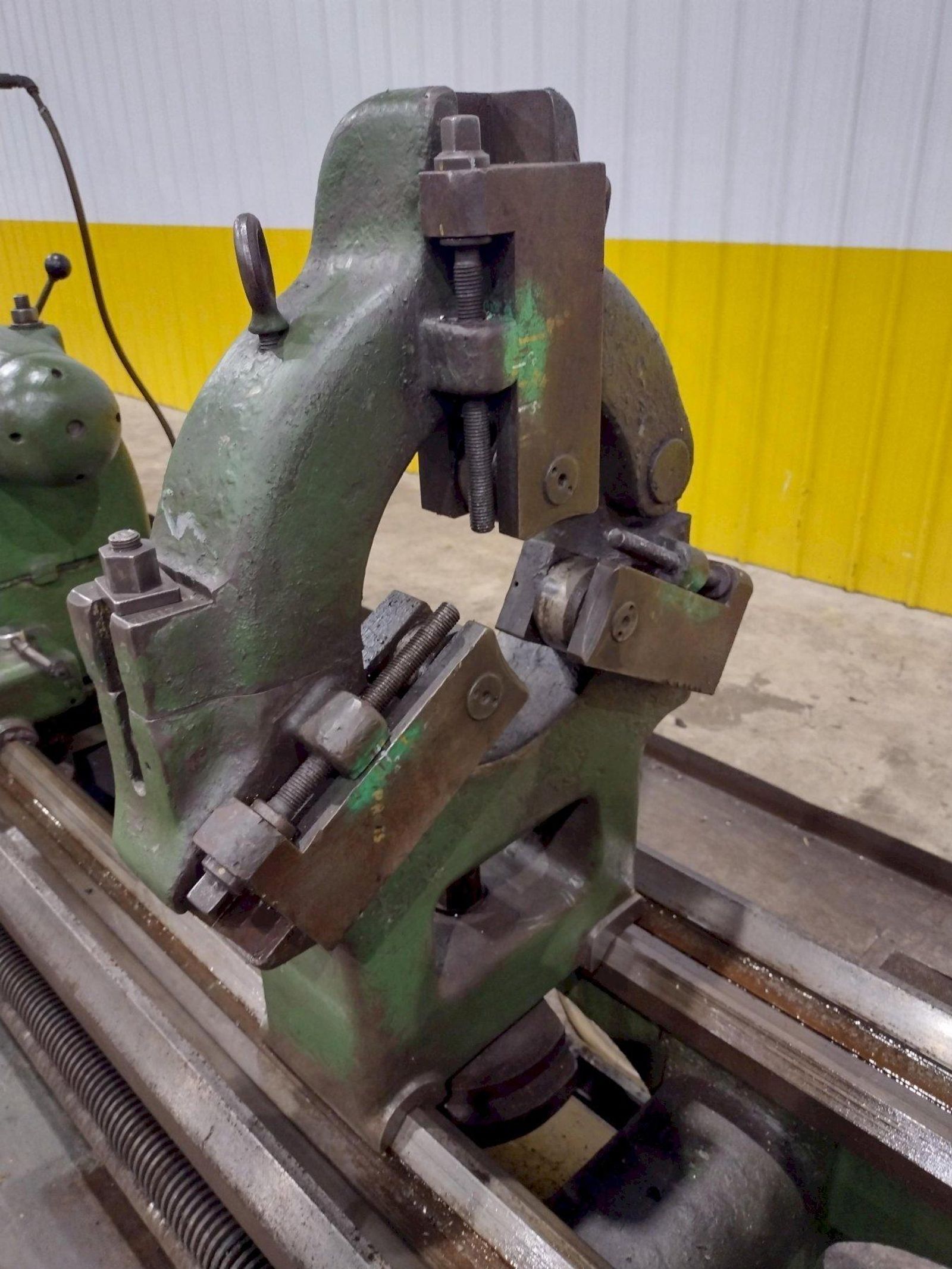

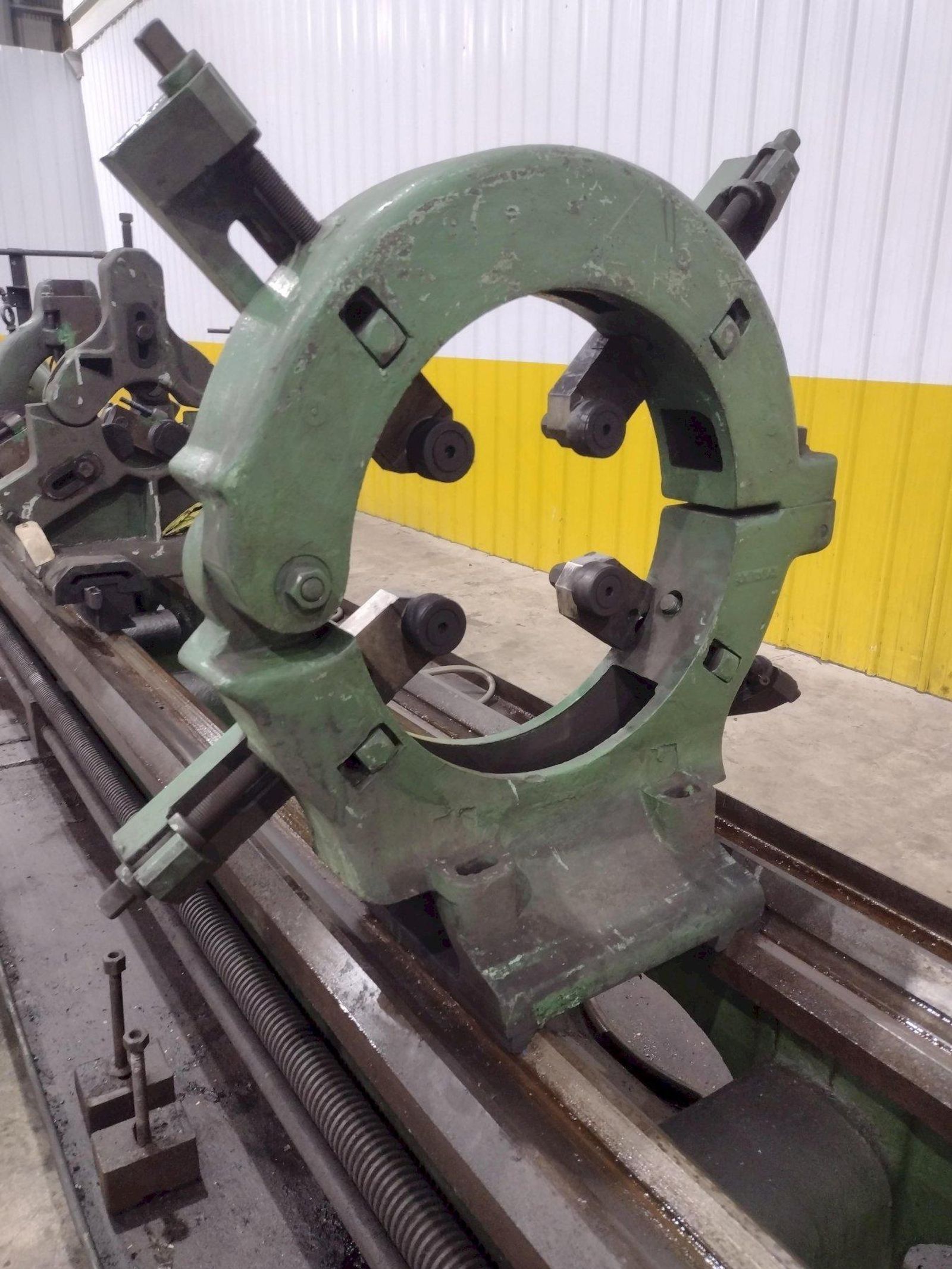

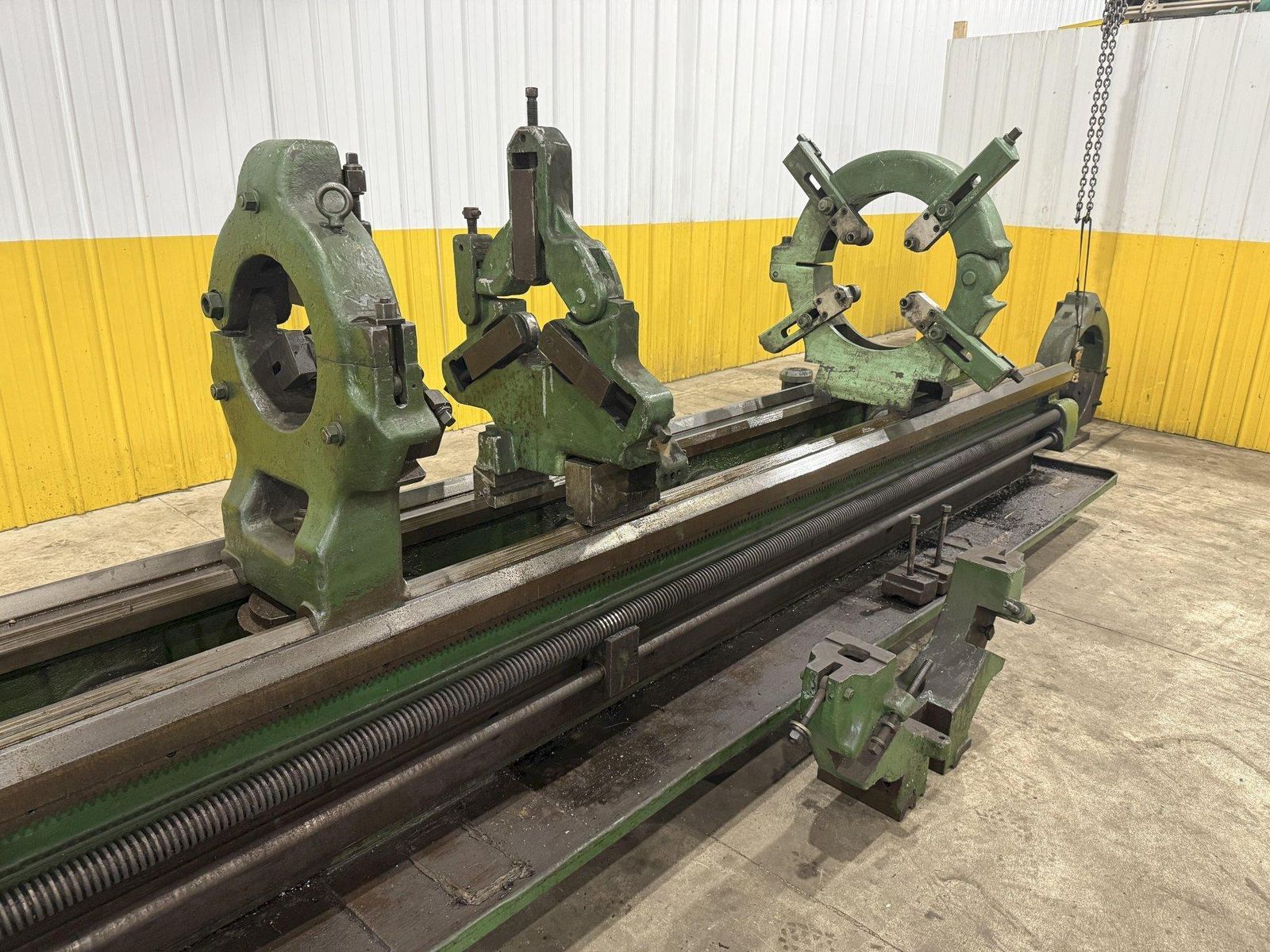

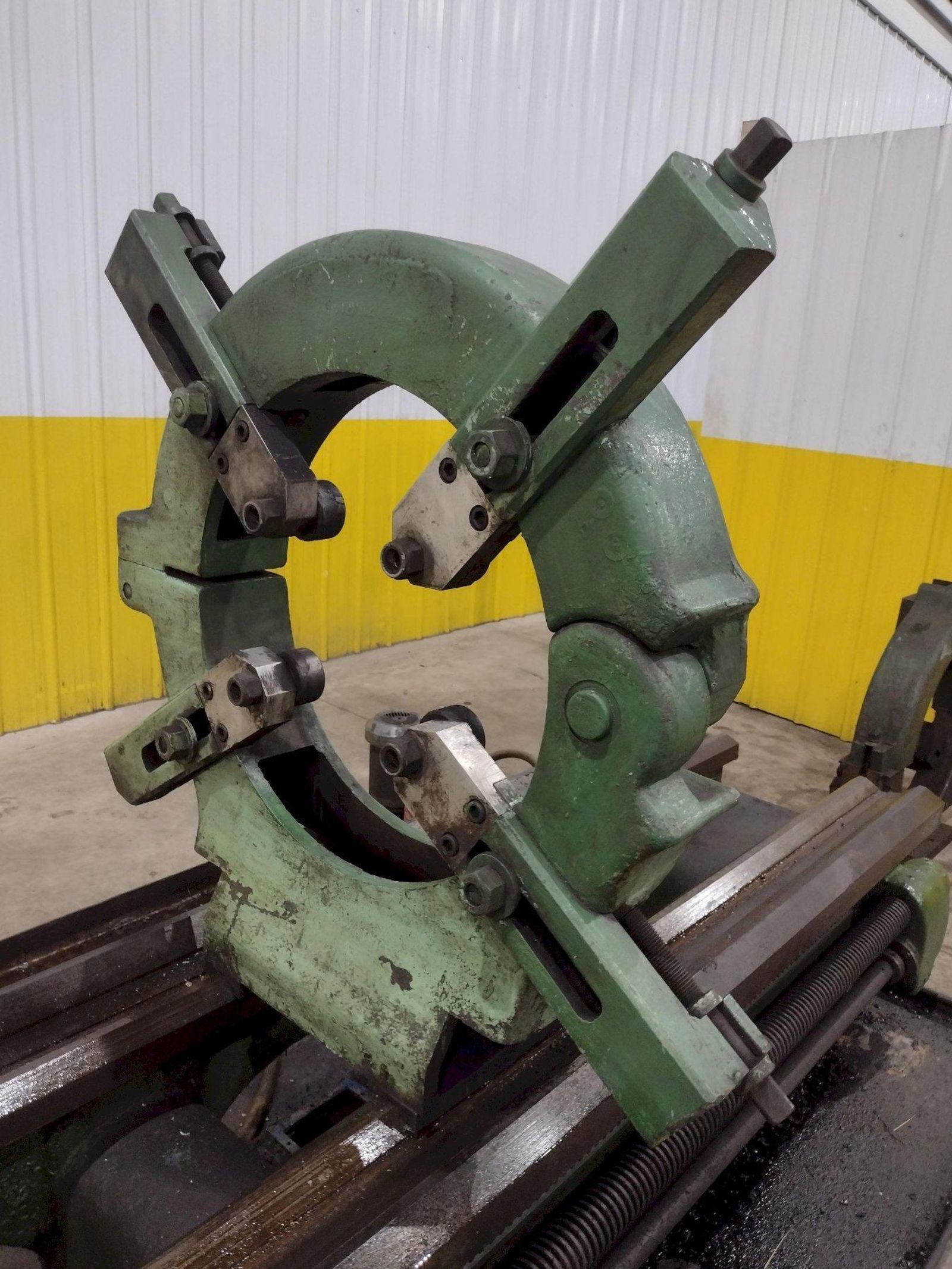

ROLLER STEADY RESTS ....... (4) 12.5" & 25"

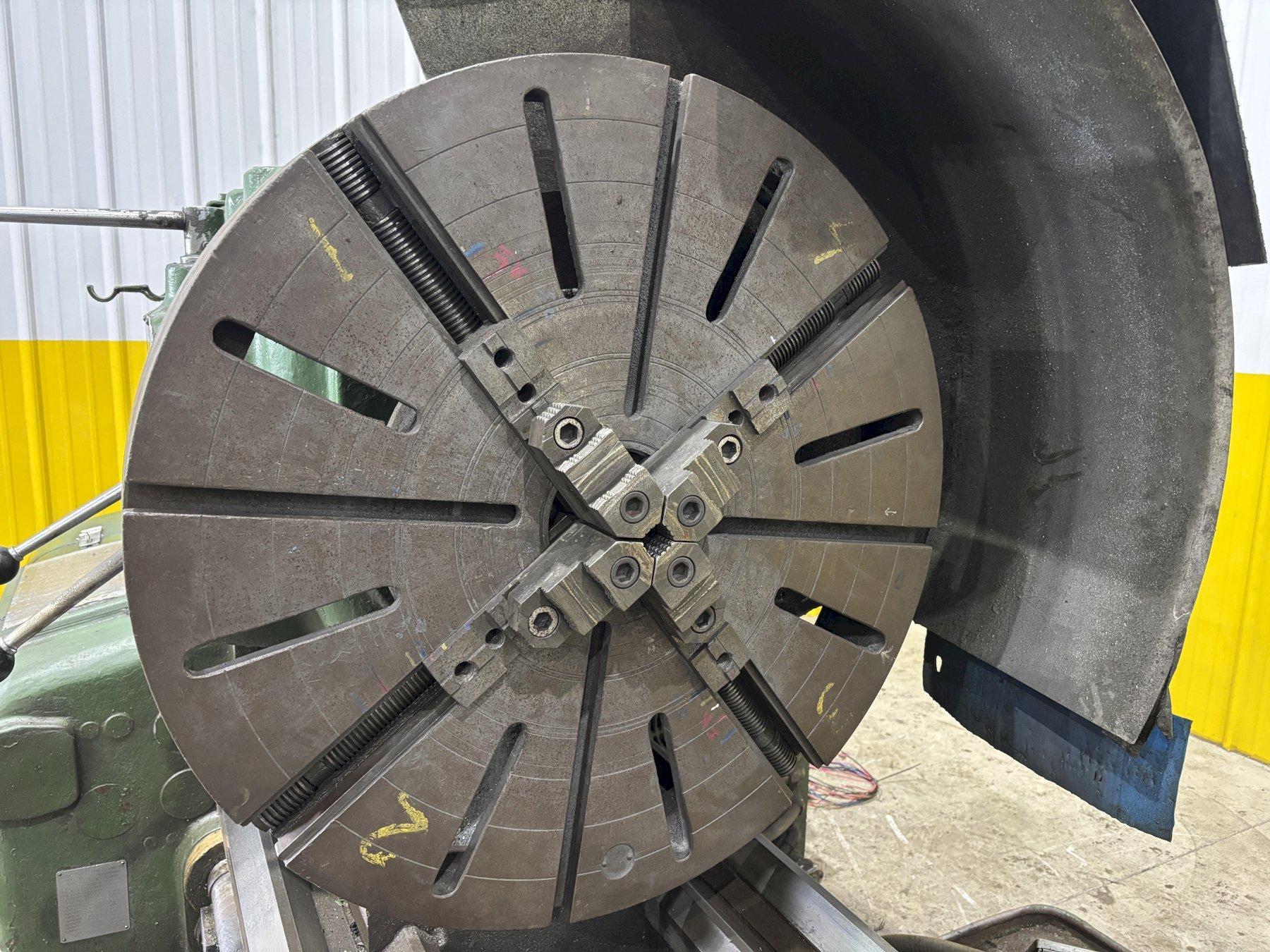

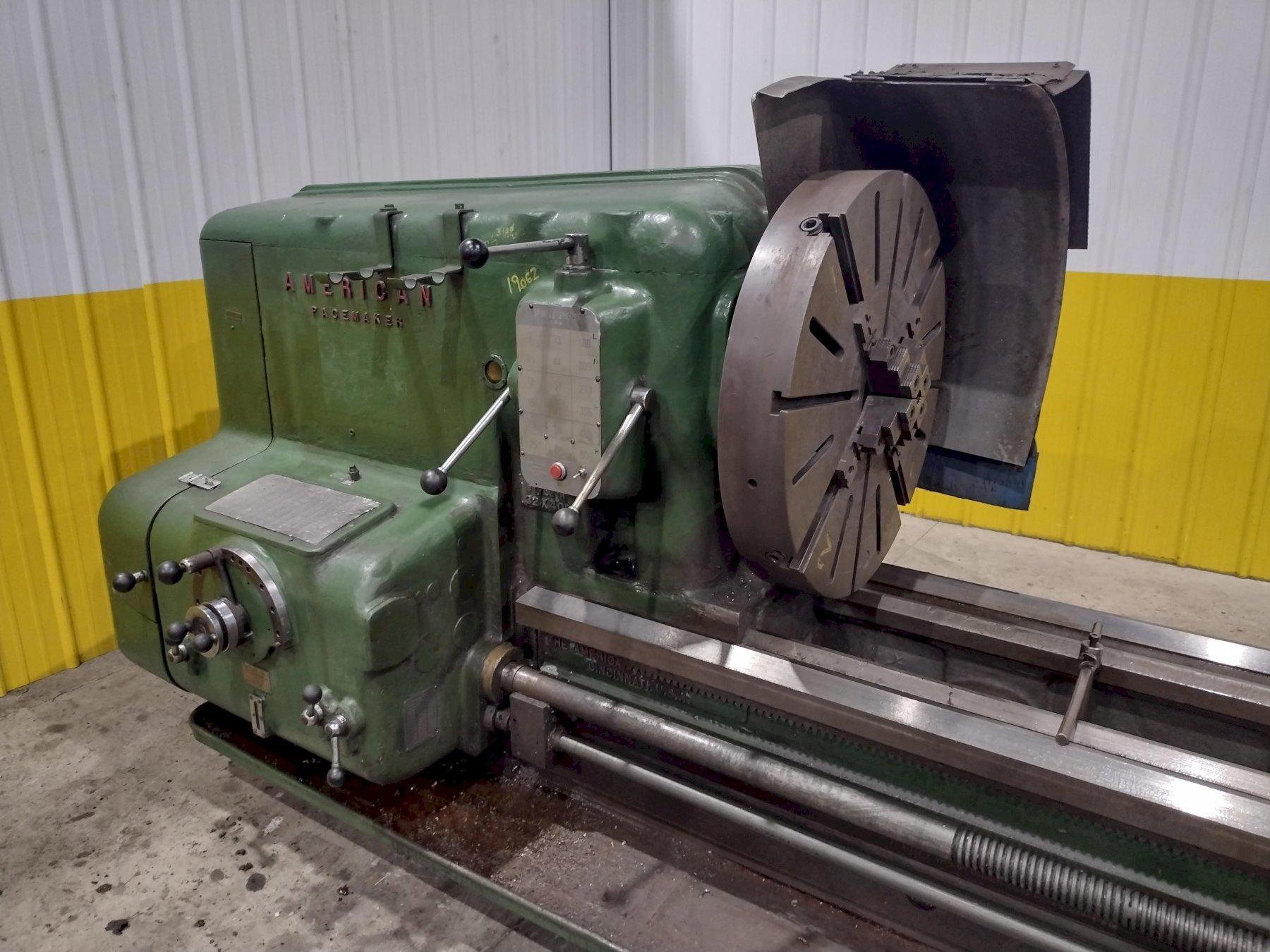

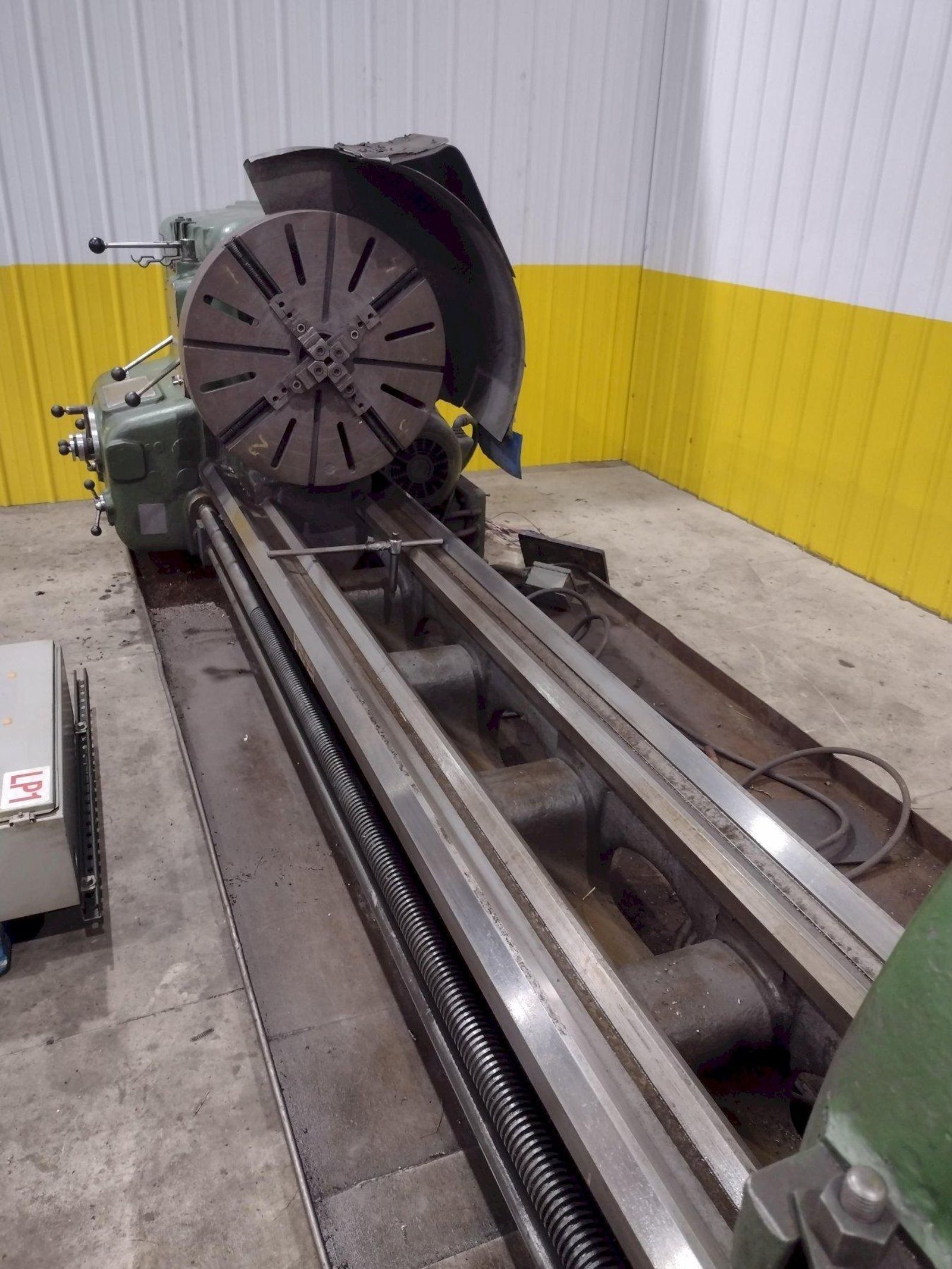

CHUCK DIAMETER ............ 32" 4 JAW

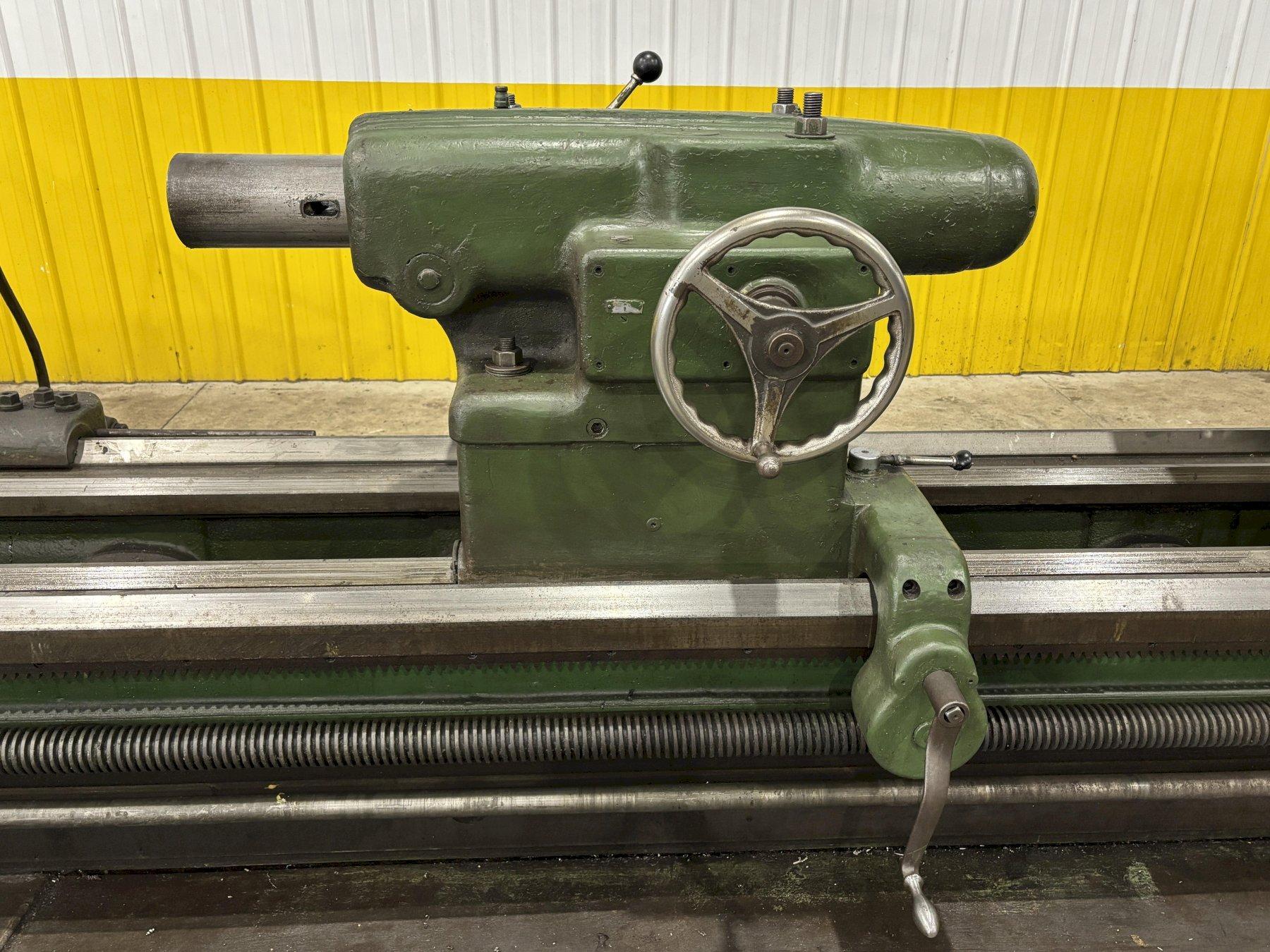

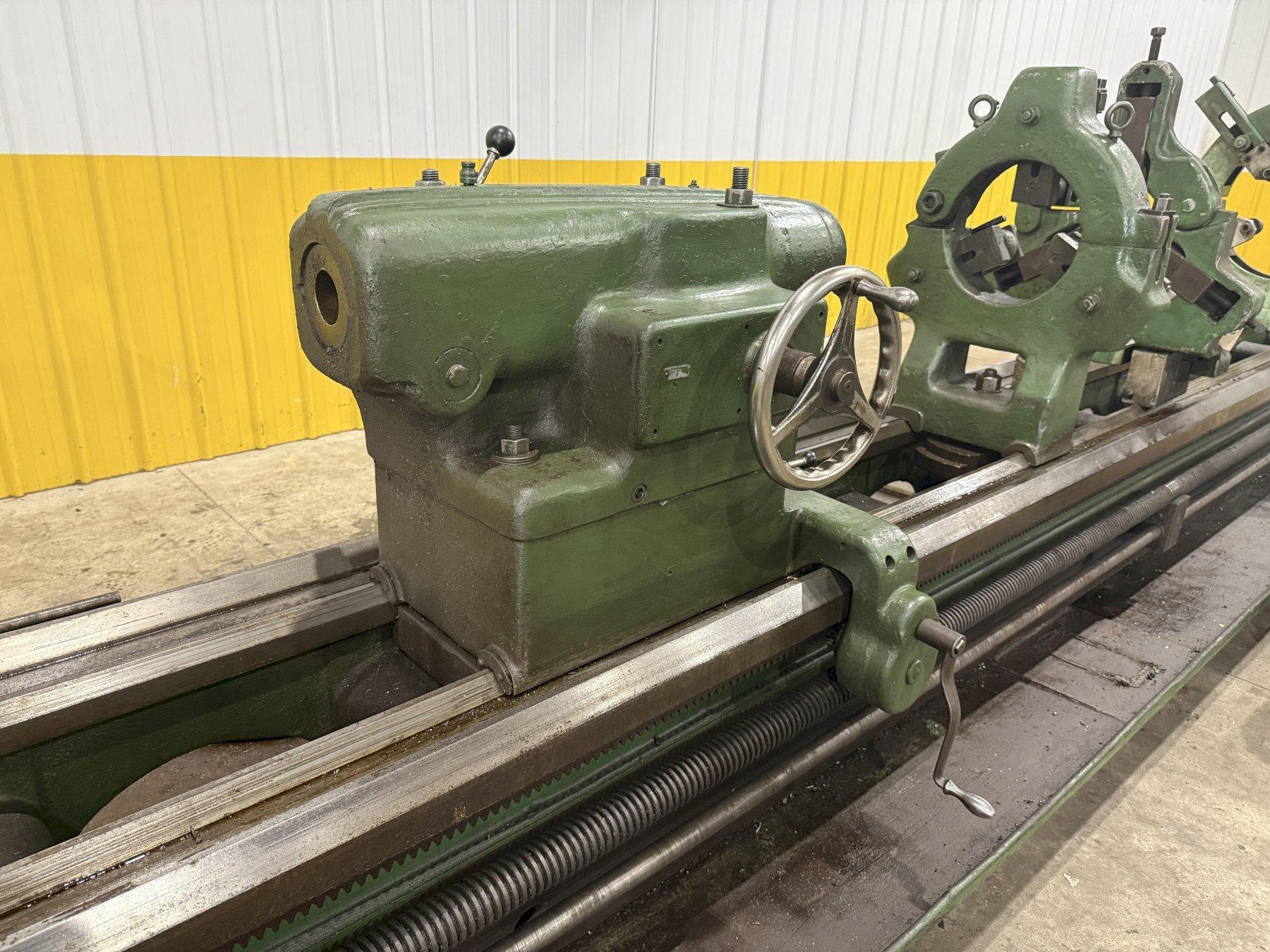

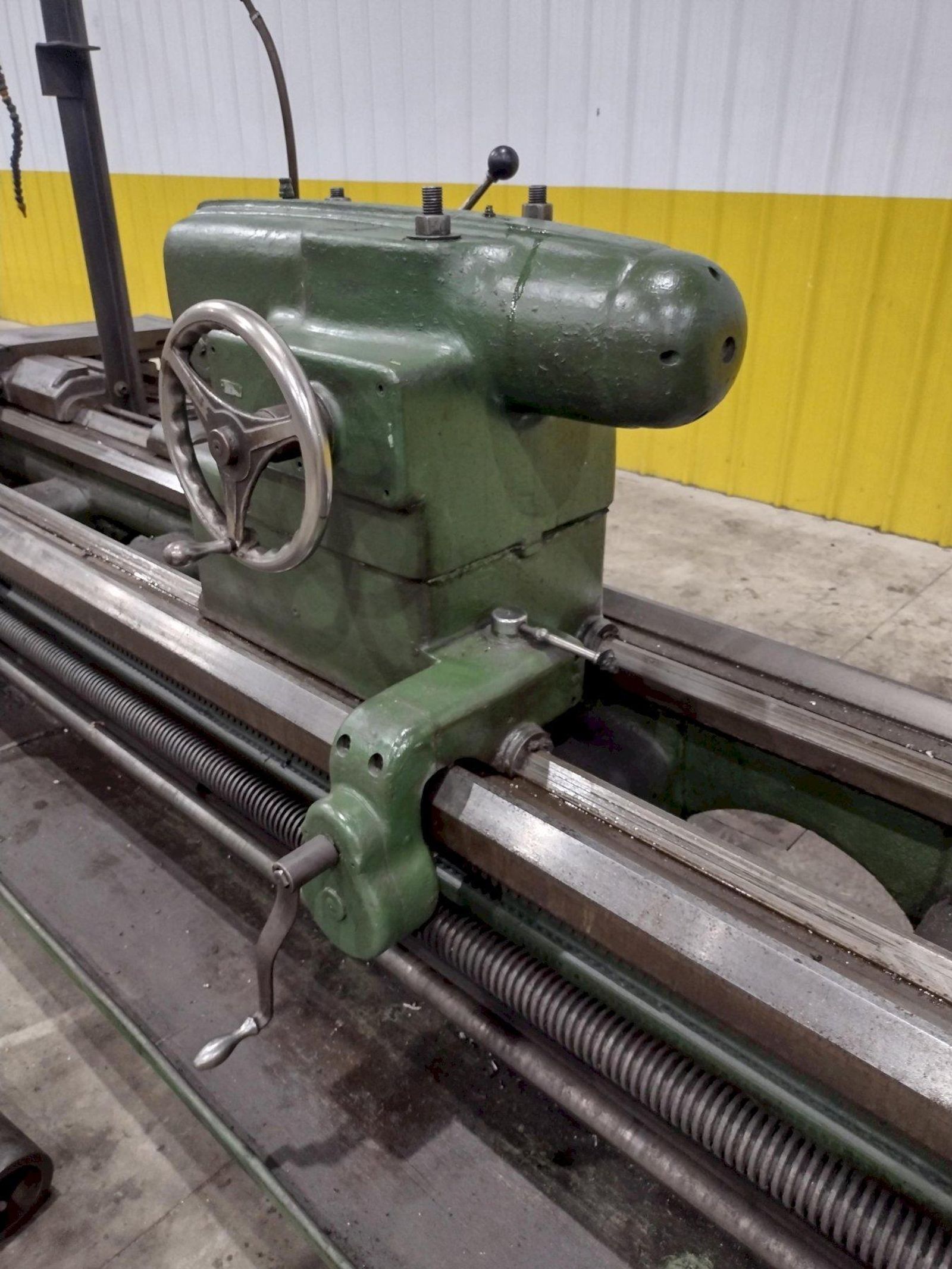

TAILSTOCK ................. #6MT

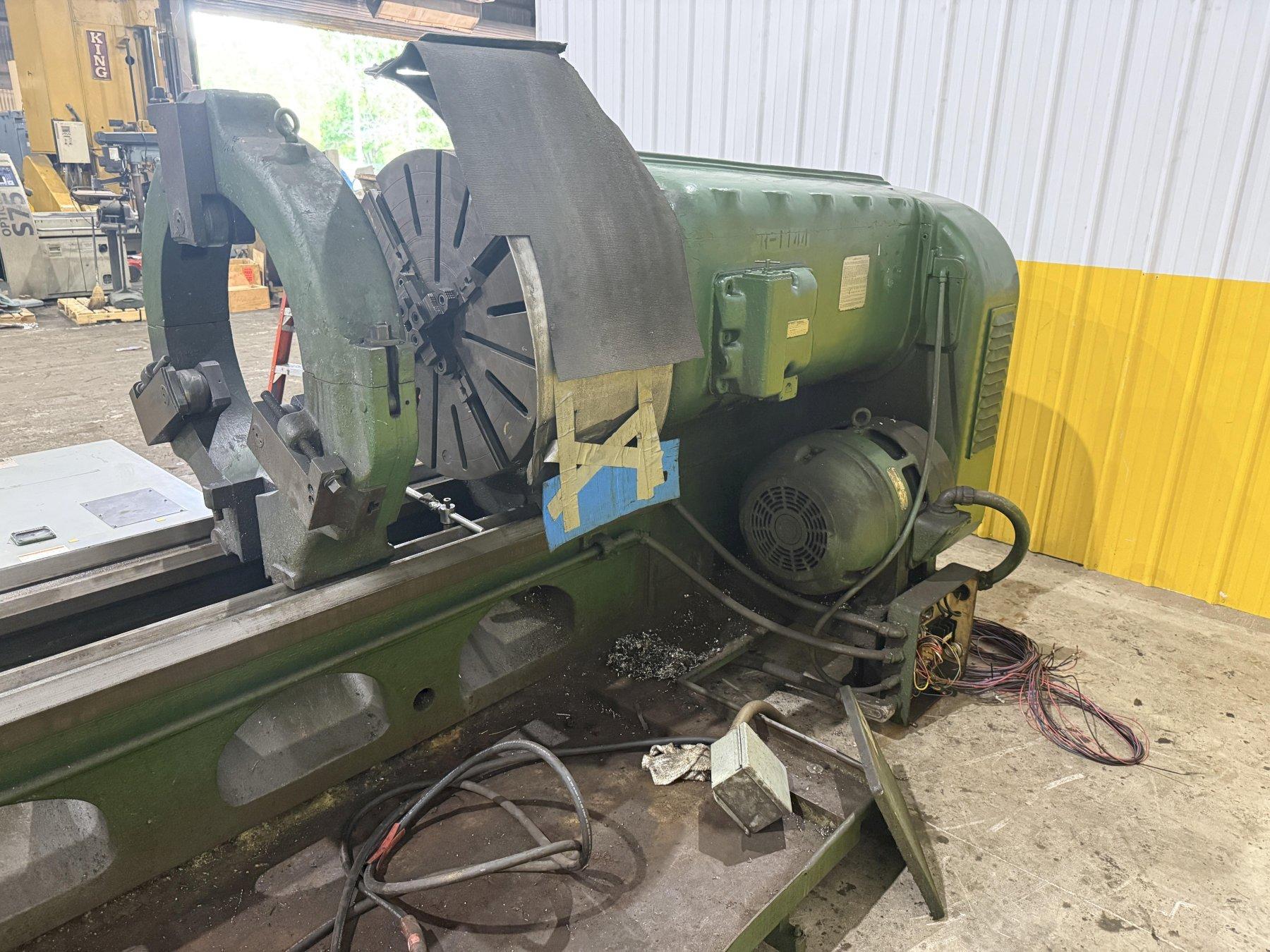

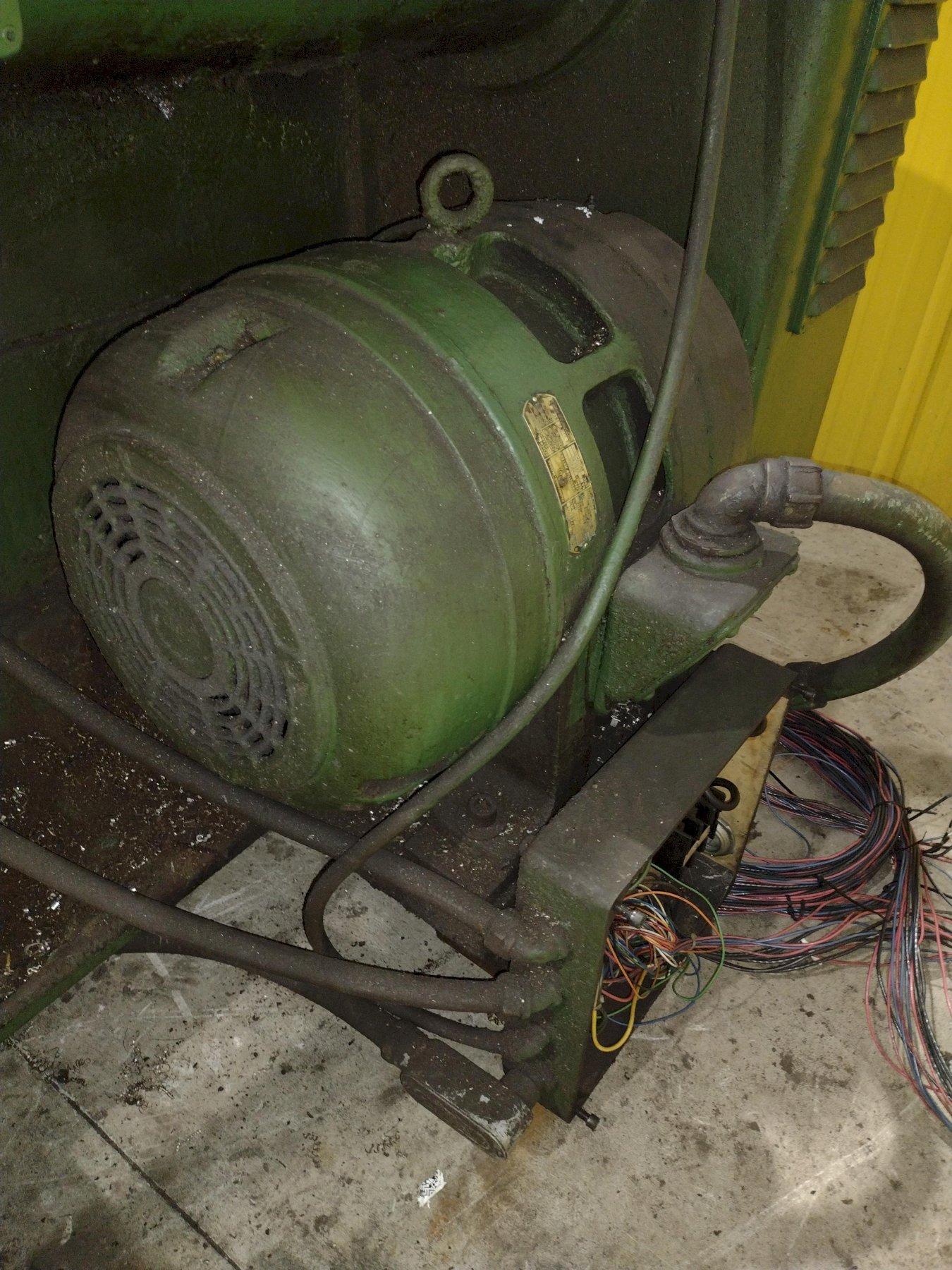

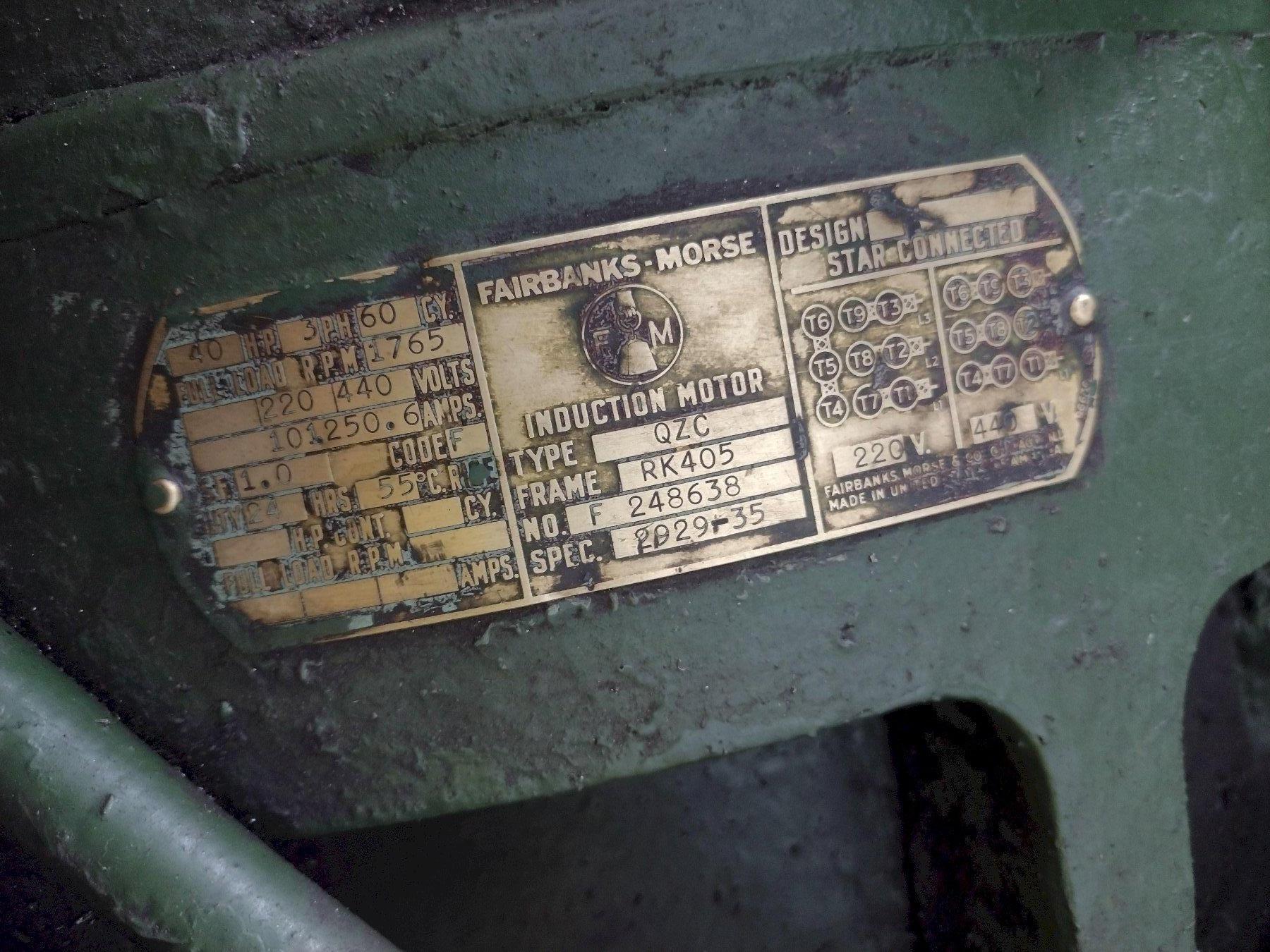

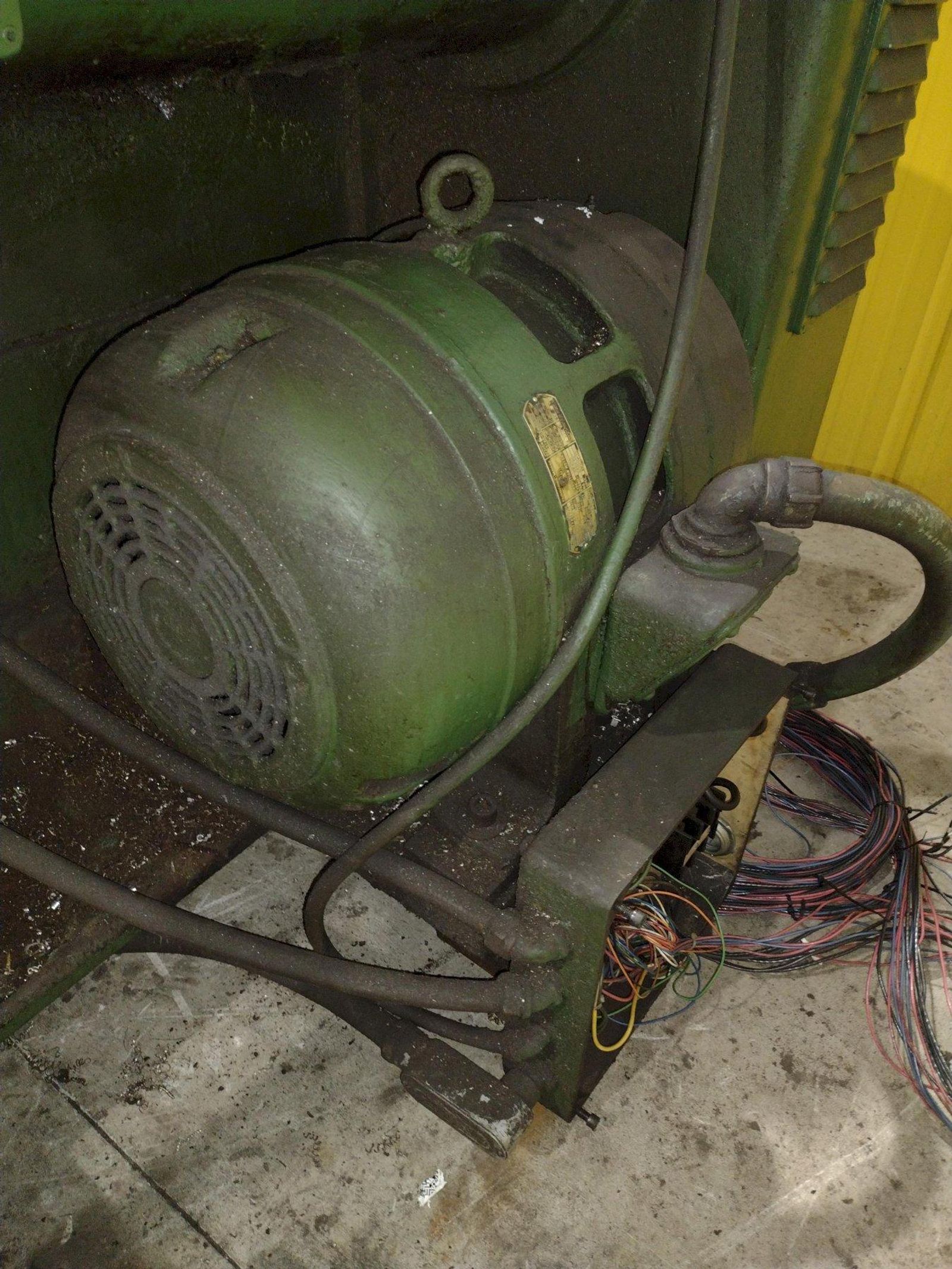

MOTOR ..................... 40 HP
Brand

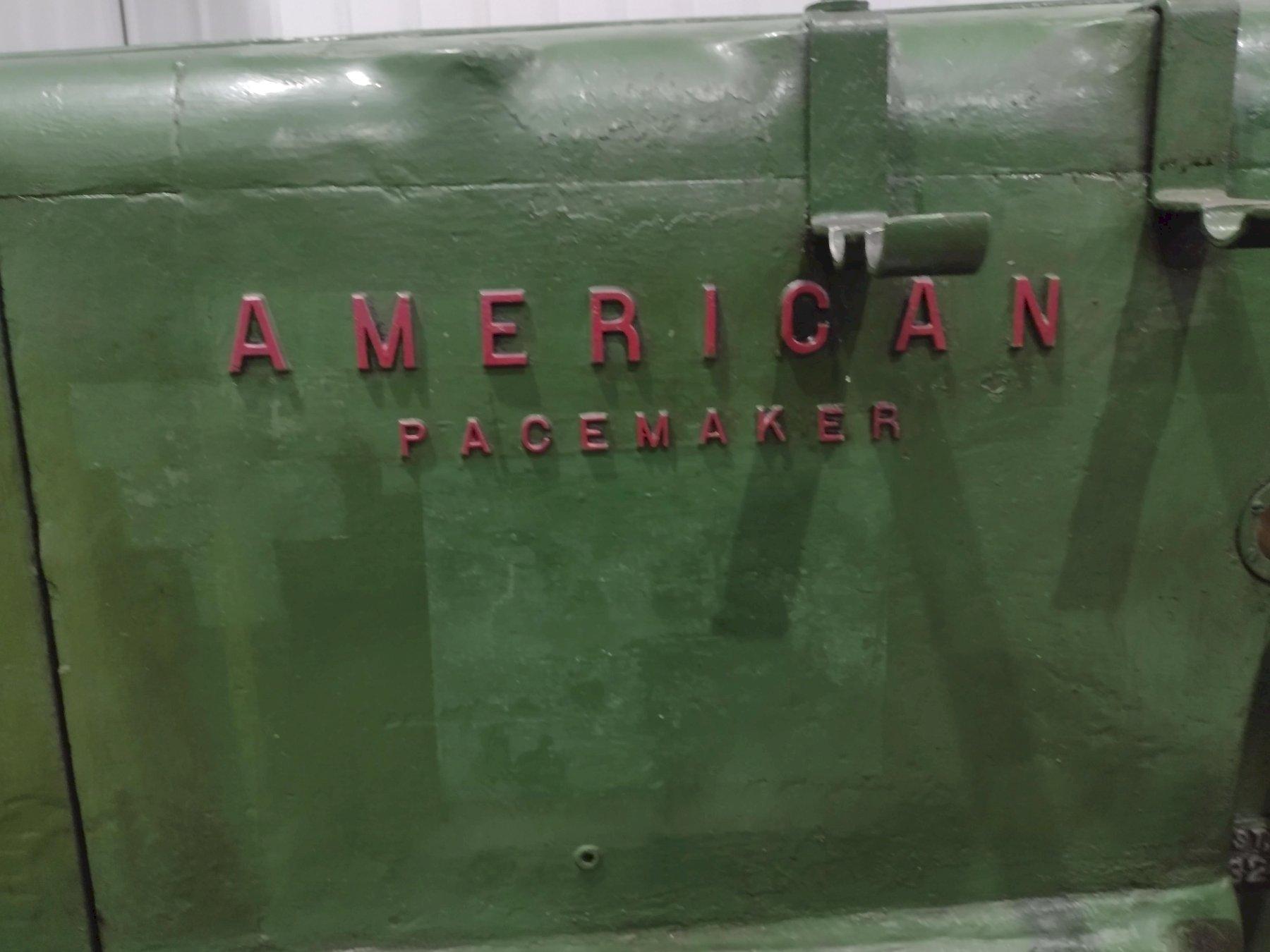

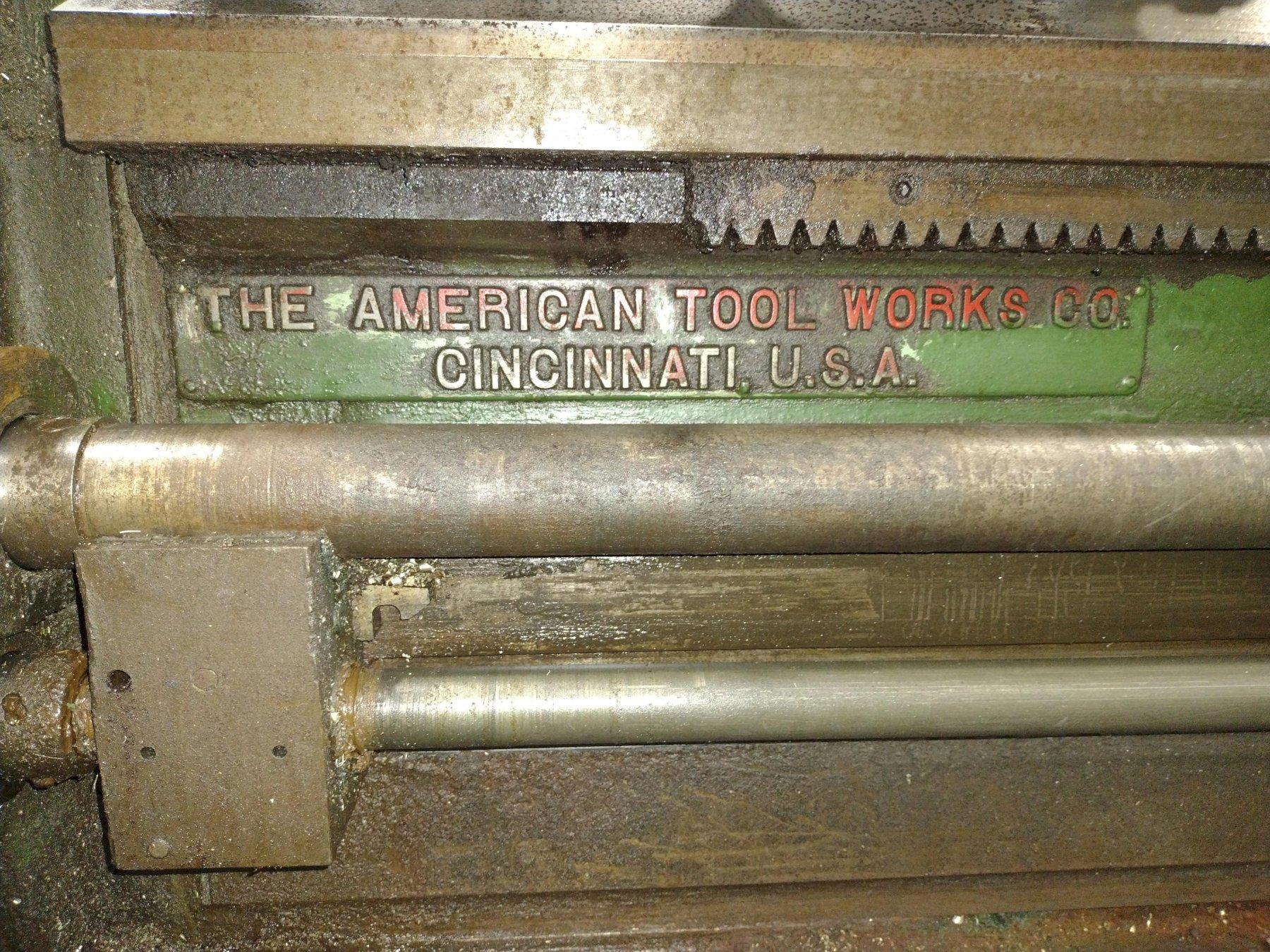

American
Type
Lathes, Engine
Stock No.
22746
 |
419-269-2000 |
Stock #: 22746
SERIAL .................... 7481756
MODEL ..................... H32 X 408
SWING OVER BED ............ 40"
SWING OVER CROSSLIDE ...... 27"
DISTANCE BETWEEN CENTERS .. 420" (35')
SPINDLE HOLE .............. 2-7/8"
SPINDLE SPEEDS ............ (27) 6 TO 600 RPM
THREADS ................... (60) 1/2 TO 30 TPI
FEEDS ..................... (120) .0040 TO .24000 IRP
LEADS ..................... .0033 TO 2.000
THREAD DIAL ............... YES
TAPER ATTACHEMENT ......... YES
RAPID TRAVERSE ............ 4 WAY
COOLANT PUMP WITH PANS .... YES
ROLLER STEADY RESTS ....... (4) 12.5" & 25"
CHUCK DIAMETER ............ 32" 4 JAW
TAILSTOCK ................. #6MT
MOTOR ..................... 40 HP
