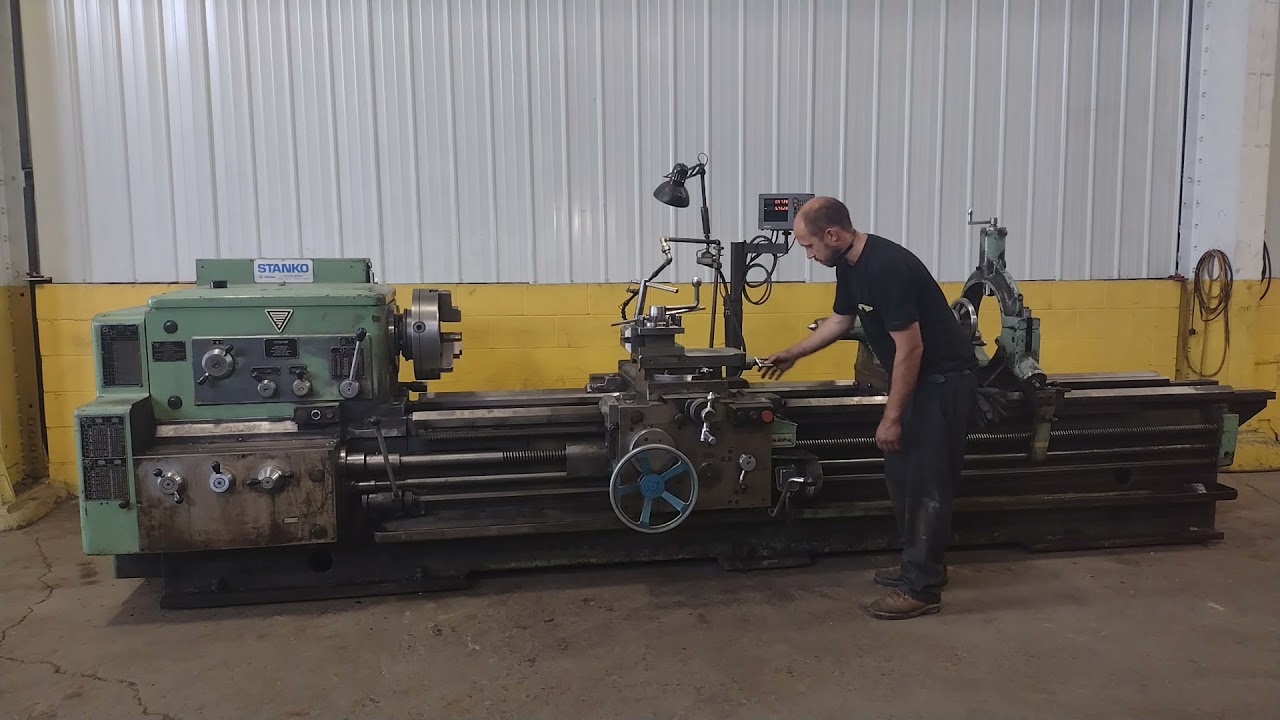

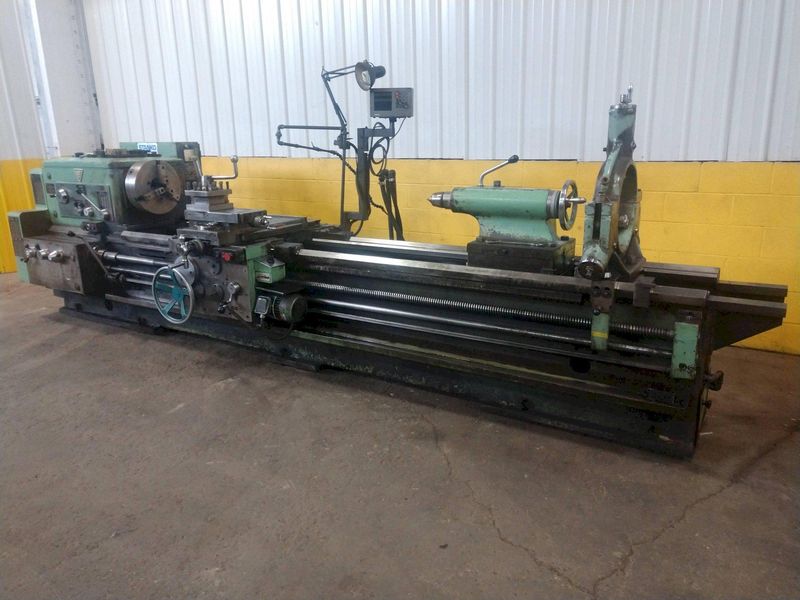

SERIAL ...................... 3385
MODEL ....................... 1M63B
SWING OVER BED .............. 28"
SWING OVER CROSSLIDE ........ 14-1/2"
SWING IN GAP ................ 36"
LENGTH OF GAP ............... 14"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE BORE ................ 3.25"
SPEEDS ...................... (24) 10 TO 1250 RPM
THREADS ..................... .25 TO 28 TPI
THREADS, METRIC ............. .25 TO 192 MM
FEEDS ....................... .0010 TO .1575 IPR
RAPID TRAVERSE ON CARRIAGE .. 4 WAY
RAPID TRAVERSE MOTOR ........ 1.5 HP
CHUCK ....................... 16" 3-JAW
DIGITAL READ OUT ............ HEIDENHAIN 2-AXIS
STEADY REST ................. 15" 3 POINT ROLLER
4 WAY TOOL HOLDER ........... YES
COOLANT ..................... YES
E-STOP BUTTON ............... YES
MAIN MOTOR .................. 20 HP
| Specifications | ||
|---|---|---|
| Dimensions | 18' X 60" X 72" HIGH | |
| Weight | 14500 pounds | |
Brand
STANKO
Type
Lathes, Gap
Stock No.
14670
 |
419-269-2000 |
Stock #: 14670
SERIAL ...................... 3385
MODEL ....................... 1M63B
SWING OVER BED .............. 28"
SWING OVER CROSSLIDE ........ 14-1/2"
SWING IN GAP ................ 36"
LENGTH OF GAP ............... 14"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE BORE ................ 3.25"
SPEEDS ...................... (24) 10 TO 1250 RPM
THREADS ..................... .25 TO 28 TPI
THREADS, METRIC ............. .25 TO 192 MM
FEEDS ....................... .0010 TO .1575 IPR
RAPID TRAVERSE ON CARRIAGE .. 4 WAY
RAPID TRAVERSE MOTOR ........ 1.5 HP
CHUCK ....................... 16" 3-JAW
DIGITAL READ OUT ............ HEIDENHAIN 2-AXIS
STEADY REST ................. 15" 3 POINT ROLLER
4 WAY TOOL HOLDER ........... YES
COOLANT ..................... YES
E-STOP BUTTON ............... YES
MAIN MOTOR .................. 20 HP
