Brand
ADIRA
Type
Brakes, Hydraulic
Stock No.
17161
 |
419-269-2000 |

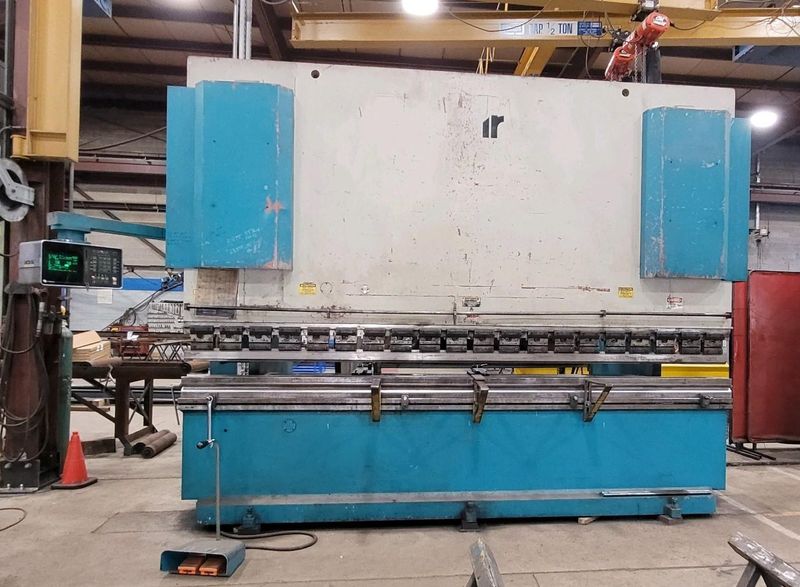

Stock #: 17161
SERIAL ...................... 4643/8722MODEL ....................... QHD-30040
YEAR NEW .................... 1997CAPACITY .................... 300 TONOVERALL BED & RAM LENGTH .... 13' (157" OR 4000mm)
DISTANCE BETWEEN HOUSINGS ... 11'8"
STROKE OF RAM (ADJUSTABLE) .. 5/8" TO 7-7/8"
RAM SPEED (ADVANCE) ......... 3" PER SECOND (15 FPM)
RAM SPEED (WORKING PRESS) ... 3/8" PER SECOND (1.75 FPM)
TIME UNDER LOAD PRESSURE .... ADJUSTABLECNC CONTROLS ................ CYBELEC DNC74PBACK GUAGE LENGTH ........... 48"
2 AXIS BACK GAUGE ........... X & R
OPERATING RUN MODES ......... INCH, SINGLE, SINGLE W/ AUTO RETURN
BOTTOM DIE .................. 13' 4-WAY DIE
TOP DIE ..................... GOOSNECK PUNCH
UPPER DIE CLAMPING .......... AMERICAN
FLOOR STANDING .............. YES
FOOT PEDAL STATION .......... YES
E-STOP BUTTON ............... YES
MOTOR ....................... 25 HP
