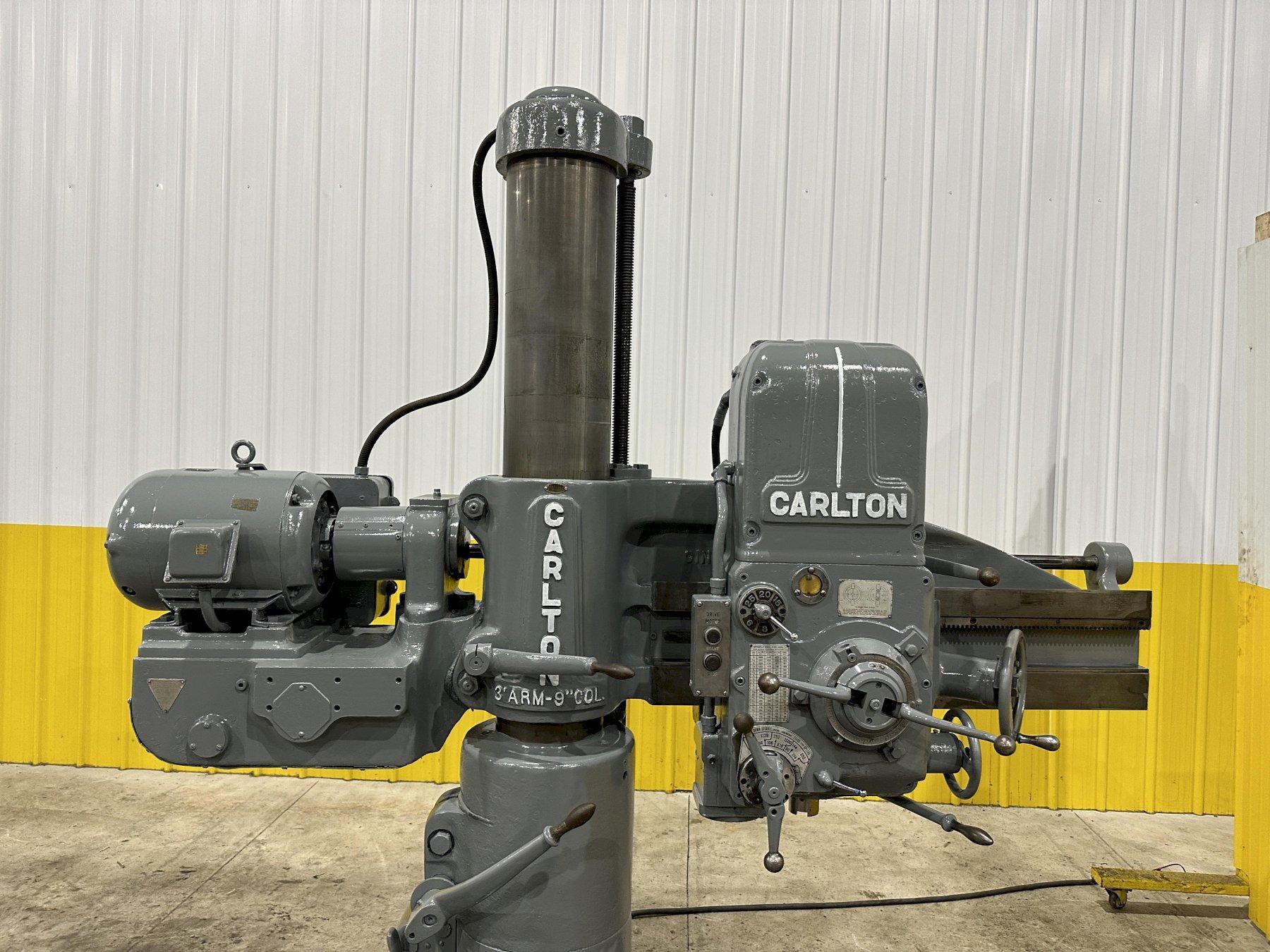

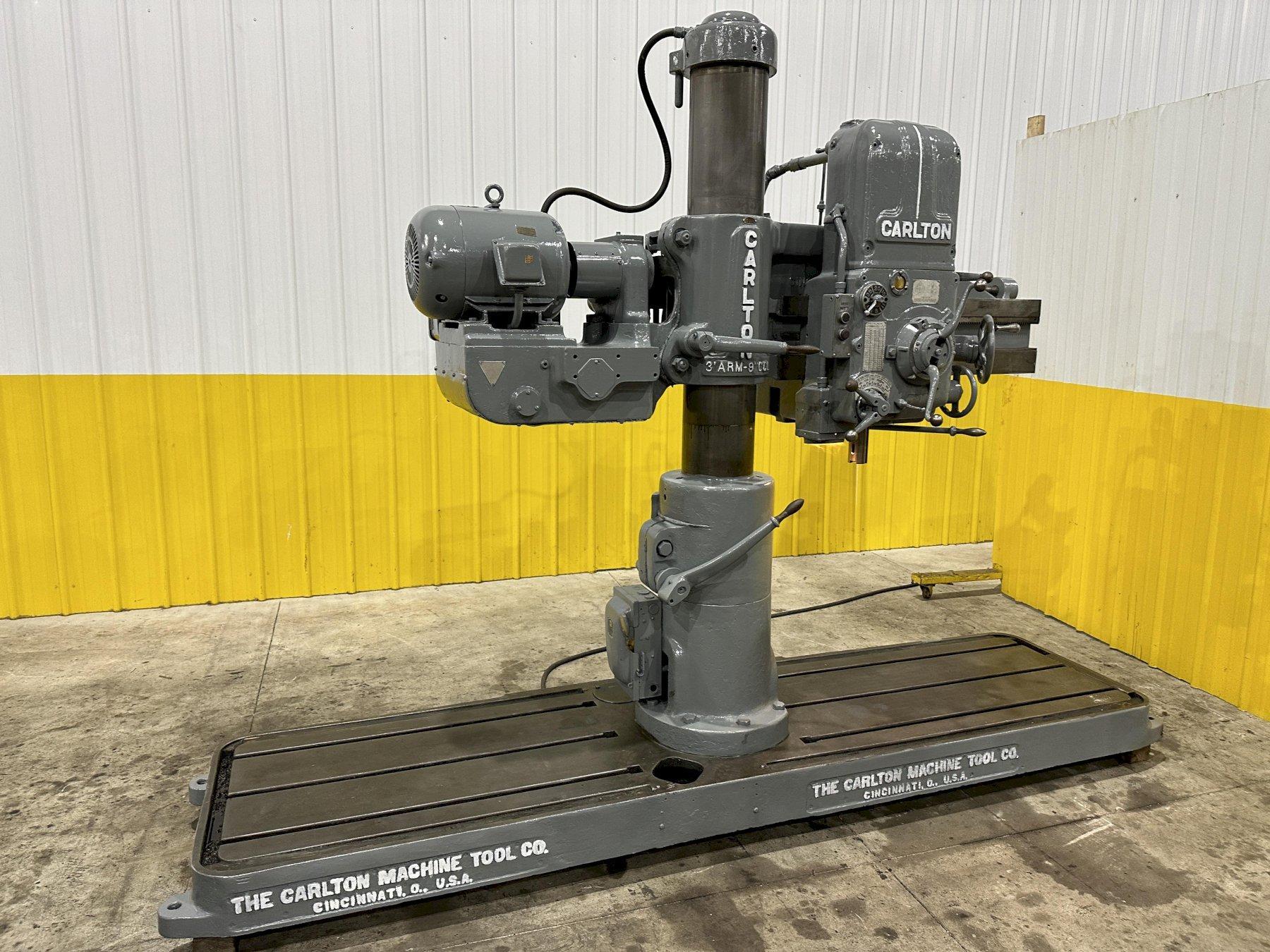

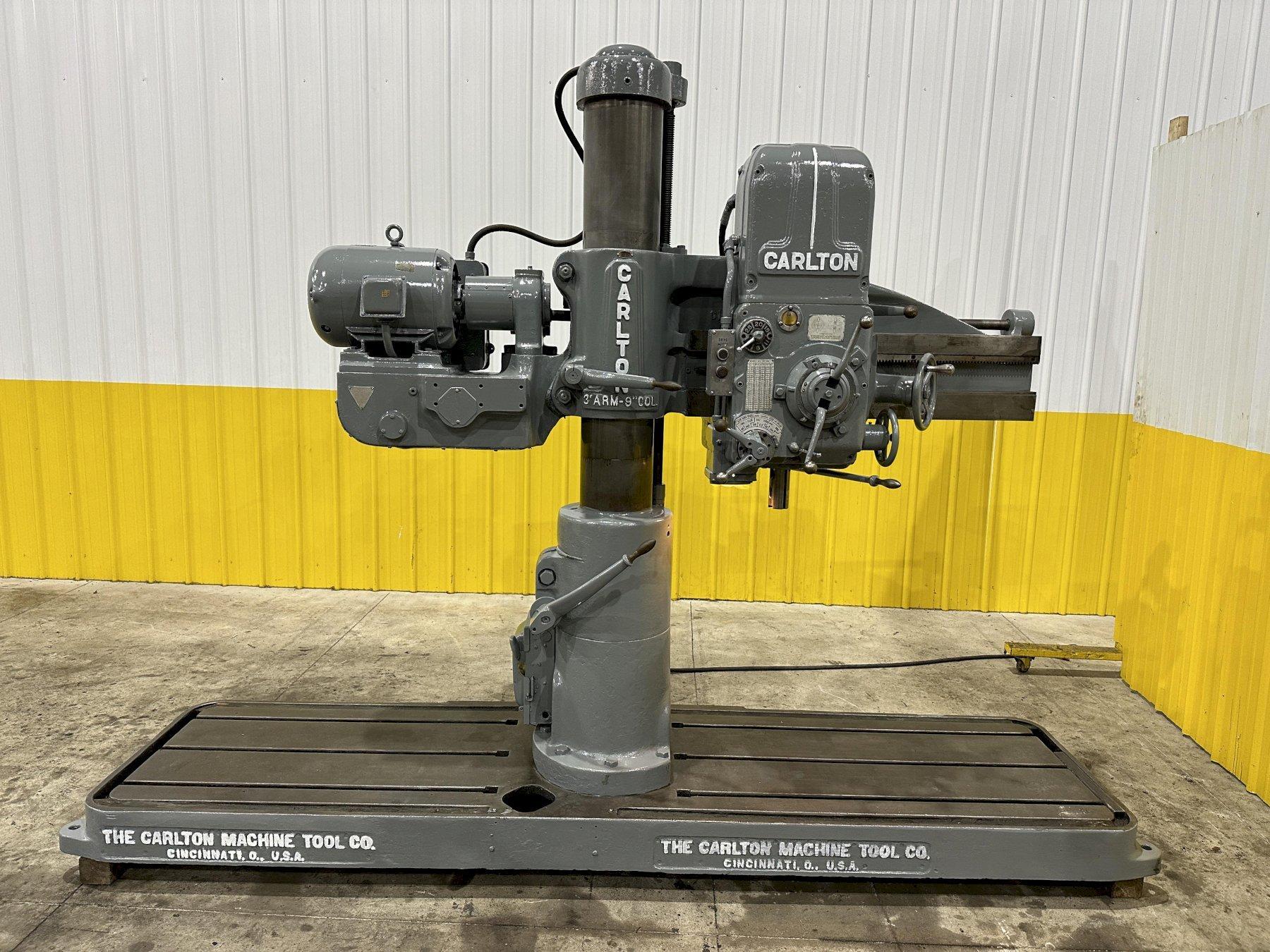

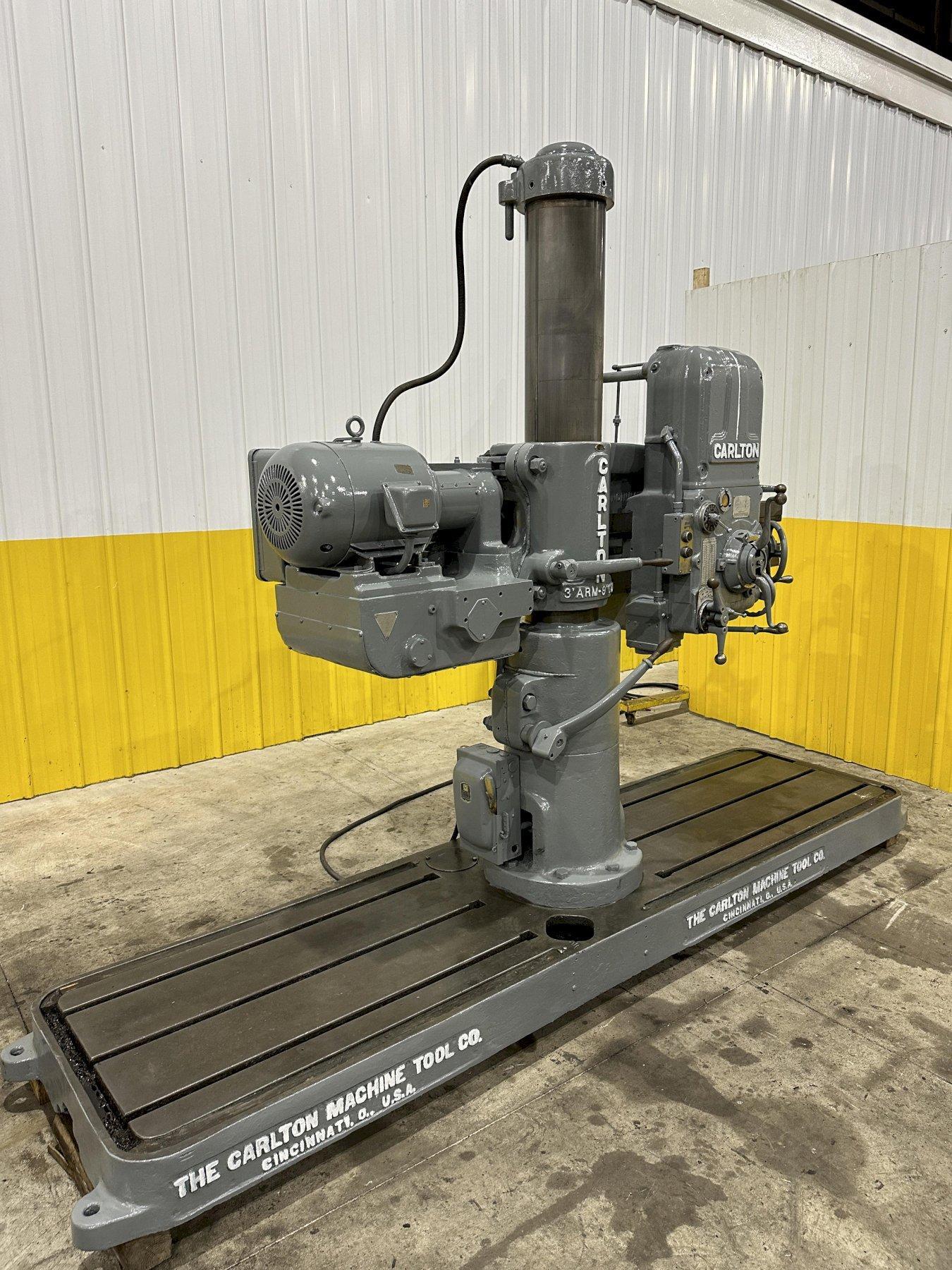

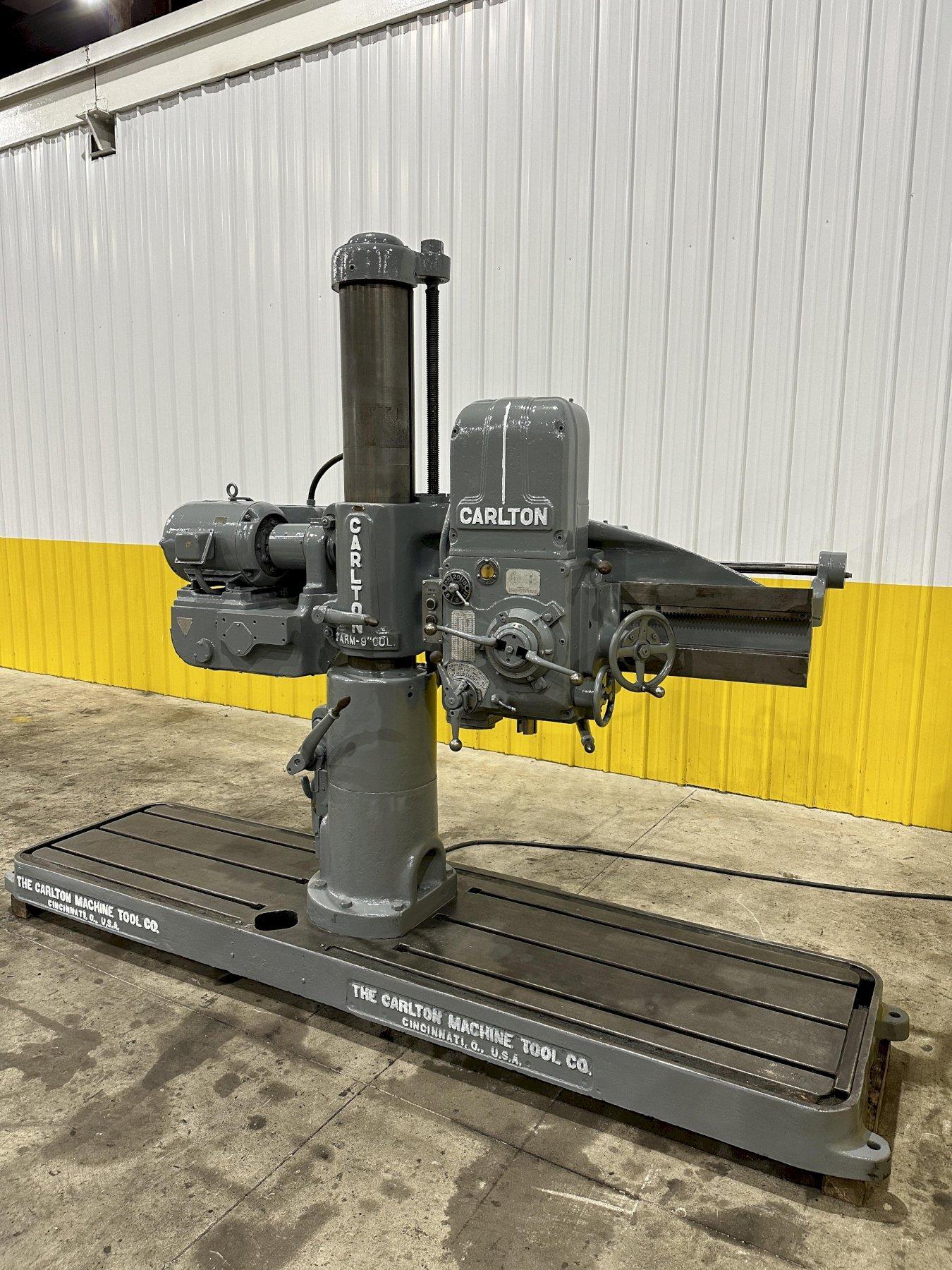

3' X 9" CARLTON MODEL #1A RADIAL ARM DRILL WITH DUAL BASE: STOCK #22001

Overview

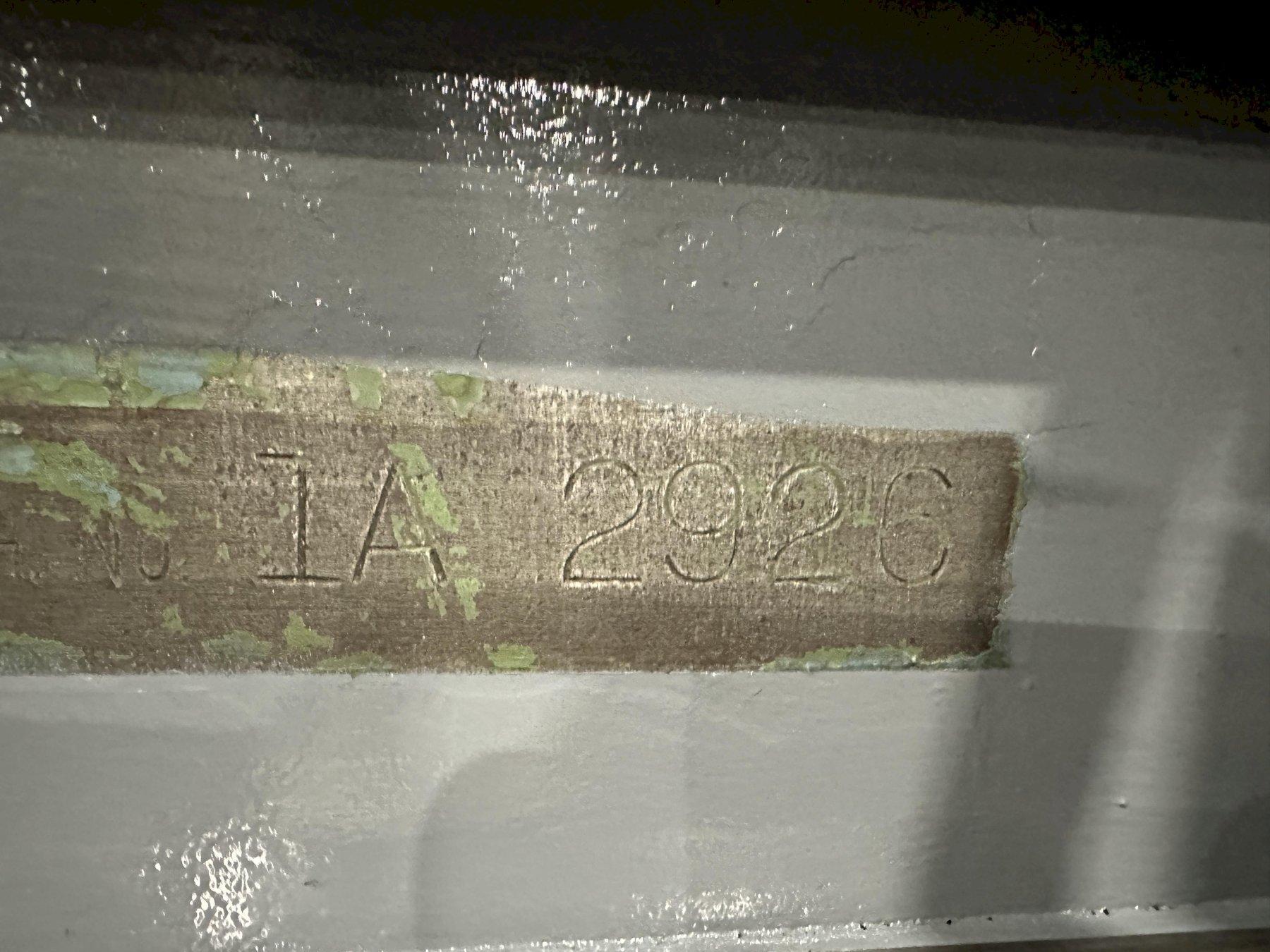

SERIAL .......................... 1A-2926
MODEL ........................... 1A
SIZE ............................ 3' X 9"

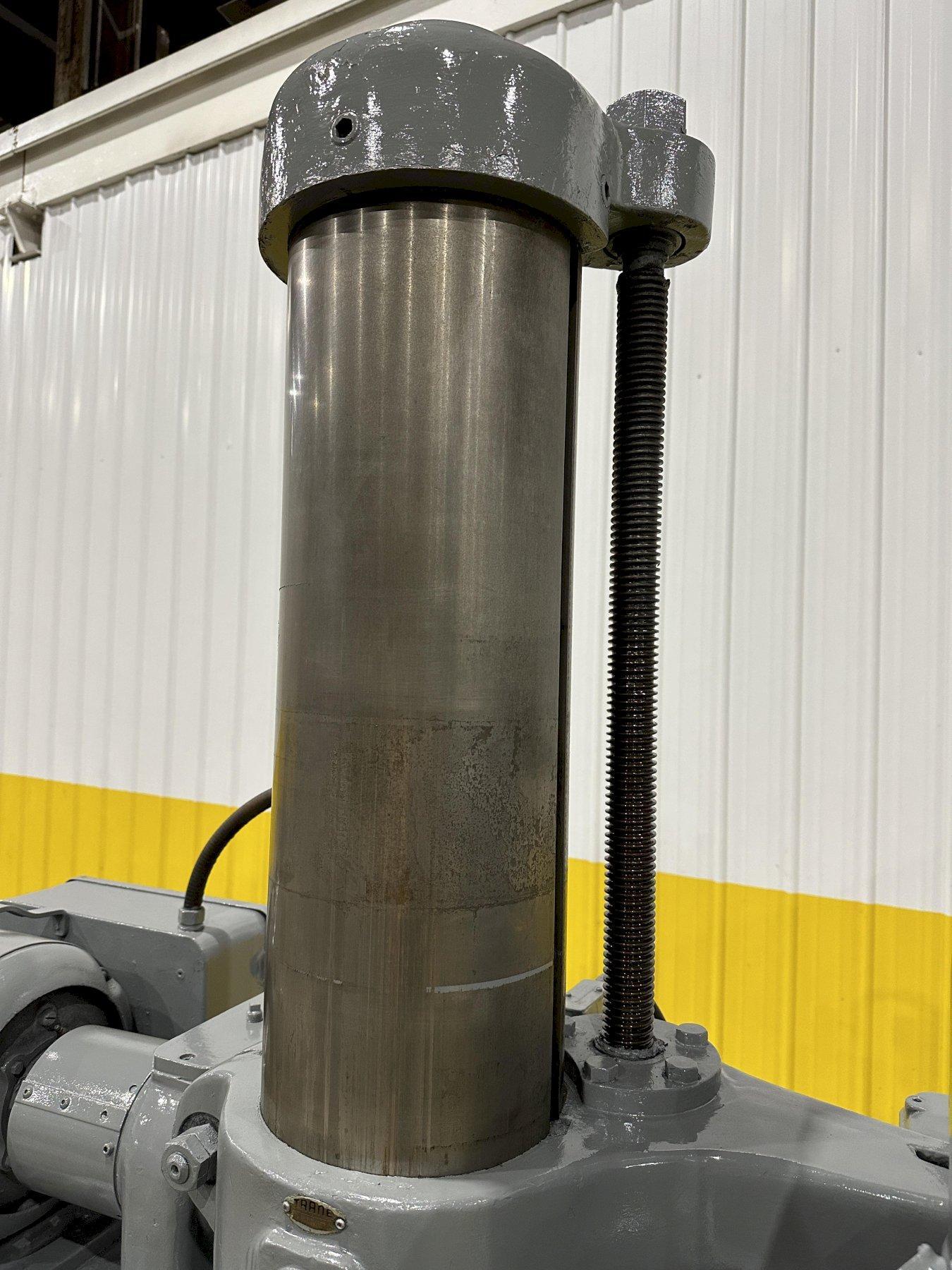

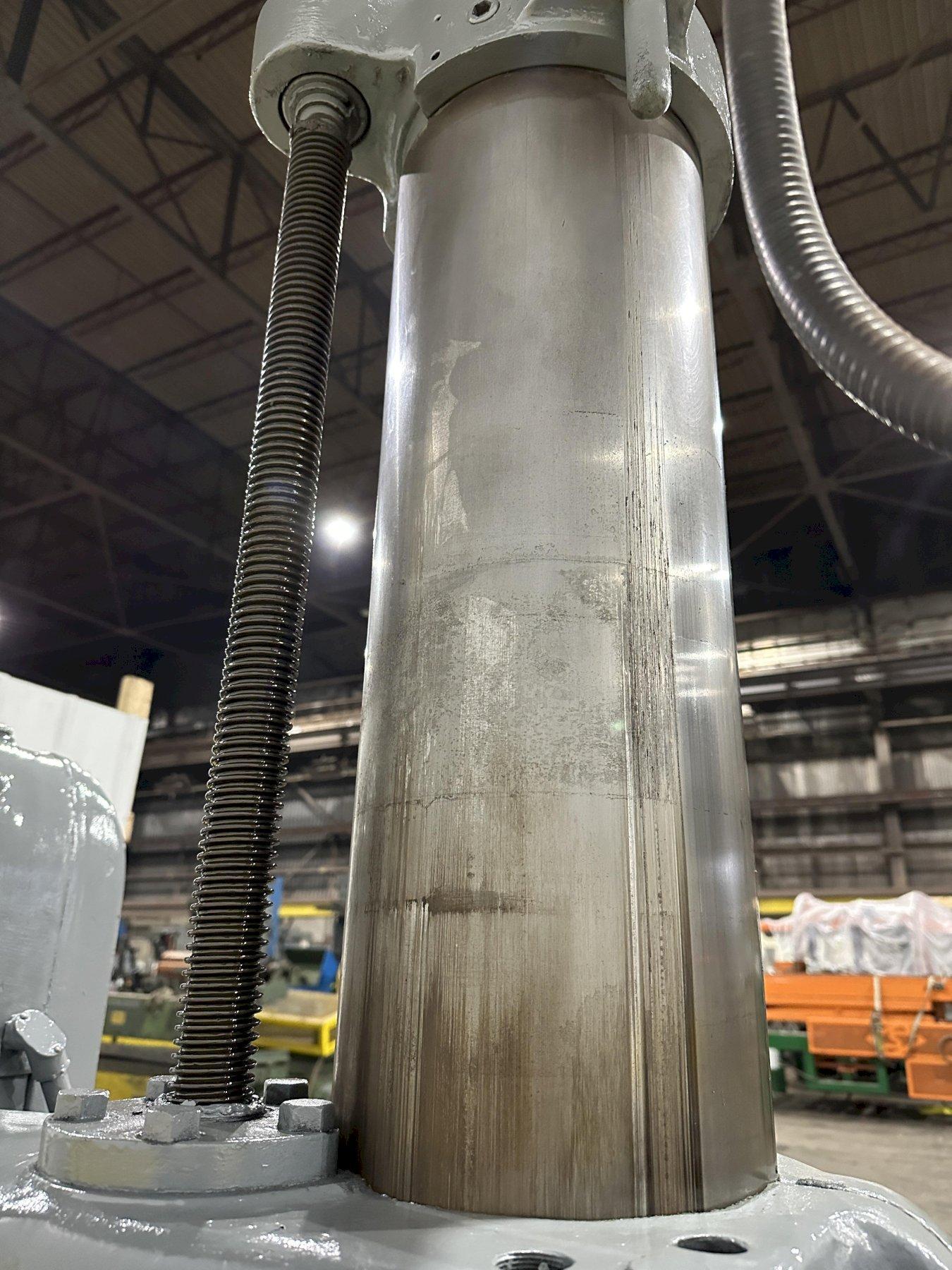

COLUMN DIAMETER ................. 9"
ARM LENGTH ...................... 36"

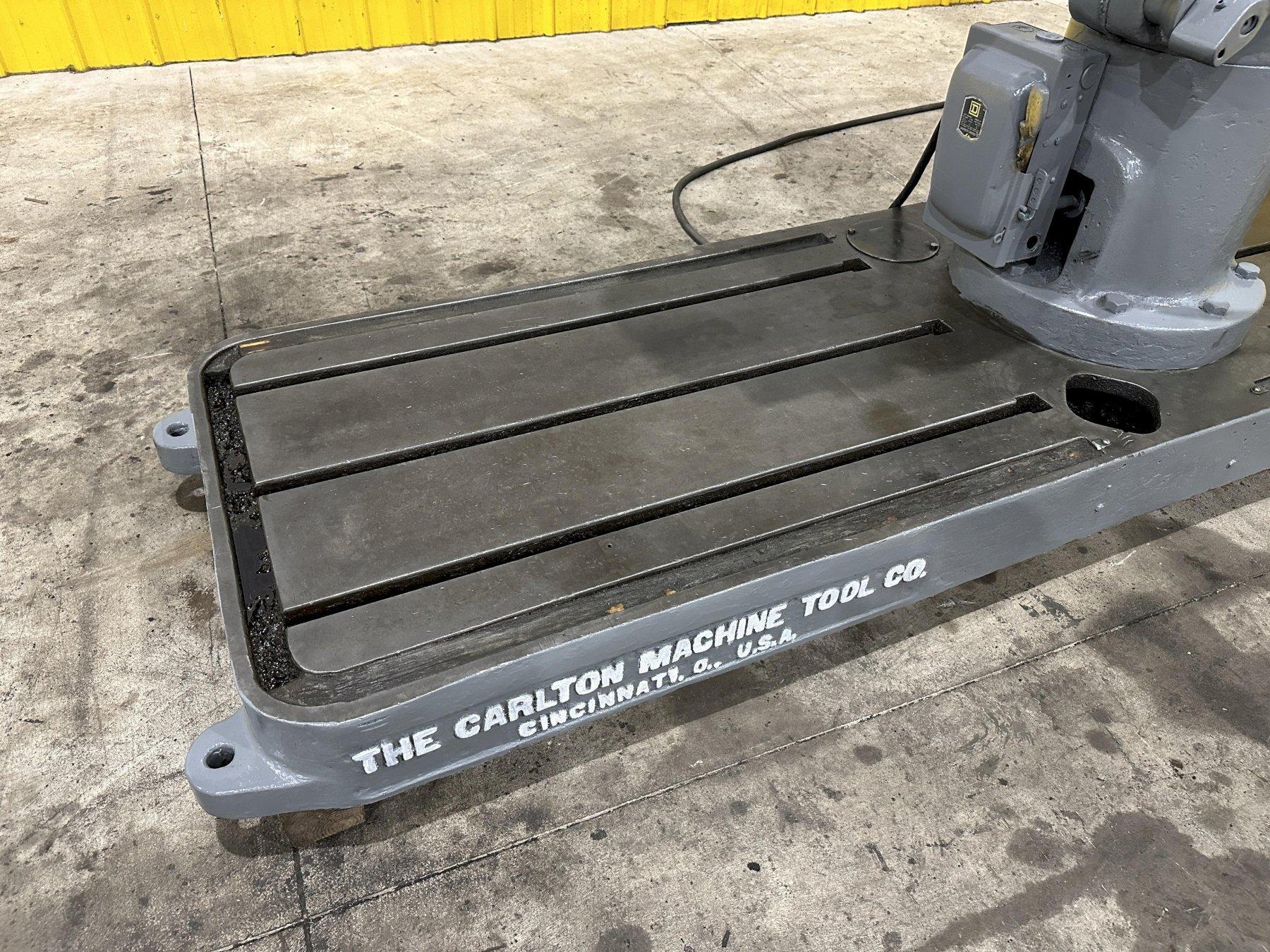

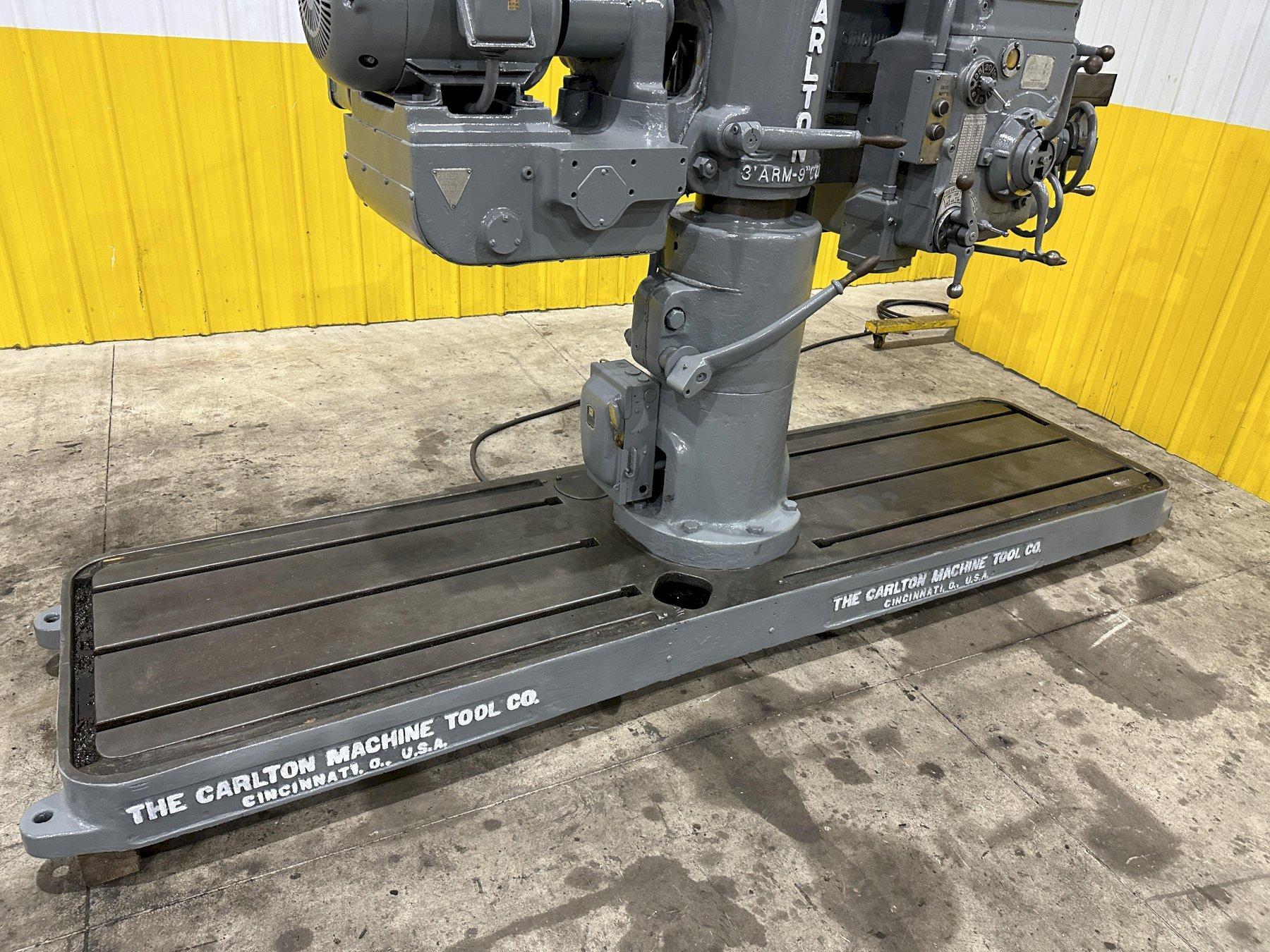

DUAL BASE ....................... YES

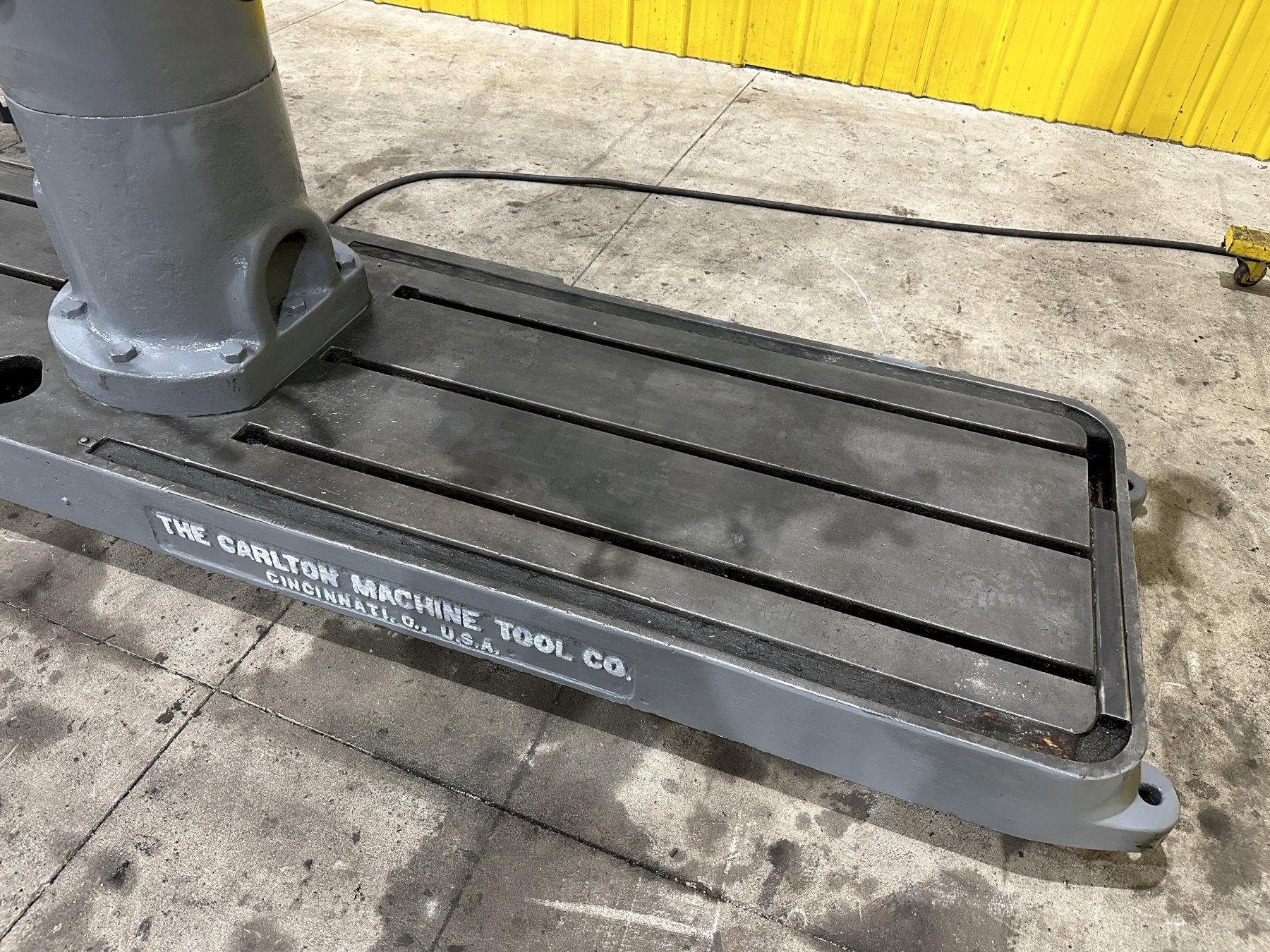

AREA OF EACH BASE ............... 31" X 39 1/2"

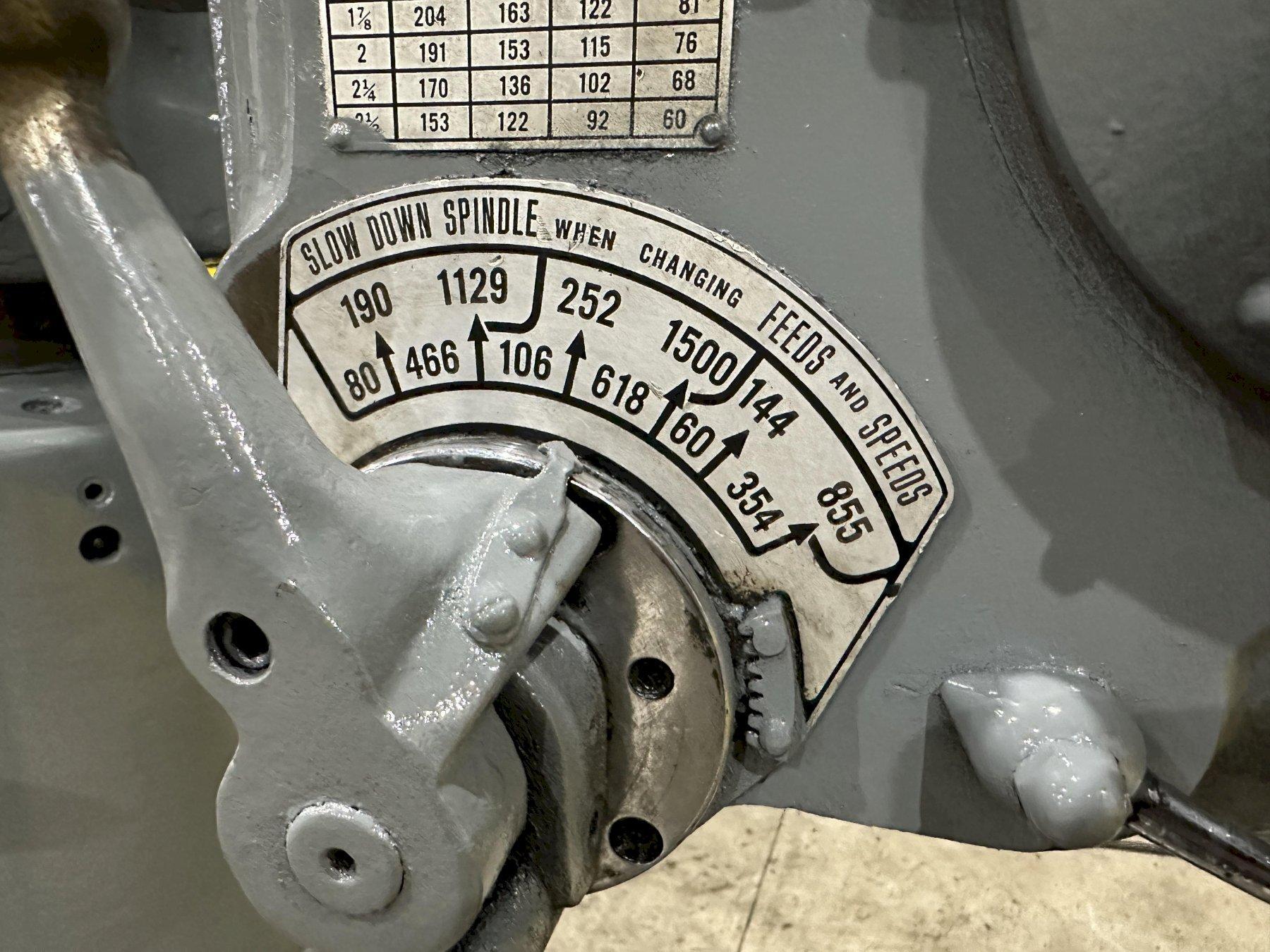

SPINDLE SPEEDS .................. (12) 80 TO 1500 RPM
FEEDS ........................... (12) .004 TO .0025 IPR
TAPER IN SPINDLE ................ #4 MT

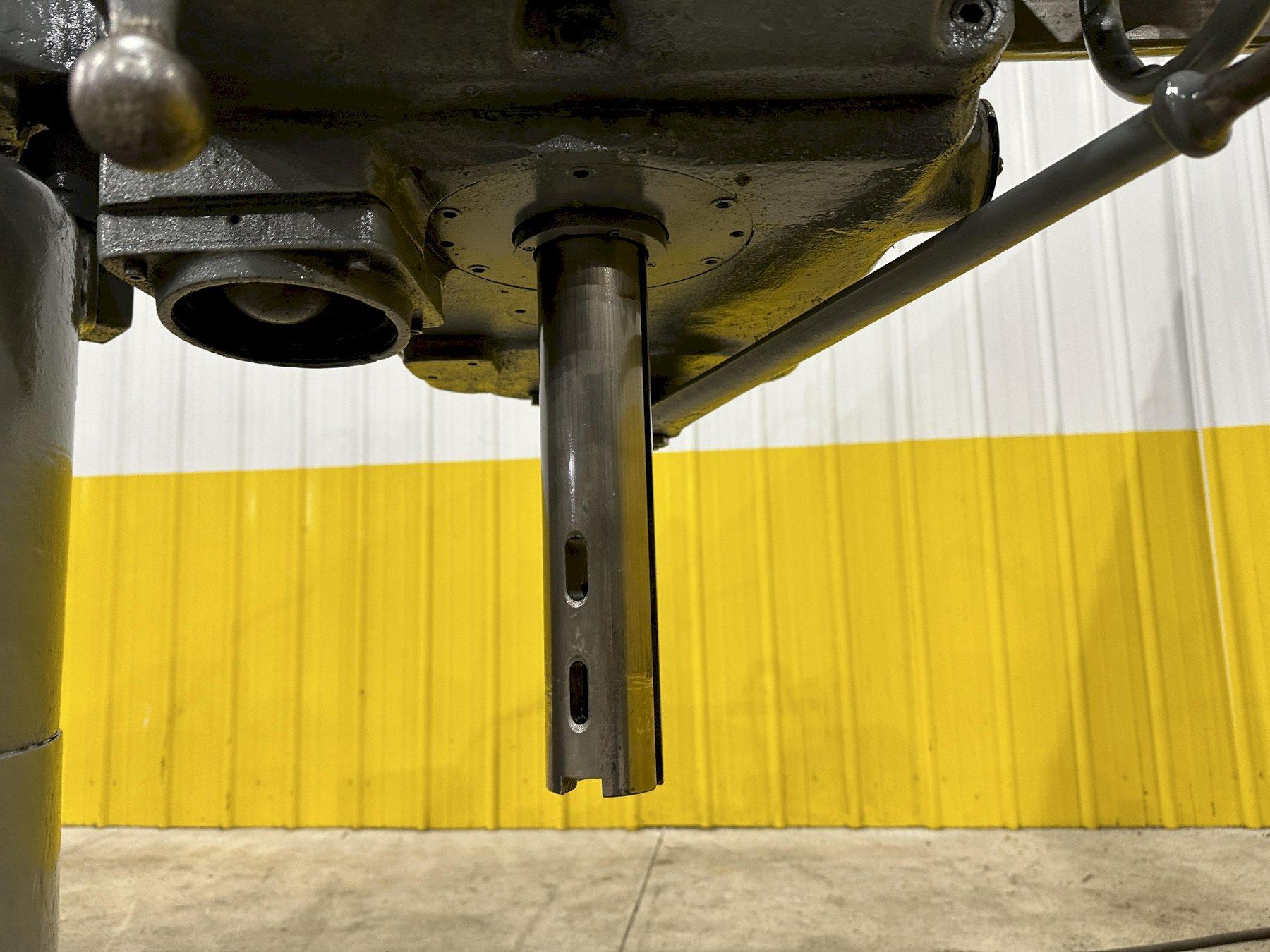

DIAMETER OF SPINDLE ............. 2-1/2"
SPINDLE TRAVEL .................. 12"
TRAVEL OF ARM ON COLUMN ......... 28"
TRAVEL OF HEAD ON ARM ........... 29"
DISTANCE SPINDLE TO BASE ........ 28" MINIMUM, 56" MAXIMUM
DISTANCE SPINDLE TO COLUMN ...... 9" MINIMUM, 36" MAXIMUM
POWER ELEVATION ................. YES
COOLANT ......................... YES

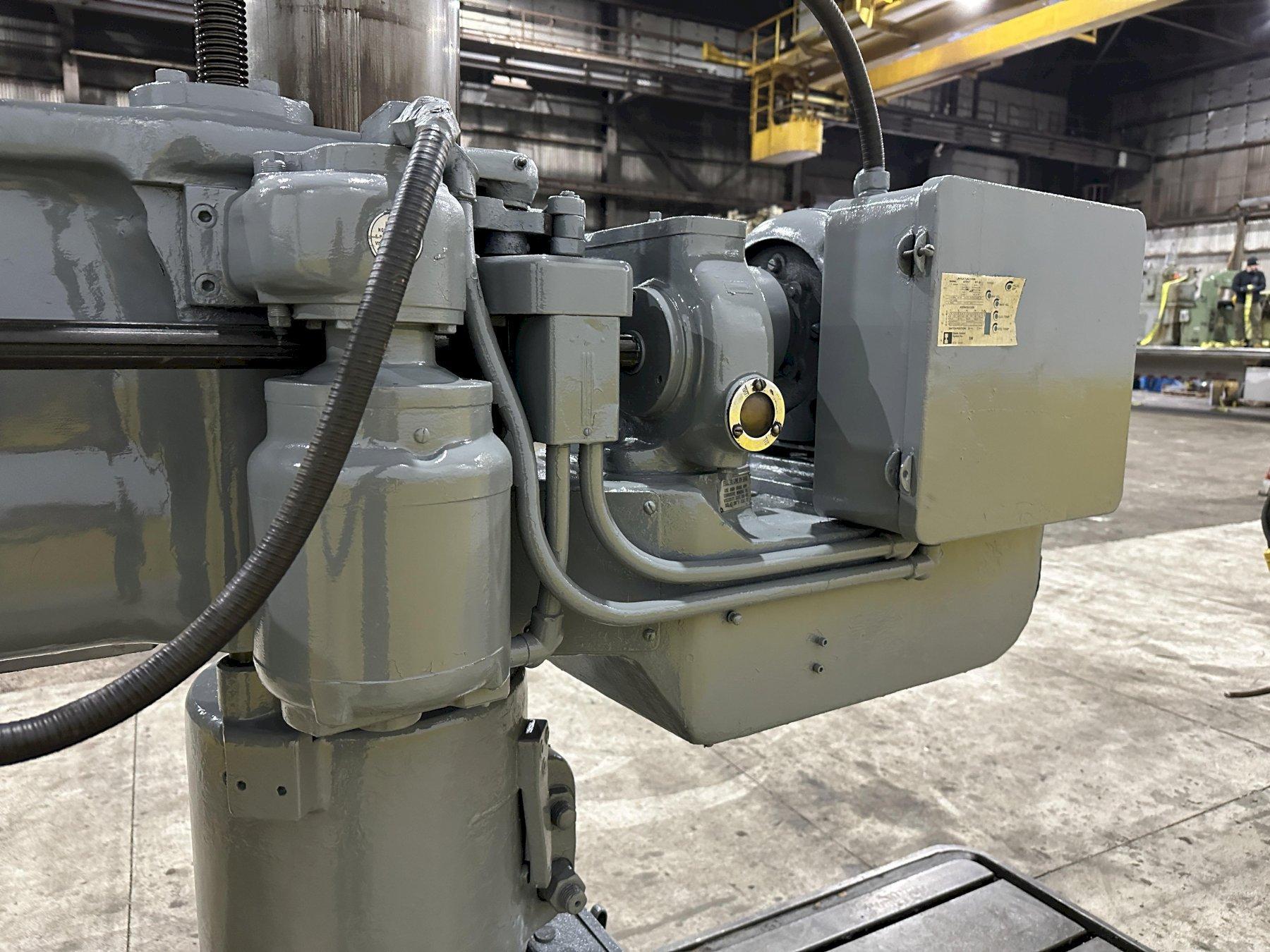

MOTOR ........................... 5 HORSEPOWER

3' X 9" CARLTON MODEL #1A RADIAL ARM DRILL WITH DUAL BASE: STOCK #22001

Brand
CARLTON

Type
Drills, Radial

Stock No.
22001

Contact Us
Buy Now
Price: $8950.00
Print Details

Contact Us

Related Listings

New Listing

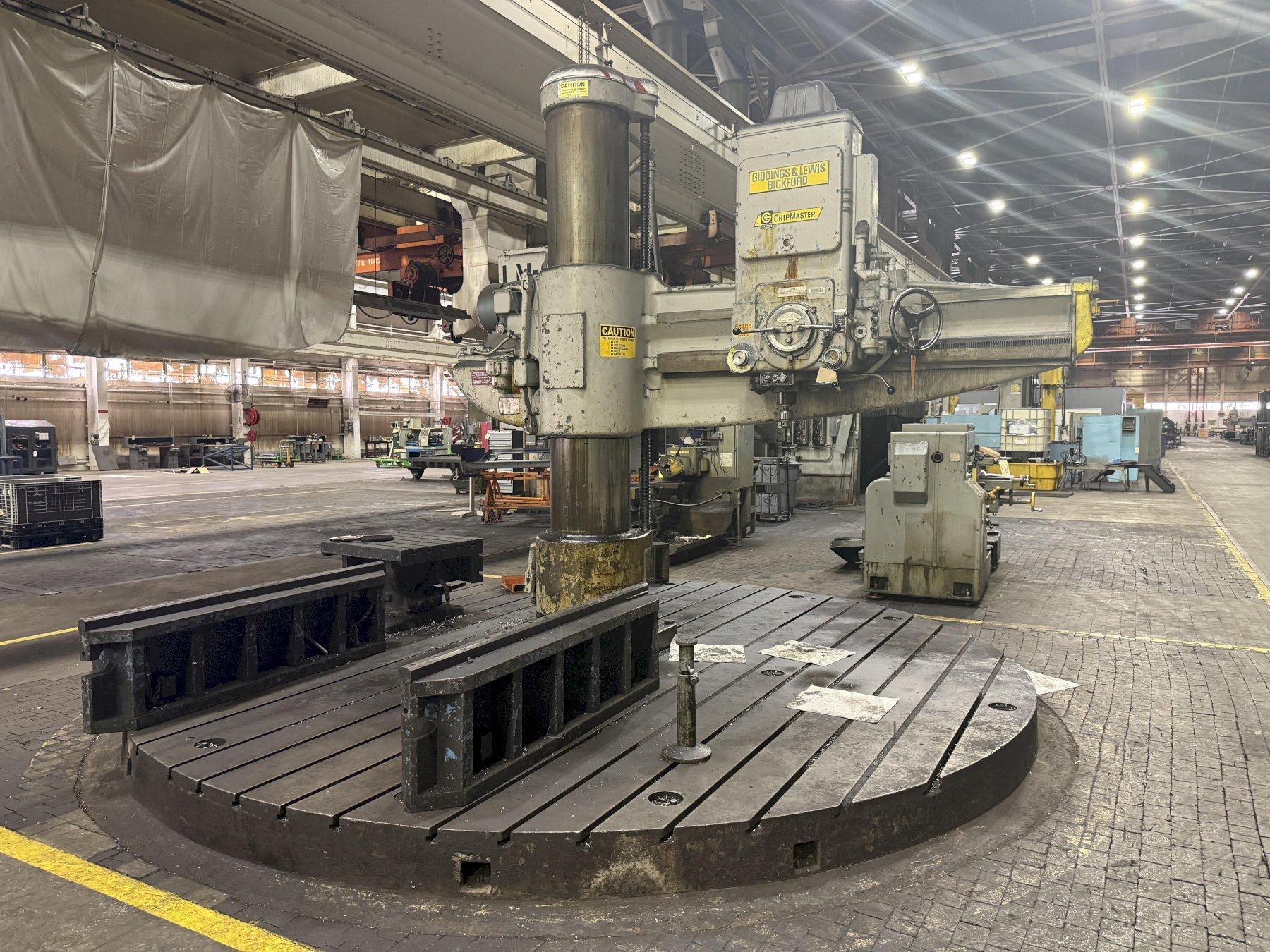

AMERICAN HMT MODEL #RD61 RADIAL ARM DRILL: STOCK #22387
