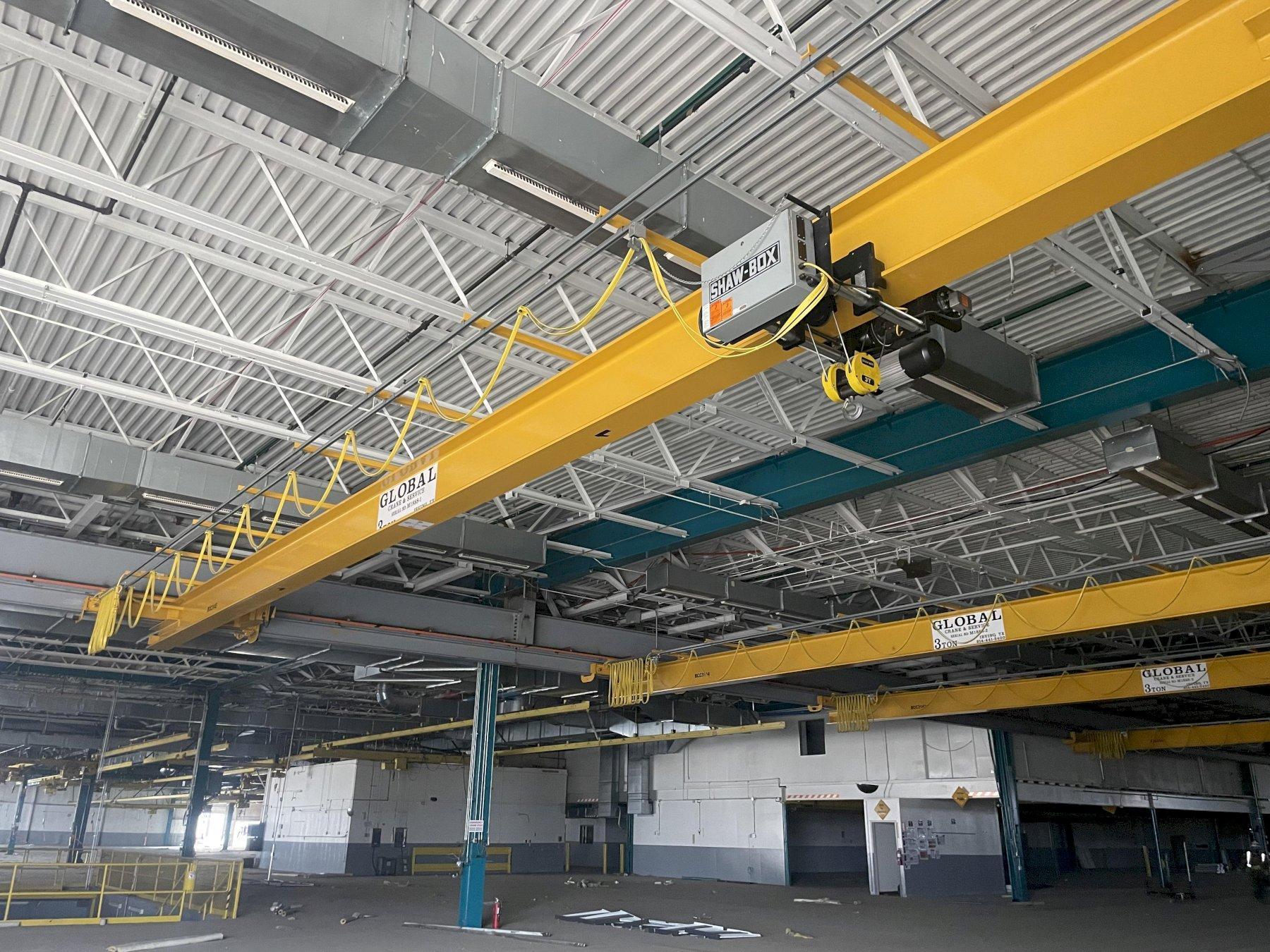

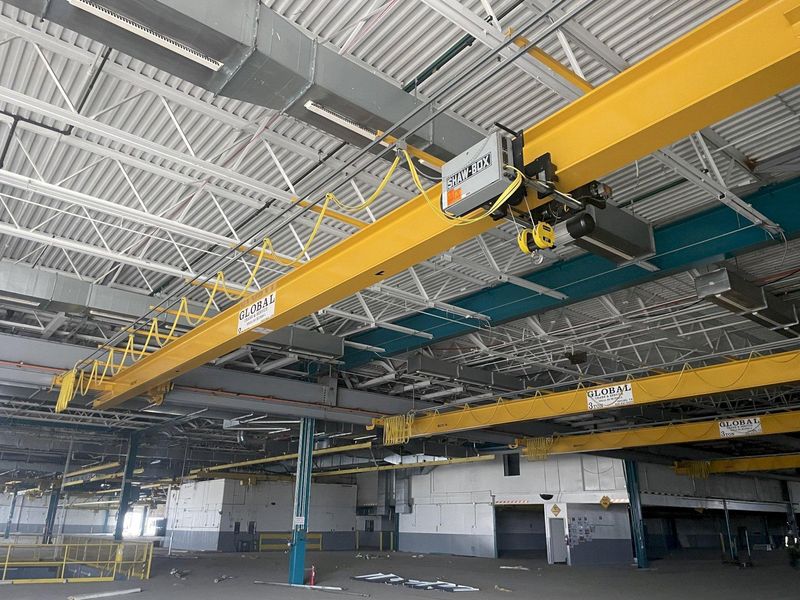

SERIAL .............. MM1888-1
NEW ................. 10/2015
CLASS ............... C
CAPACITY ............ 3 TONS
WIRELESS REMOTE ..... YES
SPAN ................ 52'-4" | 628"
BRIDGE GIRDER ....... 56'-4" | 676"
ELECTRICS ........... FESTOONED
UNDER SLUNG BRIDGE .. YES
SINGLE GIRDER ....... YES
BRIDGE BEAM ......... W21 X 32#
BRIDGE SPEED ........ 80 FPM VFD
END TRUCK DRIVEN .... YES
BRIDGE MOTORS ....... 2 @ 3/4 HP
BRIDGE WEIGHT ....... 9,728 LBS
HOIST ............... 3 TON SHAW BOX
STYLE ............... UNDERHUNG
SERIAL .............. WA3M03-020S20-2
LIFT ................ 20'
HOIST SPEEDS ........ 20/5 FPM
HOIST MOTOR ......... 5/1.25 HP
TROLLEY SPEED ....... 55/18 FPM
TROLLEY MOTOR ....... 0.5/0.17 HP
HOIST WEIGHT ........ 700
END TRUCK WIDTH ..... 8'7-1/8"
WHEEL CENTER ........ 7'3"
| Specifications | ||
|---|---|---|
| Tonnage | 3 tons | |
| Length of Span | 52 feet | |
| Weight | 9729 pounds | |
Brand
SHAW BOX
Type
Cranes, Bridge & Overhead
Stock No.
16104
 |
419-269-2000 |
Stock #: 16104
