SERIAL ..................... 060109-1
NEW ........................ 2009

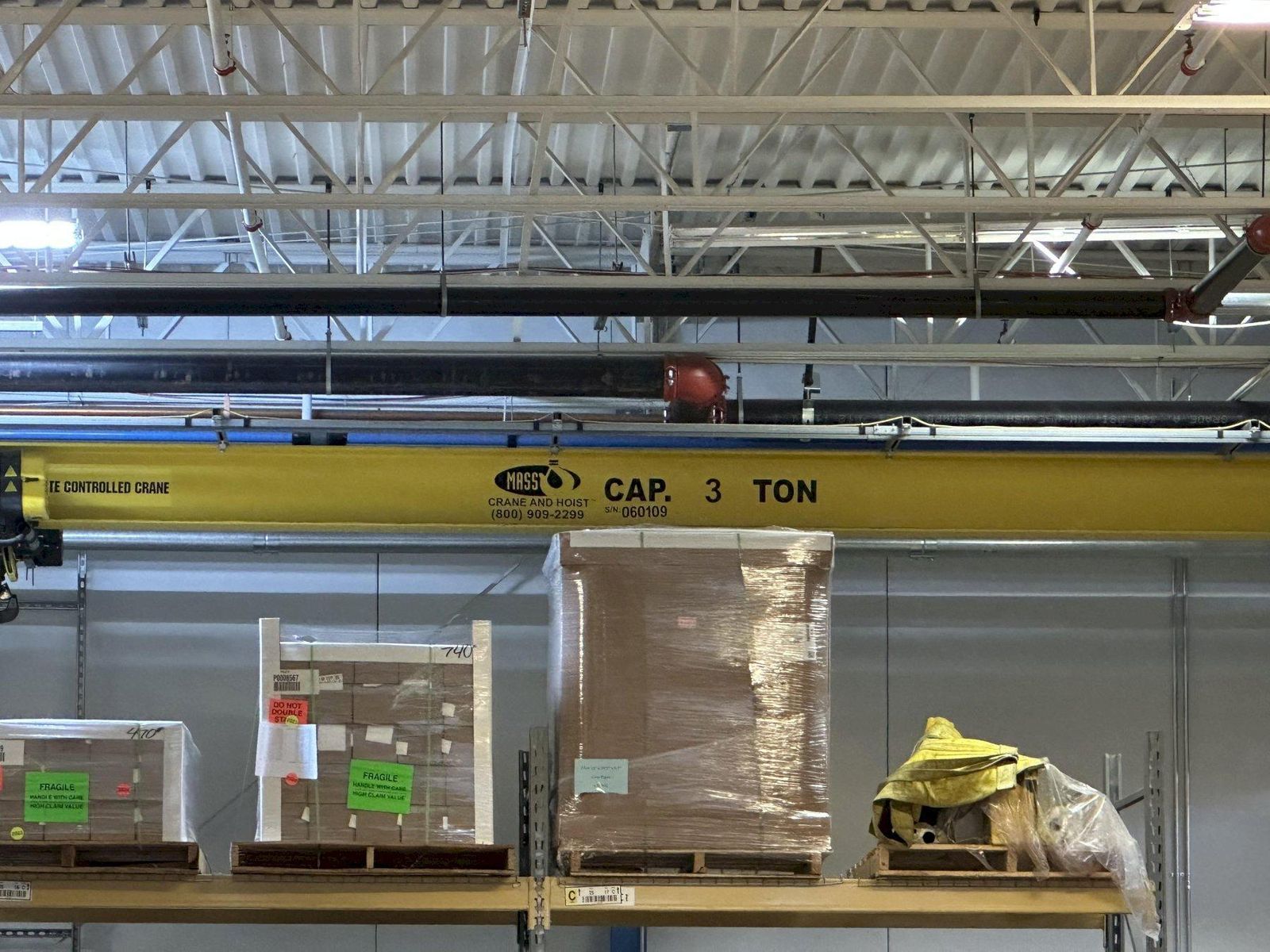

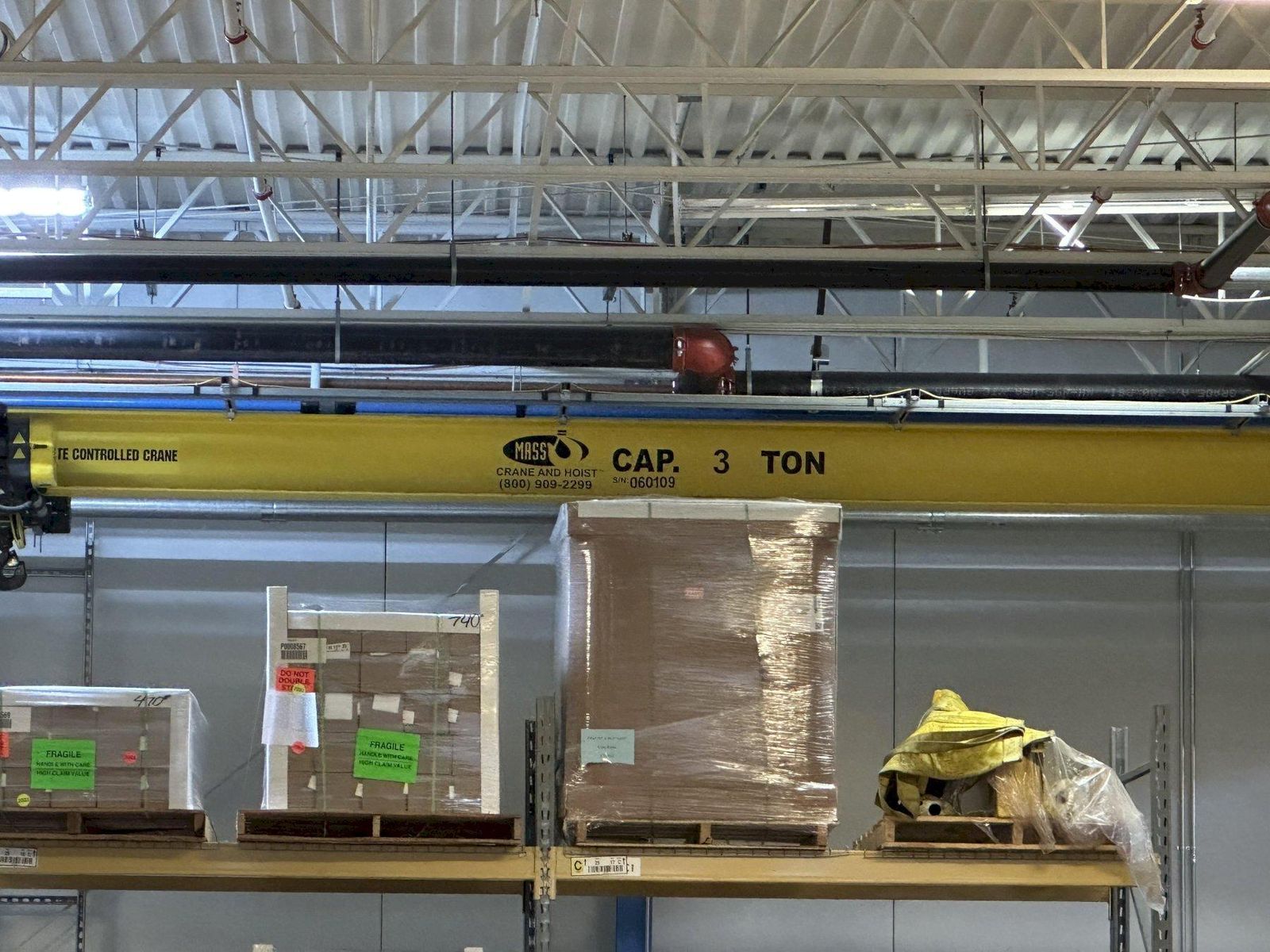

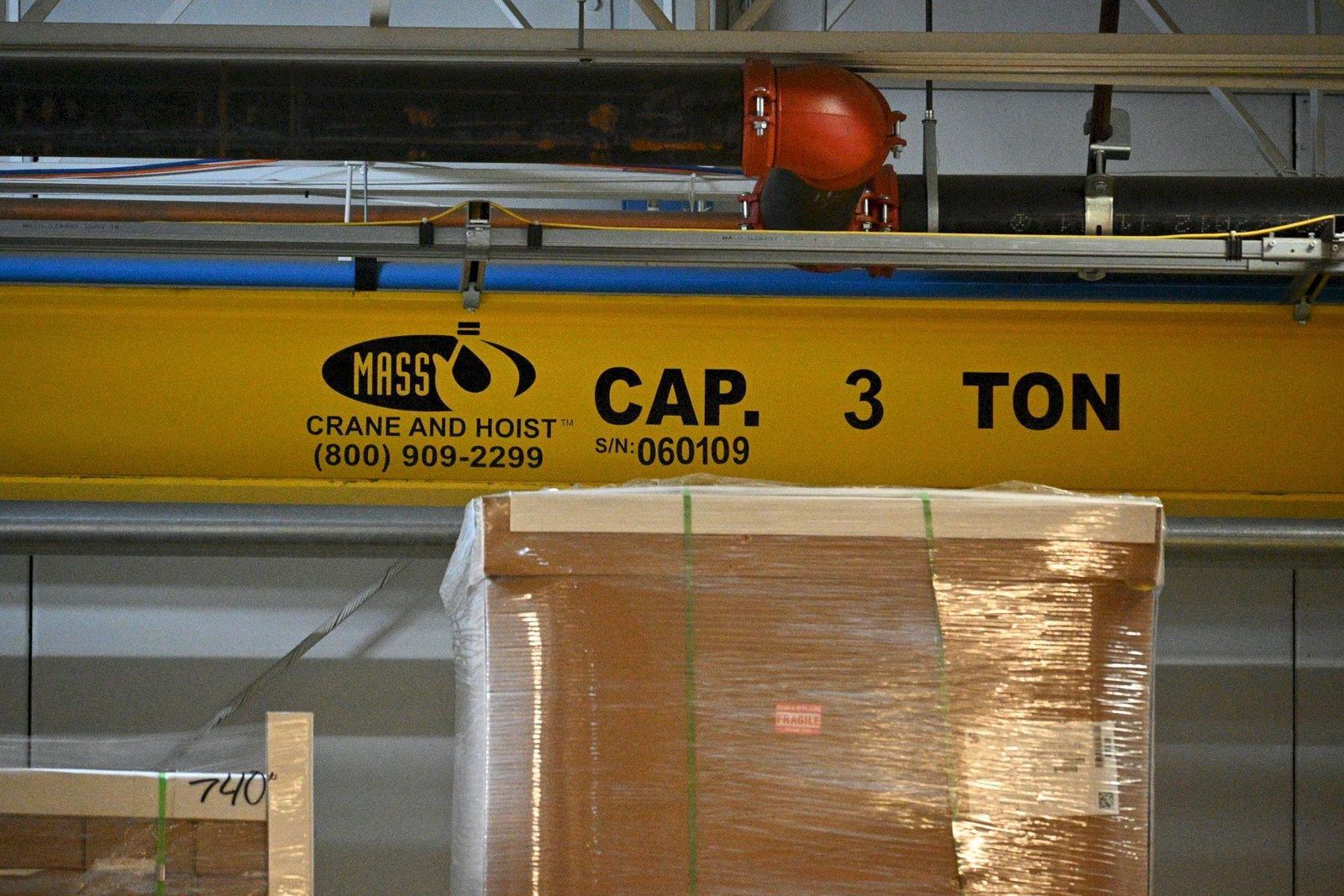

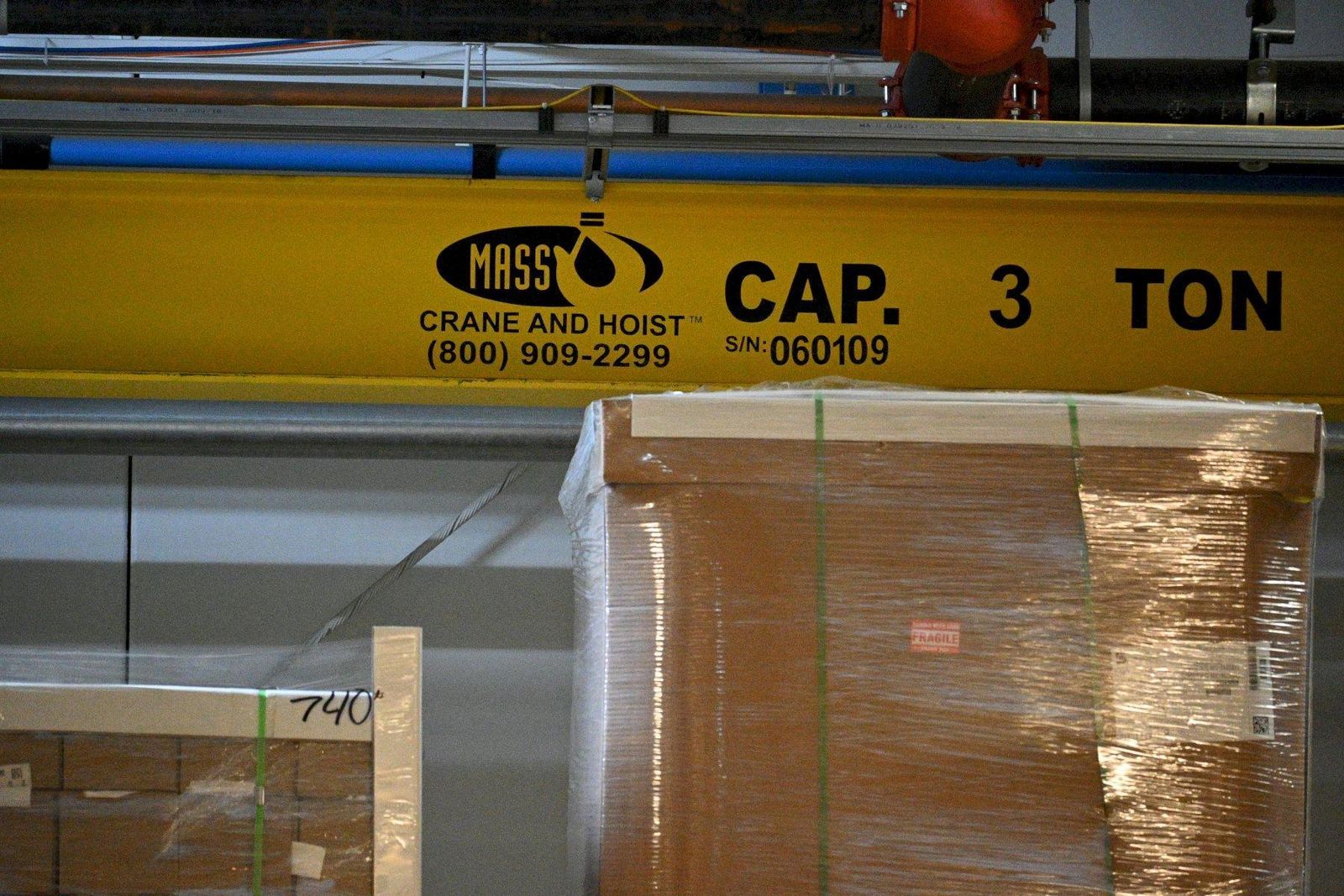

CAPACITY ................... 3 TON
SPAN ....................... 31'4"
CLASS ...................... C

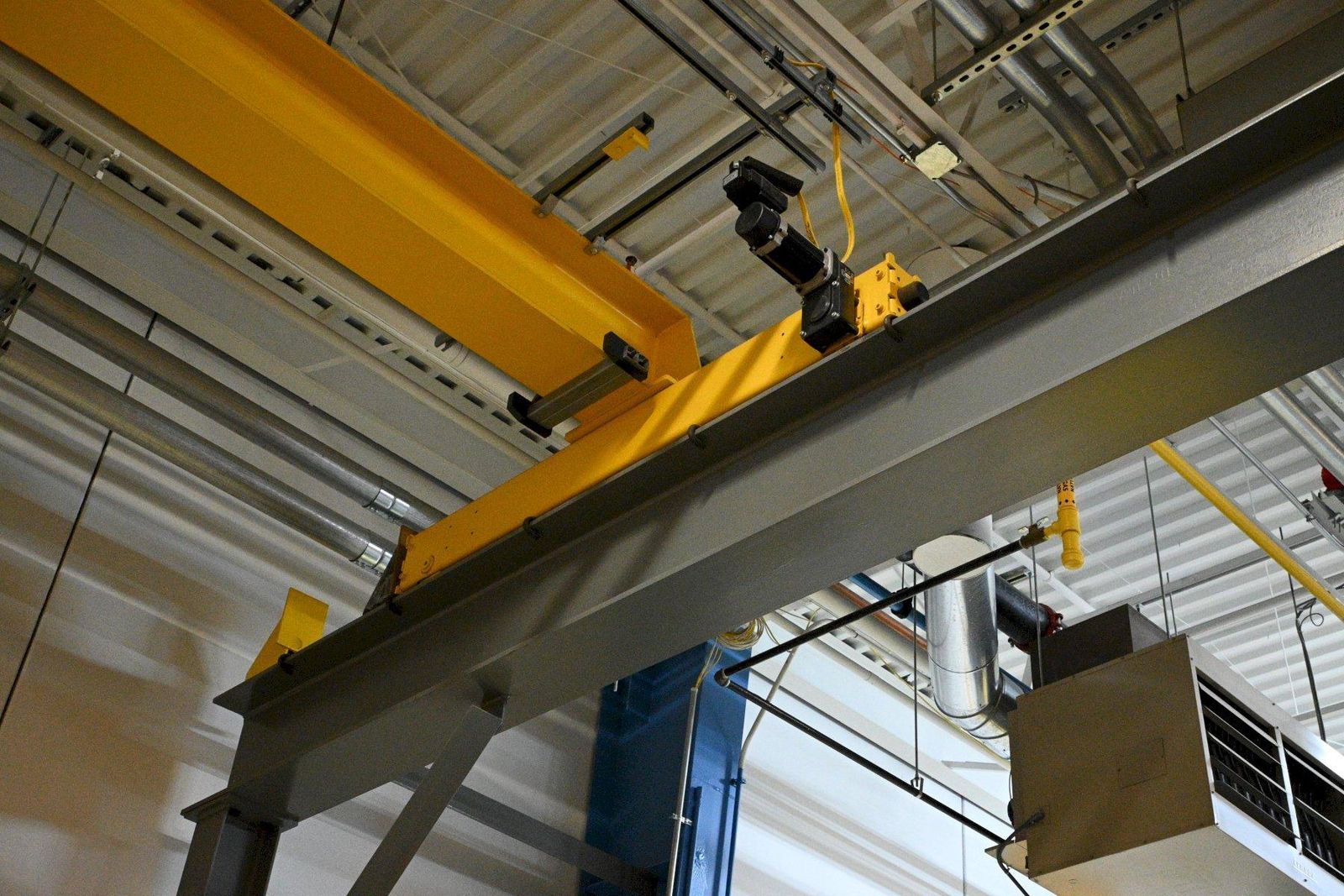

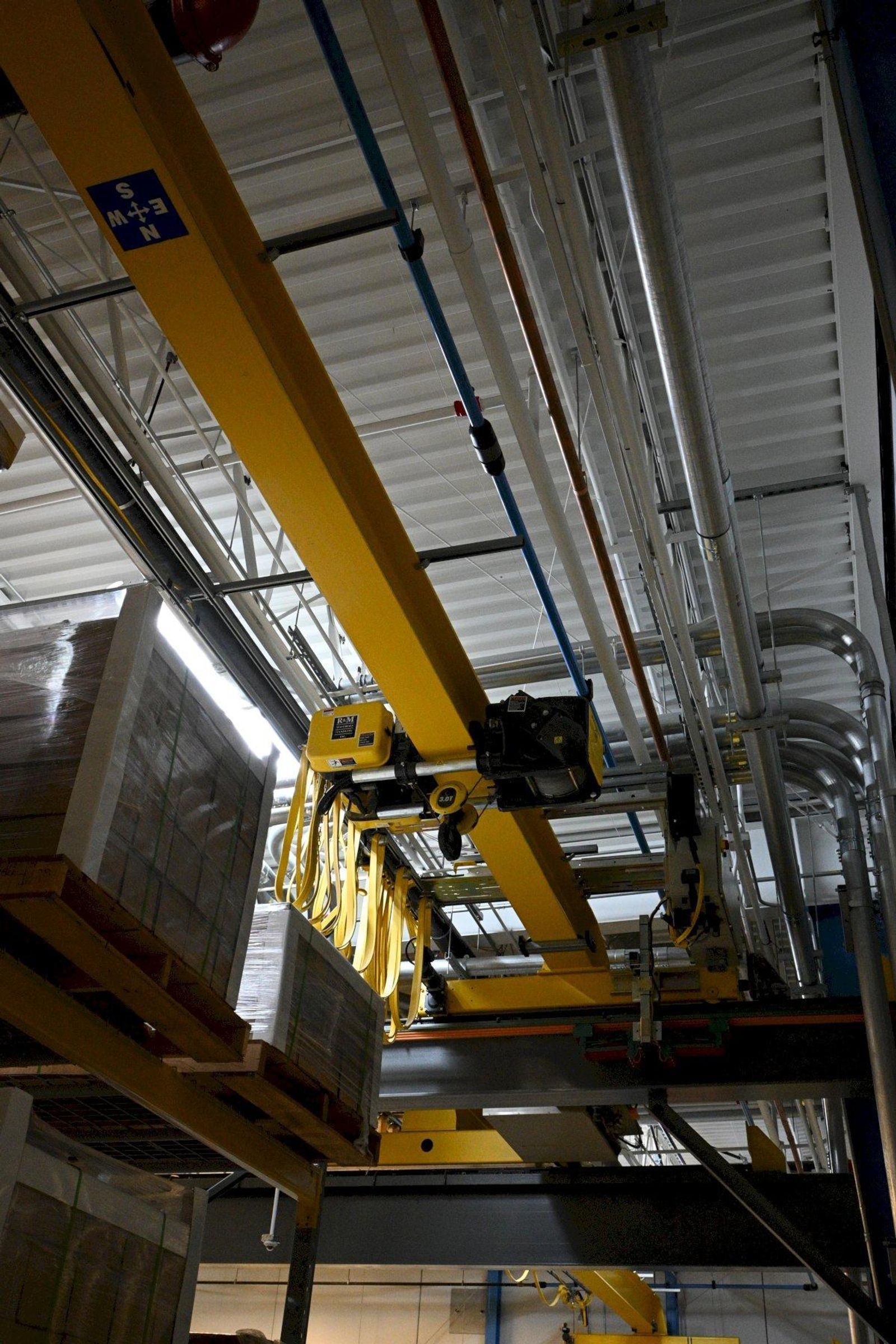

CRANE ...................... SINGLE GIRDER TOP RUNNING
HOIST ...................... UNDERSLUNG
HEAD ROOM .................. 26"

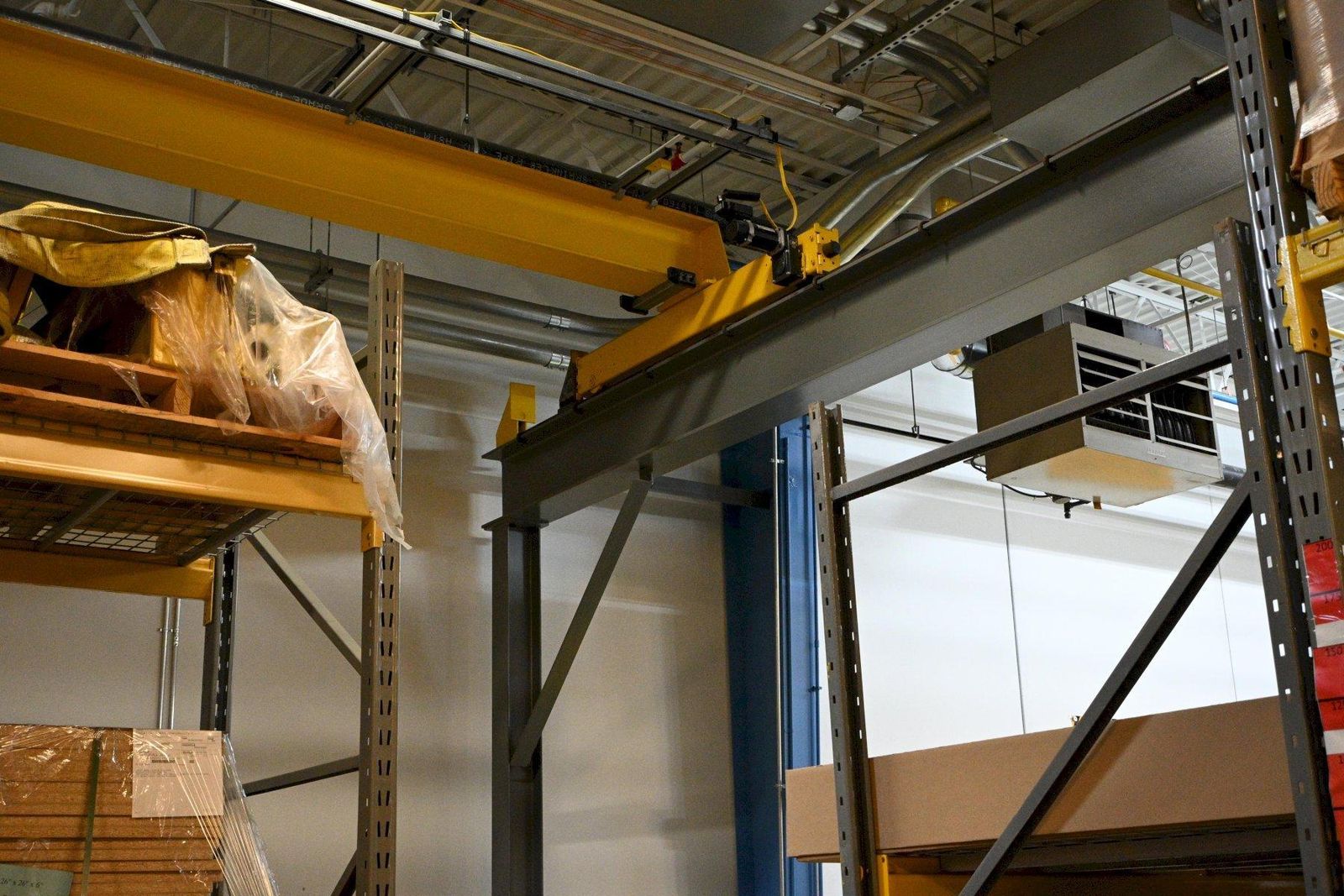

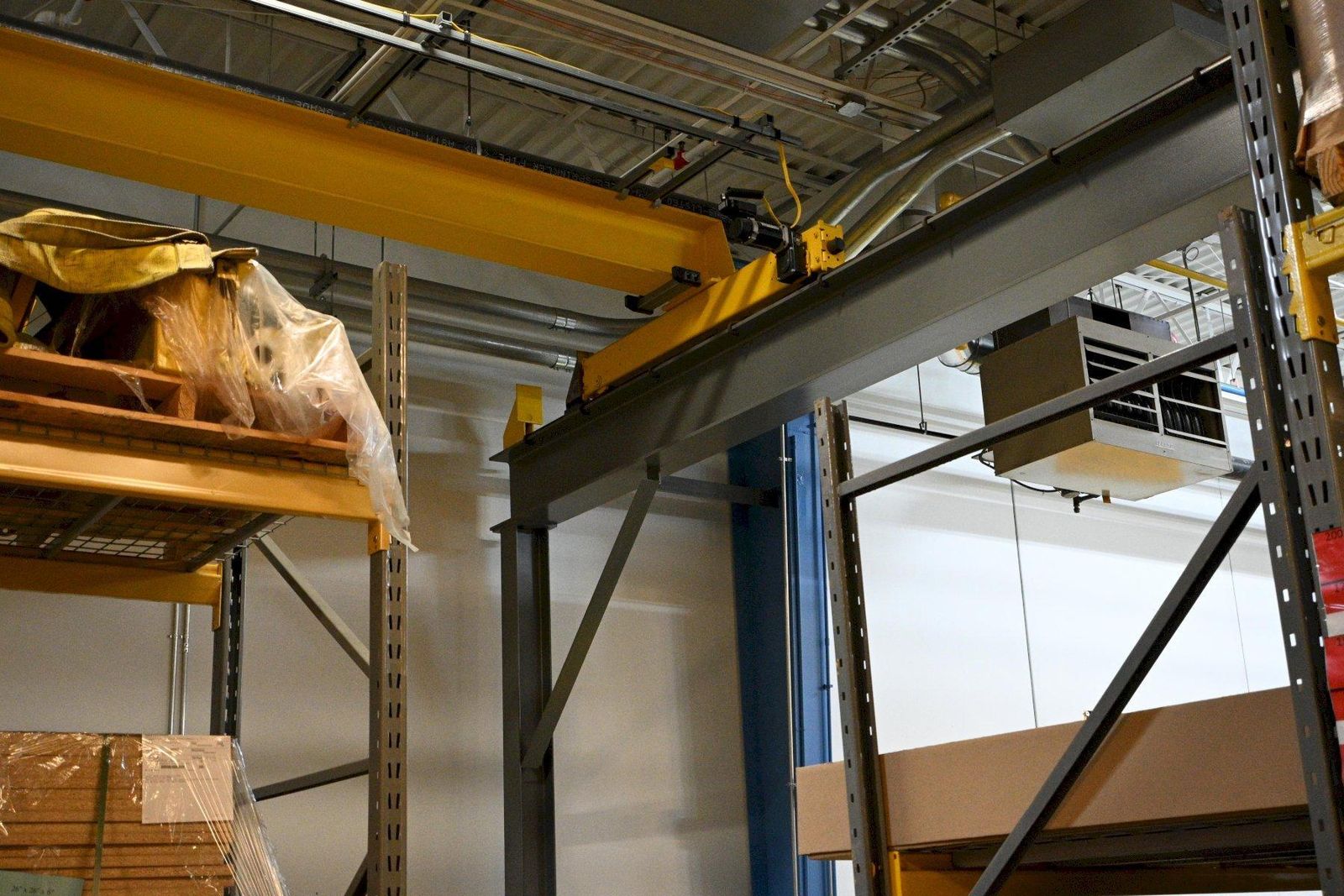

FREE STANDING ............. 32' WIDE X 80' LONG
UPRIGHTS ................... 6
OVERALL HEIGHT ............. 16'9"

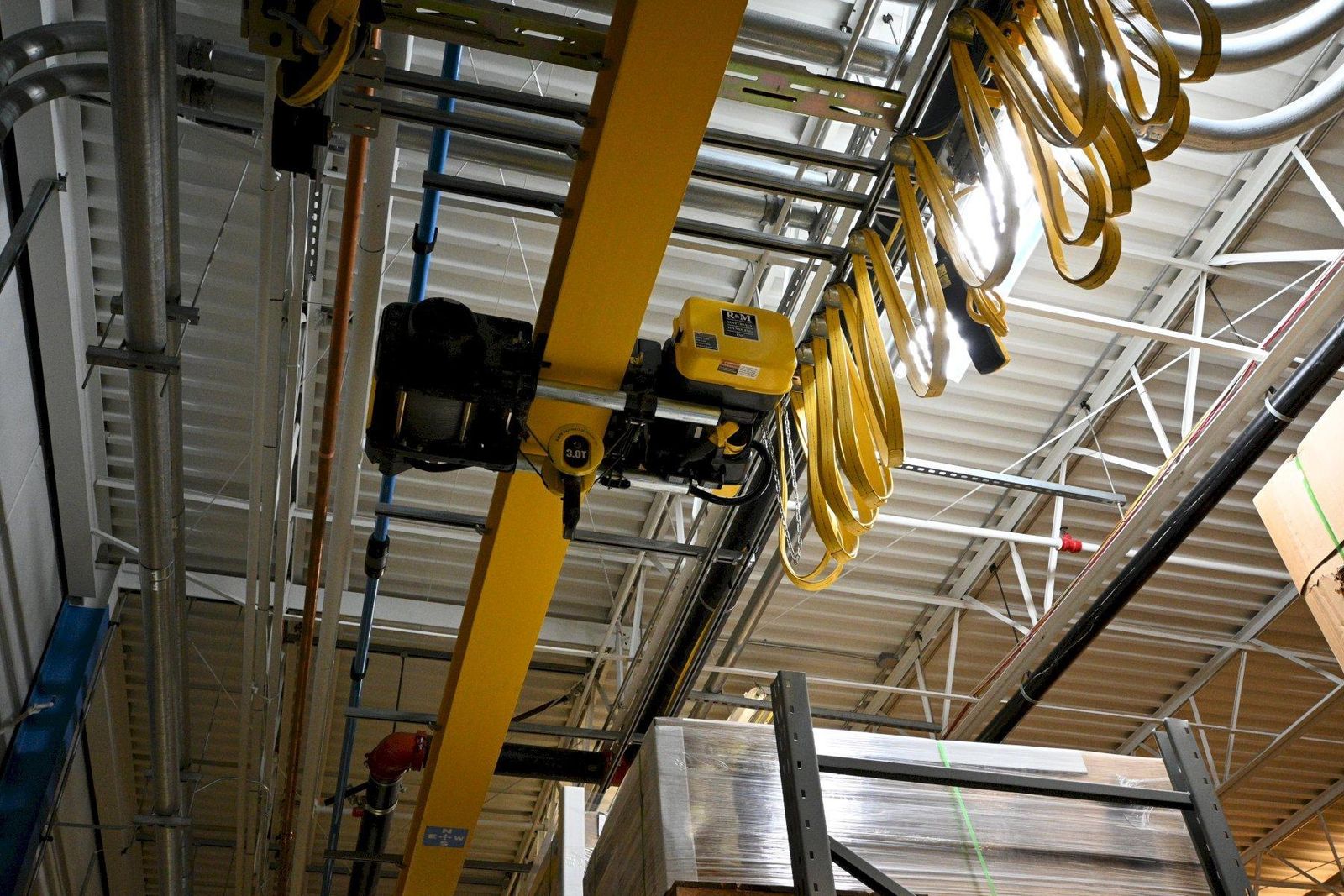

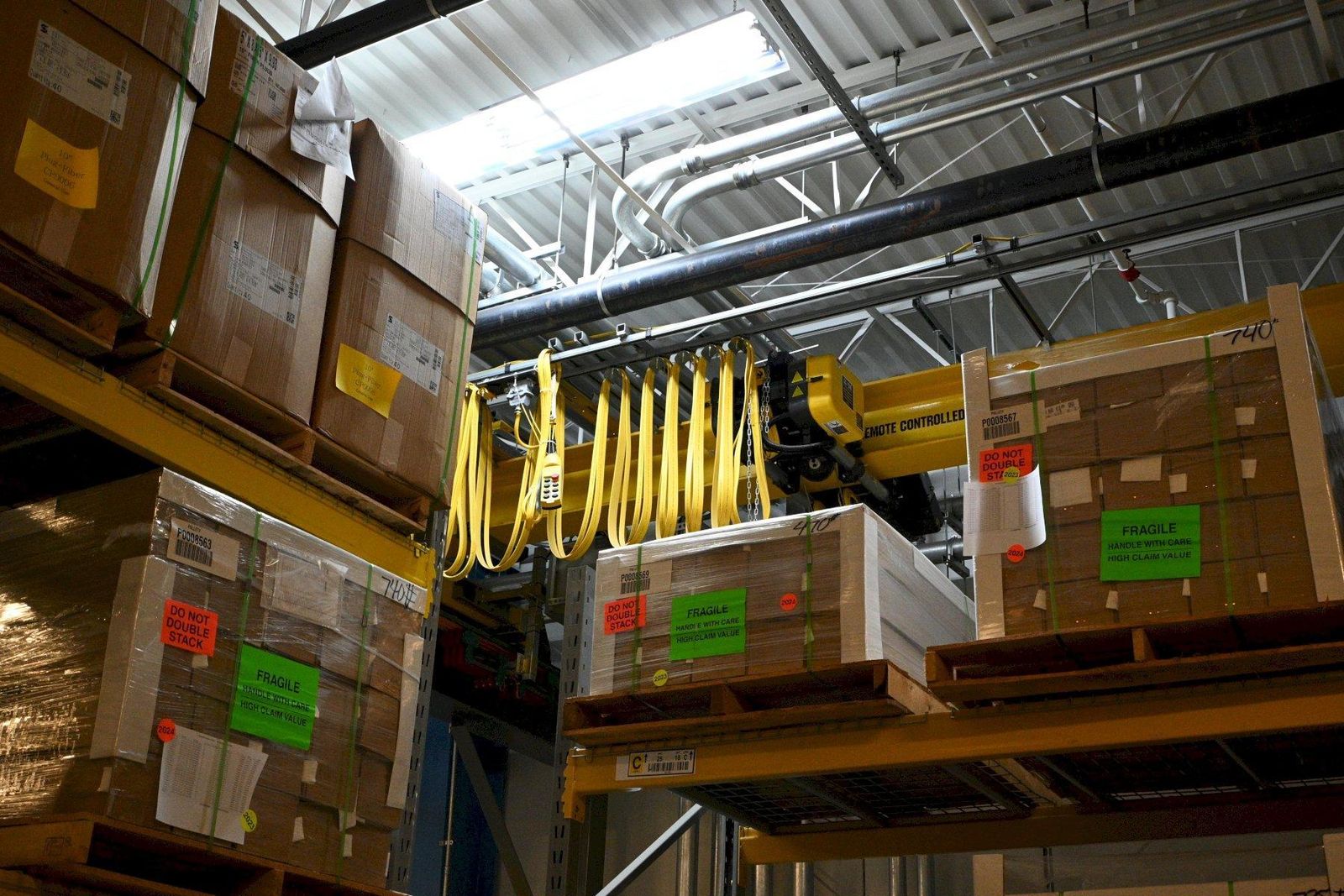

HOIST R&M SPACEMAKER BEAM HUGGER
SERIAL .................... SC60410032P25FALOF
LIFT ...................... 19'8"
HEIGHT UNDER BRIDGE ....... 15'4.25""
SPEED ..................... 20/3.2 FPM
HOIST MOTOR ............... 5.8/.9 HP
TROLLEY ................... POWERED
TROLLEY SPEED ............. 65 FPM, VARIABLE
TROLLEY MOTOR ............. .4 HP
BRIDGE SPEED .............. 100 FPM VARIABLE
BRIDGE MOTORS ............. 2 @ .5 HP
CONTROL ................... REMOTE
Brand
Not Specified
Type
Cranes, Bridge & Overhead
Stock No.
23154
 |
419-269-2000 |
Stock #: 23154
SERIAL ..................... 060109-1
NEW ........................ 2009
CAPACITY ................... 3 TON
SPAN ....................... 31'4"
CLASS ...................... C
CRANE ...................... SINGLE GIRDER TOP RUNNING
HOIST ...................... UNDERSLUNG
HEAD ROOM .................. 26"
FREE STANDING ............. 32' WIDE X 80' LONG
UPRIGHTS ................... 6
OVERALL HEIGHT ............. 16'9"
HOIST R&M SPACEMAKER BEAM HUGGER
SERIAL .................... SC60410032P25FALOF
LIFT ...................... 19'8"
HEIGHT UNDER BRIDGE ....... 15'4.25""
SPEED ..................... 20/3.2 FPM
HOIST MOTOR ............... 5.8/.9 HP
TROLLEY ................... POWERED
TROLLEY SPEED ............. 65 FPM, VARIABLE
TROLLEY MOTOR ............. .4 HP
BRIDGE SPEED .............. 100 FPM VARIABLE
BRIDGE MOTORS ............. 2 @ .5 HP
CONTROL ................... REMOTE
