SERIAL ................. 3499
NEW .................... 06/2002
CAPACITY ............... 12" W X 7" H
CONSTRUCTION ........... #304 STAINLESS STEEL
PART WEIGHT ............ 200 LB (18 LB /SQ FT)
BELT SPEED ............. .5 TO 5.5 FPM
MESH BELT .............. 12" STAINLESS
3 STAGE ................ WASH, RINSE, DRY
WASH ................... 130 DEGREES, 16 KW ELECTRIC HEAT
WASH TANK .............. 126 GALLONS
WAASH PUMP ............. 3 HP
RINSE .................. 120 DEGREES, 12 KW ELECTRIC HEAT
RINSE TANK ............. 90 GALLONS
RINSE PUMP ............. 2 HP
BLOW OFF DRY ........... 180 DEGREES, 18 KW ELECTRIC HEAT
BLOW OFF FAN MOTOR ..... 10 HP
LOAD HEIGHT ............ 36"
INSULATION ............. 1" STYROFOAM
SOUND .................. 85 DBA
ELECTRIC / CONTROLS .... 460 VOLT
| Specifications | ||
|---|---|---|
| Dimensions | 12'2" L X 67" W X 79" HIGH | |
Brand

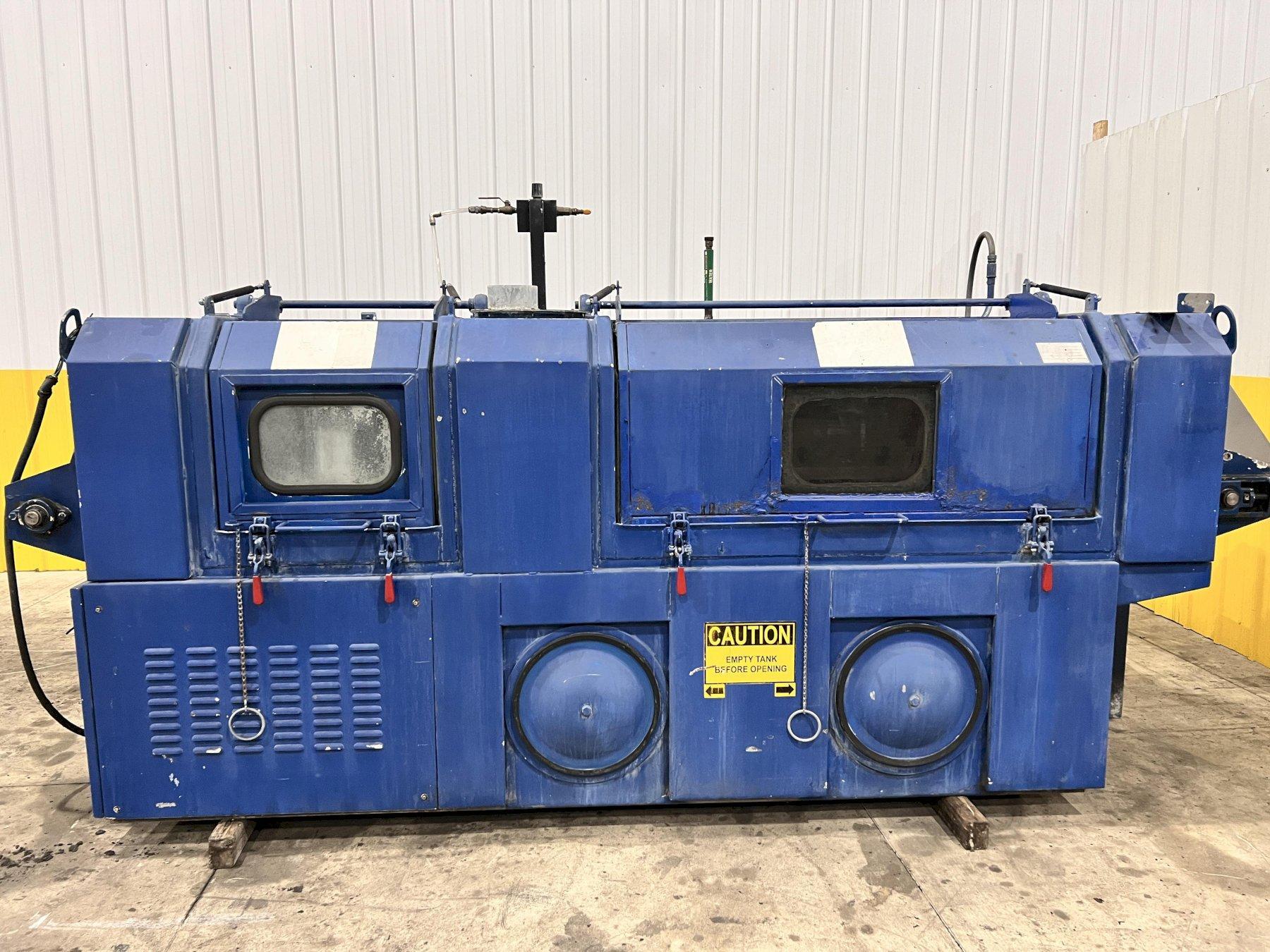

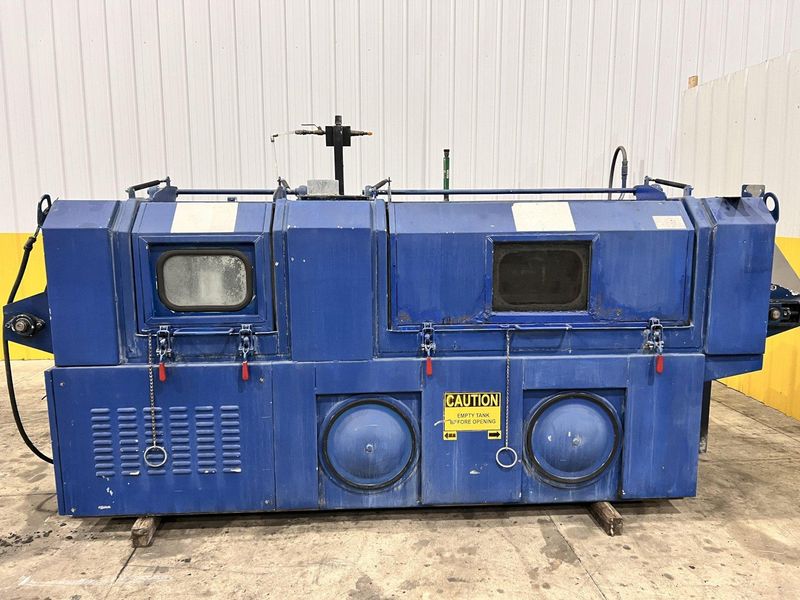

RANSOHOFF
Type
Washers
Stock No.
17033
 |
