Brand
SOUTH BEND
Type
Drills, Radial
Stock No.
20847
 |
419-269-2000 |
Stock #: 20847

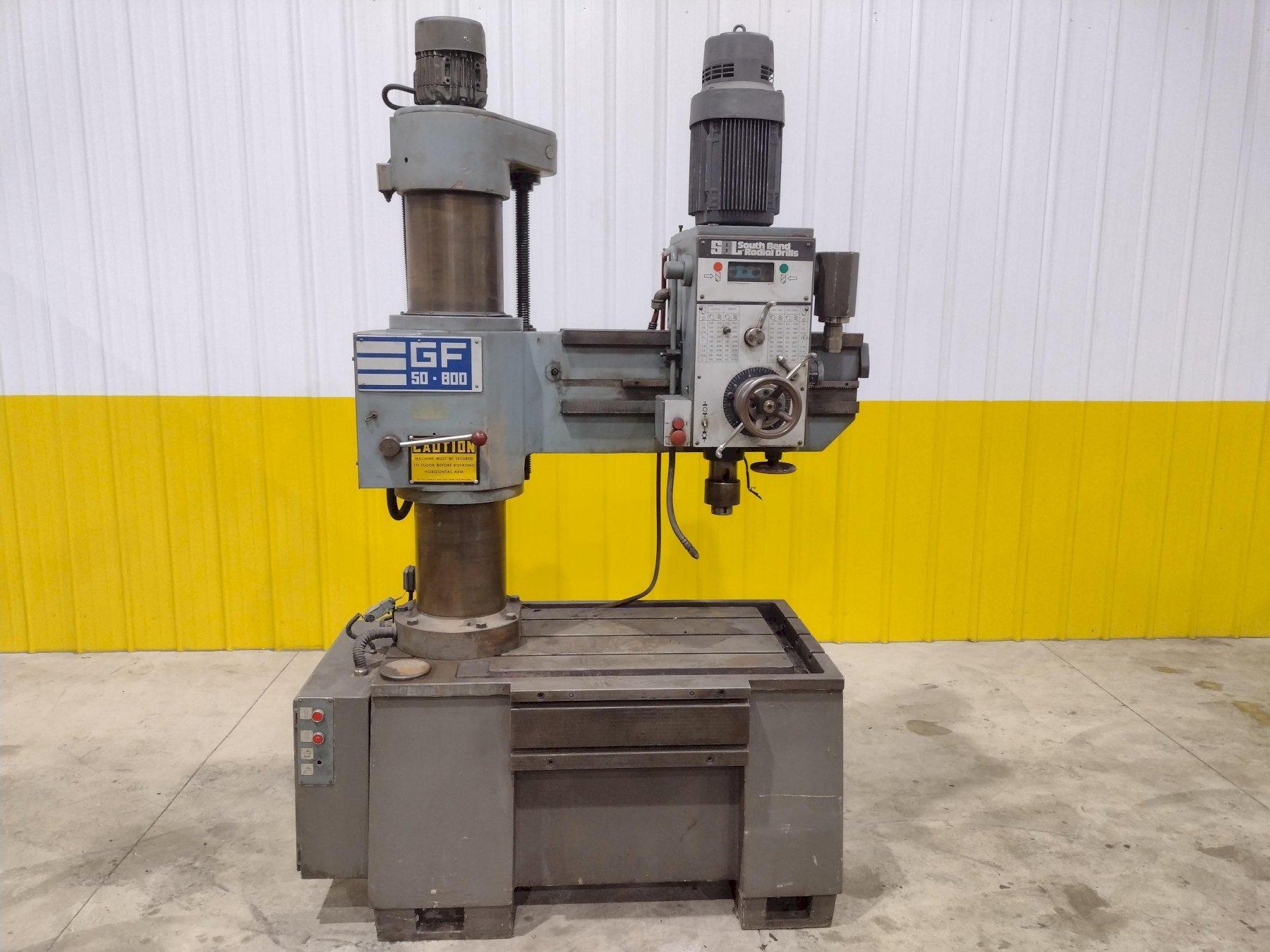

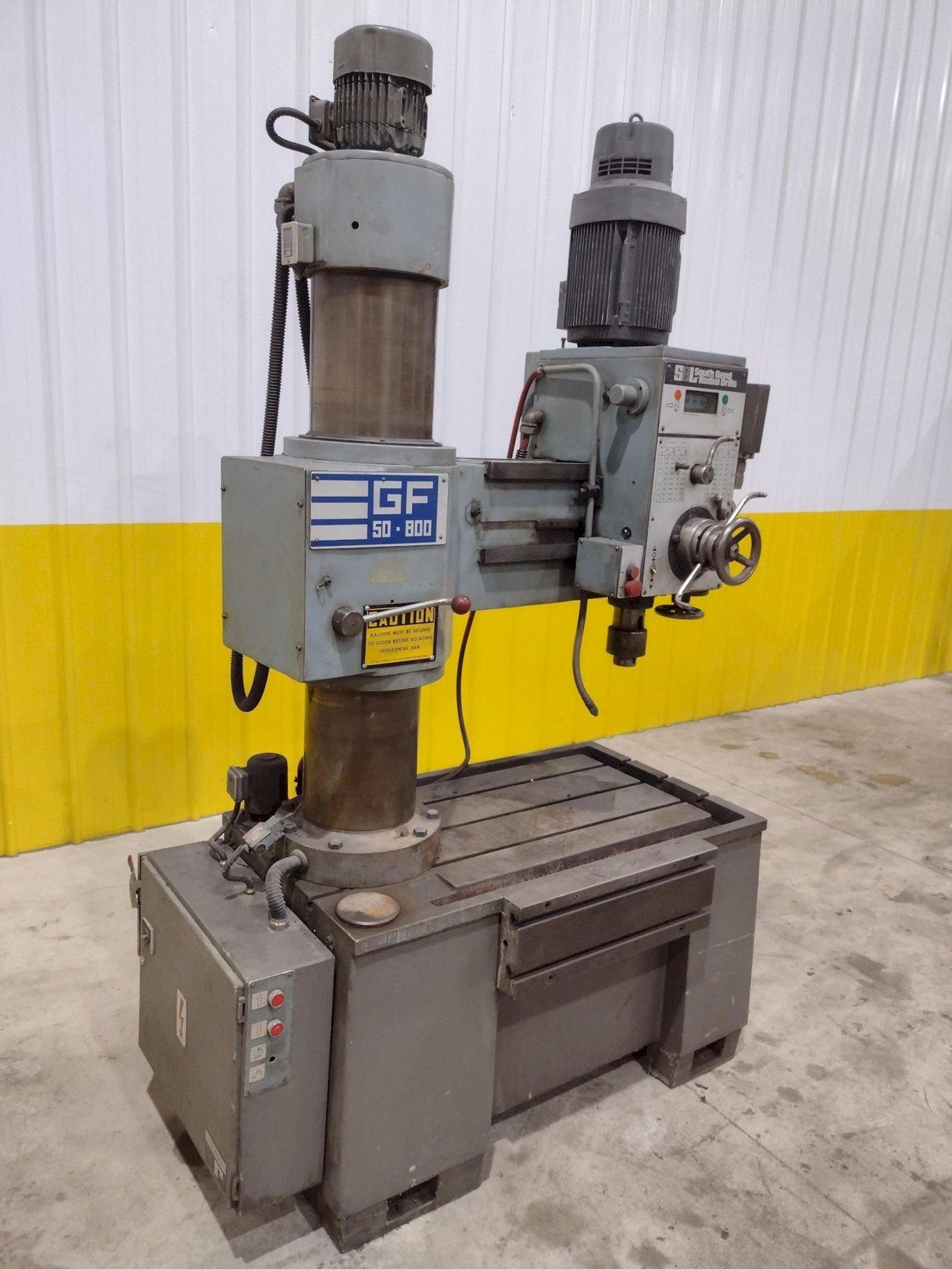

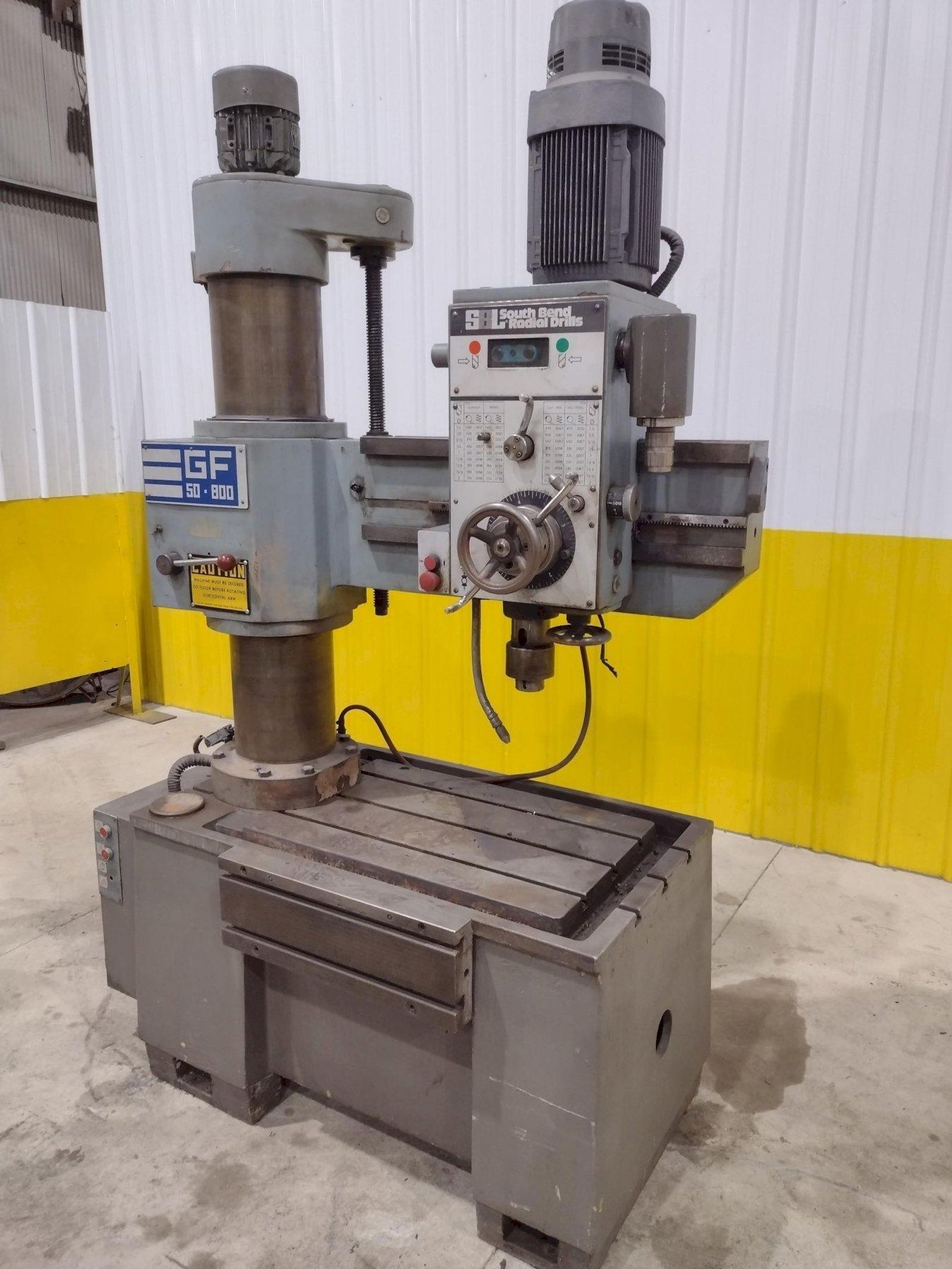

3' X 10" SOUTHBEND MODEL #GF 50-800 RADIAL DRILL: STOCK #20847SERIAL .................................... 4250MODEL ..................................... GF 50-800, NEW 198OSDRILLING CAPACITY, MILD STEEL ............. 2"DRILLING CAPACITY, CAST IRON .............. 2-3/8"TAPPING CAPACITY, MILD STEEL .............. 1-9/16"TAPPING CAPACITY, CAST IRON ............... 2"COLUMN DIAMETER ........................... 10"ARM LENGTH ................................ 27-1/2"MIN/MAX DISTANCE, SPINDLE TO BASE ......... 3-7/16" / 27-7/16"WORKING SURFACE OF BASE, WIDTH X LENGTH ... 25" X 33"SPINDLE TAPER ............................. #4 MORSESPINDLE STROKE ............................ 9-1/2"TRAVERSE OF ARM ON COLUMN ................. 21-1/2"TRAVERSE OF HEAD ON ARM ................... 21-3/4"DRILLS TO CENTER OF CIRCLE, MIN/MAX ....... 14.75"/36.5"FEEDS (6) ................................. .0019 TO .0138 IPRSPINDLE SPEEDS (12) ....................... 40 TO 1,750 RPMBASE DIMENSIONS ........................... 25"W x 47"LAPPROXIMATE WEIGHT ........................ 4,000 LBS.- POWER ELEVATION OF ARM ON COLUMN- BUILT-IN COOLANT SYSTEM- REVERSING SPINDLE FOR TAPPING- 1.5 H.P. ARM ELEVATION MOTOR- 3.5 - 2.2 H.P. 3/60/230 - 460 VOLT SPINDLE DRIVE MOTOR
