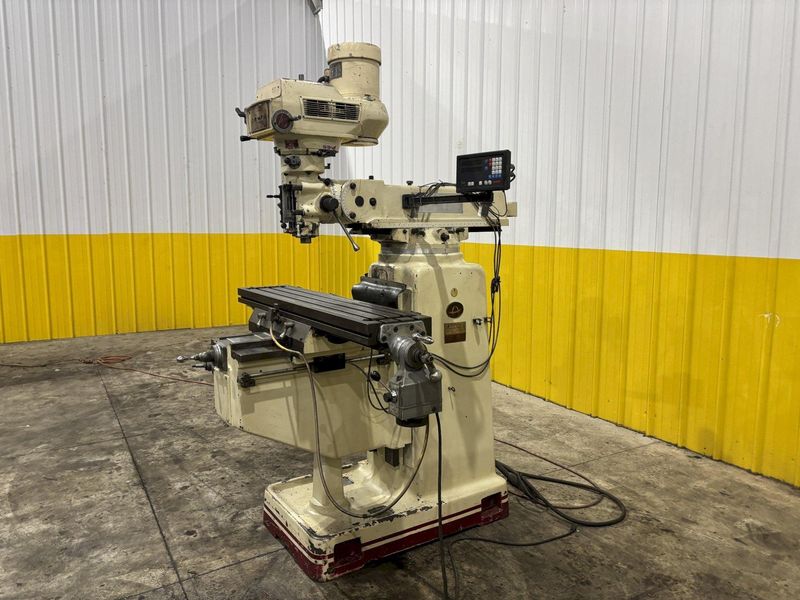

3 HP ACER MODEL #3VK3-HP RAM TYPE VERTICAL MILL WITH DIGITAL READ OUTS: STOCK #23061

Overview

MODEL .............................. 3VKH

TABLE AREA (T-SLOTTED) ............. 50" X 10"

LONGITUDINAL TABLE TRAVEL .......... 34"

CROSS TABLE TRAVEL ................. 16"

VERTICAL TABLE TRAVEL .............. 16"

RAM TRAVEL ......................... 20"

SPINDLE SPEEDS (VARIABLE) .......... 60 TO 4200 RPM

SPINDLE TAPER ...................... R-8

SPINDLE FEEDS ...................... .OO15, .003, .006 IPR

QUILL DIAMETER ..................... 3-3/8"

QUILL STROKE ....................... 5"

LONGITUDINAL SERVO TABLE FEED ...... YES

2 AXIS DIGITAL READOUTS ............ NEWALL TOPAZ

1 SHOT LUBE ........................ YES

MOTOR .............................. 3 HORSEPOWER

3 HP ACER MODEL #3VK3-HP RAM TYPE VERTICAL MILL WITH DIGITAL READ OUTS: STOCK #23061

Brand
ACER

Type
Boring Mills, Vertical

Stock No.
23061

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
870 Curtis St
Toledo, OH 43609

Machine Information

3 HP ACER MODEL #3VK3-HP RAM TYPE VERTICAL MILL WITH DIGITAL READ OUTS: STOCK #23061

Stock #: 23061

Equipped With


MODEL .............................. 3VKH
TABLE AREA (T-SLOTTED) ............. 50" X 10"
LONGITUDINAL TABLE TRAVEL .......... 34"
CROSS TABLE TRAVEL ................. 16"
VERTICAL TABLE TRAVEL .............. 16"
RAM TRAVEL ......................... 20"
SPINDLE SPEEDS (VARIABLE) .......... 60 TO 4200 RPM
SPINDLE TAPER ...................... R-8
SPINDLE FEEDS ...................... .OO15, .003, .006 IPR
QUILL DIAMETER ..................... 3-3/8"
QUILL STROKE ....................... 5"
LONGITUDINAL SERVO TABLE FEED ...... YES
2 AXIS DIGITAL READOUTS ............ NEWALL TOPAZ
1 SHOT LUBE ........................ YES
MOTOR .............................. 3 HORSEPOWER

Overview

3 HP ACER MODEL #3VK3-HP RAM TYPE VERTICAL MILL WITH DIGITAL READ OUTS: STOCK #23061
