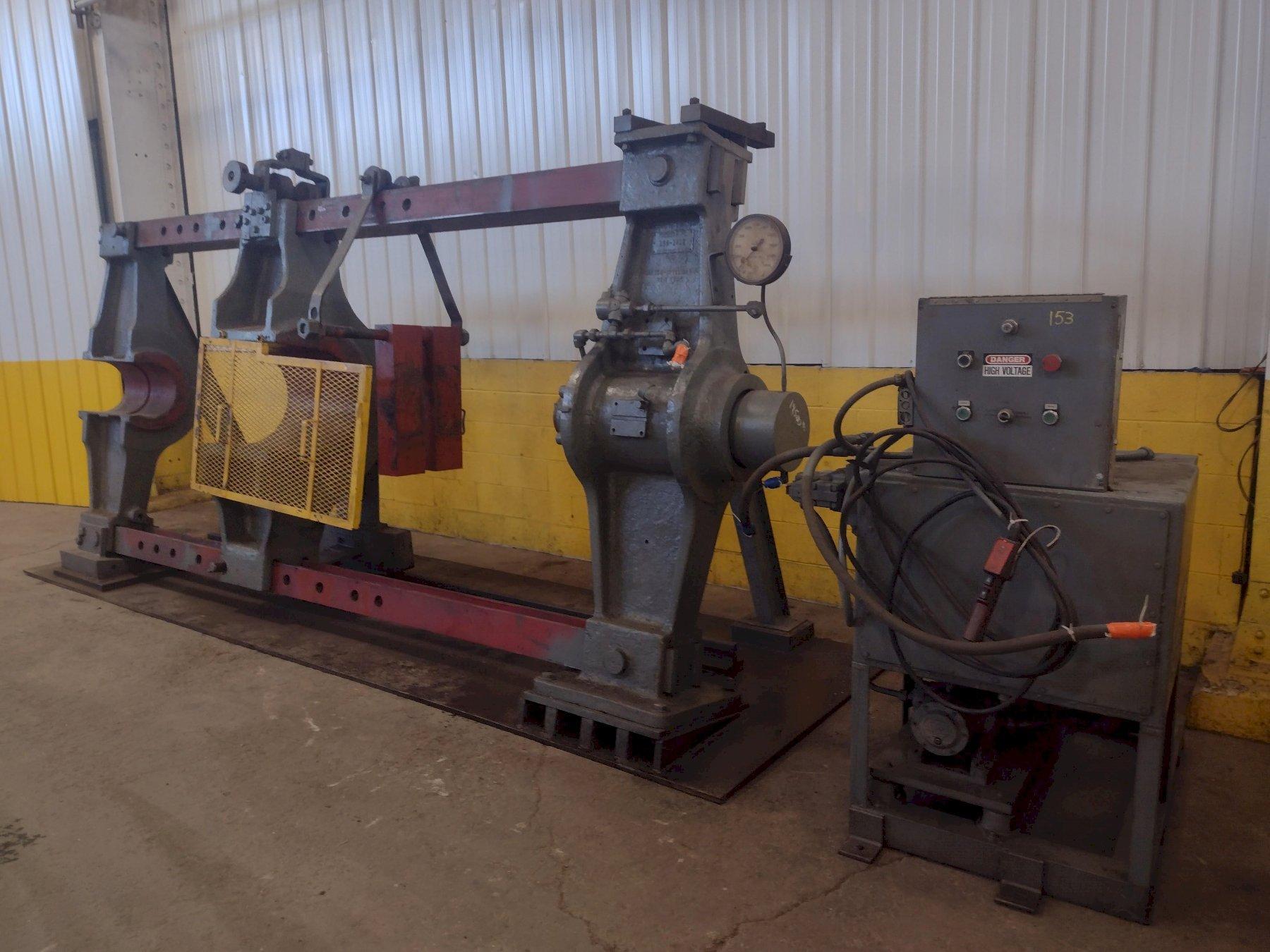

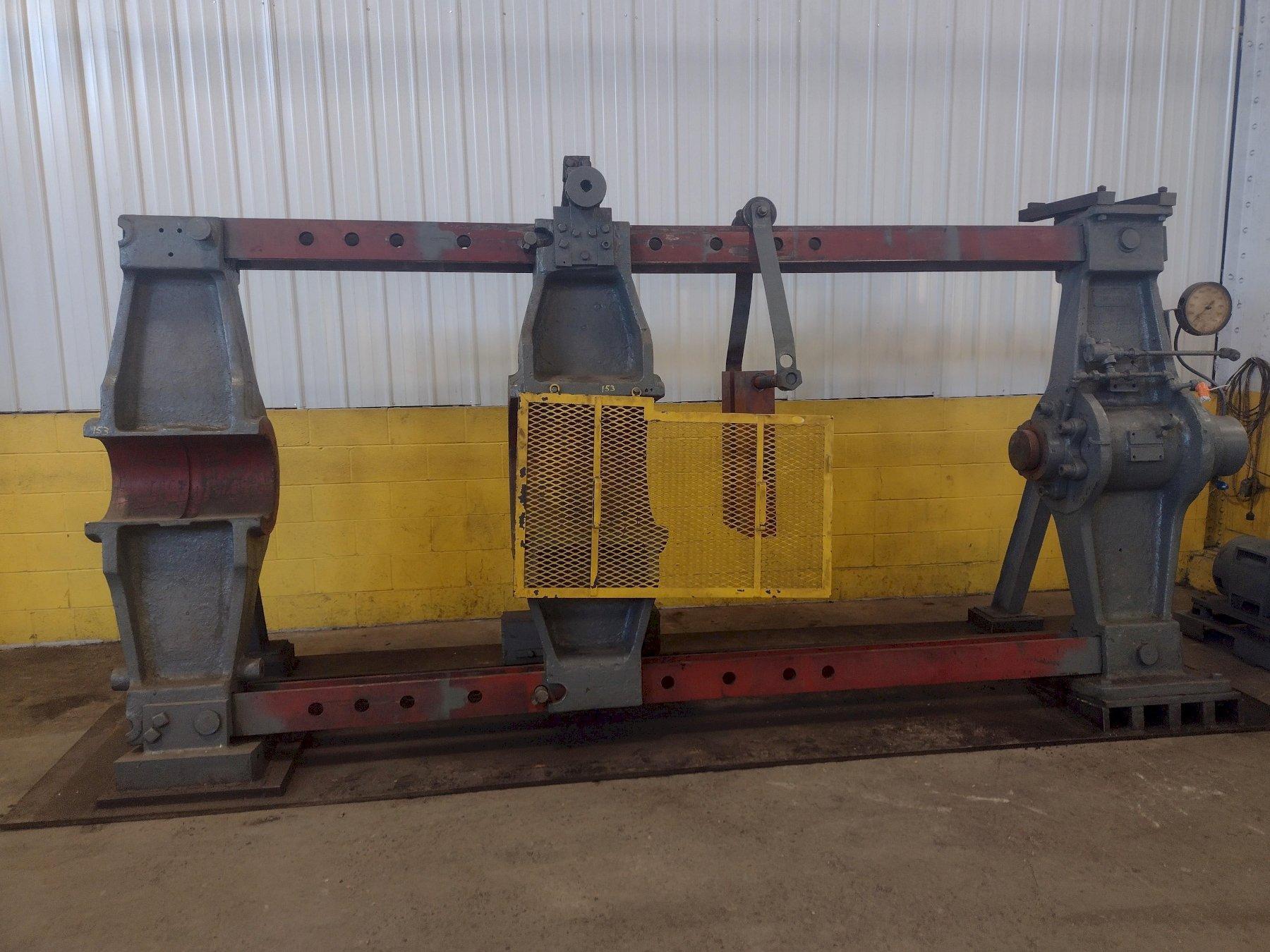

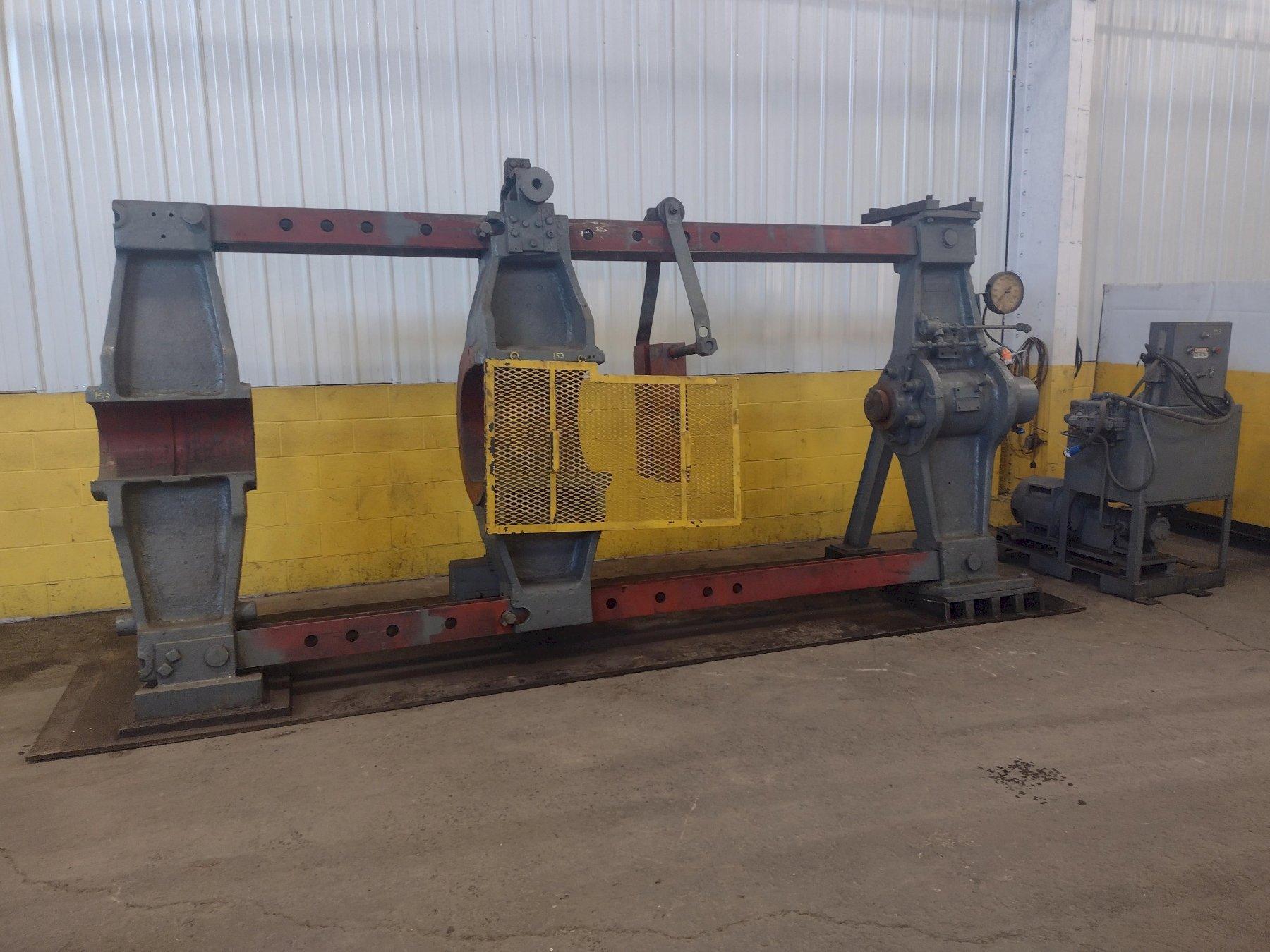

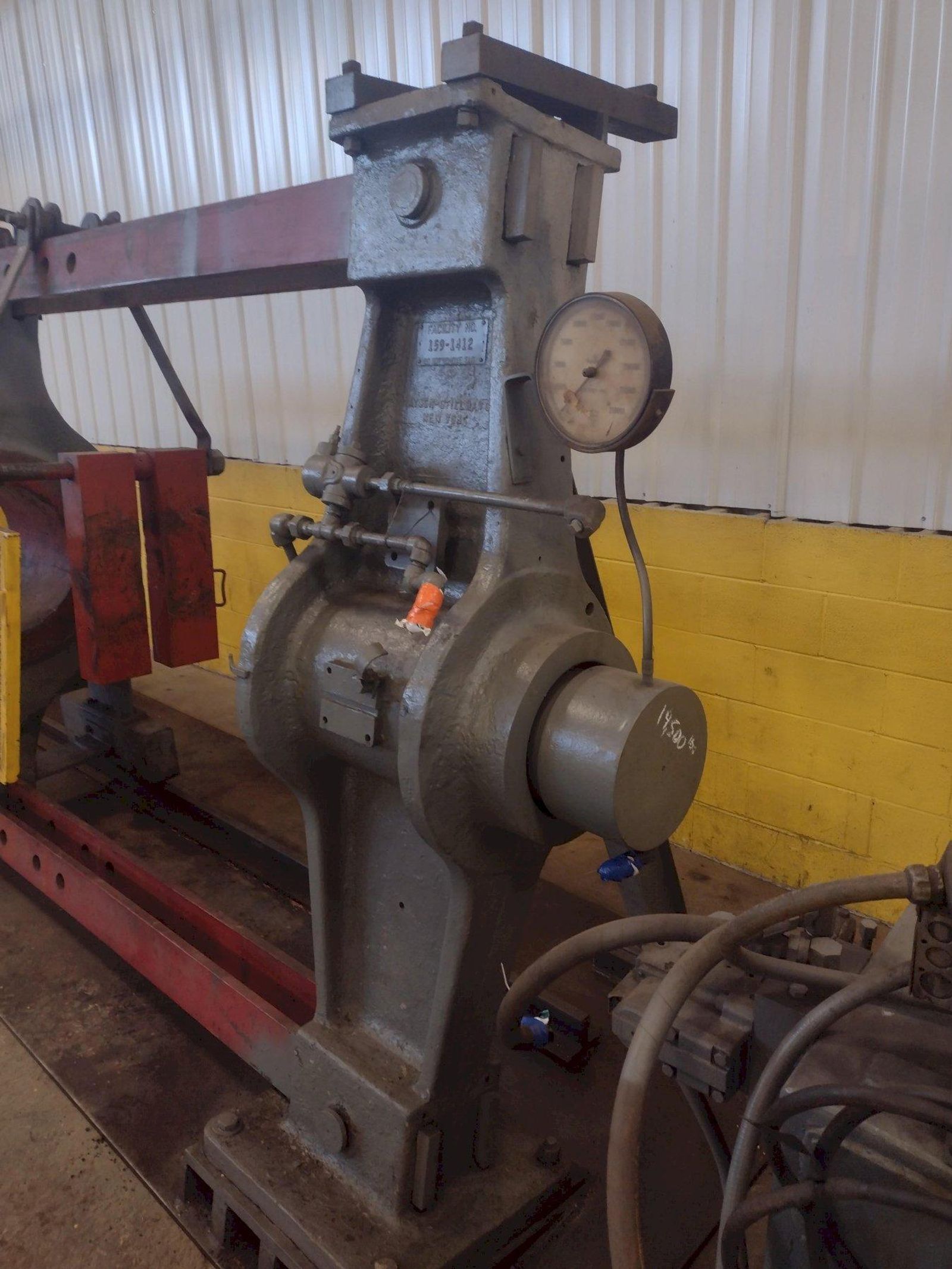

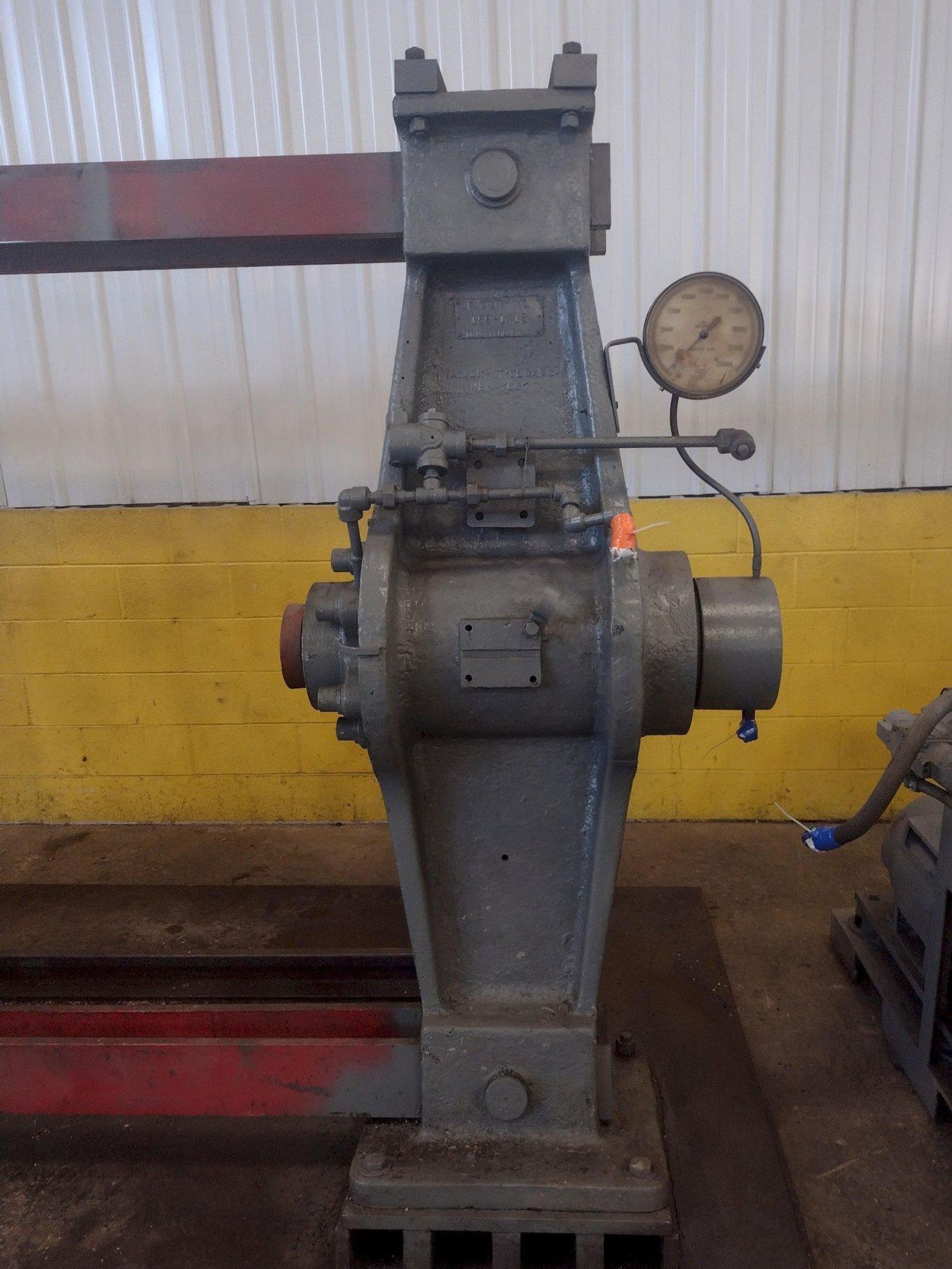

WATSON STILLMAN HORIZONTAL HYDRAULIC WHEEL PRESS
INCLINED CONTRUCTION .......... YES
ONE PIECE STEEL BASE .......... YES
CAPACITY ...................... 250 TONS
RAM DIAMETER .................. 7"
STROKE OF RAM ................. 16"
VERTICAL BETWEEN STRAIN BARS .. 64"
HORIZONTAL BETWEEN BARS ....... 6.25"
FLOOR TO CENTER LINE OF RAM ... 43"
RESISTANCE BLOCK #1 HOLE ...... 20" OD X 20" WIDE
DISTANCE RAM TO BLOCK #1 ...... 20" TO 100" TO FRONT
RAIL ADJUSTMENT POINTS ........ 2" HOLES ON 6.5" CENTERS
DISTANCE RAM TO BLOCK #2 ...... 124" TO FRONT; 138" TO CENTER
RESISTANCE BLOCK #2 HOLE ...... 12" OD x 24" WIDE
HYDRAULIC UNIT MOTOR .......... 30 HP
Brand
WATSON STILLMAN
Type
Presses, Wheel
Stock No.
15913
 |
