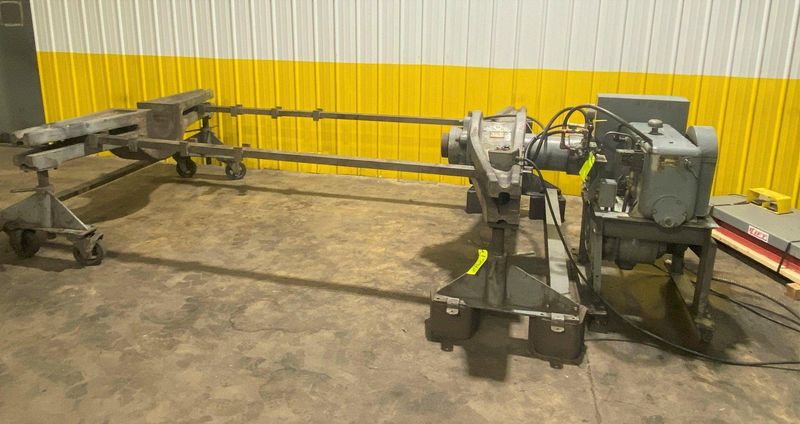

200 TON ROGERS HORIZTONAL HYDRAULIC WHEEL / BEARING PRESS: STOCK #15912

Overview

RODGERS HORIZONTAL WHEEL PRESS:
SERIAL .......................... PF200A-1081
MODEL ........................... PF200A-D

CAPACITY ........................ 200 TON

DISTANCE BETWEEN STRAIN BARS .... 80" MAX

DISTANCE RAM TO RESISTANCE ...... 32" TO 96"
ADJUSTMENT POSITIONS ON BARS .... 4

WIDTH OF RESISTANCE BLOCK ....... 14"

WIDTH HOLE IN RESISTANCE BLOCK .. 10-1/2"
HEIGHT HOLE IN RESISTANCE BLOCK . 10-1/2"
RESISTANCE BLOCK ON CASTERS ..... YES, MOVABLE
PENDANT CONTROLS ................ YES, WITH JOG
PRESSURE GAUGE .................. YES
HORIZONTAL CONSTRUCTION ......... YES

RODGERS HYDRUALIC CYLINDER RAM:
SERIAL ........................ 130491006
MODEL ......................... C2-200CF-6-1/2-26
DIAMETER OF CYLINDER .......... 6-1/2"

DIAMETER OF PUSHING HEAD ...... 7""
STROKE OF RAM ................. 26"

RODGERS HYDRUALIC UNIT:

SERIAL ........................ DB2-1845
MODEL ......................... DB2
START & E-STOP BUTTONS ........ YES
MOUNTED ON CASTERS ............ YES, MOVABLE
MOTOR ......................... 7-1/2 HP

This machine has been sold, but explore our inventory for similar options available now.
