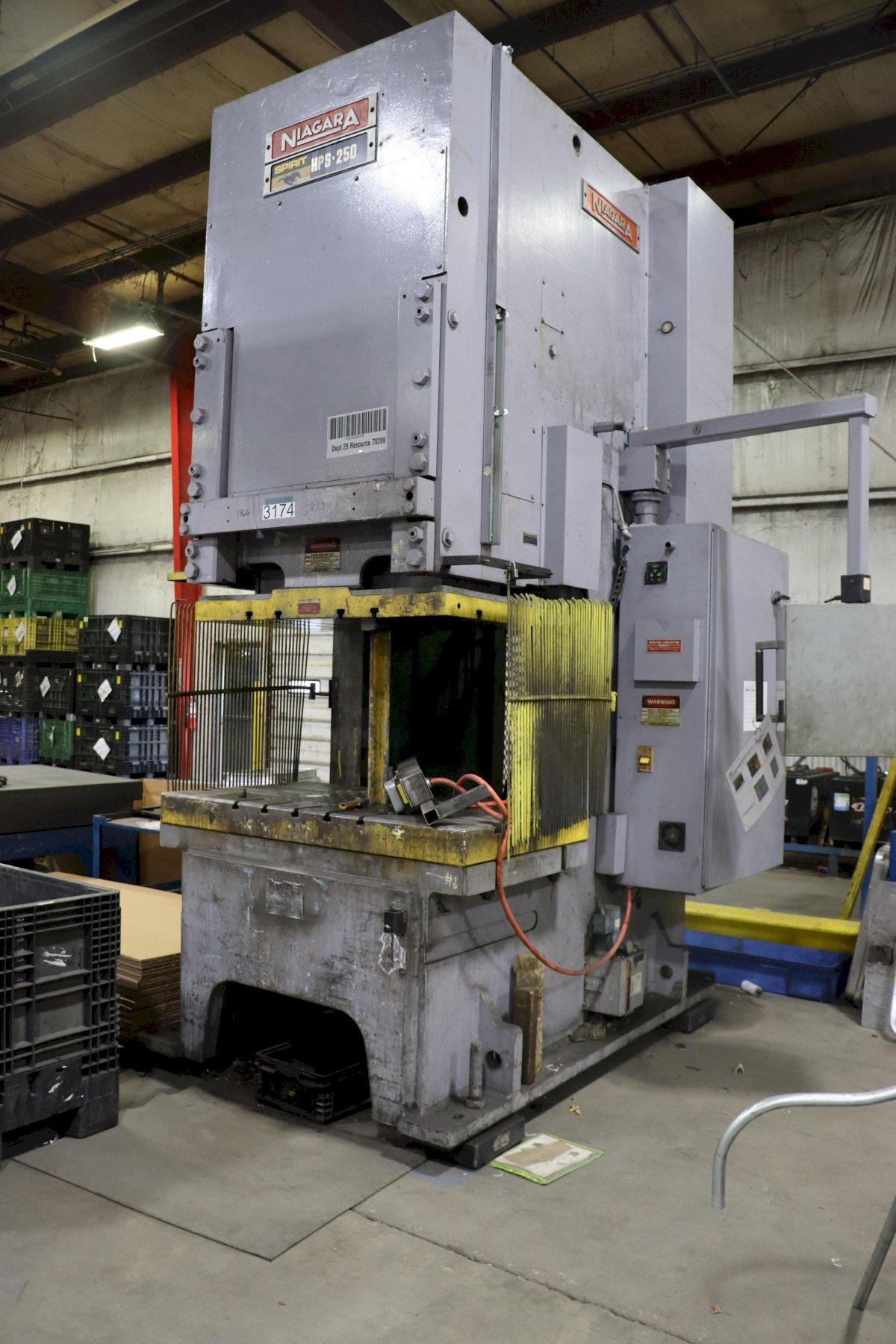

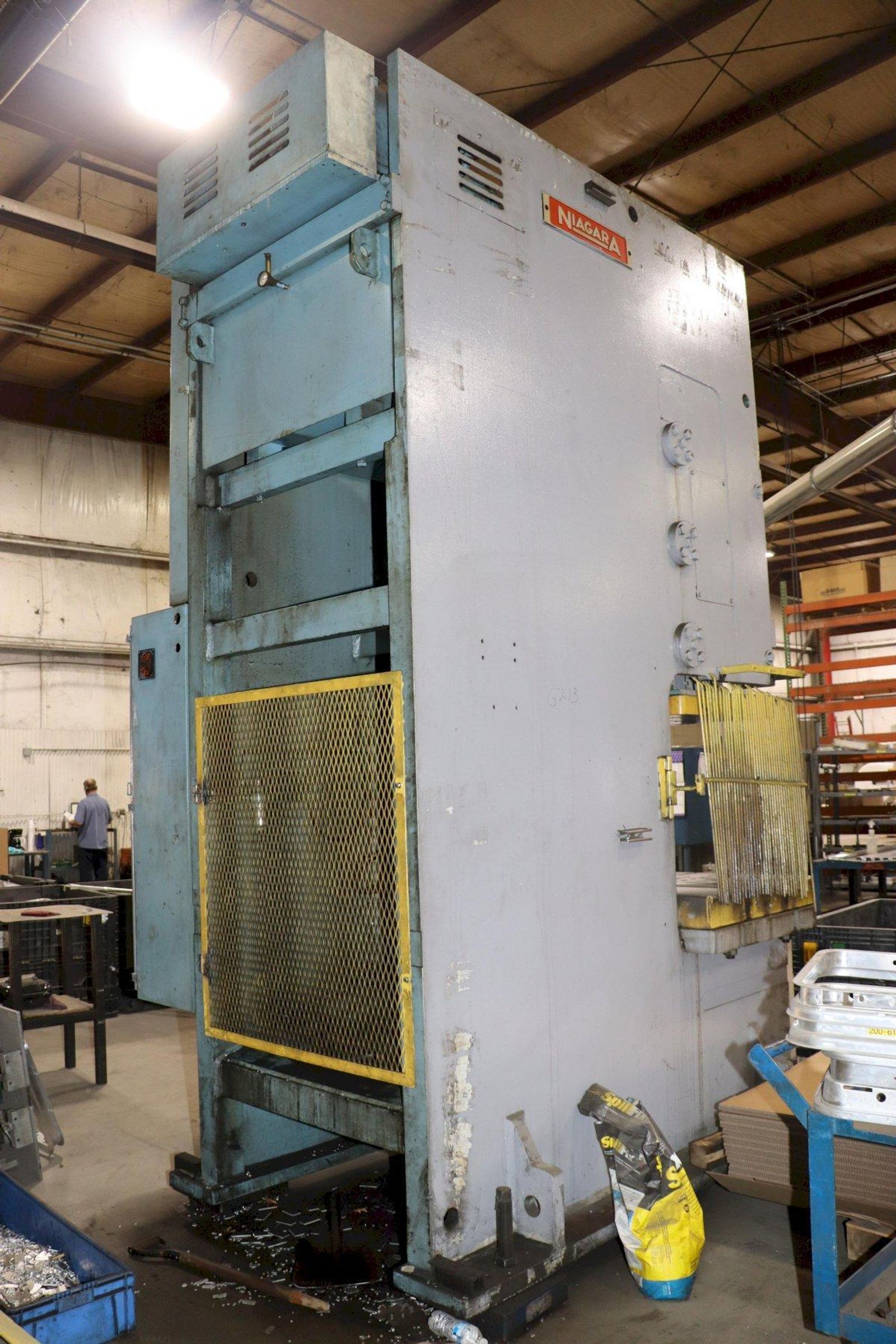

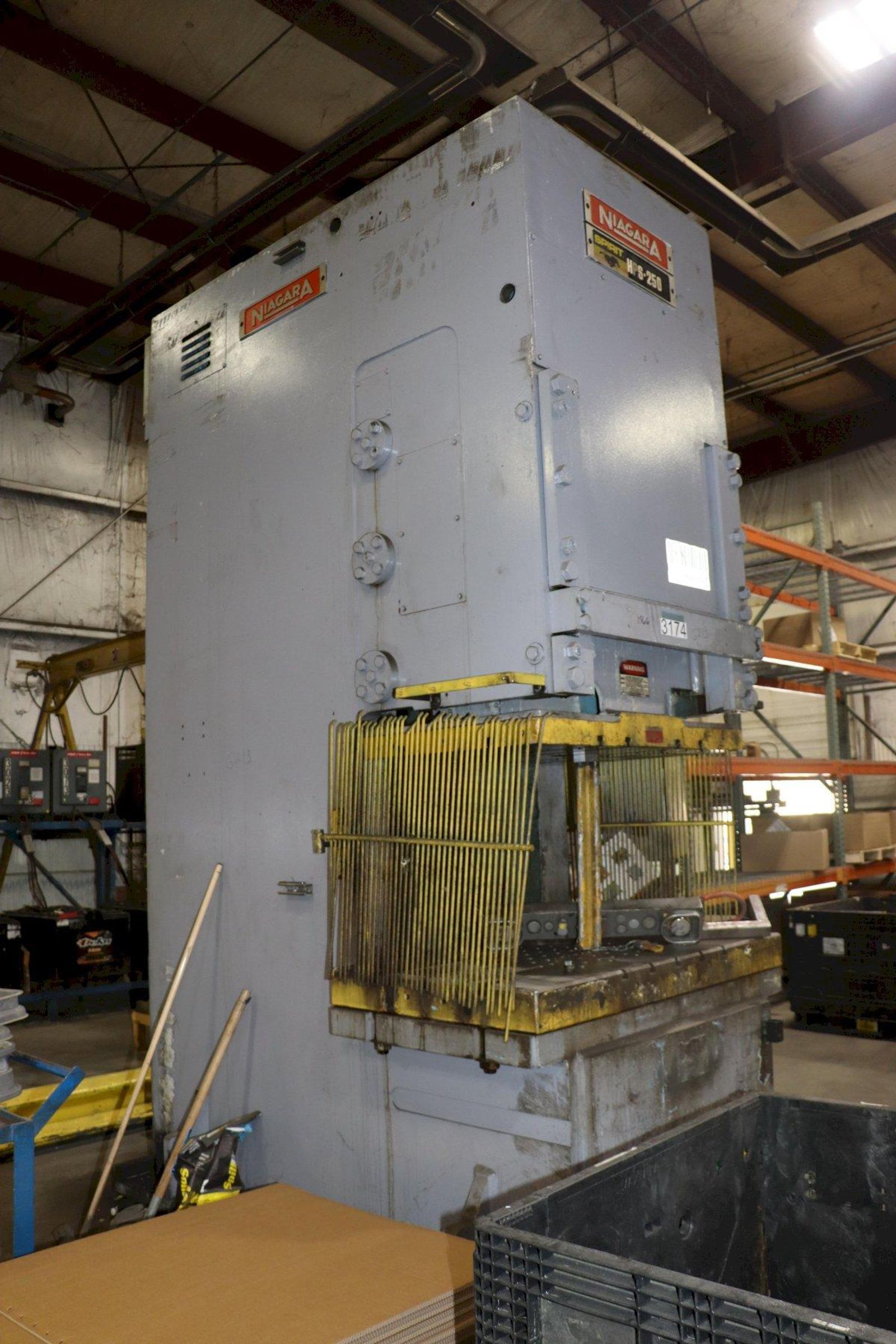

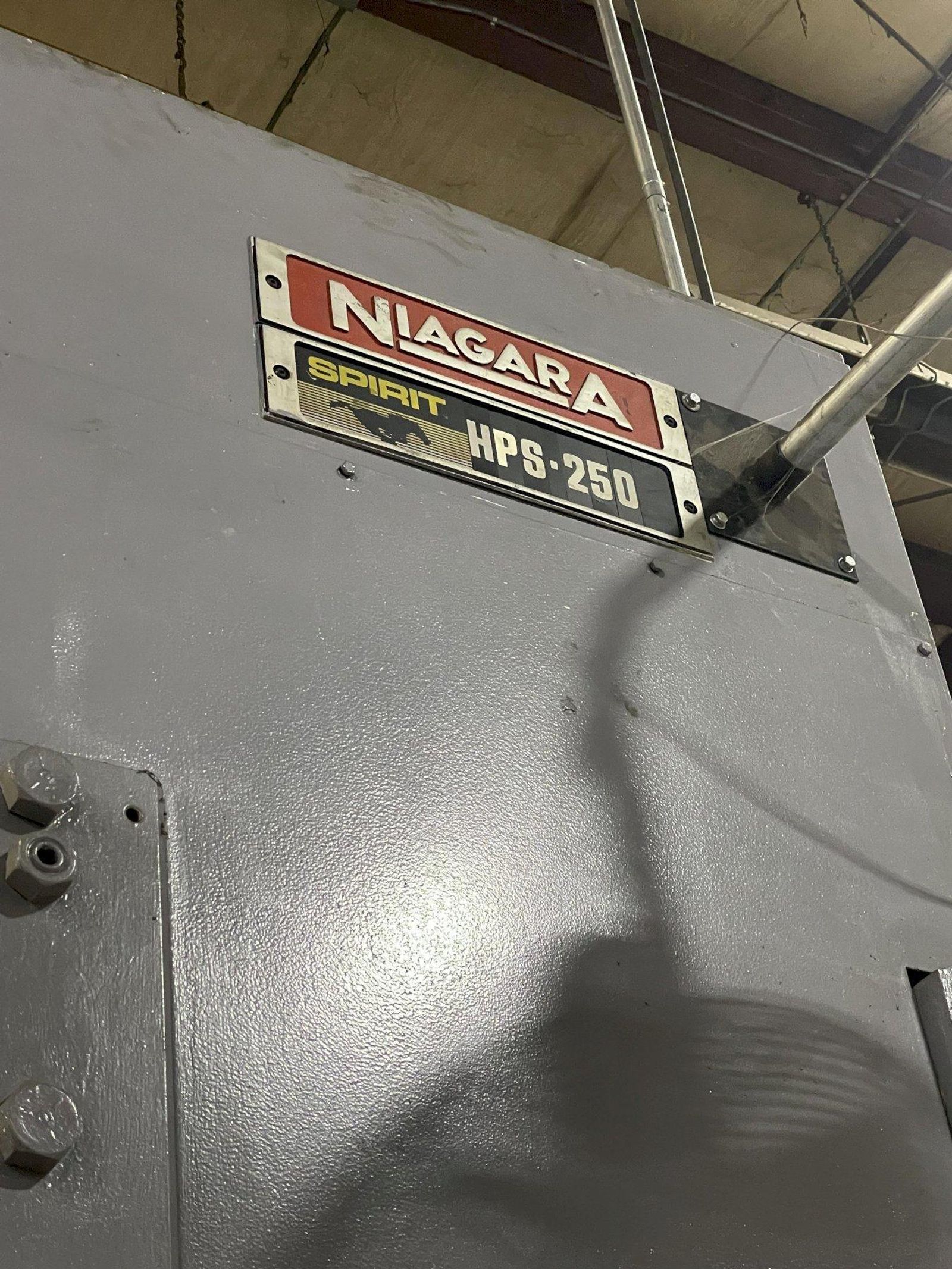

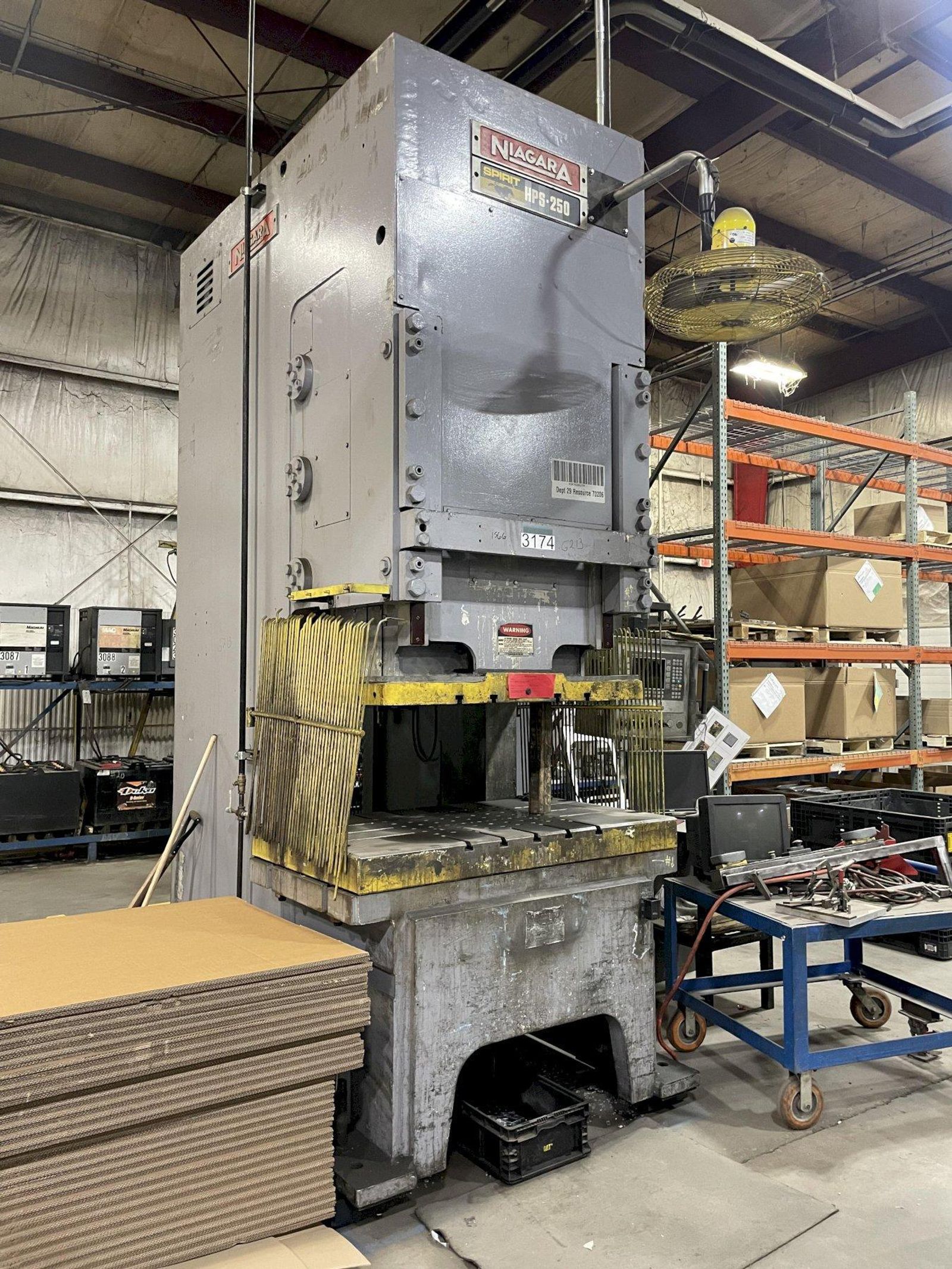

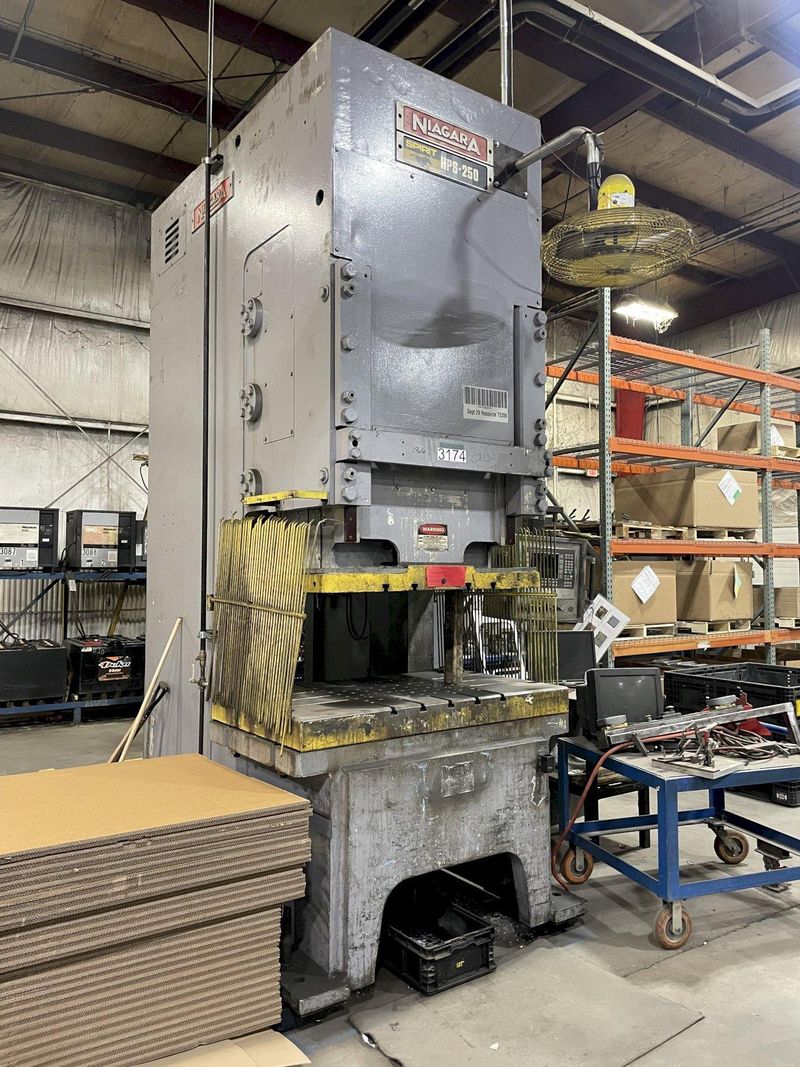

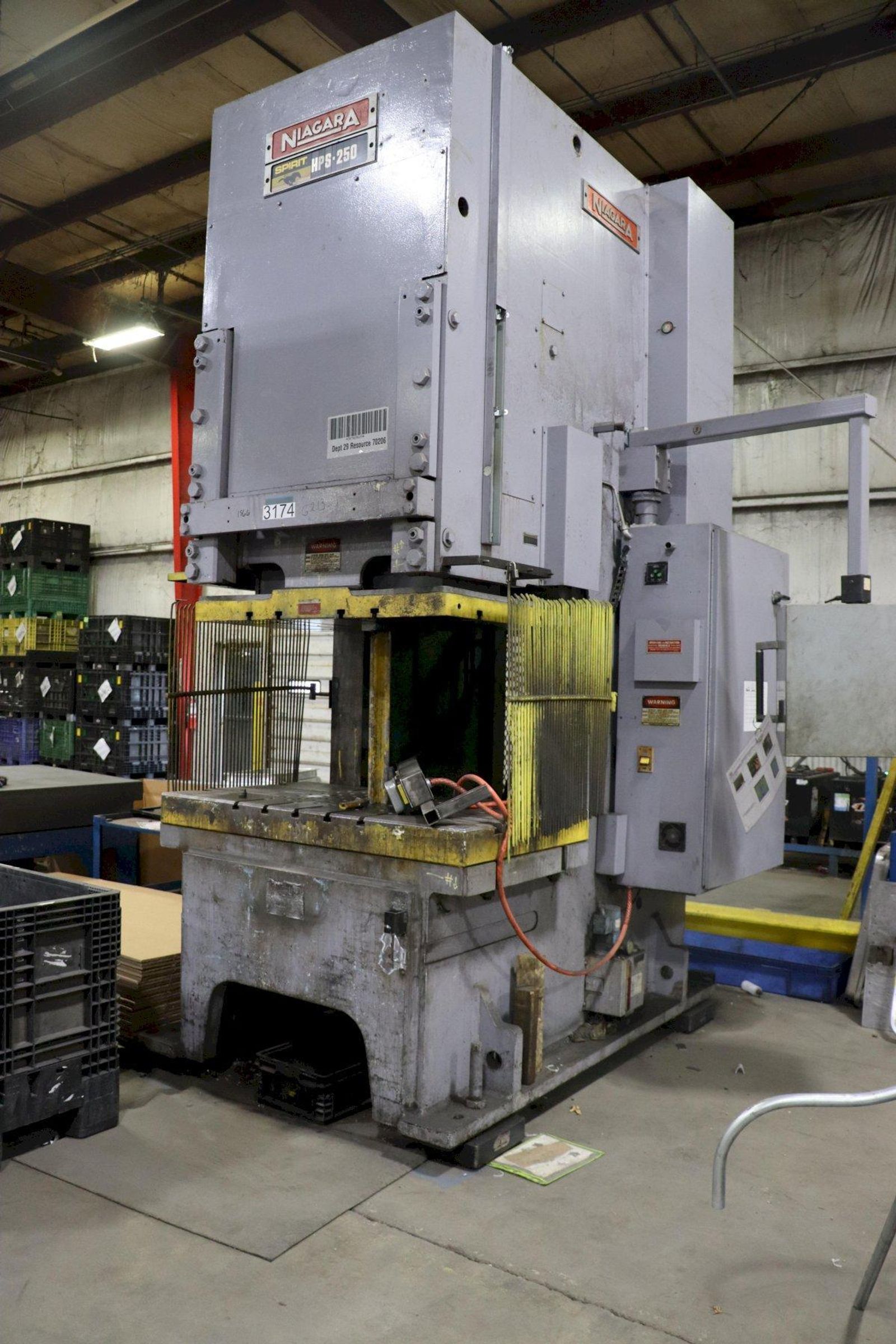

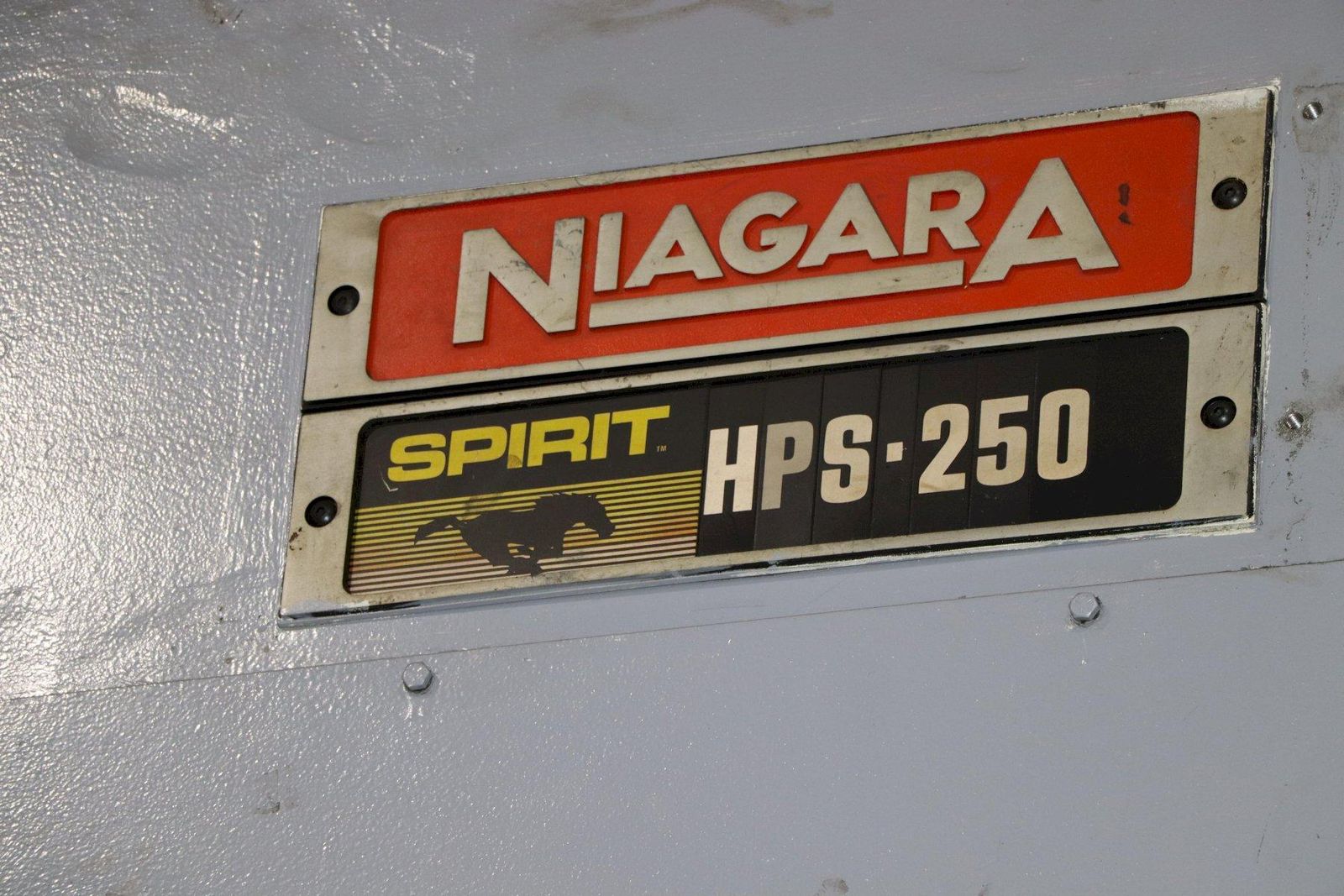

250 TON NIAGARA MODEL #SPIRIT HPS-250 HYDRAULIC GAP FRAME PRESS, 12" STROKE: STOCK #16452

Overview

MODEL ...................... HPS-250

RATED CAPACITY ............. 250 TON

STROKE OF SLIDE, VARIABLE .. 1" MIN TO 12" MAX

OPEN HEIGHT ................ 32"

CLOSED HEIGHT .............. 20"

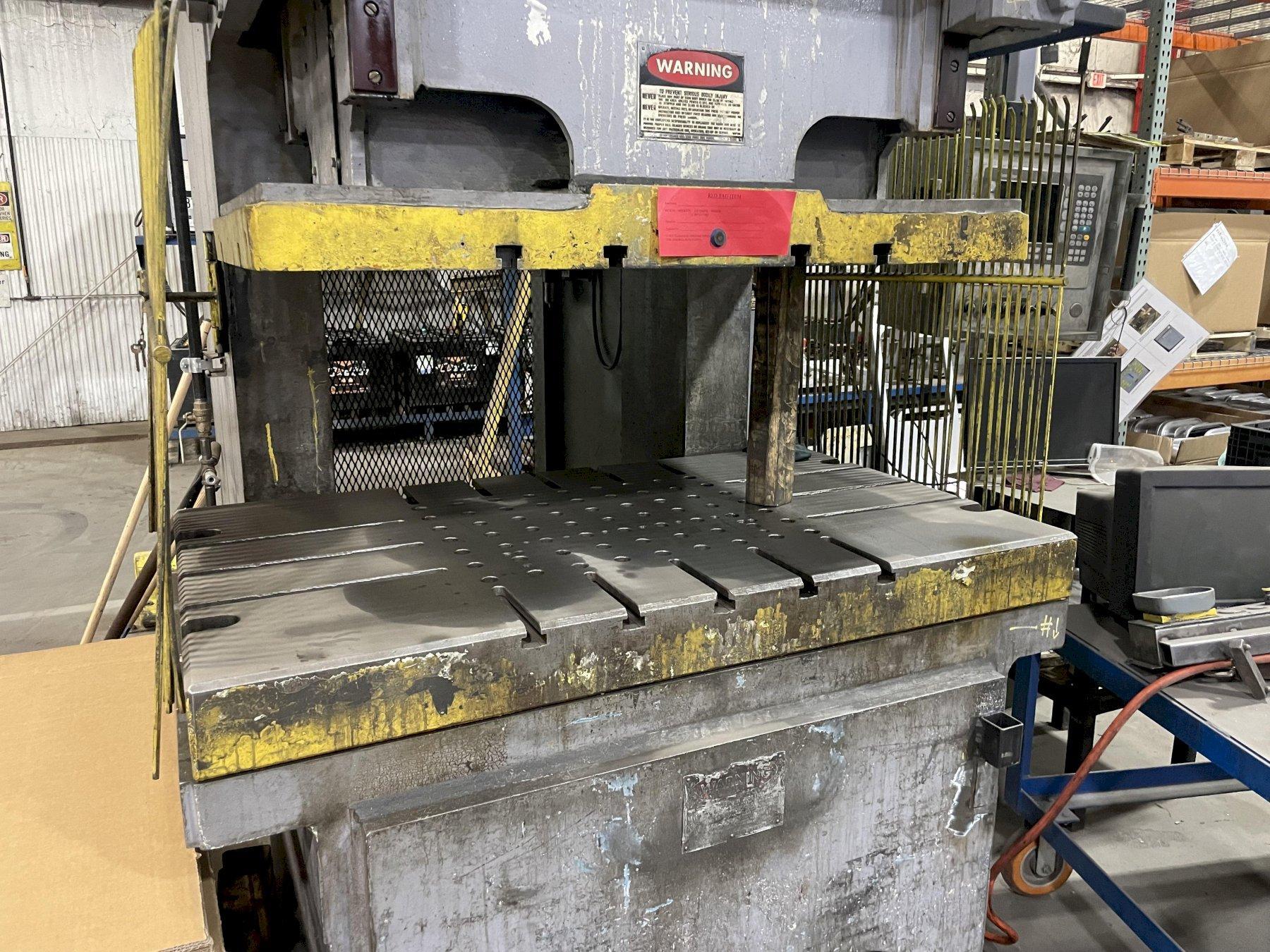

AREA OF BED (T SLOTS) ...... 58" X 34"

AREA OF RAM (T SLOTS) ...... 48" X 30"

WIDTH OF HOLE THROUGH BACK . 33-1/4"

DEPTH OF THROAT ............ 17-1/2"

RAPID CLOSE SPEED .......... 450 IPM

PRESSING SPEEDS ............ 114/71/42 IPM

FAST RETURN SPEED .......... 525 IPM

STRIP RETURN SPEED ......... 315 IPM

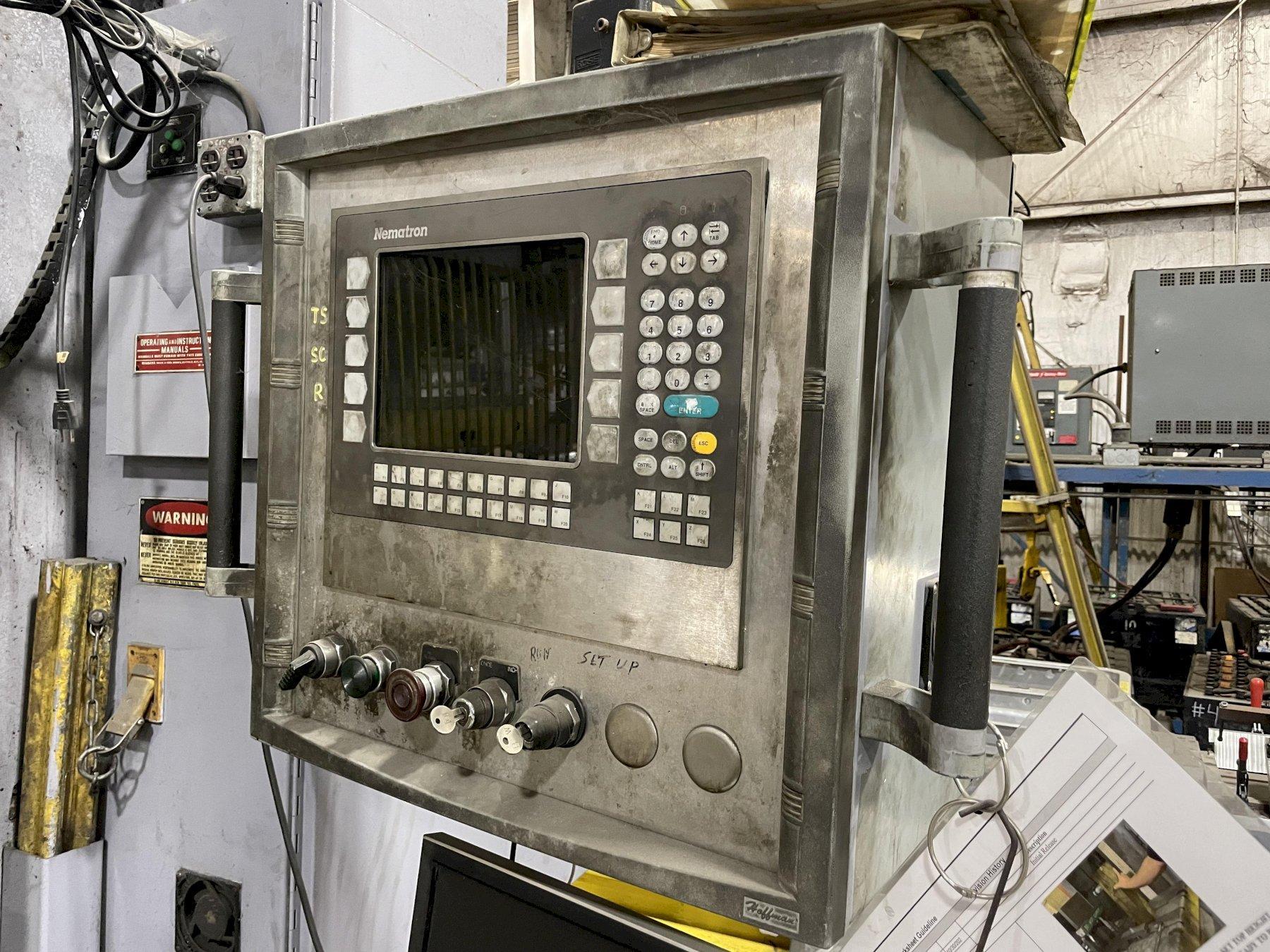

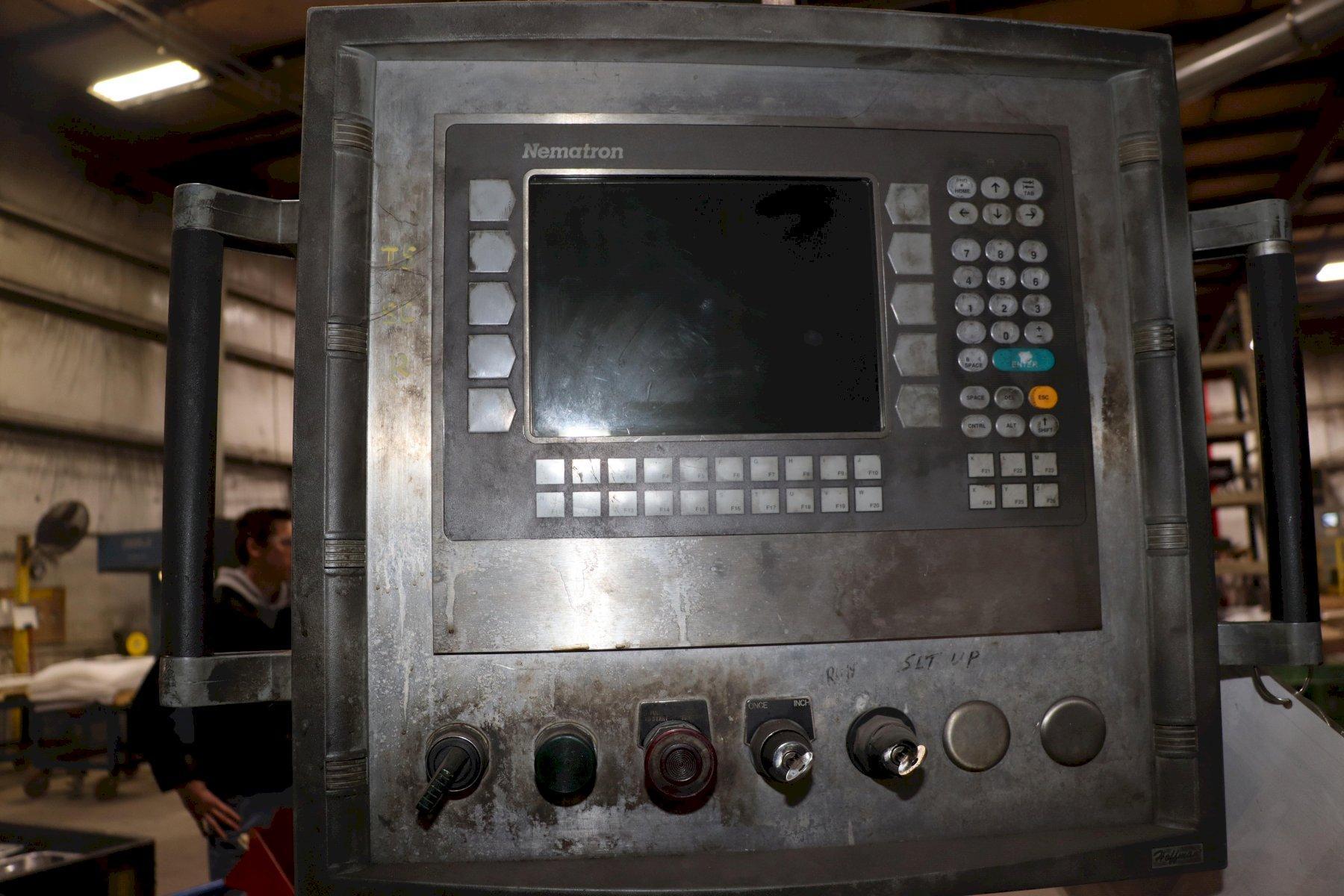

CONTROLS ................... YES

HORSEPOWER ................. 40 HP

250 TON NIAGARA MODEL #SPIRIT HPS-250 HYDRAULIC GAP FRAME PRESS, 12" STROKE: STOCK #16452

Brand
NIAGARA

Type
Presses, Hydraulic

Stock No.
16452

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

250 TON NIAGARA MODEL #SPIRIT HPS-250 HYDRAULIC GAP FRAME PRESS, 12" STROKE: STOCK #16452

Stock #: 16452

Equipped With

MODEL ...................... HPS-250
RATED CAPACITY ............. 250 TON
STROKE OF SLIDE, VARIABLE .. 1" MIN TO 12" MAX
OPEN HEIGHT ................ 32"
CLOSED HEIGHT .............. 20"
AREA OF BED (T SLOTS) ...... 58" X 34"
AREA OF RAM (T SLOTS) ...... 48" X 30"
WIDTH OF HOLE THROUGH BACK . 33-1/4"
DEPTH OF THROAT ............ 17-1/2"
RAPID CLOSE SPEED .......... 450 IPM
PRESSING SPEEDS ............ 114/71/42 IPM
FAST RETURN SPEED .......... 525 IPM
STRIP RETURN SPEED ......... 315 IPM
CONTROLS ................... YES
HORSEPOWER ................. 40 HP

Overview

250 TON NIAGARA MODEL #SPIRIT HPS-250 HYDRAULIC GAP FRAME PRESS, 12" STROKE: STOCK #16452
