SERIAL ..................... 03700417A

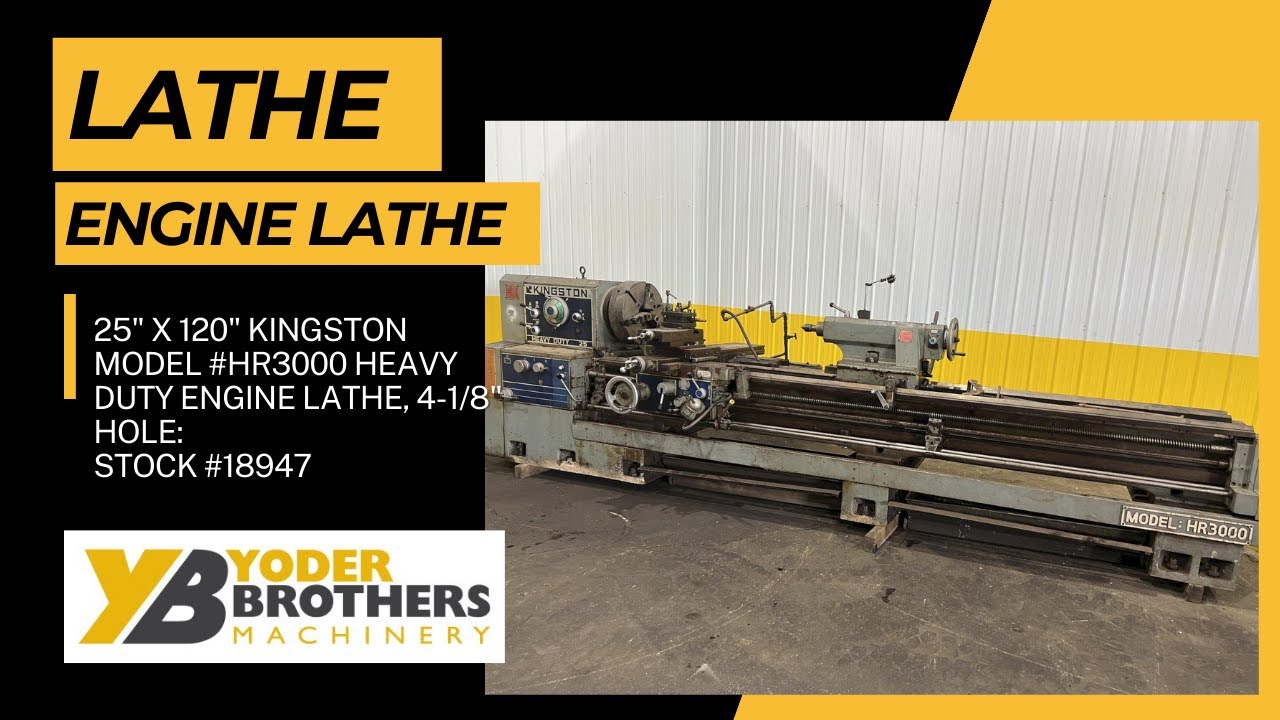

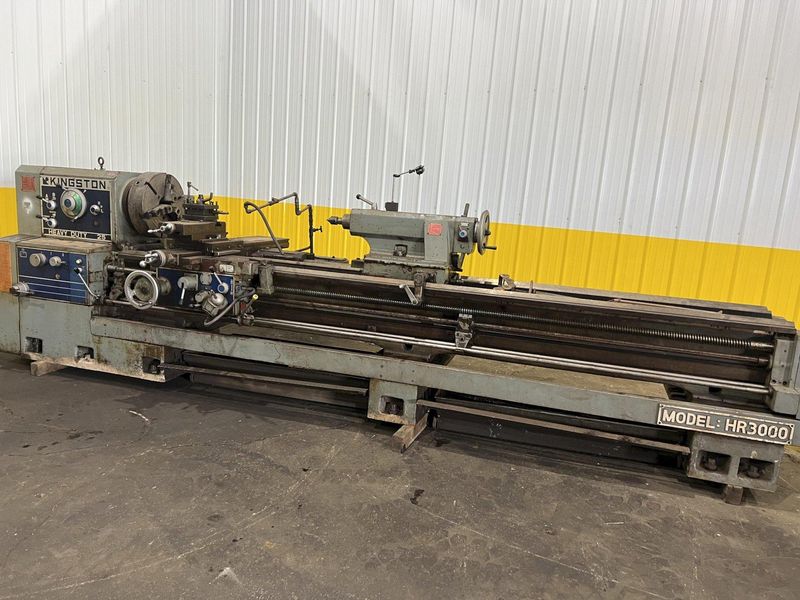

MODEL ...................... HR3000
YEAR NEW ................... 1981
SWING ...................... 25"
SWING OVER CROSS ........... 17"
SWING IN GAP ............... 31.5"
DISTANCE BETWEEN CENTERS ... 120"
LENGTH OF GAP .............. 16"
SPINDLE BORE DIAMETER ...... 4-1/8"
SPINDLE SPEEDS ............. (16) 8 TO 800 RPM
FEEDS ...................... (76) 0.003 - 0.00424 IPR
THREADS .................... (40) 4 TO 56 TPI
METRIC THREADS ............. (20) .5 TO 7 MM
CROSS SLIDE TRAVEL ......... 14.18"
CHUCK ...................... 18" 3-JAW
TAPER ATTACHEMENT .......... YES
COOLANT .................... YES
THREAD DIAL ................ YES
MAIN MOTOR ................. 20 HP
Brand
KINGSTON
Type
Lathes, Engine
Stock No.
18947
 |
419-269-2000 |
Stock #: 18947
SERIAL ..................... 03700417A
MODEL ...................... HR3000
YEAR NEW ................... 1981
SWING ...................... 25"
SWING OVER CROSS ........... 17"
SWING IN GAP ............... 31.5"
DISTANCE BETWEEN CENTERS ... 120"
LENGTH OF GAP .............. 16"
SPINDLE BORE DIAMETER ...... 4-1/8"
SPINDLE SPEEDS ............. (16) 8 TO 800 RPM
FEEDS ...................... (76) 0.003 - 0.00424 IPR
THREADS .................... (40) 4 TO 56 TPI
METRIC THREADS ............. (20) .5 TO 7 MM
CROSS SLIDE TRAVEL ......... 14.18"
CHUCK ...................... 18" 3-JAW
TAPER ATTACHEMENT .......... YES
COOLANT .................... YES
THREAD DIAL ................ YES
MAIN MOTOR ................. 20 HP
