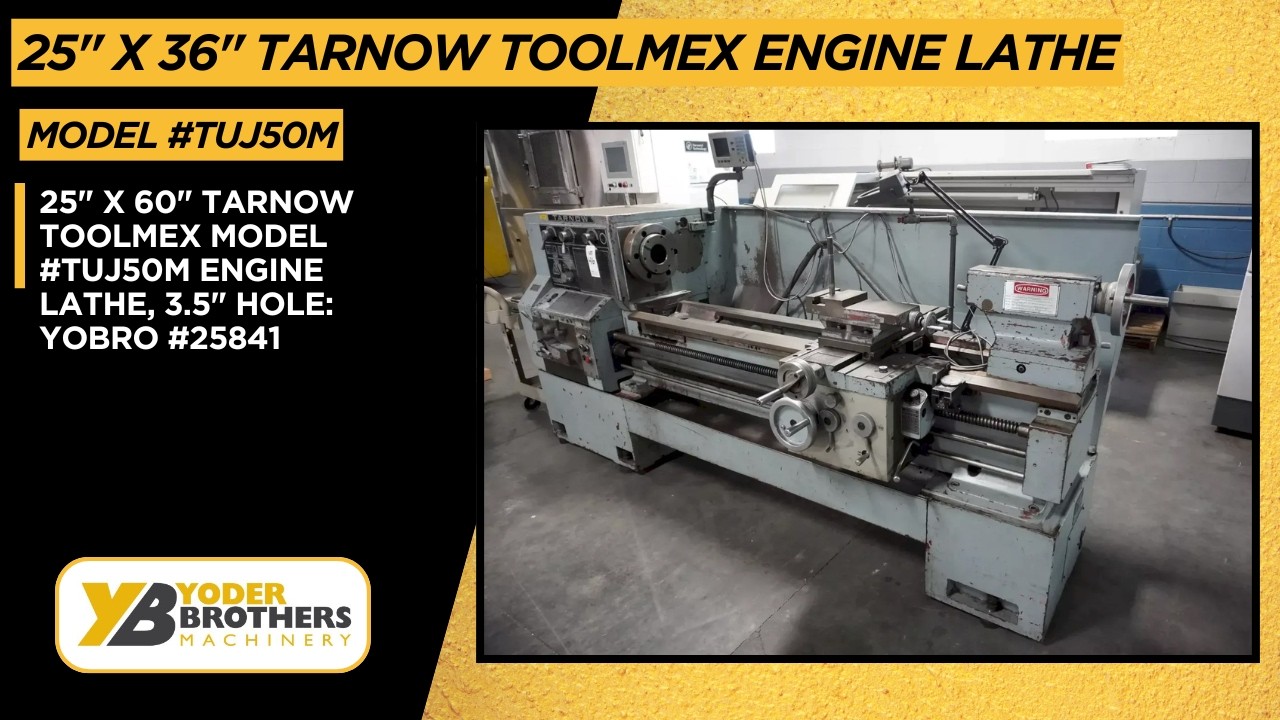

25" x 60" TARNOW TOOLMEX MODEL #TUJ50M ENGINE LATHE 3.5" HOLE : YOBRO #25841

Overview

SERIAL 3467
MODELTUJ-50M
Swing Over Bed: 25"
Swing Over Carriage: 14-1/2"
Swing in Gap: 31.5"
Distance Between Centers: 66"
Cross Slide Travel: 13"
Compound Travel: 8"
Spindle Bore: 3.6"
Spindle Speed: 1,000 RPM
Spindle Motor: 15 HP
Spindle Nose: D1-11
Longitudinal Feed: .0007 TO .72 IPR
Cross Feeds: .0004 TO .36 IPR
Inch Threads: 1 TO 112 TPI
Metric Threads: .25 TO 28mm
Tailstock Quill Diameter: 3-1/8"
Quill Travel: 6"
Quill Taper: #5 MT
Accurite 200S Digital Readout
MOTOR 15 HP

Specifications
Weight 9500 pounds
Dimensions 119" x 54" x 69"

25" x 60" TARNOW TOOLMEX MODEL #TUJ50M ENGINE LATHE 3.5" HOLE : YOBRO #25841

Brand
TARNOW

Type
Lathes, Engine

Stock No.
25841

Contact Us
Buy Now
Price: $9950.00
Print Details

Contact Us

Related Listings

Additional Lathes, Engine For Sale
Popular TARNOW Equipment For Sale

419-269-2000
870 Curtis St
Toledo, OH 43609

Machine Information

25" x 60" TARNOW TOOLMEX MODEL #TUJ50M ENGINE LATHE 3.5" HOLE : YOBRO #25841

Stock #: 25841

Equipped With

SERIAL 3467
MODELTUJ-50M
Swing Over Bed: 25"
Swing Over Carriage: 14-1/2"
Swing in Gap: 31.5"
Distance Between Centers: 66"
Cross Slide Travel: 13"
Compound Travel: 8"
Spindle Bore: 3.6"
Spindle Speed: 1,000 RPM
Spindle Motor: 15 HP
Spindle Nose: D1-11
Longitudinal Feed: .0007 TO .72 IPR
Cross Feeds: .0004 TO .36 IPR
Inch Threads: 1 TO 112 TPI
Metric Threads: .25 TO 28mm
Tailstock Quill Diameter: 3-1/8"
Quill Travel: 6"
Quill Taper: #5 MT
Accurite 200S Digital Readout
MOTOR 15 HP
