24" Wide Belt 1x1x24 Stainless Steel Flat-wire Belt Heavy Duty
Conveyor Speed 2 FPM Design Speed, Variable Speed from .5 to 5 FPM
30" Tunnel Height
3'-6" Top of Belt
3' Load
6'-6" Wash Module 2' Vestibule 2'-6" Wash, 2' Vestibule
7' Dry (Blow-Off) Module 6' Of Blow Off, 1' Vestibule
2' Exit Unload
Operating Temperature: Wash 140 Deg. F., Blow-Off 180-200 Deg. F.
Construction:
Tank & Housing 10 GA. 304 Stainless Steel
Duct Work 14 GA. 304 Stainless Steel
Piping SCH. 10 304 Stainless Stel Welded
Insulation: 1" Thick Fiberglass Tanks HSG & Ductwork Encased in 18 GA THK. 304 Polished SS B4 Panels
Electrical: 460 V/3 PH/60 HZ Relay Logic W/24V DC Control
Lubrication: Manual Lube for (4) Points
Cleanliness + Drying Spec; Visual
Sound Level 80 db with 70 db Ambient Level
EQUIPED WITH
Electric Heaters 460 V/3P/60 HZ
Wash Pump and Filter
Oil Coalscer

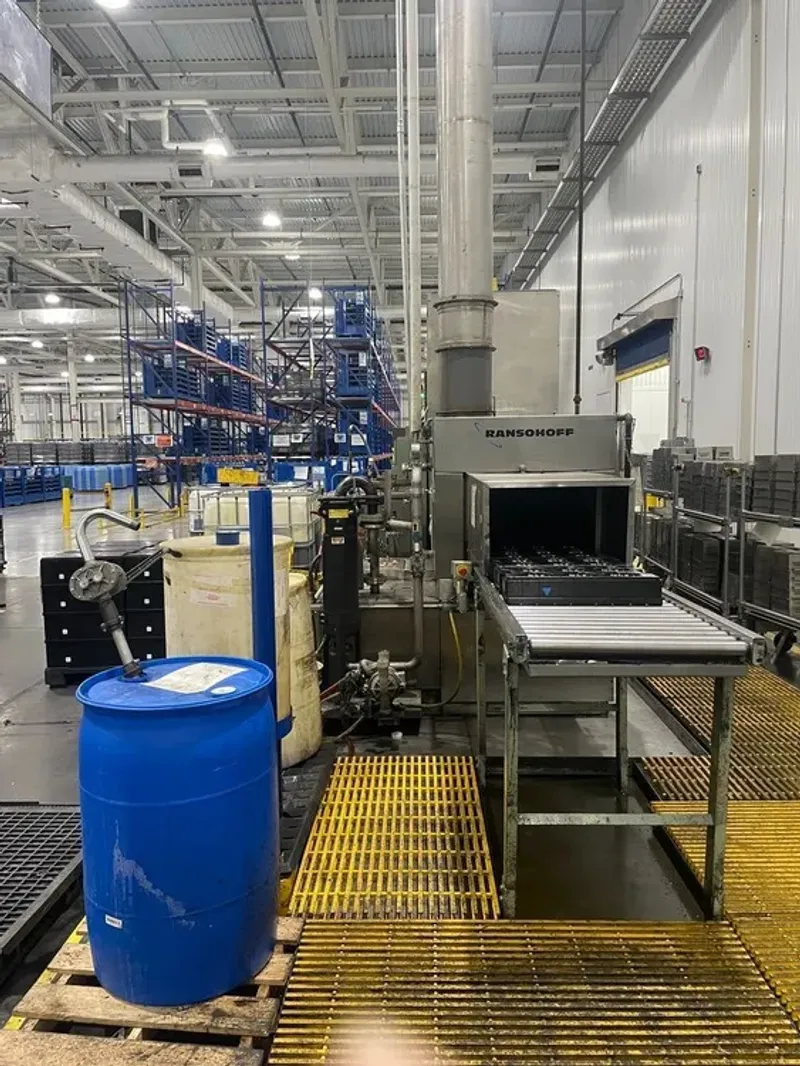

Brand
RANSOHOFF
Type
Washers
Stock No.
22636
 |
419-269-2000 |
Stock #: 22636
24" Wide Belt 1x1x24 Stainless Steel Flat-wire Belt Heavy Duty
Conveyor Speed 2 FPM Design Speed, Variable Speed from .5 to 5 FPM
30" Tunnel Height
3'-6" Top of Belt
3' Load
6'-6" Wash Module 2' Vestibule 2'-6" Wash, 2' Vestibule
7' Dry (Blow-Off) Module 6' Of Blow Off, 1' Vestibule
2' Exit UnloadOperating Temperature: Wash 140 Deg. F., Blow-Off 180-200 Deg. F.
Construction:
Tank & Housing 10 GA. 304 Stainless Steel
Duct Work 14 GA. 304 Stainless Steel
Piping SCH. 10 304 Stainless Stel Welded
Insulation: 1" Thick Fiberglass Tanks HSG & Ductwork Encased in 18 GA THK. 304 Polished SS B4 PanelsElectrical: 460 V/3 PH/60 HZ Relay Logic W/24V DC Control
Lubrication: Manual Lube for (4) PointsCleanliness + Drying Spec; Visual
Sound Level 80 db with 70 db Ambient Level
EQUIPED WITH
Electric Heaters 460 V/3P/60 HZ
Wash Pump and Filter
Oil Coalscer
