SERIAL .................................. 972-04179-80
Brand

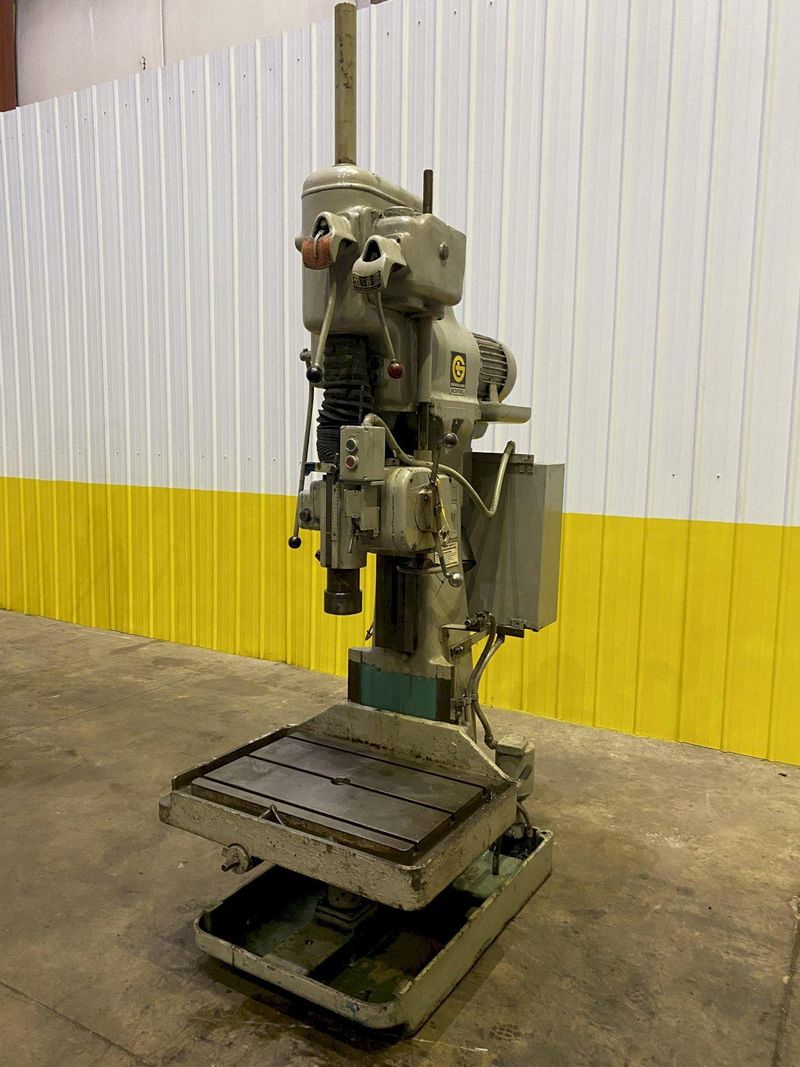

GIDDINGS & LEWIS BICKFORD
Type
Drills, Heavy Duty & Sensitive, Single Spindle
Stock No.
11435
 |
419-269-2000 |
Stock #: 11435
SERIAL .................................. 972-04179-80
MODEL ................................... 972 BOX COLUMNSPINDLE CENTER TO LOWER COLUMN .......... 12-1/2"SPINDLE CETER TO UPPER COLUMN ........... 11-1/2"AREA OF TABLE ........................... 24" X 19"SPINDLE SPEEDS .......................... 90 TO 1500 RPMMAXIMUM DISTANCE SPINDLE NOSE TO TABLE .. 32-3/4"VERTICAL ADJUSTMENT OF TABLE ............ 10-3/4"VERTICAL ADJUSTMENT OF SLIDING HEAD ..... 17-1/2"SPINDLE TRAVEL .......................... 10-1/2"POWER FEEDS ............................. (9) .05 TO .043 IPRSPINDLE TAPER ........................... #4 MTFORWARD & REVERSING ..................... YESCOOLANT ................................. YESMOTOR ................................... 5 HORSEPOWER
