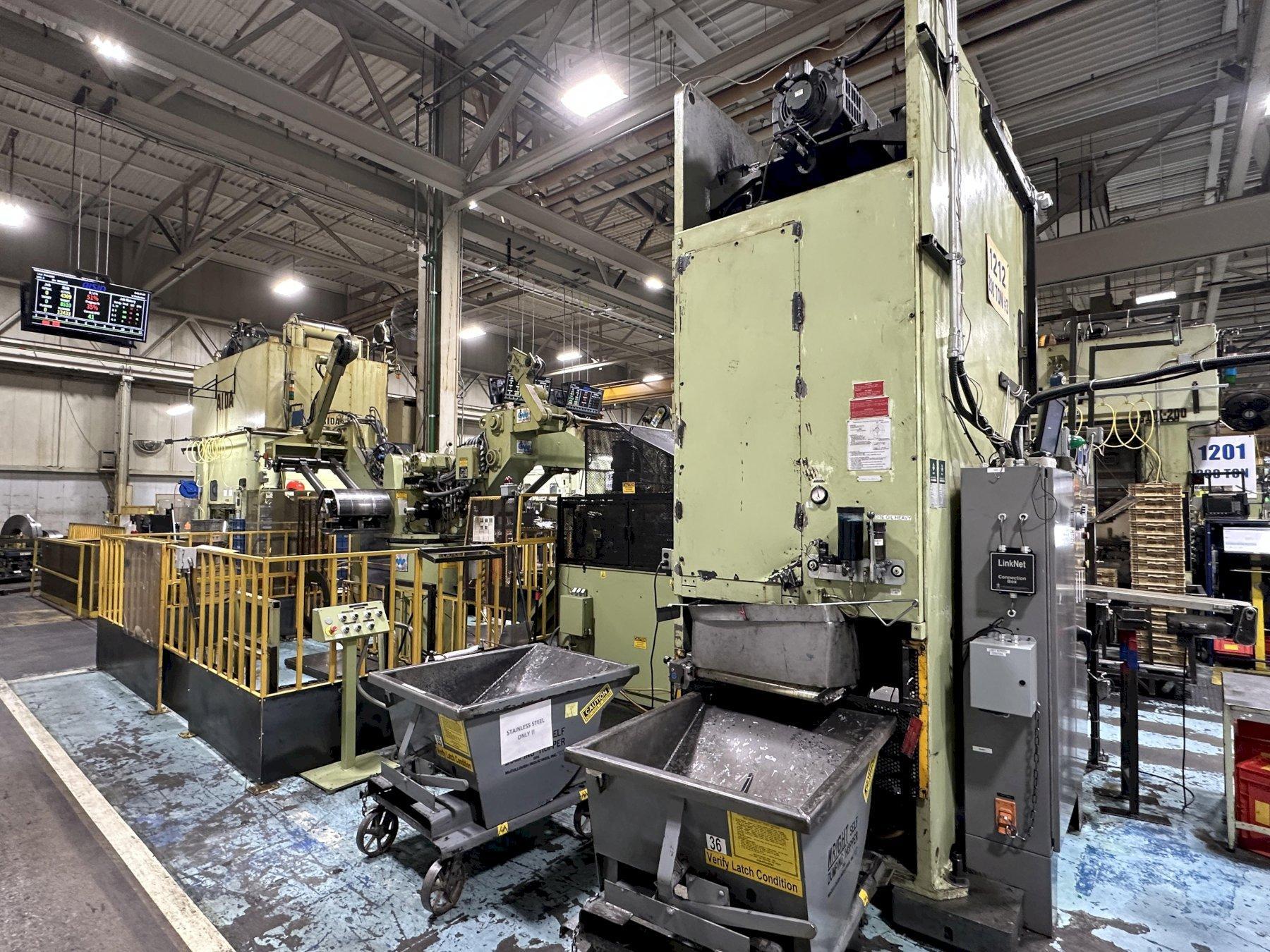

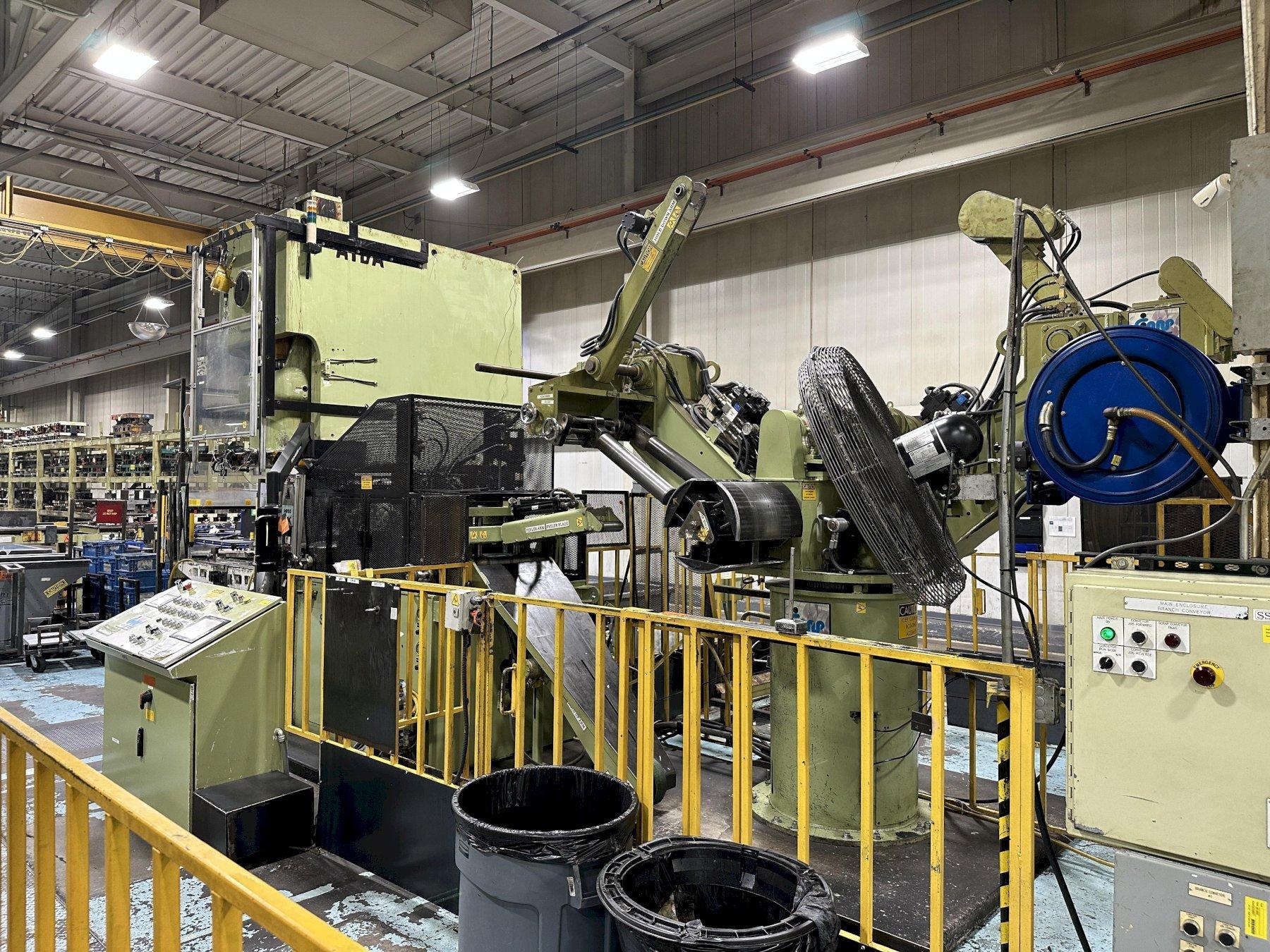

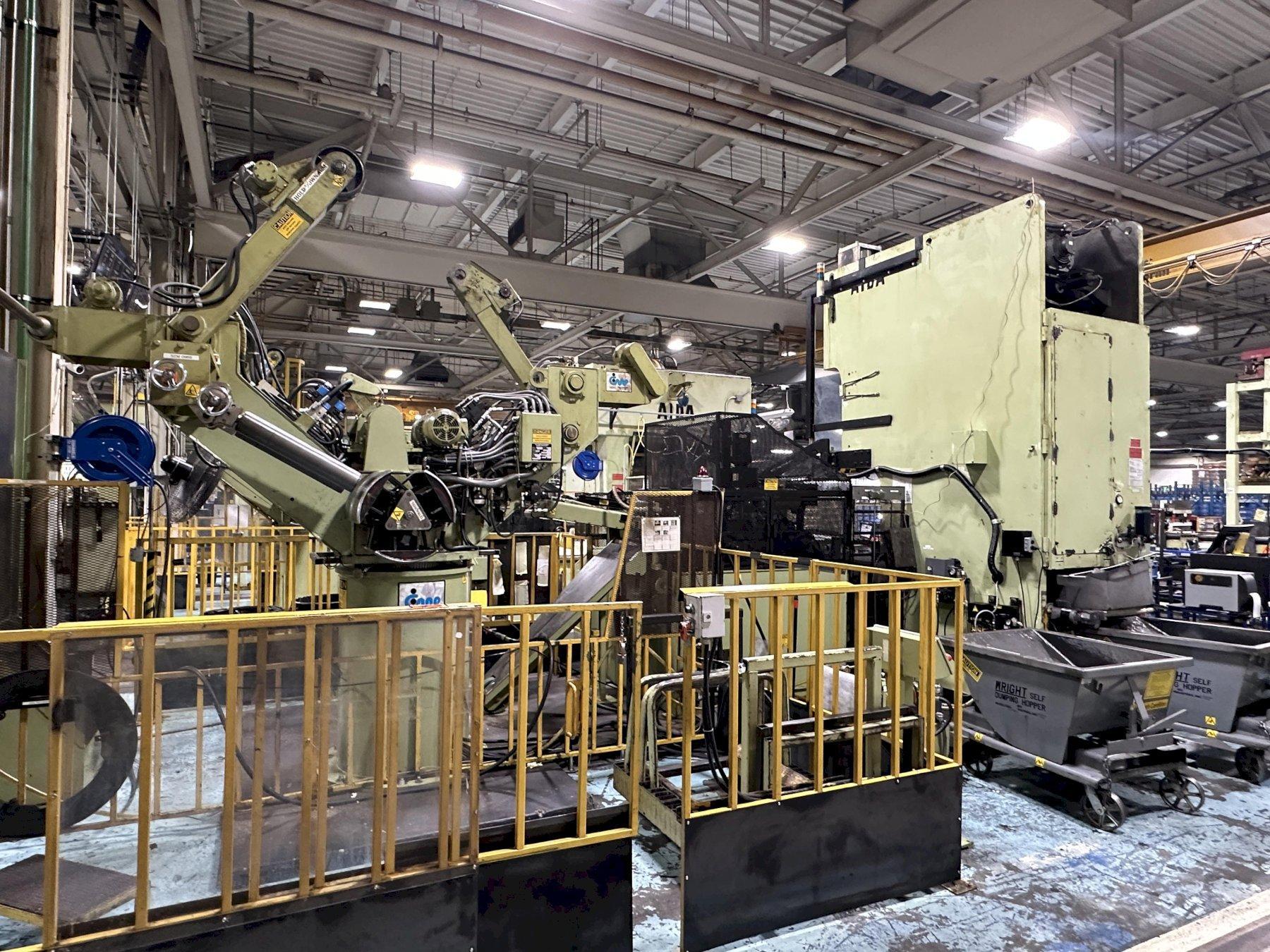

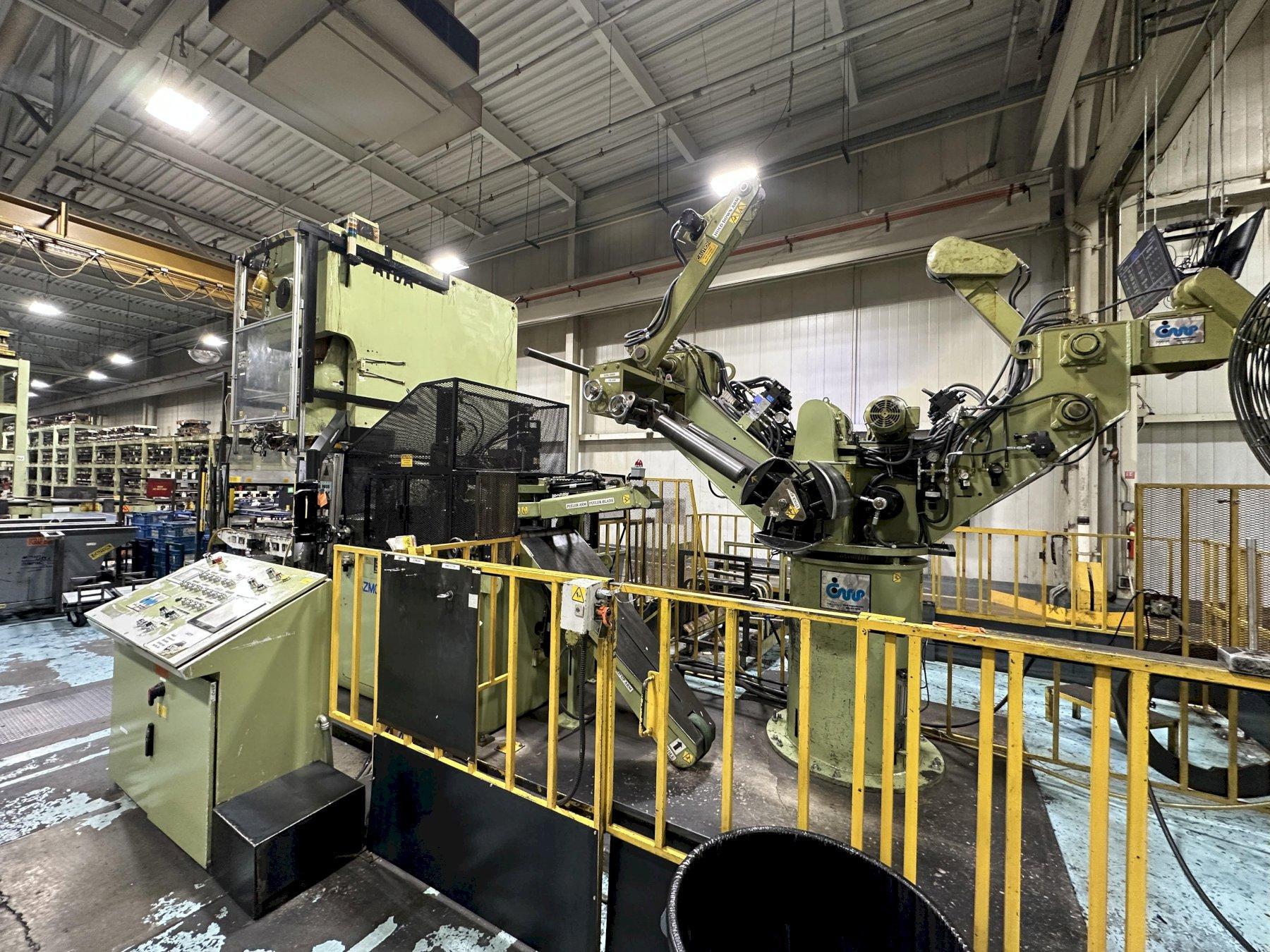

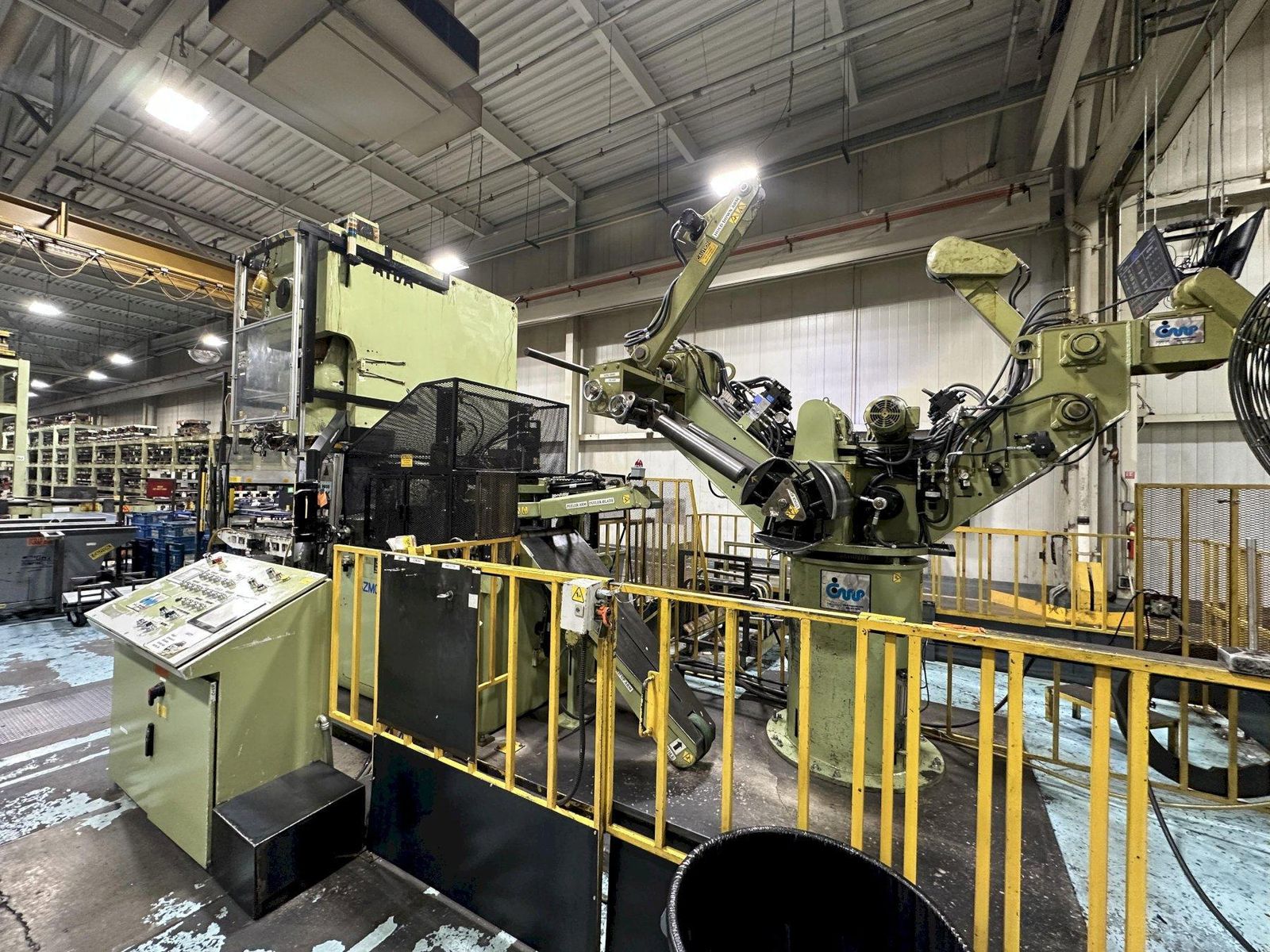

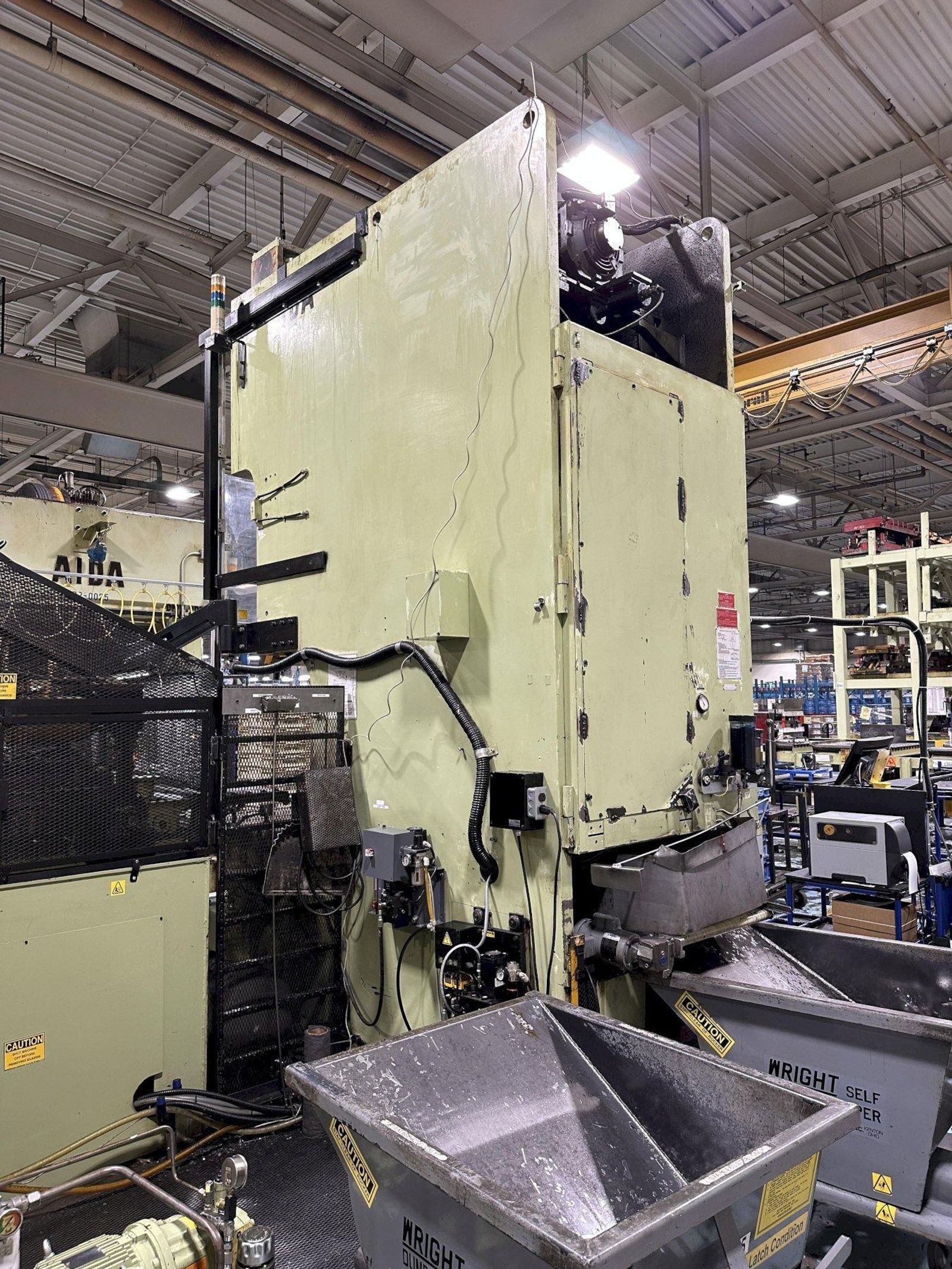

220 TON AIDA #NCI-200(2) PRESS LINE, COMPLETE WITH CWP SPACE-SAVER COIL FEED LINE: STOCK #22209

Overview

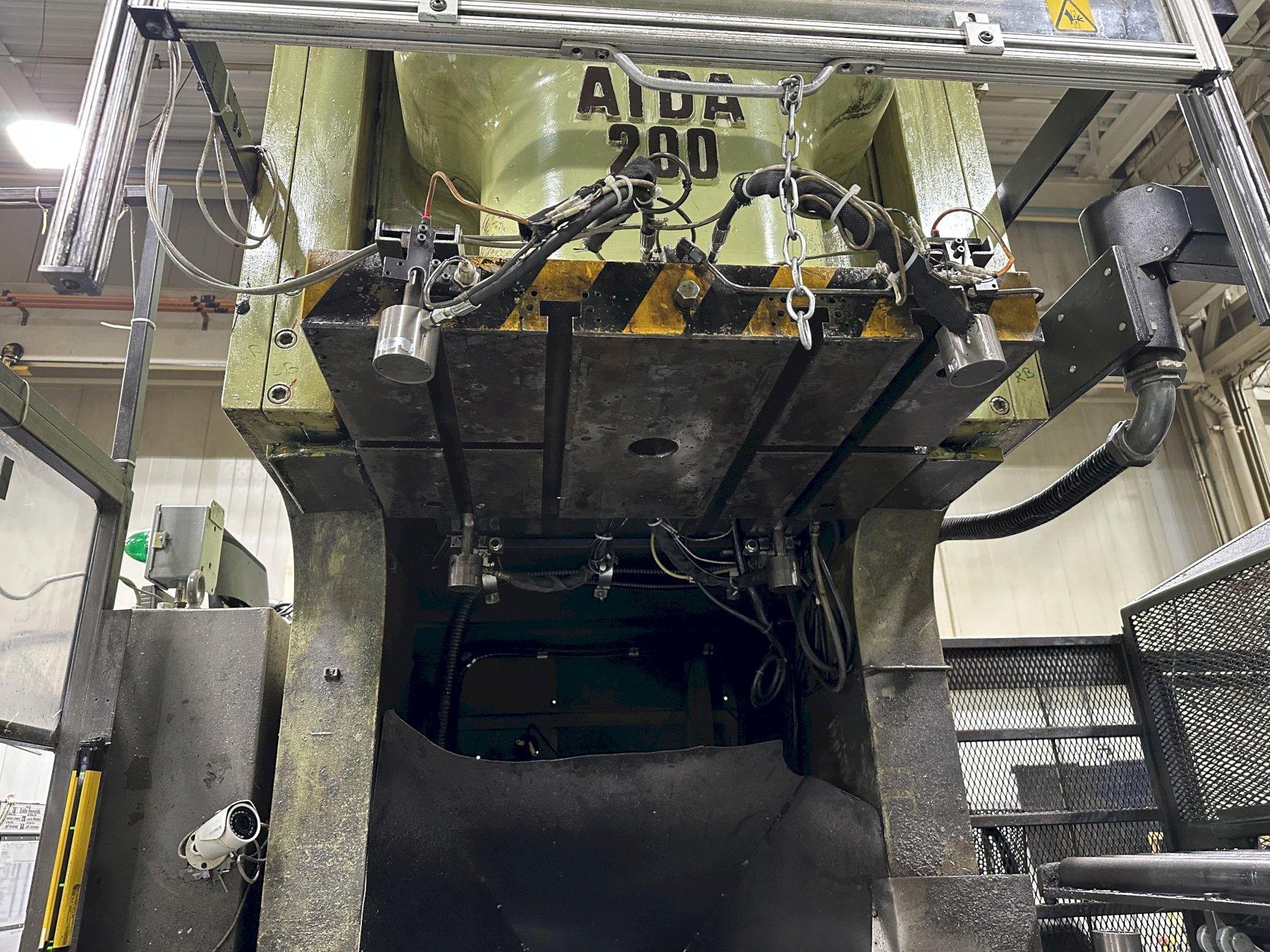

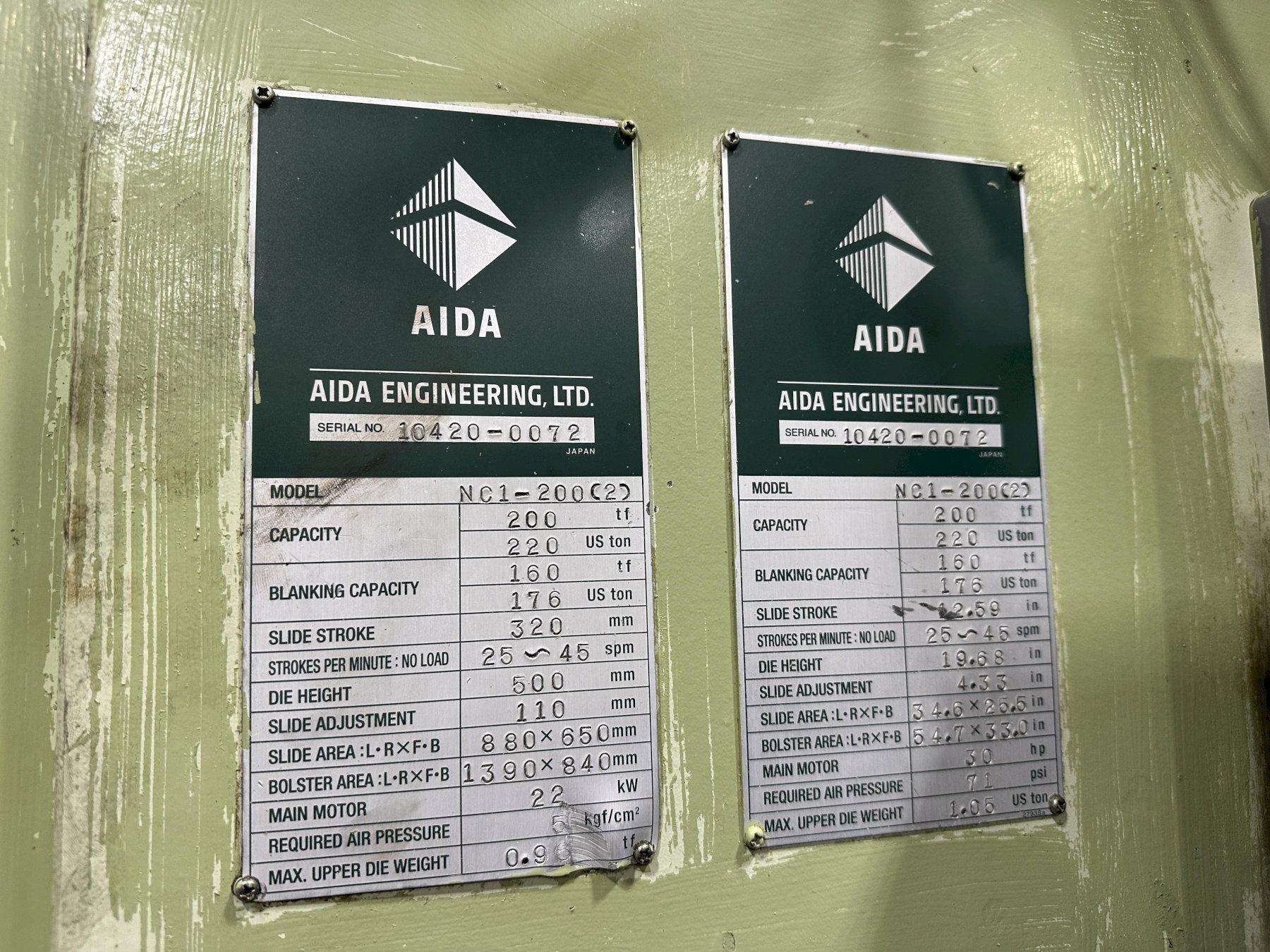

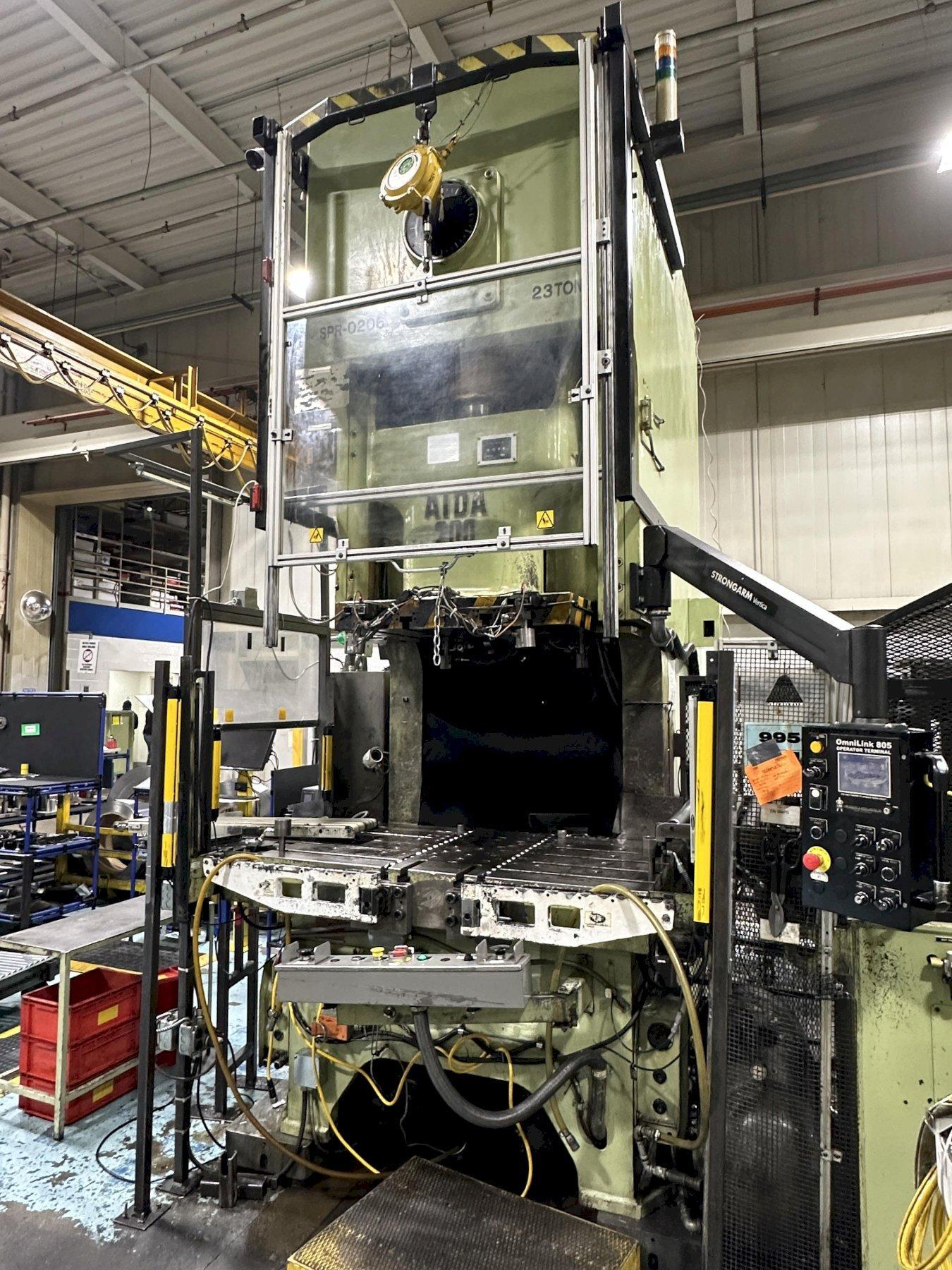

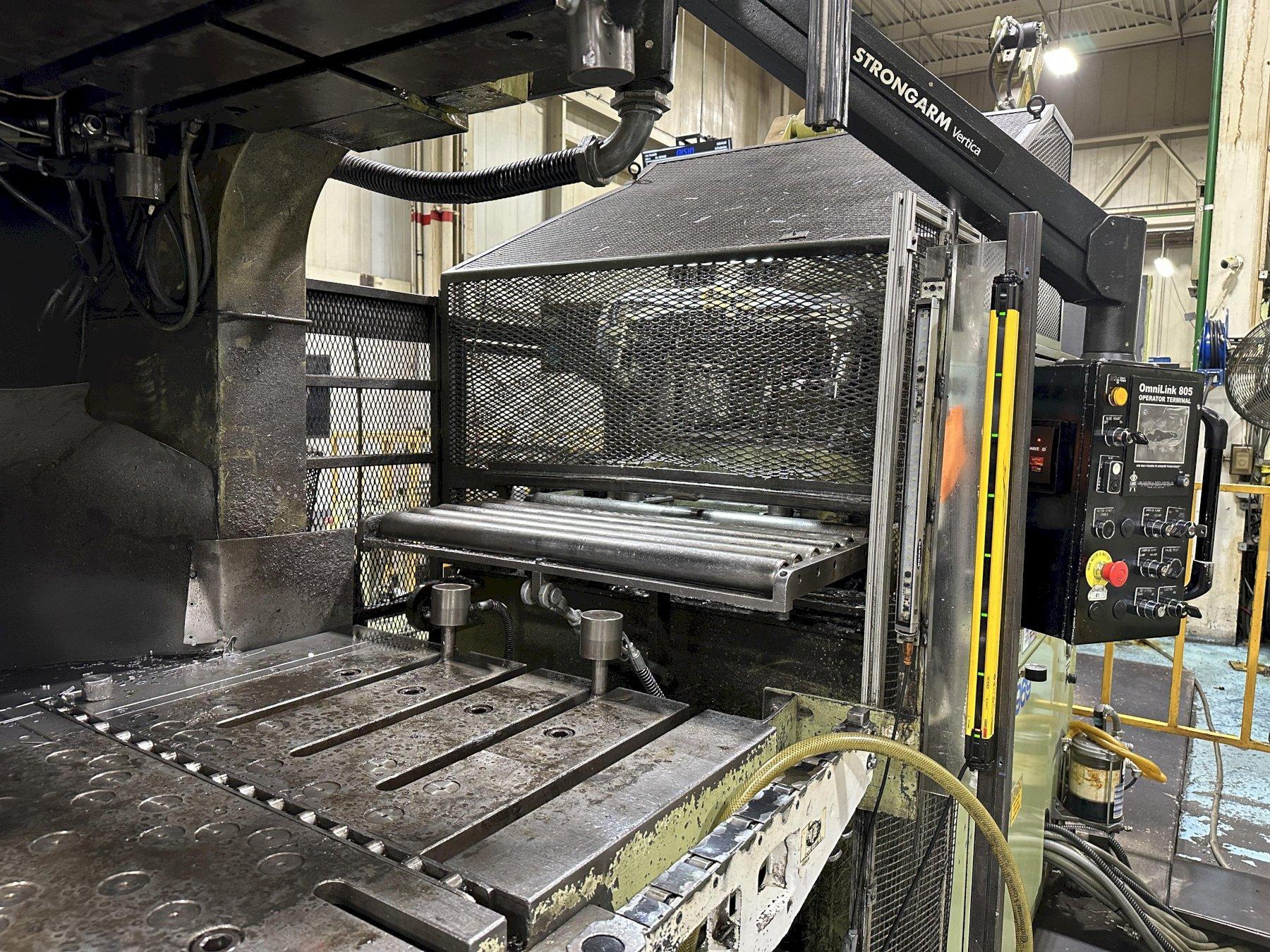

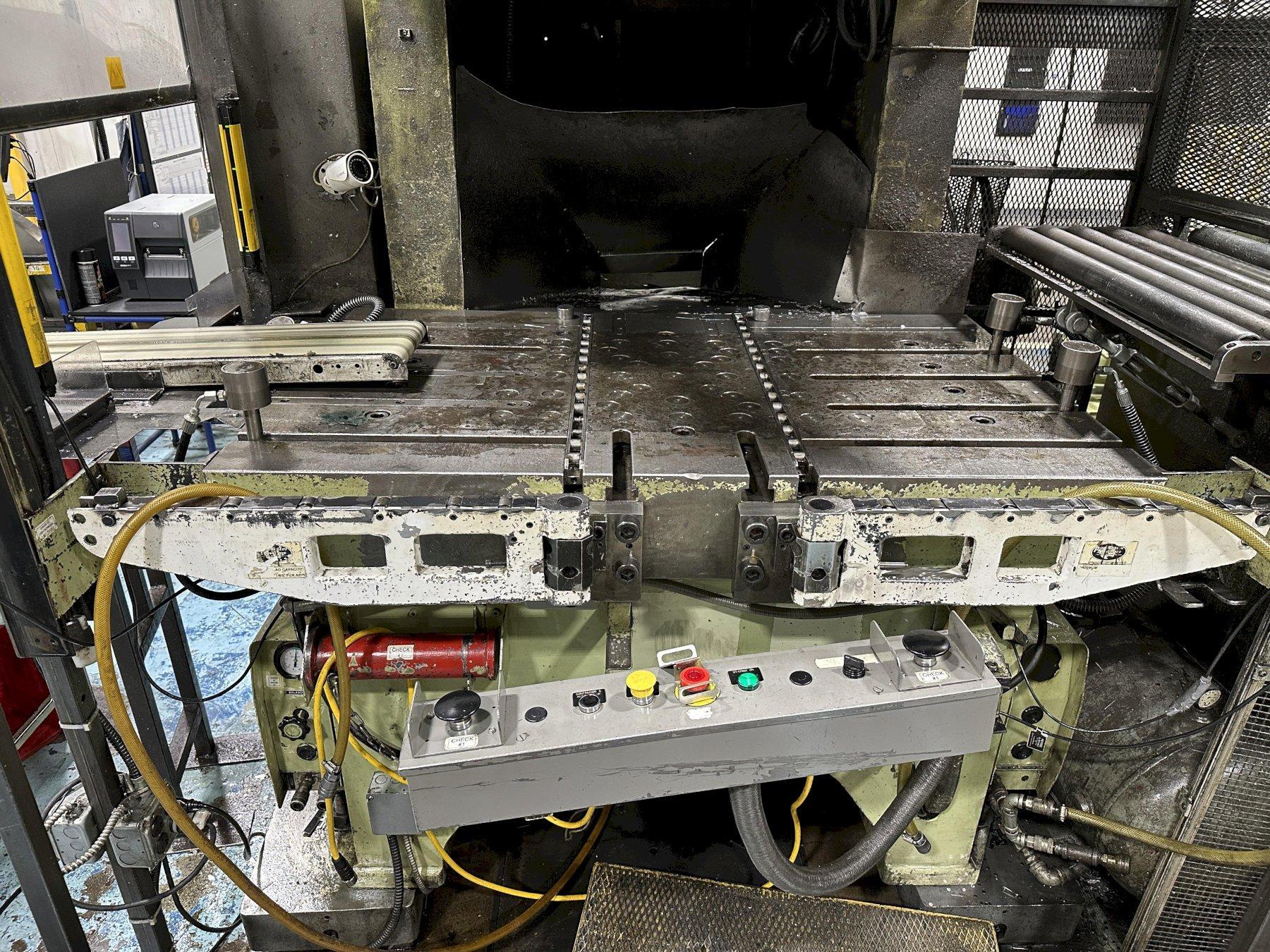

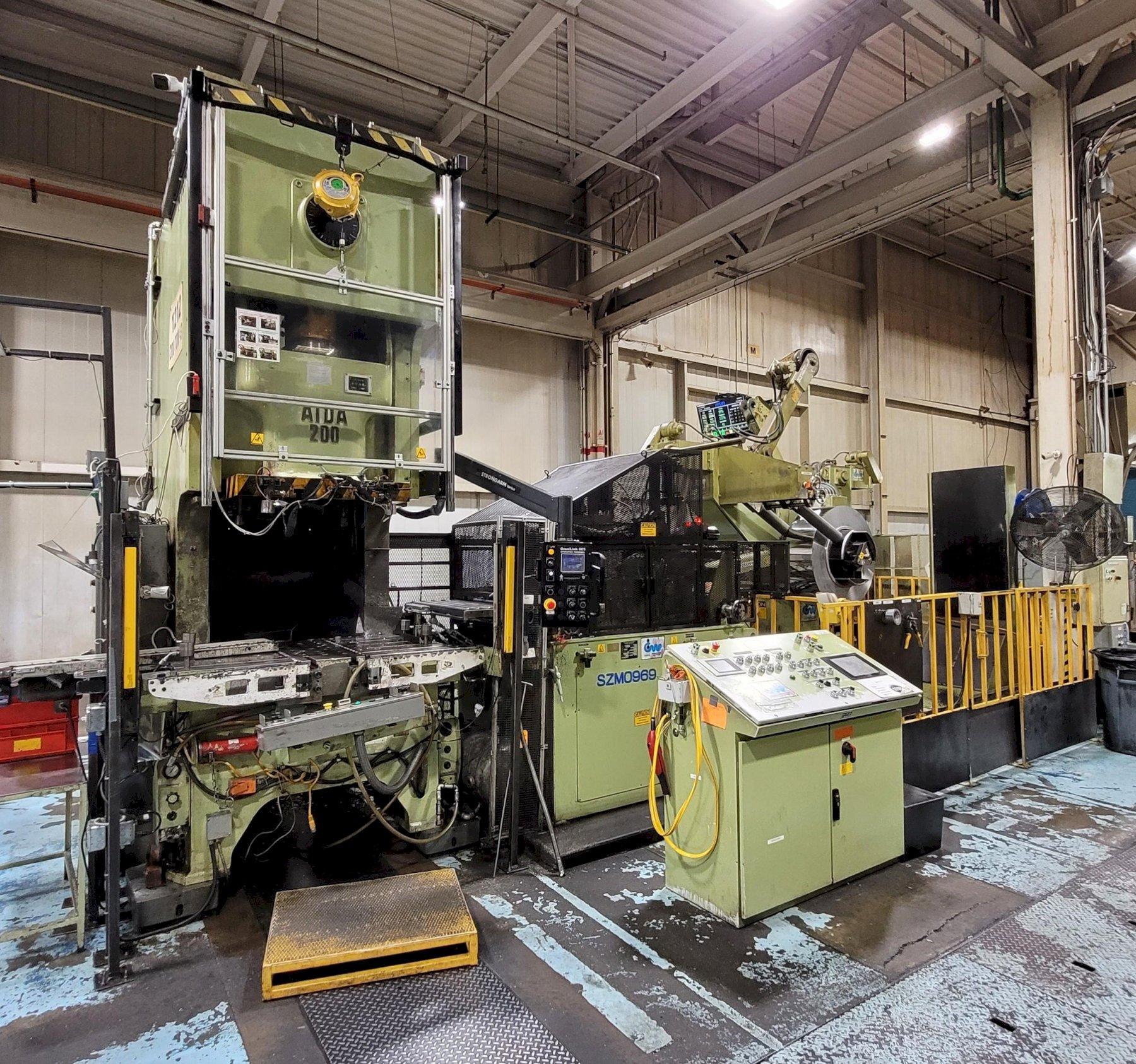

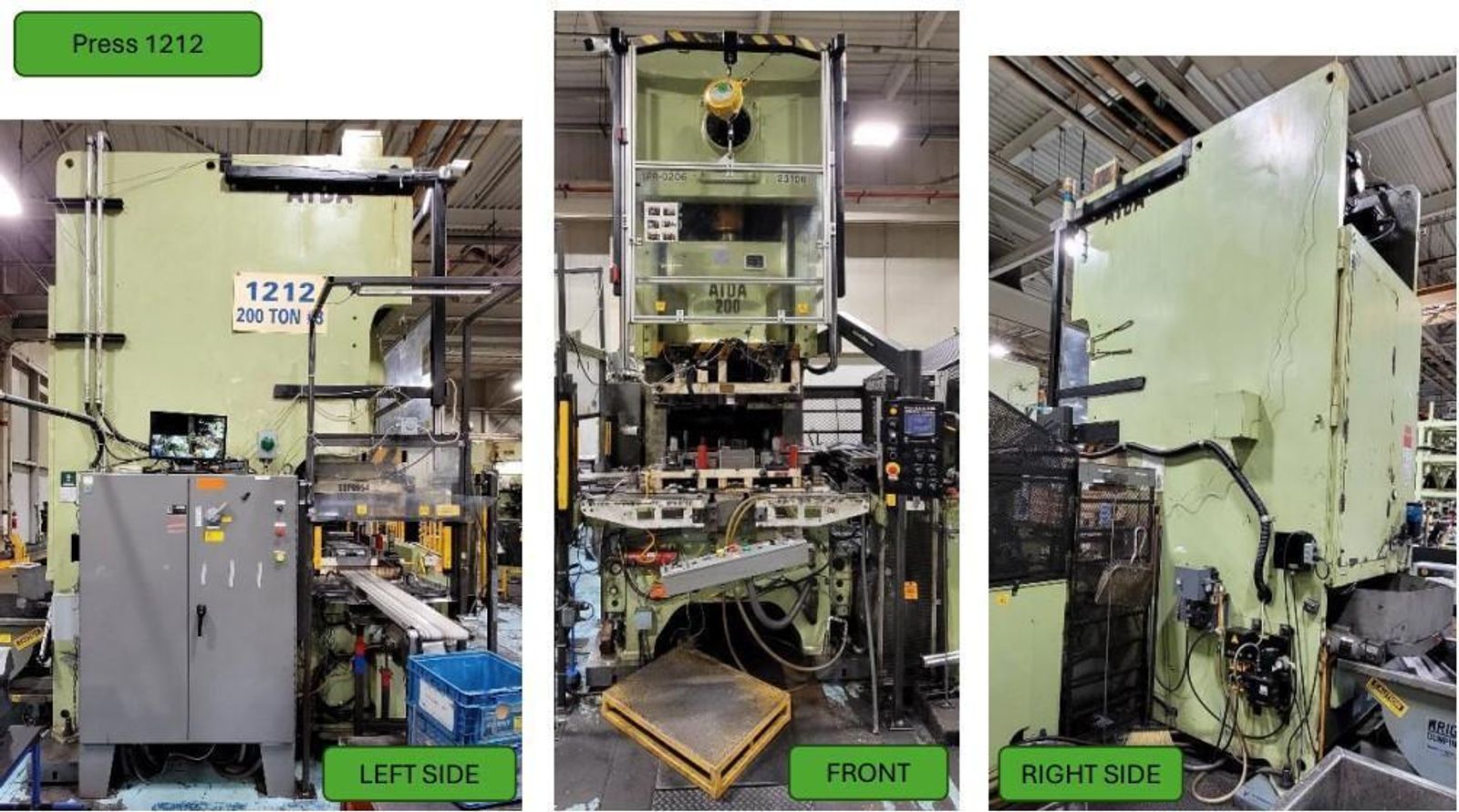

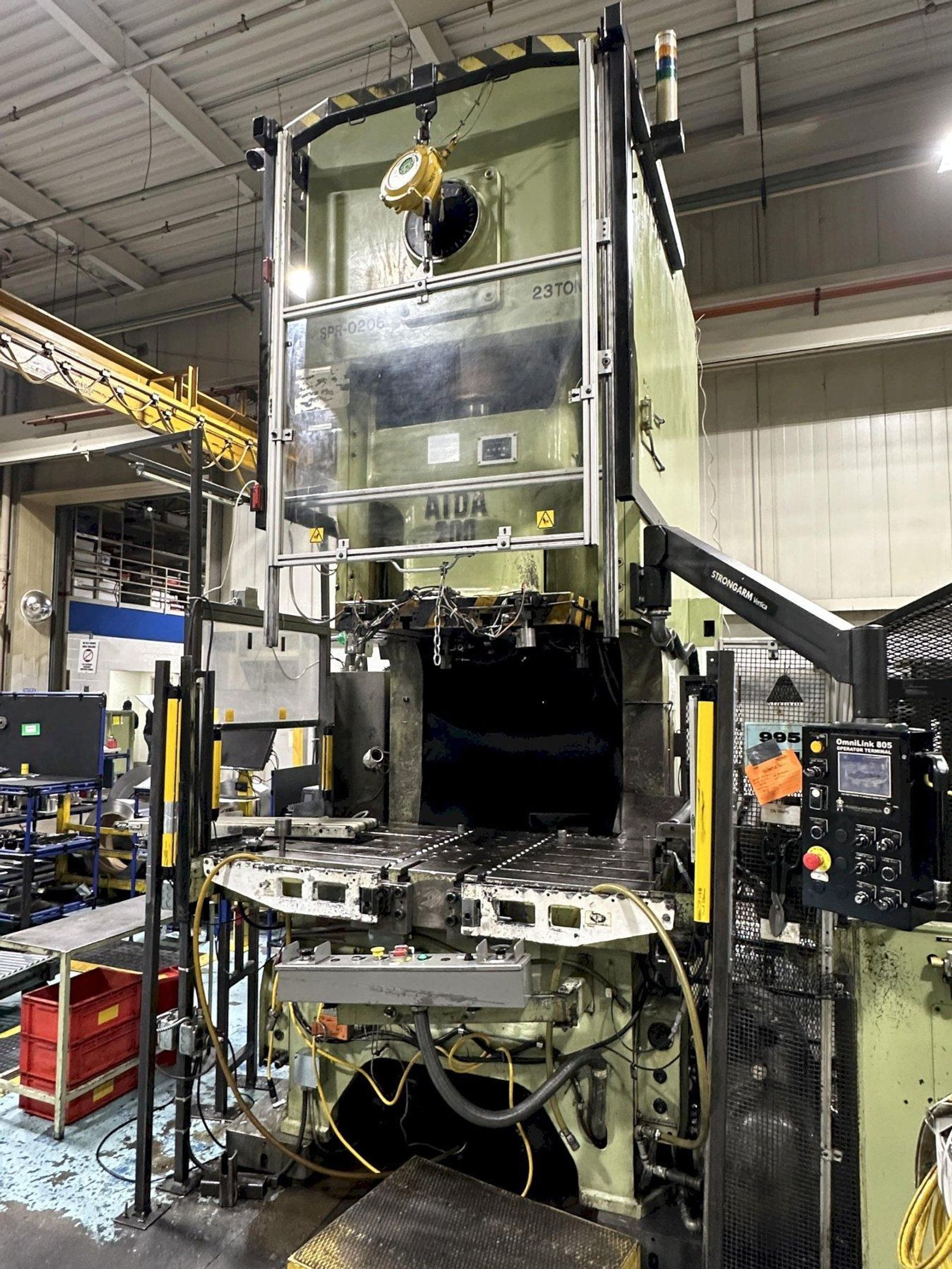

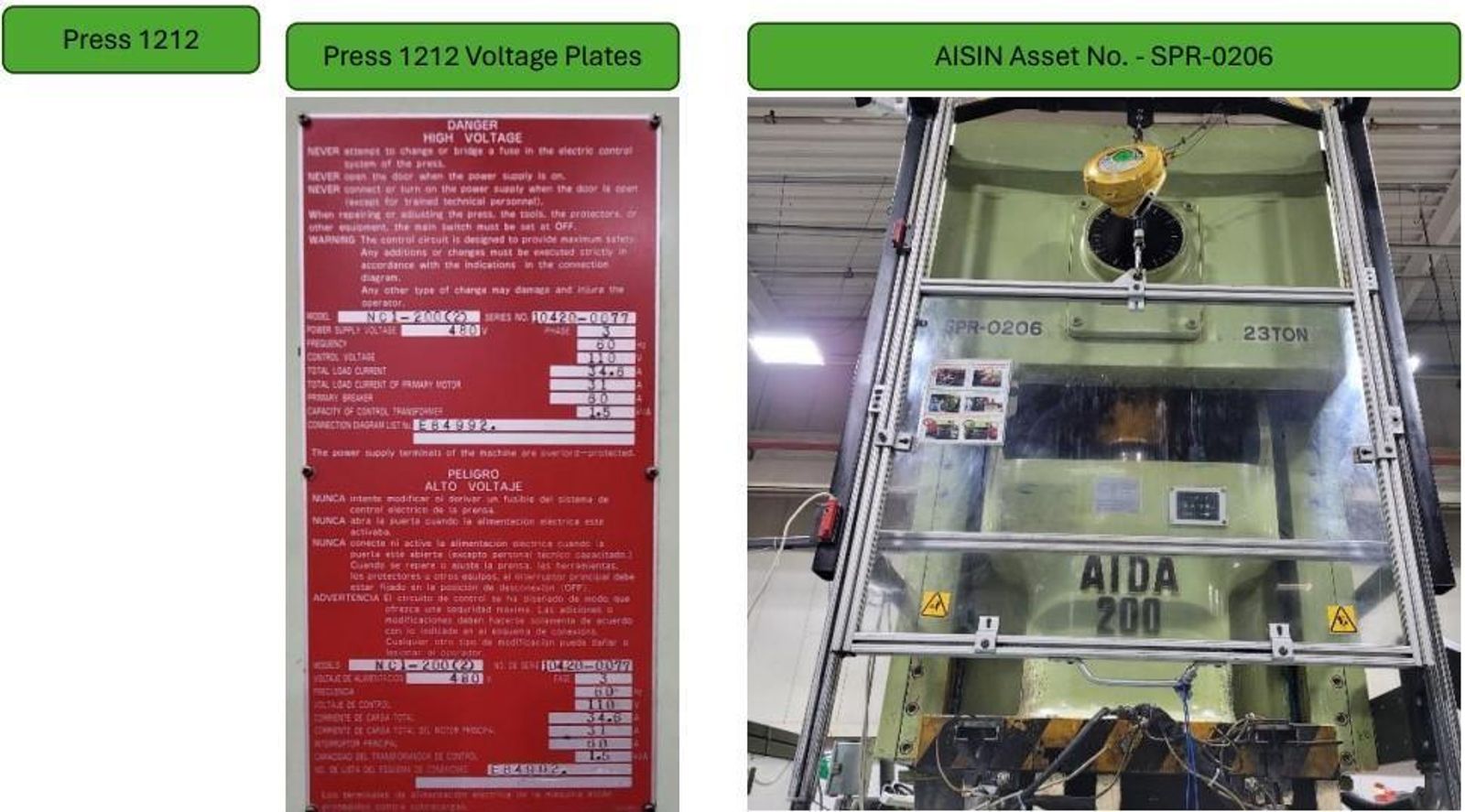

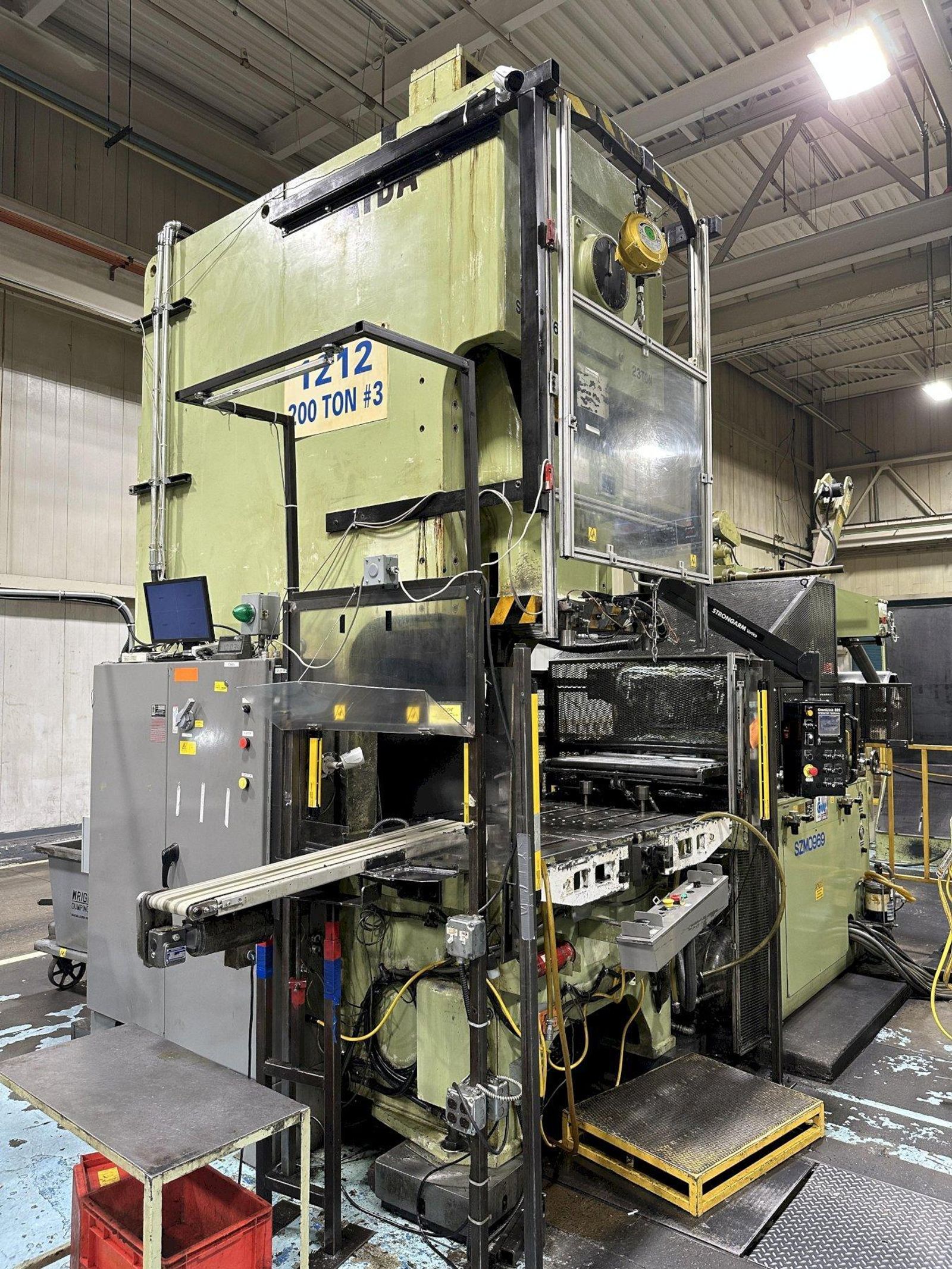

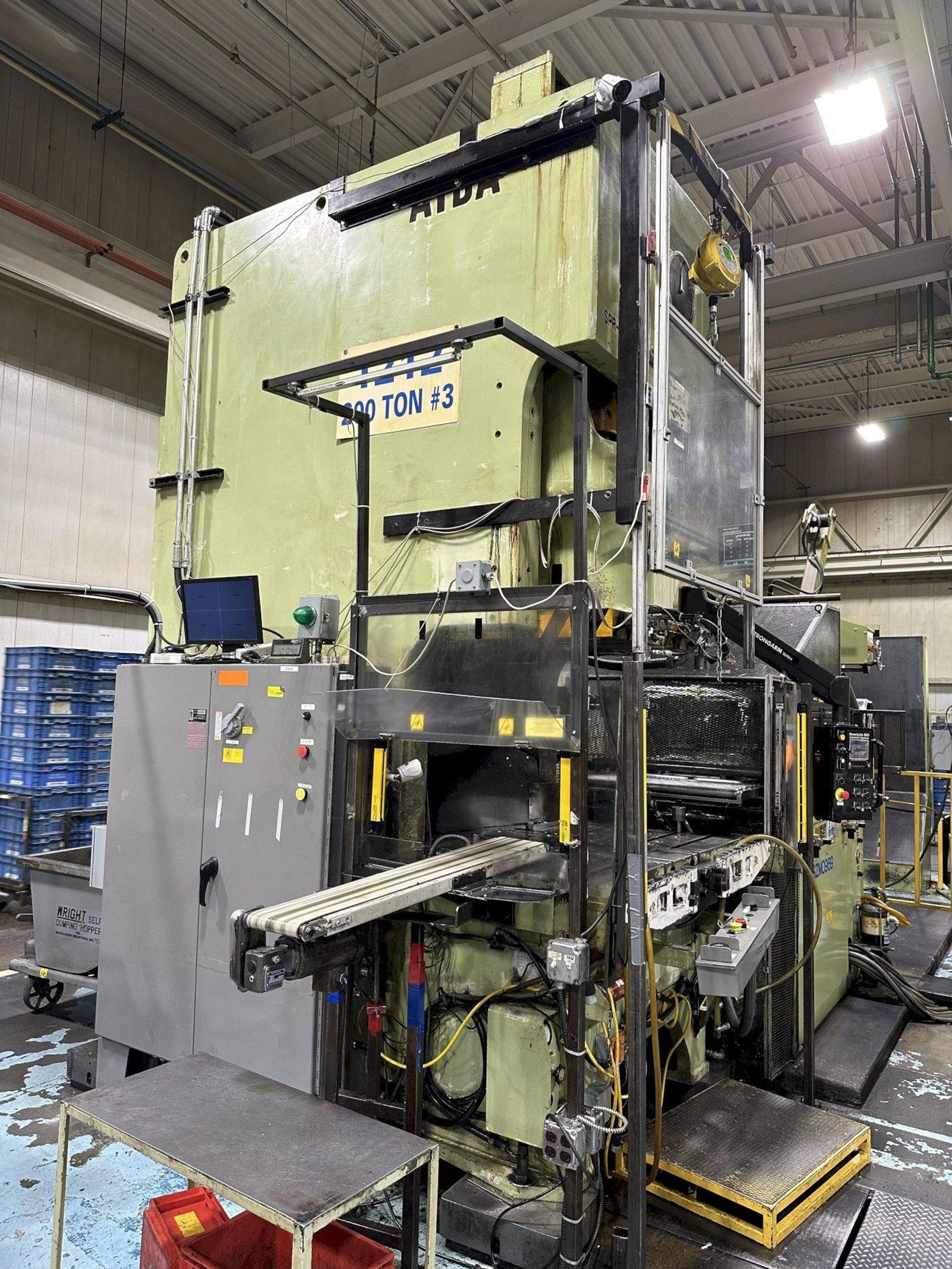

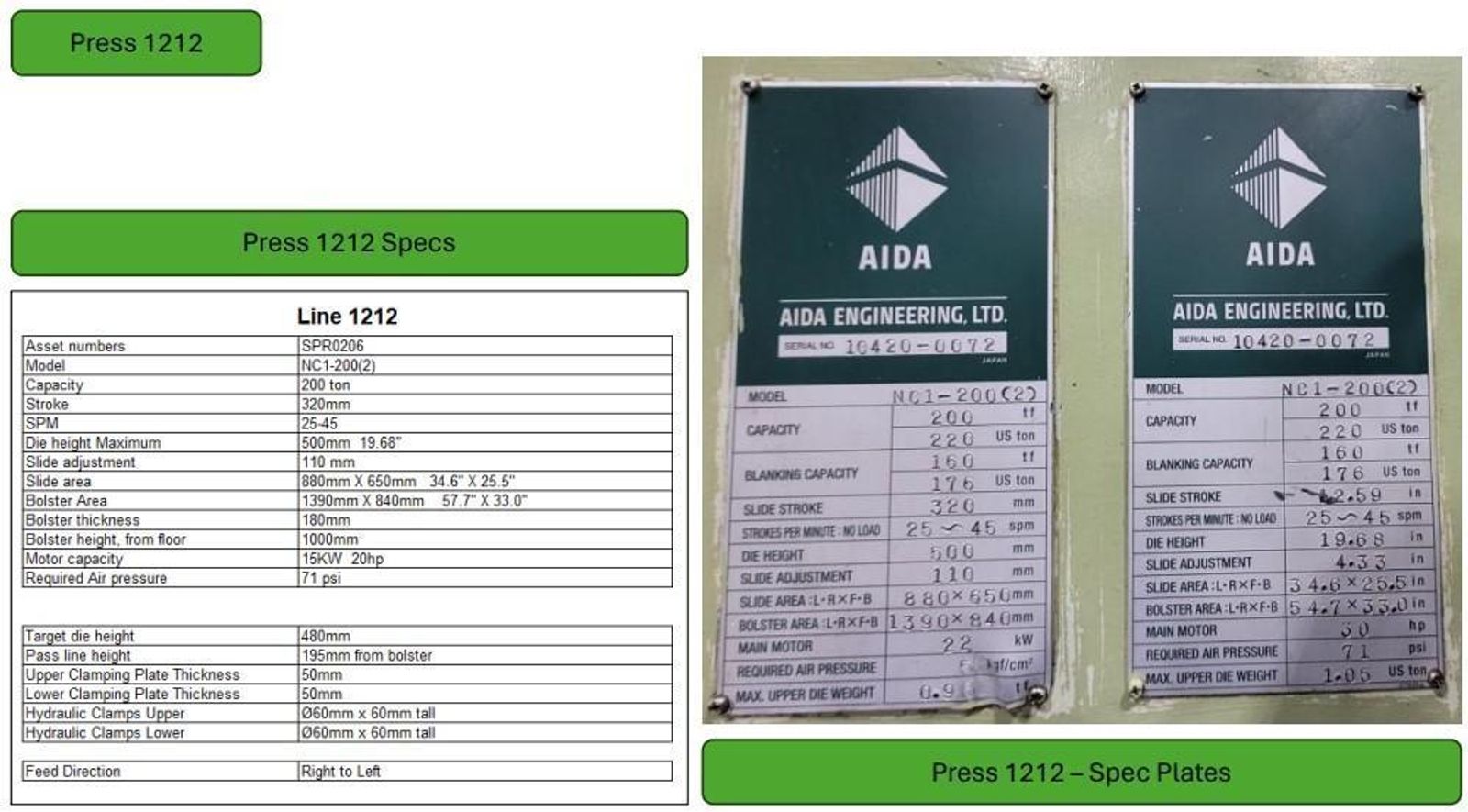

AIDA PRESS

SERIAL ............................ 10420-0072
MODEL ............................. NC1-200(2)
CAPACITY .......................... 220 TON
STROKE OF SLIDE ................... 12.59"
SLIDE ADJUSTMENT .................. 4.33"
POWER SLIDE ADJUSTMENT ............ YES
SHUT HEIGHT, OVER BOLSTER ......... 19.68"
AREA OF BED ....................... 54.7" X 33.0"
AREA OF RAM ....................... 34.6" X 25.5"
STROKES PER MINUTE ................ 25-45 SPM
AIR CLUTCH ........................ YES
AIR BRAKE ......................... YES
AIR COUNTER BALANCES .............. YES
HYDRAULIC OVERLAD PROTECTION ...... YES
FLOOR STANDING .................... YES
MOTOR ............................. 30 HP

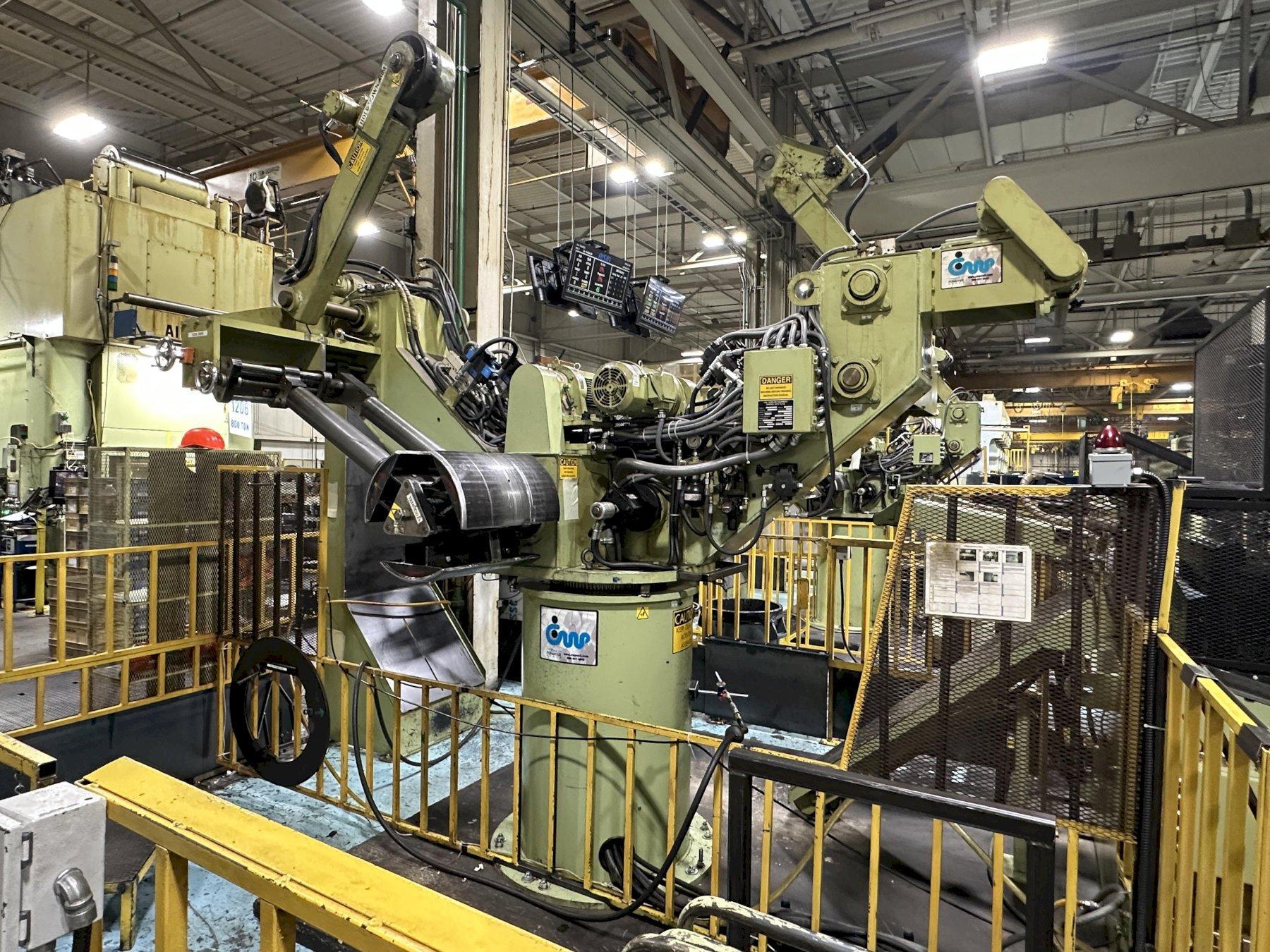

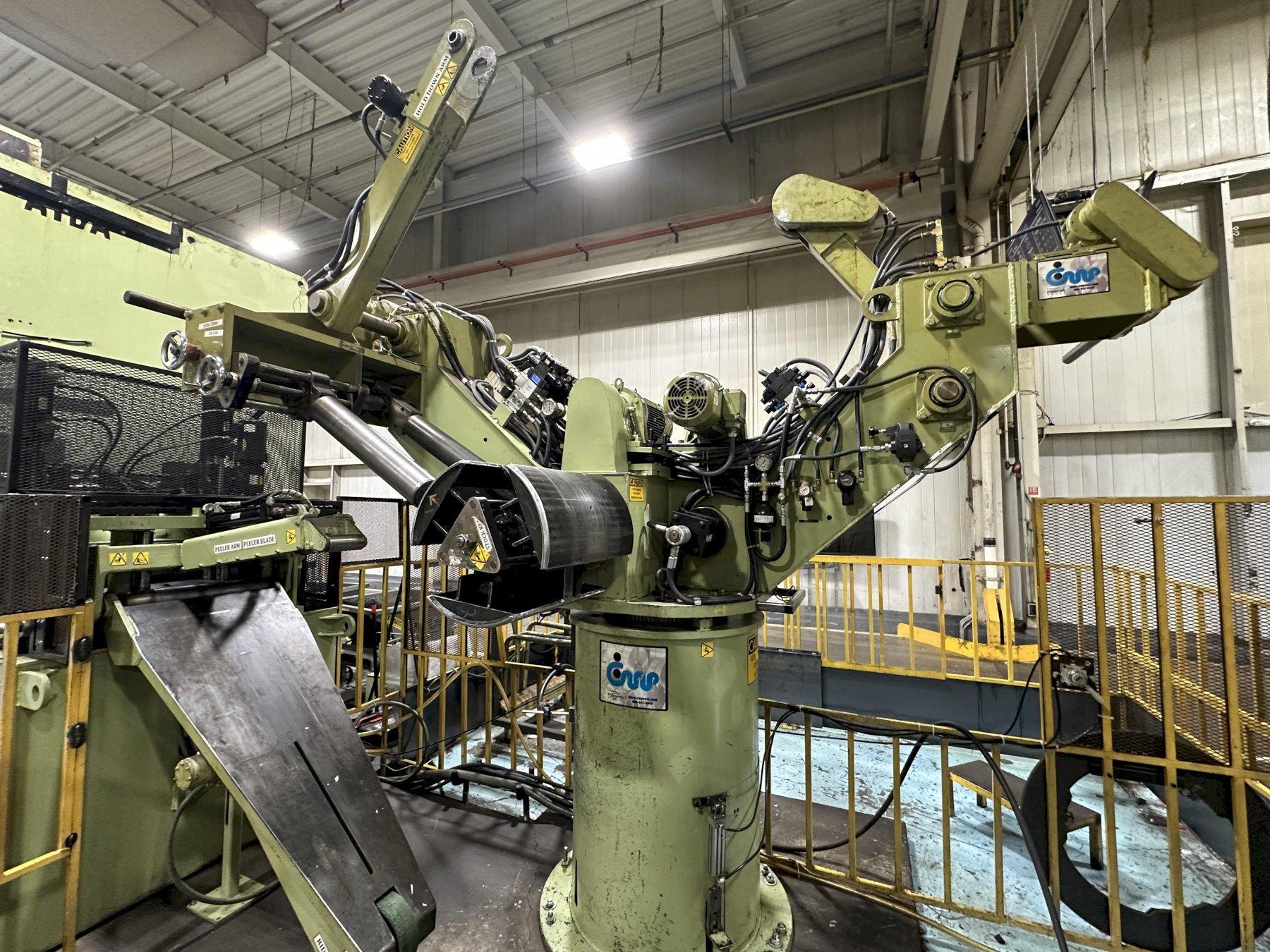

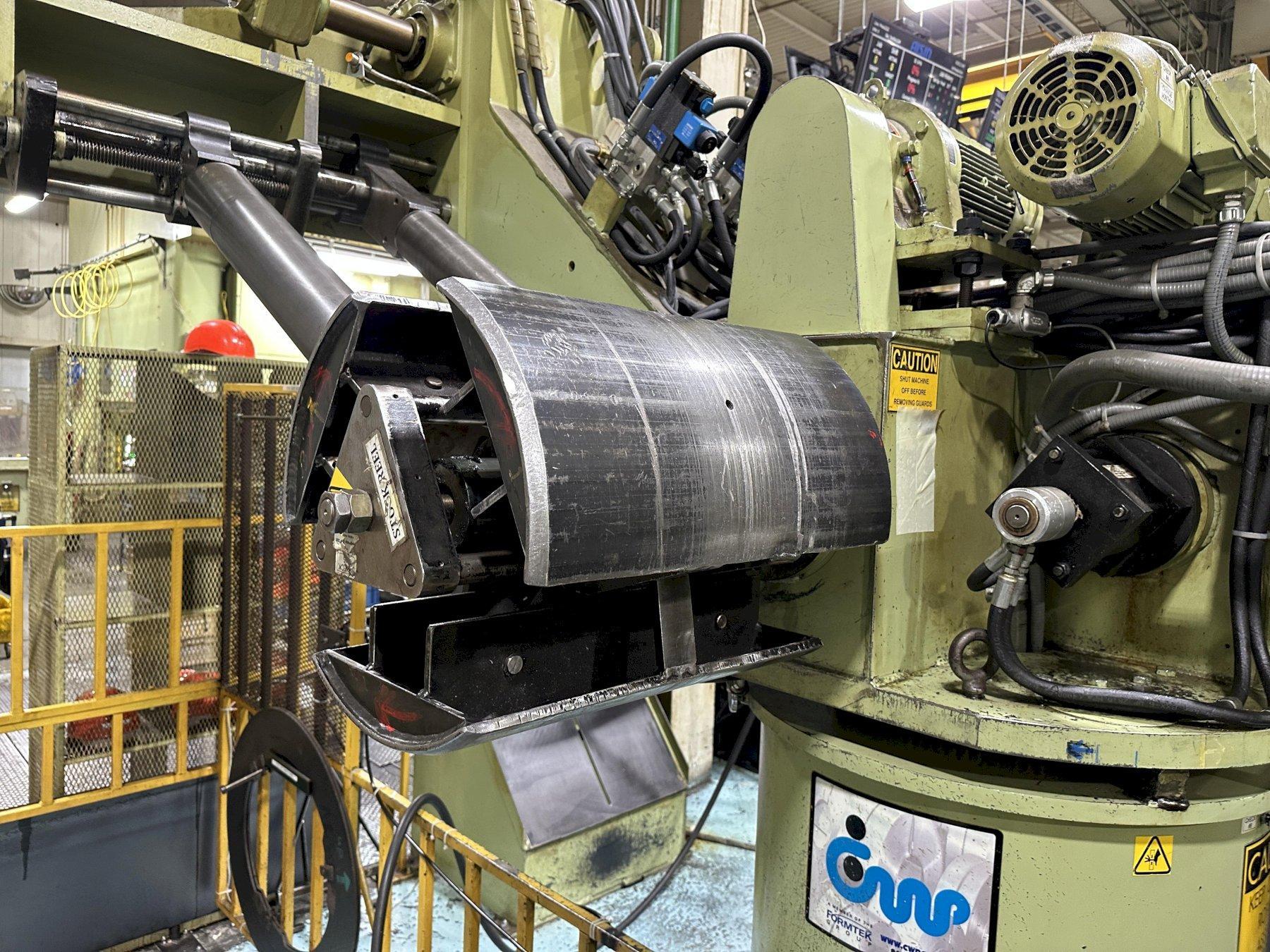

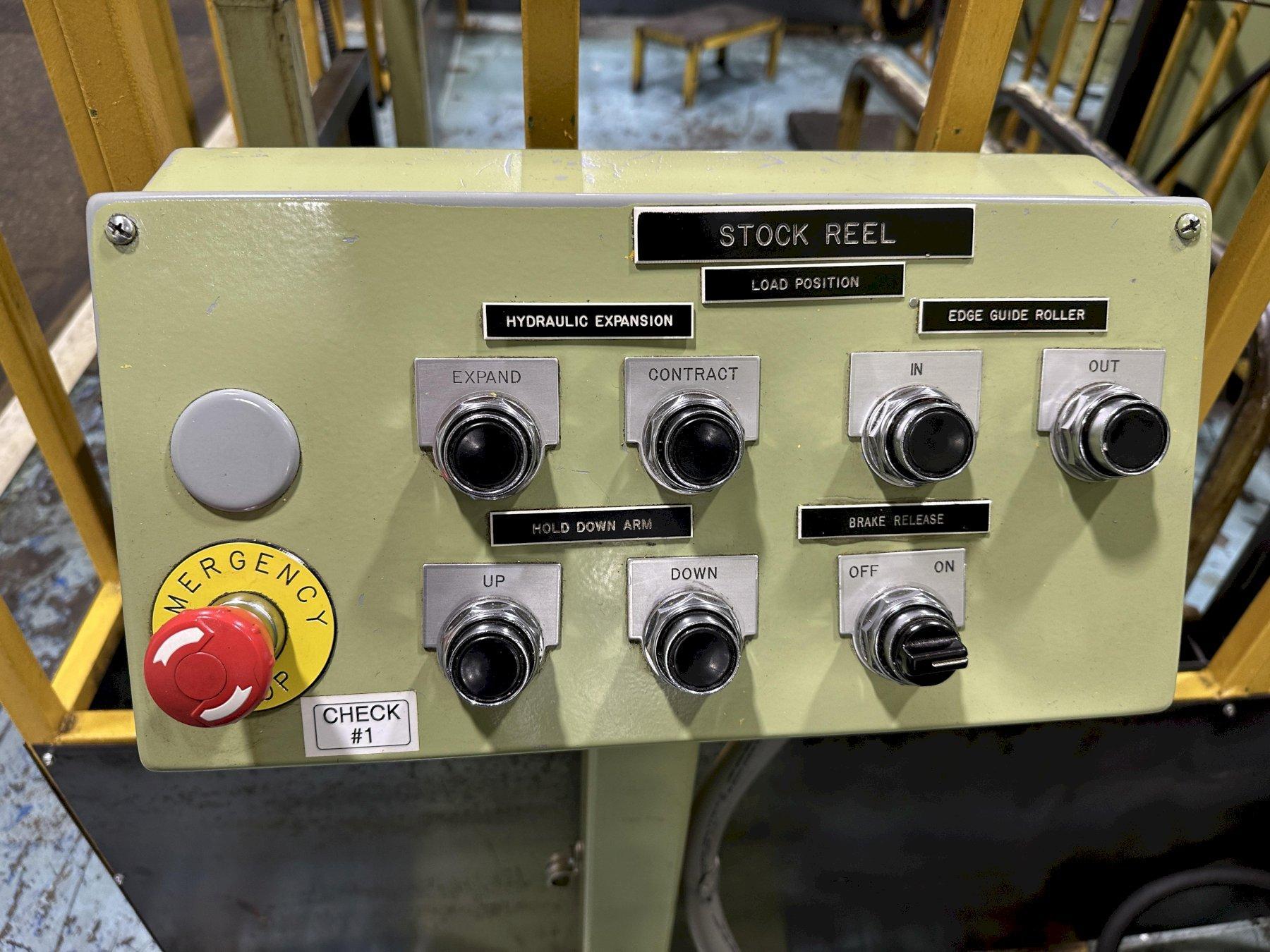

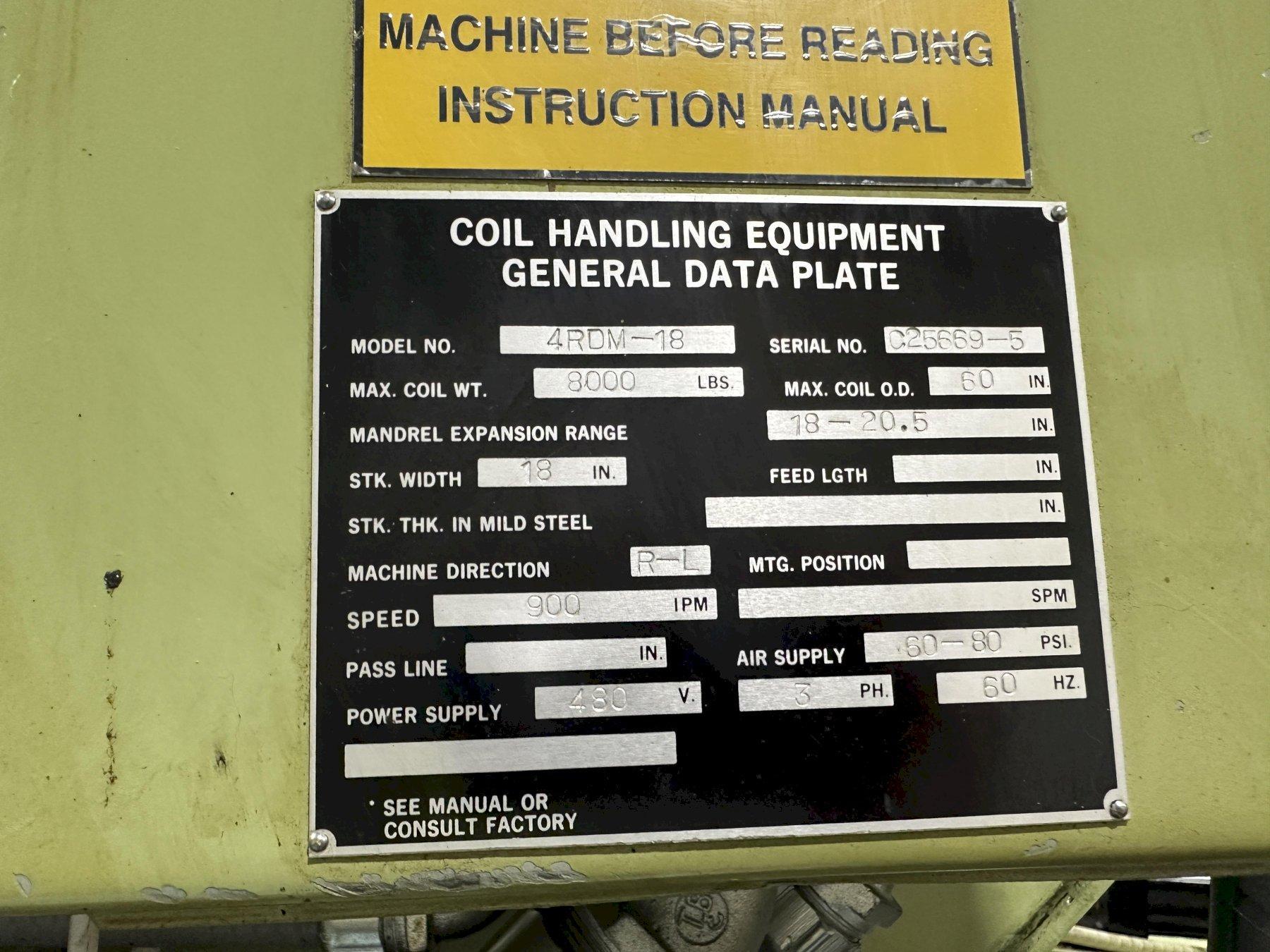

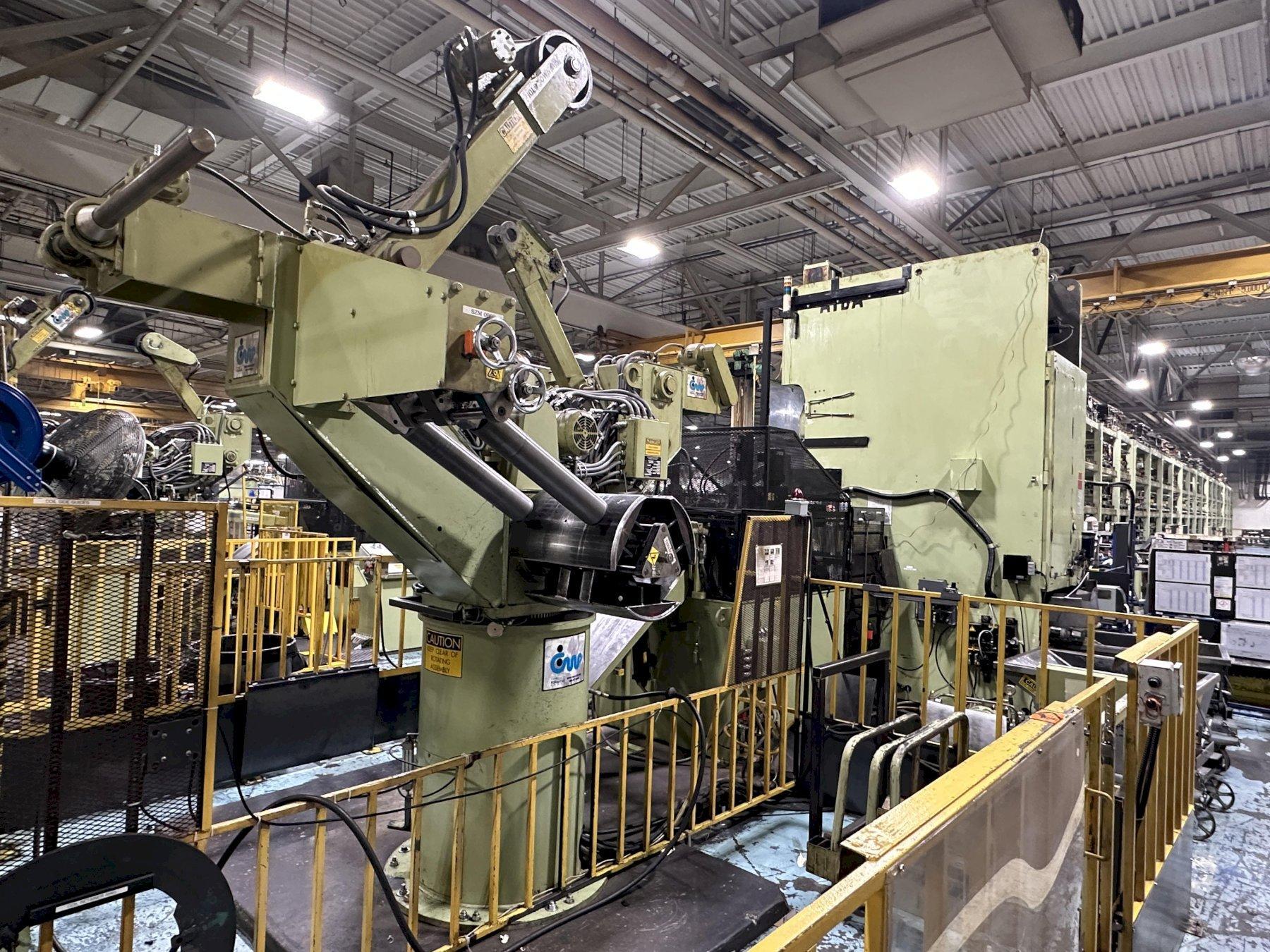

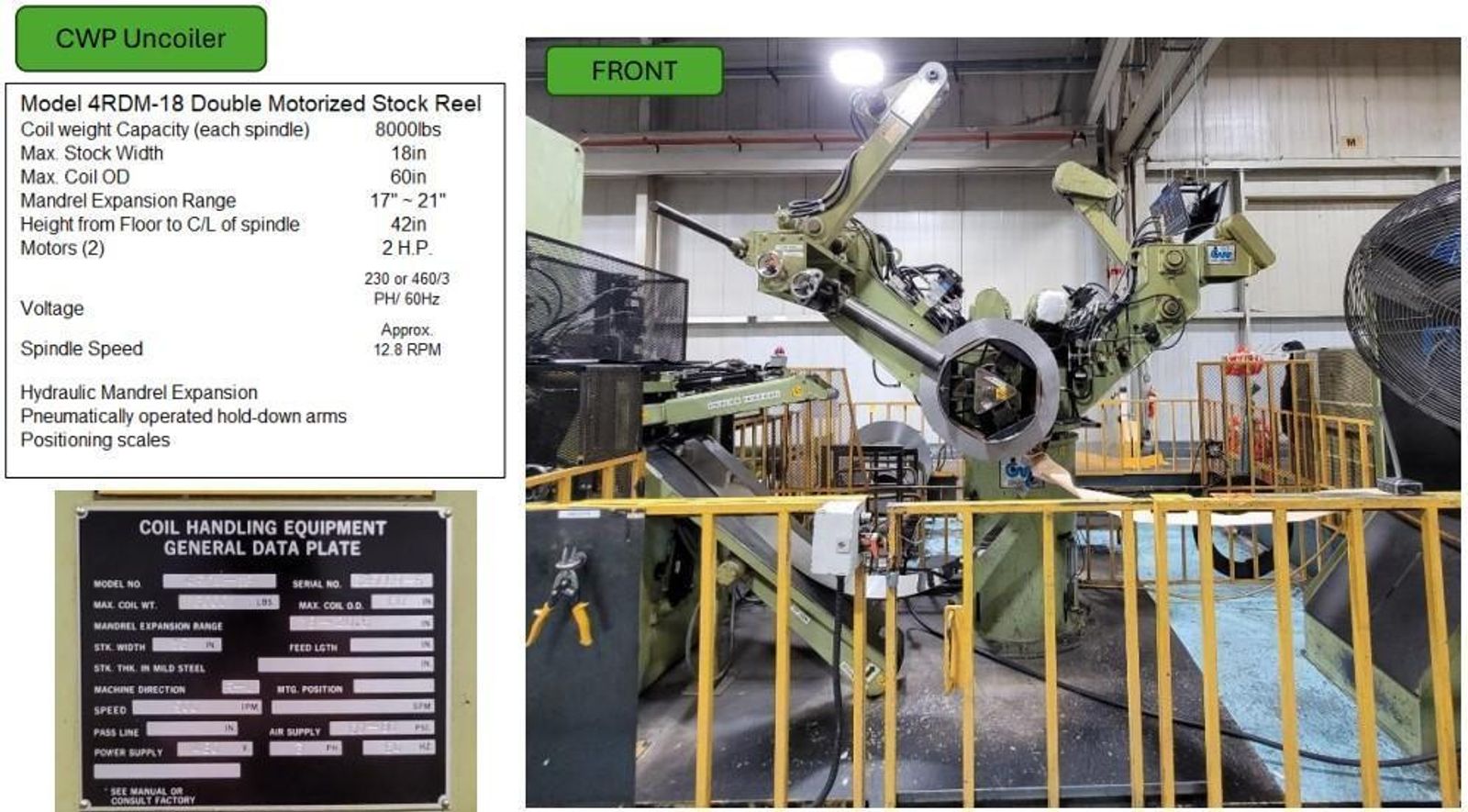

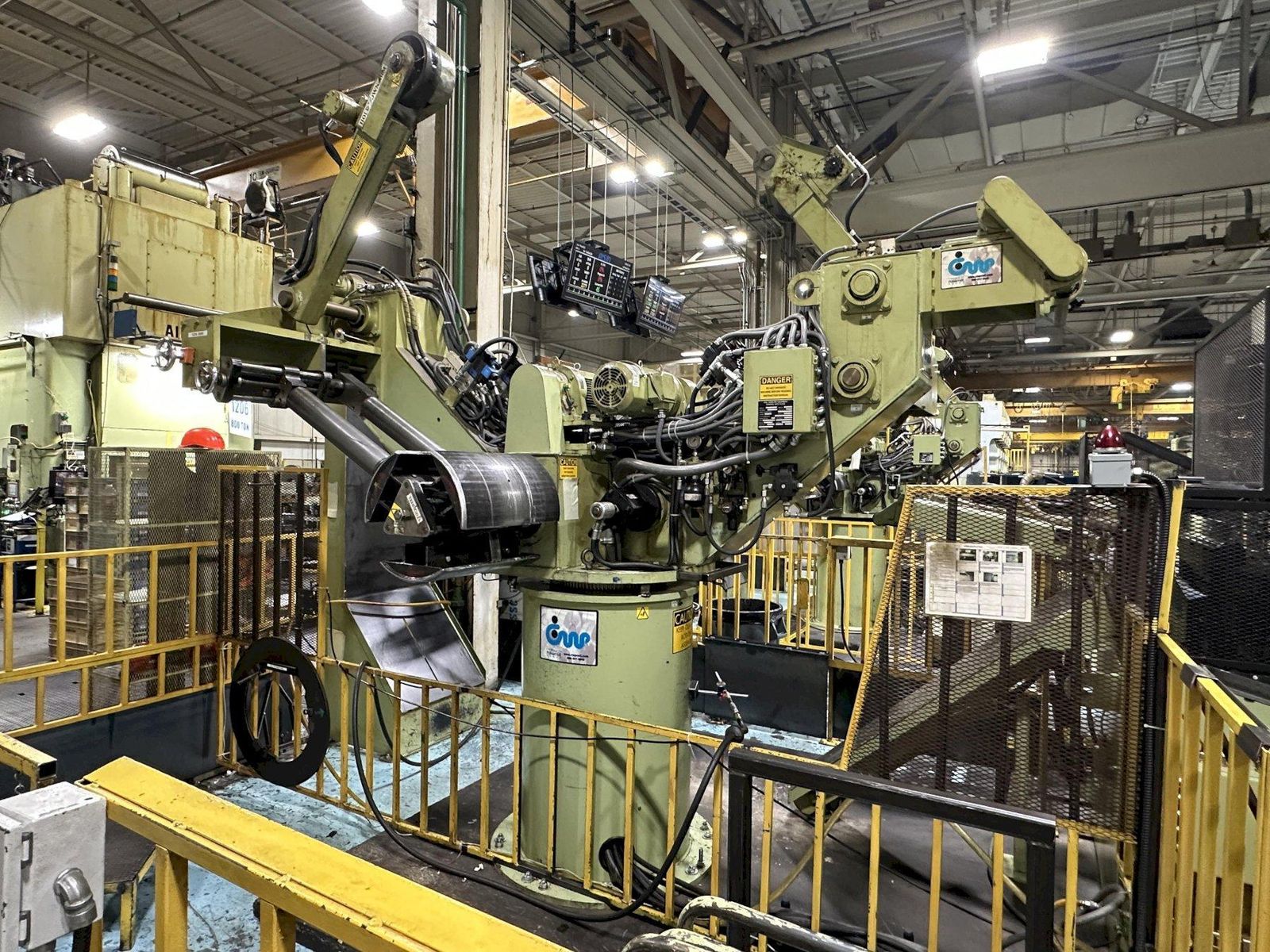

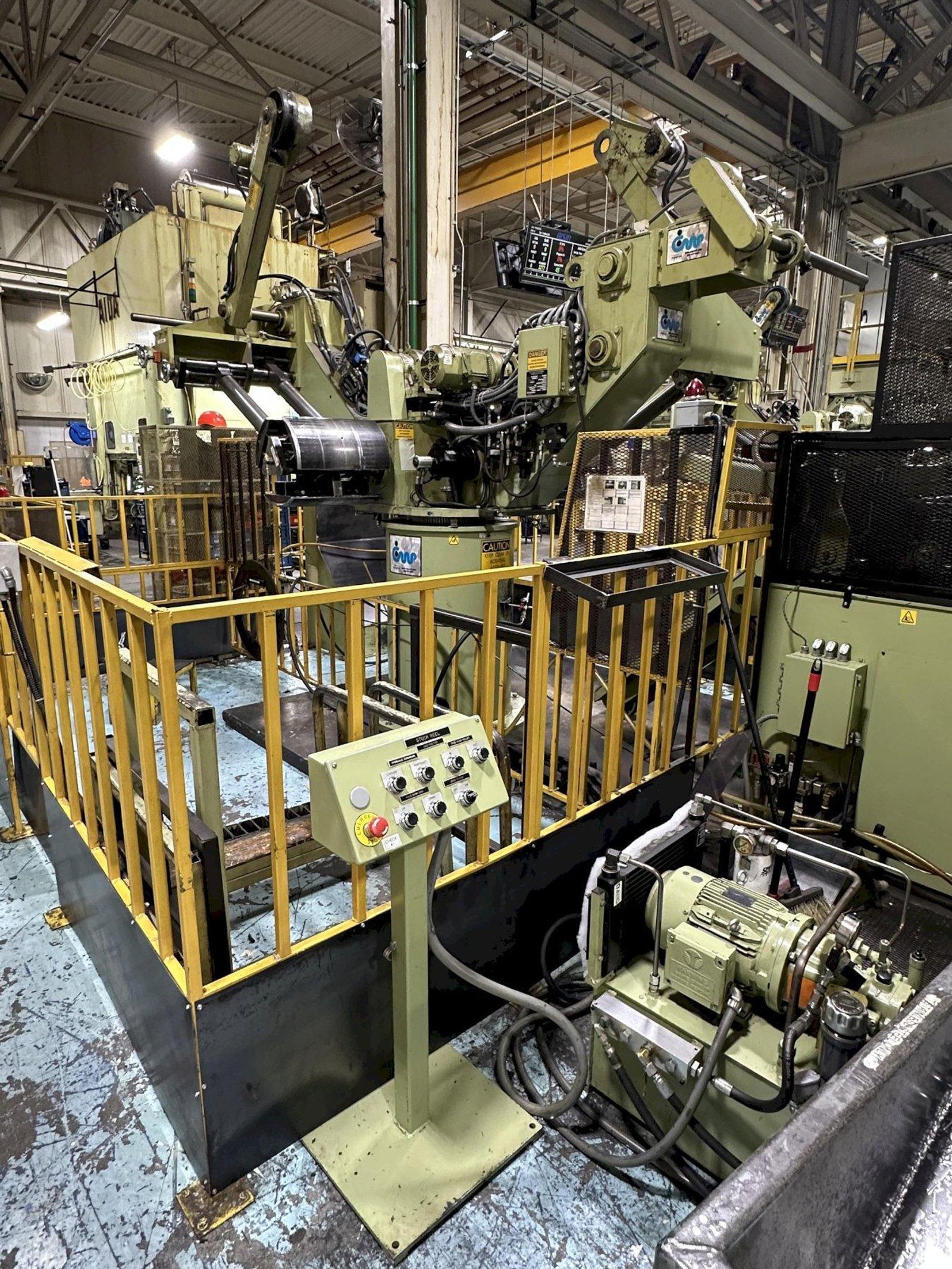

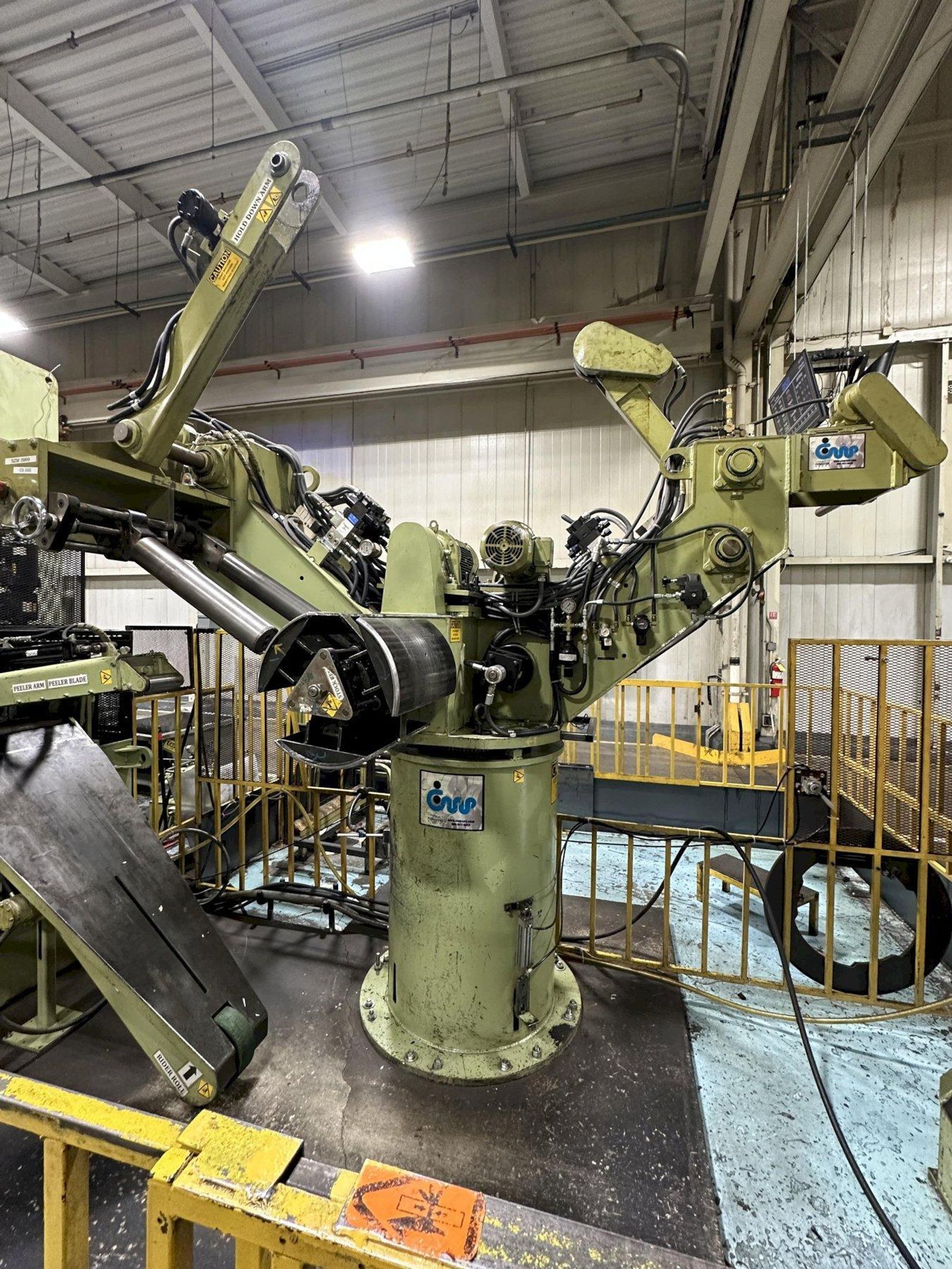

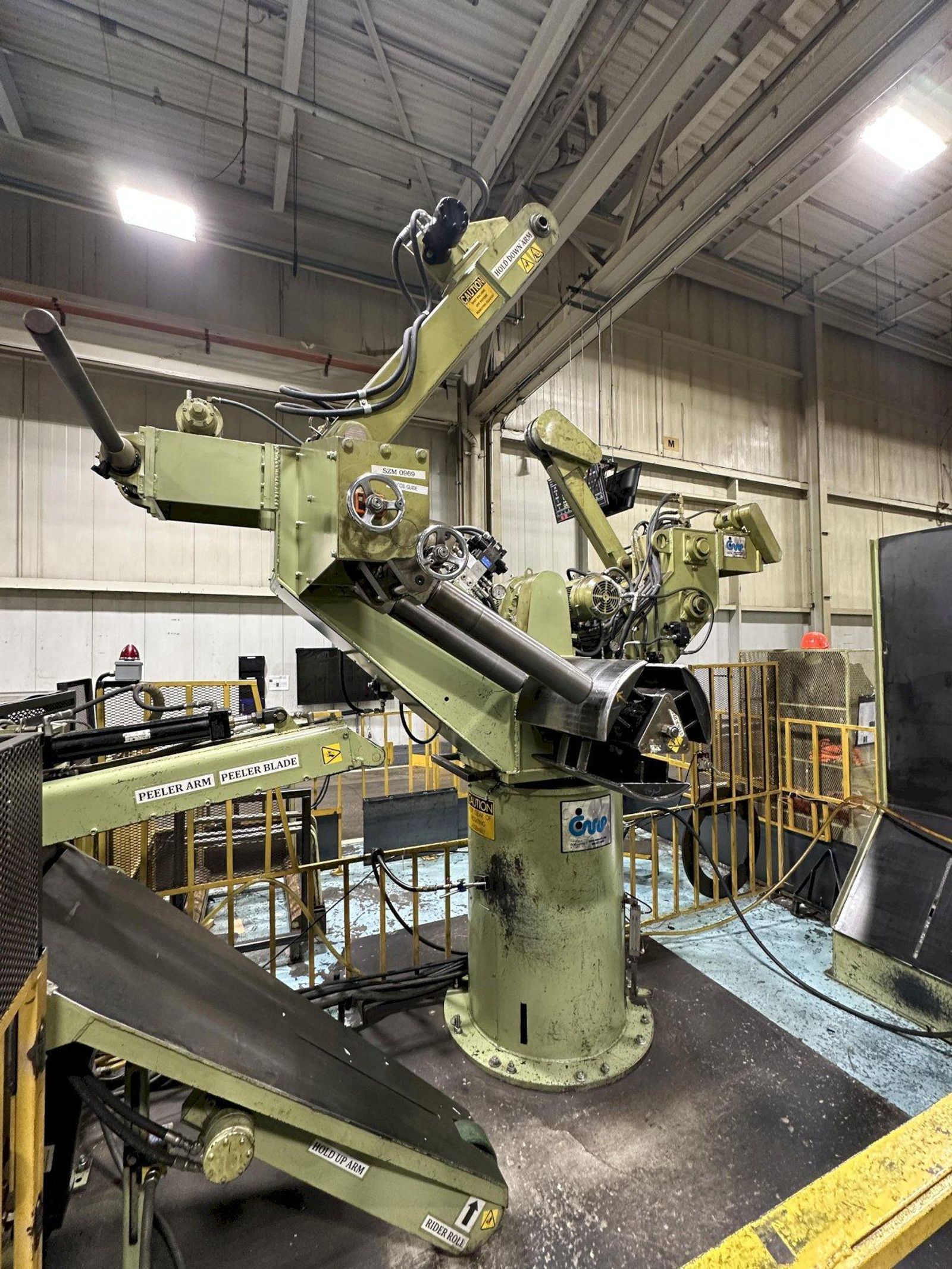

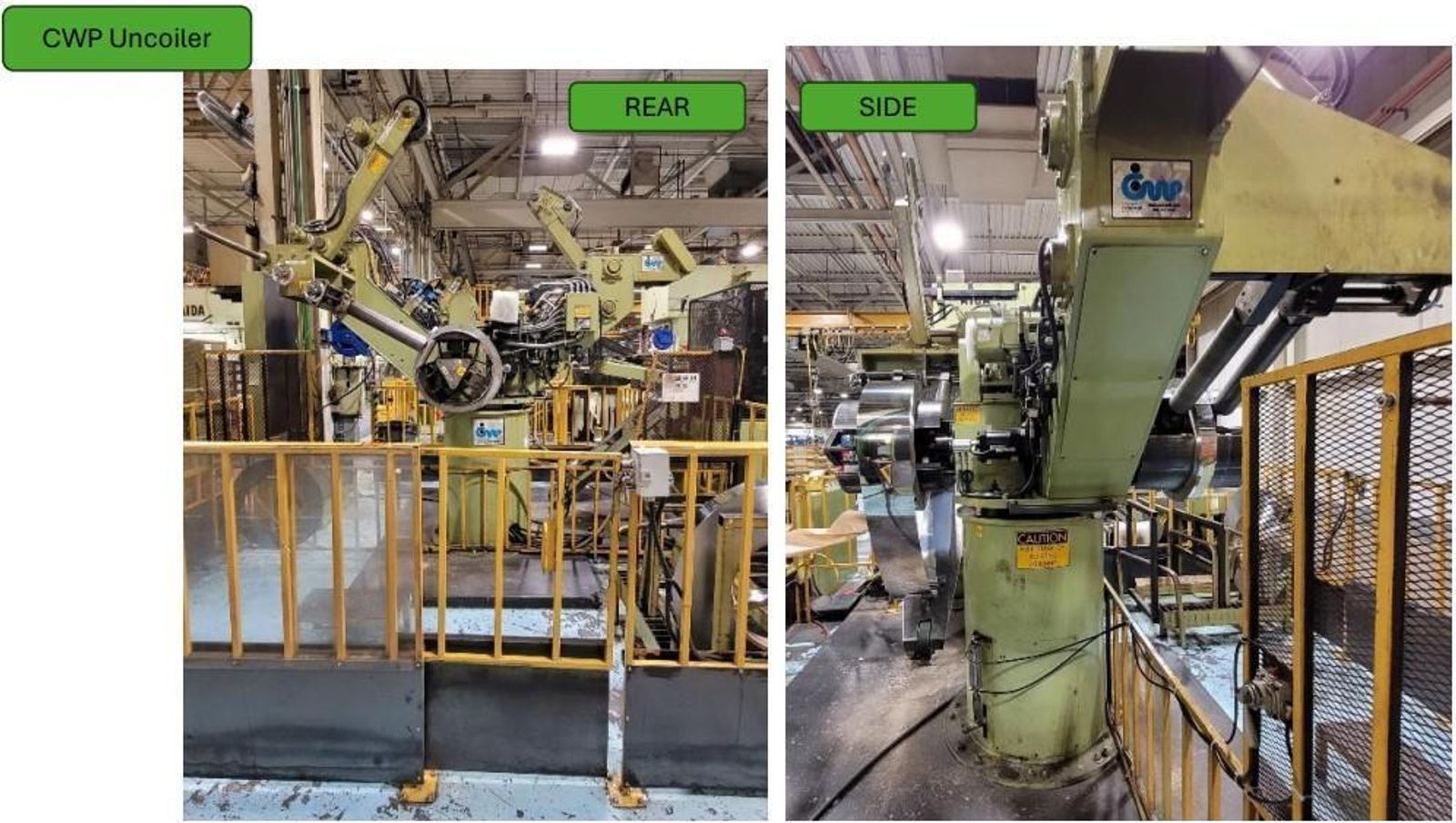

COIL REEL
SERIAL C25669-5
MODEL 4RDN-18
COIL WEIGHT 8,000 LBS
WIDTH 18"
COIL OD 60"
COIL ID 18" TO 20.5"
ID EXPANSION HYDRAULIC
FLOOR TO SPINDLE CENTER 42"
SPEED 900 IPM
HOLD DOWN ARMS PNEUMATIC
MOTORS 2 X 2 HP

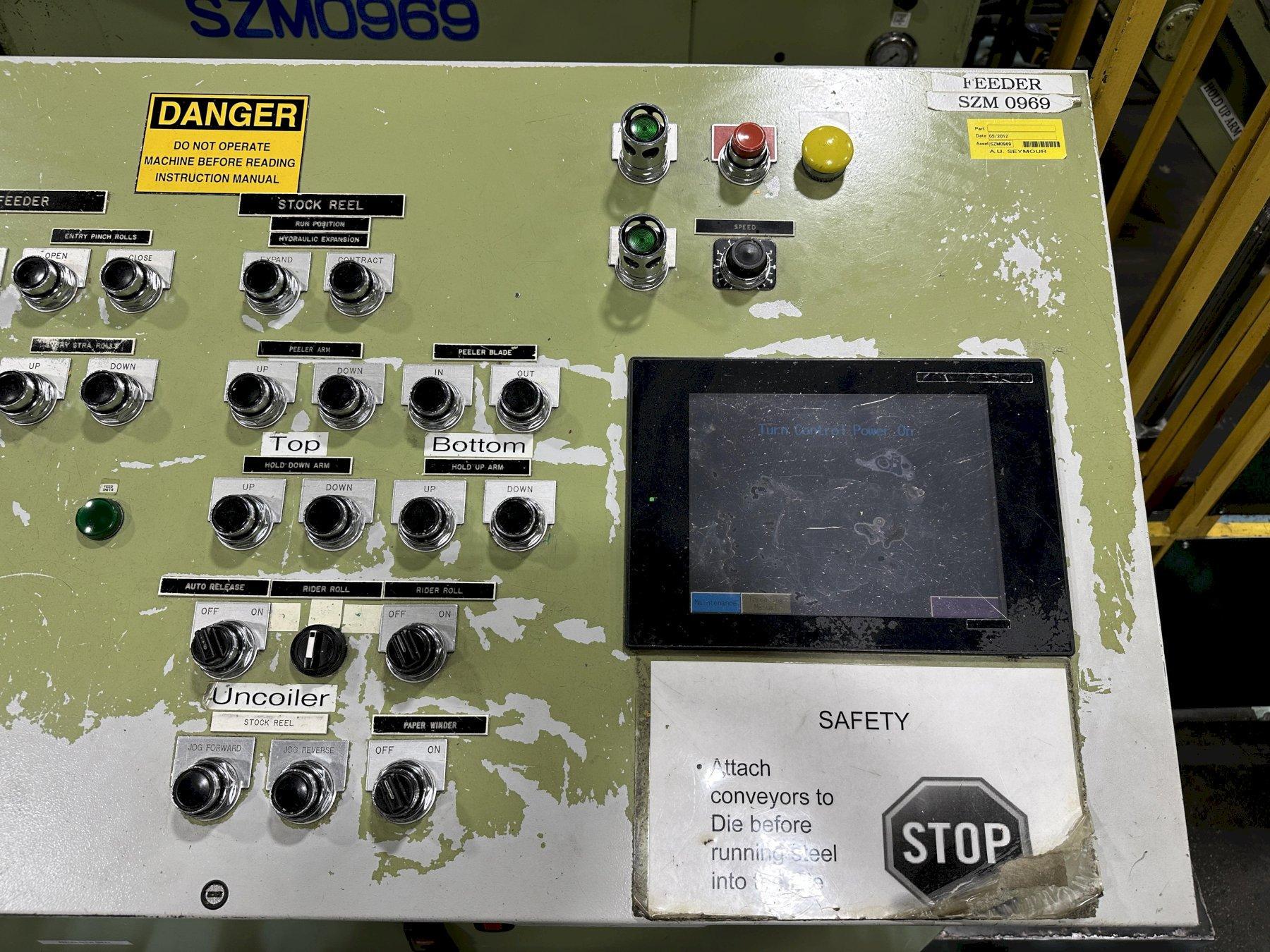

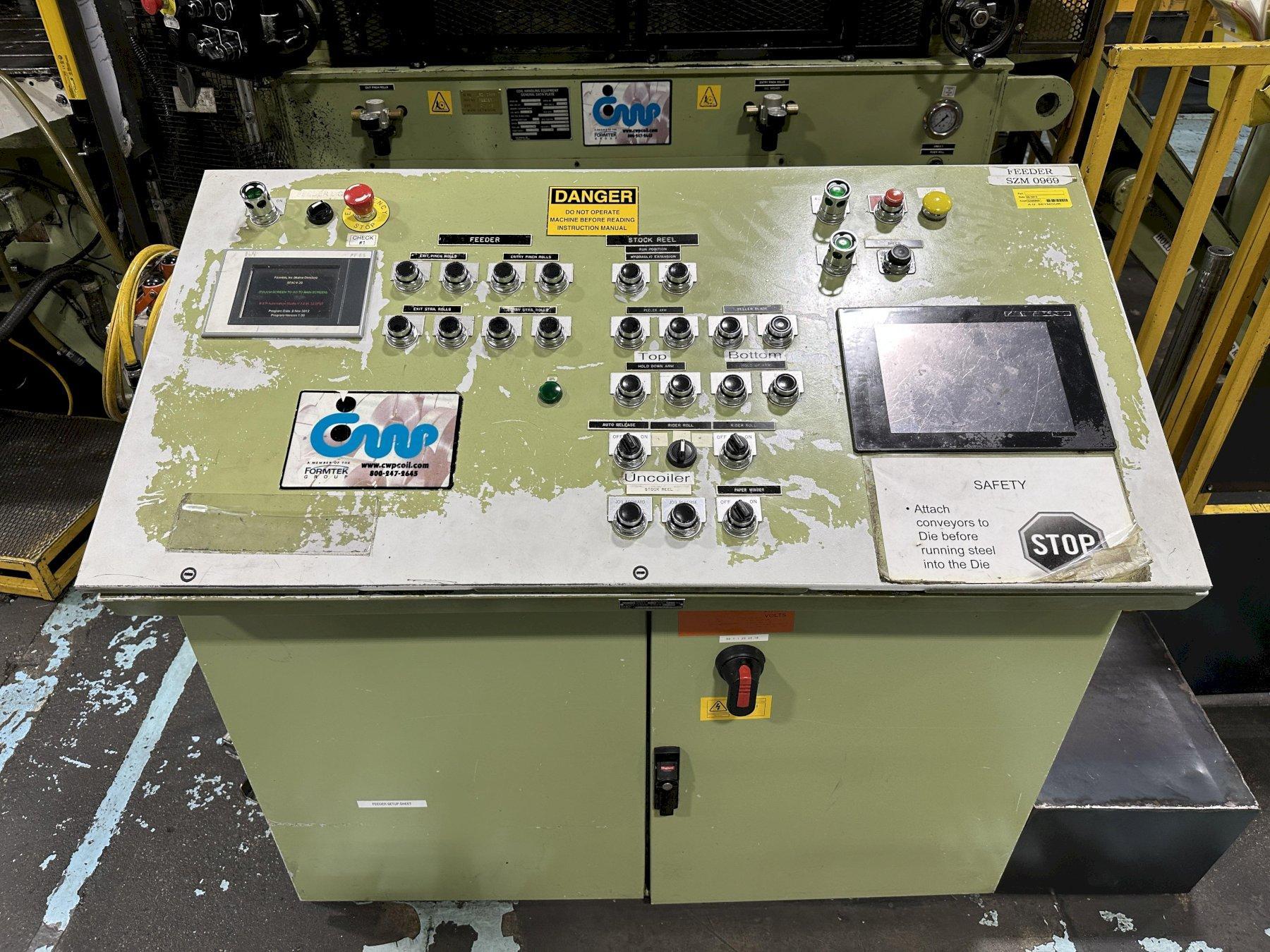

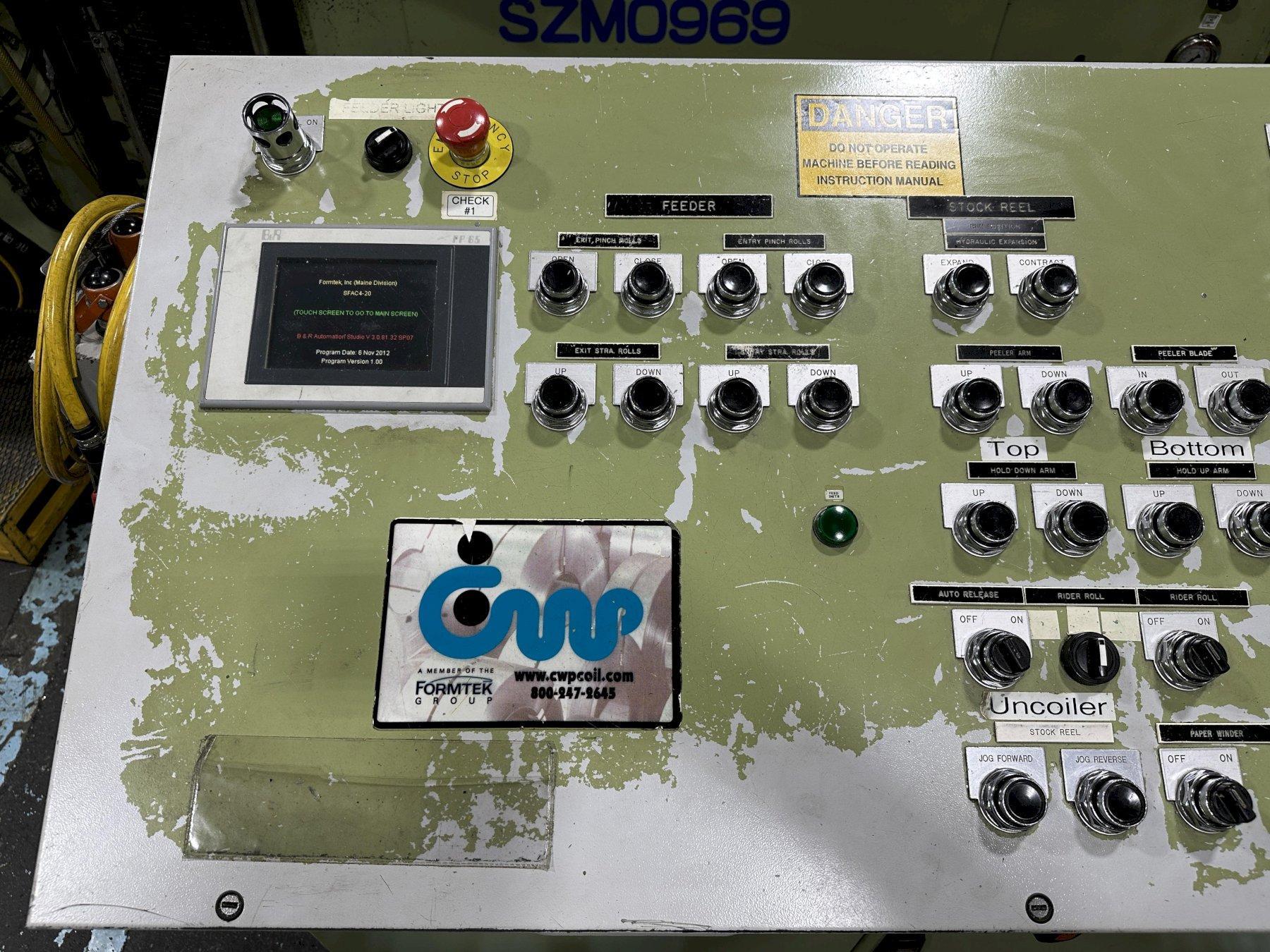

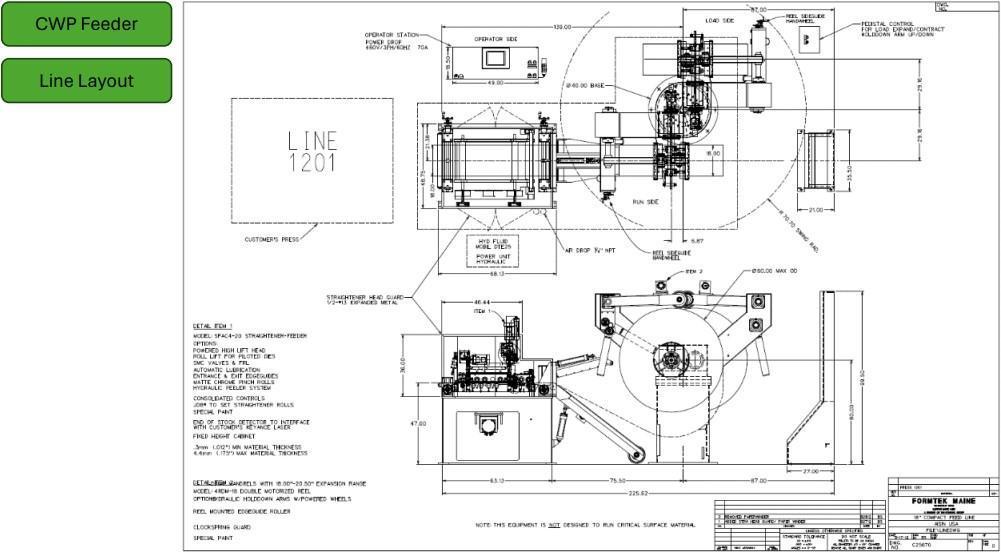

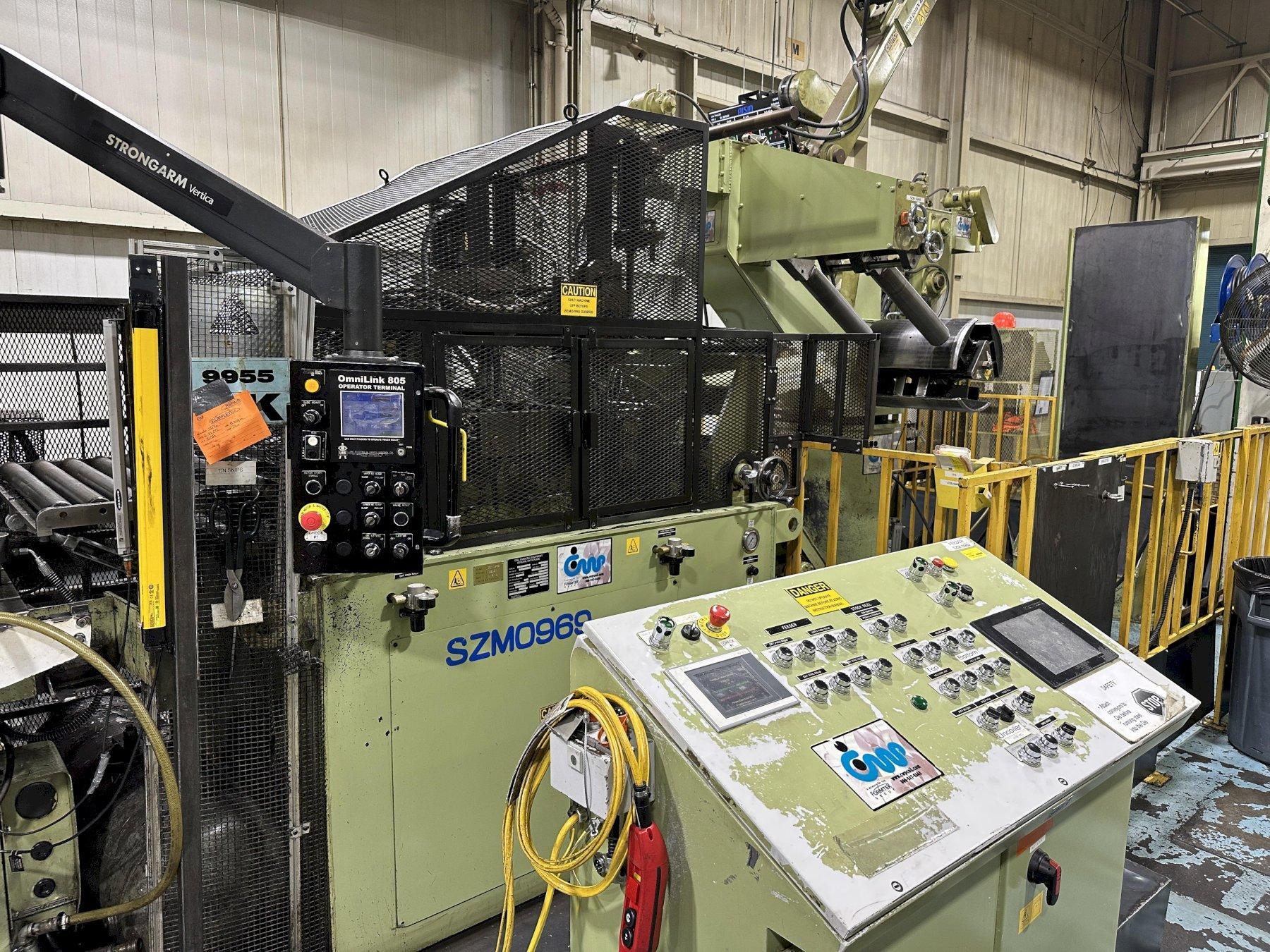

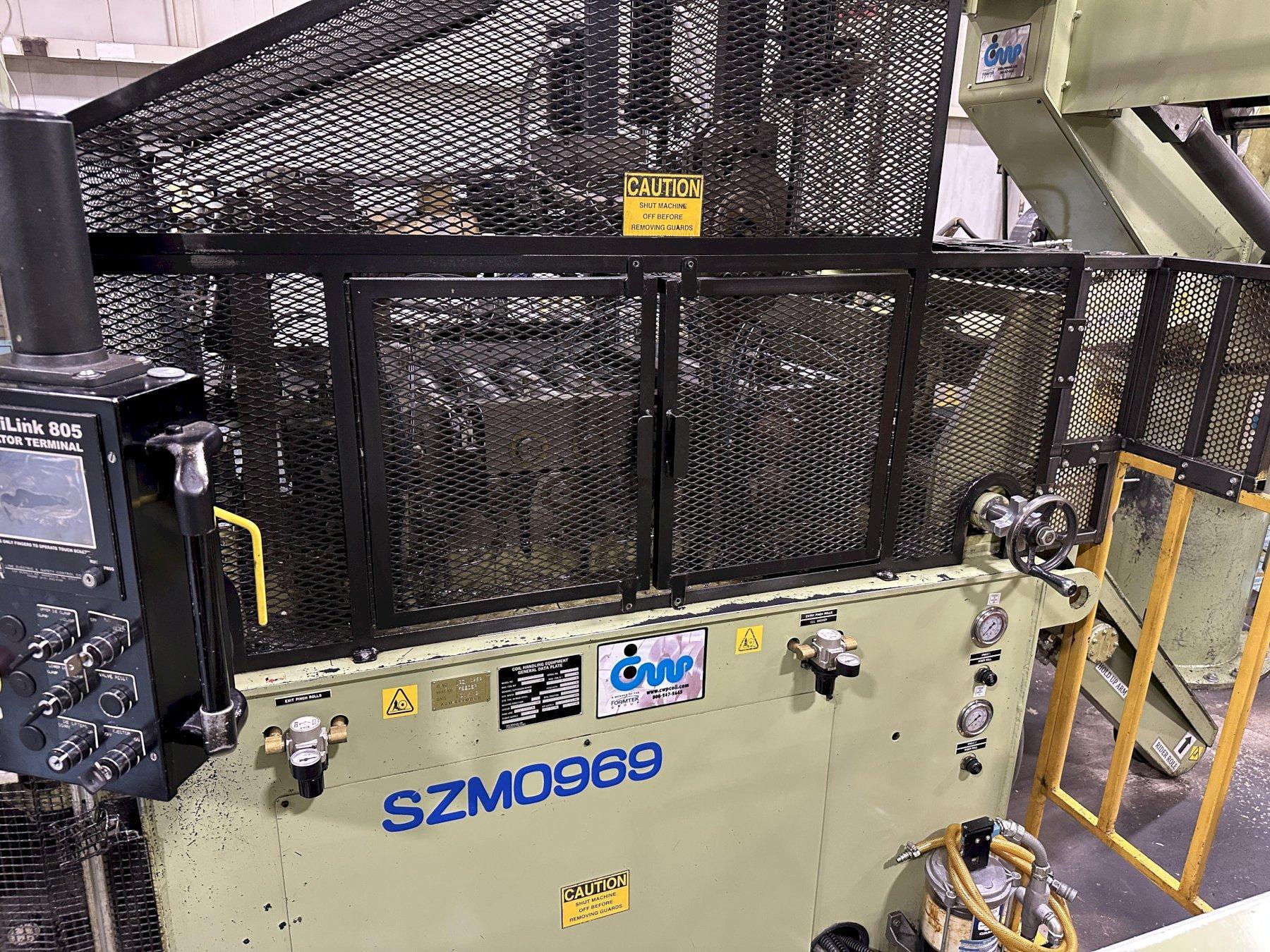

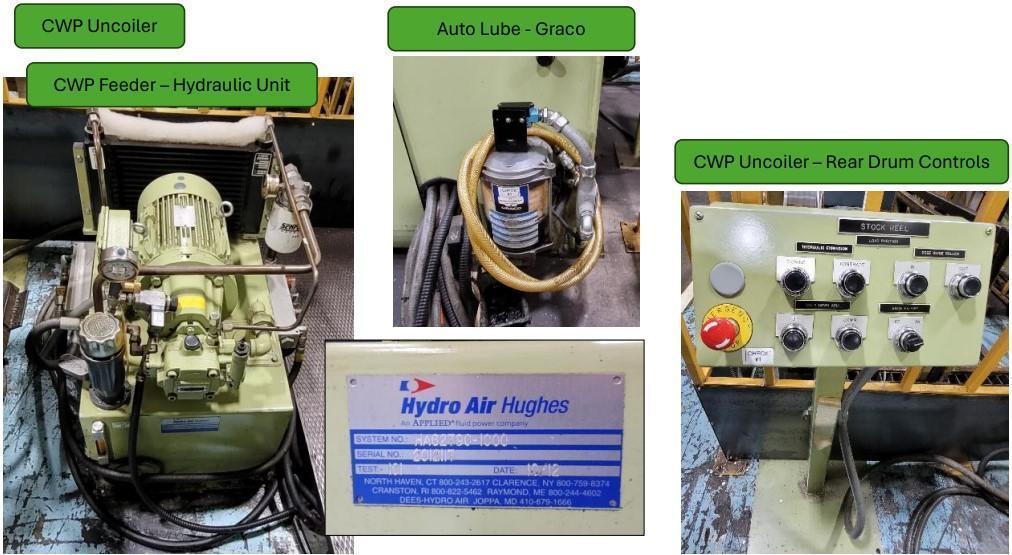

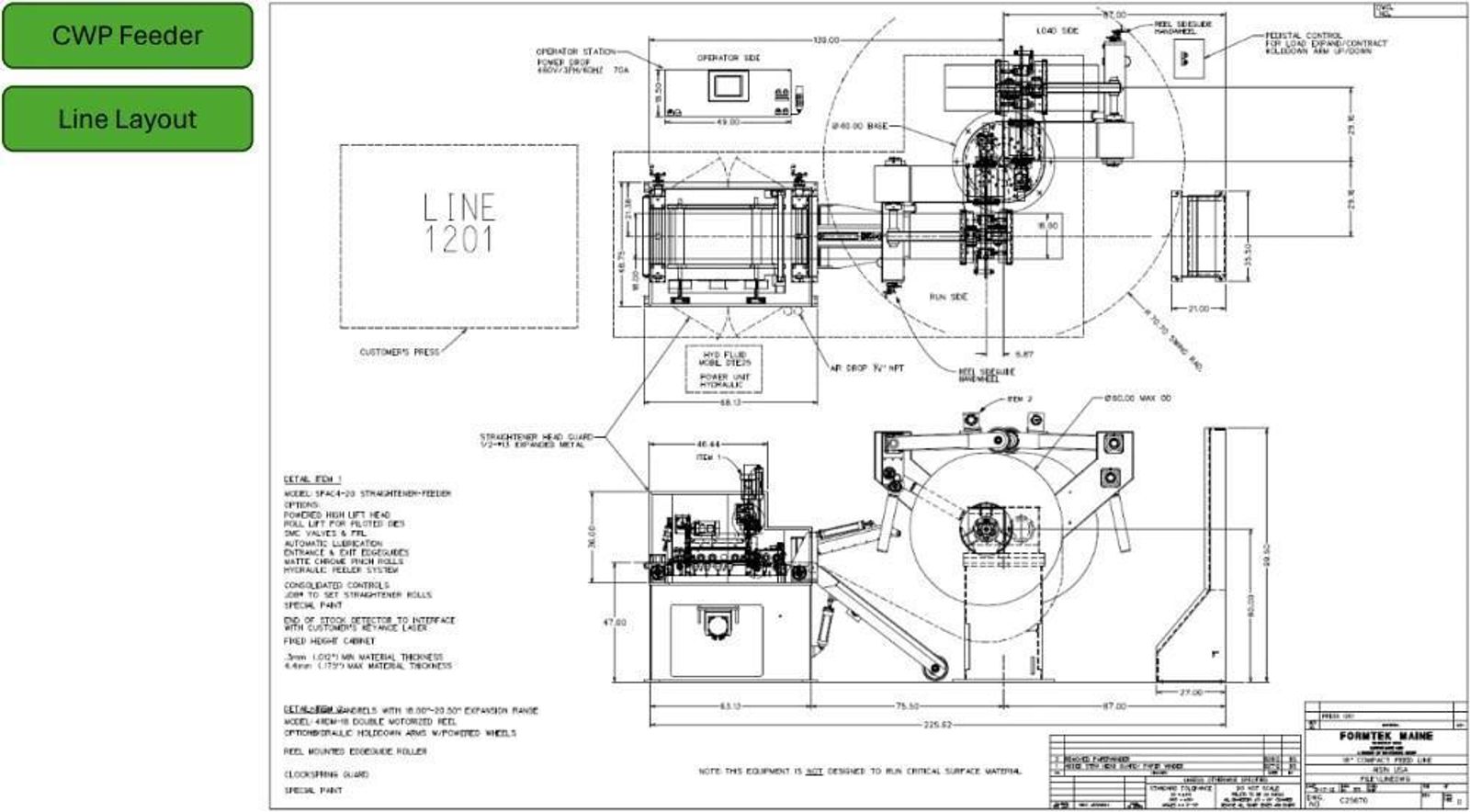

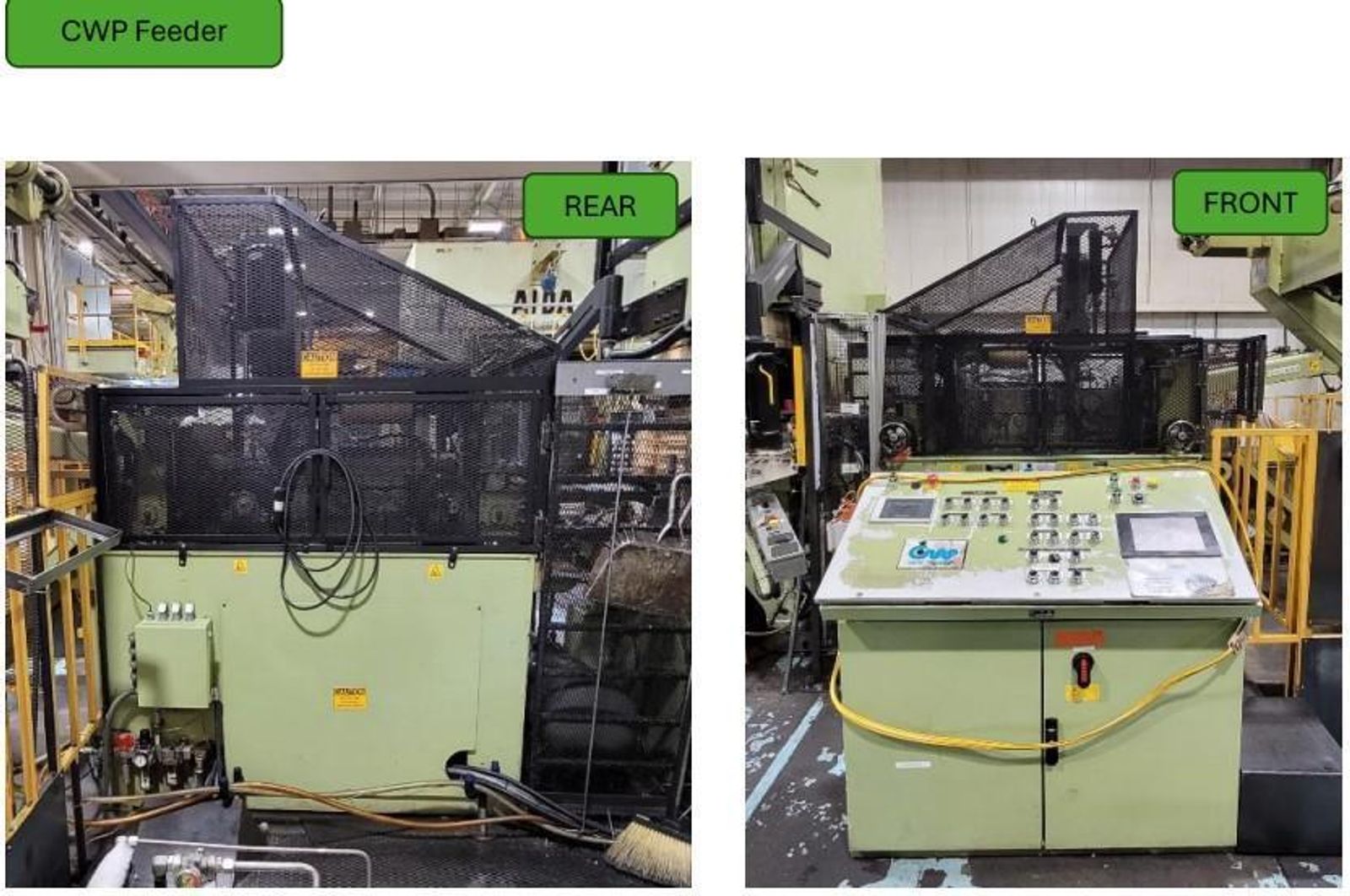

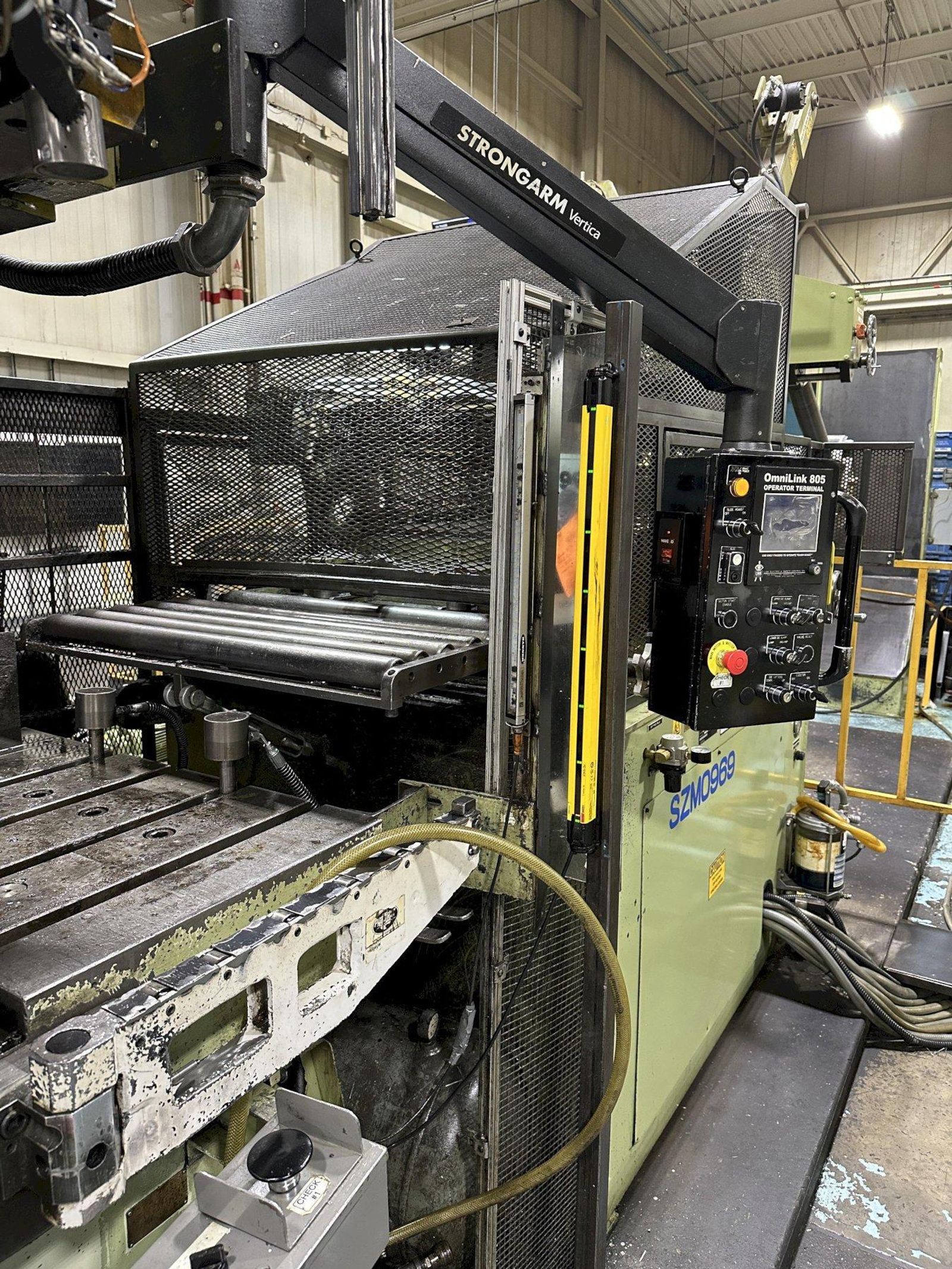

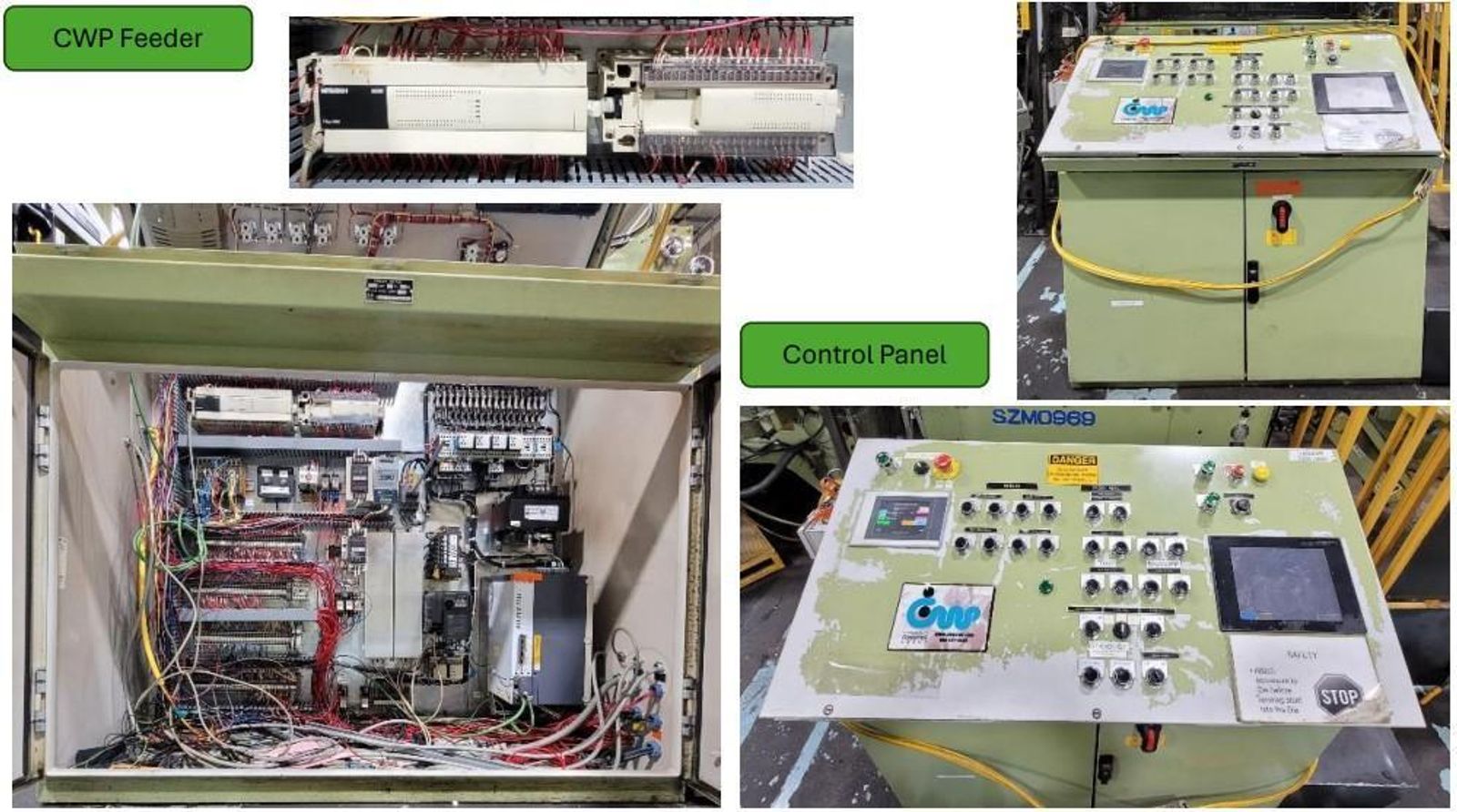

FEEDER / STRAIGHTENER

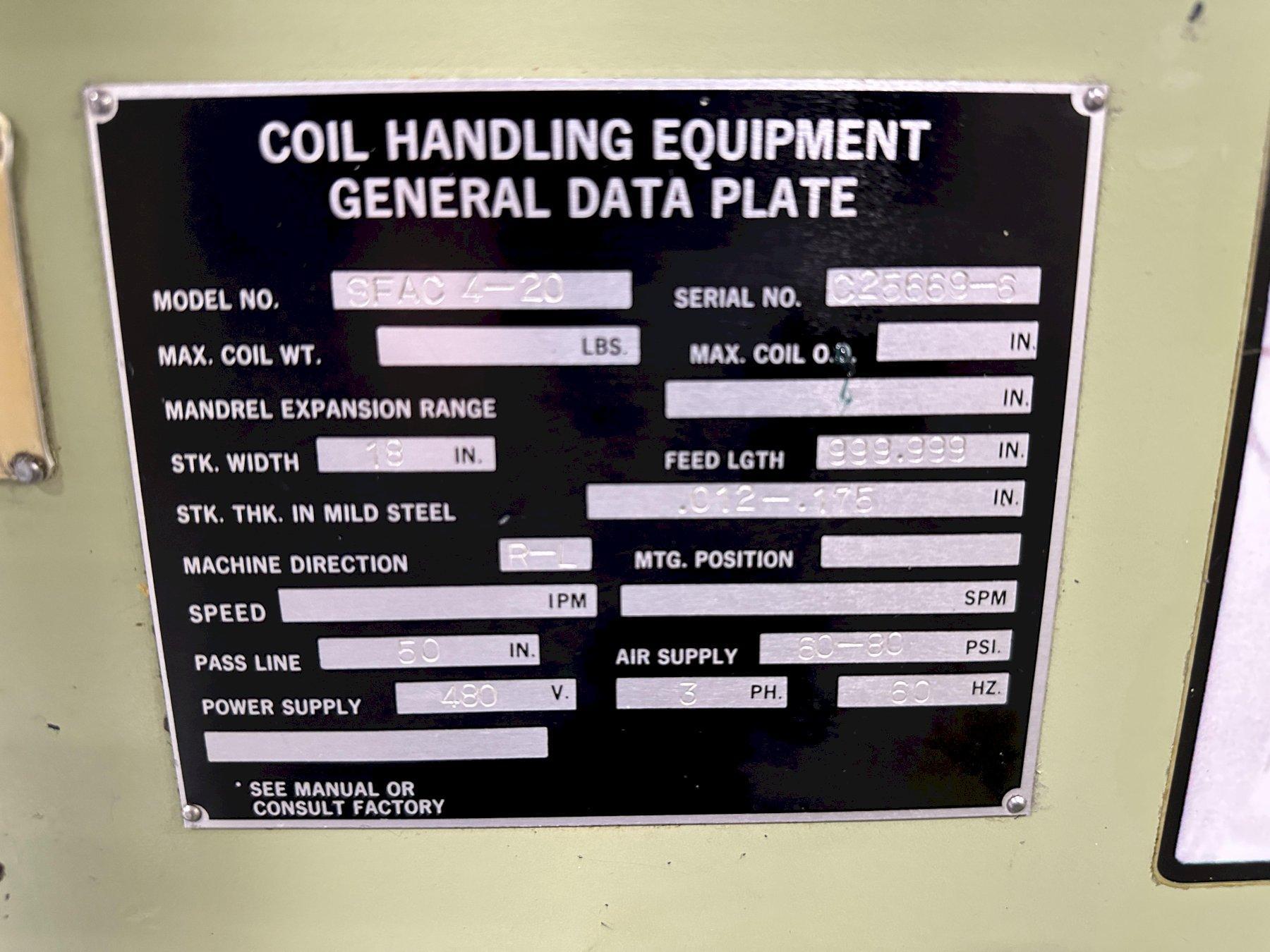

SERIAL C25669-6
MODEL SFAC 4-20
DIRECTOIN R-->L

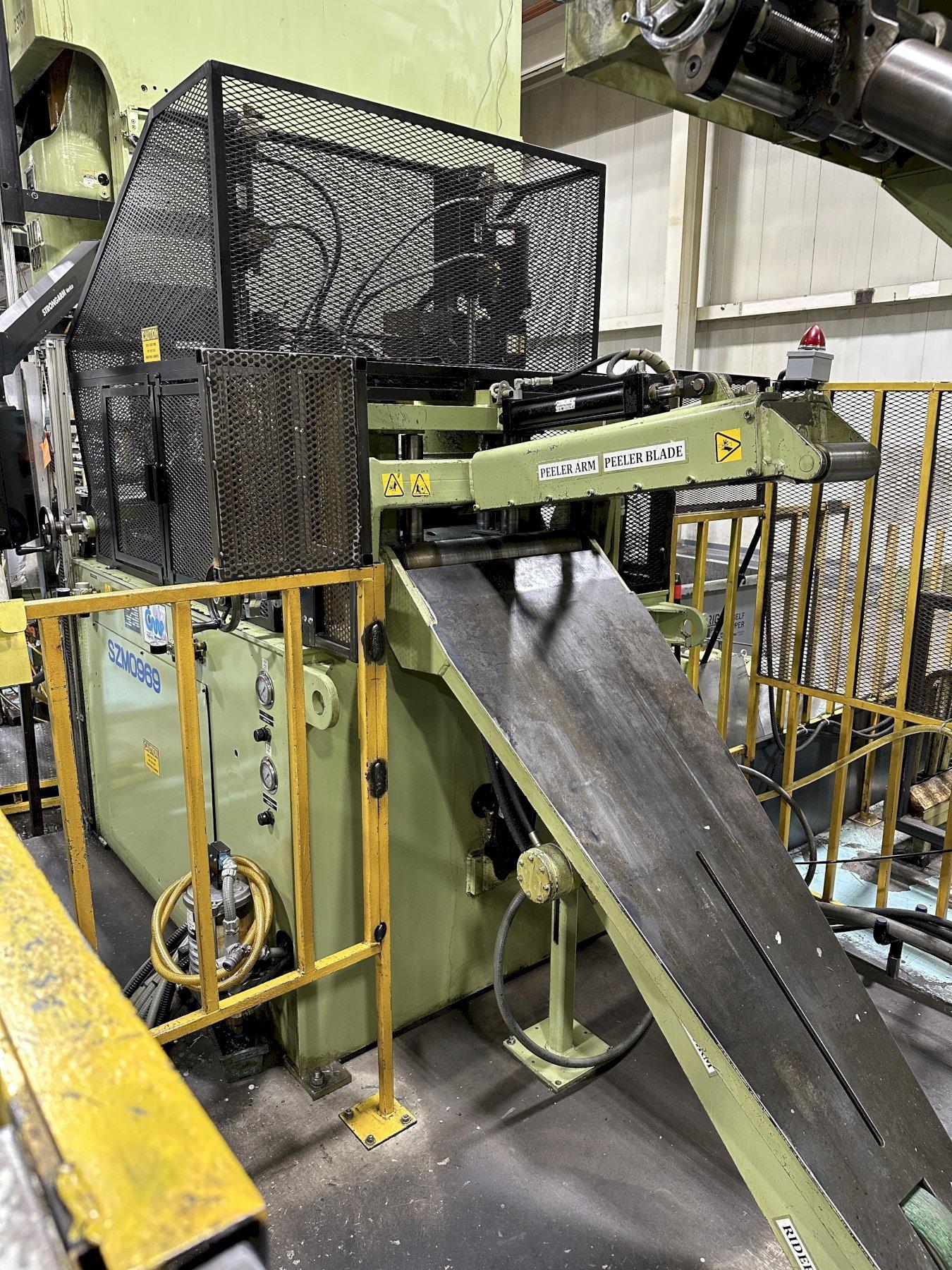

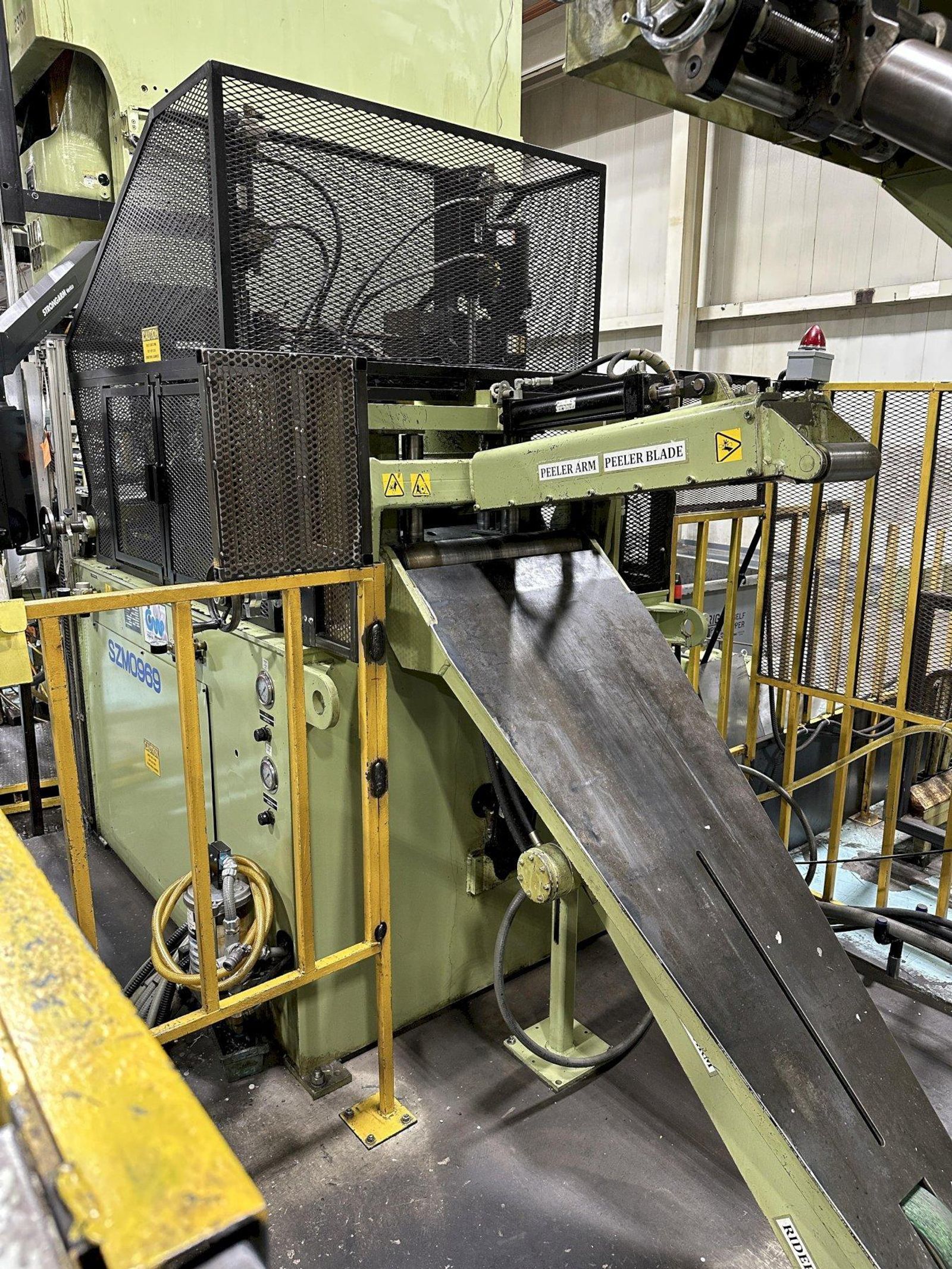

PEELER ARM
THREADING TABLE
STOCK WIDTH 20"
THICKNESS .020" TO .175"

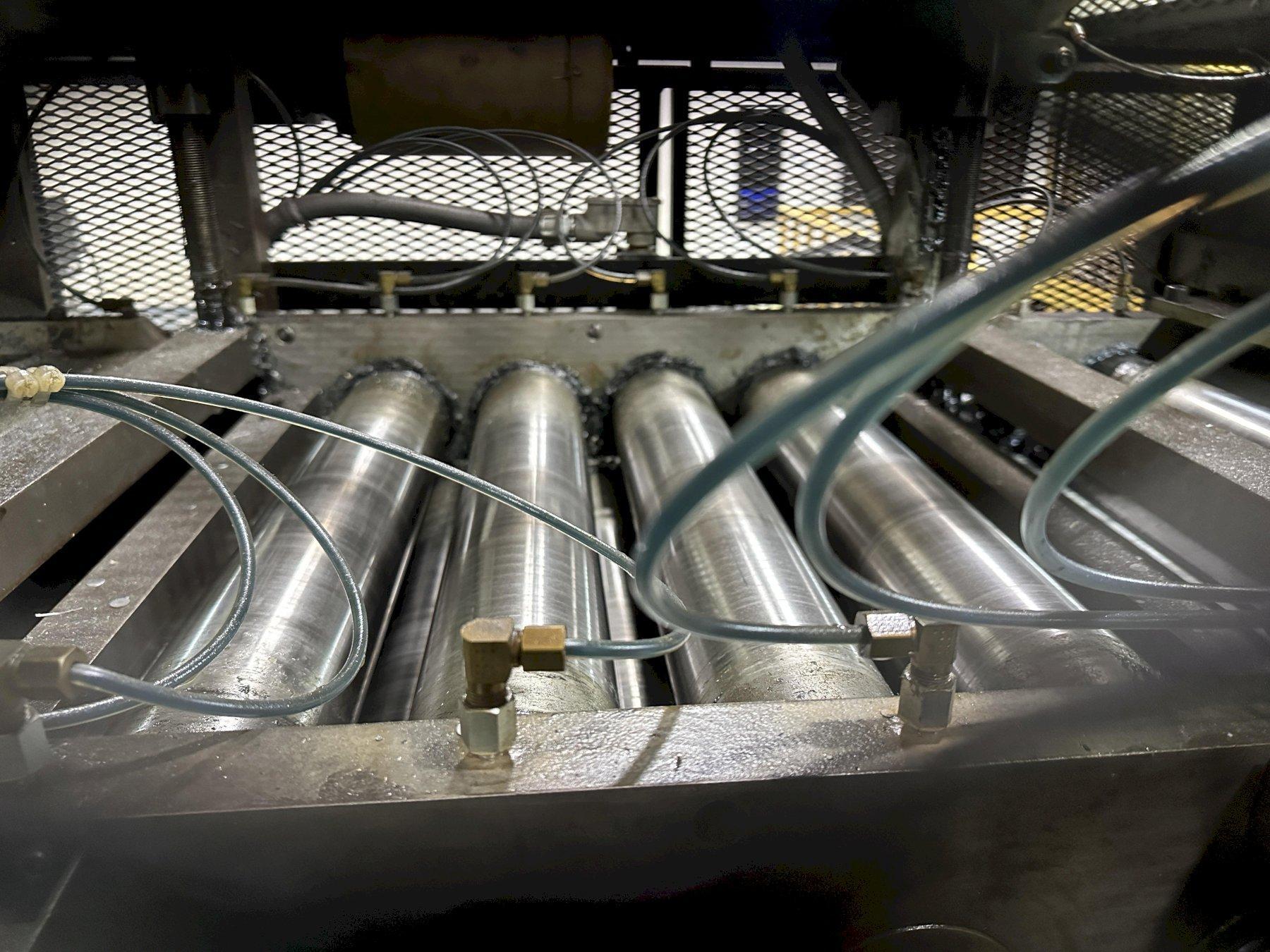

STRAIGHTENING ROLLS 7 X 3.5"
ROLL CENTERS 4.5"
ENTRY BREAKER ROLLS 4 X 3.5"
EXIT FEED / PINCH ROLLS 2 X 3.5"
FEED ACCURACY .005"
SPEED 150 FPM MAXIMUM
PASS LINE 47"
POSITIONING DRIVE AC SERVO

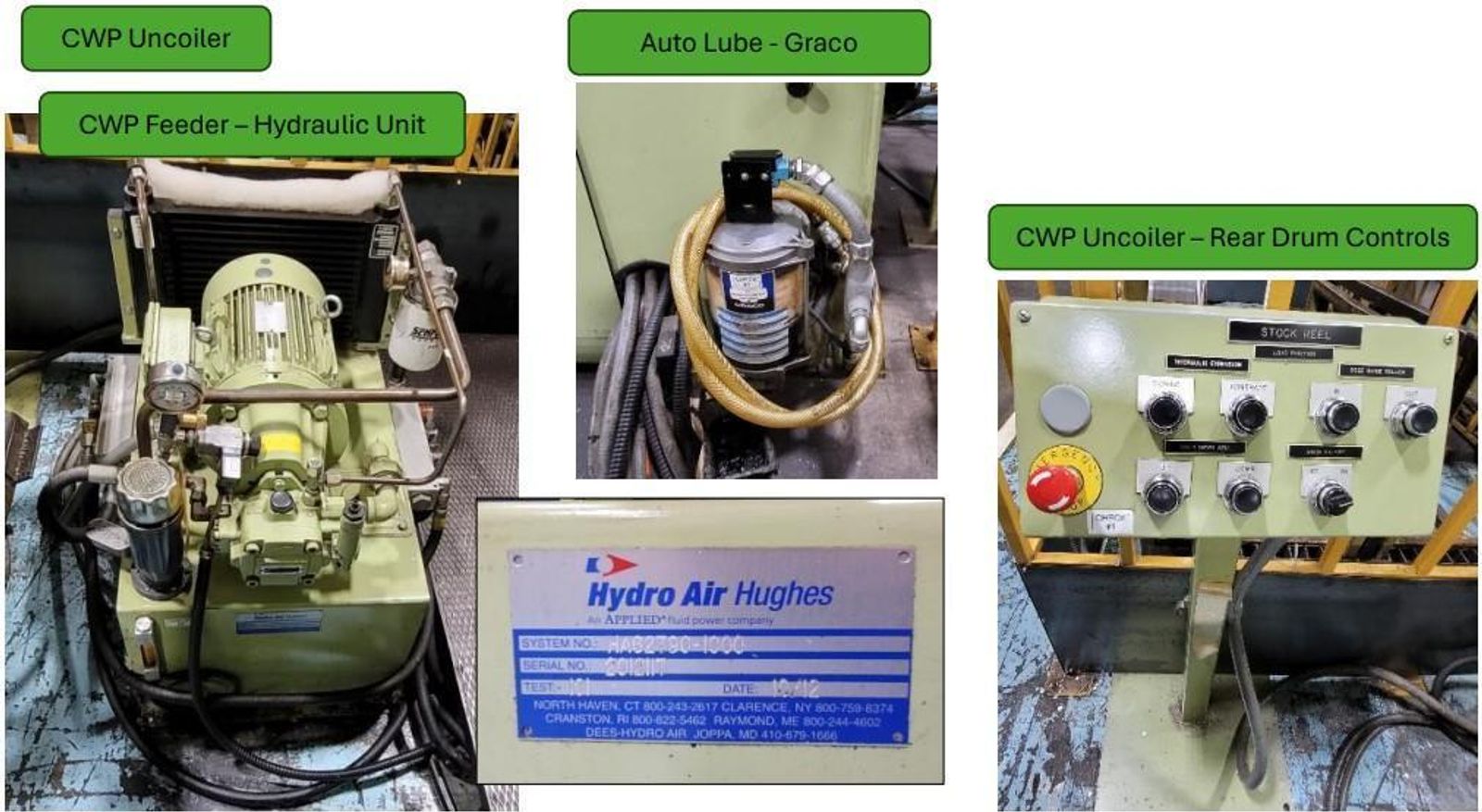

CENTRAL LUBE AUTOMATIC
