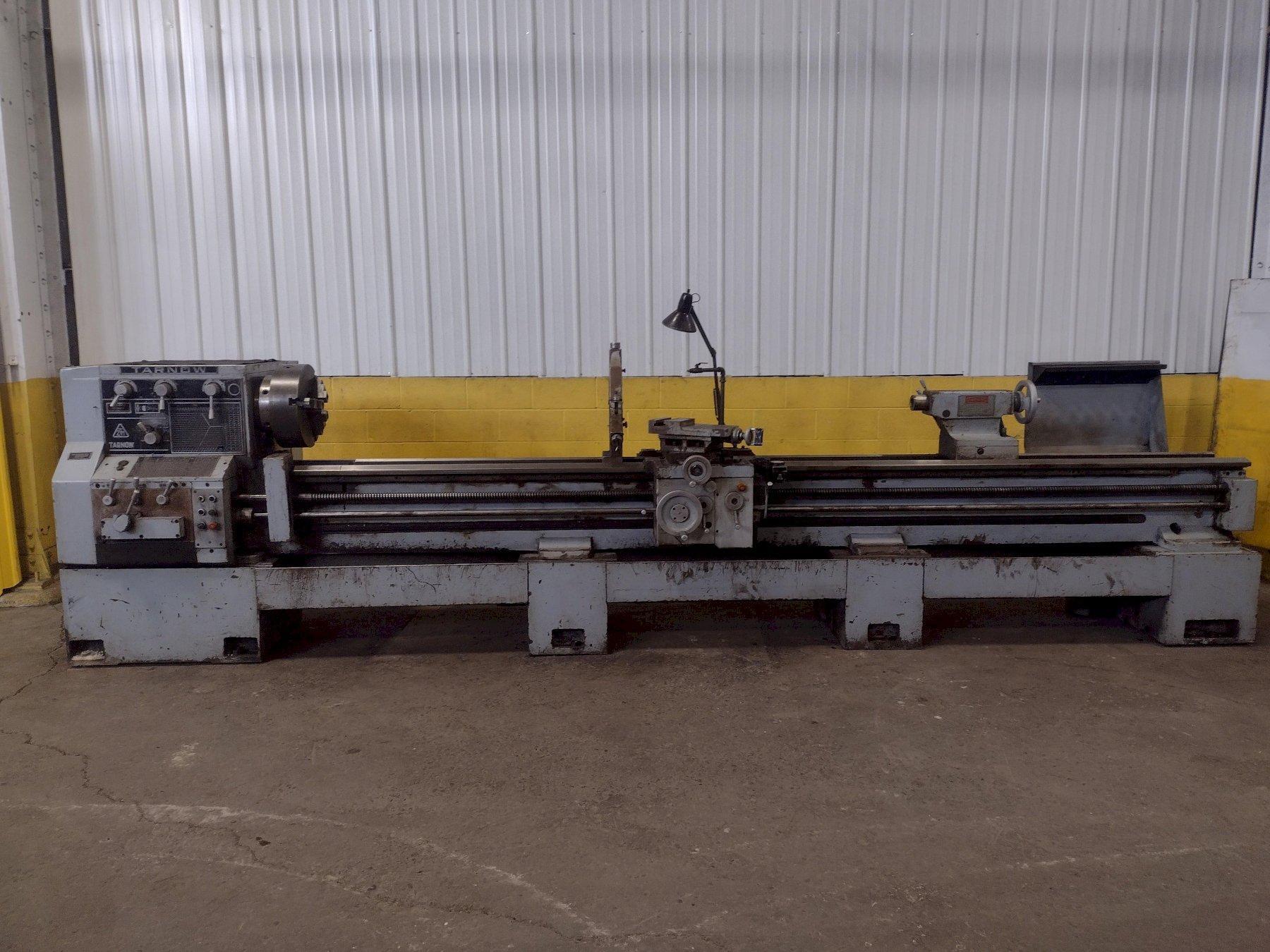

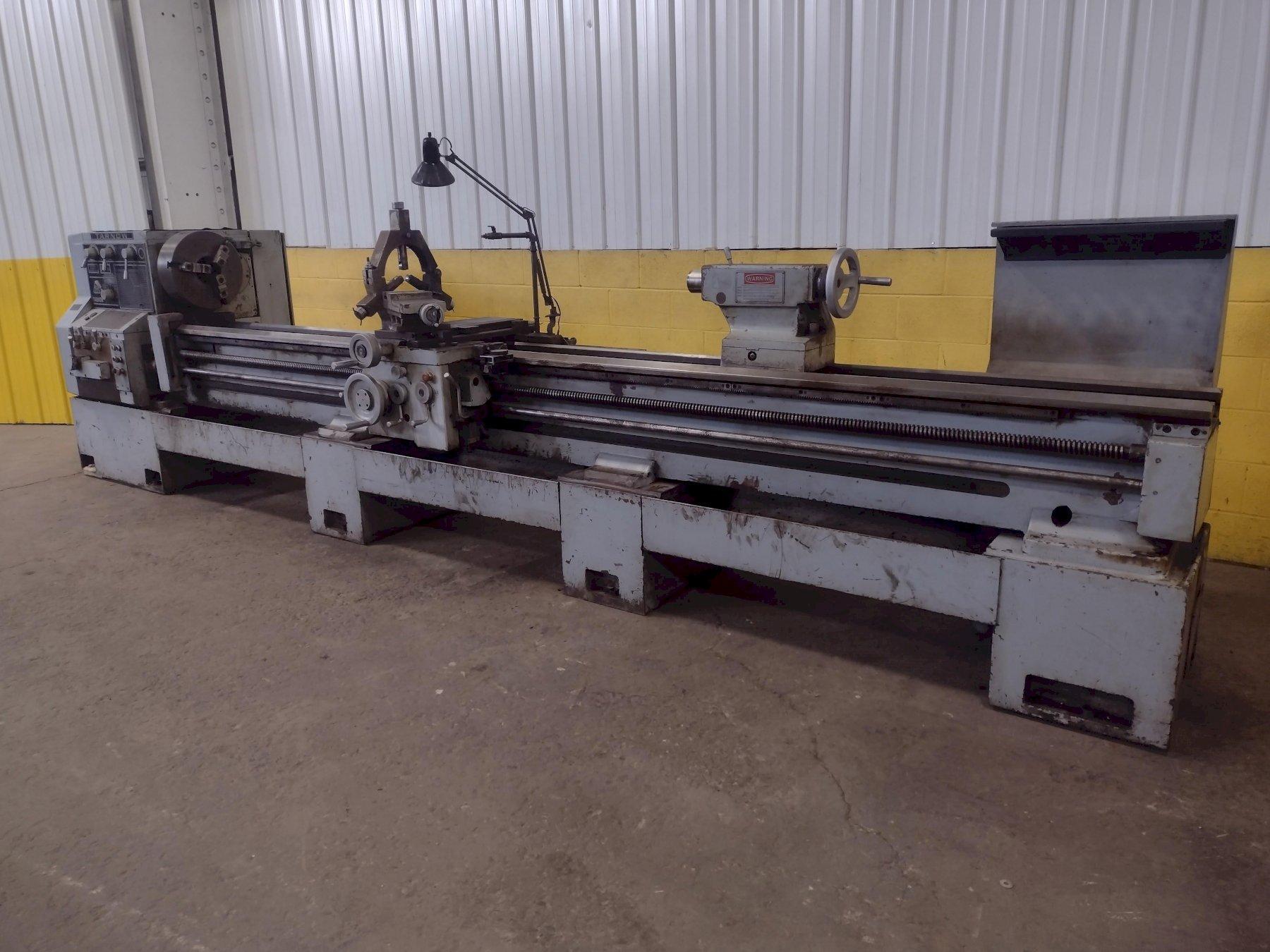

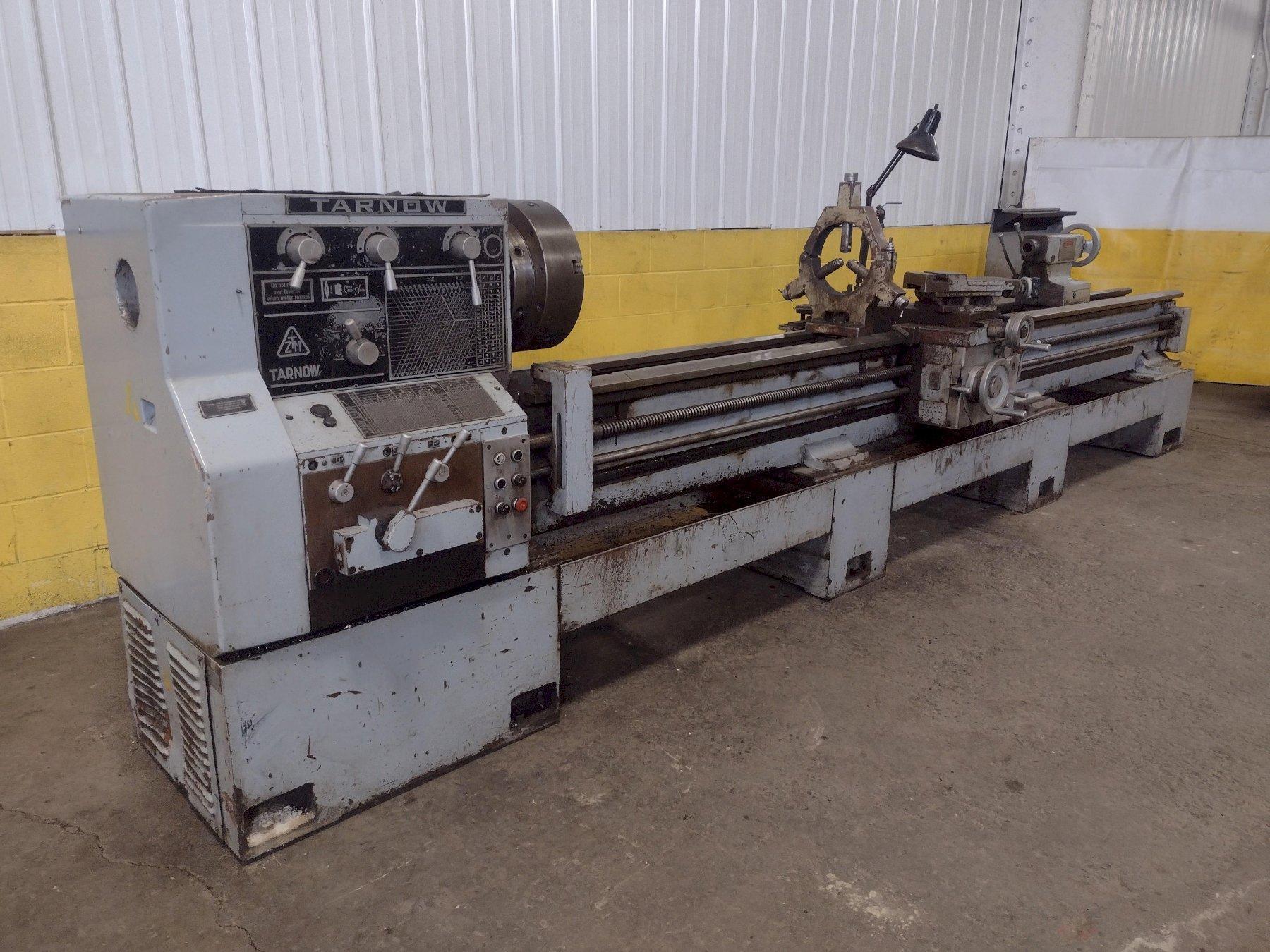

Brand
TARNOW
Type
Lathes, Gap
Stock No.
17547
 |
419-269-2000 |
Stock #: 17547

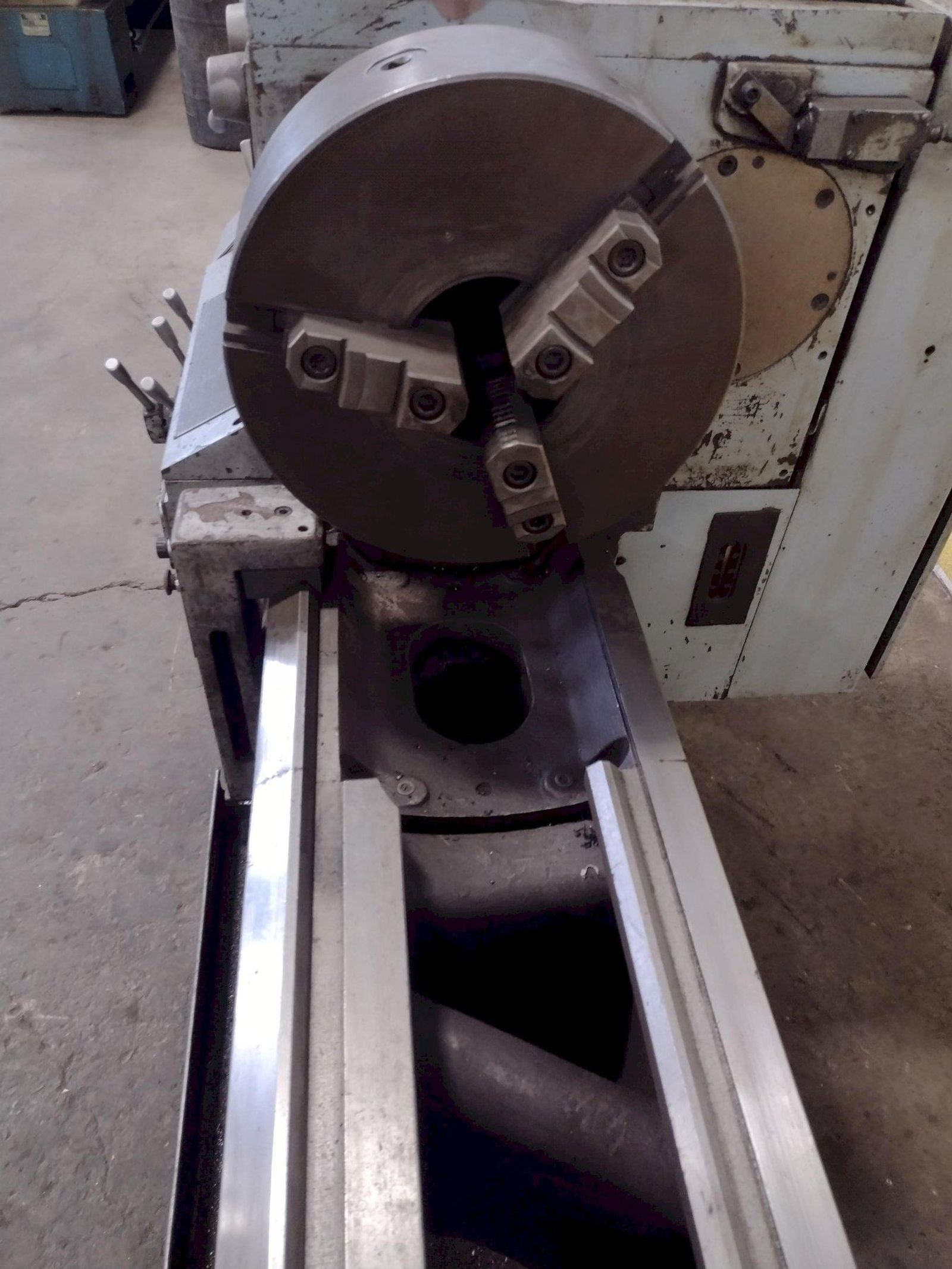

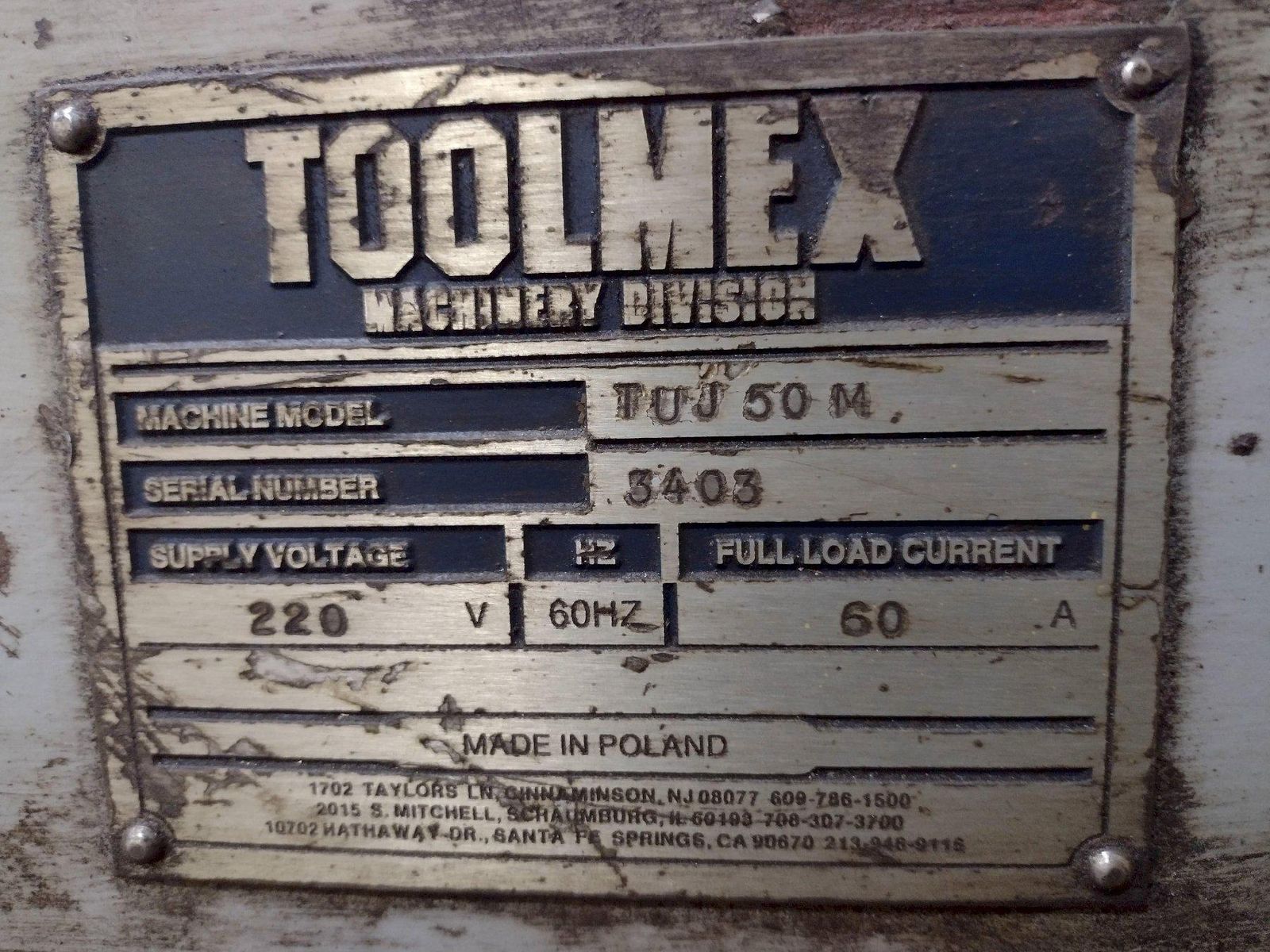

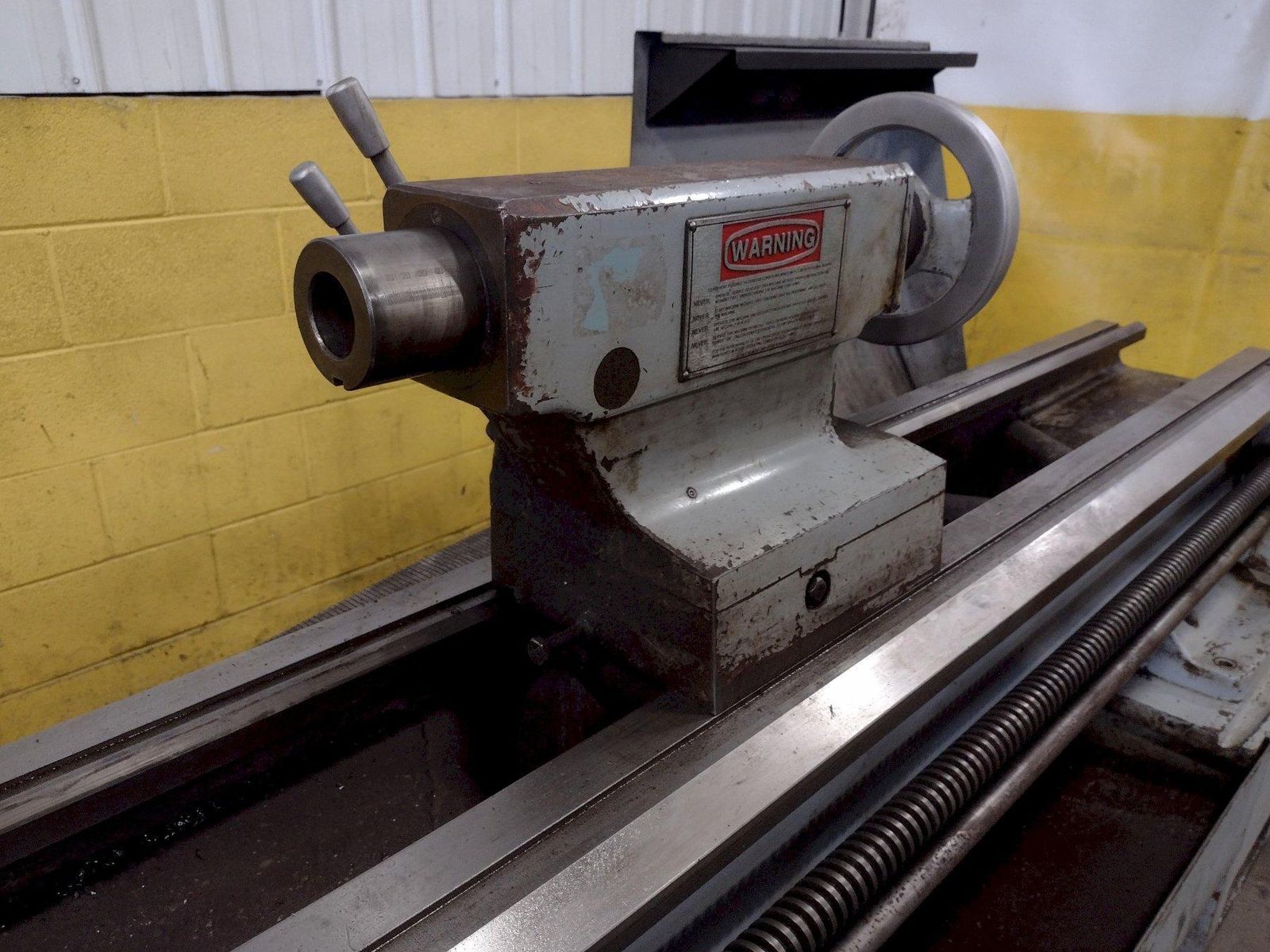

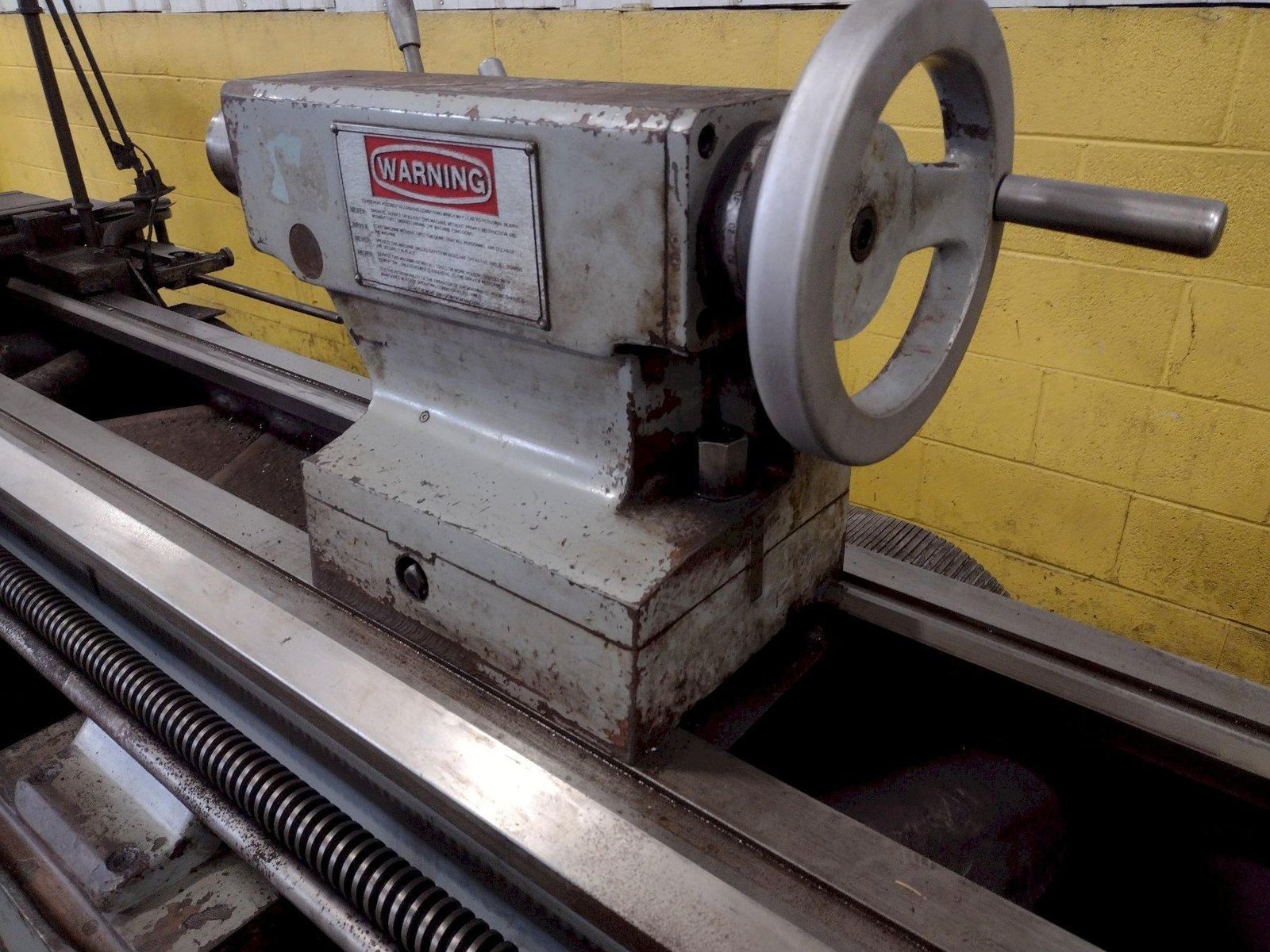

SERIAL .................... 3403MODEL ..................... TUJ 50MSWING OVER BED ............ 22-3/8"SWING OVER CARRIAGE ....... 14-1/2"SWING IN GAP .............. 31-1/2"DISTANCE BETWEEN CENTERS .. 157"CROSS SLIDE TRAVEL ........ 13"COMPOUND TRAVEL ........... 8"SPINDLE BORE .............. 3-3/5"SPINDLE SPEEDS ............ 20-1600 RPMSPINDEL NOSE .............. D1-11LONGITUDINAL FEEDS (98) ... .0007 TO .72 IPRCROSS FEEDS (98) .......... .0004 TO .36 IPRINCH THREADS .............. 1 TO 112 TPIMETRIC THREADS ............ 1/4 TO 28MMTAILSTOCK QUILL DIAMETER .. 3-1/8"QUILL TRAVEL .............. 6"QUILL TAPER ............... #5 MTSPINDLE MOTOR ............. 15HP/220V/60HZ
