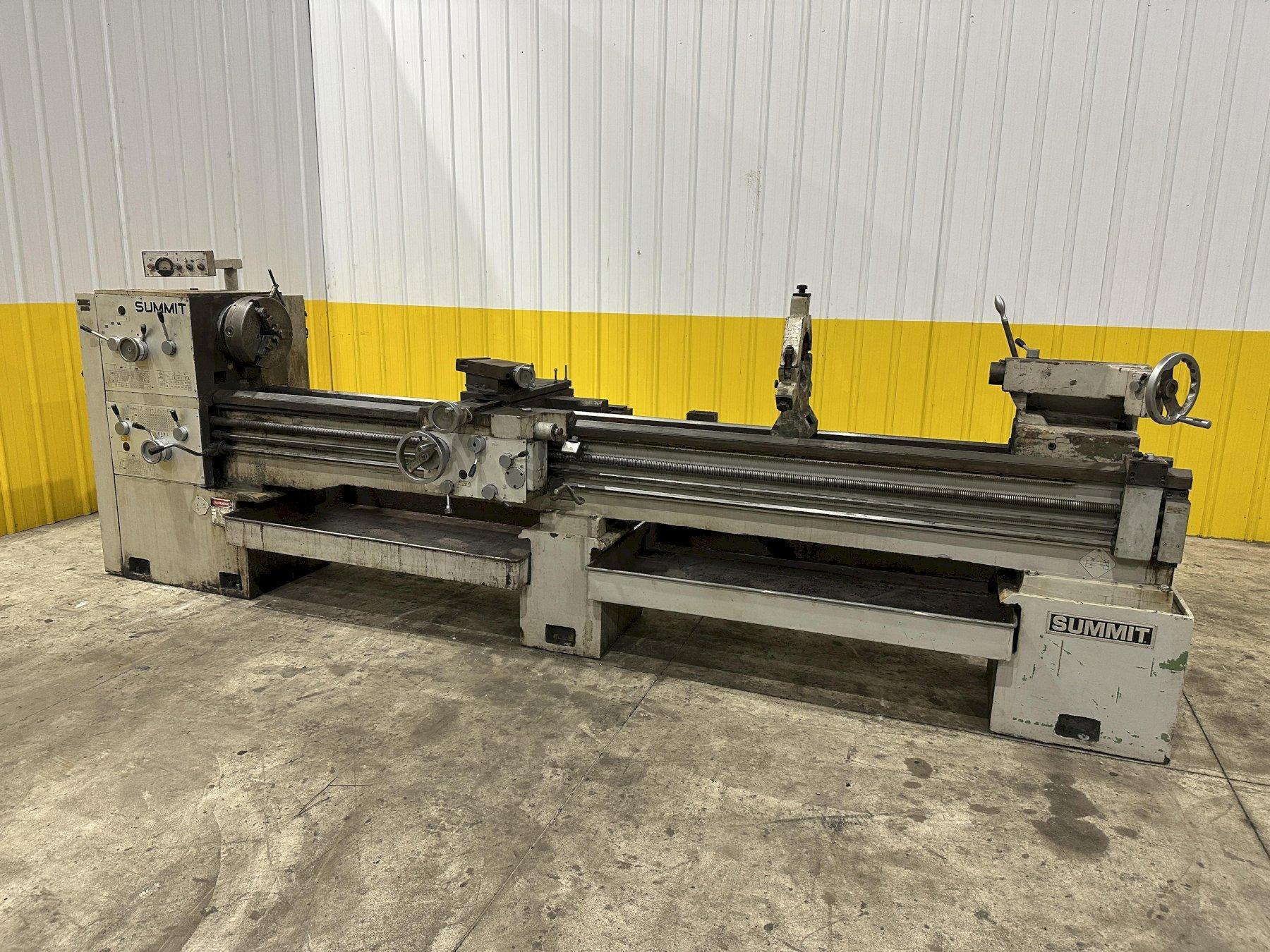

21"/30" X 120" SUMMIT MODEL #21-4 GAP BED ENGINE LATHE, 4" HOLE: STOCK #22031

Overview

SERIAL ............... BI 2029
MODEL ................ 21-4
SWING OVER BED ....... 21"
SWING IN GAP ......... 30"
LENGTH OF GAP ........ 15-3/8"
SWING OVER CROSS ..... 13"
CENTERS .............. 120"
SPINDLE HOLE ......... 4-1/8"
SPINDLE SPEEDS ....... 22 TO 1500 RPM
STEADY REST .......... 8.25"
TAPER ATTACHMENT ..... YES
CHUCK ................ 12-3/8" 3 JAW
THREADS PER INCH ..... (56) 3/4 TO 92
METRIC THREADS ....... (36) .25 TO 23 MM
CROSS FEEDS .......... (56) .004 TO .056 IPR
LONGITUDINAL FEEDS ... (56) .0009 TO .112 IPR
METRIC FEEDS ......... (56) .0235 TO 2.84 MM PER REV
THREAD DIAL .......... YES
WORK PIECE CAPACITY .. 4,000 LBS, 5,000 LBS W/ STEADY
TAIL STOCK ........... 2 SPEED
RAPID TRAVEL ......... 4 WAY
COOLANT .............. YES WITH REMOVABLE PANS
COOLANT PUMP ......... 1/4 HP
MAIN DRIVE MOTOR ..... 10 HP

21"/30" X 120" SUMMIT MODEL #21-4 GAP BED ENGINE LATHE, 4" HOLE: STOCK #22031

Brand
SUMMIT

Type
Lathes, Gap Bed

Stock No.
22031
