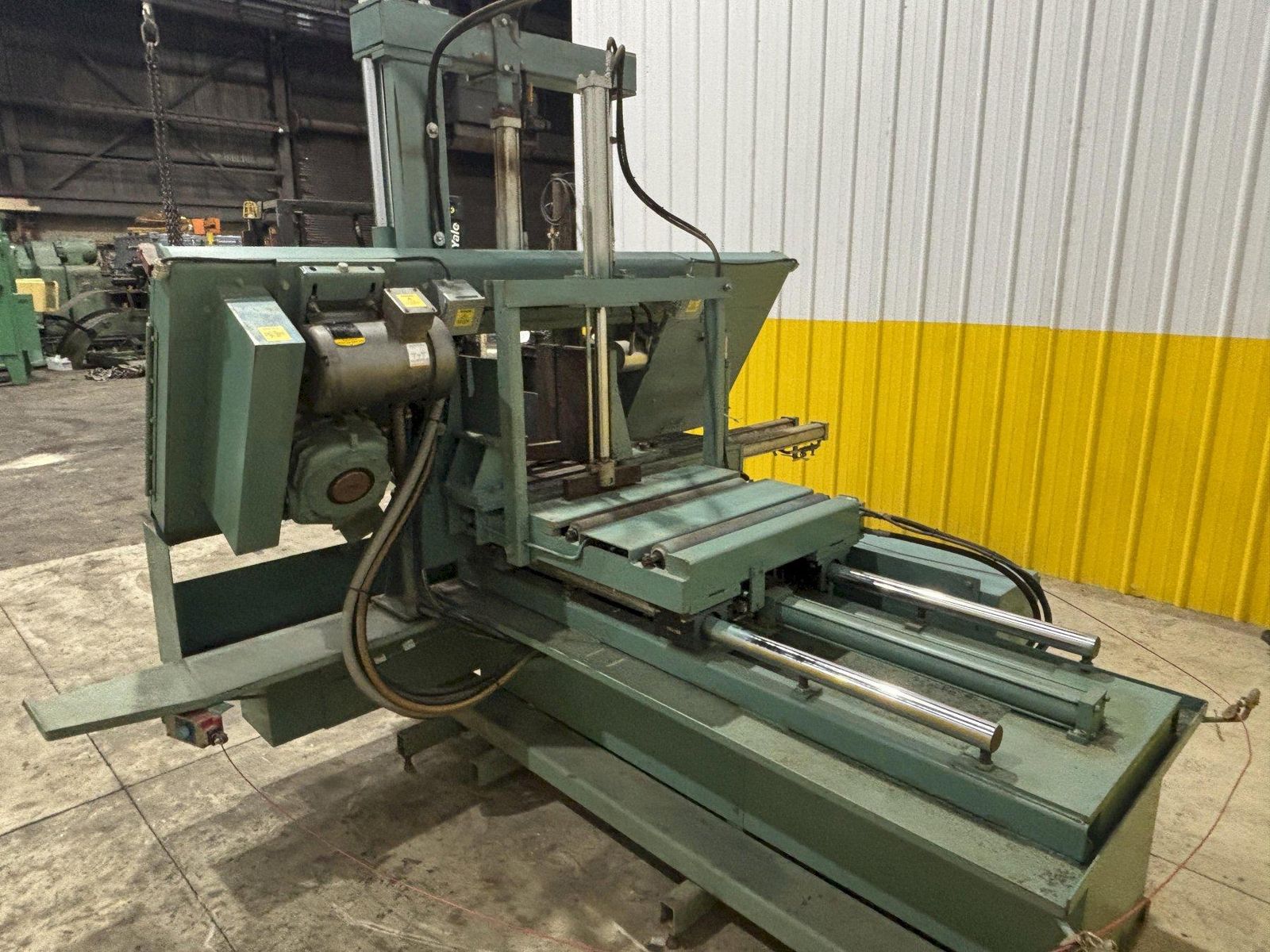

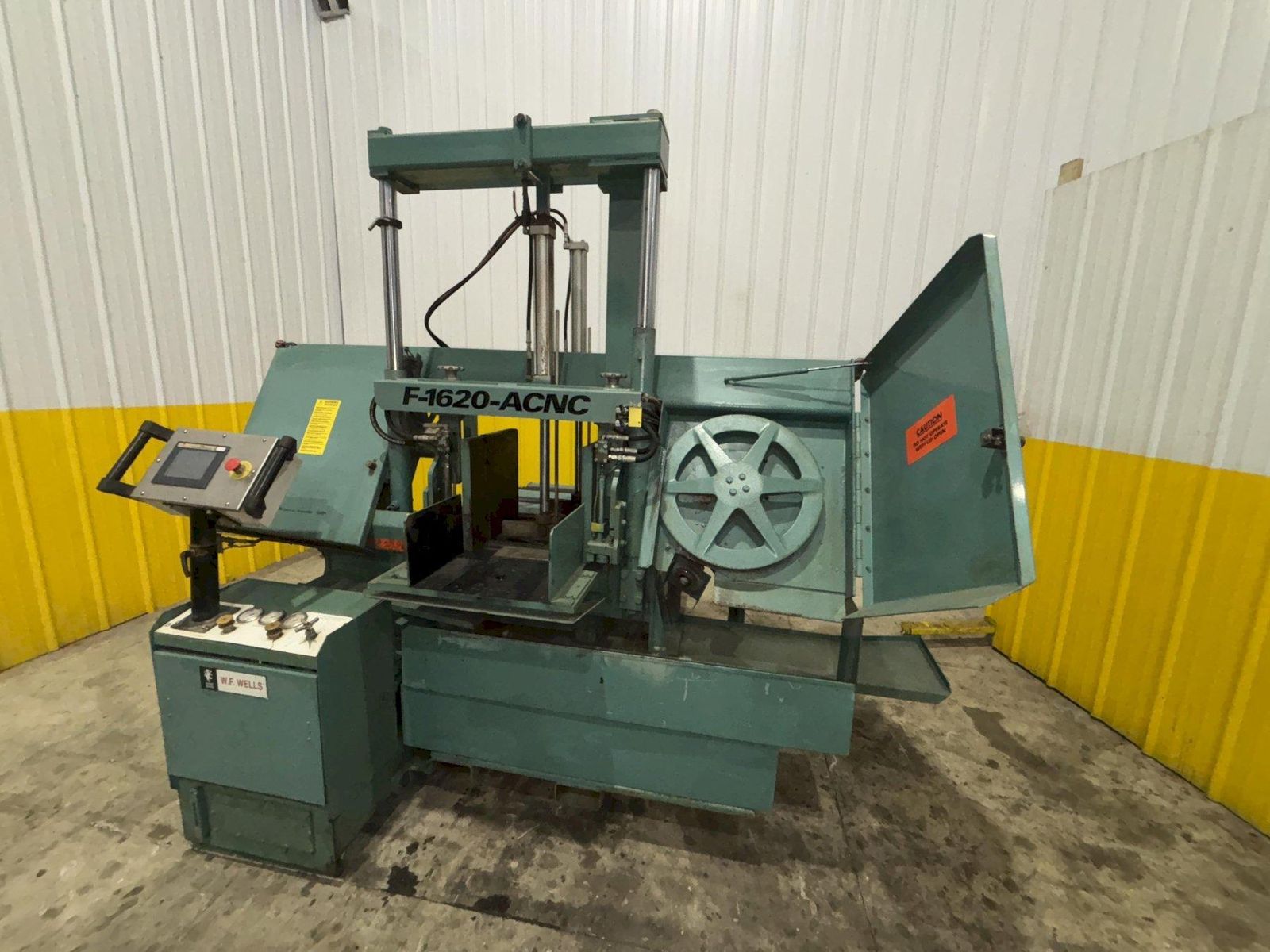

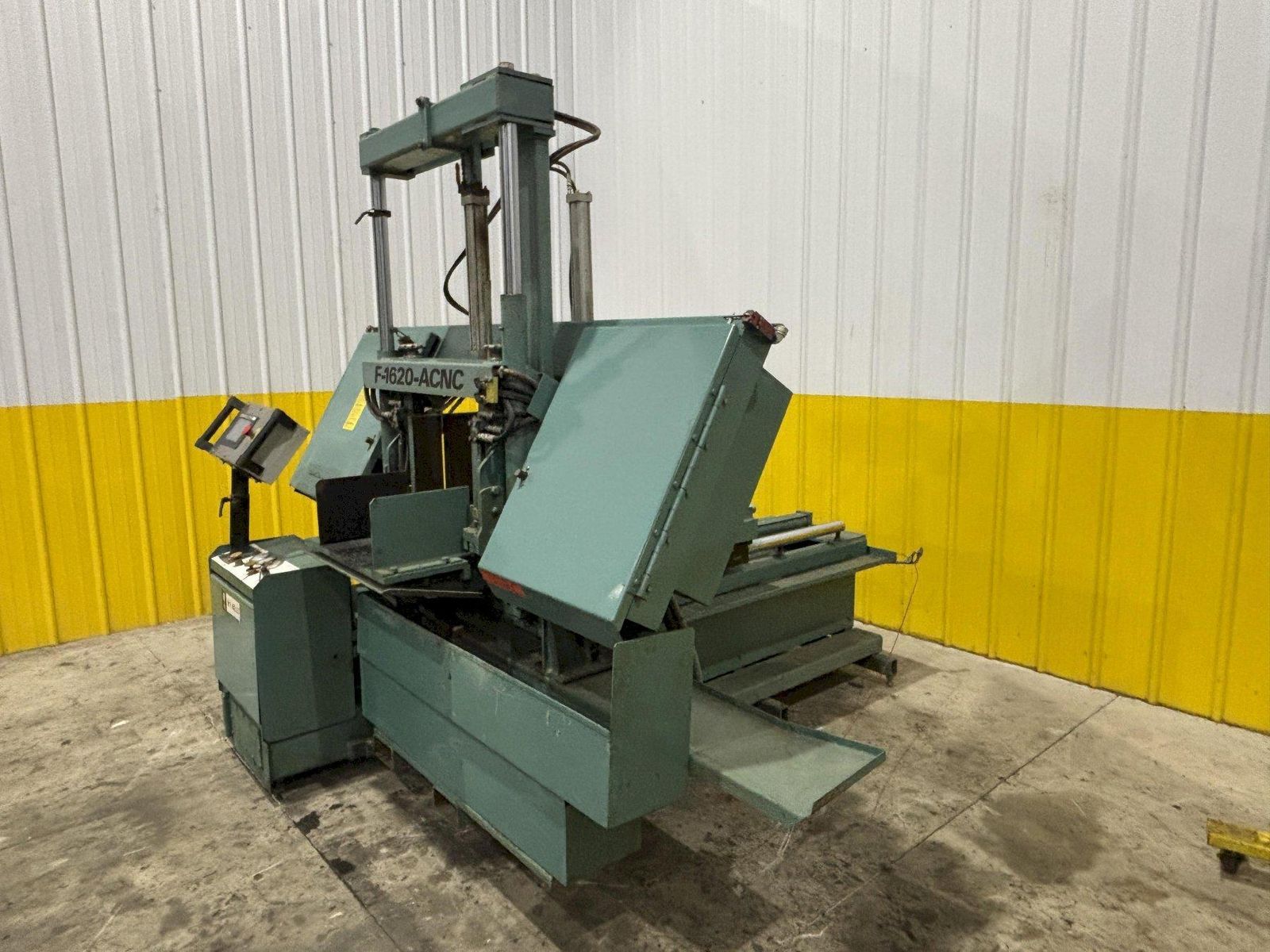

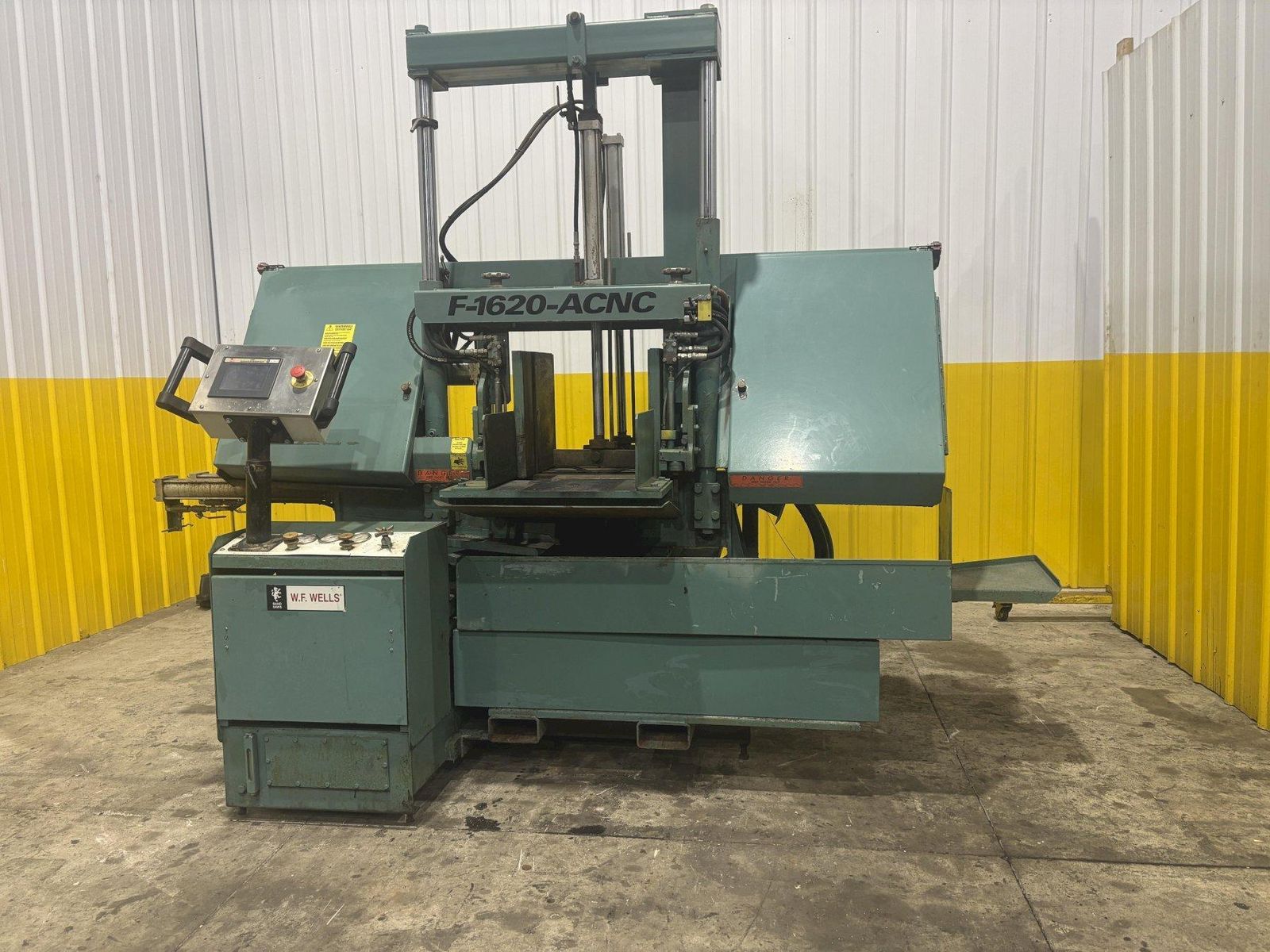

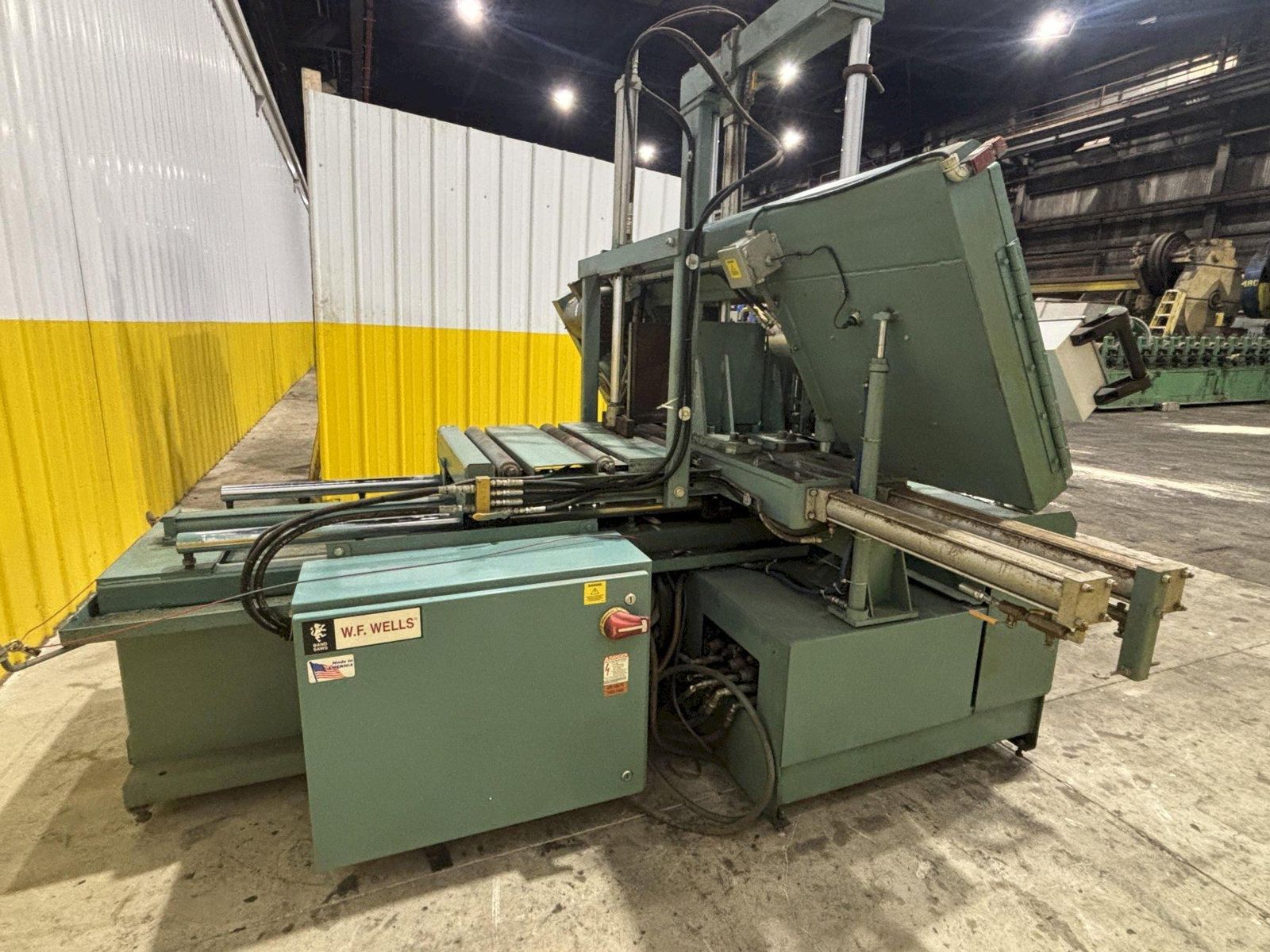

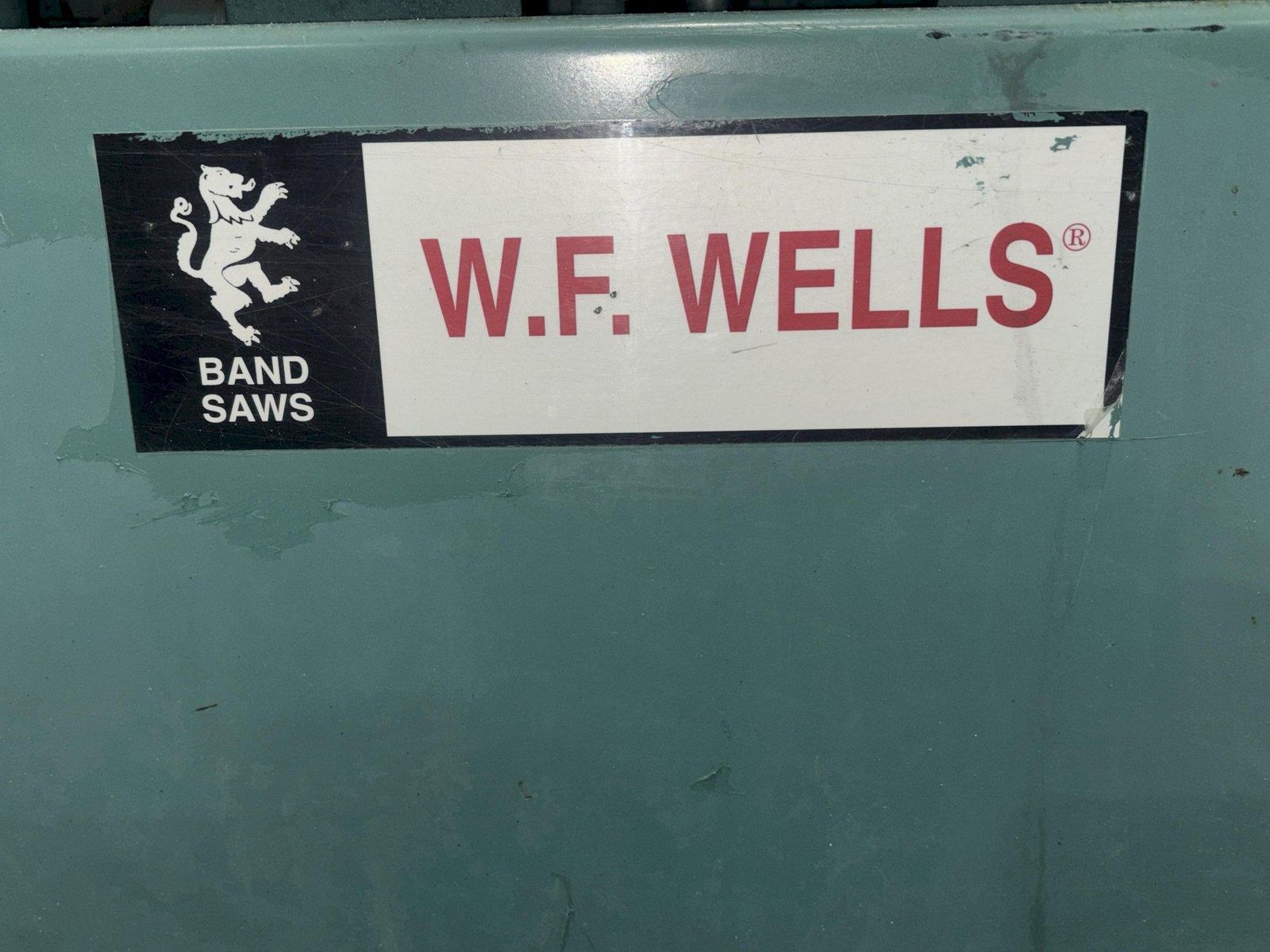

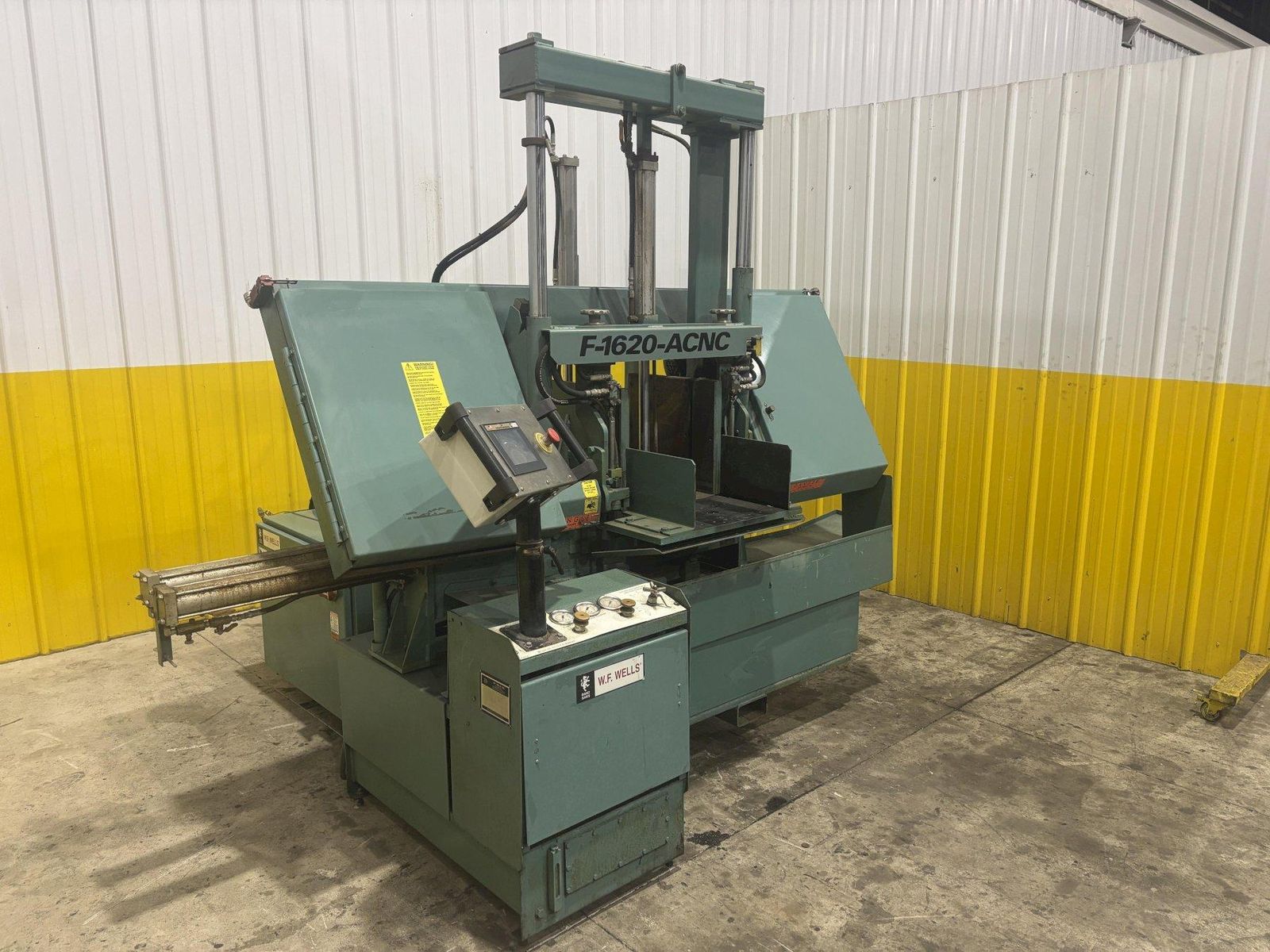

16" x 20" W.F. WELLS (NEW 2023) MODEL F-1620-A CNC AUTOMATIC HORIZONTAL BANDSAW W/ BUNDLING: STOCK #22088
Overview
- Serial #: A4360FA221137
- Model: F-1620-A-CNC
- Year New: 2023

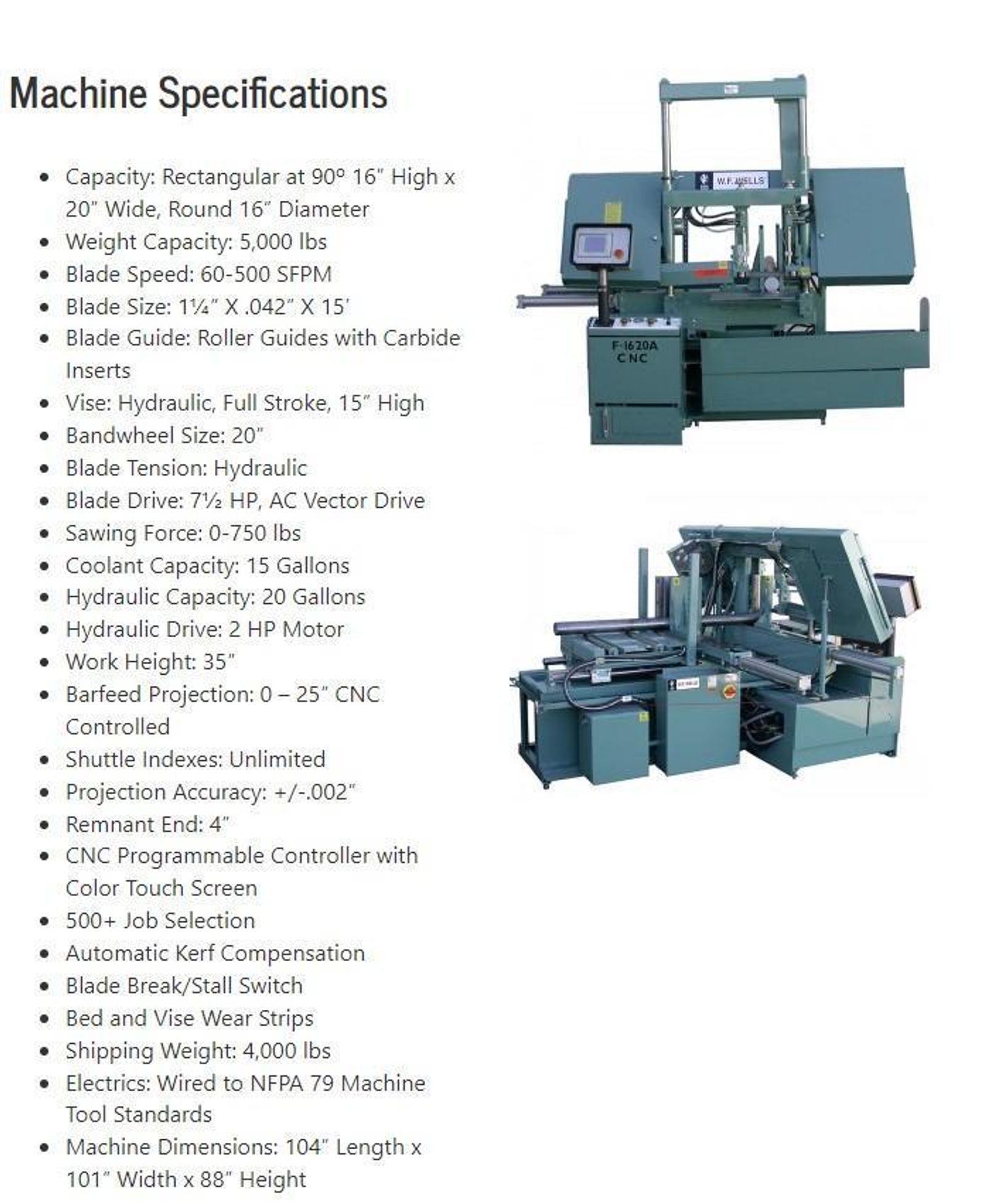

- Capacity:
- Rectangular at 90º 16″ High x 20″ Wide
- Round 16″ Diameter
- Weight Capacity: 5,000 lbs
- Blade Speed: 60-500 SFPM
- Blade Size: 1¼” X .042″ X 15′
- Blade Guide: Roller Guides with Carbide Inserts

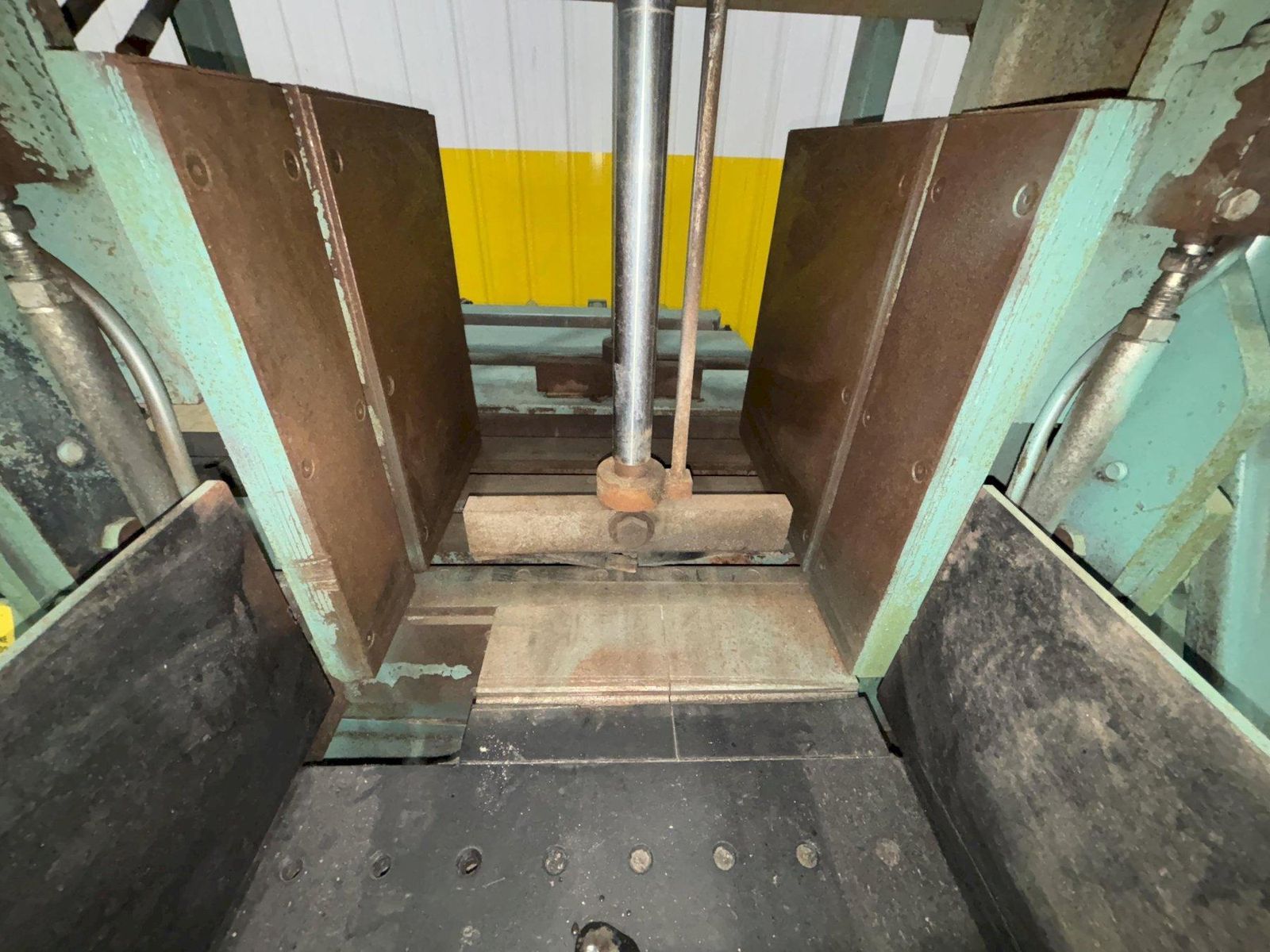

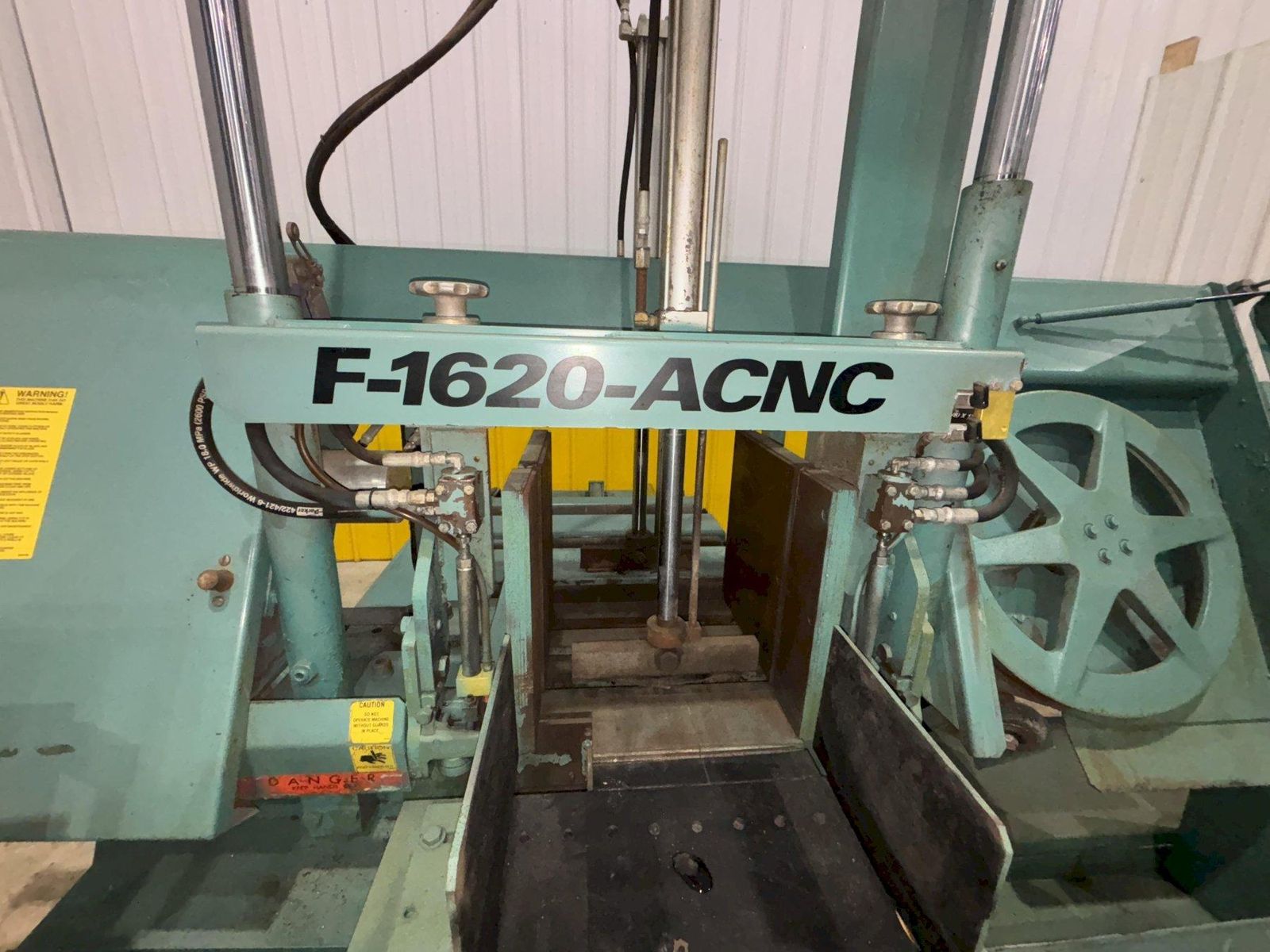

- Vise: Hydraulic, Full Stroke, 15″ High

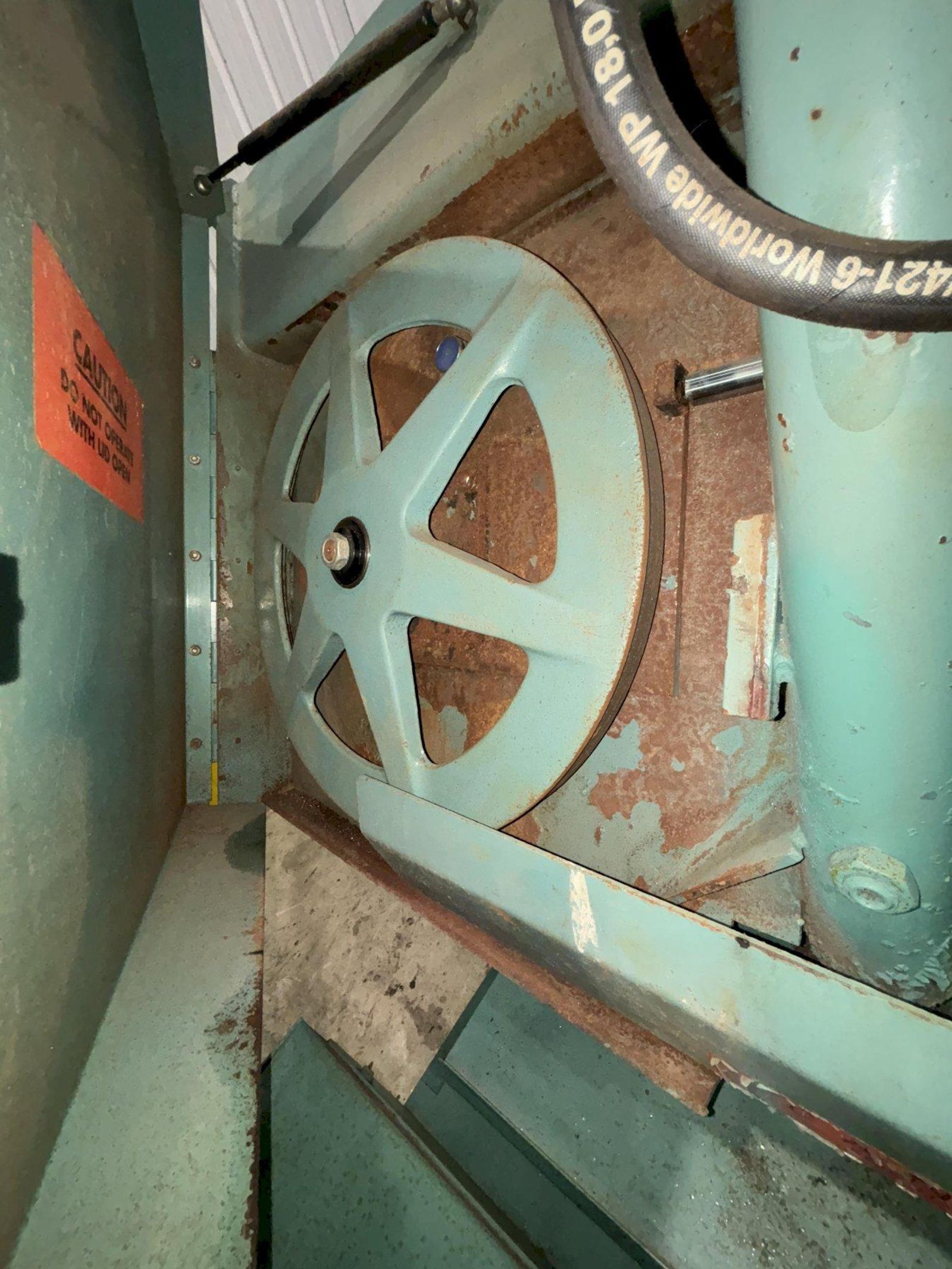

- Bandwheel Size: 20″

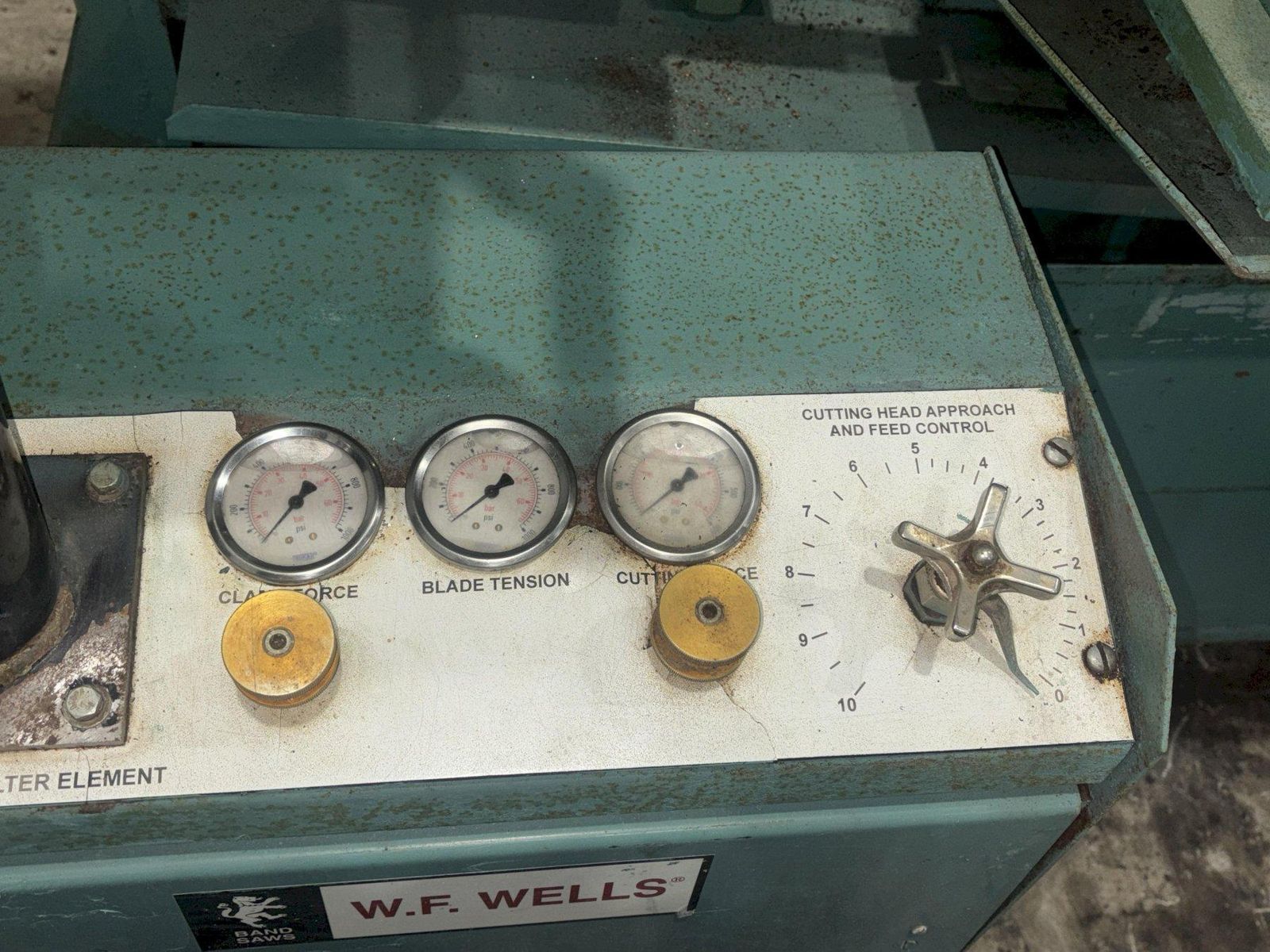

- Blade Tension: Hydraulic

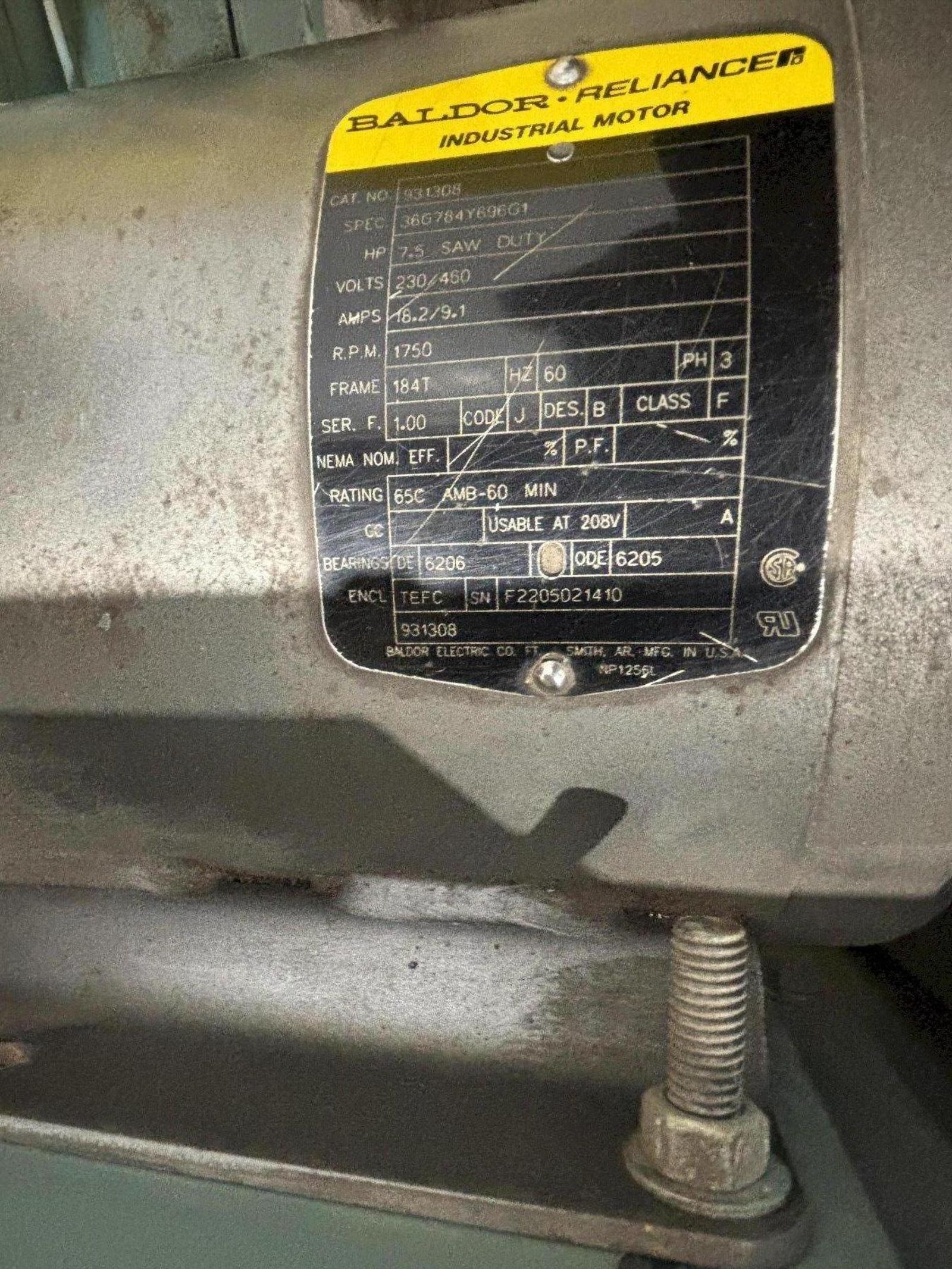

- Blade Drive: 7½ HP, AC Vector Drive
- Sawing Force: 0-750 lbs
- Coolant Capacity: 15 Gallons

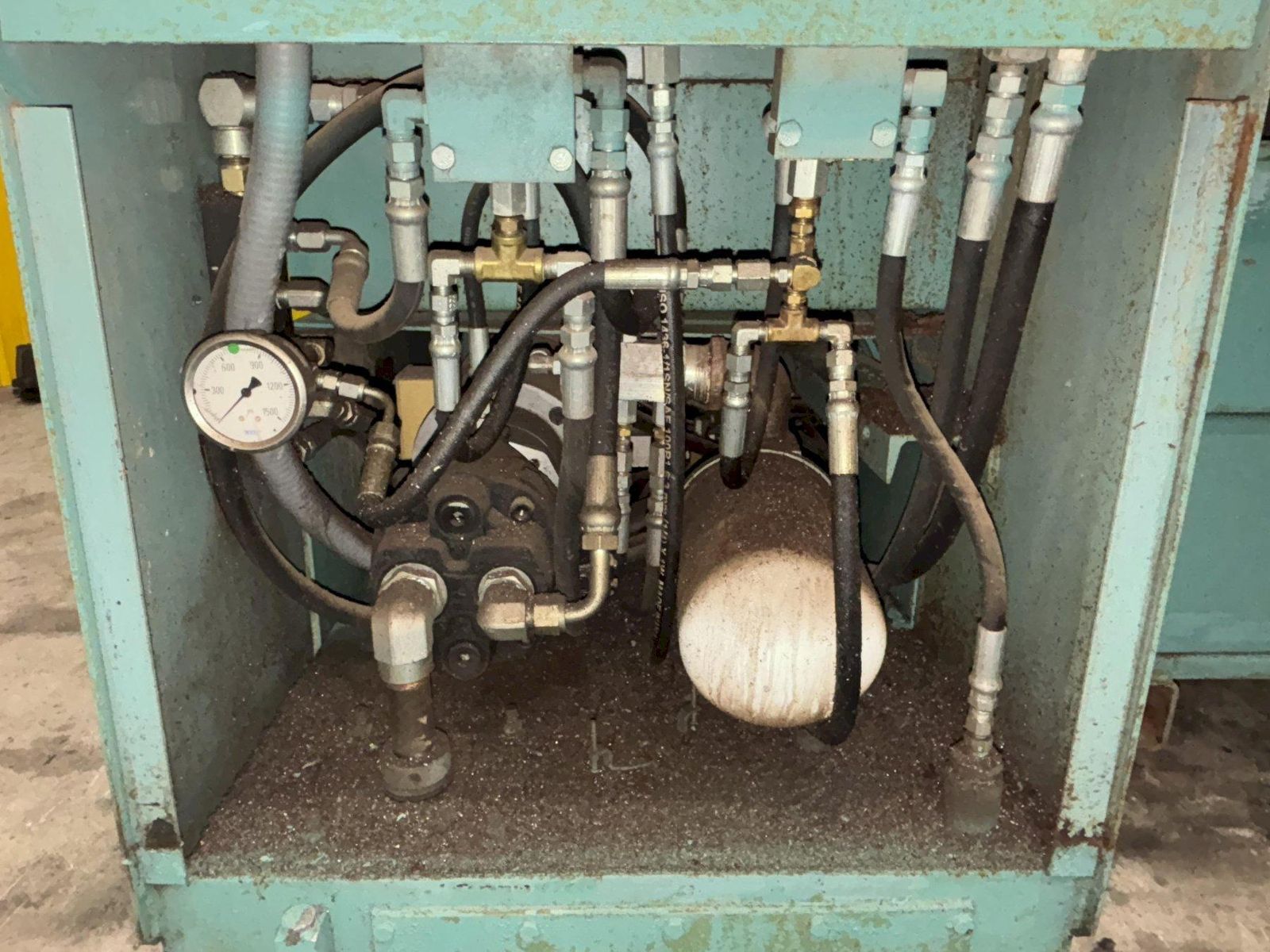

- Hydraulic Capacity: 20 Gallons
- Hydraulic Drive: 2 HP Motor
- Work Height: 35″

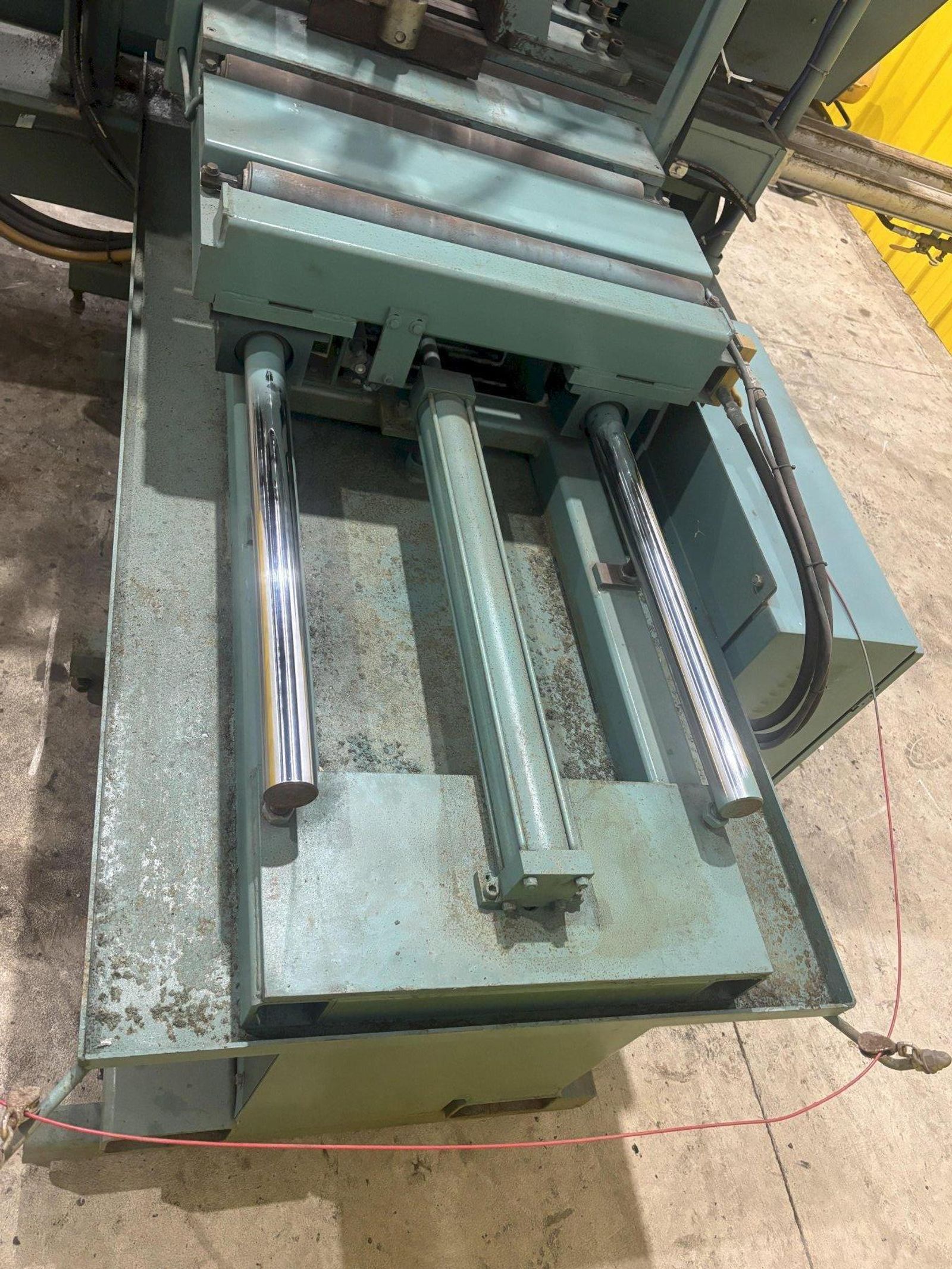

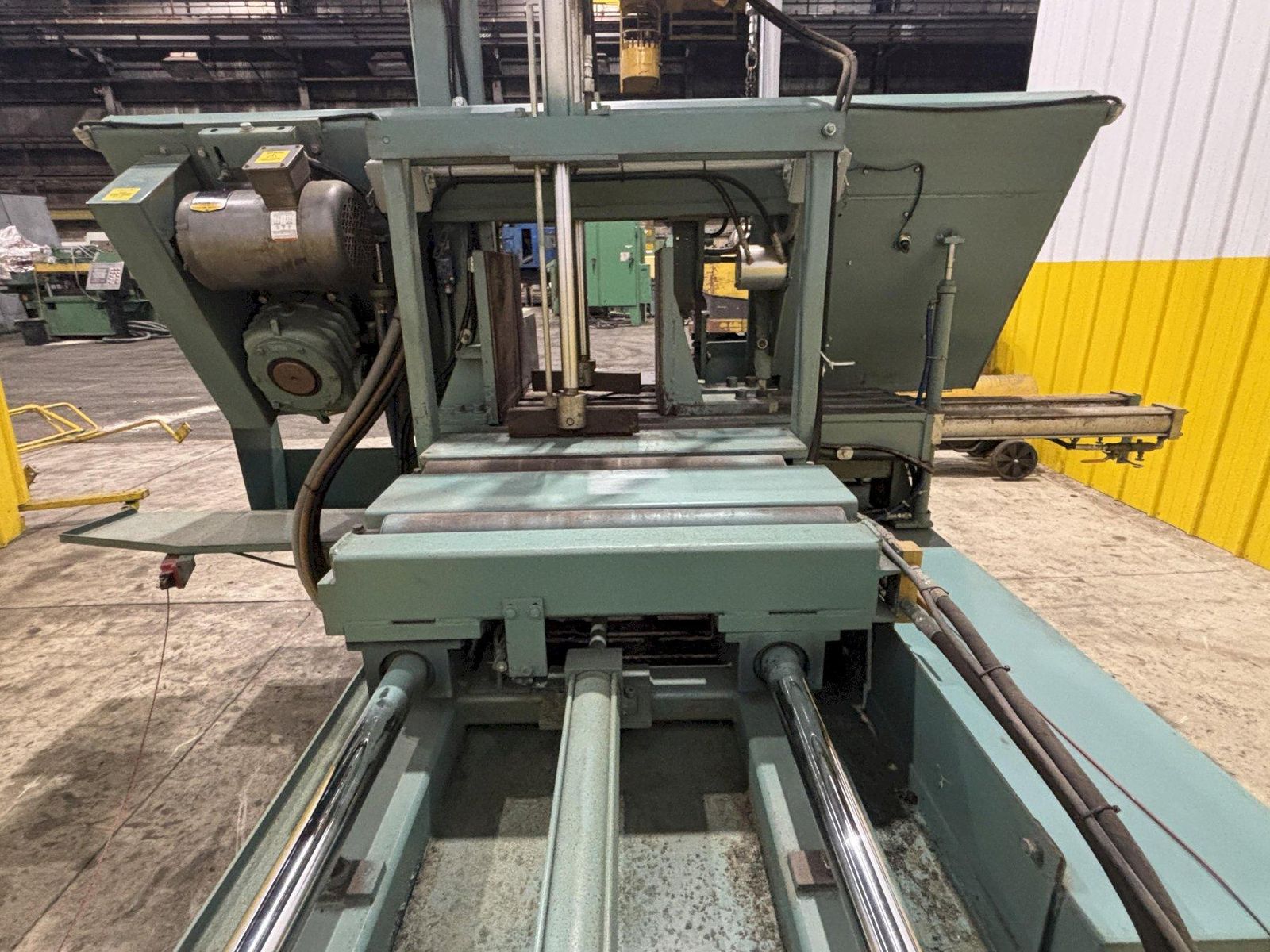

- Barfeed Projection: 0 – 25″ CNC Controlled
- Shuttle Indexes: Unlimited
- Projection Accuracy: +/-.002″
- Remnant End: 4″

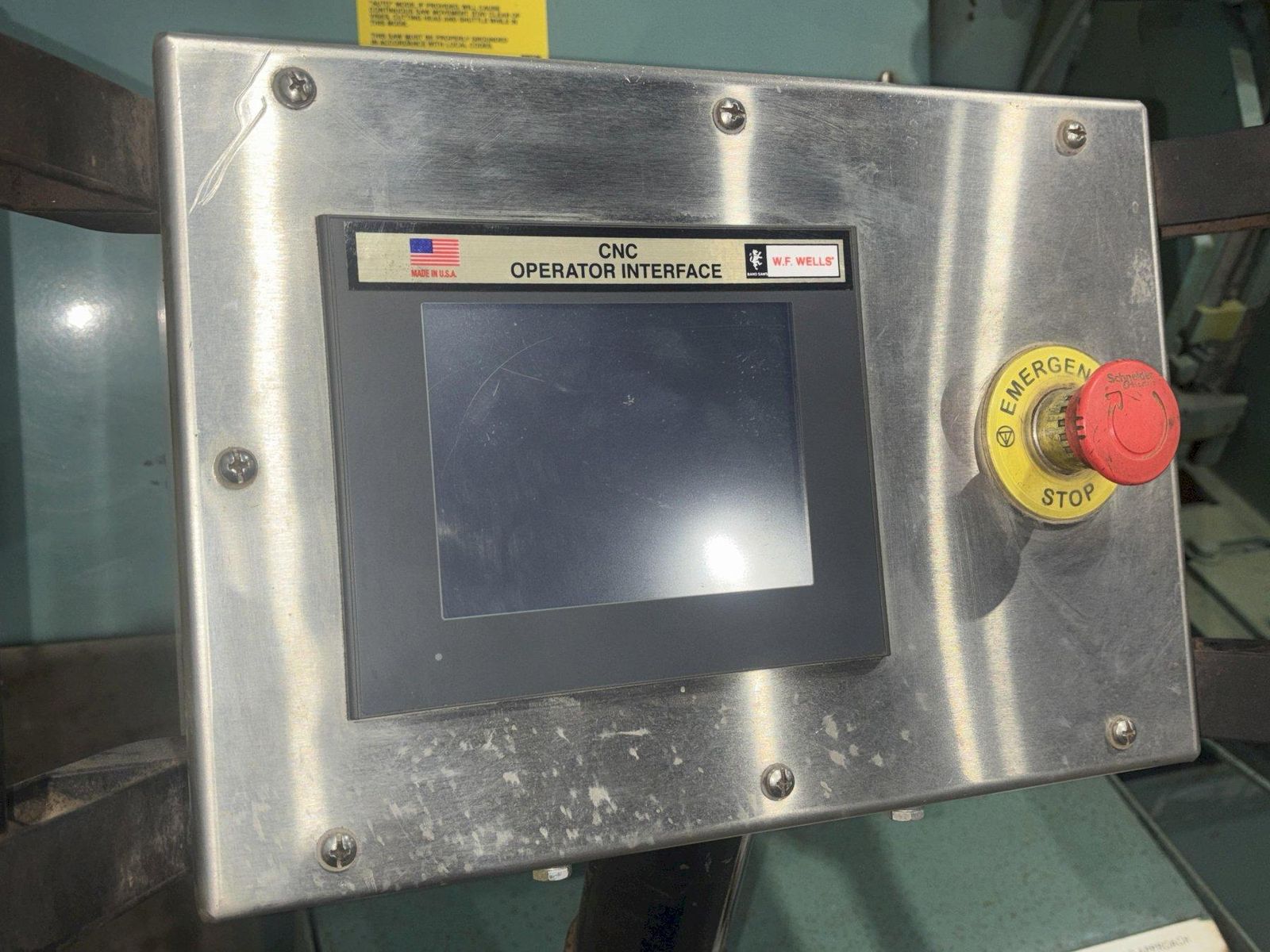

- CNC Programmable Controller with Color Touch Screen
- 500+ Job Selection
- Automatic Kerf Compensation
- Blade Break/Stall Switch
- Bed and Vise Wear Strips
- Shipping Weight: 4,000 lbs
- Machine Dimensions: 104″ Length x 101″ Width x 88″ Height
16" x 20" W.F. WELLS (NEW 2023) MODEL F-1620-A CNC AUTOMATIC HORIZONTAL BANDSAW W/ BUNDLING: STOCK #22088
Type
Saws, Band, Horizontal
