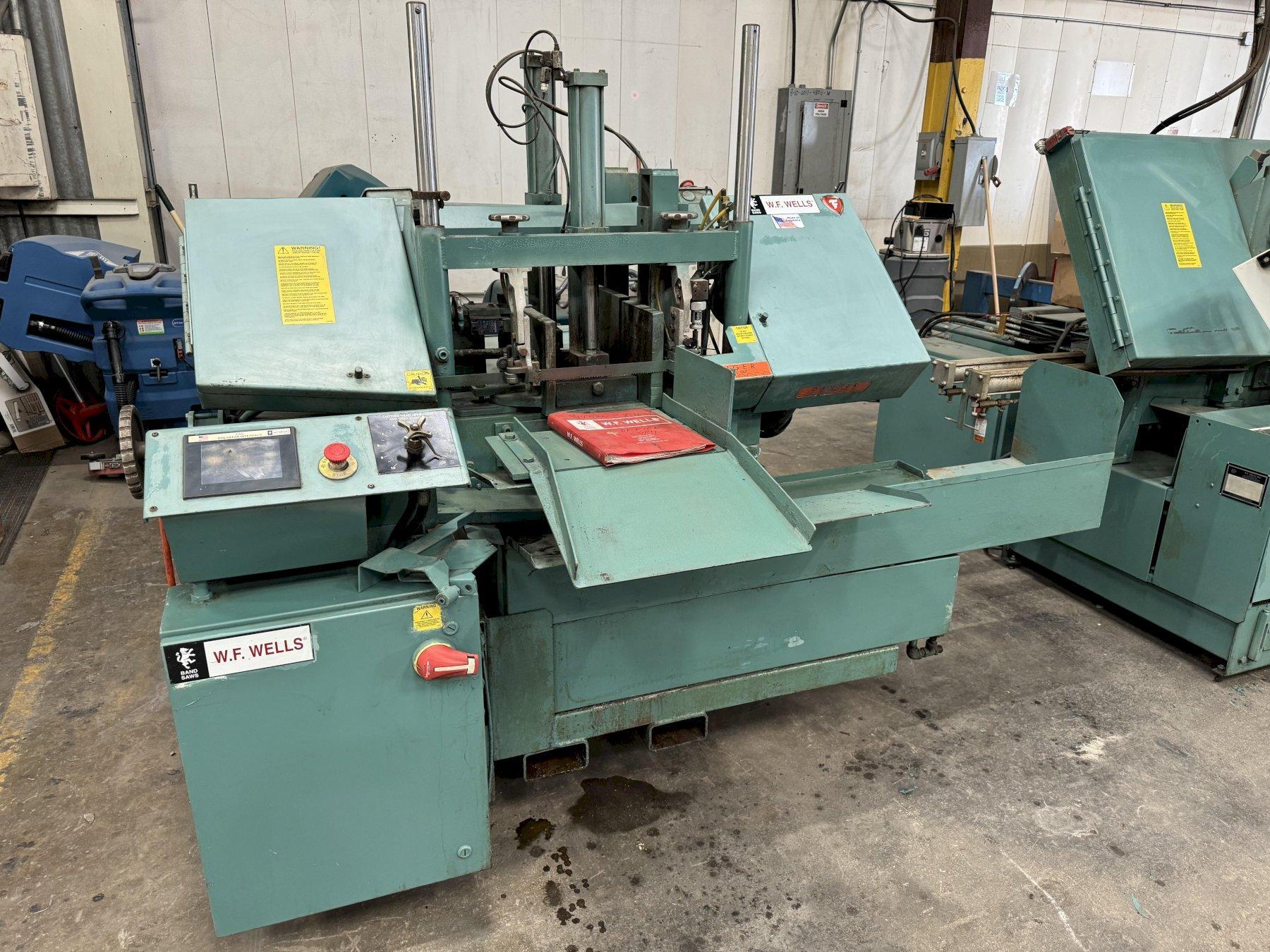

9" x 14" W.F. WELLS (NEW 2021) MODEL W-914-A CNC AUTOMATIC HORIZONTAL BAND SAW W/ BUNDLING: STOCK #22089
Overview
- Serial #: A4260WA21182
- Model: W-914-A CNC
- Year New: 2021
- Capacity:
- Rectangular at 90°: 9″ High x 14″ Wide
- Round 9″ Diameter
- Weight Capacity: 3,000 lbs
- Blade Speed: 70-380 SFPM
- Blade Size: 1″ X .035″ X 11′ 6″
- Blade Guide: Roller Guides with Carbide Inserts
- Vise: Air, 8½” High
- Bandwheel Size: 14½”
- Blade Tension: Manual
- Blade Drive: 3 HP Variable Speed
- Sawing Force: 30-120 lbs
- Coolant Capacity: 15 Gallon
- Hydraulic Capacity: ¾ Gallon
- Hydraulic Drive: ¾ HP Motor
- Work Height: 35″
- Barfeed Projection: Hydraulic 0-25″ CNC Controlled
- Projection Accuracy: +/-.002″
- Shuttle Indexes: Unlimited
- Remnant End: 8″
- CNC Programmable Controller with Color Touch Screen
- Machine Diagnostics & Programming Prompting
- 99+ Job Selection
- Automatic Kerf Compensation
- Blade Break/Stall Switch
- Fork Lift Pockets in Base
- Tipoff Worktable: 19½” Wide x 15½” Deep
- Shipping Weight: 2,400 lbs
- Machine Dimensions: 82″ Length x 96″ Width x 68″ Height
9" x 14" W.F. WELLS (NEW 2021) MODEL W-914-A CNC AUTOMATIC HORIZONTAL BAND SAW W/ BUNDLING: STOCK #22089
Type
Saws, Band, Horizontal
