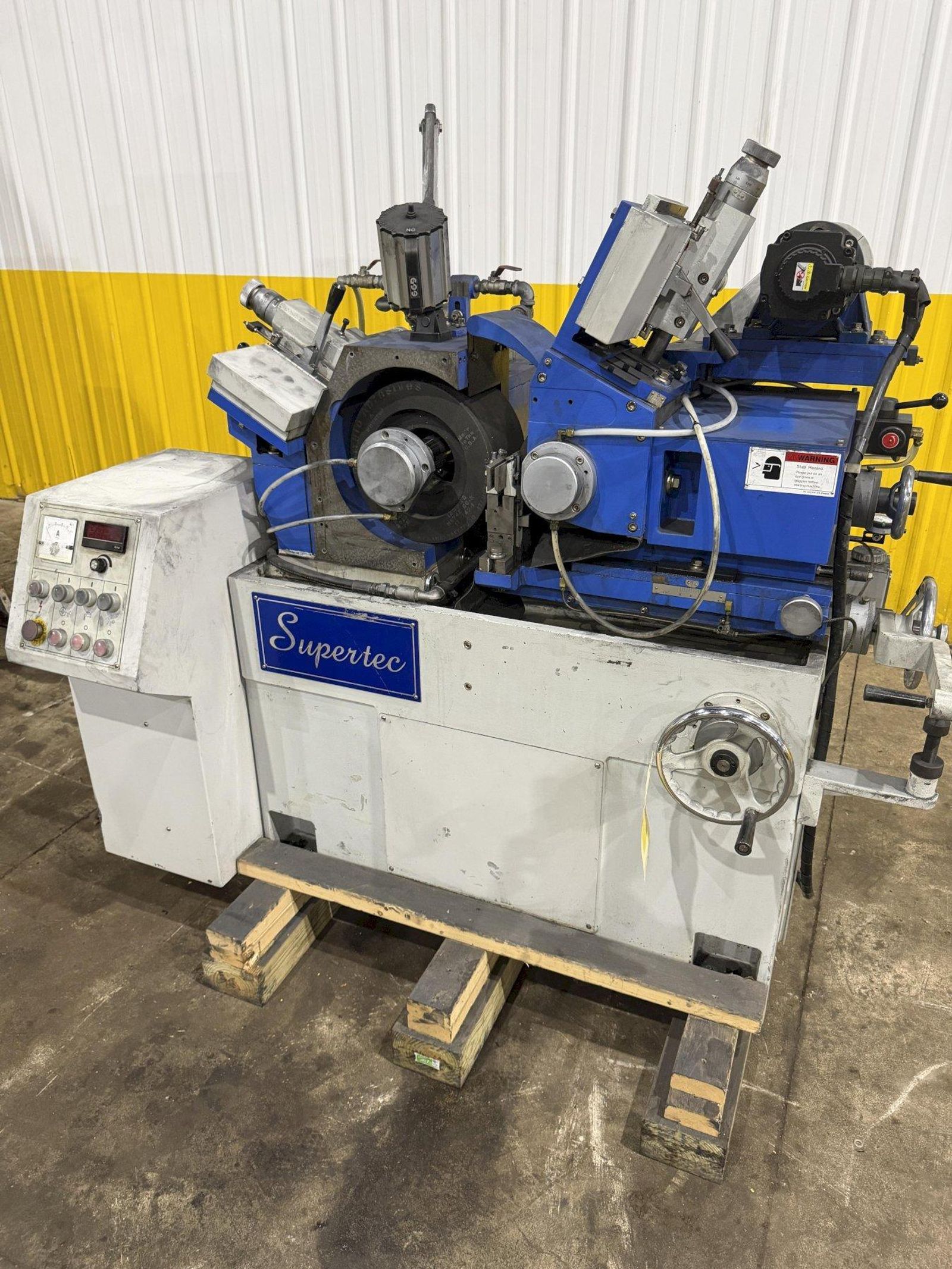

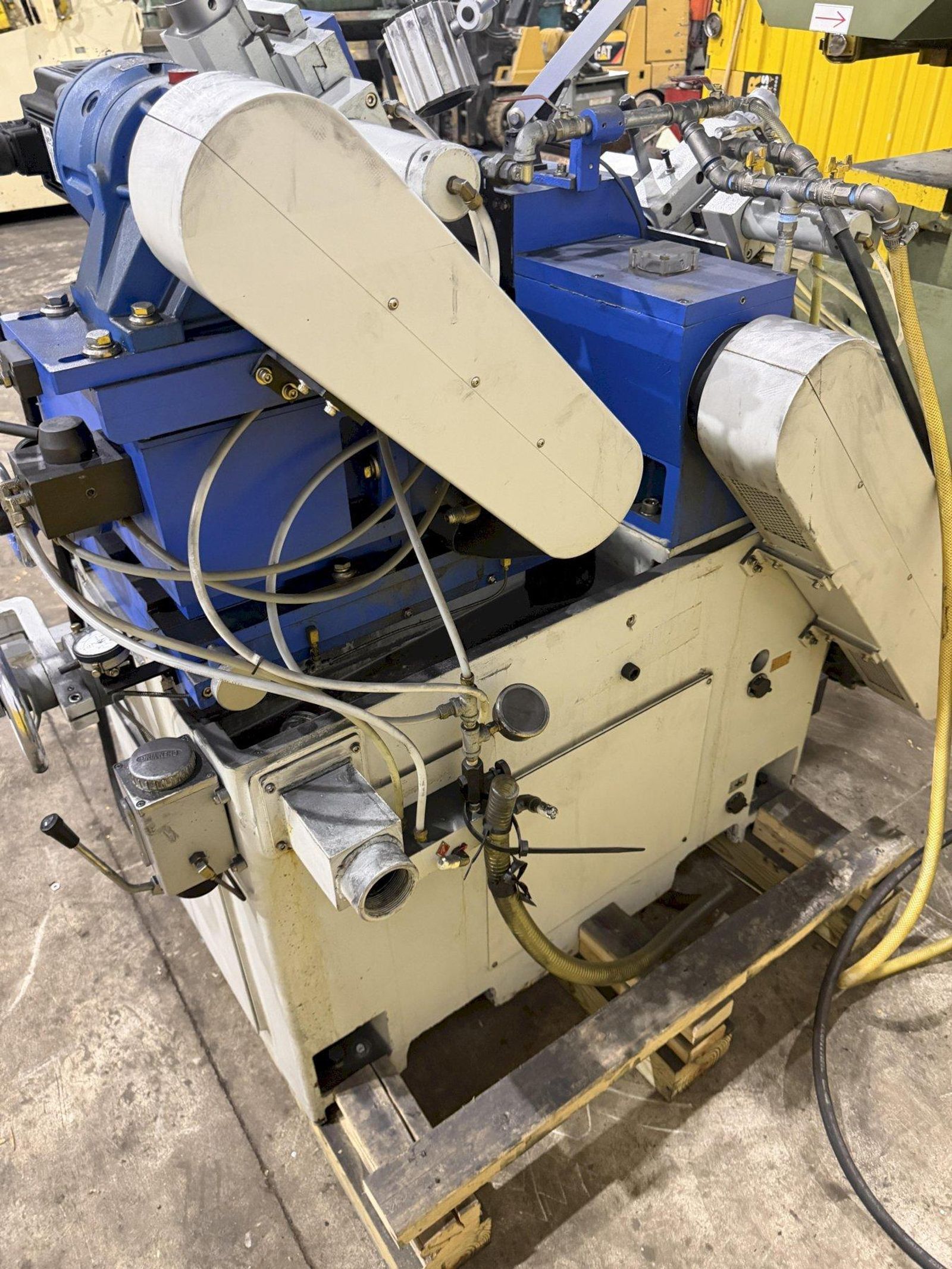

0.08" - 2" SUPERTEC MODEL #STC-1206S CENTERLESS GRINDER, NEW 2018: YOBRO #25749

Overview

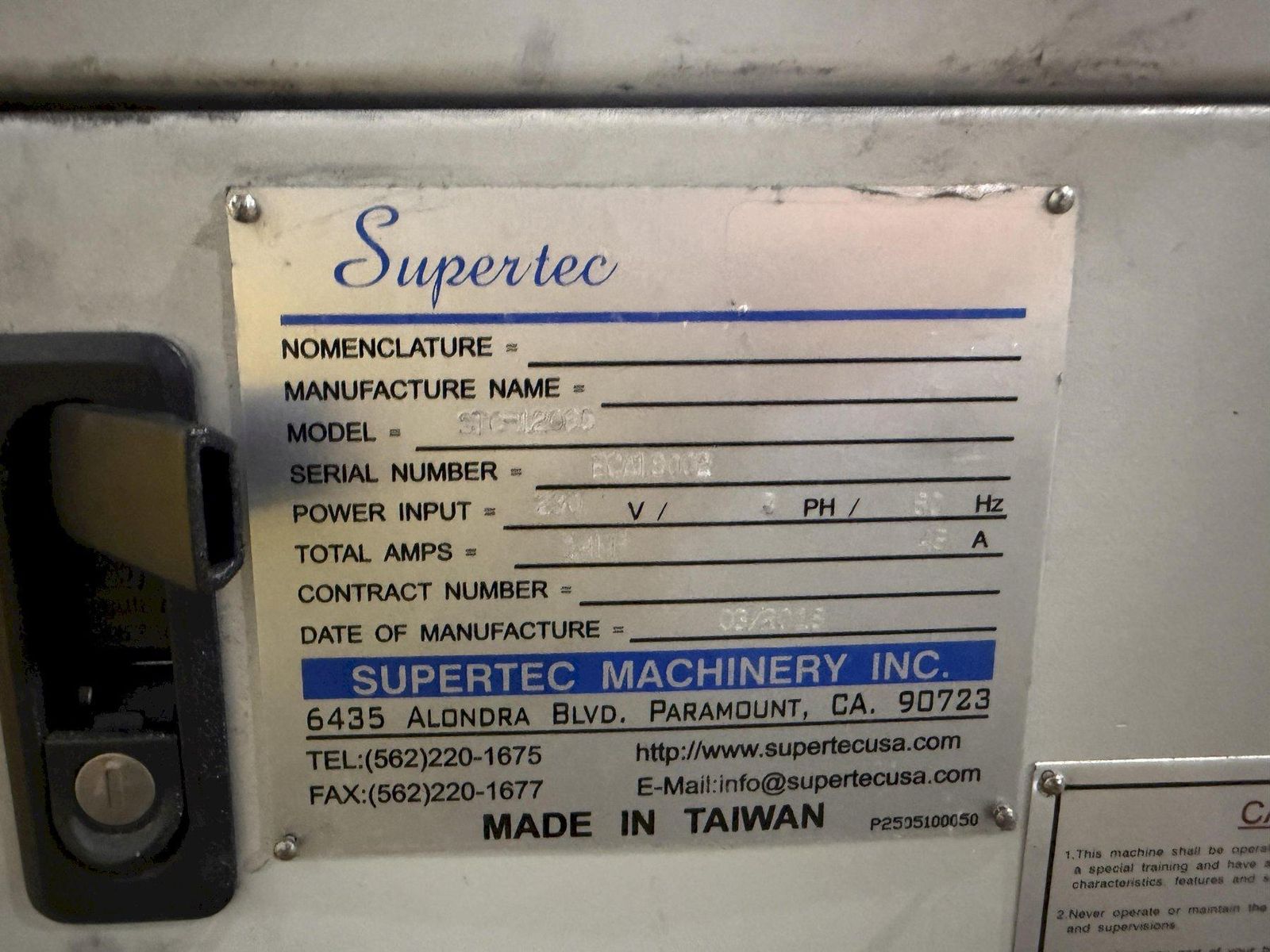

SERIAL .................................. ECA18002
MODEL ................................... STC-1206S
NEW ..................................... 2018
GRINDING DIAMETER (STANDARD WORKREST).... 0.08 TO 1.18"
GRINDING DIAMETER (SPECIAL WORKREST)..... 1.18" TO 2"

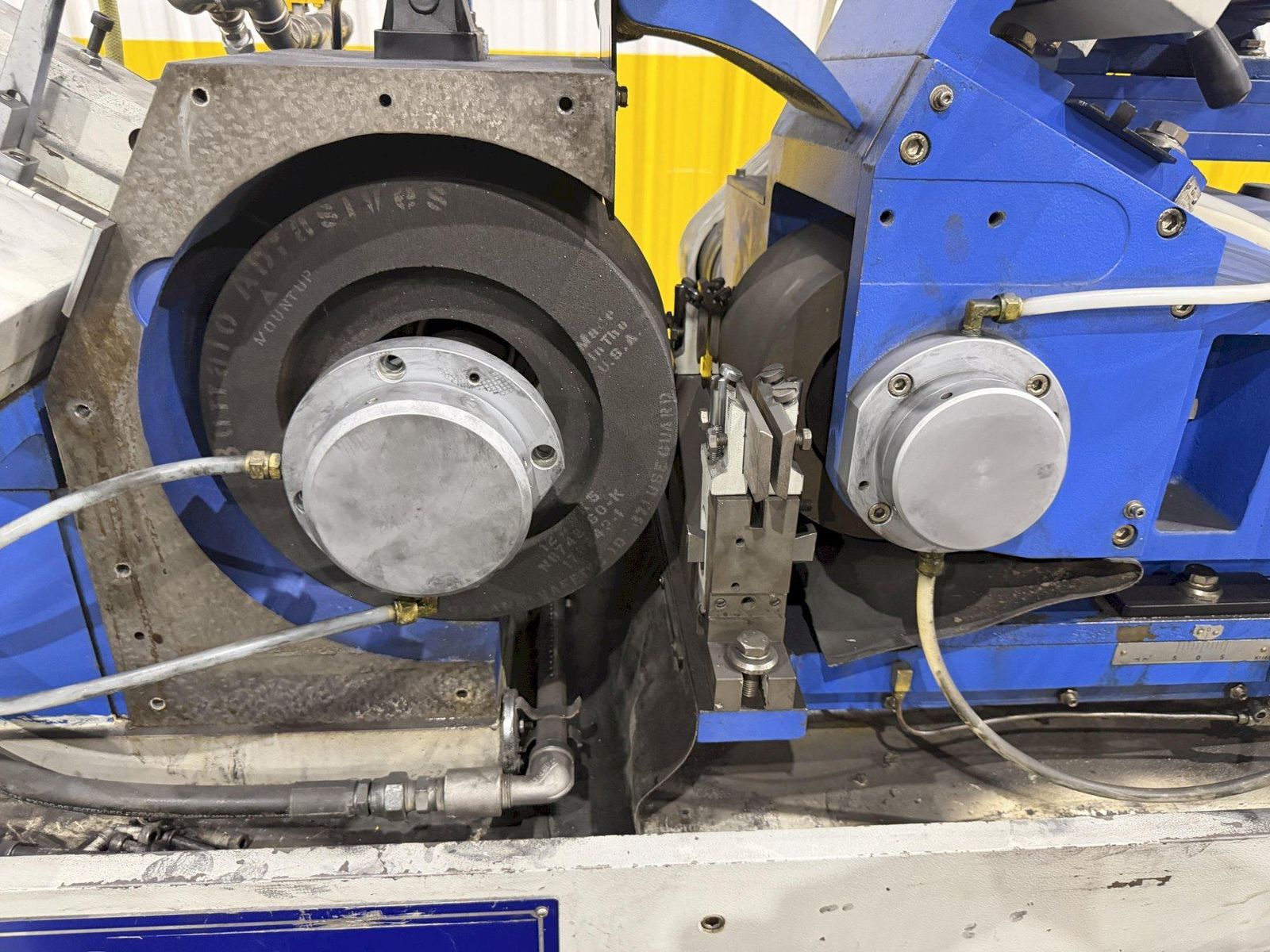

GRINDING WHEEL:
DIAMETER X WIDTH X BORE.................. 12" x 6" x 4.7"
SPINDLE SPEED............................ 1,900 RPM
DRESSING INCREMENT, PER GRADUATION....... 0.0005"
DRESSING INCREMENT, PER REVOLUTION....... 0.05"

REGULATING WHEEL:
DIAMETER X WIDTH X BORE.................. 8" X 6" X 3.54"
SPINDLE SPEEDS (10 STEPS)................ 15 - 310 RPM
FEED OF HANDWHEEL PER GRADUATION......... 0.00125"
FEED OF HANDWHEEL, PER REVOLUTION........ 0.125"
SWIVELLING ANGLE......................... +/- 5°
INCLINING ANGLE.......................... +/- 5°
DRESSING INCREMENT PER GRADUATION ....... 0.0005"
DRESSING INCREMENT PER REVOLUTION........ 0.05"

LOWER SLIDE INFEED HANDWHEEL:
PER GRADUATION........................... 0.0025"
PER REVOLUTION........................... 0.25"

MICRO FEED OF SADDLE HANDWHEEL:
PER GRADUATION........................... 0.00005"
PER REVOLUTION........................... 0.005"

GRINDING WHEEL MOTOR..................... 10 HP

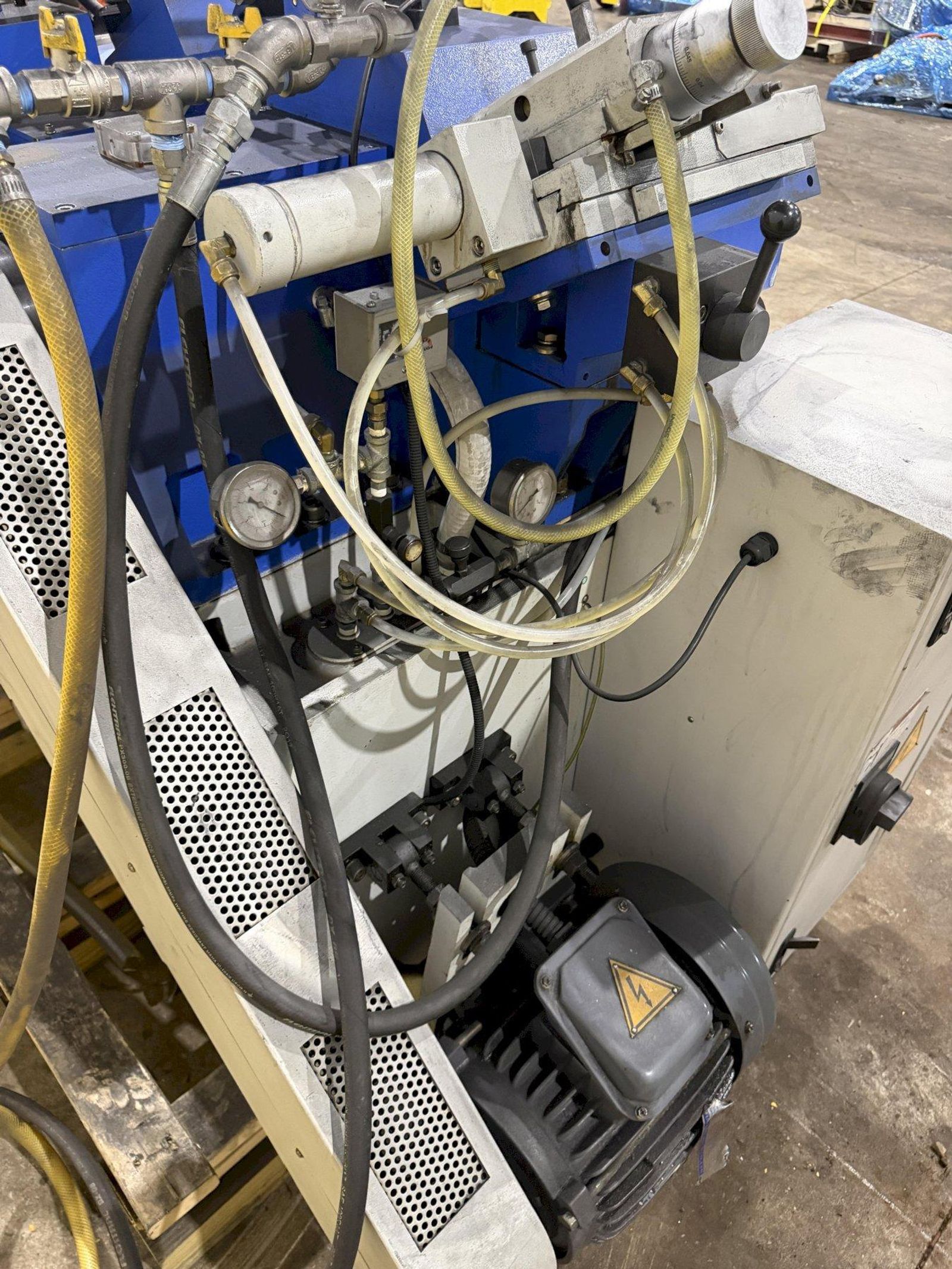

HYDRAULIC MOTOR.......................... 1 HP

FLOOR SPACE WITH HYD. TANK & COOLANT .... 89" x 76"D x 71"H
WEIGHT................................... 4,850 LBS
