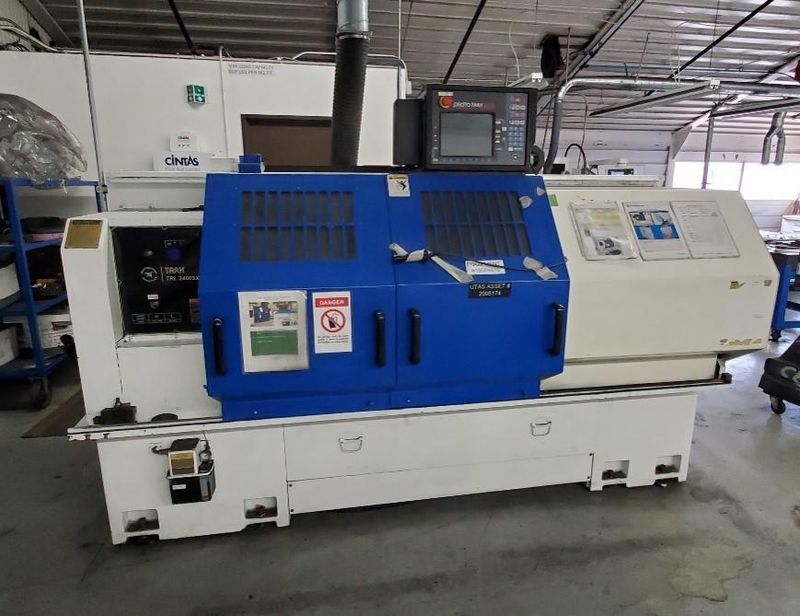

24" X 60" TRAK CNC/MANUAL FLAT BED LATHE
SERIAL ..................... 124CV447110
NEW ........................ 2012
MODEL ...................... TRAK 2460SX
SWING OVER BED ............. 24"
SWING OVER CROSS SLIDE ..... 14.5"
DISTANCE BETWEEN CENTERS ... 60"
CROSS SLIDE TRAVEL (X) ..... 12.5"
SPINDLE TAPER SIZE ......... D1-8"
SPINDLE SPEED LOW RANGE .... 40 - 670 RPM
SPINDLE SPEED HIGH RANGE ... 100 - 1800 RPM
SPINDLE BORE ............... 4.09"
WIDTH OF BED ............... 15.75
TAILSTOCK QUILL TRAVEL ..... 6.88"
TAILSTOCK QUILL DIAMETER ... 3"
TAILSTOCK QUILL TAPER ..... #5 MT
EQUIPPED WITH:
- PROTOTRAK SLX CNC CONTROL
- 10.4" COLOR ACTIVE-MATRIX MONITOR
- TRAKing NETWORK OPTION
- HARDENED & GROUND BED WAYS
- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- REMOTE STOP/GO SWITCH
- COOLANT SYSTEM
- 15 HORSEPOWER SPINDLE DRIVE MOTOR
*** MACHINE COMING OUT OF AEROSPACE R&D FACILITY ***
*** LOW HOURS ***
| Specifications | ||
|---|---|---|
| Dimensions | 114" X 53" X 70" | |
| Weight | 7500 | |
| Live Tooling | yes | |
Brand
SOUTHWESTERN INDUSTRIES
Type
Lathes, CNC
Stock No.
15644
 |
419-269-2000 |
Stock #: 15644
24" X 60" TRAK CNC/MANUAL FLAT BED LATHE
SERIAL ..................... 124CV447110
NEW ........................ 2012
MODEL ...................... TRAK 2460SX
SWING OVER BED ............. 24"
SWING OVER CROSS SLIDE ..... 14.5"
DISTANCE BETWEEN CENTERS ... 60"
CROSS SLIDE TRAVEL (X) ..... 12.5"
SPINDLE TAPER SIZE ......... D1-8"
SPINDLE SPEED LOW RANGE .... 40 - 670 RPM
SPINDLE SPEED HIGH RANGE ... 100 - 1800 RPM
SPINDLE BORE ............... 4.09"
WIDTH OF BED ............... 15.75
TAILSTOCK QUILL TRAVEL ..... 6.88"
TAILSTOCK QUILL DIAMETER ... 3"
TAILSTOCK QUILL TAPER ..... #5 MT
EQUIPPED WITH:
- PROTOTRAK SLX CNC CONTROL
- 10.4" COLOR ACTIVE-MATRIX MONITOR
- TRAKing NETWORK OPTION
- HARDENED & GROUND BED WAYS
- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- REMOTE STOP/GO SWITCH
- COOLANT SYSTEM
- 15 HORSEPOWER SPINDLE DRIVE MOTOR
*** MACHINE COMING OUT OF AEROSPACE R&D FACILITY ***
*** LOW HOURS ***
