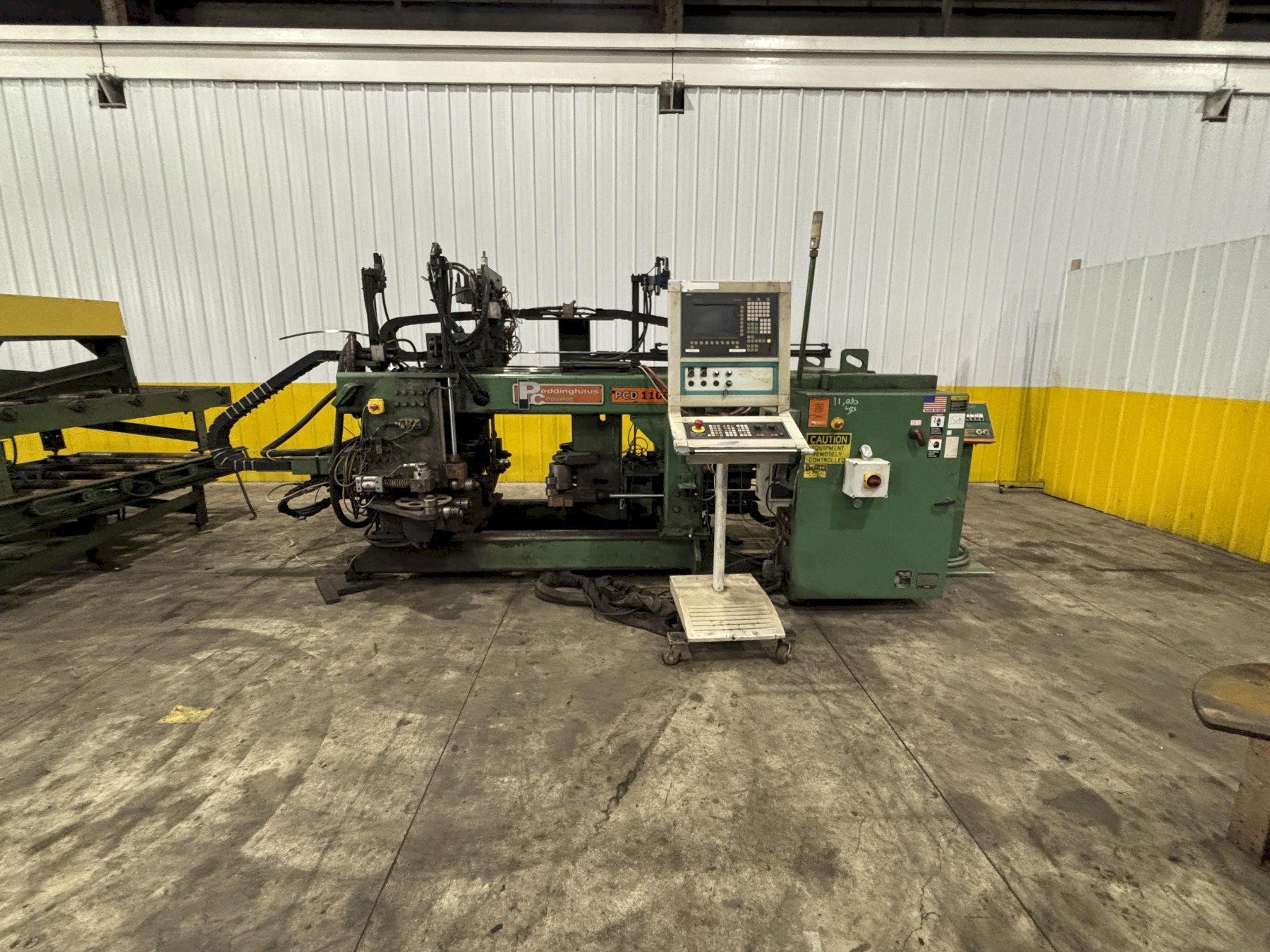

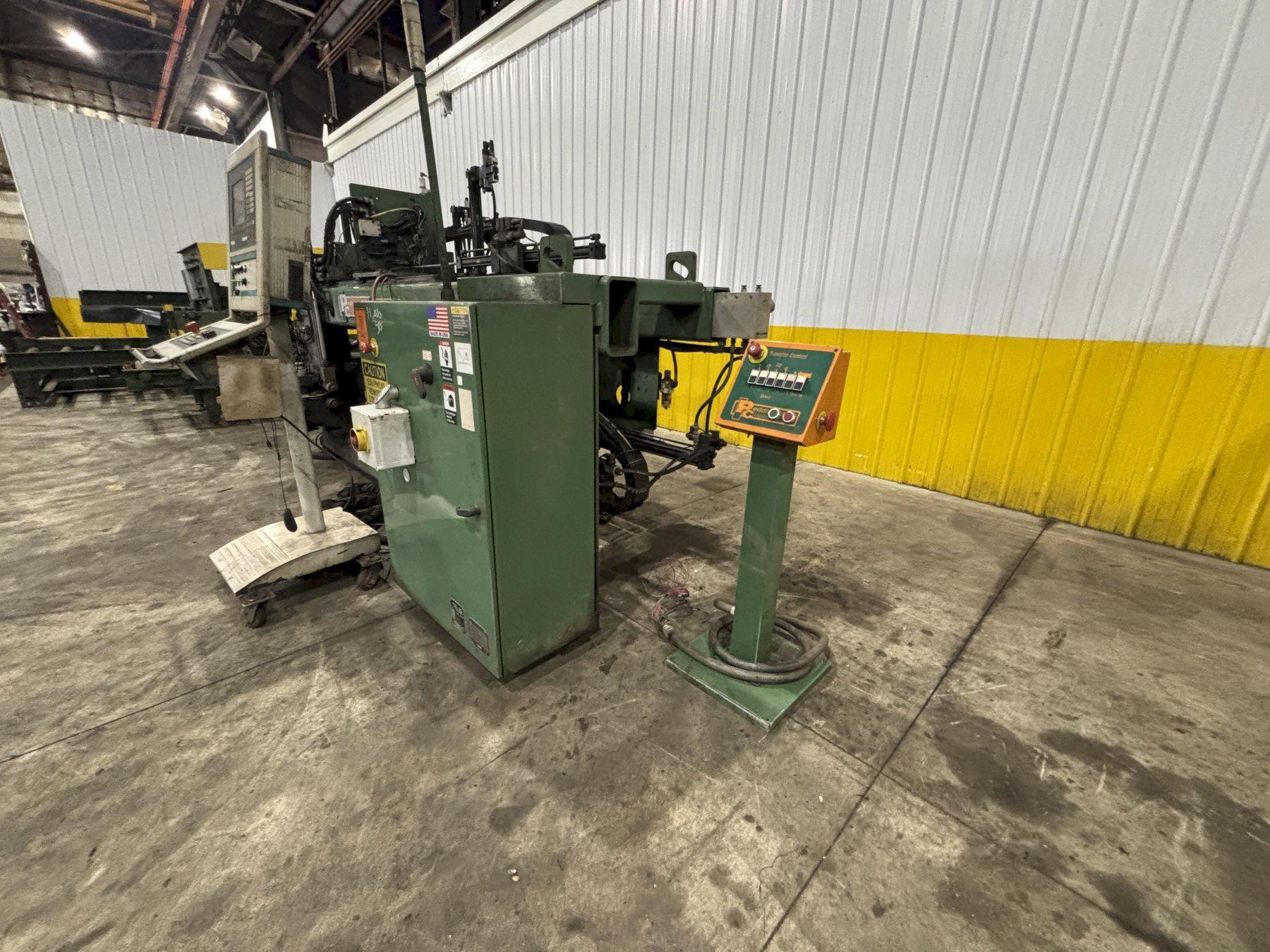

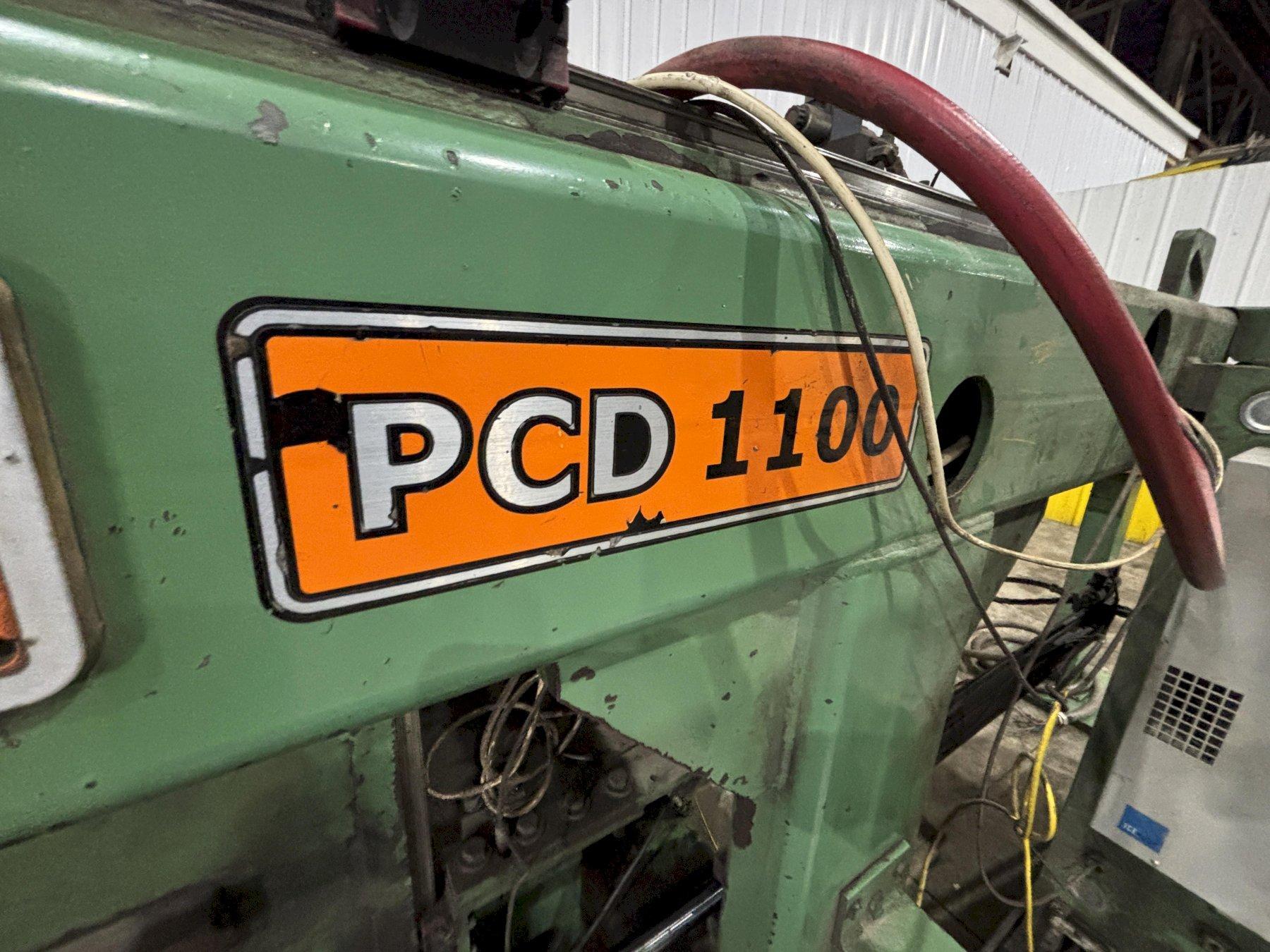

MODEL PCD1100

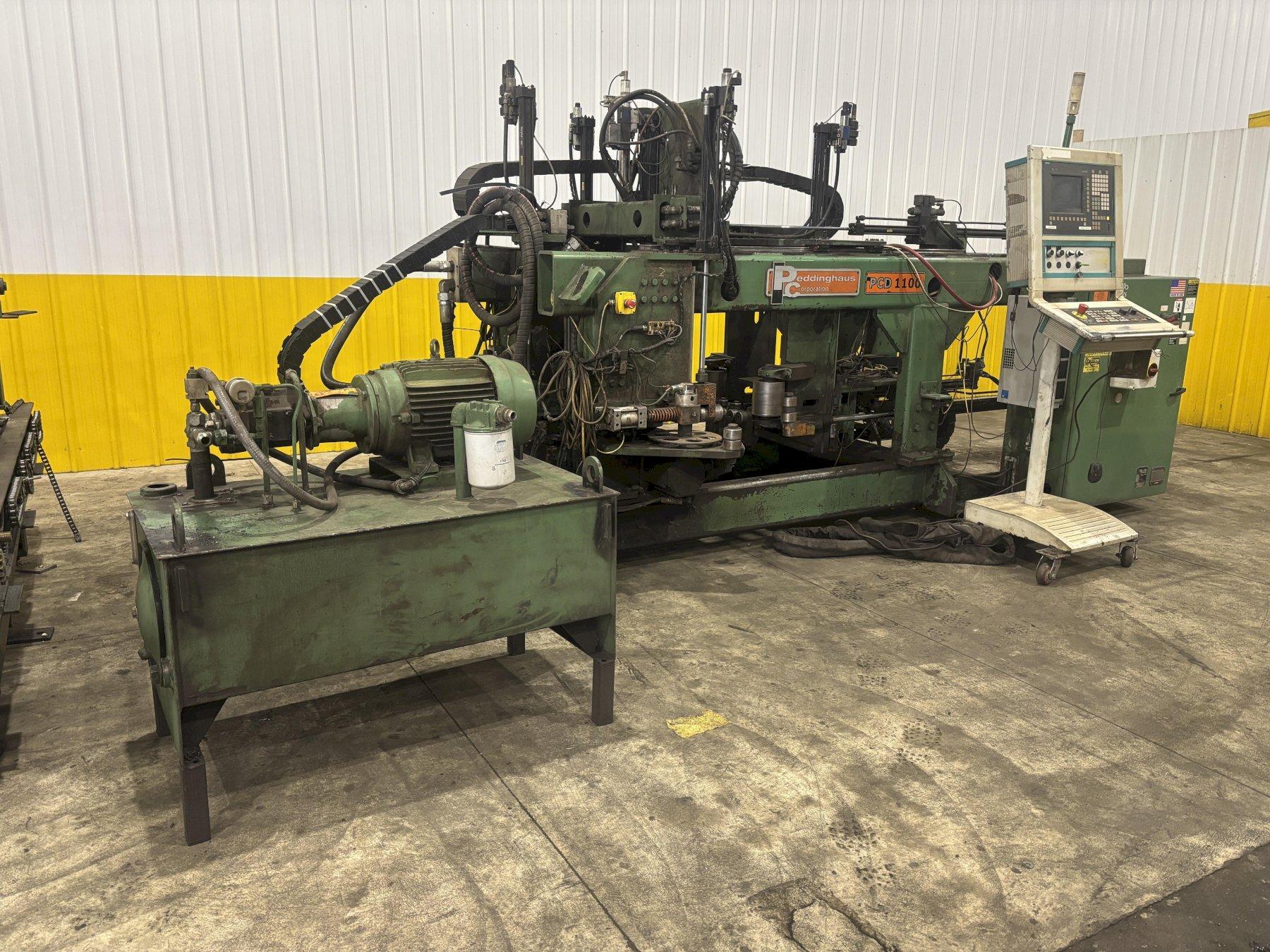

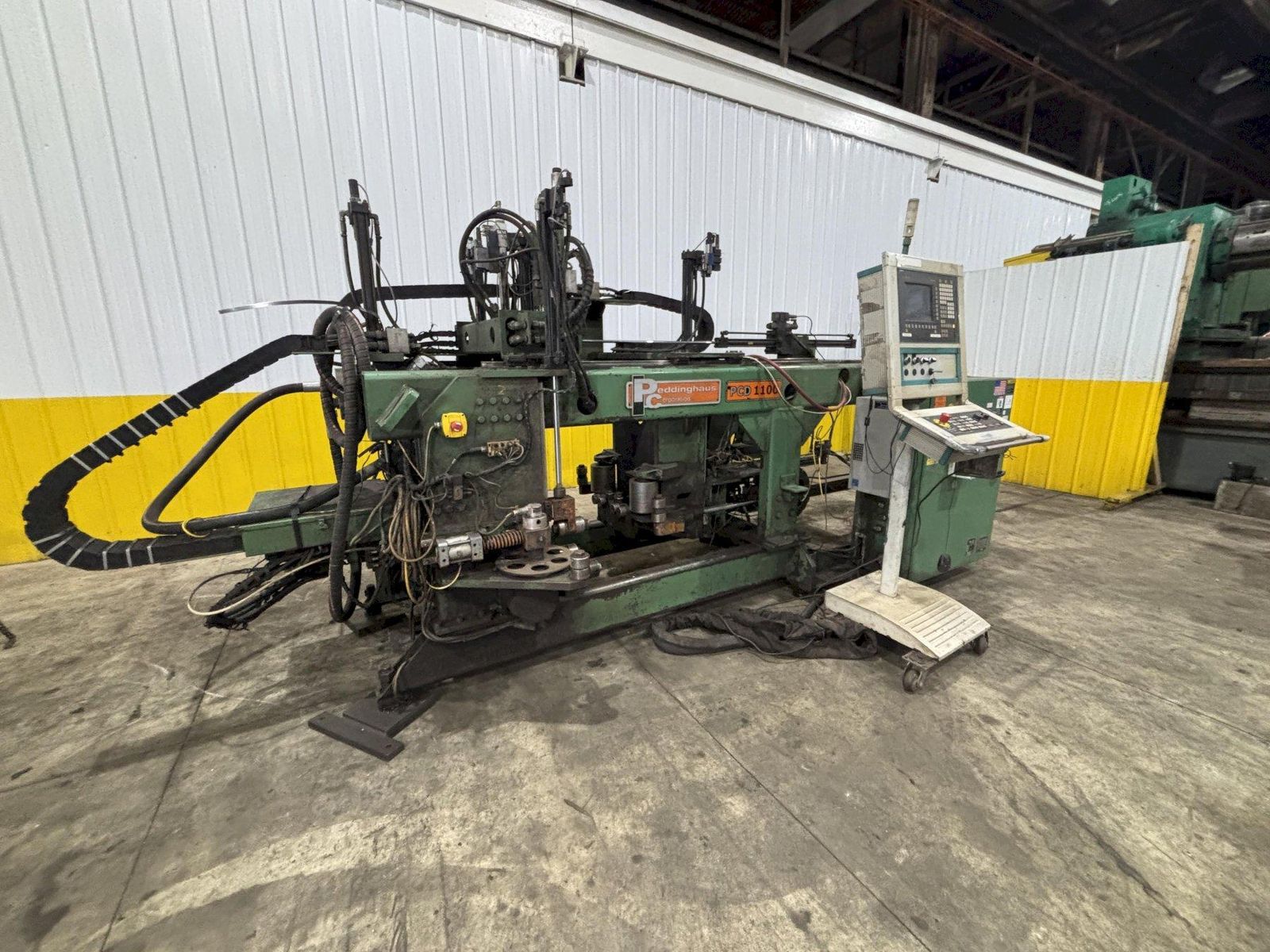

With the Peddinghaus Beam Drill Line – Advantage PCD-1100, Peddinghaus has shaped today’s CNC beam drilling machine standard with time-tested technology. The Advantage processes an average of 75 tons of steel per work week with the most efficient drilling, scribing and stamping operations. The Advantage drill line utilizes completely electronic spindle motion. This combined with Peddinghaus’ renowned build quality and mechanical design provide the ultimate combination of agility and strength.
Brand
PEDDINGHAUS
Type
Beam / Drill Lines
Stock No.
23101
 |
419-269-2000 |
Stock #: 23101

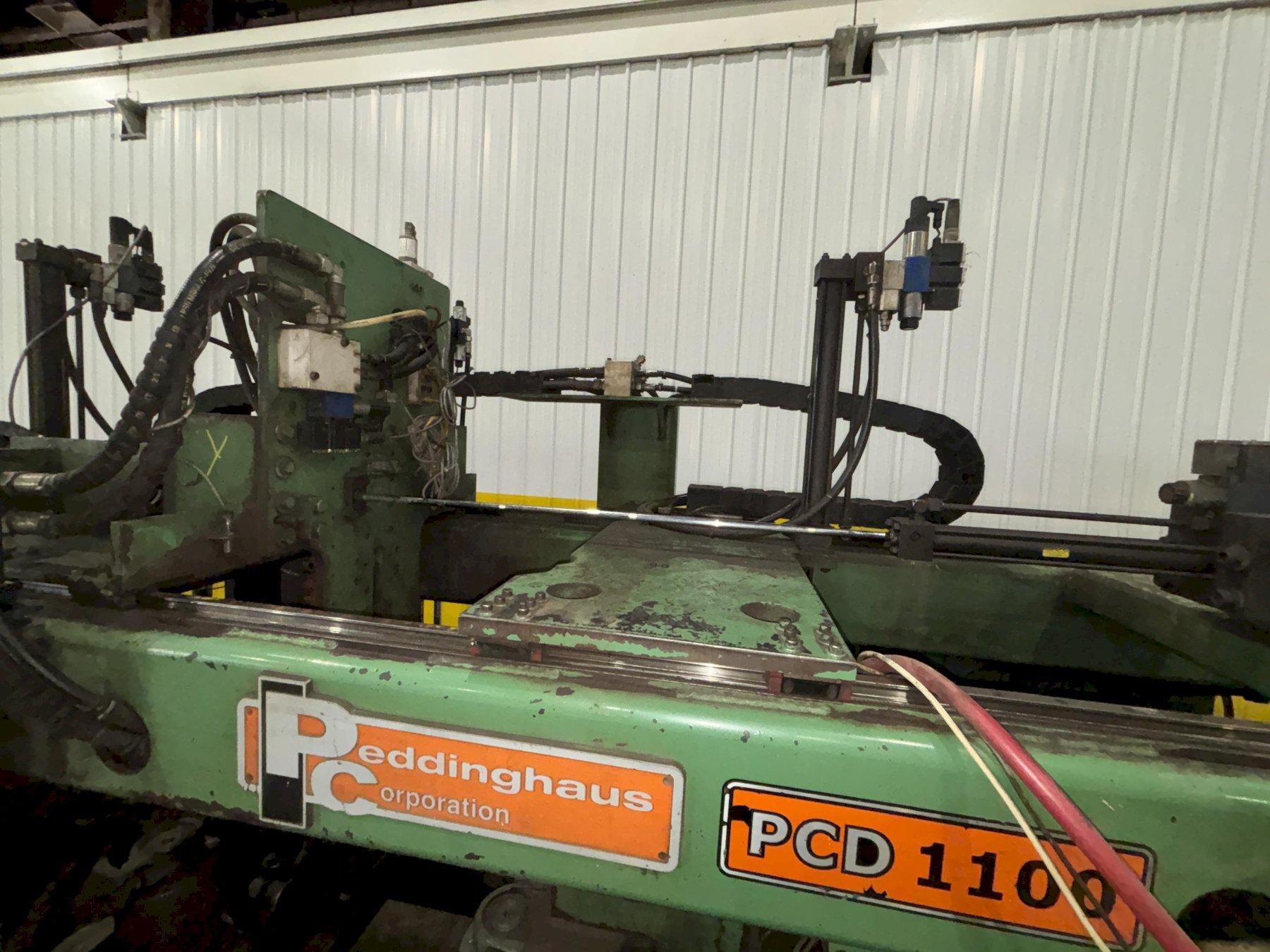

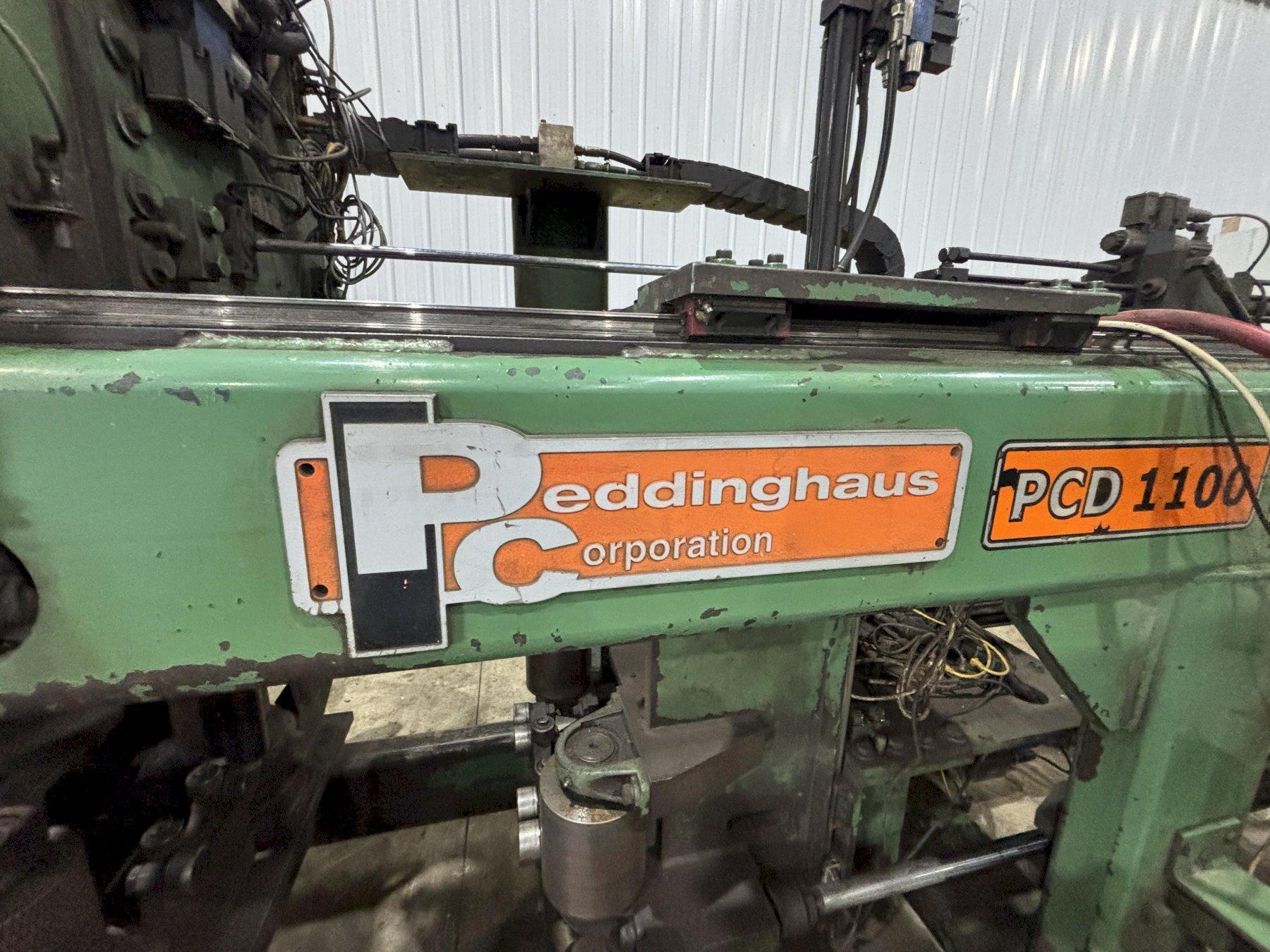

MODEL PCD1100

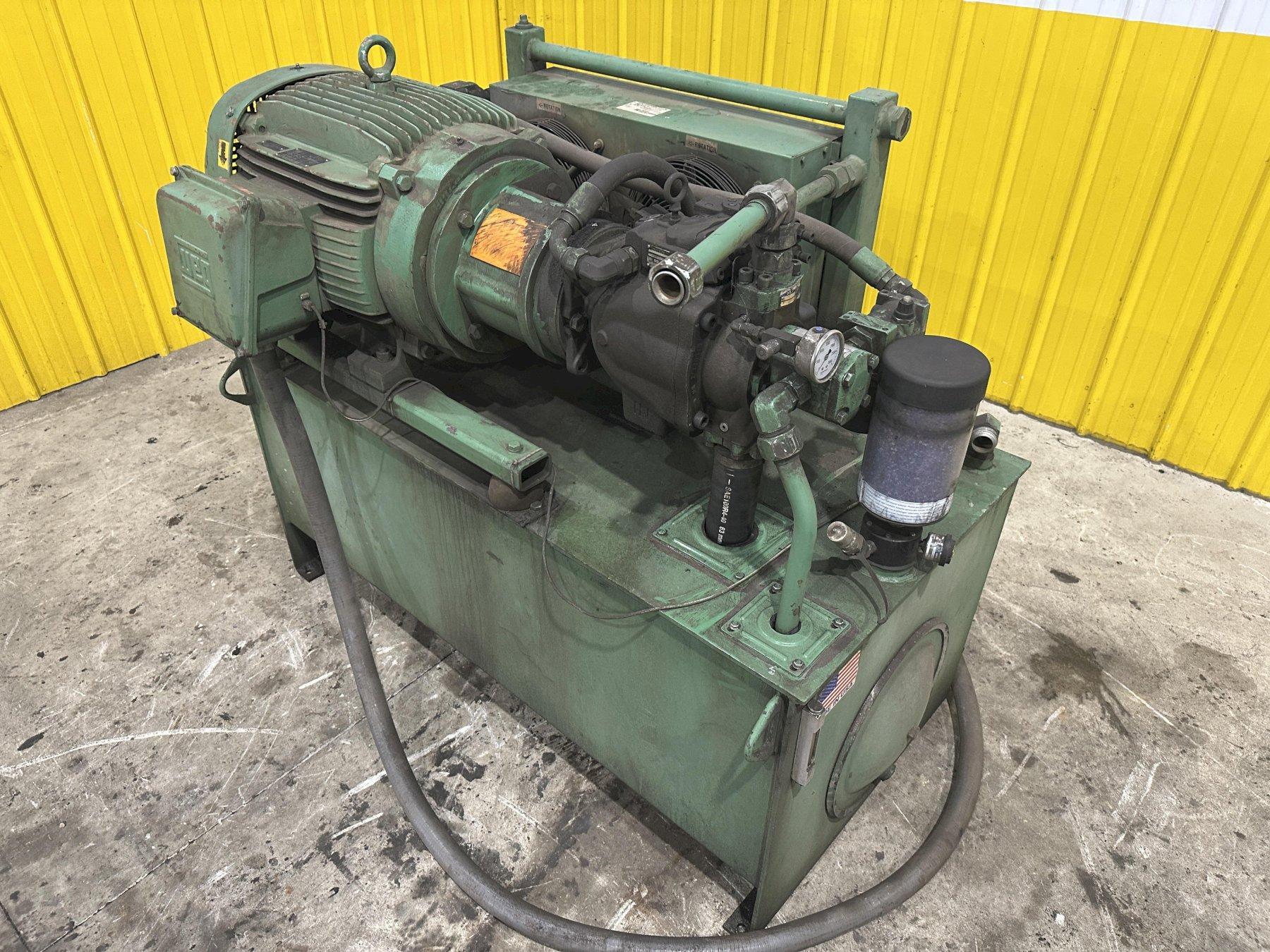

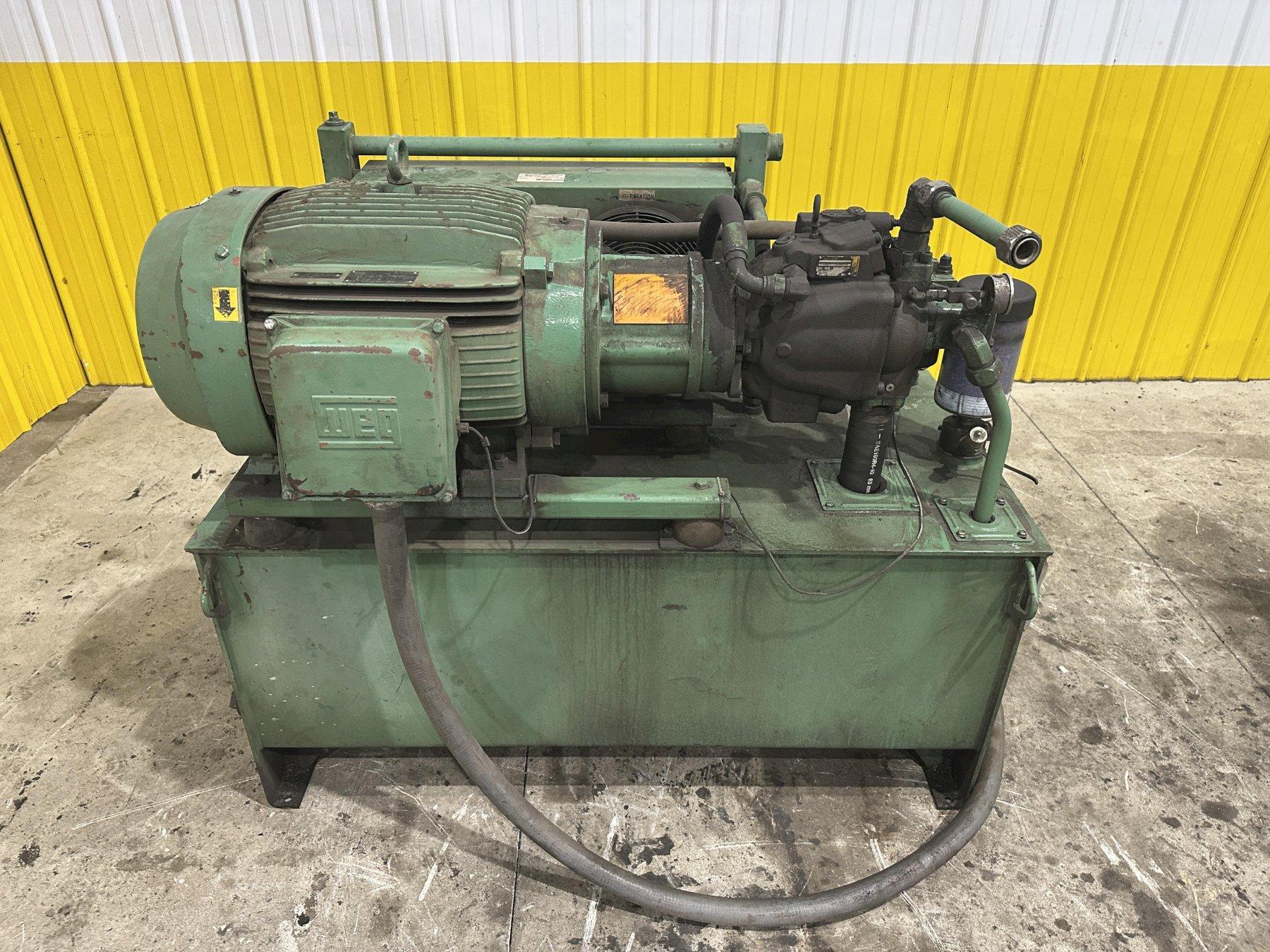

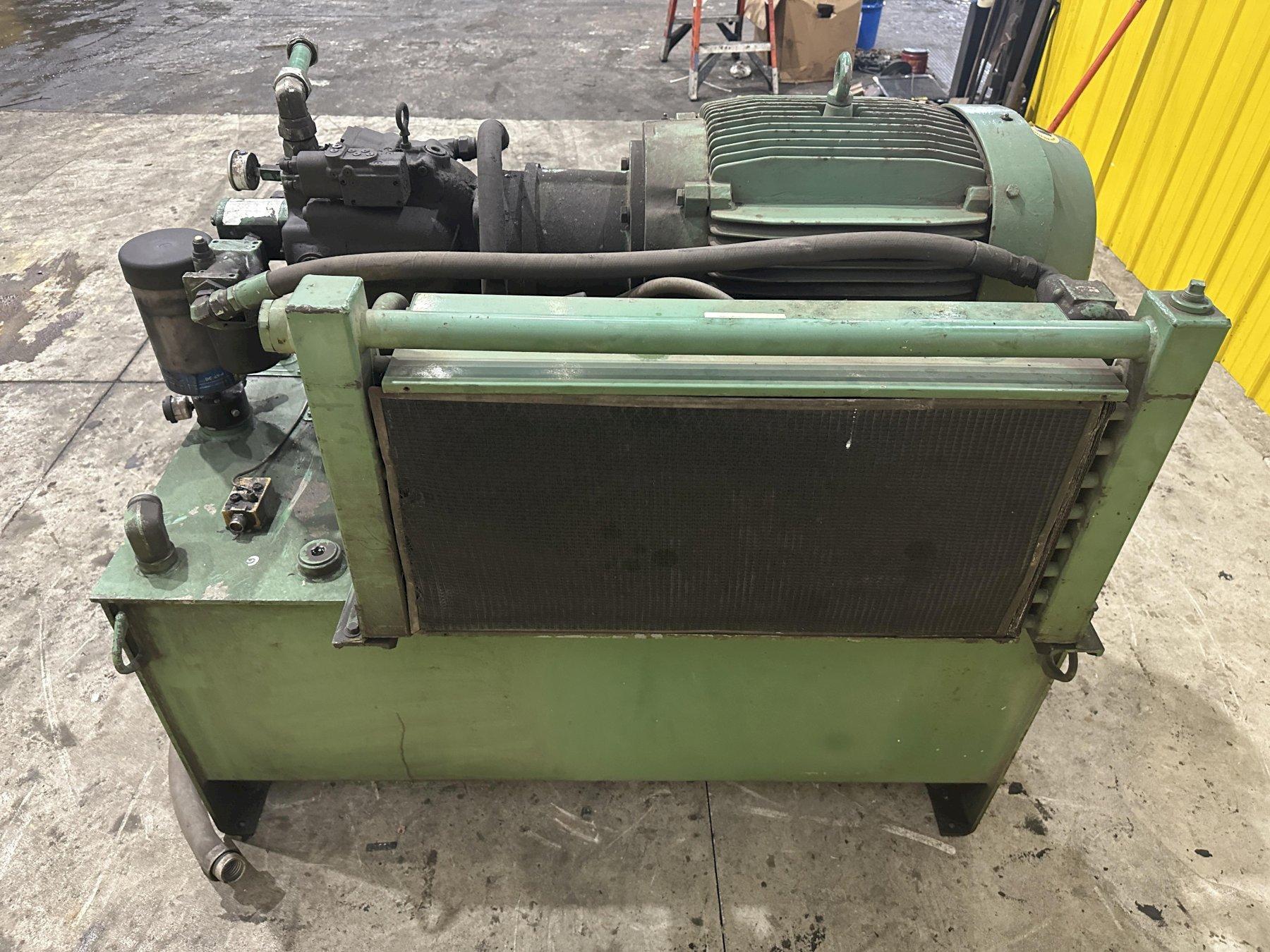

Number of Spindles 3Max. Profile Width 44″Max. profile Height 18″Min. Profile Width 3″Min. Profile Height 3″Spindle Horsepower Standard 13.5 HP – Dual Range Hydraulic MotorSpindle Speed 200-800 RPMMax. Hole Size 1-9/16″Machine Weight 10,500 lbs.
With the Peddinghaus Beam Drill Line – Advantage PCD-1100, Peddinghaus has shaped today’s CNC beam drilling machine standard with time-tested technology. The Advantage processes an average of 75 tons of steel per work week with the most efficient drilling, scribing and stamping operations. The Advantage drill line utilizes completely electronic spindle motion. This combined with Peddinghaus’ renowned build quality and mechanical design provide the ultimate combination of agility and strength.
- High Speed Drilling

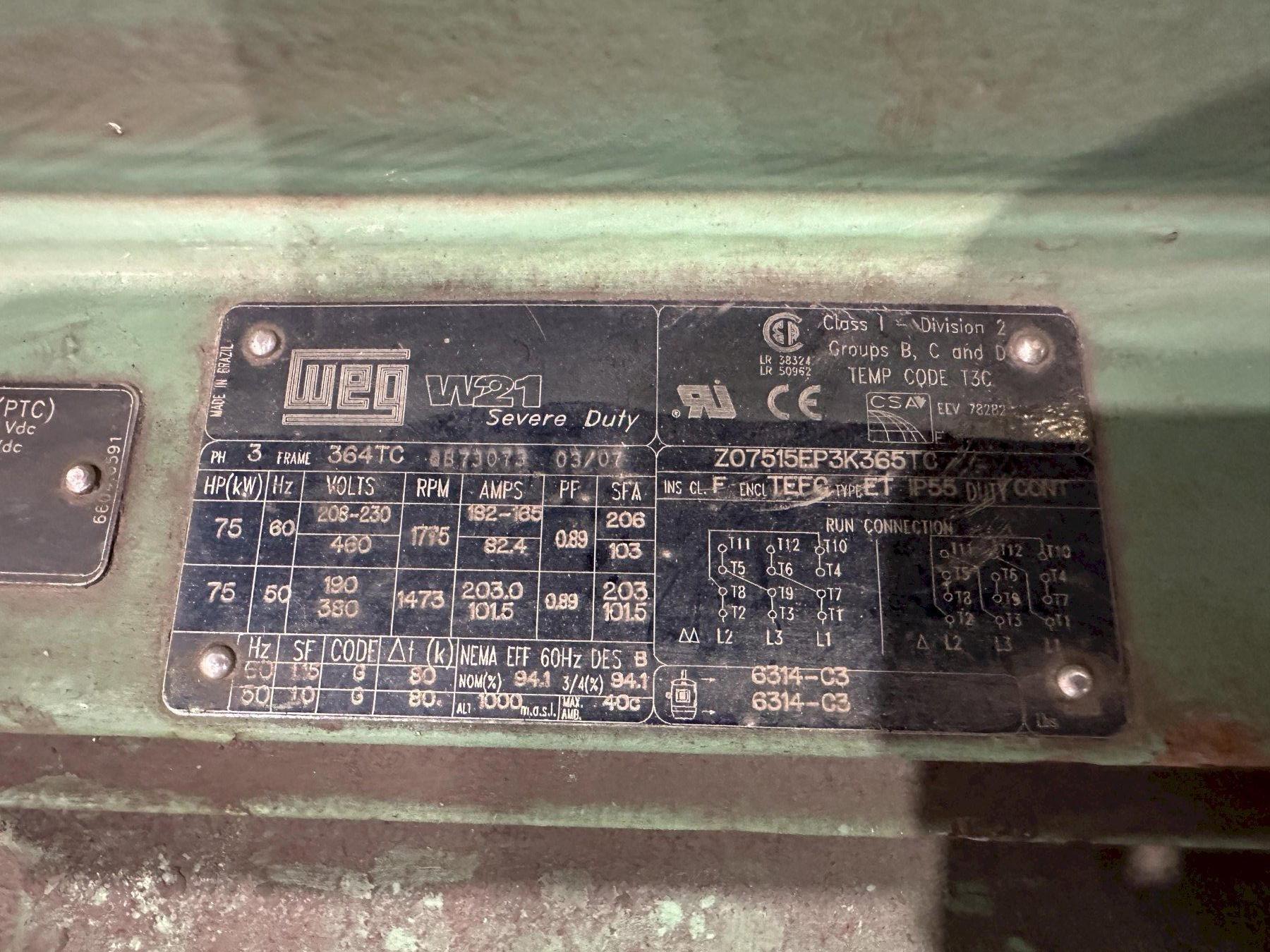

Powered by 13.5 HP (10 kW) spindle motors, this CNC beam drilling machine is outfitted with 3 drill spindles. This powerful drilling technology allows for maximized operating time and drill hole quality.- SignoScript Scribing
The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.- SignoMat Part Stamping
An optional part stamping system maximizes part numbering efficiency. SignoMat technology stamps up to 36 characters or numbers at a rate of one character per second.- Nonstop Throughput with Roller Feed Measurement

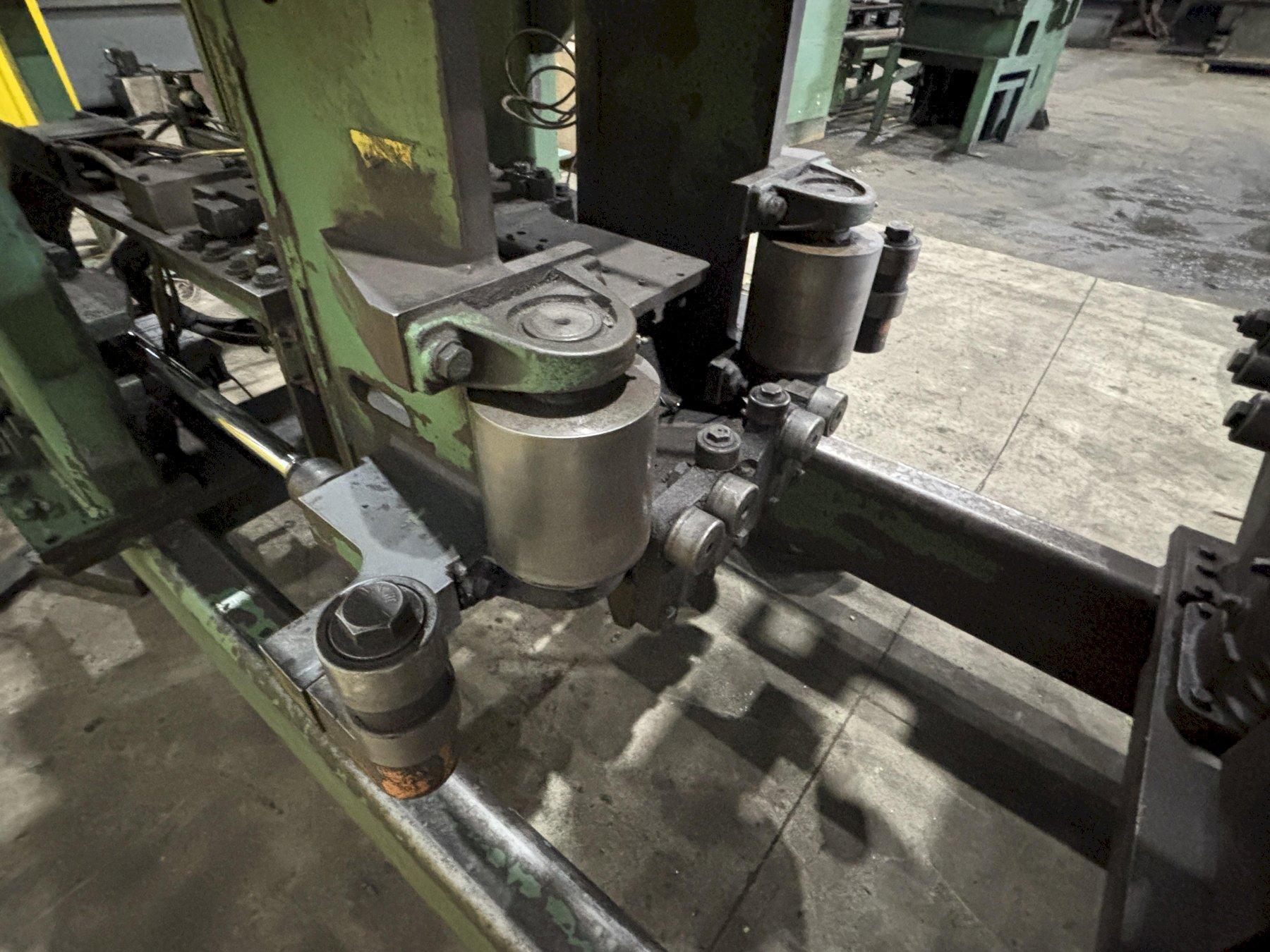

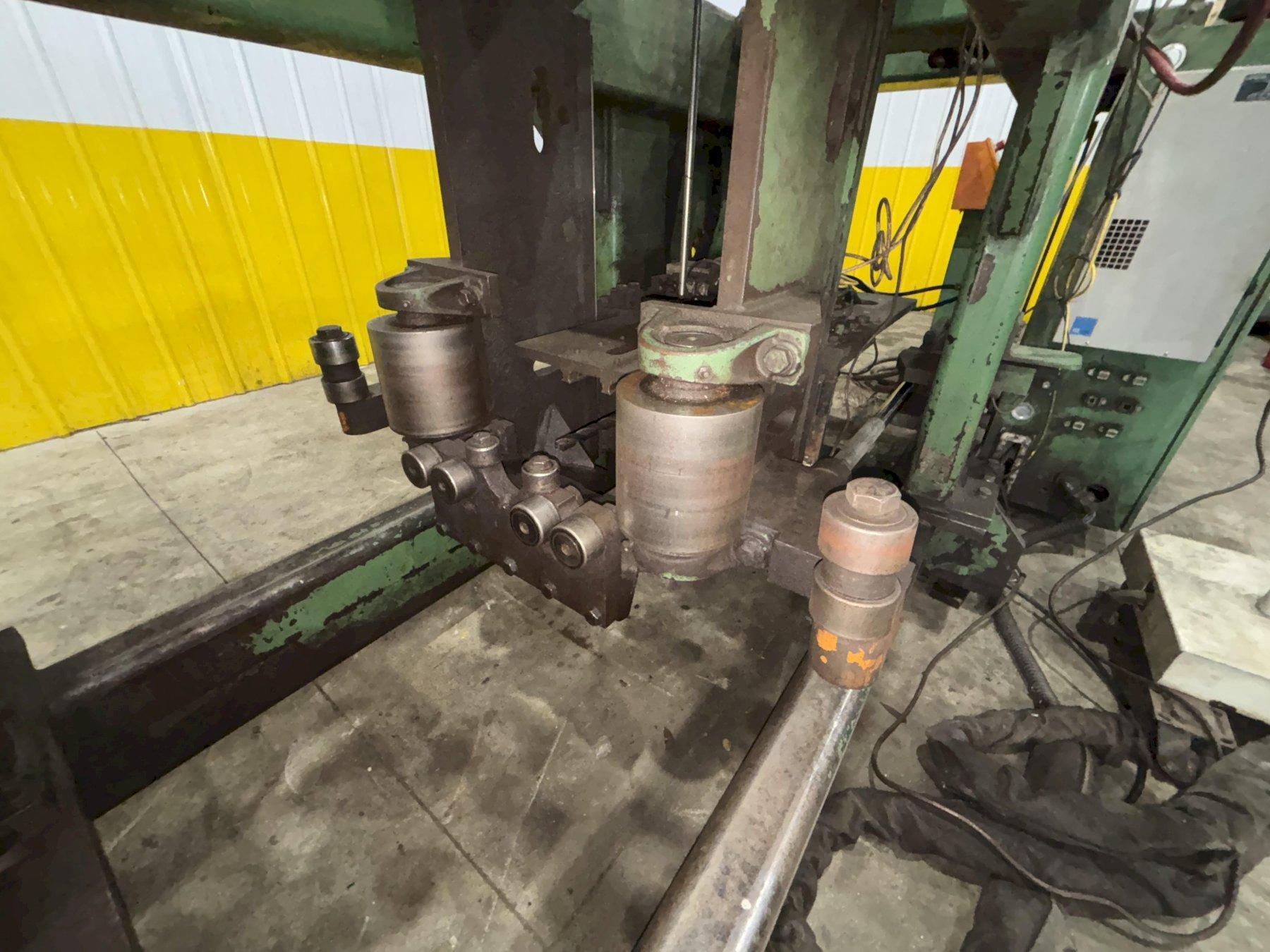

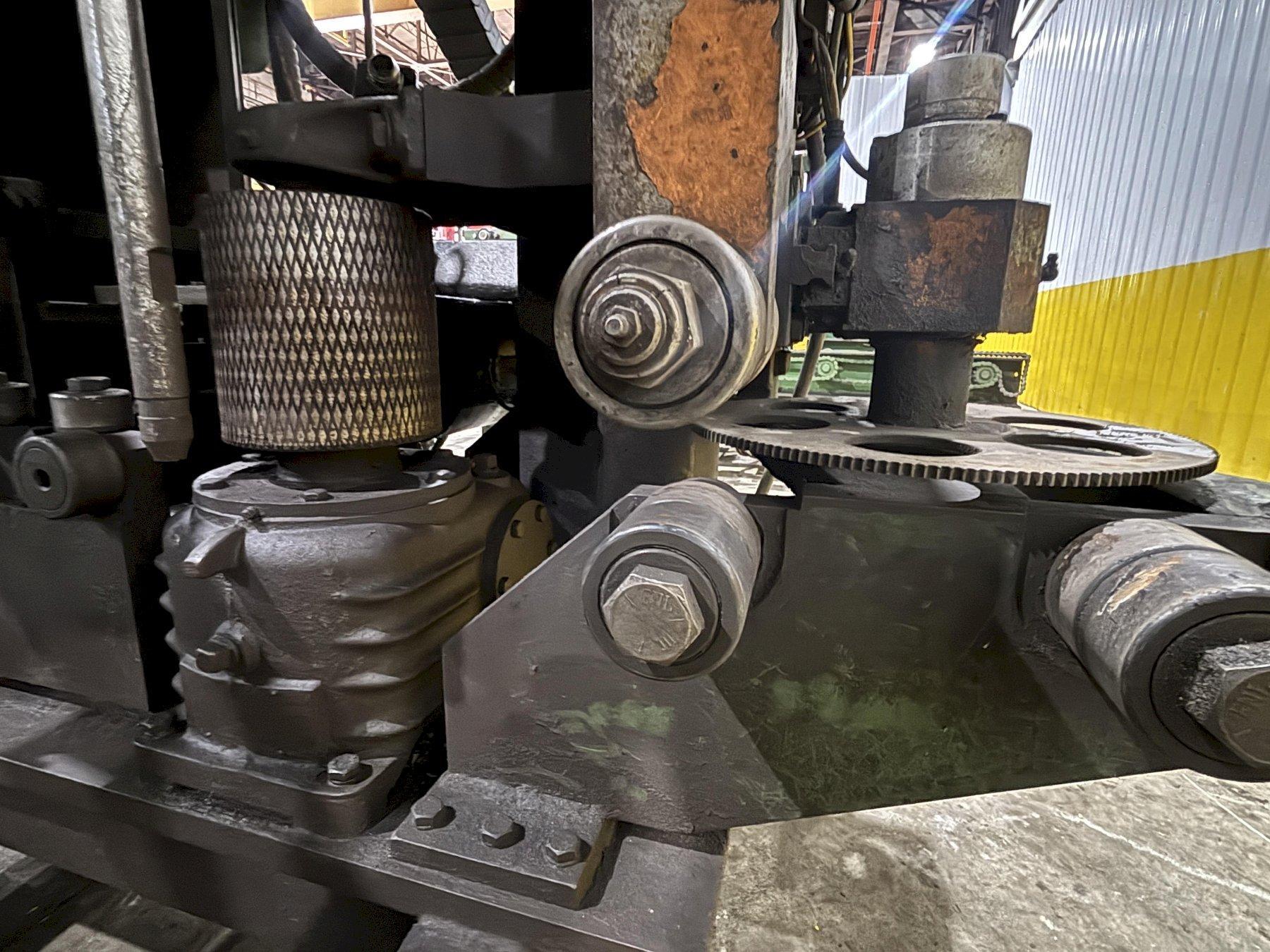

Peddinghaus’ Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.
