Brand
DMG DECKEL
Type
Machining Centers, Vertical
Stock No.
21988
 |
419-269-2000 |
Stock #: 21988

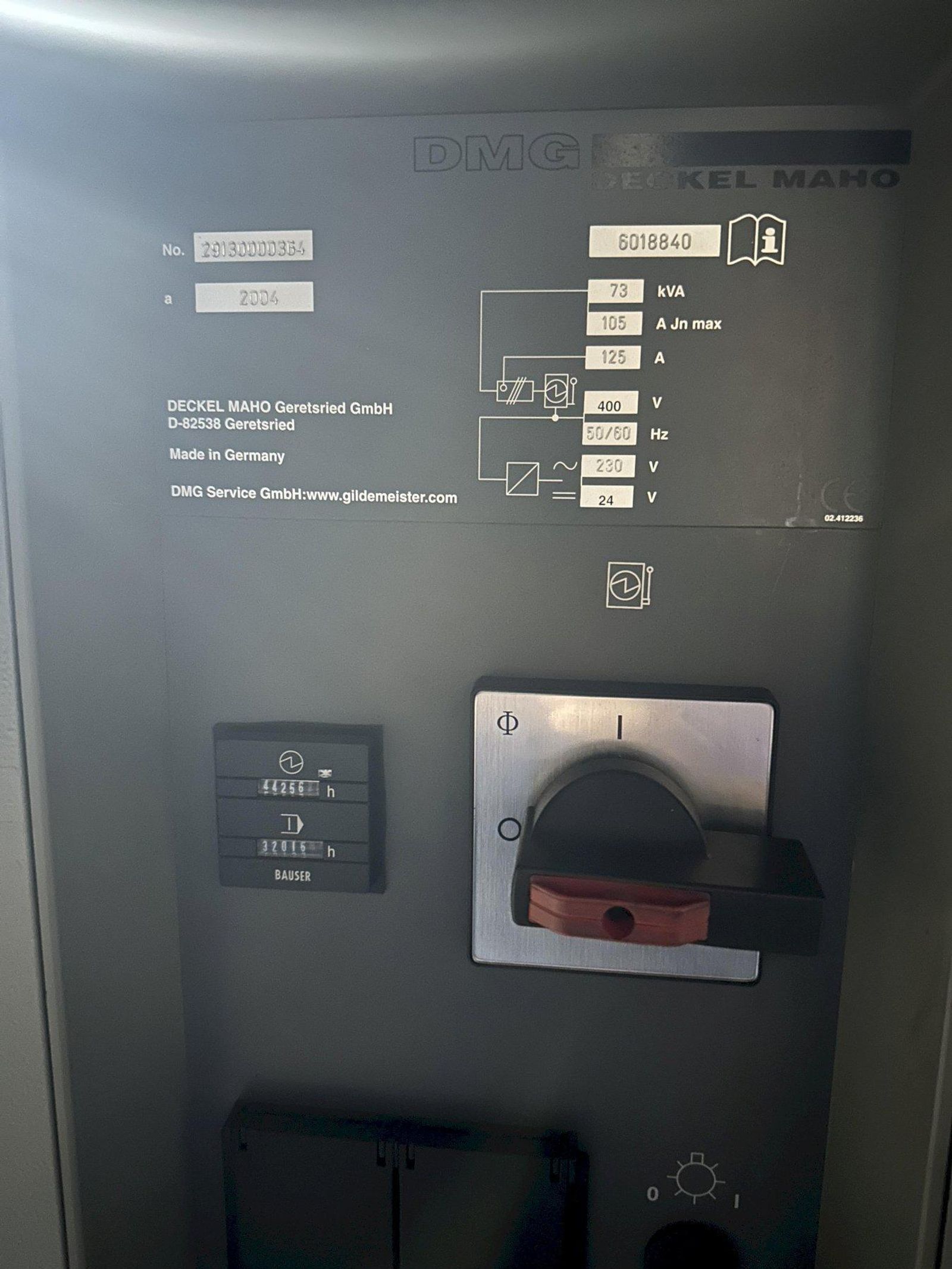

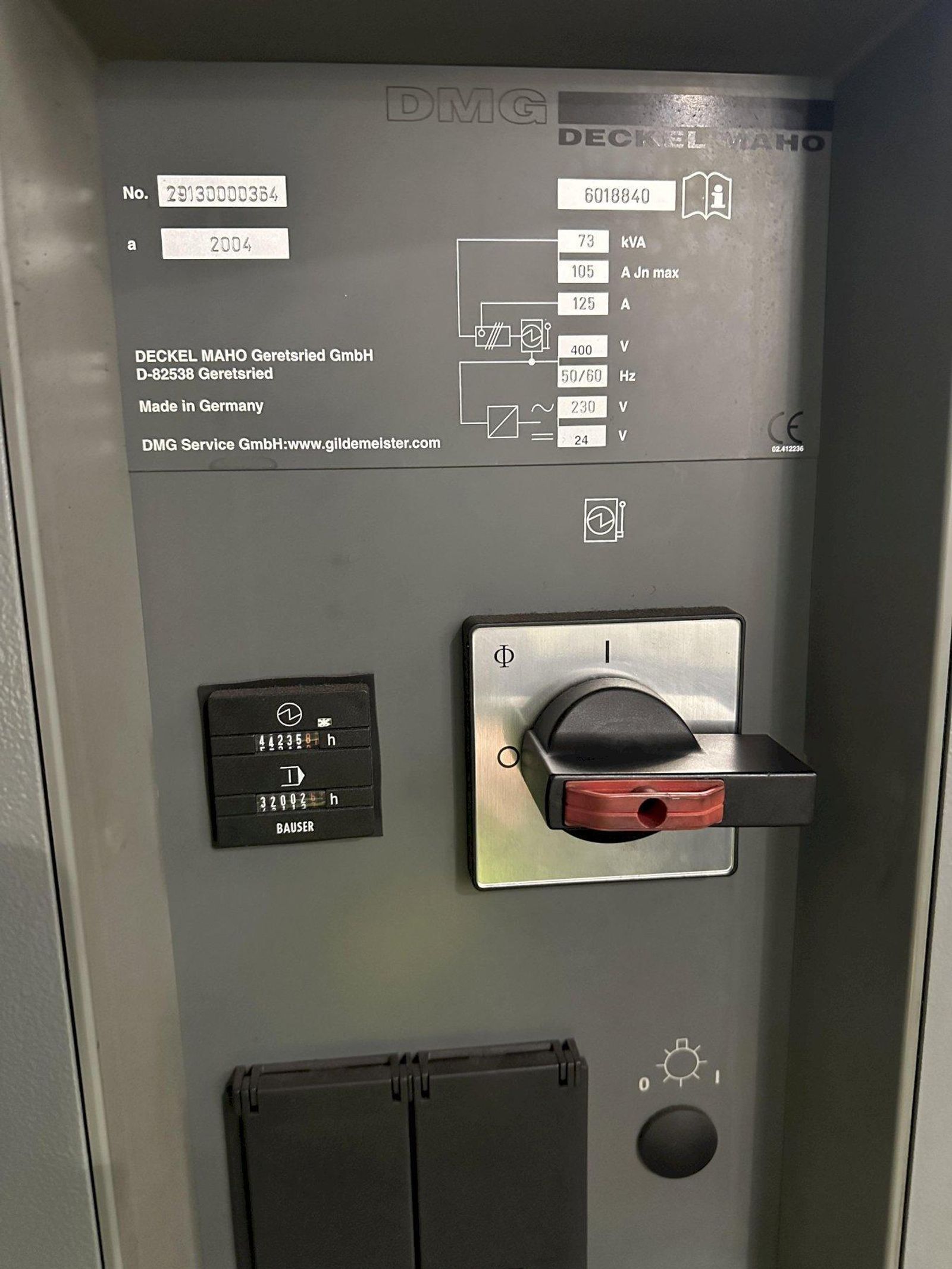

SERIAL ..................... 29130000364

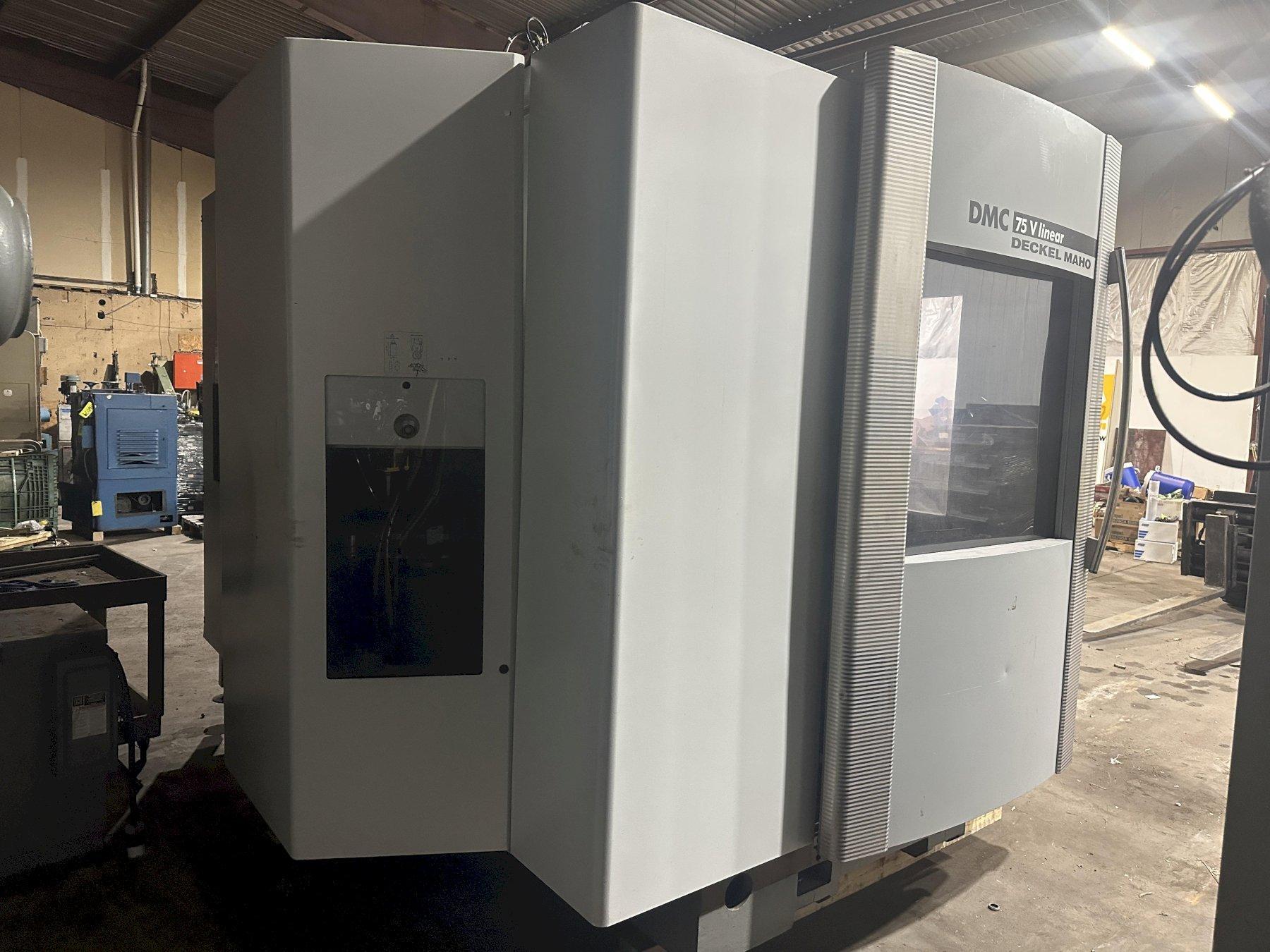

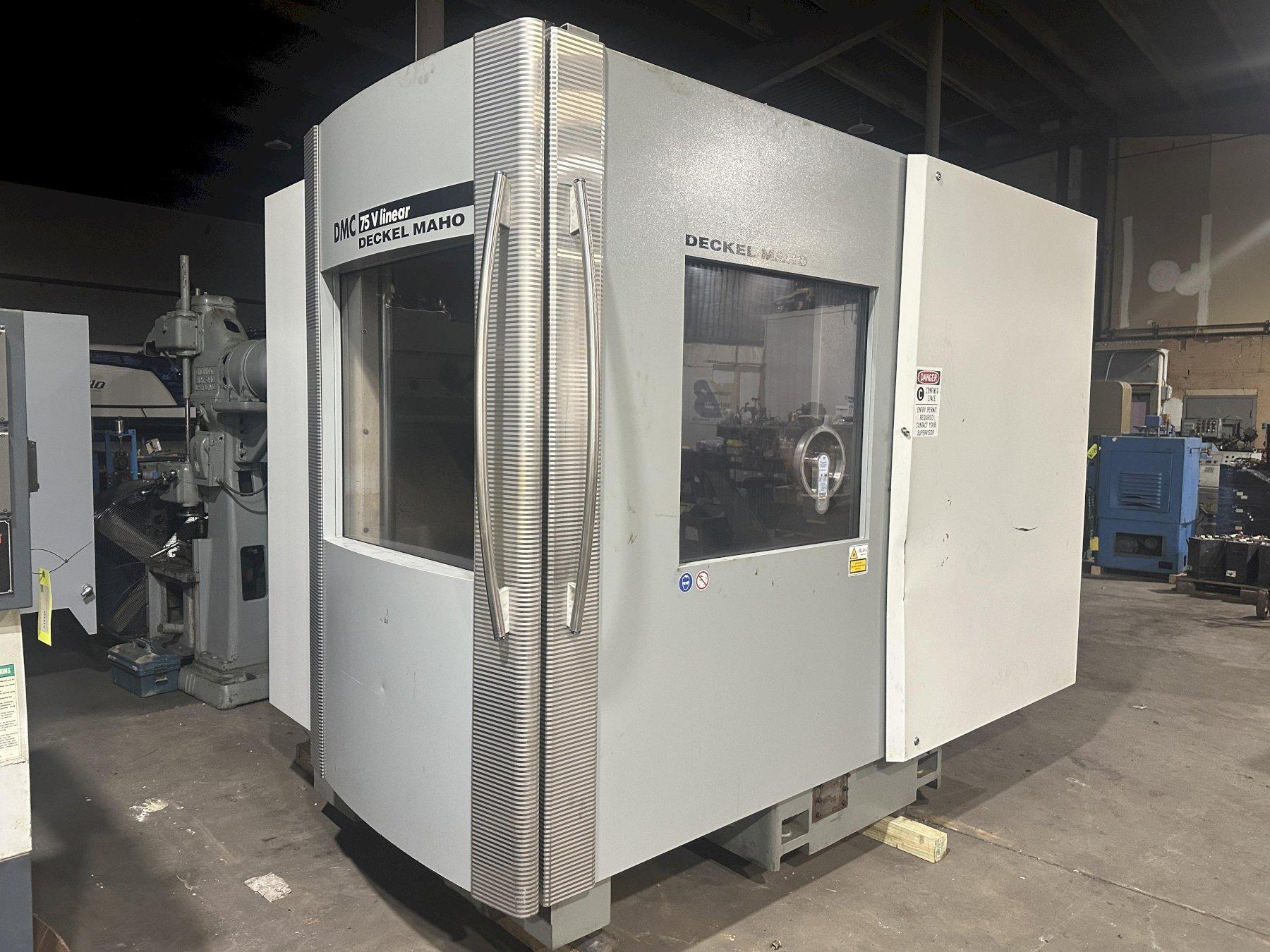

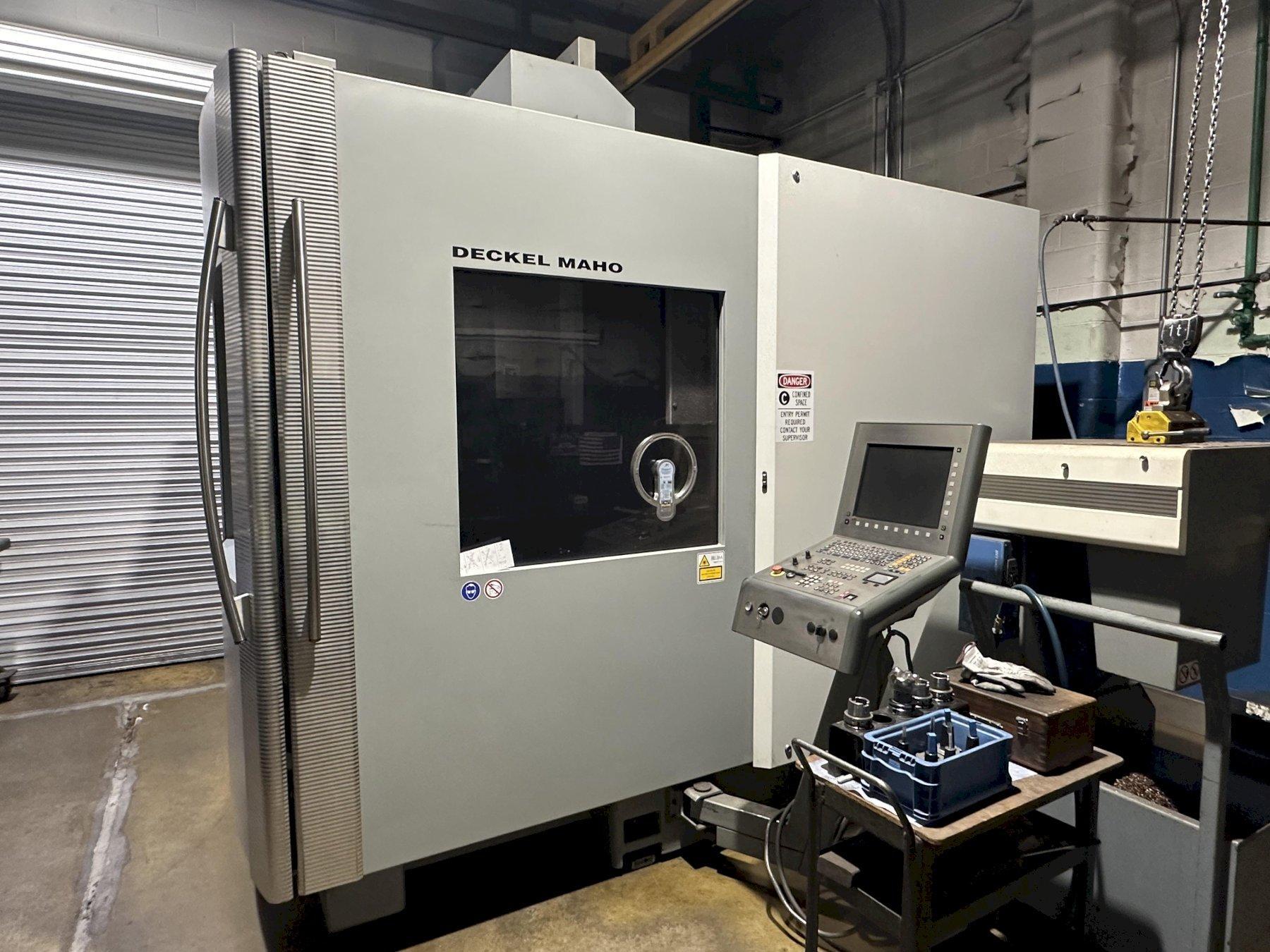

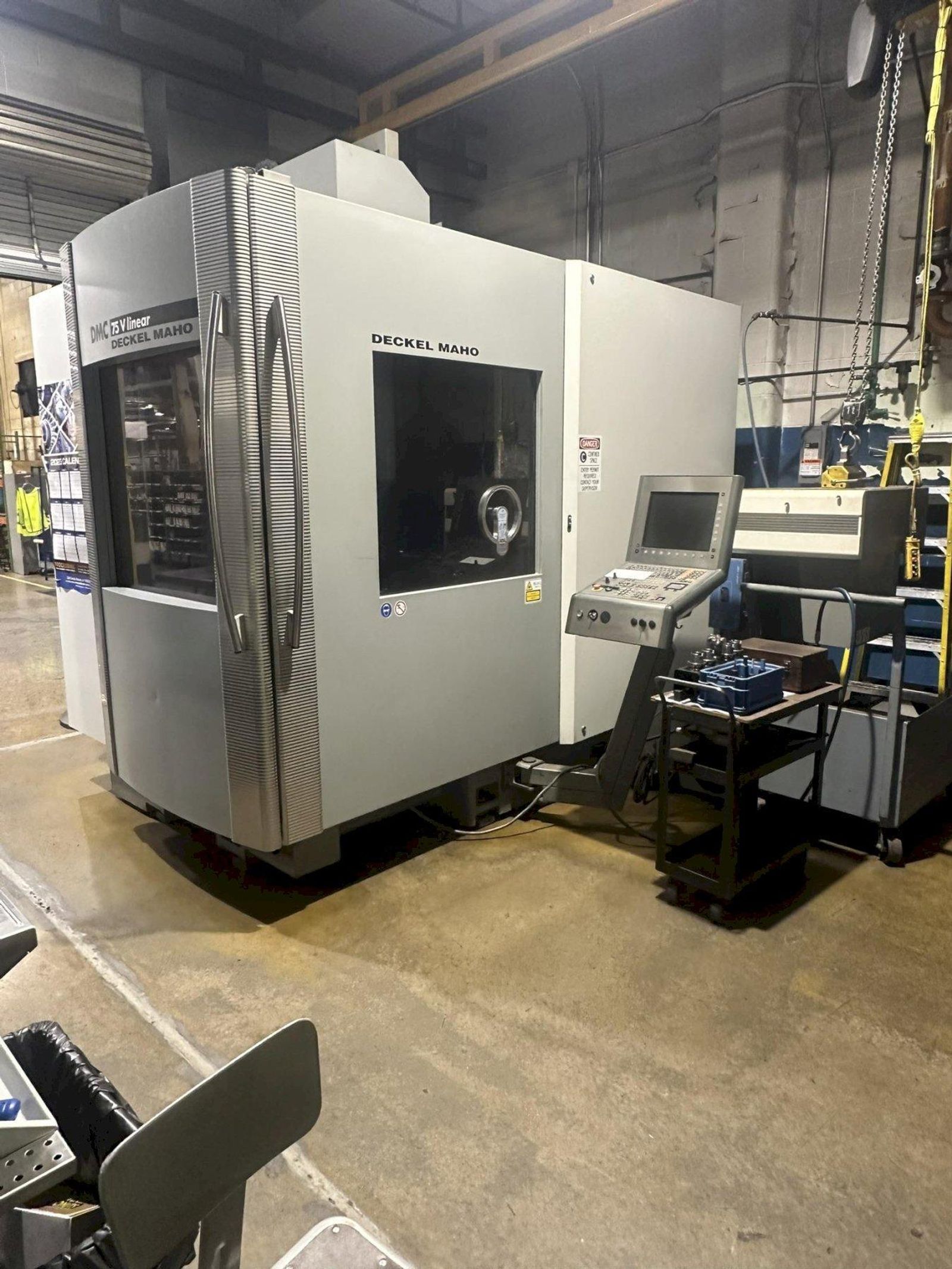

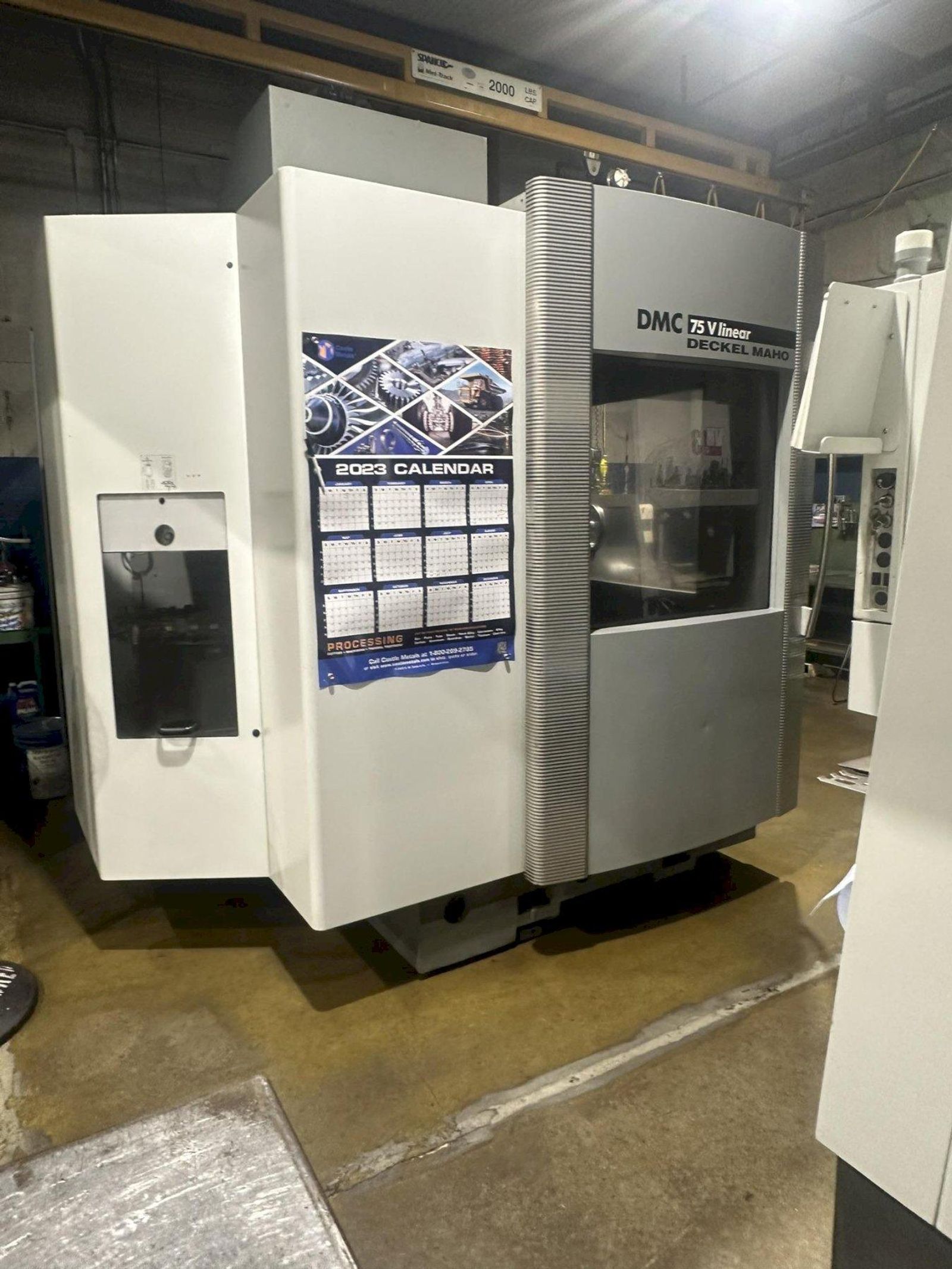

MODEL ...................... DECKEL MAHO DMC75
NEW ........................ 2004

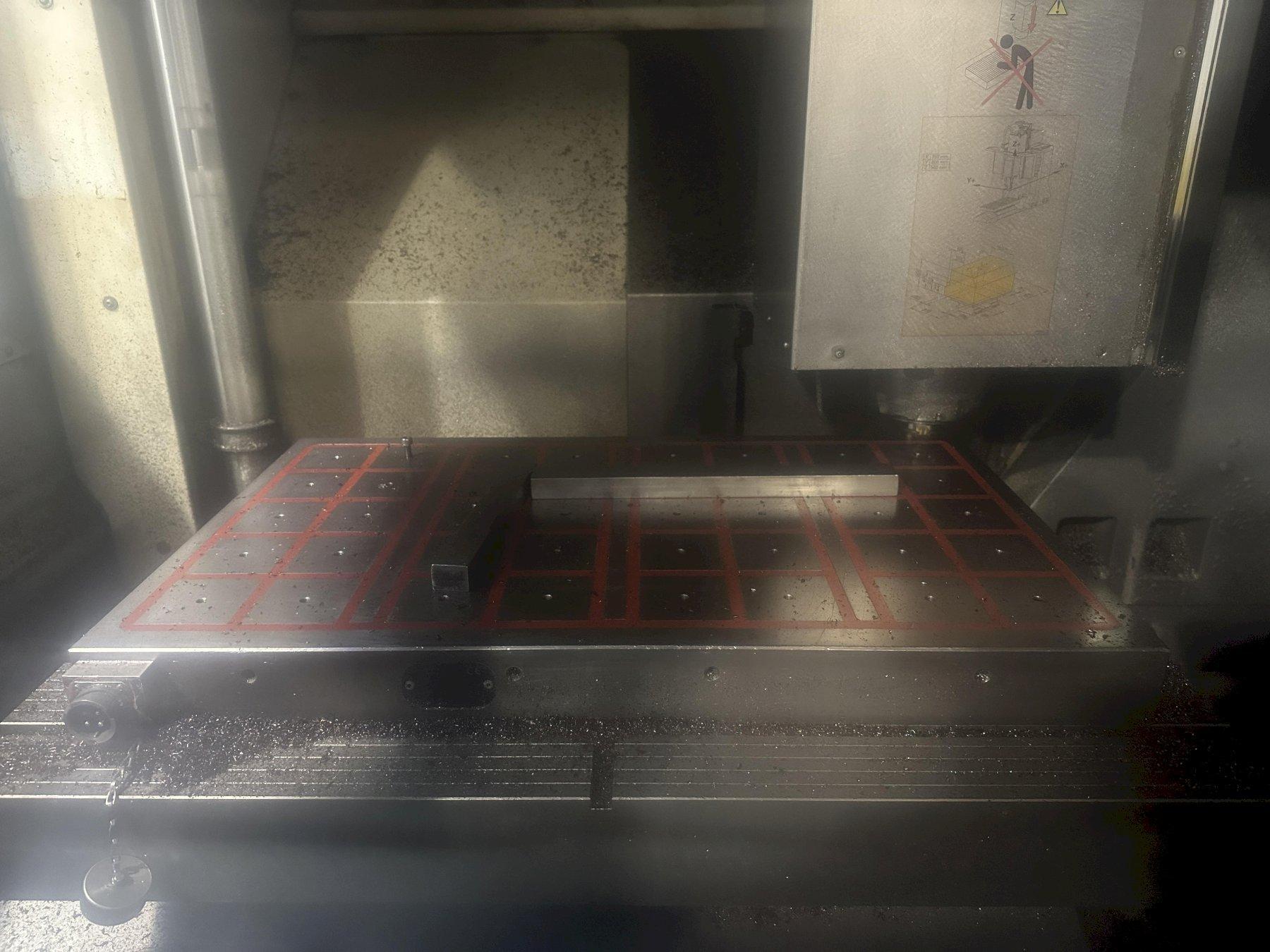

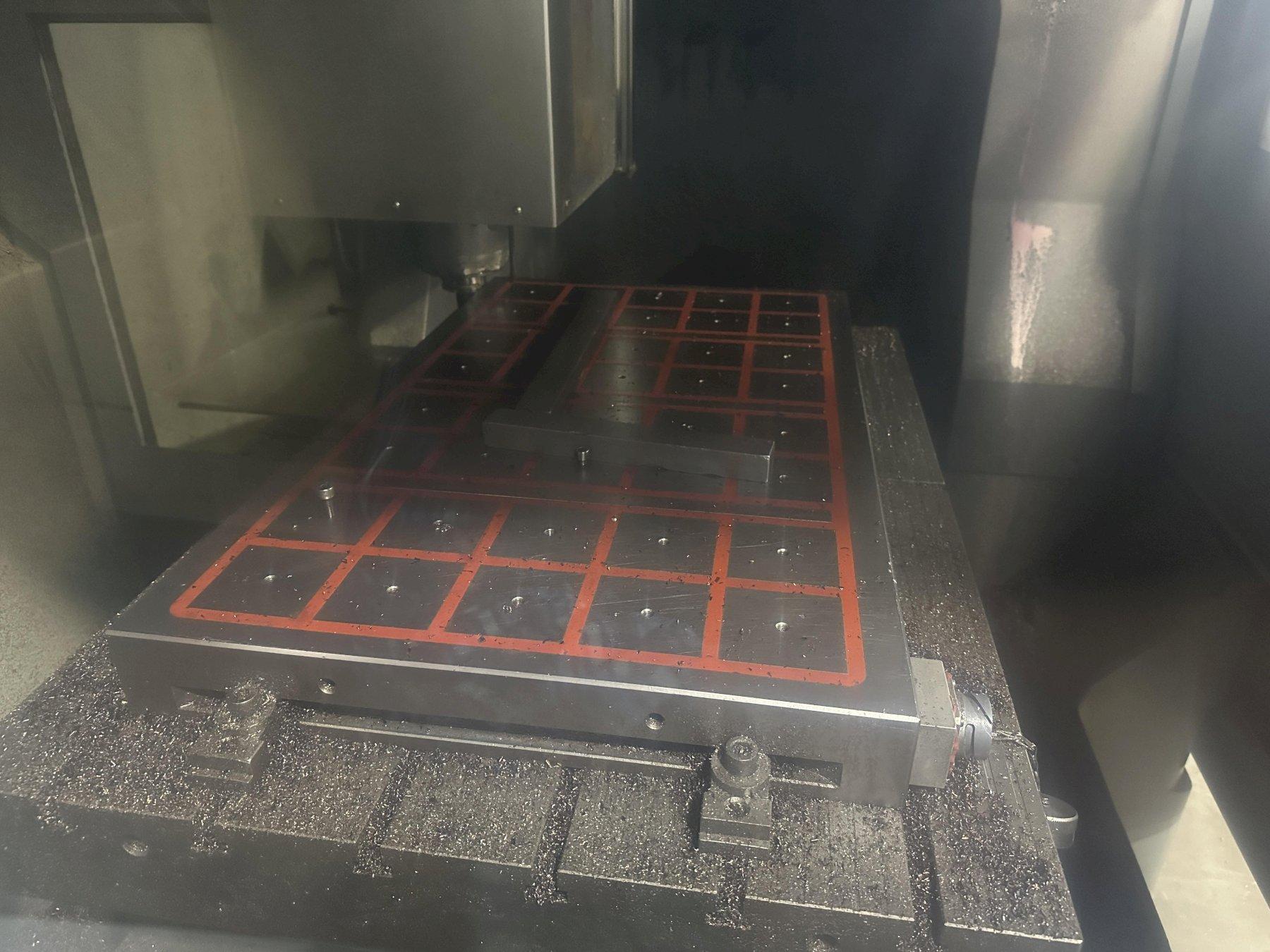

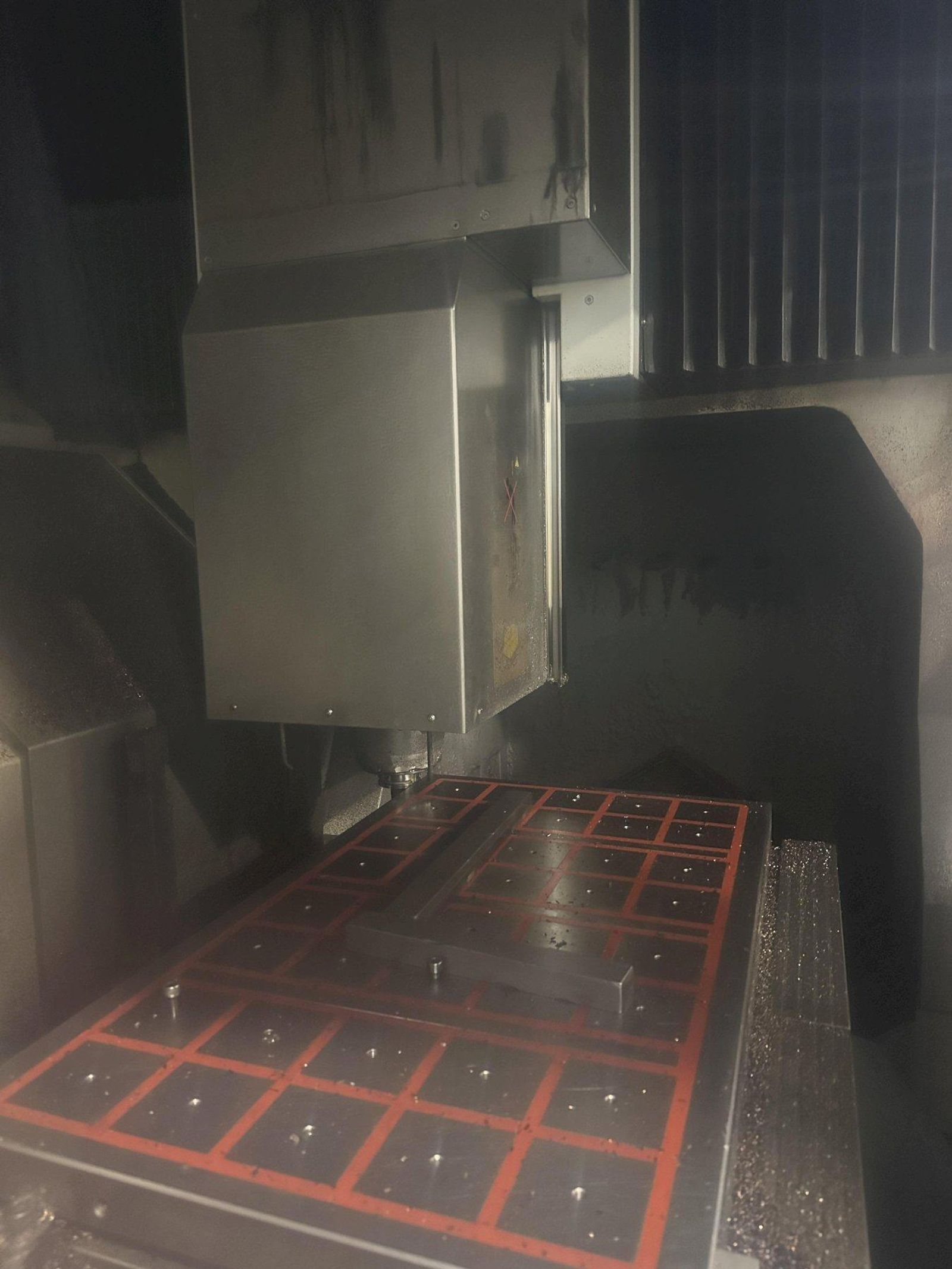

TABLE CLAMPING AREA ........ 37.4" X 25.6" (950 X 650 mm)

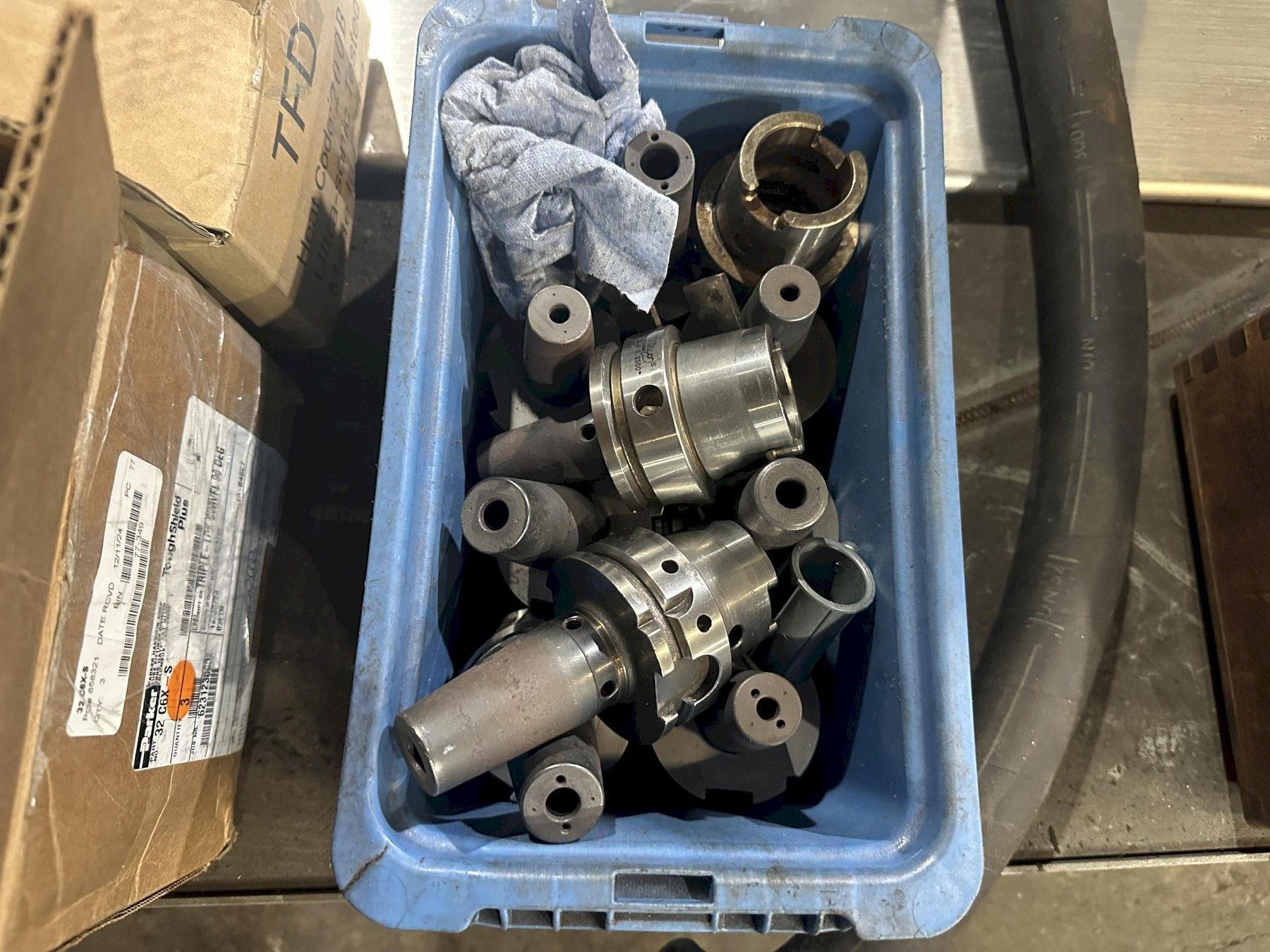

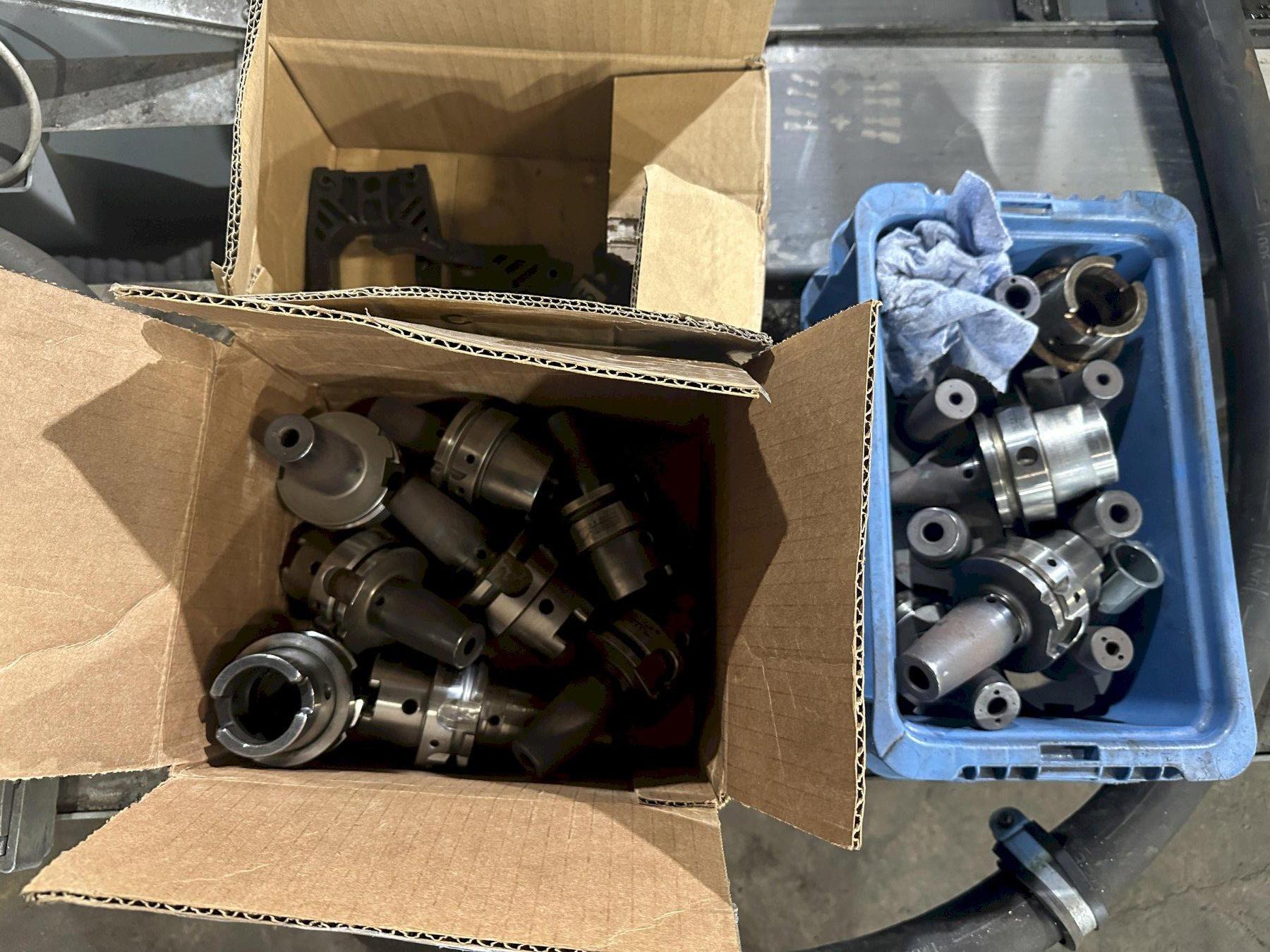

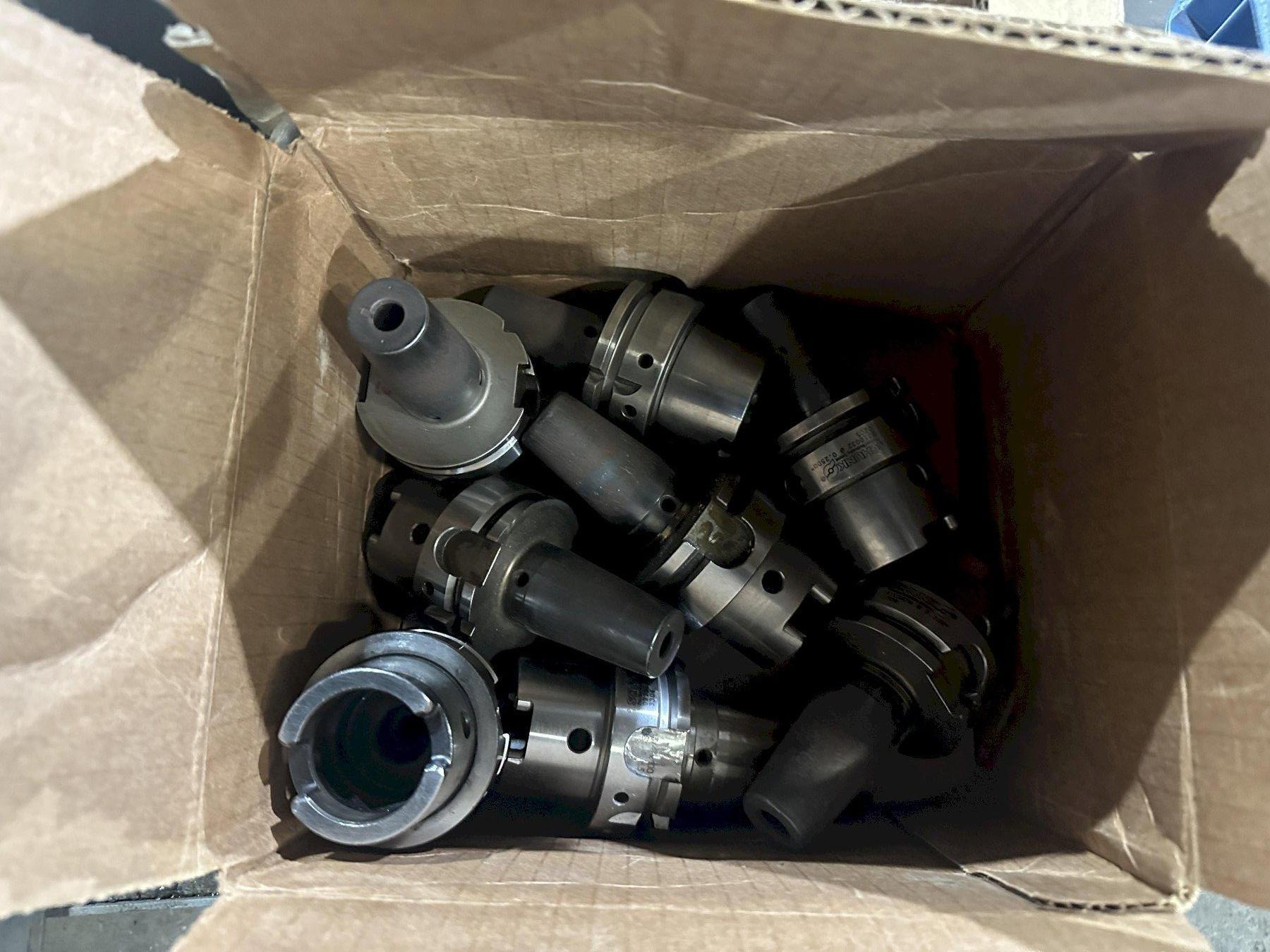

WORK PIECE WEIGHT CAPACITY . 2,205 LBSSPINDLE TOOL TAPER ......... HST 63SPINDLE SPEEDS ............. 20 TO 18,000 RPM
NUMBER OF AXIS ............. 3X AXIS TRAVEL .............. 29.5" (750mm)
Y AXIS TRAVEL .............. 23.6" (600mm)Z AXIS TRAVEL .............. 22" (560mm)X, Y & Z AXIS FEED RATE .... 0.04 TO 3,500 IPM
X, Y & Z RAPID FEED RATE ... 3,500 IPMX & Y AXIS FEED FORCE ...... 2,470 LBS (11,000 N)
Z AXIS FEED FORCE .......... 2,135 LBS (9,500 N)

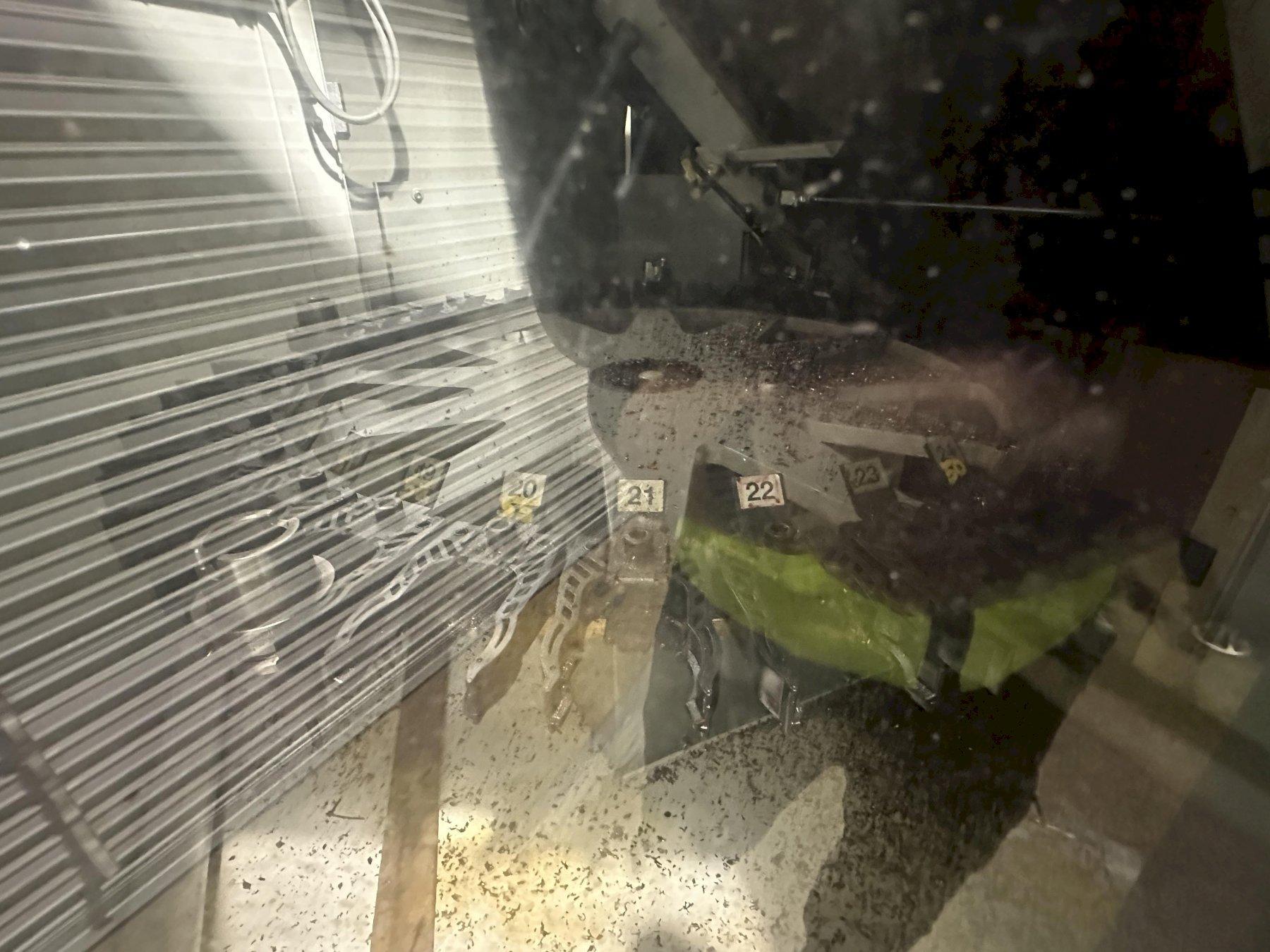

TOOL CHANGER ............... 30 STATIONS

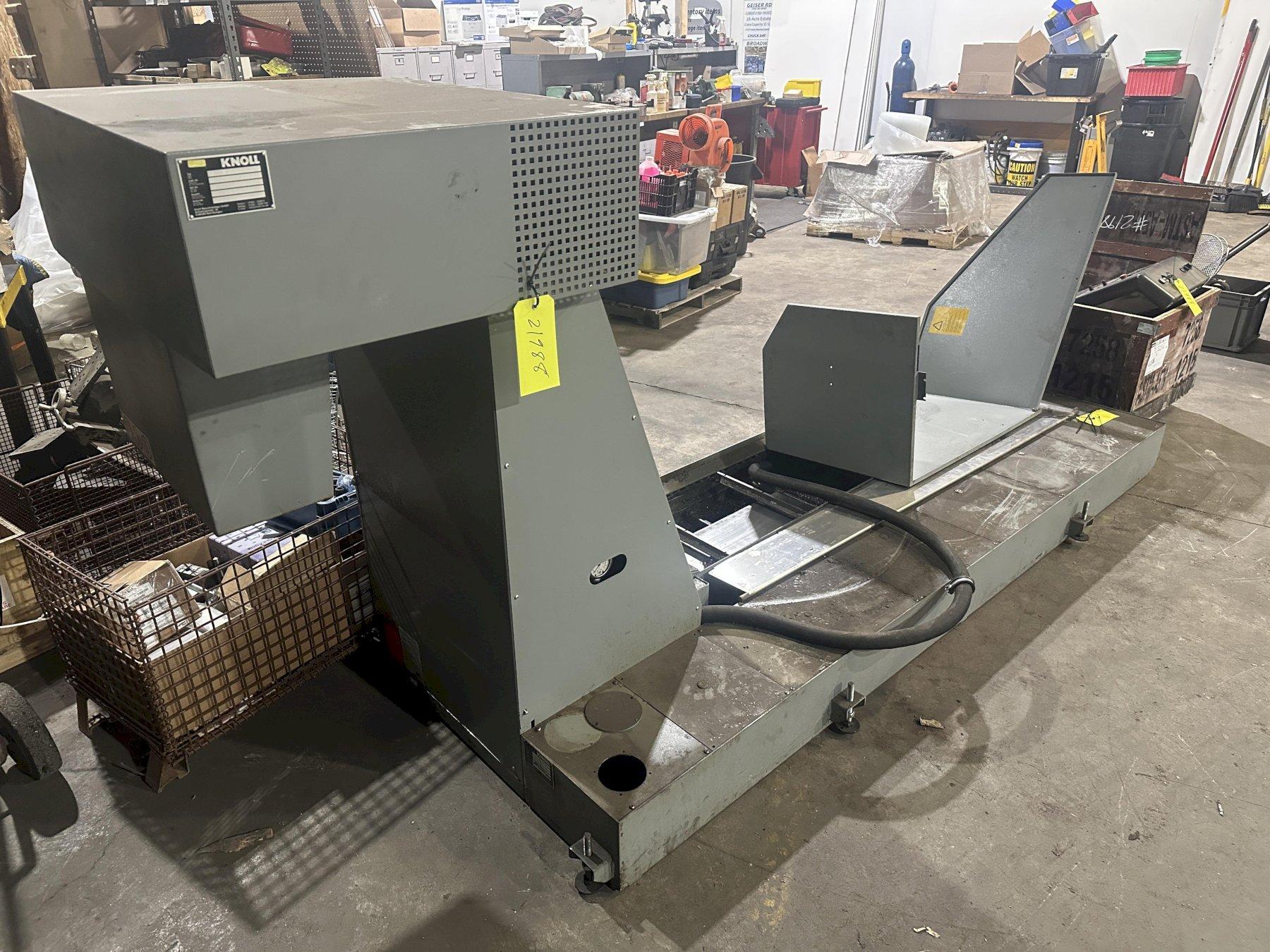

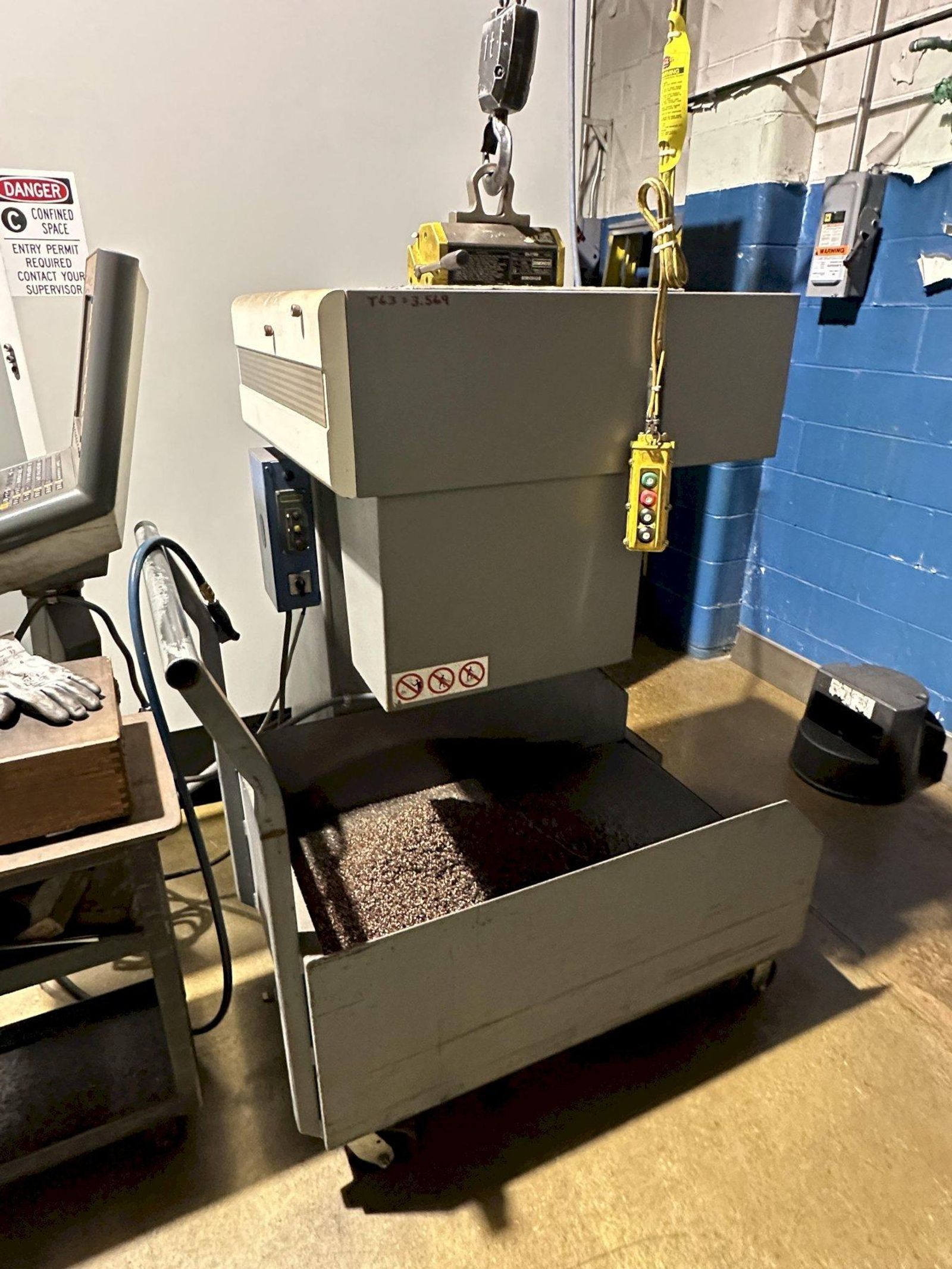

CHIP DISCHARGE CONVEYOR .... YES

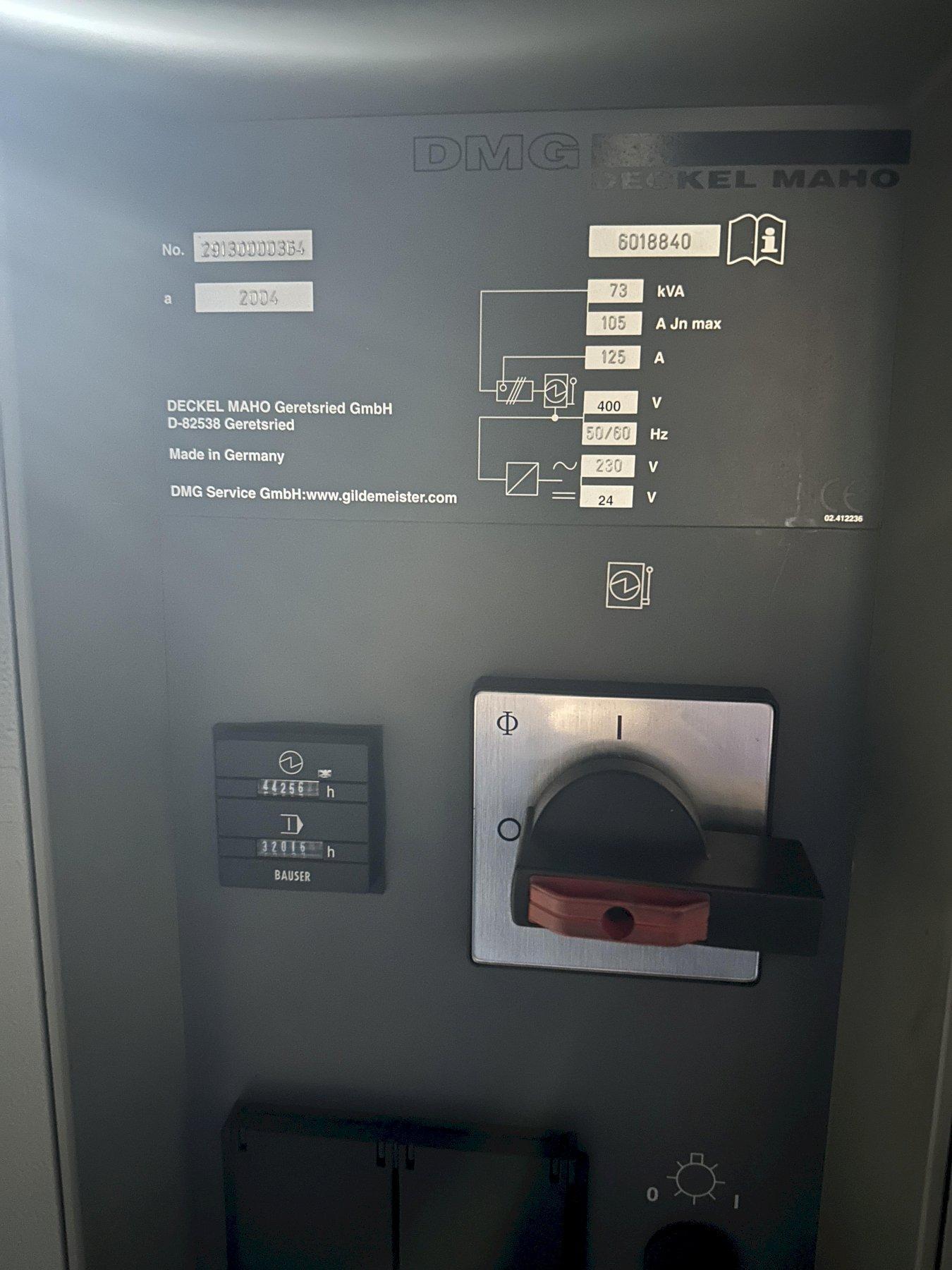

LUBRICOOLANT SYSTEM ........ YESMAIN MOTOR ................. 33.5 HP (25 KW)
