Brand
CWP
Type
Coil Feed Lines
Stock No.
21083
Discover key tips for buying used industrial machinery with confidence. Define needs, research suppliers, inspect thoroughly, consider maintenance, verify history, and negotiate for a reliable...
 |
419-269-2000 |
Stock #: 21083

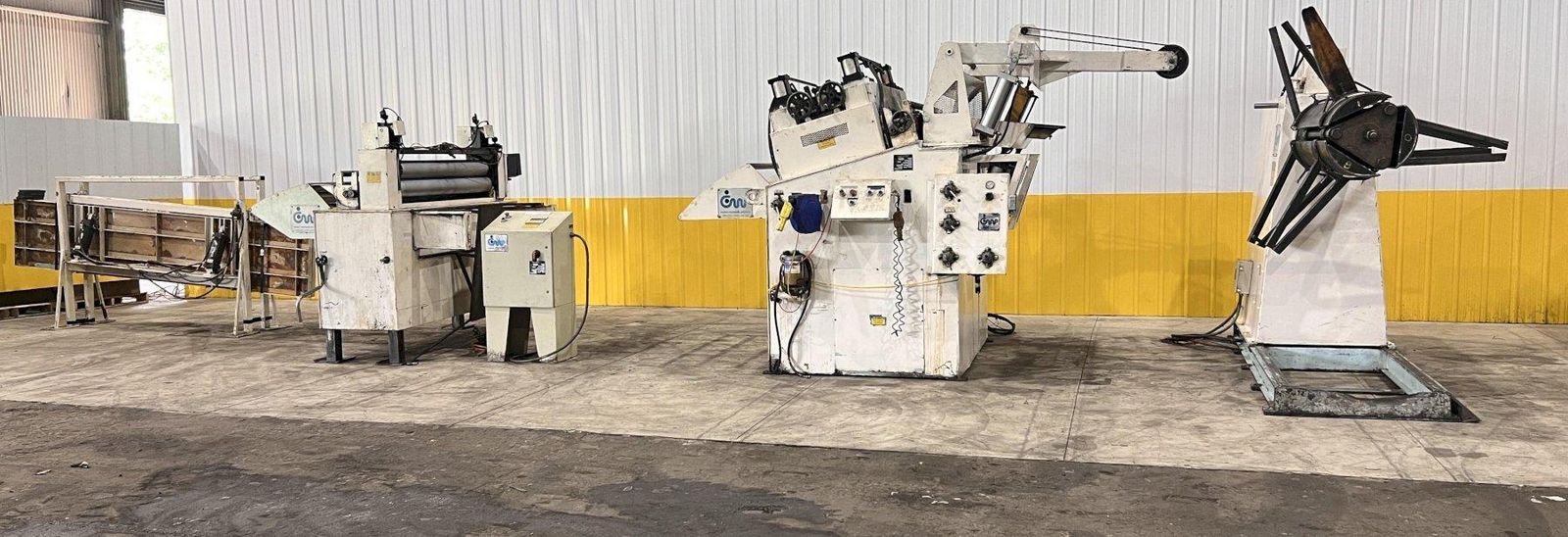

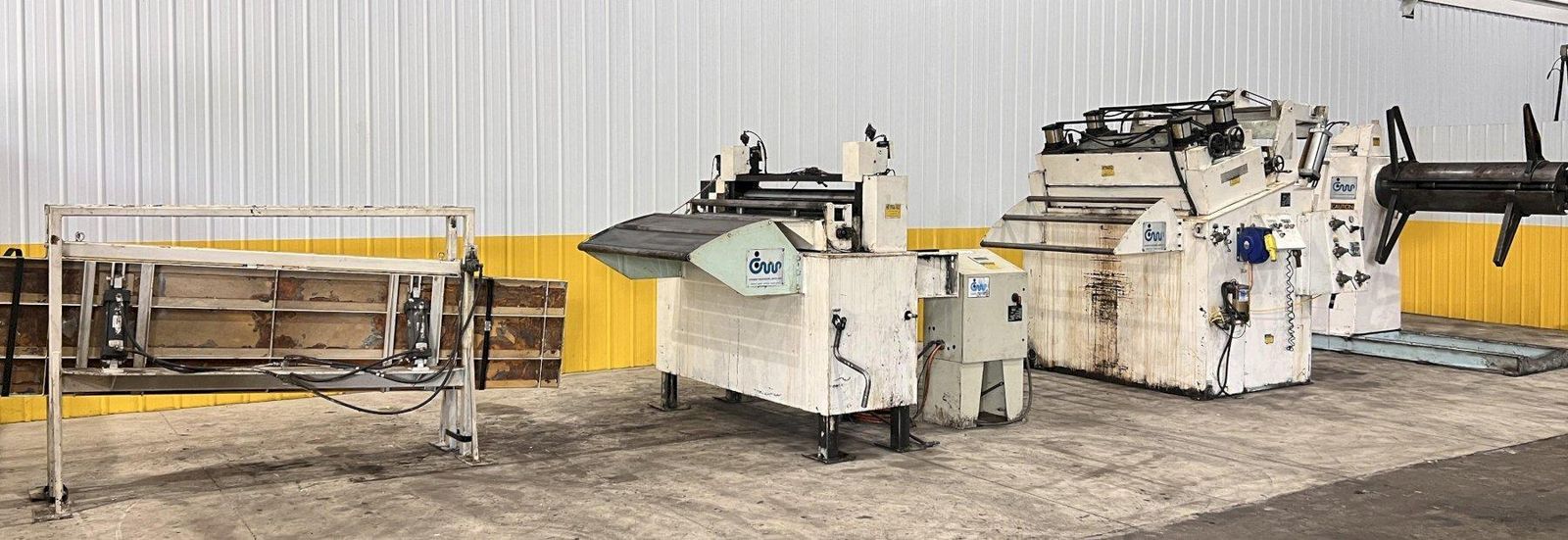

20,000 LBS X 54" X .125" CWP COIL SERVO FEED LINE

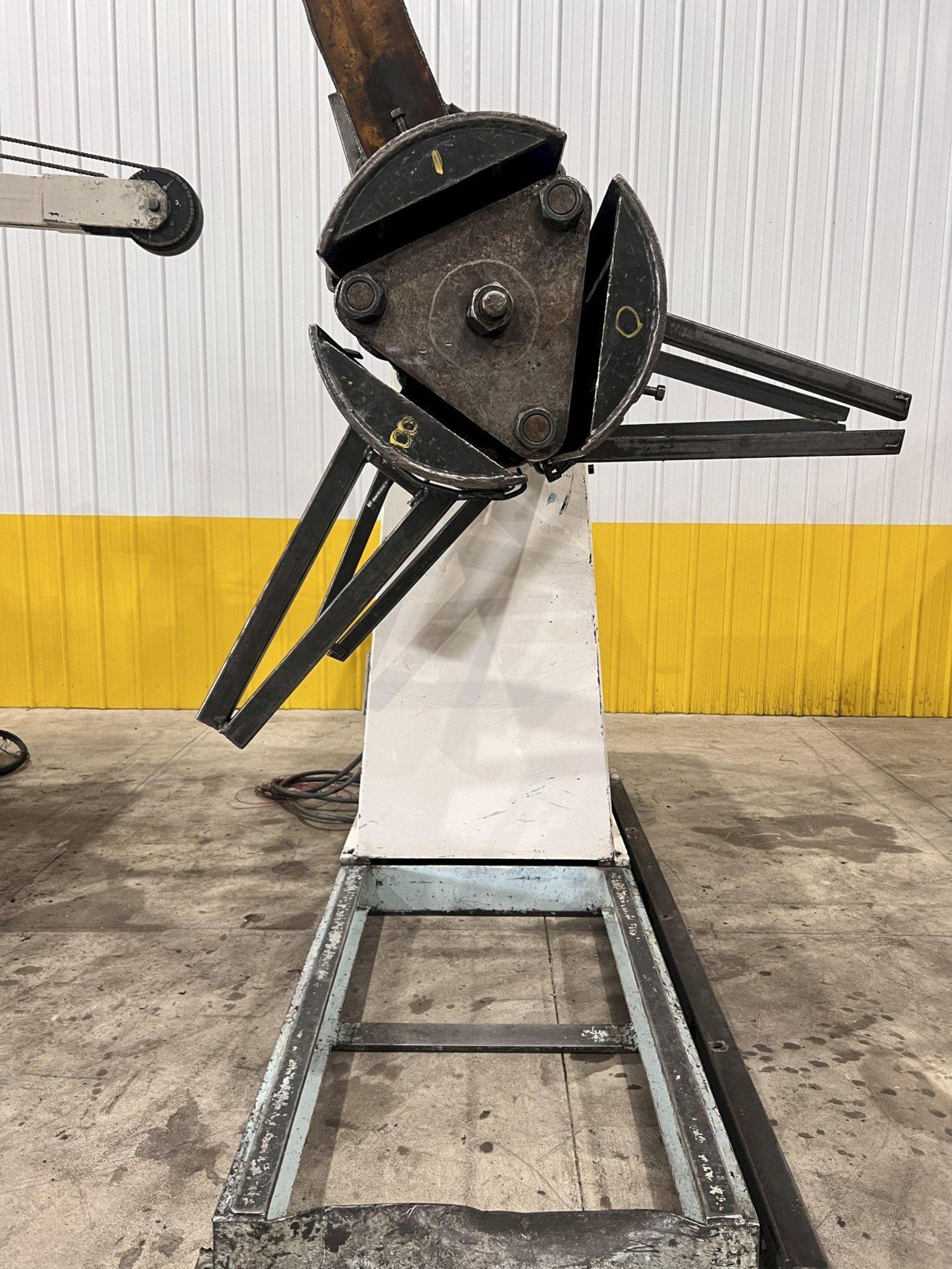

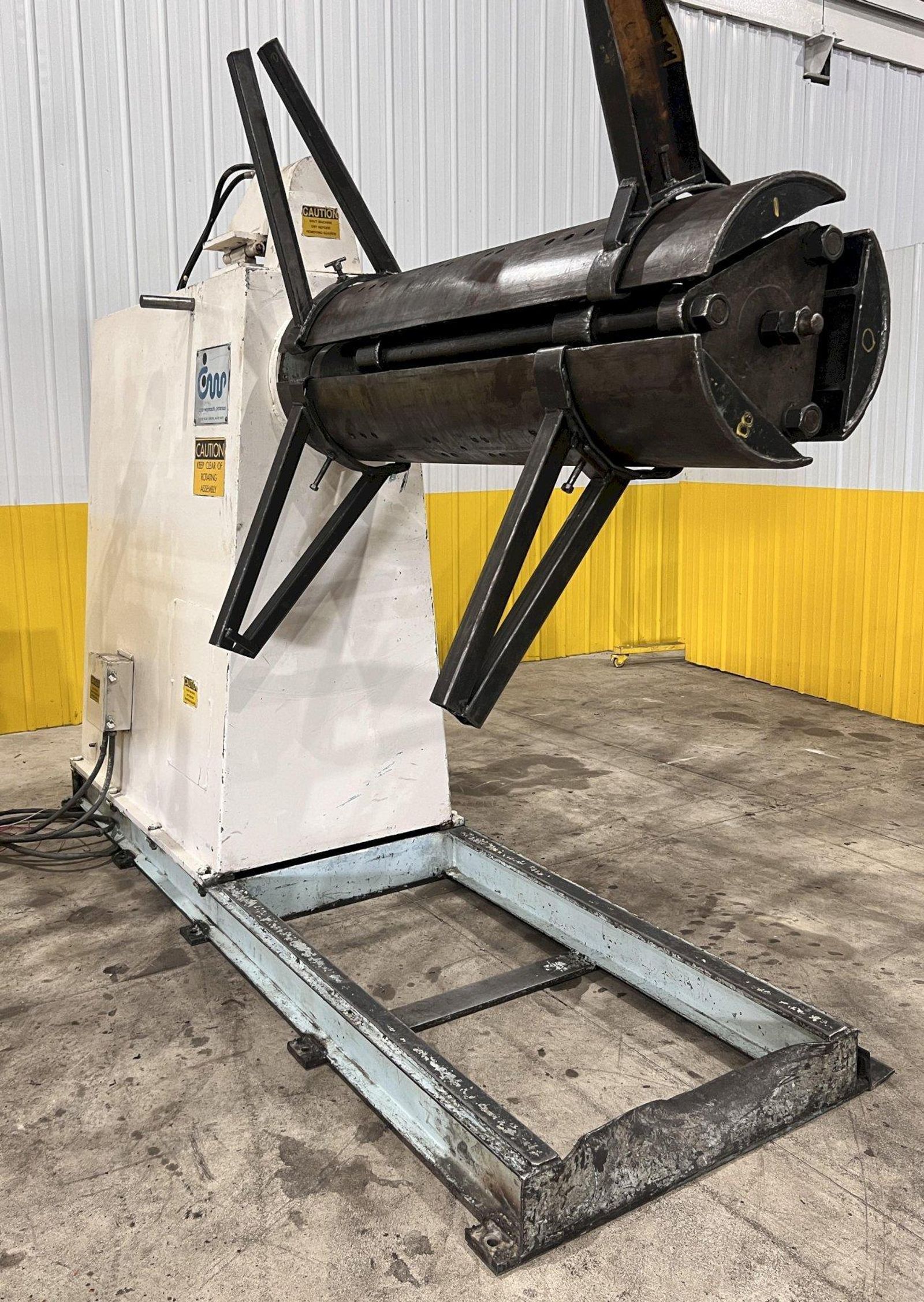

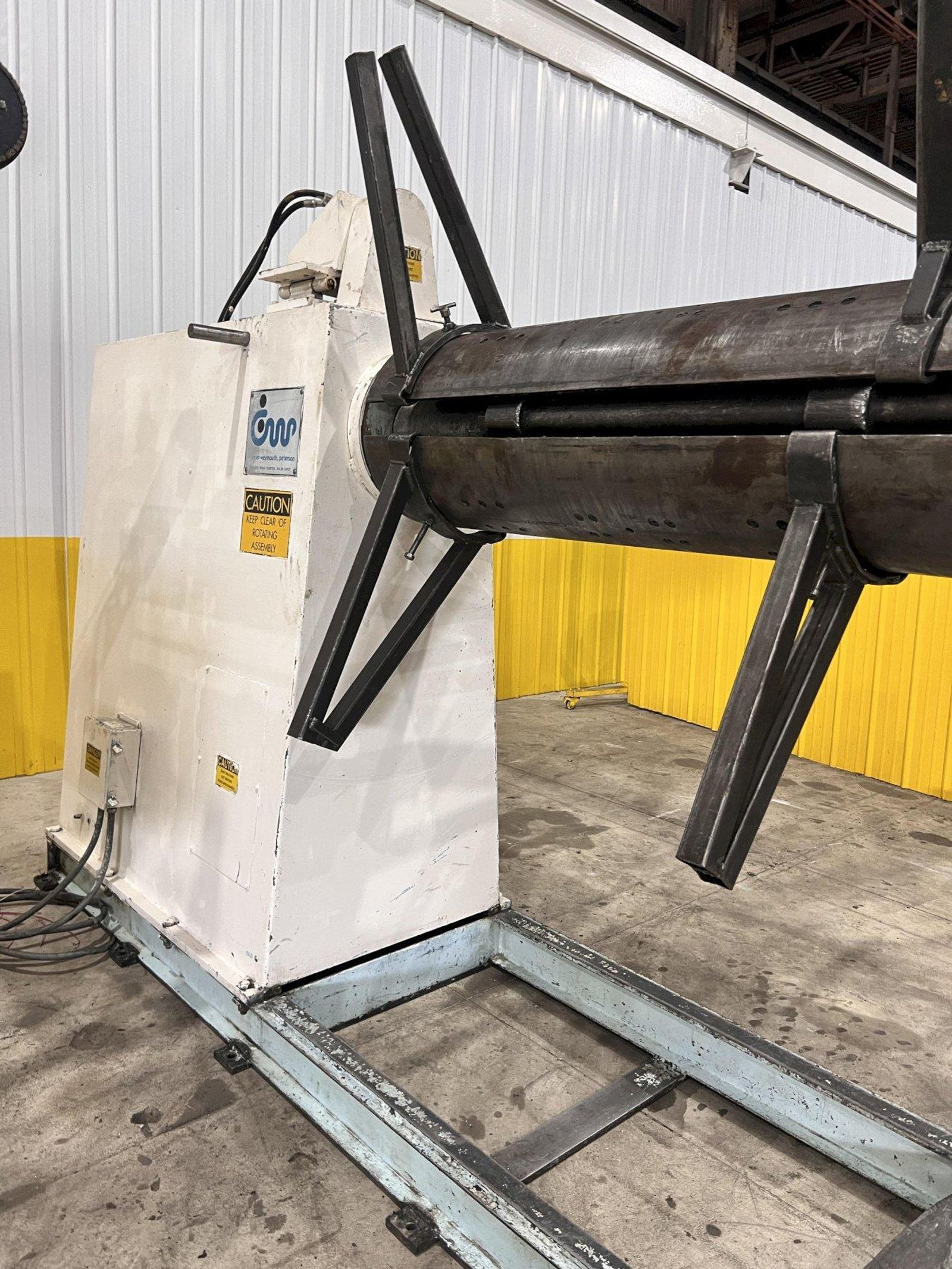

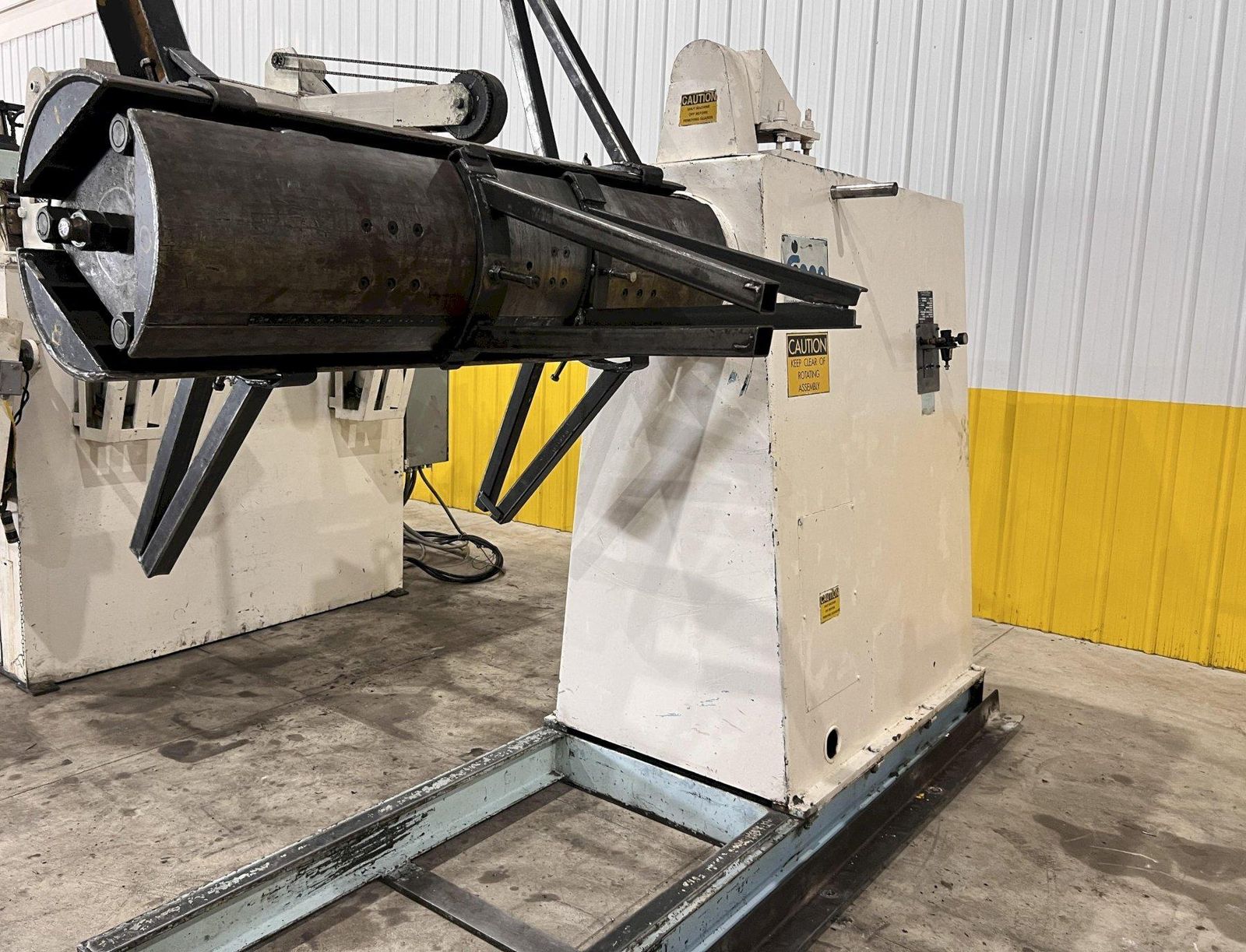

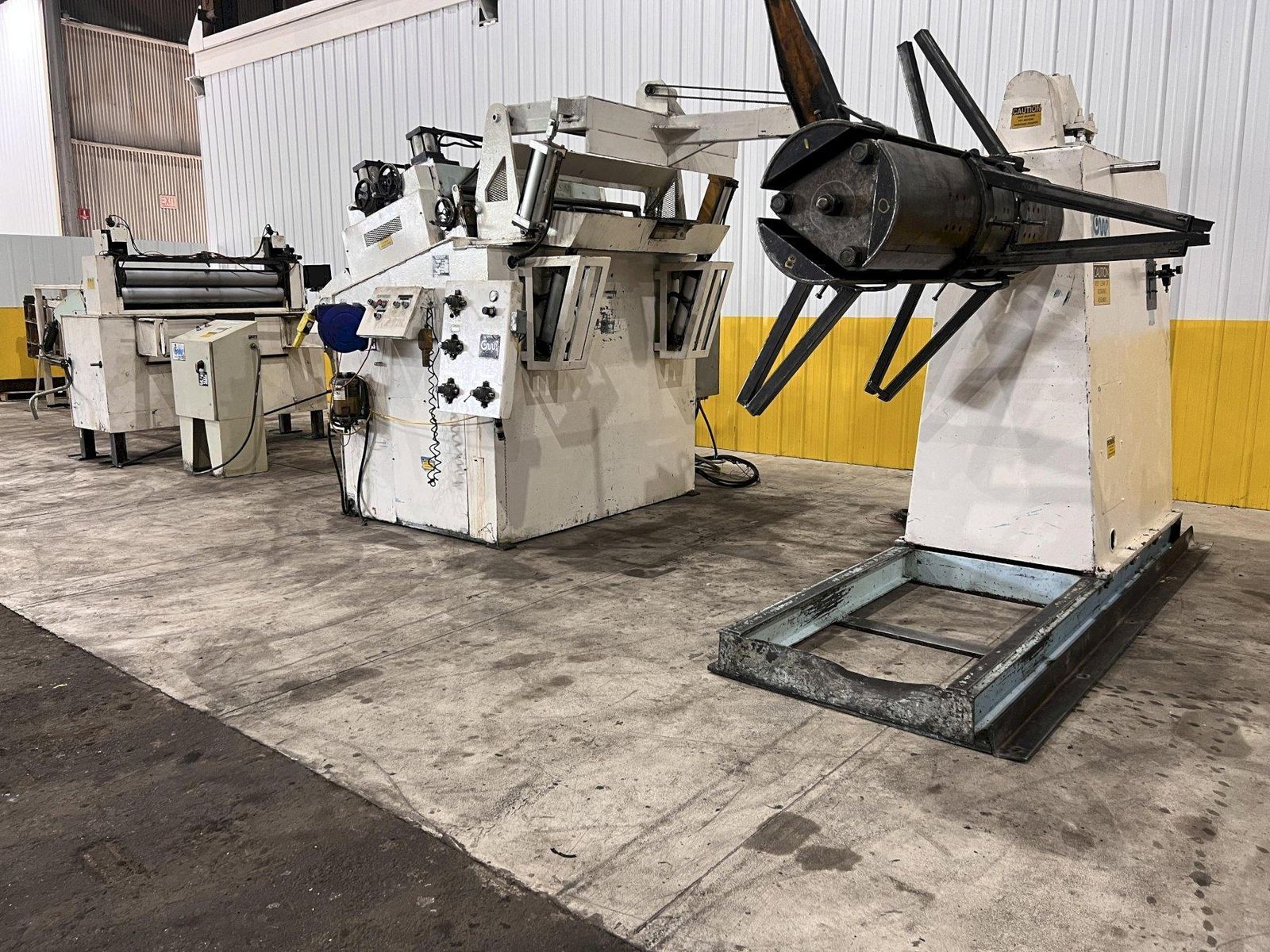

Consist of: REEL, STRAIGHTENER, FEEDER, THREADING TABLE
Year New .............................. 2003

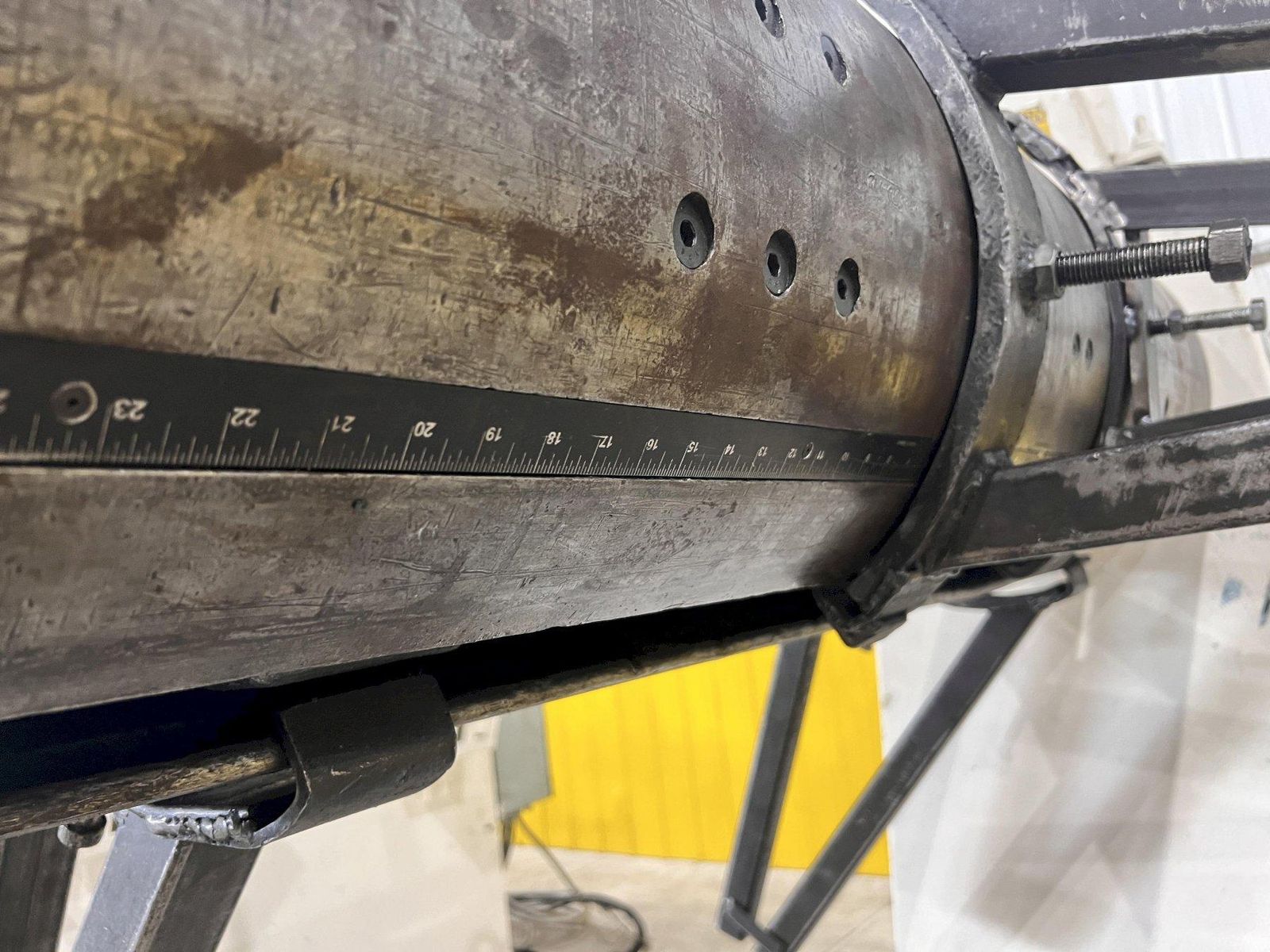

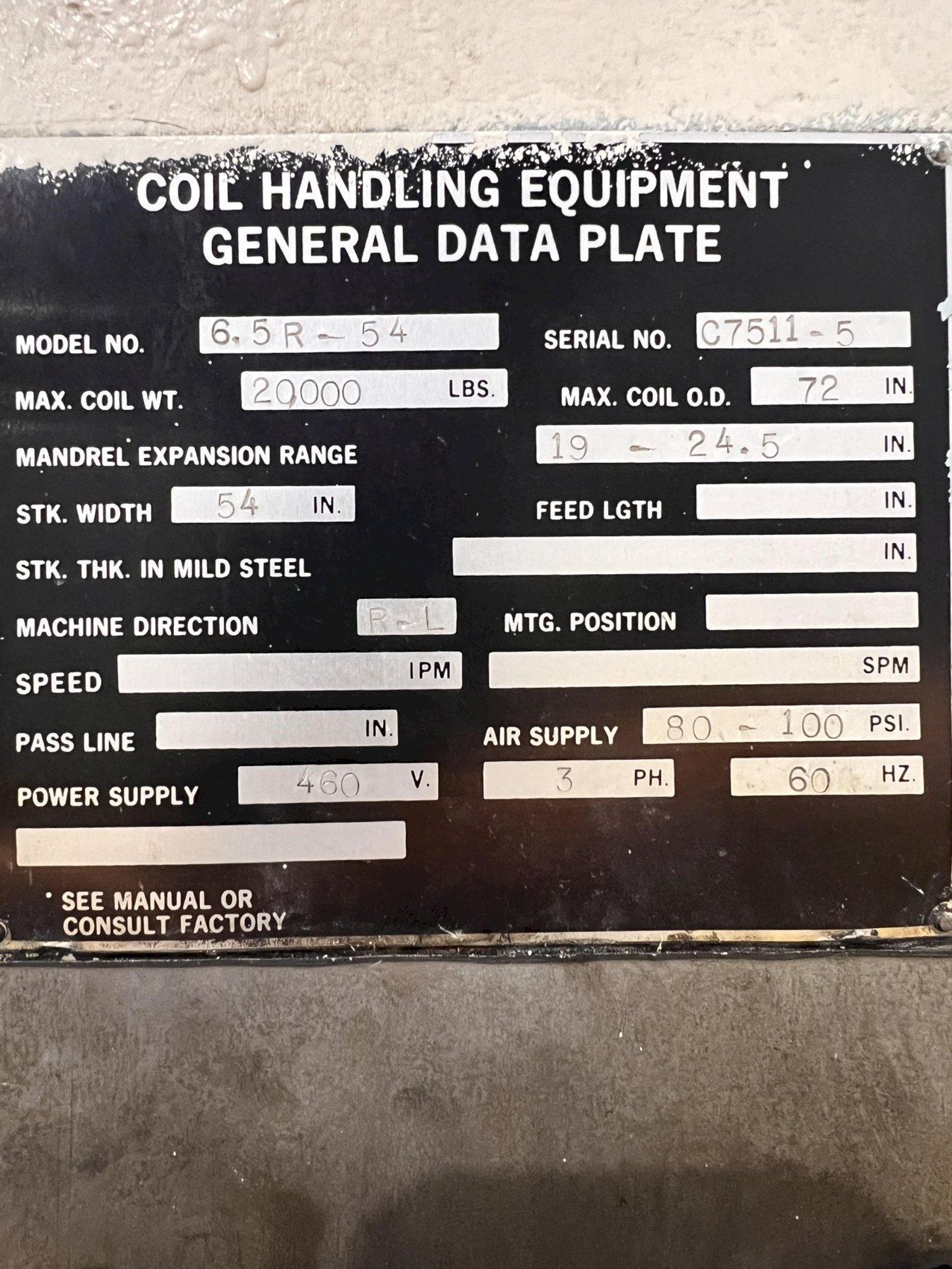

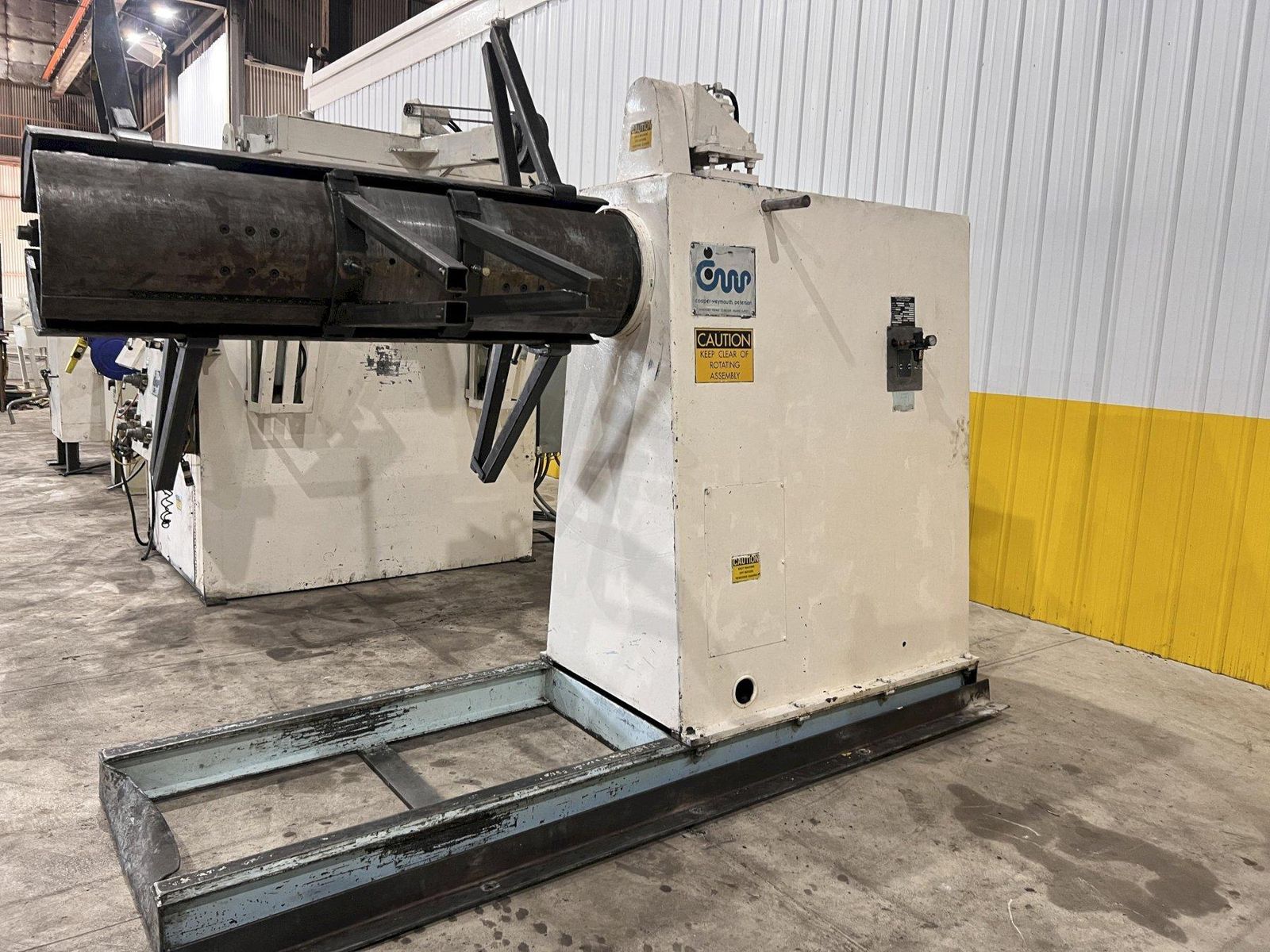

Coil weight capacity .................. 20000 poundsStock Width Capacity .................. 54 inchesStock thickness capacity @ 54" wide ... .125"Stock thickness capacity @ 34" wide ... .187"Minimum expansion range ............... 19 inchesMaximum expansion range ............... 24.5 inchesCoil O.D. capacity .................... 72 inchesCWP Servo Roll Feed

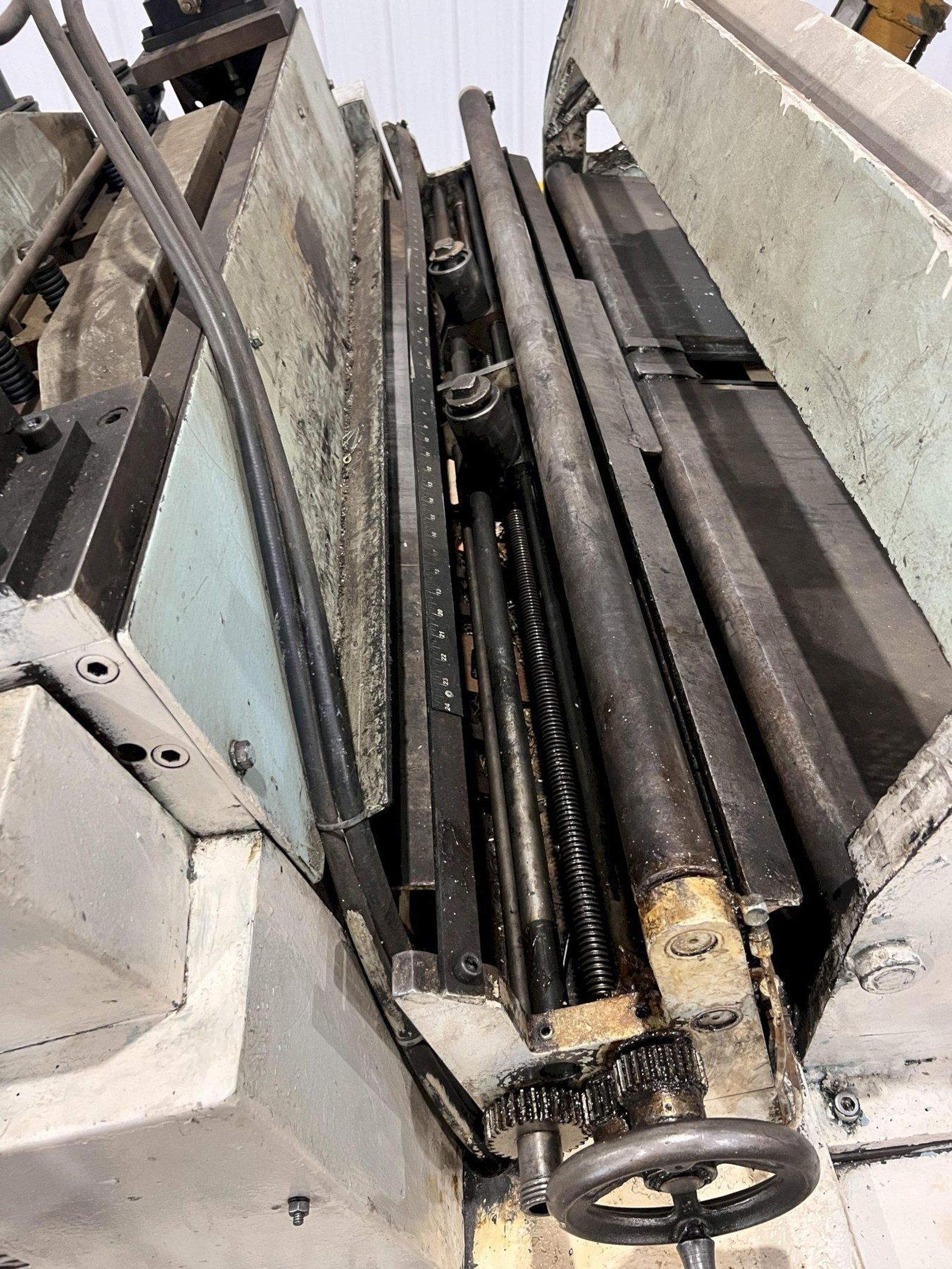

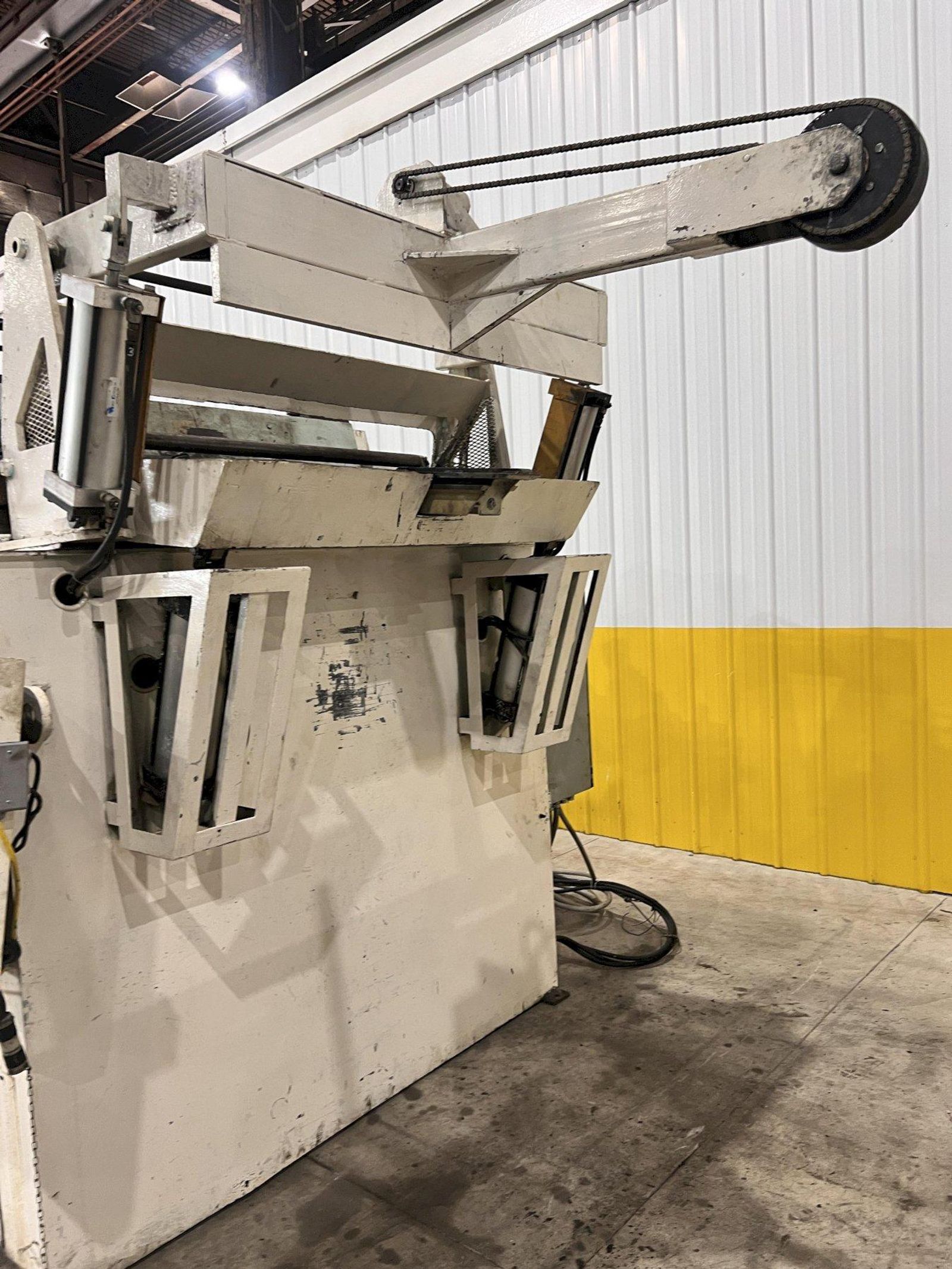

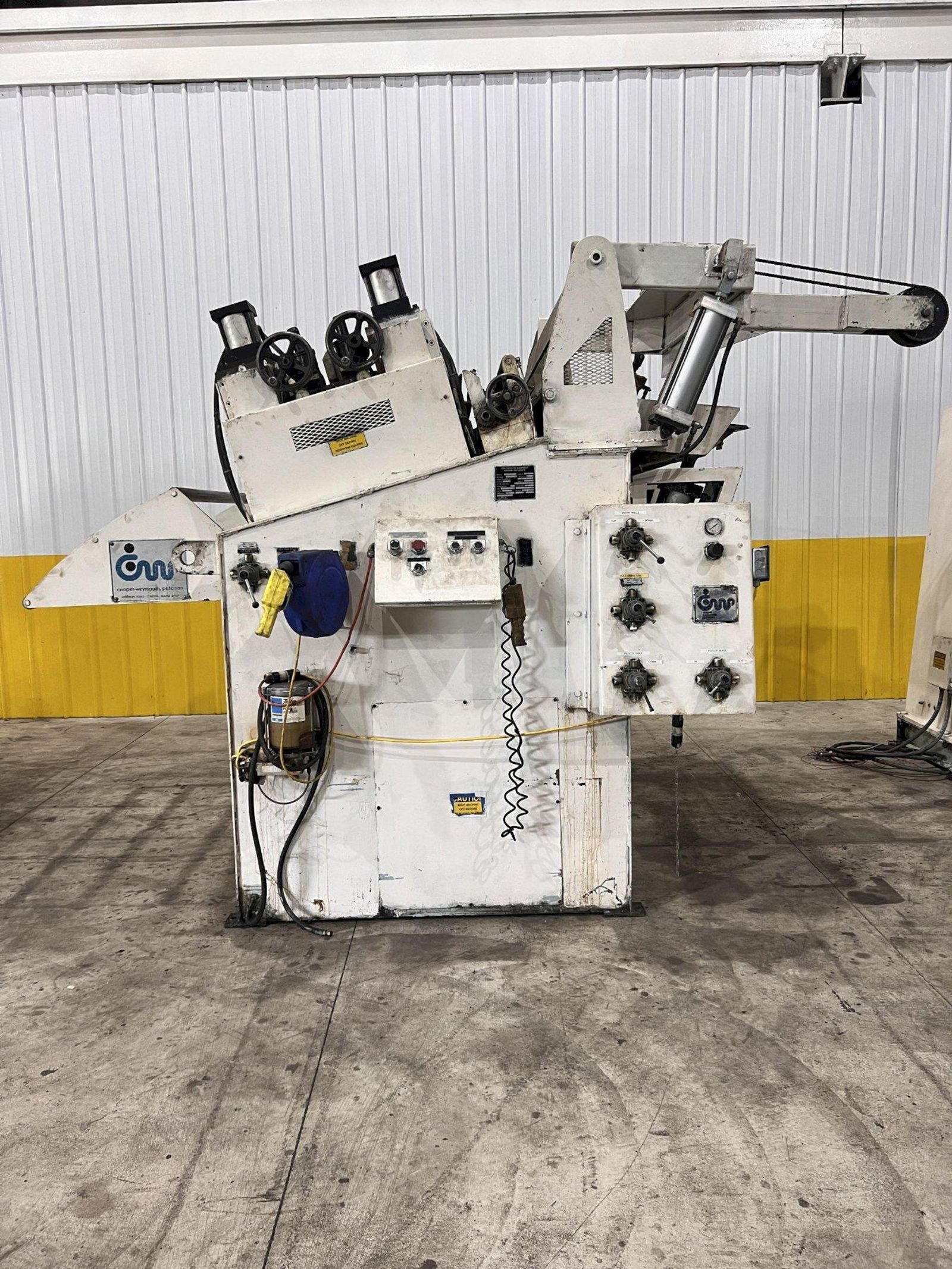

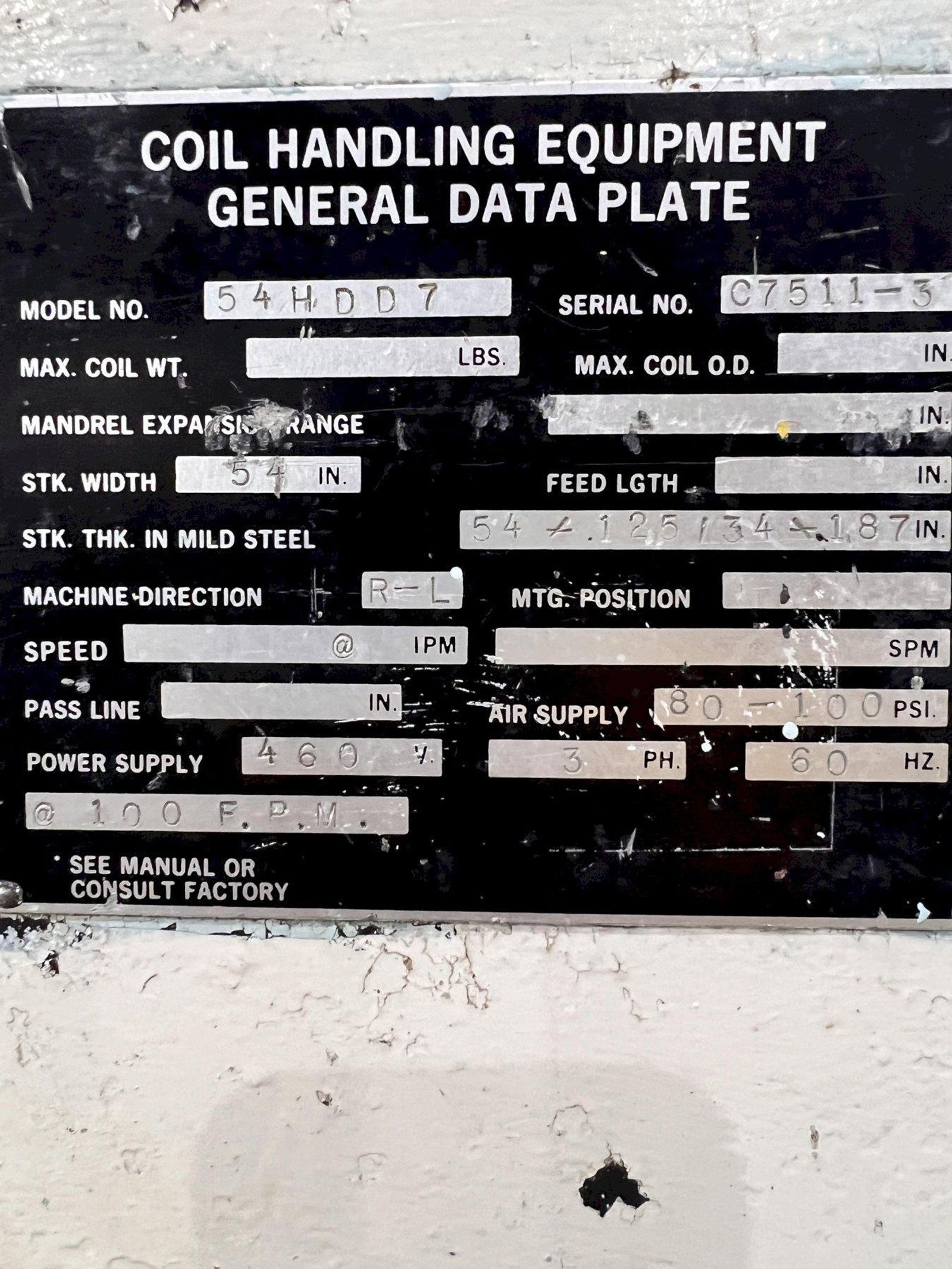

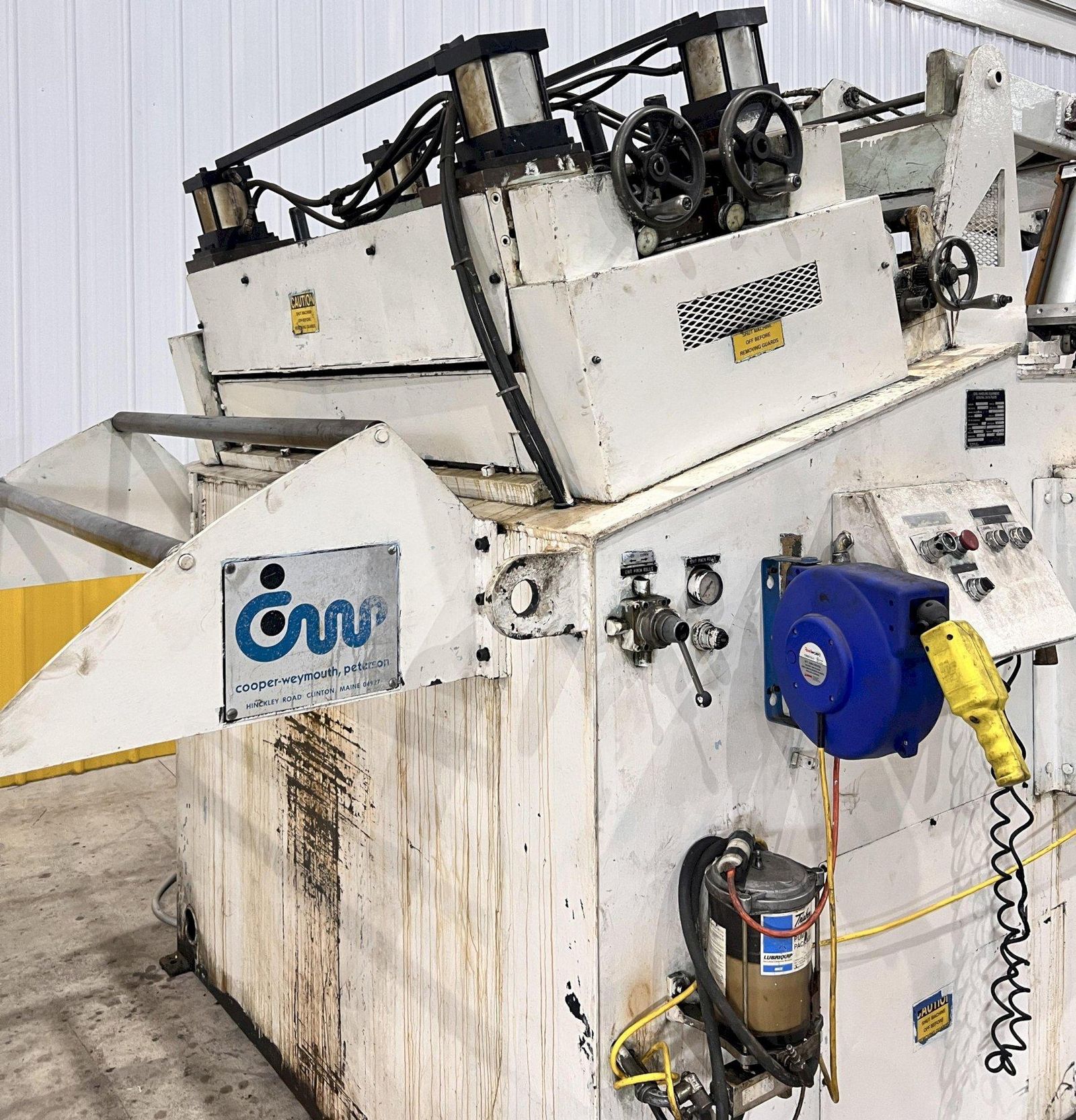

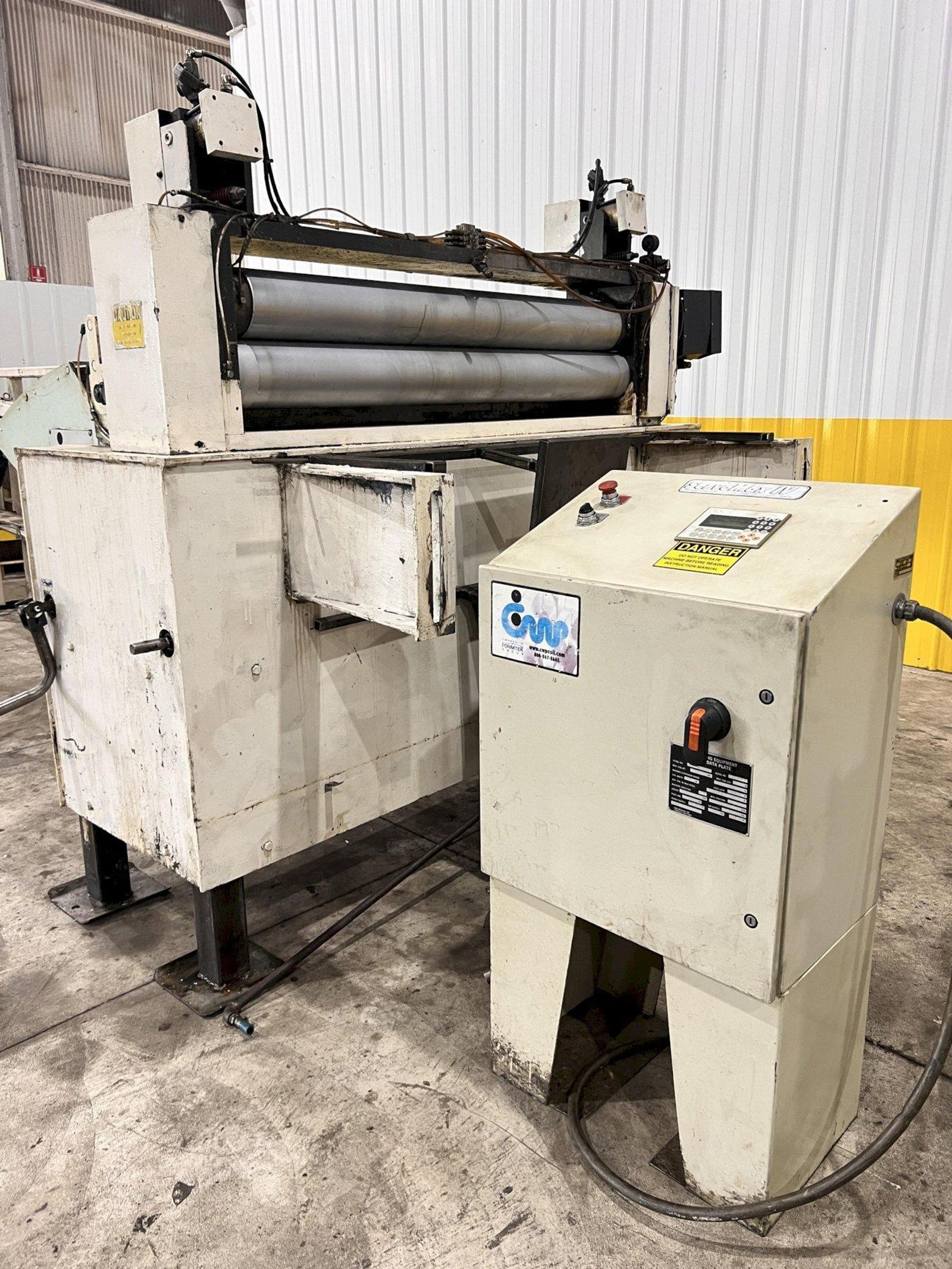

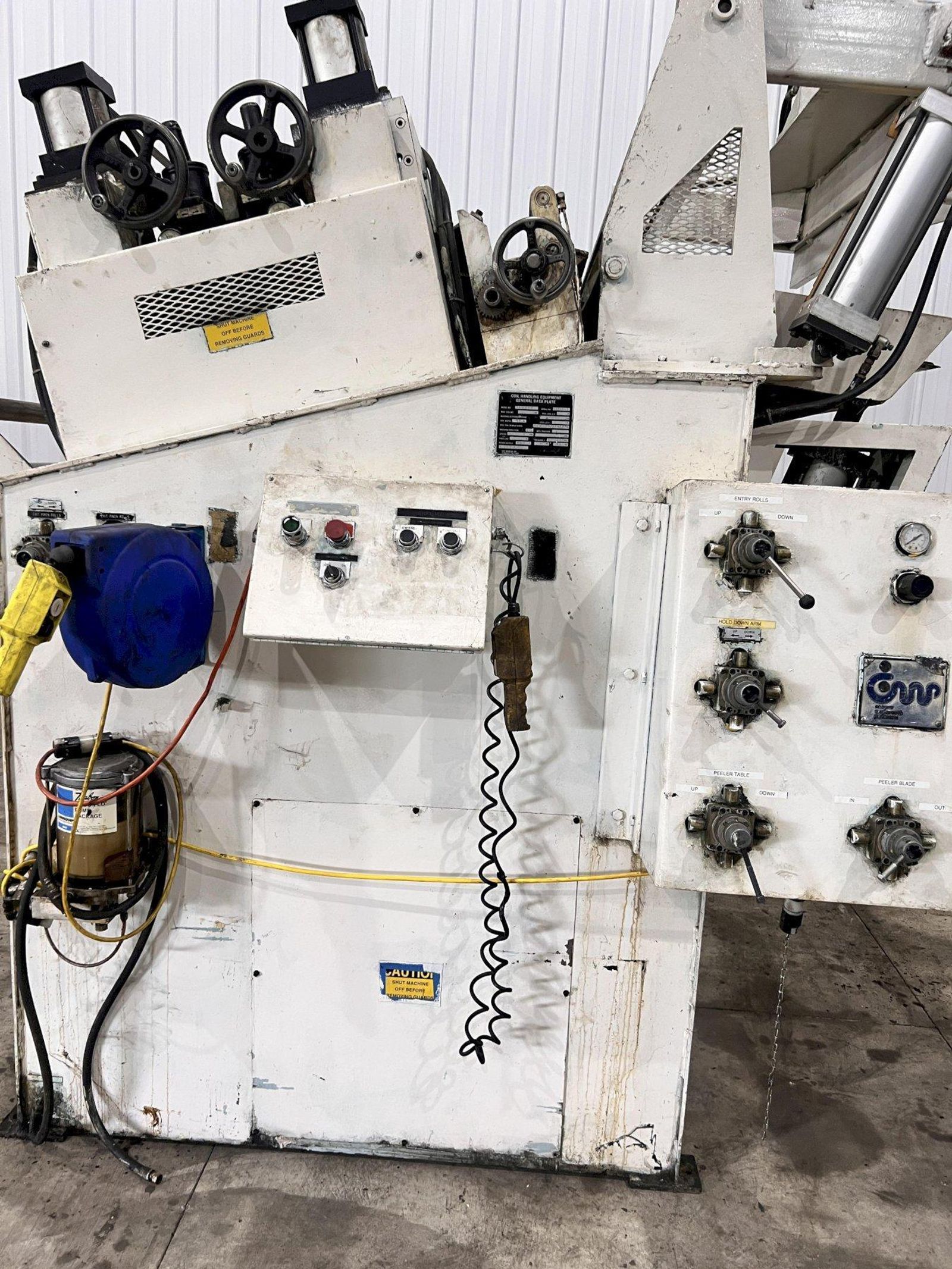

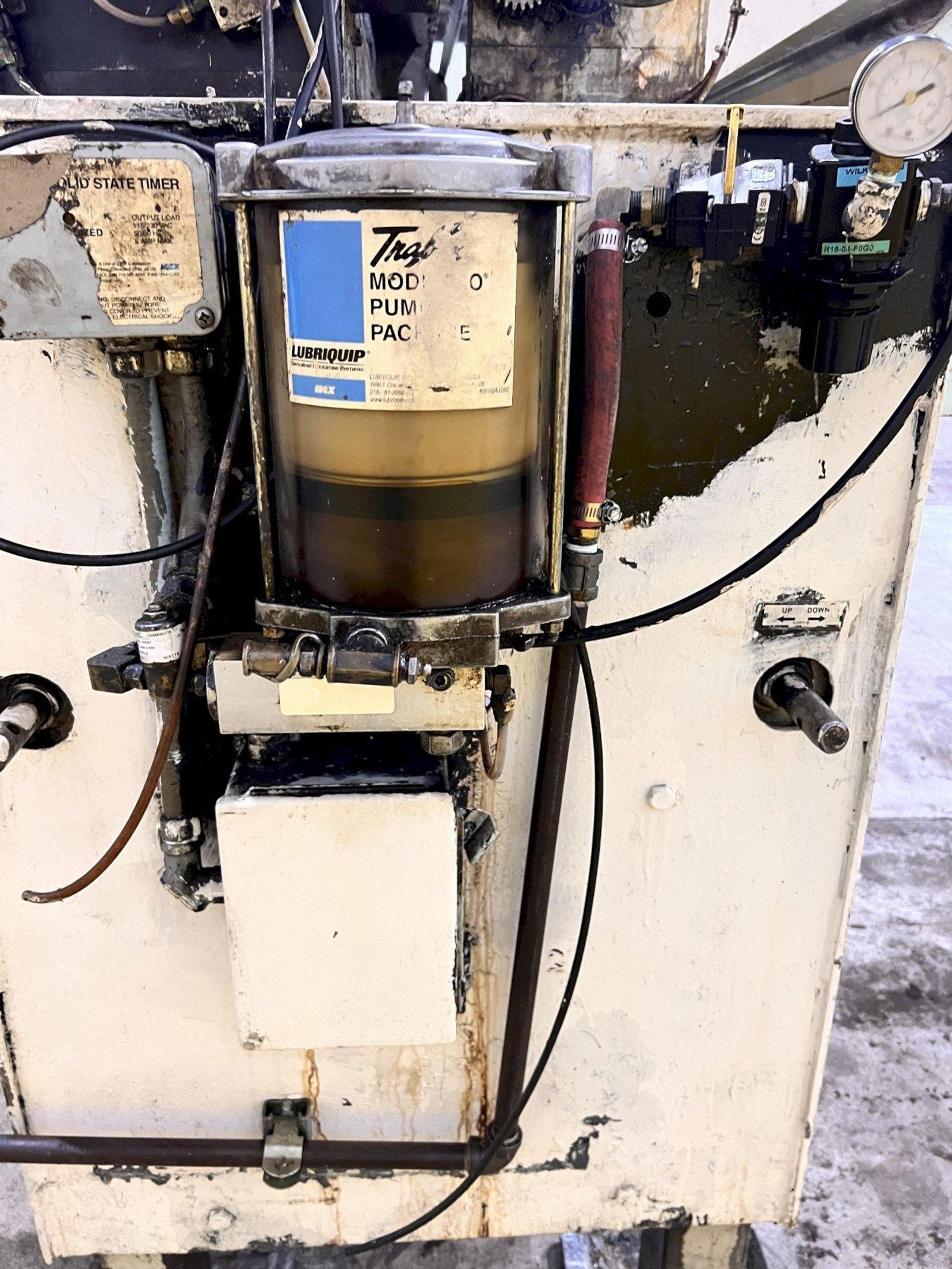

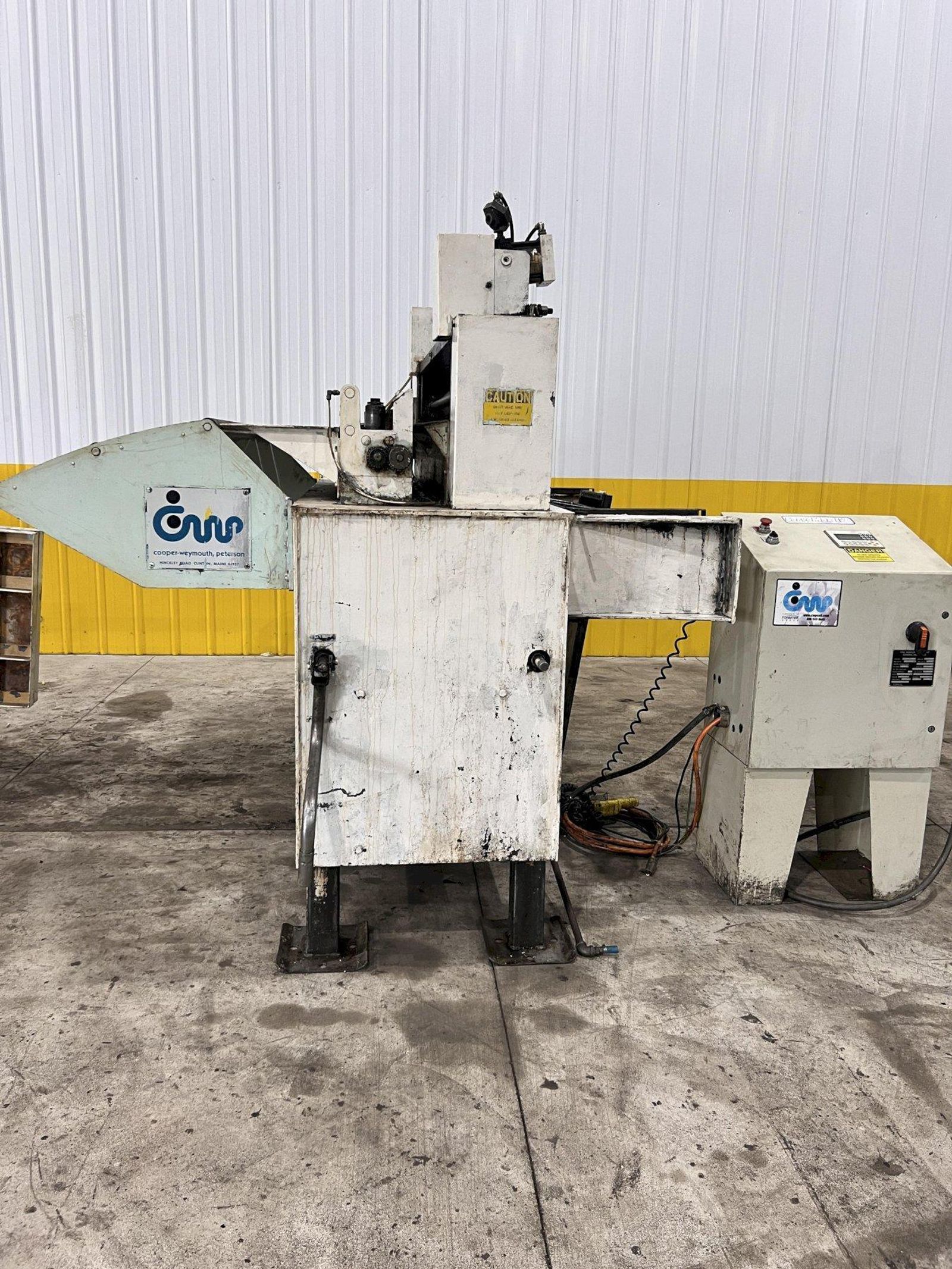

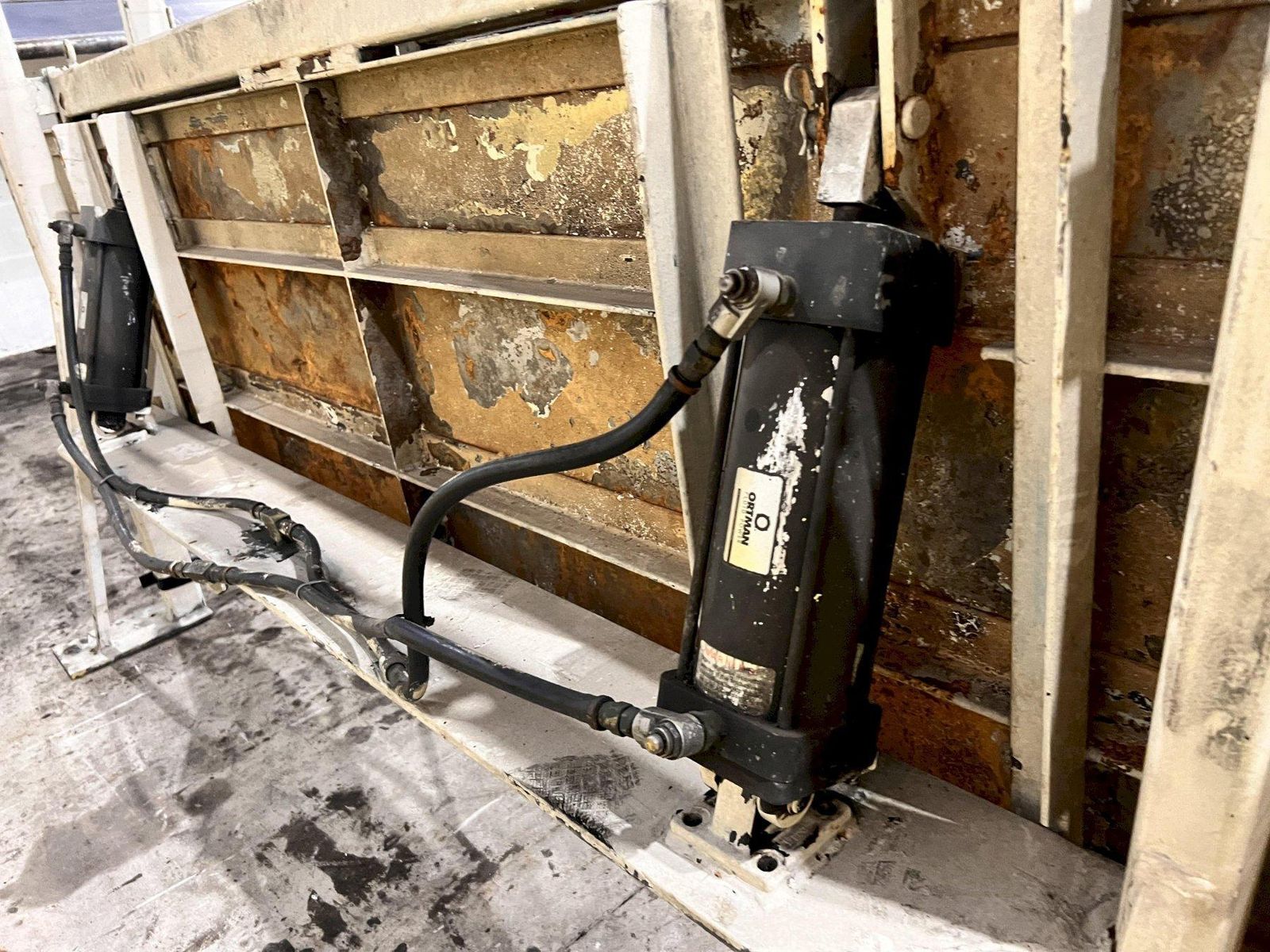

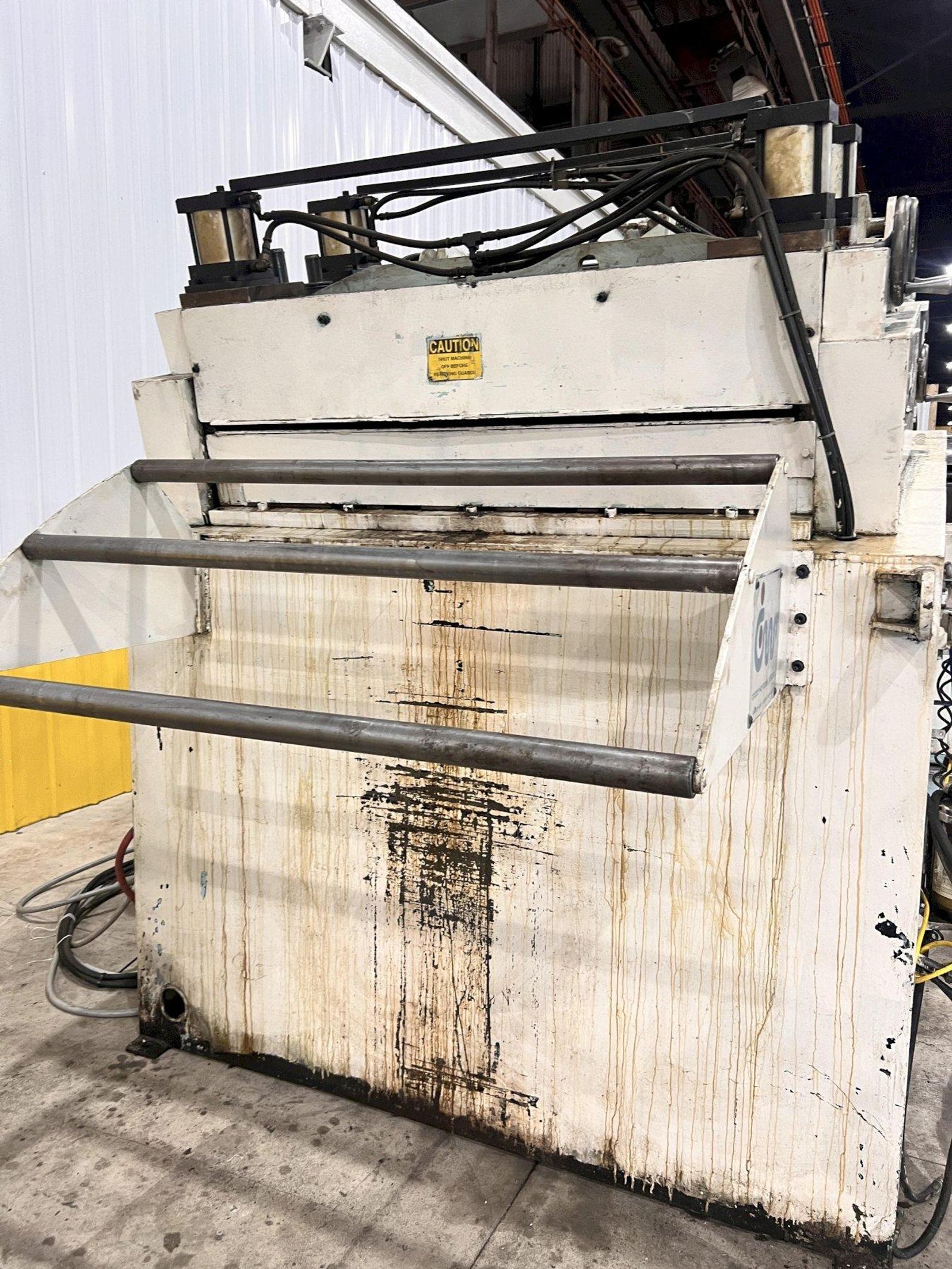

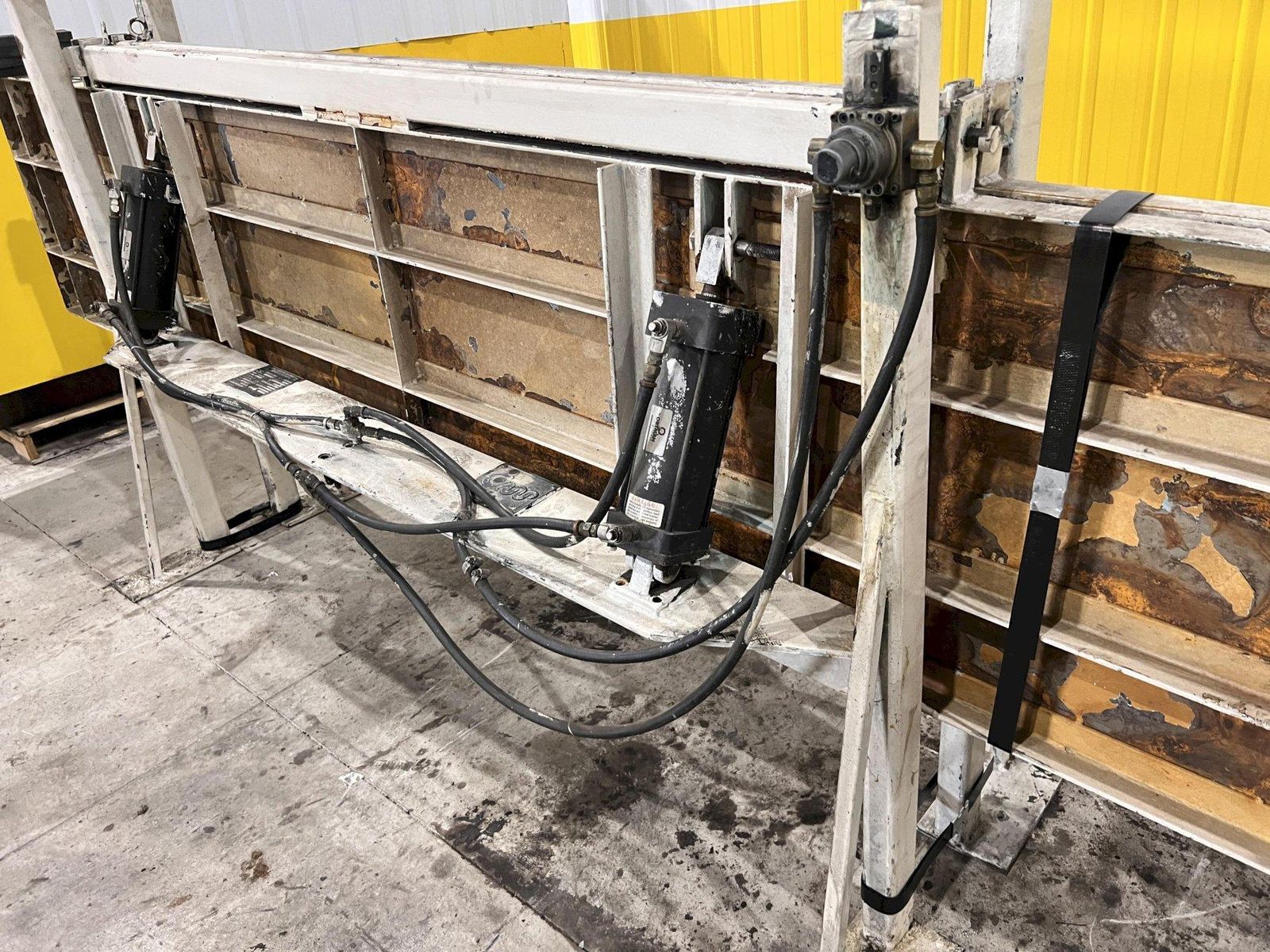

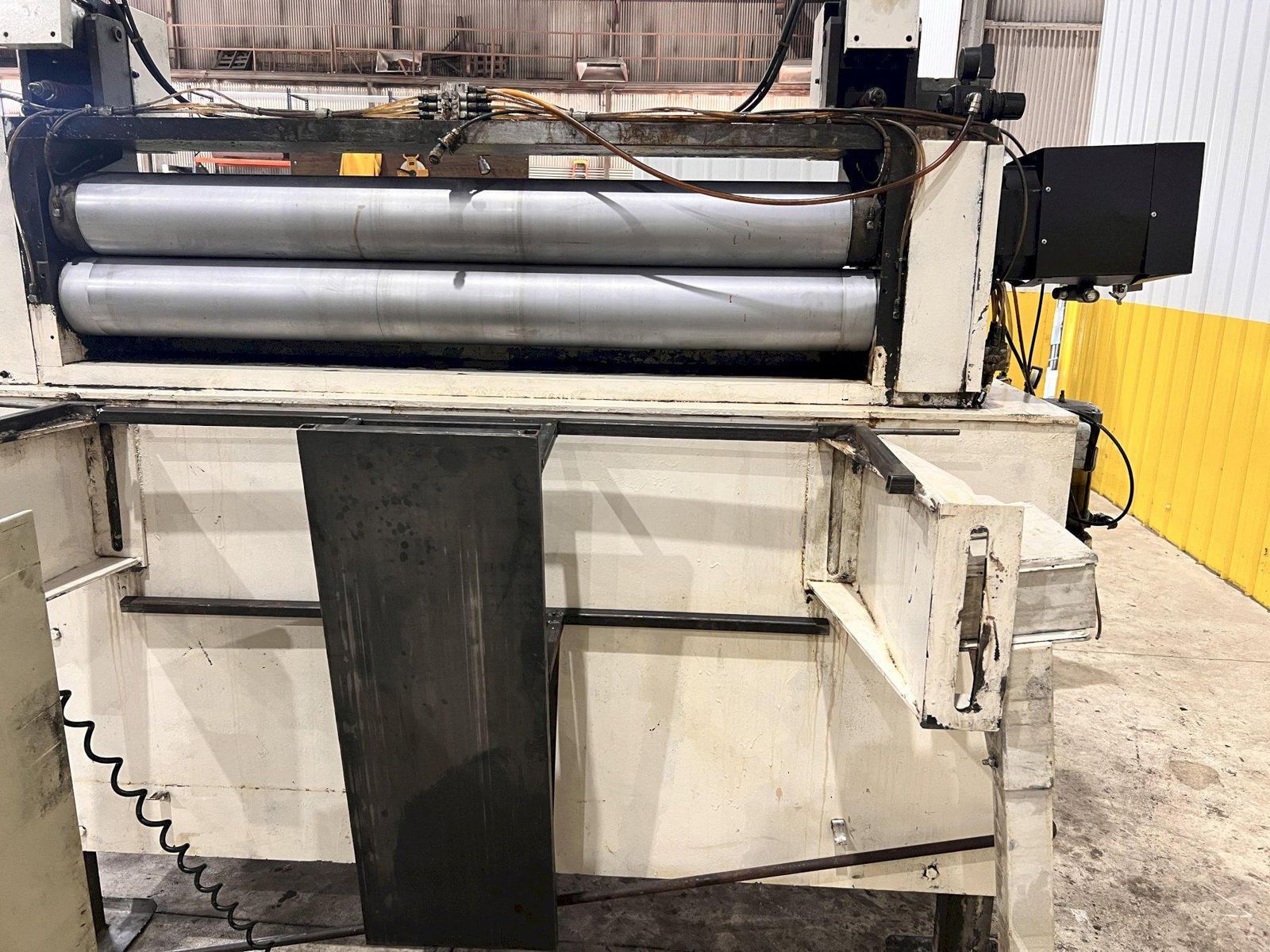

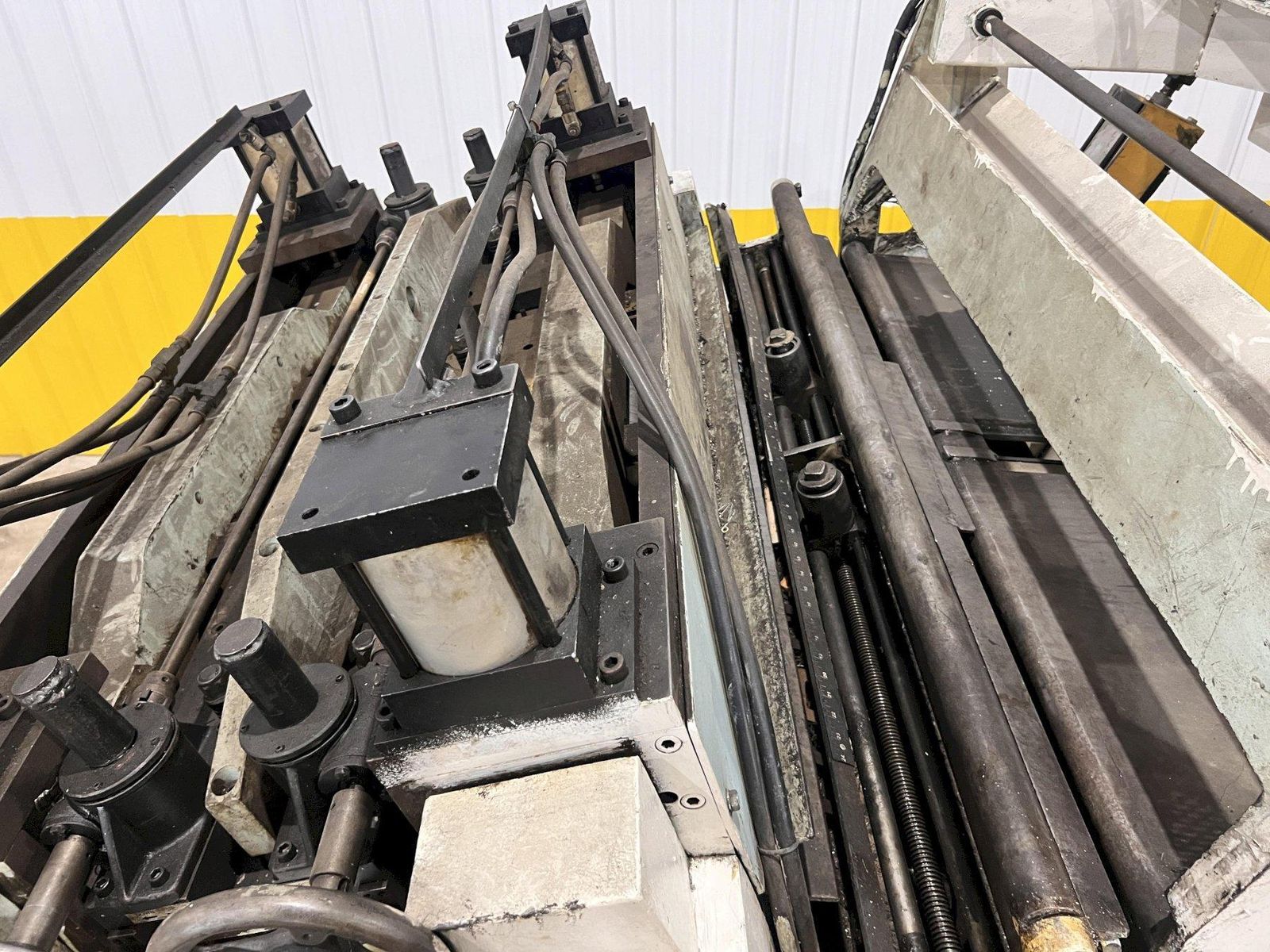

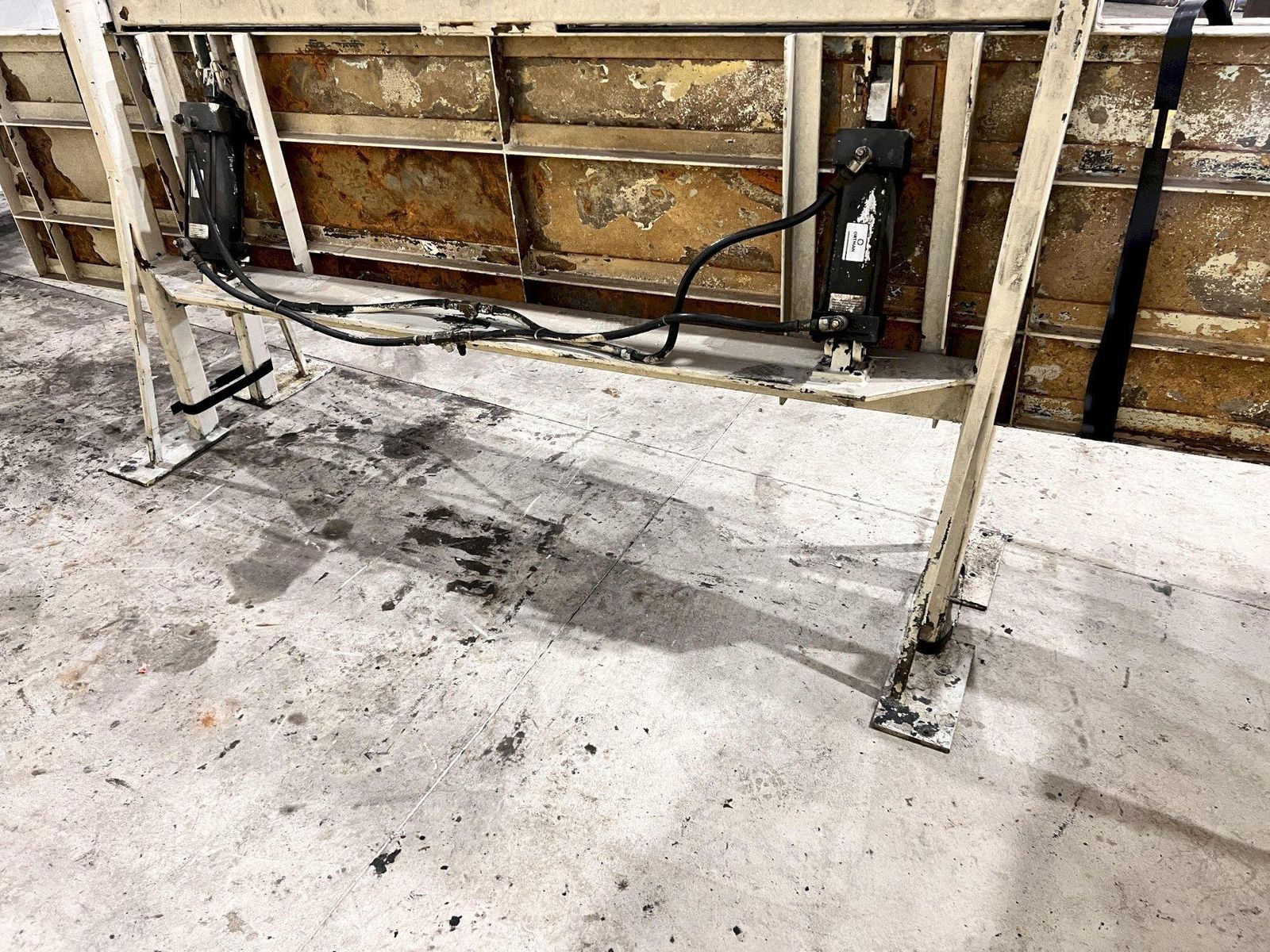

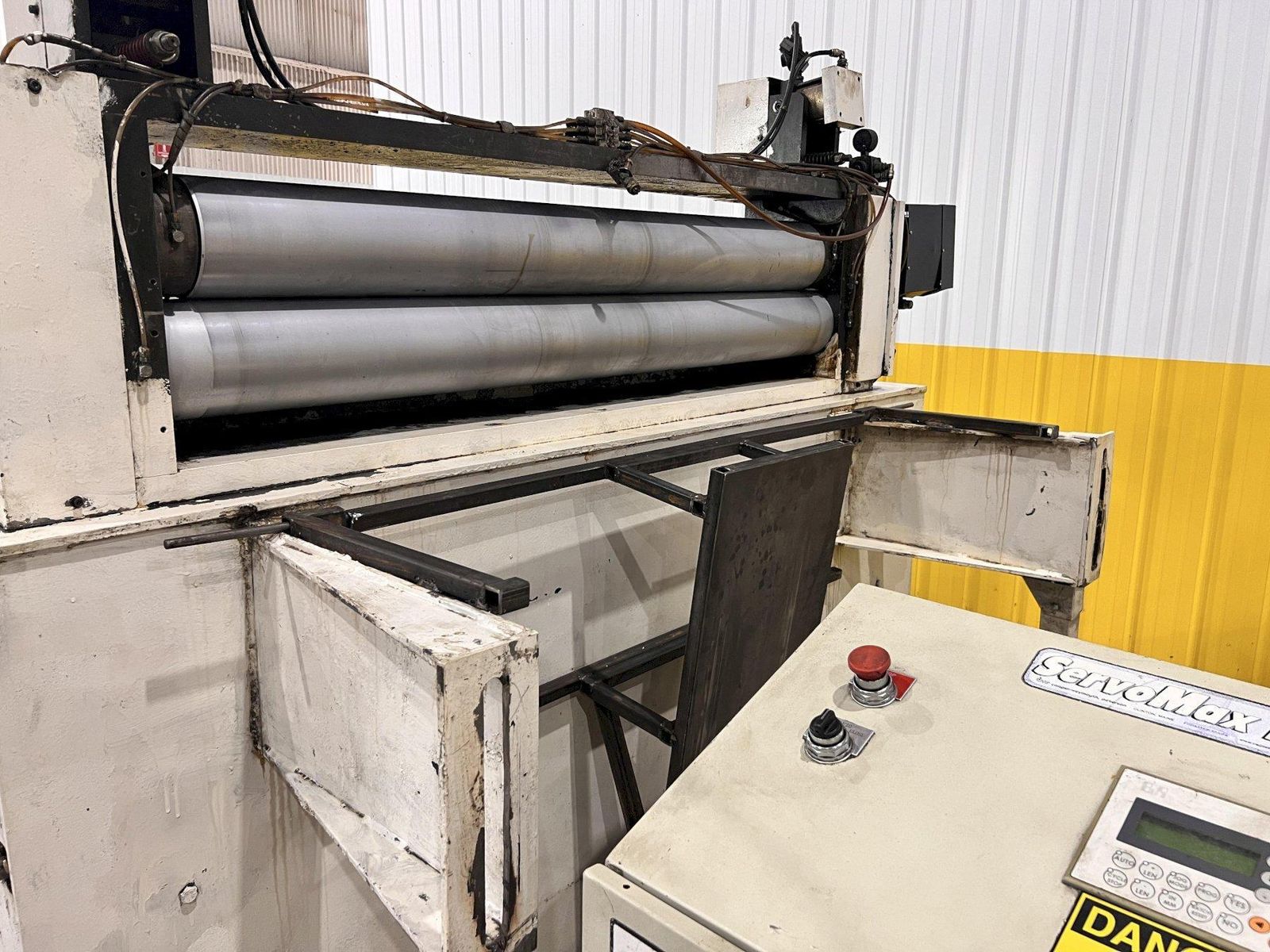

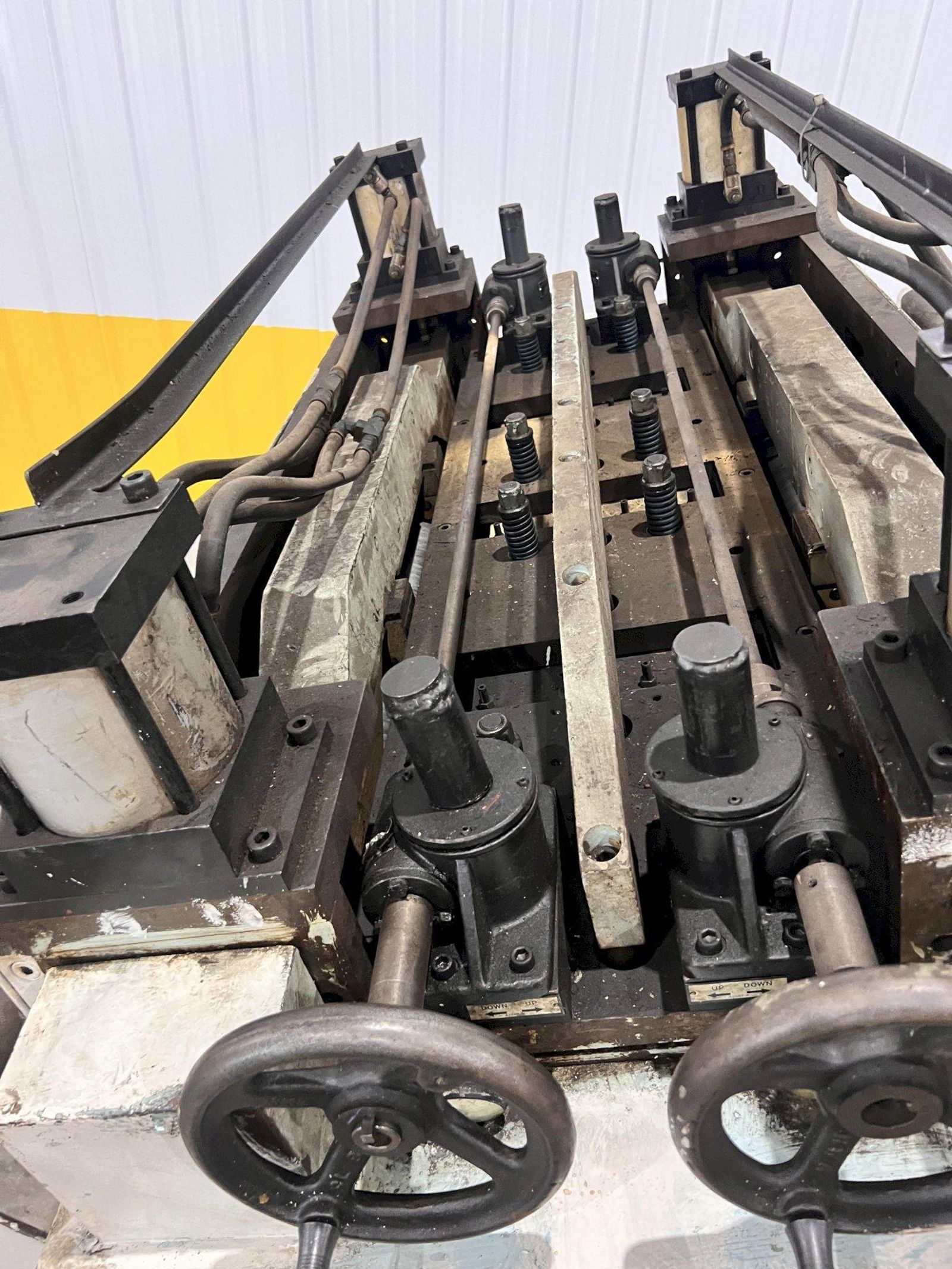

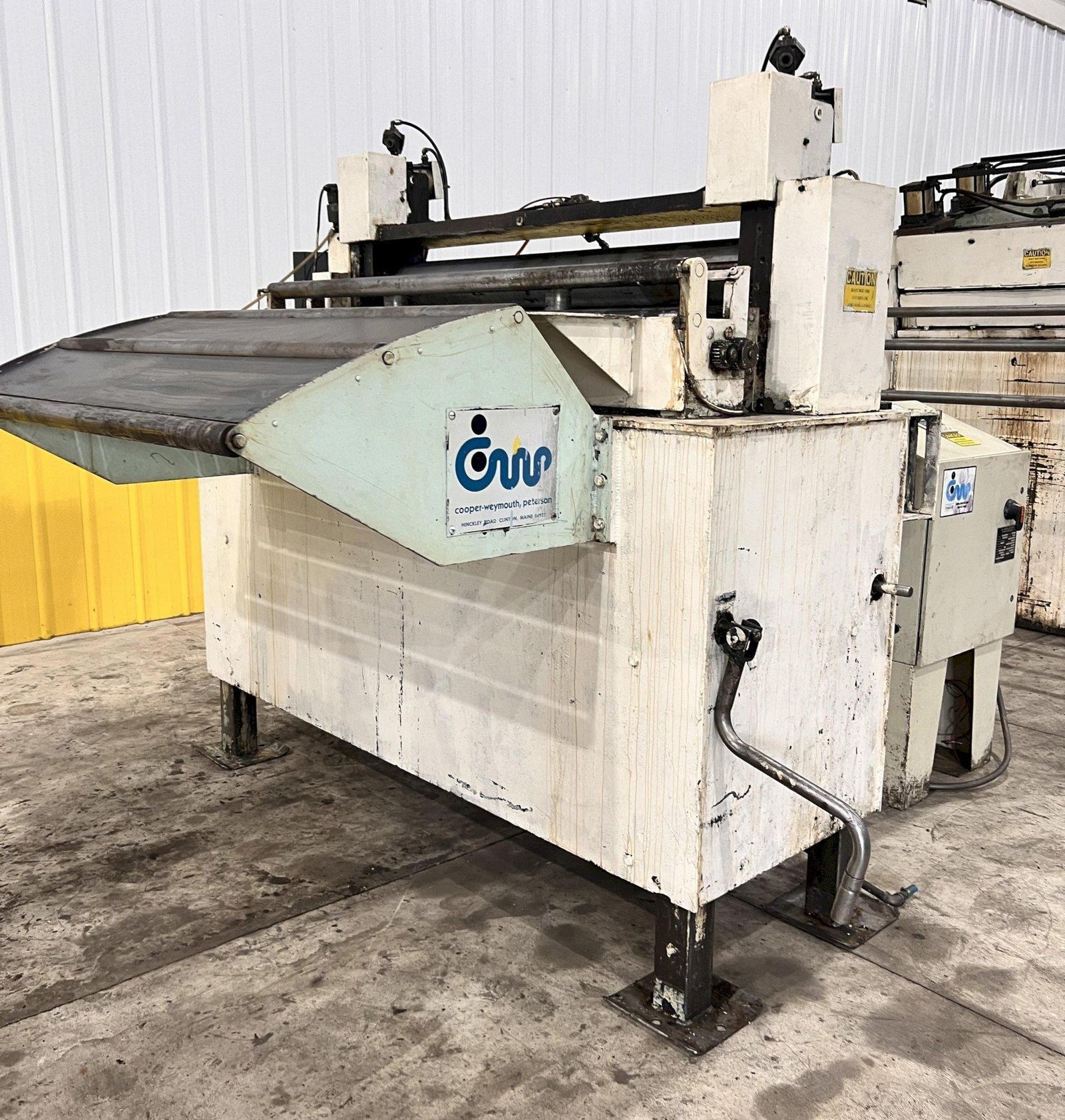

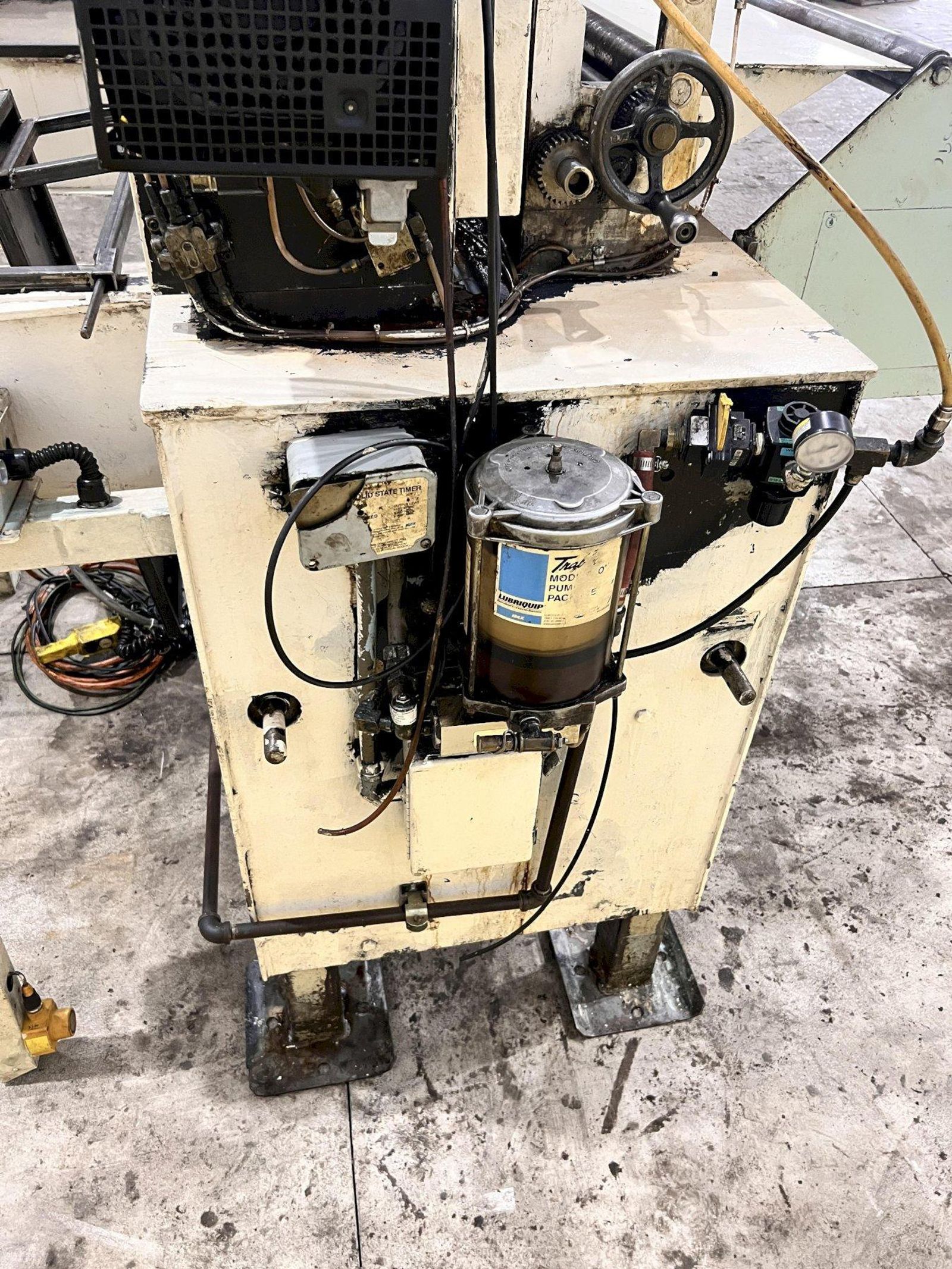

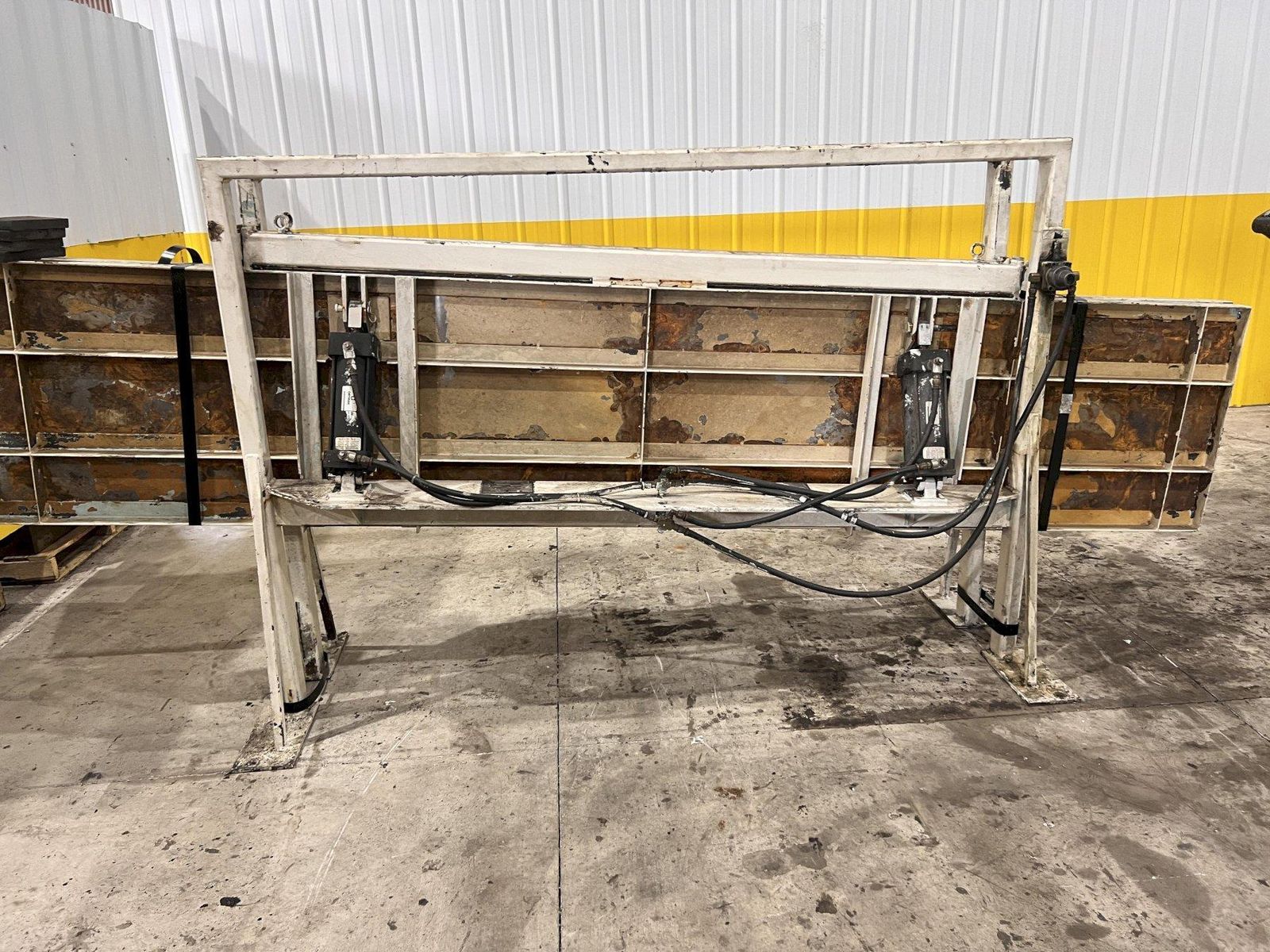

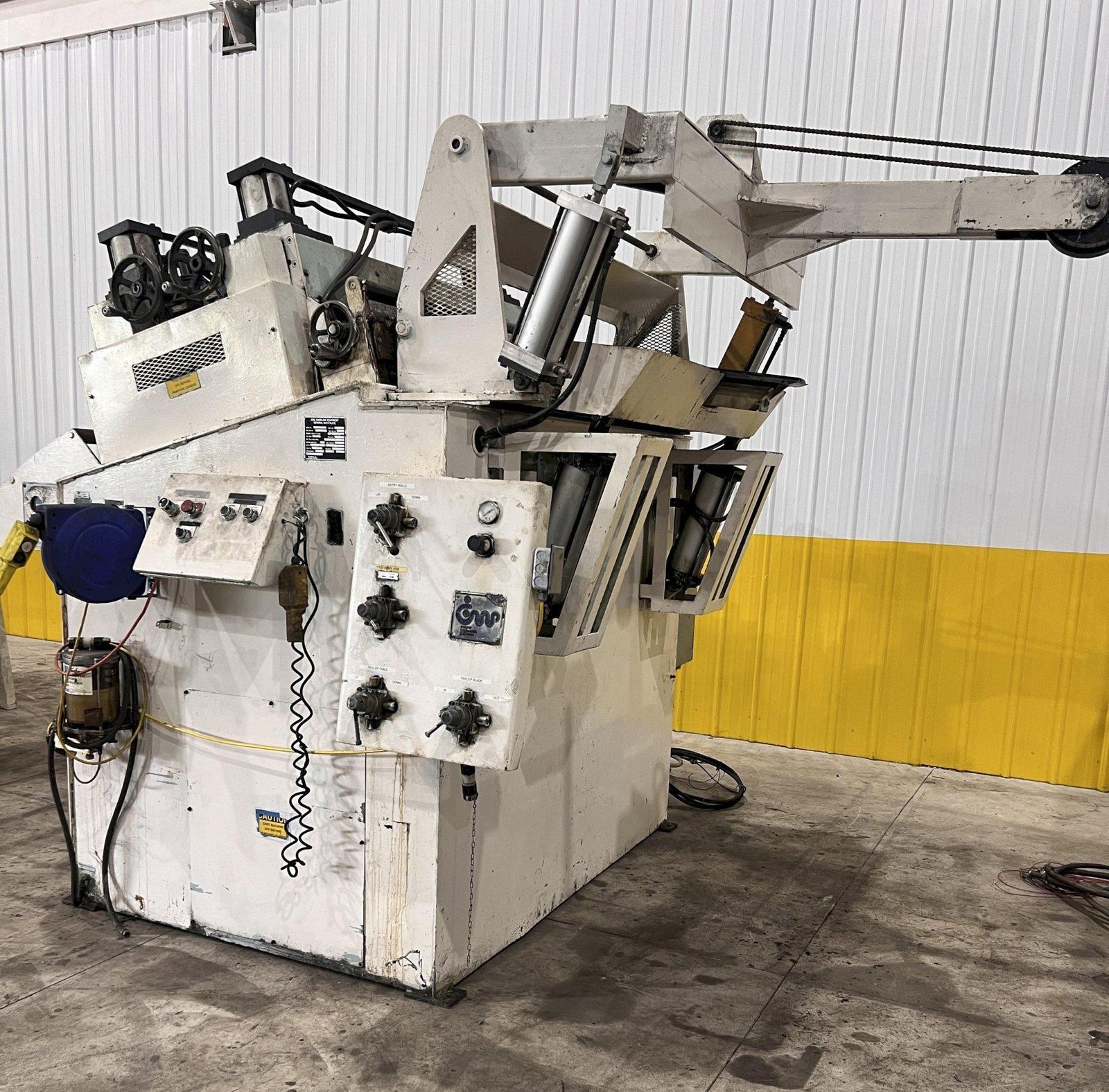

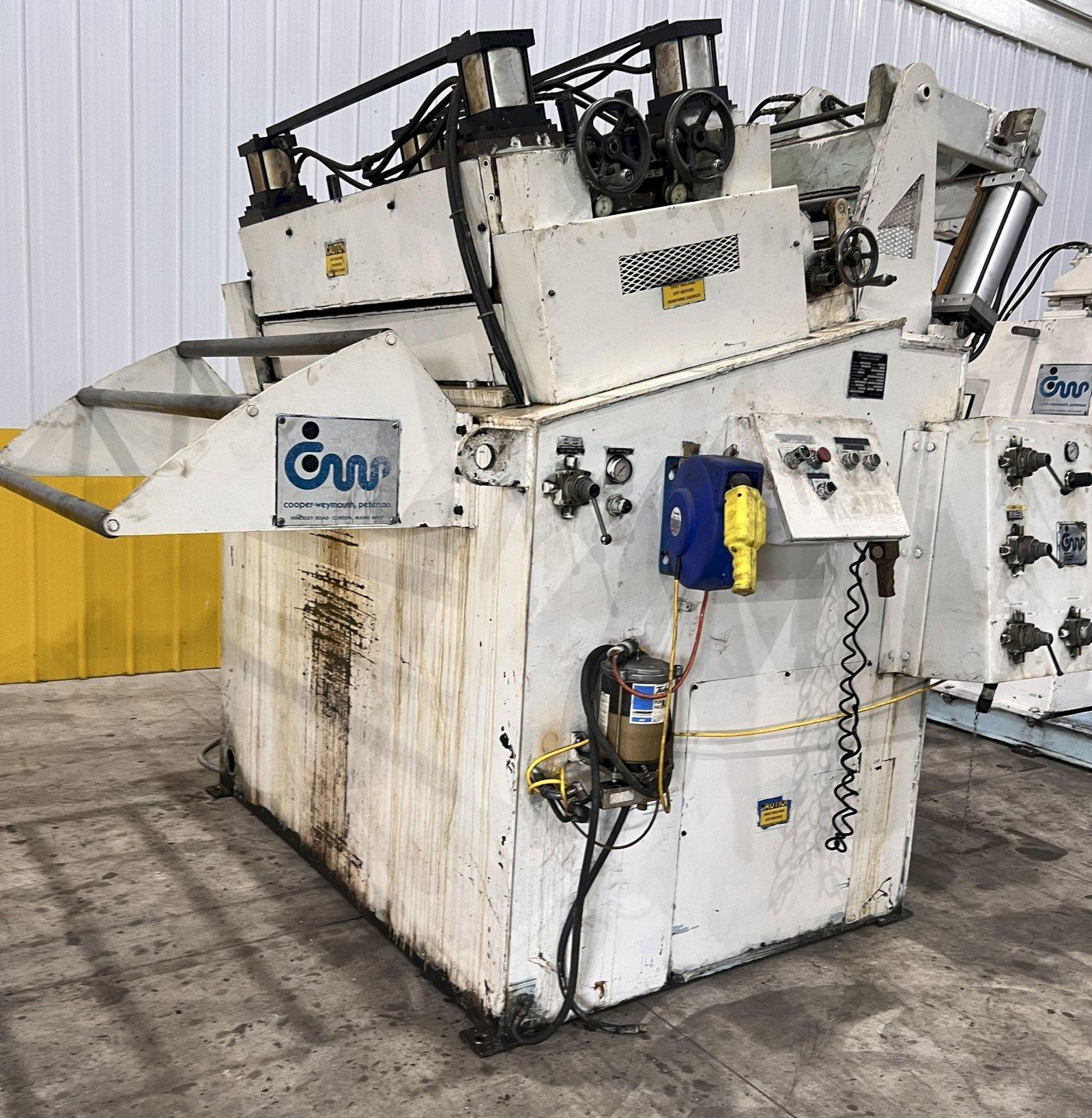

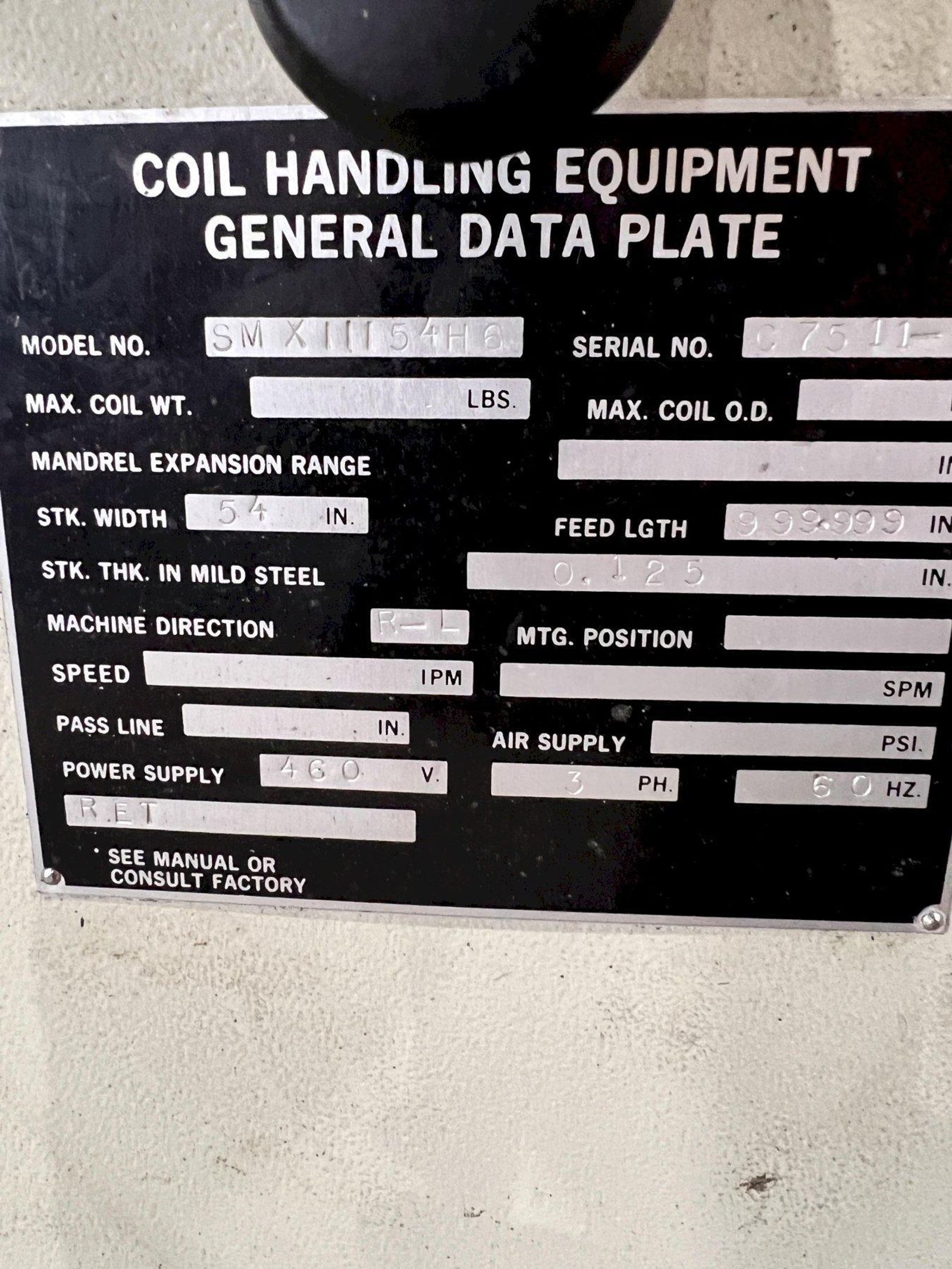

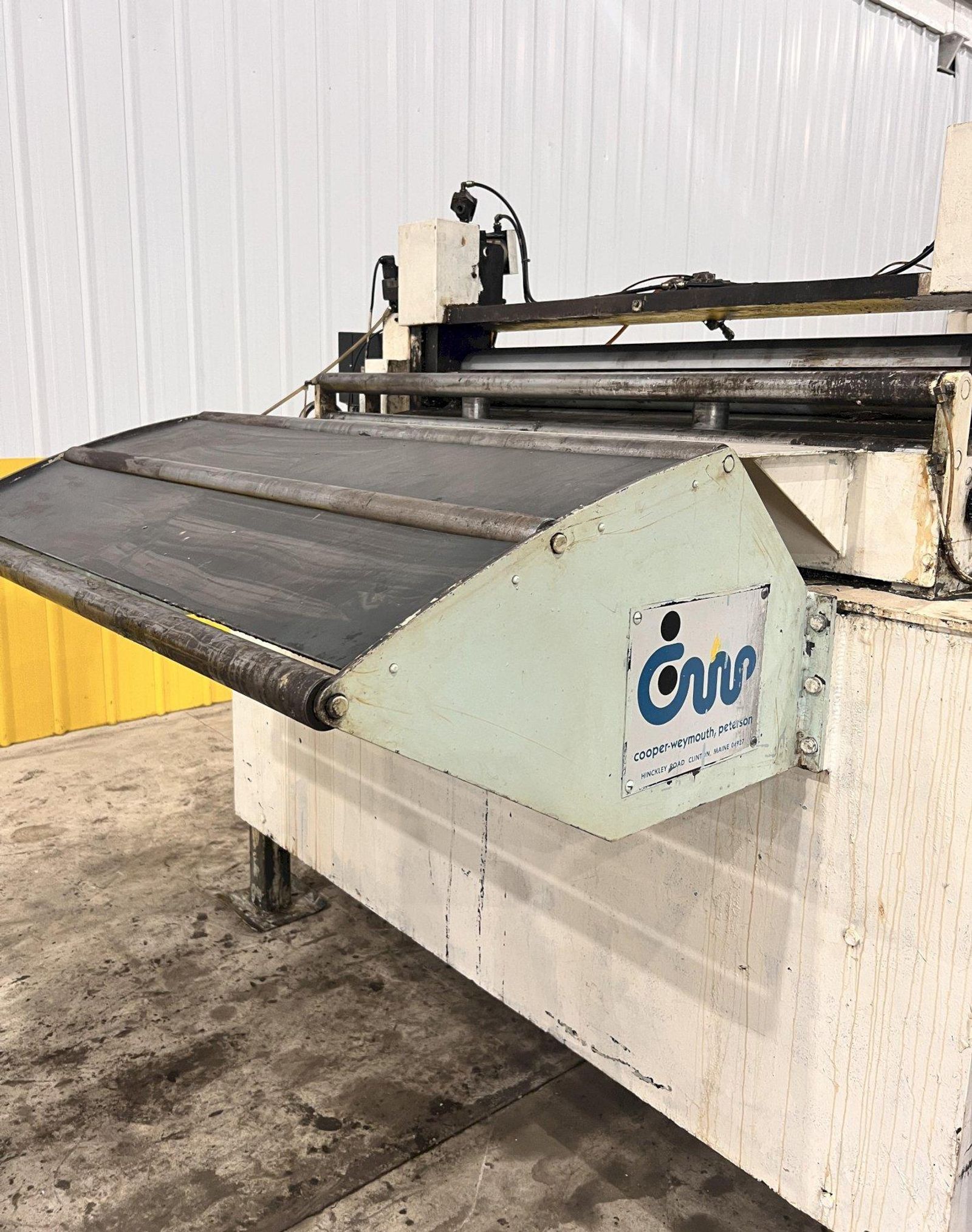

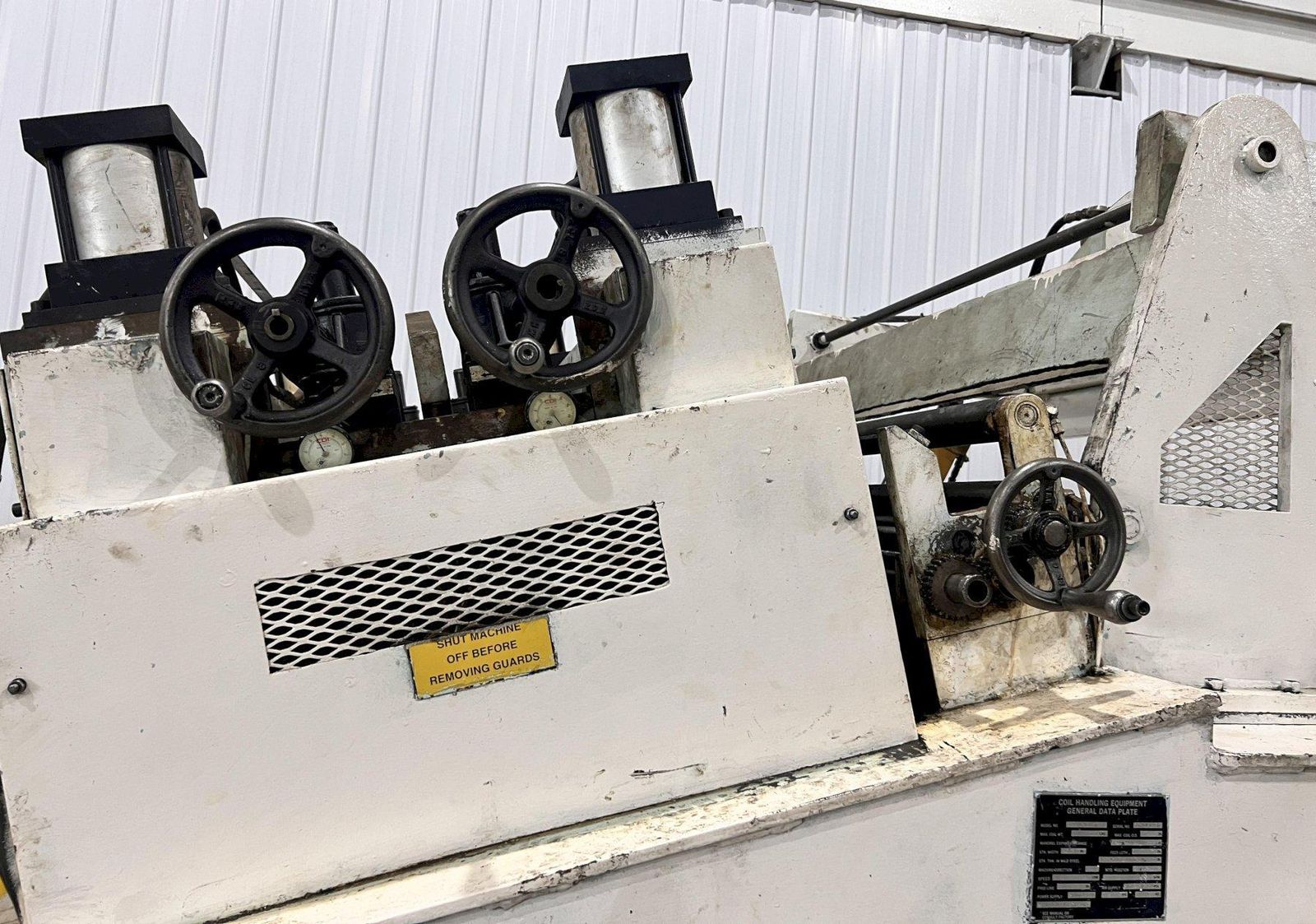

Model No. SMXIII 54H6Six inch diameter upper and lower feed rollsPiloting upper roll lift - air operatedAdjustable stock width edge guides - hand crankEntry cascade loop support rollersHeavy duty cabinet base mountedAdjustable pass lineAutomatic lubrication systemAC Servo drive and controlsCWP Powered Coil Straightener Model No. 54HDD7Seven straightening rollsBack up supports on upper and lower straightening rollsEntry and exit pinch rolls with air operated adjustmentAdjustable stock width edge guides - hand crankCoil hold down arm with motorized end wheelStock peeler tableExit cascade loop support rollersAutomatic lubrication systemAC Variable frequency drive and controlsOperator's control stationCWP Exit Thread Tables (Dual Sided)
