Brand
YODER
Type
Feeding & Straightening Machines
Stock No.
13050
 |
419-269-2000 |
Stock #: 13050
SERIAL ......................... DPC-132
MODEL .......................... 30/5

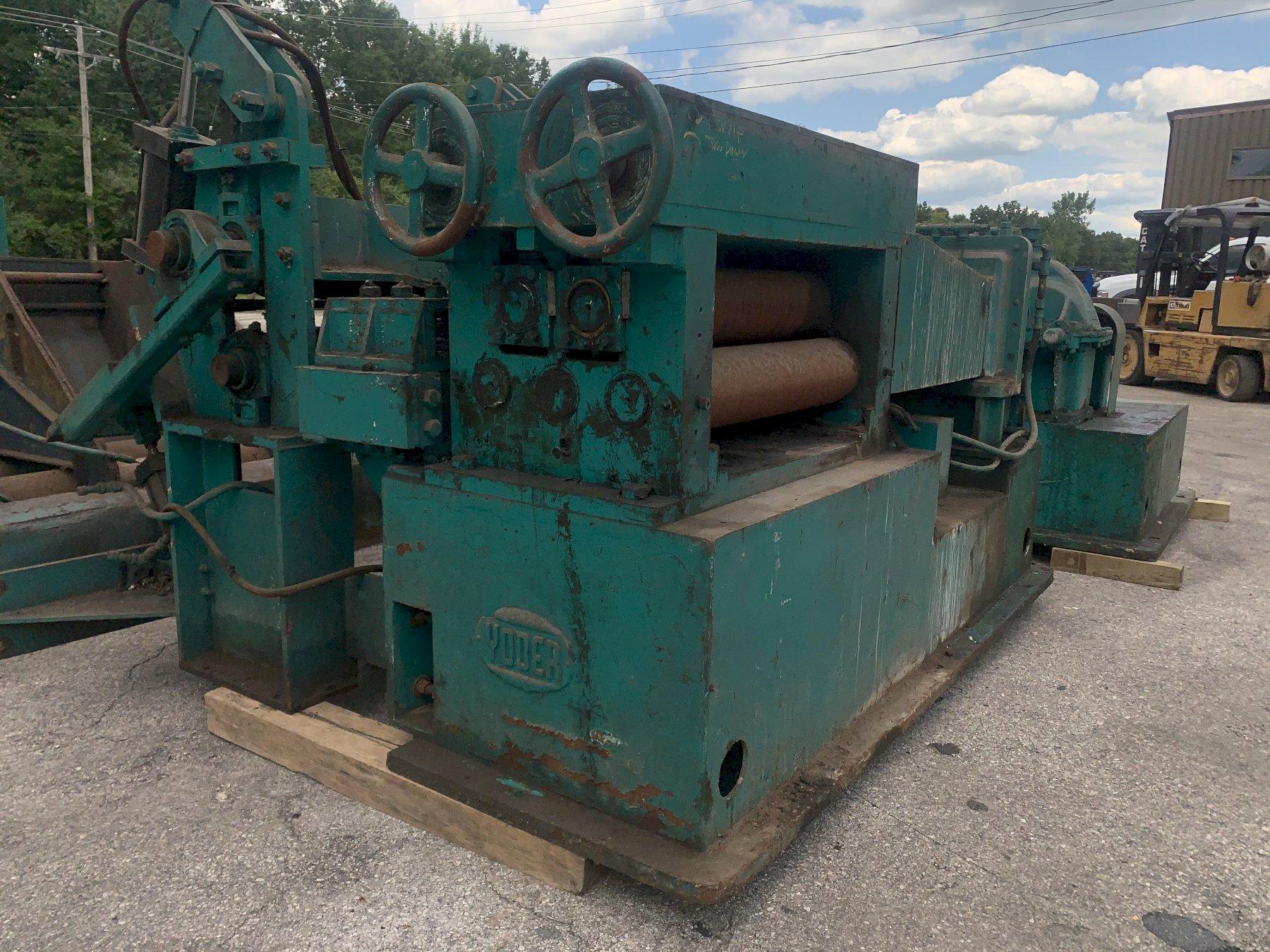

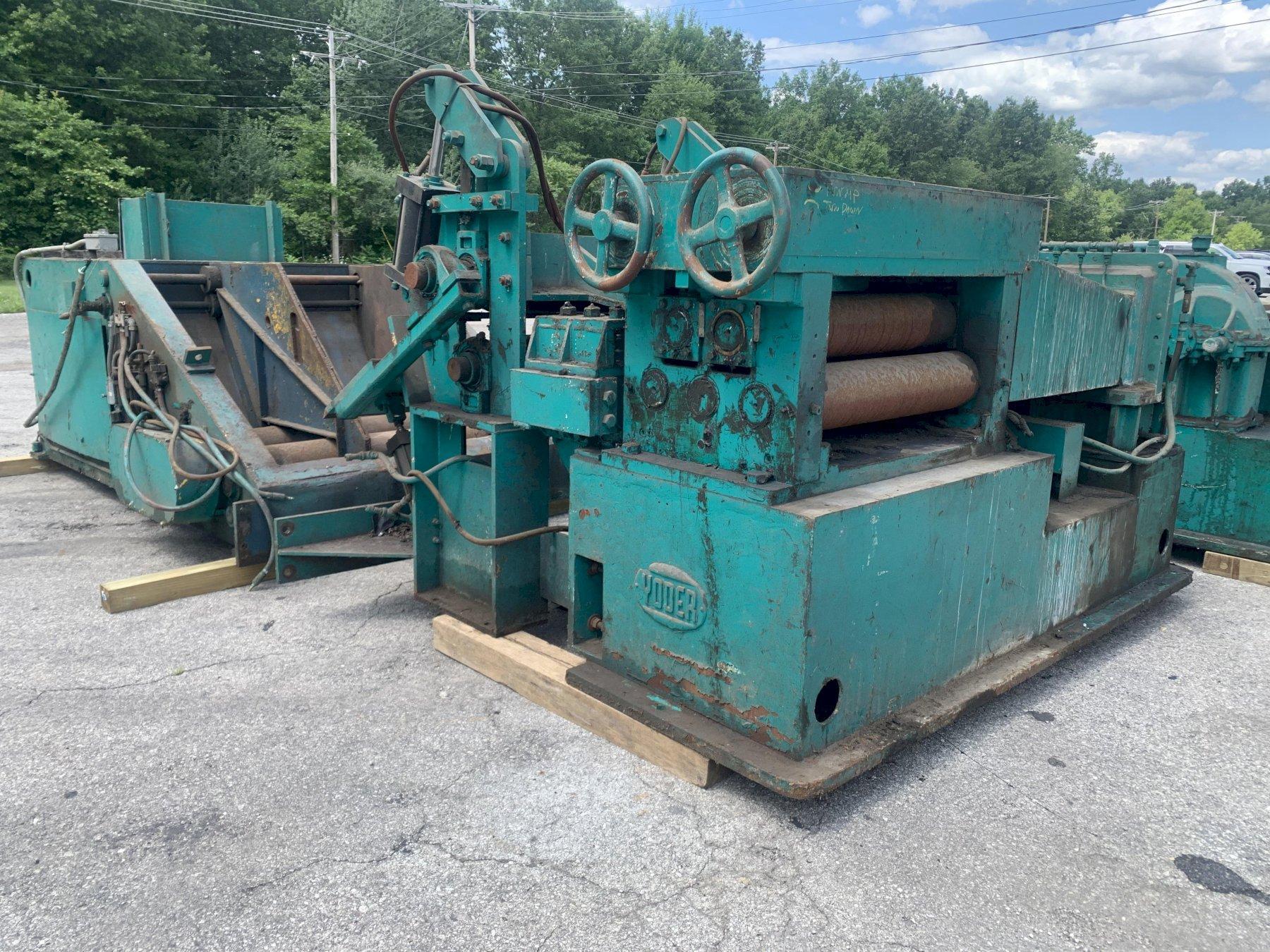

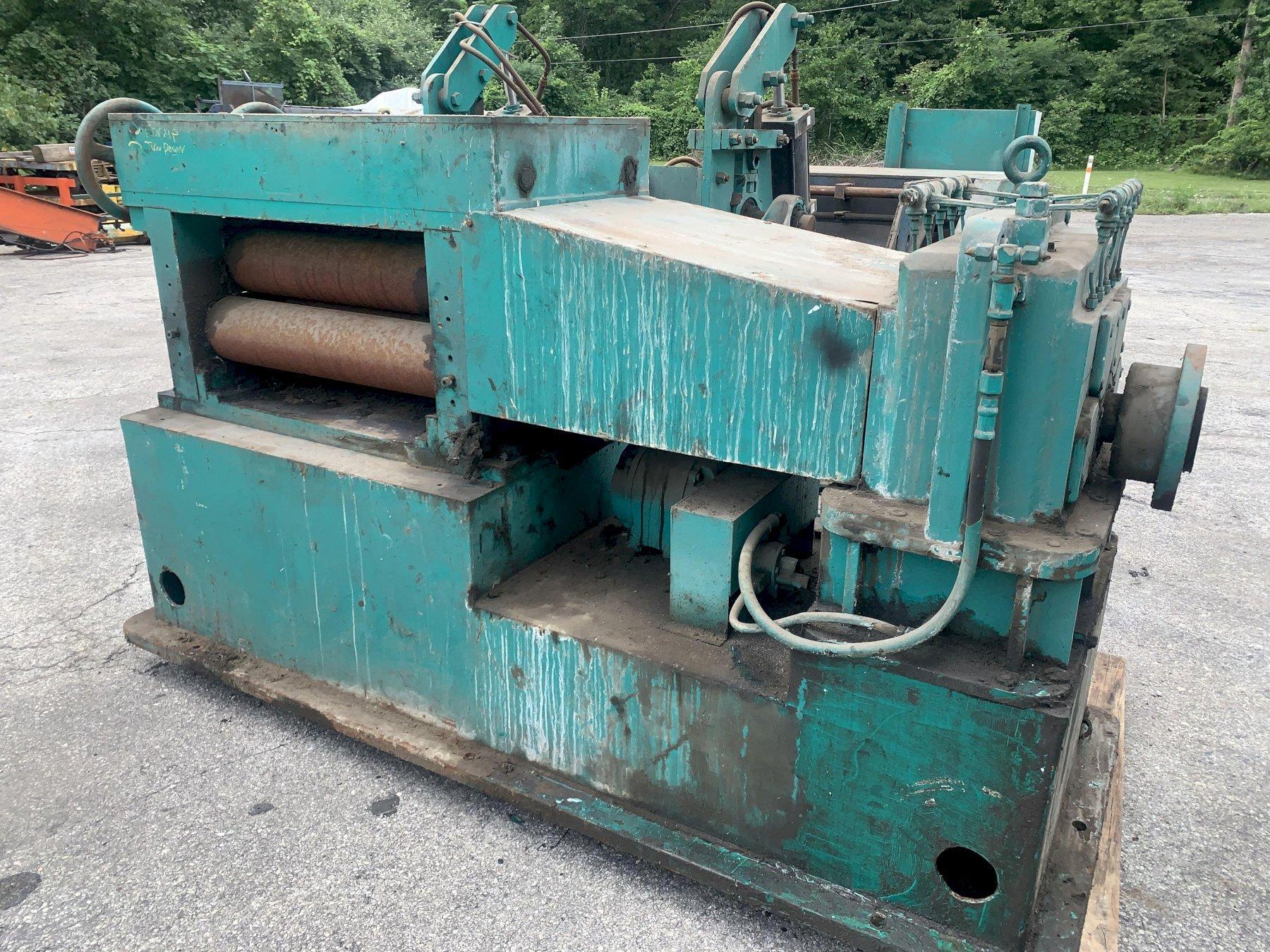

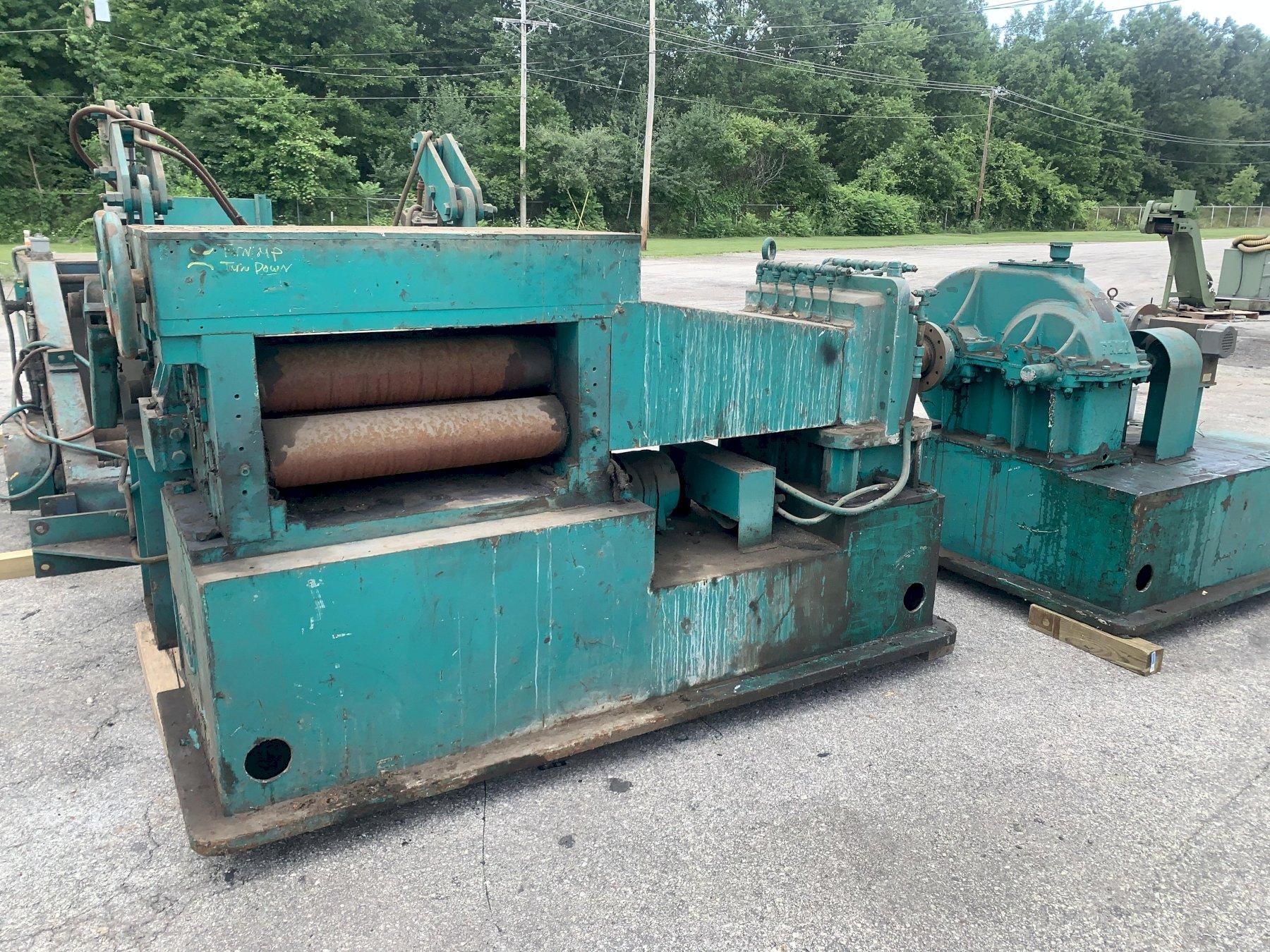

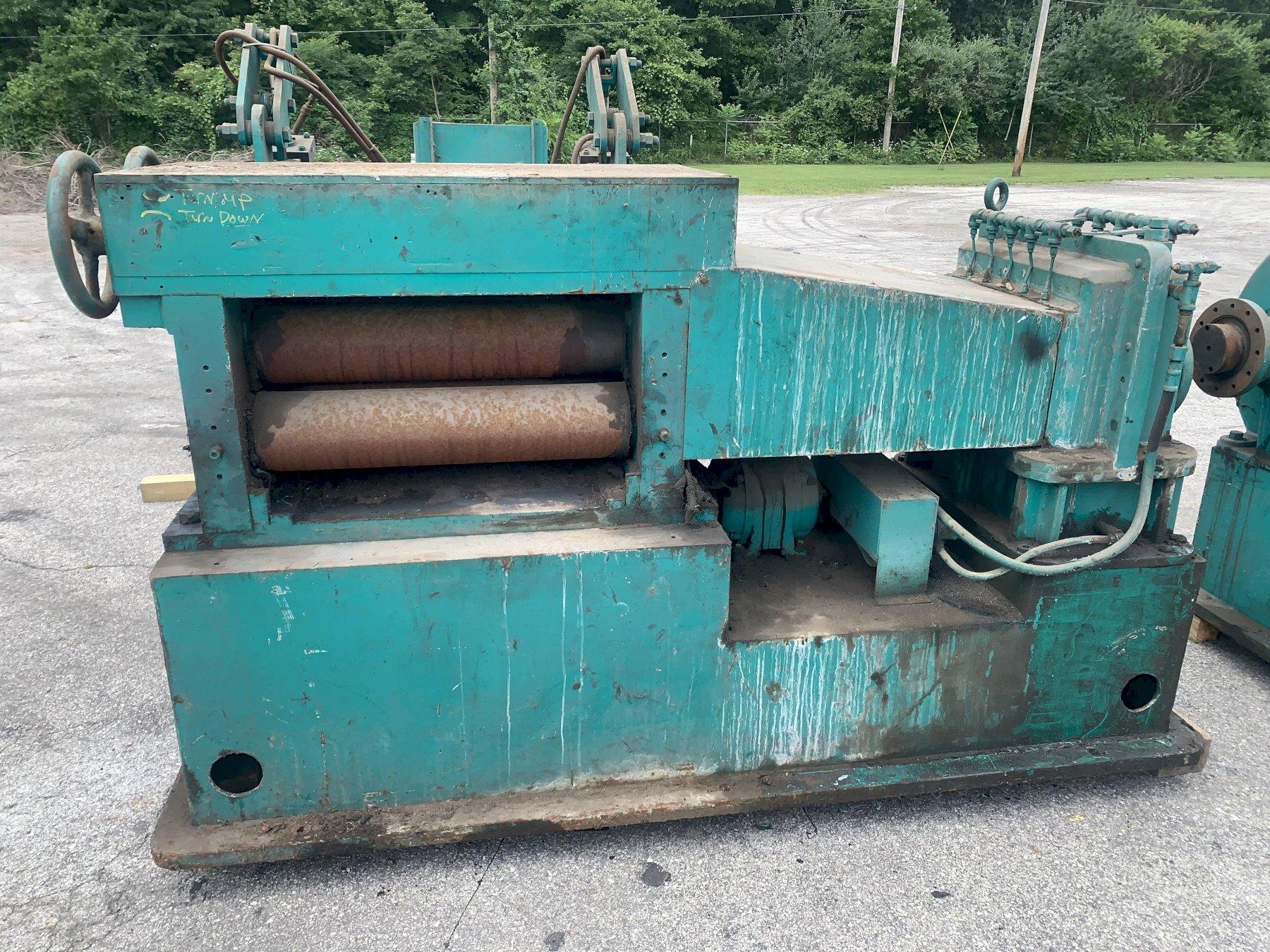

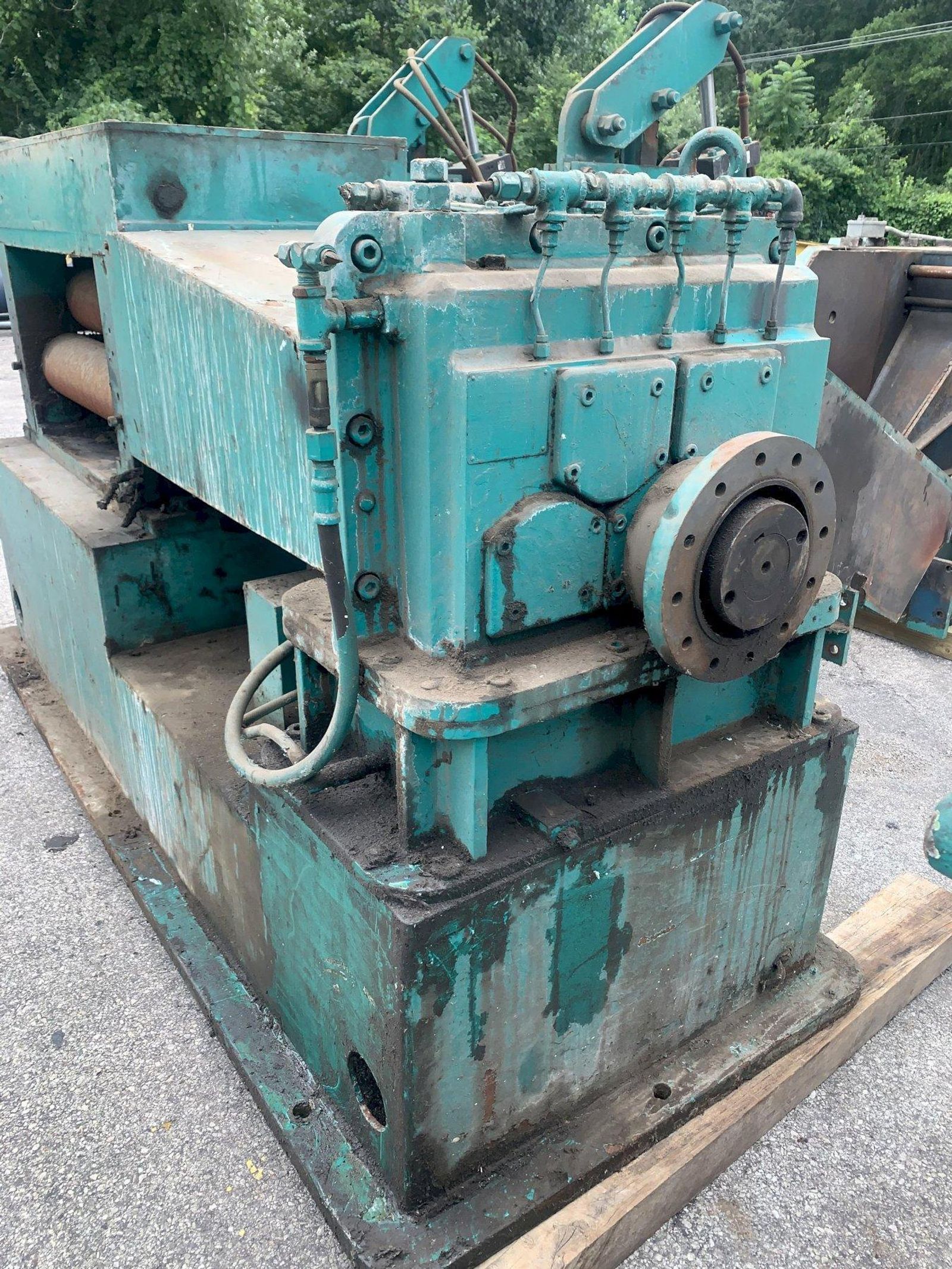

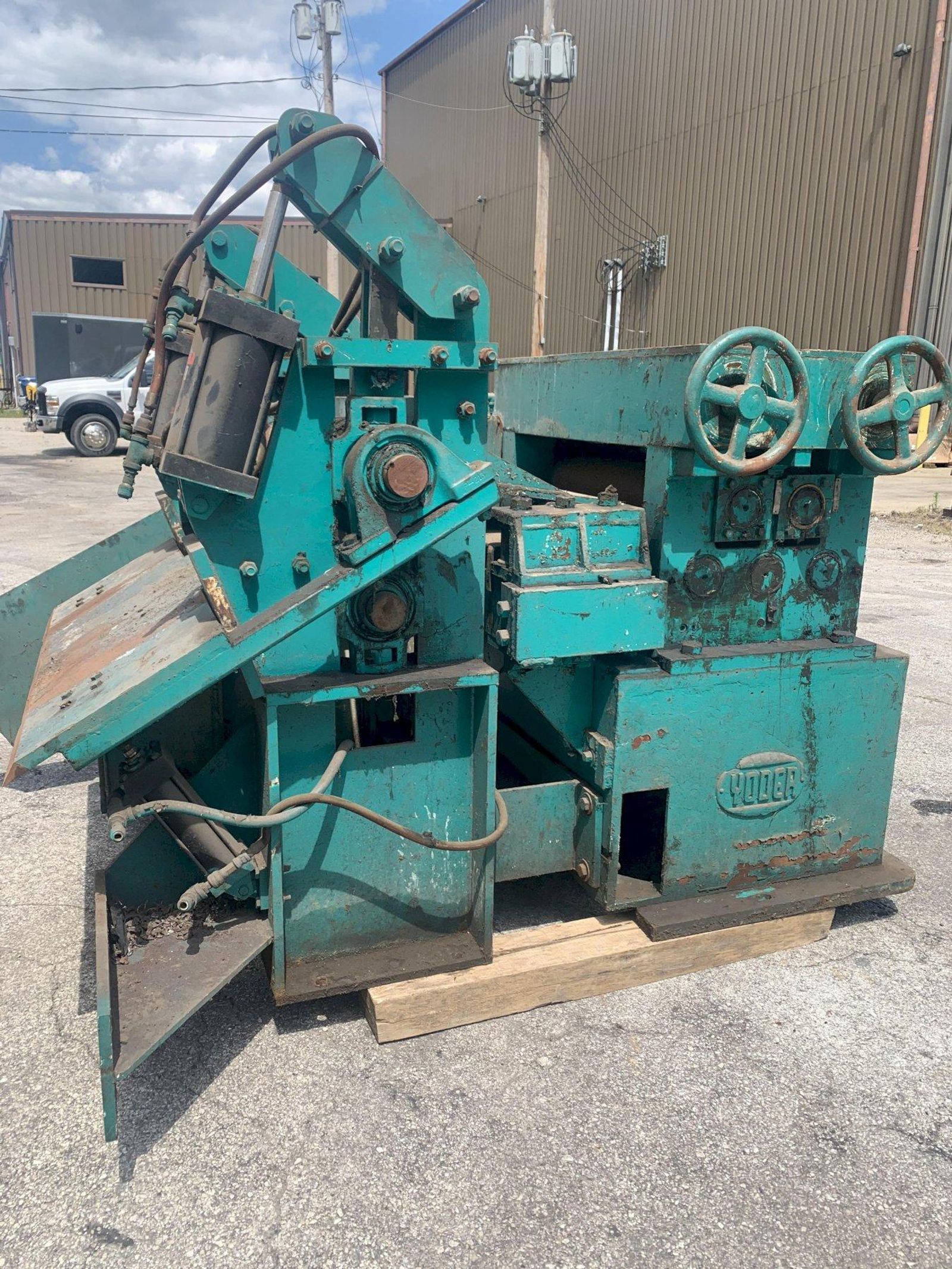

STRAIGHTENER:
MATERIAL CAPACITY .............. 1/2"

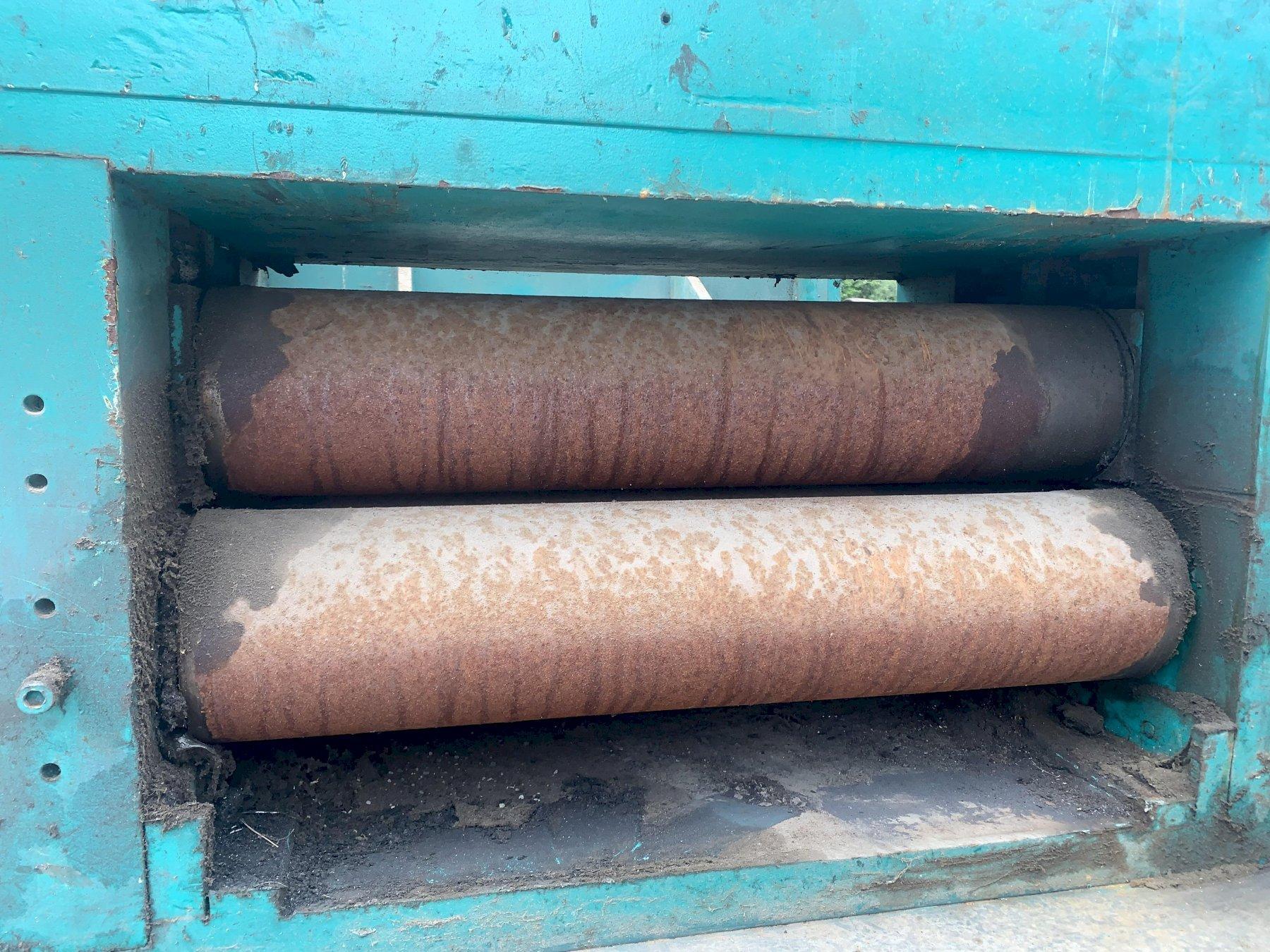

STRAIGHTENING ROLL WIDTH ....... 30" MAXNUMBER OF STRAIGHTENING ROLLS .. 5
ROLL CONFIGURATION ............. 2 OVER 3

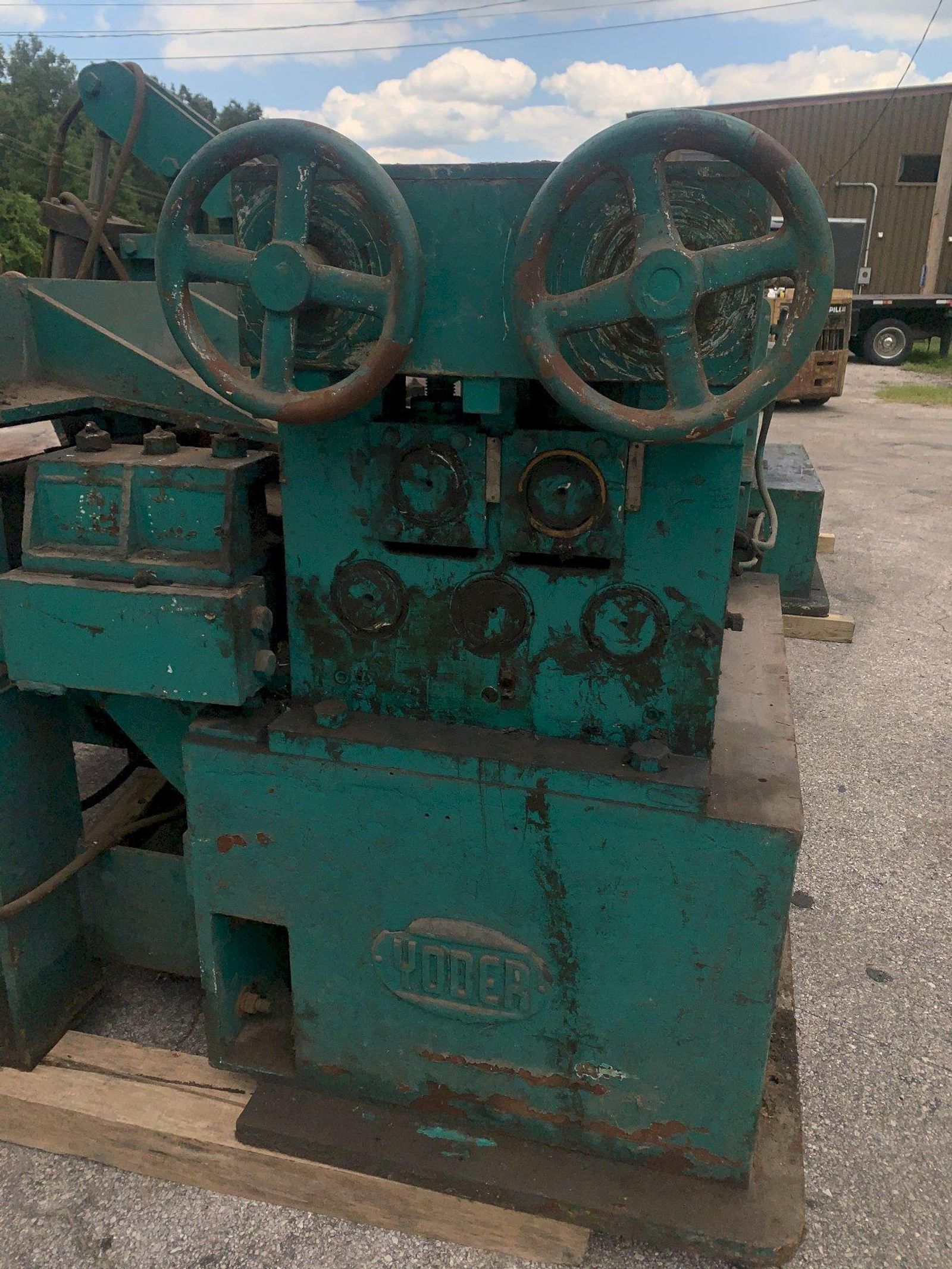

DIAMETER OF ROLLS .............. 6-1/2"TOP ROLL ADJUSTMENT ............ YES, MANUAL
ROLLS DRIVEN ................... YES, INDIVIDUALLY
SPEED .......................... VARIABLE W/VFD

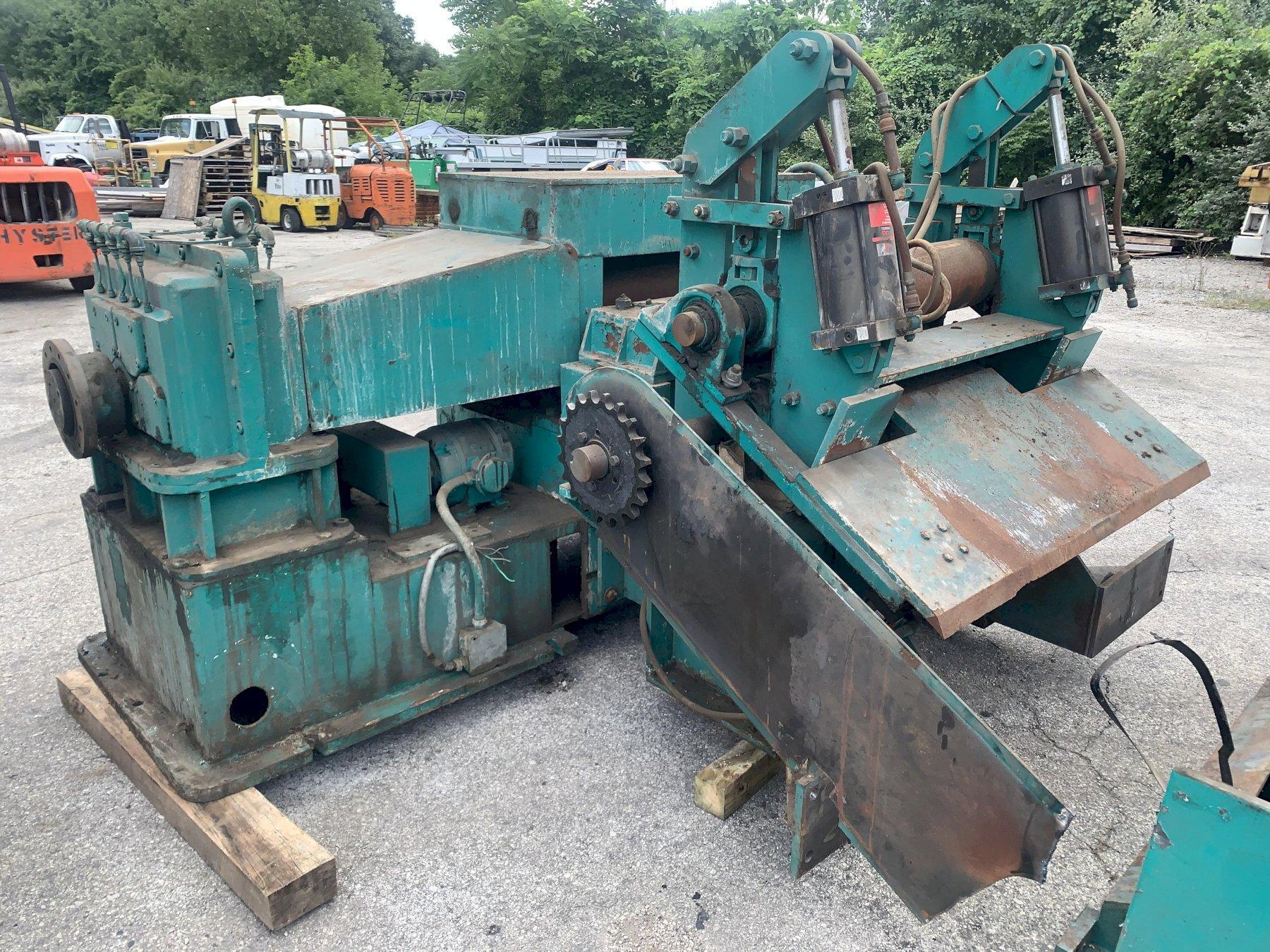

POWERED PINCH FEED UP ROLLS .... YES, CHAIN DRIVEN
TOP FEED ROLL PRESSURE ADJ ..... PNEUMATIC

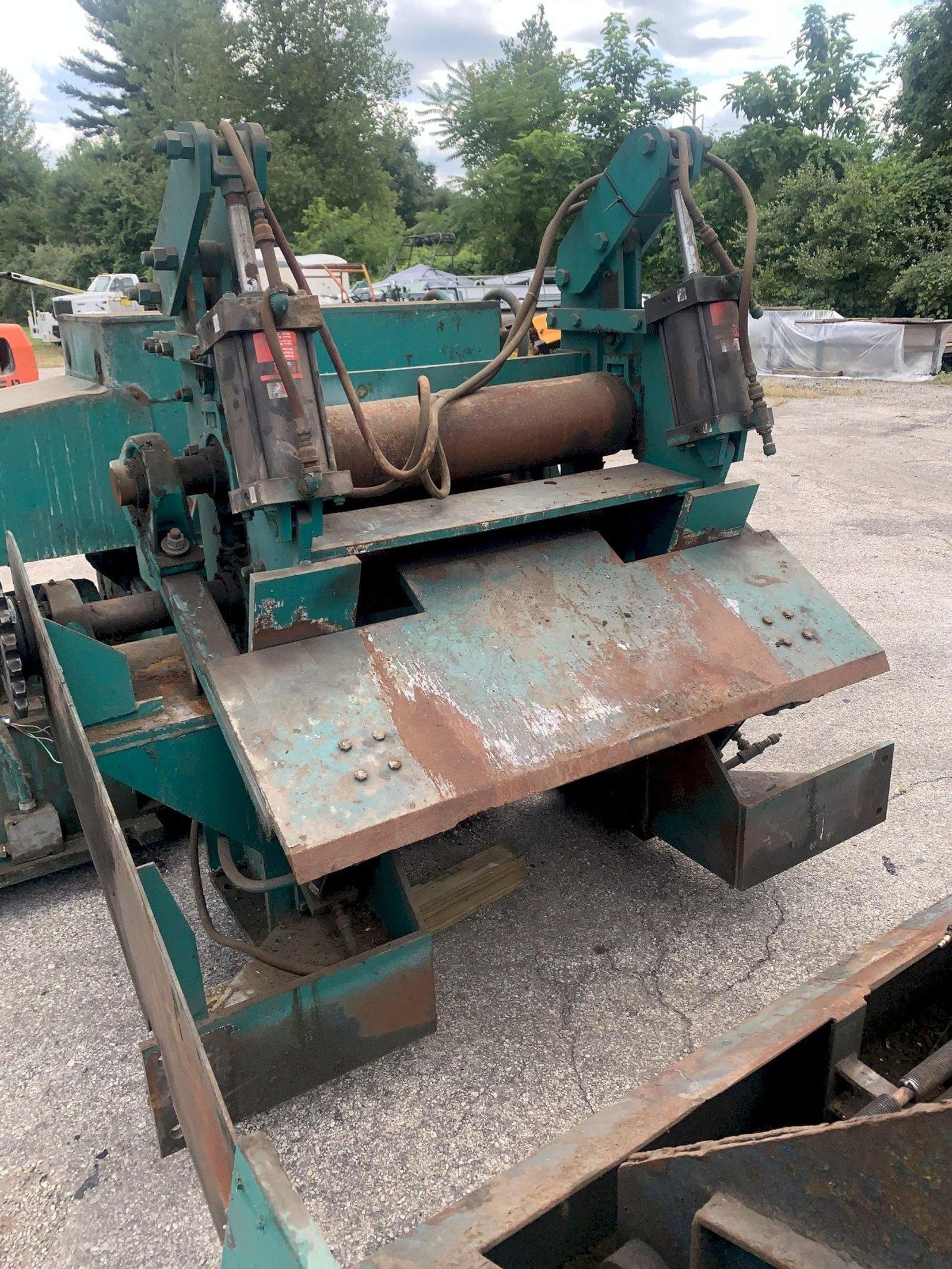

FLIP UP PEELER TABLE ........... PNEUMATIC
PASS LINE HEIGHT ............... 36"ROLLER EDGE GUIDES ............. YES
AUTOMATIC LUBE TO GEAR BOX ..... YES

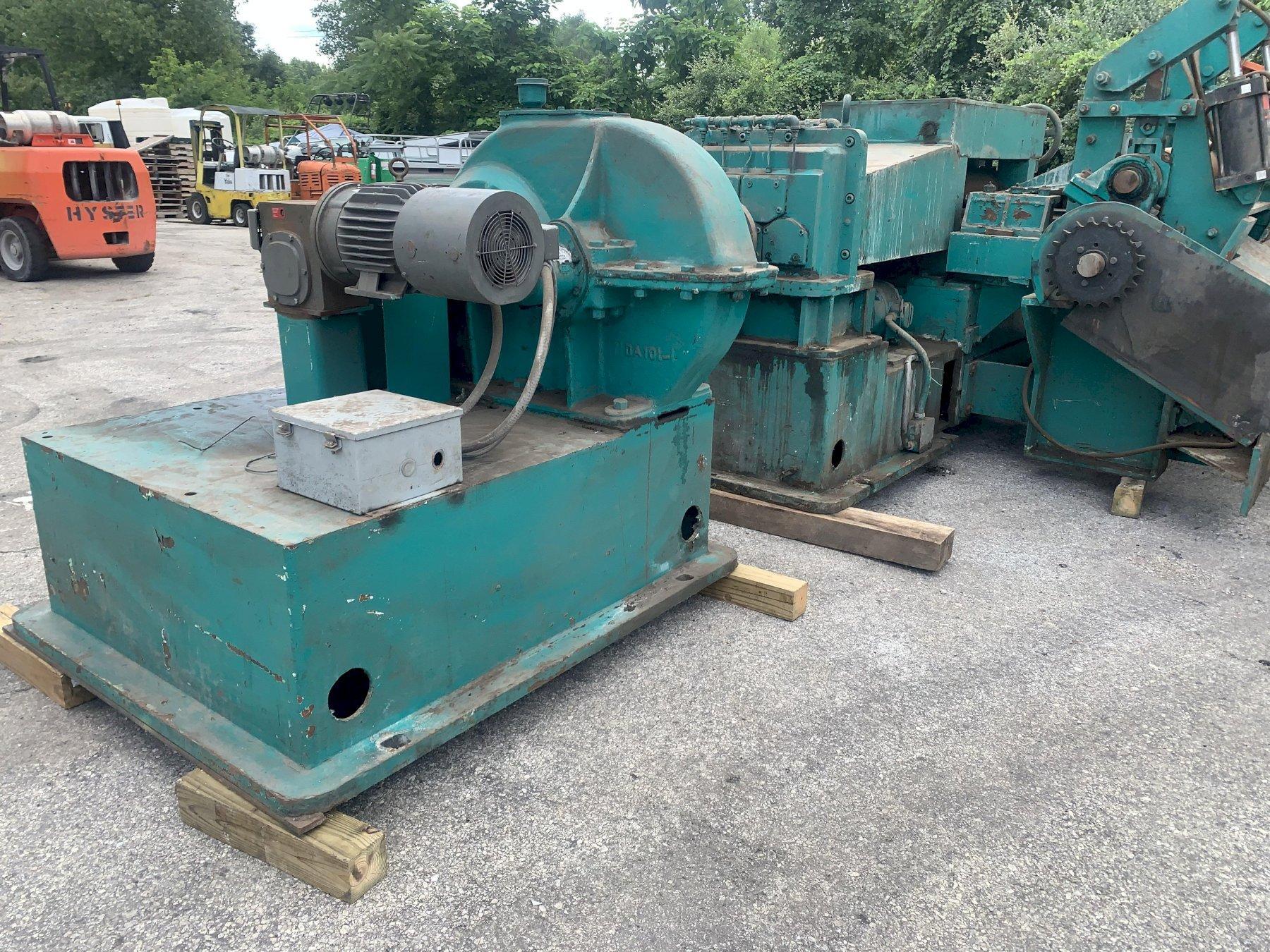

THREAD UP STAND & DRIVE:

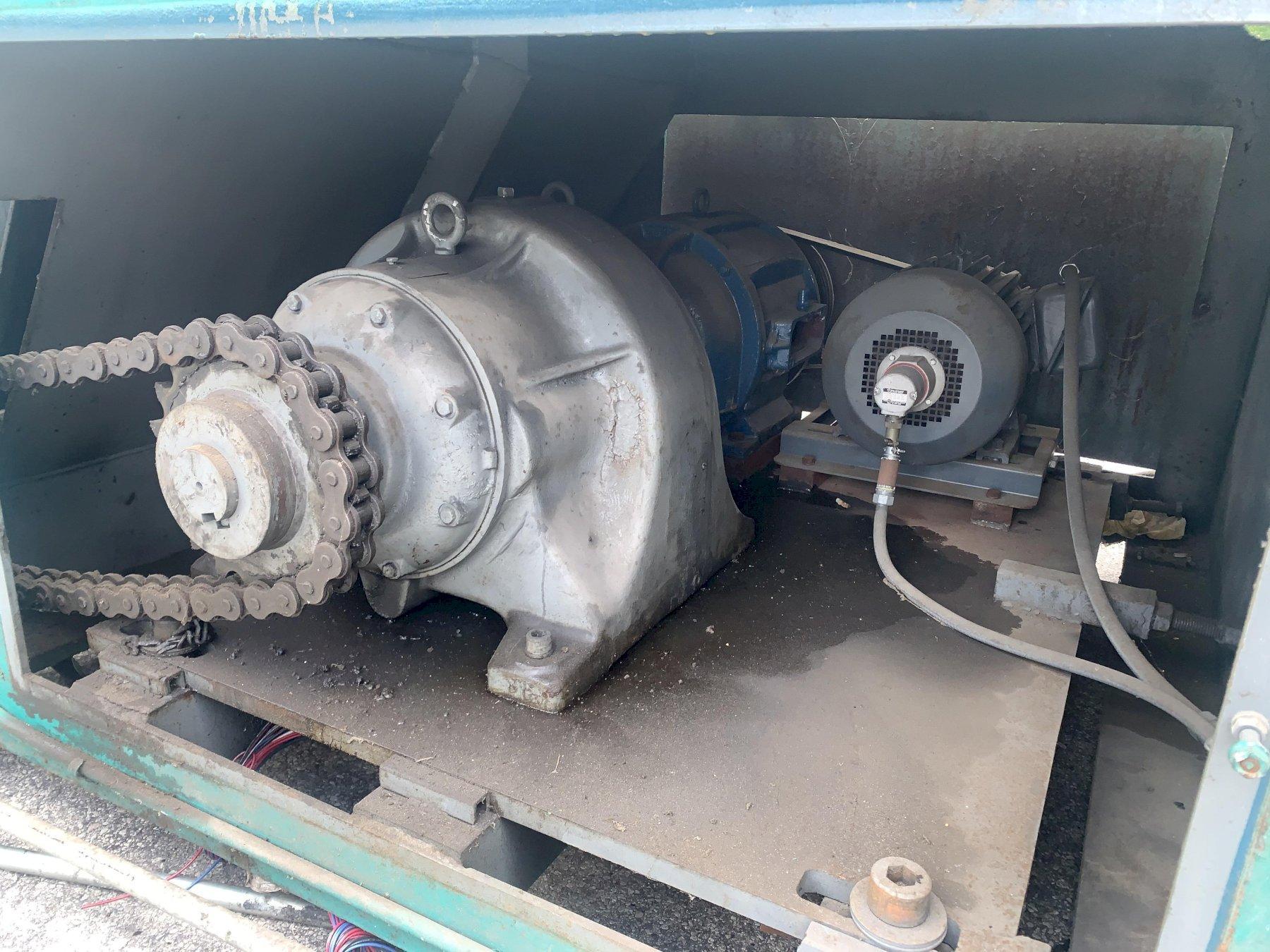

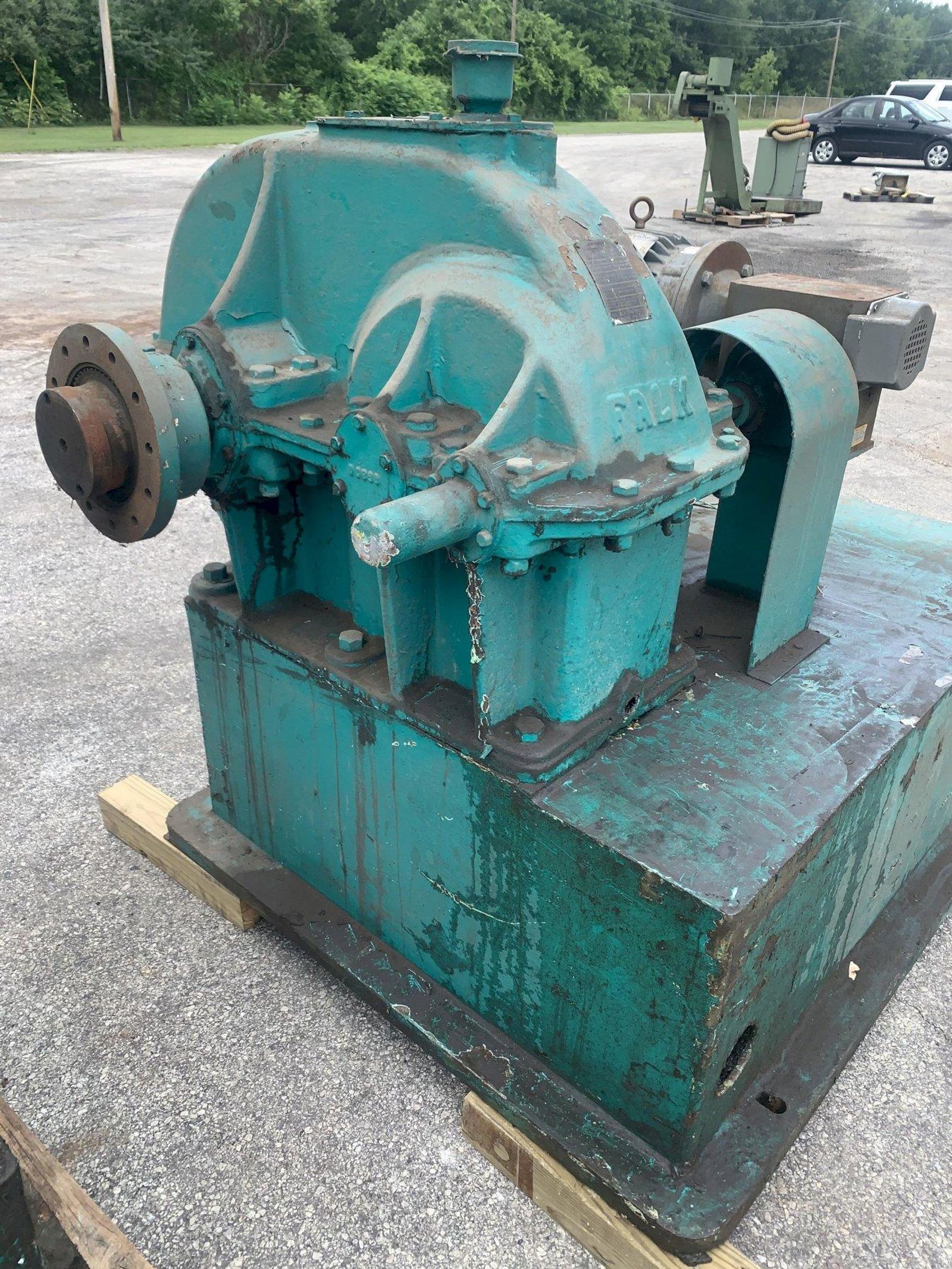

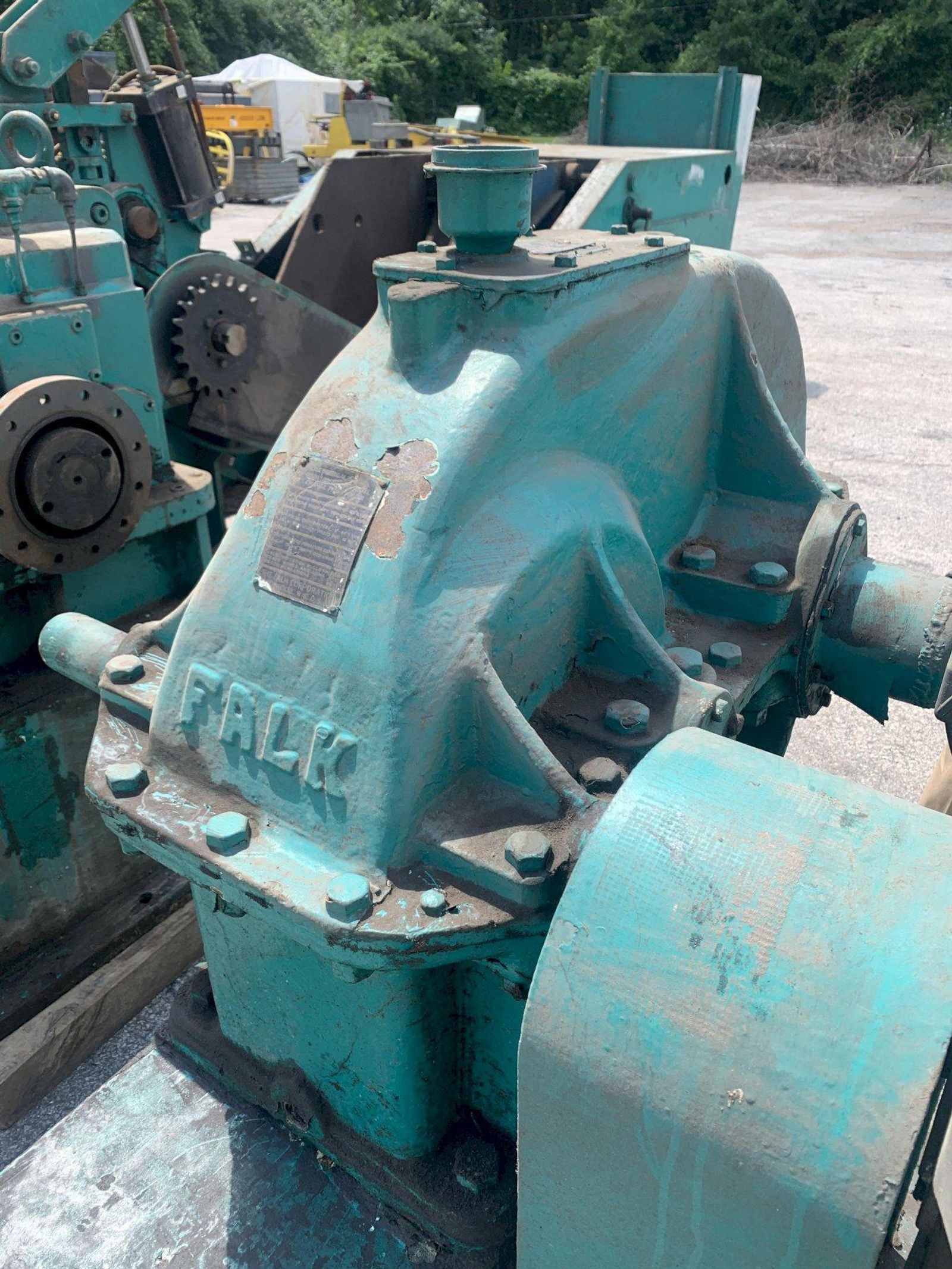

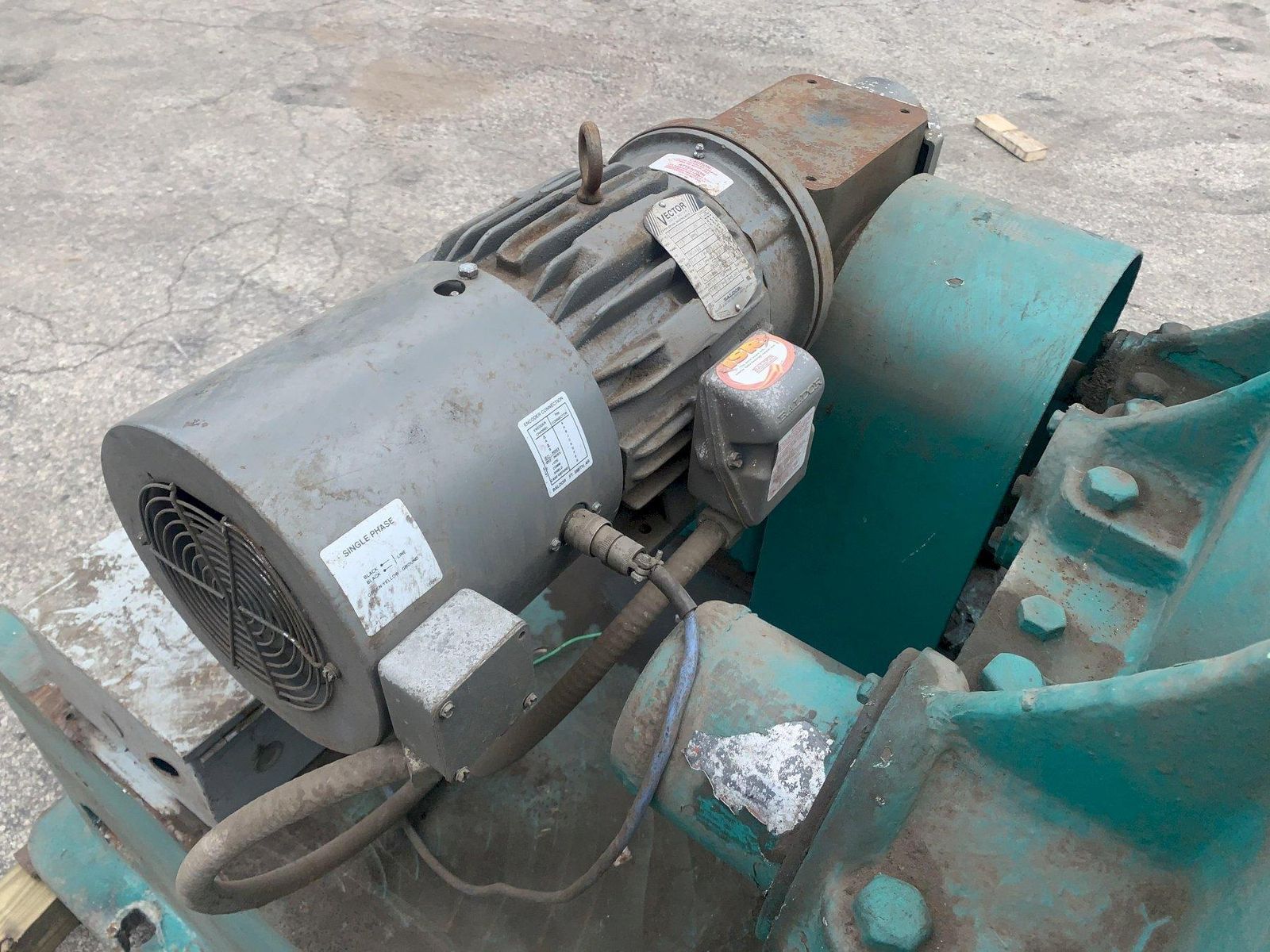

FALK SPEED REDUCER ............. 20.4:1 RATIOMOTOR .......................... 5 HP
SPEED .......................... VARIABLE W/VFD

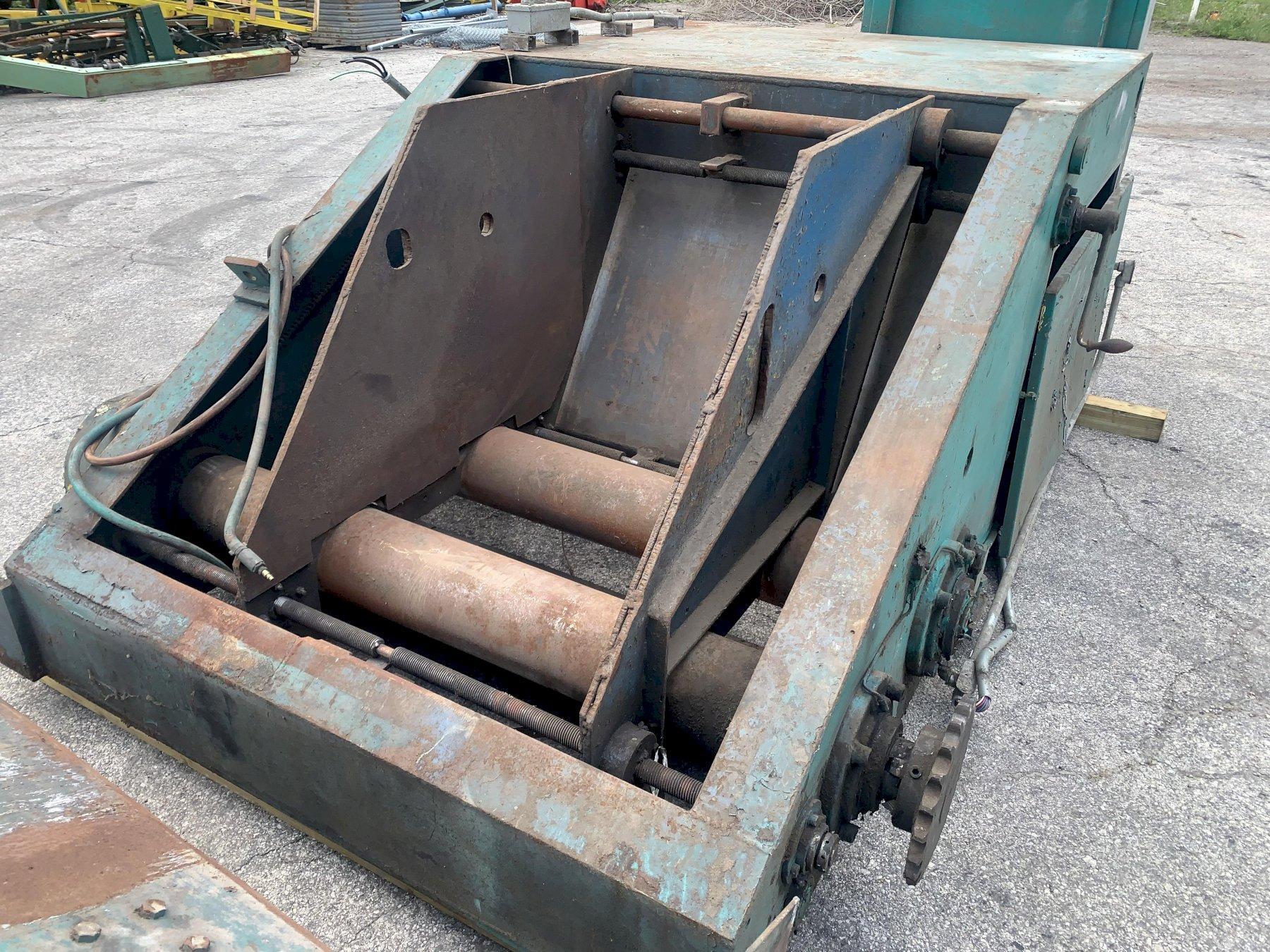

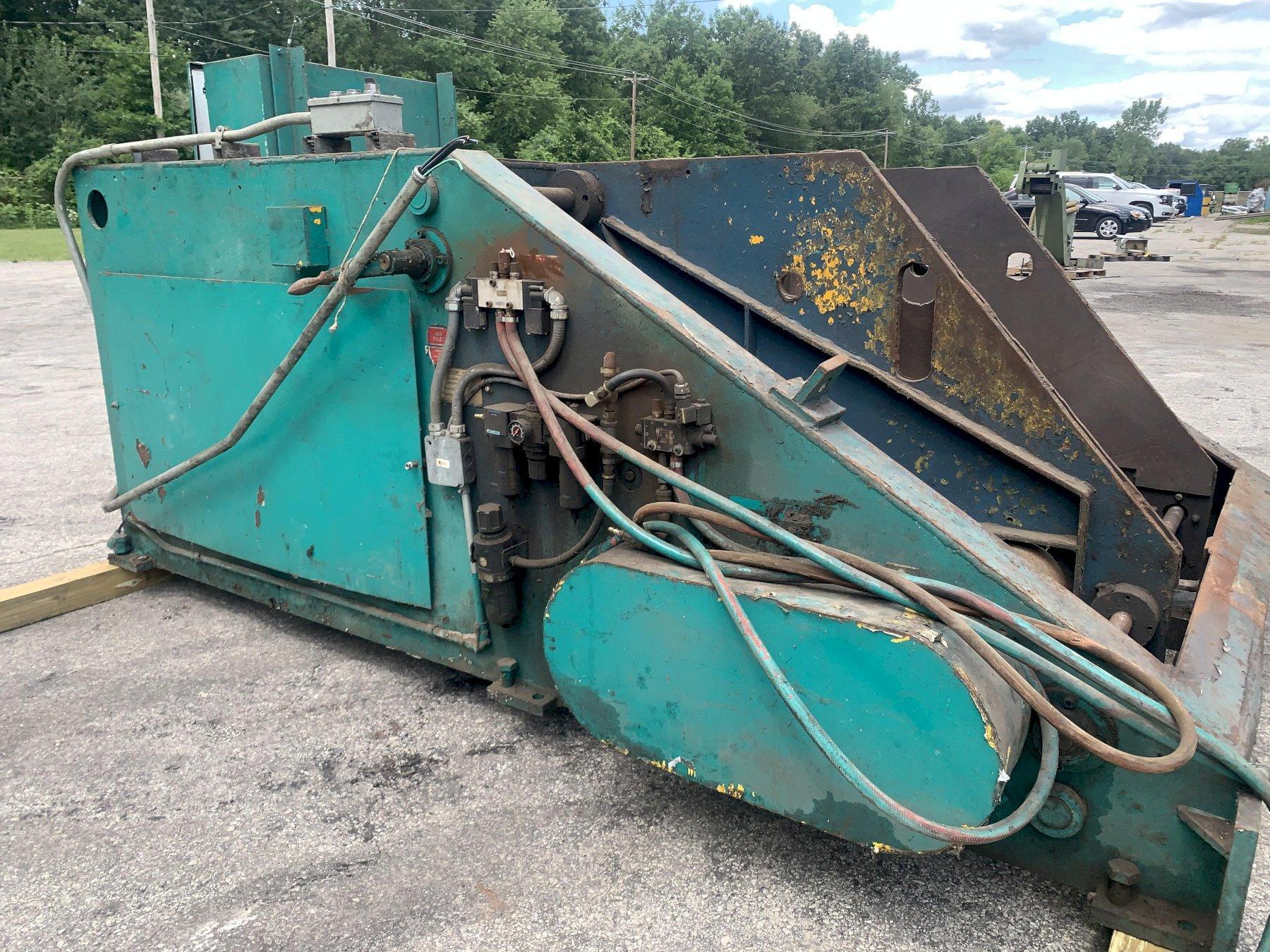

COIL CRADLE:
ADJUSTABLE COIL WIDTH .......... 6" TO 42"
MAX COIL DIAMETER .............. 60"
POWERED COIL ROTATION .......... YES, BOTH SHAFTS
SPEED .......................... VARIABLE W/VFD
CHAIN DRIVEN ................... YES

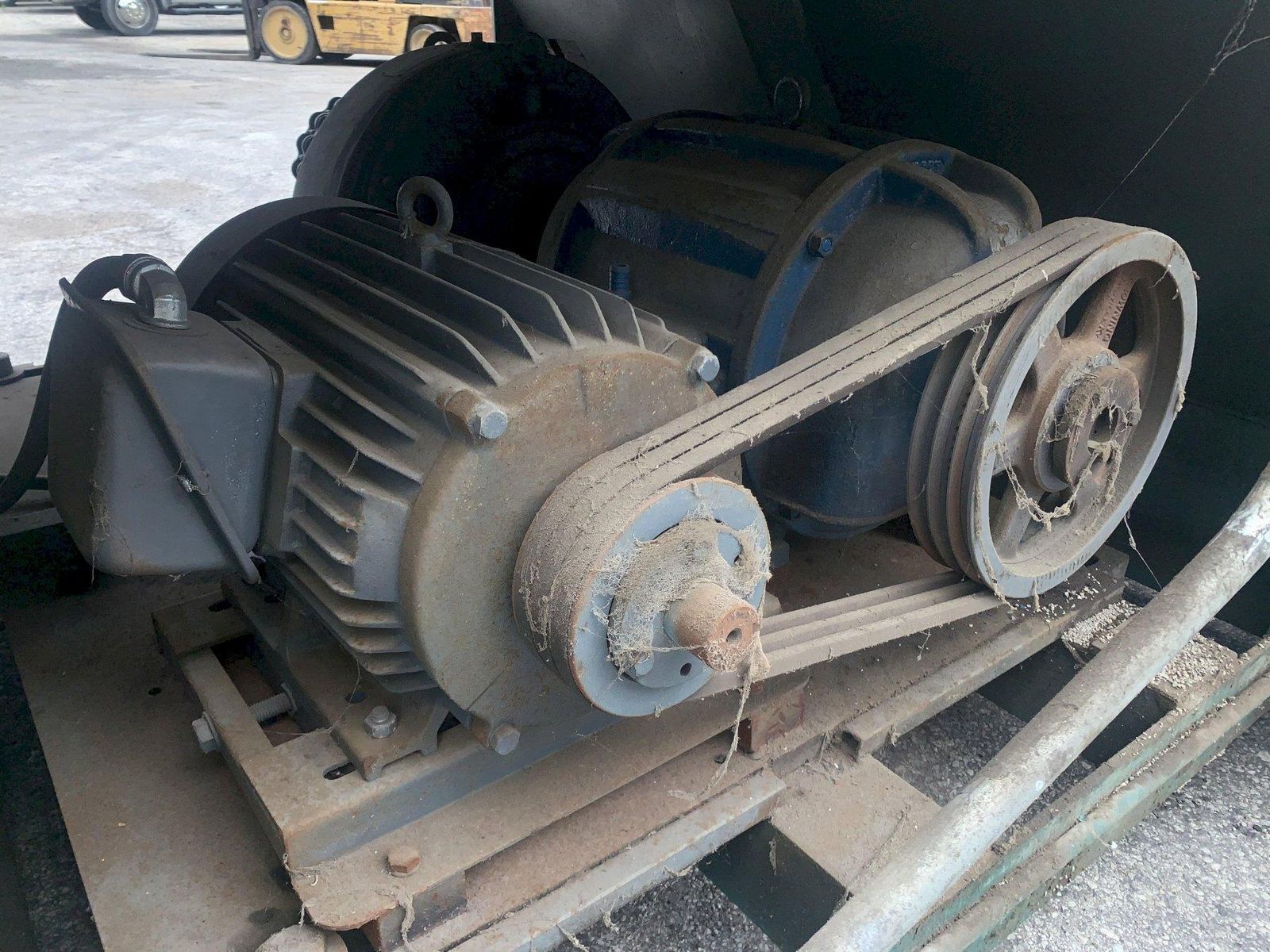

MOTOR .......................... 20 HP

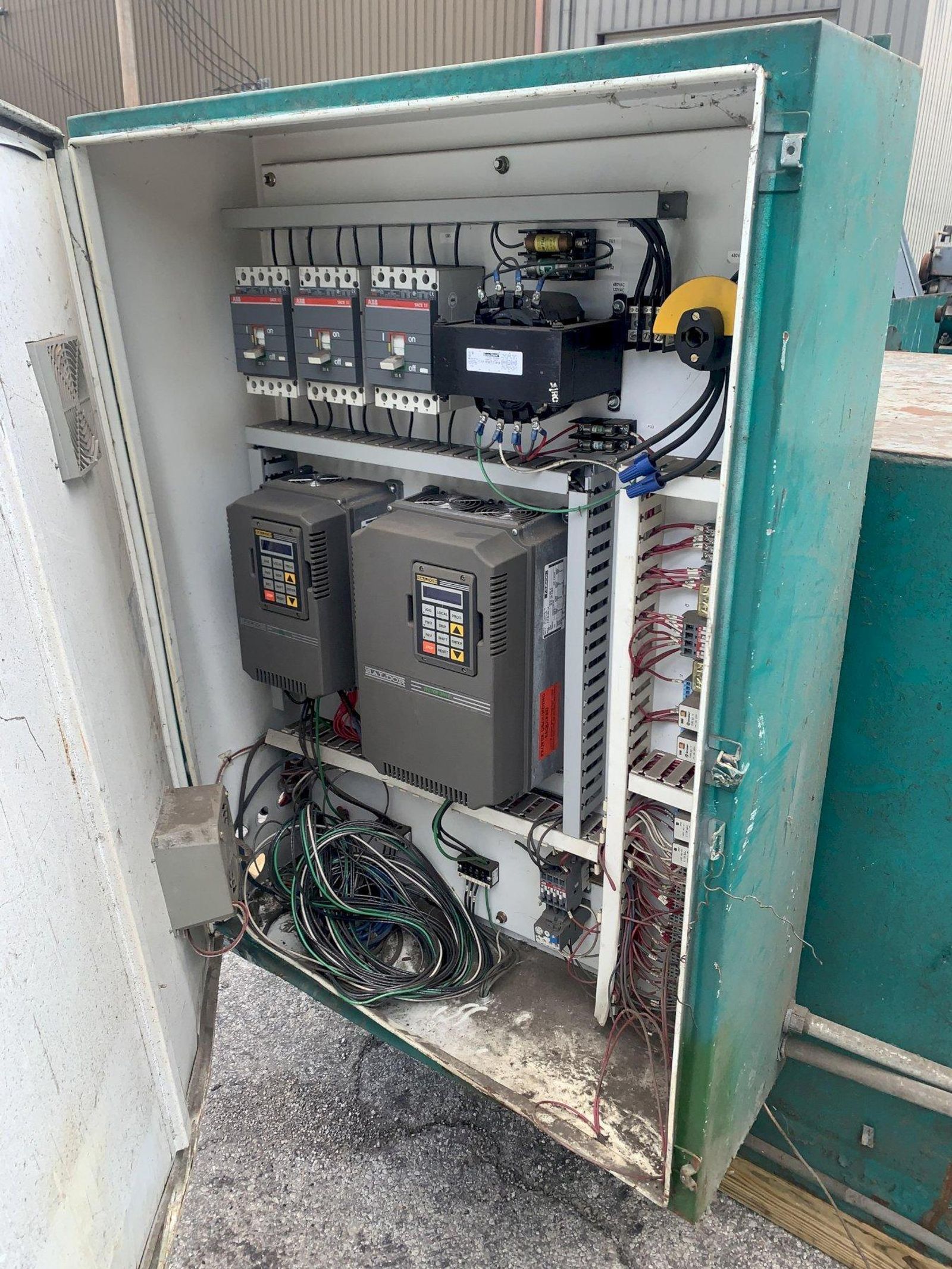

UPDATED ELECTRICS:

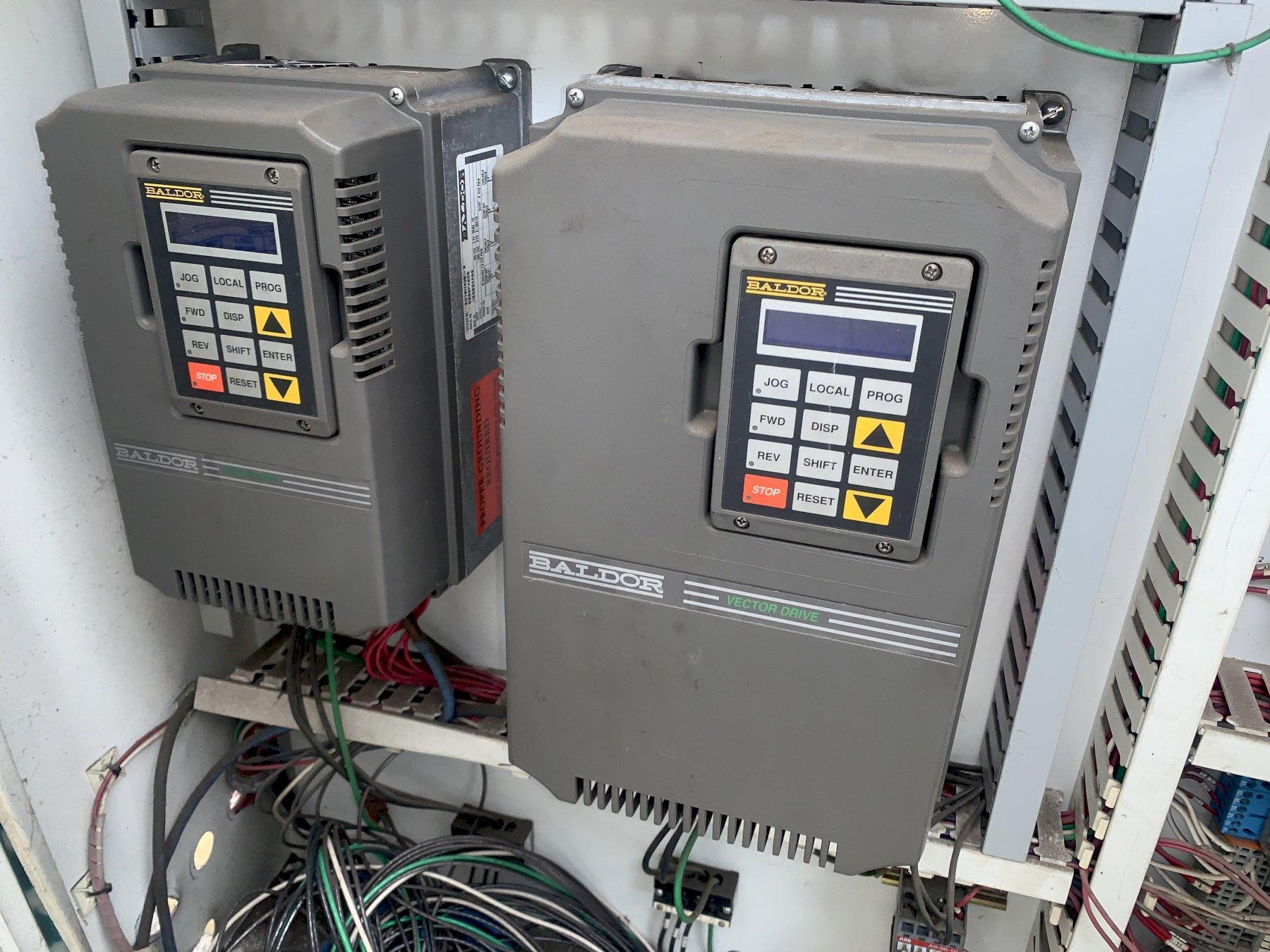

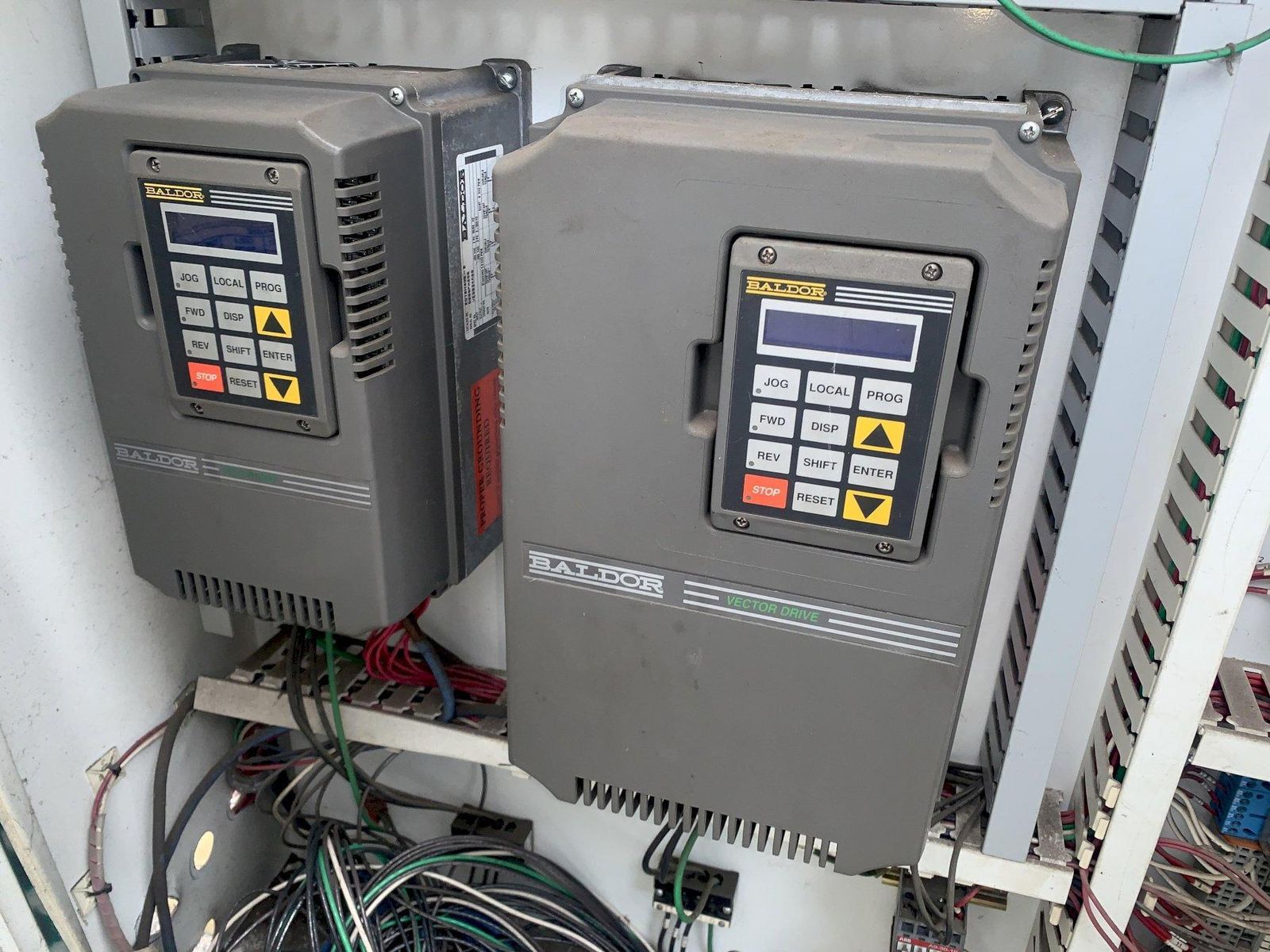

VECTOR VFD DRIVES .............. BALDOR
