YEAR ..................................... 1985
HEAVY DUTY CONVEYOR CAPACITY ............. 20,000 LBS
WIDE MULT CAPACITY ....................... 26"
MAX COIL O.D. ............................ 72"
CONSISTING OF THE FOLLOWING:

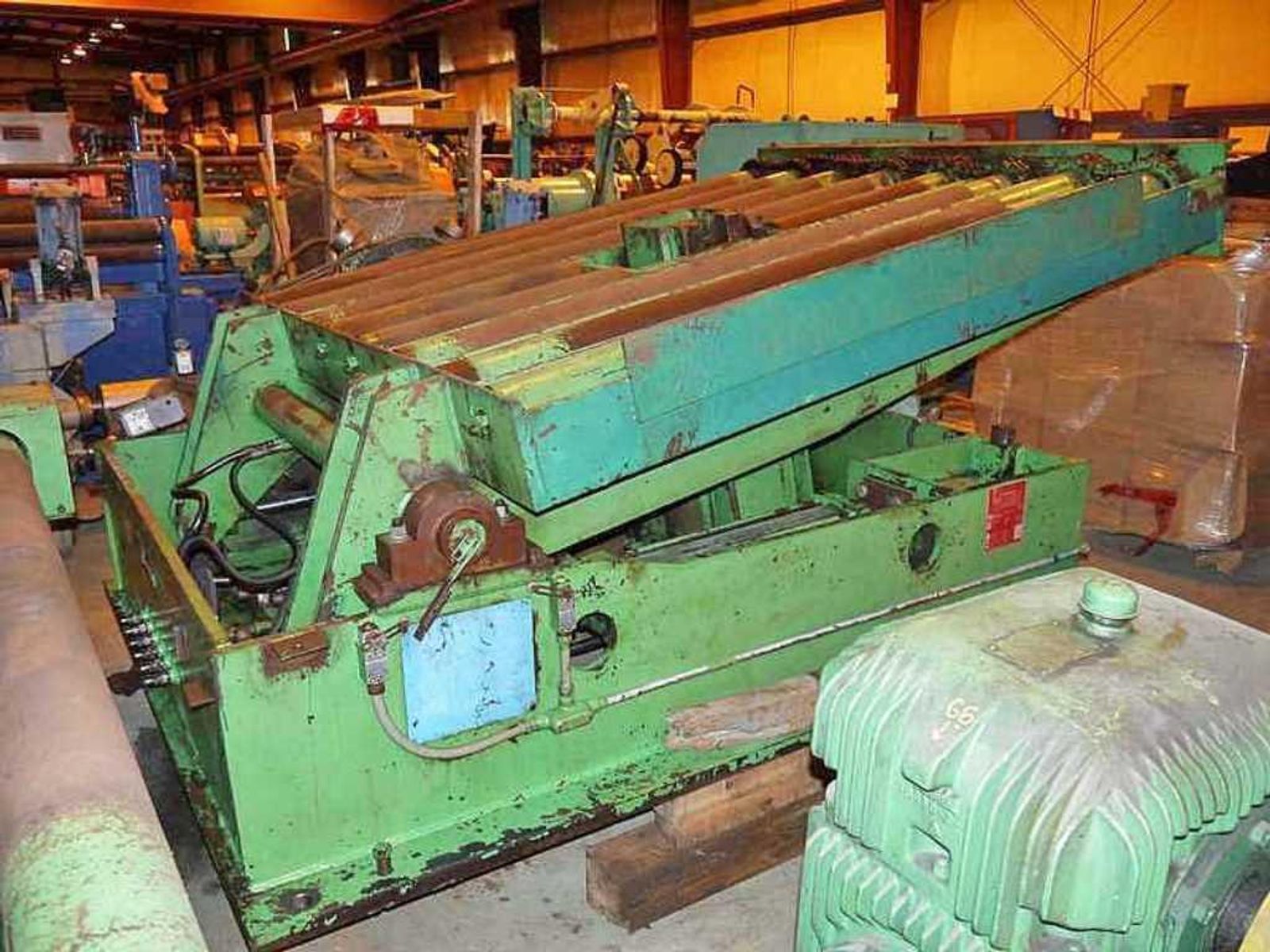

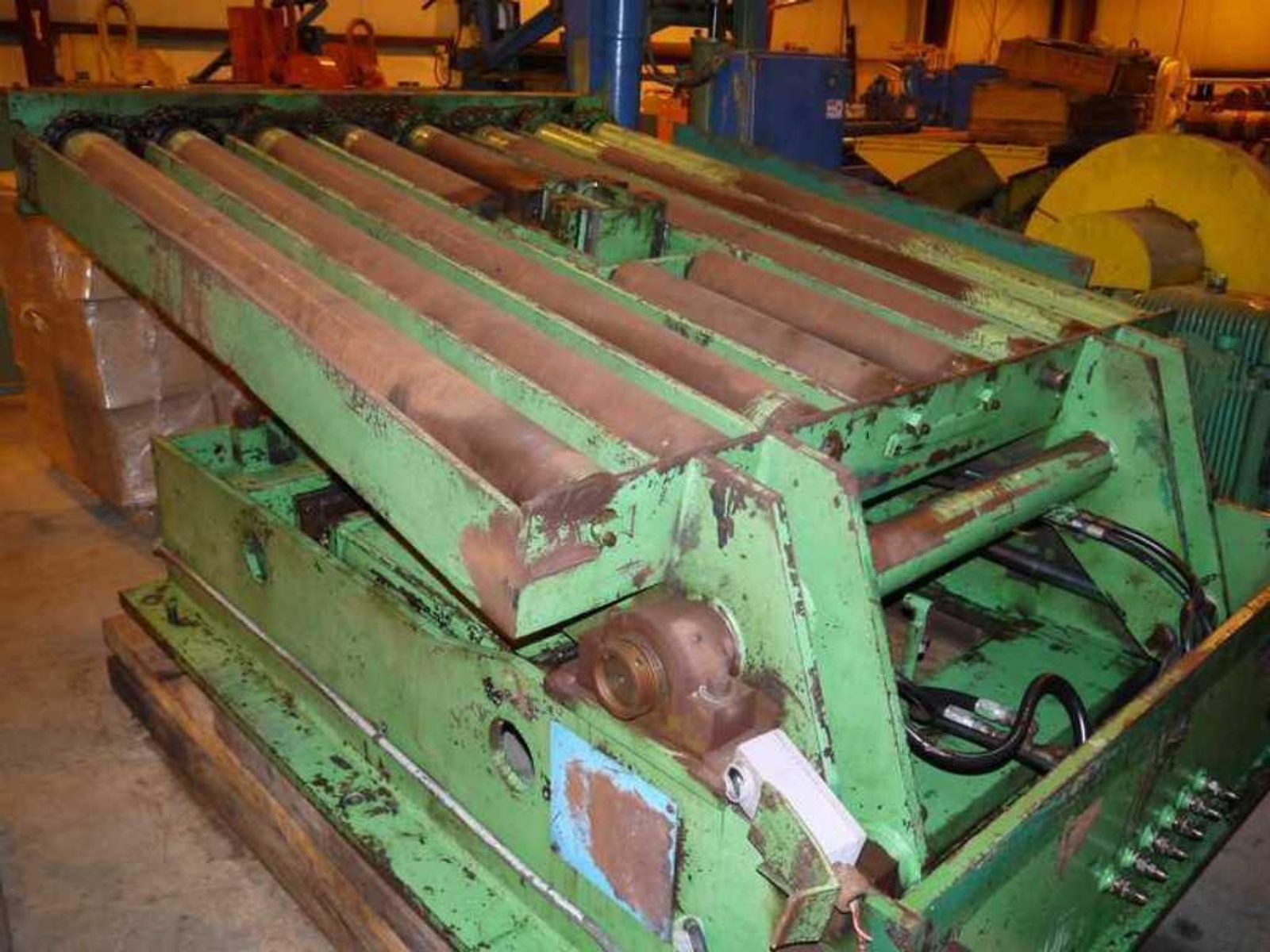

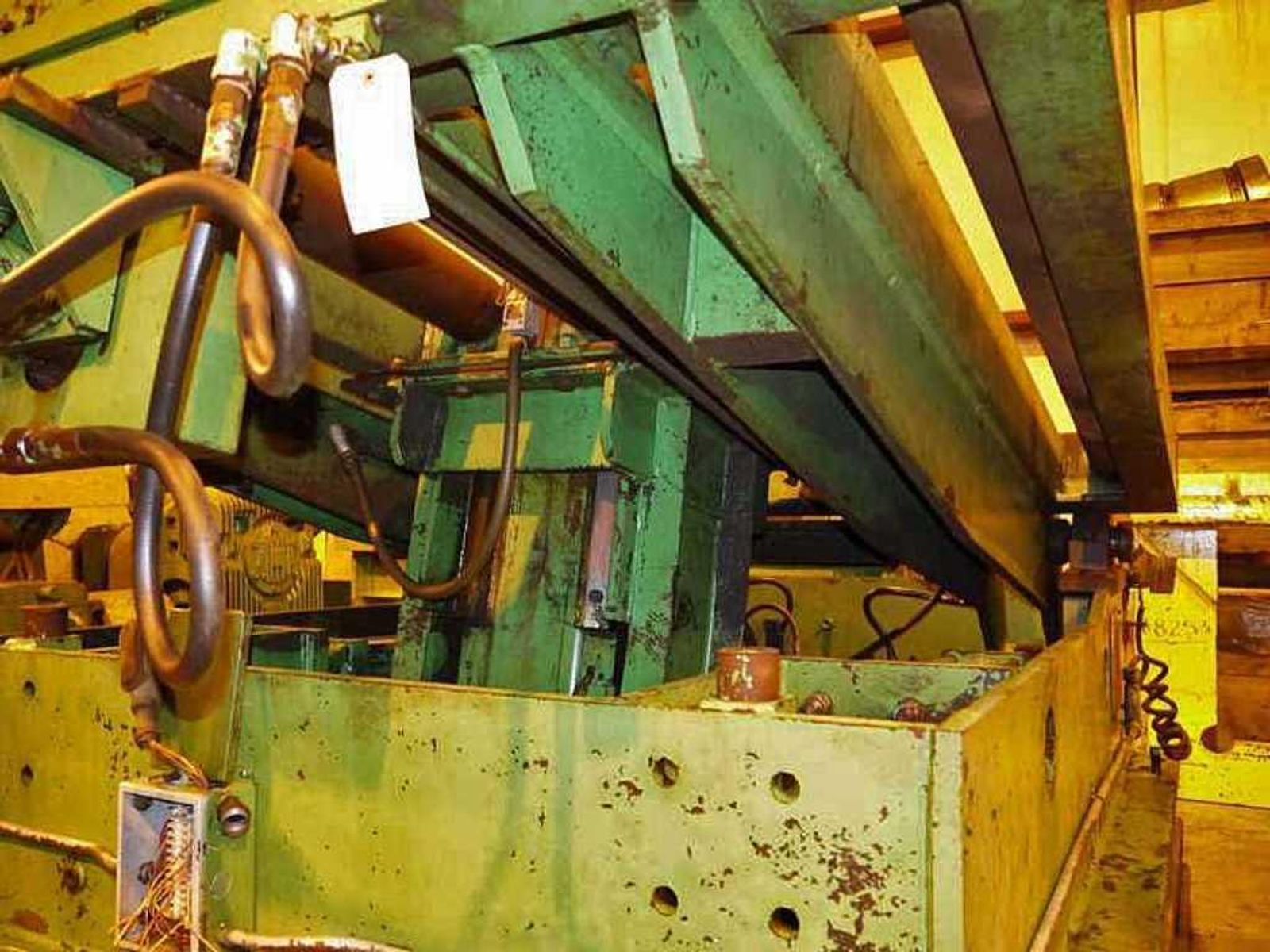

DOWNLAYER:
FACE DRIVEN ROLLS ........................ 5" DIA x 75"
HYDRAULIC MOTOR DRIVE .................... YES
RIGHT ANGLE DISCHARGE .................... YES
LONG HORN EXTENSION ...................... 25"
(1) HYDRAULIC HORN CYLINDER .............. 2.5" BORE x 26" STROKE
(2) HYDRAULIC TILT CYLINDERS ............. 5" BORE x 23" STROKE
FLOOR TO TOP OF HORN "TIPPED POSITION" ... 74" (APPROX)
PASS LINE HEIGHT ......................... 34.5"
MANUAL BANDING TABLE:
DRIVEN ROLLS ............................. 5" DIAMETER
HYDRAULIC MOTOR DRIVEN ROLLS ............. YES

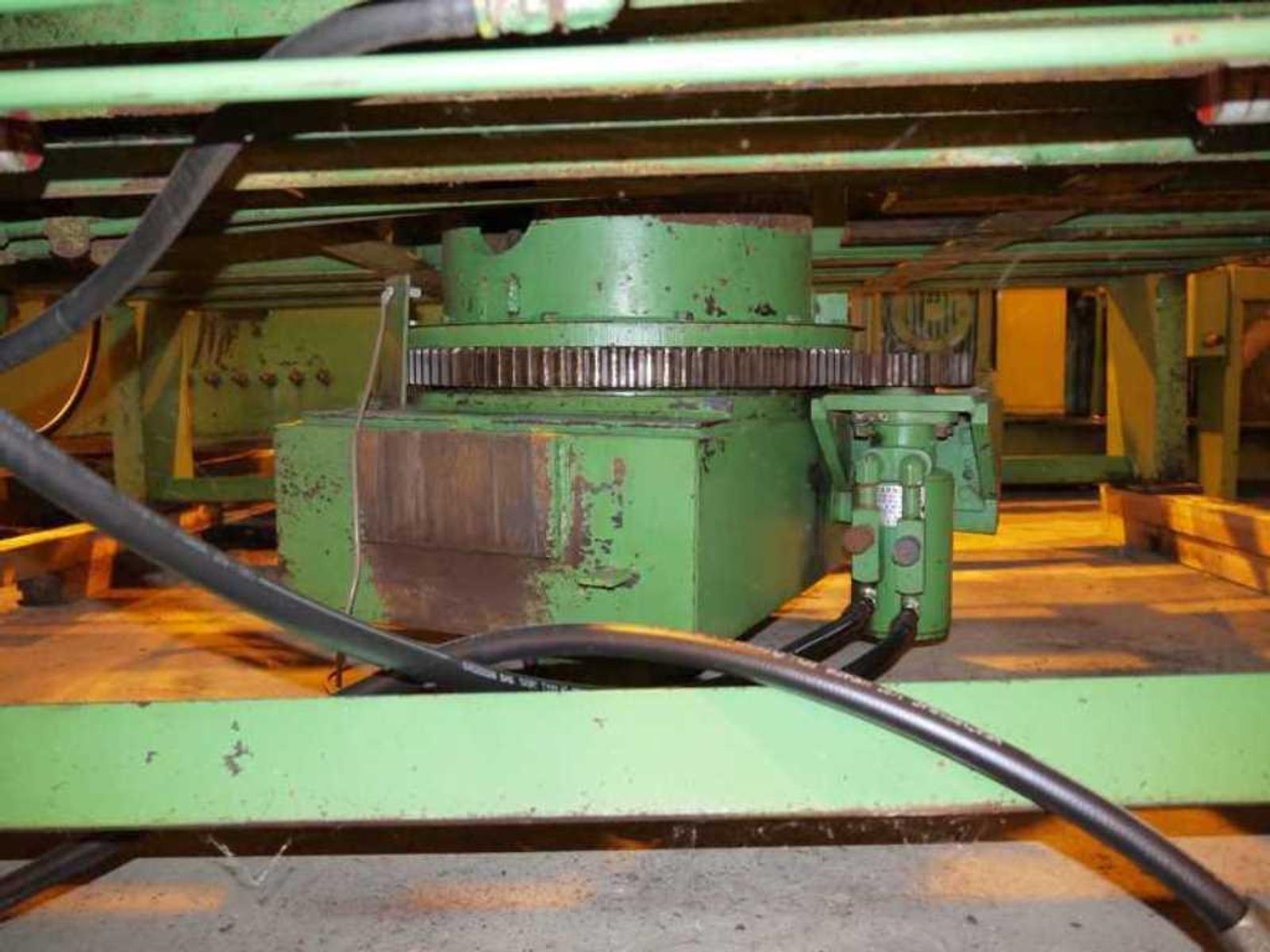

3 ARM TYPE COIL LIFT AND ROTATE .......... YES
(1) HYDRAULIC LIFT CYLINDER .............. 6" BORE x 9" STROKE
HYDRAULIC MOTOR ROTATE ................... YES
PASSLINE HEIGHT .......................... 35"

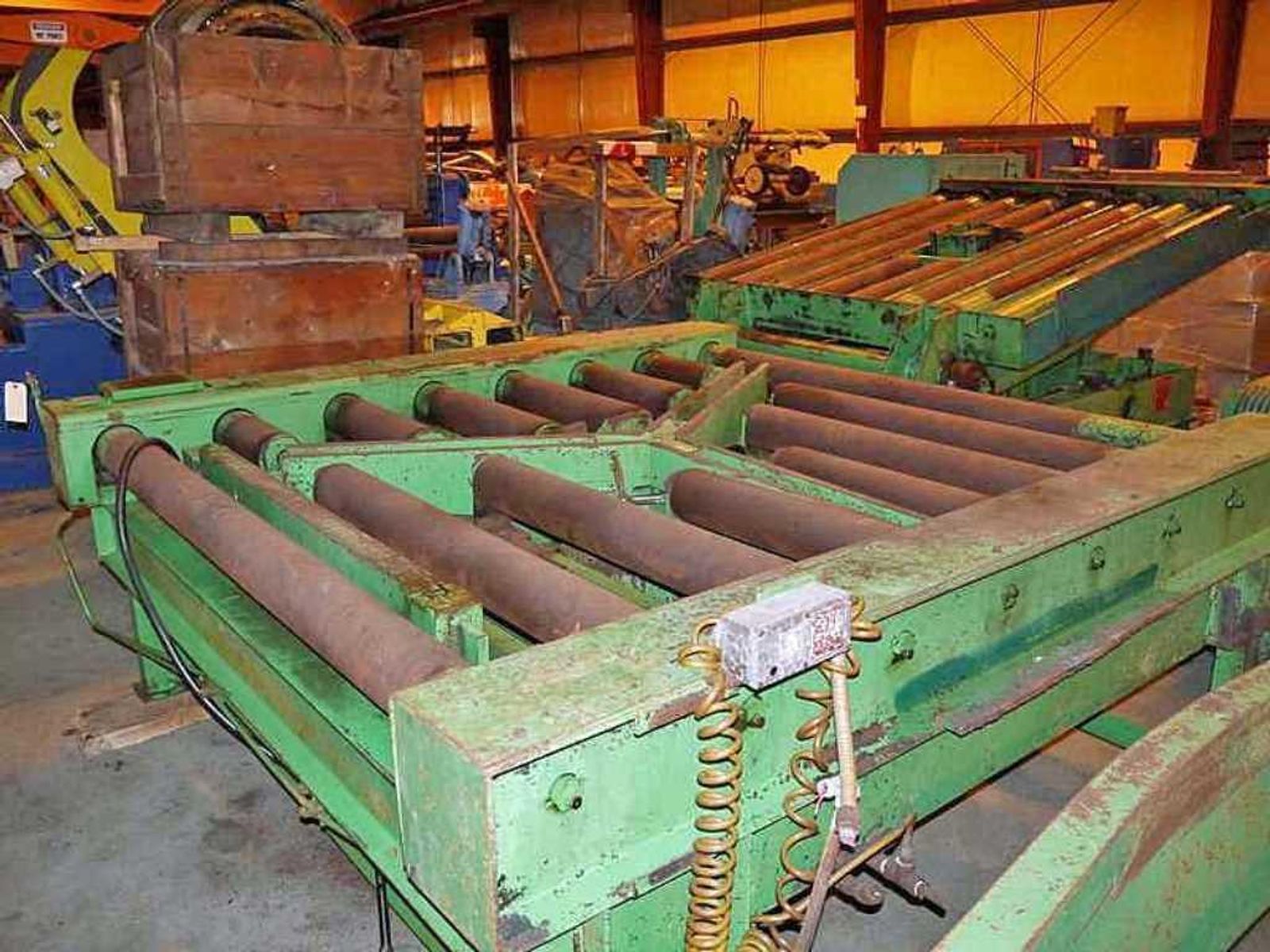

COIL STORAGE CONVEYOR:
LENGTH ................................... 25'
FACE DRIVEN ROLLS ........................ 5.25" DIA x 74"
FOOTE-JONES AC GEAR MOTOR DRIVE .......... 10 HP/230/460 V
PASSLINE HEIGHT .......................... 35" PASSLINE HEIGHT
COIL UNLOAD CONVEYOR:
FACE DRIVEN ROLLS ........................ 5.25" DIA x 74"
FOOTE-JONES AC GEAR MOTOR DRIVE .......... 3 HP/230/460 V
AIR BAGS FOR IMPACT ISOLATION ............ YES
PASSLINE HEIGHT .......................... 35"
Brand
LOOPCO
Type
Banding Machinery/Lines
Stock No.
10955
 |
419-269-2000 |
Stock #: 10955
