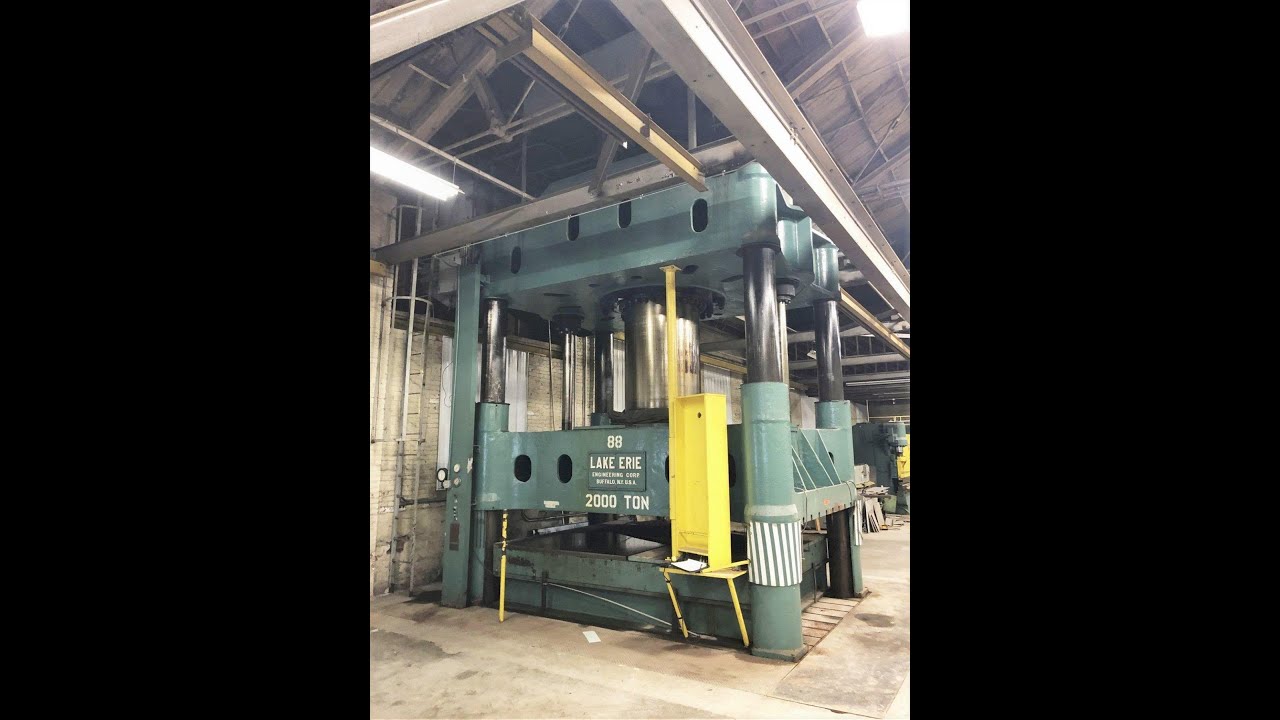

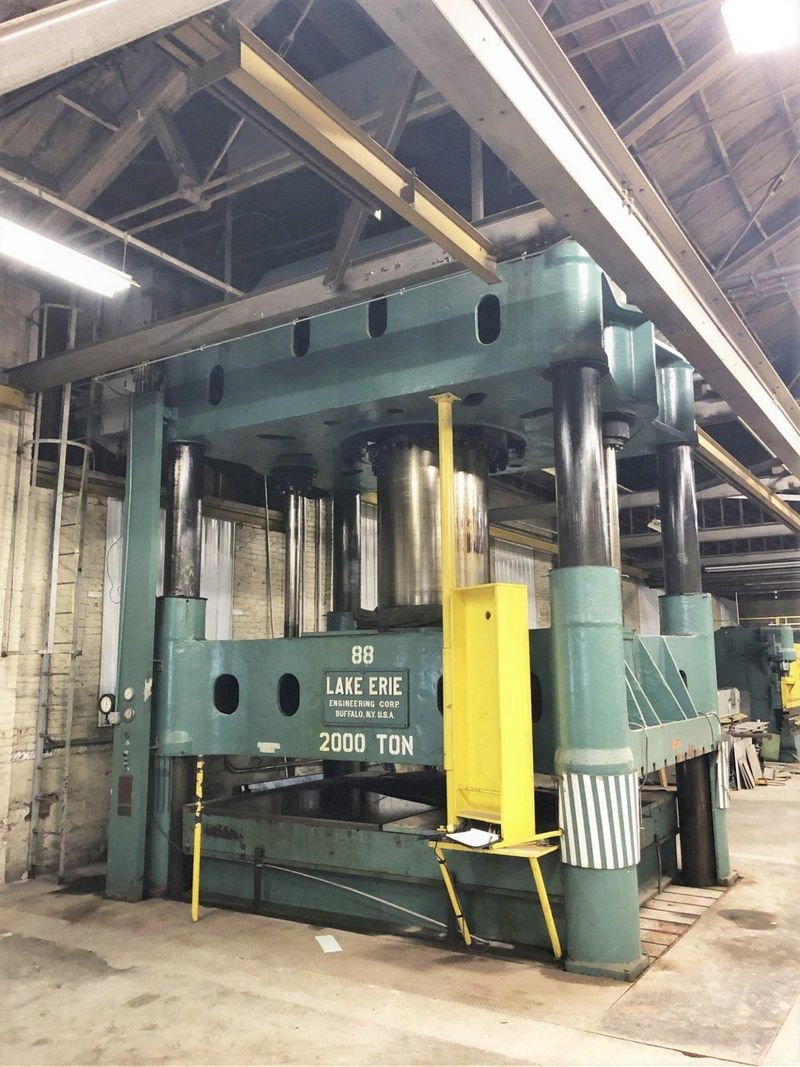

2000 TON LAKE ERIE MODEL DC-SA 4-POST HYDRAULIC PRESS: STOCK #15557

Overview

CAPACITY ........................ 2000 TONS AT 2520 PSI

MAX STROKE ...................... 60″

DAYLIGHT TO BED ................. 40″ TO 108″ WITH 31″ RISER [71″ TO 139″ WITHOUT RISER]

OVERALL BED AREA ................ 186″ X 132″ (RL X FB)

OVERALL RAM AREA ................ 186″ X 96″ (RL X FB)

BETWEEN THE POSTS ............... 151″ X 96″ (RL X FB)

USABLE BED AREA ................. 151″ X 132″ (RL X FB)

SPEEDS .......................... 125 IPM CLOSING / 10.4 IPM PRESSING / 125 IPM RETURN

FLOOR TO BED .................... 60″

CYLINDER SIZE ................... 45″ DIA. BORE

2-PULL BACK CYLINDERS ........... 6.5″ AND 11.25″ DIA.

HYDRAULICS ...................... OILGEAR DH-10025 HYDRAULIC PUMP

ELECTRICS ....................... 100 HP WESTINGHOUSE LIFE-LINE MOTOR 440V-3-60 | 122 AMPS

CONTROLS ........................ UPDATED ALLEN-BRADLEY SMC-FLEX SOFT-START AND RELAY LOGIC CONTROLS

DIMENSIONS ...................... 17’4″ X 13’4″ (RL X FB) X 30’6″ HIGH

APPROX. WEIGHT .................. 450,000 LBS

EQUIPPED WITH ................... FLOOR STANDING DESIGN FLUSH WITH GROUND.

NOTE ............................ PRINTS ARE WITH CUSHION IN BED BUT THIS PRESS DOES NOT HAVE CUSHION

This machine has been sold, but explore our inventory for similar options available now.
